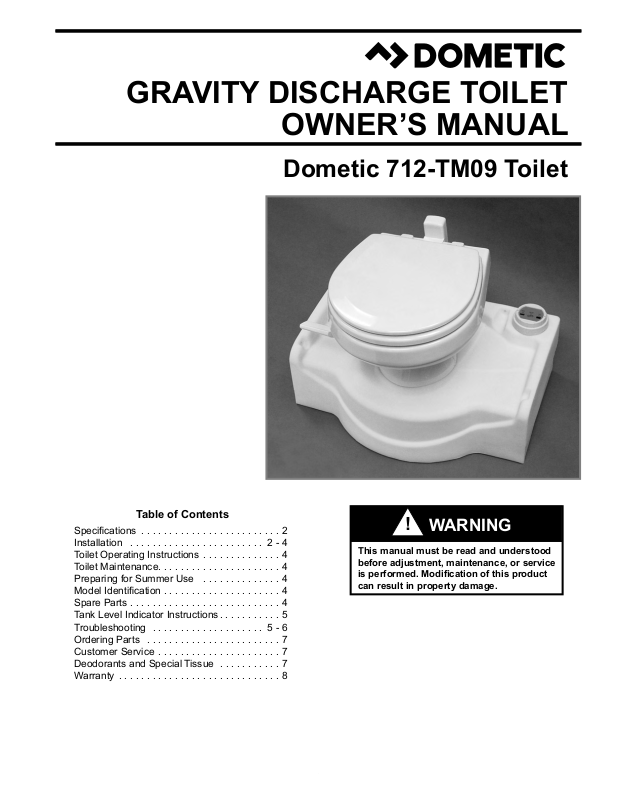

Dometic 712-TM09 User guide
GRAVITY DISCHARGE TOILET
OWNER’S MANUAL
Dometic 712-TM09 Toilet
Table of Contents
Specications .........................2
Installation ........................ 2 - 4
Toilet Operating Instructions ..............4
Toilet Maintenance. . . . . . . . . . . . . . . . . . . . . . 4
Preparing for Summer Use ..............4
Model Identication .....................4
Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tank Level Indicator Instructions ...........5
Troubleshooting .................... 5 - 6
Ordering Parts ........................7
Customer Service ......................7
Deodorants and Special Tissue ...........7
Warranty .............................8
!
WARNING
This manual must be read and understood
before adjustment, maintenance, or service
is performed. Modication of this product
can result in property damage.
1
SPECIFICATIONS
INSTALLATION INSTRUCTIONS
Product Name: 712-TM09 Dometic Toilet
System:
Average water consumption per ush . 1 qt. (.95 L)
Minimum water consumption per ush. 1 pt. (.47 L)
Holding tank capacity .............9 gal. (34.1 L)
Water supply pressure . 5-80 PSI (.35-5.62 Kg/cm2)
Water inlet size.............. 1/2" (13 mm) NPT
Holding tank discharge tting ....3" (76 mm) spigot
Vent tting........for 1-1/2" (38 mm) ID PVC pipe
Unit weight ....................41 lbs. (19 Kg)
Dimensions:
Tank:
1. Select position in bathroom where unit can be
installed in socket fitting and operate properly.
Allow room for using the ush lever and clearance
for raising the seat and lid.
2. Position the tank against three walls. Mark four
holes at mounts on tank base. After holes are
marked, remove tank, and drill pilot holes. Slide
tank back into position. Secure the tank with four
screws and washers on all tank mounts.
Overall height
with seat lid up is
31 1/4-inch
(794mm)
3. Insert 1-1/2 inch (38mm) I.D. PVC vent pipe into a
rubber sealing grommet in either corner of the tank,
no more than 1/2 inch (13mm) into tank. Be sure to
plumb vent pipe correctly to desired outside location.
All dimensions +/-3/8-inch (10mm)
2
INSTALLATION INSTRUCTIONS (cont’d)
Toilet Installation:
4. Remove plastic pedestal cover from toilet base.
5. Install the (4) 1/4-20 x 1-3/4" long studs in inserts on
the tank top.
6. Place oor ange seal on studs, aligning the studs
with bumps on seat. Note: “THIS SIDE UP” should
face upwards.
Water line:
8. Locate water valve at rear of ush lever.
9. Attach water supply line from water system to inlet
tting on back of water valve.
Flush pedal cover:
10. Place outer pedal cover over metal lever. Push pedal
down, and secure inner pedal cover to outer cover with
supplied fasteners.
7. Place toilet on studs and secure with four washers
and four nuts. There should be no gap between the
bottom of the toilet base and the top of the tank.
Pedestal cover:
11. Slide back side of pedestal cover around rear of
toilet base and snap in groove. Close front half of
pedestal cover and snap in groove.
3
