Model 711-M28 Toilet System
Gravity-discharge toilet
EN
Instruction manual
Filtro de ventilación
ES
Manual de instrucciones ........................6
Filtre de purge d'air
FR
Mode d'emploi ..............................10
1
Page 2
Table of Contents
Recommendations
Specications .........................2
Recommendations .....................2
Installation Instructions ............... 2 - 4
Operating Instructions ...................4
Maintenance ....................... 4 - 5
Preparing for Summer Use ...............5
Model Identication . . . . . . . . . . . . . . . . . . . . . 5
Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Customer Service ......................5
Troubleshooting Guide ..................6
Limited Warranty .......................8
Specifications
Product Name: Dometic 711-M28 Marine Toilet
Shipping Information:
Carton Sizes:
Toilet 21" x 18-1/2" x 13-1/2"
(533mm x 470mm x 343mm)
Tank 19-1/4" x 17-1/2" x 11-1/2"
(489mm x 445mm x 292mm)
Weight Approx. 49 lbs. (22Kg)
System:
Average water consumption per ush 1 Qt. (.95 L)
Minimum water consumption per ush 1 Pt. (.47L)
Holding tank capacity ...........9.5 Gal. (36L)
Fresh water supply pressure ........35-40 PSI
Water inlet size....................1/2" NPT
Holding tank discharge tting .......1-1/2" NPT
Vent tting....................... 5/8" Barb
Unit weight ..................41 Lbs. (19Kg)
1. Read the “Operating Instructions” section of the
manual carefully.
2. Make sure all guests understand the operation of
the Dometic toilet.
3. Carry a few spare parts for the maintenance purposes. Dometic has developed several repair kits
that will save you both time and expense should a
problem occur. See “Customer Service” section of
this manual.
4. Use only Dometic brand® Tissue and Holding Tank
Treatments to maintain a trouble-free system.
5. Do not use chlorine or caustic chemicals, such as
laundry bleach or drain opening types, in the
system. These products damage the seals in
toilets.
6. Do not ush foreign objects through the toilet.
7. Do not allow small problems to go unsolved. As
soon as a problem is detected, correct it.

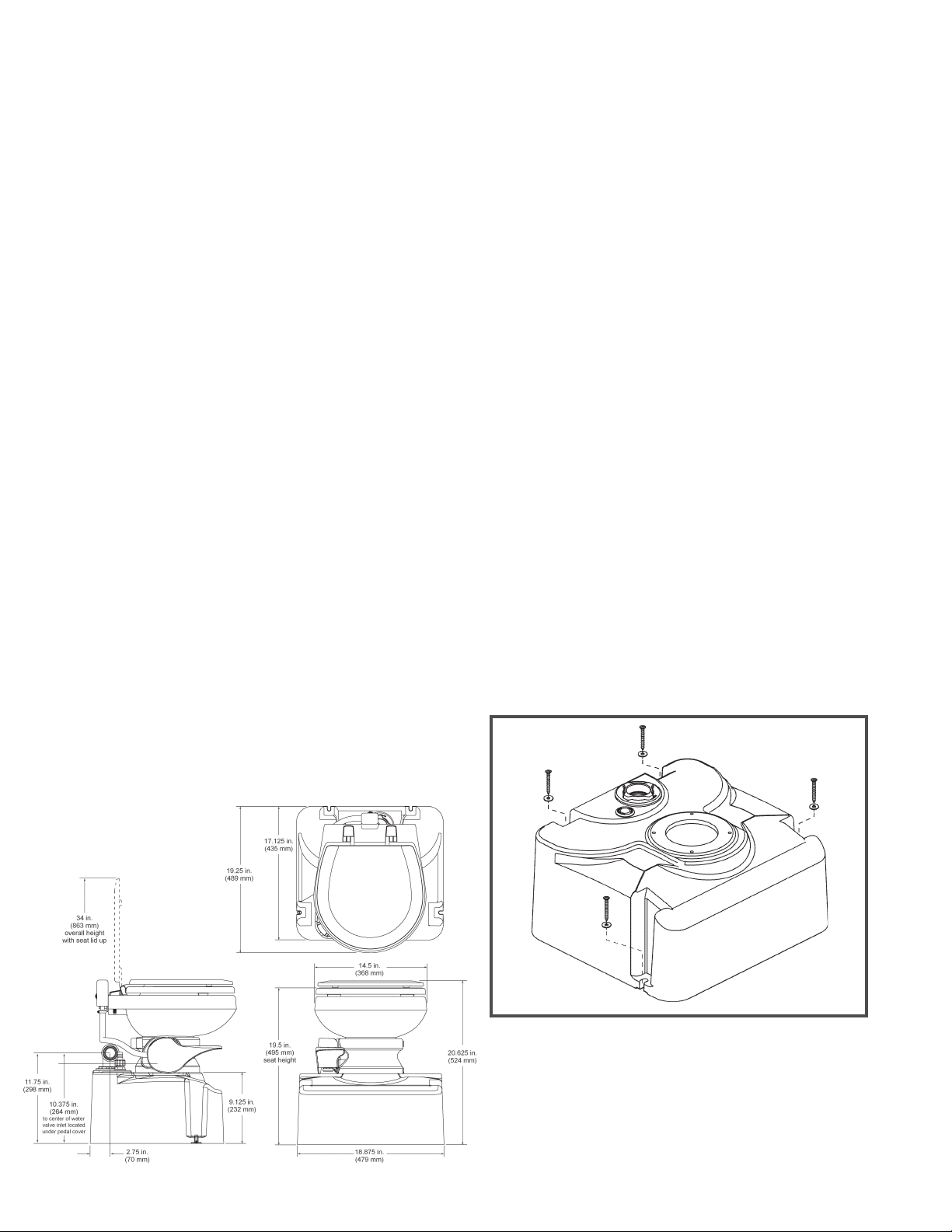

Installation Instructions
Tank:
1. Select position in bathroom where unit can operate
properly. Allow room for using the ush lever and
clearance for raising the seat and lid.
2. Position the tank 3/4" (19mm) away from the wall.
Mark four holes at mounts on tank base. After holes
are marked, remove tank, and drill pilot holes. Slide
tank back into position. Secure the tank with four
#14 x 2" long pan head screws and washers on all
tank mounts.
Dimensions:
3. Run 5/8" (16mm) I.D. hose to vent tting and secure
with hose clamps.
Install thru-hull vent tting:
(not supplied with unit – Dometic part number 307236368)
4. Drill hole through the hull, well above water line
and directly above Dometic toilet. Hole location is
determined by routing and length of hose.
2
Page 3

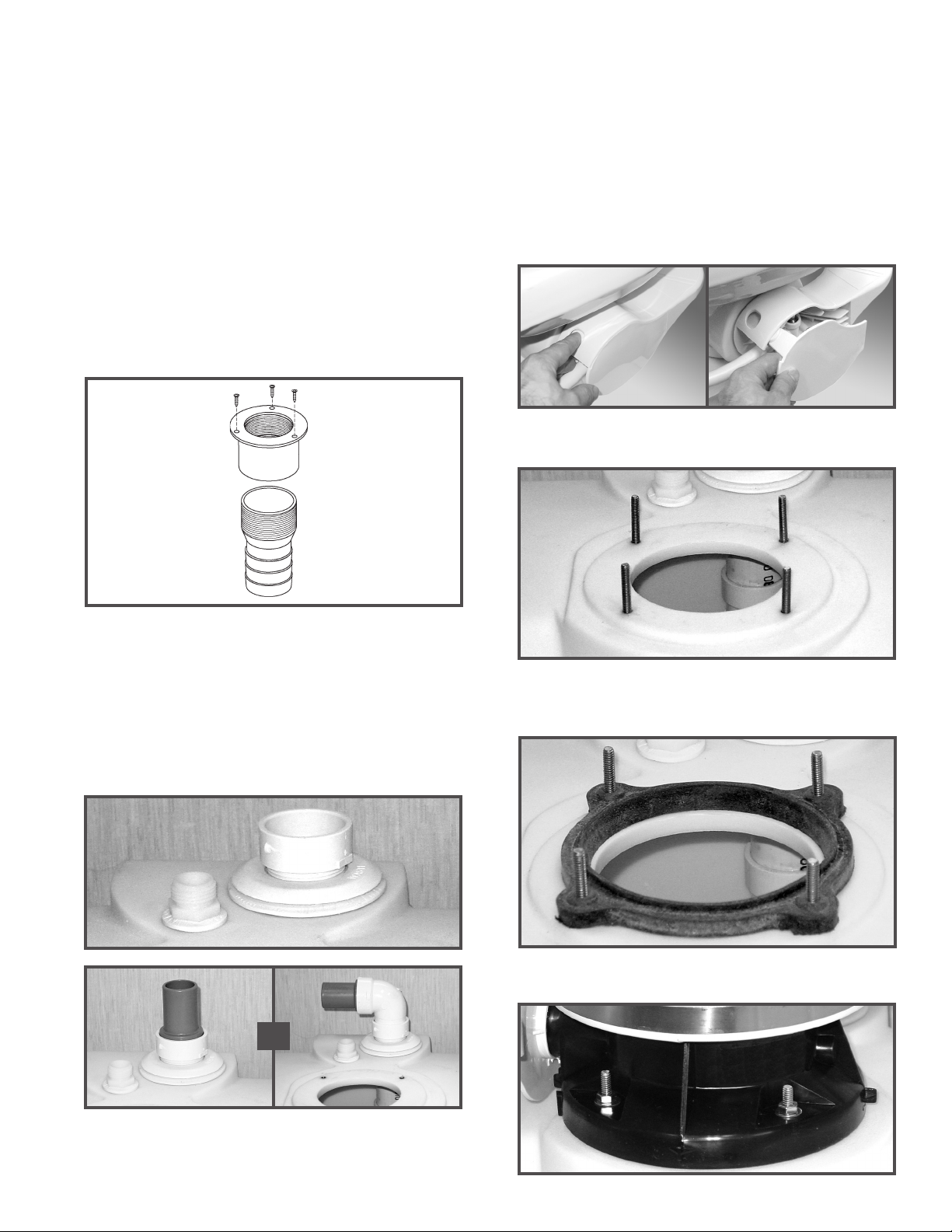

Installation Instructions (cont’d)
5. Apply waterproof caulk around underside of thru-hull
vent tting.
6. Install thru-hull vent tting and secure snugly with
nut. Wipe off excess caulk with damp cloth.
7. Attach remaining end of vent hose to thru-hull
tting with hose clamp.
Dockside Discharge Fitting:
(not supplied by Dometic)
8. Drill hole in deck directly above Dometic toilet. Hole
location is determined by routing space and length
of hose.
9. Screw 1-1/2" FPT x 1-1/2" hose barb into bottom of
deck tting.
12. Route hose from tank to deck tting and secure with
hose clamp.
Note: The holding tank on the 711-M28 is designed
to withstand discharge by a properly operating
discharge pump.
Toilet Installation:
13. Push button on back of ush pedal, then pull ush
pedal cover away from pedal to expose water valve.
Remove plastic pedestal cover from toilet base.
14. Install the (4) 1/4-20 x 1-3/4" long studs in inserts on
the tank top.
10. Apply waterproof caulk around deck hole and install
deck tting into 2-1/4" (57mm) hole with screws. Wipe
off excess caulk with a damp cloth.
11. Install 1-1/2" MPT x HUB adapter into discharge
tting on holding tank. If necessary, PVC cement
elbow and hose adapter or hose adapter only into
1-1/2" (38mm) adapter. Secure 1-1/2" (38mm) hose
to adapter with hose clamp.
or
15. Place oor ange seal on studs, aligning the studs
with bumps on seat. Note: “THIS SIDE UP” should
face upwards.
16. Place toilet on studs and secure with four washers
and four nuts.
3
Page 4

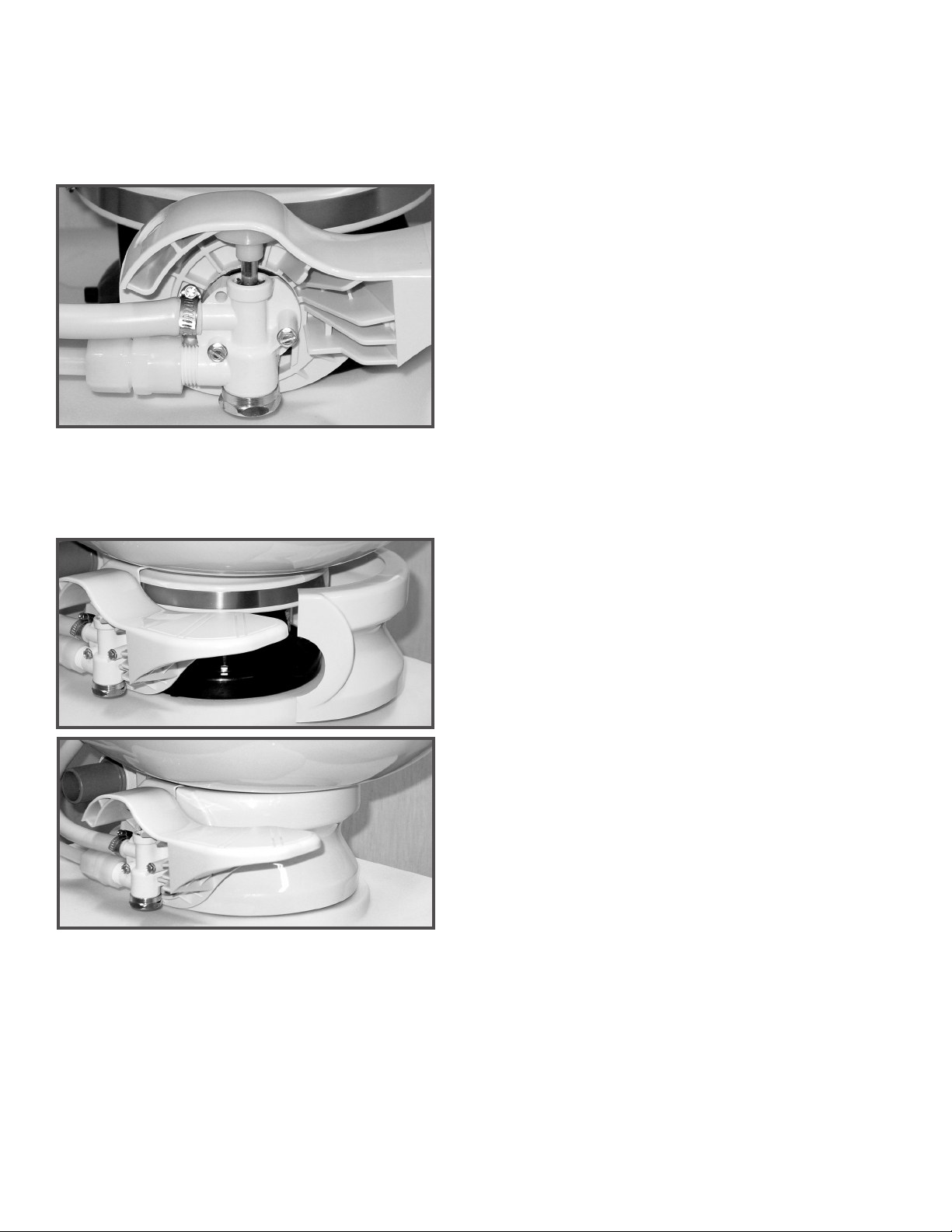

Installation Instructions (cont'd)
Operating Instructions
Water line:
17. Locate water valve at rear of ush lever.
18. Attach water supply pipe or hose from water system
to inlet tting on back of water valve.
Pedestal cover:
19. Slide back side of pedestal cover around rear of
toilet base and snap in groove. Close front half of
pedestal cover and snap in groove.
To properly use the Dometic toilet, follow these simple
instructions:
1. A good biodegradable tissue such as Dometic® brand
is recommended.
2. To add water to the toilet before using, lift or raise
the ush pedal.
3. To ush toilet, push pedal all the way down until
sewage leaves the toilet bowl. Water ow pressures
vary at different locations and therefore, holding the
ush lever down 4-8 seconds may be required. We
recommend 2-4 GPM (8-15 Lpm) for proper rim and
bowl wash.
4. Release ush pedal by allowing it to snap back, which
permits positive sealing around the ush ball.
5. A small amount of water should remain in the bowl.
Note: Holding the ush pedal down longer than neces-
sary results in excessive water usage.
CAUTION: Do not dispose of sanitary napkins or other
non-dissolving items in the toilet.
Maintenance
Flush pedal cover:
20. Put ush pedal cover back in place.
CLEANING
The Dometic toilet should be cleaned regularly for
maximum sanitation and operational efciency.
Clean the toilet bowl with a mild bathroom cleaner,
such as Dometic® Toilet Bowl Cleaner. Do not use
chlorine or alcohol-based caustic chemicals such as
drain opening types, as they will damage the seals.
If an odor is apparent from the toilet:
1. Clean out system by ushing several gallons of fresh
water through with one cup of liquid laundry soap.
2. Add odor control deodorant in amount specied for
your holding tank capacity after cleaning and every
few days during use.
WINTERIZING
At the end of each season, the Dometic toilet should be
winterized for storage by either draining or using potable,
water-safe antifreeze in the system.
To drain:
1. Thoroughly ush system with fresh water.
2. Empty holding tank.
3. Shut off water supply to toilet. Remove inlet
waterline.
4. Press flush lever until all water is drained from
toilet.
4
Page 5
Maintenance (cont’d)
Customer Service
To use antifreeze:
1. Thoroughly ush system with fresh water.
2. Empty holding tank.
3. Drain potable water tank.
4. Add freshwater antifreeze and water mixture
through toilet and into the waste holding tank. Each
installation is different, so amounts may vary. User
discretion is required to assure adequate protection.
5. Empty holding tank.
Note: Use nontoxic antifreeze designated for potable
water systems (see boat owner’s manual).
CAUTION: Never use automotive-type antifreeze in
freshwater systems.
Preparing For Summer Use
To prepare the Dometic toilet for summer use, turn on
water supply and check system for leaks. Flush toilet,
check for leaks and repair as necessary. Your Dometic
toilet is now ready for use.
Dometic has a strong, worldwide network to assist in
servicing and maintaining your Dometic toilet if parts
or service are required. Before calling, please have the
following information available. Your cooperation in having this information ready is appreciated and allows our
Customer Service Department to better meet your needs.
When you call, we will direct you to the nearest parts
distributor.
1. Toilet Model Number
2. Serial Number
3. Part Number, Description and Quantity (See Parts
List.)
When you have gathered all the required information,
call us at one of the following telephone numbers from
8:00 a.m. to 5:00 p.m. (Eastern Time) Monday through
Friday, or email us.
Telephone: 1- 800-321-9886 USA and Canada
330-439-5550 International
Fax: 330- 496-3097 USA and Canada
330-439-5567 International

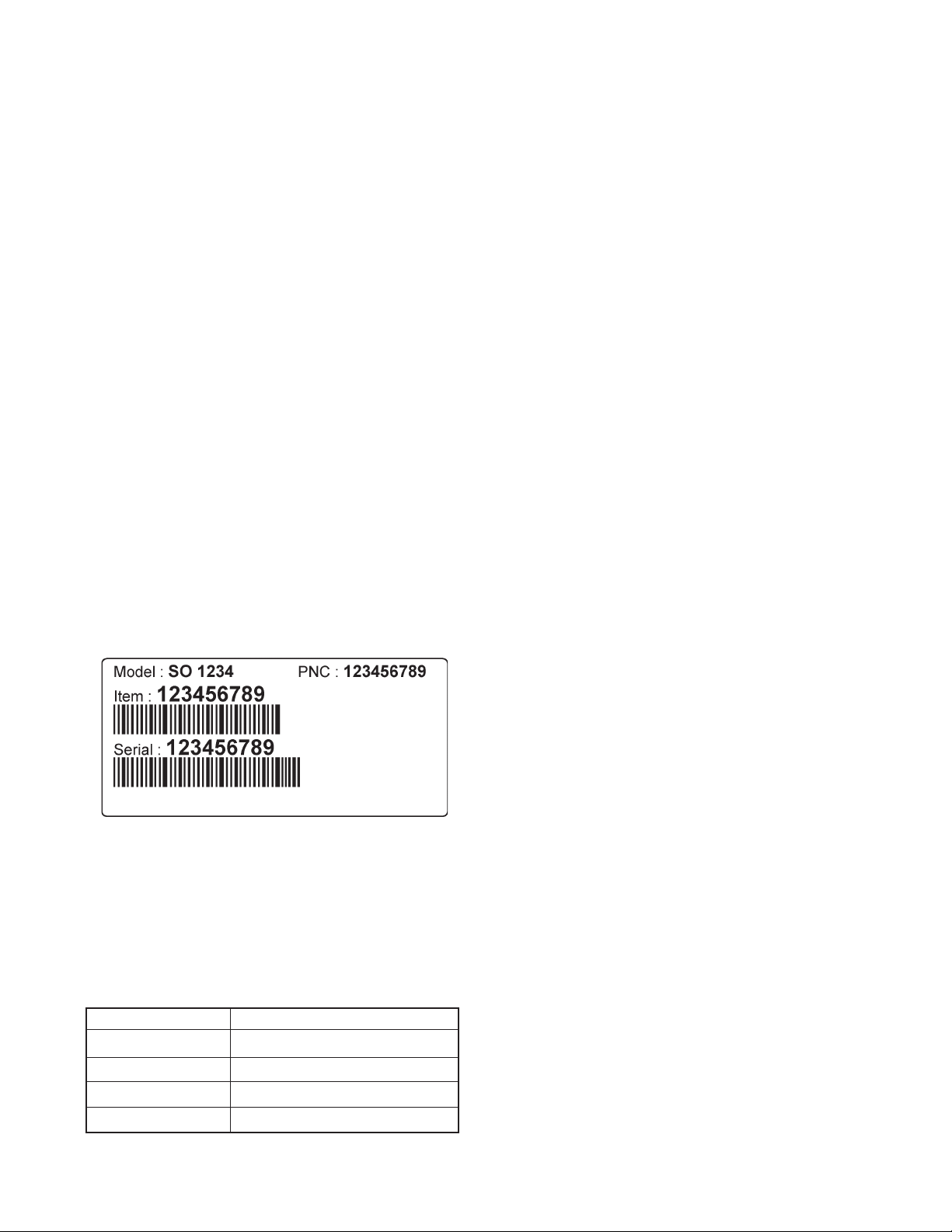

Model Identification
The model identication label is located on the base of
the toilet under the pedestal cover (see back page for
illustration).
Spare Parts
Your Dometic 711-M28 toilet is designed for years of
dependable trouble free service. However, during the life
of the product certain parts may require replacement.
The following is a list of parts kits which may be required
for maintenance purposes.
Part Number Description
385310681 Ball, Shaft & Cartridge Kit
385311462 Seal Kit
385314349 Water Valve Kit
385316906 Vacuum Breaker Kit
5
Page 6
Troubleshooting Guide
Problem Possible Cause Service Instructions
1. Water will not stay in bowl.
2. Plastic ush ball will not
close completely.
3. Water does not shut off in
toilet (toilet overows).
4. Water does not enter toilet
bowl properly.
a. Loose clamp.
b. Improper seal around ush ball due
to dirt or debris on underside of
ush ball seal.
c. Worn or damaged seal.
d. Worn or damaged ush ball.
a. Clamp ring is overtightened,
causing too much tension on seal
and ush ball.
b. Weak or defective spring cartridge.
a. Dirt lodged in water valve seal.
b. Cam strap is bent down, holding
water valve open.
c. Worn or defective water valve.
d. Worn or defective spring cartridge.
a. Low water pressure.
b. Water valve clogged.
a. Tighten clamp ring adjusting nut.
b. Inspect ush ball and underside of
seal for foreign objects.
Clean if necessary.
c. Replace seal.
d. Replace ush ball.
a. Loosen clamp ring.
b. Check spring tension by letting up
on ush lever suddenly. If lever
does not snap back, replace spring
cartridge.
a. Disassemble and clean water
valve.
b. Bend front of cam strap up about
1/16" (1.6mm).
c. Replace water valve assembly.
d. Replace spring cartridge.
a. Check incoming water pressure.
b. Remove and clean lter screen
located on inlet of water valve.
5. Water leaking from water
valve.
6. Water leaking from rear of
toilet bowl.
a. Loose connection.
b. Worn or defective water valve.
c. Water line connection not seated
properly.
d. Stripped threads.
e. Seal worn or missing.
f. Valve body cracked.
a. Loose hose connection.
b. Loose vacuum breaker.
c. Worn or defective vacuum breaker.
d. Cracked or defective toilet bowl.
a. Tighten bottom cap, inlet tting
and outlet hose clamp.
b. Replace water valve.
c. Insure that threads are not cross-
threaded and tighten.
d. Replace water valve.
e. Replace water valve.
f. Replace water valve.
a. Tighten hose connections.
b. Tighten vacuum breaker-to-bowl
connection.
c. Replace vacuum breaker
assembly.
d. Replace toilet bowl.
6
Page 7
This page is intentionally left blank.
7
Page 8
Limited Warranty
THE SELLER NAMED BELOW MAKES THE FOLLOWING WARRANT Y WITH RESPECT TO
DOMETIC GRAVITY-FLUSH TOILET MODEL 711-M28 ONLY
1. TWO-YEAR LIMITED WARRANTY
1A. This Limited Warranty will be in effect for two years from the date of purchase.
1B. This Limited Warranty is made only to the First Purchaser (hereinaf ter called the “Original Purchaser”) who acquired the product for
Original Purchaser’s personal, family, or household-type use. The Original Purchaser should retain a copy of the sales receipt or invoice as
evidence of the date of purchase because proof of purchase is required to obtain warranty service.
1C. If this product is placed in commercial or business use, it will be warranted, to the Original Purchaser only, to be free of defects in material and
workmanship for a period of 90 days from the date of purchase.
1D. This warranty covers all parts of the Dometic toilet which is warranted to be free of defects in material and workmanship under normal use.
This warranty does not cover conditions unrelated to the material and workmanship of the product. Such unrelated conditions include, but
are not limited to, (a) faulty installation and any damage resulting from such; (b) the need for normal maintenance and any damage resulting from failure to provide such maintenance; (c) failure to follow Seller’s instructions for use of this product, including failure which may
result from not following winterization procedures; (d) any accident that results in damage to this product; (e) scratching or staining of any
ceramic or plastic component; and (f) acts of God, or misuse of any part of this product and any alteration by anyone other than the Seller.
1E. For Original Purchaser (ONLY) to obtain the benets of this Warranty during the 2-year period (for personal use) or 90-day period
(for commercial use), the following shall apply:
(a) Original Purchaser shall contact the local dealer from whom the product was purchased; or contact the Seller
Customer Service Department at 1-800-321-9886 (8 a.m.-5 p.m. ET, USA) and provide the local dealer or
Seller Customer Service Department with sales receipt or invoice, product model and serial number from
product. The product model identication label is located on the toilet base under the pedestal cover (see
illustration).
(b) If product, while still under warranty, is returned to local dealer where purchased, the local dealer will repair,
replace or refund the product per this Warranty and as authorized by the Seller. Seller will provide necessar y
replacement parts or product free of charge to Original Purchaser, including freight on such replacement
parts or product, and Seller will pay direct labor charges for such repair or replacement.
(c) Under no circumstances will Seller pay or be liable for any of Original Purchaser’s or dealer’s travel charges
or other expenses associated with bringing the product or recreation vehicle to the dealer for repair, for
providing dealer with access to the product or vehicle, or for downtime of the product or vehicle.
(d) Original Purchaser may be required to return defective product or parts when requested by Seller; in such event,
Seller will pay related freight costs.
Locati on of pro duct I D label
2. THE SELLER DOES NOT AUTHORIZE ANY PERSON OR COMPANY TO CRE ATE OR EXTEND ANY WARRANTY OBLIGATIONS
OR LIABILITY ON ITS BEHALF.
3. REPAIR OR REPLACEMENT OF, OR REFUND FOR, DEFECTIVE PRODUCT, AT SELLER’S OPTION, SHALL BE THE ORIGINAL
PURCHASER’S SOLE REMEDY UNDER THIS LIMITED WARRANTY.
IN NO EVENT SHALL SELLER BE LIABLE FOR PURCHASER’S INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
4. SELLER DISCLAIMS ALL OTHER WARRANTIES WITH RESPECT TO THE PRODUCT, WHETHER EXPRESS OR IMPLIED,
AND SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED WARR ANTIES OR HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
5. THIS WARR ANT Y GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STAT E TO STATE .
REVISION B
Form No. 600342689 1/18
©2018 Dometic Corporation
SELLER:
Dometic Corporation - Sanitation Div.
13128 SR 226
Big Prairie, Ohio 44611 USA
330-439-5550
Dometic Corporation, Sanitation Division
13128 State Rt. 226, P.O. Box 38
Big Prairie, OH 44611 USA
1-800-321-9886 • Fax: 330-496-3097
www.Dometic.com
8
Loading...
