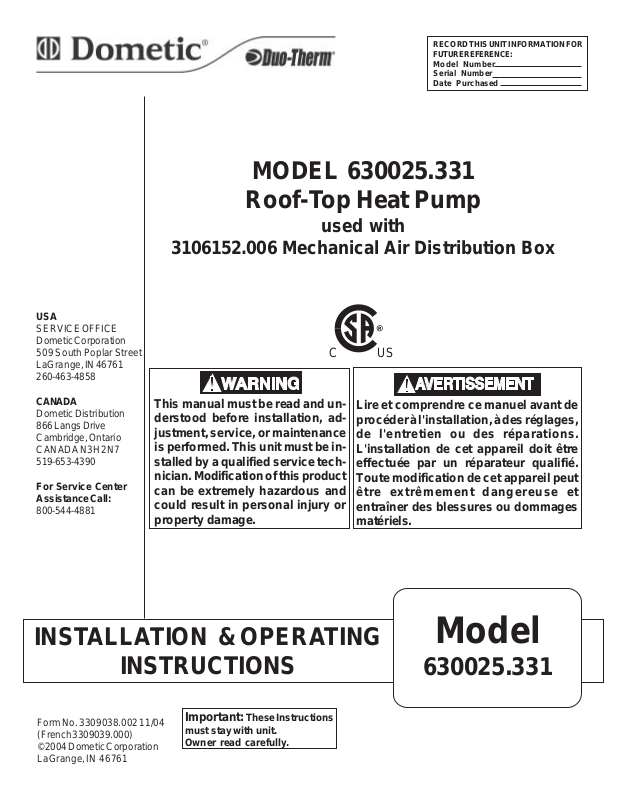

Dometic 630025.331 User Manual
USA
C
S
SERVICE OFFICE
Dometic Corporation
509 South Poplar Street
LaGrange, IN 46761
260-463-4858
RECORD THIS UNIT INFORMATION FOR
FUTURE REFERENCE:
Model Number
Serial Number
Date Purchased
MODEL 630025.331

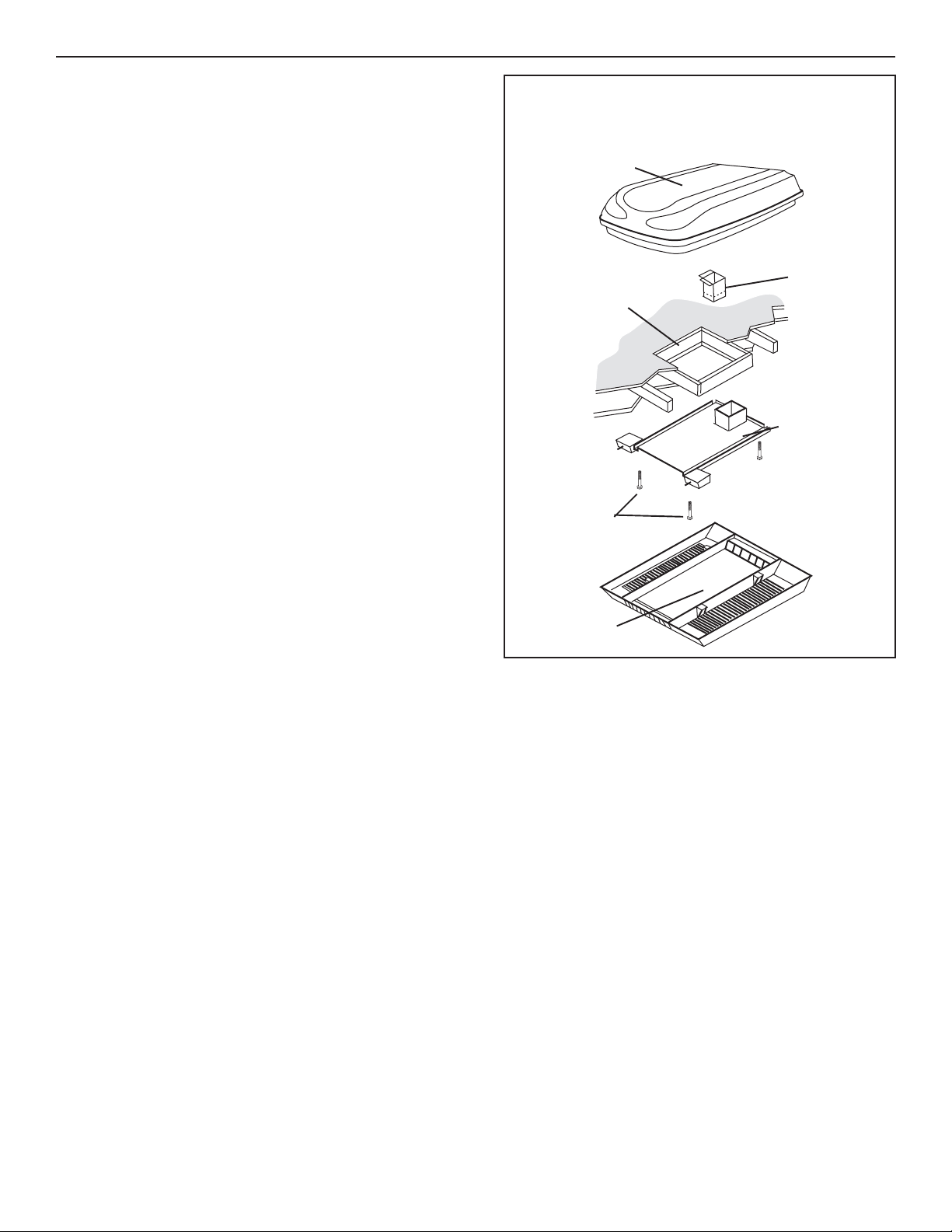

Roof-T op Heat Pump
used with

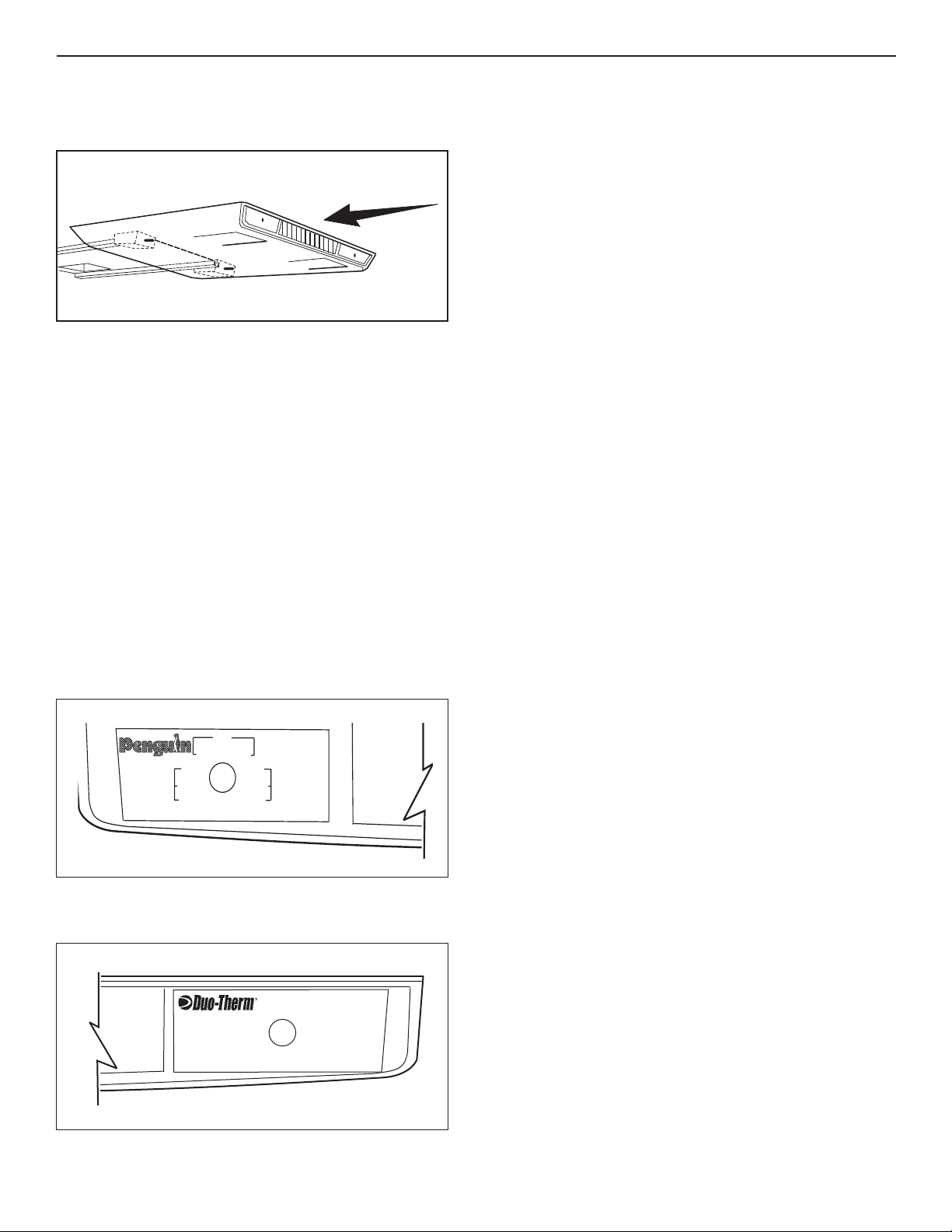

3106152.006 Mechanical Air Distribution Box
U
CANADA
Dometic Distribution
866 Langs Drive
Cambridge, Ontario
CANADA N3H 2N7
519-653-4390
For Service Center
Assistance Call:
800-544-4881
This manual must be read and understood before installation, adjustment, service, or maintenance
is performed. This unit must be installed by a qualified service technician. Modification of this product
can be extremely hazardous and
could result in personal injury or
property damage.
Lire et comprendre ce manuel avant de
procéder à l'installation, à des réglages,
de l'entretien ou des réparations.
L'installation de cet appareil doit être
effectuée par un réparateur qualifié.
Toute modification de cet appareil peut
être extrêmement dangereuse et
entraîner des blessures ou dommages
matériels.
INST ALLA TION & OPERA TING
INSTRUCTIONS
Model
630025.331
Form No. 3309038.002 11/04
(French 3309039.000)
©2004 Dometic Corporation
LaGrange, IN 46761
Important: These Instructions
must stay with unit.
Owner read carefully.
1
630025.331 Installation Instructions
SAFETY INSTRUCTIONS
This manual has safety information and instructions to help users eliminate or reduce the risk of
accidents and injuries.
RECOGNIZE SAFETY INFORMATION
!
This is the safety-alert symbol. When you see this
symbol in this manual, be alert to the potential for
personal injury .
Follow recommended precautions and safe operating instructions.
UNDERSTAND SIGNAL WORDS
A signal word , WARNING OR CAUTION is used
with the safety-alert symbol. They give the level of
risk for potential injury .
WARNING
!
ous situation which, if not avoided, could result in
death or serious injury .
CAUTION
!
ous situation which, if not avoided may result in
minor or moderate injury .
CAUTION
symbol indicates, a potentially hazardous situation which, if not avoided may result in property
damage.
Read and follow all safety information and instructions.
indicates a potentially hazard-
indicates a potentially hazard-
used without the safety alert
GENERAL INFORMATION
A. Product features or specifications as described or illustrated
are subject to change without notice.

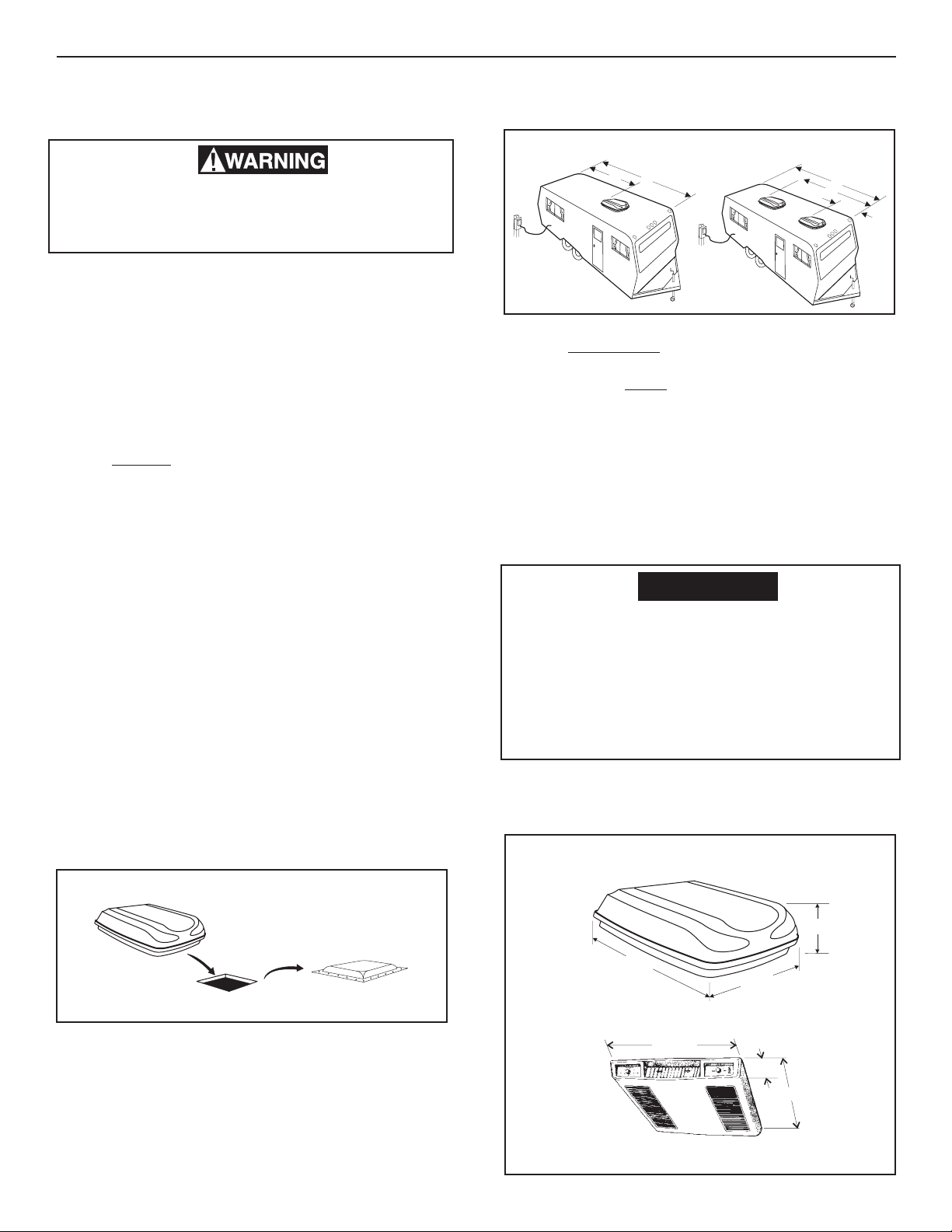

B. This Air Conditioner Is Designed For:

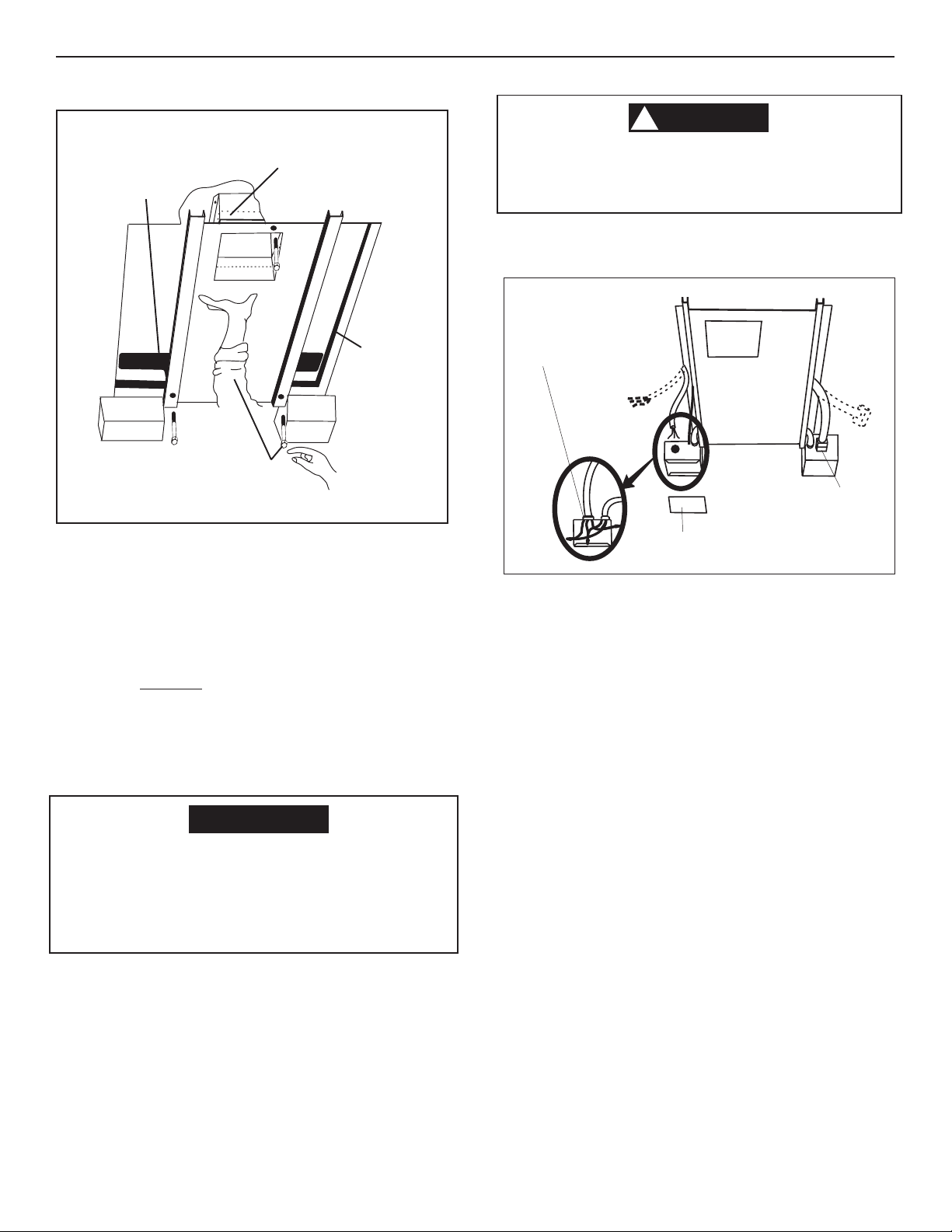

1. Installation on a recreational vehicle during the time
the vehicle is manufactured.

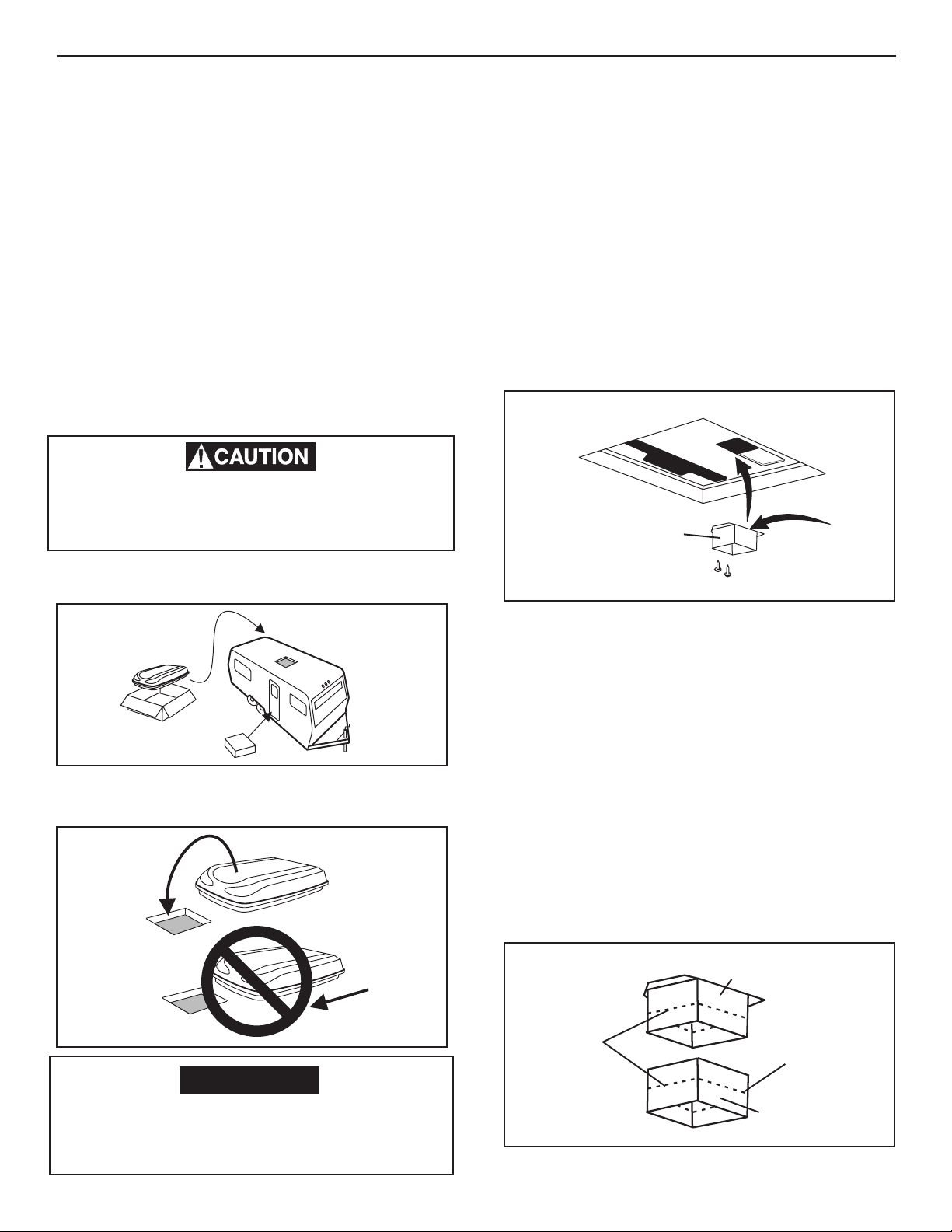

2. Mounting on the roof of a recreational vehicle.

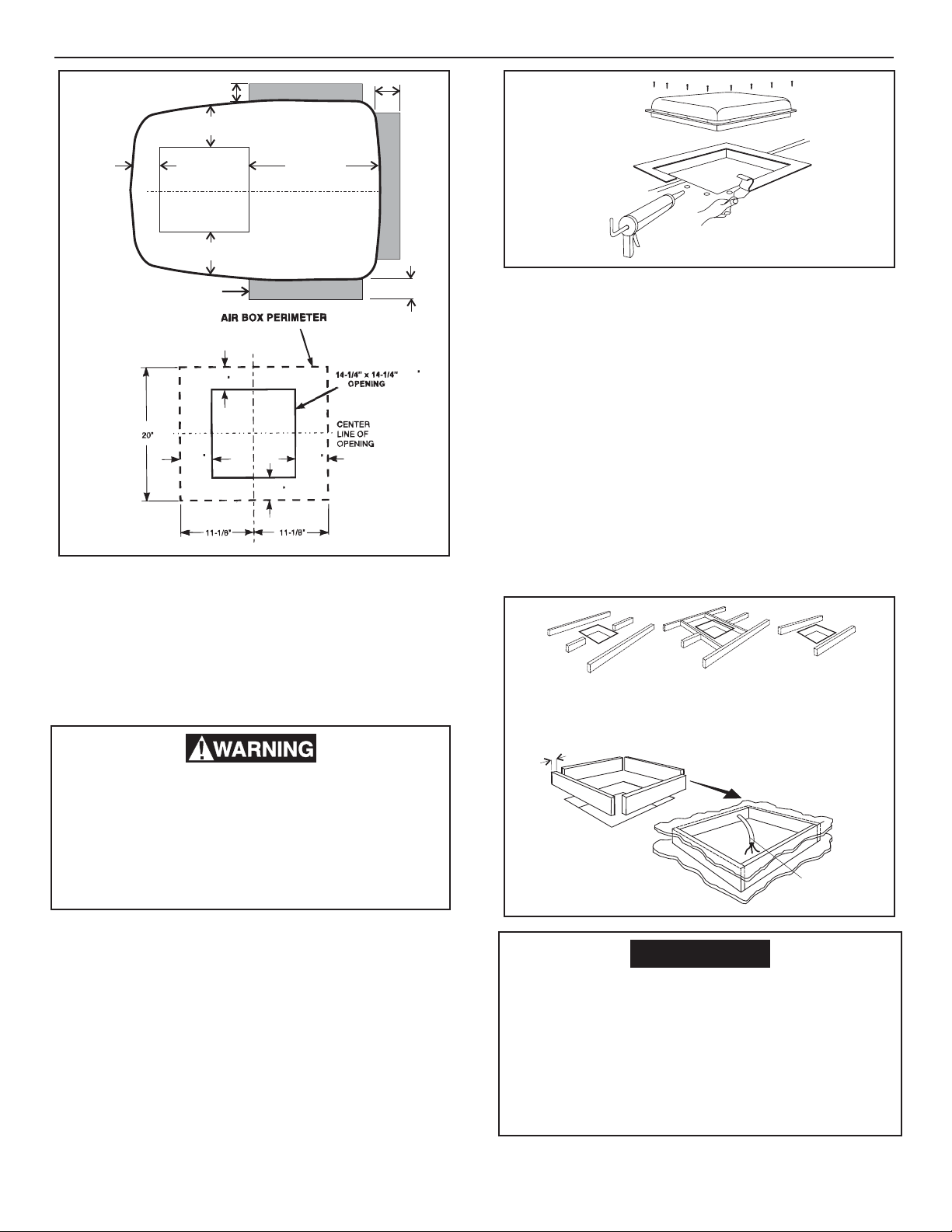

3. Roof construction with rafters/joists on minimum of 16
inch centers.
4. Minimum of 2.00 inches and maximum of 4.00 inches
distance between roof to ceiling of recreational vehicle.
Alternate installation methods will allow for roofs more
than 4.00 inches thick.
C. The ability of the air conditioner to maintain the desired
inside temperature depends on the heat gain of the RV.
Some preventative measures taken by the occupants of the
RV can reduce the heat gain and improve the performance of
the air conditioner. During extremely high outdoor temperatures, the heat gain of the vehicle may be reduced by:
1. Parking the RV in a shaded area
2. Using window shades (blinds and/or curtains)
3. Keeping windows and doors shut or minimizing usage
4. Avoiding the use of heat producing appliances
Operation on High Fan/Cooling mode will give optimum or
maximum efficiency in high humidity or high outside temperatures.
Starting the air conditioner early in the morning and giving it a
"head start" on the expected high outdoor ambient will greatly
improve its ability to maintain the desired indoor temperature.
For a more permanent solution to high heat gain, accessories like
A&E outdoor patio and window awnings will reduce heat gain by
removing the direct sun. They also add a nice area to enjoy
company during the cool of the evening.
D. Condensation
Note: The manufacturer of this air conditioner will not be respon-
sible for damage caused by condensed moisture on ceilings or
other surfaces. Air contains moisture and this moisture tends to
condense on cold surfaces. When air enters the RV, condensed
moisture may appear on the ceiling, windows, metal parts, etc.
The air conditioner removes this moisture from the air during
normal operation. Keeping doors and windows closed when this
air conditioner is in operation will minimize condensed moisture
on cold surfaces.
2
Up To 24'
630025.331 Installation Instructions
SPECIFICATIONS
Cooling Amps Amps W.C. Supplied 1Unit/2Units
(BTU/HR) Amps Rotor Amps Rotor Max/Min Max/Min ***User (Pounds) Size**

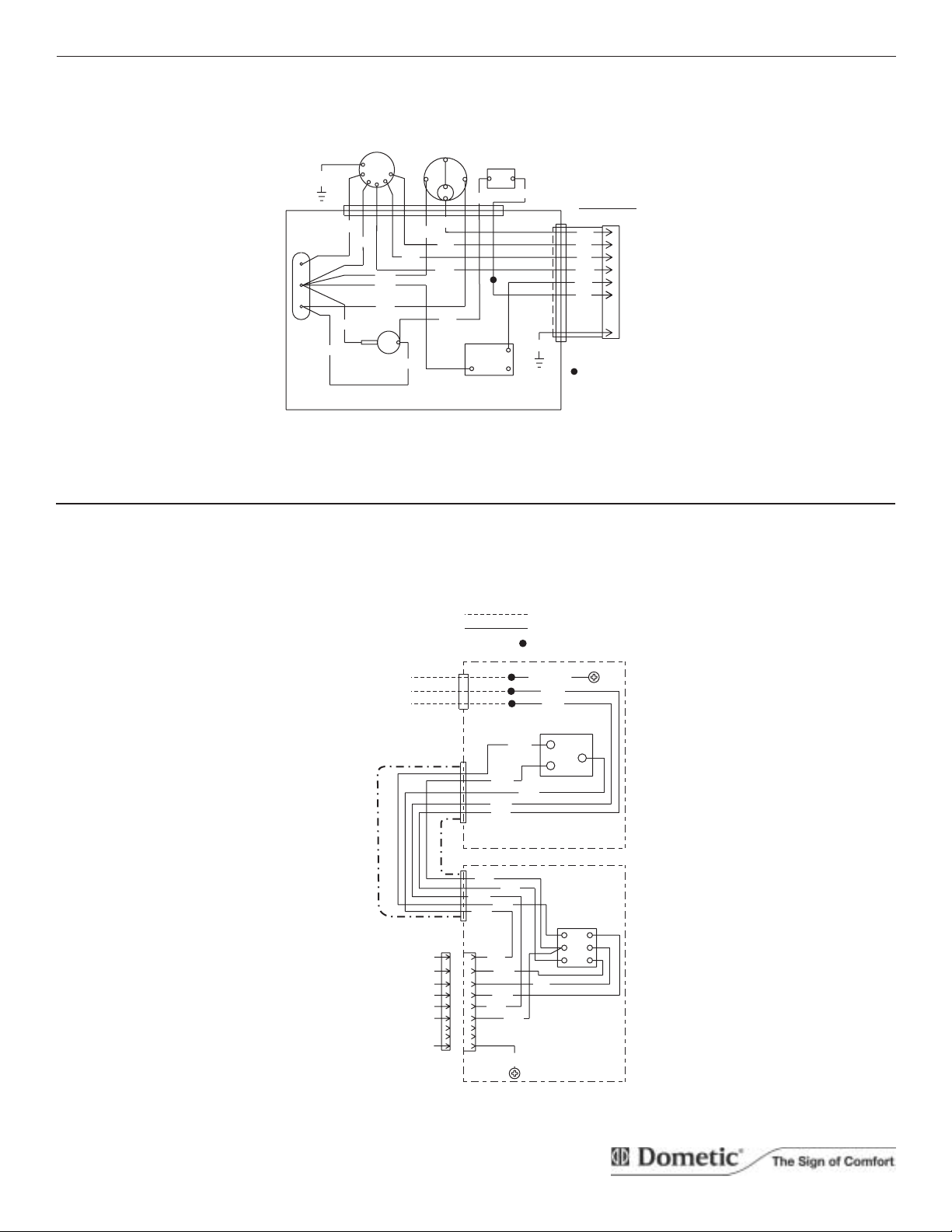

120 VAC, 12AWG
60 Hz., 1 PH Copper
Model Nominal Electrical Compressor Compressor Fan Motor Fan Motor SCFM-High Total Refrigerant Minimum AC Circuit Installed Minimum
No. Capacity Rating Rated Load Locked Rated Load Locked Speed Static R-22 (Oz.) Wire Size* Protection Weight Generator
630025.331 13,500 12.4 60.0 3.5 10.0 335 / 250 .012 / 0.65 23.5 20 Amp 99 3.5 KW / 5.0 KW
When sizing the generator, the total power usage of your recreational vehicle must be considered. Keep in mind generators lose power at high altitudes
an dfrom lack of maintenance.
* For wire length over 24 ft., consult the National Electric Code for proper sizing.
** Dometic Corporation gives GENERAL guidelines for generator requirements. These guidelines come from experiences people have had in actual applications.
*** CIRCUIT PROTECTION: Time Delay Fuse or HACR Circuit Breakers Required.
3
