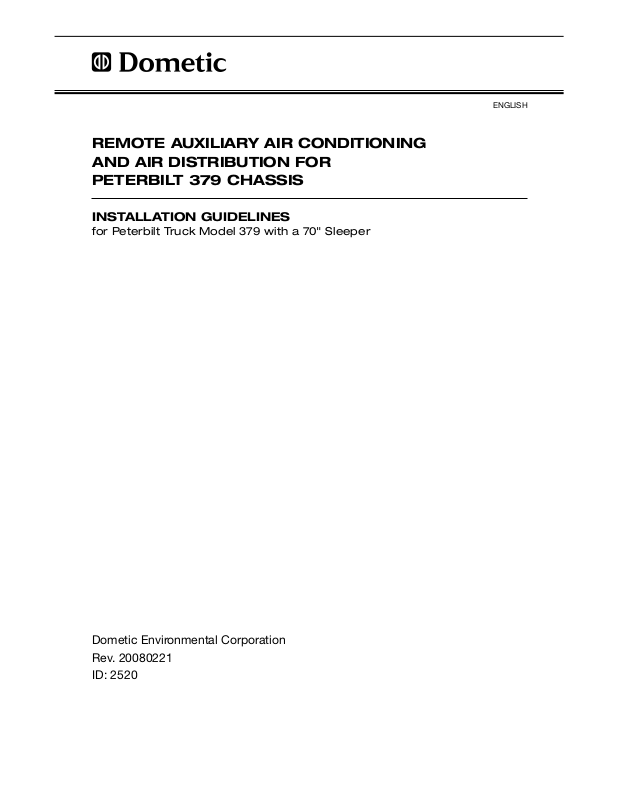

Dometic 379 User Manual

REMOTE AUXILIARY AIR CONDITIONING
AND AIR DISTRIBUTION FOR
PETERBILT 379 CHASSIS

INSTALLATION GUIDELINES

for Peterbilt Truck Model 379 with a 70" Sleeper

ENGLISH

Dometic Environmental Corporation
Rev. 20080221
ID: 2520

COPYRIGHT © 2008 Dometic Environmental Corporation, All Rights Reserved.

No part of this publication may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical, photo­copying, recording or otherwise without prior written consent by Dometic Environmental Corporation. Every precaution has been taken in the preparation of this
manual to insure its accuracy. However, Dometic Environmental Corporation assumes no responsibility for errors and omission. Neither is any liability assumed for
damages resulting from the use of this product and information contained herein.

ENGLISH2

Peterbilt 379 Installation Guidelines

CONTENTS

INTRODUCTION 4

LOCATING THE COMPONENTS 5

INSTALLING THE CONTROL 6 – 8

INSTALLING THE RETURN AIR VENT 9

INSTALLING THE SUPPLY AIR DISTRIBUTION 10 – 11

ENGLISH 3

Peterbilt 379 Installation Guidelines

INTRODUCTION

This document contains supplemental guidelines for installing the Qt-series control and air distribution for the
Dometic auxiliary air conditioning system on a Peterbilt 379 chassis with a 70" sleeper. It is intended to be used
in conjunction with the standard installation manual, which covers all other aspects of installing, testing and
operating this system.

These are suggestions based on previous installations. Please be creative in your installation, but keep functionality
and safety in mind. Key issues are: evaporator discharge venting, evaporator return air and condenser air flow.
Other issues include: controls accessibility, condensate removal and wire and hose chafe protection.

Do not attempt to install any components until you read and understand the instructions in both manuals.

4

ENGLISH
