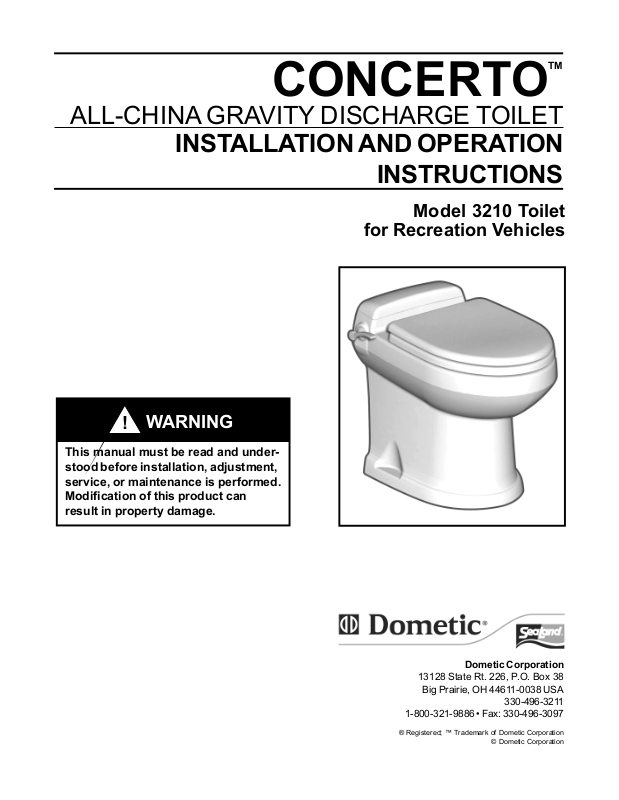

Dometic 3210 User Manual
TM
CONCERTO
ALL-CHINA GRAVITY DISCHARGE TOILET
INSTALLATION AND OPERATION
INSTRUCTIONS
Model 3210 Toilet
for Recreation Vehicles
WARNING
!
This manual must be read and understood before installation, adjustment,
service, or maintenance is performed.
Modification of this product can
result in property damage.
Dometic Corporation
13128 State Rt. 226, P.O. Box 38
Big Prairie, OH 44611-0038 USA
330-496-3211
1-800-321-9886 • Fax: 330-496-3097
® Registered; ™ Trademark of Dometic Corporation
1
© Dometic Corporation
TABLE OF CONTENTS
Toilet Model Identification ...................................... 2
Toilet Dimensions .................................................. 3
Installation Instructions..................................... 3 - 6

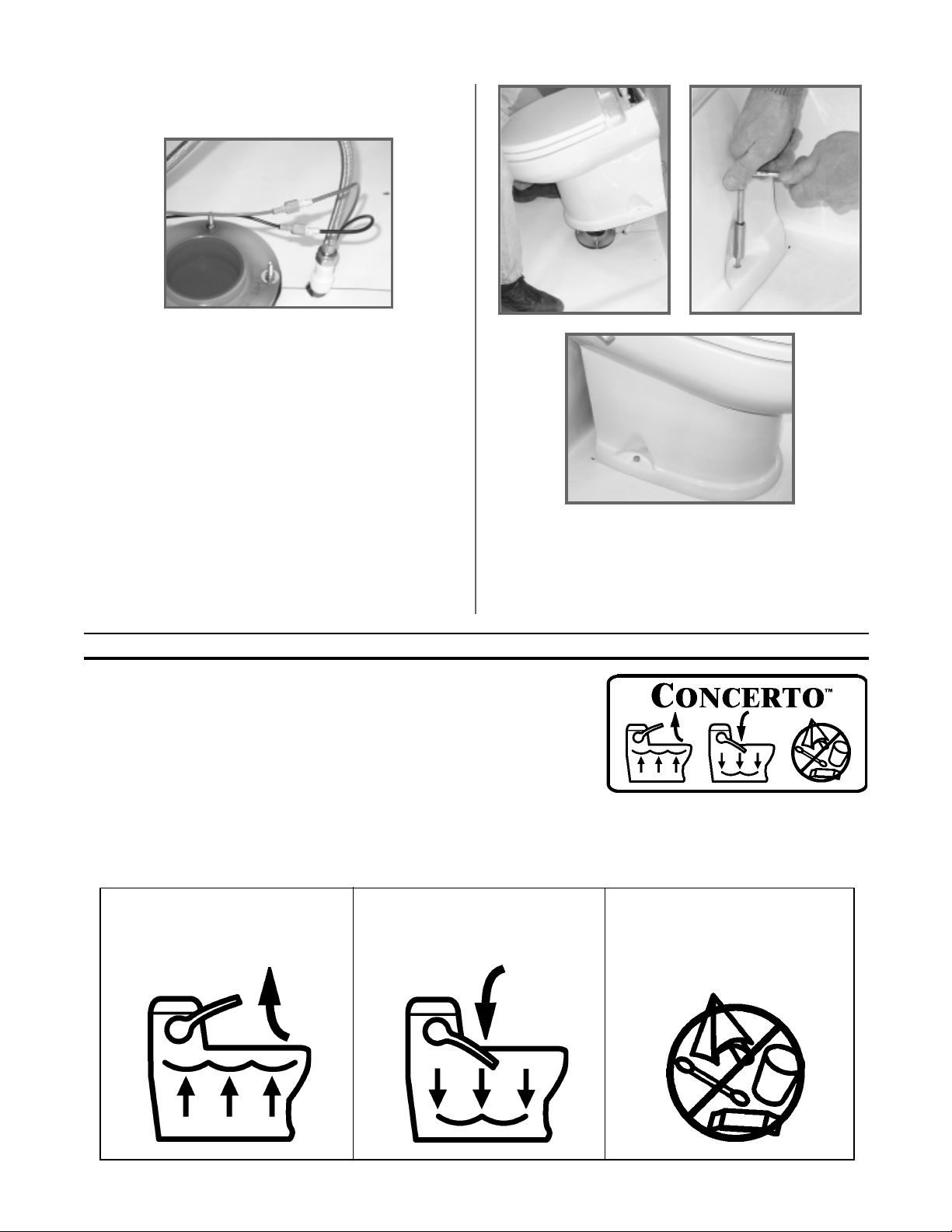

Toilet Operation .....................................................6

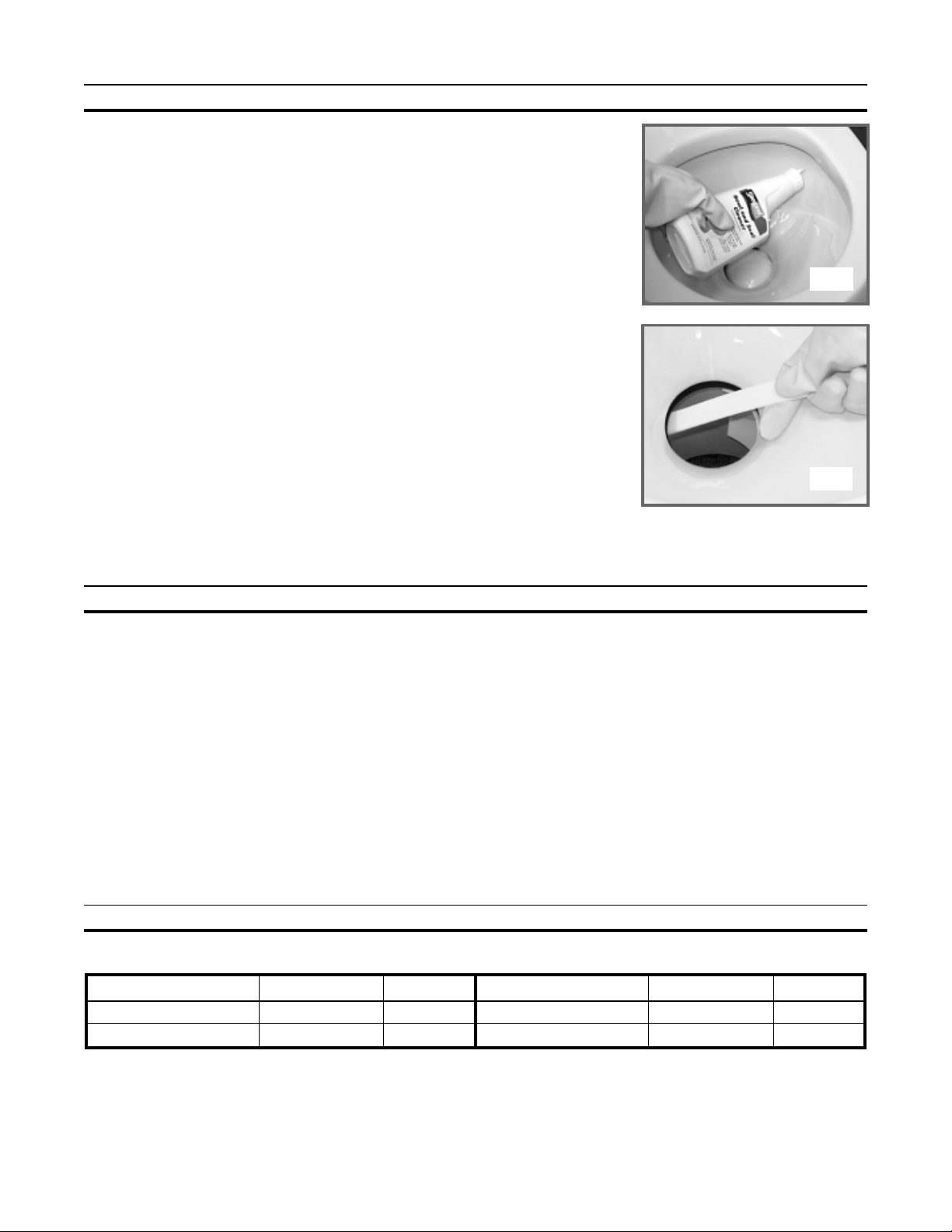

Proper Cleaning and Maintenance ......................... 7
Winterizing ............................................................ 7
Spare Parts ........................................................... 7
Deodorants and Special Tissue ............................. 8
WARNING – ELECTRICAL SYSTEM.
Turn off electrical power before servicing.
Failure to follow these precautions may result in damage to the toilet.
1. Read and understand the complete contents of this manual before operating or servicing the
toilet.

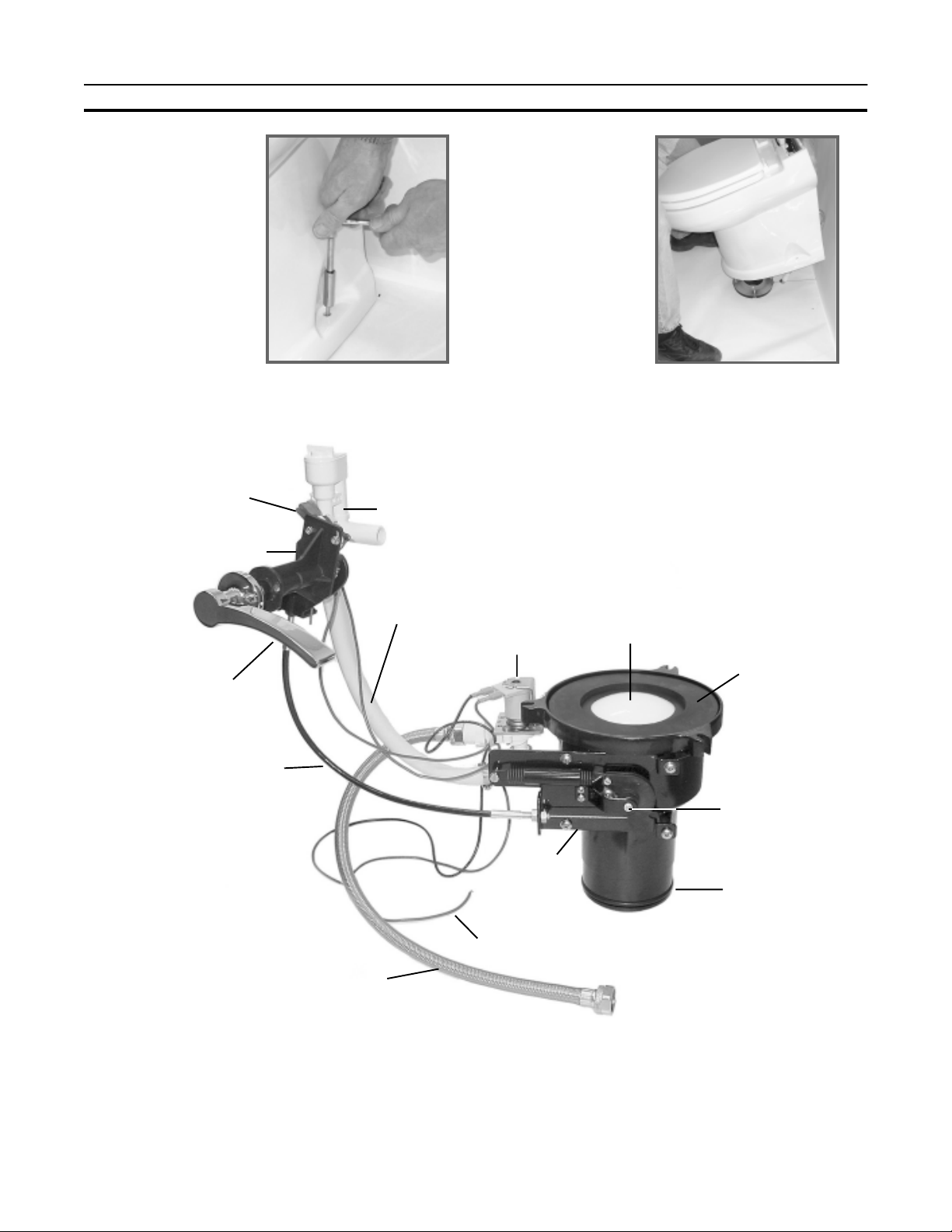

Flush Mechanism Components ............................. 9
Troubleshooting ...................................................10

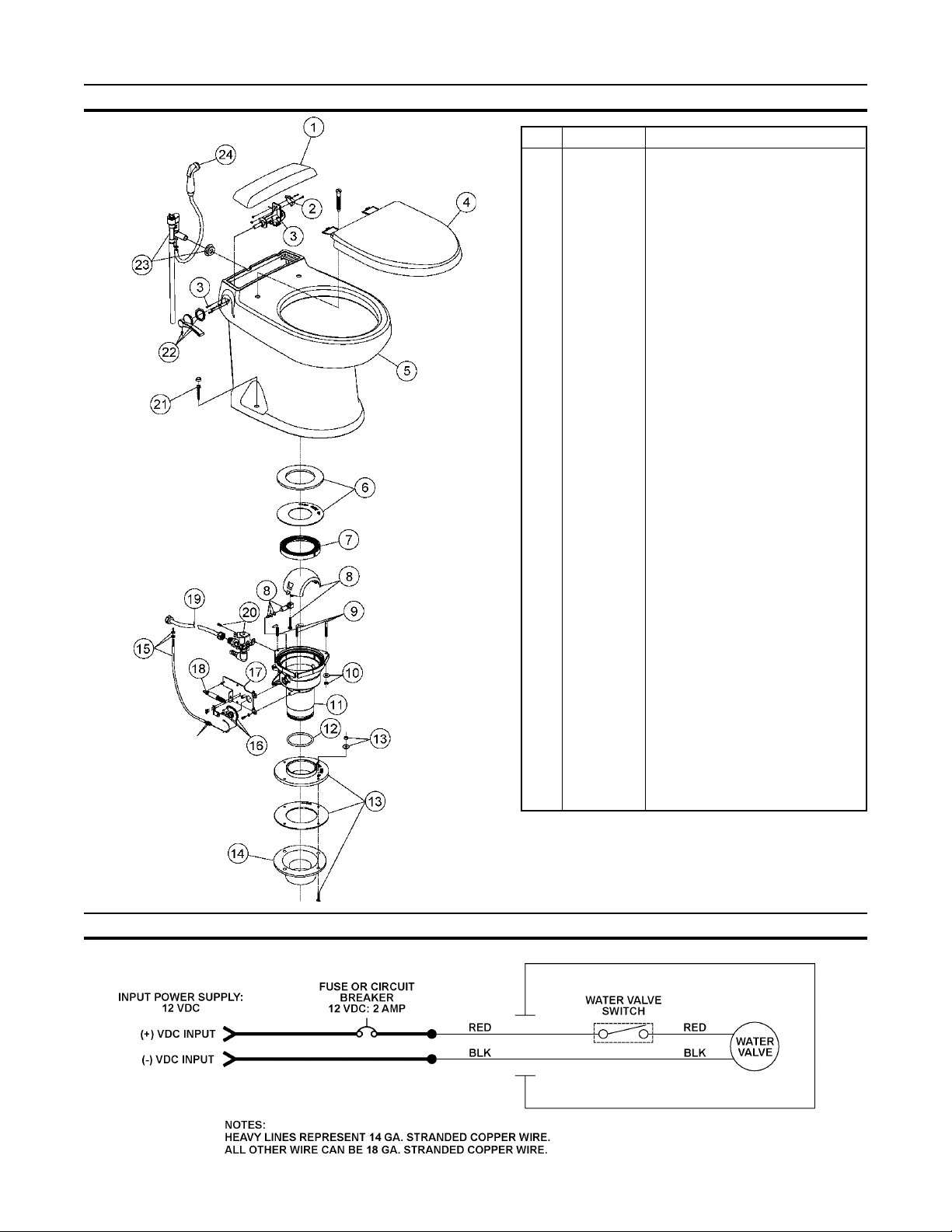

Parts List ............................................................ 11
Wiring Diagram ................................................... 11
Ordering Parts ..................................................... 12
Customer Service ................................................ 12
Three-Year and Ten-Year Limited Warranties ....... 12
2. Do not use drain openers, alcohol, solvents, etc. in the toilet.
3. Do not dispose of sanitary napkins or other non-dissolving items in the toilet, such as facial tissues
or paper towels. These items can cause plugging of the toilet.
4. Make sure all guests understand operation of the toilet.
TOILET MODEL IDENTIFICATION
The model identification label is located on the inside
wall of the toilet under the access cover. It will show the
model number and serial number.
DOMETIC CORPORATION
P.O. BOX 38, 13128 STATE RT 226 (800) 321-9886
BIG PRAIRIE, OH 44611 USA
MODEL NO.
SERIAL NUMBER
000
000000
Concerto is a trademark, and SeaLand is a registered trademark of Dometic Corporation.
2
CONCERTOTM TOILET DIMENSIONS
MODEL 3210
Dimensions may vary
±3/8-inch (13mm).
INSTALLATION INSTRUCTIONS
System Requirements:
• 2 GPM (10.6 lpm) or larger water pump.
• 1/2-inch (12.7 mm) water line terminating in 1/2-inch MPT fitting (to connect to toilet water supply hose).
• 4-bolt floor (closet) flange. SeaLand flanges available include 3-inch spigot, socket, MPT, or 45-degree swivel
socket.
• 12 VDC through 2-amp fuse or circuit breaker. Use 14-gauge stranded copper wire.
STEP 1: Carefully unpack the toilet bowl, rear access lid and floor flange adapter. CAUTION: HANDLE THE VITREOUS
CHINA TOILET AND ACCESS LID WITH CARE. SET THE LID IN AN AREA WHERE IT CANNOT BE BROKEN.
PLACE LID ON TOILET ONLY AFTER TOILET INSTALLATION IS COMPLETE.
STEP 2: Position the china bowl in the space intended. Confirm that adequate clearance is available for using the flush
handle and opening the seat and lid.
STEP 3: Mark the floor at the rear corners of the toilet bowl (fig. 1). Measure the distance between the two marks and
divide by 2 to find the toilet centerline. Mark the floor at the rear wall for the centerline.
STEP 4: Place a carpenter’s square against the back wall, and draw a center line on the floor at least 14 inches
(356 mm) long (fig. 2). Mark the centerline for the floor flange at 11-1/4 inches (286 mm) from the wall (fig. 3).
Fig. 1
Fig. 2
3
Fig. 3
STEP 5a: For through-the-floor water line and electrical
wires, mark another centerline 6 inches (152 mm) from the
back wall (fig. 4).
Fig. 4
Below-Floor Installation
STEP 5b: For through-the-wall water line and electrical
wires, mark a centerline 8 inches (203 mm) up from the
floor centerline (fig. 5).
Fig. 5
STEP 6: Make a 4-3/4 inch (121 mm) diameter hole (for
most floor flanges) or a 5-1/8 inch (130 mm) diameter hole
(for swivel joint floor flange) at the centerline mark furthest
from the wall. Make a 1 inch (25 mm) hole at the mark
closer to the wall for the water line and electrical wires
(fig. 6).
Above-Floor Installation

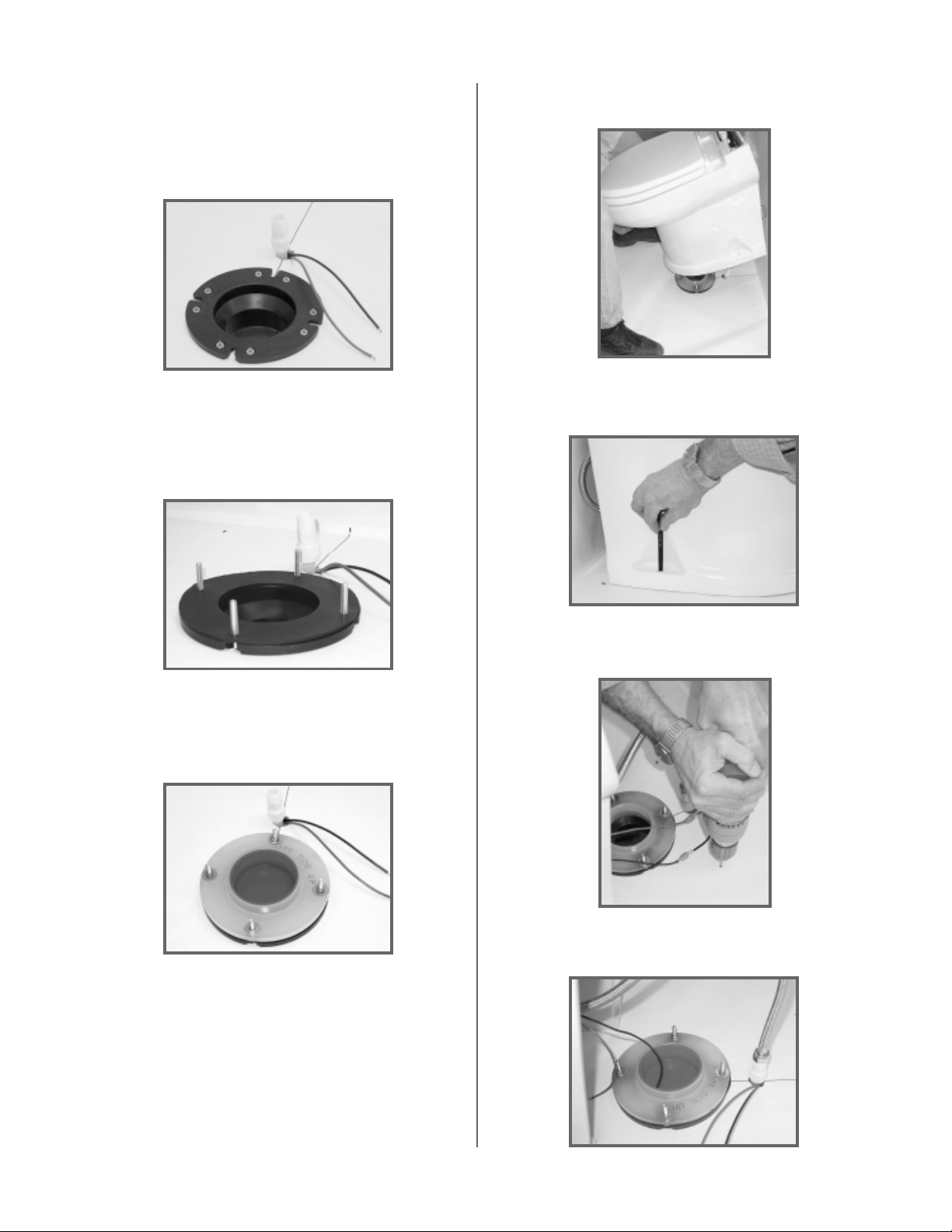

STEP 7: Insert floor flange into larger hole and secure to
the floor with #12x3/4-inch long flat head wood or sheet
metal screws (fig.7).
Fig. 6
IMPORTANT: The prefered installation method is to
mount the floor fIange directly on the finished floor.
However, if the bottom of floor flange and bottom of
china toilet must be mounted at different heights,
the floor flange must be mounted within 3/8 inch (10
mm) of the bottom of the toilet (see illustrations in
next column) or leakage will result.
Fig. 7
STEP 8: Route 1/2-inch (13mm) PEX tubing through the
smaller hole and install a PEX 1/2-inch MPT fitting (fig. 8).
NOTE: A water shut-off valve should be installed in the
water line to the toilet for maintenance requirements.
Fig. 8
