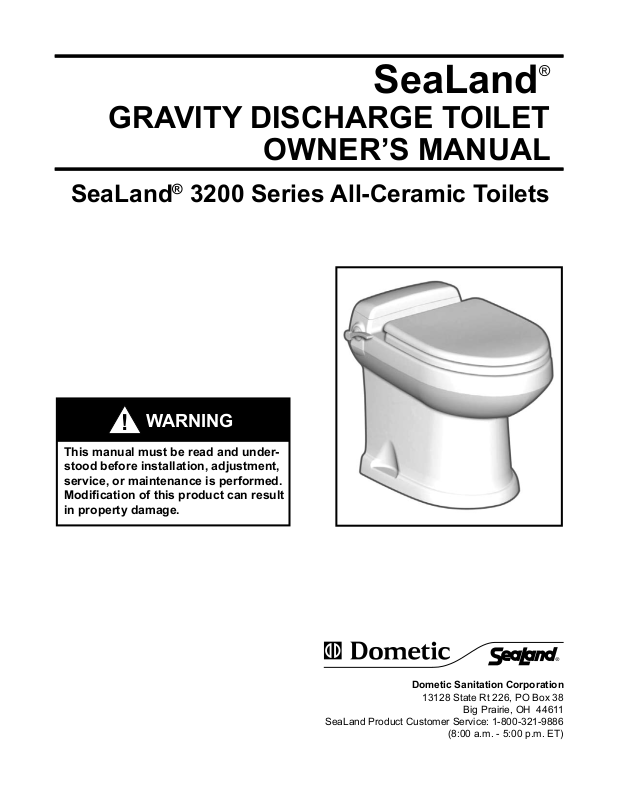

GRAVITY DISCHARGE TOILET
OWNER’S MANUAL
SeaLand® 3200 Series All-Ceramic Toilets
WARNING
!
This manual must be read and under­stood before installation, adjustment, service, or maintenance is performed.
Modication of this product can result
in property damage.
Dometic Sanitation Corporation
13128 State Rt 226, PO Box 38
Big Prairie, OH 44611
SeaLand Product Customer Service: 1-800-321-9886
(8:00 a.m. - 5:00 p.m. ET)
1

TABLE OF CONTENTS

Toilet Model Identication .....................................2
Toilet Dimensions ..................................................3
Installation Instructions .................................... 3 - 6
Toilet Operation .....................................................6
Proper Cleaning and Maintenance .......................7
Winterizing ............................................................7
Spare Parts............................................................7
Deodorants and Special Tissue ............................8
Flush Mechanism Components .............................9
Troubleshooting ...................................................10
Wiring Diagram ....................................................11
Ordering Parts .....................................................11
Customer Service ...............................................12
Warranty .............................................................12
WARNING – ELECTRICAL SYSTEM. Turn off electrical power before servicing.
Failure to follow these precautions may result in damage to the toilet.
1. Read and understand the complete contents of this manual before operating or servicing the toilet.
2. Do not use drain openers, alcohol, solvents, etc. in the toilet.
3. Do not dispose of sanitary napkins or other non-dissolving items in the toilet, such as facial tissues or paper towels. These items can cause plugging of the toilet.
4. Make sure all guests understand operation of the toilet.

TOILET MODEL IDENTIFICATION

The model identication label is located on the inside wall of the toilet under the access cover. It will show the model number and serial number.
DOMETIC CORPORATION
P.O. BOX 38, 13128 STATE RT 226 (800) 321-9886 BIG PRAIRIE, OH 44611 USA
MODEL NO. 000
SERIAL NUMBER
000000
Concerto is a trademark, and SeaLand is a registered trademark of Dometic Corporation.
2

TOILET DIMENSIONS

MODEL 3210
Dimensions may vary
±3/8-inch (13mm).

INSTALLATION INSTRUCTIONS

System Requirements:
• 2 GPM (10.6 lpm) or larger water pump.
• 1/2-inch (12.7 mm) water line terminating in 1/2-inch MPT tting (to connect to toilet water supply hose).
• 4-bolt oor (closet) ange. SeaLand anges available include 3-inch spigot, socket, MPT, or 45-degree swivel
socket.
• 12 VDC through 2-amp fuse or circuit breaker. Use 14-gauge stranded copper wire.
STEP 1: Carefully unpack the toilet bowl, rear access lid and oor ange adapter. CAUTION: HANDLE THE VIT­REOUS CHINA TOILET AND ACCESS LID WITH CARE. SET THE LID IN AN AREA WHERE IT CANNOT BE BROKEN. PLACE LID ON TOILET ONLY AFTER TOILET INSTALLATION IS COMPLETE.
STEP 2: Position the china bowl in the space intended. Conrm that adequate clearance is available for using the ush handle and opening the seat and lid.
STEP 3: Mark the oor at the rear corners of the toilet bowl (g. 1). Measure the distance between the two marks and divide by 2 to nd the toilet centerline. Mark the oor at the rear wall for the centerline.
STEP 4: Place a carpenter’s square against the back wall, and draw a center line on the oor at least 14 inches (356 mm) long (g. 2). Mark the centerline for the oor ange at 11-1/4 inches (286 mm) from the wall (g. 3).
Fig. 1
Fig. 2
3
Fig. 3
STEP 5a: For through-the-oor water line and electrical
wires, mark another centerline 6 inches (152 mm) from
the back wall (g. 4).
Fig. 4
Below-Floor Installation
STEP 5b: For through-the-wall water line and electrical wires, mark a centerline 8 inches (203 mm) up from the
oor centerline (g. 5).
Fig. 5
STEP 6: Make a 4-3/4 inch (121 mm) diameter hole (for
most oor anges) or a 5-1/8 inch (130 mm) diameter hole (for swivel joint oor ange) at the centerline mark
furthest from the wall. Make a 1 inch (25 mm) hole at the mark closer to the wall for the water line and electrical
wires (g. 6).
Above-Floor Installation
STEP 7: Insert oor ange into larger hole and secure to the oor with #12x3/4-inch long at head wood or sheet metal screws (g.7).
Fig. 6
IMPORTANT: The prefered installation method is to
mount the oor fIange directly on the nished oor. However, if the bottom of oor ange and bottom of
china toilet must be mounted at different heights,
the oor ange must be mounted within 3/8 inch (10 mm) of the bottom of the toilet (see illustrations in
next column) or leakage will result.
Fig. 7
STEP 8: Route 1/2-inch (13mm) PEX tubing through
the smaller hole and install a PEX 1/2-inch MPT tting (g. 8).
NOTE: A water shut-off valve should be installed in the
water line to the toilet for maintenance requirements.
Fig. 8
4
