Dome Sx User Manual

Dome® Sx Display

User’s Guide

© 2012 NDS Surgical Imaging. All rights reserved.
Information in this document has been carefully checked for accuracy; however, no

guarantee is given to the correctness of the contents. This document is subject to
change without notice. Go to web site ndssi.com for the latest documentation.
NDSsi provides this information as reference only. Reference to products from other
vendors does not imply any recommendation or endorsement.

This document contains proprietary information protected by copyright. No part of
this manual may be reproduced by any mechanical, electronic, or other means, in
any form, without prior written permission of NDSsi.

NDS Surgical Imaging, NDSsi, the NDSsi logo, Dome, the Dome by NDSsi logo,
Dome S3, Dome S3c, Dome S10, Dome CXtra, RightLight are either registered or
unregistered trademarks of NDS Surgical Imaging. All other trademarks are the
property of their respective owners.

020-0904 Rev02A

About the Display

The Dome® Sx displays are available in 3 and 10 megapixels and
contain a TFT LCD panel. The display’s thin film transistors, in
a transmissive-type display, use an integrated cold cathode
fluorescent tube (CCFT) backlight system.

The display is designed for medical imaging in diagnostic settings and
comes fully tuned with gamma correction that complies with the
DICOM Part 14 Standard. The all-digital design enables the display to
produce the sharp, crisp images critical to softcopy medical viewing.
Unwanted analog display image artifacts are eliminated.

For display classification and use; environmental guidelines; safety
precautions; handling, cleaning and storage tip; and specifications,
see “Technical Information” on page 7.

System Requirements

• Windows 7 (x86 or x64) or Windows XP Service Pack 3 (x86 or x64)

• Intel or AMD multi-core processor

• PCI Express x16 lane slot

• 50 MB hard disk space

•512 MB RAM

•CD-ROM drive

• Power supply, 350 watts or greater

The Dome S10 display, shown here for illustrative purposes. Your display package
may contain a Dome S3, Dome S3c, or Dome S10 unit.

DC power adapter

DVI cable

DisplayPort cable

NOTE: DVI-to-DVI and DisplayPort cables ship in the Dome S3 and Dome S3c display packages. DVI and mini USB

cables ship in the Dome S10 display package.

2 | Dome Sx Display

Power cord

Mini USB cable

Quick reference

Display Components

Review the following illustrations to identify controls and ports on
the front and back panels of the Dome Sx displays.

Front sensor on Dome S3/Dome S3c MQSA button on Dome S10

The sensor on the front of the Dome S3 and Dome S3c displays allows
you to run an auto-conformance test without using a photometer.

The MQSA (Mammography Quality Standards Act) button (lower
right, beneath display ID) on the Dome S10 display facilitates any
daily, weekly, or annual tests that you have preset via calibration and
monitoring software.

About the Display | 3

Dome S3/Dome S3c
connector plate

Dome S10
connector plate

The Dome Sx displays include the following components on
the connector plate:

•Power input.
– On Dome S3, drives power to the display via an 8-pin

DIN connector. The power input is 12V ±5% (130 W).

– On Dome S3c and Dome S10, drives power to the display via

a 6-pin DIN connector. The power input is 24V ±5% (150 W).

•USB port.
– Dome S3/Dome S3c uplink B port. Usage to be defined at

a future time.

– Dome S10 uplink mini-B port. Usage assigned for MQSA

button functionality.

• Video input. Drives the data to the display.
– The Dome S3/Dome S3c display offers two video connector

options: a standard DVI connector or a DisplayPort connector.

– The Dome S10 display offers two standard DVI connectors.

• Reset button. Restores the display configuration to default

setting.

• LED lights. Provides information on the status of the display.

4 | Dome Sx Display

Installing the Display

Turn your computer off. Leave the power cord plugged into the
grounded outlet. Use the Dome Sx display with the power

adapter and video cable shipped.

Warning

In locations where 240V outlets are used, connect the Dome Sx
display only to a center-tapped, 240V, single-phase supply (for
Canada and the United States only).

Connecting the Video and Power Cables

IMPORTANT! For the Dome S3 or Dome S3c display only. Install either
the DVI or the DisplayPort video cable, not both.

To connect the cables

1 Plug one end of the video cable into the video port on

the connector plate. Secure the connection.

2 Plug the power cord into the power input port on the

connector plate.

3 Plug the other end of the cable into the video port on your

computer system. Secure the connection.
4 Plug the other end of the power cord into the power supply.
5 Plug the power supply cord(s) into a grounded AC outlet.

6 Turn on the adapter power before you turn on the computer.

Installing the Display | 5

Video Cable Installation on the Dome S10 Display

Note the location of the primary input on the Dome S10 display,
shown below, for proper video cable installation. Improper
connection may cause VGA boot messages not to appear on
the display screen.

Primary video signal input on the Dome S10 connector plate

6 | Dome Sx Display

Technical Information

The design of the Dome® Sx digital display takes into account every
known measure to ensure your personal safety. Improper use of
the display can result in electric shock, fire, or damage to the display.
Read all instructions before setting up the display.

Classification

Shock Protection: Class I.
Degree of Protection Against Electric Shock: No applied part.
Degree of Protection Against Harmful Ingress of Water:

Ordinary equipment (IPX0).
Degree of Safety in the Presence of Flammable Anaesthetic

Mixture with Air or with Oxygen or Nitrous Oxide:
Not suitable for use in the presence of a flammable
anaesthetic mixture with air or with oxygen or nitrous oxide.

Mode of Operation: Continuous.
No applied part

Important recycle instruction

HAZARDOUS SUBSTANCE. Lamp(s) inside this product contain

mercury. This product may contain other electronic waste
that can be hazardous if not disposed of properly. Recycle
or dispose in accordance with local, state, or federal laws.
For more information, contact the Telecommunications
Industry Association at
specific disposal information, check

DISPOSAL. Do not use household or municipal waste
collection services for disposal of electrical and electronic
equipment. EU countries require the use of separate
recycling collection services.

ENVIRONMENT-FRIENDLY USE PERIOD. Hazardous
substances are present. The number encircled by the
recycling symbol indicates the safe-use period (in years).
China requires the use of recycling services at the end of
product life.

WWW.ECYCLINGCENTRAL.COM. For lamp-

WWW.LAMPRECYCLE.ORG.

Technical Information | 7

Symbol explanations

CAUTION. Read the accompanying text carefully, for
proper operation and maintenance of the display
system.

DANGEROUS VOLTAGE. Important precautions about
electric shock. Read the accompanying text carefully, to
prevent damage to display components and to guard
your safety.

DIRECT CURRENT.

BAROMETRIC PRESSURE. Transport and storage
12,000 meters (39,400 feet), maximum in unpressurized
container.

RELATIVE HUMIDITY. Transport and storage 5% to 90%
(noncondensing).

TEMPERATURE. Transport and storage -20° to 60° C.

Intended use

The Dome S series offers AMLCD units designed for viewing medical
X-ray images. A Dome Sx display should not be used near patients
and should be kept outside of 1.83 m perimeter and 2.29 m vertical.

Dome S3 and Dome S3c are intended for use in displaying and
viewing medical images for review and analysis by trained medical
practitioners.

Dome S10 is intended for use in displaying and viewing medical
images for review and analysis by trained medical practitioners, or
for use in displaying and viewing radiographs of the breast for review
and analysis by trained medical practitioners.

IMPORTANT: Only the Dome S10 display can be used for review and
analysis in mammography. Do not use the Dome S3 or Dome S3c
display in mammography review and analysis.

Federal law restricts this device to sale by or on the order of
a medical practitioner.

8 | Dome Sx Display

Safety precautions

External equipment intended for connection to signal input, signal
output, or other connectors, must comply with the relevant IEC standard
(EN/IEC 60601-1 series for medical electrical equipment). In addition, all
such combinations (systems) must comply with the standard IEC 60601-1-1,
Safety requirements for medical electrical systems.

Equipment not complying to IEC 60601 must be kept outside the patient
environment, as defined in the standard as at least 1.5 meters from the
patient or the patient support.

Any person who connects external equipment to signal input, signal output,
or other connectors has formed a system and is therefore responsible for the
system to comply with the requirements of IEC 60601-1-1. If in doubt, speak

with a qualified technician.

Safety tips

• Never open the display case, even when the power is off. Dangerous
voltage inside may cause electric shock or death.

• To avoid damage to the display, use the grounded power supply and
video cable supplied by NDSsi, or use certified replacements.

• Be sure the display is electrically grounded. You must connect the third
grounding pin on the US power cord to a grounded outlet. The European
power cord does not have a third grounding pin, but it must be plugged
into a grounded outlet.

• If you cannot insert the plug into the outlet you plan to use, have a
licensed electrician replace the outlet with a properly grounded outlet.
If the power cord connects directly into the computer, make sure the
computer is grounded.

• Keep the display dry if it is part of a surgical system. The display lacks
protection against liquids or spills.

• In locations where 240V outlets are used, connect the Dome Sx
display only to a center-tapped, 240V, single-phase supply (for
Canada and the United States).

GROUNDING RELIABILITY CAN ONLY BE ACHIEVED WHEN EQUIPMENT IS
CONNECTED TO AN EQUIVALENT RECEPTABLE MARKED “HOSPITAL ONLY” OR
“HOSPITAL GRADE.”

Technical Information | 9

Unpacking and handling tips

The Dome Sx display is a precision instrument that requires proper care to
maintain product operation and adherence to specification. Unpack the
display and components carefully, then set up and handle the unit properly
to avoid damage to the LCD panel.

• Use both hands to grasp the display case when lifting it from the shipping
carton, but avoid touching the screen.

• Do not apply pressure to the screen or touch the screen with bare fingers
or objects. Pressure can affect image quality. Cosmetics and oils on the skin
are both detrimental to the screen and difficult to remove.

• Allow the display to warm up to room temperature before turning it on.
Avoid sudden temperature changes in the environment, as this may cause
condensation, which damages the display.

• Secure the display properly onto a standard VESA 100-mm mounting unit if
you elect not to use the desk stand.

• Do not set up the display near strong light or heat sources.

• Do not block the vents on the back of the display or install the display in
a built-in enclosure. Blocked vents cause excessive heat to build up inside
the display, increasing risk of fire.

• When installing components, turn off your computer, but leave it plugged
into a grounded outlet.

• Do not remove the back cover or disassemble the display. There are
no user-serviceable parts inside.

Preventing fire and injury

• Replace the power supply or cables if damaged.

• Use only the power source indicated in this guide or listed on the display.

• Do not plug the power supply into an overloaded AC outlet or extension
cord. Overloaded AC outlets and cords can result in electric shock or fire.

• Do not drop or push objects into the display case. Internal components
contain high voltage.

• Unplug the power cord from the wall outlet during thunderstorms.

• Do not place magnetic devices, such as motors, near the display.

10 | Dome Sx Display

Cleaning the display

Observe the following guidelines to maintain the display and the LCD screen.

• Use a clean, lint-free, absorbent cotton cloth to clear off any residual glue
from removal of the protective film or to remove surface dust. Apply light
pressure to remove the dust.

• Dampen a clean cloth with a small amount of isopropyl alcohol to
remove glue or dust if the screen is still not clean. Do not saturate the
cloth; otherwise, alcohol may seep into the display case and collect in the
enclosure. Use a clean, dry cloth to completely remove the alcohol residue.

• Do not use chemically treated dust cloths, acetone, toluene, or harsh
solvents on the display case or the screen. They can damage the polarizer
and the display case.

• Do not expose the display to water or excessive moisture. Do not allow
water or other stains to stand on the unit. Wipe liquids off immediately to

prevent damage to the display case and the screen.

WARNING

DISCONNECT SUPPLY BEFORE SERVICING

AVERTISSEMENT

COUPER L’ALIMENTATION AVANT L’ENTRETIEN ET LE DEPANNAGE

Shipping/storing the display

Keep the display in its shipping container until installation. Return the display
to its original container whenever you need to store the unit, move it to
another location, or return it for repair. The packaging supplied by the
manufacturer protects the display while it is in transit. See environment
specifications for more information.

Before returning the display to the container, do the following:
1 Swivel the display panel to landscape mode.

2 Push the panel down to the lowest position.
3 Use the stand lock to anchor the panel.

Disposal information

Follow your local governing ordinance and recycling policy for
proper disposal or recycling of display components.

Technical Information | 11

Dome S3 Specification

In locations where 240V outlets are used, connect the Dome S3 display to a center-tapped,
240V, single-phase supply only (for Canada and the United States).

Category Characteristic Item Specification

Screen Type AMLCD (active-matrix liquid crystal display)

Screen size diagonal 540 mm (21.3 in.)

Resolution 1536 x 2048 pixels (portrait)

2048 x 1536 pixels (landscape)

Pixel pitch 0.2115 mm, 120 dpi

Pixel arrangement LCR vertical stripe

Active area (H x V) 433.2 x 324.9 mm (17.05 x 12.79 in.)

Grayscale supported 1024 shades of gray (programmable gamma from

palette of up to 3061 shades of gray)

Refresh rate 60 Hz

Contrast ratio 900:1 typical; 650:1 minimum

Brightness 1450 cd/m

2

typical; 1150 cd/m2 minimum

Pixel rise/fall time 27 ms typical

Viewing angle (CR 10: 1) 170° (± 85°) horizontal/vertical

Interface Digital Video In DVI Rev. 1.0 digital dual-channel connector

DisplayPort Revision 1.1a connector

Display control (brightness/contrast) DDC2B+

Display identification EDID read using DDC2B+

USB hub (on stand) N/A

USB uplink (on display) Universal Serial Bus Rev. 2.0: 1 uplink B port

Display status Dual-stack tricolor LEDs on back of unit

Input formats Landscape orientation 2048 x 1536 (10-bit per pixel)

Portrait orientation 1536 x 2048 (10-bit per pixel)

VGA/XGA 640 x 480 to 1280 x 768 pixels (displayed in

portrait orientation)

Physical Display size (without stand) 475 mm x 363 mm x 99 mm (18.6 in. x 14.3 in. x 3.9 in.)

Display weight (without stand) 6.6 kg (14.6 lb.) typical

Display weight (with stand) 9.5 kg (20.9 lb.) typical

Mounting options Desktop stand (standard);

100-mm VESA compliant mounting

Power Adapter BridgePower BPM130S12F02 (with power switch)

12 | Dome Sx Display

(CAUTION: Use only the adapter supplied with unit.)

Power Supply

CAUTION: Use only the power adapter supplied with the Dome S3 display unit;
the BridgePower BPM130S12F02 (130W) model.

Category Characteristic Item Specification

Power input
requirements

Power consumption Wattage 90 W typical
Power output

requirements

Physical Size 228.6 mm x 76.2 mm x 50.8 mm

Voltage selection Universal auto switching with medical

approvals and PFC
Voltage 100–240V AC
Current 3.0 A
Frequency 50–60 Hz

Voltage 12 V DC
Current 10.8 A (130 W)

(9 in. x 3 in. x 2 in.)
Weight 1.3 kg (2.75 lb.)

±5%

Reliability

Characteristic item Specification

Display MTBF > 50,000 hours
Backlight MTBF 50,000 hours to 50% brightness with backlight on continuously

Environment

Characteristic item Specification

EMI shielding No emission of low-level radiation
Temperature operating 0° C ~ 40° C

storage -20° C ~ 60° C

Humidity operating 20% ~ 90% Relative Humidity

(noncondensing)

storage 5% ~ 90% Relative Humidity

(noncondensing)

Technical Information | 13

Dome S3c Specification

In locations where 240V outlets are used, connect the Dome S3c display to a center­tapped, 240V, single-phase supply only (for Canada and the United States).

Category Characteristic Item Specification

Screen Type AMLCD (active-matrix liquid crystal display)

Screen size diagonal 540 mm (21.3 in.)
Resolution 1536 x 2048 pixels (portrait)

2048 x 1536 pixels (landscape)
Pixel pitch 0.2115 mm, 120 dpi
Pixel arrangement R,G,B vertical stripe
Active area (H x V) 433.2 x 324.9 mm (17.05 x 12.79 in.)
Color supported 16.7 million colors; 256 shades of gray

(programmable gamma from palette of up to

2041 shades)
Refresh rate 60 Hz
Contrast ratio 750:1 typical; 600:1 minimum

2

Brightness 700 cd/m
Pixel rise/fall time 24 ms typical (14 ms Tr/10 ms Tf)
Viewing angle (CR 10: 1) 170° (± 85°) horizontal/vertical

Interface Digital Video In DVI Rev. 1.0 digital dual-channel connector

DisplayPort Revision 1.1a connector
Display control (brightness/contrast) DDC2B+
Display identification EDID read using DDC2B+
USB hub (on stand) N/A
USB uplink (on display) Universal Serial Bus Rev. 2.0: 1 uplink B port
Display status Dual-stack tricolor LEDs on back of unit

Input formats Landscape orientation 2048 x 1536 (24-bit per pixel; 30-bit per pixel

via DisplayPort)
Portrait orientation 1536 x 2048 (24-bit per pixel; 30-bit per pixel

via DisplayPort)
VGA/XGA 640 x 480 to 1280 x 768 pixels (displayed in

portrait orientation)

Physical Display size (without stand) 472 mm x 363 mm x 102 mm

(18.6 in. x 14.3 in. x 3.9 in.)
Display weight (without stand) 6.4 kg (14.0 lb.) typical
Display weight (with stand) 9.3 kg (20.5 lb.) typical
Mounting options Desktop stand (standard);

100-mm VESA compliant mounting

Power Adapter BridgePower BPM150S24F05 (with power switch)

(CAUTION: Use only the adapter supplied with unit.)

typical; 550 cd/m2 minimum (when new)

14 | Dome Sx Display

Power Supply

CAUTION: Use only the power adapter supplied with the Dome S3c display unit;
the BridgePower BPM150S24F05 (150W) model.

Category Characteristic Item Specification

Power input
requirements

Power consumption Wattage 108 W typical
Power output

requirements

Physical Size 223.5 mm x 63.5 mm x 38.1 mm

Voltage selection Universal auto switching with medical

approvals and PFC
Voltage 100–240V AC
Current 2.5 A
Frequency 50–60 Hz

Voltage 24 V DC
Current 6.25 A (150 W)

(8.8 in. x 2.5 in. x 1.5 in.)
Weight 0.8 kg (1.8 lb.)

±5%

Reliability

Characteristic item Specification

Display MTBF > 50,000 hours
Backlight MTBF 50,000 hours to 50% brightness with backlight on continuously

Environment

Characteristic item Specification

EMI shielding No emission of low-level radiation
Temperature operating 0° C ~ 35° C (10° C ~ 35° C within specification)

storage -20° C ~ 60° C

Humidity operating 20% ~ 90% Relative Humidity

(noncondensing)

storage 5% ~ 90% Relative Humidity

(noncondensing)

Technical Information | 15

Dome S10 Specification

In locations where 240V outlets are used, connect the Dome S10 display to a center­tapped, 240V, single-phase supply only (for Canada and the United States).

Category Characteristic Item Specification

Screen Screen size diagonal 762 mm (30.0 in.)

Resolution 4096 x 2560 pixels (landscape)

Pixel pitch 0.158 mm, 161 dpi

Pixel arrangement Single pixel, IPS structure

Active area (H x V) 645.1 x 403.2 mm (25.40 x 15.87 in.)

Grayscale supported 1024 shades of gray (programmable gamma from

palette of up to 4096 shades of gray)

Refresh rate 50 Hz

Contrast ratio 850:1 typical; 700:1 minimum

2

Brightness 1250 cd/m

Pixel rise/fall time 35 ms typical (20 ms Tr/15 ms Tf)

Viewing angle 170° (± 85°) horizontal/vertical

typical; 1000 cd/m2 minimum (when new)

Interface Digital Video In 2x DVI Rev. 1.0 digital dual-channel connector

Display control (brightness/contrast) DDC2B+

Display identification EDID read using DDC2B+

USB hub (on stand) N/A

USB uplink (on display) Universal Serial Bus Rev. 2.0: 1 uplink mini-B USB port

Display status Dual-stack tricolor LEDs on back of unit

MQSA Two color bottom facing LEDs on front of unit with

push-button activation

Input formats Landscape orientation 4096 x 2560 (10-bit per pixel)

Portrait orientation 2x 2048 x 2560 (10-bit per pixel)

VGA/XGA 640 x 480 to 1280 x 1024

Screen type AMLCD (active-matrix liquid crystal display)

Physical Display size (without stand) 699 mm x 473 mm x 79 mm

(27.5 in. x 18.6 in. x 3.1 in.)

Display weight (typical) 7.7 kg (17 lb.) without stand; 10.9 kg (24 lb.) with stand

Mounting options Desktop stand (standard);

100-mm VESA mounting (optional)

Power Adapter BridgePower BPM150S24F05 (with power switch)

16 | Dome Sx Display

(CAUTION: Use only the adapter supplied with unit.)

Power Supply

CAUTION: Use only the power adapter supplied with the Dome S10 display unit;
BridgePower BPM150S24F05 (150W).

Category Characteristic Item Specification

Power input
requirements

Power consumption Wattage 138 W maximum
Power output

requirements

Physical Size 223.5 mm x 63.5 mm x 38.1 mm

Voltage selection Universal auto switching with medical

approvals and PFC
Voltage 100–240V AC
Current 2.5 A
Frequency 50–60 Hz

Voltage 24 V DC
Current 6.25 A (150 W)

(8.8 in. x 2.5 in. x 1.5 in.)
Weight 0.8 kg (1.8 lb.)

±5%

Reliability

Characteristic item Specification

Display MTBF >50,000 hours
Backlight MTBF 50,000 hours to 50% brightness with backlight on continuously

Environment

Characteristic item Specification

EMI shielding No emission of low-level radiation
Temperature operating 5° C ~ 35° C (within specification)

storage -20° C ~ 60° C

Humidity operating 20% ~ 90% Relative Humidity (noncondensing)

storage 5% ~ 90% Relative Humidity (noncondensing)

Technical Information | 17

Video Modes

Resolutions expressed in pixels (W x H).

Display Resolution Orientation Palette Bits per pixel

Dome S3 1536 x 2048

2048 x 1536

Dome S3c 1536 x 2048

2048 x 1536

Dome S10 2x 2048 x 2560

Portrait

32-bit 10

Landscape
Portrait

True Color 24; 30 (DisplayPort only)

Landscape
Portrait 32-bit 10

(non-span mode)
4096 x 2560

(horizontal span mode)

Landscape 32-bit 8 (Windows 7);

10 (Windows XP)

Connector Plate

All Dome Sx displays have a DVI connector. The Dome S3 and Dome S3c displays also
have a DisplayPort connector.

Display Video Port DIN Connector Power Input Adapter

Dome S3 DVI and

DisplayPort

8-pin 12V ±5% (130 W) BPC BPM130S12F02

(with power switch)

Dome S3c DVI and

DisplayPort

6-pin 24V ±5% (150 W) BPC BPM150S24F05

(with power switch)

Dome S10 DVI 6-pin 24V ±5% (150 W) BPC BPM150S24F05

(with power switch)

VCC 8

VCC 7

VCC 6

VCC 5 3 GND

4 GND

VCC 6

VCC 5

VCC 4

1 GND

2 GND

1 GND

2 GND

3 GND

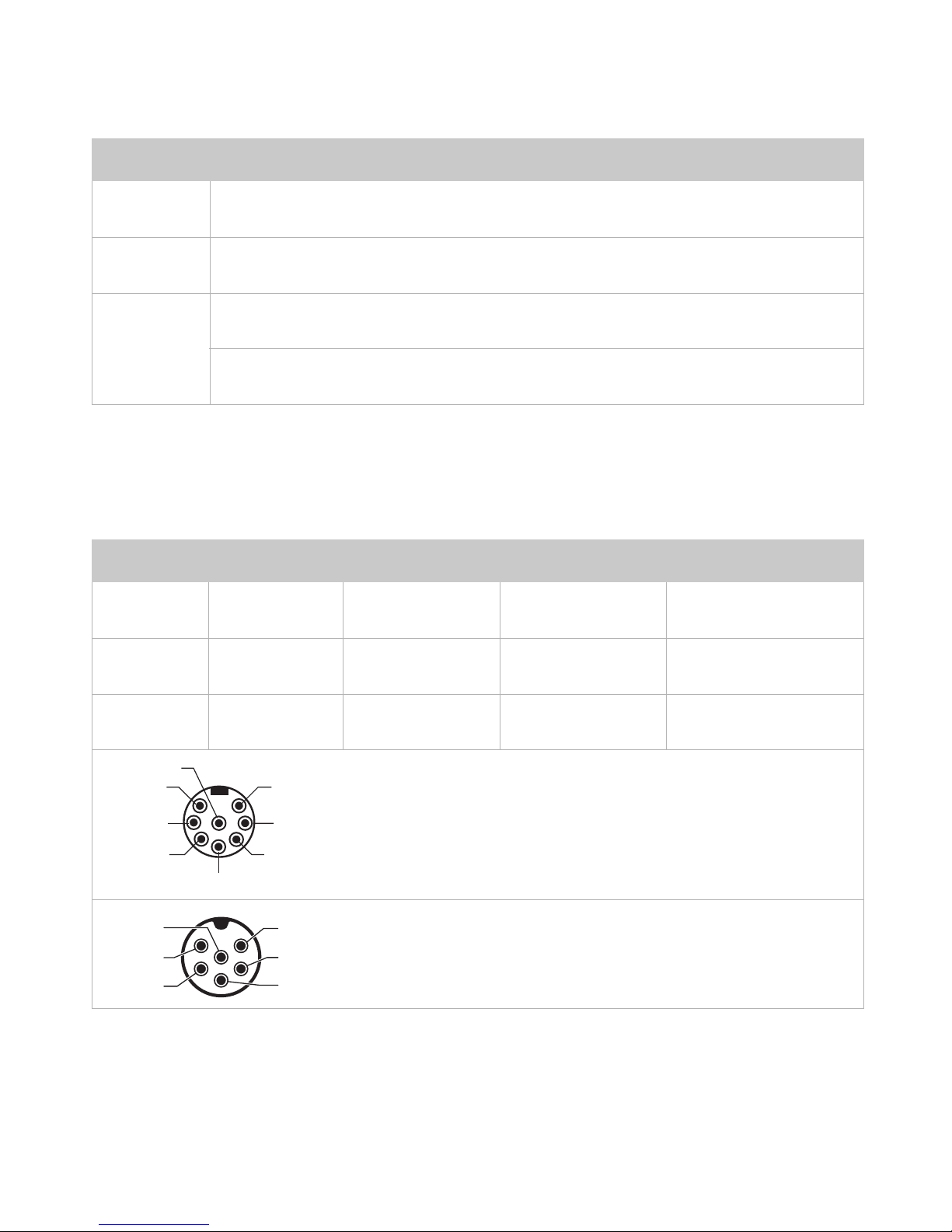

8-pin connector on Dome S3 display

6-pin connector on Dome S3c and Dome S10 displays

18 | Dome Sx Display

LED Status Lights

The two LEDs on the back panel of the Dome Sx displays provide information about
the display.

• LED A describes the digital-link status between the display controller and
the interface.

• LED B describes the display-panel status. it shows any faults currently in the panel.

Power-up sequence information from LED

LED A Action/Sequence LED B Action/Sequence

Dark Initial power-on Flashing yellow Initial power-on

Blink yellow Self test Solid yellow Power-on self test

Dark One (1) second after

power -on

Flashing green Self test pass

LED A status information after initial power-on

LED Status Description

Solid green Functional link – normal operation

Flashing yellow Link working, unrecognized sync information

LED B status information after initial power-on

LED Status Description

Solid green Functional system – normal operation

Flashing green Fault

Solid yellow DDC power-on, 12V/24V power not detected

Alternating green/yellow POST failure

NOTE: A red LED or combination of red LEDs indicates a hardware or software fault.
Contact Dome Technical Support for assistance.

Technical Information | 19

Troubleshooting

Problem Possible Cause Solution

No image appears on
the screen

Conflict with driver
version

Computer is OFF. Power on the machine.

Power cord is not securely
connected.

Video cable connected
incorrectly.

Tighten power cord connection and
turn on computer.

Make sure the first display of a dual­headed system or the only display of
a single-headed system is connected to
the primary port on the display
controller.

A previous version of
the display driver is
still installed on the

Remove any existing display driver
before you install a more recent
version.

computer system.

The installation CD
contains a file older than
the one currently on your
system.

The Confirm File Replace dialog box
appears if the installation CD contains
a file older than the one currently on
the system. Click No to the question,
Over-write the newer file? Or, click No
to All.

Unable to set the
maximum or native
resolution of the
display

The function Hide all
modes that this monitor
cannot display is selected
on a subdialog of the
Windows Display
Properties dialog.

A single-link commodity
graphics board is in use.

When using commodity graphics
boards on Windows XP systems, make
sure the check box for the function is
empty (unchecked).

When using commodity graphics
boards with the Dome Sx displays,
be sure to install a DualLink DVI
graphics board.

20 | Dome Sx Display

Regulatory Compliance

Canada, European Union, United States

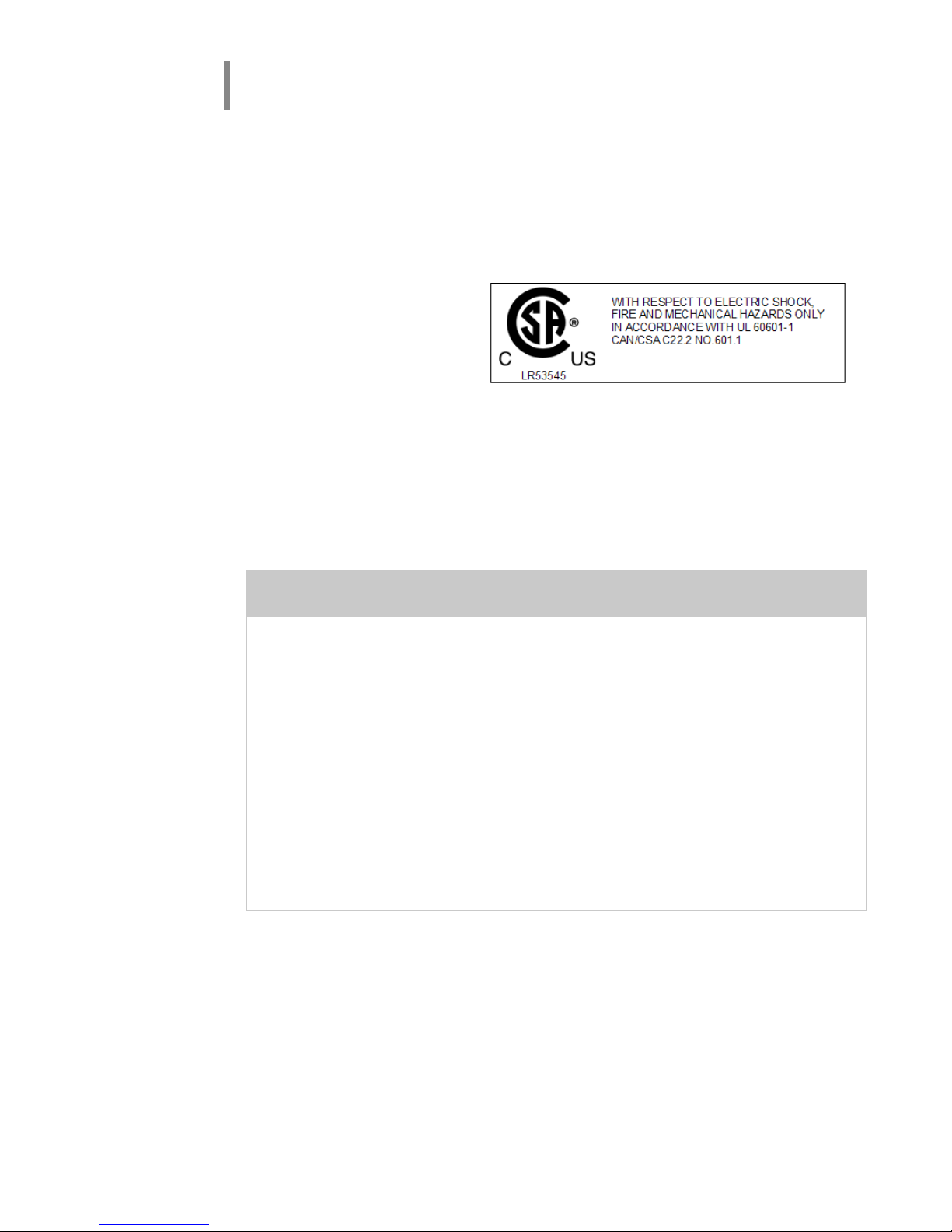

This display has been tested and found to comply with IEC/EN 60601-1 and
IEC/EN 60601-1-2 standards, and is certified to meet medical standard
CAN/CSA C22.2 No. 601.1 and UL 60601-1.

The medical display,
in addition to meeting
medical requirements,
has been tested and
found to comply with
the limits for Federal
Communications
Commission (FCC) Class A
computing devices in a typically configured system since many medical
offices are located in residential areas. It is the system integrator’s
responsibility to test and ensure that the entire system complies with

applicable electromagnetic compatibility (EMC) laws.

Dome S3, Dome S3c, and Dome S10

Warning to Users of Dome Sx Displays

The Dome S3, Dome S3c, and Dome S10 displays are Class A products.
In a domestic environment, either of these products may cause radio
interference, in which case the user may be required to take adequate
measures.

Radio transmitting equipment, cellular phones, etc. shall not be used in
close proximity of the devices, since this could influence the performance
of the device.

Particular precaution must be considered during use of strong emission
sources, such as High Frequency surgical equipment and similar, so that,
for example, the HF-cables are not routed on or near the devices. If in
doubt, contact a qualified technician or your local representative.

Regulatory Compliance | 21

We offer state-of-the-art displays suitable to the European market, CE-marked
displays based on compliance with counsel directive 93/42/EEC—commonly
referred to as the Medical Device Directive (MDD). The following summarizes
our qualification of these displays as it relates to compliance with the MDD.

The European Medical Device Directive requires that the intended use of
the device be defined. The intended use of these displays is “to display
alphanumeric, graphic, and image data as inputted from any type of medical
device.” Specifically, the Dome S3 and Dome S3c displays are intended for
use in displaying and viewing medical images for review and analysis by
trained medical practitioners. The Dome S10 display is intended for use in
displaying and viewing medical images for review and analysis by trained
medical practitioners, or intended for use in displaying and viewing
radiographs of the breast for review and analysis by trained medical
practitioners. These displays do not provide a measurement function in any
way, and it is the device and systems manufacturer’s responsibility to verify
its function in the integrated device or system.

The display was classified as required by the MDD according to Annex IX of
the directive and the medical device (MEDDEV) guidance available at the
time of classification. Because the display uses electrical energy and has
no direct patient connections and—by itself—no medical utility, the display
is classified according to Rule 12 as an MDD Class I device, component, or
accessory. The MDD states that manufacturers of Class I medical devices
or accessories shall satisfy the requirements in regard to design and
manufacturing controls, that is, the applicable assessment route to be used
for CE-marking under the MDD, and it shall carry the CE mark according to
Annex XII of the directive, with no Notified Body annotation.

22 | Dome Sx Display

The applicable safety standards for an MDD Class I display are EN 60601­1:1990 along with A1:1993, A12:1993, A2:1995, and A13:1996, as well as
IEC 60601-1:1988 along with A1:1991 and A2:1995. To help the medical
device designer evaluate the suitability of these displays, NDSsi has also
conducted EMC testing to IEC 60601-1-2 as it can be applied. The display
with its power supply alone does not represent a functional medical device.
Hence, NDSsi configured a minimal operating system to exercise the display.
The resulting data are made available to interested parties.

This is informative data, not certification data. Certification data must be
obtained by the device or system integrator according to Article 12 of
the MDD titled “Particular procedure for systems and procedure packs.”
Paragraph 2 clearly outlines the device or system integrator’s responsibility
in this matter.

In summary, NDS Surgical Imaging is CE-marking these displays under the
Medical Device Directive, which establishes compliance to the basic medical
safety standards. However, EMC compliance can only be accomplished in the
configured medical device or system and is the responsibility of the device or
system manufacturer. NDSsi has the necessary documentation such as IEC
60601-1 notified body and other third-party test reports and certifications,
a risk/hazard analysis, an essential requirements checklist, and the NDS
Surgical Imaging International Electrotechnical Commission (IEC) declaration
of conformity.

NDS Surgical Imaging, located in San Jose, Calif., USA, is the manufacturer of
these displays in the meaning of the directive. As required by the MDD in
Article 14, NDS Surgical Imaging, not residing in the European Economic
Area (EEA), has a European representative, NDS Surgical Imaging —
Nijverheidscentrum 28, 2761 JP Zevenhuizen, The Netherlands (phone
[phone]; fax [phone]).

In the opinion of NDS Surgical Imaging registration required to put this
device into commerce is the responsibility of the medical device/system
manufacturer, and NDS Surgical Imaging supports this requirement by
providing a European Commission (EC) declaration of conformity. If NDS
Surgical Imaging supplies a display to an end user, rather than a device
manufacturer, it is the end user’s responsibility to ensure continued
compliance with the MDD of the system in which the display is integrated.

The supplier will make available on request, circuit diagrams, component part
lists, etc.

For vigilance reporting as required under Article 10 of the MDD, NDS Surgical
Imaging will provide any information requested by competent authority to
support any reported incident investigation by such an authority.

Regulatory Compliance | 23

EU Declaration of Conformity for Medical Application

A Declaration of Conformity has been filed for this product. For additional
copies of the Declaration of Conformity document, contact NDS Surgical
Imaging.

The Dome Sx digital flat-panel display meets the essential health and safety
requirements, is in conformity with, and the CE marking has been applied
according to the relevant EU Directives listed below, using the relevant
section of the following EU standards and other normative documents;

EU EMC Directive 2004/108/EC
EU Electromagnetic Compatibility Directive

EN 60601-1-2
Medical Electrical Equipment

Collateral standard electromagnetic
compatibility requirements

EN 55011 Limits and methods of measurements for

radio interference characteristics of
industrial, scientific, and medical

equipment
IEC 1000-3-2 Harmonic emissions
IEC 1000-3-3 Voltage fluctuations/flicker emissions
IEC 1000-4-2 Electrostatic discharge requirements for

industrial process measurement and

control equipment
IEC 1000-4-3 Radiated electromagnetic field

requirements for industrial process

measurement and control equipment
IEC 1000-4-4 Electrically fast transients for industrial

process measurement and control

equipment
IEC 1000-4-5 Surge requirements
IEC 1000-4-11 Voltage variations/dips/interrupts
IEC 1000-4-6 Conducted immunity
IEC 1000-4-8 Magnetic field immunity

EN 60601-1
Medical Electrical Equipment

24 | Dome Sx Display

Conformance to the Medical Device

Directive 93/42/EEC

Part 1: General requirements for safety

U.S. FCC Compliance Statement

Class A Digital Device: Dome S3, Dome S3c, or Dome S10 Display

This device complies with Part 15 of the FCC Rules.
NOTE: This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment under FCC rules.

Regulatory Compliance | 25

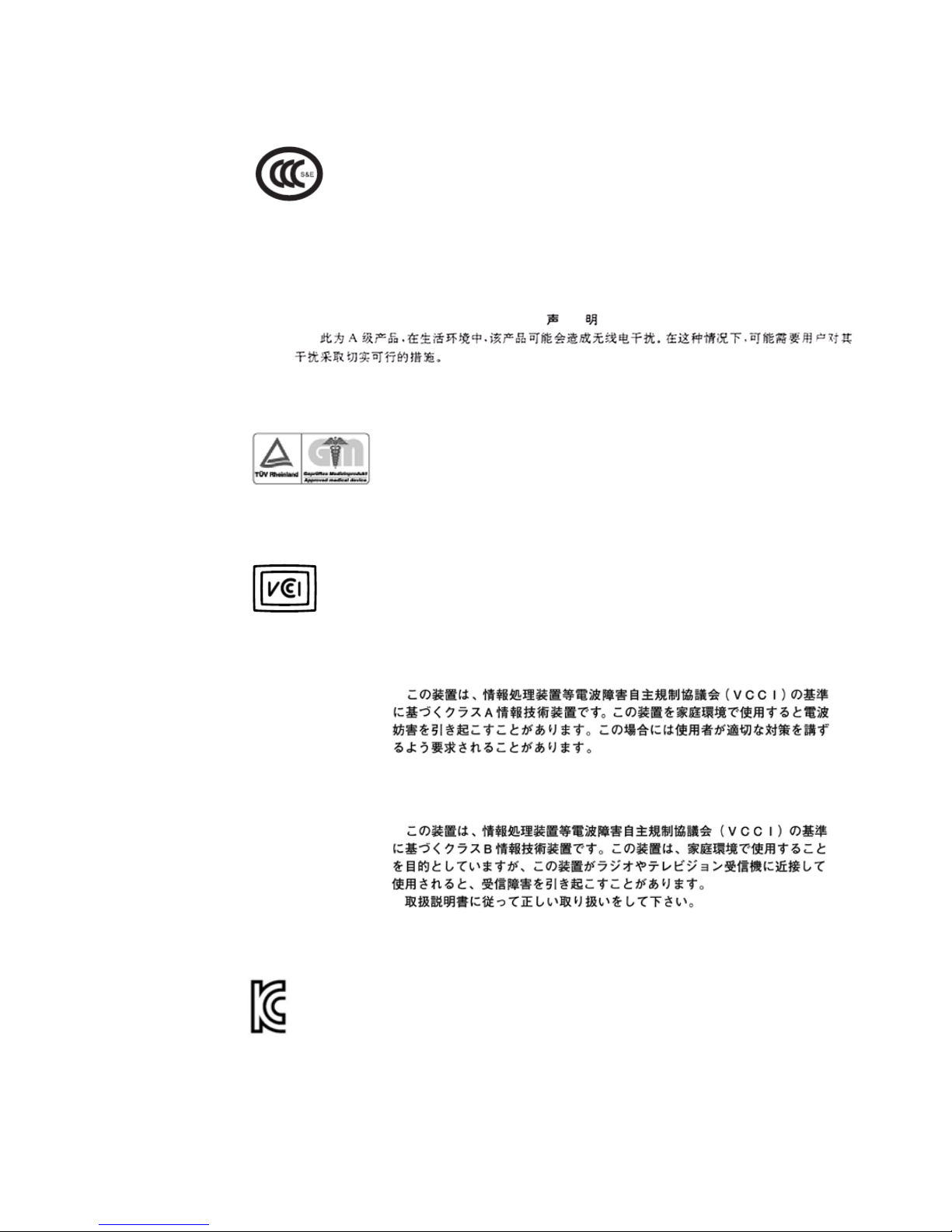

Each Dome Sx display has one or more of the following certifications.

China

China Compulsory Certification regulating safety and
EMC.
GB4943-2001
GB9254-2008
CB17625.1-2003

Class A Dome S3, Dome S3c, and Dome S10

Germany

TÜV Rheinland GM Mark for medical products.

Japan

Korea

Voluntary Control Council for Interference by

information technology equipment sold in Japan.

Class A Dome S3, Dome S3c, and Dome S10

Class B

Korea Certification.

26 | Dome Sx Display

NDSsi Dome® Display Products
Warranty and Service Terms and Conditions

STANDARD LIMITED WARRANTY

COVERAGE: NDS Surgical Imaging, LLC (hereinafter "NDSsi") warrants this product to be
in compliance with the specifications provided by NDSsi and to be free from defects in
material and workmanship as defined in such specifications. Subject to the conditions
set forth below, NDSsi agrees to repair or replace any defective part of the enclosed
unit for the length of period indicated on the chart below.

NDSSI PRODUCT STANDARD WARRANTY COVERAGE

Dome® E Series
Radiology Displays

• Standard 5-year “repair and return” warranty

• Industry-leading 10-year backlight warranty on
grayscale displays

*

• Industry-leading 5-year backlight warranty on

‡

Dome® S Series
Radiology Displays

color displays†

• Standard 5-year “repair and return” warranty

• Industry-leading 10-year backlight warranty on
grayscale displays

• Industry-leading 5-year backlight warranty on
color displays

Dome® GX Display Standard 3-year “repair and return” warranty

* If, within 10 years of initial purchase, the maximum output of the Dome Ex/Sx grayscale
display is determined by NDSsi to be less than 300 cd/m², NDSsi will repair or replace the
display at its sole discretion. The displays must have been run at or below the CXtra default
brightness setting as configured from the factory.

† If, within 5 years of initial purchase, the maximum output of the Dome Ex/Sx color
display (excluding the Dome E4c) is determined by NDSsi to be less than 250 cd/m², NDSsi
will repair or replace the display at its sole discretion. The displays must have been run in
native color mode at or below the CXtra default brightness setting as configured from the
factory.

‡ If, within 5 years of initial purchase, the maximum output of the Dome E4c color display
is determined by NDSsi to be less than175 cd/m², NDSsi will repair or replace the display at its
sole discretion. The displays must have been run in native color mode at or below the CXtra
default brightness setting as configured from the factory

Warranty & Service Terms | 27

EXCLUSIONS – WHAT IS NOT COVERED

1 Any product with a defaced, modified, or removed serial number.
2 Damage, deterioration or a malfunction resulting from accident, misuse, neglect, fire,

water, lightning, or other acts of nature, unauthorized product modification, or

failure to follow instructions supplied with the product.
3 Cosmetic damage including, but not limited to: scratches, cracks, dents, markings,

glue and adhesive residue.
4 Any damage of the product due to shipment.
5 Any damage caused by factors external to the product, such as electric power

fluctuation or failure.
6 Normal wear and tear, including backlights dimming over time, or image retention

resulting from displaying fixed images for long periods of time.
7 Removal, installation, and set-up service charges.
8 Failures not reported within the warranty term.
9 Any NDSsi products purchased through a distributor, reseller, or medical device

manufacturer other than NDSsi (each, an “Intermediary”), where such Intermediary

provides direct warranty service to its end-user customers in connection with such

product.

*

DISCLAIMER

This limited product warranty sets forth your sole and exclusive remedy and NDSsi’s
sole and exclusive liability under the Standard Limited Warranty described herein.

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE
DESCRIPTION CONTAINED HEREIN INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR
NONINFRINGEMENT.

* Note that NDSsi sells its products through distributors, resellers, and other medical
device manufacturers which prefer to provide their end-user customers with direct warranty
support. Contact NDSsi Customer Care to determine if the product that you purchased is
covered by this Standard Limited Warranty or whether you need to contact the Intermediary
through which you purchased the product for warranty service.

28 | Dome Sx Display

NDSSI’S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE
PRODUCT. NDSSI SHALL NOT BE LIABLE FOR THE FOLLOWING:

1 DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT,

DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF

TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL,

INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS,

EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
2 ANY OTHER DAMAGES, WHETHER INCIDENTAL, INDIRECT, CONSEQUENTIAL OR

OTHERWISE.
3 ANY CLAIM AGAINST THE CUSTOMER BY A THIRD PARTY.

End-users are cautioned that system configuration, software, the application, customer
data and operator control of the system, among other factors, affect the product
performance. While NDSsi products are considered to be compatible with many
systems, specific functional implementation by the customers of the product may vary.
Therefore, suitability of a product for a specific purpose or application must be
determined by consumer and is not warranted by NDSsi.

This warranty gives you specific legal rights. You may have other rights, which may vary
from locality to locality. Some localities do not allow limitations on implied warranties
and/or do not allow the exclusion of incidental or consequential damages, so the
above limitations might not apply to you.

WARRANTY SERVICE - REPAIR & RETURN – (US AND CANADA ONLY)

• Our standard warranty service is “Repair and Return”. Repair and Return requires the

defective unit to be returned to our service location for repair.

• Our service location will repair your unit within ten (10) business days. The service

time-period does not include in-transit shipping time to or from our service location.

• Cost of shipment of the defective unit to NDSsi is the responsibility of the customer.

Cost of shipment of the repaired unit to Customer is the responsibility of NDSsi

(duties and taxes to Canada are not included).

• NDSsi reserves the right in its sole discretion to provide Customer with a comparable

refurbished replacement unit in lieu of repair of customer’s defective unit.

• If NDSsi is unable within a reasonable time to repair or replace the defective unit, it

shall refund the purchase price for the product paid by the customer (exclusive of

taxes, installation and shipping related fees).

Warranty & Service Terms | 29

CONTACTING NDSSI CUSTOMER CARE

PRODUCT LINE Dome®

TOLL FREE [phone]

LOCAL [phone]

E-MAIL [email protected]

HOURS 6

A.M. – 5 P.M. Pacific Time, Monday –Friday

1 Contact NDSsi Medical Support during the hours listed above. Have your NDSsi

model number and serial number available. You may be required to provide proof of

purchase as a condition for receiving warranty service.
2 Our representative may perform troubleshooting and diagnosis of the problem by

telephone or e-mail. If our representative is unable to fix the problem by telephone

or e-mail, we will issue a Return Material Authorization (RMA) for the nonfunctioning

unit and provide return instructions.
3 Upon receipt of the returned product, a service technician will evaluate the unit and

confirm the failure description provided by the customer.

(a) If the found failure type is covered under warranty, the repair, parts, labor and

shipment back to the customer will be at no charge.

(b) If the found failure type is not covered under warranty, NDSsi’s then current

evaluation fee will apply in addition to the cost of parts, labor and the return
shipment.

(c) If the unit is within the warranty period but the customer does not provide a

problem description and the service technician cannot determine the failure
(no problem found – “NPF”) NDSsi’s then current evaluation fee will apply in
addition to return shipment.

30 | Dome Sx Display

PAYMENT FOR NONWARRANTY EVALUATIONS AND REPAIRS AND OTHER EVALUATION
CHARGES: Nonwarranty repairs requested by customer will be performed at NDSsi’s
then current rates for any nonwarranty repairs and will include applicable evaluation
fees and the cost of return shipping (if customer requests that NDSsi ship the repaired
product). NDSsi further reserves the right in its sole discretion to request pre-payment
for any nonwarranty repairs, NPF evaluations, and return shipping charges prior to
return of the product to customer. Any invoiced amount not paid when due shall be
subject to a service charge equal to the lesser of one and one-half percent (1.5%) per
month or the maximum rate permitted by law. If NDSsi undertakes collection or
enforcement efforts, customer shall be liable for all costs thereof, including attorney’s
fees. NDSsi reserves the right to suspend warranty coverage to any customer who is in
default of payment until such payment has been made.

Warranty & Service Terms | 31

NDS Surgical Imaging, LLC
5750 Hellyer Avenue
San Jose CA 95138-1000 USA
www.ndssi.com
