Kitchen Wizard

User Manual

Model No.: DKM9801-DC
Item No.: 900838
220-240Va.c. 50Hz 300W

Rev 3

READ AND SAVE THESE INSTRUCTIONS

Note: The specifications and/or components of this appliance are subject to change without prior notice.

1 Your Attention ......................................................................3

2 Important Safeguards ..........................................................3

3 Description ...........................................................................6

4 Before Using For The First Time ........................................6

5 Operating Instructions .........................................................7

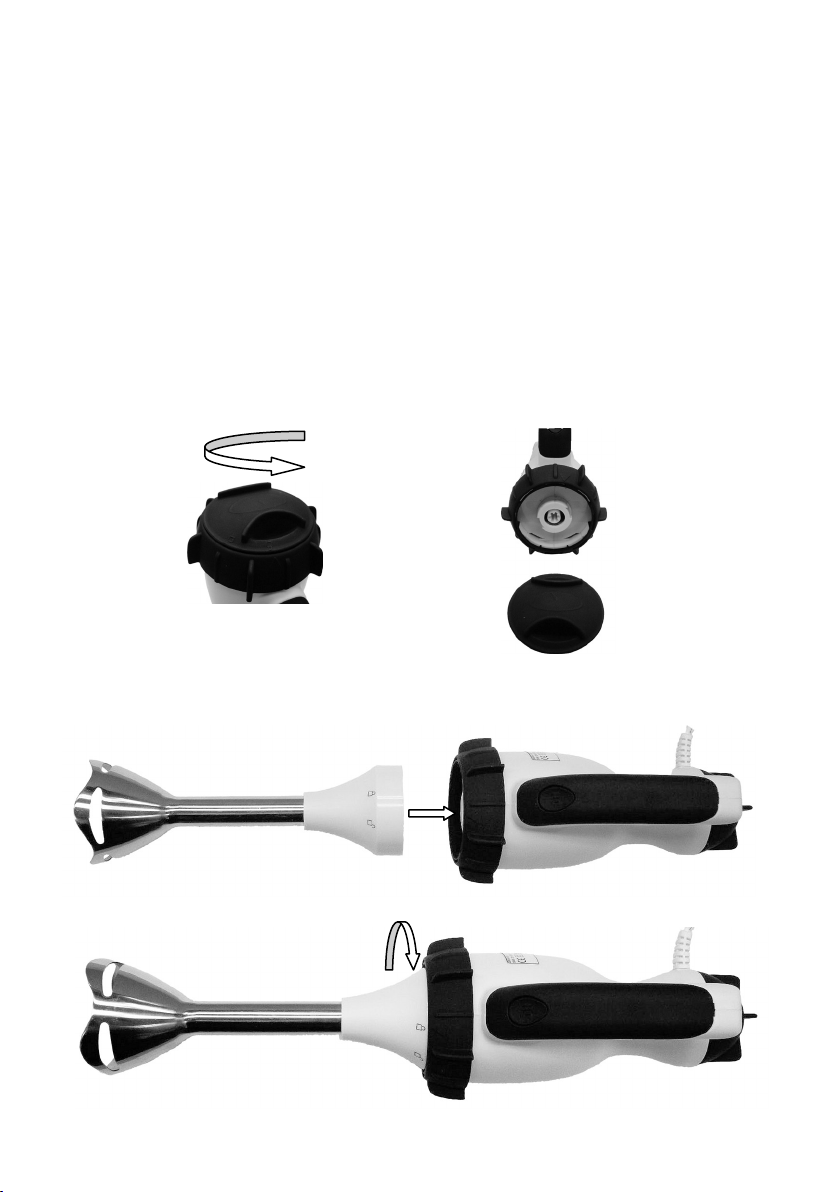

5.1 Stick Mixer .............................................................................. 7

5.1.1 Assembly ............................................................................................ 7

5.2 Operation ............................................................................... 8

5.3 Chopper ................................................................................. 9

5.3.1 Assembly ............................................................................................ 9

5.3.2 Processing Guide ............................................................................ 11

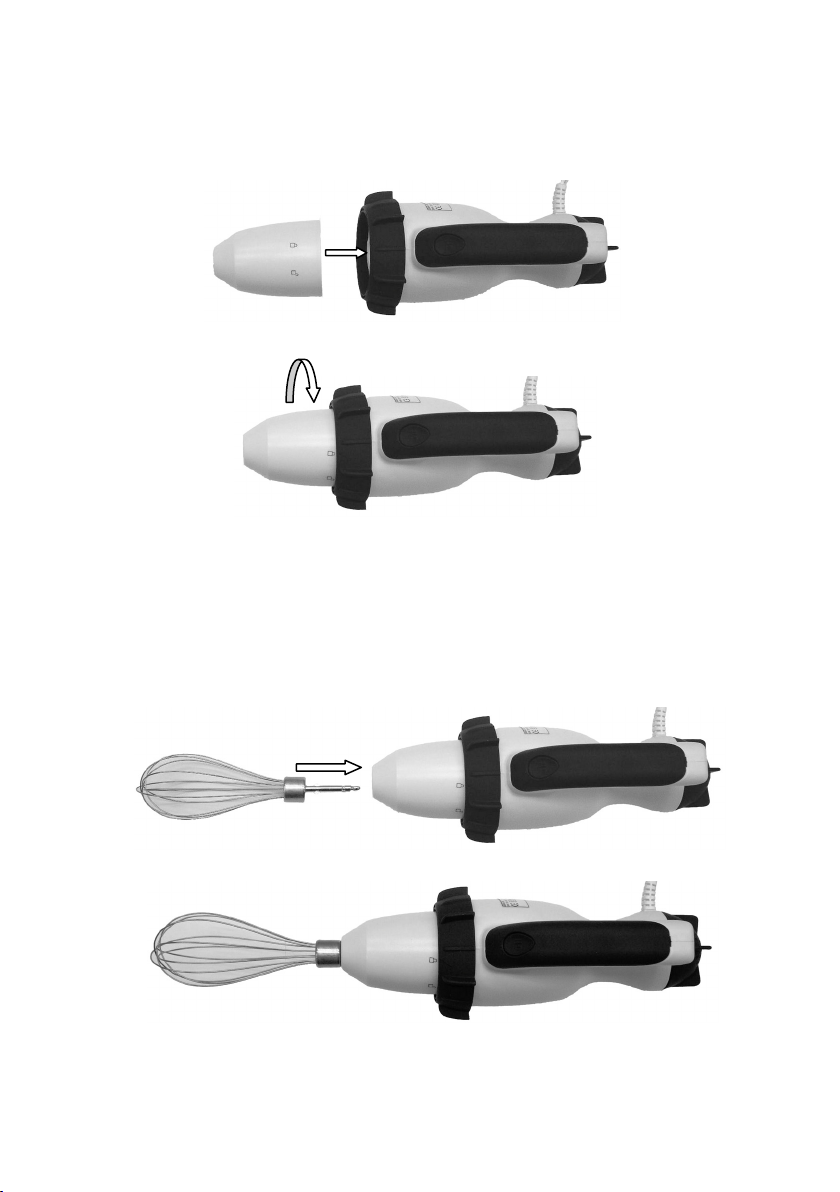

5.4 Whisk ................................................................................... 11

5.4.1 Assembly .......................................................................................... 11

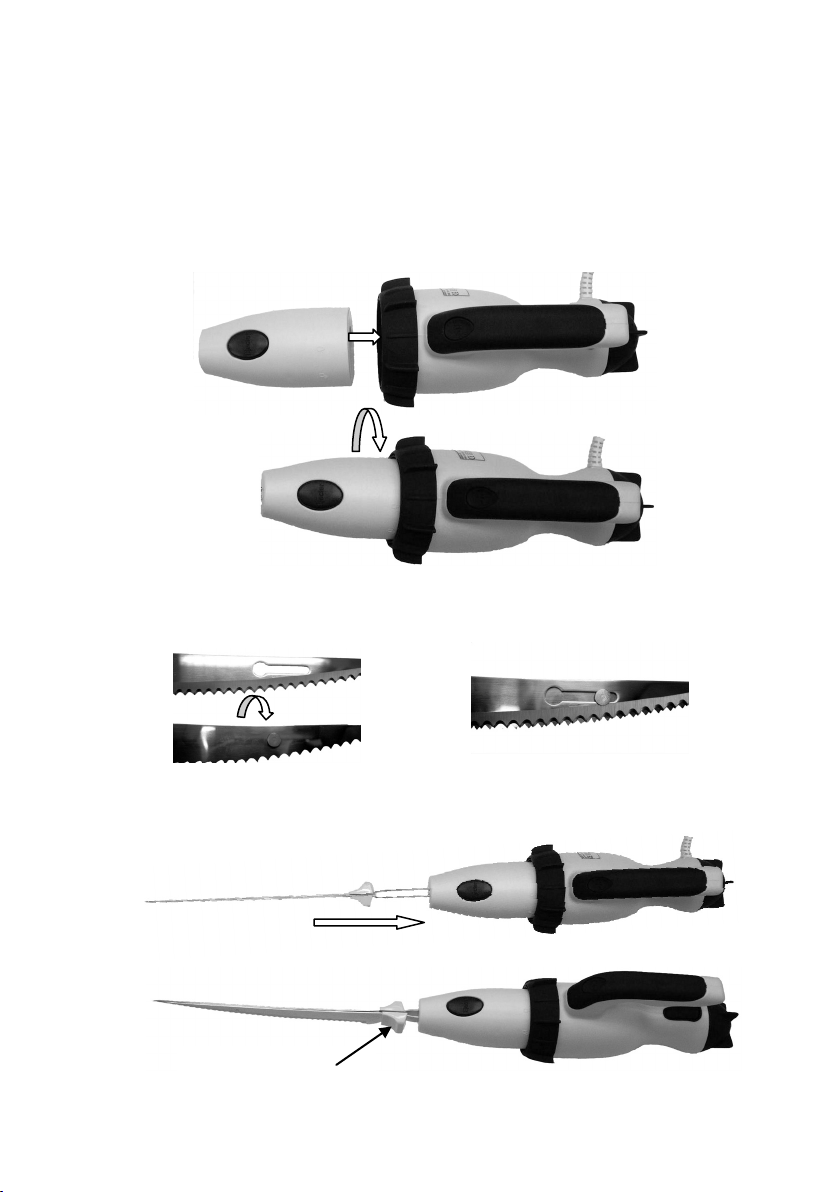

5.5 Knife ..................................................................................... 13

5.5.1 Assembly .......................................................................................... 14

5.5.2 Removing Blades ............................................................................ 15

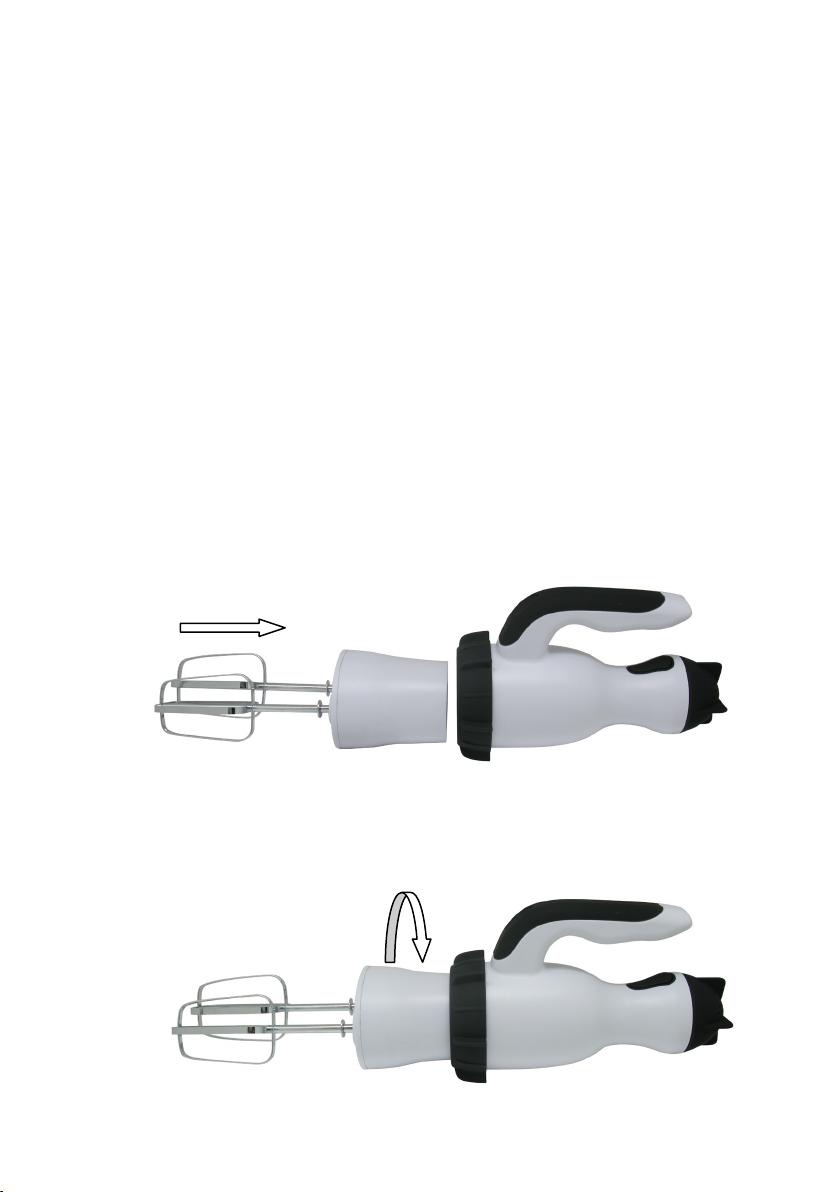

5.6 Beaters ................................................................................. 16

5.6.1 Assembly .......................................................................................... 16

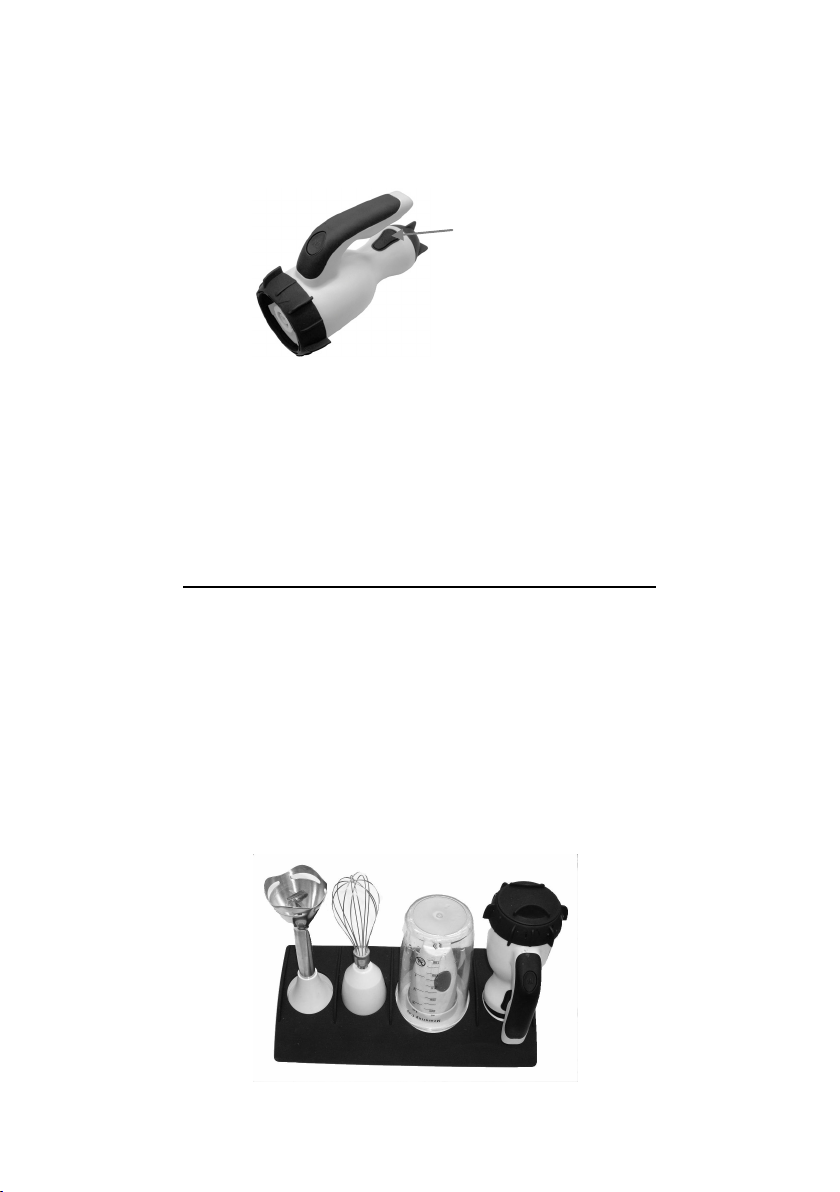

6 Storage................................................................................17

7 Cleaning ..............................................................................18

7.1 Non Submersible Components ............................................. 18

7.2 Submersible Components .................................................... 18

7.3 Stick Mixer ............................................................................ 19

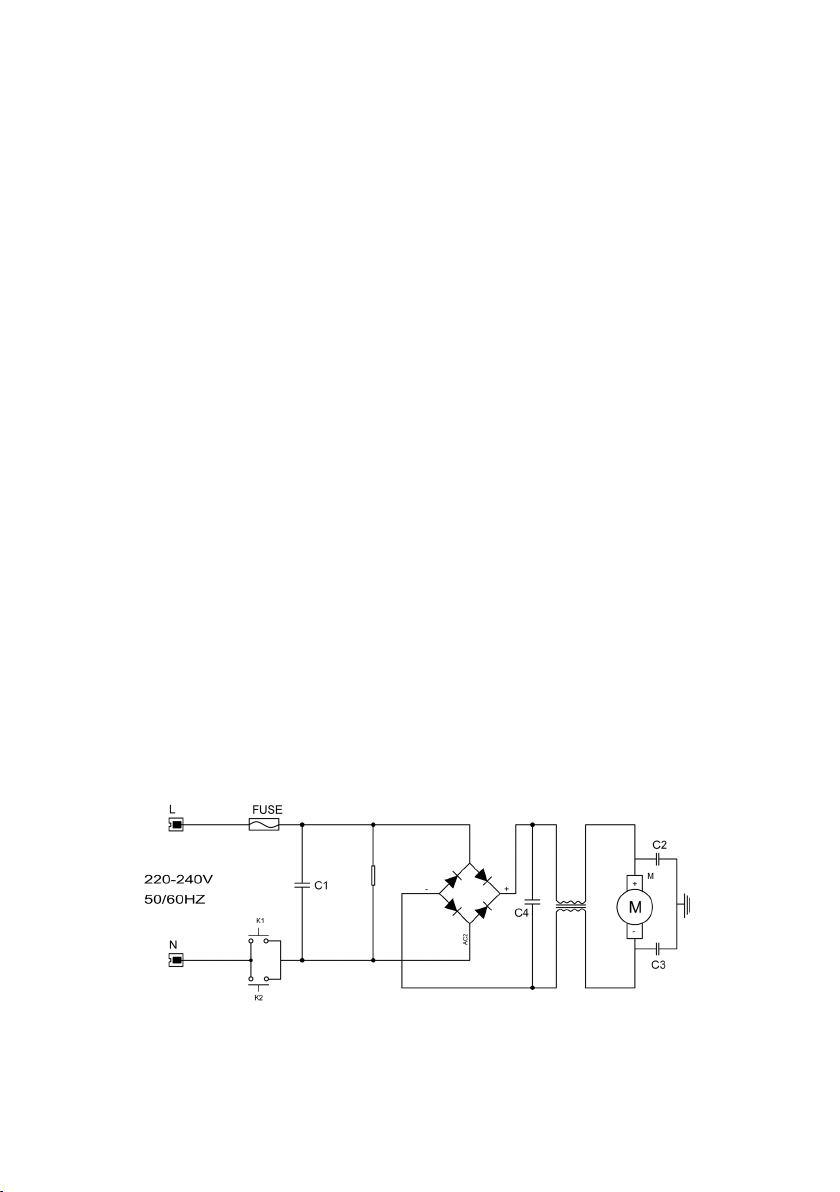

8 Wiring Diagram...................................................................19

9 Guarantee ...........................................................................20

Page 2 of 20

1 Your Attention

Read and follow all the instructions in this “Use and Care” even if you feel you are
familiar with the appliance, and find a place to keep it handy for future reference.

Your attention is drawn particularly to the sections concerning “IMPORTANT
SAFEGUARDS”.

For your convenience, record the complete model number (located on the
appliance identification plate) and the date you purchased the appliance, together
with your purchase receipt and attach to the warranty and service information.
Retain in the event that warranty service is required.

2 Important Safeguards

When using any electrically powered appliance, basic safety
precautions should always be followed, including the following:

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING
THE APPLIANCE.

WARNING - to reduce the risk of fire, electrical shock or injury to

persons or property:

• Always operate the appliance from a power source of the same voltage,
frequency and rating as indicated on the appliance identification plate.

• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the
appliance.

• Do Not allow children to use the blender without supervision.

• Switch Off the appliance and disconnect from supply before changing

accessories or approaching parts that move in use.

• Do not operate any appliance with a damaged cord or plug, or after the
appliance malfunctions, or is dropped or appears damaged in any way.
Return the complete appliance to the place of purchase for inspection, repair
or replacement.

• Avoid using on metal surfaces e.g. sink.

• Do not place on top of any other appliance.

Page 3 of 20

• Do not operate on an inclined surface.

Note: Failure to observe these cautions may result in damage to the
appliance.

• To reduce the risk of electric shock, do not immerse or expose the appliance
or flexible cord to rain, moisture or any liquid other than those necessary for
correct operation of the appliance.

• For indoor use only. Do not use this appliance outdoors

• Never carry this appliance by the cord

• Switch off and unplug from outlet when not in use, before assembling or

disassembling parts and before cleaning. Remove by grasping the plug - do
not pull on the cord.

• Do not touch hot surfaces. Allow to cool before cleaning

• Do not use the appliance for other than its intended use.

• Never insert utensils or other objects into the appliance.

• Never touch the blades while the machine is plugged in.

• Take extra care when handling blades as they are sharp and may cause

injury.

• Keep fingers, hair, clothing and utensils away from moving parts.

• Never blend hot oil or fat

• Do not let the cord hang over the edge of a table or bench or touch any hot

surfaces.

• Do not operate or place any part of this appliance on or near any hot surface
(such as gas or electric burners or hot plates or in a heated oven).

• When using this appliance, provide adequate space above and on all sides
for air circulation.

• Do not allow this appliance to touch curtains, wall coverings, clothing, dish
towels or other flammable materials during use.

• Do not leave this appliance unattended during use.

Page 4 of 20

• The use of attachments or accessories not recommended or sold by the
appliance distributor may cause personal or property hazards or injuries.

• This appliance is not intended to be operated by means of an external timer
or separate remote-control system.

• Do not reach for an appliance that has fallen into water. Switch ‘OFF’ at the
power point and unplug immediately.

• Before cleaning, disconnect from the power supply.

• Check the appliance and the cable regularly for damage. If there is damage

of any kind, the Appliance should not be used.

• In case of any repairs, replacement of cord or plug, or adjustment, please
consult a qualified electrician, or take the Appliance to an authorised service
facility.

• When storing the Appliance, wrap the cord neatly to avoid unnecessary
strain on the cord.

• The Appliance must only be used as intended in accordance with these
operating instructions.

• If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.

• Do Not Open the appliance. There are no user serviceable parts inside.

• This appliance is intended for normal domestic/household use only.

• No liability can be accepted for any damage caused by non-compliance with

these instructions or any other improper use or mishandling.

READ AND SAVE THESE INSTRUCTIONS

Page 5 of 20

7 5 1 2 3 4 6 8 9

10

11

12

3 Description

1. Chopper Lid / Bowl Ass embly 7. Measuring Beaker

2. Beater s 8. Stor age T ray

3. Stick Mixer Attachment 9. Knife to Motor Coupling

4. Whisk Attachment 10. Whisk to Motor C oupling

5. Knife A ttachment 11. Beater to Motor Coupling

6. Power Handle 12. Chopper Blade

DO NOT TOUCH CUTTING BLADES

4 Before Using For The First Time

• Remove all packaging and discard the blade covers.

• Wash all components. Refer “Cleaning” Section for instructions.

Page 6 of 20
