DOLPHIN Master m5 User Manual

EN

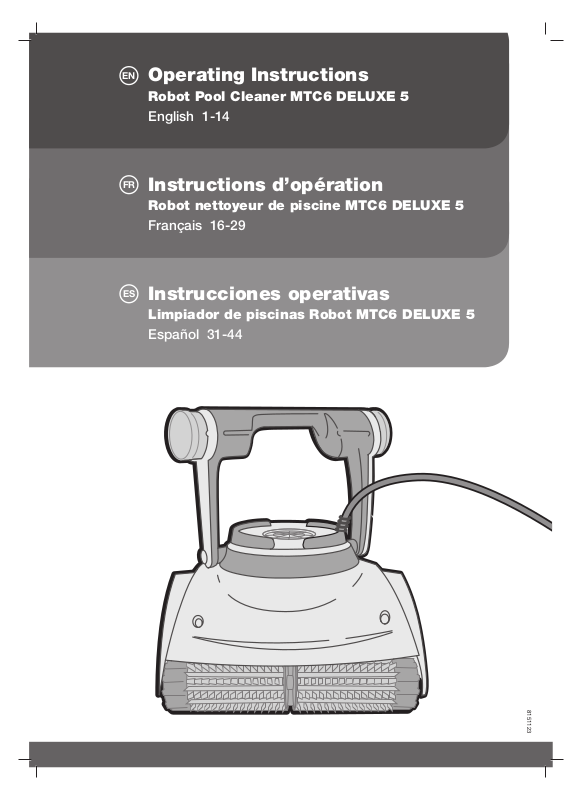

Operating Instructions

FR

ES

Robot Pool Cleaner MTC6 DELUXE 5

English 1-14

Instructions d’opération

Robot nettoyeur de piscine MTC6 DELUXE 5

Français 16-29

Instrucciones operativas

Limpiador de piscinas Robot MTC6 DELUXE 5

Español 31-44

8151123

Operating Instructions 1-14

!

2

1

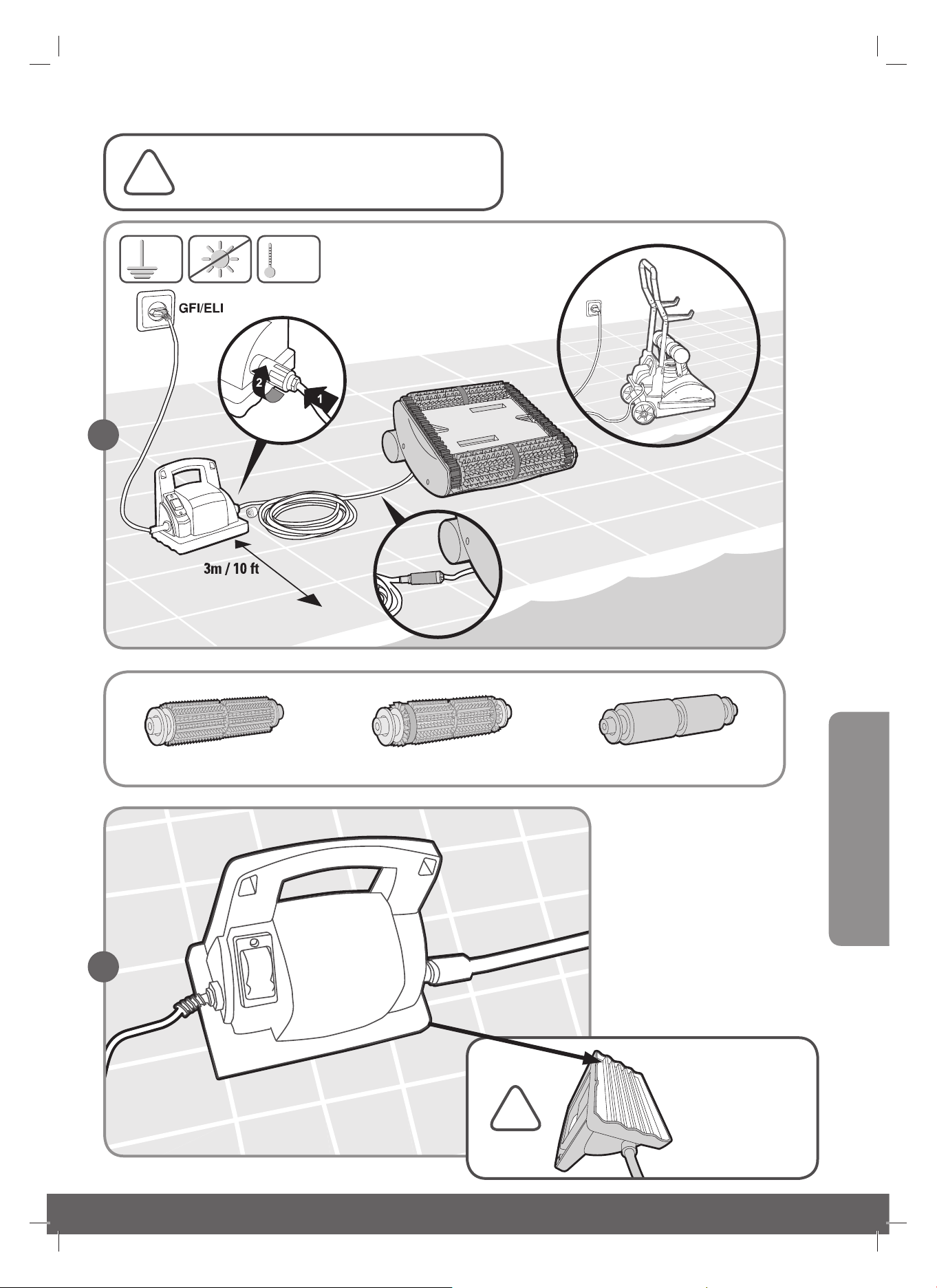

Important safety instructions

GFI/ELI

40ºC Max
104ºF Max

English

Swivel

Standard Brush Combined Brush Wonder Brush

• Keep power supply out of
standing water

• Use only original Dynamic
power supply- factory wired for
100/115/230/250 VAC mains
supply

Beware! Very Hot!

!

1

3

Ph

A

4

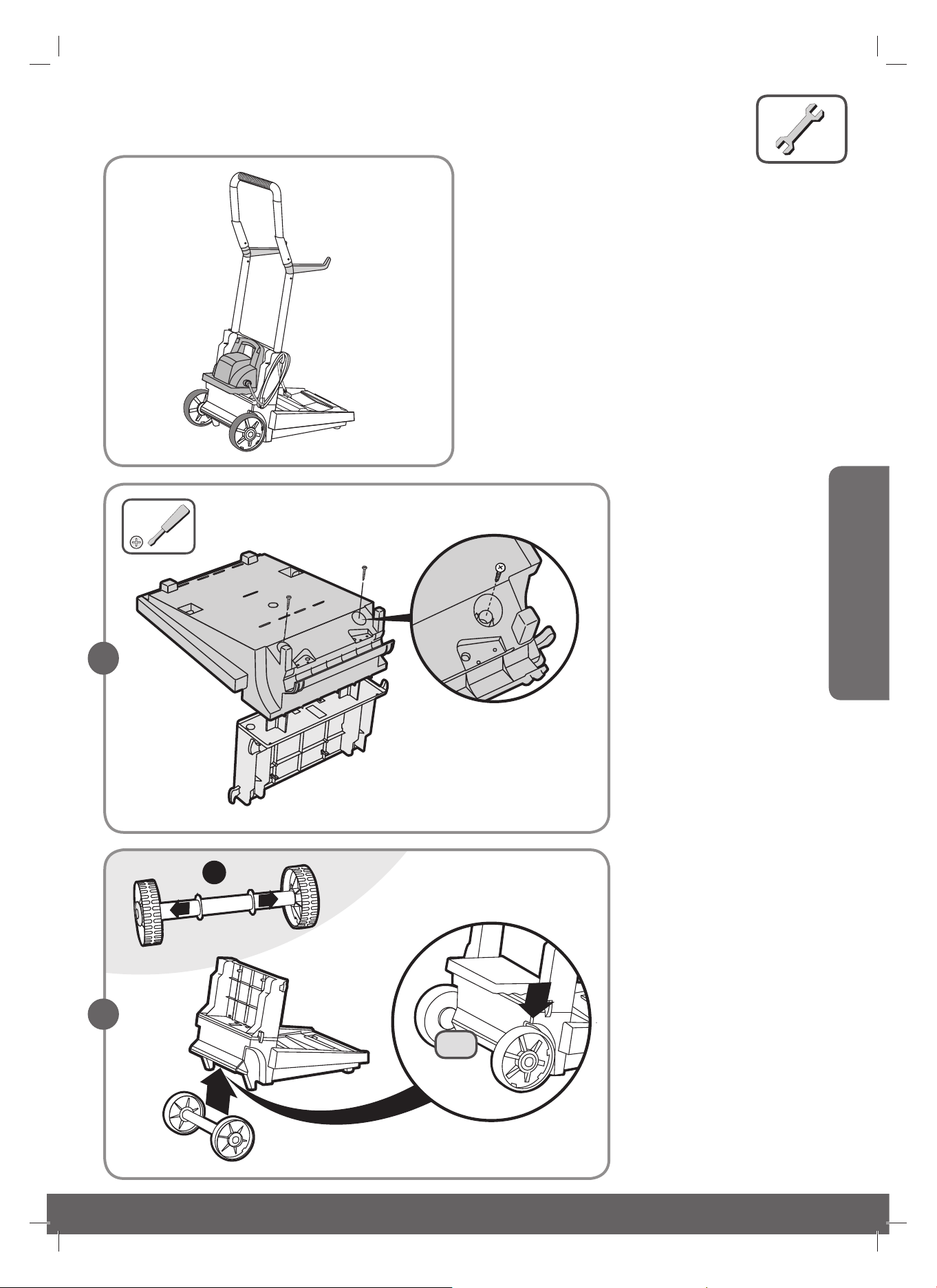

Caddy

Assembly

C

Click!

B

2

5

C

7

6

C

B

A

Click!

English

12mm

0.47inch

B

A

3

10

9

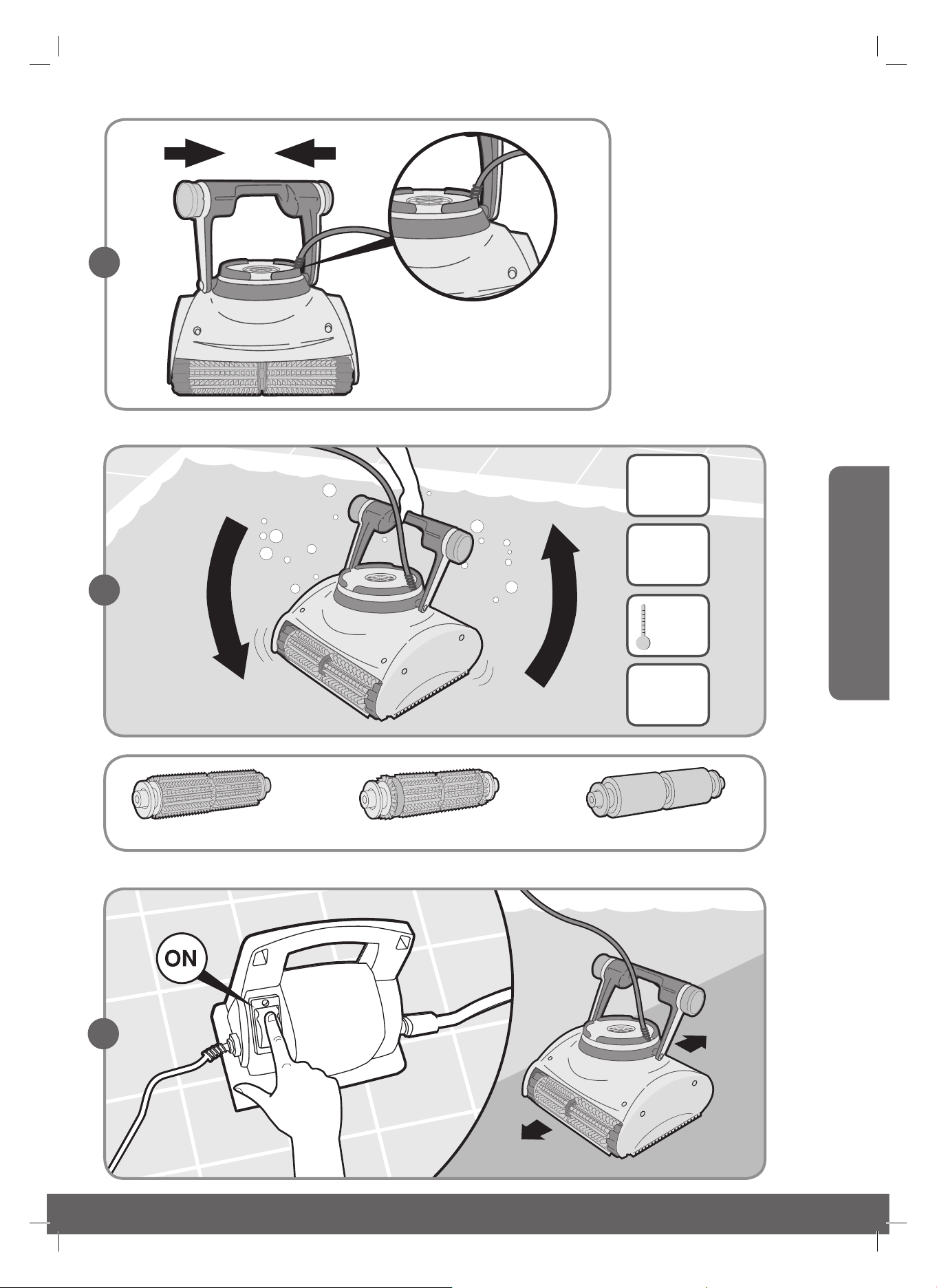

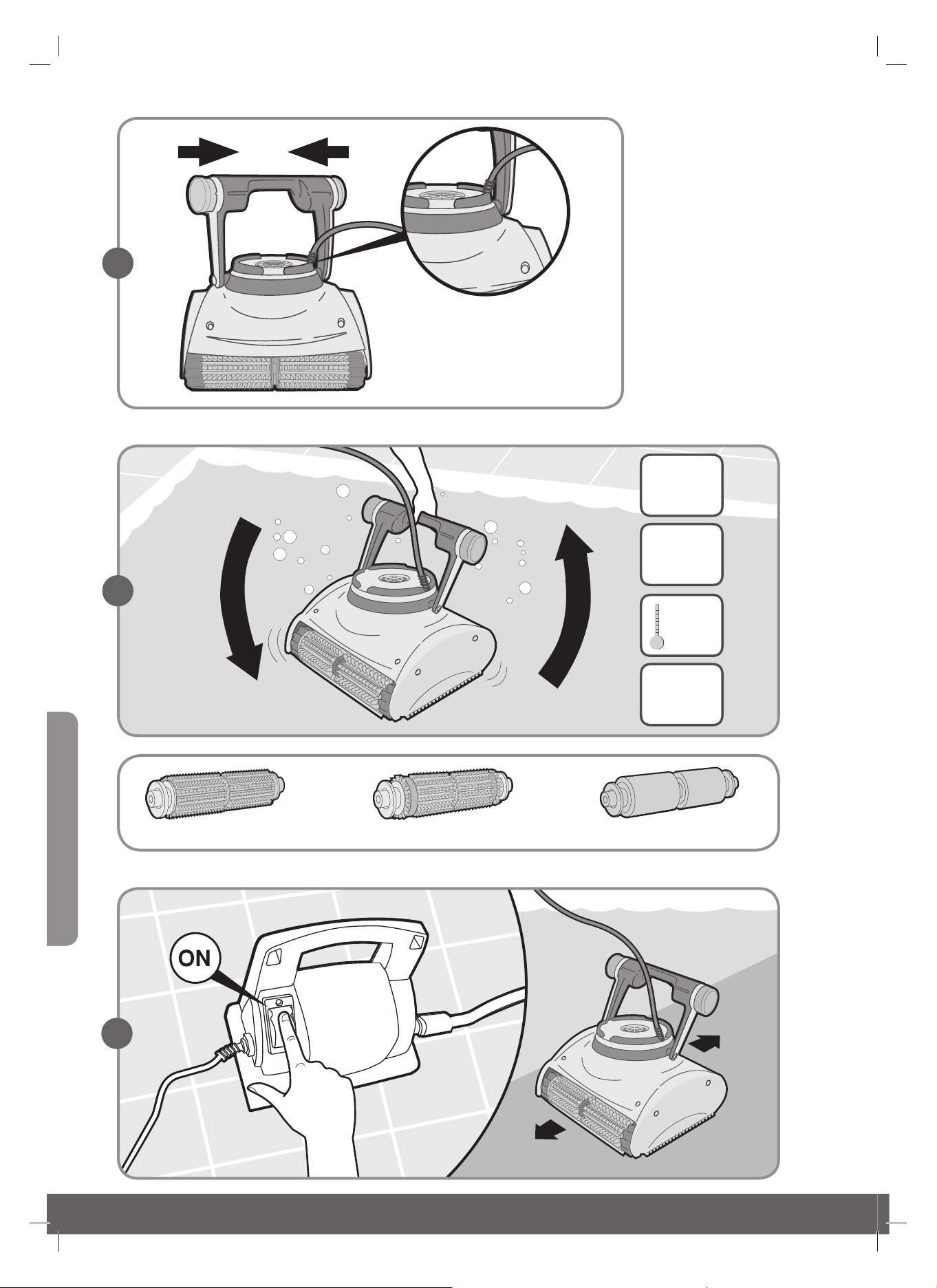

Place cable on the right side infront of the handle

8

Shake robot from side to side or turn it upside down to release trapped air

CHLORINE

2 - 4 ppm

Standard Brush Combined Brush Wonder Brush

Soak and squeeze PVA (Wonder brush) / PVA rings (Combined brush) in water

PH

7 - 7.4

32ºC 90ºF
12ºC 54ºF

NaCl

max

5000 ppm

4

OFF

11

12

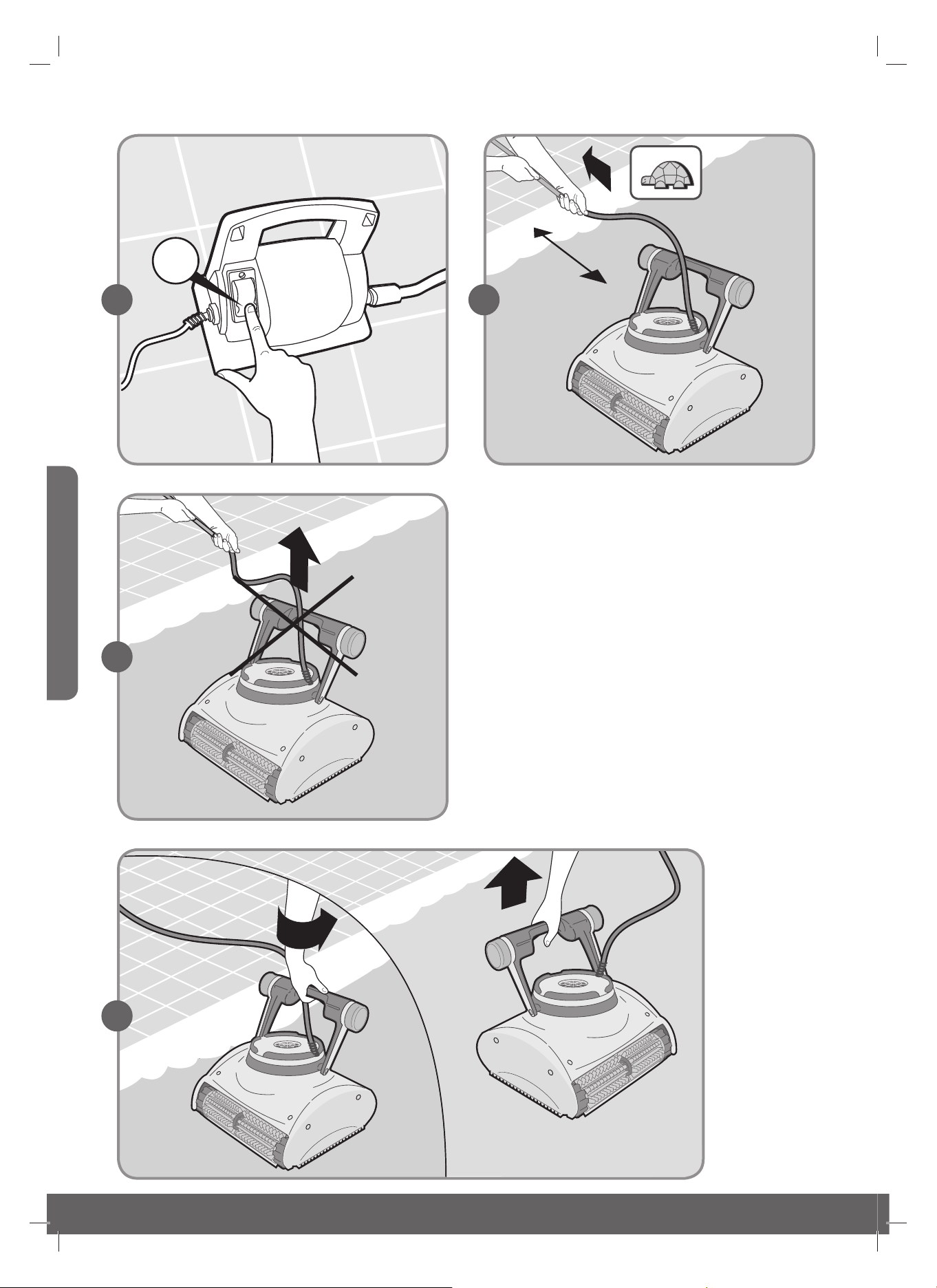

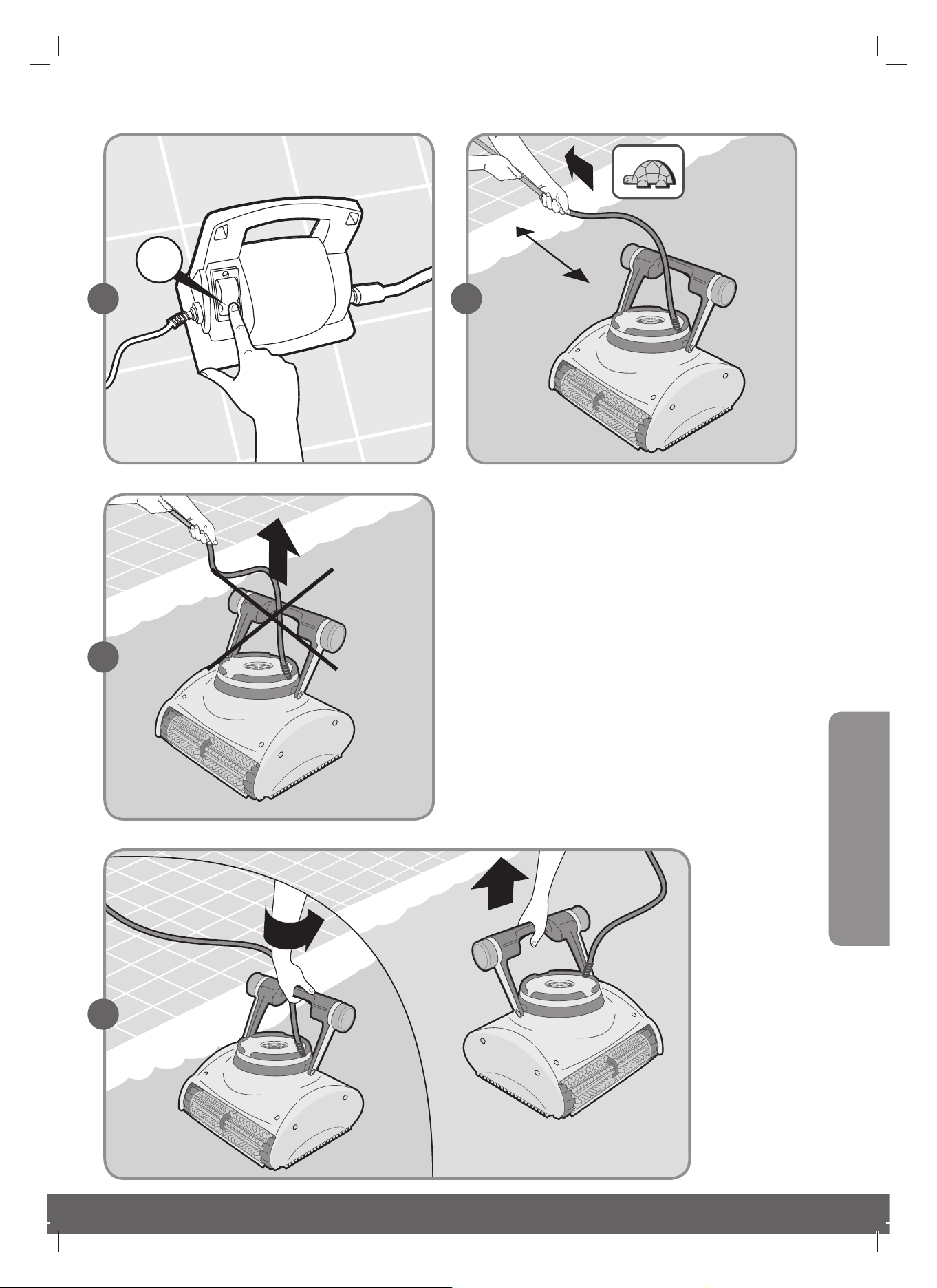

Although the robot will perform automatic shut-off at the end of the cleaning cycle,

13

14

switch power supply “OFF” manually

10 cm

3.93 inch

English

B

A

5

EXIT

BACK

ENTER
SEND

RCU

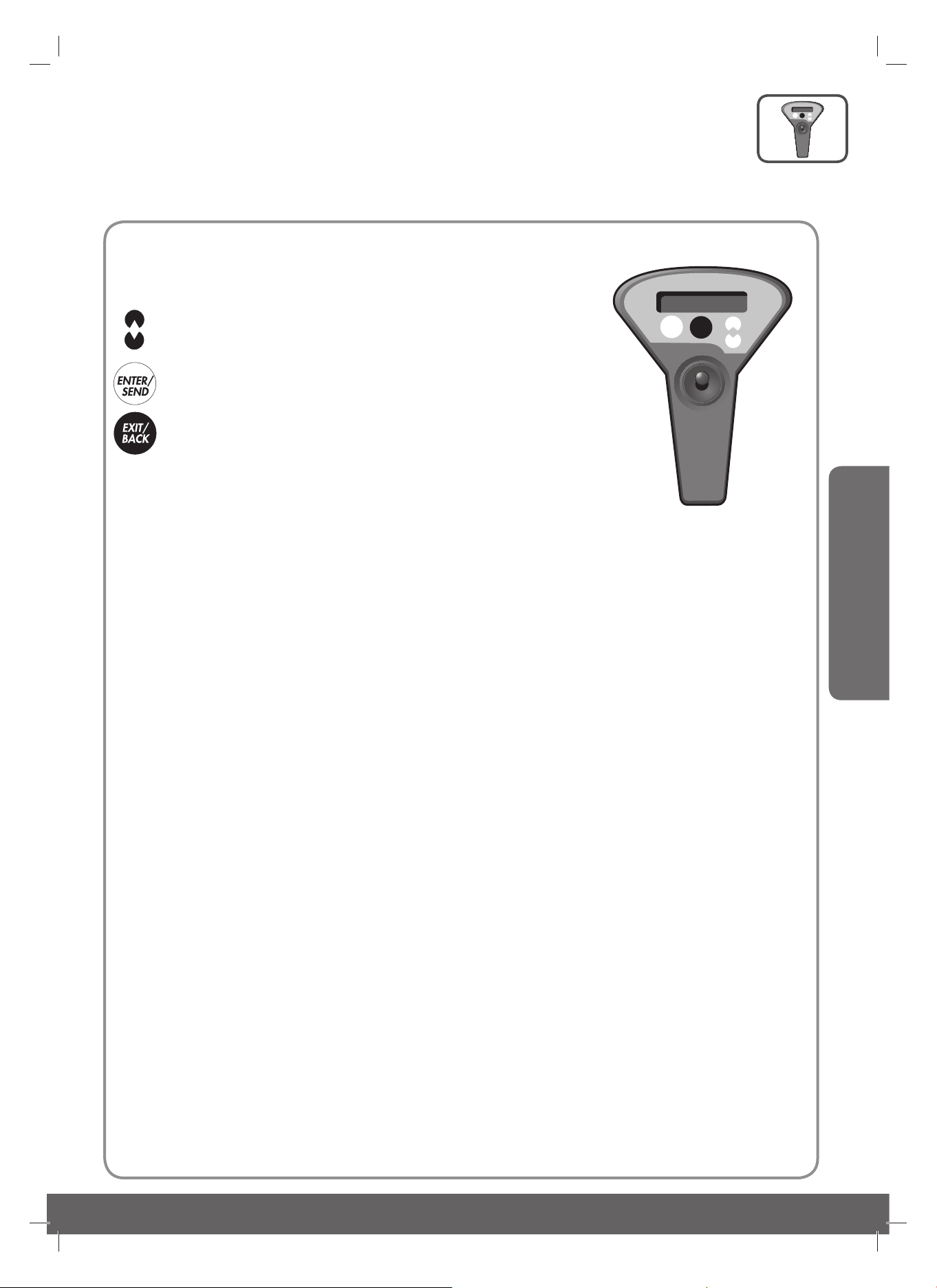

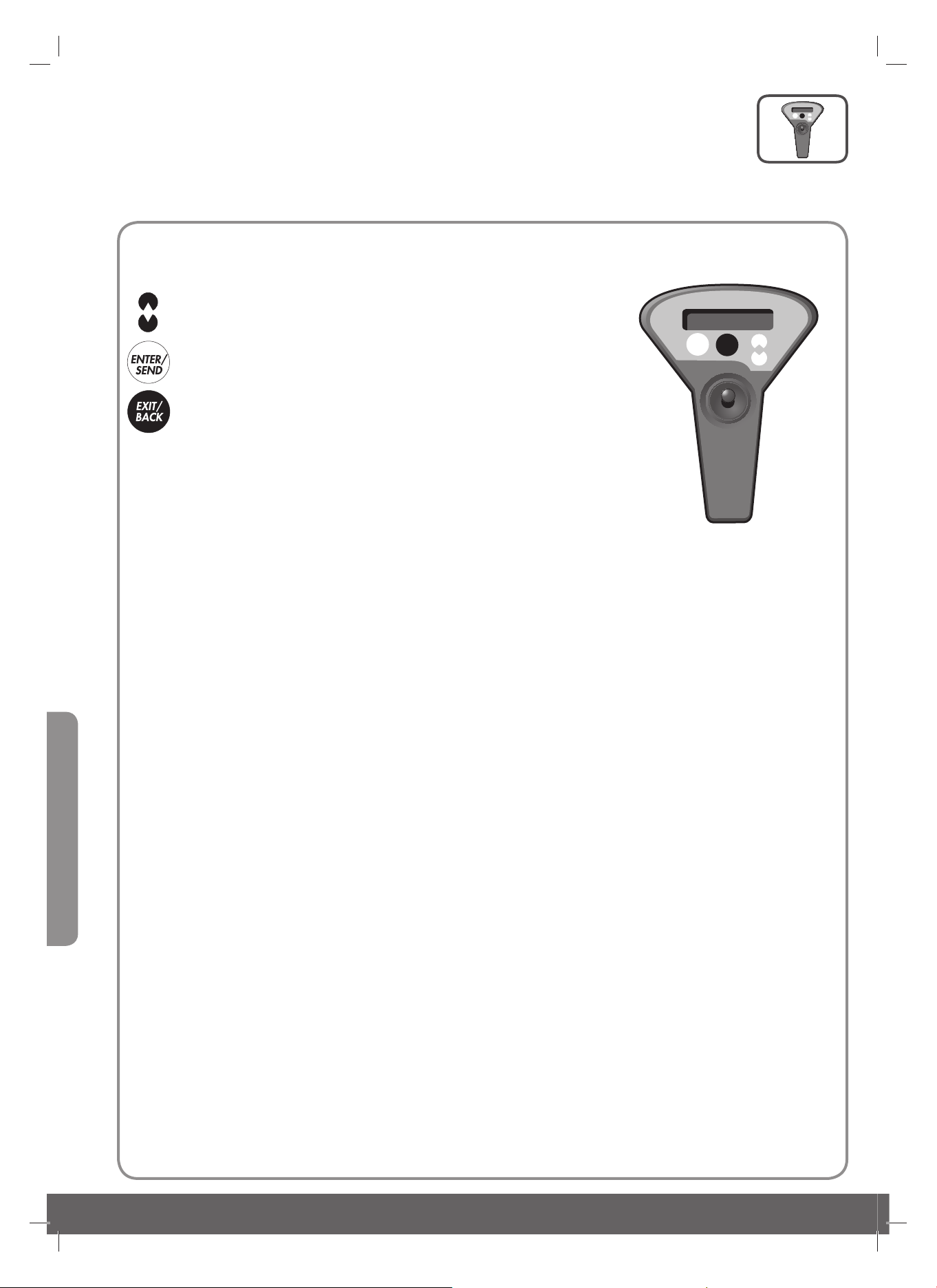

Remote Control Unit (RCU)

1) These buttons are used for switching between menus and options.
This button is used to switch on the RCU, to select a required

menu, to SEND or to SET a parameter or a program.

This button is used to EXIT from a menu or move back a step.

This button is also used to turn off the RCU.
Press EXIT a number of times until RCU turns off.

If a parameter was modified, then just before final EXIT you may
be required to send your new set of parameters.

Description and use of menus

EXIT

ENTER
SEND

BACK

2) Cleaning programs

• REGULAR – Floor and walls cleaning program.

• ULTRAclean – Slower movement for special thorough cleaning.
Note: ULTRAclean mode can only be selected from REGULAR mode.

• WATERline – For special attention to walls and water line.
Note: For efficient WATERline cleaning program, position the handle diagonally
exactly as shown in [Fig B].

If you choose WATERline or ULTRAclean modes, these parameters will not remain
in the DOLPHIN memory for the next cycle. Instead, the DOLPHIN automatically
switches to REGULAR mode.

• LAPpool – Suitable for this specific type of pool – narrow and long.
Note: If you choose a LAPpool cleaning mode, set the pool length after setting this mode.

3) Parameters

• CYCLE-TIME – Choose the most suitable cycle time.

• POOL-LENGTH – Program the pool length.

• CLIMB-EVERY – This option controls the frequency of wall climbing
e.g.: at which frequency the DOLPHIN should climb on the walls.

4) Battery Replacement

If the massage “Low Battery” appears on the RCU screen:

• Open the battery cover.

• Remove all used batteries from the RCU.

• Place two 1.5 V AAA batteries into the RCU as shown in the drawing
inside the battery housing.

• Close the battery cover.

If you are not using your RCU for more than 6 months - remove batteries.

6

MTC6 DELUXE

RCU

EXIT

ENTER
SEND

BACK

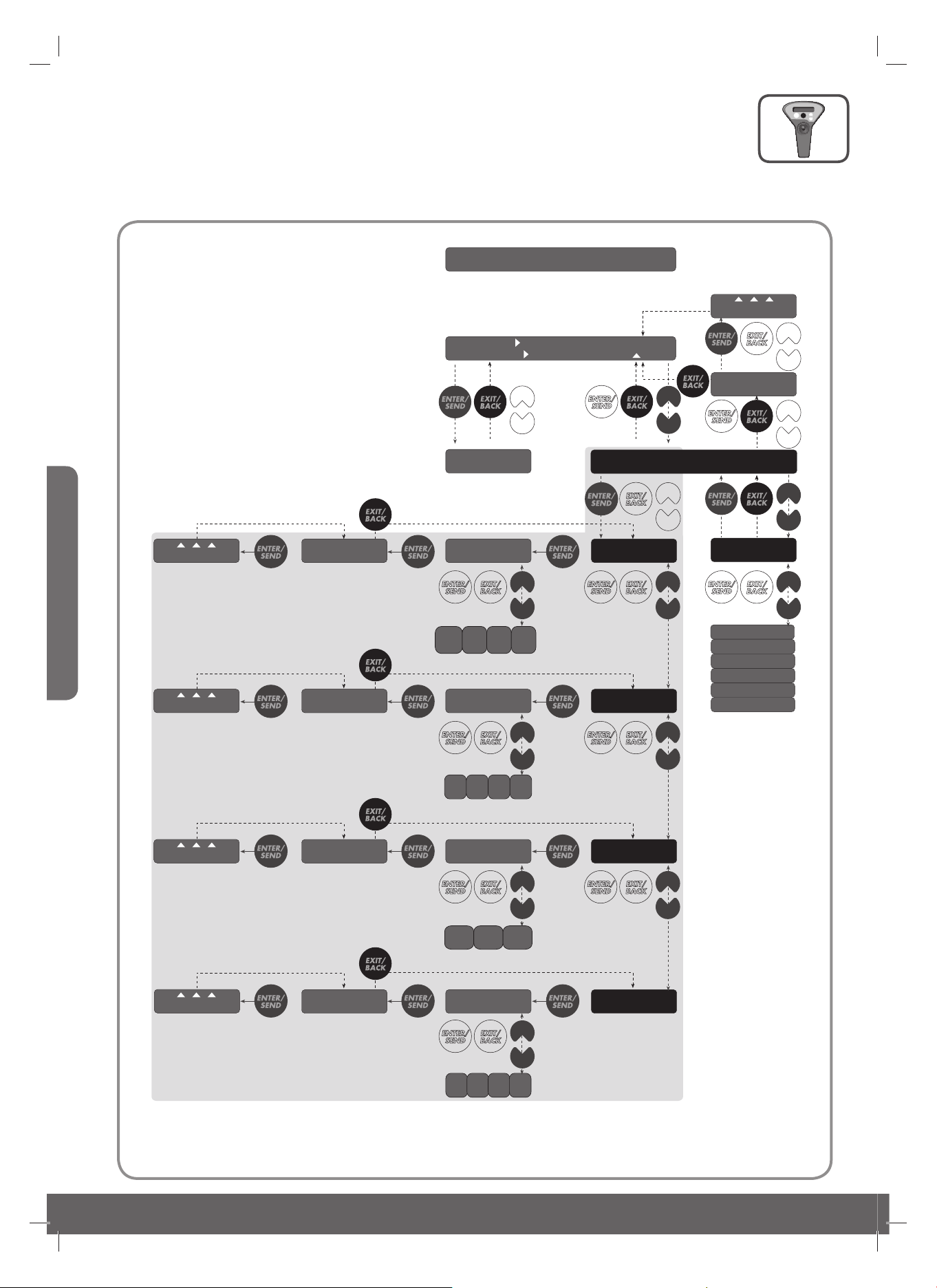

Sending Data

Sending Data

Clean mode

Send Regular

Climb Every

Send 8 min

Start up screen 2 seconds splash

Joystick

Parameters

Joystick mode

exit

Clean mode

Set Regular

Ultra

Regular

Water

clean

line

Climb Every

Set 8 min

Lap
pool

Enter

Settings Language

Setting

Clean mode - enter

Setting

Climb every - enter

Parameters

Sending Data

Send

Yes/No

Language

Set - English

English

Français

Deutsch

Español

Italiano

Dutch

English

None 4 8 16

Sending Data

Sending Data

Cycle time

Send 3.0 Hours

Pool length

Send 12m 40ft

Cycle time

Set 3.0 Hours

234

Pool length

Set 12m 40ft

6m

10m

20ft8m26ft

33ft

12m

40ft

Setting

Cycle time - enter

Setting

Pool length - enter

Note: If RCU is not operated the DOLPHIN will enter AUTOMATIC CLEANING mode
according to the last set of parameters used.

7

18

17

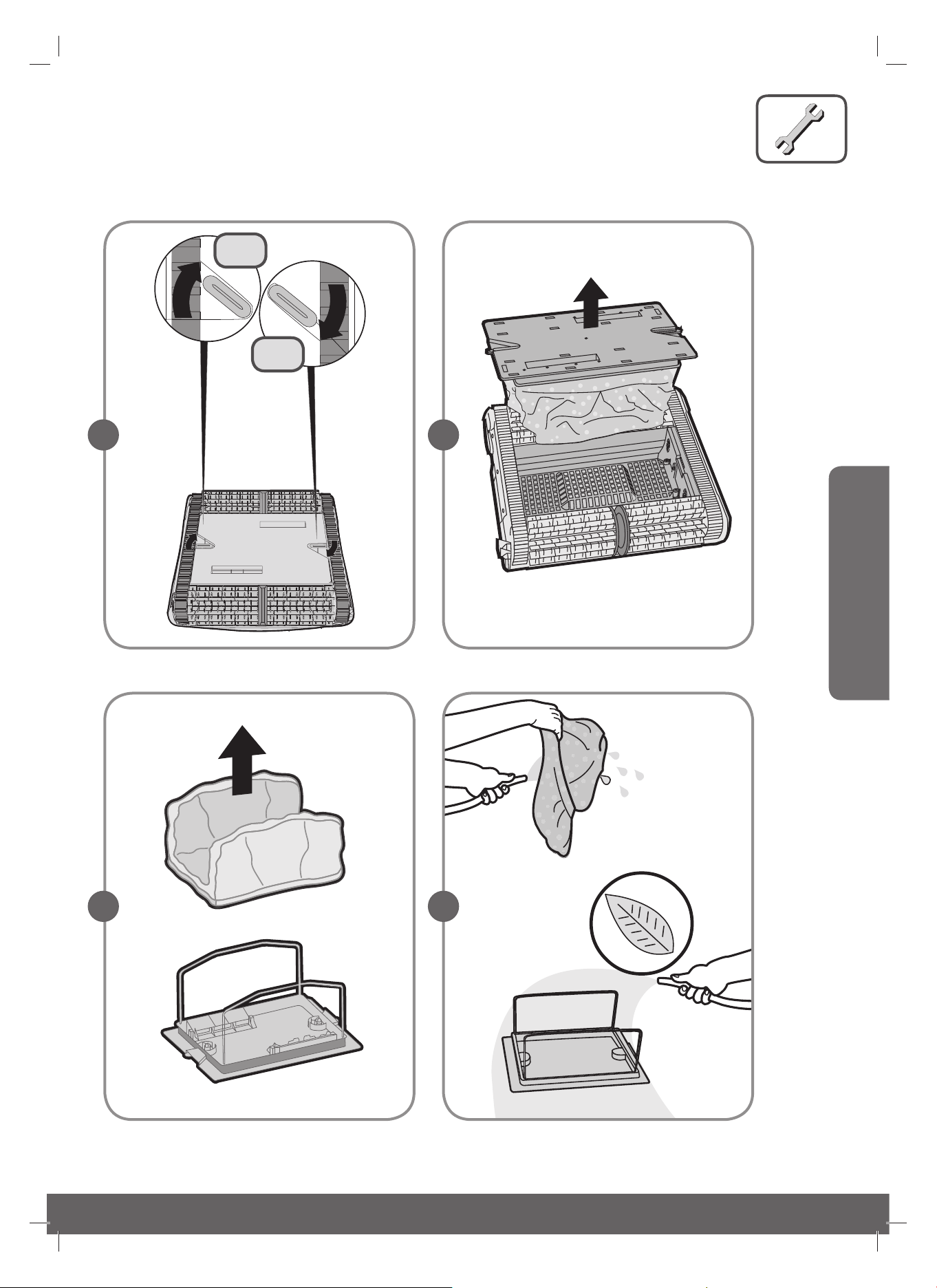

It is recommended to periodically wash filter bag in a washing

16

15

machine. Use synthetic cleaning program

Click!

Click!

Filter Bag

8

19

20

21

Filter Bag

English

Click!

Click!

9

24

25

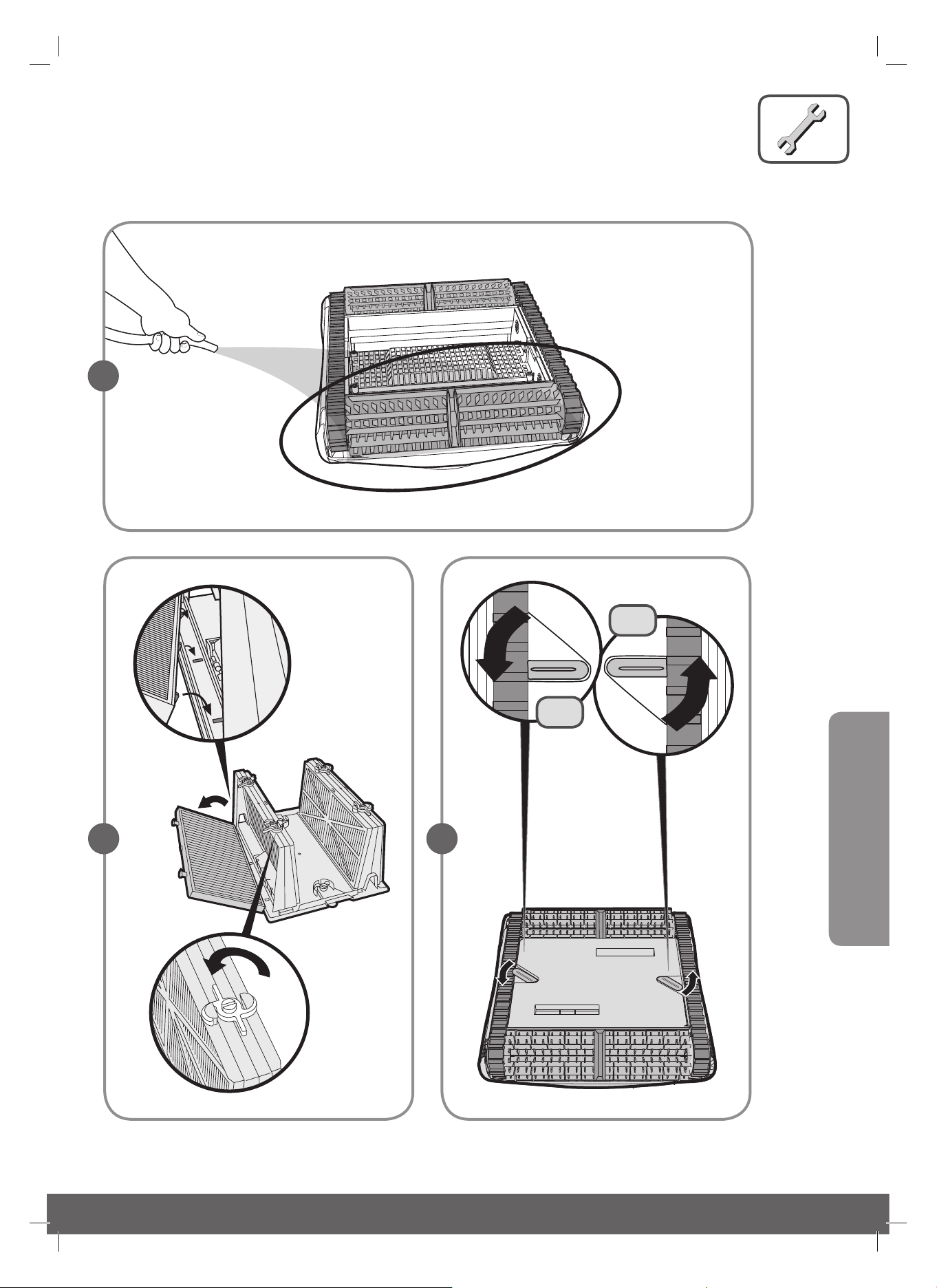

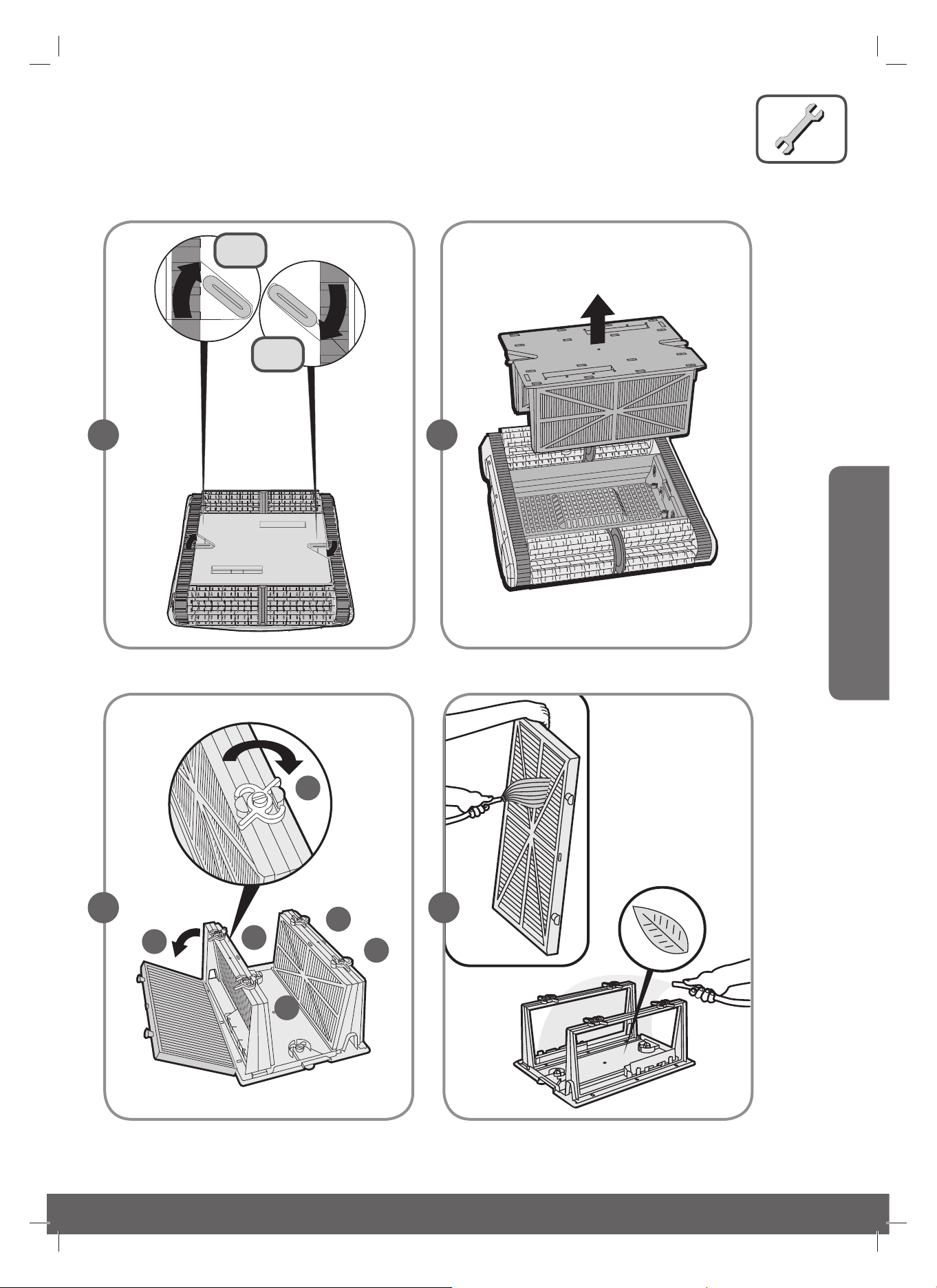

It is recommended to wash the cartridge after every cycle

A

A

A

ABA

23

22

Note: In extremely dirty pools (e.g. spring cleaning),

there is a need to open and clean the cartridge every
1/2 hr. of operation. Failing to clean the cartridge will result
in poor scanning and inability to climb the pool walls.

Click!

Click!

Cartridge

Optional

10

262728

Cartridge

Optional

English

English

Click!

Click!

11

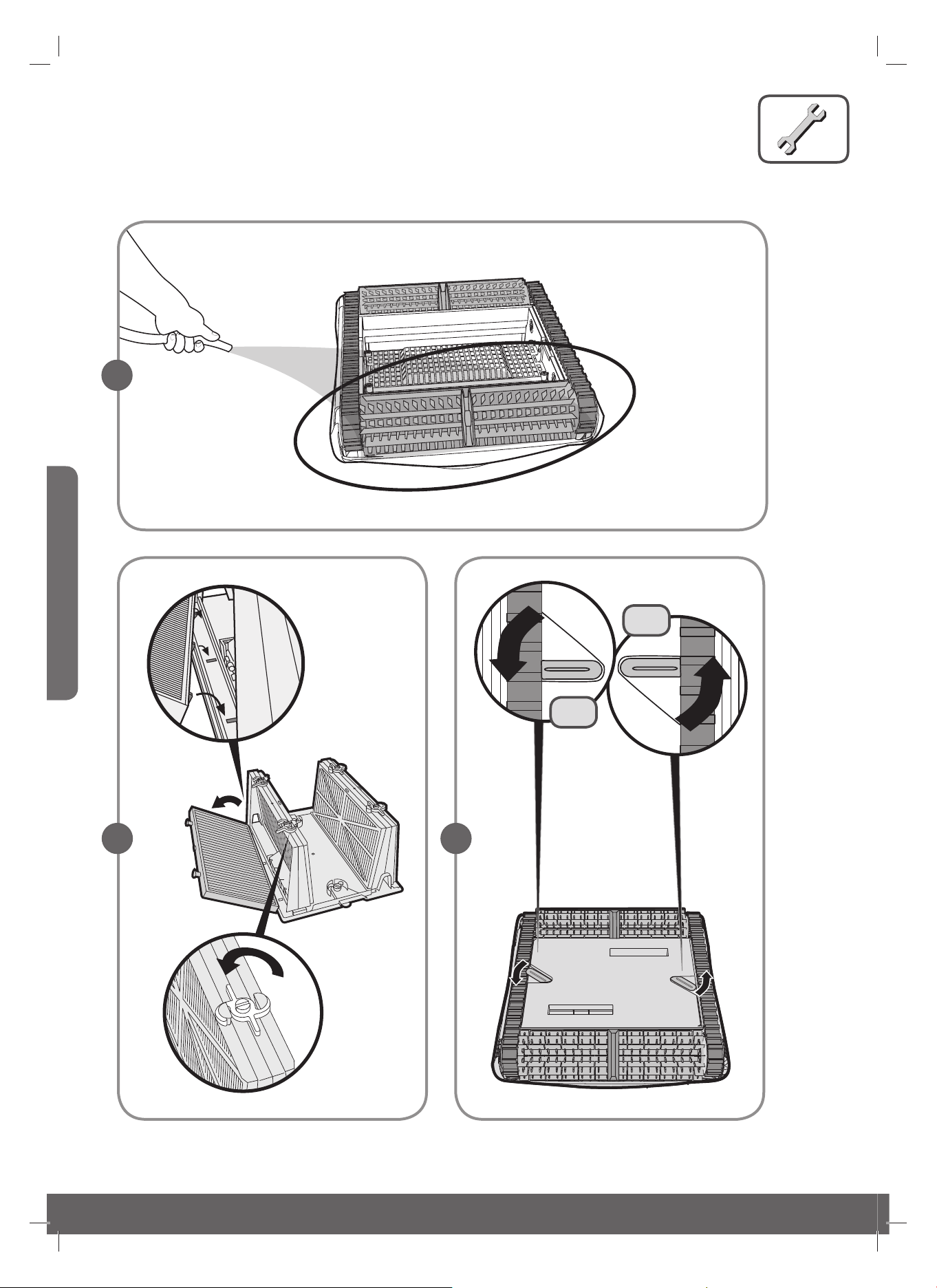

Ph

B

A

29

30

!

Ph

12

A

B

C

D

31

32

33

!

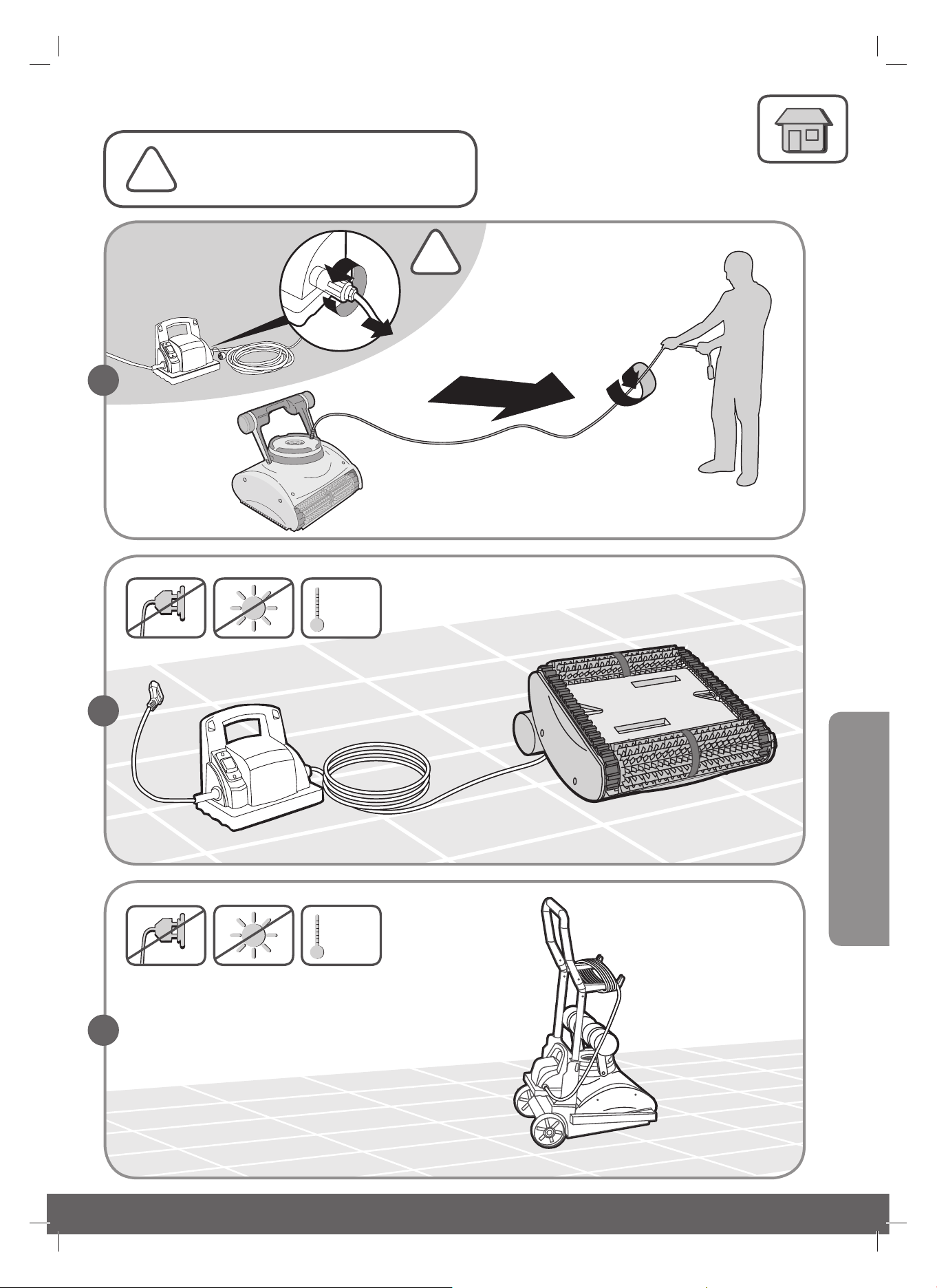

Straighten the cable from time to time

!

English

45ºC 113ְºF
5ºC 41ºF

45ºC 113ְºF
5ºC 41ºF

13
