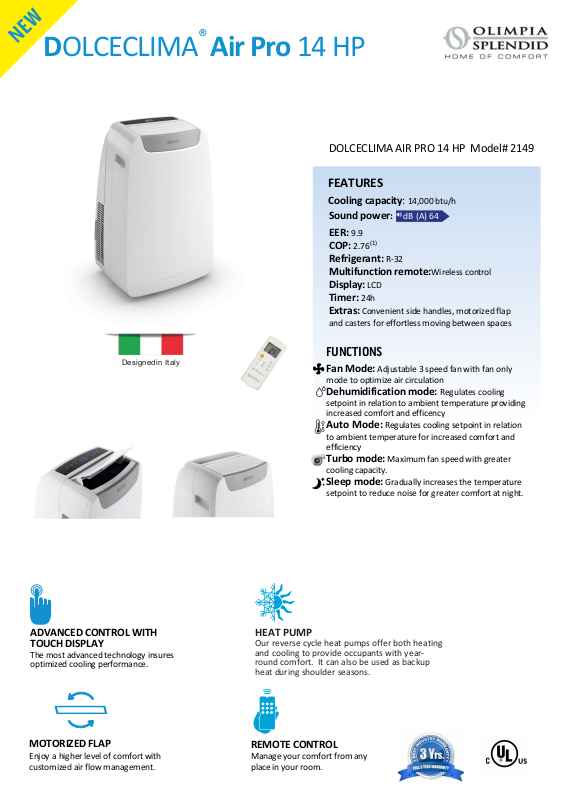

Page 1
NEW
DOLCECLIMA
®
Air Pro 14 HP
DOLCECLIMA AIR PRO 14 HP Model# 2149
FEATURES
Cooling capacity: 14,000 btu/h
Sound power:
dB (A) 64
Designed i n Italy
EER: 9.9
COP: 2.76
Refrigerant: R-32
Multifunction remote:Wireless control
Display: LCD
Timer: 24h
Extras: Convenient side handles, motorized flap
and casters for effortless moving between spaces
(1)
FUNCTIONS
Fan Mode: Adjustable 3 speed fan with fan only
mode to optimize air circulation
Dehumidification mode: Regulates cooling
setpoint in relation to ambient temperature providing
increased comfort and efficency
Auto Mode: Regulates cooling setpoint in relation
to ambient temperature for increased comfort and
efficiency
Turbo mode: Maximum fan speed with greater
cooling capacity.
Sleep mode: Gradually increases the temperature
setpoint to reduce noise for greater comfort at night.
ADVANCED CONTROL WITH
TOUCH DISPLAY
The most advanced technology insures
optimized cooling performance.
MOTORIZED FLAP
Enjoy a higher level of comfort with
customized air flow management.
HEAT PUMP
Our reverse cycle heat pumps offer both heating
and cooling to provide occupants with yearround comfort. It can also be used as backup
heat during shoulder seasons.
REMOTE CONTROL
Manage your comfort from any
place in your room.
Page 2
Design Specifications and Capacities* Dolceclima Air Pro 14 HP
Compressor
Type
Rotary
Indoor Fan
Type
Centrifugal
Model Number 2149
Voltage (min 109, max 127) AC Volts/Phase/Hertz 115-1-60
Rated Capacity for Cooling (1) BTU/H 14,000
Rated Capacity for Heating (1) BTU/H 11,000
Rated Power Consumption - Cooling Mode Watts 1415
Rated Power Consumption - Heating Mode Watts 1170
Energy Efficiency Ratio EER 9.9
Coefficient of Performance COP 2.76
Dehumidification Capacity Pints/Hr. 5.7
Rated Load Amps
Lock Rotor Amps
Speeds
Full Load Amps
R.L.A.
L.R.A.
# of speeds
F.L.A.
7.4
54
3
<1
Indoor Air Volume (Cooling Mode) CFM (H, M, L) 306/283/261
Indoor Air Volume (Heating Mode) CFM (H, M, L) 306/283/261
Outdoor Fan Speeds # of speeds 2
Intake/Exhaust Hole Diameter (2) Inches 8"
Maximum Remote-Control Range Feet 26'
Dimensions (without packaging) W/H/D 19.3" x 30.1" x 16.7"
Dimensions (with packaging) W/H/D 21.1" x 35" x 19.2"
Weight (without packaging) lbs 77.2
Weight (with packaging) lbs 88
Sound Level (3) dB H/M/L 56/54/52
Refrigerant ASHRAE # R-32
Refrigerant Factory Charge lbs - oz 1 - 8
Design Condition Parameters* Dolceclima Air Pro 14 HP
Maximum Operating Temperature in Cooling Mode °F/°C DB 95°F/35°C - WB 75°F/24°C
Indoor
Temperature
Outdoor
Temperature
*Values may change if models are revised. Always use the latest publication date for any literature.
Minimum Operating Temperature in Cooling Mode °F/°C DB 64°F/18°C
Maximum Operating Temperature in Heating Mode °F/°C DB 81°F/27°C
Minimum Operating Temperature in Heating Mode °F/°C Maximum Operating Temperature in Cooling Mode °F/°C DB 109°F/43°C - WB 90°F/32°C
Minimum Operating Temperature in Cooling Mode °F/°C DB 14°F/-10°C
Maximum Operating Temperature in Heating Mode °F/°C DB 75°F/24°C - WB 64°F/18°C
Minimum Operating Temperature in Heating Mode °F/°C DB 5°F/-15°C
(1) Test condition: Data refers to conditions and parameters as required by DOE requirements governing this product type.
HEATING MODE: Outdoor Ambient Temperature DB 45°F/7°C WB 43°F/6°C; Indoor Ambient DB 68°F/20°C - WB 59°F/15°C
COOLING MODE: Outdoor Ambient Temperature DB 95°F/35°C WB 75°F/24°C; Indoor Ambient DB 81°F/27°C - WB 66°F/19°C
(2) To achieve full capacity and efficiency 8” diameter pipes are recommended. Alternately, 6” diameter pipes can be used however there is a corresponding
loss to capacity and efficiency which can vary based on the specific application.
(3) Test conditions for sound ratings are conducted as per DOA rating conditions, conducted in a sound chamber performed at a distance of 3.3 feet (1 meter).
Minimum sound pressure values are rated in ventilation mode only.
Pub#US003.07112019
