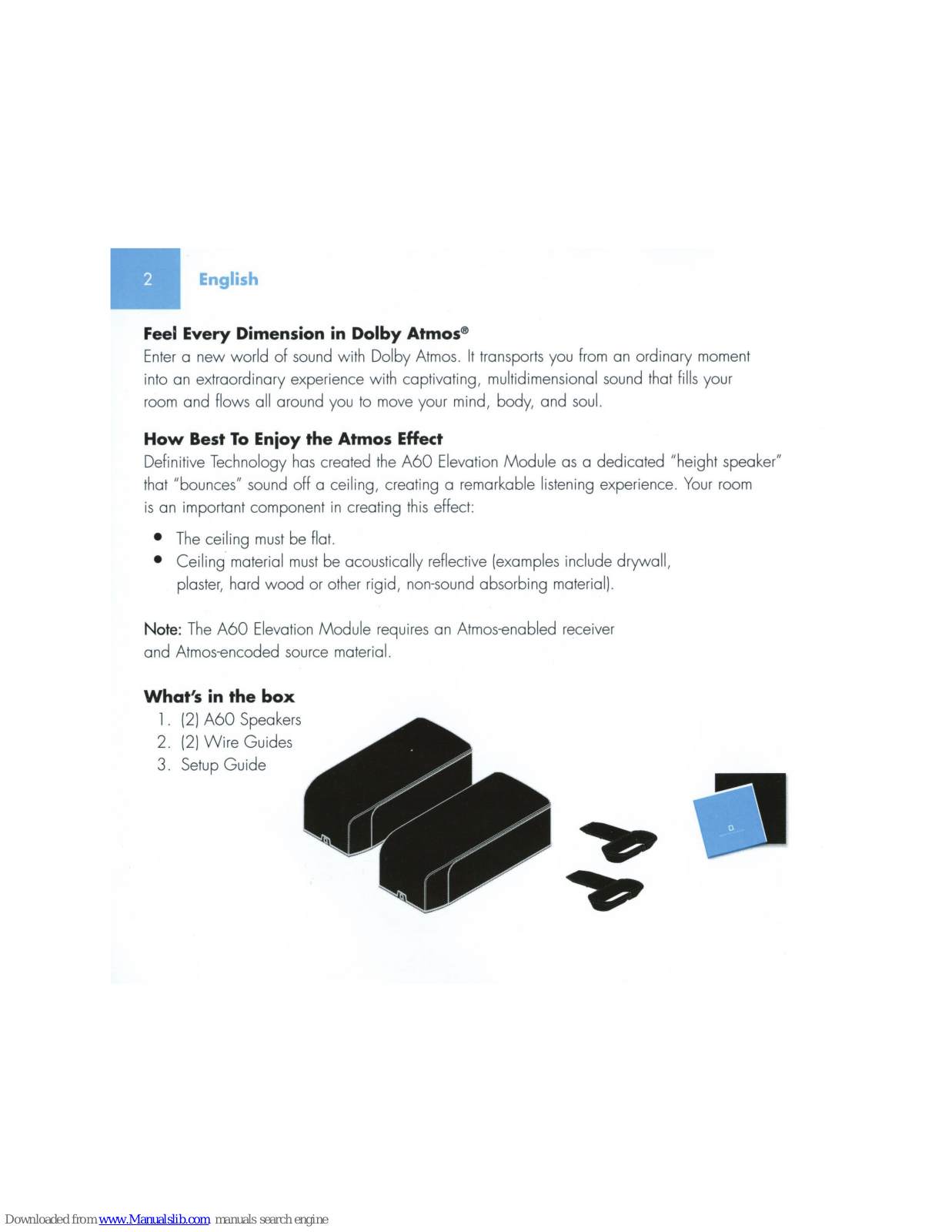

English
Feel Every Dimension in
Dolby
Atmos®
Enter
a new world
of
sound with Dolby Atmos.
It
transports you
from
an ordinary moment
into an extraordinary experience with captivating, multidimensional sound that fills your
room and flows all around you to move your mind,
body
, and soul.
How
Best
To
Enioy
the
Atmos EHect
Definitive Technology
has
created the
A60
Elevation
Module
as
a dedicated "height speaker"
that "bounces" sound off a ceiling, creating a remarkable listening experience.
Your
room
is
an important component
in
creating
this
effect:
•
The
ceiling
must
be flat.
• Ceiling. material
must
be acoustically reflective (examples include drywall,
plaster, hard
wood
or other rigid, non-sound absorbing material).
Note:
The
A60
Elevation
Module
requires an Atmos-enabled receiver
and Atmos-encoded source material.
What's
in
the
box
l .
(2)
A60
Speakers
2.
(2)
Wire
Guides
3. Setup
Guide
Page 3

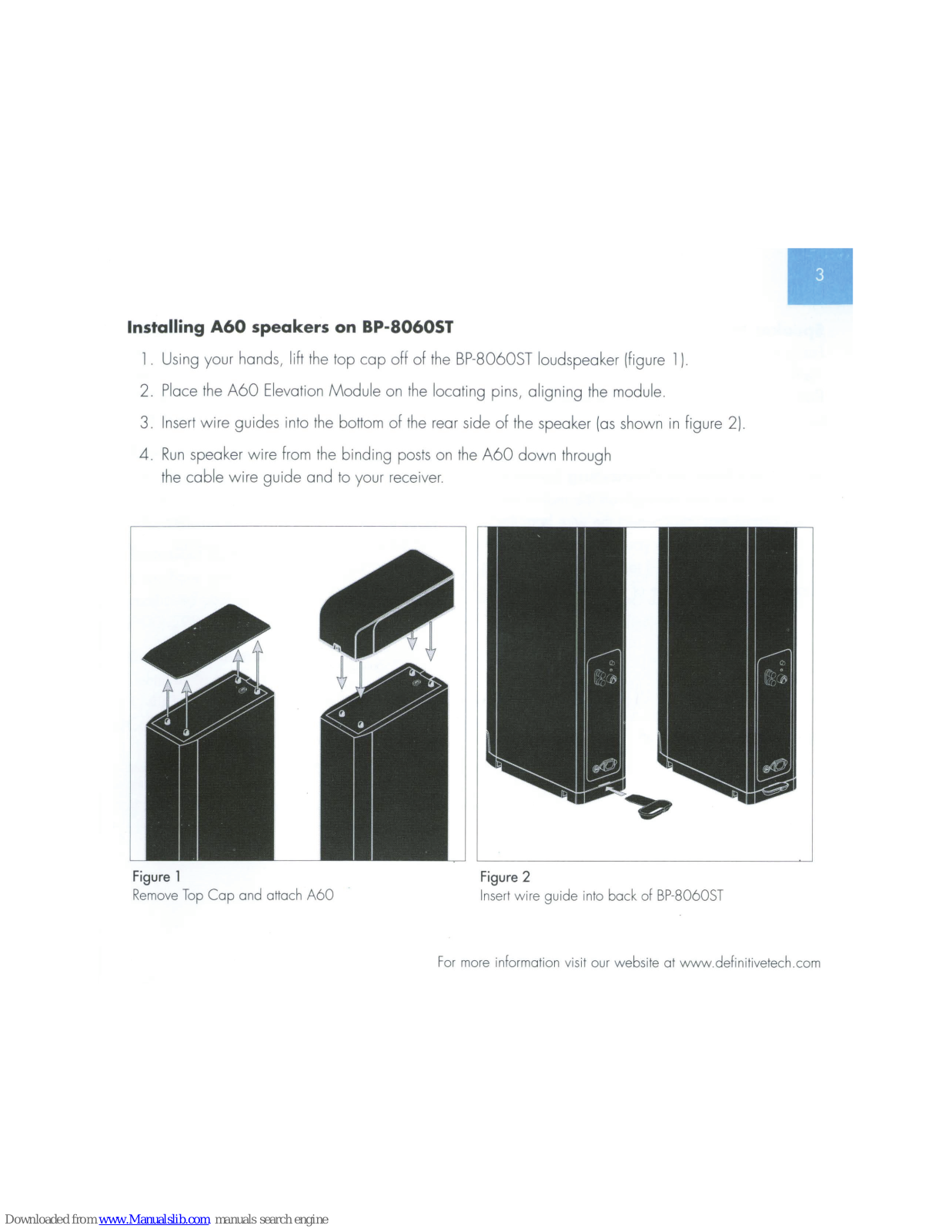

Installing
A60
speakers on BP-8060ST
1. Using your hands,
lift
the
top
cap
off
of
the
BP-8060ST loudspeaker
(figure 1 ).
2.
Place
the
A60
Elevation
Module
on the locating pins,
aligning
the
module.
3.
Inse
rt
wire guides into
the
bottom of
the
rear side
of
the speaker
(as
shown
in
figure 2).
4.
Run
speaker wire from the bind i
ng
posts
on
the
A60
down
through
the
cable
wire guide and to your receiver.
Figure
1
Figure
2
Remove
Top
Cap
and attach
A60
Insert
wi
re
guide i
nto
back
of
BP-8060ST
For
more information visit our website at
www
.definitivetech.com
Page 4

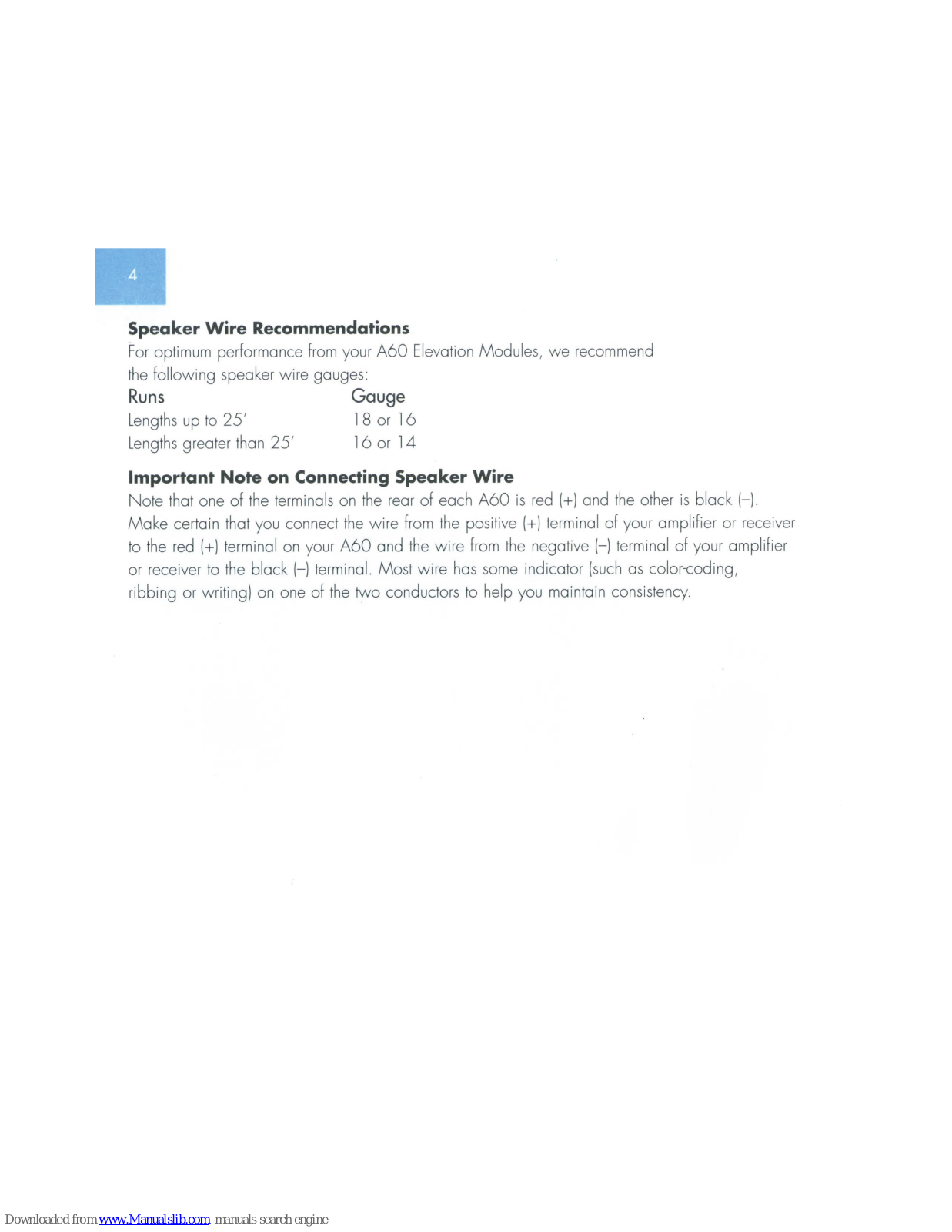

Speaker
Wire
Recommendations
For
optimum performance
from
your
A60
Elevation Modules,
we
recommend
the
following
speaker wire gauges:
Run
s Gauge
Lengths
up to
25
' 1 8 or
16
Lengths
greater
than
25'
16
or
14
Important
Note
on
Connecting
Speaker
Wire
Note
that one
of
the
terminals on
the
rear
of
each
A60
is
red
(+)and
the
other
is
black(-).
Make
certain that you connect
the
wire from
the
positive
(+)
terminal
of
your amplifier or receiver
to
the
red
(+)
terminal on your
A60
and
the
wire from
the
negative (-) terminal
of
your amplifier
or receiver to
the
black (-)
terminal.
Most
wire has some indicator
(such
as
color-coding,
ribbing or writing) on one
of
the
two
conductors to
help you maintain consistency.
Page 5

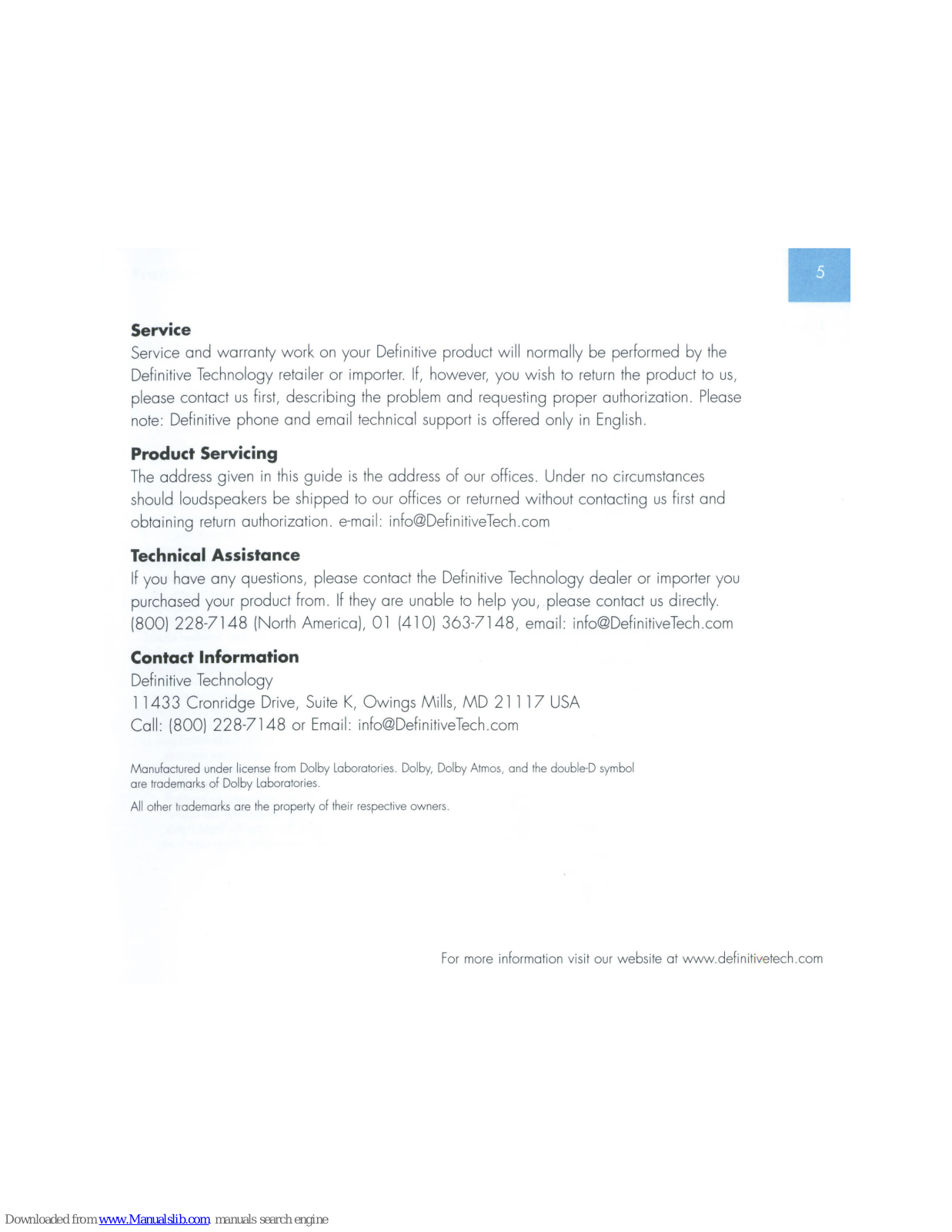

Service
Service and warranty
work
on your Definitive product will normally be performed by
the
Definitive
Technology
retailer
or
importer.
If,
however, you wish to
return
the
product to
us,
please contact
us
first, describing
the
problem
and requesting proper authorization. Please
note: Def
in
itive phone
and
email technical support
is
offered only
in
English.
Product Servicing
T
he
address given
in
this
guide
is
the address of our offices. Under no circumstances
should loudspeakers be shipped
to
our offices or returned without contact ing
us
first and
obtaining
return
authorization. e-mail: info@Definitive Tech.com
Technical Assistance
If
you hove
any
questions, please contact the Definitive Technology dealer
or
importer you
pu
rchased your product from.
If
they ore unable to help you, please contact
us
directly.
(800)
228-7148
(North America), 0 1 (4 1 0)
363-7148,
email: info@Definitive
Tech
.com
Contact
Information
Definitive Technology
1
1433
Cronrid
ge
Drive,
Sui
te
K,
Owings
Mills,
MD
2 1 1
17
USA
Call: (
800)
228-714
8 or Email: info@DefinitiveTech.com
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos,
and
the double-D symbol
are trademarks
of
Dolby Laboratories.
All other hademarks are the property
of
their respective owner
s.
For
more information visit our website at
www.defini
tivetech.com
Page 6

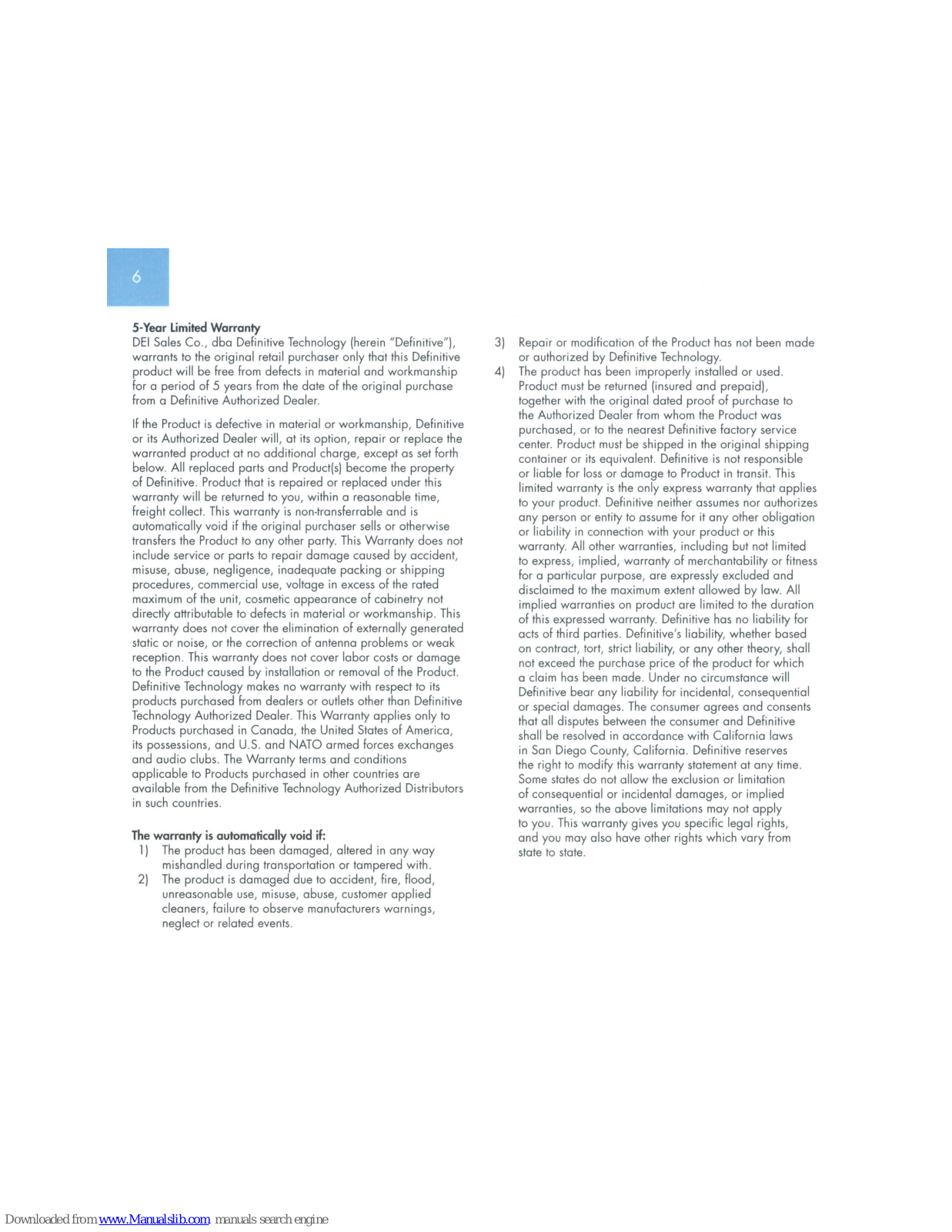

5-
Year
limited Wa
rr
anty
DEl
Sales
Co
.,
dba
Definitive Technology (herein
"Definitive"
),
warrants to the original
retail
purchaser
only
that this Definitive
product
will
be
free from defects in material
and
workmanship
for
a
period
of
5 years from the date
of
the original purchase
from a Definitive Authorized
Dealer.
If the
Pr
oduct
is defective in material
or
workmanship, Definitive
or
its
Aut
h
orized
Dealer
wi
ll,
at
its
option, repai r
or
replace
the
warranted product at no
additiona
l charge , except as
set
forth
below.
All
replaced parts and
Product(s)
become the property
of
Definitive.
Product that
is
repaired
or
replaced under this
warranty
will
be returned to you, within a reasonable time,
freight
collect.
This
warranty
is
non-transferrable
and
is
au
tomatically void
if
the original purchaser
sells
or
otherwise
transfers the Product to
any
other party. This
Warranty
does not
include
service
or
parts to repair
damage
caused
by
accident,
misuse, abuse, negligence, inadequate packing
or
shipping
procedures, commercial use,
voltage
in excess
of
the rated
maximum of the unit, cosmetic appearance
of
cabinetry not
directly attributable to defects
in
material
or
wo
rkmanship . This
warranty
does not cover the elimination
of
externally
generated
static
or
noise,
or
the correction
of
antenna
prob
l
ems
or
weak
reception . This warranty does not cover
labor
costs
or
damage
to the
Product
caused
by
installation
or
removal
of
the
Product.
Definitive Technology makes no
warranty
with respect to
its
products purchased from
dealers
or
outlets
other than Definitive
Technology Authorized
Dealer.
This
Warranty
applies
only
to
Products purchased in
Canada
, the United
States
of
Amer
ica,
its possessions, and
U.S.
and
NATO
armed forces exchanges
and
audio
clubs.
The
Warranty
terms and conditions
appl
icable
to
Products purchased in other countries are
avail
ab
le
from the Definitive Technology Au
thorized Distributors
in such countr
ies
.
The
warranty
is
automatically
void
if:
1) The product has been
damaged
, altered
in
any
way
mishandled during transportation
or
tampered with.
2) The product
is
damaged
due to accident, fire, flood,
unreasonable
use
, misuse, abuse, customer
applied
cleaners,
failure to observe manufacturers warnings,
neglect
or
related
events.
3)
4)
Repair
or
modification of the
Product
has not been made
or
authorized
by
Definitive Technology.
The
product has been
impr
operly
installed
or
used.
Product
mu
st be returned (insured
and
prepaid),
together with the
orig
inal dated
proof
of
purchase to
the Authorized
Dealer
from whom the Pr
oduct
was
purchased,
or
to the nearest Definitive factory service
center. Product
must be shipped in the
or
i
ginal
shipping
container
or
its
equivalent . Definitive is not responsible
or
liable
for
loss
or
damage
to
Product in transi
t.
Th
is
limited
warranty is the
only
expr
ess
warranty that applies
to your product. Definitive neither assumes
no
r authorizes
any
person
or
entity to assume for it any other
ob
ligation
or
liability
in connection w i
th
your product
or
th
is
warranty.
All
other warranties,
incl uding
but n
ot
limited
to express, implied, warranty
of
merchantabili
ty
or
fitness
for
a particular purpose, are expressly
excluded
and
disclaimed
to the maximum extent
allowed
by
law.
All
implied warranties on product
are
limit
ed
to the duration
of
this expressed
warranty
. Definitive has no
liab
ility
for
acts
of
th
ird parties. Definitive's
l
iab
ility, whether based
on contract, t
ort
,
st
rict
li
ability
,
or
any
other theory,
shall
not exceed the purchase pri ce
of
the product
fo
r which
a claim
has been made. Under
no
circumstance
will
Definitive bear
any
liability for incidental, consequential
or
special damages . The consumer agrees
and
consents
that
all
disputes between the consumer
and
Definitive
shall
be
resolved in
ac
cor
dan
ce with Californ ia
l
aws
in
San
Diego County, California . Definitive reserves
the right to
modify
this
warranty
statement
at
any
time.
Some
states
do
not
allow
the
exclusi
on
or
limitation
of
consequential
or
incidental damages,
or
implied
warranties,
so
the above limitations may not
apply
to you. This warranty gives you specific
legal
rights,
and you may
also
have other rights whi
ch
vary
from
state to state.
Page 7
Page 8
D.
IIIII
III
DEFINITIVE
TECHNOLOGY"
S/N
Register
your
new
Definitive
product
There
are important
benefits
to
registering
your
new
Definitive
Technology
product:
• You'll have peace
of
mind knowing that
we
have a permanent record of
your product purchase for warranty verification (with upload
of
receipt scan).
• You'll be assured of receiving
service/upgrade
alerts.
•
It's
fast and easy. Privacy.
The
data
we
gather during online registration
is
never sold.
No
Internet
access?
Call Definitive Technology customer service
M-F
9:30AM-
6:00
PM
US
Eastern
Standard Time at
(4 1 0)
363-7148,
and we'll help you with
the
simple registration process.
Or
you can send
us
a letter
to
Definitive Warranty Registration at
the
address
below
with your name, address, phone number,
serial
number(s)
of
the
product(s) and a photocopy
of
your sales receipt.
Enregistrez
votre
produit
Definitive
Avantages
importants a enregistrer
votre
produit
Definitive:
• Nous aurons une attestation permanente
de
votre achat pour verification
de
garantie
(avec telechargement du
re<;:u
numerise).
•
Vous
recevrez des alertes
de
service
et
de
mise a jour.
• C'est facile et rapide. Confidentialite.
Les
donnees que
nous
recueillons au cours
!'enregistrement
en
ligne
ne
seront jamais vendues.
Pas
d'
acces
Internet?
Contactez
le
Service a
Ia
clientele
de
Definitive Technology, L-V,
9h30
a 1
8h00
HE,
au (4 1 0)
363-7148
et
nous
vous aiderons a enregistrer votre produit.
Vous
pouvez egalement
nous
ecrire aux soins
de
Definitive
Warranty Registration
a l'adresse ci-dessous, incluant votre nom, adresse, no
de
telephone, no
de
serie
du
(des)
produit(s)
et
une photocopie
de
vot!e facture.
www.definitivetech.com/
registration
Definitive
Technology:
11433
Cronridge Drive, Suite
K,
Owings
Mills,
MD
21117
USA
Page 9
Registre
su
producto
Definitive
Registrar
el
producto
de
Definitive
Technology
trae
importantes
beneficios:
• Usted queda tranquilo sabiendo que tenemos
un
registro permanente
de
Ia
compra
del
producto para
Ia
verificaci6n
de garantia (con
Ia
transferencia electr6nica
del
recibo escaneado)
•
Usted tiene
Ia
seguridad
de
recibir alertas de servicio y mejoramiento.
•
Es
foci!
y r6pido. Privacidad.
Los
datos que reunimos durante
el
registro
en
linea
nose
venden nunca .
c.No
tiene
acceso
a
Internet?
Comunfquese con
el
Servicio
al cliente de Definitive
Technology
de
lunes a viernes de 9 :
30a
.
m.
a
6 :
00p.m.
hora est6ndar
este
de
Estados Unidos, llamando
al
(41
0)
363-7148,
y haremos
el
sencillo proceso
de
registro por
telefono.
0
puede enviar una carta
al
registro
de
garantfas de Definitive (Definitive Warranty Registration), cuya direcci6n
se
indica abajo, con
su
nombre, direcci6n, numero
de
telefono,
numero
de
serie
del
producto y una fotocopia
del
recibo
de
compra.
Registrieren
Sie
lhr
neues
Definitive-Produkt
Wenn
Sie
lhr
neues
Definitive
Technology-Produkt
registrieren,
bringt
Ihnen
das
wichtige
Vorteile:
• Sie
konnen beruhigt sein, doss
wir
permanente Unterlagen
lhres Produktkaufs
zum
Zweck der Garantieverifizierung
(mit
Upload
eines Scans der Ouittung) haben.
• Sie
wissen, doss
Sie
Service-
und
Upgrademeldungen erhalten werden.
•
Es
geht schnell und einfach. Datenschutz. Die Daten, die
wir
wahrend der Online-Registrierung sammeln, werden nie verkauft.
Kein
lnternetzugang?
Rufen
Sie
den
Definitive Technology-Kundendienst M-F
9 :
30
h-
18:00
h (US-Ostkustenzeit) unter
+
1
(41
0)
363-7148
an, und
wir
werden
Ihnen
bei der einfachen Registrierung helfen.
Oder
Sie konnen einen Brief an Definitive Warranty Registration an
die
unten
stehende Adresse senden und Nomen, Anschrift, Telefonnummer, Seriennummer(n) des
Produkts
bzw. der
Produkte
angeben sowie eine
Fotokopie der Ouittung beilegen.
Registra
il
tuo
nuovo
prodotto
Definitive
Registrando
il
nuovo
prodotto
Definitive
Technology
otterrai
importanti
vantaggi:
•
archivieremo
in
permanenza
le
informazioni
sui
tuo acquisto per
Ia
verifica della garanzia
(basta caricare una scansione dello scontrino);
•
riceverai
awisi
su
interventi/ aggiornamenti;
•
Ia
registrazione
e
veloce
e facile;
Ia
privacy
e
assicurata: i dati che raccogliamo durante
Ia
registrazione
on-line
non
vengono mai venduti.
Se
none
possibile
accedere
a
Internet:
chiamare
il
servizio
clienti
Definitive
Technology
do
lunedl
a venerdl, dalle
09:30
aile
18:00
Eastern
Standard Time
(CET-
6 ore)
al numero
+
l
(41
0)
363-7148
per essere assistiti
do
un
operatore durante
Ia
registrazione.
Op-
pure spedire
una
lettera a Definitive Warranty Registration al
seguente recapito fornendo: nome, indirizzo, numero telefonico,
numeri di serie dei prodotti e una
foto~opia
dello scontrino.
www.definitivetech.com/
registration
Definitive
Technology:
1 1433
Cronridge
Drive,
Suite
K,
Owings
Mills,
MD
21
117
USA
Loading...
