Fiber-Lite® LMI-6000
LED Illuminator
Operation Manual
DOLAN-JENNER WARRANTY
DOLAN-JENNER INDUSTRIES warrants this product to be free from defective material and workmanship for a period of 1 year. Any light source or parts
thereof which are determined by DOLAN-JENNER INDUSTRIES to be defective
within 1 year from shipment date will be replaced or repaired at our option.
Any products which, in our opinion, have been subjected to misuse,
incorrect wiring, or where installation procedures are not in accordance with
the instruction manual, are excluded from this warranty. Nor does this warranty
extend to products on which repairs or alterations have been made outside the
factory, or on which the identifi cation or serial number has been altered or to
accessories not of our manufacture.
Our obligation with respect to products or parts covered by this warranty shall be limited to repair or replacement, F.O.B., Boxborough, MA. In no
event shall Dolan_Jenner Industries be held liable for consequential or special
damages, or for transportation, installation, adjustment, or other expenses which
may arise in connection with such products or parts. This warranty is n lieu of all
other statements or warranties or guarantees, written or implied, by
DOLAN-JENNER INDUSTRIES or its authorized representatives.
Important: Please contact factory for a return authorization number prior to
shipping merchandise to factory.
Model LMI-6000 LED Fiber Illuminator
User’s Manual
1. Scope
Applicable to LMI-6000
2. Symbol Description; Symbolbeschreibung; Description des symboles;
Descrizione del simbolo
CAUTION: Refer to Operator’s Manual
3. Warnings and Precautions; Warnungen und Sicherheitshinweise;
Avertissements et précautions; Avvertenze e precauzioni
3.1. READ ALL INSTRUCTIONS BEFORE USE
LESEN SIE VOR DER NUTZUNG ALLE ANWEISUNGEN SORGFÄLTIG
DURCH
LIRE TOUTES LES INSTRUCTIONS AVANT UTILISATION
LEGGERE LE ISTRUZIONI PRIMA DELL’USO
3.2. WHEN CHANGING FIBER, DEVICE SHOULD BE TURNED OFF
BEIM WECHSEL DES LICHTWELLENLEITERS SOLLTE DAS GERÄT
ABGESCHALTET SEINLORS DU REMPLACEMENT DE LA FIBRE, L’APPAREIL
DOIT ÊTRE ÉTEINT
QUANDO SI CAMBIA LA FIBRA, L’APPARECCHIO DEVE ESSERE SPENTO
During operation, some internal components can become hot. To avoid
the possibility of injury, always turn the device off and allow 30 seconds
for cooling prior to changing the fi ber or adapter or otherwise exposing
the internal components.
Während des Betriebs können sich einige interne Komponenten
erhitzen. Um die Gefahr einer Verletzung zu vermeiden, schalten Sie
das Gerät immer ab und lassen Sie es 30 Sekunden abkühlen, bevor Sie
den Lichtwellenleiter oder den Adapter austauschen oder die internen
Komponenten anderweitig freilegen.
Pendant le fonctionnement de l’appareil, certains composants internes
peuvent devenir chauds. Pour éviter tout risque de blessure, toujours
éteindre l’appareil et attendre 30 secondes qu’il refroidisse avant de
remplacer la fi bre ou l’adaptateur, ou d’exposer de quelque façon les
composants internes.
Durante l’uso, alcuni componenti interni possono diventare caldi. Per
evitare possibili infortuni, spegnere l’apparecchio e lasciarlo raffreddare
per 30 secondi prima di cambiare la fi bra, l’adattatore o comunque
prima di esporre i componenti interni.
3.3. PROVIDE ADEQUATE VENTILATION AT ALL TIMES
STELLEN SIE JEDERZEIT EINE ANGEMESSENE BELÜFTUNG SICHER
ASSURER À CHAQUE INSTANT UNE VENTILATION ADÉQUATE
MANTENERE UN LIVELLO DI VENTILAZIONE ADEGUATO
Allow clearance for the ventilation slots as described in section 5.3
toinsure the device does not overheat and trigger the internal shut-off
mechanism.
Lassen Sie ausreichend Platz für die Belüftungsschlitze, wie in Abschnitt
5.3 beschrieben, um sicherzustellen, dass das Gerät nicht überhitzt und
dadurch einen internen Abschaltmechanismus auslöst.
Veiller à ce que les orifi ces de ventilation soient dégagés, tel
qu’expliqué
au paragraphe 5.3 afi n de s’assurer que l’appareil ne surchauffe pas et
qu’il ne déclenche pas le mécanisme d’arrêt interne.
Assicurare che vi sia uno spazio libero attorno alle prese di ventilazione,
come descritto in sezione 5.3, in modo da prevenire il surriscaldamento
dell’apparecchio che innescherebbe lo spegnimento automatico.
3.4. DIRECT VIEWING OF EXITING LIGHT CAN BE HARMFUL
DER DIREKTE BLICK IN DEN AUSTRETENDEN LICHTSTRAHL KANN
SCHÄDLICH SEIN
IL PEUT ÊTRE DANGEREUX DE REGARDER DIRECEMENT LA LUMIÈRE DE
SORTIE
GUARDARE DIRETTAMENTE VERSO LA LUCE IN USCITA PUÒ ESSERE
DANNOSO
Avoid direct viewing of the light. All LEDs and LED-based products are
sources of light which can in some circumstances cause damage to
the eye. The potential for any eye injury will depend upon many factor
including but not limited to:
• duration of exposure and extent of pupil dilation prior to exposure
• distance from light source to eye
• drive current supplied to LEDs determined by the intensity light
setting
• beam pattern (degree of focus)
Vermeiden Sie es, direkt in den Lichtstrahl zu blicken. Alle
LEDs und LED-basierten Produkte sind Lichtquellen, die unter
Umständen Augenschäden verursachen können. Die Gefahr einer
Augenschädigung ist von vielen Faktoren abhängig, darunter u. a. –
jedoch nicht ausschließlich – folgende:
• Dauer der Lichteinstrahlung und Pupillenerweiterung vor der
Einstrahlung
• Abstand des Auges zur Lichtquelle
• Ansteuerungsstrom für die LEDs in Abhängigkeit von der Lichtintensit
ätseinstellung
• Strahlenmuster (Grad der Fokussierung)
Éviter de regarder directement la lumière. Toutes les DEL et les produits
à base de DEL sont des sources lumineuses qui peuvent, dans certaines
circonstances, provoquer des lésions oculaires. Le risque de lésion
oculaire dépendra de nombreux facteurs, y compris mais de façon non
limitative :
• la durée d’exposition et le degré de dilatation de la pupille avant
l’exposition
• la distance entre la source lumineuse et l’œil
• le courant d’attaque délivré aux DEL déterminé par le réglage clair de
l’intensité
• le motif du faisceau (degré de focalisation)
Evitare di guardare direttamente verso la luce. Tutti i LED e i prodotti a
base di LED sono sorgenti luminose che, in alcune circostanze, possono
danneggiare la vista. Le probabilità di danno alla vista dipendono da
vari fattori, come quelli elencati nel seguente elenco parziale:
• durata dell’esposizione e grado di dilatazione della pupilla prima
dell’esposizione
• distanza tra occhi e sorgente luminosa
• fl usso di corrente che alimenta i LED determinato dall’intensità di luce
impostata
• confi gurazione del fascio (livello di messa a fuoco)
3.5. USE ONLY THE POWER CONVERTER SUPPLIED WITH THE PRODUCT
VERWENDEN SIE NUR DEN MIT DEM PRODUKT AUSGELIEFERTEN
STROMRICHTER
UTILISER UNIQUEMENT LE CONVERTISSEUR DE PUISSANCE FOURNI
AVEC LE PRODUIT
USARE ESCLUSIVAMENTE IL CONVERTITORE ELETTRICO FORNITO CON
ILPRODOTTO
Use of other power converters can damage product, will void warranty,
and may result in unsafe operation
Der Gebrauch von anderen Stromrichtern kann zu Schäden am Produkt
führen, die Gewährleistung aufheben und zu einem unsicheren Betrieb
führen.
L’utilisation d’autres convertisseurs peut endommager le produit,
annuler la garantie et rendre le produit dangereux à utiliser.
Il ricorso ad altri convertitori elettrici può causare danni al prodotto,
invalidare la garanzia e creare condizioni d’uso pericolose.
3.6. PLUG AC CORD ONLY INTO SUITABLY GROUNDED AC RECEPTACLES
STECKEN SIE DAS STROMKABEL NUR IN ANGEMESSEN GEERDETE
STECKDOSEN
BRANCHER LE CORDON D’ALIMENTATION UNIQUEMENT À UNE PRISE
CORRECTEMENT MISE À LA TERRE
INSERIRE LA SPINA ELETTRICA SOLO IN PRESE DI CORRENTE ALTERNATA
CON IDONEA MESSA A TERRA
3.7. ALWAYS USE THE DEVICE IN A MANNER SPECIFIED BY THE
MANUFACTURER
VERWENDEN SIE DAS GERÄT NUR SACHGEMÄSS ZU DEM VOM
HERSTELLER ANGEGEBEN ZWECK
TOUJOURS UTILISER L’APPAREIL TEL QU’INDIQUÉ PAR LE FABRICANT
FARE USO DELL’APPARECCHIO ATTENENDOSI ALLE ISTRUZIONI DEL
PRODUTTORE
If the illuminator is used in a manner not specifi ed by the manufacture,
the protection provided by the equipment may be impaired.
Wenn das Gerät für einen anderen Zweck als vom Hersteller angegeben
oder auf unsachgemäße Weise verwendet wird, kann der geräteeigene
Schutz beeinträchtigt werden.
Si l’appareil est utilisé d’une façon non spécifi ée par le fabricant, la
protection fournie par l’équipement sera endommagée.
Se il dispositivo è utilizzato diversamente da come descritto dal
produttore, le funzioni di sicurezza dell’apparecchio potrebbero non
funzionare.
3.8. DO NOT USE FOR MEDICAL APPLICATIONS
VERWENDEN SIE DAS GERÄT NICHT ZU MEDIZINISCHEN ZWECKEN
NE PAS UTILISER POUR DES APPLICATIONS MÉDICALES
NON UTILIZZARE PER APPLICAZIONI MEDICHE
This product is not intended for medical use.
Dieses Produkt ist nicht für medizinische Zwecke ausgelegt.
Ce produit n’est pas destiné à un usage médical.
Questo prodotto non è destinato a uso medico.
4. General Information
4.1. Intended use of equipment
4.2. The Dolan-Jenner Fiber-Lite ® LMI-6000 series Illuminator is a LED-
based fi ber optic illuminator designed for general microscopy and for
industrial applications such as assembly illumination, machine vision,
and boroscope inspection
Technical specifi cations
Technical data Value
Light output at maximum
intensity setting
Color temperature 5,000 to 6,000˚K
Input voltage 90 to 264VAC,1.5 A, 50 to 60Hz
Overvoltage Category
Dimensions
Weight 6.8 lbs/3.1kg
780 lumens typical*
II
3.9” W x 5.1” H x 7.0” L
(9.9cm W x 13.0cm T x 17.8cm L)
Environmental use
conditions
Ambient temperature 0˚C to 40˚C (32•F to 104•F)
Relative humidity
Altitude Up to 2000 m/6600 ft
Pollution degree 2
*Theoretical value at fi ber input, contact Dolan-Jenner for details.
4.3. Instructions for use
See section 6 “Equipment Operation”
Value
80% max at 31˚C (88•F) decreasing linearly
to 50% at 40˚C (104•F)
4.4 Manufacturer
Name and address of manufacturer or supplier from whom technical
assistance may be obtained.
Dolan-Jenner Industries
159 Swanson Road
Boxborough, MA 01719
1-800- 833-4237
www.dolan-jenner.com

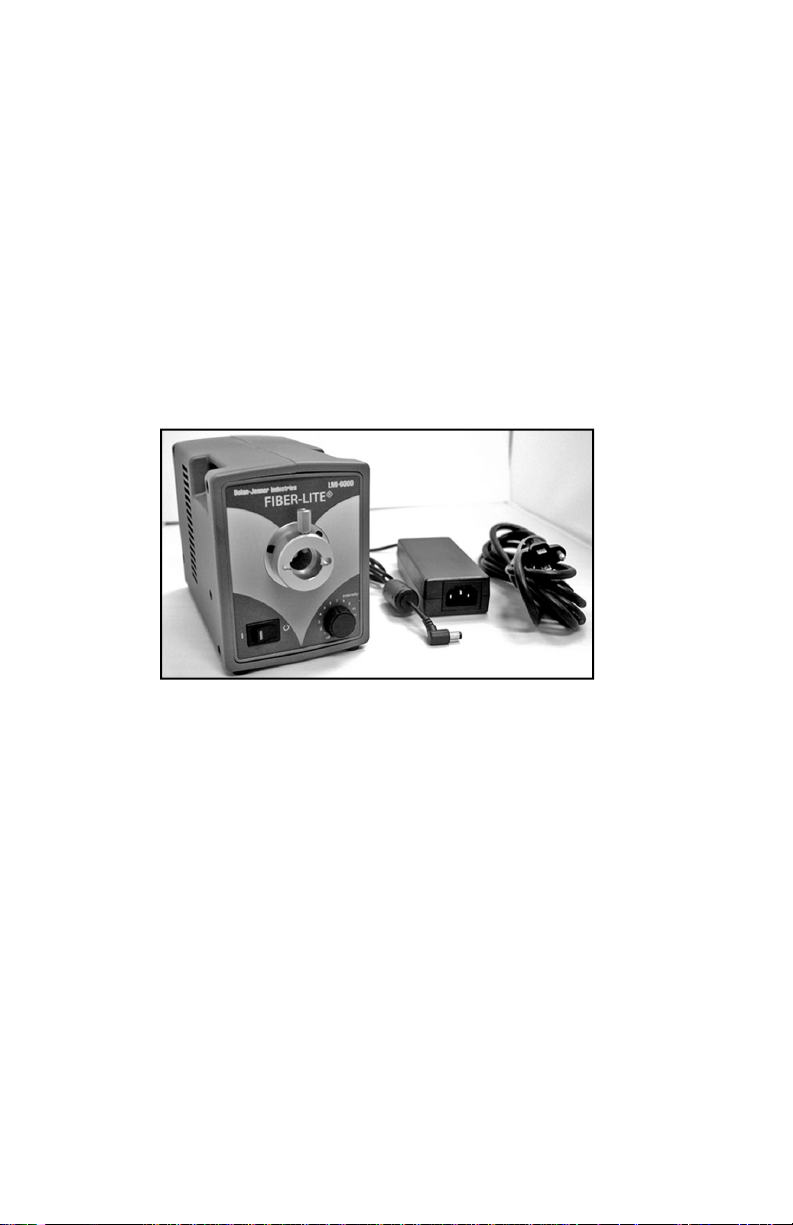

4.5. Equipment components
The product includes the following components:
• LMI-6000 Fiber-Optic Illuminator
• External power convertor (AC power supply) with attached cord
• AC power cord
5. Equipment installation
5.1. Positioning the illuminator
• Choose a suitable location that provides the following:
• Adequate clearance to connect the power converter per section 5.2.
• Within reach of a suitable grounded AC outlet.
• Adequate clearance to operate the controls per sections 6.2 and 6.3.
• Clearance for ventilation per section 5.3.
5.2. Connections to the supply
5.2.1. Insert the male plug from the external power converter into the
female power jack on the back of the unit.
5.2.2. Plug the AC cord into the receptacle on the external power
converter and into the AC outlet.
5.2.3. Plug AC cord only into suitably grounded AC receptacles
5.2.4. Use only the power converter provided with the product - use of
other power converters can damage product, will
void warranty, and may result in unsafe operation.”

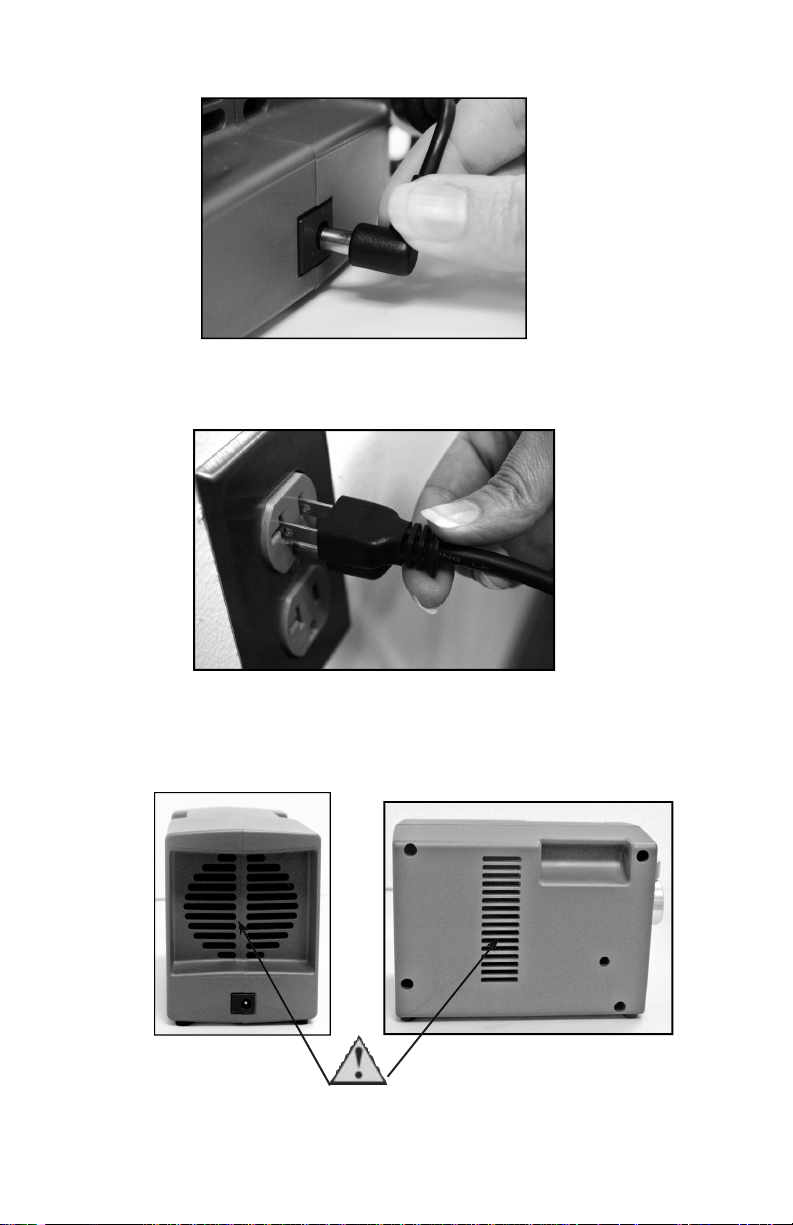

Inserting power converter plug into rear of Fiber Illuminator
AC plug connection
5.3. Ventilation requirements
Do not block the ventilation slots provided for the internal cooling fan.
Slots are located on both sides of the unit and on the back.
Do not block vent slots.
6. Equipment operation

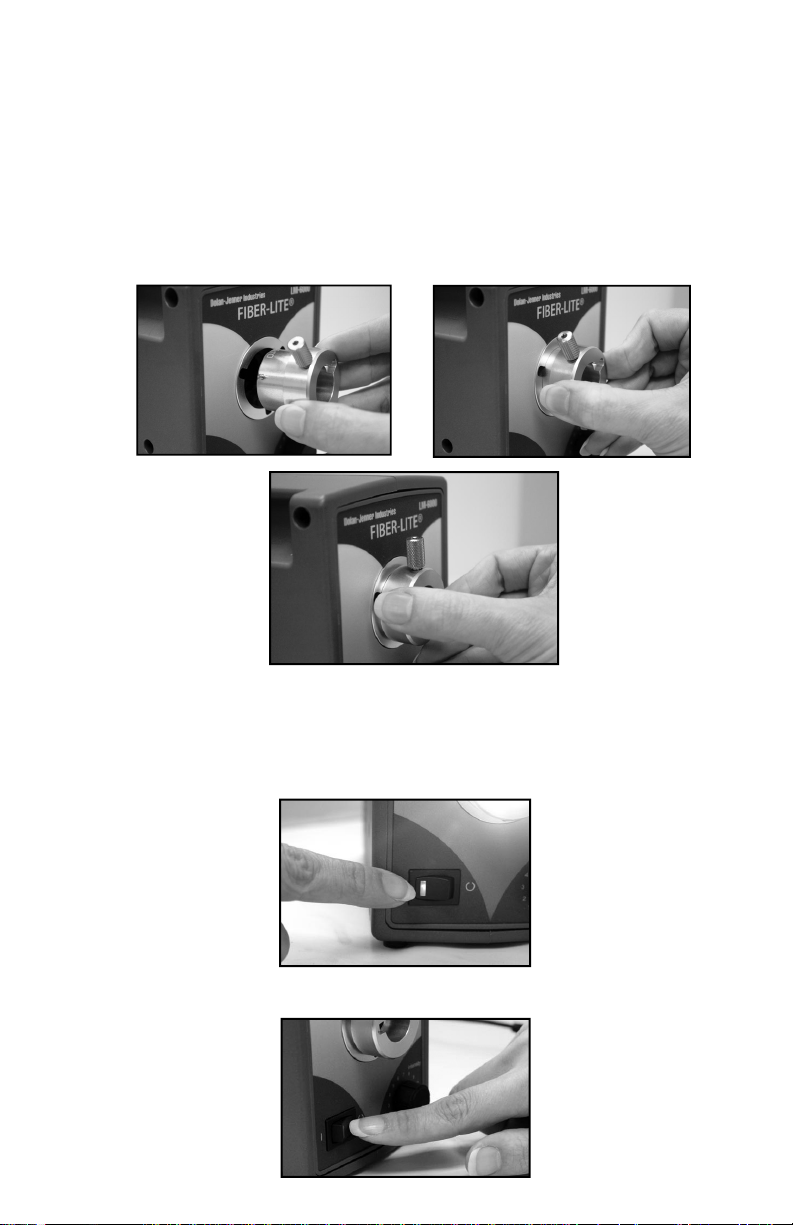

6.1. Attaching a fi ber optic adapter
If fi ber adapter is not already attached to Fiber Illuminator unit, orient
the adapter such that the adapter code designation is viewable on the
top of the adapter as shown below. Insert the adapter into the Fiber
Illuminator aligning the three pins with the corresponding three slots,
push and twist clockwise until the thumbscrew is oriented horizontally
as shown.
6.2. Turning the illuminator on and off
To turn the illuminator on, push the power switch on the lower left of
the front panel to the ON position. A green indicator light will turn on
when the illuminator is powered on.
To turn the illuminator off, push the switch to the OFF position.
For all CE technical questions, contact Setra Systems, USA. EU customers may contact our EU representative Hengstler GmbH,
Uhlandstr 49, 78554 Aldingen, Germany (Tel: +49-7424-890; Fax: +49-7424-89500).
6.3. Changing intensity

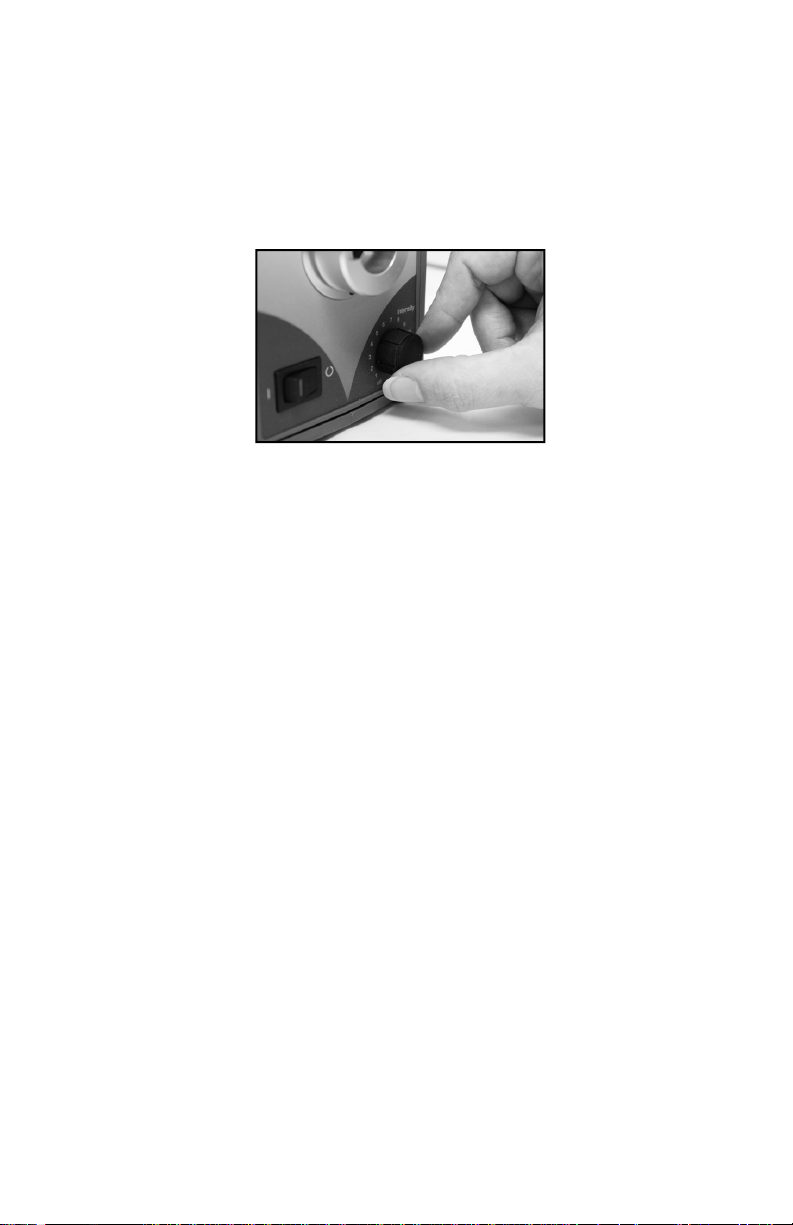

To change the intensity of the light output, rotate the Intensity dial on
the bottom right of the front panel. Rotating clockwise increases light
output and rotating counterclockwise decreases intensity.
6.4. Instructions for cleaning
6.4.1. The exterior of the illuminator can be gently cleaned with a soft
cloth
dampened with water and mild detergent.
Do not use any solvents or cleaner containing chlorine as these
will damage the illuminator and may void your warranty.
6.4.2. The ventilation slots can be cleaned by blowing aerosol- based
dusting air into the slots.
Do not blow compressed “shop-air” into the illuminator as such
air often contains oil and water mist which may degrade the
internal optics.
7. Product Ratings
CE
Dolan-Jenner Industries
159 Swanson Road
Boxborough, MA 01719
1-800-833-4237
SS-LMI-6000_Rev. B 04/26/10
www.dolan-jenner.com
Loading...
