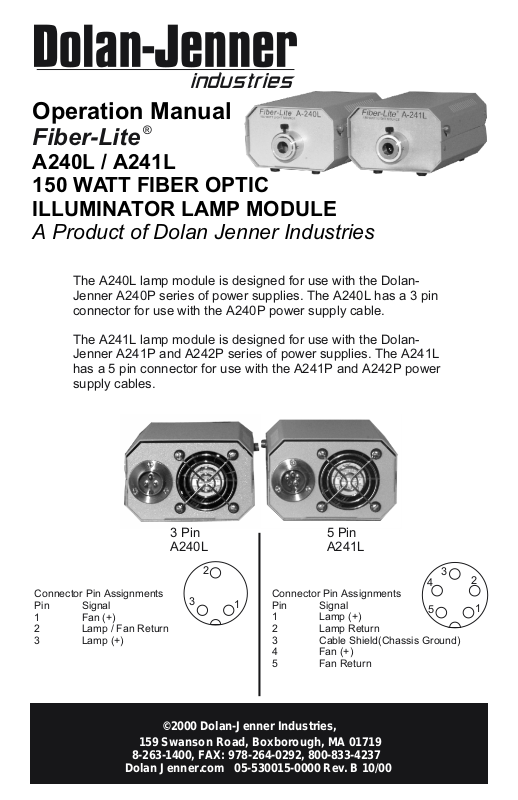

Operation Manual
Fiber-Lite
®
A240L / A241L
150 WATT FIBER OPTIC
ILLUMINATOR LAMP MODULE
A Product of Dolan Jenner Industries
The A240L lamp module is designed for use with the DolanJenner A240P series of power supplies. The A240L has a 3 pin
connector for use with the A240P power supply cable.
The A241L lamp module is designed for use with the DolanJenner A241P and A242P series of power supplies. The A241L
has a 5 pin connector for use with the A241P and A242P power
supply cables.
3 Pin
A240L
2
Connector Pin Assignments
Pin Signal
1
2 Lamp / Fan Return
3
Dolan Jenner.com 05-530015-0000 Rev. B 10/00
Fan (+)
Lamp (+)
159 Swanson Road, Boxborough, MA 01719
3
©2000 Dolan-Jenner Industries,
Connector Pin Assignments
1
Pin Signal
1 Lamp (+)
2 Lamp Return
3 Cable Shield(Chassis Ground)
4 Fan (+)
5 Fan Return
5 Pin
A241L
3
4
5
2
1
Hot Surfaces. Remove power plug before lamp
replacement and wait for hot lamp to cool.
WARNING
LAMP REPLACEMENT
1. Allow lamp and unit to cool before attempting
to change the lamp.
2. Unplug cable from back of unit by rotating the
screw collar on the cable connector then,
holding connector body, pull the cable
connector from the unit.
3. Loosen the 2 brass screws located on the
front of the top cover.
4. With the screws loosened, rotate the top cover
locks downward in the slots in the cover.
5. Open the top
cover.
6. Firmly grasp the lamp and
slide it up from behind the
spring retaining springs.
7. Remove the lamp from the
lamp socket by holding the
lamp in one hand and socket
in the other and gently
rocking the socket until the
lamp comes free. Do not use
any tools to pry the socket
from the lamp.
Page 2
Grasp lamp here
to remove
Retaining
Springs
Lamp
Socket
Grasp lamp
here to
remove
A240L / A241L
8. Discard the old lamp.

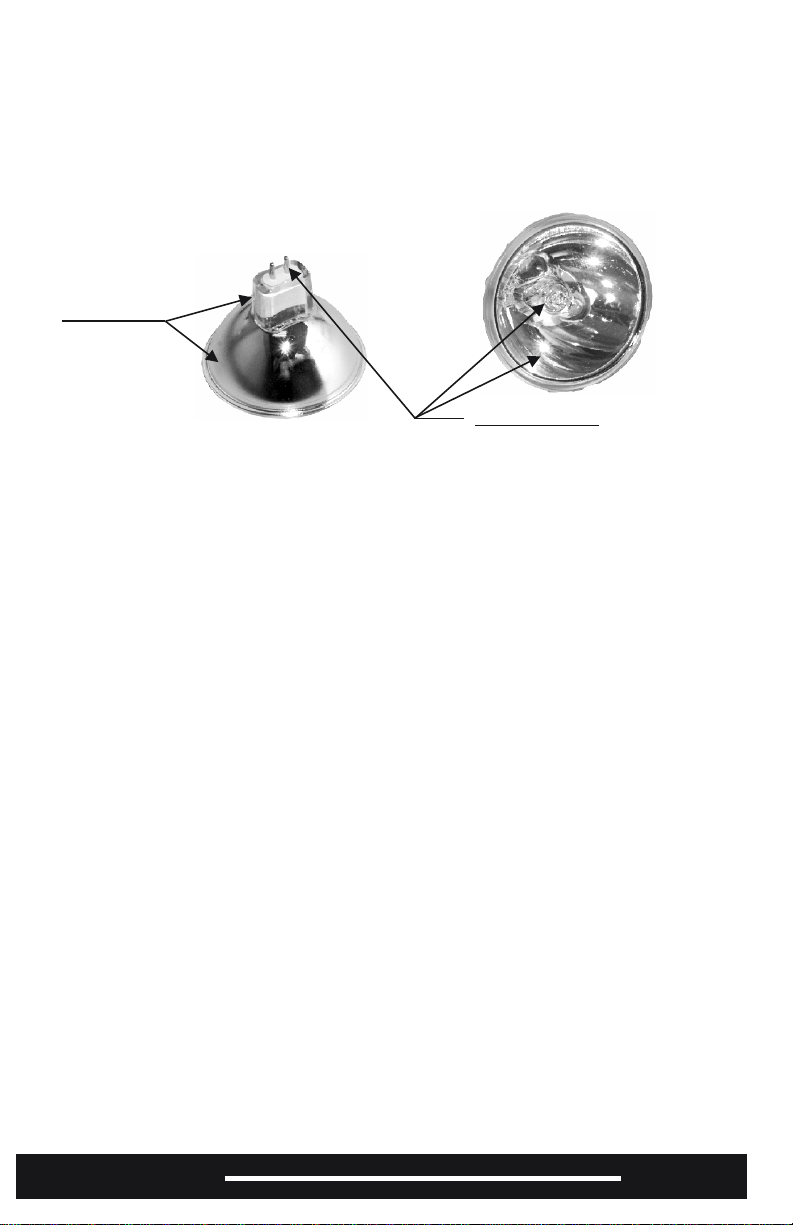

9. Remove the new lamp from its box being careful not to touch the lamp pins, the
inside of the reflector or the inner bulb. Touching these areas will significantly
reduce the lamp life.
Handle only
in these areas
Do Not Touch
10. Insert the pins of the lamp firmly and completely into the holes of the lamp
socket.
11. Slide the connected lamp into the lamp holder and behind the retaining
springs.
12. Close the top cover, rotate the cover locks upward and tighten the 2 brass
screws.
13. Reconnect the cable and the unit is now ready for use.
REPLACEMENT PARTS
Part No. Description
686009-02468 EKE, Halogen Lamp
WARRANTY ON LIGHT SOURCES
Dolan-Jenner Industries, Inc. (DJI) warrants its products to be free from defective material and workmanship.
Any light source or parts thereof which are determined by DJI to be defective within three years (average product life
cycle) from shipment date will be replaced or repaired at our option. This policy is effective Nov. 1, 1993 and is not
retroactive. All fiber optics are warranted for one year. This warranty specifically excludes both incandescent and
quartz-halogen lamps, and optical filters.
Any products which, in our opinion, have been subjected to misuse, incorrect wiring, or where installation
procedures are not in accordance with the instruction manual, are excluded from this warranty. Nor does this warranty
extend to products on which repairs or alterations have been made outside the factory, or on which the identification
or serial number has been altered or to accessories not of our manufacture.
Our obligation with respect to products or parts covered by this warranty shall be limited to repair or replacement,
F.O.B., Boxborough, Massachusetts. In no event shall DJI be held liable for consequential or special damages, or for
transportation, installation, adjustment, or other expenses which may arise in connection with such products or parts.
This warranty is in lieu of all other statements or warranties or guarantees, written or implied, by DJI or its authorized
representatives.
Important: Please contact factory for a return authorization number prior to shipping merchandise to factory.
A240L / A241L
Page 3
SPECIFICATIONS:
A240L A241L
Lamp Voltage 0-21V 0-21V
Lamp Type EKE EKE
Lam Power (max) 150 W 150 W
Fan Voltage 12 VDC 12 VDC
Fan Current 160 mA 160 mA
Fiber Optic Connection 1.0 in Ø max 1.0 in Ø max
Dimensions
6.125 in L x 4.75 in W x 3.00 in H
15.56 cm L x 12.07 cm W x 7.62 cm H
Weight
2.02 lbs / .916 kg
0.625" 4.79"
1.179"
2.250"
NOTICE: if the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be impaired.
Corporate Headquarters and Factory:
Dolan-Jenner Industries, Inc.
159 Swanson Road
Boxborough, MA 01843-1060, USA
Telephone: 800-833-4237
Fax: 978-264-0292
Web: www.dolan-jenner.com
