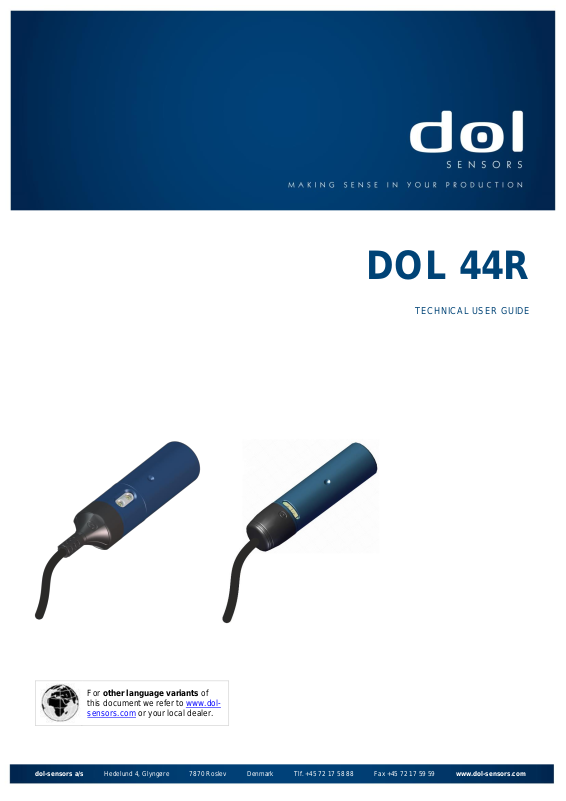

DOL 44R

TECHNICAL USER GUIDE

For other language variants of
this document we refer to www.dol-

sensors.com or your local dealer.

2018.09.26 • 604126 • 17.09 • EN • Made in Denmark

dol-sensors a/s Hedelund 4, Glyngøre 7870 Roslev Denmark Tlf. [phone] Fax [phone] www.dol-sensors.com

TECHNICAL USER GUIDE

PRODUCT DESCRIPTION:

DOL 44R is a capacitive relay sensor for
detection of feed, grain and solids. The
sensors have relay output including switch
function.
Fields of application:

• Level control in silos and containers

• Controlling the filling and emptying

process.

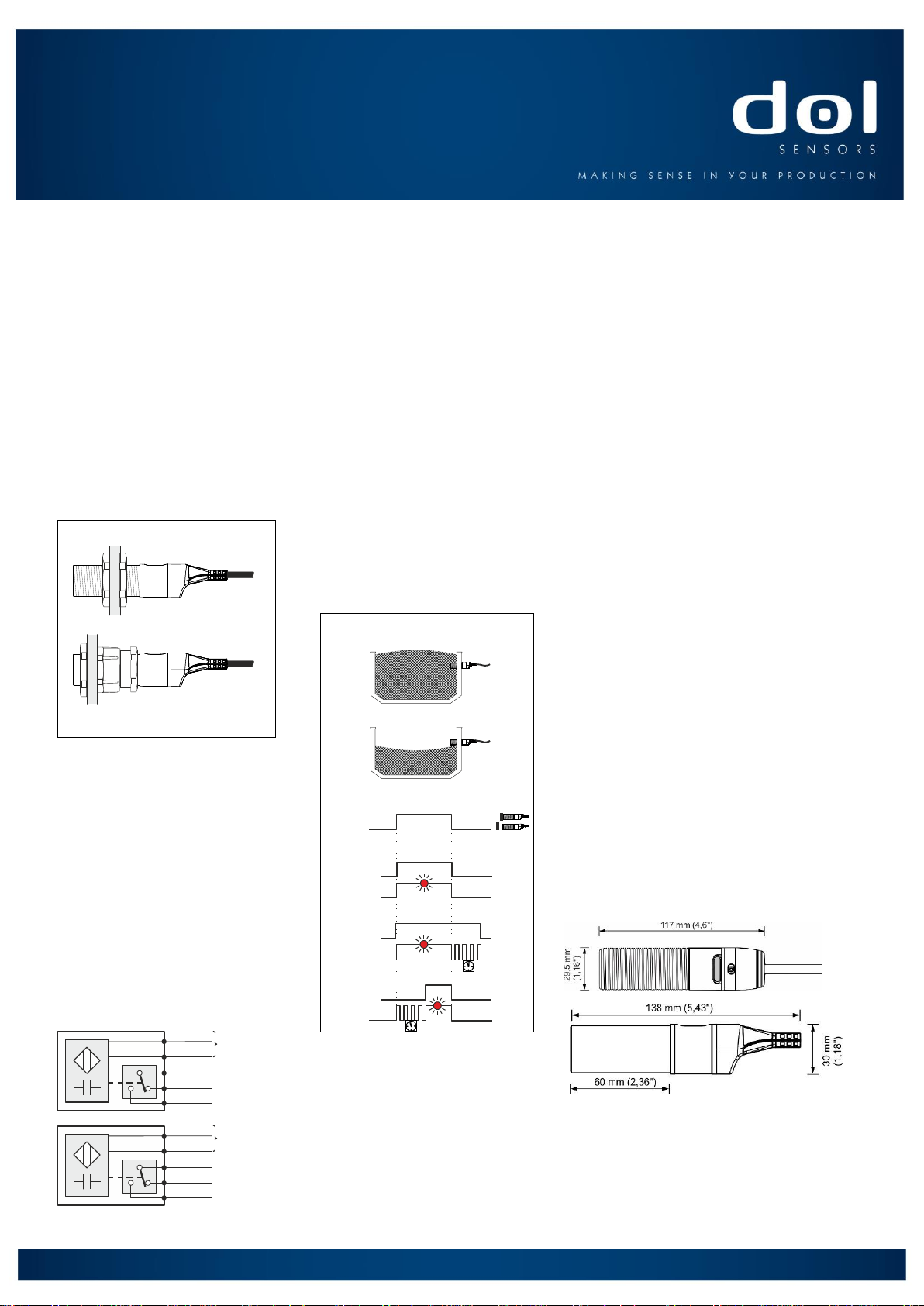

MOUNTING GUIDE (FIG. 1):

DOL 44R includes M30 thread. Mount it in a
ø30 mm hole and tighten using the locknuts
included.

DOL 44R is made in a ø30 mm smooth
design mounted in a PG36/M40 gland.

Figure1

DOL 44R-G

DOL 44R

INSTALLATION GUIDE (FIG. 2):

Supply voltage is connected to the blue and
brown wire.
The load is connected in series with the
relay contact of the sensor.
STOP by activating the sensor: Use the
black wires 1 and 3.
START by activating the sensor: Use the
black wires 1 and 4.
NOTE! The internal relay is in position NC
when the supply voltage is connected and
the sensor is activated - wire 1 and 4 are
connected.

Figure 2: No-current sensor

USER’S GUIDE (FIG. 3):

Depending on its type, DOL 44R has
two trimmers with different
functionalities.
Delayed disconnection:

• Fixed time or

• Time adjustable on trimmer

Delayed connection:

• Fixed time or

• Time adjustable on trimmer

Sensitivity:

• Fixed distance or

• Distance adjustable on trimmer

Max RunTimer:

• Settings on the trimmer: Off, Period 1,

Period 2
The actual functionality of the sensor is
indicated on the product label.
DOL 44R has a red LED, indicating
sensor status.
Fig. 3 shows examples of LED
sequences.

Figure 3

DOL 44RH has a built-in, controlled heat
function which prevents frost and
condensation on the sensor. This
ensures optimum detection in very cold
and damp environments.
The heat function is only possible for the
90-265 V AC voltage version.

TECHNICAL DATA:

Supply voltage:

Voltage version:

90 - 265 VAC

47 - 63 Hz

Voltage version:

10 - 30V AC/DC

47 - 63 Hz

Voltage version:

20 - 280V AC/DC

47 - 63 Hz

Relay:

Max. resistive load, 250VAC:

5 A

Max. lagging load, 250VAC:

2 A

Min. relay current, 12 VDC

100 mA

Temperature:

Temp. operation:

- 20 °C - + 70 °C

- 4 °F - + 158 °F

Temp. operation, USA
and Canada:

- 20 °C - + 65 °C

- 4 °F - + 149 °F

Temp. operation,
storage:

- 30 °C - + 80 °C

- 22 °F - + 176 °F

Temp. operation and
storage with heat
function:

- 40 °C - + 70 °C

- 40 °F - + 158 °F

Degree of protection:

IP:

69k

NEMA:

1, 3, 4, 6, 12, 13

Cable:

Lenght:

2 m

6.6 feet

Conductor dimensions:

Style:

5 x 0.5 mm

2

5 x AWG20

UL2517

Dimensions:

Approvals:

CE
UL
C-UL

Blue
Brown

Black 1
Black 4
Black 3

10-30V
AC/DC

COM
NC
NO

Blue
Brown

Black 1
Black 4
Black 3

90­265VAC

COM
NC
NO

NC(1-4)
NO(1-3)

NC(1-4)
NO(1-3)

NC(1-4)
NO(1-3)

Sensor

Ingen
tidsforsinkelse

Forsinket
frakobling

Forsinket
tilkobling

LED

LED

LED

Relay NC(1-4)

Relay NO(1-3) after delay

LED- sequence

No time
delay

Delayed dis­connection

Delayed
connection
