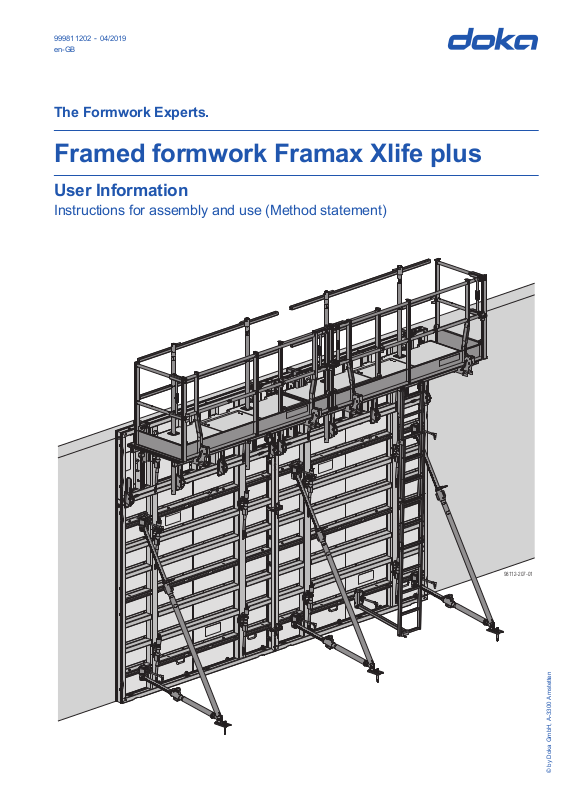

Framed formwork Framax Xlife plus

User Information

Instructions for assembly and use (Method statement)

9 -20 -08112 7 1

User Information Framed formwork Framax Xlife plus

2 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus

Contents

Introduction

Elementary safety warnings

Doka services

Framed formwork Framax Xlife plus

Wall formwork

10 Instructions for assembly and use for room-

high formwork

13 Instructions for assembly and use for high

formwork 16 18 21 25 26 40 52 53 65 71 79 Inter-panel connections for increased tensile

80 83 85 86 89 96 98

101 103 107 108 110

Framax Xlife plus panel in detail

System grid

Inter-panel connections

Bracing the panels

Vertical stacking of panels

Tie rod system Framax Xlife plus

Length adjustment using closures

90 degree corners

Acute & obtuse-angled corners

Shaft formwork

loads

Stop-end formwork

Wall junctions, offsets and steps

Window and door openings

Plumbing accessories

Pouring platforms

Pouring platforms with single brackets

Opposing guard-rail

Wall formwork at the edge of the structure

Ladder system

Stripping aid

Lifting by crane

Transporting, stacking and storing

118

118 119 122 125 126

128

General remarks

Areas of use

Framax Xlife plus combined with . . .

Cleaning and care of your equipment

Fall-arrest systems on the structure

Formwork planning with Tipos-Doka

Component overview

3999811202 - 04/2019

Introduction User Information Framed formwork Framax Xlife plus

Introduction

Elementary safety warnings

User target groups

▪ This booklet is aimed at all persons who will be work-

ing with the Doka product or system that it describes. It contains information on the standard design for setting up this system, and on correct, compliant utilisation of the system.

▪ All persons working with the product described

herein must be familiar with the contents of this booklet and with all the safety instructions it contains.

▪ Persons who are incapable of reading and under-

standing this booklet, or who can do so only with difficulty, must be instructed and trained by the customer.

▪ The customer is to ensure that the information mate-

rials provided by Doka (e.g. User Information booklets, Instructions for Assembly and Use, Operating Instruction manuals, plans etc.) are up to date and available to all users, and that they have been made aware of them and have easy access to them at the usage location.

▪ In the relevant technical documentation and form-

work utilisation plans, Doka shows the workplace safety precautions that are necessary in order to use the Doka products safely in the usage situations shown. In all cases, users are obliged to ensure compliance with national laws, standards and regulations throughout the entire project and to take appropriate additional or alternative workplace safety precautions where necessary.

Hazard assessment

Remarks on this booklet

▪ This document can be used as general Instructions

for Assembly and Use (Method Statement) or be incorporated into site-specific Instructions for Assembly and Use (Method Statement).

▪ The graphics, animations and videos in this doc-

ument or app sometimes depict partially assembled assemblies and may require additional safety equipment and/or measures to comply with safety regulations.

The customer must ensure all applicable regulations are complied with, even if they are not shown or implied in the graphics, animations and videos provided.

▪ Individual sections contain further safety

instructions and/or special warnings as applicable.

Planning

▪ Provide safe workplaces for those using the form-

work (e.g. for when it is being erected/dismantled, modified or repositioned etc). It must be possible to get to and from these workplaces via safe access routes!

▪ If you are considering any deviation from the

details and instructions given in this booklet, or any application which goes beyond those described in the booklet, then revised static calculations must be produced for checking, as well as supplementary assembly instructions.

▪ The customer is responsible for drawing up, docu-

menting, implementing and continually updating a hazard assessment at every job-site. This booklet serves as the basis for the site-specific hazard assessment, and for the instructions given to users on how to prepare and utilise the system. It does not substitute for these, however.

Regulations; industrial safety

▪ All laws, Standards, industrial safety regulations and

other safety rules applying to the utilisation of our products in the country and/or region in which you are operating must be observed at all times.

▪ If a person or object falls against, or into, the side-

guard component and/or any of its accessories, the component affected may only continue in use after it has been inspected and passed by an expert.

4 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Introduction

Rules applying during all phases of the assignment

▪ The customer must ensure that this product is

erected and dismantled, reset and generally used for its intended purpose in accordance with the applicable laws, standards and rules, under the direction and supervision of suitably skilled persons. These persons' mental and physical capacity must not in any way be impaired by alcohol, medicines or drugs.

▪ Doka products are technical working appliances

which are intended for industrial / commercial use only, always in accordance with the respective Doka User Information booklets or other technical documentation authored by Doka.

▪ The stability and load-bearing capacity of all compo-

nents and units must be ensured during all phases of the construction work!

▪ Do not step on or apply strain to cantilevers, clo-

sures, etc. until suitable measures to ensure their stability have been correctly implemented (e.g. by tie-backs).

▪ Strict attention to and compliance with the functional

instructions, safety instructions and load specifications are required. Non-compliance can cause accidents and severe injury (risk of fatality) and considerable damage to property.

▪ Sources of fire in the vicinity of the formwork are pro-

hibited. Heaters are permissible only when used correctly and situated a correspondingly safe distance from the formwork.

▪ Customer must give due consideration to any and all

effects of the weather on the equipment and regards both its use and storage (e.g. slippery surfaces, risk of slipping, effects of the wind, etc.) and implement appropriate precautionary measures to secure the equipment and surrounding areas and to protect workers.

▪ All connections must be checked at regular intervals

to ensure that they are secure and in full working order. In particular threaded connections and wedged connections have to be checked and retightened as necessary in accordance with activity on the jobsite and especially after out-of-the-ordinary occurrences (e.g. after a storm).

▪ It is strictly forbidden to weld Doka products – in par-

ticular anchoring/tying components, suspension components, connector components and castings etc. – or otherwise subject them to heating.

Welding causes serious change in the microstructure of the materials from which these components are made. This leads to a dramatic drop in the failure load, representing a very great risk to safety.

It is permissible to cut individual tie rods to length with metal cutting discs (introduction of heat at the end of the rod only), but it is important to ensure that flying sparks do not heat and thus damage other tie rods.

The only articles which are allowed to be welded are those for which the Doka literature expressly points out that welding is permitted.

Assembly

▪ The equipment/system must be inspected by the

customer before use, to ensure that it is in an acceptable condition. Steps must be taken to exclude components that are damaged, deformed, or weakened due to wear, corrosion or rot (e.g. fungal decay).

▪ Using our safety and formwork systems together

with those of other manufacturers can create risks that may lead to injury and damage to property. This requires separate verification.

▪ The equipment/system must be assembled and

erected in accordance with the applicable laws, standards and rules by trained customer personnel whilst maintaining any applicable safety inspections that may be required.

▪ It is not permitted to modify Doka products; such

modifications constitute a safety risk.

Closing the formwork

▪ Doka products and systems must be set up so that

all loads acting upon them are safely transferred!

Pouring

▪ Do not exceed the permitted fresh-concrete pres-

sures. Over-high pouring rates overload the formwork, cause greater deflection and risk breakage.

Stripping the formwork

▪ Do not strip out the formwork until the concrete has

reached sufficient strength and the person in charge has given the order for the formwork to be stripped out!

▪ When stripping out the formwork, never use the

crane to break concrete cohesion. Use suitable tools such as timber wedges, special pry-bars or system features such as Framax stripping corners.

▪ When stripping out the formwork, do not endanger

the stability of any part of the structure, or of any scaffolding, platforms or formwork that is still in place!

5999811202 - 04/2019

Introduction User Information Framed formwork Framax Xlife plus

Transporting, stacking and storing

▪ Observe all country-specific regulations applying to

the handling of formwork and scaffolding. For system formwork the Doka slinging means stated in this booklet must be used – this is a mandatory requirement.

If the type of sling is not specified in this document, the customer must use slinging means that are suitable for the application envisaged and that comply with the regulations.

▪ When lifting, always make sure that the unit to be

lifted and its individual parts can absorb the forces that occur.

▪ Remove loose parts or secure them so that they can-

not slip out of position and drop.

▪ All components must be stored safely, following all

the special Doka instructions given in the relevant sections of this document!

Maintenance

▪ Only original Doka components may be used as

spare parts. Repairs may only be carried out by the manufacturer or authorised facilities.

Miscellaneous

The weights as stated are averages for new material; actual weights can differ, depending on material tolerances. Dirt accretions, moisture saturation, etc. can also affect weight.

We reserve the right to make alterations in the interests of technical progress.

Symbols used

The following symbols are used in this document:

DANGER

This is a notifier drawing attention to an extremely dangerous situation in which noncompliance with this notifier will lead to death or severe, irreversible injury.

WARNING

This is a notifier drawing attention to a dangerous situation in which non-compliance with this notifier can lead to death or severe, irreversible injury.

CAUTION

This is a notifier drawing attention to a dangerous situation in which non-compliance with this notifier can lead to slight, reversible injury.

NOTICE

This is a notifier drawing attention to a situation in which non-compliance with this notifier can lead to malfunctions or damage to property.

Instruction

Indicates that actions have to be performed by the user.

Sight-check

Indicates that you need to do a sight-check to make sure that necessary actions have been carried out.

Tip

Points out useful practical tips.

Reference

Cross-references other documents.

6 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Introduction

Doka services

Support in every stage of the project

▪ Project success assured by products and services

from a single source.

▪ Competent support from planning through to assem-

bly directly on site.

Rental and reconditioning service

The formwork material needed for any particular project can be rented from Doka’s high-performing rental park. Doka Reconditioning cleans and overhauls both client-owned equipment and Doka rental equipment.

High performance, in all stages of the project

Tender

Operations scheduling

Engineering

Construction

work

Project close-

out

▪ Execution planning ▪ Cycle planning ▪ Structure modelling/3D-planning ▪ Assembly drawings ▪ Statical calculation ▪ Concremote

Consulting and training

▪ Project processing on-site ▪ Formwork instructor ▪ Training & consulting

Project assistance from start to finish

Every single project is unique and calls for individualised solutions. When it comes to the forming operations, the Doka team can help you with its consulting, planning and ancillary services in the field, enabling you to carry out your project effectively, safely and reliably. Doka assists you with individual consulting services and customised training courses.

Efficient planning for a safe project sequence

Efficient formwork solutions can be developed economically only if there is an understanding of project requirements and construction processes. This understanding is the basis of Doka engineering services.

Optimise construction workflows with Doka

Doka offers special tools that help you in designing transparent processes. This is the way to speed up pouring processes, optimise inventories and create more efficient formwork planning processes.

Custom formwork and on-site assembly

To complement its system formwork range, Doka offers customised formwork units. And specially trained personnel assemble load-bearing towers and formwork on site.

Process optimisation

▪ Concremote ▪ myDoka ▪ Planning software ▪ Depot management

Pre-assembly and assembly

▪ Pre-assembly service ▪ Formwork pre-assembly on

site

Logistics

▪ Organisation of transport & freight

Rental and reconditioning service

▪ Rental service ▪ Formwork returns ▪ Reconditioning & service fixed rates

Just-in-time availability

Formwork availability is a crucial factor in realising your project on time and on budget. The worldwide logistics network puts the necessary formwork quantities on site at the agreed time.

7999811202 - 04/2019

Introduction User Information Framed formwork Framax Xlife plus

Framed formwork Framax Xlife plus

Panels with centrally arranged form-tie points, designed to complement Framax Xlife

An extension of the proven Framed formwork system Framax Xlife, the new Framax Xlife plus panels offer a fast and reliable way of implementing special requirements with respect to form-tie and joint patterns, with no need to invest in a whole new formwork system.

Faster working

with a single sided, conical tie rod system

▪ the Tie rod system Framax Xlife plus can be oper-

ated from one side, offering savings of up to one third in forming and stripping times

▪ shorter forming times as some of the tasks have

been eliminated, e.g. cutting and fitting of jacket tubes and cones

▪ less time spent searching as the form-tie 'parking'

position is right at the form-tie point

Highly cost-efficient

thanks to both tried-and-tested and new product features

▪ no material costs associated with form-tie points,

e.g. for wearing parts of the form-tie sleeve, jacket tubes and cones

▪ wide spacing between form-ties (1.35 m apart)

saves up to twelve per cent of the costs for form-tie points and finishing work on form-tie holes

▪ high numbers of repeat uses made possible by

excellent manufacturing quality and extra-durable Xlife sheets

▪ steel frames are hot-dip galvanised, both inside and

out, for long lifespan

▪ form ties are opened and closed using a ratchet for

minimal wear-and-tear on equipment

Easy handling and planning

thanks to the consistent system logic

▪ the small number of additional panel types ensures

optimum material use and effective logistics

▪ the extra-large square panel enables vertical stack-

ing with standard horizontal panels, without a multitude of additional small panels

▪ errors in form-tie setting are eliminated since every

single form-tie point is used

Harmonic architectural surfaces

with regular form-tie and joint patterns

▪ consistent joint pattern thanks to matching panel for-

mats, even when combining upright and horizontal panels

▪ no screw imprints on the concrete because the form-

work sheet is fixed from the rear

▪ centrally arranged form-tie points resulting in sym-

metrical form-tie patterns

▪ aesthetically pleasing form-tie points thanks to uni-

form conical imprints

9 -2 -028112 17

8 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Wall formwork

A Framax Xlife plus panel (Page 16)

B Inter-panel connections (Page 21)

C Vertical stacking of panels (Page 26)

D Tie rod system (Page 40)

E Length adjustment (Page 52)

F 90 degree corners (Page 53)

G Acute & obtuse-angled corners (Page 65)

H Stop-end formwork (Page 80)

I Plumbing accessories (Page 86)

J Pouring platforms (Page 89)

K Opposing guard-rail (Page 98)

L Ladder system (Page 103)

M Lifting by crane (Page 108)

9 - -018112 341

Permitted fresh-concrete pressure: 80 kN/m

9999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Instructions for assembly and use for room-high formwork

The sequence shown here is based on a straight wall. However, you should always start to form from the corner outwards.

Ladders must be located so as to create viable 'traffic routes' in the horizontal. (On a straight wall, for example, one ladder on the first element and another on the last).

Transporting / handling the panels

➤ For offloading panels from a truck, or lifting them on-

site a stack at a time, use the Framax transport gear (see 'Transporting, stacking and storing').

➤ To separate the panels, use Framax transport bolts

and the Doka 4-part chain 3.20m (see 'Transporting, stacking and storing').

Pre-assembly

➤ Pre-assemble elements face-down on an assembly

bench (see 'Inter-panel connections').

➤ With the gang-form still flat, mount panel struts to it

(see 'Plumbing accessories').

➤ Mount the Ladder system XS (see 'Ladder system').

➤ Raise the gang-form by crane. ➤ Spray the formwork sheet with release agent (see

the section headed 'Cleaning and care of your equipment').

➤ Fly the gang-form to its new location.

CAUTION

Never use a sledge-hammer to plumb and align the panels!

This would damage the profiles of the gangs.

➤ Use only proper plumbing tools (e.g. a spe-

cial pry-bar) that cannot cause any damage.

➤ Fix the panel struts firmly to the ground (see the sec-

tion headed 'Plumbing accessories').

98112-227-01

Closing the formwork

➤ Attach the lifting chain to the Framax lifting hook (see

the section headed 'Lifting by crane' and the Operating Instructions for the 'Framax lifting hook').

Max. load:

▪ Spread angle β up to 30°:

1000 kg (2200 lbs) / Framax lifting hook

▪ Spread angle β up to 7.5°:

1500 kg (3300 lbs) / Framax lifting hook

Framax lifting hooks with the rated load-bearing capacity of max. 1000 kg (2200 lbs) also comply with the requirements for a load bearing capacity of 1500 kg (3300 lbs) at a spread angle β ≤ 7.5°.

98112-227-03

The gang-form is now stable and can be plumbed and aligned exactly, with no need for the crane.

➤ Detach the gang-form from the crane. The crew can

reach the slinging points by standing on a step stool.

➤ Slot the pouring platform into place (see the section

headed 'Pouring platforms').

98112-227-04

98112-227-02

10 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

➤ Lift the opposing formwork by crane to its next loca-

WARNING

tion.

There is not yet an opposing guard-rail on the formwork!

Danger to life from fatal falls!

➤ Either use personal protective equipment to

protect against falls (e.g. Doka personal fallarrest set) or mount an opposing guard-rail to the gangform while this is still being pre-assembled in a flat position.

➤ Detach the pouring platform from the crane. ➤ Continue lining up further gang-forms in this way,

and link them together (see the section headed 'Inter-panel connections').

98112-228-01

➤ Fit end-of-platform sideguards (see the section

headed 'Pouring platforms').

Erecting the opposing formwork:

Once the reinforcement has been placed, the formwork can be closed.

➤ Mount the opposing guard-rail to the (laid-flat) gang-

form of the opposing formwork (see 'Opposing guard-rails').

➤ Spray the formwork sheet with release agent (see

'Cleaning and care').

98112-228-02

➤ Fit the form ties (see 'Tie-rod system').

Before disconnecting from the crane:

➤ If there are no panel struts on the opposing

formwork, do not disconnect the element from the crane until a large enough number of form ties have been installed to keep it safely in the upright.

➤ Detach the gang-form from the crane (wherever pos-

sible, operate the lifting hook from the opposite pouring platform).

➤ Continue lining up further gang-forms in this way,

and link them together (see 'Inter-panel connections').

Pouring

Permitted fresh-concrete pressure: 80 kN/m

Observe the following guidelines:

▪ The section headed 'Pressure of fresh concrete on

vertical formwork – DIN 18218' in the Calculation Guide 'Doka formwork engineering'

▪ DIN 4235 Part 2 - 'Compacting of concrete by vibrat-

ing'

NOTICE

➤ Do not exceed the maximum permissible

rate of placing.

➤ Pour the concrete.

11999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

➤ Make only moderate use of vibrators, carefully co-

ordinating the times and locations of vibrator use.

98112-226-01

Stripping the formwork

NOTICE

➤ Comply with the stipulated stripping times.

➤ Remove any loose items from the formwork and plat-

forms, or secure them firmly.

➤ Attach the gang-form of the opposing formwork to

the crane (wherever possible, operate the lifting hook from the opposite pouring platform).

➤ Take out the form ties and undo the connectors to

the adjacent panels.

In order to speed up operations when lifting and repositioning by crane, most of the form ties can be taken out in advance.

Important! There must be at least as many form ties left in place as are needed to keep the panel safely in the upright.

WARNING

The formwork tends to adhere to the concrete. When stripping the formwork, do not try to break concrete cohesion using the crane!

Risk of crane overload.

➤ Use suitable tools such as timber wedges or

a special pry-bar to detach the formwork from the concrete.

➤ Lift the gang-form away and to its next location.

If the gang-form is 'parked' prior to its next use, it must have sufficient stability (see the section headed 'Plumbing accessories'). Gang-forms with only one panel strut must not be 'parked' upright, but placed face-down.

➤ Clean residual concrete off the formwork sheet (see

the section headed ‘Cleaning and care’).

➤ Where the gang-form has panel struts and a pouring

platform attached to it, first attach this gang-form to the crane, and only then detach the floor anchorages of the panel struts.

98112-227-05

98112-226-02

12 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Instructions for assembly and use for high formwork

The sequence shown here is based on a straight wall. However, you should always start to form from the corner outwards.

Ladders must be located so as to create viable 'traffic routes' in the horizontal. (On a straight wall, for example, one ladder on the first element and another on the last).

Transporting / handling the panels

➤ For offloading panels from a truck, or lifting them on-

site a stack at a time, use the Framax transport gear (see 'Transporting, stacking and storing').

➤ To separate the panels, use Framax transport bolts

and the Doka 4-part chain 3.20m (see 'Transporting, stacking and storing').

Pre-assembly

➤ Pre-assemble elements face-down on an assembly

bench (see 'Inter-panel connections').

➤ Only mount the platforms, ladder system and panel

struts to the gang-form when this is in the flat position (see 'Pouring platforms', 'Ladder system' and 'Plumbing accessories').

➤ Fly the gang-form to its new location.

CAUTION

Never use a sledge-hammer to plumb and align the panels!

This would damage the profiles of the gangs.

➤ Use only proper plumbing tools (e.g. a spe-

cial pry-bar) that cannot cause any damage.

➤ Fix the panel struts firmly to the ground (see the sec-

tion headed 'Plumbing accessories').

98112-230-01

A Platform

B Ladder system

C Panel strut

Closing the formwork

➤ Attach the lifting chain to the Framax lifting hook (see

the section headed 'Lifting by crane' and the Operating Instructions for the 'Framax lifting hook').

Max. load:

▪ Spread angle β up to 30°:

1000 kg (2200 lbs) / Framax lifting hook

▪ Spread angle β up to 7.5°:

1500 kg (3300 lbs) / Framax lifting hook

98112-230-02

The gang-form is now stable and can be plumbed and aligned exactly, with no need for the crane.

WARNING

There is not yet an opposing guard-rail on the formwork!

Danger to life from fatal falls!

➤ Either use personal protective equipment to

protect against falls (e.g. Doka personal fallarrest set) or mount an opposing guard-rail to the gangform while this is still being pre-assembled in a flat position.

➤ Detach the gang-form from the crane. ➤ Continue lining up further gang-forms in this way,

and link them together (see the section headed 'Inter-panel connections').

➤ Raise the gang-form by crane. ➤ Spray the formwork sheet with release agent (see

the section headed 'Cleaning and care of your equipment').

13999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Erecting the opposing formwork:

Once the reinforcement has been placed, the formwork can be closed.

➤ Spray the formwork sheet with release agent (see

'Cleaning and care').

➤ Lift the opposing formwork by crane to its next loca-

tion.

Pouring

Permitted fresh-concrete pressure: 80 kN/m

Observe the following guidelines:

▪ The section headed 'Pressure of fresh concrete on

vertical formwork – DIN 18218' in the Calculation Guide 'Doka formwork engineering'

▪ DIN 4235 Part 2 - 'Compacting of concrete by vibrat-

ing'

NOTICE

➤ Do not exceed the maximum permissible

rate of placing.

➤ Pour the concrete. ➤ Make only moderate use of vibrators, carefully co-

ordinating the times and locations of vibrator use.

98112-229-03

➤ Working from the ground, insert the bottom two rows

of form ties (see 'Form-tie system').

WARNING

There is not yet an opposing guard-rail on the formwork!

Danger to life from fatal falls!

➤ Use personal fall arrest systems to protect

against falls (e.g. Doka safety harness).

Before disconnecting from the crane:

➤ If there are no panel struts on the opposing

formwork, do not disconnect the element from the crane until a large enough number of form ties have been installed to keep it safely in the upright.

➤ Detach the gang-form from the crane. ➤ Insert the remaining form ties. These form-tie loca-

tions can be reached from the platforms.

➤ Continue lining up further gang-forms in this way,

and link them together (see 'Inter-panel connections').

98112-229-01

14 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Stripping the formwork

NOTICE

➤ Comply with the stipulated stripping times.

➤ Remove any loose items from the formwork and plat-

forms, or secure them firmly.

Begin work on striking the formwork on the opposing formwork:

➤ Undo the connectors to the adjacent panels.

WARNING

➤ There must be at least as many form ties left

in place as are needed to keep the panel safely in the upright.

➤ Take out the form ties from the two top rows of ties.

These form-tie locations can be reached from the platforms.

➤ Attach the gang-form (incl. platforms) to the crane. ➤ Working from the ground, take out the bottom two

rows of form ties.

WARNING

There is not yet an opposing guard-rail on the formwork!

Danger to life from fatal falls!

➤ Use personal protective equipment to pro-

tect against falls (e.g. Doka personal fallarrest set).

➤ Where the gang-form has panel struts attached to it,

first attach this gang-form to the crane, and only then detach the floor anchorages of the panel struts.

98112-229-02

WARNING

The formwork tends to adhere to the concrete. When stripping the formwork, do not try to break concrete cohesion using the crane!

Risk of crane overload.

➤ Use suitable tools such as timber wedges or

a special pry-bar to detach the formwork from the concrete.

➤ Lift the gang-form away and to its next location, or

place it flat on its back for intermediate storage.

➤ Clean residual concrete off the formwork sheet (see

the section headed ‘Cleaning and care’).

98112-230-03

15999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Framax Xlife plus panel in detail

High load-bearing capacity Clean concrete surfaces with the

innovative Xlife sheet

The Xlife sheet consists of a combination of a traditional plywood core and a novel and innovative plastic coating.

This combination of materials ensures high numbers of repeat uses, with superb concrete results every time, and reduces the proneness to damage.

▪ High quality concrete finish ▪ Less touching-up needed ▪ Less cleaning work - the Xlife sheet can also be

cleaned using a high-pressure spray cleaner

▪ Because the Xlife sheet is screwed on from the rear,

this leaves no screw imprints on the concrete

Dimensionally stable, galvanised and powder-coated steel frame

80 kN/m2 pressure of fresh concrete acting on whole

area, to DIN 18218, where the surface planeness tolerances to DIN 18202 Table 3 Line 6 are observed.

9764-244-01

a ... 123 mm

A Frame profile

B Cross borehole

C Continuous hardware slot for inter-panel connectors

D Xlife sheet

E Silicone sealing strip

▪ Dimensionally stable frame profiles ▪ Strong cross-profiles ▪ Powder coated, so easy to clean ▪ Edges are easy to clean - so panels always abut

tightly

▪ All-round hardware slot for fastening the inter-panel

connectors at any point required

▪ Hot-dip galvanised for long life ▪ Edges of formwork sheet are protected by frame pro-

file

▪ Cross boreholes for corner configurations and stop-

ends

WARNING

➤ It is forbidden to climb on the cross-profiles.

The cross-profiles are NOT a substitute for a ladder.

16 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Accessories are easy to fasten, in the integrated waling system

9727-280-01

A Framax Xlife plus panel

B Framax wedge clamp

C Framax universal waling

Form-tie sleeves

Handles

98112-208-01

A Integral handle

WARNING

Do not use these handles as slinging points for crane-handling!

Danger of formwork dropping from crane!

➤ Use only suitable load-carrying equipment

and slinging points. See 'Resetting by crane' and 'Transporting, stacking and storing'.

Lifting edge

98112-208-03

a ... diam. 32 mm b ... diam. 80 mm

▪ Large, centrally arranged form-tie sleeves with steel

sealing edge

▪ Only 2 form ties are needed for every 2.70 m of panel

height

98112-208-02

B Lifting edge

▪ Practical lifting edge, as an insertion point for the

plumbing tool

17999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

System grid

The heights and widths of the Framax Xlife plus panels together result in a logical, advantageous increment-grid that makes this formwork highly flexible and economical.

▪ Easy planning and forming

▪ 15 cm grid with only 7 different panel widths ▪ Very few closures needed ▪ Clear joint pattern ▪ Symmetrically arranged, centred form ties

9 112- 5-01820

18 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Panel size-grid (including form-tie pattern)

Framax Xlife plus panels

Panel widths

2.70m 1.35m

67.5 67.5

1.35m2.70m3.30m

57.5 57.5155.0

67.5

57.5

155.0

30.0

0.60m1.35m2.70m3.30m

Panel heights

30.0

67.5

57.5

155.0

57.5

Panel widths

0.90m 0.75m 0.60m 0.45m 0.30m

45.0 45.0

37.5 37.5

30.0 30.0

22.5 22.5

15.0/15.0

57.5

Panel heights

47.0

118.0

47.0

118.0

47.0

19999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Framax Xlife plus inside corner 30/30cm

0.30 x 0.30m

0.60m1.35m2.70m3.30m

Panel heights

20 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Inter-panel connections

Simple inter-panel connections

with Framax quick acting clamp RU

Framax quick acting clamp RU:

permitted tensile force: 15.0 kN permitted shear force: 6.0 kN permitted moment: 0.5 kNm

The continuous hardware slot running around the inside of the frame profile means that panels can be fastened together at any point desired. This allows adjacent panels to be staggered in height, steplessly.

9 -20 -08112 8 4

Attributes of the panel connectors:

▪ provide self-aligning, crane-handling-safe connec-

tions between the panels

▪ no losable small parts ▪ dirt-resistant and hard-wearing for site use ▪ easy to fix, with a formwork hammer

NOTICE

▪ Use a formwork hammer weighing max.

800 g.

▪ Do not oil or grease wedge-clamped joints.

Panels longside vertical:

Panel height

0.60 m 1

1.35 m 2

2.70 m 2

3.30 m 3

Panels longside horizontal:

Panel width

0.30 m 1

0.45 m 1

0.60 m 2

0.75 m 2

0.90 m 2

1.35 m 2

Number of

clamps

Number of

clamps

9727-287-01

9727-288-01

Note:

▪ For details regarding extra inter-panel connections

on outside corners (for increased tensile loads) see the section headed ‘Inter-panel connections for increased tensile loads’.

▪ See ‘Vertical stacking of panels’ for details on the

positions of the Framax quick acting clamps RU and Framax multi-function clamps that are needed when vertically extending.

21999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Self-aligning inter-panel connections and closures

with Framax multi function clamp

Framax multi function clamp:

Permitted tensile force: 15.0 kN Permitted shear force: 9.0 kN Permitted moment: 0.9 kNm Values apply only when mounted on profile.

Particularly when panels are stacked in the vertical, the fact that the clamp bears directly on the profiles means that there is often no need for any extra bracing of the panels with universal walings.

More functions

Inter-panel connections

9727-223-01

Joining the panels using the Framax multi function clamp provides additional bracing of the gang-form (as the clamp bears directly onto the profile).

Filler connection up to 15 cm

9727-285-01

A Contact surface on the profile

98112-286-01

With its 15 cm clamping range, the Framax multi-function clamp exactly matches the panel size-grid.

For more information, see 'Length adjustment using closures".

Squared timber connection up to 20 cm

9727-286-01

9727-292-01

22 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Bracing gang-forms

NOTICE

If more than two single form-tie panels are used next to each other, bracing with a uni-

versal waling will be required. Single form-tie panels:

▪ Panel width 1.35m ▪ Panel width 0.90m ▪ Panel width 0.75m ▪ Panel width 0.60m ▪ Panel width 0.45m ▪ Panel width 0.30m

Observe the following points:

▪ Position the universal walings in such a way that at

most two single form-tie panels without bracing are placed side by side.

▪ Always position the universal walings in the bot-

tom waling profile.

▪ Max. closure width between the single form-tie

panels: 15 cm with Framax multi function clamp

Example with 5 single form-tie panels

CORRECT position of the universal waling:

98112-281-01

WRONG position of the universal waling:

1x2x

98112-281-02

x ... Single form-tie panel without bracing

A Framax Xlife plus panels braced with a universal waling

B Framax Xlife plus panel 2.70x2.70m

C Framax universal waling 0.90m or 1.50m

+ Framax wedge clamps

23999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Corner configuration with single form-tie panels (example)

9 -2 -08112 90 2

24 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Bracing the panels

Framax universal waling

How to attach

using the Framax wedge clamp

A Framax universal waling

B Framax wedge clamp

NOTICE

Do not oil or grease wedged connections.

using the Framax universal fixing bolt and Super plate

9727-454-01

98112-240-02

98112-240-01

A Framax universal waling 1.50m

B Framax wedge clamp

C Framax multi function clamp

D Framax Xlife plus panel

E Cross profile acting as a support for the universal waling

Using additional universal walings gives gang-forms better rigidity, especially in higher vertically stacked configurations. This makes it possible to pick up and set down large gang-forms by crane without any problems. The additional universal walings are also useful for transferring the loads from platforms.

Note:

Instead of the universal waling, it is also possible to use a Multi-purpose waling WS10 Top50.

9727-455-01

A Framax universal waling

C Framax universal fixing bolt

D Super plate 15.0

Framax universal waling:

Permitted moment (for vertical stacking): 5.0 kNm Due to the permitted tensile load of 14 kN in the waling

profile, even stiffer components such as Multi-purpose walings WS10 Top50 are also subject to: Permitted moment 5.0 kNm

25999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

8112 31

8112 32

Vertical stacking of panels

Positions of the interconnecting and form-tie components and accessories needed for:

▪ Lifting and setting down ▪ Crane-handling ▪ Pouring platform ▪ Pouring

A Framax Xlife plus form tie 20.0

B Framax quick acting clamp RU

C Framax multi function clamp

D Framax universal waling

E Framax wedge clamp

Framax multi function clamp:

permitted tensile force: 15.0 kN permitted shear force: 9.0 kN permitted moment: 0.9 kNm Values apply only when mounted on profile (contact

surface on the profile).

9727-417-01

Framax Xlife plus panel 2.70m

with Framax multi function clamp

Formwork height: 300 and 315 cm

30-45

270

When using a lightweight pouring platform with single brackets (Framax bracket 90), the universal waling is not necessary.

Formwork height: 330, 345 and 360 cm

60 - 90

Framax quick acting clamp RU:

permitted tensile force: 15.0 kN permitted shear force: 6.0 kN permitted moment: 0.5 kNm

Framax universal waling:

Permitted moment (for vertical stacking): 5.0 kNm Due to the permitted tensile load of 14 kN in the waling

profile, even stiffer components such as Multi-purpose walings WS10 Top50 are also subject to: Permitted moment 5.0 kNm

The planning software Tipos-Doka is always very helpful when it comes to finding the optimum technical and economical solution for the formwork issue concerned.

270

When using a lightweight pouring platform with single brackets (Framax bracket 90), the universal waling is not necessary.

26 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

8112 33

8112 34

8112 3

Formwork height: 405 cm

135

270

When using a lightweight pouring platform with single brackets (Framax bracket 90), the universal waling is not necessary.

Formwork height: 435 and 450 cm

30-45

Formwork height: 540 cm

270

98112-236-01

Formwork height: 570 and 585 cm

135

270

Formwork height: 465, 480 and 495 cm

60 - 90

30-45

270

135

98112-237-02

270

27999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

8112 39

Formwork height: 600, 615, 630 and 675 cm

Formwork height: 735, 750 and 765 cm

60 - 135

270

60 - 90

135

270

98112-237-01

Formwork height: 705 and 720 cm

30-45

135

270

The third universal waling at the first and the second panel joint is only needed if intermediate platforms are to be used.

270

98112-239-02

The third universal waling at the first and the second panel joint is only needed if intermediate platforms are to be used.

28 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Formwork height: 810 cm

270

with Framax quick acting clamp RU

Formwork height: 300 and 315 cm

30-45

270

98112-248-01

Universal waling only needed if pouring platforms are to be used.

Formwork height: 330, 345, 360 and 405 cm

60 - 135

270

98112-238-01

The third universal waling at the first and the second panel joint is only needed if intermediate platforms are to be used.

270

98112-249-01

Formwork height: 435 and 450 cm

30-45

135

270

98112-250-02

29999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

8112 2

Formwork height: 465 cm

135

270

98112-250-01

Formwork height: 480 and 495 cm

Formwork height: 540 cm

270

98112-252-01

- -

75 - 90

135

270

Formwork height: 570 and 585 cm

30-45

270

98112-253-02

30 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

8112 2

Formwork height: 600, 615 and 630 cm

Formwork height: 705 and 720 cm

60 - 90

270

30-45

135

270

- -

Formwork height: 675 cm

135

270

98112-255-02

The third universal waling at the first and the second panel joint is only needed if intermediate platforms are to be used.

270

98112-254-01

The third universal waling at the first panel joint is only needed if intermediate platforms are to be used.

31999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

8112 2

Formwork height: 735 cm

135

270

Formwork height: 750 and 765 cm

75 - 90

135

270

98112-255-01

The third universal waling at the first and the second panel joint is only needed if intermediate platforms are to be used.

270

- -

32 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

8112 306

8112 306 2

Formwork height: 810 cm

270

Framax Xlife plus panel 3.30m

with Framax multi function clamp

Formwork height: 360 and 375 cm

30-45

330

- -

When using a lightweight pouring platform with single brackets (Framax bracket 90), the universal waling is not necessary.

98112-257-01

270

Formwork height: 390 and 405 cm

60 - 75

330

- -

When using a lightweight pouring platform with single brackets (Framax bracket 90), the universal waling is not necessary.

33999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

8112 306 4

8112 306 6

Formwork height: 420 and 465 cm

98112-306-03

Formwork height: 495 and 510 cm

Formwork height: 525, 540 and 555 cm

60 - 90

90 - 135

135

330

- -

30-45

Formwork height: 600 cm

- -

135

270

330

98112-306-07

34 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

8112 306 8

Formwork height: 630 and 645 cm

30-45

270

330

Formwork height: 690 and 705 cm

30-45

330

- -

The topmost universal waling is not needed if a light pouring platform made of single brackets (Framax bracket 90) is to be used.

Formwork height: 660 cm

330

98112-306-10

The third universal waling is needed only if intermediate platforms are to be used.

330

98112-306-09

35999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

8112 306 11

Formwork height: 720, 735 and 750 cm

Formwork height: 795 cm

60 - 90

330

135

330

- -

The third universal waling is needed only if intermediate platforms are to be used.

330

98112-306-12

36 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

8112 306 16

with Framax quick acting clamp RU

Formwork height: 495 and 510 cm

Formwork height: 360 and 375 cm

30-45

330

98112-306-13

Universal waling only needed if pouring platforms are to be used.

Formwork height: 390, 405, 420 and 465 cm

98112-306-15

Formwork height: 525, 540 and 555 cm

30-45

135

330

98112-306-14

60 - 135

60 - 90

135

330

- -

37999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Formwork height: 600 cm

270

330

Formwork height: 660 cm

330

98112-306-17

Formwork height: 630 and 645 cm

30-45

270

330

98112-306-19

Formwork height: 690 and 705 cm

30-45

330

98112-306-18

98112-306-20

The third universal waling is needed only if intermediate platforms are to be used.

38 999811202 - 04/2019

330

User Information Framed formwork Framax Xlife plus Wall formwork

8112 306 21

Formwork height: 720, 735 and 750 cm

Formwork height: 795 cm

60 - 90

330

135

330

- -

The third universal waling is needed only if intermediate platforms are to be used.

330

98112-306-22

39999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

8112 44 1

Tie rod system Framax Xlife plus

Wall thicknesses

in 0.5 cm increments Framax Xlife plus form tie 20.0 15-30cm 15 to 30 cm Framax Xlife plus form tie 20.0 25-40cm 25 to 40 cm

Framax Xlife plus form tie 20.0:

Permitted capacity: 150 kN

The Framax Xlife plus ratchet 3/4" SW24 or Framax Xlife plus ratchet 1/2" SW24 L can be used for low-noise releasing and tightening of all anchoring components.

WARNING

Sensitive rod steel!

➤ Never weld or heat tie rods. ➤ Tie rods that are damaged or have been

weakened by corrosion or wear must be

Inclination of panels and mismatch

Tie rod system Framax Xlife plus 20.0:

▪ Can be operated from one side ▪ for wall thicknesses from 15 cm to 40 cm ▪ no expendable jacket tubes

As a basic rule:

▪ fit one form tie in each form-tie sleeve.

For exceptions, see the sections headed 'Framax head anchor 15-40cm', '90 degree corners' and 'Acute & obtuse-angled corners'.

Note: Seal off any unneeded form-tie sleeves with the Fra-

max Xlife plus frame hole plug 32mm.

Tie rod system with Form-tie nut I 20.0:

9 -2 -08112 01 7

between panels

Thanks to their large form-tie sleeves, the panels can be inclined on one or both sides, and be mismatched.

Close-up of the Framax Xlife plus form-tie nut I 20.0

α ...max. 4°

Conical on one side

withdrawn from use.

a a

98112-201-06

Conical on both

sides

max. 4° max. 2 x 4°

Mismatch between

panels

max. 1.0 cm per

15 cm of wall thick-

ness

Tie rod system with Form-tie nut 20.0:

9 -2 -08112 01 3

A Framax Xlife plus form tie 20.0

B Framax Xlife plus form-tie nut I 20.0

C Framax Xlife plus form-tie nut 20.0

D Framax Xlife plus distance protector

E Form-tie sleeve inside the framed formwork panel

40 999811202 - 04/2019

98112-245-01

98112-245-02

Note:

Secure inclined panels against uplift.

98112-245-03

User Information Framed formwork Framax Xlife plus Wall formwork

Adjusting to the wall thickness

Setting the form tie

➤ Remove the spring clip. ➤ Push the ball pin away from the stop cylinder.

98112-242-01

A Spring clip

B Ball pin

Turning the ball pin makes it easier to push it away.

➤ Open the stop cylinder and position it.

Wall thicknesses of between 15.0 cm and

40.0 cm, in 1 cm increments

Standard position of the stop cylinder

D D C

98112-242-06

A 30.0 25.0 20.0 15.0 B 40.0 35.0 30.0 25.0

A Framax Xlife plus form tie 15-30cm

B Framax Xlife plus form tie 25-40cm

C Stop cylinder

D Marking groove on the stop cylinder

Example: Wall thickness = 22.0 cm

D CA

98112-242-04

22.0

a ... 32.0 cm (wall thickness + 10.0 cm)

A Framax Xlife plus form tie 15-30cm

C Stop cylinder

D Marking groove on the stop cylinder

E Control marking on the tie rod

C Stop cylinder

➤ Push the ball pin back over the stop cylinder. ➤ Secure the ball pin with the spring clip.

A Spring clip

B Ball pin

C Stop cylinder

98112-242-03

98112-242-02

Wall thicknesses of between 15.5 cm and

40.5 cm, in 1 cm increments

Stop cylinder, turned 180°

A 30.5 25.5 20.5 15.5 B 40.5 35.5 30.5 25.5

A Framax Xlife plus form tie 15-30cm

B Framax Xlife plus form tie 25-40cm

C Stop cylinder

D Marking groove on the stop cylinder

F '+0.5' marking on the stop cylinder

Example: Wall thickness = 36.5 cm

98112-242-05

36.5

b ... 46.5 cm (wall thickness + 10.0 cm)

B Framax Xlife plus form tie 25-40cm

C Stop cylinder

D Marking groove on the stop cylinder

E Control marking on the tie rod

98112-242-07

41999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Securing the distance

The Framax Xlife plus form ties do not need any jacket tubes. For this reason, at least the upper form-tie points must be fitted with distance protectors for pressure bracing.

98112-259-01

A Framax Xlife plus distance protector required

B Framax Xlife plus distance protector optional

Tying the panels

Holding formwork

Depending on the form-tie nut used, choose one of the following two ways of mounting the form-tie nut:

Mounting the Form-tie nut I 20.0:

➤ Position the form-tie nut into the form-tie sleeve of

the framed formwork panel.

98112-316-03

The hook of the form-tie nut engages in the recess of the form-tie sleeve.

➤ Push the centring disc in and at the same time turn it

through 180°.

Position of the centring disc:

can be installed and removed fixed in place

98112-316-06

A Framax Xlife plus form-tie nut I 20.0

B Hook

C Recess

D Centring disc

98112-316-07

Centring disc engages. Form-tie nut is fixed in place.

Mounting the Form-tie nut 20.0:

➤ Position the form-tie nut into the form-tie sleeve of

the framed formwork panel and screw it on.

98112-243-01

A Framax Xlife plus form-tie nut 20.0

42 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Opposing formwork

➤ Set up the opposing formwork. ➤ Mount the distance protector at the form-tie point (do

not tighten the screw yet), and tilt it to the left.

98112-247-05

E Framax Xlife plus distance protector

➤ Screw in the form tie with the Framax Xlife plus

ratchet until it is fully engaged and tighten it firmly.

Removing the form ties

Loosening the form ties sooner rather than later after pouring the concrete makes them easier to remove at a later time.

➤ Disengage the distance protector (slacken the

screw, width-across 24) and pivot it clear.

➤ Unscrew the Framax Xlife plus form tie with the Fra-

max Xlife plus ratchet or an impact wrench.

9 -2 -08112 47 2

C Framax Xlife plus form tie 20.0

E Framax Xlife plus distance protector

F Screw (width-across 24)

G Framax Xlife plus ratchet 3/4" SW24

C G

D C

9 -2 -8112 01 10

C Framax Xlife plus form tie 20.0

D Framax Xlife plus ratchet 1/2" SW24 L

H Spring clip

Check that the spring clip is installed!

Spraying the conical part of the form tie with release agent makes it easier to detach the form tie from the concrete.

➤ Pivot the distance protector over the form tie and

tighten the screw (width-across 24). Tightening torque: max. 80 Nm

➤ Temporarily store the Framax Xlife plus form tie in

the distance protector.

98112-247-03

9 -2 -08112 47 4

E Framax Xlife plus distance protector

F Screw (width-across 24)

43999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Removing form-tie nut

For example if the panel of the holding formwork is to be used as opposing formwork for the next pouring section.

➤ Push the centring disc of the form-tie nut in and at the

same time turn it through 180°.

9 - -08112 316 3

A Framax Xlife plus form-tie nut I 20.0

The form-tie nut can be removed.

➤ Insert the parking bolt into the hole in the cross pro-

file.

Form-tie points for fair-faced concrete quality

➤ Attach the Framax Xlife plus fair-faced concr. cone

87mm (with built-in magnets) to the form-tie sleeves of the panels.

➤ On the side of the holding formwork (form-tie nut),

seal the fair-faced concrete cone with a Sealing disk 43 (self-adhesive).

Close-up

98112-297-01

9 - -08112 316 4

B Framax Xlife plus parking bolt

If the parking bolt is used on its own (without form-tie nut), secure it in the top insertion position with a spring cotter.

➤ Push the form-tie nut on to the parking bolt from

below and secure it with a spring cotter.

9 - -08112 316 5

98112-297-03

A Framax Xlife plus fair-faced concr. cone 87mm

B Form-tie sleeve inside the Framax Xlife plus panel

C Sealing disk 43

➤ Install the form tie and the distance protector (see

the section headed 'Tying the panels').

E A

98112-297-02

A Framax Xlife plus fair-faced concr. cone 87mm

D Framax Xlife plus distance protector

E Framax Xlife plus form tie 20.0

A Framax Xlife plus form-tie nut I 20.0

C Spring cotter 5mm

Cleaning and care of your equipment

➤ When cleaning the formwork, always remove any

dried concrete residues from the form-tie sleeves of the opposing formwork.

44 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Variant with the Doka tie rod system 20.0

Assembly:

➤ Position the reducer in the form-tie sleeve of the

framed formwork panel.

Note:

For thicker walls and for making watertight form-tie points, use the Doka tie rod system 20.0.

For more information on making watertight form-tie points, see the 'Doka form ties for special requirements' User Information booklet.

The hook (H) of the reducer (A) engages in the

The Framax Xlife plus-reducer I 20.0 is inserted into the form-tie sleeve in the Framax Xlife plus panel.

recess of the form-tie sleeve.

➤ Turn the lock of the reducer through 180 °.

Reducer is locked in position.

B C

9 - -038112 246

a ... Wall thickness b ... Length of the plastic tube = a - 26.0 mm

A Framax Xlife plus reducer I 20.0

B Tie rod 20.0mm

C Super plate 20.0 B

D Plastic tube 26mm

E Universal cone 26mm

F Form-tie sleeve inside the Framax Xlife plus panel

Position of the lock:

can be installed and removed Locked in position

98112-246-05

A Framax Xlife plus reducer I 20.0

G Recess

H Hook

I Lock

A H

98112-246-04

98112-246-06

Tie rod 20.0mm:

Permitted capacity, allowing a 1.6 : 1 factor of safety against failure: 220 kN

Permitted capacity to DIN 18216: 150 kN

45999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Framax head anchor 15-40cm

The Framax head anchor 15-40cm is used for tying Framax Xlife plus panels.

▪ The Framax head anchor 15-40cm holds the two

sides of the formwork the required distance apart.

▪ For wall thicknesses from 15 to 40 cm. ▪ Tension bracing and compression bracing. ▪ Adjustable in a 5-mm grid. ▪ When using the Framax head anchor 15-40cm, no

Framax Xlife plus form ties 20.0 are needed in the following positions:

- on the top horizontal panel up to a panel width of 0.90m

- in the top form-tie points of the Framax Xlife plus panel 3.30m (not vertically stacked)

NOTICE

2 Framax head anchors 15-40cm must be mounted for every 2.70m width of gang-form!

Permitted tensile force: 10 kN Permitted compressive force: 10 kN

Example: panel of max. 0.90m vertically stacked

with Framax head anchor without Framax head anchor

Assembly:

➤ Position the Framax head anchor 15-40cm directly

above the form-tie points of the Framax Xlife plus panel.

➤ Telescope the Framax head anchor 15-40cm to the

desired length 'a' (= wall thickness) and fix it in the relevant hole with a pin and spring cotter.

981 - -012 310 5

a ... 15 - 40 cm

98112-310-03

b ... max. 0.90 m

9-38112 10-04

Example: Framax Xlife plus panel 3.30m

with Framax head anchor without Framax head anchor

9 -38112 10-02

A Framax head anchor 15-40cm

C Adjusting unit

D Notch = measuring point

46 999811202 - 04/2019

98112-315-01

c ... 3.30 m

A Framax head anchor 15-40cm

B Tie rod system Framax Xlife plus 20.0

98112-315-02

User Information Framed formwork Framax Xlife plus Wall formwork

Closing form-tie holes

Framax Xlife plus plug 38mm

Framax Xlife plus plug 24mm

Framax Xlife plus fair-faced concr. plug 87mm

... fire-resistant ... sound-insulating

Framax Xlife plus plug 38mm

Acts as a visible closure.

➤ Remove any concrete burrs. ➤ Push a Framax Xlife plus plug into the form tie hole

at each end.

Framax Xlife plus fair-faced concr. plug 87mm

Acts as closure for form-tie points made with the fairfaced concrete cone 87mm for fair-faced concrete quality.

➤ Use the Framax Xlife plus cone spanner to remove

the Framax Xlife plus fair-faced concr. cone 87mm.

98112-298-01

D Framax Xlife plus fair-faced concr. cone 87mm

E Framax Xlife plus cone spanner

F Framax Xlife plus ratchet 1/2" SW24 L

➤ Close the open form-tie point with a Framax Xlife

plus fair-faced concr. plug 87mm.

98112-324-01

A Framax Xlife plus plug 38mm

Framax Xlife plus plug 24mm

Acts as a closure that can be filled with mortar and smoothed flush with face of the concrete.

➤ Push a Framax Xlife plus plug into the form tie hole

at each end.

➤ Fill the form-tie point with mortar, if necessary.

98112-324-01

B Framax Xlife plus plug 24mm

Advantage when used as visible closure:

Not possible for third persons to remove the plug without using tools!

C Framax Xlife plus fair-faced concr. plug 87mm

98112-324-01

The concrete plug is glued into place with standard concrete adhesive.

47999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Sealing form-tie holes

with Framax Xlife plus screw plug 25mm

by glueing in Fibre concrete plug 24mm

with moulding mortar

... fire-resistant ... sound-insulating

... watertight (for compatibility with drinking water see the section headed 'Drinking-water-compatible seal')

with Framax Xlife plus screw plug 25mm

98112-321-03

G Framax Xlife plus screw plug 25mm

W Water side

NOTICE

▪ Material temperature of the screw at time of

installation at least +10 °C

➤ Clean the inside of the form-tie hole. ➤ Position the screw plug in the form-tie hole on the

side with the larger opening.

A mark (piece of adhesive tape wrapped round the extension at the appropriate point) on the extension of the torque wrench is useful as a positioning aid.

➤ Use a torque wrench to tighten the screw plug to a

tightening torque of 20 Nm.

➤ If applicable, close the form-tie hole with a Framax

Xlife plus plug.

98112-321-03

a ...min. 30 mm on the water side b ... 79 mm c ... d - a - b d ... wall thickness

A Plug (optional)

G Framax Xlife plus screw plug 25mm

H Torque wrench with extension

I Mark (adhesive tape)

by glueing in fibre concrete plugs

A Framax Xlife plus plug 24mm with hole

J Fibre concrete plug 24mm

W Water side

98112-258-07

Note:

Use Framax Xlife plus plugs 24mm with hole! Air escapes through the hole in the plug as the adhesive is compressed.

48 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

➤ Clean the inside of the form-tie hole. ➤ Use a tie rod to push the Framax Xlife plus plug DW

24mm approximately 6 cm into the form-tie hole.

➤ From the plug, fill the form-tie hole approx. 3 cm

deep with epoxy-resin adhesive.

➤ Push the first fibre concrete plug into the adhesive

and compress the adhesive.

AKJ

98112-258-06

a ... approx. 6 cm

A Framax Xlife plus plug 24mm with hole

J Fibre concrete plug 24mm

K Epoxy-resin adhesive

➤ Inject enough epoxy-resin adhesive to fill the form-tie

hole of the fibre-concrete plug to 5 mm below the surface of the concrete.

➤ Push the second fibre concrete plug into the adhe-

sive and compress the adhesive.

➤ Use a spatula to remove the excess adhesive.

Quick-KarPox adhesive+mortar

▪ Epoxy-resin-based 2-component adhesive for

structural loads.

▪ The surface must be free of dust and oil. ▪ Application temperature: min. +5 °C

Read and observe the manufacturer's technical data sheet!

98112-500-03

Product recommendation

Mapefix EP epoxy-resin adhesive

▪ Epoxy-resin-based 2-component adhesive for

structural loads.

▪ The surface must be free of dust and oil. ▪ Application temperature: min. +5 °C

Read and observe the manufacturer's technical data sheet!

98112-500-01

49999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

with moulding mortar

a ... min. 5 cm

A Framax Xlife plus plug 24mm with hole

L M-Bed moulding mortar

W Water side

Note:

Use Framax Xlife plus plugs 24mm with hole! Air escapes through the hole in the plug as the adhesive is compressed.

➤ Clean the inside of the form-tie hole. ➤ Use a tie rod to push the Framax Xlife plus plug

24mm with hole at least 8 cm into the form-tie hole.

98112-258-05

Drinking-water-compatible seal

Smooth SikaDur-31 DW over the sealed form-tie hole *) to obtain a surface that is drinking-water-compatible (drinking-water tanks, for example).

*) usable in all sealing situations shown here

Example, Framax Xlife plus screw plug 25mm:

98112-321-04

B Framax Xlife plus plug 24mm

G Framax Xlife plus screw plug 25mm

O SikaDur-31 DW

W Water side (drinking water)

➤ On the water-wetted side, install the plug recessed at

least 3 mm.

➤ Apply SikaDur-31 DW and smooth the compound off

flush with the surface.

b ... min. 8 cm

A Framax Xlife plus plug 24mm with hole

N Mark (adhesive tape)

98112-258-05

➤ Inject enough moulding mortar to fill the form-tie hole

of the plug to 5 mm below the surface of the concrete.

M L

A Framax Xlife plus plug 24mm with hole

L M-Bed moulding mortar

M Backfilling syringe 600ml

98112-258-03

Product recommendation

SikaDur-31 DW

▪ Epoxy-resin-based 2-component adhesive

approved for drinking-water applications.

▪ The surface must be free of dust and oil. ▪ Application temperature: min. +10°C

Read and observe the manufacturer's technical data sheet!

98112-500-02

➤ Press the second Framax Xlife plus plug 24mm with

hole into the form-tie hole until moulding mortar is squeezed out of the hole in the plug.

Moulding mortar is compacted (thickness of the moulding mortar in compacted state min. 5 cm).

50 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

51999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

8112 68

Length adjustment using closures

Note:

Fit the Framax adjustable clamp in the same position as the Framax multi function clamp

Framax adjustable clamp:

Permitted tensile force: 10.0 kN

Closures: 17 - 35 cm

By combining the Framax alu closures (5 and 10 cm) and the Framax fitting timbers (2, 3, 5 and 10 cm) in various ways, closures can be made in 1 cm increments.

Example:

▪ Closure width = 12 cm

- 1 Framax alu closure 10cm

- 1x Framax fitting timber 2cm

Closures: 0 - 15 cm

98112-268-02

A Framax alu closure / Framax fitting timber

B Framax multi function clamp

C Framax Xlife plus panel

Closures: 0-20 cm

98112-272-01

98112-272-02

A Framax moulded timber 27mm (for 27mm formwork sheet) or

Framax moulded timber 21mm (for 21mm formwork sheet) or Framax moulded timber 18mm (for 18mm formwork sheet) or

B Framax quick-acting clamp RU

C Squared timber

D Formwork sheet

E Framax universal waling

F Framax wedge clamp

G Framax Xlife plus panel

C B

Note:

A tension anchor can be made using a tie rod and Star

98112-268-03

A Framax alu closure / Framax fitting timber

B Framax adjustable clamp

C Framax Xlife plus panel

52 999811202 - 04/2019

grip nut 15.0 G.

User Information Framed formwork Framax Xlife plus Wall formwork

90 degree corners

Inside formwork

Framax Xlife plus inside corner 30/30cm

98112-325-01

Note: Seal off any unneeded form-tie sleeves with the Fra-

max Xlife plus frame hole plug 32mm.

98112-326-01

a ... 30 cm The hole drilled in the inside corner enables a vertical stacking connection to be made using universal fixing bolts + super plates.

A Framax Xlife plus inside corner 30/30cm or

Framax Xlife inside corner

Outside formwork

Right-angled outside corners can be formed in any of the following ways:

▪ Framax outside corner (A) ▪ Framax Xlife plus outs. corner 10/10cm (B) ▪ Framax Xlife universal panel (C)

9 -273-038112

Note:

For details regarding extra inter-panel connections on outside corners (for increased tensile loads) see 'Interpanel connections for increased tensile loads'.

9 -325-048112

9 -277-058112

53999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Framax outside corner

9 -2 -018112 78

Width of the Framax Xlife plus panel in the outside corner

Wall thickness (a) Panel width (b)

15 cm 0.45m (45 cm) >15 - 30 cm 0.60m (60 cm) >30 - 40 cm 0.75m (75 cm)

Closure width in the inside corner

Closure width c = panel width b [cm] - 30 cm - wall thickness a [cm]

Example:

▪ Wall thickness = 25 cm

=> Panel width (b) = 60 cm (0.60m)

Closure width = 60 cm - 30 cm - 25 cm = 5 cm

When there is a closure on both sides of the inside corner, bracing can be achieved economically with the universal corner waling.

Inter-panel connections

9 -2 -08112 78 2

... Wall thickness

1,2

... Panel width

1,2

... Closure width

1,2

A Framax Xlife plus inside corner 30/30cm or

Framax Xlife inside corner

B Framax outside corner

C Framax Xlife plus panel 0.45m / 0.60m / 0.75m

D Framax Xlife plus panel (no panel with a width of 1.35m!)

E Framax Xlife plus panel

F Closure 0 - 15 cm (Framax alu closure / Framax fitting timber)

G Framax multi function clamp

H Tie rod system Framax Xlife plus 20.0

J Inter-panel connection (see the section headed 'Inter-panel con-

nection, corner gangform (outside) with adjoining Framax Xlife plus panel')

Connectors

Quick acting clamp RU

A B

98112-273-02

tensioning wedge

a ... Wall thickness

A Framax outside corner

B Framax Xlife plus panel

C Quick acting clamp RU

D Framax wedge bolt RA 7.5

E Framax tensioning wedge R

Required number of connectors:

Wall thickness

up to 30 cm

> 30 and up to

40 cm

Height of out-

side corner

0.60m 2 -

1.35m 4 -

2.70m 8 -

3.30m 10 -

0.60m 2 2

1.35m - 4

2.70m - 8

3.30m - 10

Quick acting

clamp RU

NOTICE

Do not oil or grease wedged connections.

Wedge bolt and

98112-273-02

Tensioning

wedge + wedge

bolt

54 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

When striking the formwork, separate the gang-form at the Framax outside corner (remove the connectors on one side of the Framax outside corner).

Framax Xlife plus outs. corner 10/10cm

Width of the Framax Xlife plus panel in the outside corner

Wall thickness (a) Panel width (b)

15 - 25 cm 0.45m (45 cm)

>25 - 40 cm 0.60m (60 cm)

Closure width in the inside corner

Closure width c = panel width b [cm] - 20 cm - wall thickness a [cm]

Example:

▪ Wall thickness = 30 cm

=> Panel width (b) = 60 cm (0.60m)

Closure width = 60 cm - 20 cm - 30 cm = 10 cm

When there is a closure on both sides of the inside corner, bracing can be achieved economically with the universal corner waling.

Inter-panel connections

98112 325 2- -0

98112 325 3- -0

... Wall thickness

1,2

... Panel width

1,2

... Closure width

1,2

A Framax Xlife plus inside corner 30/30cm or

Framax Xlife inside corner

B Framax Xlife plus outs. corner 10/10cm

C Framax Xlife plus panel 0.45m / 0.60m / 0.75m

D Framax Xlife plus panel (no panel with a width of 1.35m!)

E Framax Xlife plus panel

F Closure 0 - 15 cm (Framax alu closure / Framax fitting timber)

G Framax multi function clamp

H Tie rod system Framax Xlife plus 20.0

J Inter-panel connection (see the section headed 'Inter-panel con-

nection, corner gangform (outside) with adjoining Framax Xlife plus panel')

Clamping bolt 15.0 in parking position:

98112-328-02

Clamping bolt 15.0 installed:

98112-329-01

A Framax Xlife plus outs. corner 10/10cm

B Framax Xlife plus panel

C Clamping bolt 15.0

D Spring cotter D3 with twin lug

Number of connectors:

One clamping bolt 15.0 must be screwed into each cross hole of the outside corner.

55999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Assembly

The outside corner is assembled on the flat, at ground level.

➤ Lay the Framax Xlife plus panel and the Framax Xlife

plus outside corner 10/10cm on squared timbers 10/10 cm.

98112-328-01

A Framax Xlife plus outs. corner 10/10cm

B Framax Xlife plus panel

E Squared timber 10/10 cm

➤ Remove the clamping bolts from the parking posi-

tion, insert them from the panel side and screw them into the cross holes.

Lifting by crane

Vertical repositioning of the Framax Xlife plus outside corner:

98112-338-02

A Framax Xlife plus outs. corner 10/10cm

B Hollow section

C Dokamatic lifting strap 13.00m

Follow the directions in the 'Dokamatic lifting strap 13.00m' Operating Instructions!

98112-328-04

A Framax Xlife plus outs. corner 10/10cm

B Framax Xlife plus panel

C Clamping bolt 15.0

Tighten the clamping bolt with the Framax Xlife plus ratchet.

➤ Install the bottom clamping bolt and provi-

sionally secure the outside corner to the panel with 2 quick acting clamps RU.

This makes the rest of the clamping bolts easier to install.

➤ Turn the gangform over (180°) and crane-lift the sec-

ond Framax Xlife plus panel on to the outside corner.

➤ Join this panel to the outside corner in the same way.

Repositioning the corner gangform:

A Framax Xlife plus outs. corner 10/10cm

D Framax Xlife plus panel

E Framax lifting hook

F Two-part lifting chain

Follow the directions in the 'Framax lifting hook' Operating Instructions!

98112-338-01

98112-328-03

A Framax Xlife plus outs. corner 10/10cm

B Framax Xlife plus panel

E Squared timber 10/10cm

56 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

8112

Framax Xlife universal panel

Attainable wall thicknesses

in 5 cm increments in 6 cm increments

45 40 35 30

25 20 15 10

9727-316-01

36 30

24 18

9727-318-01

If the entire outside corner is raised and repositioned by crane, then no universal wal-

ings are needed for height-bracing the panels.

Note:

Seal off the unused holes in the formwork sheet of the Universal panels with Framax plugs R 24.5.

Width of the Framax Xlife plus panel in the outside corner

Wall thickness (a) Panel width (b)

15 cm 0.45m (45 cm) >15 - 30 cm 0.60m (60 cm) >30 - 40 cm 0.75m (75 cm)

... Wall thickness

1,2

... Panel width

1,2

... Closure width

1,2

A Framax Xlife plus inside corner 30/30cm or

Framax Xlife inside corner

B Framax Xlife universal panel 0.90m

C Framax Xlife plus panel 0.45m / 0.60m / 0.75m

D Framax Xlife plus panel (no panel with a width of 1.35m!)

E Framax Xlife plus panel

F Closure 0 - 15 cm (Framax alu closure / Framax fitting timber)

G Framax multi function clamp

H Tie rod system Framax Xlife plus 20.0

I Framax universal fixing bolt + Super plate 15.0

J Inter-panel connection (see the section headed 'Inter-panel con-

nection, corner gangform (outside) with adjoining Framax Xlife plus panel')

9 -2 -08112 77 2

F G

Closure width in the inside corner

Closure width c = panel width b [cm] - 30 cm - wall thickness a [cm]

Example:

▪ Wall thickness = 25 cm

=> Panel width (b) = 60 cm (0.60m)

Closure width = 60 cm - 30 cm - 25 cm = 5 cm

When there is a closure on both sides of the inside corner, bracing can be achieved economically with the universal corner waling.

Inter-panel connections

Required numbers of universal fixing bolts + Super plates 15.0:

Universal panel 1.35m 2 Universal panel 2.70m 4 Universal panel 3.30m 5

Note:

Various different wall-thickness grids (5 and 6 cm) are provided by inverting the 0.90 m wide universal panel.

57999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

8112 3

2 1

8112 3

8112 3 9

8112 3

Inter-panel connection, corner gangform (outside) with adjoining Framax Xlife plus panel

Wall thickness from 15 to 30 cm

Fresh-concrete pressure σ

Variant 1 Variant 2 Variant 1 Variant 2

hk, max, hydr

= 80 kN/m2 (hydrostatic) Fresh-concrete pressure σ

= 8 0 kN/m2 (acting on whole area)

hk, max

0.60m1.35m2.70m3.30m

9 - 1 -018112 3 7

9 - 11-018112 3

Panel height

7 5

A Outside corner (Framax Xlife plus outs. corner 10/10cm / Fra-

max outside corner / Framax Xlife universal panel); Inter-panel connection, see the section on the outside corner used

B Framax Xlife plus panel 0.45m or 0.60m

C Framax Xlife plus panel (no panel with a width of 1.35m!)

D Framax Xlife plus form tie 20.0

E Framax quick acting clamp RU

(or Framax multi function clamp for a closure)

F Framax universal waling + 2 Framax wedge clamps

Alternative with Quick acting clamp RU and universal fixing bolt (fresh-concrete pressure acting on whole area)

Panel height

0.60 m 1 1

1.35 m 2 2

2.70 m 4 3

3.30 m 4 4

Quick acting clamp RUUniversal fixing bolt +

G Framax multi function clamp

58 999811202 - 04/2019

Star grip nut 15.0 G

User Information Framed formwork Framax Xlife plus Wall formwork

8112 3

8112 313

8112 3

8112

8112 3

Wall thickness >30 and up to 40 cm

Fresh-concrete pressure σ

Variant 1 Variant 2 Variant 1 Variant 2

A B

hk, max, hydr

= 80 kN/m2 (hydrostatic) Fresh-concrete pressure σ

= 80 kN/m2 (acting on whole area)

hk, max

0.60m1.35m2.70m3.30m

9 - 1 -8112 3 7 04

9 - 1 -018112 3 3

Panel height

- -

313 5

- -

A Outside corner (Framax Xlife plus outs. corner 10/10cm / Fra-

max outside corner / Framax Xlife universal panel); Inter-panel connection, see the section on the outside corner used

B Framax Xlife plus panel 0.75m (with Framax Xlife plus outside

corner 10/10cm: 0.60m)

C Framax Xlife plus panel (no panel with a width of 1.35m!)

D Framax Xlife plus form tie 20.0

E Framax quick acting clamp RU

(or Framax multi function clamp for a closure)

F Framax universal waling + 2 Framax wedge clamps

Alternative with Quick acting clamp RU and universal fixing bolt (fresh-concrete pressure acting on whole area)

Panel height

0.60 m 1 1

1.35 m 3 2

2.70 m 5 3

3.30 m 5 4

Quick acting clamp RUUniversal fixing bolt +

Star grip nut 15.0 G

59999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

T-junctions

Wall thickness up to 30 cm

9 -2 -018112 87

Note: If the wall sections are short it is advisable to brace

the inside corner with a universal corner waling.

98112 346- -01

Width of the Framax Xlife plus panel in the straight wall

Wall thickness (a) Panel width (b)

15 cm 0.75m (75 cm)

>15 - 30 cm 0.90m (90 cm)

9 -2 -08112 87 2

a ... Wall thickness (max. 30 cm) b ... Panel width c ... Closure width

A Framax Xlife plus inside corner 30/30cm or

Framax Xlife inside corner

B Framax Xlife plus panel 0.75m / 0.90m

C Framax Xlife plus panel (max. width of 0.45m)

D Framax Xlife plus panel (max. width of 0.90m)

E Closure 0 - 15 cm (Framax alu closure / Framax fitting timber)

F Framax multi function clamp

G Tie rod system Framax Xlife plus 20.0

H Multi-purpose waling WS10 Top50

I Framax wedge clamp

J Inter-panel connection (see the section headed 'T-junction:

Inter-panel connections on Framax Xlife plus panels in the straight wall')

Closure width in the inside corner

Closure width c = panel width b [cm] - 60 cm - wall thickness a [cm]

Example:

▪ Wall thickness = 25 cm

=> Panel width (b) = 90 cm (0.90m)

Closure width = 90 cm - 60 cm - 25 cm = 5 cm

60 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Wall thickness up to 40 cm

9 - -018112 344

H I

Note: If the wall sections are short it is advisable to brace

the inside corner with a universal corner waling.

98112 346- -01

Width of the Framax Xlife plus panel in the straight wall

Wall thickness (a) Panel width (b)

>30 - 40 cm 0.90m (90 cm)

Closure width in the straight wall

9 - -08112 344 2

a ... Wall thickness (max. 40 cm) b ... Panel width c ... Closure width

A Framax Xlife plus inside corner 30/30cm or

Framax Xlife inside corner

B Framax Xlife plus panel 0.90m

C Framax Xlife plus panel (max. width of 0.30m)

D Framax Xlife plus panel (max. width of 0.90m)

E Closure 0 - 15 cm (Framax alu closure / Framax fitting timber)

G Tie rod system Framax Xlife plus 20.0

H Multi-purpose waling WS10 Top50

I Framax wedge clamp

J Inter-panel connection (see the section headed 'T-junction:

Inter-panel connections on Framax Xlife plus panels in the straight wall')

Closure width c = 60 cm + wall thickness a [cm] - panel width b [cm]

Example:

▪ Wall thickness = 40 cm

=> Panel width (b) = 90 cm (0.90m)

Closure width = 60 cm - 90 cm - 40 cm = 10 cm

Permitted fresh-concrete pressure: 60kN/m²

61999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Variant with the Doka tie rod system 20.0

98112-279-02

a ... max. 40 cm

A Framax Xlife inside corner

B Framax Xlife panel 0.90m

C Closure (Framax alu closure / Framax fitting timber)

D Doka tie rod system 20.0

E Framax Xlife plus panel

F Doka tie rod system 20.0

(A form tie is only needed in this position if a Framax Xlife plus panel with a width of 1.35m is used as a connecting panel (G).)

G Connecting panel

H Tie rod system Framax Xlife plus 20.0

I Framax multi function clamp

J Framax quick acting clamp RU

Permitted fresh-concrete pressure: 80kN/m²

62 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

8112

8112 3

8112

T-junction: Inter-panel connections on

Wall thickness >30 and up to 40 cm

Framax Xlife plus panels in the straight wall

Wall thickness from 15 to 30 cm

Permitted fresh-concrete pressure σ

80 kN/m2 (hydrostatic) 80 kN/m2 (acting on whole area)

0.60m1.35m2.70m3.30m

9 - 42-028112 3

9 - 43-018112 3

9 - 43-028112 3

hk, max

0.60m1.35m2.70m3.30m

Permitted fresh-concrete pressure σ

hk, max

80 kN/m2 (hydrostatic) 60 kN/m2 (acting on whole area)

9 - 42-058112 3

DHE

9 - 42-038112 3

9 - 42-048112 3

9 - 43-038112 3

9 - 43-048112 3

Alternative for each inter-panel connection (fresh-concrete pressure acting on whole area, wall thickness 15 to 40 cm):

Panel height

0.60 m 1 1

1.35 m 2 2

2.70 m 4 3

3.30 m 4 4

Quick acting clamp RUUniversal fixing bolt +

Star grip nut 15.0 G

A Framax Xlife plus panel 0.75m or 0.90m

B Framax Xlife plus panel (max. width of 0.45m)

C Framax Xlife plus panel 0.90m

D Framax Xlife plus panel (max. width of 0.30m)

E Closure 0 - 10 cm (Framax alu closure / Framax fitting timber)

F Framax Xlife plus form tie 20.0

G Framax quick-acting clamp RU

H Framax multi function clamp

I Multi-purpose waling WS10 Top50 1.75m

J Multi-purpose waling WS10 Top50 2.00m

(fix with Framax wedge clamp to the next panel)

K Framax wedge clamp

63999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Edges

with Framax frontal triangular ledge

The Framax frontal triangular ledge can be slipped over the front end of the panel without being nailed and is used with the universal panel to form outside corners (integral slot grid for universal fixing bolts). It is also possible to form edges using the Framax triangular ledge, of course.

a ... 20 mm

A Framax frontal triangular ledge or Framax triangular ledge

2.70m

B Framax universal fixing bolt

C Super plate 15.0

D Framax Xlife universal panel

E Framax Xlife plus panel

9727-321-01

with the Framax triangular ledge

Where outside corners are formed using the Framax outside corner, the Quick acting clamps used for the interconnection mean that the Framax triangular ledge has to be used.

9727-319-01

a ... 20 mm

A Framax triangular ledge 2.70m

B Wire nail 22x40

C Framax outside corner

D Framax quick acting clamp RU

E Framax Xlife plus panel

64 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Acute & obtuse-angled corners

max

98112-333-01

98112 3 1 2- 3 -0

Hinged inside corner I

a ... 29.3 cm b ... 0.7 cm

98112-334-0

a ... 29.2 cm b ... 0.7 cm

98112-334-02

Hinged outside corner A

98112-334-0

98112-334-01

a ... 6.3 cm a ... 5.5 cm

b ... 0.8 cm

A Framax hinged inside corner I galv.

B Framax hinged inside corner I

C Framax hinged outside corner A galv.

D Framax hinged outside corner A

Note:

Vertical stacking of the Framax hinged corner A and the Framax hinged corner A galv. on top (and vice versa) is not possible!

max

A E

max

(panel width + closure)

100 cm 82.5 kN/m

80 cm 50 kN/m 70 cm 60 kN/m 60 cm 70 kN/m 52 cm 80 kN/m

Permitted fresh-concrete pres-

sure σ

98112 3 6 2- 3 -0

hk, max

hydrostatic

acting on

whole area

A Hinged outside corner

(Framax hinged outside corner A or Framax hinged inside corner I)

B Hinged inside corner

(Framax hinged inside corner I)

C Framax Xlife plus panel

D Closure (Framax alu closure / Framax fitting timber)

E Framax Xlife plus panel (max. width 0.60m)

Note: Seal off any unneeded form-tie sleeves with the Fra-

max Xlife plus frame hole plug 32mm.

65999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Inside formwork

Use the Hinged inside corner I as the inside hinged corner to form acute and obtuse angles.

Bracing with universal walings is necessary for angles ≥ 120°.

Required number of universal walings:

Framax Xlife plus panel 0.60m 2 Framax Xlife plus panel 1.35m 4 Framax Xlife plus panel 2.70m 6 Framax Xlife plus panel 3.30m 8

Position of the universal walings: In every support level of the Hinged inside corner I.

NOTICE

With closures, provide additional universal walings in accordance with the section headed 'Length adjustment using closures'.

Outside formwork

The following possibilities are available as outside hinged corners for forming acute and obtuse angles:

▪ Hinged outside corner A (60°-135°) ▪ Hinged inside corner I (90°-180°)

Hinged outside corner A (60°-135°)

98112 3 2- 32-0

max

Number of connectors needed in the hinged outside corner:

Panel height Number of clamps

0.60 m 2

1.35 m 6

2.70 m 12

3.30 m 14

Note:

For details regarding extra inter-panel connections on outside corners (for increased tensile loads) see 'Interpanel connections for increased tensile loads'.

70°

98112 3- 32-01

a ... 30 cm

A Framax hinged outside corner A

B Framax hinged inside corner I

C Framax Xlife plus panel 0.75m

D Framax Xlife plus panel (max. width 0.60m)

E Framax Xlife plus panel

F Closure 8 cm

G Framax multi function clamp

H Tie rod system Framax Xlife plus

K Inter-panel connection

(see the section headed 'Inter-panel connection, corner gangform (outside; with hinged corner) with adjoining Framax Xlife plus panel')

F G

66 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

NOTICE

Possible collision of tie-rod and connector parts in the inside corner (angle 60°)!

▪ If the inside angle is small, if necessary use

universal fixing bolts and Star grip nuts 15.0 G (L) as connectors at the inside hinged corner!

98112 3- 32-04

60°

▪ When forming thin walls, if necessary install

the Framax Xlife plus tie rods (H) from the outside!

98112 3- 32-03

135°

max

A D E

max

98112 3- 31-01

a ... 30 cm

A Framax hinged outside corner A

B Framax hinged inside corner I

C Framax Xlife plus panel 0.45m

D Framax Xlife plus panel (max. width 0.60m)

E Framax Xlife plus panel

F Closure 9 cm

G Framax multi function clamp

H Tie rod system Framax Xlife plus

I Framax universal waling 0.90m

J Framax wedge clamp

K Inter-panel connection

(see the section headed 'Inter-panel connection, corner gangform (outside; with hinged corner) with adjoining Framax Xlife plus panel')

67999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Hinged inside corner I (90°-180°)

98112 337 1- -0

max

B D

max

180°

98112 3 6- 3 -01

a ... 30 cm

B Framax hinged inside corner I

D Framax Xlife plus panel (max. width 0.60m)

E Framax Xlife plus panel

F Closure 8 cm

G Framax multi function clamp

H Tie rod system Framax Xlife plus

I Framax universal waling 0.90m

J Framax wedge clamp

K Inter-panel connection

(see the section headed 'Inter-panel connection, corner gangform (outside; with hinged corner) with adjoining Framax Xlife plus panel')

90°

max

8112 337 2- -0

a ... 30 cm

B Framax hinged inside corner I

C Framax Xlife plus panel 0.30m

D Framax Xlife plus panel (max. width 0.60m)

E Framax Xlife plus panel

F Closure 2 cm

H Tie rod system Framax Xlife plus

K Inter-panel connection

(see the section headed 'Inter-panel connection, corner gangform (outside; with hinged corner) with adjoining Framax Xlife plus panel')

Note:

The hinged inside corner I can be fixed at an angle of 90° using Universal fixing bolts and Super plates 15.0.

9727-235-01

A Framax hinged inside corner I

B Framax universal fixing bolt

C Super plate 15.0

68 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

8112 3

2 1

8112 3

8112 3 9

8112 3

Inter-panel connection, corner gangform (outside; with hinged corner) with adjoining Framax Xlife plus panel

Fresh-concrete pressure, hydrostatic Fresh-concrete pressure acting on whole area

Variant 1 Variant 2 Variant 1 Variant 2

0.60m1.35m2.70m3.30m

9 - 1 -018112 3 7

9 - 11-018112 3

Panel height

7 5

A Hinged outside corner *)

(Framax hinged outside corner A or Framax hinged inside corner I; Inter panel-connection (see the table 'Number of connectors needed in the hinged outside corner')

B Framax Xlife plus panel 0.30m - 0.75m

C Framax Xlife plus panel (no panel ≥ 0.75m)

D Framax Xlife plus form tie 20.0

E Framax quick acting clamp RU

(or Framax multi function clamp for a closure)

F Framax universal waling + 2 Framax wedge clamps

G Framax multi function clamp

Alternative with Quick acting clamp RU and universal fixing bolt (fresh-concrete pressure acting on whole area)

Panel height

2.70 m 4 3

3.30 m 4 4

Quick acting clamp RUUniversal fixing bolt +

Star grip nut 15.0 G

69999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

70 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Shaft formwork

Inside formwork

The Framax-stripping corner I is used to form rightangled inside corners in the shaft.

Framax stripping corner I

With the Stripping corner I, the entire shaft formwork unit is detached from the wall, in one piece, before being lifted and reset by crane.

Product features:

▪ No negative impression in the concrete. ▪ Formwork set-up and stripping function integrated in

the inside corner (no need for crane – uses stripping spindles).

▪ Entire shaft formwork unit is lifted and reset in one

piece (with lifting hooks and four-part lifting chain).

Two different types of stripping spindle can be used

9 - 53-018112 3

for setting up and stripping the formwork:

▪ Framax stripping spindle I with ratchet ▪ Framax stripping spindle I

98112-3 -0135

A Framax stripping corner I

B Framax stripping spindle I or

Framax stripping spindle I with ratchet

C Steel form-facing

9764-240-01

a ... 30.0 cm

Required number of Framax quick acting clamps RU:

Height of the Stripping corner I Number of clamps

1.35 m 4

2.70 m 6

3.30 m 8

Note:

In order to obtain the full available stripping-play, make sure that the Framax quick acting clamps RU are

71999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

mounted at staggered heights (i.e. not opposite one another).

Position of closures (fitting-timbers) in the inside shaft formwork:

▪ whenever possible, not directly next to the stripping

corners

Formwork-striking play:

98112 339 1- -0

Vertical stacking of Framax stripping corners I

1) Pull out the coupling bolt.

2) Manoeuvre the Stripping corner I into place so that

it is flush with the one below it.

3) Push the coupling bolt back in.

4) Bolt the Stripping corners I together with 2 hexago-

nal bolts.

9764-281-01

A Coupling bolt

B Stripping corner I

C Hexagonal bolt M16x45

Animation: https://player.vimeo.com/video/256373947

Mounting the Framax stripping spindles I

98112 339 2- -0

a ... 3.0 cm b ... 6.0 cm

These mounting instructions apply to both Stripping

spindles I and Stripping spindles I with ratchet.

1) Pull out the U-bolt from the stripping spindle.

2) Place the stripping spindle on the centring stud of

the stripping corner.

3) Twist the stripping spindle clockwise until fully

engaged.

4) Position the ratchet or spindle nut between the

holes in the push-rod.

5) Fix the stripping spindle with the U-bolt.

Tr750-202-01

A Framax stripping spindle I or

Framax stripping spindle I with ratchet

B U-bolt

C Centring stud of stripping corner

D Ratchet or spindle nut

E Push-rod

Tr750-203-01

Tr750-203-02

Animation: https://player.vimeo.com/video/256374622

72 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Operating the Framax stripping spindle I with ratchet

➤ Screw a Tie-rod 15.0mm into the Weldable coupler

15.0 of the ratchet.

➤ Setting up:

- shift the change-over lever into the 'L' position

- turn the ratchet clockwise

➤ Stripping:

- shift the change-over lever into the 'R' position

- turn the ratchet anti-clockwise.

Tr706-202-01

A Tie-rod 15.0mm

B Weldable coupler 15.0

C Ratchet

D Change-over lever

Operating the Framax stripping spindle I

Lifting by crane

98112-339-03

9 - -018112 340

β max. 15°

A Framax lifting hook

B Four-part lifting chain (e.g. Doka 4-part chain 3.20m)

➤ Push a Tie-rod 15.0mm through one of the holes in

the spindle nut.

➤ Setting up: Twist the spindle nut clockwise. ➤ Stripping: Twist the spindle nut anti-clockwise.

Tr750-204-01

A Tie-rod 15.0mm

B Spindle nut

The crane hook on the Stripping corner I is not allowed to be used for lifting the shaft formwork.

➤ The shaft formwork may only be reset

using lifting hooks.

Permitted weight of the shaft formwork:

4000 kg with 4 Framax lifting hooks

73999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Outside formwork

Bracing

NOTICE

Position Framax wedge clamps close to the Framax Xlife plus tie and close to the outside corner.

9 - 54-018112 3

in corner zones

Note:

For instructions on forming right-angled outside corners and on bracing in the corner zone, see the section headed 'Right-angled corners'!

in the straight wall

NOTICE

If more than three single form-tie panels are used next to each other in the shaft, bracing

with universal walings is required.

Observe the following points:

▪ Position the universal walings in such a way that at

most two single form-tie panels without bracing are placed side by side.

▪ Always position universal walings at the second

inter-panel joint away from each corner.

▪ Always position the universal walings in the bot-

tom waling profile.

▪ Max. closure width between the single form-tie

panels: 15 cm with Framax multi function clamp

9 - 54-028112 3

x ... panel joint

A Inter-panel connection (see the section headed 'Inter-panel con-

nection, corner gangform (outside) with adjoining Framax Xlife plus panel’)

B Framax universal waling

C Framax wedge clamp

74 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Shaft widths with only one form tie

F G

... wall thickness

1,2

... panel width (depends on the outside corner used, see the sec-

1,2

98112-351-02

tion headed 'Right-angled corners’) c ... closure width d ... shaft width on the outside = max. 2.10 m

A Framax stripping corner I

B Outside corner (Framax Xlife plus outs. corner 10/10cm / Fra-

max outside corner / Framax Xlife universal panel)

C Framax Xlife plus panel 0.45m / 0.60m / 0.75m

D Framax Xlife plus panel (max. width of 0.90m)

F Closure 0 - 15 cm (Framax alu closure / Framax fitting timber)

G Framax multi function clamp

H Framax universal waling

I Framax wedge clamp

J Tie rod system Framax Xlife plus 20.0

K Inter-panel connection (see the section headed ‘Inter-panel con-

nections, outside formwork for shaft widths with only one form tie')

75999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

8112 3

Inter-panel connections, outside formwork for shaft widths with only one form tie

Wall thickness from 15 to 30 cm

Permitted fresh-concrete pressure σ

80 kN/m2 (hydrostatic) 80 kN/m2 (acting on whole area)

hk, max

0.60m1.35m2.70m3.30m

- 5

A Outside corner (Framax Xlife plus outs. corner 10/10cm / Fra-

max outside corner / Framax Xlife universal panel); Inter-panel connection, see the section on the outside corner used

B Framax Xlife plus panel 0.45m or 0.60m

C Framax Xlife plus panel (max. width of 0.90m)

D Framax quick acting clamp RU

(or Framax multi function clamp for a closure)

E Framax Xlife plus form tie 20.0

F Framax universal waling + 2 Framax wedge clamps

- 5

76 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

8112 3

8112

8112 3

Wall thickness >30 and up to 40 cm

0.60m1.35m2.70m3.30m

Permitted fresh-concrete pressure σ

80 kN/m2 (hydrostatic) 60 kN/m2 (acting on whole area)

9 - 4 -018112 3 7

hk, max

A Outside corner (Framax Xlife plus outs. corner 10/10cm / Fra-

max outside corner / Framax Xlife universal panel); Inter-panel connection, see the section on the outside corner used

B Framax Xlife plus panel 0.60m or 0.75m

C Framax Xlife plus panel (max. width of 0.90m)

D Framax quick acting clamp RU

(or Framax multi function clamp for a closure)

E Framax Xlife plus form tie 20.0

F Framax universal waling + 2 Framax wedge clamps

77999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Shaft for use of self-compacting concrete

NOTICE

For use of self-compacting concrete (SCC), note the following:

For bracing across the entire width of the shaft, use a single, full-length waling (instead of two or more universal walings)!

9 - 54-038112 3

A Self-Compacting Concrete (SCC)

B Multi-purpose waling WS10 Top50

C Framax wedge clamp

78 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Inter-panel connections for increased tensile loads

As a rule, only 2 clamps are needed per 2.70 m and 3 clamps per 3.30 m formwork height as a tension link

between the panels. However, where increased tensile loads need to be

sustained near outside corners and stop-ends, extra

clamps are needed.

Wall thicknesses up to 40 cm:

For each panel joint up to 1.35 m:

▪ 1 extra clamp

Near stop-ends

a ... up to 40 cm b ... 1.35 m

X1 ... 1 additional clamp

Near outside corners

a ... up to 40 cm b ... 1.35 m X1 ... 1 additional clamp

9 - -018112 264

98112-278-04

79999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Stop-end formwork

There are 3 ways of forming stop ends:

▪ with universal panel ▪ stop-end waler tie ▪ with universal waling

Note:

For details regarding extra inter-panel connections on stop-ends (for increased tensile loads) see 'Inter-panel connections for increased tensile loads'.

with universal walings

9 -20 -08112 4 1

Universal walings make it possible to form stop-ends continuously across any thickness of wall.

They are mounted using universal fixing bolts and Super plates 15.0 fixed through the cross boreholes in the panels.

with stop-end waler ties

98112-200-01

The stop-end waler ties make it possible to form stopends continuously from wall thicknesses of 15 cm to 45 cm.

A Framax universal waling

B Framax universal fixing bolt + Super plate 15.0

C Framax Xlife plus panel (panel width > 0.30m)

D Doka tie rod system

C D

a ... 15 to 45 cm

9 -20 -08112 4 2

Framax universal waling:

Permitted moment: 5.2 kNm

Framax universal fixing bolt:

permitted tensile force in the cross borehole of the Framax Xlife plus panel: 25.0 kN

98112-200-02

A Framax stop-end waler tie

B Framax Xlife plus panel

80 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Position of stop-end waler tie:

On a vertically placed panel On a horizontally placed panel

98112-200-03

G Cross profile

H Cross borehole plate

98112-202-01

Assembly:

➤ Fix the required wall thickness with twin pins. ➤ Position the stop-end waler tie on the formwork. ➤ Fine-adjust the screwjack clamp with the star grip

nut, and tighten it.

Stop-end waler tie 15-45cm

Required numbers of Framax stop-end waler ties

Upright panels

Panel height 2.70m 3.30m

Horizontal panels

Panel width 0.30m - 0.60m 0.75m - 1.35m

Positions of Framax stop-end waler ties

Panels longside vertical

Number of stop-end waler ties

2 3

(panel height of 2.70m) (panel height of 3.30m)

C Twin pins

D Screwjack clamp

E Star grip nut

[cm]

15 20

30 35 40 45

9764-468-03

9 112- -08 200 5

Panels longside horizontal

Number of stop-end waler ties

1 2

98 203 02112- -

9 112- -08 302 2

98 203112- -01

81999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

with universal panels

9 -20 -08112 1 2

The universal panels are mounted using universal fixing bolts and super plates 15.0.

Combination Wall thickness X A’ with H to A 16 to 51 cm B’ with H to A 10 to 45 cm

C’ with H to A 4 to 39 cm D’ with G to A 3 to 33 cm

in 5 cm increments

Universal panel 3.30m

The continuous 5 cm hole-grid makes it possible to form stop-ends on walls of up to 60 cm thick.

A Framax Xlife universal panel 0.90m

B Framax universal fixing bolt + Super plate 15.0

C Framax Xlife plus panel (panel width > 0.30m)

9727-335-01

Required numbers of universal fixing bolts + Super plates 15.0:

Universal panel 0.90m 4 Universal panel 1.35m 4 Universal panel 2.70m 8 Universal panel 3.30m 10

Note:

Seal off the unused holes in the formwork sheet of the Universal panels with Framax plugs R 24.5.

Universal panel 0.90m, 1.35m and 2.70m

The stop-end formwork can be flexibly adapted to dif- ferent wall thicknesses by the two integrated holegrids.

B C

B' C'

B A

98112-201-01

Stop-ends with joint-sealing tapes

A Framax universal waling or Multi-purpose waling WS10 Top50

B Framax universal fixing bolt

C Super plate 15.0

D Framax Xlife plus panel

98112-204-03

A Framax Xlife universal panel 0.90m

B Framax universal fixing bolt + Super plate 15.0

C Framax Xlife plus panel (panel width > 0.30m)

82 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Wall junctions, offsets and steps

Connecting to existing walls

Right-angled connections

98112-225-01

A Framax Xlife plus panel

B Tie rod system Framax Xlife plus 20.0

C Timber brace

In-line connections

Wall steps

Wall step of 10 cm

IE CD

98112-305-01

a ... 30 cm b ... 10 cm

C Framax wedge clamp

D Framax universal waling 0.90m

E Super plate 15.0 + Framax universal fixing bolt 10-25cm

H Tie rod system Framax Xlife plus 20.0

I Squared timber

M Framax Xlife plus panel 0.30m

98112-225-02

A Framax Xlife plus panel

B Tie rod system Framax Xlife plus 20.0

Corner connections

98112-225-03

A Framax Xlife plus panel

B Tie rod system Framax Xlife plus 20.0

C Framax multi function clamp

D Squared timber

E Timber brace

83999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Wall step of 25 cm

D GM B

N H

J BND GKLF M

Wall step from 35 to 90 cm

9 -309-018112

98112-303-01

a ... 30 cm b ... 35 to 90 cm

A Framax Xlife plus inside corner 30/30cm or

Framax Xlife inside corner

B Framax universal corner waling

C Framax wedge clamp

E Super plate 15.0 + Framax universal fixing bolt 10-25cm

H Tie rod system Framax Xlife plus 20.0

O Framax Xlife plus panel 0.60m

P Framax Xlife universal panel 0.90m

BOE

C H

a ... 25 cm

A Framax Xlife plus inside corner 30/30cm or

Framax Xlife inside corner

B Framax universal corner waling

C Framax wedge clamp

D Framax universal waling 1.50m

E Super plate 15.0 + Framax universal fixing bolt 10-25cm

F Super plate 15.0 + Framax universal fixing bolt 10-16cm

G Super plate 15.0 + Tie rod 15.0

H Tie rod system Framax Xlife plus 20.0

I Squared timber

J Framax fitting timber 10x12cm

K Rod connector 15.0

L Framax stop-end tie

M Super plate 15.0 + Star grip nut 15.0 G +

Tie-rod 15.0mm (L

= 0.40 m)

min

N Framax Xlife plus panel 0.45m

9 -309-028112

84 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Window and door openings

Window and door box-outs can be formed quickly and stripped out non-destructively with box-out clamps. Planks are fixed in the box-out clamps by means of the integrated star grip nuts.

98112-319-01

Close-up A:

98112-319-02

a ... clear width of opening l ... length of plank= a minus 12 cm s ... plank width = wall thickness

A Box-out clamp

B Framax Xlife plus panel

C Doka floor prop

D Plank (wall thickness/2-5 cm)

E Board (10/3 cm)

F Double-headed nail

Assembly:

➤ Place the box-out clamps on the ground, fit boards

into them and tighten the star grip nuts.

➤ Fasten the box-outs to the wall formwork with boards

10/3 cm and nails.

➤ Brace vertically and horizontally with suitable floor

props (as statically required).

85999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Plumbing accessories

For more information, see the Calculation Guide 'Wind loads to the Eurocodes', or consult your Doka technician!

Note: Every gang-form must be supported by at least 2

plumbing accessories.

Example: Where the formwork height is 7.20 m, the following are needed for every 5.40 m wide gang-form:

▪ 2 panel struts 340 ▪ 4 panel struts 540

9 -2 -08112 94 2

Plumbing accessories brace the formwork against wind loads and make it easier to plumb and align.

WARNING Risk of the formwork tipping over!

➤ Formwork panels must be held stable in

every phase of construction work!

➤ Observe all applicable safety rules! ➤ If high wind speeds are likely, and when

work finishes for the day or before prolonged work-breaks, always take extra precautions to fix the formwork in place. Suitable precautions:

- set up the opposing formwork

- place the formwork against a wall

- anchor the formwork to the ground (e.g. with Framax floor fixing plates)

Universal dismantling tool

The easy way to turn the spindle nuts.

Number of struts per 2.70 m width of gang-form:

Formwork height [m]

4.05 1

5.40 1

6.00 1 1

7.20 1 2

8.10 1 1

Max. anchoring load: Fk = 13.5 kN (Rd = 20.3 kN)

Up to a height of 3.30 m, the spacing of the struts can be extended

to 4.05 m apart.

Panel strut

340 540

Eurex 60 550

The values apply where the wind pressure we =

0.65 kN/m2. This results in an impact pressure qp =

0.5 kN/m2 (102 km/h) where c

= 1.3. The greater

p, net

wind loads encountered at exposed formwork-ends must be constructionally sustained by additional plumbing accessories (e.g. struts or pipe-braces). In cases where higher wind pressure is encountered, the number of struts must be determined by statical calculation!

86 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Connection in the waling profile

9727-339-01

A Panel strut 340 IB or 540 IB

B Prop head EB

Animation: https://player.vimeo.com/video/268536814

Fixing to the ground

➤ Anchor the plumbing accessories in such a way as to

resist tensile and compressive forces!

Drilled holes in footplate

Panel struts Eurex 60 550

cdd

Panel struts

Product features:

▪ Can be telescoped in 8 cm increments ▪ Fine adjustment by screw-thread ▪ All parts are captively integrated - including the tel-

escopic tube (has safety stop to prevent dropout)

Panel strut 340 Panel strut 540

9727-343-01

a ... diam. 26 mm b ... diam. 18 mm (suitable for Doka express anchors) c ... diam. 28 mm d ... diam. 18 mm (suitable for Doka express anchors)

9745-214-01

Anchoring the footplate

The Doka express anchor can be re-used many times over.

TR632-201-01

A Doka express anchor 16x125mm

B Doka coil 16mm

Characteristic cube compressive strength of the concrete (f min. 15 N/mm2 (C12/15 grade concrete)

ck,cube

9727-340-01

a ... 190.8 - 341.8 cm b ... 115.8 - 165.5 cm

α ... approx. 60°

A Panel strut 340 IB or 540 IB

B Prop head EB

9727-341-01

a ... 310.5 - 549.2 cm b ... 207.7 - 256.5 cm

Follow the Fitting Instructions!

Required safe working load of alternative anchors for footplates:

Rd ≥ 20.3 kN (F

permissible

≥ 13.5 kN)

Follow the manufacturers' applicable fitting instructions.

87999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Eurex 60 550 used as a shoring & plumbing accessory

As the Doka plumbing strut Eurex 60 550 - fitted with the appropriate accessories - this prop can also be used for shoring high wall formwork.

▪ Can be connected directly – without modification – to

Doka framed formwork and Doka timber-beam formwork

▪ The Adjusting strut 540 Eurex 60 IB makes handling

much easier, especially when the formwork is being transferred.

▪ Can be telescoped in 10 cm increments, with contin-

uous fine adjustment.

Follow the directions in the 'Eurex 60 550' User Information booklet!

Example of a possible combination of type 2

E GF

a ... 345.2 - 586.5 cm α ... approx. 60°

A Plumbing strut Eurex 60 550

B Extension Eurex 60 2.00m

D Connector Eurex 60 IB

E Plumbing strut shoe Eurex 60 EB

F Adjusting strut 540 Eurex 60 IB

G Prop head EB

98112-307-01

12345

9745-208-01

Type

1 3.79 - 5.89 1 — — 1112 91.1 2 5.79 - 7.89 1 1 — 1112 112.4 3 7.79 - 9.89 1 2 — 1112 133.7 4 7.22 - 11.42 2 — 1 1112 142.5 5 9.22 - 13.42 2 1 1 1112 163.8

Length extended L [m]

Plumbing strut Eurex 60 550 (A)

Extension Eurex 60 2.00m (B)

Coupler Eurex 60 (C)

Connector Eurex 60 IB (D)

Plumbing strut shoe Eurex 60 EB (E)

Adjusting strut 540 Eurex 60 IB (F)

Prop head EB (G)

The rule-of-thumb here is:

The length of the shoring & plumbing accessory (i.e. the complete Eurex 60 550 plumbing-strut assembly) = the height of the gang-form to be braced.

Weight [kg]

88 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Pouring platforms

can be quickly readied for use, and make concreting both easy and safe.

9 -2 -08112 94 1

Xsafe plus platform

These pre-assembled, fold-out working platforms with their integral side railings, self-closing manhole lids and integrable ladders are ready for immediate use and greatly improve workplace safety.

Note:

For detailed information on platform sizes, handling and accessories, see the 'Platform system Xsafe plus' User Information booklet.

9764-451-01

Precondition for use

Observe all applicable safety rules.

Engage pouring platforms only to formwork structures of adequate stability to ensure that the expected loads can be taken.

Make sure that the formwork gang is sufficiently rigid.

Brace the formwork in a windproof manner when erecting it and when it is temporarily placed in the standing position.

NOTICE

If the formwork is lifted with the pouring platform still mounted to it, the platform must be secured so that it cannot slip to either side.

A Xsafe plus platform

B Xsafe plus lifting adapter for Framax (2 per platform)

Permitted service load: 1.5 kN/m2 (150 kg/m2)

Load Class 2 to EN 12811-1:2003

Preconditions for using the 'Xsafe plus platform' with the 'Xsafe plus lifting adapter for Framax':

▪ max. one platform level ▪ max. vertical stacking configuration where the gang-

form is assembled face-down on the ground and has a width of 2.70 m:

2.70m + 1.35m

Mounting the lifting adapter onto the platform:

➤ Use a Connecting pin 10cm and Spring cotter 5mm

to mount the lifting adapter to the platform.

9764-457-01

C Connecting pin 10cm and Spring cotter 5mm of the Xsafe plus

platform

89999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Lifting the platform onto the formwork:

➤ Attach a four-part lifting chain (e.g. Doka 4-part chain

3.20m) to the platform and hoist it towards the formwork.

9765-256-01

9765-256-02

9764-453-01

➤ Fix the platform to the top of the formwork.

Note:

On horizontal panels, mount the platform so that it is perfectly aligned with the panel (bearing profile of the lifting adapter is resting on the cross profile of the panel).

➤ Detach the four-part lifting chain.

The safety hooks latch into place automatically.

Do a sight check to make sure that the safety hooks have latched into place!

The platform is now secured against accidental lift-out.

9764-454-01

a ... 13 cm

A Safety hook

9764-455-01

The level of the floor planking is 13 cm below the top edge of the formwork. This means that there is a 'boundary' on the side facing the formwork.

Lifting the platform off the formwork:

➤ Attach a four-part lifting chain to the platform and

raise it. When the platform is raised by the four-part lifting

chain on the safety hook, the platform is automatically unlocked.

9764-450-03

If under exceptional circumstances the platform is mounted at an offset to the outer edge of the panel, the bearing profile of the lifting adapter has to be widened.

➤ Push a hollow section into the bearing profile and

secure it with a screw to prevent it dropping out.

9764-450-02

b ... Offset

B Hollow section 40x40x2, L=550 mm, with diam. 10 mm borehole

(site-provided)

C Hexagon screw M8x65 + hexagon nut M8

Extending the platform to either side

The platform can be lengthened at either end by using the Xsafe plus platform extension 0.60m.

CAUTION

Platforms with platform extensions can tip up. Falling hazard!

➤ Do not step onto the platform extension

until the safety hooks have been fixed in place.

➤ Fix the safety hooks of both lifting adapters

with Framax universal fixing bolts and Super plates 15.0.

9764-458-01

Consequently, the bearing profile of the lifting adapter is resting on two cross profiles of the panel.

90 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Xsafe plus telescopic ladder

Connection to the Xsafe plus platform:

➤ Hook the Xsafe plus telescopic ladder into the inte-

grated ladder connection.

➤ Secure with Spring cotters 5mm.

976 -450-054

976 -450-044

A Integrated ladder connection on the Xsafe plus platform

C Spring cotter 5mm

▪ The groove in the ladder pin (B) must be

engaged in the hole of the ladder connection (A) !

▪ The ladder must be secured with Spring

cotters 5mm (C) !

Moving the formwork and the platform in one piece

The Framax lifting hook makes it possible to raise and reposition the formwork + Xsafe plus platform in one piece.

Repositioning:

9764-456-02

Lifting / laying down:

976 - -044 330

Connection to the formwork:

98112-294-03

A Xsafe plus ladder starter piece

B Waling profile of the Framax Xlife plus panel

C Spring cotter of the Xsafe plus ladder starter piece

9764-456-01

a ... max. 2.70m + 1.35m or 3.30m + 1.35m

D Framax lifting hook

CAUTION

It is not permitted to raise formwork units with heights of >2.70m+1.35m or >3.30m+1.35m into the vertical, or to lay them down into the horizontal!

➤ In these cases, remove the platform before

lifting / laying down the formwork.

91999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Framax pouring platform U

1.25/2.70m

15°

A pre-assembled, foldable, ready-to-use platform,

1.25 m wide, for convenient and safe working.

1.00 m

2.70 m

1.25 m

9727-262-01

Permitted service load: 1.5 kN/m2 (150 kg/m2)

Load Class 2 to EN 12811-1:2003

NOTICE

▪ It is not permissible to lay the formwork

down flat together with the pouring platform!

▪ Planks can be used to bridge decking-to-

decking gaps up to 50 cm for length adaptation. Minimum plank overlap 25 cm.

▪ The pouring platform cannot be installed if

Framax Xlife plus panels 0.60m are used at the top for vertical stacking.

- Use Framax Xlife plus panels 0.60m at the bottom for vertical stacking.

9727-400-01

9727-396-01

a ... 30 cm

A Tilt-back board

Preparing the pouring platform:

➤ Tilt up the guard rails and lock them in position.

9727-394-01

➤ Put both side stops into position.

9727-395-01

A Side stop

Other possible areas of use for the Framax pouring platform U:

▪ Framed formwork Framax Xlife ▪ Framed formwork Alu-Framax Xlife ▪ Large-area formwork Top 50 (with Top50

adapter for Framax pouring platform U)

▪ Wall formwork FF20 (with FF20 adapter for

Framax pouring platform U)

▪ The level of the floor planking is 30 cm below the top

edge of the formwork. This means that there is a 'boundary' on the side facing the formwork.

▪ The guard rail can be locked in either of two posi-

tions:

- vertical

- tilted by 15°

▪ Tilt-back board:

- The front deck-board can be tilted back so that panel struts can be attached to the panel.

- This lets you get at form ties at the top of the formwork, and makes room for any projecting universal walings.

➤ Close the decking with the tilt-back board.

92 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Lifting the platform onto the formwork:

➤ Attach a four-part lifting chain (e.g. Doka 4-part chain

3.20m) to the pouring platform and hoist it towards the formwork.

9727-397-01

➤ Fix the pouring platform to the top of the formwork.

Transporting, stacking and storing

Stack of 10 Framax pouring platforms U

a ... 268 cm b ... 295 cm c... 10 x 18.7 cm d... 31 cm e... approx. 218 cm f... 142 cm g... 50 cm

9727-398-01

Single collapsed

platform

9727-393-01

9727-399-01

A Safety hook

➤ Detach the four-part lifting chain.

The safety hooks latch into place automatically.

Do a sight check to make sure that the safety hooks have latched into place!

9727-401-01

The pouring platform is now secured against accidental lift-out.

Lifting the platform off the formwork:

➤ Attach a four-part lifting chain to the pouring platform

and raise it. When the pouring platform is raised by the four-part

lifting chain on the safety hook, the platform is automatically unlocked.

93999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Framax pouring platform O

1.25/2.70m

A pre-assembled, foldable, ready-to-use platform,

1.25 m wide, for convenient and safe working.

1.00 m

1.25 m

9727-263-01

Permitted service load: 1.5 kN/m

Load Class 2 to EN 12811-1:2003

NOTICE

▪ It is not permissible to lay the formwork

down flat together with the pouring platform!

▪ Planks can be used to bridge decking-to-

decking gaps up to 50 cm for length adaptation. Minimum plank overlap 25 cm.

Other possible areas of use for the Framax pouring platform O:

▪ Framed formwork Framax Xlife ▪ Framed formwork Alu-Framax Xlife ▪ Large-area formwork Top 50 and Wall form-

work FF20 - with Top50 adapter for Framax pouring platform O

2.70 m

(150 kg/m2)

15°

9727-406-01

A Tilt-back board

Preparing the pouring platform:

➤ Tilt up the guard rails and lock them in position.

9727-409-01

➤ Unfold the bracket (A) and latch it into place.

9727-408-01

Lifting the platform onto the formwork:

➤ Attach a four-part lifting tackle (e.g. Doka 4-part

chain 3.20m) to the pouring platform and hoist it towards the formwork.

▪ The level of the floor planking is above the top edge

of the formwork.

▪ The guard rail can be locked in either of two posi-

tions:

- vertical

- tilted by 15°

▪ Tilt-back board:

- The platform decking protects the formwork from concrete spatter.

- This lets you get at form ties at the top of the formwork, and makes room for any projecting universal walings.

9727-405-01

94 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

➤ Fix the pouring platform to the top of the formwork.

9727-407-01

A Safety hook

➤ Detach the four-part lifting tackle.

The safety hooks latch into place automatically.

Perform a sight-check of the crane-hoisting points recessed into the decking.

Sideguards on exposed platformends

On pouring platforms that do not completely encircle the structure, suitable sideguards must be placed across exposed end-of-platform zones.

Note:

The plank and board thicknesses given here comply with the C24 category of EN 338.

Observe all national regulations applying to deckboards and guard-rail boards.

Side handrail clamping unit T

9727-410-01

The pouring platform is now secured against accidental lift-out.

Lifting the platform off the formwork:

➤ Attach a four-part lifting tackle to the pouring platform

and raise it. When the pouring platform is raised by the four-part

lifting tackle on the crane suspension hook, the platform is automatically unlocked.

Transporting, stacking and storing

Stack of 12 Framax pouring platforms O

Single collapsed

platform

A Side handrail clamping unit T

B Clamping part

C Integrated telescopic handrail

D Guard-rail board min. 15x3 cm (site-provided)

E Pouring platform

98112-218-01

Assembly:

➤ Fasten the clamping component to the floor planking

of the pouring scaffold, using the wedge (clamping range 4 to 6 cm).

➤ Slot in the railing. ➤ Extend the telescopic railing to the desired length

and secure it.

➤ Insert toeboard (guard-rail board).

9727-404-01

a ... 138 cm b ... 11 x 18 cm c ... 23 cm d ... approx. 220 cm

9727-403-01

95999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Pouring platforms with single brackets

Preconditions for use:

Observe all applicable safety regulations.

Only fix the pouring platform onto formwork constructions that are sufficiently stable to transfer the expected loads.

Ensure that the formwork gang has sufficient stiffness.

Shore the formwork in a windproof manner when erecting it and when it is temporarily placed in the standing position.

Note:

The plank and board thicknesses given here comply with the C24 category of EN 338.

Observe all national regulations applying to deckboards and guard-rail boards.

Framax bracket 90

With the Framax bracket 90, pouring platforms with a platform width of 90 cm can be assembled. These pouring platforms can easily be assembled by hand.

Fastening the deck-boards: with 5 square bolts M10x120 per bracket (not included in scope of supply).

Fastening the guardrail boards: with nails

Using scaffold tubes

9764-233-01

Tools: Fork wrench 22 for mounting the couplers and scaffold tubes.

A Scaffold tube connection

B Scaffold tube 48.3mm

C Screw-on coupler 48mm 50

D Hexagon bolt M14x40 + hexagon nut M14

(not included with product)

Possible ways of fixing to upright panels

98112-219-01

9727-347-01

b ... 87 cm h ... 103 cm

Permitted service load: 1.5 kN/m2 (150 kg/m2)

Load Class 2 to EN 12811-1:2003 Max. influence width: 2.00 m

NOTICE

The brackets must be secured against accidental lift-out.

In the frame profile

98112-219-02

9727-210-01

Anti-liftout guard

In the cross profile

A Framax bracket 90

B Spring cotter

Note:

Where brackets need to be fixed to the middle cross profile of upright Framax Xlife universal panels 2.70m and 3.30m (2008 models onward), this can also be done in the left-hand borehole.

Deck-boards and guardrail boards: Per 1 metre length of platform, 0.9 m2 of deck-boards and 0.6 m2 of guardrail boards are needed (site-provided).

Board thicknesses for centre-to-centre spans up to

2.50 m:

▪ Deck-boards min. 20/5 cm ▪ Guardrail boards min. 15/3 cm

96 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Possible ways of fixing to horizontally placed panels

98112-219-03

9727-209-01

In the cross profile

A Framax bracket 90

B Spring cotter

C Wedge bolt RA 7.5

Anti-liftout guard

Sideguards on exposed platformends

On pouring platforms that do not completely encircle the structure, suitable sideguards must be placed across exposed end-of-platform zones.

Edge protection system XP

98112-220-01

A Guard-rail board min. 15x3 cm (site-provided)

B Handrail post XP 1.20m

C Railing clamp XP 40cm

D Toeboard holder XP 1.20m

E Pouring platform

Assembly:

➤ Fasten Railing clamps XP onto the decking of the

pouring platform, by tightening the wedge (clamping range 2 to 43 cm).

➤ Working from below, push a Toeboard

holder XP 1.20m onto the Handrail post XP 1.20m.

➤ Push the Handrail post XP 1.20m into the post-hold-

ing fixture on the Railing clamps XP until the locking mechanism engages.

➤ Fix guard-rail boards to the handrail post plates with

nails (diam. 5 mm).

Handrail clamp S

Follow the directions in the “Handrail clamp S” User information!

97999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Opposing guard-rail

If there are work platforms mounted on one side of the formwork only, then a fall-protection barrier must be mounted to the opposing formwork.

Note:

The plank and board thicknesses given here comply with the C24 category of EN 338.

Observe all national regulations applying to deckboards and guard-rail boards.

Edge protection system XP

➤ Tilt the safety barrier outward.

9764-482-02

F Safety bolt

The safety bolt now automatically drops and secures the tilted barrier unit.

Do a sight-check to make sure that the safety bolt is in the correct position!

Types of safety barrier:

Protective grating Guard-rail boards

98112-221-01

α ...15°

A Handrail post XP 1.20m

B Framax adapter XP

C Protective grating XP or guard-rail boards

If necessary (e.g. to enlarge the available workspace during pouring), the safety barrier can be tilted outward by 15°.

➤ Push up the safety bolt on the Adapters XP until the

spring snaps into place (allow for overlap between protective gratings and/or guard-rail boards).

9764-482-01

F Safety bolt

9764-480-03

a ... 143 cm b ... 103 cm

D Protective grating XP

E Guard-rail board

NOTICE

When guard-rail boards are used to make the safety barrier, it is not allowed to fit guard-rail boards in the top handrail-post plates.

9764-480-04

98 999811202 - 04/2019

User Information Framed formwork Framax Xlife plus Wall formwork

Assembly

The opposing guard-rail can be mounted to both upright and face-down (ground-assembled) gangforms.

NOTICE

➤ The Framax adapter XP must not be

mounted directly over an alignment-tool indentation!

9764-480-06

➤ Mount the Framax adapter XP on the frame profile

and fix it in place with the wedge.

9764-480-02

Lifting by crane

98112-222-01

G Doka 4-part chain 3.20m

H Framax lifting hook

a ... approx. 35 cm (position of the two endmost Framax adapters XP on a gang-form)

B Framax adapter XP

➤ Push the Handrail post XP 1.20m into the post-hold-

ing fixture on the Framax adapter XP until the locking mechanism engages.

➤ Fit on a Protective grating XP or guard-rail boards. ➤ Fix the Protective grating XP to the Handrail post XP

with Velcro® fasteners 30x380mm, or fix on the guard-rail boards with nails (diam. 5 mm).

9764-480-05

A Handrail post XP 1.20m

C Protective grating or guard-rail boards

When lifting gang-forms together with opposing guard-rails assembled from the Edge protection system XP, remember the following points:

▪ The guard rails must be in the vertical position when

the gang-form is raised or laid down.

▪ Elastic deformation of the guard rails may occur

because the 4-part chain is resting against the protective grating or guard-rail boards while the gangform is being lifted.

▪ When a gang-form is lifted, repositioned or laid

down, the 4-part chain must not be led around the protective grating or the guard-rail board.

9764-481-02

99999811202 - 04/2019

Wall formwork User Information Framed formwork Framax Xlife plus

Make sure that the 4-part chain is in the right position:

▪ Placing down onto the form-ply

side

▪ Picking up from this position

9764-481-03

▪ Placing down onto the back-

face of the formwork (e.g. for cleaning the form-facing)

▪ Picking up from the cleaning

position

▪ Repositioning the upright gang-

form

A Form-ply side

Structural design

abab

9764-481-04

Handrail post 1.10m

9764-248-01

a ... 120 cm

A Handrail post 1.10m

D Guard-rail board

How to mount:

➤ Fix the Guard rail 1.10m into the cross borehole of

the framed panel with a hexagon nut 20.0.

a ... support centres b ... cantilever

Note:

The wind conditions likely to be encountered in Europe, in accordance with EN 13374, are largely recognised by the dynamic pressure q=0.6 kN/m2 (highlighted in the tables).

Permitted support centres (a)

Dynamic pressure q [kN/m2]

0.2 0.6 1.1 1.3 Protective grating XP2.5 m - Guard-rail board 2.4 x 15 cm 1.9 m Guard-rail board 3 x 15 cm 2.7 m

98112-223-01

A Handrail post 1.10m

B Hexagon nut 20.0

C Hexagon nut secured by e.g. binding wire

➤ Secure the Hexagon nut 20.0.

NOTICE

Before the gang-form is repositioned by crane, the guard-rail boards must be removed!

Follow the directions in the 'Handrail post 1.10m' User Information!

9764-248-02

Guard-rail board 4 x 15 cm 3.3 m

Permitted

support centres

Permitted cantilever (b)

Dynamic pressure q [kN/m2]

0.2 0.6 1.1 1.3 Protective grating XP0.6 m 0.4 m - Guard-rail board 2.4 x 15 cm 0.5 m Guard-rail board 3 x 15 cm 0.8 m Guard-rail board 4 x 15 cm 1.4 m

Permitted

cantilever

100 999811202 - 04/2019

Doka Framed formwork Framax Xlife plus User Information

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Elementary safety warnings

Doka services

Framed formwork Framax Xlife plus

Wall formwork

Instructions for assembly and use for room-high formwork

Instructions for assembly and use for high formwork

Framax Xlife plus panel in detail

System grid

Inter-panel connections

Bracing the panels

Vertical stacking of panels

Tie rod system Framax Xlife plus

Length adjustment using closures

90 degree corners

Acute & obtuse-angled corners

Shaft formwork

Inter-panel connections for increased tensile loads

Stop-end formwork

Wall junctions, offsets and steps

Window and door openings

Plumbing accessories

Pouring platforms

Pouring platforms with single brackets

Opposing guard-rail
