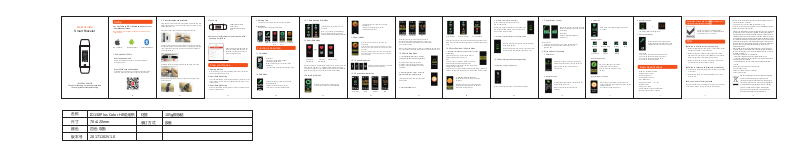

DO Intelligent Technology ID130PLUSCOLOR User Manual

This device complies with Part 15 of the FCC Rules. Operation is sub ject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this de vice mu st acce pt any interf erence receiv ed, including interf erence
that may cause undesired operation.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS

Old electrical appliances must not be disposed of together

with the residual waste, but have to be disposed of

separately. The disposal at the communal collecting point

via private persons is for free. The owner of old appliances

is responsible to bring the appliances to these collecting

points or to similar collection points. With this little

personal effort, you contribute to recycle valuable raw

materials and the treatment of toxic substances.

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

Modes of exit:

1. Press and hold the touch key to exit from the camera mode

2. Exit through App will make the wrist strap quit from the
camera mode.

Time Sports ModeData Mode Alarm Clock

Mode

Heart Rate
Mode

Use VeryFitPro on iOS or Android smart phone to set
the wristband as follows:

Search and download “VeryFitPro” from the Apple Store or
Android App store .

The product must be activated by charging before initial use, and then
charge the product to ensure normal power supply. The hand ring will
automatically power on.

Take out: Pull open the strap and take out the bracelet body

Charge the battery: Insert the chip-mounted end of the bracelet body
into the USB interface to activate the product by charging (be cautious
not to reverse the polarity, and comply with the required voltage and
current: 5V / 500mA)

Installation: Mount the bracelet body into the slot of the wrist strap.

Wear the device on your wrist horizontally, about 2cm to carpal,the
same method as wearing watches.

[Click the touch key] to enter the next mode:
Sports Mode
[Press and hold the touch key for 2s]
to start/close alarm clock

[Press and hold the touch key for 2s] to enter the
Sports Mode

[Click the touch key] to enter the next sports mode; and in
case there are no other sports modes, it will go back to the
time mode.

Note: Types of Sports mode can be selected in App (App
can handle 4 types of track recording sports and 10 types
of other activities)

Note: Upon staying at the Heart Rate interface for 1s, start to monitor the
heart rate, and a fig. like is displayed before the correct data is
monitored, and upon the correct data being monitored, data is displayed.
[Click the touch key] to enter the next mode: Alarm Clock Mode

Note: Alarm clock function should be turned
on in App for the alarm clock to be displayed.

When selecting the right band from the
search list, please slide the screen of
wristband to wake up the device and
then complete connecting.

Single click the touch key:

Interface switch

Press and hold the touch key:

Enter

1、Wearing Method

1.3 Heart Rate Mode

1.4 Alarm Clock Mode

1.5.2 Sports Underway Mode

1.5 Sports Mode

After the countdown interface of 3-2-1-GO
is the sports underway mode.

[Click the touch key] to enter the next sub-mode of
“Sports Underway”[Press and hold the touch key for 2s]
to enter any interface of Data Reading, press and hold 2s
to exit the sports mode.

Note: The speed and distance of riding can be displayed, but App need
to be connected and the riding and App needs to start at the same time.

1.5.1 Sports Start Mode

To monitor Heart Rate more accurately, please wear the device on the
upper position of your wrist and a bit tighter than usual when you are
taking exercise.

2、Heart Rate Monitoring

Continuously working for 8 days under normal conditions

4、Working Time

5、Interface

Click the touch key to display successively

Automatic heart rate Monitoring is ON as default, monitor Heart Rate
all the day automatically.

3、Heart Rate Monitoring

It probably has a problem to open the link with WeChat or other
scan tools, please copy the link and open it through browser.

Note: hardware and system of devices should meet the
requirements:

iOS 7.0 & Above Android4.4 & Above Support Bluetooth4.0

1├Download VeryFitPro

2、Product activation and installation 3、To u c h k e y

4、Make sure the Bluetooth of smart phone is ON,

open app“VeryFitPro”

Search and download

Scan the QR code and download

[Click the touch key] to enter the next mode:
Heart Rate Mode
[Press and hold the touch key for 2s]
to enter the sub-mode of “Data Reading”

[Click the touch key] to enter the next
sub-mode

Note：To go back to the Data Reading
Mode by clicking the touch key on the
final interface of Data Reading Sub-Mode

1.1 Time Mode

1.2 Data Mode

1.2.1 Data Reading Sub-Mode

Instructions
Time dial can be switched as follows:
APP Devices Mode>More
[Click the touch key] to enter the next mode:
Data Mode

（you can customize the shortcut through the app）

Wear on: Adjust the length of the wrist strap until it is appropriate to
wear on the wirst.

Average pace Pace/Speed Pm

Heart Rate Steps Calories Mile

Duration, CaloriesStep, Distance Pace, Heart Rate

or

1）Reminder of exiting from sports mode upon a period
of no activity

Uif!sfnjoefs!xjmm!cf!bwbjmbcmf!tppo

2）Reminder of full-ram force quit

Note

1.If there is no any activity in a period (15 minutes),
reminder will be displayed 15s before it stop.

2.New activities will remove the reminder of automatic
quitting from the sports mode.

3.If there are no any new operations before the end of the countdown of
automatic quitting from the sports mode, it will exit from the sports mode.

[Click the touch key] to enter the main
interface of sports mode (the data reading
interface of sports data display mode is not
displayed)

1）If the sports last less than 1 minute, the
user will be reminded of not saving the data.

[Click the touch key] to enter the sports data
display mode

2）If the sports last more than 1 minute, the
Sports End Reminder will be displayed

[Click the touch key] to enter the next sports data display mode, and the
single click of the final interface will go back to the first interface of sports
mode.

3）Sports data display mode

[Click the touch key] to remove the reminder of
automatic quitting from sports mode.

[Click the touch key] to confirm the full-ram
Force Quit

Note: When the memory of wrist strap is full
of sports data, the user will be reminded of
exiting from the Sports Mode

3）Reminder of force quit for low-battery

[Click the touch key] to accept the force quit
from the sports mode

Note: During the sports activities, when the power is too
low, the sport mode will pause, and remind the user of
force quit from the sports mode.

4）Reminder of inaccessible sport mode for low-battery

1）Call Reminder

2）Message Reminder

[Click the touch key] to accept the inaccessible sports
mode for low-battery

Note: The reminder will occur when a user tried to start
the sports mode with the battery of device is in low.

◆ Failed to find the device when pairing

◆ How to restore factory defaults

◆ Failed to connect with Bluetooth occasionally

1.5.3 Sports Stop Mode

1.5.4 Event Reminder in Sports Mode

1.5.5 Abnormal operations during activity

Model No.: ID130Plus Color HR

Battery Capacity: 70mAh

Working Voltage: 3.7V

Host weight: about 22.5g

Sync: Bluetooth 4.0
Working temperature: －10℃- 45℃

Waterproof: IP67

Working Time: 7days

Product frequency band: 2402-2480MHz

Maximum transmit power: -4.05dBm

① Make sure the Bluetooth of smart phone is ON, and smart phone

OS Android 4.4 & Above, iOS 7.0 & Above.

② Make sure the distance between phone and device is within

0.5meter, device is among the normal Bluetooth communication
distance range(within 10meter) after pairing finished.

③ Make sure the device is not under low battery. If there is still a

problem after fully charged, please contact us.

Make sure the device is connected with smart phone, go in the App,
enter “device-- System setting”, and choose “reboot device”.

① Caused by the abnormality of Bluetooth service when it restarted

on the phone.

② Reboot mobile phone or re-start the Bluetooth service, then it

works normal.

The device meets the EU ROHS criterion.
Please refer to IEC 62321, EU ROHS Directive
2011/65/EU and revised directive.

[Click the touch key] to quit from the reminder waiting mode

Entry mode: Start the camera entry by App,
and the device will get in the camera mode
successfully.

Photo taking
methods: shake/wrist lifting/click
the touch key

Click the touch key to remove the call reminder
Press and hold the touch key to hang up the call

Note: The call reminder in the App needs
to be set open.

In case of pages of messages, Click the touch key
to read the remained ones.

Note: The relevant settings need to done
in the App.

3）Alarm Clock

4)Long Sitting Reminder

5) Target completion reminder

Alarm Clock: The relevant settings need to done
in the App.

Alarm Clock Reminder: The relevant
settings need to done in the App..
Click the touch key: It will remove the
reminder.

When some goals are achieved, shake the wrist
strap to get the interface of target completion reminder
displayed Click the
touch key to quit from the reminder

1. Camera mode control

2. More modes of reminders

6）Low battery reminder

7）Device Error Notification

Low-Battery! Please recharge timely!

Note: When the device is detected with
an abnormality, the interface herein will be
displayed each time the device is opened.

Status Code:

-01 means the abnormality of acceleration sensor

-02 means the abnormality of heart rate sensor

-03 means the abnormality of touch key IC

-04 means the abnormality of flash

Wake up Medicine taking Sleeping Party

Appointment Exercise Meeting

Alarm Clock Types:

12 13 14 15 16 17 18 19 1: 21 22

23 24 25

Setting

Before Data
Is Displayed

After Data
Is Displayed

Change in 0.5s

Know your Device

Function Introduction

Add Device

Detection failed,please re search

/*6R[Y)URUX

Basic Specifications

Declaration of toxic and hazardous substances in
electronic information products

FAQ

դ

ؾت ^SS

/*6R[Y)URUX.8પޢа

ߕૅ

Mୢߡ঻

ઌސڔ 

ோ

֚Յவ

࣍ߎ՚

<

User Guide

ID130Plus Color HR

Thanks for choosing our device, please read

the user guide carefully before using.

Smart Bracelet

2321

d

dou

EU

ed
