DO Intelligent Technology 649 User Manual

Smart Bracelet

ID132Color HR

Thanks for choosing our device, please read the

user guide carefully before using

Setting

Use VeryFitPro on iOs or Android smart phone to set the

wristband as follows:

Note: hardware and system of devices should meet the

requirements:

iOS8.0& Above Android4.4 & Above Support Bluetooth4.0

1├Download VeryFitPro

1. Search and download

Search and download “VeryFitPro” from the Apple Store or
Android App store .

2. Scan the QR code and download

It probably has a problem to open the link with WeChat or other scan
tools, please copy the link and open it through browser.

Product introduction

The product must be activated by charging before initial use,
and then charge the product to ensure normal power supply.
The hand ring will automatically power on.

ΟRemove the bracelet body and wrist strap

ΠInsert the main body of the wristband into the USB interface for

charging activation (comply with the required voltage and current:
5V / 500mA)

ΡMount the bracelet body into the slot of the wrist strap.

ΣAdjust the length of the wrist strap until it is appropriate to wear on

the wirst.

2. Touch to use

[Click the touch button]: switch the same-level interfaces: in the main
interface and sub-interfaces, click to switch and view the same-level
interfaces
[Hold the touch button for 2s]: switch the upper/lower interface: nter
the sub-interface/return to the upper interface

3. open app “VeryFitPro”, and pair the device

Add Device

Detection failed,please re search

ID132Color HR

Make sure the Bluetooth of smart phone
is ON, open app “VeryFitPro”.When
selecting the right band from the search
list, please slide the screen of wristband
to wake up the device and then complete
connecting.

Function Introduction

1. Interface description

Note: [Click the touch button] display in sequence

Time mode Status mode Heart rate

monitoring mode

Sports mode

Stopwatch

mode

Note: Music control mode is closed, and functions will be displayed
after they are turned on in APP.

Information

mode

Do not disturb

mode

Music control

mode

2.Time mode

[Hold the touch
button for 2s]

(3 kinds of dials, which can be set in APP)

Note:

1. After the user sets the alarm in the APP, it will display in Alarm on

mode. When there is no alarm, hold Time mode for 2s to enter Alarm

off interface.

2. In Alarm on mode, [Click the touch button] to enter the next alarm

and click the last alarm to return to Time mode, the order of alarms on

the wristband is according to the order of App.

3. In Alarm off mode, [Hold the touch button for 2s] to turn on all alarms

and enter Alarm on mode.

[Hold the touch
button for 2s]

3.Status mode

Note: in State details mode, [Click the touch button] to enter the next
details mode, and click the touch button in the last interface of State
details mode to return to State mode

Status details mode

[Hold the touch
button for 2s]

Kcal,Step
Active

Distance,
active time

Total sleep,
deep sleep

4.Heart rate monitoring mode

[Hold the touch button for 2s]

Resting heart rate mode

Note: in Resting heart rate mode, [Hold the touch button for 2s] to

return to Heart rate monitoring mode. Entering Resting heart rate

mode will not interrupt heart rate monitoring. When returning to Heart

rate monitoring mode, it will directly display the heart rate data if it

has been detected.

5.Sports mode

Hold the touch

button for 2s

5.1. Sports type mode

5.2. Sports underway mode

Sports

heart rate

Distance Current pace Average pace Current time Music control

Note:

1)In Sports type mode, [Click the touch button] to switch to the next

sports type (switch cyclically);[Hold the touch button for 2s] return to

Sports mode; After 5s of no operation, it will automatically enter Sports

underway mode.

2)In Sports underway mode, [Click the touch button] to switch the next

Sports underway mode.[Hold the touch button for 2s] enter Sports end

mode (Hold in Music control interface to switch to the next music, it will

not enter Sports end mode).

5.3. Sports end mode

1) If the Sports time is less than 1 minute, it will prompt the user not
to save the data

Step

Note: [Click the touch button] enter Sports mode
(without displaying the Sports end data view interface)

Step

frequency

Stride

KCAL

2)If the Sports time is more than 1 minute, it will display the prompt
of Sports end

Note: [Click the touch button]
enter Sports data display mode

3)Sports data display mode:

Step, Distance Sports time, KCAL Average pace,

Note: [Click the touch button] enter the next Sports data display mode,
click on the last interface of Sports data display mode and enter Sports
mode.

5.5. Sports event reminder

1) Reminder of exiting from Sports mode upon a period of no actions

Note: In Sports underway mode, when it monitors
that the user remains inactive for a period of time
(15 minutes), it will enter this mode to remind the
user 15s before the end.

2) Reminder of force exiting from Sports mode due to full RAM

Note: The sports mode can last up to 6 hours.
When the memory is full, this mode will pop up
to prompt the user.

Heart rate

3) Reminder of force exiting from Sports mode due to low battery

Note: When it monitors low battery during sports,
it will end sports and enter this mode.

4) Reminder of inaccessible sport mode for low-battery

Note: The reminder will occur when a user tries to
start the sports with the device in low battery mode.

5.6. Abnormal operations during sports

Note: 1. When the App is actively launching a sport,
the Bluetooth connection between App and wristband
is in the disconnected state, if the wristband needs to
operate in a state (Hold to enter End sports), it will
enter this reminder mode.

2. [Click the touch button] exit this mode and execute End sports

command, and enter the Sports data display mode.

6.Stopwatch mode

Stopwatch ready timing mode

Hold the touch
button for 2s

Click the touch button

Click the touch button

Pause stopwatch timing
mode (flash dynamic effect)

Stopwatch timing mode

7.Information mode

Hold the touch button for 2s

Note:

1)[Click the touch button] enter the next page of information (not

necessarily the next piece).

2) [Hold the touch button for 2s] return Information mode.

Information details mode

8.Do Not Disturb mode

Hold the touch button for 2s

Do Not Disturb mode off Do Not Disturb mode on

Note:
When Do Not Disturb mode is on, except the alarm clock, other
reminders will not be effective: the time period of Do Not Disturb
mode can be set in the App.

9. Music control mode

Note: [Hold the touch button for 2s]: 1) Switch to the
next music; 2) The wristband will display this mode
when music control function is turned on in the App
and the mobile phone and wristband are connected
by Bluetooth. Otherwise, it will hide this mode.

10.Photo mode

Note: 1) [Click the touch button] [Raise wrist] [Shake]:
take a picture; [Hold the touch button for 2s]: exit the
Remote photo mode and return to the previous mode;

2) If the mobile phone and wristband are not connected
by Bluetooth, the App initiates remote photo taking,
prompting users "Wristband disconnected", the wristband

Enter Photo mode

will not enter this mode.

11.Reminder mode

Note: 1) [Click the touch button] to ignore
this reminder and end it. 2) [Hold the touch
button for 2s] to refuse to answer the phone
and end the reminder;

11.1. Call reminder

11.2. Message reminder

Note: [Click the touch] view the next page

11.3 Alarm clock

Note: [Click the touch button] cancel the reminder

11.4. Long sitting reminder

Note: [Click the touch button] cancel the reminder

11.5. Sports target completion reminder

Note: The end condition is [Click the touch button].

11.6. Low battery reminder

Note: The end condition is [Click the touch
button] or the screen is out after 2s of no
operation display.

Low battery
reminder

11.7 Device abnormality reminder

Ultra-low battery
reminder

Note:
Status Code:

-01 means the abnormality of acceleration sensor

-02 means the abnormality of heart rate sensor

-03 means the abnormality of touch key IC

-04 means the abnormality of flash

12.Bind/Unbind mode

12.1 Binding

Note: When the App selects the device and sends the
binding instruction, the wristband will enter this mode.

23/3!Cjoejoh!sftvmut

Binding

successful

Binding failed

Note: The end condition is
[Click the touch button].

12.3 Unbinding results

Note: The end condition is
[Click the touch button].

Unbinding
successful

Unbinding

failed

Basic Specifications

Model No.: ID132Color HR

Battery Capacity: 90mAh

Working Voltage: 3.8V

Host weight: 20g

Sync: Bluetooth 4.0

Working temperature: 䲘20セ- 45セ

Waterproof: IP67

Charging time: 1-2h

Working Time: 7days

Product frequency band: 2402-2480MHz

Maximum transmit power: -4.39dBm

Declaration of toxic and hazardous
substances in electronic information products

The device meets the EU ROHS criterion. Please
refer to IEC 62321, EU ROHS Directive 2011/65
/EU and revised directive.

Wearing and Maintenance

Our products are designed for you to wear throughout the day.

So please follow a few brief instructions when you are wearing

and maintaining your smart devices. To keep your wristband

clean and your skin comfortable, we put forward the following tips:

Regularly clean your wrist and the smart wristband, especially

after sweating in the exercise or being exposed to substances

such as soap or detergent which may attach on the internal side

of the wristband.

Do not wash the wristband with household cleanser. Please use

soapless detergent, rinse thoroughly and wipe with a piece of

soft towel or napkin.

For spots or stains that are not easy to remove, scrub with

alcohol and then follow the above steps.

FAQ

ㄞ Failed to find the device when pairing.

1. Make sure the Bluetooth of smart phone is ON, and smart

phone OS Android 4.4 & Above, iOS 8.0 & Above.

2. Make sure the distance between phone and device is within

0.5meter, device is among the normal Bluetooth communication

distance range(within 7meter) after pairing finished.

3. Make sure the device is not under low battery. If there is still

a problem after fully charged, please contact us.

◆ Failed to connect with Bluetooth occasionally

1.Caused by the abnormality of Bluetooth service when it

restarted on the phone.

2.Reboot mobile phone or re-start the Bluetooth service, then it

works normal.

◆ How to restore factory defaults

Make sure the device is connected with smart phone, go in the

App, enter “device-- more”, and choose “reboot device”.

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS

Old electrical appliances must not be disposed of together

with the residual waste, but have to be disposed of

separately. The disposal at the communal collecting point

via private persons is for free. The owner of old appliances

is responsible to bring the appliances to these collecting

points or to similar collection points. With this little

personal effort, you contribute to recycle valuable raw

materials and the treatment of toxic substances.

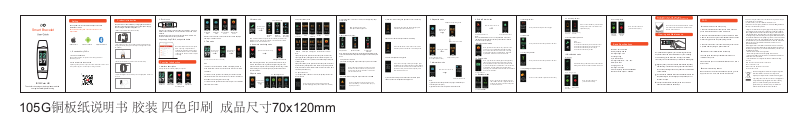

105G铜板纸说明书 胶装 四色印刷 成品尺寸70x120mm
