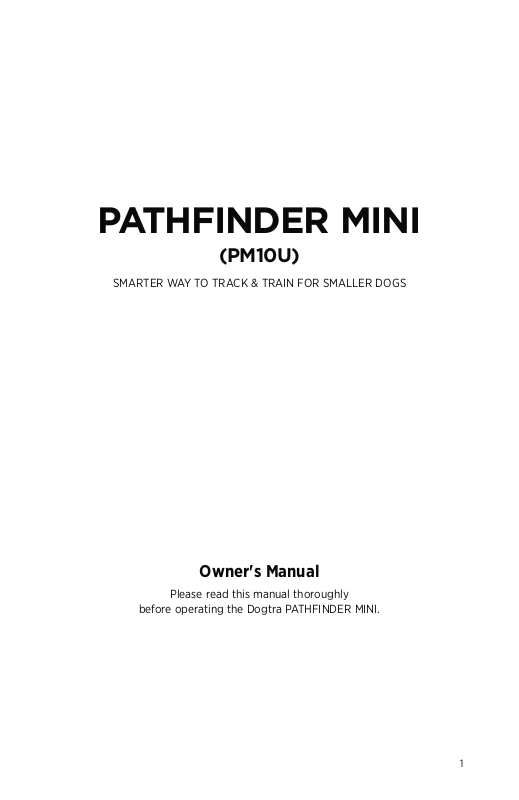

PATHFINDER MINI

(PM10U)

SMARTER WAY TO TRACK & TRAIN FOR SMALLER DOGS

Owner's Manual

Please read this manual thoroughly

before operating the Dogtra PATHFINDER MINI.

1

IMPORTANT SAFETY AND PRODUCT
INFORMATION

WARNING

Please read all safety and product information below before using your
Dogtra product. Failure to follow these safety instructions could result in
injury to you, your dog and others, or it could result in damage to your
Dogtra product or other property.

DOG SAFETY

Proper Use

Dogtra products should be used to train, educate, monitor, or track dogs. Each
dog may have a different tolerance for and reaction to Dogtra products. Closely
observe your dog when determining the right level of stimulation, collar fit, and
other settings of your Dogtra product.

Training Methods

Dogtra products may be used with a variety of training methods that provide
clear and consistent messages to your dog.

Fit and Wear

Proper fit and wear of your Dogtra product is important for the comfort of
your dog as well as the functioning of your product. Dogtra collars should fit
comfortably and not too tightly, so that the collar stays in place and does not
move around your dog’s neck. Do not leave a collar on your dog for an extended
time. Although each dog is different, Dogtra recommends that its collars be
used a maximum of 4 to 6 hours at any one time on your dog. A collar that is
used for overly long periods or that fits improperly may cause skin irritation
or sores on your dog’s neck. Regularly check the collar’s contact area on your
dog’s skin. If your dog exhibits skin irritation or sores, stop using the Dogtra
product and consult with a veterinarian.

UNAUTHORIZED USE

Dogtra products should be used only in a safe and responsible manner to train,
educate, monitor, or track dogs. Dogtra products are not intended for use in any
other manner; they are not intended for use with other animals or with humans;
and they are not intended for use in unsafe situations or environments that
could lead to death, injury, loss or damage.

OWNER SAFETY

Handling and Repair

Dogtra products can be damaged or malfunction if dropped, especially on
hard surfaces, or otherwise improperly handled. Do not use a damaged or
malfunctioning product as it may cause injury or property damage. If your
product is damaged or malfunctions, contact Dogtra to obtain service before
using the product.

Electrical Product

Your Dogtra product contains electrical components and batteries. Do not use
or keep your product near heat or flammable sources. Such use or storage may
damage your product and/or cause fire, explosion, injury, or property damage.

Charging

Only charge your Dogtra product with its accompanying Dogtra charger. Do
not attempt to charge your product in any other manner or in temperatures
less than 32°F (0°C) or over 113°F (45°C) as it may cause fire, explosion, injury,
and/or property damage. If you notice damage to your product, its charger, or
battery, obtain service from Dogtra before charging the product. Do not use
more than one splitter cable with a single battery charger.

Medical Device Interference

Dogtra products contain electrical and magnetic components that emit low
level electromagnetic waves and radio frequencies. These electromagnetic
waves or radio frequencies may interfere with pacemakers, defibrillators, or
other medical devices. Consult your physician or medical device maker before
using your medical device with a Dogtra product. If you think that your Dogtra
product is interfering with your pacemaker, defibrillator, or other medical
device, stop using the Dogtra product.

Aggressive Dogs

Do not use Dogtra products with aggressive dogs as such dogs may react
adversely and cause injury to people or other dogs. Seek the assistance of a
dog-training specialist or veterinarian when dealing with aggressive dogs.

Children

Dogtra products are not toys. Adult supervision and close attention are
necessary when Dogtra products are used by or near children.

BATTERY

Your Dogtra product contains batteries. Do not attempt to replace the battery
yourself. Contact Dogtra or your Dogtra retailer to replace your battery. Dispose
of batteries as provided by your local regulations. Do not disassemble, crush,
heat, or otherwise alter the battery as it may cause fire, explosion, injury and/or
property damage.

32

CONTENTS

PACKAGE CONTENTS
MAIN FEATURES
OVERVIEW

...............................................................................................................

UNDERSTANDING YOUR TRAINING SYSTEM

TURNING THE PATHFINDER MINI ON/OFF

1.
BUTTON FUNCTION

2.
CHARGING THE PATHFINDER MINI

3.
LED INDICATOR

4.
INSTALLING THE PATHFINDER MINI APP

5.
PAIRING

6.
ACQUIRING GPS SIGNAL

7.
WEB MANUAL DOWNLOAD

8.

..............................................................................................................

...........................................................................................

....................................................................................................

........................................................................................

............................................................

...............................................................................................

...............................................................................

.........................................................................

..............................................

.................................................

5
6
7

10
11
12
13
14
15
16
17

PACKAGE CONTENTS

GPS CONNECTOR (PT10U) Battery ChargerPATHFINDER MINI (PM10U)

CHANGING THE CONTACT POINT LENGTH
COLLAR FITTING
REPLACING THE ANTENNA
MAXIMIZING THE DISTANCE
ATTACHING THE BELT CLIP
USING THE TEST LIGHT

....................................................................................................

................................................................................

..............................................................................

................................................................................

........................................................................................

APPLICATION

MAP TAB

1.
DOG ICONS

2.
DOG ALERTS

3.
COMPASS TAB

4.
E-COLLAR TAB

5.
DEVICE DETAILS

6.

BASIC MAINTENANCE
TROUBLESHOOTING GUIDE
FCC WARNING

.............................................................................................................

........................................................................................................

.....................................................................................................

..................................................................................................

.................................................................................................

..............................................................................................

..........................................................................................

...............................................................................

........................................................................................................

WARRANTY AND REPAIR INFORMATION

...................................................

.....................................................

18
19
21
22
22
23

24
25
26
27
28
30

31
32
33
34

Splitter Cable Owner’s Manual Belt Clip

Test Light Contact Point

Extension Washer/

Adjustment Tool

Non-Stimulation

Contacts

54

MAIN FEATURES

OVERVIEW

2s

4-Mile

2-Second GPS
Update Rate

Beacon &
Locate LED Light

Fully Waterproof

2.5-Hour Rapid
Charge Batteries

Enhanced
Contact Points

TONE

Offline Maps

Precise and
Up-to-Date Maps

Geo-Fence Option4-Mile Range

Expandable to
21 Dogs

21

Belt Clip

Audible Tone

Antenna

Power & Select

Button

N

C

Nick/Constant
Stimulation

H

Low-High Output in
1-100 Stimulation Levels

Connect

Button

Battery Charging
Receptacle

GPS CONNECTOR

(PT10U)

76

Contact

Points

Battery Charging
Receptacle

UNDERSTANDING YOUR TRAINING SYSTEM

1. TURNING THE PATHFINDER MINI ON/OFF

GPS Connector(PT10U)

• To turn on the GPS Connector, press
the blue Select button until the LED
turns on.

• To turn off the GPS Connector, press
the blue Select button until the red
LED shows.

Power

Button

GPS Collar(PM10U)

• To turn on the GPS Collar, press the
Power button until the LED turns on.

• To turn off the GPS Collar, press the
Power button until the LED turns red.

• A tone will be played to indicate
that the GPS Collar is turning on or
shutting down.

Beacon &

Locate LED

Light

PATHFINDER MINI

(PM10U)

GPS Antenna

Black
Antenna
Casing

Collar Strap

98

2. BUTTON FUNCTION

3. CHARGING THE PATHFINDER MINI

GPS Connector(PT10U)

The SELECT button is used to turn the
Connector on/off and select a device
to pair. While turned on, press the
Select button once to set pairing to
the GPS Collar, press the Select button
a second time to set pairing to the
smartphone app.

The CONNECT button is used to
connect the GPS Connector to a
smartphone and GPS Collar.
Pairing: Use the Select button to set
the GPS Connector to Collar to pair
the Connector with the Collar. Set the
GPS Connector to Phone to pair the
Connector to a smartphone.
Press and hold down the Connect
button until the LED blinks rapidly.
The GPS Connector will now be ready
for pairing.

GPS Collar(PM10U)

Power On: To turn the GPS Collar on,
press the Power button until the green
LED turns on.
Power Off: To turn the GPS Collar off,
press the Power button until the LED
turns off.
Pairing: To place the GPS Collar into
pairing mode, begin with the device
turned off and hold down the Power
button until the LED blinks rapidly.
A melody will be played when the GPS
Collar is in pairing mode.

* The GPS Collar pairing mode is used to pair the GPS Collar and the GPS

Connector. The PATHFINDER MINI set comes with both parts paired to each
other.

Fully charge the PATHFINDER MINI GPS Connector and GPS Collar before the
first use. The PATHFINDER MINI uses lithium polymer batteries.

• Only use official Dogtra chargers with the PATHFINDER MINI.

• Do not charge the PATHFINDER MINI near flammable substances.

• Fully charge the PATHFINDER MINI if storing for 1 month or longer.

When to Charge

• When the LED is red on the GPS Connector or GPS Collar.

• When the PATHFINDER MINI app displays a low battery percentage for the
GPS Connector or GPS Collar.

• When the LED on the transmitter or receiver will not come on.

• When the indicator light turns on momentarily, but will not stay on when the
Constant button is pushed.

How to Charge

1. Connect the charger to the GPS Connector and GPS Collar using the splitter

cable.

2. Plug the charger into a 120-volt outlet.

3. When fully charged, detach the cables and plug the rubber caps over the

charging ports on the GPS Connector and GPS Collar.

4. The GPS Collar turns off and cannot be used while charging. The GPS

Connector functions while being charged. The LED will display red while
charging and green when the unit is fully charged. The GPS Connector LED
will be green when turned on while charging. A depleted battery requires 2.5
hours to fully charge.
