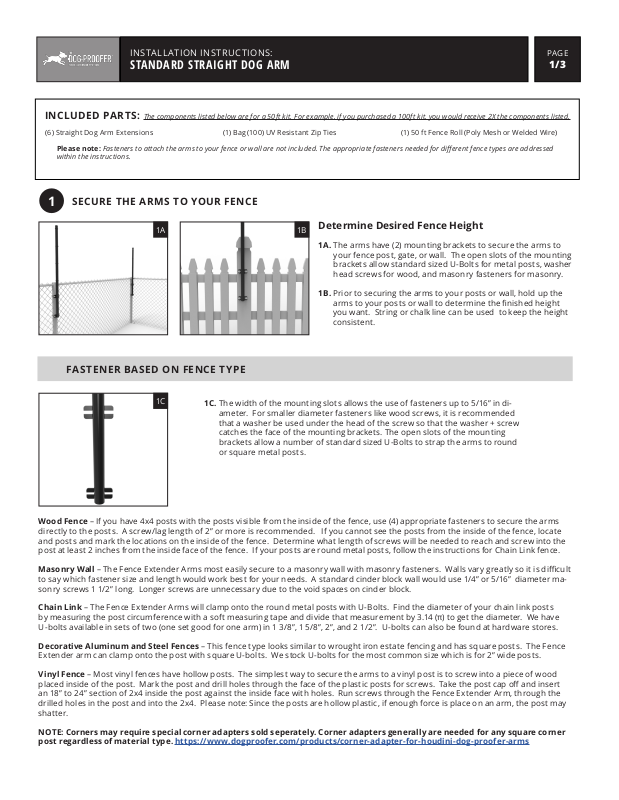

INSTALLATION INSTRUCTIONS:
STANDARD STRAIGHT DOG ARM
PAGE
1/3
INCLUDED PARTS: The components listed below are for a 50ft kit. For example, if you purchased a 100ft kit, you would receive 2X the components lis ted.
(6) Straight Dog Arm Extensions (1) Bag (100) UV Resist ant Zip Ties (1) 50 ft F ence Roll (Pol y Mesh or Welded Wire)
Please note: Fasteners to attach the arms to your fence or wall are not included. The appropriate fasteners needed for dierent fence types are addressed
within the instructions.
SECURE THE ARMS TO YOUR FENCE
1
1A 1B
FASTENER BASED ON FENCE TYPE
1C
1C. The width of the mounting slots allows the use of fasteners up to 5/16” in di-
ameter. For smaller diameter fasteners like wood screws, it is recommended
that a washer be used under the head of the screw so that the washer + screw
catches the face of the mounting brackets. The open slots of the mounting
brackets allow a number of standard sized U-Bolts to strap the arms to round
or square metal posts.

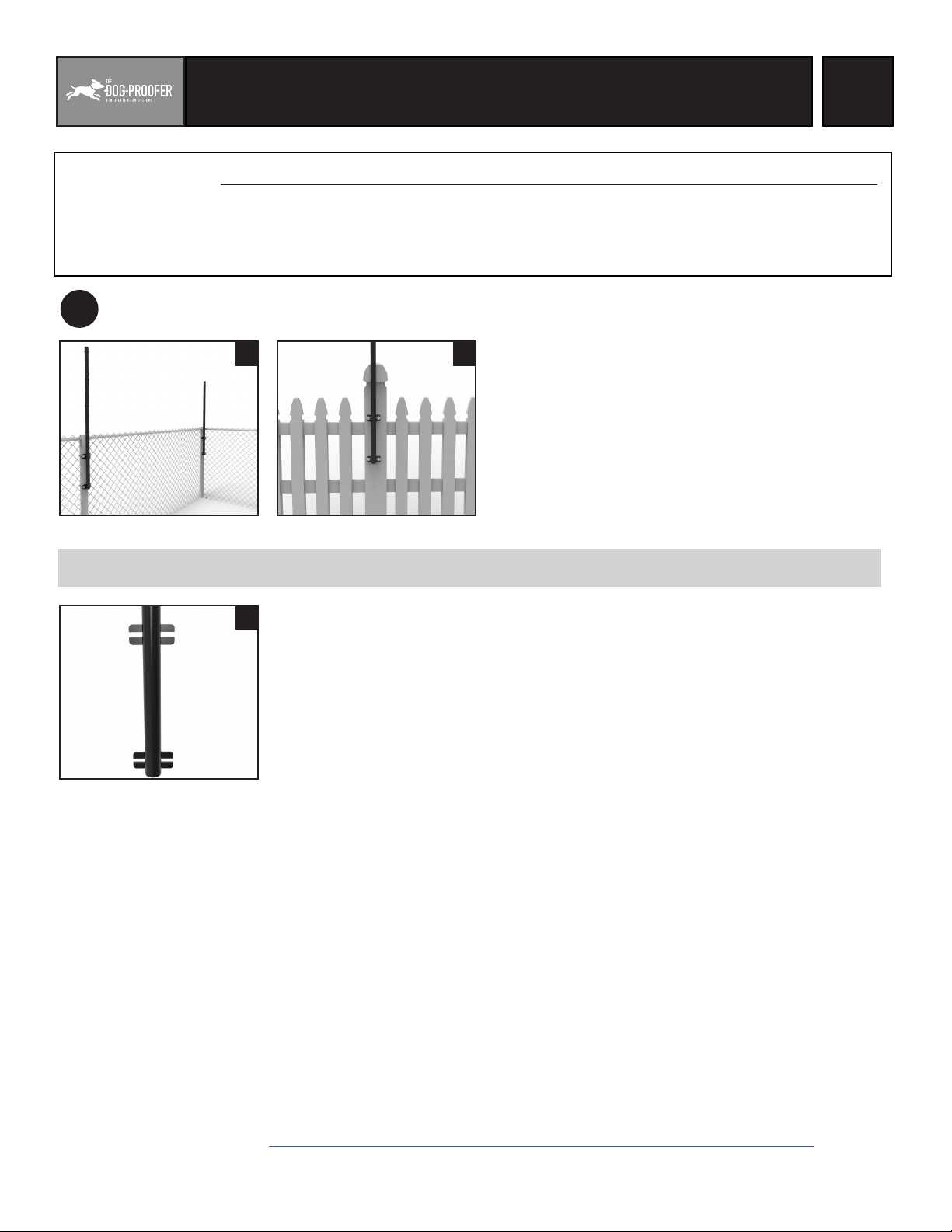

Determine Desired Fence Height
1A. The arms have (2) mounting brackets to secure the arms to
your fence post, gate, or wall. The open slots of the mounting
brackets allow standard sized U-Bolts for metal posts, washer
head screws for wood, and masonry fasteners for masonr y.
1B. Prior to securing the arms to your posts or wall, hold up the
arms to your posts or wall to determine the nished height
you want. String or chalk line can be used to keep the height
consistent.
Wood Fence – If you have 4x4 posts with the posts visible from the inside of the fence, use (4) appropriate fasteners to secure the arms
directly to the posts. A screw/lag length of 2” or more is recommended. If you cannot see the posts from the inside of the fence, locate
and posts and mark the locations on the inside of the fence. Determine what leng th of screws will be needed to reach and screw into the
post at least 2 inches from the inside face of the fence. If your posts are round metal posts, follow the instructions for Chain Link fence.
Masonry Wall – The Fence Extender Arms most easily secure to a masonr y wall with masonry fasteners. Walls vary greatly so it is dicult
to say which fastener size and length would work best for your needs. A standard cinder block wall would use 1/4” or 5/16” diameter masonry screws 1 1/2” long. Longer screws are unnecessary due to the void spaces on cinder block.
Chain Link – The Fence Extender Arms will clamp onto the round metal posts with U-Bolts. Find the diameter of your chain link posts
by measuring the post circumference with a sof t measuring tape and divide that measurement by 3.14 (π) to get the diameter. We have
U-bolts available in sets of two (one set good for one arm) in 1 3/8”, 1 5/8”, 2”, and 2 1/2”. U-bolts can also be found at hardware stores.
Decorative Aluminum and Steel Fences – This fence type looks similar to wrought iron estate fencing and has square posts. The Fence
Extender arm can clamp onto the post with square U-bolts. We stock U-bolts for the most common size which is for 2” wide posts.
Vinyl Fence – Most vinyl fences have hollow posts. The simplest way to secure the arms to a vinyl post is to screw into a piece of wood
placed inside of the post. Mark the post and drill holes through the face of the plastic posts for screws. Take the post cap o and insert
an 18” to 24” section of 2x4 inside the post against the inside face with holes. Run screws through the Fence Extender Arm, through the
drilled holes in the post and into the 2x4. Please note: Since the posts are hollow plastic, if enough force is place on an arm, the post may
shatter.
NOTE: Corners may require special corner adapters sold seperately. Corner adapters generally are needed for any square corner
post regardless of material type. https://www.dogproofer.com/products/corner-adapter-for-houdini-dog-proofer-arms
Page 2
INSTALLATION INSTRUCTIONS:
STANDARD STRAIGHT DOG ARM
INSTALLING ARMS ON GATES
2

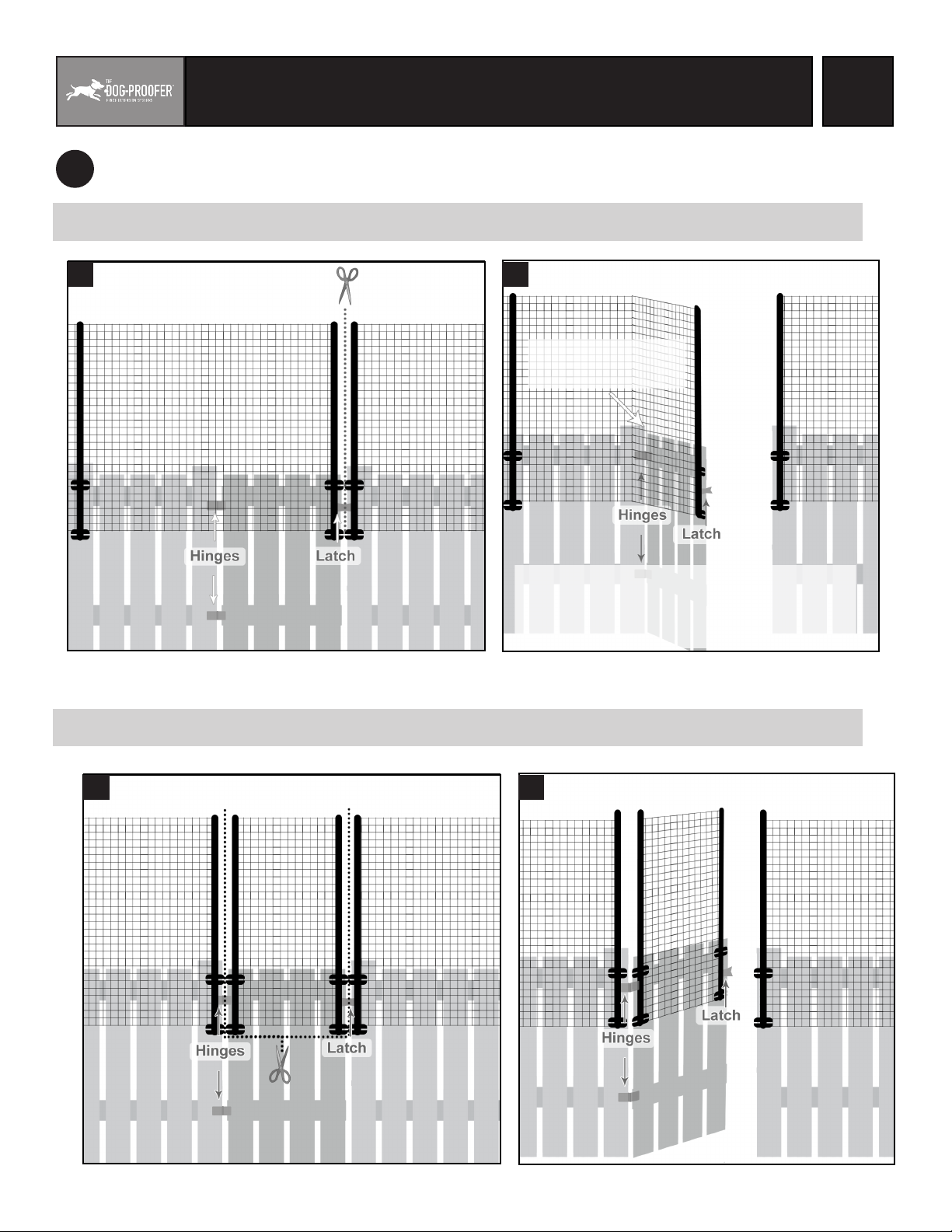

FOR INWARD SWINGING GATES WITH POLY MESH
2A 2B
PAGE
2/3
Fence bunches behind
gate when open
On an in-swinging gate, an arm is needed only on the
latch side of the gate. You also need an arm on the
latch post. You do not need an arm on the gate hinge
post unless that distance from the post before the
latch post to the latch side of the gate exceeds 14 ft.
FOR OUTWARD SWINGING GATES & INWARD SWINGING GATES W/ WELDED WIRE METAL FENCE
2C 2D
Page 3
INSTALLATION INSTRUCTIONS:
STANDARD STRAIGHT DOG ARM
INSTALLING FENCING MATERIAL ONTO ARMS
3
PAGE
3/3
3A
3B
Tip: (poly mesh only) If you have sags or bubbles, the fence does not stretch so you
3C
SECURING BOTTOM OF MESH FENCE
4
4A
4B5A

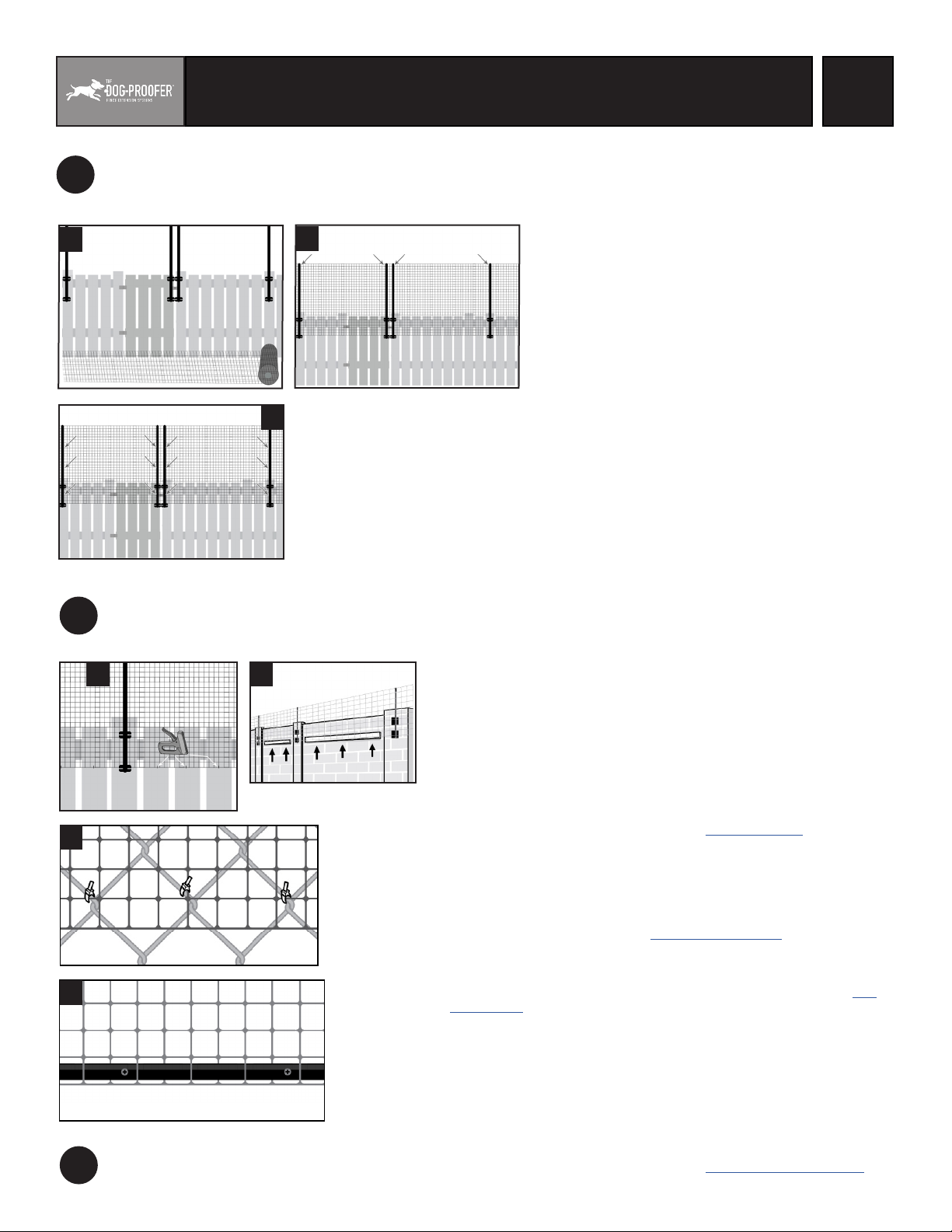

3A. Unroll the fence over a span of multiple posts.
3B Go back to the rst post, lif t up the fence to the
top of the arm and secure the top of the fence to
the top of the arm with a zip tie. Repeat until you
are at a corner or end point.
3C Go back to the rst post and add zip ties down the
post (3-4 additional ties). Go to the end/corner
and add 2-3 additional zip ties down the post.
cannot pull out sags and bubbles by pulling harder arm to arm. You need to
make small folds on the fence similar to pleats or darts in fabric. This is done at
arms. Folds are really cinching cells of fence together with zip ties. If you have
a sag at the top of the fence you may fold squares of fence together and secure
with zip ties to remove them. This is purely for looks. It will not aect the per formance of the system.
4A. Wood Fence - Use staples to secure the bottom edge of supplied fencing
material to your fence. Stainless steel staples are recommended for staple
gun-type staples. You can also use a pneumatic/battery narrow crown stapler. The best hammered staples are Romex staples found in the electrical
dept of most home stores. Use three staples per foot.
4C
4D
END
4B. Masonry Wall - One option is to secure strips of wood to the wall between
arms and staple the fencing to the wood. Another option is to use masonr y
screws with large (fender) washers to catch the grid joints of the fence. We
also oer a thick band of nylon that can be secured to your wall every few
feet and the fence secured to it with zip ties. It is stretched and acts like a
tight bungee cord when properly installed (see PVC/Wall Kit). Please contact us for alternate suggestions.
4C. For Metal Fences - The dog fencing can be secured to your chain link fence
or top rail with zip ties. We recommend Heav y Duty Ties like used to install
the fencing to the Fence Extender Arms. Another option is hogrings to
secure the dog fence directly to the chain link mesh. We recommend the
Stanley Ringer Style Hogring tool (see Hogringer & Rings).
4D. Vinyl / PVC Fence - We oer a thick band of nylon that can be secured
to your wall every few feet and the fence secured to it with screws. It is
stretched and acts like a tight bungee cord when properly installed (see
PVC/Wall Kit).
4E. Decorative Aluminum & Steel Fences (not shown) – Secure the dog fenc-
ing with zip ties to the pickets or top rail. We recommend Heavy Dut y Zip
Ties like those supplied to secure the dog fencing to the Fence Extension
Arms.
