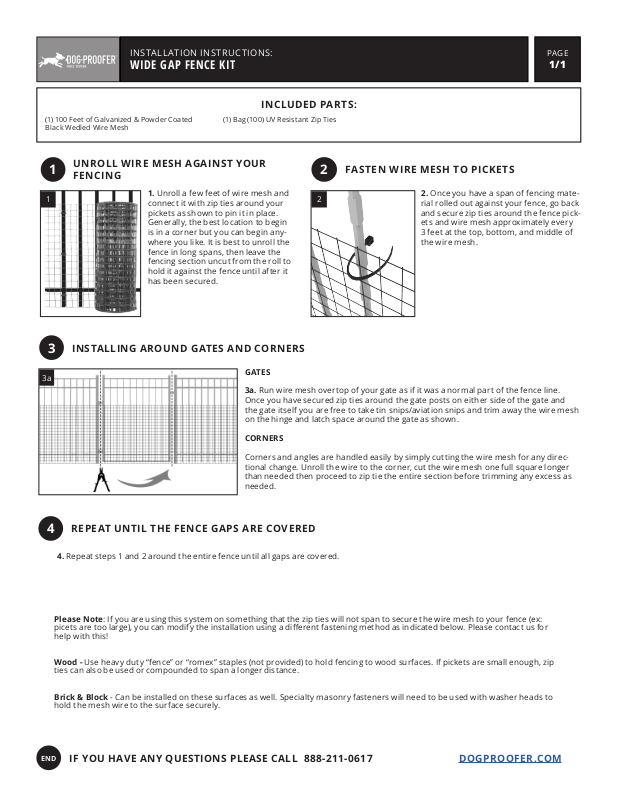

INSTALLATION INSTRUCTIONS:
WIDE GAP FENCE KIT
(1) 100 Feet of Galvanized & Powder Coated
Black Wedled Wire Mesh
PAGE
1/1
INCLUDED PARTS:
(1) Bag (100) UV Resist ant Zip Ties
UNROLL WIRE MESH AGAINST YOUR
1
FENCING
1
INSTALLING AROUND GATES AND CORNERS
3
3a
1. Unroll a few feet of wire mesh and
connect it with zip ties around your
pickets as shown to pin it in place.
Generally, the best location to begin
is in a corner but you can begin anywhere you like. It is best to unroll the
fence in long spans, then leave the
fencing section uncut from the roll to
hold it against the fence until af ter it
has been secured.
FASTEN WIRE MESH TO PICKETS
2
2
GATES
3a. Run wire mesh overtop of your gate as if it was a normal part of the fence line.
Once you have secured zip ties around the gate posts on either side of the gate and
the gate itself you are free to take tin snips/aviation snips and trim away the wire mesh
on the hinge and latch space around the gate as shown.
CORNER S
Corners and angles are handled easily by simply cutting the wire mesh for any directional change. Unroll the wire to the corner, cut the wire mesh one full square longer
than needed then proceed to zip tie the entire section before trimming any excess as
needed.
2. Once you have a span of fencing mate-
rial rolled out against your fence, go back
and secure zip ties around the fence pickets and wire mesh approximately ever y
3 feet at the top, bottom, and middle of
the wire mesh.
REPEAT UNTIL THE FENCE GAPS ARE COVERED
4
4. Repeat steps 1 and 2 around the entire fence until all gaps are covered.
Please Note: If you are using this system on something that the zip ties will not span to secure the wire mesh to your fence (ex:
picets are too large), you can modify the installation using a dierent fastening method as indicated below. Please contact us for
help with this!
Wood - Use heavy duty “fence” or “romex” staples (not provided) to hold fencing to wood surfaces. If pickets are small enough, zip
ties can also be used or compounded to span a longer distance.
Brick & Block - Can be installed on these surfaces as well. Specialt y masonry fasteners will need to be used with washer heads to
hold the mesh wire to the sur face securely.
ND
E
IF YOU HAVE ANY QUESTIONS PLEASE CALL 888-211-0617
DOGPROOFER.COM
