DogMaster DF113R, DF112 User Manual

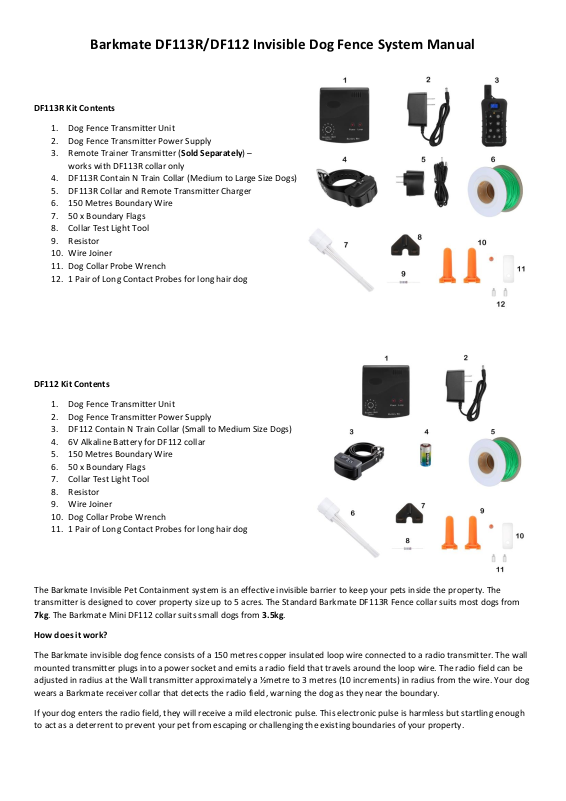

Barkmate DF113R/DF112 Invisible Dog Fence System Manual

DF113R Kit Contents

1. Dog Fence Transmitter Unit

2. Dog Fence Transmitter Power Supply

3. Remote Trainer Transmitter (Sold Separately) –

works with DF113R collar only

4. DF113R Contain N Train Collar (Medium to Large Size Dogs)

5. DF113R Collar and Remote Transmitter Charger

6. 150 Metres Boundary Wire

7. 50 x Boundary Flags

8. Collar Test Light Tool

9. Resistor

10. Wire Joiner

11. Dog Collar Probe Wrench

12. 1 Pair of Long Contact Probes for long hair dog

DF112 Kit Contents

1. Dog Fence Transmitter Unit

2. Dog Fence Transmitter Power Supply

3. DF112 Contain N Train Collar (Small to Medium Size Dogs)

4. 6V Alkaline Battery for DF112 collar

5. 150 Metres Boundary Wire

6. 50 x Boundary Flags

7. Collar Test Light Tool

8. Resistor

9. Wire Joiner

10. Dog Collar Probe Wrench

11. 1 Pair of Long Contact Probes for long hair dog

The Barkmate Invisible Pet Containment system is an effective invisible barrier to keep your pets inside the property. The
transmitter is designed to cover property size up to 5 acres. The Standard Barkmate DF113R Fence collar suits most dogs from

7kg. The Barkmate Mini DF112 collar suits small dogs from 3.5kg.

How does it work?

The Barkmate invisible dog fence consists of a 150 metres copper insulated loop wire connected to a radio transmitter. The wall
mounted transmitter plugs into a power socket and emits a radio field that travels around the loop wire. The radio field can be
adjusted in radius at the Wall transmitter approximately a ½metre to 3 metres (10 increments) in radius from the wire. Your dog
wears a Barkmate receiver collar that detects the radio field, warning the dog as they near the boundary.

If your dog enters the radio field, they will receive a mild electronic pulse. This electronic pulse is harmless but startling enough
to act as a deterrent to prevent your pet from escaping or challenging the existing boundaries of your property.

Barkmate Fence Transmitter

Boundary Width Control Knob:
Boundary Width Control adjusts the zone width. It controls how far away before the receiver collar starts activating before
reaching the boundary wire. It is the combination of Warning Zone (Vibration) & Static Correction Zone.

Boundary Wire Terminals:
Twist the loop wire tails all the way from the boundary to the Fence Transmitter Unit.
Connect loop wire tails to terminals by firmly pressing the red levels

Power Light:
The Red light indicates the system is on.

Loop Indicator Light:
It indicates the boundary wire is connected to the transmitter. Transmitter will beep if there is a break or poor connection of the
wire.

Power Jack:
This is the connection point for Power Adaptor. The Transmitter is powered by 18V DC Power.

The Barkmate DDF113R Dog Fence Collar

The Standard Barkmate DF113R Dog Fence Collar has a vibration warning plus 3 levels of mild to high stimulation output for
medium to large stubborn dogs. This DF113R collar is waterproof and rechargeable. It is also compatible with Barkmate Dog
Training Remote Transmitter to be used as a dog training collar.

On/Off Button – change operating mode

Press and hold on 4 seconds to turn the collar on. The Collar will beep twice rapidly, and the green LED light will flash once every
5 seconds. Press and hold on 4 seconds to turn the collar off. The collar emits a long beep, and the LED light will turn off.

Contact Probes

Use the short or long probes to match
your dog’s coat.

LED Indicator

This indicates the status:
On/Off, Low battery, and
Charging status

Power

Light

Wire Loop

Indicator

Power Adapter
Jack

Boundary Width Control
Knob

Boundary Wire Connector

Charging Port

To charge, open the rubber
cover and insert the adaptor
plug into Jack.

On/Off Button
