CONTENTS
INTRODUCTION
1
䡵 Introduction ........................... 4
䡵 How To Use This Manual .................. 4
䡵 Warnings And Cautions ...................6
䡵 Van Conversions/Campers ................. 6
䡵 Vehicle Identification Number .............. 7
䡵 Vehicle Modifications/Alterations ............ 7
4 INTRODUCTION
INTRODUCTION
Congratulations on selecting your new Chrysler Group
LLC vehicle. Be assured that it represents precision
workmanship, distinctive styling, and high quality - all
essentials that are traditional to our vehicles.
This Owner’s Manual has been prepared with the assistance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by a Warranty Information Booklet,
located on the DVD, and various customer-oriented
documents. Please take the time to read these publications carefully. Following the instructions and recommendations in this manual will help assure safe and
enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient referencing and remain
with the vehicle when sold, so that the new owner will
be aware of all safety warnings.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained technicians and genuine MOPAR威 parts, and cares about
your satisfaction.
HOW TO USE THIS MANUAL
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the
items of equipment ordered, certain descriptions and
illustrations may differ from your vehicle’s equipment
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.
Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this Owner’s Manual:
INTRODUCTION 5
1
6 INTRODUCTION
WARNINGS AND CAUTIONS
This Owner’s Manual contains WARNINGS against operating procedures that could result in an accident or
bodily injury. It also contains CAUTIONS against procedures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VAN CONVERSIONS/CAMPERS
The Manufacturer’s Warranty does not apply to body
modifications or special equipment installed by van
conversion/camper manufacturers/body builders. Refer
to the Warranty information book, Section 2.1.C. Such
equipment includes video monitors, VCRs, heaters,
stoves, refrigerators, etc. For warranty coverage and
service on these items, contact the applicable manufacturer.
Operating instructions for the special equipment installed by the conversion/camper manufacturer should
also be supplied with your vehicle. If these instructions
are missing, please contact your authorized dealer for
assistance in obtaining replacement documents from the
applicable manufacturer.
For information on the Body Builders Guide refer to:
www.dodgebodybuilder.com. This website contains dimensional and technical specifications for your vehicle. It
is intended for Second Stage Manufacturer’s technical
support. For service issues, contact your authorized
dealer.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears on the Automobile Information Disclosure Label affixed to a window
on your vehicle, the vehicle registration and title.
Vehicle Identification Number
INTRODUCTION 7
NOTE: It is illegal to remove or alter the VIN.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
1
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
䡵 A Word About Your Keys ................. 12
▫ Wireless Ignition Node (WIN) —
If Equipped ......................... 12
▫ KeyFOB ........................... 13
▫ Removing Key FOB From Ignition ......... 14
▫ Key-In-Ignition Reminder ............... 15
䡵 Sentry Key威 .......................... 15
▫ Replacement Keys ..................... 16
▫ Customer Key Programming ............. 17
2
▫ General Information ................... 17
䡵 Vehicle Security Alarm — If Equipped ........ 18
▫ Rearming Of The System ................ 18
▫ To Set The Alarm ..................... 18
▫ To Disarm The System ................. 18
䡵 Illuminated Entry — If Equipped ........... 19
䡵 Remote Keyless Entry (RKE) — If Equipped . . . 20
▫ To Unlock The Doors .................. 20
▫ To Lock The Doors .................... 22
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
▫ Remote Open Window Feature —
If Equipped ......................... 23
▫ Using The Panic Alarm ................. 24
▫ Programming Additional Transmitters ...... 24
▫ Transmitter Battery Replacement .......... 24
▫ General Information ................... 25
䡵 Remote Starting System — If Equipped ....... 25
▫ How To Use Remote Start ............... 26
▫ Power Windows – If Equipped ............ 34
▫ Wind Buffeting ....................... 37
䡵 Occupant Restraints ..................... 37
▫ Lap/Shoulder Belts .................... 38
▫ Adjustable Upper Shoulder Belt Anchorage . . . 46
▫ Center Lap Belts ...................... 47
▫ Automatic Locking Retractor (ALR) Mode –
If Equipped ......................... 47
䡵 Door Locks ........................... 28
▫ Manual Door Locks ................... 28
▫ Power Door Locks — If Equipped ......... 29
▫ Child Protection Door Lock .............. 32
䡵 Windows ............................ 34
▫ Seat Belt Pretensioners — If Equipped ...... 48
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert威) ......................... 48
▫ Seat Belts And Pregnant Women .......... 49
▫ Seat Belt Extender ..................... 50
▫ Driver And Right Front Passenger
Supplemental Restraint System (SRS) –
Airbag ............................. 50
▫ Airbag System Components .............. 51
▫ Advanced Front Airbag Features .......... 52
▫ Airbag Deployment Sensors And Controls . . . 56
▫ Event Data Recorder (EDR) .............. 63
▫ Child Restraint ....................... 64
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
䡵 Engine Break-In Recommendations .......... 76
䡵 Safety Tips ........................... 77
▫ Transporting Passengers ................ 77
▫ Exhaust Gas ......................... 78
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 79
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 79
2
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
A WORD ABOUT YOUR KEYS
Key Fob with Remote Keyless Entry (RKE) — If
Equipped
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Wireless Ignition Node (WIN) with
integral ignition switch. You can insert the Key Fob into
the ignition switch with either side up.
Standard Blade Ignition Key — If Equipped
Your vehicle may use a standard blade key ignition
system. The authorized dealer that sold you your vehicle
has the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer. Ask your authorized dealer for these
numbers and keep them in a safe place. You can insert the
double-sided standard blade key into the ignition switch
with either side up.
Wireless Ignition Node (WIN) — If Equipped
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent positions are OFF, ACC, and ON. The START position is a
spring-loaded momentary contact position. When released from the START position, the switch automatically
returns to the ON position.
Wireless Ignition Node (WIN)
1 — OFF
2 — ACC (ACCESSORY)
3—ON
4 — START
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
Key Fob
The Key Fob operates the ignition switch. It also contains
the Remote Keyless Entry (RKE) transmitter and an
emergency key, which stores in the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the RKE transmitter
go dead. You can keep the emergency key with you when
valet parking.
2
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.
Emergency Key Removal
NOTE: You can insert the double-sided emergency key
into the lock cylinder with either side up.
Removing Key Fob From Ignition
Place the shift lever in PARK. Turn the Key Fob to the
OFF position and then remove the Key Fob.
NOTE:
•
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
power outlets will remain active for 10 minutes after
the ignition switch is turned to the OFF position.
Opening either front door will cancel this feature.
•
For vehicles equipped with the EVIC, the power
window switches, radio, power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes after the ignition switch is turned to the OFF
position. Opening either front door will cancel this
feature. The time for this feature is programmable.
Refer to “Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument Panel”
for further information.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seriously or fatally injured. Do not leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
sounds a signal to remind you to remove the Key Fob.
NOTE:
•
The Key-In-Ignition reminder only sounds when the
Key Fob is placed in the OFF or ACC ignition position.
•
If equipped with Electronic Vehicle Information Center (EVIC) the EVIC will display “Key In Ignition”.
SENTRY KEY姞
The Sentry Key威 Immobilizer System prevents unauthorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
2
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
The system uses Key Fob with factory-mated Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the
vehicle can be used to start and operate the vehicle. The
system will not allow the engine to crank if an invalid
Key Fob is used to start and operate the vehicle.
NOTE: A Key Fob that has not been programmed is also
considered an invalid key.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 seconds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
NOTE: The Sentry Key威 Immobilizer System is not
compatible with some aftermarket remote starting systems. Use of these systems may result in vehicle starting
problems and loss of security protection.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the light begins to flash after
the bulb check, it indicates that someone used an invalid
Key Fob to try to start the engine. Either of these
conditions will result in the engine being shut off after
two seconds.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keys威 from the vehicle
and lock all doors when leaving the vehicle unattended.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
•
If a programmed Key Fob is lost, see your authorized
dealer to have all remaining Key Fobs erased from the
system’s memory. This will prevent the lost Key Fobs
from starting your vehicle. The remaining Keys Fobs
must then be reprogrammed.
2
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an authorized dealer, this procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
NOTE:
•
When having the Sentry Key威 Immobilizer System
serviced, bring all vehicle keys with you to an authorized dealer.
Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The Sentry Key威 system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•
This device may not cause harmful interference.
•
This device must accept any interference that may be
received, including interference that may cause undesired operation.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
and ignition for unauthorized operation. When the Vehicle Security Alarm is activated, the system provides
both audible and visible signals. For the first three
minutes the horn will sound and the headlights, park
lamps and/or turn signals will flash and Vehicle Security
Light will flash repeatedly. For an additional 15 minutes
only, the headlights, park lamps and/or turn signals and
Vehicle Security Light will flash. The engine will run only
if a valid Sentry Key威 is used to start the vehicle. Use of
the Sentry Key威 will disable the alarm.
Rearming of the System
The Vehicle Security Alarm will rearm itself after the 15
additional minutes of headlights and Vehicle Security
Light flashing, if the system has not been disabled. If the
condition which initiated the alarm is still present, the
system will ignore that condition and monitor the remaining doors and ignition.
To Set the Alarm
The Vehicle Security Alarm will set when you use the
power door locks, or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument panel cluster will flash rapidly for about
16 seconds to indicate that the alarm is being set. After
the alarm is set, the Vehicle Security Light will flash at a
slower rate to indicate that the system is armed.
NOTE: If the Vehicle Security Light stays on continuously during vehicle operation, have the system checked
by an authorized dealer.
To Disarm the System
Use the RKE transmitter to unlock the door. If something
has triggered the system in your absence, the horn will
sound three times when you unlock the doors and the
Vehicle Security Light will flash for 30 seconds. Check the
vehicle for tampering.
The Vehicle Security Alarm will also disarm if the vehicle
is started with a programmed Sentry Key威. If an unprogrammed Sentry Key威 is used to start a vehicle, the
engine will run for two seconds and then the alarm will
be initiated. To exit the alarming mode, press the RKE
transmitter UNLOCK button, or start the vehicle with a
programmed Sentry Key威.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If one of the previously described arming sequences has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security Alarm.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open the
doors. This feature is only available if you have Remote
Keyless Entry.
The lights will fade to off after approximately 30 seconds,
or they will immediately fade to off once the ignition
switch is turned ON.
NOTE:
•
The front courtesy overhead console and door courtesy lights do not turn off if the dimmer control is in
the interior lights ON position (extreme right position).
•
The illuminated entry system will not operate if the
dimmer control is in the extreme left position.
2
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
REMOTE KEYLESS ENTRY (RKE) — IF EQUIPPED
The RKE system allows you to lock or unlock the doors
and activate the Panic Alarm from distances up to
approximately 66 ft (20 m) using a hand-held radio
transmitter with integrated key. The transmitter does not
need to be pointed at the vehicle to activate the system.
NOTE: Inserting the Key Fob with RKE transmitter into
the ignition switch disables all buttons on that RKE
transmitter; however, the buttons on the remaining RKE
transmitters will continue to work. Driving at speeds
5 mph (8 km/h) and above disables all RKE transmitter
buttons for all RKE transmitters.
Key Fob With Remote Keyless Entry (RKE) Transmitter
To Unlock the Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door, or twice
within five seconds to unlock all doors. The turn signal
lights will flash to acknowledge the unlock signal. The
illuminated entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
•
For vehicles equipped with the EVIC, refer to “Electronic Vehicle Information Center (EVIC)/CustomerProgrammable Features (System Setup)” in “Understanding Your Instrument Panel” for further
information.
•
For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the LOCK button on a programmed
RKE transmitter for at least four seconds, but no longer
than ten seconds. Then, press and hold the UNLOCK
button while still holding the LOCK button.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by pressing the LOCK/UNLOCK buttons on the RKE transmitter
with the ignition switch in the OFF position and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE: Pressing the LOCK button on the RKE transmitter while you are inside the vehicle will activate the
Vehicle Security Alarm System. Opening a door with the
Vehicle Security Alarm System activated will cause the
alarm to sound. Press the UNLOCK button to deactivate
the Vehicle Security Alarm System.
2
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Flash Lamps with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmitter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:
•
For vehicles equipped with the EVIC, refer to “Electronic Vehicle Information Center (EVIC)/CustomerProgrammable Features (System Setup)” in “Understanding Your Instrument Panel” for further
information.
•
For vehicles not equipped with the EVIC, perform the
following procedure:
3. Test the feature while outside of the vehicle by pressing the LOCK/UNLOCK buttons on the RKE transmitter
with the ignition switch in the OFF position and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE: Pressing the LOCK button on the RKE transmitter while you are in the vehicle will activate the Vehicle
Security Alarm System. Opening a door with the Vehicle
Security Alarm System activated will cause the alarm to
sound. Press the UNLOCK button to deactivate the
Vehicle Security Alarm System.
1. Press and hold the UNLOCK button on a programmed
RKE transmitter for at least four seconds, but no longer
than ten seconds. Then, press and hold the LOCK button
while still holding the UNLOCK button.
2. Release both buttons at the same time.
To Lock the Doors
Press and release the LOCK button on the RKE transmitter to lock all doors. The turn signal lights will flash and
the horn will chirp to acknowledge the signal.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:
•
For vehicles equipped with the EVIC, refer to “Electronic Vehicle Information Center (EVIC)/CustomerProgrammable Features (System Setup)” in “Understanding Your Instrument Panel” for further
information.
•
For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press the LOCK button on a programmed RKE transmitter for at least four seconds, but no longer than ten
seconds. Then, press the PANIC button while still holding the LOCK button.
2. Release both buttons at the same time.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
3. Test the feature while outside of the vehicle by pressing the LOCK button on the RKE transmitter with the
ignition switch in the OFF position and the key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE: Pressing the LOCK button on the RKE transmitter while you are in the vehicle will activate the Vehicle
Security Alarm System. Opening a door with the Vehicle
Security Alarm System activated will cause the alarm to
sound. Press the UNLOCK button to deactivate the
Vehicle Security Alarm System.
Remote Open Window Feature — If Equipped
This feature allows you to remotely lower both front door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
2
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Using the Panic Alarm
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the RKE transmitter for at
least one second and release. When the Panic Alarm is on,
the headlights and park lights will flash, the horn will
pulse on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.
NOTE:
•
The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lights and
horn will remain on.
•
You may need to be less than 35 ft (11 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Transmitter Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
•
Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
•
Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. With the RKE transmitter buttons facing down, use a
flat blade to pry the two halves of the RKE transmitter
apart. Make sure not to damage the seal during removal.
2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To assemble the RKE transmitter case, snap the two
halves together.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•
This device may not cause harmful interference.
•
This device must accept any interference received,
including interference that may cause undesired
operation.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
NOTE: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. A weak battery in the RKE transmitter. The expected
life of the battery is a minimum of three years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conveniently from outside the vehicle while still
maintaining security. The system has a range of
approximately 328 ft (100 m).
NOTE: The vehicle must be equipped with an automatic transmission to be equipped with Remote Start.
2
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•
Shift lever in PARK
•
Doors closed
•
Hood closed
•
HAZARD switch off
•
BRAKE switch inactive (brake pedal not pressed)
•
Ignition key removed from ignition switch
•
Battery at an acceptable charge level
•
RKE PANIC button not pressed
•
Fuel meets minimum requirement
WARNING!
•
Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monoxide (CO) which is odorless and colorless. Carbon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•
Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
Remote Start Abort Message on Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prematurely:
•
Remote Start Aborted - Door Ajar
•
Remote Start Aborted - Hood Ajar
•
Remote Start Aborted - Fuel Low
•
Remote Start Aborted - System Fault
The EVIC message stays active until the ignition is turned
to the ON/RUN position.
To Enter Remote Start Mode
Press and release the REMOTE START button
on the RKE transmitter twice, within five seconds. The parking lights will flash and the horn
will chirp twice (if programmed). Once the
vehicle has started, the engine will run for 15 minutes.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
•
For security, power window and power sunroof operation (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•
The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
To Exit Remote Start Mode without Driving the
Vehicle
Press and release the REMOTE START button one time or
allow the engine to run for the entire 15-minute cycle.
2
NOTE:
•
The park lamps will turn on and remain on during
Remote Start mode.
NOTE: To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm System
(if equipped). Insert the Key Fob into the ignition switch
and turn the switch to the ON/RUN position.
NOTE:
•
The ignition switch must be in the ON/RUN position
in order to drive the vehicle.
•
For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the message “Insert Key/
Turn To On” will flash in the EVIC until you insert the
Key Fob into the ignition swich. Once inserted, the
message “Turn To On” will flash in the EVIC until you
turn the ignition switch to the ON/RUN position.
Remote Start Comfort Systems — If Equipped
When remote start is activated, the heated steering
wheel, and driver heated seat features will automatically
turn on in cold weather. In warm weather, the driver
vented seat feature will automatically turn on when the
remote start is activated. These features will stay on
through the duration of remote start or until the ignition
switch is turned to the ON position.
The Remote Start Comfort System can be activated and
deactivated through the Electronic Vehicle Information
Center (EVIC). For more information on Remote Start
Comfort System operation refer to “Electronic Vehicle
Information Center (EVIC)/Customer-Programmable
Features (SETUP)” in “Understanding Your Instrument
Panel”.
DOOR LOCKS
Manual Door Locks
Front and rear doors may be locked by moving the lock
plunger down or unlocked by moving the lock plunger
up.
Front doors may be opened with the inside door handle
without lifting the lock plunger.
Doors locked before closing will remain locked when
closed.
The emergency key will unlock the driver door lock on
your vehicle.
WARNING!
•
For personal security and safety in the event of an
accident, lock the vehicle doors when you drive as
well as when you park and leave the vehicle.
•
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the key in
the ignition. A child could operate power windows, other controls, or move the vehicle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
Power Door Locks — If Equipped
A power door LOCK switch is on each front door trim
panel. Use this switch to lock or unlock the doors.
2
Power Door Lock Switch Location
1 - Unlock 2 - Lock
If you press the power door LOCK switch while the Key
Fob is in the ignition, and any front door is open, the
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
power locks will not operate. This prevents you from
accidentally locking your Key Fob in the vehicle. Removing the Key Fob or closing the door will allow the locks to
operate. A chime will sound if the Key Fob is in the
ignition switch and a door is open, as a reminder to
remove the Key Fob.
Auto Lock Doors – If Equipped
If this feature is enabled, your door locks will lock
automatically when the vehicle’s speed exceeds 15 mph
(24 km/h).
Auto Lock Doors Programming
The Auto Lock Doors feature can be enabled or disabled
as follows:
•
For vehicles equipped with the EVIC, refer to “Electronic Vehicle Information Center (EVIC)/Personal
Settings (System Setup)” in “Understanding Your Instrument Panel” for further information.
•
For vehicles not equipped with the EVIC, perform the
following procedure:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure.)
3. Place the Key Fob into the ignition.
4. Within 15 seconds cycle the Key Fob from the OFF
position to the ON position a minimum of four times,
ending in the OFF position. (Do not start the engine).
5. Within 30 seconds, press the driver’s door LOCK
switch.
6. A single chime will be heard to indicate the feature has
been disabled.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, program mode was canceled
before the feature could be disabled. If necessary, repeat
the above procedure.
Auto Unlock Doors — If Equipped
This feature unlocks all of the doors of the vehicle when
either front door is opened. This will occur only after the
vehicle has been shifted into the PARK position after the
vehicle has been driven (shifted out of PARK and all
doors closed).
Auto Unlock Doors Programming — If Equipped
The Auto Unlock Doors feature can be enabled or disabled as follows:
•
For vehicles equipped with the EVIC, refer to “Electronic Vehicle Information Center (EVIC)/Personal
Settings (System Setup)” in “Understanding Your Instrument Panel” for further information.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
•
For vehicles not equipped with the EVIC, perform the
following procedure:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chimes that may be confusing during this
programming procedure.)
3. Insert the Key Fob into the ignition.
4. Within 15 seconds, cycle the Key Fob from the OFF
position to the ON position a minimum of four times,
ending in the OFF position. (Do not start the engine).
5. Within 30 seconds, press the driver’s door UNLOCK
switch.
6. A single chime will sound to indicate the feature has
been changed.
2
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
7. Repeat the above steps to alternate the availability of
this feature.
8. If a chime is not heard, the program mode was
canceled before the feature could be changed. If necessary, repeat the above procedure.
Child Protection Door Lock
To provide a safer environment for children riding in the
rear seat, the rear doors (if equipped) of your vehicle
have the child protection door lock system.
Child Protection Door Lock Location
To use the system, open each rear door, use a flat blade
screwdriver (or emergency key) and rotate the dial
counterclockwise to engage the lock and clockwise to
disengage the child protection locks. When the system on
a door is engaged, that door can only be opened by using
the outside door handle even if the inside door lock is in
the unlocked position.
Child Lock Control
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.
NOTE:
•
After setting the child protection door lock system,
always test the door from the inside to make certain it
is in the desired position.
•
For emergency exit with the system engaged, move
the door lock switch to the UNLOCK position, roll
down the window and open the door with the outside
door handle.
2
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WINDOWS
Power Windows – If Equipped
Power Window Switches
1 – Left Front 3 – Right Rear
2 – Right Front 4 – Left Rear
The control on the left front door panel has UP-DOWN
switches that give you fingertip control of all power
windows. There is a single opening and closing switch on
the front passenger door for passenger window control
and on the rear doors of Quad Cab威, Mega Cab威 and
Crew Cab models. The windows will operate when the
ignition switch is turned to the ON or ACC position, and
for up to 10 minutes after the ignition is turned OFF or
until a front door is opened.
NOTE: The Key Off Power Delay feature will allow the
power windows to operate for up to 10 minutes after the
ignition is turned OFF. This feature is cancelled when
either front door is opened.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seriously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
Auto-Down
Both the driver and front passenger window switch have
an Auto-Down feature. Press the window switch past the
first detent, release, and the window will go down
automatically. To cancel the Auto-Down movement, operate the switch in either the up or down direction and
release the switch.
To stop the window from going all the way down during
the Auto-Down operation, pull up on the switch briefly.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
To open the window part way, press to the first detent
and release it when you want the window to stop.
Auto-Up Feature with Anti-Pinch Protection
(4-Door Models Driver’s and Front Passenger Door
Only) — If Equipped
Lift the window switch to the second detent, release, and
the window will go up automatically.
To stop the window from going all the way up during the
Auto Up operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.
NOTE:
•
If the window runs into any obstacle during the
auto-closure, it will reverse direction and then go back
down. Remove the obstacle and use the window
switch again to close the window. Any impact due to
2
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
rough road conditions may trigger the auto reverse
function unexpectedly during auto closure. If this
happens, pull the switch lightly to the first detent and
hold to close the window manually.
•
If the Auto-Up function is lost, reset the Auto-Up
function by running the window all the way up and
then hold the switch in the full up position for two
seconds.
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Window LOCKOUT Switch (4–Door Models Only)
The window LOCKOUT switch on the driver’s door
allows you to disable the window control on the other
doors. To disable the window controls on the other doors,
press the window LOCK button into the latched or down
position. To enable the window controls, press the window LOCK button again and return the switch to the
released or up position.
Window Lockout Switch
1 – Window Lockout Switch
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down or in partially open positions. This is a
normal occurrence and can be minimized. If the buffeting
occurs with the rear windows open, open the front and
rear windows together to minimize the buffeting.
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems:
•
Three-point lap and shoulder belts for the driver and
all passengers
•
Front seat belt pretensioners — if equipped
•
Advanced Front Airbags for driver and front passenger
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
•
Supplemental Side Airbag Inflatable Curtains (SABIC)
— if equipped
•
An energy-absorbing steering column and steering
wheel
•
Knee bolsters/blockers for front seat occupants
•
All seat belt systems (except driver’s and second row
center position) include Automatic Locking Retractors
(ALR) — if equipped
If you will be carrying children too small for adult-sized
seat belts, the seat belts or the Lower Anchors and Tether
for CHildren (LATCH) feature also can be used to hold
infant and child restraint systems. For more information
on LATCH, see Lower Anchors and Tether for CHildren
(LATCH).
NOTE: The Advanced Front Airbags have a multistage
inflator design. This allows the airbag to have different
rates of inflation based on severity and type of collision.
2
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.
WARNING!
In a collision, you and your passengers can suffer
much greater injuries if you are not properly buckled
up. You can strike the interior of your vehicle or other
passengers, or you can be thrown out of the vehicle.
Always be sure you and others in your vehicle are
buckled up properly.
Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause a collision that includes you. This can happen
far away from home or on your own street.
Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision. Some
of the worst injuries happen when people are thrown
from the vehicle. Seat belts reduce the possibility of
ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.
Lap/Shoulder Belts
All seating positions except the Quad Cab威 and Crew
Cab front center seating position have combination lap/
shoulder belts. The belt webbing retractor is designed to
lock during very sudden stops or collisions. This feature
allows the shoulder part of the belt to move freely with
you under normal conditions. But in a collision, the belt
will lock and reduce the risk of you striking the inside of
the vehicle or being thrown out.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
WARNING!
•
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously injured or killed.
•
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•
Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
(Continued)
WARNING! (Continued)
•
Wearing a seat belt incorrectly is dangerous. Seat
belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of a collision best.
Wearing your belt in the wrong place could make
your injuries in a collision much worse. You might
suffer internal injuries, or you could even slide out
of part of the belt. Follow these instructions to
wear your seat belt safely and to keep your passengers safe, too.
•
Two people should never be belted into a single
seat belt. People belted together can crash into one
another in an accident, hurting one another badly.
Never use a lap/shoulder belt or a lap belt for more
than one person, no matter what their size.
2
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Lap/Shoulder Belt Operating Instructions
1. Enter the vehicle and close the door. Sit back and
adjust the seat.
2. The seat belt latch plate is above the back of the front
seat, next to your arm in the rear seat. Grasp the latch
plate and pull out the belt. Slide the latch plate up the
webbing as far as necessary to allow the belt to go around
your lap.

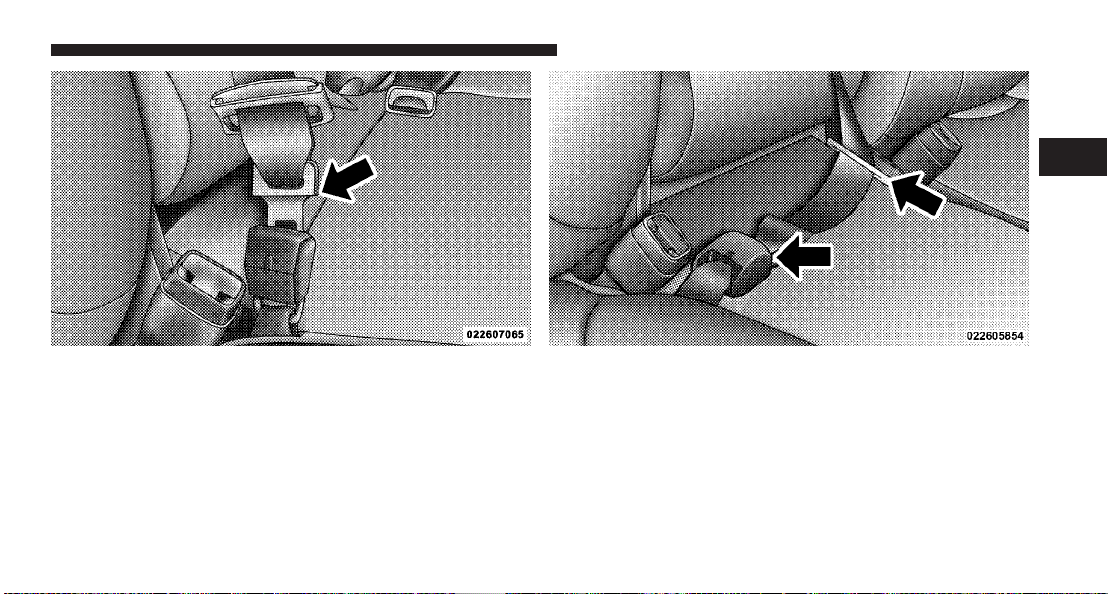

Pulling Out Latch Plate And Webbing
3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”

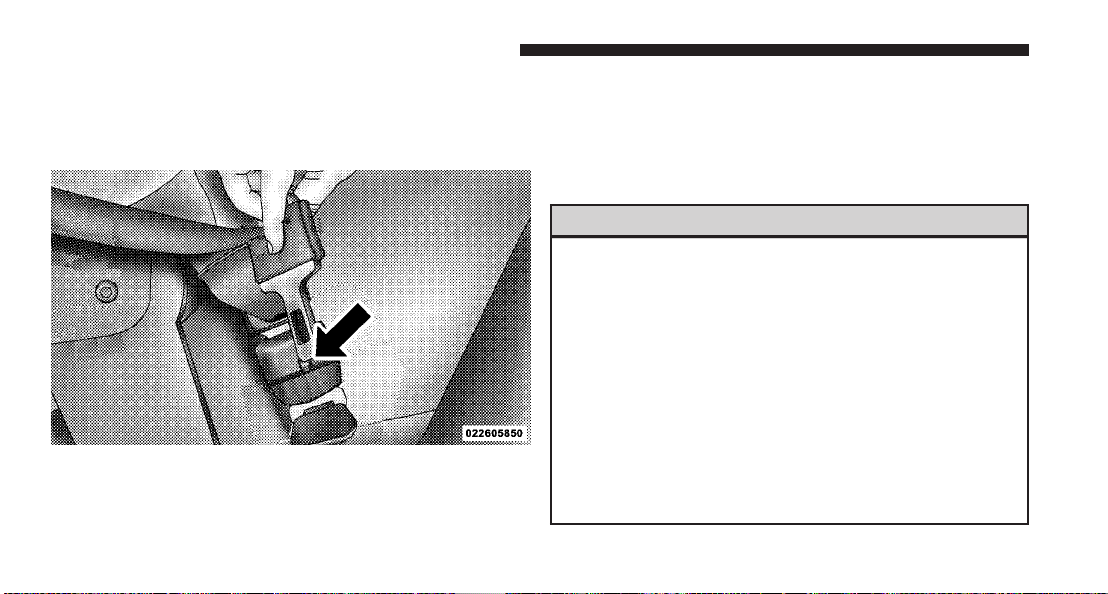

Latch Plate To Buckle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
WARNING!
• A belt buckled into the wrong buckle will not
protect you properly. The lap portion could ride too
high on your body, possibly causing internal injuries. Always buckle your belt into the buckle nearest
you.
• A belt that is too loose will not protect you as well.
In a sudden stop you could move too far forward,
increasing the possibility of injury. Wear your seat
belt snugly.
• A belt that is worn under your arm is very dangerous. Your body could strike the inside surfaces of the
vehicle in a collision, increasing head and neck
injury. A belt worn under the arm can cause internal
injuries. Ribs aren’t as strong as shoulder bones.
Wear the belt over your shoulder so that your strongest bones will take the force in a collision.
(Continued)
2
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING! (Continued)
• A shoulder belt placed behind you will not protect
you from injury during a collision. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.
4. Position the lap belt across your thighs, below your
abdomen. To remove slack in the lap belt portion, pull up
on the shoulder belt. To loosen the lap belt if it is too tight,
tilt the latch plate and pull on the lap belt. A snug belt
reduces the risk of sliding under the belt in a collision.
Removing Slack From Belt
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43
WARNING!
• A lap belt worn too high can increase the risk of
internal injury in a collision. The belt forces won’t be
at the strong hip and pelvic bones, but across your
abdomen. Always wear the lap belt as low as possible and keep it snug.
• A twisted belt can’t do its job as well. In a collision,
it could even cut into you. Be sure the belt is straight.
If you can’t straighten a belt in a vehicle, take it to
your authorized dealer and have it fixed.
5. Position the shoulder belt on your chest so that it is
comfortable and not resting on your neck. The retractor
will withdraw any slack in the belt.
6. To release the belt, push the red button on the buckle.
The belt will automatically retract to its stowed position.
If necessary, slide the latch plate down the webbing to
allow the belt to retract fully.
WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (bent retractor, torn webbing,
etc.) or if the airbag deployed.
Regular Cab Front Center Three Point Belt
1. The front center seat belt on the Regular Cab may be
disconnected to open up utilization of the storage areas
behind the front seats. The black latch plate can be
detached from the black keyed seat belt buckle located on
the inboard side of the passenger seat. Insert the seat belt
tongue into the center red slot on the black buckle. The
black buckle latch plate can be removed when the seat
2
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
belt tongue is pressed into the buckle. Allow the retractor
to take up the surplus webbing, and the buckles will
hang vertically from the cab back exit bezel, thus freeing
up all the area behind the front seats.
Detaching Buckle With Seat Belt Tongue
2. To reattach the seat belt to the front center seat, pull
the black buckle latch plate forward from the cab back
panel and insert it into the black keyed buckle until there
is an audible “click”. For proper seatbelt usage, refer
“Lap/Shoulder Belt Operating Instructions”.
WARNING!
•
If the black latch and black buckle are not properly connected when the seat belt is used by an
occupant, the seat belt will not be able to provide
proper restraint and will increase the risk of injury
in a collision.
•
When reattaching the black latch and black
buckle, ensure the seat belt webbing is not
twisted. If the webbing is twisted, follow the
preceding procedure to detach the black latch and
black buckle, untwist the webbing, and reattach
the black latch and black buckle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45
Inserting Latch Plate In Use Position
2
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
•
If the black latch and black buckle are not properly connected when the seat belt is used by an
occupant, the seat belt will not be able to provide
proper restraint and will increase the risk of injury
in a collision.
•
When reattaching the black latch and black
buckle, ensure the seat belt webbing is not
twisted. If the webbing is twisted, follow the
preceding procedure to detach the black latch and
black buckle, untwist the webbing, and reattach
the black latch and black buckle.
Adjustable Upper Shoulder Belt Anchorage
In the front row outboard seats, the shoulder belt can be
adjusted upward or downward to help position the belt
away from your neck. Press the button located on the
upper belt guide, and then move it up or down to the
position that fits you best.
Adjusting Upper Shoulder Belt
As a guide, if you are shorter than average you will
prefer a lower position, and if you are taller than average
you will prefer a higher position. When you release the
anchorage, try to move it up or down to make sure that
it is locked in position.
Center Lap Belts
The center seating position for the Quad Cab威, Mega
Cab威 and Crew Cab front seat has a lap belt only. To
fasten the lap belt, slide the latch plate into the buckle
until you hear a ⬙click.⬙ To lengthen the lap belt, tilt the
latch plate and pull. To remove slack, pull the loose end
of the webbing. Wear the lap belt snug against the hips.
Sit back and erect in the seat, then adjust the belt as
tightly as is comfortable.
WARNING!
•
A lap belt worn too loose or too high is dangerous.
•
A belt worn too loose can allow you to slip down
and under the belt in a collision.
(Continued)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
WARNING! (Continued)
•
A belt that is too loose or too high will apply crash
forces to the abdomen, not to the stronger hip
bones. In either case, the risk of internal injuries is
greater. Wear a lap belt low and snug.
Automatic Locking Retractor (ALR) Mode – If Equipped
In this mode, the shoulder belt is automatically prelocked. The belt will still retract to remove any slack in
the shoulder belt.
When To Use The Automatic Locking Mode
Use the Automatic Locking Mode any time a child safety
seat is installed in a passenger seating position. Children
12 years old and younger should be properly restrained
in the rear seat whenever possible.
2
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
How To Use The Automatic Locking Mode
1. Buckle the combination lap/shoulder belt.
2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.
3. Allow the belt to retract. As the belt retracts, you will
hear a clicking sound. This indicates the safety belt is
now in the Automatic Locking Mode.
How To Disengage The Automatic Locking Mode
Disconnect the combination lap/shoulder belt and allow
it to retract completely to disengage the Automatic
Locking Mode and activate the vehicle sensitive (emergency) locking mode.
Seat Belt Pretensioners — If Equipped
The seat belts for both front seating positions may be
equipped with pretensioning devices that are designed to
remove slack from the seat belt in the event of a collision.
These devices improve the performance of the seat belt
by assuring that the belt is tight about the occupant early
in a collision. Pretensioners work for all size occupants,
including those in child restraints.
NOTE: These devices are not a substitute for proper seat
belt placement by the occupant. The seat belt still must be
worn snugly and positioned properly.
The pretensioners are triggered by the Occupant Restraint Controller (ORC). Like the airbags, the pretensioners are single use items. After a collision deploys the
airbags and/or pretensioners, a deployed airbag and/or
pretensioner must be replaced immediately.
Enhanced Seat Belt Use Reminder System
(BeltAlert姞)
If the driver’s seat belt has not been buckled within
60 seconds of starting the vehicle and if the vehicle speed
is greater than 5 mph (8 km/h), the BeltAlert威 will alert
the driver to buckle the seat belt. The driver should also
instruct all other occupants to buckle their seat belts.
Once the warning is triggered, the BeltAlert威 will continue to chime and flash the Seat Belt Reminder Light for
96 seconds or until the driver’s seat belt is buckled. The
BeltAlert威 will be reactivated if the driver’s seat belt is
unbuckled for more than 10 seconds and the vehicle
speed is greater than 5 mph (8 km/h).
BeltAlert威 can be enabled or disabled by your authorized
dealer or by following these steps:
NOTE: The following steps must occur within the first
60 seconds of the ignition switch being turned to the ON
or START position. Chrysler Group LLC does not recommend deactivating the BeltAlert威.
1. With all doors closed and the ignition switch in any
position except ON or START, buckle the driver’s seat
belt.
2. Turn the ignition switch to the ON position and wait
for the Seat Belt Reminder Light to turn off.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
3. Within 60 seconds of starting the vehicle, unbuckle
and then re-buckle the driver’s seat belt at least three
times within 10 seconds, ending with the seat belt
buckled.
4. Turn off the engine. A single chime will sound to
signify that you have successfully completed the
programming.
BeltAlert威 can be reactivated by repeating this procedure.
NOTE: Although BeltAlert威 has been deactivated, the
Seat Belt Reminder Light will continue to illuminate
while the driver’s seat belt remains unbuckled.
Seat Belts and Pregnant Women
We recommend that pregnant women use seat belts
throughout their pregnancies. Keeping the mother safe is
the best way to keep the baby safe.
2
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Pregnant women should wear the lap part of the belt
across the thighs and as snug against the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.
Seat Belt Extender
If a seat belt is too short even when fully extended, your
authorized dealer can provide you with a seat belt
extender. This extender should be used only if the
existing belt is not long enough. When it is not required,
remove the extender and store it.
WARNING!
Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use the
seat belt extender when the lap belt is not long
enough when it is worn low and snug, and in the
recommended seating positions. Remove and store
the extender when not needed.
Driver and Right Front Passenger Supplemental Restraint System (SRS) – Airbag
This vehicle has airbags for both the driver and front
passenger as a supplement to the seat belt restraint
systems. The driver’s front airbag is mounted in the
center of the steering wheel. The passenger’s front airbag
is mounted in the instrument panel, above the glove
compartment. The words SRS AIRBAG are embossed on
the airbag covers.
Airbag and Knee Boltser Location
1 — Driver and Passenger Airbag
2 — Knee Boltser
NOTE: These airbags are certified to the new Federal
regulations for Advanced Airbags.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
The Advanced Front Airbags have a multistage inflator
design. This allows the airbag to have different rates of
inflation based on the severity and type of collision.
This vehicle may also be equipped with Supplemental
Side Airbag Inflatable Curtains (SABIC) to protect the
driver, front, and rear passengers sitting next to a window. If the vehicle is equipped with SABIC airbags, they
are located above the side windows and their covers are
also labeled: SRS AIRBAG.
NOTE: Airbag covers may not be obvious in the interior
trim; but they will open during airbag deployment.
Airbag System Components
The airbag system consists of the following:
•
Occupant Restraint Controller (ORC)
•
Airbag Warning Light
•
Driver Front Airbag
2
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
•
Front Passenger Airbag
•
Front and Side Impact Sensors — if equipped
•
Steering Wheel and Column
•
Instrument Panel
The first stage inflator is triggered immediately during an
impact that requires airbag deployment. The timing of
the second stage determines whether the output force is
low, medium, or high. If a low output is sufficient to meet
the need, the remaining gas in the inflator is expended.
•
Knee Impact Bolster
•
Front Seat Belt Pretensioners — if equipped
•
Supplemental Side Airbag Inflatable Curtains (SABIC)
— if equipped
Advanced Front Airbag Features
The Advanced Front Airbag system has multistage driver
and front passenger airbags. This system provides output
appropriate to the severity and type of collision as
determined by the Occupant Restraint Controller (ORC),
which may receive information from the impact sensors
at the front of the car (if equipped).
WARNING!
•
No objects should be placed over or near the
airbag on the instrument panel, because any such
objects could cause harm if the vehicle is in a crash
severe enough to cause the airbag to inflate.
(Continued)
WARNING! (Continued)
•
Do not put anything on or around the airbag
covers or attempt to open them manually. You may
damage the airbags and you could be injured
because the airbags may no longer be functional.
The protective covers for the airbag cushions are
designed to open only when the airbags are inflating.
•
Do not drill, cut or tamper with the knee bolster in
any way.
•
Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizen band radios,
etc.
Supplemental Side Airbag Inflatable Curtain
(SABIC) — If Equipped
SABIC airbags offer side-impact protection to front and
rear seat outboard occupants in addition to that provided
by the body structure. Each airbag features inflated
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
chambers placed adjacent to the head of each outboard
occupant that reduce the potential for side-impact head
injuries. The curtains deploy downward, covering both
windows on the impact side.
Side Curtain Airbag Label Location
NOTE: Airbag covers may not be obvious in the interior
trim; but they will open during airbag deployment.
2
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
The system includes sensors adjacent to both front and
rear seat occupants that are calibrated to deploy the
SABIC airbags during impacts that require airbag occupant protection.
Knee Impact Bolsters
The Knee Impact Bolsters help protect the knees of the
driver and the front passenger, and position everyone for
the best interaction with the Advanced Front Airbag.
WARNING!
•
If your vehicle is equipped with left and right Side
Airbag Inflatable Curtain (SABIC), do not stack
luggage or other cargo up high enough to block
the location of the SABIC. The area where the side
curtain airbag is located should remain free from
any obstructions.
•
Do not use accessory seat covers or place objects
between you and the side airbags; the performance
could be adversely affected and/or objects could
be pushed into you, causing serious injury.
Along with seat belts and pretensioners, Advanced Front
Airbags work with the knee bolsters to provide improved
protection for the driver and front passenger. Side airbags
also work with seat belts to improve occupant protection.
Here are some simple steps you can take to minimize the
risk of harm from a deploying airbag:
Children 12 years old and younger should always ride
buckled up in a rear seat.
WARNING!
Infants in rear-facing child restraints should NEVER
ride in the front seat of a vehicle with a passenger
front airbag. An airbag deployment can cause severe
injury or death to infants in that position.
Children that are not big enough to wear the vehicle seat
belt properly (see Section on Child Restraints) should be
secured in the rear seat in child restraints or beltpositioning booster seats. Older children who do not use
child restraints or belt-positioning booster seats should
ride properly buckled up in the rear seat. Never allow
children to slide the shoulder belt behind them or under
their arm.
If a child from 1 to 12 years old (not in a rear facing child
seat) must ride in the front passenger seat, move the seat
as far back as possible and use the proper child restraint.
(Refer to “Child Restraints”)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55
You should read the instructions provided with your
child restraint to make sure that you are using it properly.
All occupants should ALWAYS wear their lap and shoulder belts properly.
The driver and front passenger seats should be moved
back as far as practical to allow the Advanced Front
Airbags room to inflate.
Do not lean against the door. If your vehicle has side
airbags, and deployment occurs, the side airbags will
inflate forcefully into the space between you and the
door.
If the airbag system in this vehicle needs to be modified
to accommodate a disabled person, contact the Customer
Center. Phone numbers are provided under ⬙If You Need
Assistance⬙.
2
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
•
Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions, the airbags won’t deploy at all.
Always wear your seat belts even though you have
airbags.
•
Being too close to the steering wheel or instrument
panel during front airbag deployment could cause
serious injury, including death. Airbags need
room to inflate. Sit back, comfortably extending
your arms to reach the steering wheel or instrument panel.
•
Side airbags also need room to inflate. Do not lean
against the door. Sit upright in the center of the
seat.
Airbag Deployment Sensors and Controls
Occupant Restraint Controller (ORC)
The ORC is part of a Federally regulated safety system
required for this vehicle.
The ORC determines if deployment of the front and/or
side airbags in a frontal or side collision is required.
Based on the impact sensors signals, a central electronic
ORC deploys the Advanced Front Airbags, SABIC airbags — if equipped, and front seat belt pretensioners —
if equipped, as required, depending on severity and type
of impact.
Advanced Front Airbags are designed to provide additional protection by supplementing the seat belts in
certain frontal collisions depending on the severity and
type of collision. Advanced Front Airbags are not expected to reduce the risk of injury in rear, or side
collisions.
The Advanced Front Airbags will not deploy in all frontal
collisions, including some that may produce substantial
vehicle damage — for example, some pole collisions,
truck underrides, and angle offset collisions. On the other
hand, depending on the type and location of impact,
Advanced Front Airbags may deploy in crashes with
little vehicle front-end damage but that produce a severe
initial deceleration.
The side airbags will not deploy in all side collisions. Side
airbag deployment will depend on the severity and type
of collision.
Because airbag sensors measure vehicle deceleration over
time, vehicle speed and damage by themselves are not
good indicators of whether or not an airbag should have
deployed.
Seat belts are necessary for your protection in all collisions, and also are needed to help keep you in position,
away from an inflating airbag.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57
The ORC monitors the readiness of the electronic parts of
the system whenever the ignition switch is in the START
or ON position. If the key is in the LOCK position, in the
ACC position, or not in the ignition, the airbags are not
on and will not inflate.
The ORC contains a backup power supply system that
may deploy the airbags even if the battery loses power or
it becomes disconnected prior to deployment.
Also, the ORC turns on the Airbag Warning
Light in the instrument panel for approximately six to eight seconds for a self-check
when the ignition is first turned on. After the
self-check, the Airbag Warning Light will turn off. If the
ORC detects a malfunction in any part of the system, it
turns on the Airbag Warning Light, either momentarily
or continuously. A single chime will sound if the light
comes on again after initial startup.
2
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
It also includes diagnostics that will illuminate the instrument cluster Airbag Warning Light if a malfunction is
noted. The diagnostics also record the nature of the
malfunction.
WARNING!
Ignoring the Airbag Warning Light in your instrument panel could mean you won’t have the airbags to
protect you in a collision. If the light does not come
on, stays on after you start the vehicle, or if it comes
on as you drive, have the airbag system checked right
away.
Driver and Passenger Airbag Inflator Units
The Driver and Passenger Airbag/Inflator Units are
located in the center of the steering wheel and the right
side of the instrument panel. When the ORC detects a
collision requiring the airbags, it signals the inflator units.
A large quantity of non-toxic gas is generated to inflate
the Advanced Front Airbags. Different airbag inflation
rates are possible, based on the collision type and severity. The steering wheel hub trim cover and the upper
right side of the instrument panel separate and fold out
of the way as the bags inflate to their full size. The bags
fully inflate in about 50 to 70 milliseconds. This is about
half of the time it takes to blink your eyes. The bags then
quickly deflate while helping to restrain the driver and
front passenger.
The driver front airbag gas is vented through the vent
holes in the sides of the airbag. The passenger front
airbag gas is vented through the vent holes in the sides of
the airbag. In this way, the airbags do not interfere with
your control of the vehicle.
Supplemental Side Airbag Inflatable Curtain
(SABIC) Inflator Units — If Equipped
During collisions where the impact is confined to a
particular area of the side of the vehicle, the ORC may
deploy the SABIC airbags, depending on severity and
type of collision. In these events, the ORC will deploy the
SABIC only on the impact side of the vehicle.
A quantity of non-toxic gas is generated to inflate the side
curtain airbag. The inflating side curtain airbag pushes
the outside edge of the headliner out of the way and
covers the window. The airbag inflates in about 30 ms
(about one-quarter of the time that it takes to blink your
eyes) with enough force to injure you if you are not belted
and seated properly, or if items are positioned in the area
where the side curtain airbag inflates. This especially
applies to children. The side curtain airbag is only about
3-1/2 in (9 cm) thick when it is inflated.
Because airbag sensors estimate deceleration over time,
vehicle speed and damage are not good indicators of
whether or not an airbag should have deployed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59
Front and Side Impact Sensors — If Equipped
In front and side impacts, impact sensors aid the ORC in
determining appropriate response to impact events. Additional sensors in the ORC determine the level of airbag
deployment and provide verification.
Enhanced Accident Response System
In the event of an impact causing airbag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the following functions:
•
Cut off fuel to the engine.
•
Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
2
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
•
Turn on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
•
Unlock the doors automatically.
If a Deployment Occurs
The airbags are designed to deflate immediately after
deployment.
NOTE: Front and/or side airbags will not deploy in all
collisions. This does not mean something is wrong with
the airbag system.
If you do have a collision which deploys the airbags, any
or all of the following may occur:
•
The nylon airbag material may sometimes cause abrasions and/or skin reddening to the driver and front
passenger as the airbags deploy and unfold. The
abrasions are similar to friction rope burns or those
you might get sliding along a carpet or gymnasium
floor. They are not caused by contact with chemicals.
They are not permanent and normally heal quickly.
However, if you haven’t healed significantly within a
few days, or if you have any blistering, see your doctor
immediately.
•
As the airbags deflate, you may see some smoke-like
particles. The particles are a normal by-product of the
process that generates the non-toxic gas used for
airbag inflation. These airborne particles may irritate
the skin, eyes, nose, or throat. If you have skin or eye
irritation, rinse the area with cool water. For nose or
throat irritation, move to fresh air. If the irritation
continues, see your doctor. If these particles settle on
your clothing, follow the garment manufacturer’s instructions for cleaning.
Do not drive your vehicle after the airbags have deployed. If you are involved in another collision, the
airbags will not be in place to protect you.
WARNING!
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61
Maintaining Your Airbag System
Deployed airbags and seat belt pretensioners cannot
protect you in another collision. Have the airbags,
seat belt pretensioners, and the front passenger seat
belt retractor assembly replaced by an authorized
dealer as soon as possible. Also, have the Occupant
Restraint Controller (ORC) system serviced as well.
WARNING!
•
Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured if the airbag system is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper right side of the instrument panel. Do not
modify the front bumper, vehicle body structure,
or add aftermarket side steps or running boards.
•
It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has an airbag system.
(Continued)
2
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING! (Continued)
•
Do not attempt to modify any part of your advanced airbag system. The airbag may inflate
accidentally or may not function properly if modifications are made. Take your vehicle to an authorized dealer for any advanced airbag system service. If your seat, including your trim cover and
cushion, needs to be serviced in any way (including removal or loosening/tightening of seat attachment bolts), take the vehicle to your authorized
dealer. Only manufacturer approved seat accessories may be used. If it is necessary to modify an
advanced airbag system for persons with disabilities, contact your authorized dealer.
Airbag Warning Light
You will want to have the airbags ready to
inflate for your protection in a collision. While
the airbag system is designed to be mainte-
nance free, if any of the following occurs, have
an authorized dealer service the system immediately.
•
The Airbag Warning Light does not come on for
approximately six to eight seconds when the ignition
switch is first turned ON.
•
The light remains on after the approximate four to
six-second interval.
•
The light comes on and remains on while driving.
NOTE: If the speedometer, tachometer, or any engine
related gauges are not working, the Occupant Restraint
Controller (ORC) may also be disabled. The airbags may
not be ready to inflate for your protection. Promptly
check the fuse block for blown fuses. Refer to the label
located on the inside of the fuse block cover for the
proper airbag fuses. See your authorized dealer if the
fuse is good.
Event Data Recorder (EDR)
In the event of an accident, your vehicle is designed to
record up to five seconds of specific vehicle data parameters (see list below) in an event data recorder prior to the
moment of airbag deployment, or near deployment (if
applicable), and up to a quarter second of either highspeed deceleration data or change in velocity during
and/or after airbag deployment or near-deployment.
EDR data is ONLY recorded if an airbag deploys, or
nearly deploys, and is otherwise unavailable.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63
2. Under certain circumstances, EDR data may not be
recorded (e.g., loss of battery power).
In conjunction with other data gathered during a complete accident investigation, the electronic data may be
used by Chrysler Group LLC and others to learn more
about the possible causes of crashes and associated
injuries in order to assess and improve vehicle performance. In addition to crash investigations initiated by
Chrysler Group LLC, such investigations may be requested by customers, insurance carriers, government
officials, and professional crash researchers, such as those
associated with universities, and with hospital and insurance organizations.
2
NOTE:
1. A near-deployment event occurs when the airbag
sensor detects severe vehicle deceleration usually indicative of a crash, but not severe enough to warrant airbag
deployment.
In the event that an investigation is undertaken by
Chrysler Group LLC (regardless of initiative), the company or its designated representative will first obtain
permission of the appropriate custodial entity for the
vehicle (usually the vehicle owner or lessee) before
64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
accessing the electronic data stored, unless ordered to
download data by a court with legal jurisdiction (i.e.,
pursuant to a warrant). A copy of the data will be
provided to the custodial entity upon request. General
data that does not identify particular vehicles or crashes
may be released for incorporation in aggregate crash
databases, such as those maintained by the U.S. government and various states. Data of a potentially sensitive
nature, such as would identify a particular driver, vehicle, or crash, will be treated confidentially. Confidential
data will not be disclosed by Chrysler Group LLC to any
third party except when:
1. Used for research purposes, such as to match data
with a particular crash record in an aggregate database,
provided confidentiality of personal data is thereafter
preserved.
2. Used in defense of litigation involving a Chrysler
Group LLC product.
3. Requested by police under a legal warrant.
4. Otherwise required by law.
Data parameters that are recorded:
•
Diagnostic trouble code(s) and warning light status for
electronically-controlled safety systems, including the
airbag system
•
Vehicle speed
•
Engine RPM
•
Brake switch status
•
Pedal position
•
And other parameters depending on vehicle
configuration
Child Restraint
Everyone in your vehicle needs to be buckled up all the
time, including babies and children. Every state in the
United States and all Canadian provinces require that
small children ride in proper restraint systems. This is the
law, and you can be prosecuted for ignoring it.
Children 12 years and younger should ride properly
buckled up in a rear seat, if available. According to crash
statistics, children are safer when properly restrained in
the rear seats rather than in the front.
WARNING!
In a collision, an unrestrained child, even a tiny baby,
can become a projectile inside the vehicle. The force
required to hold even an infant on your lap can
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child’s
size.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65
Infants and Small Children
There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Use the restraint that is
correct for your child.
•
Safety experts recommend that children ride
rearward-facing in the vehicle until they are at least
one year old and weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and ⬙convertible⬙ child seats. Both types of
child restraints are held in the vehicle by the lap/
shoulder belt.
•
The infant carrier is only used rearward-facing in the
vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg). ⬙Convertible⬙ child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
2
66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
infant carriers do, so they can be used rearward-facing
by children who weigh more than 20 lbs (9 kg) but are
less than one year old.
•
Rearward-facing child seats must NEVER be used in
the front seat of a vehicle with a front passenger
airbag. An airbag deployment could cause severe
injury or death to infants in this position.
•
Children who weigh more than 20 lbs (9 kg) and who
are older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible
child seats used in the forward-facing direction are for
children who weigh 20 to 40 lbs (9 to 18 kg) and who
are older than one year. These child seats are also held
in the vehicle by the lap/shoulder belt.
•
The belt-positioning booster seat is for children weighing more than 40 lbs (18 kg), but who are still too small
to fit the vehicle’s seat belts properly. If the child
cannot sit with knees bent over the vehicle’s seat
cushion while the child’s back is against the seat back,
they should use a belt-positioning booster seat. The
child and booster seat are held in the vehicle by the
lap/shoulder belt.
NOTE: For additional information, refer to
www.seatcheck.org or call 1–866–SEATCHECK. Canadian residents, should refer to Transport Canada’s website for additional information. http://www.tc.gc.ca/
roadsafety/safedrivers/childsafety/index.htm
WARNING!
•
Improper installation can lead to failure of an
infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint.
•
A rearward-facing child restraint should only be
used in a rear seat.
Here are some tips for getting the most out of your child
restraint:
•
Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it before you buy it.
•
The restraint must be appropriate for your child’s
weight and height. Check the label on the restraint for
weight and height limits.
•
Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.
•
In the rear seat, you may have trouble tightening the
lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path
opening on the restraint. Disconnect the latch plate
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67
from the buckle and twist the short buckle-end belt
several times to shorten it. Insert the latch plate into
the buckle with the release button facing out.
•
If the belt still can’t be tightened, or if pulling and
pushing on the restraint loosens the belt, disconnect
the latch plate from the buckle, turn the latch plate
around, and insert the latch plate into the buckle
again. If you still can’t make the child restraint secure,
try a different seating position.
•
Buckle the child into the seat according to the child
restraint manufacturer’s directions.
•
When your child restraint is not in use, secure it in the
vehicle with the seat belt or remove it from the vehicle.
Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seat backs
and cause serious personal injury.
2
68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
Improper installation can lead to failure of an infant
or child restraint. It could come loose in a collision.
The child could be badly injured or killed. Follow
the manufacturer’s directions exactly when installing
an infant or child restraint.
Lower Anchors and Tether for CHildren (LATCH)
Each vehicle is equipped with the child restraint anchorage system called LATCH, which stands for Lower
Anchors and Tether for CHildren. LATCH child restraint
anchorage systems are installed in the Quad Cab威, Mega
Cab威 and Crew Cab rear seat outboard positions. LATCH
equipped seating positions feature both lower anchor
bars, located at the back of the seat cushion, and tether
strap anchorages, located behind the seat back (refer to
“Child Restraint Tether Anchor”).
Quad Cab威/Mega Cab威/Crew Cab Rear Outboard Seats
Driver Side
Child restraint systems having attachments designed to
connect to the lower anchorages are now available. Child
restraints having tether straps and hooks for connection
to the seat back tether anchorage have been available for
some time. In fact, many child restraint manufacturers
will provide add-on tether strap kits for some of their
older products.
Because the lower anchorages are to be introduced to
passenger carrying vehicles over a period of years, child
restraint systems having attachments for those anchorages will continue to have features for installation in
vehicles using the lap or lap/shoulder belt. They will also
have tether straps, and you are urged to take advantage
of all of the available attachments provided with your
child restraint in any vehicle.
NOTE:
•
When using the LATCH attaching system to install a
child restraint, please ensure that all seat belts not
being used for occupant restraints are stowed and out
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint and out of
reach. If the buckled seat belt interferes with the child
restraint installation, instead of tucking the seat belt
behind the child restraint, route the seat belt through
the child restraint belt path and then buckle it. This
should stow the seat belt out of the reach of an
inquisitive child. Remind all children in the vehicle
that the seat belts are not toys and should not be
played with, and never leave your child unattended in
the vehicle.
•
If your child restraint seat is not LATCH-compatible,
install the restraint using the vehicle seat belting.
2
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Installing the Child Restraint System
WARNING!
Do not install child restraint systems equipped with
LATCH attachments in the center position of a Quad
Cab威, Mega Cab威 or Crew Cab model rear seat. The
LATCH anchorages in this seat are designed for the
two outboard seating positions only. A child may be
placed in the rear center seating position of a Quad
Cab威, Mega Cab威 or Crew Cab model using the seat
belt and child tether anchorage. Failure to follow this
may result in serious or fatal injury.
We urge you to carefully follow the directions of the
manufacturer when installing your child restraint. Many,
but not all, restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector, and a means for adjusting the tension in the
strap. Forward-facing toddler restraints and some
rearward-facing infant restraints will also be equipped
with a tether strap, a hook and means for adjusting the
tension in the strap.
In general, you will first loosen the adjusters on the lower
straps and tether straps so that you can more easily attach
the hook or connector to the lower anchorages and tether
anchorages. Then tighten all three straps as you push the
child restraint rearward and downward into the seat.
Not all child restraint systems will be installed as we
have described here. Again, carefully follow the instructions that come with the child restraint system.
WARNING!
Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.
Installing Child Restraints Using the Vehicle Seat
Belt
The seat belts in the passenger seating positions are
equipped with either an Automatic Locking Retractor
(ALR) or a cinching latch plate or both. Both types of seat
belts are designed to keep the lap portion of the seat belt
tight around the child restraint so that it is not necessary
to use a locking clip. The ALR will make a ratcheting
noise if you extract the entire belt from the retractor and
then allow the belt to retract into the retractor. For
additional information on ALR, refer to “Automatic
Locking Mode”.
To install a child restraint, first, pull enough of the seat
belt webbing from the retractor to route it through the
belt path of the child restraint and slide the latch plate
into the buckle. Next, extract all the seat belt webbing out
of the retractor and then allow the belt to retract into the
retractor. Finally, pull on any excess webbing to tighten
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71
the lap portion around the child restraint. Any seat belt
system will loosen with time, so check the belt occasionally, and pull it tight if necessary.
Child Restraint Tether Anchor
Child restraints having tether straps and hooks for connection to tether anchors have been available for some
time. In fact, many child restraint manufacturers will
provide add-on tether strap kits for their older products.
Regular Cab models have two tether anchorages, one
each behind the front center and right seats. Quad Cab威,
Mega Cab威 and Crew Cab models have three anchorages, one behind each of the rear seats.
2
72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
An incorrectly anchored tether strap could lead to seat
failure and injury to the child. In a collision, the seat
could come loose and allow the child to crash into the
inside of the vehicle or other passengers, or even be
thrown from the vehicle. Use only the anchor positions
directly behind the child seat to secure a child restraint
top tether strap. Follow the instructions below. See your
authorized dealer for help if necessary.
Tether Anchorage Points at the Right and Center
Front Seat (Regular Cab - All Seats)
1.
Place the child restraint on the seat and adjust the tether
strap so that it will reach over the seat back under the head
restraint to the tether anchor directly behind the seat.
2. Lift the cover (if so equipped), and attach the hook to
the square opening in the sheet metal.
3. Install the child restraint and remove the slack in the
tether strap according to the manufacturer’s instructions.
Regular Cab Tether Strap Mounting
1 — Tether Strap Hook
2 — Tether Strap to Child Restraint
3 — Tether Anchor
Multiple Child Restraint Installation Sequence
(Quad Cab威/Crew Cab/Mega Cab威 - Rear Seats)
Quad Cab威/Mega Cab威
1. Obtain tether straps by raising the head restraints and
reaching between the rear glass and rear seat. The tether
strap may be retained with an elastic band. Accessibility
to the tether strap is greatly improved by raising the seat
cushion to the “up” position. Remove the elastic before
use.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73
2
Head Restraint Adjustment
2. Place a child restraint on each outboard rear seat and
adjust the tether strap so that it will reach under the head
restraint to the tether anchor directly behind the seat and
then to the anchor directly behind the center rear seat.
3. Pass each tether strap hook under the head restraint
and through the loop of webbing behind the child seat.
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
4. Route each tether strap to the anchor behind the center
seat, and attach the hooks to the metal ring.
5. Place a child restraint on the center rear seat and
adjust the tether strap so that it will reach under the head
restraint to the tether anchor directly behind the seat and
to the anchor directly behind the right seat.
6. Install each child restraint and remove the slack in the
tether strap according to the child restraint manufacturer’s instructions.

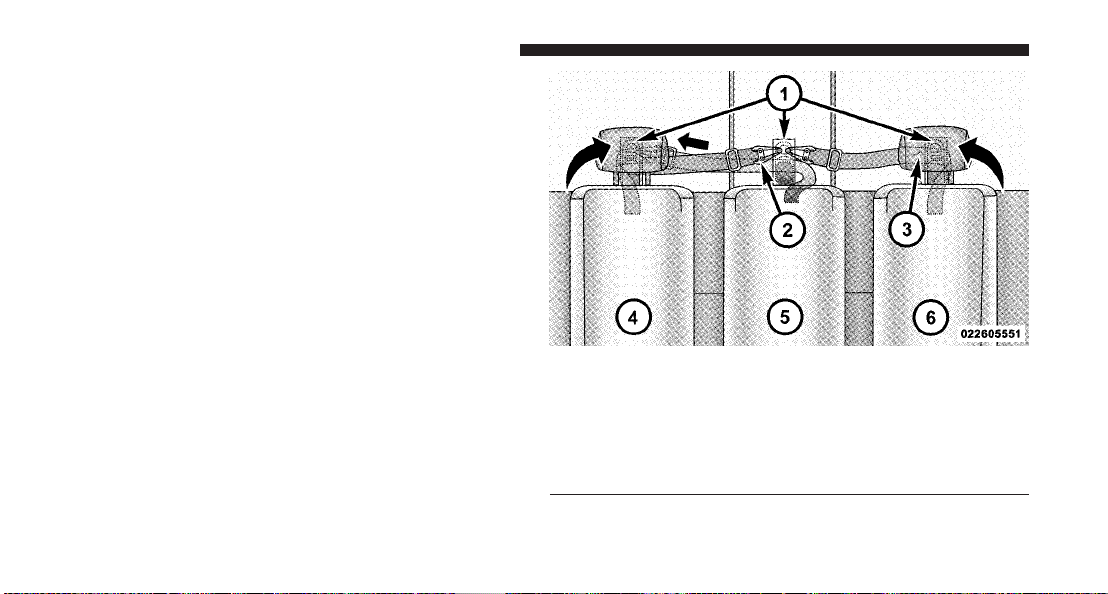

Multiple Child Restraint Quad Cab威/Mega Cab威
1 — Inner Anchor Strap Ring(s)
2 — Snap Hook
3 — Tether Strap
4 — Passenger’s Side Rear Child Seat
5 — Rear Center Child Seat
6 — Driver’s Side Rear Child Seat
Crew Cab
The tether straps loops are located between the rear glass
1.
and the rear seat. There is a tether strap loop located behind
each seating position. You can gain access to the center
seating position tether strap loop by raising the head restraint and reaching between the rear glass and rear seat.
Head Restraint Adjustment
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75
2. Place a child restraint on each outboard rear seat and
adjust the tether strap so that it will reach under the head
restraint, through the outboard tether strap loop, then
route it to the tether strap loop located directly behind
the center rear seat.
3. Pass each tether strap hook under the head restraint
and through the loop of webbing behind the child seat.
4. Route each tether strap through the tether strap loop
behind the center seat, and attach the hooks to the anchor
located directly behind the center rear seat located under
a plastic cover.
5. Place a child restraint on the center rear seat and
adjust the tether strap so that it will reach under the head
restraint through the center seat tether strap loop and
anchor to the tether strap loop located behind either
outboard seating positions.
2
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
6. Install each child restraint and remove the slack in the
tether strap according to the child restraint manufacturer’s instructions.
Children Too Large for Booster Seats
Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seat back should use the lap/shoulder belt in a rear seat.
•
Make sure that the child is upright in the seat.
•
The lap portion should be low on the hips and as snug
as possible.
•
Check belt fit periodically. A child’s squirming or
slouching can move the belt out of position.
If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.
Transporting Pets
Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision. Pets should be restrained in the rear seat in
pet harnesses or pet carriers that are secured by seat belts.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.
Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the
limits of local traffic laws, contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detrimental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur. For
the recommended viscosity and quality grades refer to
“Maintenance Procedures” in “Maintaining Your Vehicle”. NON-DETERGENT OR STRAIGHT MINERAL
OILS MUST NEVER BE USED.
A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered a normal part of the break-in and not interpreted as an indication of difficulty.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
•
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously injured or killed.
•
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•
Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
2
78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO)
follow these safety tips:
Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in or
out of the area.
If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed.
If you are required to drive with the trunk/liftgate open,
make sure that all windows are closed and the climate
control BLOWER switch is set at high speed. DO NOT
use the recirculation mode.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the complete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.
Safety Checks You Should Make Inside the Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.
Airbag Warning Light
The light should come on and remain on for six to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see your
authorized dealer. If the light stays on, flickers, or comes
on while driving, have the system checked by an authorized dealer.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Periodic Safety Checks You Should Make Outside the Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect the tread and sidewall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires (including spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
2
80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
䡵 Mirrors .............................. 87
▫ Illuminated Vanity Mirror — If Equipped .... 92
3
▫ Inside Day/Night Mirror ................ 87
▫ Automatic Dimming Mirror —
If Equipped ......................... 88
▫ Outside Mirrors ...................... 88
▫ Outside Mirrors Folding Feature .......... 89
▫ Power Mirrors — If Equipped ............ 90
▫ Heated Mirrors — If Equipped ............ 91
▫ Driver’s Automatic Dimming Mirror —
If Equipped ......................... 91
▫ “Slide-On-Rod” Features Of Sun Visor —
If Equipped ......................... 92
▫ Trailer Towing Mirrors — If Equipped ...... 93
䡵 Uconnect™ phone — If Equipped ........... 94
䡵 Voice Command — If Equipped ............ 94
䡵 Seats ............................... 94
▫ Manual Seat Adjuster — If Equipped ....... 95
▫ Manual Reclining Seats — If Equipped ...... 96
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
▫ Adjustable Head Restraints .............. 97
▫ Driver Easy Exit And Easy Entry Control . . . 112
▫ Eight-Way Power Seats — If Equipped ..... 100
▫ Power Lumbar — If Equipped ........... 101
▫ Heated Seats — If Equipped ............ 102
▫ Ventilated Seats — If Equipped .......... 104
▫ 40-20-40 Front Bench Seat — If Equipped . . . 104
▫ Mega Cab威 Rear Seat Features ........... 105
䡵 Driver Memory Seat — If Equipped ........ 108
▫ Setting Memory Positions And Linking RKE
Transmitter To Memory ................ 109
▫ Memory Position Recall ................ 110
▫ To Disable a RKE Transmitter Linked To
Memory ............................111
▫ Self-Limiting Control .................. 112
䡵 To Open And Close The Hood ............ 113
䡵 Lights ............................. 115
▫ Headlights ......................... 116
▫ Automatic Headlights — If Equipped ...... 116
▫ Smartbeam™ — If Equipped ............ 117
▫ Headlight Delay ..................... 118
▫ Parking Lights And Panel Lights ......... 118
▫ Fog Lights — If Equipped .............. 118
▫ Interior Lights ...................... 119
▫ Cargo Light ........................ 120
▫ Lights-On Reminder .................. 120
▫ Battery Saver ....................... 120
▫ Daytime Running Lights (DRL)
(Canada Only And Fleet Vehicles) ......... 121
▫ Multifunction Lever .................. 121
䡵 Windshield Wipers And Washers .......... 123
▫ Windshield Wipers ................... 123
▫ Windshield Washers .................. 124
▫ Mist Feature ........................ 124
䡵 Tilt Steering Column ................... 124
䡵 Heated Steering Wheel — If Equipped ...... 125
䡵 Driver Adjustable Pedals — If Equipped ..... 127
▫ Adjustment ........................ 127
䡵 Electronic Speed Control — If Equipped ..... 128
▫ To Activate ......................... 129
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
▫ To Set a Desired Speed ................ 129
▫ Deactivating Electronic Speed Control ...... 130
▫ To Resume Speed .................... 130
▫ Varying The Speed Setting .............. 130
3
▫ To Accelerate For Passing .............. 131
䡵 Parksense威 Rear Park Assist — If Equipped . . . 132
▫ Parksense威 Sensors ................... 132
▫ Parksense威 Warning Display ............ 132
▫ Enable/Disable Parksense威 ............. 137
▫ Service Parksense威 ................... 138
▫ Cleaning Parksense威 .................. 138
▫ Parksense威 System Usage
And Precautions ..................... 138
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
䡵 Parkview威 Rear Back Up Camera —
If Equipped .......................... 141
▫ Turning Parkview威 On Or Off —
With Navigation/Multimedia Radio ....... 142
▫ Turning Parkview威 On Or Off —
Without Navigation/Multimedia Radio ..... 143
▫ Security ........................... 150
▫ Troubleshooting Tips .................. 151
▫ General Information .................. 151
䡵 Power Sunroof — If Equipped ............ 152
▫ Open Sunroof — Express Mode .......... 153
䡵 Overhead Console — If Equipped .......... 143
▫ Courtesy/Reading Lights .............. 144
䡵 Garage Door Opener — If Equipped ........ 145
▫ Programming HomeLink威 .............. 147
▫ Gate Operator/Canadian Programming .... 149
▫ Using HomeLink威 ................... 150
▫ Reprogramming A Single HomeLink威
Button ............................ 150
▫ Closing Sunroof — Express ............. 153
▫ Pinch Protect Feature ................. 153
▫ Pinch Protect Override ................ 153
▫ Venting Sunroof — Express ............. 153
▫ Sunshade Operation .................. 154
▫ Wind Buffeting ...................... 154
▫ Sunroof Maintenance ................. 154
▫ Sunroof Fully Closed .................. 154
䡵 Electrical Power Outlets ................. 154
䡵 Cigar Lighter And Ash Receiver —
If Equipped .......................... 158
䡵 Power Inverter — If Equipped ............ 159
䡵 Cupholders .......................... 161
▫ Front Instrument Panel Cupholders —
(40–20–40 Seats) ..................... 161
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
▫ Center Storage Compartment —
If Equipped ........................ 166
▫ Second Row In-Floor Storage Bin —
If Equipped ........................ 168
▫ Seatback Storage ..................... 169
▫ Storage (Regular Cab) ................. 169
▫ Storage And Seats (Crew Cab) ........... 170
3
▫ Front Instrument Panel Cupholders —
Floor Mounted Shifter ................. 162
▫ Rear Cupholder — Quad Cab威 .......... 162
▫ Rear Cupholder — Crew Cab ........... 163
䡵 Storage ............................. 163
▫ Glove Box Storage ................... 163
▫ Door Storage ....................... 165
▫ Plastic Grocery Bag Retainers
(Regular Cab Models) ................. 170
䡵 Rear Window Features .................. 171
▫ Rear Window Defroster ................ 171
▫ Power Sliding Rear Window —
If Equipped ........................ 172
▫ Manual Sliding Rear Window —
If Equipped ........................ 172
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
䡵 Fold Flat Load Floor — If Equipped ........ 173
䡵 Slide-In Campers ...................... 189
䡵 Rambox威 — If Equipped ................ 175
▫ Rambox威 Integrated Box Side
Storage Bins ........................ 176
▫ Rambox威 Safety Warning ............... 179
▫ Bed Extender — If Equipped ............ 180
▫ Bed Rail Tie-Down System .............. 187
▫ Camper Applications .................. 189
䡵 Easy-Off Tailgate ...................... 189
▫ Disconnecting The Rear Camera —
If Equipped ........................ 189
▫ Removing The Tailgate ................ 190
▫ Locking Tailgate — If Equipped .......... 191
MIRRORS
Inside Day/Night Mirror
Headlight glare can be reduced by moving the small
control lever under the mirror to the night position (lever
flipped toward the rear of vehicle).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3
Adjusting Rearview Mirror
The mirror should be adjusted with the lever set in the
day position (lever flipped toward the windshield). The
mirror should be adjusted to center on the view through
the rear window.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the power button at the base of the mirror.
A light next to the button will illuminate when the
dimming feature is activated.
Automatic Dimming Mirror
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
WARNING!
Vehicles and other objects seen in a passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Some vehicles will not have a convex right side
mirror.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3
Outside Mirrors Folding Feature
All outside mirrors are hinged and may be moved either
forward or rearward to resist damage.
Folding Mirror
CAUTION!
It is recommended to fold the mirrors into the full
rearward position to resist damage when entering a
car wash or a narrow location.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Power Mirrors — If Equipped
The controls for the power mirrors are located on the
driver’s door trim panel.
Power Mirror Controls
The power mirror controls consist of mirror select buttons and a four-way mirror control switch.
Power Mirror Controls
1 — Mirror Select Buttons
2 — Mirror Control
To adjust a mirror, press the mirror select button for the
mirror that you want to adjust. Using the mirror control
switch, press on any of the four arrows for the direction
that you want the mirror to move.
Power Mirror Movement
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
“Understanding the Features of Your Vehicle” for further
information.
Driver’s Automatic Dimming Mirror — If Equipped
The driver’s outside mirror will automatically adjust for
glare from vehicles behind you. This feature is controlled
by the inside automatic dimming mirror and can be
turned on or off by pressing the button at the base of the
inside mirror. The mirror will automatically adjust for
headlight glare when the inside mirror adjusts.
3
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Illuminated Vanity Mirror — If Equipped
Illuminated vanity mirrors are located on each sun visor.
To use the mirror, rotate the sun visor down and swing
the mirror cover upward. The lights will turn on automatically. Closing the mirror cover turns off the light.
Illuminated Vanity Mirror
“Slide-On-Rod” Features of Sun Visor — If Equipped
The sun visor “Slide-On-Rod” feature allows for additional
flexibility in positioning the visor to block out the sun.
To use the “Slide-On-Rod” feature, rotate the sun visor
downward and unclip it. Pull the sun visor along the
“Slide-On-Rod” until the sun visor is in the desired position.
Slide-On-Rod Extender
Trailer Towing Mirrors — If Equipped
These mirrors are designed with an adjustable mirror
head to provide a greater vision range when towing
extra-wide loads. To change position inboard or outboard, the mirror head should be rotated (flipped in or
out).
Trailer Towing Position
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
NOTE: Fold the trailer towing mirrors rearward prior to
entering an automated car wash.
A small blindspot mirror is located next to main mirror
and can be adjusted separately.
3
Blindspot Mirror
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Uconnect™ Phone — IF EQUIPPED
Refer to “Uconnect™ Phone” in the Uconnect™ User
Manual located on the DVD for further details.
VOICE COMMAND — IF EQUIPPED
Refer to “Voice Command” in the Uconnect™ Phone
User Manual located on the DVD for further details.
SEATS
Seats are a primary part of the Occupant Restraint System
of the vehicle. Proper use of the seats is needed for safe
operation of the vehicle.
WARNING!
•
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously injured or killed.
•
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•
Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Seat Adjuster — If Equipped
Both front seats are independently adjustable forward or
rearward and are equipped with a seatback recliner. The
manual forward or rearward seat adjustment handle is
found under the seat cushion at the front edge of each
seat. Pull up on the handle and slide the seat forward or
backward to move the seat into the most comfortable
position.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3
Manual Seat Adjuster
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
Manual Reclining Seats — If Equipped
The recliner handle is located on the outside of the seat
cushion and is used to adjust the seatback position. To
adjust the seatback, lift upward on the handle, lean back
on the seatback and release the handle at the desired
position. To return the seatback, lift upward on the
handle, lean forward and release the handle at the
desired position.
Recline Handle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
WARNING!
•
Actuating the recliner handle will allow the seatback to swing (dump) forward on manual recliner
seats. Do not stand or lean in front of the seat
while actuating the handle. The seatback may
swing forward and hit you causing injury. This
dump feature allows access to the storage bin
behind the seat. To avoid injury, place your hand
on the seatback and actuate the handle then position the seatback in the desired position.
(Continued)
WARNING! (Continued)
•
You can be seriously, even fatally, injured riding in
a seat with the seatback reclined. Do not ride with
the seatback reclined so that the shoulder belt is
no longer resting against your chest. If you ride in
this position, the shoulder harness will no longer
be restraining you. In a collision you could slide
under the seat belt and receive serious or fatal
injuries. Recline in a seat only when the vehicle is
parked.
Adjustable Head Restraints
Head restraints can reduce the risk of injury in the event
of a rear impact. The head restraint should be adjusted so
the top of the head restraint is located above the top of
your ear.
3
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the large
button, located on the base of the head restraint, and
push downward on the head restraint.
Adjusting Head Restraint Removing Head Restraint
To remove the head restraint, pull upward on the head
restraint to it’s highest position, push in both buttons at
the base of each head restraint rod, and simultaneously
pull up on the head restraint.
To install the head restraint, insert the head restraint rods
into each guide, apply pressure down on the headrest
until the head restraint reaches the first lock position,
push the large button in and push down and adjust head
restraint to desired position.
NOTE: Ensure that the front of the head restraint is
facing toward the front of the vehicle.
WARNING!
Driving a vehicle with the head restraints removed or
improperly adjusted could cause serious injury or
death in the event of a collision. The head restraints
should always be checked prior to operating the
vehicle and never adjusted while the vehicle is in
motion. Always adjust the head restraints when the
vehicle is in PARK.
Rear Head Restraints
The outboard head restraints can be adjusted. To raise the
head restraint, pull upward on the head restraint. To
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
lower the head restraint, press the large button, located
on the base of the head restraint, and push downward on
the head restraint.
3
Adjustable Rear Head Restraints
NOTE: The rear center head restraint (Crew Cab only) is
fixed and cannot be adjusted.
Loading...
