INTRODUCTION
1
䡵 Introduction ...........................4
䡵 How To Use This Manual ..................4
䡵 Warnings And Cautions ...................5
䡵 Van Conversions/Campers .................5
䡵 Vehicle Identification Number ...............5
䡵 Vehicle Modifications / Alterations ...........6
4 INTRODUCTION
INTRODUCTION
This manual has been prepared with the assistance of
service and engineering specialists to acquaint you with
the operation and maintenance of your new vehicle. It is
supplemented by a Warranty Information Booklet and
various customer oriented documents. You are urged to
read these publications carefully. Following the instructions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient reference and remain with
the vehicle when sold, so that the new owner will be
aware of all safety warnings.
When it comes to service, remember that your dealer
knows your vehicle best, has the factory-trained technicians and genuine Mopar威 parts, and is interested in
your satisfaction.
WARNING!
Engine exhaust, some of its constituents, and certain
vehicle components contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm. In addition,
certain fluids contained in vehicles and certain products of component wear contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm.
HOW TO USE THIS MANUAL
Consult the table of contents to determine which section
contains the information you desire.
The detailed index, at the rear of this manual, contains a
complete listing of all subjects.
INTRODUCTION 5
WARNINGS AND CAUTIONS
This manual contains WARNINGS against operating
procedures which could result in an accident or bodily
injury. It also contains CAUTIONS against procedures
which could result in damage to your vehicle. If you do
not read this entire manual you may miss important
information. Observe all Warnings and Cautions.
VAN CONVERSIONS/CAMPERS
The Manufacturer’s Warranty does not apply to body
modifications or special equipment installed by van
conversion/camper manufacturers/ body builders. See
the Warranty information book, Section 2.1.C. Such
equipment includes video monitors, VCRs, heaters,
stoves, refrigerators, etc. For warranty coverage and
service on these items, contact the applicable manufacturer.
Operating instructions for the special equipment installed by the conversion/camper manufacturer should
also be supplied with your vehicle. If these instructions
are missing, please contact your selling dealer for assistance in obtaining replacement documents from the
applicable manufacturer.
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number (VIN) is found on a
stamped plate located on the left front corner of the
instrument panel pad, visible from outside of the vehicle
through the windshield. This number also appears on the
Automobile Information Disclosure Label affixed to a
window on your vehicle. Save this label for a convenient
record of your vehicle identification number and optional
equipment.
1
6 INTRODUCTION
NOTE: It is illegal to remove the VIN plate.
VEHICLE MODIFICATIONS / ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle
could seriously affect its roadworthiness and safety
and may lead to an accident resulting in serious
injury or death.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
䡵 A Word About Your Keys ..................10
▫ Key-In-Ignition Reminder ................10
▫ Sentry Key — If Equipped ................10
䡵 Ignition And Steering Lock — If Equipped ......13
▫ Manual Transmissions ...................13
䡵 Door Key .............................13
䡵 Door Locks ............................13
2
▫ Power Door Locks .....................13
䡵 Remote Keyless Entry — If Equipped .........16
▫ To Unlock The Doors ...................16
▫ To Lock The Doors .....................17
▫ Using The Panic Alarm ..................18
▫ General Information ....................18
▫ Transmitter Battery Service ...............19
8 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
䡵 Security Alarm System — If Equipped .........20
▫ Rearming Of The System .................20
▫ To Set The Alarm ......................20
▫ To Disarm The System ...................20
䡵 Windows .............................21
▫ Power Windows—If Equipped .............21
▫ Power Sliding Rear Window—If Equipped ....23
▫ Sliding Rear Window ...................24
▫ Wind Buffeting ........................24
䡵 Occupant Restraints ......................24
▫ Lap/Shoulder Belts .....................25
▫ Adjustable Upper Shoulder Belt Anchorage ....32
▫ Automatic Locking Retractors (ALR) Mode –
If Equipped ..........................33
▫ Center Lap Belts .......................34
▫ Seat Belt Pretensioners ...................34
▫ Enhanced Seat Belt Reminder System
(BeltAlert) ...........................35
▫ Seat Belts And Pregnant Women ............36
▫ Seat Belt Extender ......................36
▫ Driver And Right Front Passenger Supplemental
Restraint System (SRS)—Airbags ...........37
▫ Event Data Recorder (EDR) ...............53
▫ Child Restraint ........................55
䡵 Engine Break-In Recommendations ...........67
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 9
䡵 Safety Tips ............................68
▫ Transporting Passengers .................68
▫ Lock Your Vehicle ......................68
▫ Exhaust Gas ..........................69
▫ Safety Checks You Should Make Inside The
Vehicle ..............................70
▫ Safety Checks You Should Make Outside The
Vehicle ..............................70
2
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
A WORD ABOUT YOUR KEYS
The double sided keys may be inserted into the locks
with either side up. The keys for your new vehicle are
enclosed in a plastic bag with a bar code label affixed to
the front. The bar code can be used to order duplicate
keys from your dealer or a locksmith. If you received
your keys without the bag, ask your dealer to give you
the number.
Key-In-Ignition Reminder
If you open the driver’s door when the key is in the
ignition switch, a chime will sound to remind you to
remove the key.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock
all the doors when leaving the vehicle unattended.
SENTRY KEY — IF EQUIPPED
With this system, an electronically coded ignition key
sends a signal to the vehicle electronics. If the electronics
recognizes the signal, the vehicle will start and continue
to run. If the system does not recognize the signal the
vehicle will start and run for a maximum of 2 seconds
after the initial key ON. After six unsuccessful attempts
at starting, the system will shut down until the correct
key is used.
NOTE: The Sentry Key Immobilizer System is not
compatible with remote starting systems. Use of these
systems may result in vehicle starting problems and a
loss of security protection. Additional Sentry Keys or
Mobil Speed-pass™ devices held against or immediately
adjacent to the ignition key when starting the engine may
cause vehicle starting problems. If a problem occurs,
remove the Sentry Key from the key-ring and attempt to
start the vehicle again. Pagers, cell phones, walkman, etc.
will have no effect on this system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
The ⬙Security Light⬙, located in the instrument cluster,
will illuminate for about 3 seconds when the ignition
switch is first turned to the ON position. If the vehicle
electronics do not receive a valid signal from the ignition
key, the ⬙Security Light⬙ will flash continuously to signal
that the vehicle has been immobilized. If the ⬙Security
Light⬙ remains on during vehicle operation, it indicates a
fault in the system electronics. If this option was ordered,
all of the keys provided with your new vehicle have been
programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it cannot
be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four digit PIN. This number is required for dealer
replacement of keys. Duplication of keys may be performed at an authorized dealer or by using the Customer
Key Programming procedure. This procedure consists of
programming a blank key to the vehicle electronics. A
blank key is one which has never been programmed and
needs to be cut.
NOTE: When having the Sentry Key System serviced,
bring all vehicle keys to the dealer.
Customer Key Programming
You can program new keys to the system if you have two
valid keys by doing the following:
1. Insert the first valid key into the ignition and turn the
ignition to the ON position for at least 3 seconds but no
longer than 15 seconds. Turn the ignition back to the OFF
position and remove the first key.
2
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
2. Insert the second valid key and switch the ignition to
the ON position within 15 seconds. After 10 seconds the
⬙Security Light⬙ will begin to flash. Turn the ignition back
to the OFF position and remove the second key.
3. Insert a blank Sentry Key into the ignition and switch
the ignition to the ON position within 60 seconds of
having removed the second key. After 10 seconds the
⬙Security Light⬙ will stop flashing, then turn on for 3
seconds; then turn off.
The new Sentry Key has been programmed. The Keyless
Entry Transmitter will also be programmed during this
procedure. Repeat this process to program up to an
additional 6 keys. A maximum of 8 keys can be programmed to the system, including the original keys
provided with the vehicle.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
IGNITION AND STEERING LOCK — IF EQUIPPED
Manual Transmissions
Depress and hold the release button located between the
ignition switch and the instrument panel. Turn the ignition key to LOCK and remove the key.
Manual Transmissions
DOOR KEY
The same key used to start the vehicle is also used to
unlock the doors. To unlock the vehicle doors, insert the
key into the lock and turn.
To lock the doors, insert the key and turn.
DOOR LOCKS
Power Door Locks
WARNING!
For personal security and safety in the event of an
accident, lock the vehicle doors when you drive as
well as when you park and leave the vehicle.
2
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
When leaving the vehicle always remove the key
from the ignition lock, and lock your vehicle. Do not
leave children unattended in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment may cause severe personal injuries and death.
NOTE: Vehicles equipped with remote keyless entry do
not have a passenger side door lock cylinder.
Vehicles equipped with power door locks can be locked
or unlocked from inside by either the use of the door lock
switches located on the front doors or by pressing the
LOCK or UNLOCK buttons on the Remote Keyless Entry
key fob (if equipped).
Power Door Lock Switch Location
As a safety feature the doors will not lock when using the
door lock switches during the following condition:
•
The driver’s door is open while the key is in the
ignition.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
Automatic Door Locks
If this feature is enabled, your door locks will lock
automatically when the vehicle’s speed exceeds 15 mph.
This feature is enabled when your vehicle is shipped
from the assembly plant and can be disabled by using the
following procedure:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure).
3. Place the key into the ignition.
4. Within 15 seconds cycle the key from the OFF position
to the ON position four times; ending in the OFF position
( Do not start the engine ).
5. Within 30 seconds, press the driver’s door lock switch
in the LOCK direction.
6. Asingle chime will be heardto indicate the feature has
been disabled.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, program mode was canceled
before the feature could be disabled. If necessary, repeat
the above procedure.
2
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
REMOTE KEYLESS ENTRY — IF EQUIPPED
Three Button Transmitter
This system allows you to lock or unlock the doors from
distances up to about 23 feet (7 meters) using a hand held
radio transmitter. The transmitter need not be pointed at
the vehicle to activate the system.
To unlock the doors:
Press and release the UNLOCK button on the key fob
once to unlock only the driver’s door or twice to unlock
all the doors. When the UNLOCK button is pressed, the
illuminated entry will initiate, the parking lights will
flash on twice and if installed, thecargo lamp will turn on
for 30 seconds.
The system can be programmed to unlock allthe doors or
drivers door only upon the first UNLOCK button press
by using the following procedure:
1. Perform this operation while standing outside the
vehicle.
2. Press and hold the LOCK button on your key.
3. Continue to hold the LOCK button at least 4 seconds,
but no longer than 10 seconds, then press and hold the
UNLOCK button while still holding the LOCK button.
4. Release both buttons at the same time.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
5. This will enable you to unlock all doors on the first
press of the UNLOCK button.
To lock the doors:
Press and release the LOCK button on the transmitter to
lock all doors. If the ignition is OFF, when the doors are
locked, the parking lights will flash on once and the horn
will chirp once.
The horn chirp featurewill be shipped from the assembly
plants activated. If desired this feature can be disabled by
using the following procedure:
1. Perform this operation while standing outside the
vehicle.
2. Press and hold the LOCK button on a programmed
(i.e. functional) key fob.
3. Continue to hold the LOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the PANIC button. Release both buttons at the same
time.
4. To reactivate this feature, repeat the above steps.
Vehicles will be shipped from the assembly plants with
the park lamp flash feature activated. If desired, this
feature can be disabled by using the following procedure:
1. Perform this operation while standing outside the
vehicle.
2. Press and hold the UNLOCK button on a programmed
(i.e. functional) key fob.
3. Continue to hold the UNLOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the LOCK button. Release both buttons at the same
time.
2
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
4. To reactivate this feature, repeat the above steps.
Using the Panic Alarm
To activate the Panicmode while the ignitionis OFF press
and release the PANIC button on the transmitter once.
When the Panic mode is activated, the interior lights will
illuminate, the headlamps and parking lights will flash,
and the horn will sound.
To cancel the Panic mode press and release the PANIC
button on the transmitter a second time. Panic mode will
automatically cancel after 3 minutes or if the vehicle is
started and exceeds 15 mph. During the Panic Mode, the
door locks and remote keyless entry systems will function normally. Panic mode will not disarm the security
system on vehicles so equipped.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your Keyless Entry Transmitter fails to operate from a
normal distance, check for these two conditions.
1. Weak batteries in transmitter. The expected life of the
batteries is from one to two years.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
Transmitter Battery Service
Transmitter Battery Replacement
The recommended replacement battery is a 3V lithium
2016 cell. This transmitter requires two batteries.
NOTE: Do not touch the battery terminals that are on
the back housing or the printed circuit board.
1. With transmitter buttons facing down, use a flat blade
or dime to pry the two halves of the transmitter apart.
Make sure not to damage the rubber gasket during
removal.
2. Remove and replace the batteries. Be careful not to
disturb the metal terminal near the batteries. Install the
batteries with the positive terminal up, reference the note
⬙+ SIDE UP⬙ on the inside of the bottom half of the
transmitter case. Avoid touching the new batteries with
your fingers. Skin oils may cause battery deterioration. If
you touch a battery, clean it with rubbing alcohol.
3. To reassemble the transmitter case snap the two halves
together. Make sure there is an even gap between the two
halves. Test transmitter operation.
2
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
SECURITY ALARM SYSTEM — IF EQUIPPED
This system monitors the vehicle doors and ignition for
unauthorized operation. When the alarm is activated, the
system provides both audible and visual signals. For the
first 3 minutes the horn will sound and the headlights
and security telltale will flash repeatedly. For an additional 15 minutes only the headlights and security telltale
will flash. The engine will run only if a valid Sentry Key
is used to start the vehicle. Use of the Sentry Key will
disable the alarm.
Rearming of the System:
The security system will rearm itself after the 15 additional minutes of headlights and security telltale flashing,
if the system has not been disabled. If the condition
which initiated the alarm is still present, the system will
ignore that condition and monitor the remaining doors
and ignition.
To Set the Alarm:
The alarm will set when you use the power door locks, or
use the Keyless Entry transmitter to lock the doors. After
all the doors are locked and closed the SECURITYlight in
the instrument cluster will flash rapidly to signal that the
system is arming. The security light in the instrument
panel cluster will flash rapidly for about 16 seconds to
indicate that the alarm is being set. After the alarm is set,
the security light will flash at a slower rate to indicate
that the system is armed.
NOTE: If the SECURITY light stays on continuously
during vehicle operation, have the system checked by
your dealer.
To Disarm the System:
Use the Keyless Entry transmitter to unlock the door. If
something has triggered the system in your absence, the
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
horn will sound three times when you unlock the doors
and the security lamp will flash for 30 seconds. Check the
vehicle for tampering.
The Security system will also disarm, if the vehicle is
started with a programmed Sentry Key. If an unprogrammed Sentry Key is used to start a vehicle, the engine
will run for 2 seconds and then the security alarm will be
initiated. To exit alarming mode, press the transmitter
Unlock button, or start the vehicle with a programmed
Sentry Key.
The Security Alarm System is designed to protect your
vehicle; however, you can create conditions where the
system will arm unexpectedly. If you remain in the
vehicle and lock the doors with the transmitter, the alarm
will sound when you pull the door handle to exit. The
door will be locked but the Security Alarm will not arm.
WINDOWS
Power Windows—If Equipped
2
Power Window Switch Location
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Power Window Switches
The control on the left front door panel has up-down
switches that give you fingertip control of all power
windows. There is a single opening and closing switch on
the front passenger door for passenger window control.
The windows will operate only when the ignition switch
is turned to the ON or ACC (Accessory) position.
WARNING!
Never leave children in a vehicle, with the keys in
the ignition switch. Occupants, particularly unattended children, can become entrapped by the windows while operating the power window switches.
Such entrapment may result in serious injury or
death.
Auto Down (Driver’s Side Only)
The driver’s window switch has an Auto Down feature.
Press the window switch past the detent, release, and the
window will go down automatically.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
Window Lockout Switch (4 Door Models Only)
The window lockout switch on the driver’s door allows
you to disable the window control on the other doors. To
disable the window controls on the other doors, press the
window lock button. To enable the window controls,
press the window control button again.
Window Lockout Switch
Power Sliding Rear Window—If Equipped
2
Power Sliding Rear Window Switch
The power sliding rear window switch is located on the
instrument panel below the climate controls. Press the
right side of the switch to open the glass and the left side
of the switch to close the glass.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Sliding Rear Window
A locking device in the center of the window helps to
prevent entry from the rear of the vehicle. Squeeze the
lock to release the window.
WIND BUFFETING
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down or partially open positions. This is a
normal occurrence and can be minimized. If the buffeting
occurs with the rear sliding glass open, open the front
and rear sliding glass together to minimize the buffeting.
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, front
airbags for both the driver and front passenger and, if so
equipped, window bags for the driver and passengers
seated next to a window. If you will be carrying children
too small for adult-size belts, your seat belts also can be
used to hold infant and child restraint systems.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
WARNING!
In a collision, you and your passengers can suffer
much greater injuries if you are not properly buckled up. You can strike the interior of your vehicle or
other passengers, or you can be thrown out of the
vehicle. Always be sure you and others in your
vehicle are buckled up properly.
Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause a collision that includes you. This can happen
far away from home or on your own street.
Research has shown that seat belts save lives, and that
they can reduce the seriousness of injuries in a collision.
Some of the worst injuries happen when people are
thrown from the vehicle. Seat belts reduce the possibility
of ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.
Lap/Shoulder Belts
All seating positions except the Quad Cab front center
seating position have combination lap/shoulder belts.
The belt webbing retractor is designed to lock during
very sudden stops or collisions. This feature allows the
shoulder part of the belt to move freely with you under
normal conditions. But in a collision, the belt will lock
and reduce the risk of your striking the inside of the
vehicle or being thrown out.
2
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
WARNING!
•
Wearing a seat belt incorrectly is dangerous. Seat
belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of a collision the
best. Wearing your belt in the wrong place could
make your injuries in a collision much worse. You
might suffer internal injuries, or you could even
slide out of part of the belt. Follow these instructions to wear your seat belt safely and to keep
your passengers safe, too.
•
Two people should never be belted into a single
seat belt. People belted together can crash into one
another in an accident, hurting one another badly.
Never use a lap/shoulder belt or a lap belt for
more than one person, no matter what their size.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
Lap/Shoulder Belt Operating Instructions
1. Enter the vehicle and close the door. Sit back and
adjust the seat.
Latch Plate
2. The seat belt latch plate is above the back of the front
seat, next to your arm in the rear seat. Grasp the latch
plate and pull out the belt. Slide the latch plate up the
webbing as far as necessary to allow the belt to go around
your lap.
3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”
Removing Slack From Belt
2
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
•
A belt buckled into the wrong buckle will not protect
you properly. The lap portion could ride too high on
your body, possibly causing internal injuries. Always
buckle your belt into the buckle nearest you.
•
A belt that is too loose will not protect you as well. In
a sudden stop you could move too far forward, increasing the possibility of injury. Wear your seat belt snugly.
•
A belt that is worn under your arm is very dangerous.
Your body could strike the inside surfaces of the vehicle
in a collision, increasing head and neck injury. And a
belt worn under the arm can cause internal injuries.
Ribs aren’t as strong as shoulder bones. Wear the belt
over your shoulder so that your strongest bones will
take the force in a collision.
•
A shoulder belt placed behind will not protect you
from injury during a collision. You are more likely to
hit your head in a collision if you do not wear your
shoulder belt. The lap and shoulder belt are meant to be
used together.
4. Position the lap belt across your thighs, below your
abdomen. To remove slack in the lap belt portion, pull up
on the shoulder belt. To loosen the lapbelt if it is too tight,
tilt the latch plate and pull on the lap belt. A snug belt
reduces the risk of sliding under the belt in a collision.
Removing Slack From Belt
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
WARNING!
• A lap belt worn too high can increase the risk of
internal injury in a collision. The belt forces won’t
be at the strong hip and pelvic bones, but across your
abdomen. Always wear the lap belt as low as possible and keep it snug.
• A twisted belt can’t do its job as well. In a collision
it could even cut into you. Be sure the belt is straight.
If you can’t straighten a belt in your vehicle, take it
to your dealer and have it fixed.
5. Position the shoulder belt on your chest so that it is
comfortable and not resting on your neck. The retractor
will withdraw any slack in the belt.
6. To release the belt, push the red button on the buckle.
The belt will automatically retract to its stowed position.
If necessary, slide the latch plate down the webbing to
allow the belt to retract fully.
WARNING!
A frayed or torn belt could rip apart in a collision
and leave you with no protection. Inspect the belt
system periodically, checking for cuts, frays, or loose
parts. Damaged parts must be replaced immediately.
Do not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (bent retractor, torn webbing,
etc.) or if the airbag deployed.
2
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Standard Cab Front Center Three Point Belt
1. The front center seat belt on the Standard Cab may be
disconnected to open up utilization of the storage areas
behind the front seats. The black latch plate can be
detached from the black keyed seat belt bucklelocated on
the inboard side of the passenger seat. Insert the vehicle
ignition key intothe center white slot on the black buckle.
The black buckle latch plate can be removed when the
key is pressed into the buckle. Allow the retractor to take
up the surplus webbing, and the buckles will hang
vertically from the cab back exit bezel, thus freeing up all
the area behind the front seats.
Detaching Buckle With Key
2. To reattach the seat belt to the front center seat, pull
the black buckle latch plate forward from the cab back
panel and insert it into the black keyed buckle until there
is an audible click. Refer to the previous section for the
proper seat belt usage.
WARNING!
•
If the black latch and black buckle are not properly connected when the seat belt is used by an
occupant, the seat belt will not be able to provide
proper restraint and will increase the risk of
injury in a collision.
•
When reattaching the black latch and black
buckle, ensure the seat belt webbing is not
twisted. If the webbing is twisted, follow the
preceding procedure to detach the black latch and
black buckle, untwist the webbing, and reattach
the black latch and black buckle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
Inserting Latch Plate
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
In Use Position
WARNING!
If the black latch and buckle are not connected when
the seat belt is used by an occupant, the seat belt will
not restrain you properly.
Adjustable Upper Shoulder Belt Anchorage
In the front row outboard seats, the shoulder belt can be
adjusted upward or downward to help position the belt
away from your neck. Press the button located on the
upper belt guide, and then move it up or down to the
position that serves you best.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
Automatic Locking Retractors (ALR) Mode – If
Equipped
In this mode, the shoulder belt is automatically prelocked. The belt will still retract to remove any slack in
the shoulder belt. The automatic locking mode is available on all passenger seating positions with a combination lap/shoulder belt.
When To Use The Automatic Locking Mode
Anytime a child safety seat is installed in a passenger
seating position. Children 12 years old and under should
be properly restrained in the rear seat whenever possible.
2
Adjusting Upper Shoulder Belt
As a guide, if you are shorter than average, you will
prefer a lower position, and if you are taller than average,
you’ll prefer a higher position. When you release the
anchorage, try to move it up or down to make sure that
it is locked in position.
How To Use The Automatic Locking Mode
1. Buckle the combination lap/shoulder belt.
2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
3. Allow the belt to retract. As the belt retracts, you will
hear a clicking sound. This indicates the safety belt is
now in the automatic locking mode.
How To Disengage The Automatic Locking Mode
Disconnect the combination lap/shoulder belt and allow
it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency)
locking mode.
Center Lap Belts
The center seating position for the Quad Cab front seat
has a lap belt only. To fasten the lap belt, slide the latch
plate into the buckle until you hear a ⬙click.⬙ To lengthen
the lap belt, tilt the latch plate and pull. To remove slack,
pull the loose end of the webbing. Wear the lap belt snug
against the hips. Sit back and erect in the seat, then adjust
the belt as tightly as is comfortable.
WARNING!
•
A lap belt worn too loose or too high is dangerous.
•
A belt worn too loose can allow you to slip down
and under the belt in a collision.
•
A belt that is too loose or too high will apply crash
forces to the abdomen, not to the stronger hip
bones. In either case, the risk of internal injuries
is greater. Wear a lap belt low and snug.
Seat Belt Pretensioners
The seat belts for both front seating positions are
equipped with pretensioningdevices that are designed to
remove slack from the seat belt system in the event of a
collision. These devices improve the performance of the
seat belt by assuring that the belt is tight about the
occupant early in a collision. Pretensioners work for all
size occupants, including those in child restraints.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
NOTE: These devices are not a substitute for proper seat
belt placement by the occupant. The seat belt still must be
worn snugly and positioned properly.
The pretensioners are triggered by the airbag control
module. Like the airbags, the pretensioners are single use
items. After a collision that is severe enough to deploy
the airbags and pretensioners, both must be replaced.
Enhanced Seat Belt Reminder System (BeltAlert)
If the driver’s or front passenger’s seat belt has not been
buckled within 60 seconds of starting the vehicle and if
the vehicle speed is greater than 5 mph (8 km/h), the
Enhanced Warning System (BeltAlert) will alert the
driver or front passenger to buckle their seat belt. The
driver should also instruct all other occupants to buckle
their seat belts. Once the warning is triggered, the
Enhanced Warning System (BeltAlert) will continue to
chime and flash the Seat Belt Warning Light for 96
seconds or until the driver’s or front passenger’s seat belt
is buckled. The Enhanced Warning System (BeltAlert)
will be reactivated if the driver’s or front passenger’s seat
belt is unbuckled for more than 10 seconds and the
vehicle speed is greater than 5 mph (8 km/h).
The Enhanced Warning System (BeltAlert) can be enabled or disabled by your authorized dealer or by
following these steps:
NOTE: The following steps must occur within the first
60 seconds of the ignition switch being turned to the ON
or START position. DaimlerChrysler does not recommend deactivating the Enhanced Warning System
(BeltAlert).
1. With all doors closed and the ignition switch in any
position except On or Start, buckle the driver’s seat belt.
2. Turn the ignition switch to the ON position and wait
for the Seat Belt Warning Light to turn off.
2
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
3. Within 60 seconds of turning the ignition switch to the
ON position, unbuckle and then re-buckle the driver’s
seat belt at least three times within 10 seconds, ending
with the seat belt buckled.
NOTE: Watch for the Seat Belt Warning Light to turn on
while unbuckling and off while re-buckling the seat belt.
It may be necessary to retract the seat belt.
4. Turn the ignition switch to the LOCK position. A
single chime will sound to signify that you have successfully completed the programming.
The Enhanced Warning System (BeltAlert) can be reactivated by repeating this procedure.
NOTE: Although the Enhanced Warning System
(BeltAlert) has been deactivated, the Seat Belt Warning
Light will continue to illuminate while the driver’s seat
belt (all models) or the driver’s or passenger’s seat belts
(1500 standard and quad cab models) remain unbuckled.
Seat Belts and Pregnant Women
We recommend that pregnant women use seat belts
throughout their pregnancies. Keeping the mother safe is
the best way to keep the baby safe.
Pregnant women should wear the lap part of the belt
across the thighs and as snug against the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.
Seat Belt Extender
If a seat belt is too short, even when fully extended, your
dealer can provide you with a seat belt extender. This
extender should be used only if the existing belt is not
long enough. When it is not required, remove the extender and store it.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
WARNING!
Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use the
seat belt extender when the lap belt is not long
enough when it is worn low and snug, and in the
recommended seating positions. Remove and store
the extender when not needed.

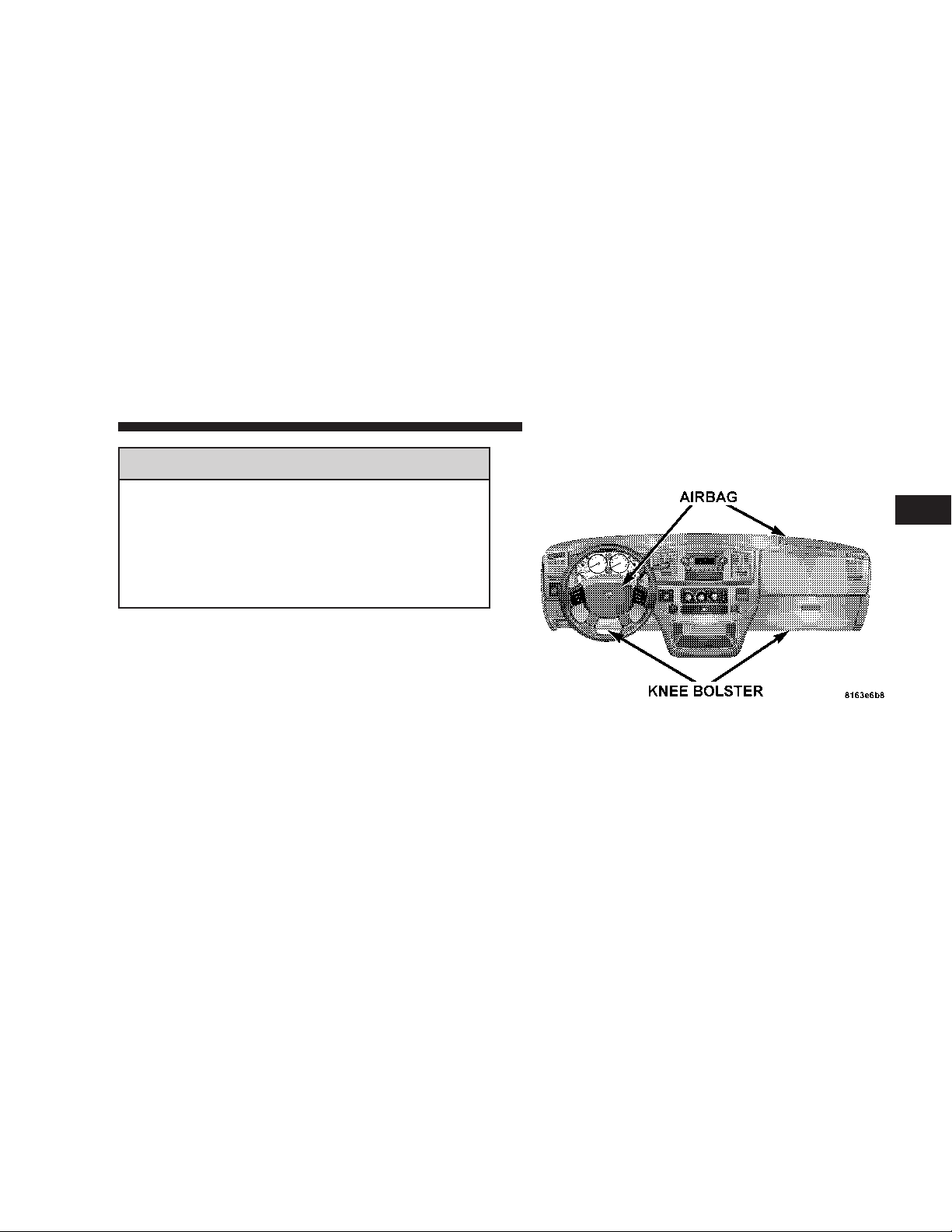

Driver And Right Front Passenger Supplemental
Restraint System (SRS)—Airbags
2
This vehicle has airbags for both the driver and right
front passenger as a supplement to the seat belt restraint
systems. The driver’s front airbag is mounted in the
steering wheel. The passenger front airbag is mounted in
the instrument panel, above the glove compartment. The
words SRS/AIRBAG are embossed on the airbag covers.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
NOTE: The front airbags are certified to the Federal
regulations that allow less forceful deployment.
The front airbags have a multistage inflator design. This
may allow the airbag to have different rates of inflation
that are based on collision severity and occupant size.
Also, the front passenger airbag may be certified to the
Federal regulations that define Occupant Classification
(Refer to ⬙Occupant Classification System⬙ in this section).
This vehicle may also be equipped with window bags to
protect the driver, front, and rear passengers sitting next
to a window. If the vehicle is equipped with window
bags, they are located above the side windows. Their
covers are also labeled SRS AIRBAG.
NOTE: Airbag covers may not be obvious in the interior
trim; but they will open to allow airbag deployment.
WARNING!
• Do not put anything on or around the front airbag
covers or attempt to manually open them. You may
damage the airbags and you could be injured because the airbags are no longer functional. These
protective covers for the airbag cushions are designed to open only when the airbags are inflating.
• If your vehicle is equipped with window bags, do
not stack luggage or other cargo up high enough to
block the location of the window bag. The area
where the window bag is located should remain
free from any obstructions.
• If your vehicle is equipped with window bags, do
not have any accessory items installed which will
alter the roof, including adding a sunroof to your
vehicle. Do not add roof racks that require permanent attachments (bolts or screws) for installation
on the vehicle roof. Do not drill into the roof of the
vehicle for any reason.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
Along with the seat belts, front airbags work with the
instrument panel knee bolsters to provide improved
protection for the driver and front passenger. Window
bags also work with seat belts to improve occupant
protection.
The seat belts are designed to protect you in many types
of collisions. The front airbags deploy in moderate to
severe frontal collisions.
NOTE: The passenger front airbag may not deploy even
if driver front airbag does deploy. If the Occupant
Classification System (refer to ⬙Occupant Classification
System⬙ in this section) has determined the passenger
seat is empty or is occupied by someone that is classified
in the ⬙small child⬙ category, the passenger front airbag
will be suppressed.
If your vehicle is so equipped, the window bag on the
crash side of the vehicle is triggered in moderate to
severe side collisions. But even in collisions where the
airbags work, you need the seat belts to keep you in the
right position for the airbags to protect you properly.
Here are some simple steps you can follow to minimize
the risk of harm from a deploying airbag.
1. Children 12 years and under should always ride
buckled up in a rear seat in an appropriate child restraint.
Infants in rear-facing child restraints should NEVER ride
in the front seat of avehicle with a passengerfront airbag.
An airbag deployment can cause severe injury or death to
infants in that position.
You should read the instructions provided with your
child restraint to make sure that you areusing it properly.
2. All occupants should use their lap and shoulder belts
properly.
3. The driver and front passenger seats should be moved
back as far as practical to allow the airbag roomto inflate.
2
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
4. If your vehicle has window bags, do not lean against
the door or window, airbags will inflate forcefully into
the space between you and the door.
5. If the airbag system in this vehicle needs to be
modified to accommodate a disabled person, contact the
Customer Center. Phone numbers are provided in the ⬙If
You Need Customer Assistance⬙ section later in this
owner’s manual.
WARNING!
•
Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won’t deploy at all.
Always wear your seat belts even though you
have airbags.
•
Being too close to the steering wheel or instrument panel during airbag deployment could cause
serious injury. Airbags need room to inflate. Sit
back, comfortably extending your arms to reach
the steering wheel or instrument panel.
•
If the vehicle has window bags, they also need
room to inflate. Do not lean against the door or
window. Sit upright in the center of the seat.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
Air Bag System Components
The airbag system consists of the following:
•
Occupant Restraint Controller
•
Side Remote Acceleration Sensors (If Equipped)
•
Airbag Warning Light
•
Driver Airbag
•
Passenger Airbag
•
Window Bags above Side Windows (If Equipped)
•
Steering Wheel and Column
•
Instrument Panel
•
Interconnecting Wiring
•
Knee Impact Bolsters
•
Front Acceleration Sensors
•
Driver and Front Passenger Seat Belt Pretensioners
•
Driver and Front Passenger Seat Track Position Sensors
•
Passenger Side Frontal Airbag ON/OFF Switch (Standard Cab Vehicles Only)
•
Occupant Classification System (OCS) for the Front
Passenger Seat – If Equipped
−
Occupant Classification Module – If Equipped
−
Passenger Airbag Disable (PAD) Indicator Light – If
Equipped
−
Weight Sensors – If Equipped
2
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
How the Airbag System Works
The Occupant Restraint Controller (ORC) determines
•
if a frontal collision is severe enough to require the
airbags to inflate. The front airbag inflators are designed to provide different rates of airbag inflation
from direction provided by the ORC. If your vehicle is
equipped with an Occupant Classification Module
(OCM), the ORC may also modify the rate of inflation
based on the occupant size detected by the OCM. The
ORC will not detect roll over.
The ORC also monitors the readiness of the electronic
parts of the system whenever the ignition switch is in
the START or RUN positions. These include all of the
items listed above except the steering wheel and
column, and knee bolsters. If the key is in the OFF
position, in the ACC position, or not in the ignition,
the airbags are not on and will not inflate.
During a moderate-to-severe rear impact the ORC may
deploy the seat belt pretensioners alone.
Also, the ORC turns on the AIRBAG warning
light in the instrument panel for 6 to 8 seconds
for a self-check when the ignition is first turned
on. After the self-check, the AIRBAG warning
light will turn off. If the ORC detects a malfunction in any
part of the system, it turns on the AIRBAG warning light
either momentarily or continuously. A single chime will
sound if the light comes on again after initial start up.
WARNING!
Ignoring the AIRBAG warning light in your instrument panel could mean you won’t have the airbags
to protect you in a collision. If the light does not
come on, stays on after you start the vehicle, or if it
comes on as you drive, have the airbag system
checked right away.
•
If your vehicle is equipped with an Occupant Classification System (OCS), the sun visor air bag warning
label will have the phrase ⬙even with advanced air
bags⬙ on it. The OCS will instruct the ORC to either
suppress the deployment of the front passenger airbag
or reduce the force of a deploying passenger airbag, in
the unlikely event that a rear-facing infant seat is in the
front passenger seat.
•
The Passenger Airbag Disable (PAD) Indicator Light
(If Equipped) (an amber light located in the center of
the instrument panel) tells the driver and front passenger when the front passenger airbag is turned off.
The PAD Indicator lamp illuminates the words ⬙PASS
AIR BAG OFF⬙ to show that the passenger airbag will
not inflate during a collision requiring airbags. When
the right front passenger seat is empty or when very
light objects are placed on the seat, the passenger air
bag will not inflate even though the Passenger Airbag
Disable (PAD) indicator lamp is not illuminated.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43
2
Passenger Airbag Disable Indicator
The PAD indictor light (If Equipped) should not be
illuminated when teenagers, most children in a forward facing child restraint or booster seats, most
children that can properly wear the vehicle’s seat belt,
and when an adult passenger is properly seated in the
front passenger seat. In this case, the air bag is ready to
be inflated if a collision requiring an airbag occurs.
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
For almost all properly installed rear facing child restraints, the PAD indicator light (If Equipped) will be
illuminated indicating that the front passenger airbag is
turned off and will not inflate. If the PAD indicator light
is not illuminated, DO NOT assume the air bag is turned
off and move the child restraint to the second row of
seats. A deploying passenger air bag can cause death or
serious injury to a child in a rear facing infant seat.
NOTE: Even though this vehicle is equipped with an
occupant classification system, children 12 years and
under should always ride buckled up in a rear seat in an
appropriate child restraint (see section on child restraints).
Passenger Air-
Front Passenger
Seat Occupant
bag Disable
(PAD) Indicator
Light (If
Airbag Status
Equipped)
Adult OFF ON
Grocery Bags,
Heavy Briefcases
and Other Rela-
ON OFF
tively Light Objects
Empty or Very
Small Objects
OFF* OFF
* Since the system senses weight, some small objects
will turn the PAD Indicator Light on.
The OCS classifies an occupant using weight sensors
mounted in the base of the front passenger seat. Any
weight on the seat will be sensed by the system. Objects
hanging on the seat or other passengers pushing down
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45
on the seat will also be sensed. The weight of an adult
will cause the system to turn the airbag on. In this case,
the OCS has classified the occupant of the seat as an
adult. An adult occupant needs to sit in a normal position
(with their feet on or near the floor) in order to be
properly classified. Reclining the seat back too far may
change how an occupant is classified by the OCS.
Drivers and adult passengers should verify that the PAD
Indicator Light (If Equipped) is not illuminated when an
adult is riding in the front passenger seat. If an adult
occupant’s weight is transferred to another part of the
vehicle (like the door or instrument panel), the weight
sensors in the seat may not properly classify the occupant. Objects lodged under the seat or between the seat
and the center console can prevent the occupant’s weight
from being measured properly and may result in the
occupant being improperly classified. Ensure that the
front passenger seat back does not touch anything placed
on the second row of seats because this can also affect
occupant classification.Also in the case of a Standard Cab
Models, ensure that the front passenger seat does not
make contact with objects in the storage bin or cab back
panel.
If the front passenger seat is damaged in any way, it
should only be serviced by an authorized dealer. If the
seat is removed (or even if the seat attachment bolts are
loosened or tightened in any way), take the vehicle to an
authorized dealer.
If there is a fault present in the OCS, the Airbag Warning
Light (a red light located in the center of the instrument
cluster directly in front of the driver) will be turned on.
This indicates that you should take the vehicle to an
authorized dealer. The Airbag WarningLight is turned on
whenever there is fault that can affect the operation of the
airbag system. If there is a fault present in the OCS, both
the PAD Indicator Light (If Equipped) and the Airbag
Warning Light are illuminated to show that the passenger
2
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
airbag is turned off until the fault is cleared. If an object
is lodged under the seat and interferes with operation of
the weight sensors, a fault will occur which turns on both
the PAD Indicator Light (If Equipped) and the Airbag
Warning Light. Once the lodged object is removed, the
fault will be automatically cleared after a short period of
time.
•
The Driver and Passenger Airbag/Inflator Units are
located in the center of the steeringwheel and the right
side of the instrument panel. When the ORC detects a
collision requiring the airbags, it signals the inflator
units. A large quantity of nontoxic gas is generated to
inflate the front airbags. Different airbag inflation rates
may be possible based on collision severity and occupant size. The steering wheel hub trim cover and the
upper right side of the instrument panel separate and
fold out of the way as the bags inflate to their full size.
The bags fully inflate in about 50 - 70 milliseconds.
This is about half of the time it takes to blink your eyes.
The bags then quickly deflate while helping to restrain
the driver and front passenger. The driver’s front
airbag gas is vented through vent holes in the sides of
the airbag. The passenger’s front airbag gas is vented
through vent holes in the sides of the airbag. In this
way the airbags do not interfere with your control of
the vehicle.
•
The Occupant Classification Module (OCM) (If
Equipped) is located beneath the front passenger seat.
The OCM classifies the occupant into categories based
on the measurementsmade by the seat weight sensors.
The OCM communicates with the Occupant Restraint
Controller (ORC). The ORC uses the occupant category to determine whether the frontpassenger airbag
should be turned off. It also determines the rate of
airbag inflation during a collision.
•
Your vehicle has four Weight Sensors (If Equipped)
located between the seat and the floor pan. The weight
sensors measure applied weight and transfers that
information to the OCM.
•
The Side Impact SRS Window Bags are designed to
activate only in certain side collisions. When the ORC
(with side impact option) detects a collision requiring
the window bags to inflate, it signals the inflators on
the crash sideof the vehicle. A quantity of nontoxic gas
is generated to inflate the window bag. The inflating
window bag pushes the outside edge of the headliner
out of the way and covers the window. The airbag
inflates in about 30 milliseconds (about one quarter of
the time it takes to blink your eyes) with enough force
to injure you if you are not belted and seated properly,
or if items are positioned in the area where the
window bag inflates. This especially applies to children. The window bag is only about 3-1/2 inches (9
cm) thick when it is inflated.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
•
The Knee Impact Bolsters help protect the knees of
the driver and the front passenger, and position everyone for the best interaction with the front airbag.
The front passenger seat assembly contains critical components that affect the front passenger airbag deployment. Correctly functioning front passenger seat components are critical for the Occupant Classification System
(OCS) to properly classify the front passenger and calculate the proper airbag deployment. Do not make any
modifications to the front passenger seat components,
assembly, or to the seat cover.
The following requirements must be strictly adhered to:
•
Do not modify the front passenger seat assembly or
components in any way.
•
Do not modify the front seat center console or center
position seat in any way.
2
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
•
Do not use prior or future model year seat covers not
designated for the specific model being repaired. Always use the correct seat cover specified for the
vehicle.
•
Do not replace the seat cover with an aftermarket seat
cover.
•
Do not add a secondary seat cover other than those
approved by DaimlerChrysler/Mopar.
•
At no time should any supplemental restraint system
(SRS) component or SRS related component or fastener be modified or replaced with any part except
those which are approved by DaimlerChrysler/
Mopar.
WARNING!
Unapproved modifications or service procedures to
the front passenger seat assembly, its related components, or seat cover may inadvertently change the
airbag deployment in case of a frontal crash. This
could result in death or serious injury to the front
seat passenger if the vehicle is involved in an accident. A modified vehicle may not comply with
required Federal Motor Vehicle Safety Standards
(FMVSS).
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
Passenger Airbag On/Off Switch – (Standard Cab
Vehicles Only)
The passenger front airbag is to be turned off only if the
passenger:
•
is an infant (less than 1 year old) who must ride in the
front seat because there is no rear seat, because the rear
seat is too small for a rear-facing infant restraint or
because the infant has a medical condition which
makes it necessary for the driver to be able to see the
infant,
•
is a child, age 1 to 12 who must ride in the front seat
because there is no rear seat, because there is no rear
seat position available, or because the child has a
medical condition which makes it necessary for the
driver to be able to see the child,
•
has a medical condition which makes passenger airbag
inflation (deployment) a greater risk for the passenger
than the risk of hitting the dashboard (instrument
panel) or windshield in a crash.
2
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
Whenever an airbag is turned off, even a lap/
shoulder belted passenger may hit their head, neck,
or chest on the dashboard (instrument panel) or
windshield in a crash. This may result in serious
injury or death.
To Shut Off the Passenger Airbag (Standard Cab Vehicles Only)
Place the ignition key in the Passenger Airbag On/Off
Switch, push the key in and turn clockwise, and remove
the key from the switch. This will shut off the passenger
side airbag. The “Off” light near the switch will illuminate when the ignition switch is turned to the ON
position.
To Turn On the Passenger Airbag (Standard Cab Vehicles Only)
Place the ignition key in the Passenger Airbag On/Off
Switch, push the key in and turn counterclockwise, and
remove the key from the switch. This will turn on the
passenger airbag. The “Off” light near the switch will be
off when the ignition switch is turned to the ON position.
If A Deployment Occurs
The airbag system is designed to deploy the airbags
when the impact sensors detect a moderate-to-severe
frontal collision, to help restrain the driver and front
passenger, and then immediately deflate.
NOTE: A frontal collision that is not severe enough to
need airbag protection will not activate the system. This
does not mean something is wrong with the airbag
system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
If you do have a collision which deploys the airbags, any
or all of the following may occur:
•
The nylon airbag material may sometimes cause abrasions and/or skin reddening to the driver and front
passenger as the airbags deploy and unfold. The
abrasions are similar to friction rope burns or those
you might get sliding along a carpet or gymnasium
floor. They are not caused by contact with chemicals.
They are not permanent and normally heal quickly.
However, if you haven’t healed significantly within a
few days, orif you have any blistering, see your doctor
immediately. As the airbags deflate you may see some
smoke-like particles. The particles are a normal byproduct of the process that generates the nontoxic gas
used for airbag inflation. These airborne particles may
irritate the skin, eyes, nose, or throat. If you have skin
or eye irritation, rinse the area with cool water. For
nose or throat irritation, move to fresh air. If the
irritation continues, see your doctor. If these particles
settle on your clothing, follow the garment manufacturer’s instructions for cleaning.
•
It is not advisable to drive your vehicle after the
airbags have deployed. If you are involved in another
collision, the airbags will not be in place to protectyou.
WARNING!
Deployed airbags and seat belt pretensioners cannot
protect you in another collision. Have the airbags,
seat belt pretensioners, and the front passenger seat
belt retractor assembly, replaced by an authorized
dealer as soon as possible. Also, have the Occupant
Classification System serviced as well.
2
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Maintaining Your Airbag System
WARNING!
• Modifications to any part of the airbag system could cause it to fail when you
need it. You could be injured if the airbag system is not there to protect you.
Do not modify the components or wiring, including adding any kind of
badges or stickers to the steering wheel hub trim cover or the upper right side
of the instrument panel. Do not modify the front bumper, vehicle body
structure, or add aftermarket side steps or running boards.
• Do not attempt to modify any part of your advanced airbag system. The
airbag may inflate accidentally or may not function properly if modifications
are made. Take your vehicle to an authorized dealer for any advanced airbag
system service. If your seat including your trim cover and cushion needs to
be serviced in any way (including removal or loosening/tightening of seat
attachment bolts), take the vehicle to your authorized dealer. Only manufacturer approved seat accessories may be used. If it is necessary to modify an
advanced airbag system for persons with disabilities, contact your authorized dealer.
• Do not place or hang any items such as add-on video players on the right
front passenger seat back. The additional weight may cause the Occupant
Classification System to be unable to correctly classify the right front
occupant. This could allow the passenger frontal airbag to inflate when it is
not desired.
• You need proper knee impact protection in a collision. Do not mount or
locate any aftermarket equipment on or behind the knee bolsters.
• It is dangerous to try to repair any part of the airbag system yourself. Be sure
to tell anyone who works on your vehicle that it has an airbag system.
Enhanced Accident Response System
If the airbags deploy after an impact and the electrical
system remains functional, vehicles equipped with
power door locks will unlock automatically. In addition,
approximately 5 seconds after the vehicle has stopped
moving, the interior lights will light until the ignition
switch is turned off.
Airbag Light
You will want to have the airbags ready to
inflate for your protection in an impact. While
the airbag system is designed to be mainte-
nance free, if any of the following occurs, have
an authorized dealer service the system promptly:
•
The airbag light does not come on or flickers during
the 6 to 8 seconds when the ignition switch is first
turned on.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
•
The light remains on or flickers after the 6 to 8 second
interval.
•
The light flickers or comes on and remains on while
driving.
NOTE: If the speedometer, tachometer or any engine
related gauges are not working, the airbag control module may also be disabled. The airbags may not be ready
to inflate for your protection. Promptly check fuse block
for blown fuses. Refer to the label located on the inside of
the fuse block cover for the proper airbag fuses. See your
dealer if the fuse is good.
Event Data Recorder (EDR)
In the event of an airbag deployment, your vehicle is
designed to record up to 2-seconds of specific vehicle
data parameters (see list below) in an event data recorder
prior to the moment of airbag deployment. Please note
that such data are ONLY recorded if an airbag deploys,
and are otherwise unavailable. In conjunction with other
data gathered during a complete accident investigation,
the electronic data may be used by DaimlerChrysler
Corporation and others to learn more about the possible
causes of crashes and associated injuries in order to
assess and improve vehicle performance. In addition to
crash investigations initiated by DaimlerChrysler Corporation, such investigations may be requested by customers, insurance carriers, government officials, and professional crash researchers, such as those associated with
universities, and with hospital and insurance organizations.
In the event that an investigation is undertaken by
DaimlerChrysler Corporation (regardless of initiative),
the company or its designated representative will first
obtain permission of the appropriate custodial entity for
the vehicle (usually the vehicle owner or lessee) before
accessing the electronic data stored, unless ordered to
download data by a court with legal jurisdiction (i.e.,
pursuant to a warrant). A copy of the data will be
2
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
provided to the custodial entity upon request. General
data that does not identify particular vehicles or crashes
may be released for incorporation in aggregate crash
databases, such as those maintained by the US government and various states. Data of a potentially sensitive
nature, such as would identify a particular driver, vehicle, or crash, will be treated confidentially. Confidential
data will not be disclosed by DaimlerChrysler Corporation to any third party except when:
1. Used for research purposes, such as to match data
with a particular crash record in an aggregate database,
provided confidentiality of personal data is thereafter
preserved
2. Used in defense of litigation involving a
DaimlerChrysler Corporation product
3. Requested by police under a legal warrant
4. Otherwise required by law
Data Parameters that May Be Recorded:
•
Diagnostic trouble code(s) and warning lamp status
for electronically-controlled safety systems, including
the airbag system
•
Airbag disable lamp status (if equipped)
•
⬙Time⬙ of airbag deployment (in terms of ignition
cycles and vehicle mileage)
•
Airbag deployment level (if applicable)
•
Seatbelt status
•
Brake status (service and parking brakes)
•
Accelerator status (including vehicle speed)
•
Engine control status (including engine speed)
•
Cruise control status
•
Traction/stability control status
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55
Child Restraint
Everyone in your vehicle needs to be buckled up all the
time — babies and children, too. Every state in the United
States and all Canadian provinces require that small
children ride in proper restraint systems. This is the law,
and you can be prosecuted for ignoring it.
Children 12 years and under should ride properly buckled up in a rear seat, if available. According to crash
statistics, children are safer when properly restrained in
the rear seats rather than in the front.
WARNING!
In a collision, an unrestrained child, even a tiny
baby, can become a missile inside the vehicle. The
force required to hold even an infant on your lap can
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child’s
size.
2
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Infants and Small Children
There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Use the restraint that is
correct for your child:
•
Safety experts recommend that children ride
rearward-facing in the vehicle until they are at least
one year oldand weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and ⬙convertible⬙ child seats. Both types of
child restraints are held in the vehicle by the lap/
shoulder belt.
•
The infant carrier is only used rearward-facing in the
vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg). ⬙Convertible⬙ child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
infant carriers do, so they can be used rearward-facing
by children who weigh more than 20 lbs (9 kg) but are
less than one year old.
•
Rearward-facing child seats must NEVER be used in
the front seat of a vehicle with a front passenger airbag
unless the airbag is turned off. An airbag deployment
could cause severe injury or death to infants in this
position.
•
Children who weigh more than 20 lbs (9 kg) and who
are older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible
child seats used in the forward-facing direction are for
children who weigh 20 to 40 lbs (9 to 18 kg) and who
are older than one year. These child seats are also held
in the vehicle by the lap/shoulder belt.
•
The belt-positioning booster seat is for children weighing more than 40 lbs (18 kg), but who are still too small
to fit the vehicle’s seat belts properly. If the child
cannot sit with knees bent over the vehicle’s seat
cushion while the child’s back is against the seat back,
they should use a belt-positioning-booster seat. The
child and booster seat are held in the vehicle by the
lap/shoulder belt. (Some booster seats are equipped
with a front shield and are held in the vehicle by the
lap portion.) For further information refer to
www.seatcheck.org.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57
WARNING!
•
Improper installation can lead to failure of an
infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint.
•
A rearward facing child restraint should only be
used in a rear seat, or in the front seat if the
passenger’s front airbag is Off. If the airbag is left
On, a rearward facing child restraint in the front
seat may be struck by a deploying passenger
airbag which may cause severe or fatal injury to
the infant.
2
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Here are some tips for getting the most out of your child
restraint:
•
Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it before you buy it.
•
The restraint must be appropriate for your child’s
weight and height. Check the label on the restraint for
weight and height limits.
•
Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.
•
The passenger seat belts are equipped with Automatic
Locking Retractors (ALR), which are designed to keep
the lap portion tight around the child restraint so that
it is not necessary to use a locking clip.
Pull the belt from the retractor until there is enough to
allow you to pass through the child restraint and slide
the latch plate into the buckle. Then pull on the belt
until it is all removed from the retractor. Allow the belt
to return to the retractor, pulling on the excess webbing to tighten the lap portion about the child restraint. Refer to the ⬙Automatic Locking Retractors
(ALR) Mode⬙ earlier in this section.
•
In the rear seat, you may have trouble tightening the
lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path
opening on the restraint. Disconnect the latch plate
from the buckle and twist the short buckle-end belt
several times to shorten it. Insert the latch plate into
the buckle with the release button facing out.
•
If the belt still can’t be tightened, or if pulling and
pushing on the restraint loosens the belt, disconnect
the latch plate from the buckle, turn the buckle
around, and insert the latch plate into the buckle
again. If you still can’t make the child restraint secure,
try a different seating position.
•
Buckle the child into the seat according to the child
restraint manufacturer’s directions.
•
When your child restraint is not in use, secure it in the
vehicle with the seat belt or remove it from the vehicle.
Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seat backs
and cause serious personal injury.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59
WARNING!
Improper installation can lead to failure of an infant
or child restraint. It could come loose in a collision.
The child could be badly injured or killed. Follow
the manufacturer’s directions exactly when installing an infant or child restraint.
Lower Anchors and Tether for CHildren (LATCH)
Each vehicle is equipped with the child restraint anchorage system called LATCH, which stands for Lower
Anchors and Tether for CHildren. LATCH child restraint
anchorage systems are installed in the Standard Cab
passenger seat position and the Quad Cab rear seat
outboard positions. LATCH equipped seating positions
feature both lower anchor bars, located at the back of the
seat cushion, and tether strap anchorages, located behind
the seatback (refer to Child Restraint Tether Anchor later
in this section).
2
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Identification dots are located above the standard cab
front seat lower anchorages as a guide for locating lower
anchors.
NOTE: For children riding in the front seat of a Standard Cab model refer to the “Passenger Airbag On/Off
Switch” located in this section.
Standard Cab Passenger
Quad Cab Rear Outboard Seats
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61
Child restraint systems having attachments designed to
connect to the lower anchorages are now available. Child
restraints having tether straps and hooks for connection
to the seatback tether anchorage have been available for
some time. In fact, many child restraint manufacturers
will provide add-on tether strap kits for some of their
older products.
Because the lower anchorages are to be introduced to
passenger carrying vehicles over a period of years, child
restraint systems having attachments for those anchorages will continue to have features for installation in
vehicles using the lap or lap/shoulder belt. They will also
have tether straps, and you are urged to take advantage
of all of the available attachments provided with your
child restraint in any vehicle.
NOTE: When using the LATCH attaching system to
install a child restraint, please ensure that all seat belts
not being used for occupant restraints arestowed and out
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint and out of
reach. If the buckled seat belt interferes with the child
restraint installation, instead of tucking the seat belt
behind the child restraint, route the seat belt through the
child restraint belt path and then buckle it. This should
stow the seat belt out of the reach of an inquisitive child.
Remind all children in the vehicle that the seat belts are
not toys and should not be played with, and never leave
your child unattended in the vehicle.
NOTE: If your child restraint seat is not LATCH compatible, install the restraint using the vehicle seat belting.
2
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Installing the Child Restraint System
WARNING!
Do not install child restraint systems equipped with
LATCH attachments in the center position of a Quad
Cab model rear seat. The LATCH anchorages in this
seat are designed for the two outboard seating positions only. A child may be placed in the rear center
seating position of a Quad Cab model using the seat
belt and child tether anchorage. Failure to follow this
may result in serious or fatal injury.
We urge that you carefully follow the directions of the
manufacturer when installing your child restraint. Many,
but not all, restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector and a means for adjusting the tension in the
strap. Forward-facing toddler restraints and some
rearward-facing infant restraints will also be equipped
with a tether strap, a hook and means for adjusting the
tension in the strap.
In general, you will first loosen the adjusters on the lower
straps and tether straps so that you can more easilyattach
the hook or connector to the lower anchorages and tether
anchorages. Then tighten all three straps as you push the
child restraint rearward and downward into the seat.
Not all child restraint systems will be installed as we
have described here. Again, carefully follow the instructions that come with the child restraint system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63
WARNING!
Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.
Child Restraint Tether Anchor
Child restraints having tether straps and hooks for connection to tether anchors have been available for some
time. In fact, many child restraint manufacturers will
provide add-on tether strap kits for their older products.
Regular Cab models of Ram Pickups have two tether
anchorages, one each behind the front center and right
seats. Quad Cab models have three anchorages, one
behind each of the rear seats.
WARNING!
An incorrectly anchored tether strap could lead to
seat failure and injury to the child. In a collision, the
seat could come loose and allow the child to crash
into the inside of the vehicle or other passengers, or
even be thrown from the vehicle. Use only the
anchor positions directly behind the child seat to
secure a child restraint top tether strap. Follow the
instructions below. See your dealer for help if necessary.
Tether Anchorage Points at the Right and Center
Front Seat (Regular Cab - All Seats)
1. Place the child restraint on the seat and adjust the
tether strap so that it will reach over the seat back under
the head restraint to the tether anchor directly behind the
seat.
2
64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
2. Lift the cover (if so equipped), and attach the hook to
the square opening in the sheet metal.
3. Install the child restraint and remove the slack in the
tether strap according to the manufacturer’s instructions.
Regular Cab Tether Strap Mounting
Multiple Child Restraint Installation Sequence (Quad Cab Rear Seats)
1. Obtain tether straps by raising the head restraints and
reaching between the rear glass and rear seat. The tether
strap may be retained with an elastic band. Accessibility
to the tether strap is greatly improved by raising the seat
cushion to the “up” position. Remove the elastic before
use.
2. Place a child restraint on each outboard rear seat and
adjust the tether strap so that it will reach under the head
restraint to the tether anchor directly behind the seat and
then to the anchor directly behind the center rear seat.
3. Pass each tether strap hook under the head restraint
and through the loop of webbing behind the child seat.
4. Route each tether strap to the anchor behind the center
seat, and attach the hooks to the metal ring.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65
5. Place a child restraint on the center rear seat and
adjust the tether strap so that it will reach under the head
restraint to the tether anchor directly behind the seat and
to the anchor directly behind the right seat.
6. Install each child restraint and remove the slack in the
tether strap according to the child restraint manufacturer’s instructions.
2
66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Quad Cab Tether Strap Mounting
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67
Children Too Large for Booster Seats
Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seat back should use the lap/shoulder belt in a rear seat.
•
Make sure that the child is upright in the seat.
•
The lap portion should be low on the hips and as snug
as possible.
•
Check belt fit periodically. A child’s squirming or
slouching can move the belt out of position.
If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.
ENGINE BREAK-IN RECOMMENDATIONS
The engine in your new SRT-10 does not require a long
break-in period. Following these few simple guidelines is
all that is necessary for a good break-in:
For the first 500 miles (800 km):
•
Keep your vehicle speed below the legal, posted speed
limit and your engine speed below 4,000 rpm.
•
Avoid driving at a constant speed, either fast or slow,
for long periods of time.
•
Do not make any full throttle starts and avoid full
throttle acceleration.
•
Use the proper gear for your speed range.
•
Wait until the engine has reached normal operating
temperature before driving at the recommended maximum break-in speed.
•
Avoid excessive idling.
2
68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
•
Check the engine oil level at every fuel fill.
NOTE: A new engine will consume some oil during the
first few thousand miles of operation. This should be
considered as a normal part of the break-in and not
interpreted as a sign of difficulty.
SAFETY TIPS
Transporting Passengers
This vehicle is designed to carry passengers in the cab
only. For safety reasons, NEVER TRANSPORT PASSENGERS IN THE CARGO AREA.
WARNING!
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Lock Your Vehicle
Always remove the keys from the ignition and lock all
doors when leaving the vehicle unattended, even in your
own driveway or garage. Try to park your vehicle in a
well-lighted area and never invite theft by leaving articles of value exposed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69
Exhaust Gas
WARNING!
Exhaust gases contain carbon monoxide, a potentially toxic gas that by itself is colorless and odorless.
To avoid inhaling these gases, the following precautions should be observed:
•
Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in
or out of the area.
•
If it is necessary to sit in a parked vehicle with the
engine running for more than a short period, adjust
your climate control system to force outside air into
the vehicle. Set the blower at high speed and the
controls in any position except OFF or MAX A/C.
•
The best protection against carbon monoxide entry
into the vehicle body is a properly maintained engine
exhaust system.
Be aware of changes in the sound of the exhaust system;
exhaust fumes detected inside the vehicle; or damage to
the underside or rear of the vehicle. Have a competent
mechanic inspect the complete exhaust system and adjacent body areas for broken, damaged, deteriorated or
mispositioned parts. Open seams or loose connections
could permit exhaust fumes to seep into the passenger
compartment. In addition, inspect the exhaust system
each time the vehicle is raised for lubrication or oil
change. Replace or adjust as required.
2
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Seat belt assemblies must be replaced after an accident if
they have been damaged (bent retractor, torn webbing, etc.)
or if the front airbags have deployed. If there is any question
regarding belt or retractor condition, replace the belt.
Airbag Light
The light should come on and remain on for 6 to 8
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see you
authorized dealer. If the light stays on, flickers or comes
on while driving, have the system checked by an authorized dealer. If there is a problem with the airbag light the
seatbelt light will flash.
Safety Checks You Should Make Outside The
Vehicle
Tires
Examine tires for tread wear or uneven wear patterns.
Check for stones, nails, glass or other objects lodged in
the tread.
Inspect for tread cuts or sidewall cracks. Check wheel
nuts for tightness and tires for proper pressure.
Lights
Check the operation of all exterior lights. Check turn signal
and high beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching and locking.
Fluid Leaks
Check areaunder vehicle after overnight parking for fuel,
water, oil, or other fluid leaks. Also, if fuel fumes are
detected the cause should be located and corrected.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
䡵 Hands–Free Communication (UConnect™) —
If Equipped ............................76
▫ Operations ...........................77
▫ Phone Call Features ....................84
▫ UConnect™ System Features ..............87
▫ Advanced Phone Connectivity .............91
▫ Things You Should Know About Your
UConnect™ System .....................93
䡵 Seats .................................99
▫ 40-20-40 Front Seat ....................100
▫ Power Driver Seat .....................100
▫ Manual Passenger Seat .................102
▫ Manual Seatback Recline ................102
▫ Adjustable Head Restraints ..............103
▫ Heated Seats — If Equipped .............104
䡵 To Open And Close The Hood .............105
䡵 Lights ...............................106
▫ Interior Lights .......................107
▫ Battery Saver ........................108
3
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
▫ Headlamp Delay ......................108
▫ Headlights, Parking Lights, Panel Lights .....108
▫ Daytime Running Lights
(Canada Only And Fleet Vehicles) ..........109
▫ Lights-On Reminder ...................110
▫ Fog Lights — If Equipped ...............110
▫ Cargo Light — If Equipped ..............110
䡵 Multifunction Control Lever ...............111
▫ Turn Signals .........................111
▫ Passing Light ........................111
▫ High Beam / Low Beam Select Switch ......112
▫ Windshield Wipers ....................112
▫ Windshield Washers ...................114
䡵 Tilt Steering Column ....................114
䡵 Driver Adjustable Pedals .................115
▫ Adjustment .........................116
䡵 Electronic Speed Control ..................117
▫ To Activate ..........................117
▫ To Set At A Desired Speed ...............117
▫ To Deactivate ........................117
▫ To Resume Speed .....................118
▫ To Vary The Speed Setting ...............118
▫ To Accelerate For Passing ...............118
䡵 Overhead Console ......................119
▫ Courtesy/Reading Lights ................120
䡵 Compass/Temperature Mini-Trip Computer ....120
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73
▫ US/M Button ........................121
▫ Reset Button .........................121
▫ Global Reset .........................122
▫ Step Button .........................122
▫ Average Fuel Economy (AVG ECO) ........122
▫ Distance To Empty (DTE) ...............122
▫ Trip Odometer (ODO) ..................123
▫ Elapsed Time (ET) .....................123
▫ C/T Button .........................124
▫ Automatic Compass Calibration ...........124
▫ Manual Compass Calibration .............125
▫ To Put Into a Calibration Mode ...........125
▫ Outside Temperature ...................126
䡵 Garage Door Opener ....................127
▫ Programming Homelink ................128
▫ Canadian Programming/Gate Programming . . 131
▫ Using Homelink ......................131
▫ Erasing Homelink Buttons ...............132
▫ Reprogramming a Single Homelink Button . . .132
▫ Security ............................132
䡵 Power Sunroof — If Equipped .............133
▫ Open Sunroof - Express Mode ............134
▫ Comfort Stop ........................134
▫ Closing Sunroof - Express ...............135
▫ Pinch Protect Feature ...................135
▫ Pinch Protect Override .................135
3
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
▫ Venting Sunroof - Express ...............135
▫ Sunshade Operation ...................135
▫ Wind Buffeting .......................136
▫ Sunroof Maintenance ...................136
▫ Sunroof Fully Closed ...................136
䡵 Electrical Power Outlets ..................136
䡵 Cigar Lighter And Ash Receiver ............138
▫ Cigar Lighter And Ash Receiver (Vehicles
Equipped With a Manual Transmission) .....138
▫ Cigar Lighter And Ash Receiver (Vehicles
Equipped With a Automatic Transmission) . . . 138
䡵 Cupholders ...........................139
▫ Front Instrument Panel Cupholders
(40–20–40 Seats) — Automatic Transmission . . 139
▫ Front Instrument Panel Cupholders
(Bucket Seats) — Automatic Transmission ....141
▫ Front Cupholders — Manual Transmission . . .141
▫ Rear Cupholder — Quad Cab — If Equipped .141
䡵 Storage ..............................142
▫ Center Storage Compartment .............142
▫ Center Storage Compartment (Bucket Seats)—
If Equipped .........................143
▫ Storage And Seats .....................144
䡵 Fold Flat Load Floor — If Equipped .........145
▫ Fold Flat Load Floor — If Equipped ........145
䡵 Pickup Box ...........................149
䡵 Slide-In Campers .......................150
䡵 Easy-Off Tailgate .......................150
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
䡵 Tonneau Cover Removal — If Equipped ......152
䡵 Mirrors ..............................157
▫ Automatic Dimming Mirror— If Equipped . . .157
▫ Outside Mirrors ......................157
▫ Exterior Mirrors Folding Feature ..........158
▫ Electronic Power Mirrors — If Equipped .....158
▫ Electric Rear Window Defroster And Heated
Sideview Mirrors — If Equipped ..........159
3
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
HANDS–FREE COMMUNICATION (UConnect™) —
IF EQUIPPED
UConnect™ is a voice-activated, hands-free, in- vehicle
communications system. UConnect™ allows you to dial
a phone number with your cellular phone using simple
voice commands (e.g., ⬙Call” ѧ “Mike” ѧ”Work⬙ or ⬙Dial”
ѧ “248-555-1212⬙). Your cellular phone’s audio is transmitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnect™ system.
NOTE: The UConnect™ system use requires a cellular
phone equipped with the Bluetooth ⬙Hands-Free Profile,⬙
version 0.96 or higher. See www.chrysler.com/uconnect
for supported phones.
UConnect™ allows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle, and enables you to mute the system’s microphone for private conversation.
The UConnect™ phonebook enables you to store up to 32
names and four numbers per name. Each language has a
separate 32 name phonebook accessible only in that
language. This system is driven through your Bluetooth™ Hands-Free profile cellular phone. UConnect™
features Bluetooth™ technology - the global standard
that enables different electronic devices to connect to
each other without wires or a docking station, so UConnect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the
vehicle’s UConnect™ system. The UConnect™ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).
The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
access the system. The diagram below shows the mirror
with the appropriate buttons. Individual button behavior
is discussed in the ⬙Operation⬙ section.
UConnect™ Switches
The UConnect™ system can be used with any HandsFree Profile certified Bluetooth™ cellular phone. See
www.chrysler.com/uconnect for supported phones. If
your cellular phone supports a different profile (e.g.,
Headset Profile), you may not be able to use any UConnect™ features. Refer to your cellular service provider or
the phone manufacturer for details.
The UConnect™ system is fully integrated with the
vehicle’s audio system. The volume of the UConnect™
system can either be adjusted from the radio volume
control knob, or from the steering wheel radio control
(right switch), if so equipped.
The radio display will be used for visual prompts from
the UConnect™ system such as ⬙CELL⬙ or caller ID on
certain radios.
Operations
Voice commands can be used to operate the UConnect™
system and to navigate through the UConnect™ menu
structure. Voice commands are required after most UConnect™ system prompts. You will be prompted for a specific
command and then guided through the available options.
3
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
•
Prior to giving a voice command, one must wait for
the voice on beep, which follows the ⬙Ready⬙ prompt
or another prompt.
•
For certain operations, compound commands can be
used. For example, instead of saying ⬙Setup⬙ and then
⬙Phone Pairing,⬙ the following compound command
can be said: ⬙Setup Phone Pairing.⬙
•
For each of the feature explanation in this section, only
the combined form of the voice command is given.
You can also break the commands into parts and say
each part of the command, when you are asked for it.
For example, you can either use the combined form
voice command ⬙Phonebook New Entry,⬙ or you can
break the combined form command into two voice
commands: ⬙Phonebook⬙ and ⬙New Entry.⬙ Please remember, the UConnect™ system works best when you
talk in a normal conversational tone, as if speaking to
some one sitting eight feet away from you.
Voice Command Tree
Refer to “Voice Tree” at the end of this section.
Help Command
If you need assistance at any prompt or if you want to
know what your options are at any prompt, say ⬙Help⬙
following the voice on beep. The UConnect™ system will
play all the options at any prompt if you ask for help.
To activate the UConnect™ system from idle, simply
press the ’Phone’ button and follow audible prompts for
directions. All UConnect™ system sessions begin with a
press of the ’Phone’ button on the mirror.
Cancel Command
At any prompt, after the voice on beep, you can say
⬙Cancel⬙ and you will be returned to the main menu.
However, in a few instances the system will take you
back to the previous menu.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
Pair (Link) UConnect™ System to a Cellular Phone
To begin using your UConnect™ system, you must pair
your compatible Bluetooth™ enabled cellular phone (refer to ⬙Introduction⬙ section to learn about the phone
type). To complete the pairing process, you will need to
reference your cellular phone owner’s manual.One of the
following vehicle specific websites may also provide
detailed instructions for pairing with the brand of phone
that you have:
NOTE:
•
www.chrysler.com/uconnect
•
www.dodge.com/uconnect
•
www.jeep.com/uconnect
The following are general phone to UConnect™ System
pairing instructions:
•
Press the ’Phone’ button to begin.
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Setup Phone Pairing.⬙
•
When prompted, after the voice on beep, say ⬙Pair a
Phone.⬙
•
You will be askedto say a four-digitpin number which
you will later need to enter into your cellular. You can
enter any four-digit pin number. You will not need to
remember this pin number after the initial pairing
process.
•
The UConnect™ system will then prompt you to begin
the cellular phone pairing process on your cellular
phone. Before attempting to pair phone, please see
your cellular phone’s user manual (Bluetooth section)
for instructions on how to complete this step.
3
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
•
For identification purposes, you will be prompted to
give the UConnect™ system a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•
You will then be asked to give your cellular phone a
priority level between 1 and 7, 1 being the highest
priority. You can pair up to seven cellular phones to
your UConnect™ system. However, at any given time,
only one cellular phone can be in use, connected to
your UConnect™ System. The priority allows the
UConnect™ system to know which cellular phone to
use if multiple cellular phones are in the vehicle at the
same time. For example, if priority 3 and priority 5
phones are present in the vehicle, the UConnect™
system will use the priority 3 cellular phone when you
make a call. You can select to use a lower priority
cellular phone at any time (refer to ⬙Advanced Phone
Connectivity⬙ section).
Dial by Saying a Number
Press the ’Phone’ button to begin.
•
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Dial.⬙
•
System will prompt you to say the number you want
call.
•
For example, you can say ⬙234-567-8901.⬙ The phone
number that you enter must be of valid length and
combination. The UConnect™ limits the user from
dialing invalid combination of numbers. For example,
234-567-890 is nine digits long, which is not a valid
phone number - the closest valid phone number has
ten digits.
•
The UConnect™ system will confirm the phone number and then dial. The number will appear in the
display of certain radios.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
Call by Saying a Name
Press the “Phone” button to begin.
•
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Call.⬙
•
System will prompt you to say the name of the person
you want call.
•
After the ⬙Ready⬙ prompt and the following beep, say
the name of the person you want to call. For example,
you can say ⬙John Doe,⬙ where John Doe is a previously stored name entry in the UConnect™ phonebook. Refer to section ⬙Add Names to Your UConnect™ Phonebook,⬙ to learn how to store a name in the
phonebook.
•
The UConnect™ system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your UConnect™ Phonebook
NOTE: Adding names to phonebook is recommended
when vehicle is not in motion.
•
Press the “Phone” button to begin.
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Phonebook New Entry.⬙
•
When prompted, say the name of thenew entry. Use of
long names helps the voice recognition and is recommended. For example, say ⬙Robert Smith⬙ or ⬙Robert⬙
instead of ⬙Bob.⬙
•
When prompted, enter the number designation (e.g.:
⬙Home,⬙⬙Work,⬙⬙Mobile,⬙ or ⬙Pager⬙). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•
When prompted, recite the phone number for the
phonebook entry that you are adding.
3
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
After you are finished adding an entry into the phonebook, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
The UConnect™ system will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32 name phonebook accessible
only in that language.
Edit Entries in the UConnect™ Phonebook
NOTE: Editing phonebook entries is recommended
when vehicle is not in motion.
•
Press the ’Phone’ button to begin.
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Phonebook Edit.⬙
•
You will then be asked for the name of the phonebook
entry that you wish to edit.
•
Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.
•
When prompted, recite the new phone number for the
phonebook entry that you are editing.
After you are finished editing an entry in the phonebook,
you will be given the opportunities to edit another entry
in the phonebook, call the number you just edited, or
return to the main menu.
⬙Phonebook Edit⬙ can be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
mobile and a home number, but you can add John Doe’s
work number later using the ⬙Phonebook Edit⬙ feature.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
Delete Entries in the UConnect™ Phonebook
NOTE: Editing phonebook entries is recommended
when vehicle is not in motion.
•
Press the ’Phone’ button to begin.
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Phonebook Delete.⬙
•
After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can say ⬙List
Names⬙ to hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press the ⬙Voice Recognition⬙ button
while the UConnect™ system is playing the desired
entry and say ⬙Delete.⬙
•
After you enter the name, the UConnect™ system will
ask you which designation you wish to delete: home,
work, mobile or pager. Say the designation you wish
to delete.
•
Note that only the phonebook entry in the current
language is deleted.
After confirmation, the phonebook entries will be deleted. Note that only the phonebook in the current
language is deleted.
Delete All Entries in the UConnect™ Phonebook
Press the ’Phone’ button to begin.
•
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Phonebook Erase All.⬙
•
The UConnect™ system will ask you to verify that you
wish to delete all the entries from the phonebook.
3
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
•
After confirmation, the phonebook entries will be
deleted.
List All Names in the UConnect™ Phonebook
Press the ’Phone’ button to begin.
•
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Phonebook List Names.⬙
•
The UConnect™ system will play the names of all the
phonebook entries.
•
To call one of the names in the list, press the ⬙Voice
Recognition’ button during the playing of the desired
name and say ⬙Call⬙. NOTE: the user can also exercise
⬙Edit⬙ or ⬙Delete⬙ operations at this point.
•
The UConnect™ system will then prompt you as to
number designation you wish to call.
•
The selected number will be dialed.
Phone Call Features
The following features can be accessed through the
UConnect™ system if the feature(s) are available on your
cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the UConnect™ system. Check with
your cellular service provider for the features that you
have.
Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your cellular phone, the
UConnect™ system will interrupt the vehicle audio
system, if on, and will ask if you would like to answer the
call. To reject the call, press and hold the ’Phone’ button
until you hear a single beep indicating that the incoming
call was rejected.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
Answer or Reject an Incoming Call - Call
Currently in Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your cell
phone. Press the ’Phone’ button to place the current call
on hold and answer the incoming call. NOTE: The
UConnect™ system compatible phones in market today
do not support rejecting an incoming call when another
call is in progress. Therefore, the user can only either
answer an incoming call or ignore it.
Making a Second Call while Current Call in
Progress
To make a second call while you are currently in a call,
press the ’Voice Recognition’ button and say ⬙Dial⬙ or
⬙Call⬙ followed by the phone number or phonebook entry
you wish to call. The first call will be on hold while the
second call is in progress. To go back to the first call, refer
to section ⬙Toggling Between Two Calls.⬙ To combine two
calls, refer to section ⬙Conference Call.⬙
Place/Retrieve a Call from Hold
To put a call on hold, press the ⬘Phone’ button until you
hear a single beep which will indicate that the call has
been placed on hold. To bring the call back from hold,
press and hold the ⬘Phone’ button until you hear a single
beep.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the ’Phone’ button until you hear a single beep
indicating that the active and hold status of the two calls
have switched. Onlyone call can be placed on hold at one
time.
3
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Conference Call
When two calls are in progress (one active and one on
hold), press and hold the ’Phone’ button until you hear a
double beep indicating that the two calls have been
joined into one conference call.
Three-Way Calling
To initiate three-way calling, press the ’Voice Recognition’ button while a call is in progress and make a second
phone call as described in section ⬙Making a Second Call
while Current Call in Progress.⬙ After the second call has
established, press and hold the ’Phone’ button until you
hear a double beep indicating that the two calls have
been joined into one conference call.
Call Termination
To end a call in progress, momentarily press the ⬘Phone’
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
Redial
Press the ’Phone’ button to begin.
•
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Redial.⬙
•
The UConnect™ system will call the last number that
was dialed onyour cellular phone. Note: this may not be
the last number dialed from the UConnect™ system.
Call Continuation
Call continuation is progression of a phone call on
UConnect™ system after the vehicle ignition key has
been switched to off. Call continuation functionality
available on the vehicle can be any one of three types:
•
After ignition key is switched off, a call can continue
on the UConnect™ system either until the call ends or
until the vehicle battery condition dictates cessation of
the call on the UConnect™ system and transfer of the
call to the mobile phone.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
•
After ignition key is switched to off, a call can continue
on the UConnect™ system for certain duration, after
which the call is automatically transferred from the
UConnect™ system to the mobile phone.
•
An active call is automatically transferred to the
mobile phone after ignition key is switched to off.
UConnect™ System Features
Language Selection
To change the language that the UConnect™ system is
using,
•
Press the ’Phone’ button to begin.
•
After the ⬙Ready⬙ prompt and the following beep, say
the name of the language you wish to switch to
(English, Espanol, or Francais, if so equipped).
•
Continue to follow the system prompts to complete
language selection.
After selecting one of the languages, all prompts and
voice commands will be in that language.
NOTE: After every UConnect™ language change operation, only the language specific 32 name phonebook is
usable. The paired phone name is not language specific
and usable across all languages.
Emergency Assistance
If you are in an emergency and the mobile phone is
reachable:
•
Pick up the phone and manually dial the emergency
number for your area.
If the phone is not reachable and the UConnect™ system
is operational, you may reach the emergency number as
follows:
•
Press the ’Phone’ button to begin.
3
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Emergency⬙ and the UConnect™ system will instruct
the paired cellular phone to call the emergency number. This feature is only supported in the USA.
NOTE: The emergency number dialed is based on the
Country where the vehicle is purchased (911 for USAand
Canada and 060 for Mexico). The number dialed may not
be applicable with the available cellular service and area.
The UConnect™ system does slightly lower your chances
of successfully making a phone call as to that for the cell
phone directly.
Your phone must be turned on and paired to the UConnect™ system to allow use of this vehicle feature in
emergency situations when the cell phone has network
coverage and stays paired to the UConnect™ system.
Towing Assistance
If you need towing assistance,
•
Press the ’Phone’ button to begin.
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Towing Assistance.⬙
NOTE: The Towing Assistance number dialed is based
on the Country where the vehicle is purchased (1-800528-2069 for USA, 1-877-213-4525 for Canada, 55-14-3454
for Mexico city and 1-800-712-3040 for outside Mexico
city in Mexico).
Please refer to the 24-Hour Towing Assistance coverage
details in the DaimlerChrysler Corporation 24-Hour
Towing Assistance Program Guide.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
Paging
To learn how to page, refer to section ⬙Working with
Automated Systems.⬙ Paging works properly except for
pagers of certain companies which time-out a little too
soon to work properly with the UConnect™ system.
Voice Mail Calling
To learn how to access your voice mail, refer to section
⬙Working with Automated Systems.⬙
Working with Automated Systems
This method is designed to be used in instances where
one generally has to press numbers on the cellular phone
keypad while navigating through an automated telephone system.
You can use your UConnect™ system to access a voicemail system or an automated service, such as, paging
service or automated customer service. Some services
require immediate response selection, in some instances,
that may be too quick for use of UConnect™ system.
When calling a number with your UConnect™ system
that normally requires you to enter in a touch-tone
sequence on your cellular phone keypad, you can push
the ’Voice Recognition’ button and say the sequence you
wish to enter followed by the word ⬙Send.⬙ For example,
if required to enter your pin number followed with a
pound3746#,youcanpressthe’Voice Recognition’
button and say ⬙3746#Send.⬙ Saying a number, or
sequence of numbers, followed by ⬙Send⬙ is also to be
used to navigate through an automated customer service
center menu structure and to leave a number on a pager.
Barge In - Overriding Prompts
The ’Voice Recognition’ button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is playing ⬙Would you like to pair a phone, clear
aѧ,⬙ you could press the ’Voice Recognition’ button and
say ⬙Pair a Phone⬙ to select that option without having to
listen to the rest of the voice prompt.
3
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the system
from confirming your choices (e.g. the UConnect™ system will not repeat a phone number before you dial it).
•
Press the ’Phone’ button to begin.
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Setup Confirmations.⬙ The UConnect™ system will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cell phone, the UConnect™ system will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using UConnect™. The status is given for roaming network signal strength, phone battery strength, etc.
Dialing Using the Cellular Phone Keypad
You can dial a phone number with your cellular phone
keypad and still use the UConnect™ system (while
dialing via the cell phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetooth™ cellular
phone, the audio will be played through your vehicle’s
audio system. The UConnect™ system will work the
same as if you dial the number using voice recognition.
NOTE: Certain brands of mobilephones do not send the
dial ring to the UConnect™ system to play it on the
vehicle audio system, so you will not hear it. Under this
situation, after successfully dialing a number, the user
may feel that the call did not go through even though the
call is in progress. Once your call is answered, you will
hear the audio.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
Mute/Un-mute (Mute off)
When you mute the UConnect™ system, you will still be
able to hear the conversation coming from the other
party, but the other party will not be able to hear you. In
order to mute the UConnect™ system:
•
Press the ’Voice Recognition’ button.
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Mute.⬙
In order to un-mute the UConnect™ system:
•
Press the ’Voice Recognition’ button.
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Mute-off.⬙
Information Service
When using AT&T Wireless Service, dialing to phone
number ⬙#121,⬙ you can access voice activated automated
system to receive news, weather, stocks, traffic, etc.
related information.
Advanced Phone Connectivity
Transfer Call to and from Cellular Phone
The UConnect™ system allows on going calls to be
transferred to your cellular phone to the UConnect™
system without terminating the call. To transfer an ongoing call from your UConnect™ paired cellular phone to
the UConnect™ system or vice-versa, press the ’Voice
Recognition’ button and say ⬙Transfer Call.⬙
Connect or Disconnect Link Between the
UConnect™ System and Cellular Phone
Your cellular phone can be paired with many different
electronic devices, but can only be actively ⬙connected⬙
with one electronic device at a time.
3
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
If you would like to connect or disconnect the Bluetooth™ connection between a UConnect™ paired cellular
phone and the UConnect™ system, follow the instruction
described in your cellular phone user’s manual.
List Paired Cellular Phone Names
Press the ’Phone’ button to begin.
•
•
After the “Ready” prompt and the following beep, say
“Setup Phone pairing”.
•
When prompted, say ⬙List Phones⬙.
•
The UConnect™ system will play the phone names of
all paired cellular phones in order from the highest to
the lowest priority. To “select” or “delete” a paired
phone being announced, press the ⬘Voice recognition’
button and say “Select” or “Delete.” Also, see the next
two sections for an alternate way to “select” or “delete” a paired phone.
Select another Cellular Phone
This feature allows you to select and start using another
phone with the UConnect™ system. The phone must
have been previously paired to the UConnect™ system
that you want to use it with.
•
Press the ’Phone’ button to begin.
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Setup Select Phone.⬙
•
The phone names along with priority numbers will be
announced.
•
When prompted say the priority number of the cellular phone you wish to select. You can also press the
⬘Voice Recognition’ button anytime while the list is
being played, then say the priority number of the
phone that you wish to select.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
•
The selected phone will be used for the next phone
call. If the selected phone is not available, the UConnect™ system will return to using the highest priority
phone present in or near (approximately with in 30
feet) the vehicle.
Delete UConnect™ Paired Cellular Phones
Press the ’Phone’ button to begin.
•
•
After the ⬙Ready⬙ prompt and the following beep, say
⬙Setup Phone Pairing.⬙
•
At the next prompt, say ⬙Delete.⬙
•
The phone names along with priority numbers will be
announced.
•
When prompted say the priority number of the cellular phone you wish to delete. You can also press the
⬘Voice Recognition’ button anytime while the list is
being played and say the priority number of the phone
you wish to delete.
Things You Should Know About Your UConnect™
System
Voice Recognition (VR)
Always wait for the beep before speaking.
•
•
Speak normally, without pausing, just as you would
speak to a person sitting approximately eight (8) feet
away from you.
•
Make sure that no one other than you is speaking
during a voice recognition period.
•
Performance is maximized under:
•
low-to-medium blower setting,
•
low-to-medium vehicle speed,
3
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
•
low road noise,
•
smooth road surface,
•
fully closed windows,
•
dry weather condition.
•
Even though the system is designed for users speaking
in North American English, French, and Spanish accents, the system may not always work for some.
•
When navigating through an automated system, such
as, voice mail, or when sending a page, at the end of
speaking the digit string, make sure to say ⬙send.⬙
•
Storing names in phonebook when vehicle is not in
motion is recommended.
•
It is not recommended to store similar sounding
names in the UConnect™ phonebook.
•
UConnect™ phonebook name tag recognition rate is
optimized for the voice of the person who stored the
name in the phonebook.
•
You can say ⬙O⬙ (letter ⬙O⬙) for ⬙0⬙ (zero). ⬙800⬙ must be
spoken ⬙eight-zero-zero.⬙
•
Even though international dialing for most number
combinations is supported, some shortcut dialing
number combinations may not be supported.
Far End Audio Performance
Audio quality is maximized under:
•
•
low-to-medium blower setting,
•
low-to-medium vehicle speed,
•
low road noise,
•
smooth road surface,
•
fully closed windows, and
•
dry weather condition.
•
Operation from driver seat.
•
Performance, such as, audio clarity, echo. and loudness to a large degree, rely on the phone and network,
and not the UConnect™ system.
•
Echo at far end can sometime be reduced by lowering
the in-vehicle audio volume.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
Bluetooth Communication Link
Cellular phones have been found to occasionally lose
connection to the UConnect™ system. When this happens, the connection can generally be re-established by
switching the phone off/on. Your cell phone is recommended to remain in Bluetooth ⬙on⬙ mode.
Power-Up
After switching the ignition key from OFF to either ON
or ACC position, or after a reset, you must wait at least
five (5) seconds prior to using the system.
3
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
North American English
Primary Alternate(s)
Zero Oh
Add location Add new
All All of them
Confirmation prompts Confirmations prompts
Delete a name Delete
Language Select language
List names List all
List paired phones List phones
Pager Beeper
Phone pairing Pairing
Phonebook Phone book
Return to main menu Return. Main menu
Select phone select
Set up Phone settings phone set
up
SEATS
The seating options available in this truck are the resultof
extensive customer research and evaluations.
WARNING!
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
3
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
WARNING!
You can be seriously, even fatally injured riding in a
seat with the seatback reclined. Do not ride with the
seatback reclined so that the shoulder belt is no
longer resting against your chest. If you ride in this
position, the shoulder harness will no longer be
restraining you. In a collision you could slide under
the seat belt and receive serious or fatal injuries.
Recline in a seat only when the vehicle is parked.
40-20-40 Front Seat
As the name implies, the seat is divided into 3 segments.
The outboard seat portions are each 40% of the total
width of the seat. The back of the center portion (20%)
easily folds down to provide an armrest/center storage
compartment (if equipped).
Power Driver Seat
CAUTION!
Don’t put anything under a power seat. It may cause
damage to the seat controls.
Loading...
