Dodge Challenger SRT 2014 User Manual

> 2014 CHALLENGER // USER GUIDE
Includes SRT
> IMPORTANT
This User Guide is intended to familiarize you with the important features of your vehicle.
The DVD enclosed contains your Owner’s Manual, Navigation/Uconnect Booklets, Tire Warranty and Roadside Assistance (new vehicles purchased in the U.S.) or Roadside Assistance (new vehicles purchased in Canada) in electronic format. We hope you
find it useful. Replacement DVD kits may be purchased by visiting www.techauthority.com. Copyright 2014 Chrysler Group LLC.
®
Manuals, Warranty
If you are the first registered retail owner of your vehicle, you may obtain a complimentary printed copy of the Owner’s Manual, Navigation/Uconnect® Manuals or Warranty Booklet by calling 1-800-423-6343 (U.S.) or 1-800-387-1143 (Canada) or by contacting your dealer.
The driver’s primary responsibility is the safe operation of the vehicle. Driving while distracted can result in loss of vehicle control, resulting in a collision and personal injury. Chrysler Group LLC strongly recommends that the driver use extreme caution when using any device or feature that may take their attention off the road. Use of any electrical devices such as cell phones, computers, portable radios, vehicle navigation or other devices by the driver while the vehicle is moving is dangerous and could lead to a serious collision. Texting while driving is also dangerous and should never be done while the vehicle is moving. If you find yourself unable to devote your full attention to vehicle operation, pull off the road to a safe location and stop your vehicle. Some States or Provinces prohibit the use of cellular telephones or texting while driving. It is always the driver’s responsibility to comply with all local laws.

TABLE OF CONTENTS

INTRODUCTION/WELCOME
WELCOME FROM CHRYSLER GROUP LLC . . . 2
CONTROLS AT A GLANCE
DRIVER COCKPIT ................4
INSTRUMENT CLUSTER ............6
GETTING STARTED
KEY FOB . . . . . . . . . . . . . . . . . . . . . 8
REMOTE START .................9
KEYLESS ENTER-N-GO™ ...........10
VEHICLE SECURITY ALARM ..........13
SEAT BELT . . . . . . . . . . . . . . . . . . . 14
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) — AIR BAGS . . . . . . . . . . . . . . . . 15
CHILD RESTRAINTS ..............16
FRONT SEATS .................19
REAR SEAT . . . . . . . . . . . . . . . . . . . 21
HEATED SEATS . . . . . . . . . . . . . . . . . 21
TILT/TELESCOPING STEERING COLUMN . . . 22
OPERATING YOUR VEHICLE
ENGINE BREAK-IN RECOMMENDATIONS . . . 23 TURN SIGNAL/WIPER/WASHER/HIGH
BEAM LEVER ..................24
HEADLIGHT SWITCH ..............25
SPEED CONTROL ................26
AUTOSTICK® ..................28
SPORT MODE – IF EQUIPPED .........29
MANUAL TRANSMISSION 1 TO 4 SKIP SHIFT . . 29 AUTOMATIC TEMPERATURE CONTROLS (ATC)
......................30
POWER SUNROOF ...............30
WIND BUFFETING ...............31
ELECTRONICS
YOUR VEHICLE'S SOUND SYSTEM ......32
Uconnect® 130 .................34
Uconnect® 130 WITH SiriusXM
SATELLITE RADIO ...............36
Uconnect® 430/430N .............39
Uconnect® 730N ................48
SiriusXM SATELLITE RADIO/TRAVEL LINK . . 59
STEERING WHEEL AUDIO CONTROLS ....63
Uconnect® PHONE ...............63
Uconnect® VOICE COMMAND .........66
Bluetooth® STREAMING AUDIO ........68
iPod®/USB/MP3 CONTROL ..........69
ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) .................70
PROGRAMMABLE FEATURES .........71
UNIVERSAL GARAGE DOOR OPENER
(HomeLink®) ..................72
POWER OUTLETS ...............75
UTILITY
TRAILER TOWING WEIGHTS (MAXIMUM TRAILER WEIGHT RATINGS) . . . 76 RECREATIONAL TOWING
(BEHIND MOTORHOME, ETC.) .........76
SRT
AUTOSTICK® ..................78
ELECTRONIC CONTROL DAMPING SYSTEM . . . 79
SRT PERFORMANCE FEATURES .......80
SUMMER/THREE-SEASON TIRES .......81
WHAT TO DO IN EMERGENCIES
ROADSIDE ASSISTANCE ............82
INSTRUMENT CLUSTER WARNING LIGHTS . . . 82
IF YOUR ENGINE OVERHEATS .........87
JACKING AND TIRE CHANGING ........88
BATTERY LOCATION ..............94
TIREFIT KIT ...................94
JUMP-STARTING ...............100
SHIFT LEVER OVERRIDE ...........102
TOWING A DISABLED VEHICLE .......102
FREEING A STUCK VEHICLE .........104
EVENT DATA RECORDER (EDR) ........105
MAINTAINING YOUR VEHICLE
OPENING THE HOOD .............106
ENGINE COMPARTMENT ...........107
FLUIDS AND CAPACITIES ...........110
MAINTENANCE SCHEDULE ..........113
FUSES .....................123
SUMMER/THREE-SEASON TIRES ......125
TIRE PRESSURES ...............126
WHEEL AND WHEEL TRIM CARE .......127
EXTERIOR BULBS ...............127
CONSUMER ASSISTANCE
CHRYSLER GROUP LLC
CUSTOMER CENTER .............128
CHRYSLER CANADA INC.
CUSTOMER CENTER .............128
ASSISTANCE FOR THE HEARING
IMPAIRED . . . . . . . . . . . . . . . . . . . 128
PUBLICATIONS ORDERING ..........128
REPORTING SAFETY DEFECTS IN THE
UNITED STATES . . . . . . . . . . . . . . . . 129
MOPAR® ACCESSORIES
AUTHENTIC ACCESSORIES BY MOPAR® . . 130
FREQUENTLY ASKED QUESTIONS
FAQ’s . . . . . . . . . . . . . . . . . . . . . . 131
INDEX
....................133

INTRODUCTION/WELCOME

WELCOME FROM CHRYSLER GROUP LLC

Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles.
Your ne w Chr y s l e r Group LL C vehicle ha s ch a r a c t e r i s t i c s to enhance th e driver's control under some driving conditions. These are to assist the driver and are never a substitute for attentive driving. They can never take the driver's place. Always drive carefully.
Your new vehicle ha s m a n y f e a t u r e s f o r t h e c o m f o r t and convenience of you a n d y o u r passengers. Some of these should not be used when driving because they take your eyes from the road or your attention from driving. Never text while driving or take your eyes more than momentarily off the road.
This guide illustrates and describes the operation of features and equipment that are either standard or optional on this vehicle. This guide may also include a description of features and equipment that are no longer available or were not ordered on this vehicle. Please disregard any features and equipment described in this guide that are not available on this vehicle. Chrysler Group LLC reserves the right to make changes in design and specifica­tions and/or make additions to or improvements to its products without imposing any obligation upon itself to install them on products previously manufactured.
This User Guide has been prepared to help you quickly become acquainted with the important features of your vehicle. It contains most things you will need to operate and maintain the vehicle, including emergency information.
The DVD includes a computer application containing detailed owner's information which can be viewed on a personal computer or MAC computer.The multimedia DVD also includes videos which can be played on any standard DVD player (including the Uconnect® Touch­screen Radios). Additional DVD operational information is located on the back of the DVD sleeve.
For complete owner information, refer to your Owner's Manual on the DVD in the owner’s kit provided at the time of new vehicle purchase. For your convenience, the information
contained on the DVD may also be printed and saved for future reference.
Chrysler Group LLC is committed to protecting our environment and natural resources. By converting from paper to electronic delivery for the majority of the user information for your vehicle, together we greatly reduce the demand for tree-based products and lessen the stress on our environment.
2
INTRODUCTION/WELCOME

VEHICLES SOLD IN CANADA

With respect to any vehicles sold in Canada, the name Chrysler Group LLC shall be deemed to be deleted and the name Chrysler Canada Inc. used in substitution.
WARNING!
• Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious personal injury.
•Alwaysmakesurethatobjectscannotfallintothedriverfootwellwhilethevehicleis moving. Objects can become trapped under the brake pedal and accelerator pedal causing a loss of vehicle control.
• Failure to properly follow floor mat installation or mounting can cause interference with the brake pedal and accelerator pedal operation causing loss of control of the vehicle.
•Neverleavechildrenaloneinavehicle,orwithaccesstoanunlockedvehicle. Allowing children to be in a vehicle unattended is dangerous for a number of reasons. Achildorotherscouldbeseriouslyorfatallyinjured.Childrenshouldbewarnednot to touch the parking brake, brake pedal or the shift lever/gear selector.
• Never use the ‘PARK’ position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage.
•RefertoyourOwner'sManualontheDVDforfurtherdetails.

USE OF AFTERMARKET PRODUCTS (ELECTRONICS)

The use of aftermarket devices including cell phones, MP3 players, GPS systems, or chargers may affect the performance of on-board wireless features including Keyless Enter-N-Go™ and Remote Start range. If you are experiencing difficulties with any of your wireless features, try disconnecting your aftermarket devices to see if the situation improves. If your symptoms persist, please see an authorized dealer.
CHRYSLER, DODGE, JEEP, RAM TRUCK, SRT, ATF+4, MOPAR and Uconnect are registered trademarks of Chrysler Group LLC.
COPYRIGHT ©2014 CHRYSLER GROUP LLC
3

CONTROLS AT A GLANCE

DRIVER COCKPIT

1. Headlight Switch pg. 25
2. Electronic Vehicle Information Center (EVIC) Controls pg. 70
3. Turn Signal/Wiper/Washer/High Beams Lever (behind steering wheel) pg. 24

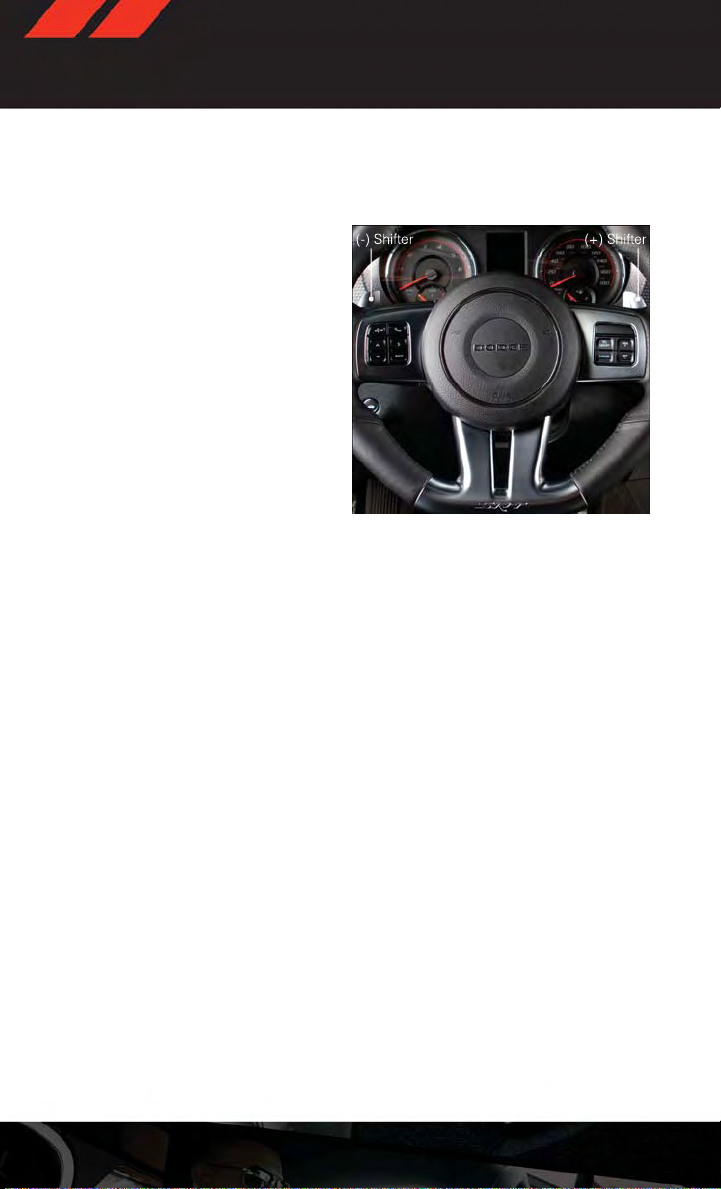

4. Steering Wheel Paddle Shifters pg. 28
5. Electronic Vehicle Information Center (EVIC) Display
6. Instrument Cluster pg. 6
7. Speed Control pg. 26
8. Engine Start/Stop Button Automatic Transmission pg. 12

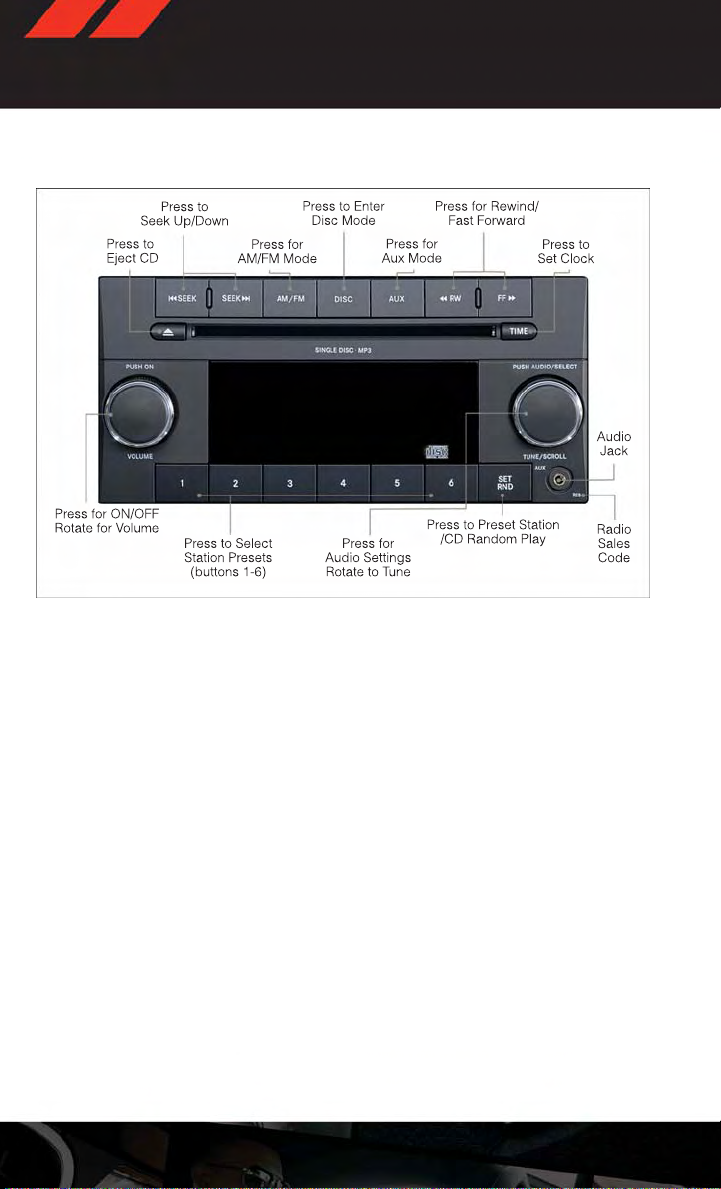

9. Your Vehicle's Sound System pg. 32
10. Automatic Climate Controls pg. 30
11. Glove Compartment

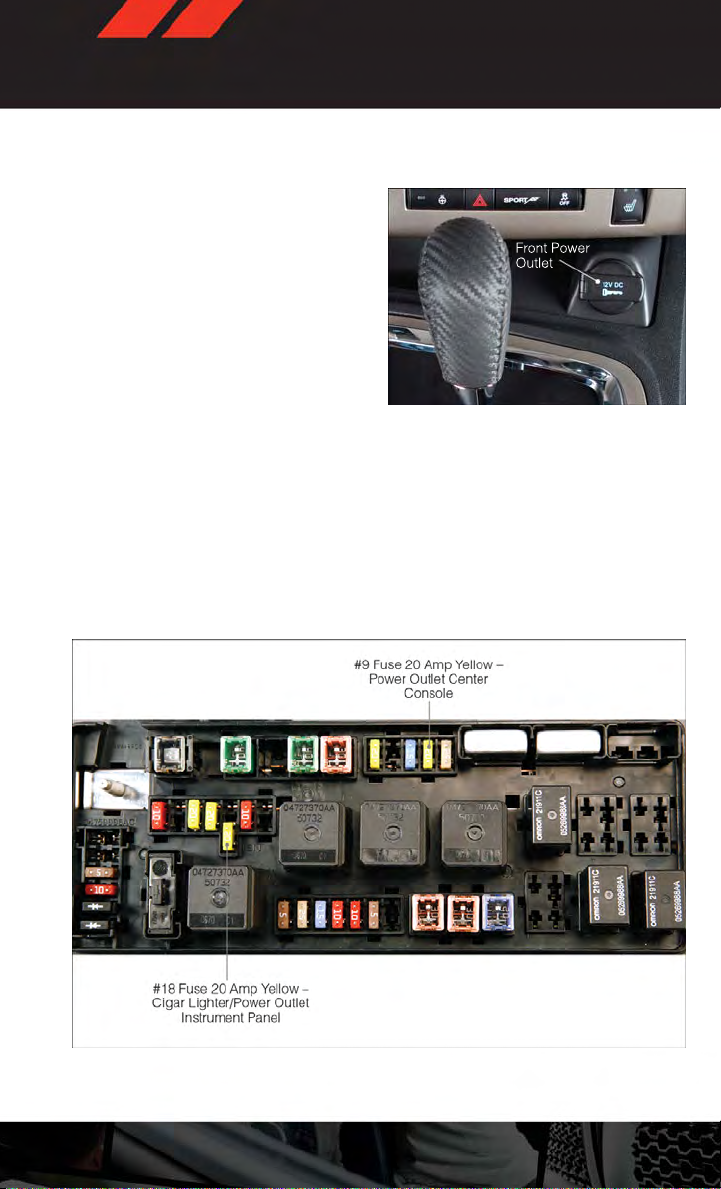

12. Power Outlet pg. 75
4
CONTROLS AT A GLANCE
13. Passenger Heated Seats pg. 21
14. Switch Panel
• Electronic Stability Control (ESC) OFF pg. 84
• Spor t Shifting pg. 84
•HazardFlashers
15. Shift Lever
16. Driver Heated Seat pg. 21
17. Hood Release pg. 106
18. Emergency Brake Pedal
19. Power Door Looks
20. Power Windows
21. Power Mirror Switch
22. Emergency Brake Release
23. Power Trunk Release Button
5
CONTROLS AT A GLANCE

INSTRUMENT CLUSTER

Warning Lights

- Low Fuel Warning Light
- Charging System Light**
- Oil Pressure Warning Light**
-Anti-LockBrake(ABS)Light**
- Air Bag Warning Light**
- Electronic Throttle Control (ETC) Light
-TirePressureMonitoringSystem(TPMS)Light
- Engine Temperature Warning Light
- Seat Belt Reminder Light
BRAKE
(See page 82 for more information.)
6
- Brake Warning Light**
-MalfunctionIndicatorLight(MIL)**
-ElectronicStabilityControl(ESC)Activation/MalfunctionIndicatorLight*
CONTROLS AT A GLANCE
Indicators
-TurnSignalIndicators
-HighBeamIndicator
-FrontFogLightIndicator
-VehicleSecurityIndicator*
- Electronic Speed Control Set
-ElectronicStabilityControl(ESC)OffIndicator*
-WindshieldWasherFluidLowIndicator***
-DoorAjarIndicator***
-DecklidAjarIndicator***
-SportModeIndicator
* If equipped
** Bulb Check with Key On
***On vehicles equipped with a Premium Instrument Cluster,this display shows the Electronic Vehicle Information Center (EVIC) messages when the appropriate conditions exist.
7

GETTING STARTED

KEY FOB

Locking And Unlocking The Doors

•PushandreleasetheLOCKbuttononthe RKE transmitter to lock all doors. The turn signal lights will flash and the horn will chirp to acknowledge the signal.
•PushandreleasetheUNLOCKbuttonon the RKE transmitter once to unlock the driver's door or twice within five seconds to unlock all doors. The turn signal lights will flash to acknowledge the unlock sig­nal. The illuminated entry system will also turn on.
1st Push Of Key Fob Unlocks
This feature lets you program the system to unlock either the driver's door or all doors on the first push of the UNLOCK button on the RKE transmitter. To change the current setting, refer to your Owner's Manual on the DVD for further information.

Opening The Trunk

•PresstheTrunkReleasebuttononthetransmittertwotimeswithinfivesecondstoopen the trunk.
1 — Decklid 2—Lock 3 — Unlock 4 — Remote Start 5 — Emergency Key

Panic Alarm

•PressthePANICbuttononcetoturnthepanicalarmon.
•Waitapproximatelythreesecondsandpressthebuttonasecondtimetoturnthepanic alarm off.

Emergency Key

• Should the battery in the vehicle or the Key Fob transmitter go dead, there is an emergency key located in the Key Fob that can be used for locking and unlocking the doors. To remove the emergency key, slide the button at the top of the Key Fob sideways with your thumb and then pull the key out with your other hand.
8
GETTING STARTED
CAUTION!
• If your vehicle battery becomes low or dead, your Key Fob will become locked in the ignition.
•DonotattempttoremovetheKeyFobwhileinthiscondition,damagecouldoccurto the Key Fob or ignition module. Only remove the emergency key for locking and unlocking the doors.
•LeavetheKeyFobintheignitionandeither:
Jump Start the vehicle.
• Charge the battery.
•ContactyourauthorizeddealerforassistanceonhowtoremovetheKeyFob
using the manual override method.
WARNING!
•Neverleavechildrenaloneinavehicle,orwithaccesstoanunlockedvehicle. Allowing children to be in a vehicle unattended is dangerous for a number of reasons. Achildorotherscouldbeseverelyinjuredorkilled.Childrenshouldbewarnednotto touch the parking brake, brake pedal, or the shift lever. Do not leave the KeyFob inside the vehicle, or in a location accessible to children. A child could start the vehicle, operate power windows, other controls, or move the vehicle.
•Donotleavechildrenoranimalsinsideparkedvehiclesinhotweather.Interiorheat build-up may cause them to be severely injured or killed.
•KeepKeyFobtransmittersawayfromchildren.OperationoftheRemoteStart System, windows, door locks or other controls could cause serious injury or death.

REMOTE START

x
•PresstheREMOTESTARTbutton the REMOTE START button a third time shuts the engine off.
•Todrivethevehicle,presstheUNLOCKbutton,inserttheKeyFobintheignitionandturn to the ON/RUN position.
• With remote start, the engine will only run for 15 minutes (timeout) unless the ignition Key Fob is placed in the ON/RUN position.
• The vehicle must be started with the Key Fob after two consecutive timeouts.
• Do not start or run an engine in a closed garage or confined area. Exhaust gas contains Carbon Monoxide (CO) which is odorless and colorless. Carbon Monoxide is poisonous and can cause you or others to be severely injured or killed when inhaled.
•KeepKeyFobtransmittersawayfromchildren.OperationoftheRemoteStart System, windows, door locks or other controls could cause you and others to be severely injured or killed.
2
on the Key Fob twice within five seconds. Pressing
WARNING!
9
GETTING STARTED

KEYLESS ENTER-N-GO™

The Keyless Enter-N-Go™ system is an enhancement to the vehicle's Key Fob. This feature allows you to lock and unlock the vehicle's door(s) and trunk without having to press the Key Fob lock or unlock buttons, as well as starting and stopping the vehicle with the press of a button.

To Unlock From The Driver Or Passenger Side:

•WithavalidKeylessEnter-N-Go™KeyFob located outside the vehicle and within 5 ft (1.5 m) of the driver or passenger side door handle, grab either front door handle to unlock the door automatically.

To Lock The Vehicle:

•BothfrontdoorhandleshaveLOCKbuttonslocatedontheoutsideofthehandle.With one of the vehicle's Keyless Enter-N-Go™ KeyFobs located outside the vehicle and within 5 ft (1.5 m) of the driver's or passenger front door handle, press the door handle LOCK button to lock all four doors and trunk.
•DONOTgrabthedoorhandle,whenpressingthedoorhandlelockbutton.Thiscould unlock the door(s).
10
GETTING STARTED
NOTE:
•If“UnlockAllDoors1stPress”isprogrammedalldoorswillunlockwhenyougrabholdof the front driver's door handle. To select between “Unlock Driver Door 1st Press” and “Unlock All Doors 1st Press”, refer to the Electronic Vehicle Information Center (EVIC) in your vehicle's Owner's Manual on the DVD or Programmable Features in this guide for further information.
•If“UnlockAllDoors1stPress”isprogrammedalldoorsandtrunkwillunlockwhenyou press the trunk button. If “Unlock Driver Door 1st Press” is programmed only the trunk will unlock when you press the trunk button. To select between “Unlock Driver Door 1st Press” and “Unlock All Doors 1st Press”, refer to the Electronic VehicleInformation Center (EVIC) in your vehicle's Owner's Manual on the DVD or Programmable Features in this guide for further information.
• If a Key Fob is detected in the vehicle when locking the vehicle using the power door lock switch, the doors and trunk will unlock and the horn will chirp three times. On the third attempt, your Key Fob can be locked inside the vehicle.
•AfterpressingtheKeylessEnter-N-Go™LOCKbutton,youmustwaittwosecondsbefore you can lock or unlock the vehicle using the door handle. This is done to allow you to check if the vehicle is locked by pulling the door handle, without the vehicle reacting and unlocking.
•IfaKeylessEnter-N-Go™doorhandlehasnotbeenusedfor72hours,theKeyless Enter-N-Go™ feature for that handle may time out. Pulling the deactivated front door handle will reactivate the door handle's Keyless Enter-N-Go™ feature.

To En ter The Trun k

•WithavalidKeylessEnter-N-Go™KeyFob located outside the vehicle and within 5 ft (1.5 m) of the deck lid, press the button located on the center of the light bar which is located on the deck lid above the license plate.
NOTE:
Refer to your Owner's Manual on the DVD for further information.
1—TrunkButton
11
GETTING STARTED

Engine Starting/Stopping - Automatic Transmission

Starting
• Place the shift lever in PARK or NEUTRAL.
• While pressing the brake pedal, press the ENGINE START/STOP button once. If the engine fails to start, the starter will disen­gage automatically after 10 seconds.
To st o p th e cr a n kin g of th e en g ine pr io r to
• the engine starting, press the button again.
Stopping
• Place the shift lever in PARK.
•PresstheENGINESTART/STOPbuttononce.TheignitionswitchwillreturntotheOFF position.
If the shift lever is not in PARK, the ENGINE START/STOP button must be held for two
seconds and vehicle speed must be above 5 mph (8 km/h) before the engine will shut off.
NOTE:
If the ignition switch is left in the ACC or RUN (engine not running) position and the transmis­sion is in PARK, the system will automatically time out after 30 minutes of inactivity and the ignition will switch to the OFF position.

Engine Starting/Stopping — Manual Transmission

Starting
• Press and hold the clutch pedal while pressing and holding the ENGINE START/STOP button. Release the button when the engine starts. If the engine fails to start within 15 seconds, release the button, wait 10 to 15 seconds, then repeat.
•Tostopthecrankingoftheenginepriortotheenginestarting,releasethebutton.
Stopping
•Withthevehiclestopped,placetheshiftleverinNEUTRAL. Press the ENGINE START/STOP button once. The ignition switch will return to the OFF position.
If the vehicle speed is above 5 mph (8 km/h), the ENGINE START/STOP button must be
held for two seconds before the engine will shut off. The ignition switch position will remain in the ACC position until the vehicle is stopped and the button is pressed twice to the OFF position.
NOTE:
If the ignition switch is left in the ACC position, the system will automatically time out after 60 minutes of inactivity and the ignition will switch to the OFF position.
12
GETTING STARTED

Additional Functions

NOTE:
The following functions are with the driver’s foot OFF the Brake Pedal/Clutch Pedal (Trans­mission in PARK or NEUTRAL Position).
Starting With The Ignition Switch In The OFF Position:
•PresstheENGINESTART/STOPbuttononcetochangetheignitionswitchtotheACC position.
•PresstheENGINESTART/STOPbuttonasecondtimetochangetheignitionswitchtothe RUN position.
•PresstheENGINESTART/STOPbuttonathirdtimetoreturntheignitionswitchtotheOFF position.

VEHICLE SECURIT Y ALARM

To Arm

Keyless Enter-N-Go™ button installed: Press the Keyless Enter-N-Go™ START/STOP button until the Electronic Vehicle Information Center (EVIC) indicates that the vehicle ignition is “OFF”. Press the power door LOCK switch while the door is open, press the Key Fob LOCK button, or with one of the Key Fobs located outside the vehicle and within 5 ft (1.5 m) of the driver's and passenger front door handles, press the Keyless Enter-N-Go™ LOCK button located on the door handle.
Keyless Enter-N-Go™ button not installed: Tu r n the ig nit i o n s wit c h to th e “ OFF ” po s i ­tion. Press the power door lock switch while the door is open, press the Key Fob LOCK button, or with one of the Key Fobs located outside the vehicle and within 5 ft (1.5 m) of the driver's and passenger front door handles, press the Keyless Enter-N-Go™ LOCK button located on the door handle.
NOTE:
After pressing the Keyless Enter-N-Go™ LOCK button, you must wait two seconds before you can lock or unlock the vehicle via the door handle.
13
GETTING STARTED

To Disarm

Keyless Enter-N-Go™ button installed: Press the Key Fob UNLOCK button or with one of the Key Fobs located outside the vehicle and within 5 ft (1.5 m) of the driver's and passenger front door handles, grab the Keyless Enter-N-Go™ door handle and enter the vehicle, then press the Keyless Enter-N-Go™ START/STOP button (requires at least one valid Key Fob in the vehicle).
Keyless Enter-N-Go™ button not installed: Press the Key Fob UNLOCK button or with one of the Key Fobs located outside the vehicle and within 5 ft (1.5 m) of the driver's and passenger front door handles, grab the Keyless Enter-N-Go™ door handle and enter the vehicle, then turn the ignition to the ON/RUN position.

SEAT BELT

Be sure everyone in your vehicle is in a seat and using a seat belt properly.
• Position the lap belt across your thighs, below your abdomen. Toremove slack in the lap portion, pull up a bit on the shoulder belt. To loosen the lap belt if it is too tight, tilt the latch plate and pull on the lap belt. A snug belt reduces the risk of sliding under the belt in a collision.
• Position the shoulder belt on your chest so that it is comfortable and not resting on your neck. The retractor will withdraw any slack in the belt.
A shoulder belt placed behind you will not protect you from injury during a collision. Youare more likely to hit your head in a collision if you do not wear your shoulder belt. The lap and shoulder belt are meant to be used together.
Abeltthatistooloosewillnotprotectyouproperly.Inasuddenstopyoucouldmovetoofar forward, increasing the possibility of injury. Wear your seat belt snugly.
Afrayedortornbeltcouldripapartinacollisionandleaveyouwithnoprotection.Inspectthe belt system periodically, checking for cuts, frays, or loose parts. Damaged parts must be replaced immediately. Do not disassemble or modify the system. Seat belt assemblies must be replaced after a collision if they have been damaged (bent retractor, torn webbing, etc.).
The seat belts for both front seating positions are equipped with pretensioning devices that are designed to remove slack from the seat belt in the event of a collision.
A deployed pretensioner or a deployed air bag must be replaced immediately.
WARNING!
In a collision, you and your passengers can suffer much greater injuries if you are not properly buckled up. You can strike the interior of yourvehicle or other passengers, or you can be thrown out of the vehicle. Always be sure you and others in your vehicle are buckled up properly.
14
GETTING STARTED

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIR BAGS

This vehicle has Advanced Front Air Bags for both the driver and right front passenger as a supplement to the seat belt restraint system. The Advanced Front Air Bags will not deploy in every type of collision.
Advanced Front Air Bags are designed to provide additional protection by supplementing the seat belts in certain frontal collisions depending on several factors, including the severity and t ype of collision. Advanced Front Air Bags are not expected to reduce the risk of injury in rear, side, or rollover collisions.
•ThisvehiclemaybeequippedwithSupplementalSideAirBagInflatableCurtainsto protect the driver, front and rear passengers sitting next to a window.
•ThisvehicleisequippedwithSupplementalSeat-MountedSideAirBagstoprovide enhanced protection to help protect an occupant during a side impact.
If the Air Bag Warning Light have the vehicle serviced by an authorized service center immediately.
Refer to the Owner's Manual on the DVD for further details regarding the “Supplemental Restraint System (SRS) in Things To Know Before Starting”.
•Relyingontheairbagsalonecouldleadtomoresevereinjuriesinacollision.Theair bags work with your seat belt to restrain you properly.In some collisions, the air bags won't deploy at all. Always wear your seat belts even though you have air bags.
•BeingtooclosetothesteeringwheelorinstrumentpanelduringAdvancedFrontAir Bag deployment could cause serious injury, including death. Air bags need room to inflate. Sit back, comfortably extending your arms to reach the steering wheel or instrument panel.
•SupplementalSideAirBagInflatableCurtainsandSupplementalSeat-MountedSide Air Bags need room to inflate. Do not lean against the door or window. Sit upright in the center of the seat.
•BeingtooclosetotheSupplementalSideAirBagInflatableCurtainand/orSeat­Mounted Side Air Bag during deployment could cause you to be severely injured or killed.
•Donotdriveyourvehicleaftertheairbagshavedeployed.Ifyouareinvolvedin another collision, the air bags will not be in place to protect you.
•Afteranycollision,thevehicleshouldbetakentoanauthorizeddealerimmediately.
is not on during starting, stays on, or turns on while driving,
WARNING!
15
GETTING STARTED

CHILD RESTRAINTS

Children 12 years or younger should ride properly buckled up in a rear seat, if available. According to crash statistics, children are safer when properly restrained in the rear seats rather than in the front.
Every state in the United States and all Canadian provinces require that small children ride in proper restraint systems. This is the law, and you can be prosecuted for ignoring it.
NOTE:
• For additional information, refer to www.seatcheck.org or call 1–866–SEATCHECK (1–866–732–8243).
• Canadian residents, should refer to Transport Canada’s website for additional informa­tion: http://www.tc.gc.ca/eng/roadsafety/safedrivers-childsafety-index-53.htm

LATCH — Lower Anchors And Tethers For CHildren

•YourvehicleisequippedwiththechildrestraintanchoragesystemcalledLATCH,which stands for Lower Anchors and Tethers for CHildren.
•Allrearseatingpositionshaveloweranchorsandtoptetheranchors.
•YoumayusetheLATCHanchoragesys­tem until the combined weight of the child and the child restraint is 65 lbs (29.5 kg). Use the seat belt and tether anchor instead of the LATCH system once the combined weight is more than 65 lbs (29.5 kg).
The lower anchorages are round bars
• that are found at the rear of the seat cush­ion where it meets the seatback, below the anchorage symbols on the seatback. They are just visible when you lean into the rear seat to install the child restraint. You will easily feel them if you run your finger along the gap between the seat­back and seat cushion.
• If a child restraint installed in the center position blocks the seat belt webbing or buckle
In addition, there are tether strap anchorages behind each rear seating po­sition located in the panel between the rear seatback and the rear window. These tether strap anchorages are under a plastic cover with the tether anchorage symbol on it.
for the outboard position, do not use that outboard position. If a child seat in the center position blocks the outboard LATCH anchors or seat belt, do not install a child seat in that outboard position.
1—LowerAnchors
16
GETTING STARTED

Installing The Child Restraint Using The LATCH Lower Anchors

NOTE: Never “share” a LATCH anchorage with two or more child restraints.
1. Loosen the adjusters on the lower straps and on the tether strap of the child seat so that you can more easily attach the hooks or connectors to the vehicle anchorages.
2. Attach the lower hooks or connectors of the child restraint to the lower anchorages in the
selected seating position.
3. If the child restraint has a tether strap, connect it to the top tether anchorage. See below
for directions to attach a tether anchor.
4.
Tighten all of the straps as you push the child restraint rearward and downward into the seat. Remove slack in the straps according to the child restraint manufacturer’s instructions.
5. Test that the child restraint is installed tightly by pulling back and forth on the child seat
at the belt path. It should not move more than 1 inch (25.4 mm) in any direction.

Installing The Child Restraint Using The Vehicle Seat Belts

The seat belts in the passenger seating positions are equipped with a Switchable Auto­matic Locking Retractor (ALR) that is designed to keep the lap portion of the seat belt tight around the child restraint. Any seat belt system will loosen with time, so check the belt occasionally, and pull it tight if necessary.
Always use the tether anchor when using the seat belt to install a forward facing child restraint, up to the recommended weight limit of the child restraint.

To Install A Child Seat Using An ALR:

1. Pull enough of the seat belt webbing from the retractor to pass it through the belt path of the child restraint. Do not twist the belt webbing in the belt path.
2. Slide the latch plate into the buckle until you hear a “click.”
3. Pull on the webbing to make the lap portion tight against the child seat.
4. To lock the seat belt, pull down on the shoulder part of the belt until you have pulled all
the seat belt webbing out of the retractor.Then, allow the webbing to retract back into the retractor. As the webbing retracts, you will hear a clicking sound. This means the seat belt is now in the Automatic Locking mode.
5. Try to pull the webbing out of the retractor. If it is locked, you should not be able to pull out
any webbing. If the retractor is not locked, repeat the last step.
6. Finally, pull up on any extra webbing to tighten the lap portion around the child restraint
while you push the child restraint rearward and downward into the vehicle seat.
7. If the child restraint has a top tether strap and the seating position has a top tether anchorage, connect the tether strap to the anchorage and tighten the tether strap. See below for directions to attach a tether anchor.
8. Test that the child restraint is installed tightly by pulling back and forth on the child seat
at the belt path. It should not move more than 1 inch (25.4 mm) in any direction.
17
GETTING STARTED

Installing The Top Tether Strap (With Either Lower Anchors Or Vehicle Seat Belt):

When installing a forward-facing child restraint, always secure the top tether strap, up to the tether anchor weight limit, whether the child restraint is installed with the lower anchors or the vehicle seat belt.
1. Rotate or lift the cover to access the anchor directly behind the seat where you are placing the child restraint.
2. Route the tether strap to provide the most direct path for the strap between the anchor
and the child seat.
3. If your vehicle is equipped with adjustable rear head restraints, raise the head restraint,
and where possible, route the tether strap under the head restraint and between the two posts. If not possible, lower the head restraint and pass the tether strap around the outboard side of the head restraint.
4.
Attach the tether strap hook of the child restraint to the top tether anchorage and remove slack in the tether strap according to the child restraint manufacturer’s instructions.
WARNING!
• In a collision, an unrestrained child, even a tiny baby, can become a projectile inside the vehicle. The force required to hold even an infant on your lap could become so great that you could not hold the child, no matter how strong you are. The child and others could be severely injured or killed. Any child riding in your vehicle should be in a proper restraint for the child's size.
• Rearward-facing child seats must never be used in the front seat of a vehicle with a front passenger air bag. An air bag deployment could cause severe injury or death to infants in this position.
• Only use a rear ward-facing child restraint in a vehicle with a rear seat.
•ImproperinstallationofachildrestrainttotheLATCHanchoragescanleadtofailure of an infant or child restraint. The child could be severely injured or killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint.
•Anincorrectlyanchoredtetherstrapcouldleadtoincreasedheadmotionand possible injury to the child. Use only the anchor positions directly behind the child seat to secure a child restraint top tether strap.
• If your vehicle is equipped with a split rear seat, make sure the tether strap does not slip into the opening between the seatbacks as you remove slack in the strap.
18

FRONT SEATS

Power Seats

The power seat switches are located on the outboard side of the front seat cushions.
The seat switch, controls forward/back­ward and up/down.

Power Lumbar

• Push the switch forward to increase the lumbar support. Push the switch rearward to decrease the lumbar support.
• Pushing upward or downward on the switch will raise and lower the position of the support.
GETTING STARTED

Manual Seat Adjustment

Forward/Rearward
• Lift up on the adjusting bar located at the front of the seat near the floor and release it when the seat is at the desired position. Then, using body pressure, move forward and backward on the seat to be sure that the seat adjusters have latched.
19
GETTING STARTED
Recliner
• Lean forward in the seat and lift the re­cliner lever, then lean back to the desired position and release the lever.
•Liftthelevertoreturntheseatbacktoan upright position.

Easy Entry Seats

• Pull forward on the lever, located on the side of the seatback, to dump the seat­back forward and slide the seat forward. You can also temporarily remove the seat belt from the guide loop on the seat and allow the seat belt to retract out of the way. This allows for easier access to the rear seat.
CAUTION!
Do not place any article under a power seat or impede its ability to move as it may cause damage to the seat controls. Seat travel may become limited if movement is stopped by an obstruction in the seat's path.
WARNING!
• Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be properly adjusted, and you could be severely injured or killed. Only adjust a seat while the vehicle is parked.
• Do not ride with the seatback reclined so that the seat belt is no longer resting against your chest. In a collision, you could slide under the seat belt and be severely injured or killed. Use the recliner only when the vehicle is parked.
20
GETTING STARTED

REAR SEAT

Folding Rear Seatback

• Pull on the loops, located near the outer top of the seatbacks, to fold down either or both seatbacks. These loops can be tucked away when not in use.
When the seatback is raised to the upright
• position, make sure it is latched by strongly pulling on the top of the seatback above the seat loop.
WARNING!
•Becertainthattheseatbackissecurelylockedintoposition.Iftheseatbackisnot securely locked into position, the seat will not provide the proper stability for child seats and/or passengers. An improperly latched seat could cause serious injury.
• The cargo area in the rear of the vehicle (with the rear seatbacks in the locked-up or folded-down position) should not be used as a play area by children when the vehicle is in motion. They could be seriously injured in a collision. Children should be seated and using the proper restraint system.

HEATED SEATS

Front Heated Seats

• The controls for front heated seats are located on the center instrument panel below the climate controls.
•PresstheswitchoncetoselectHigh-level heating. Press the switch a second time to select Low-level heating. Press the switch a third time to shut the heating elements Off.
• If the High-level setting is selected, the system will automatically switch to Low­level after approximately 60 minutes. The Low-level setting will turn Off auto­matically after approximately 45 minutes.
21
GETTING STARTED
WARNING!
•Personswhoareunabletofeelpaintotheskinbecauseofadvancedage,chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other physical conditions must exercise care when using the seat heater. It may cause burns even at low temperatures, especially if used for long periods of time.
• Do not place anything on the seat that insulates against heat, such as a blanket or cushion. This may cause the seat heater to overheat. Sitting in a seat that has been overheated could cause serious burns due to the increased surface temperature of the seat.

TILT/TELESCOPING STEERING COLUMN

• The tilt/telescoping control handle is located below the steering wheel at the end of the steering column.
• To unlock the steering column, push the lever downward (toward the floor).
To ti l t th e s te e r ing c olu m n , mo v e th e st e er-
• ing wheel upward or downward as desired.
• To lengthen or shorten the steering col­umn, pull the steering wheel outward or push it inward as desired.
• To lock the steering column in position, push the lever upward until fully engaged.
WARNING!
Do not adjust the steering wheel while driving. The tilt/telescoping adjustment must be locked while driving. Adjusting the steering wheel while driving or driving without the tilt/telescoping adjustment locked could cause the driver to lose control of the vehicle. Failure to follow this warning may result in you and others being severely injured or killed.
22

OPERATING YOUR VEHICLE

ENGINE BREAK-IN RECOMMENDATIONS

• A long break-in period is not required for the engine and drivetrain (transmission and axle) in your vehicle.
•Drivemoderatelyduringthefirst300miles(500km).Aftertheinitial60miles(100km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable.
• While cruising, brief full-throttle acceleration within the limits of local traffic laws contributes to a good break-in. Wide-open throttle acceleration in low gear can be detrimental and should be avoided.
•Theengineoilinstalledintheengineatthefactoryisahigh-qualityenergyconserving type lubricant. Oil changes should be consistent with anticipated climate conditions under which vehicle operations will occur. For the recommended viscosity and quality grades, refer to “Maintaining Your Vehicle.”
NOTE:
Anewenginemayconsumesomeoilduringitsfirstfewthousandmiles(kilometers)of operation. This should be considered a normal part of the break-inand not interpreted as an indication of an engine problem or malfunction.
CAUTION!
Never use Non-Detergent Oil or Straight Mineral Oil in the engine or damage may result.

Engine Break-In Recommendation — SRT Version

A long break-in period is not required for the drivetrain (engine, transmission, and rear axle) in your new vehicle.
Drive moderately during the first 500 miles (800 km). After the initial 60 miles (100 km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the limits of local traffic laws contrib­utes to a good break-in. However, wide-open throttle acceleration in low gear can be detrimental and should be avoided.
The engine oil is a high performance synthetic lubricant, the transmission fluid, and axle lubricant installed at the factory is high-quality and energy-conserving. Oil, fluid, and lubricant changes should be consistent with anticipated climate and conditions under which vehicle operations will occur. For the recommended viscosity and quality grades, refer to “Maintaining Your Vehicle”.
NOTE:
Anewenginemayconsumesomeoilduringitsfirstfewthousandmiles(kilometers)of operation. This should be considered a normal part of the break-inand not interpreted as an indication of difficulty.
CAUTION!
Never use Non-Detergent Oil or Straight Mineral Oil in the engine or damage may result.
23
OPERATING YOUR VEHICLE

TURN SIGNAL/WIPER/WASHER/HIGH BEAM LEVER

Turn Signal/Lane Change Assist

• Tap the lever up or down once and the turn signal (right or left) will flash three times and automatically turn off.

Front Wipers

Intermittent, Low And High Operation
•Rotatetheendofthelevertothefirstdetentpositionforoneoffiveintermittentsettings, the second detent for low wiper operation and the third detent for high wiper operation.
Mist
• Rotate the end of the lever downward when a single wipe is desired.
NOTE:
The mist feature does not activate the washer pump; therefore, no washer fluid will be sprayed on the windshield. The wash function must be activated in order to spray the windshield with washer fluid.
Washer Operation
• Push the end of the lever inward and hold for as long as spray is desired.

High Beam Operation

•Pushtheleverforwardtoactivatethehighbeams.Pullthelevertowardyouforflashto pass.
NOTE:
For safe driving, turn off the high beams when oncoming traffic is present to prevent headlight glare and as a courtesy to other motorists.
24
OPERATING YOUR VEHICLE

HEADLIGHT SWITCH

Automatic Headlights/Parking Lights/Headlights

• Rotate the headlight switch, located on the instrument panel to the left of the steering wheel, to the first detent for park­ing lights for headlights
• With the parking lights or low beam head­lights on, push the headlight switch once for fog lights.
•Rotatetheheadlightswitchto“A”for AUTO headlights.
•Whensetto“A”(AUTO),thesystemauto­matically turns the headlights on or off based on ambient light levels.

Fog Lights

• Turn the headlights or parking lights on and push the headlight switch once to turn the fog lights on. Push the switch a second time to turn the fog lights off. Fog lights will not operate when high beams are on.
•Afoglightsymbolwillilluminateintheclustertoindicatethefoglightsareon.
and to the second detent
.
1—AutomaticHeadlights 2 — Rotate Dimmer 3 — Push Fog Lights 4 — Rotate Headlight Switch

Instrument Panel Dimmer

•Rotatethedimmercontroltotheextremebottompositiontofullydimtheinstrument panel lights and prevent the interior lights from illuminating when a door is opened.
•Rotatethedimmercontroluptoincreasethebrightnessoftheinstrumentpanelwhen the parking lights or headlights are on.
•Rotatethedimmercontroluptothenextdetentpositiontofullybrightentheodometer and radio when the parking lights or headlights are on.
•Rotatethedimmercontroluptothelastdetentpositiontoturnontheinteriorlighting.
• If your vehicle is equipped with a touchscreen, the dimming is programmable through the Uconnect® system. Refer to “Uconnect® Settings ” in “Understanding Your Instru­ment Panel” in the Owner's Manual on the DVD for further details.
25
OPERATING YOUR VEHICLE

SPEED CONTROL

The Speed Control switches are located on the steering wheel.

Cruise ON/OFF

•PushtheON/OFFbuttontoactivatethe Speed Control.
CRUISE cluster to indicate the Speed Control is on.
•PushtheON/OFFbuttonasecondtimeto turn the system off.
SET
• With the Speed Control on, push and re­lease the SET – button to set a desired speed.

Accel/Decel

To Increase Speed
• When the Electronic Speed Control is set, you can increase speed by pushing the RES + button.
The speed increment shown is dependant on the speed of U.S. (mph) or Metric (km/h) units:
U.S. Speed (mph)
• Pressing the RES + button once will result in a 1 mph increase in set speed. Each subsequent tap of the button results in an increase of 1 mph.
•Ifthebuttoniscontinuallypressed,thesetspeedwillcontinuetoincreaseuntilthe button is released, then the new set speed will be established.
Metric Speed (km/h)
• Pressing the RES + button once will result in a 2 km/h increase in set speed. Each subsequent tap of the button results in an increase of 2 km/h.
•Ifthebuttoniscontinuallypressed,thesetspeedwillcontinuetoincreaseuntilthe button is released, then the new set speed will be established.
will appear on the instrument
Speed Control Switches
1 — Push On/Off 2 — Push Resume/Accel 3 — Push Set/Decel 4 — Push Cancel
26
OPERATING YOUR VEHICLE
To Decrease Speed
• When the Electronic Speed Control is set, you can decrease speed by pushing the SET ­button.
The speed decrement shown is dependant on the speed of U.S. (mph) or Metric (km/h) units:
U.S. Speed (mph)
• Pressing the SET - button once will result in a 1 mph decrease in set speed. Each subsequent tap of the button results in a decrease of 1 mph.
•Ifthebuttoniscontinuallypressed,thesetspeedwillcontinuetodecreaseuntilthe button is released, then the new set speed will be established.
Metric Speed (km/h)
• Pressing the SET - button once will result in a 2 km/h decrease in set speed. Each subsequent tap of the button results in a decrease of 2 km/h.
•Ifthebuttoniscontinuallypressed,thesetspeedwillcontinuetodecreaseuntilthe button is released, then the new set speed will be established.

Resume

•Toresumeapreviouslyselectedsetspeedinmemory,pushtheRES+buttonand release.

Cancel

•PushtheCANCELbutton,orapplythebrakestocancelthesetspeedandmaintainthe set speed memory.
•PushtheON/OFFbuttontoturnthesystemoffanderasethesetspeedmemory.
WARNING!
•LeavingtheElectronicSpeedControlsystemonwhennotinuseisdangerous.You could accidentally set the system or cause it to go faster than you want. You could lose control and have a collision. Always leave the Electronic Speed Control system off when you are not using it.
•ElectronicSpeedControlcanbedangerouswherethesystemcannotmaintaina constant speed. Your vehicle could go too fast for the conditions, and you could lose control. A collision could be the result. Do not use Electronic Speed Control in heavy traffic or on roads that are winding, icy, snow-covered or slippery.
27
OPERATING YOUR VEHICLE

AUTOSTICK®

Steering Wheel Mounted Paddle Shifters Or Console Mounted Shifter

•AutoStick®isadriver-interactivetrans­mission feature that offers manual gear shifting to provide you with more control of the vehicle. AutoStick® allows you to maximize engine braking, and improve overall vehicle performance.
This system can also provide you with
• more control during passing, city driving, cold slippery conditions, mountain driving, trailer towing, and many other situations.

Operation

• When the shift lever is in the DRIVE posi­tion, the transmission will operate auto­matically, shifting between the five avail­able gears. To engage AutoStick®, simply move the shift lever to the right or left (+/-) while in the DRIVE position, or press one of the steering wheel mounted shift paddles (+/-). When AutoStick® is active, the current transmission gear is displayed in the Electronic Vehicle Information Center (EVIC) portion of the instrument cluster. In AutoStick® mode, the transmission will shift when manually selected by the driver (using the shift lever, or the shift paddles), unless an engine lugging or overspeed condition would result. It will remain in the selected gear until another upshift or downshift is chosen, except as described below:
•Thetransmissionwillautomaticallydownshiftasthevehicleslows(topreventengine lugging) and will display the current gear.
•Thetransmissionwillautomaticallydownshifttofirstgearwhencomingtoastop.
•Youcanstartoutinfirstorsecondgear.Tapping(+)(atastop)willallowstartingin second gear. Starting out in second gear is helpful in snowy or icy conditions.
•Thesystemwillignoreattemptstoupshiftattoolowofavehiclespeed.
•TransmissionshiftingwillbemorenoticeablewhenAutoStick®isengaged.Todisen­gage AutoStick® mode, hold the shift lever to the right or press and hold the (+) shift paddle until “D” is once again displayed in the instrument cluster. You can shift in or out of the AutoStick® mode at any time without taking your foot off the accelerator pedal.
28
OPERATING YOUR VEHICLE

SPORT MODE – IF EQUIPPED

•Thismodealtersthetransmission'sautomaticshiftscheduleforsportierdriving.Upshift speeds are increased to make full use of available engine power. Sport Mode is enabled/ disable by pressing the sport mode button on the center instrument panel below the climate controls. When SPORT mode is enabled, a “SPORT ” message will display in the instrument cluster.

MANUAL TRANSMISSION 1 TO 4 SKIP SHIFT

• Skip Shift is enabled when vehicle speed is between 19 MPH (30 km/h) and 21 MPH (34 km/h) and the accelerator pedal is at 1/4 throttle or less.
• For optimal fuel economy, under low acceleration conditions, your vehicle will only allow you to shift from first gear to fourth gear.Additionally, the skip shift message will appear on the Electronic Vehicle Information Center.
•RefertoyourOwner'sManualontheDVDforfurtherinformation.
29
OPERATING YOUR VEHICLE

AUTOMATIC TEMPERATURE CONTROLS (ATC)

Automatic Operation

•TurntheModeandBlowerControlstotheAUTOposition.
• Select the desired temperature by rotating the Temperature Control.
•Thesystemwillmaintainthesettemperatureautomatically.

Air Conditioning (A/C)

•IftheairconditioningbuttonispressedwhileintheAUTOmode,theindicatorlightmay flash three times to indicate the cabin air is being controlled automatically.

Air Recirculation

• Use Recirculation for maximum A/C operation.
•Forwindowdefogging,turntheRecirculationbuttonoff.
•IftheRecirculationbuttonispressedwhileintheAUTOmode,theindicatorlightmay flash three times to indicate the cabin air is being controlled automatically.

Heated Mirrors

•Themirrorsareheatedtomeltfrostorice.Thisfeatureisactivatedwheneveryouturnon the rear window defroster.

POWER SUNROOF

The power sunroof switch is located on the overhead console.

Opening Sunroof

Express Open
• Press the switch rearward and release it within one-half second. The sunroof will fully open and stop automatically.
Manual Open
Press and hold the switch rearward to open the sunroof. Any release of the switch will stop
• the movement, and the sunroof will remain in a partially open position until the switch is pressed again.
30
OPERATING YOUR VEHICLE

Venting Sunroof

•Pressandreleasethebuttonandthesunroofwillopentotheventposition.
This is called “Express Vent” and will occur regardless of sunroof position. During Express Ven t o pera tion, any m ovem ent of the swi tch wil l s top the sun roof.

Closing Sunroof

Express Closing
• Press the switch forward and release it within one-half second. The sunroof will fully close automatically from any position.
Manual Closing
•Pressandholdtheswitchforwardtoclosethesunroof.Anyreleaseoftheswitchwillstop the movement, and the sunroof will remain in a partially closed position until the switch is pressed again.

Pinch Protection Feature

• This feature will detect an obstruction in the opening of the sunroof during Express Close operation. If an obstruction in the path of the sunroof is detected, the sunroof will automatically retract. Remove the obstruction if this occurs. Nex t, press the switch forward and release to Express Close.
NOTE:
If three consecutive sunroof close attempts result in Pinch Protect reversals, the fourth close attempt will be a Manual Close movement with Pinch Protect disabled.
WARNING!
Never leave children unattended in a vehicle, and do not leave the Key Fob in or near the vehicle, and do not leave a vehicle equipped with Keyless Enter-N-Go™ in the ACC or ON/RUN mode. Occupants, particularly unattended children, can become entrapped by the power sunroof while operating the power sunroof switch. Such entrapment may result in serious injury or death.
• In a collision, there is a greater risk of being thrown from a vehicle with an open sunroof. You could also be severely injured or killed. Always fasten your seat belt properly and make sure all passengers are properly secured.
•Donotallowsmallchildrentooperatethesunroof.Neverallowyourfingers,other body parts, or any object to project through the sunroof opening. Injury may result.

WIND BUFFETING

•Windbuffetingcanbedescribedasahelicopter-typepercussionsound.Ifbuffeting occurs with the windows open, adjust the windows together.
•Ifbuffetingoccurswiththesunroofopen,adjustthesunroofopening,oradjustany window. This will minimize buffeting.
31

ELECTRONICS

YOUR VEHICLE'S SOUND SYSTEM

1. Uconnect® Voice Command Button pg. 66
2. Uconnect® Phone Button pg. 63
3. Steering Wheel Audio control (Left) pg. 63
4. Steering Wheel Audio control (Right) pg. 63
32
ELECTRONICS
5. USB Port on Radio (For copying files from a memory stick to your hard drive.) pg. 43
6. Audio Jack (iPod® / MP3 devices with a headphone jack and a 3.5mm cable.)
7. Audio Jack, USB Port (located inside front console) pg. 43
8. Front Power Outlet pg. 75
33
ELECTRONICS

Uconnect® 130

NOTE:
•Yourradiohasmanyfeaturesthataddtothecomfortandconvenienceforyouandyour passengers.
• Some of these radio features should not be used when driving because they take your eyes from the road or your attention from driving.

Clock Setting

1. Press and hold the TIME button until the hours blink.
2. Turn the TUNE/SCROLL control knob to set the hours.
3. Press the TUNE/SCROLL control knob until the minutes begin to blink.
4. Turn the TUNE/SCROLL control knob to set the minutes.
5. Press the TUNE/SCROLL control knob to save the changes.
6. Press any button/knob or wait five seconds to exit.
34
ELECTRONICS

Equalizer, Balance And Fade

1. Press the TUNE/SCROLL control knob and “BASS” will display.
2. Rotate the TUNE/SCROLL control knob to select the desired setting.
3. Continue pressing the TUNE/SCROLL control knob to display and set “MID RANGE,” “TREBLE,” “BALANCE” and “FADE.”

Radio Operation

Seek Up/Down Buttons
•PresstoseekthroughradiostationsinAMorFMbands.
•Holdeitherbuttontobypassstationswithoutstopping.
Store Radio Presets
•PresstheSET/RNDorSET(dependingontheradio)buttononceandSET1willshowinthe
display. Then select a preset button (1–6).
•Asecondstationmaybeaddedtoeachpushbutton.PresstheSET/RNDorSET
(depending on the radio) button twice and SET 2 will show in the display. Then select a preset button (1–6).

CD/DISC Operation

Seek Up/Down Buttons
•PresstoseekthroughCDtracks.
•Holdeitherbuttontobypasstrackswithoutstopping.
SET/RND Or RND (Depending On Radio) Button (Random Play)
•PressthisbuttonwhiletheCDisplayingtoactivateRandomPlay.
•ThisfeatureplaystheselectionsontheCDinrandomordertoprovideaninteresting
change of pace.

Audio Jack Operation

The AUX/Audio Jack provides a means to connect a portable audio device, such as an MP3 player or an iPod®, to the vehicle’s sound system. This requires the use of a 3.5 mm stereo audio patch cable.
•PressingtheAUXbuttonwillchangethemodetoauxiliarydeviceiftheAudioJackis
connected, allowing the music from your portable device to play through the vehicle's speakers.
The functions of the portable device are controlled using the device buttons, not the buttons on the radio. However, the volume may be controlled using the radio or portable device.
35
ELECTRONICS

Uconnect® 130 WITH SiriusXM SATELLITE RADIO

NOTE:
• Your radio may not be equipped with the Uconnect® Voice Command and Uconnect® Phone features.Todetermine if your radio has these features, press the Voice Command button on the radio. You will hear a voice prompt if you have the feature, or see a message on the radio stating “Uconnect Phone not available” if you do not.
•Yourradiohasmanyfeaturesthataddtothecomfortandconvenienceofyouandyour passengers. Some of these radio features should not be used when driving because they take your eyes from the road or your attention from driving.

Clock Setting

1. Press and hold the TIME button until the hours blink.
2. Turn the TUNE/SCROLL control knob to set the hours.
3. Press the TUNE/SCROLL control knob until the minutes begin to blink.
4. Turn the TUNE/SCROLL control knob to set the minutes.
5. Press the TUNE/SCROLL control knob to save the changes.
6. Press any button/knob or wait five seconds to exit.
36
ELECTRONICS

Equalizer, Balance And Fade

1. Press the TUNE/SCROLL control knob and “BASS” will display.
2. Rotate the TUNE/SCROLL control knob to select the desired setting.
3. Continue pressing the TUNE/SCROLL control knob to display and set “MID RANGE,” “TREBLE,” “BALANCE” and “FADE.”

Radio Operation

Seek Up/Down Buttons
•PresstoseekthroughradiostationsinAM,FM,orSATbands.
•Holdeitherbuttontobypassstationswithoutstopping.
Store Radio Presets
•PresstheSET/RNDorSET(dependingontheradio)buttononceandSET1willshowinthe
display. Then select a preset button (1–6).
•Asecondstationmaybeaddedtoeachpushbutton.PresstheSET/RNDorSET
(depending on the radio) button twice and SET 2 will show in the display. Then select a preset button (1–6).
Music Type
NOTE:
The Music Type function only operates when in FM mode.
•PresstheMUSICTYPEbuttontoactivatethismode.PresstheMUSICTYPEbuttonagain
or turn the TUNE/SCROLL control knob to select the desired music type (Adult Hits, Country, Jazz, Oldies, Rock, etc.).
•WhenamusictypeischosenandtheMusictypeisdisplayed,presseitherSEEKbutton
and the radio will only search for stations with the selected music type.
SETUP Button
•PressingtheSETUPbuttonallowsyoutoselectbetweenitemsthatareavailableinthat
particular mode.
•TurntheTUNE/SCROLLcontrolknobtoscrollthroughtheentries.PushtheAUDIO/
SELECT button to select an entry and make changes.
37
ELECTRONICS

SiriusXM Satellite Radio

SiriusXM services require subscriptions, sold separately after the 12-month trial included with the new vehicle purchase. If you decide to continue your service at the end of your
trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call SiriusXM at 1-866-635-2349 to cancel. See SiriusXM Customer Agree-
ment for complete terms at http://www.siriusxm.com. All fees and programming subject to change. Our satellite service is available only to those at least 18 and older in the 48 contiguous USA and D.C. Our Sirius satellite service is also available in PR (with coverage limitations). Our Internet radio service is available throughout our satellite service area and in AK and HI. ©2014 Sirius XM Radio Inc. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
SiriusXM Satellite Radio gives you over 130 channels, including 100% commercial-free music from nearly every genre, plus all your favorite sports, news, talk and entertainment channels– all with crystal clear, coast-to-coast coverage, all in one place and all at your fingertips.
• To access SiriusXM Satellite Radio, press the SAT hard-key.

CD/DISC Operation

Seek Up/Down Buttons
•PresstoseekthroughCDtracks.
•Holdeitherbuttontobypasstrackswithoutstopping.
SET/RND or RND (Depending On Radio) Button (Random Play)
•PressthisbuttonwhiletheCDisplayingtoactivateRandomPlay.
•ThisfeatureplaystheselectionsontheCDinrandomordertoprovideaninteresting change of pace.
LIST Button
•PresstheLISTbuttontobringupalistofallfoldersontheCD.Scrollupordownthelist by turning the TUNE/SCROLL control knob.
• To select a folder from the list, press the TUNE/SCROLL control knob and the radio will begin playing the files contained in that folder.

Audio Jack Operation

The AUX/Audio Jack provides a means to connect a portable audio device, such as an MP3 player or an iPod®, to the vehicle’s sound system. This requires the use of a 3.5 mm stereo audio patch cable.
•PressingtheAUXbuttonwillchangethemodetoauxiliarydeviceiftheAudioJackis connected, allowing the music from your portable device to play through the vehicle's speakers.
The functions of the portable device are controlled using the device buttons, not the buttons on the radio. However, the volume may be controlled using the radio or portable device.
38
ELECTRONICS

Uconnect® 430/430N

NOTE:
• Your radio may not be equipped with the Uconnect® Voice Command and Uconnect® Phone features.To determine if your radio has these features, press the VoiceCommand button on the radio. You will hear a voice prompt if you have the feature, or see a message on the radio stating “Uconnect Phone not available” if you do not.
•Yourradiohasmanyfeaturesthataddtothecomfortandconvenienceofyouandyour passengers. Some of these radio features should not be used when driving because they take your eyes from the road or your attention from driving.

Clock Setting

1. Turn the radio on, then touch the screen where the time is displayed.
2. Touch the “User Clock” soft-key (Navigation radio only).
3. To adjust the hours, touch either the “Hour Forward” or “Hour Backward” soft-key.
4. To adjust the minutes, touch either the “Minute Forward” or “Minute Backward” soft-key.
5. To save the new time setting, touch the screen where the word “Save” is displayed.

Menu

•PresstheMENUhard-keytoaccesstheSystemSetupmenuandtheMyFilesmenu.
•PresstheMENUhard-keyinanactivemode(SAT,CD,AUX,etc.)tochangemodespecific settings.
39
ELECTRONICS

Equalizer, Balance And Fade

Audio Control Menu
• Press the “AUDIO” hard-key on the right side of the radio.
• Use either the arrow soft-keys or the cross-hair on the screen to change Bal­ance and Fade. The “CENTER” soft-key resets the settings.
• Touch the “Equalizer” soft-key and use either the arrow soft-keysor the sliders on the screen to adjust BASS, MID, and/or TREBLE.
Display Settings
•Pressthe“MENU”hard-keyandtouchthe “Display Settings” soft-key to access the Display Settings menu.
•Selectthe“DaytimeColors”soft-keyto switch to manual daytime mode and to adjust the brightness of the display using daytime colors.
•Selectthe“NighttimeColors”soft-keyto switch to manual nighttime mode and to adjust the brightness of the display using nighttime colors.
•Selectthe“AutoColorMode”soft-keytoswitchtoautomaticdaytime/nighttimemode and to control the brightness of the display using the dimmer switch of the vehicle.
•Touchthe“EXIT”soft-keytosaveyoursettings.
40
ELECTRONICS

Radio Operation

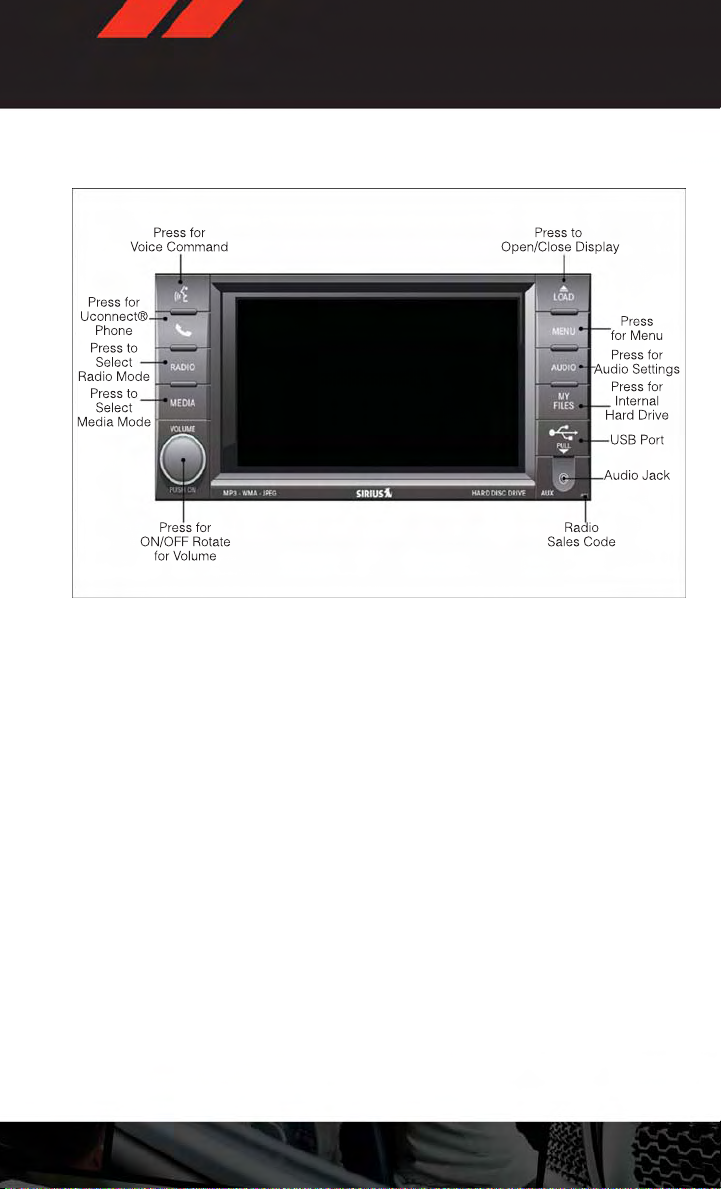

•ToaccessRadioMode,touchthe“RADIO”hard-keyontheleftsideofthefaceplate,then touch the “AM,” “FM” or “SAT” soft-key at the top of the screen to select the band.
Seek Up/Seek Down
• Press the “Seek Up” or “Seek Down” soft-keys to seek through radio stations in AM, FM, or SAT bands. Hold either Seek to bypass stations without stopping.
Store Radio Presets
•Selecttheradiobandbytouchingeitherthe“AM,”“FM,”or“SAT”soft-key.
•Findthestationtostorebyeitherpressingthe“SeekUp”or“SeekDown”soft-keys, touching the “SCAN” soft-key, or by using the “DIRECT TUNE” soft-key.
•Oncethestationisfound,touchandholdoneofthe“PRESET”soft-keysinthelisttothe right, until the preset key flashes and the station text on the soft-key changes.
NOTE:
If the Presets are not visible on the right side of the screen, press the “Presets” soft-key.
41
ELECTRONICS

CD/DVD Disc Operation

•Pressthe“MEDIA”hardkeytodisplaythemediasourcetabsatthetopofthescreen. Select the source by touching the “HDD,” “DISC,” or “AUX” media source soft-key tab.
NOTE:
Your Touchscreen Ra d i o will us u a l l y automat i c a l l y switch to the ap p r o p r i a t e mode when something is first connected or inserted into the system.
Insert a CD/DVD Disc
• To insert a disc, press the “LOAD” hard-key.
•Withtheprintedsideupwards,insertthediscintothediscslotoftheradio.Theradio pulls the disc in automatically and closes the flip screen. The radio selects the appropri­ate mode after the disc is recognized, and starts playing the first track. The display shows “Reading...” during this process.
Seek Up/Seek Down
• Press the “Seek Up” or “Seek Down” soft-keys to seek through tracks in Disc Mode. Holding the “Seek Up” soft-key will fast forward through the track until the beginning of the track is reached; if still held it will fast-forward through the next sequential track(s) (if random play mode is not active) until released. Holding the “Seek Down” soft-key will fast- reverse through the track until the beginning of the track is reached; if still held it will fast-reverse through the next sequential track(s) (if random play mode is not active) until released.
42
ELECTRONICS

Audio Jack Operation

•TheAUX/AudioJackprovidesameanstoconnectaportableaudiodevice,suchasan MP3 player or an iPod®, to the vehicle’s sound system. This requires the use of a 3.5 mm stereo audio patch cable.
•PresstheMEDIAhard-keythenthe“AUX”soft-keytochangethemodetoauxiliarydevice if the Audio Jack is connected, allowing the music from your portable device to play through the vehicle's speakers.
• The functions of the portable device are controlled using the device itself, not the buttons on the radio. However, the volume may be controlled using the radio or portable device.

Hard Disk Drive (HDD) Operation

•TheHardDiskDrive(HDD)modegivesyouaccesstotheaudiofilesontheinternalhard disk drive. It functions similar to a CD player, with the exception that the internal HDD can hold more tracks.
•Itisalsopossibletoimportdisplaypicturestotheinternalharddiskdrive.Thepictures can be displayed on the right half of the radio screen.
•BeforeusingtheHDDmode,youwillneedtocopysongsandpicturestotheinternal hard drive. Songs and pictures can be added to the hard drive by using a CD or USB device (e.g. thumb drive or memory stick).
NOTE:
•HDDsupportsonly.jpg/JPEGformatsforphotos.
•WMA/MP3FilesandSelectiveSongsfromaCDcanalsobeaddedtotheHDD.Seethe Uconnect® 430/430N User's Manual for more information.
Copying Music From CD
• Press the “LOAD” hard-key.
• Insert a disc, then press the “MY FILES” hard-key and then select “MY MUSIC” soft-key.
•Touchthe“AddMusicFilestoHDD”soft-key,thentouchthe“Disc”soft-keyinthenext screen to start the process.
NOTE:
•Youmightneedtoselectthefolderortitle depending on the CD, then press “DONE” to start the copy process.
• The copy progress is shown in the lower left corner of the screen.
43
ELECTRONICS
Copying Music From USB
•TheUSBportontheradiofaceplateallowsyoutocopyfilestoyourharddrive.Toaccess, lift up the cover.
• Insert a USB device (e.g. thumb drive or memory stick), then select the “MY MUSIC” soft-key.
•Touchthe“AddMusicFilestoHDD”soft-key,thentouchthe“FrontUSB”soft-keyinthe next screen.
•Selectthefoldersortitlesyouwouldlike to copy, then touch the “SAVE”soft-key to start the copy process. To copy all of the titles touch the "ALL" soft-key, then press the "SAVE" soft-key.
NOTE:
The copy progress is shown in the lower left corner of the screen.
Copying Pictures To The HDD
• Insert either a CD or a USB device containing your pictures in JPEG format.
• Press the “MY FILES” hard-key.
•Touchthe“MyPictures”soft-keytogetanoverviewofthecurrentlystoredimages,then touch the “Add” soft-key.
•Touchthe“Disc”or“USB”soft-key,thenselectthefoldersorpicturesyouwishtocopyto the HDD. Use the “PAGE” soft-keys to page through the list of pictures.
• Touch the desired pictures or press the “All” soft-key for all pictures. Confirm your selections by touching the “SAVE” soft-key.
NOTE:
The copy progress is shown in the lower left corner of the screen.
Display A Picture On The Radio Screen
• Once the impor t is complete, the pictures will then be available in the “MY PIC­TURES” screen.
• Press the “MY FILES” hard-key, then touch the “My Pictures” soft-key.
•Touchthedesiredpicture,touchthe“SetasPictureView”soft-keythentouchthe“Exit” soft-key.
•Todisplaythechosenpictureontheradioscreen,pressthe“MENU”hard-keyandtouch the “Picture View” soft-key.
NOTE:
• A check mark in the “My Pictures” screen indicates the currently used picture.
•Youcanalsodeletepicturesbytouchingthe“Delete”soft-key.
44
ELECTRONICS
Playing Music From The HDD
•Pressthe“MEDIA”hard-keytodisplaythemediasourcetabsatthetopofthescreen. Tou c h the “ HDD ” soft - k ey t a b. To u c h t h e des i re d t r ack s oft- k e y t o pl ay o r tou c h th e “SEARCH/BROWSE” soft-key to search by artist, by album, by song, by genre, from a folder, or from Favorites.

Cleaning Your Touchscreen Radio

• Do not spray any liquid or caustic chemicals directly on the screen. Use a clean and dry micro fiber lens cleaning cloth to clean the touchscreen.
• If necessary, use a lint-free cloth dampened with a cleaning solution such as isopropyl alcohol or an isopropyl alcohol and water solution ratio of 50:50. Always follow the solvent manufacturer's precautions and directions.

Garmin® Navigation

•Uconnect®430NintegratesGarmin’sconsumer-friendlynavigationintoyourvehicle. Garmin® Navigation includes a database with over six million points of interest.
•Touchthe“NAV”soft-keyintheupperrightcornerofthescreentoaccesstheNavigation system.
Changing The Navigation Voice Prompt Volume
1. Program a destination.
2. While traveling on your route, touch the
upper left area of the map screen where your next turn is displayed.
3. The Navigation system will then repeat
the distance to your next turn.
45
ELECTRONICS
4. While the Navigation system is speaking, use the ON/OFF VOLUME rotary knob to adjust the volume to a comfortable level. Please note the volume setting for Navigation Voice Prompt is different than the audio system.
NOTE:
For your own safety and the safety of others, it is not possible to use certain features while the vehicle is in motion.

Main Navigation Menu

Finding Points Of Interest
•FromthemainNavigationmenu,touchthe“WhereTo?”soft-key,thentouchthe“Points
of Interest” soft-key.
• Select a Category, then a subcategory, if
necessary.
•Selectyourdestinationandtouchthe
“Go” soft-key.
Finding A Place By Spelling The Name
•FromtheMainNavigationMenutouchthe
“Where To?” soft-key. Next, touch the “Points of Interest” soft-key then touch the “Spell Name” soft-key.
• Enter the name of your destination.
• Touch the “Done” soft-key.
•Selectyourdestinationandtouchthe“Go”soft-key.
Entering A Destination Address
•FromthemainNavigationmenutouchthe“WhereTo?”soft-key,thentouchthe“Ad-
dress” soft-key.
•Followtheon-screenpromptstoentertheaddressthentouchthe“Go”soft-key.
Setting Your Home Location
•FromthemainNavigationmenutouchthe"Tools"icon.Nextselectthe"MyData"folder
icon. Then select "Set Home Location."
• You may enter your address directly, use your current location as your home address, or
choose from recently found locations.
Edit Home Location
•FromthemainNavigationmenutouchthe“WhereTo?”soft-key,thentouchthe"Tools"
icon. Next, touch the "My Data" folder.
• You may enter a new address directly, use your current location or choose from recently
found locations.
Go Home
•AHomelocationmustbesavedinthesystem.FromtheMainNavigationmenu,touch
the “Where To?” soft-key, then touch the “Go Home” soft-key.
46
ELECTRONICS

Following Your Route

Your route is marked with a magenta line on the map. If you depart from the original route, your route is recalculated. A speed limit icon could appear as you travel on major roadways.
Adding A Via Point
•Toaddastopbetweenthecurrentlocationandtheenddestination(ViaPoint)youmust be navigating a route.
•Touchthe“backarrow”iconmultipletimestoreturntotheMainNavigationmenu.
•Touchthe“WhereTo?”soft-key,thensearchfortheadditionalstop.Selectthedestina­tion you wish to add from the given search results.
•Touchthe“Go”soft-key,thentouch"AddasaViaPoint"soft-keyandpressthe"Done" soft-key.
Taking A Det o u r
•Totakeadetouryoumustbenavigatingaroute.
•Touchthe“backarrow”iconsoft-keymultipletimestoreturntotheMainNavigation menu.
•Touchthe“Detour”soft-key.
NOTE:
If the route you are currently taking is the only reasonable option, the device might not calculate a detour.
47
ELECTRONICS
Acquiring Satellites
•TheGPSSatellitestrengthbarsindicatethestrengthofyoursatellitereception.
•Acquiringsatellitesignalscantakeafewminutes.Whenatleastoneofthebarsisgreen, your device has acquired satellite signals.
• You may experience delays receiving satellite signals when in areas with an obstructed view to the sky, such as garages, tunnels, or large cities with tall buildings.

Uconnect® 730N

NOTE:
Your ra d i o has m a n y features t h a t add t o the c o m f o r t an d convenience o f you a n d your passengers. Some of these radio features should not be used when driving because they take your eyes from the road or your attention from driving.

Clock Setting

1. Turn the radio on, then touch the screen where the time is displayed.
2. Touch the “User Clock” soft-key.
3. To adjust the hours, touch either the “Hour Forward” or “Hour Backward” soft-key.
4. To adjust the minutes, touch either the “Minute Forward” or “Minute Backward” soft-key.
5. To save the new time setting, touch the screen where the word “Save” is displayed.
48
ELECTRONICS

Menu

•PresstheMENUhard-keytoaccesstheSystemSetupmenuandtheMyFilesmenu.
•PresstheMENUhard-keyinanactivemode(SAT,CD,AUX,etc.)tochangemodespecific settings.

Equalizer, Balance And Fade

Audio Control Menu
• Press the MENU hard-key on the right side of the radio. Then press the “Audio Con­trol” soft-key to get to the audio control menu.
• Use either the arrow soft-keys or the cross-hair on the screen to change Bal­ance and Fade. The “Center” soft-key re­sets the settings.
• Touch the “Equalizer” soft-key and use either the arrow soft-keys or the sliders on the screen to adjust BASS, MID, and/or TREBLE.
Display Settings
•PresstheMENUhard-keyandtouchthe “Display Settings” soft-key to access the Display Settings menu.
•Selectthe“DaytimeColors”soft-keyto switch to manual daytime mode and to adjust the brightness of the display using daytime colors.
•Selectthe“NighttimeColors”soft-keyto switch to manual nighttime mode and to adjust the brightness of the display using nighttime colors.
•Selectthe“AutoColorMode”soft-keytoswitchtoautomaticdaytime/nighttimemode and to control the brightness of the display using the dimmer switch of the vehicle.
•Touchthe“EXIT”soft-keytosaveyoursettings.
49
ELECTRONICS

Radio Operation

•ToaccessRadioMode,touchtheRADIO/MEDIAhard-keyontheleftsideofthefaceplate repeatedly until AM/FM/SAT appears at the top of the screen, then touch the “AM,” “FM” or “SAT” soft-key to select the band.
Seek Up/Seek Down
• Press the SEEK UP or SEEK DOWN hard-keys to seek through radio stations in AM, FM, or SAT bands. Hold either Seek to bypass stations without stopping.
Store Radio Presets
•Selecttheradiobandbytouchingeitherthe“AM,”“FM”or“SAT”soft-key.
•FindthestationtostorebyeitherpressingtheSEEKUPorSEEKDOWNhard-keys, touching the “SCAN” soft-key, or by using the “DIRECT TUNE” soft-key.
•Oncethestationisfound,touchandholdoneofthe“PRESETS”soft-keysinthelisttothe right, until you hear a confirmation beep.
NOTE:
If the Presets are not visible on the right side of the screen, press the “PRESETS” soft-key.
50
ELECTRONICS

CD/DVD Disc Operation

Press the RADIO/MEDIA hard-key until the media source tabs are displayed at the top of the screen. Select the source by touching the “HDD,”“DISC” or “AUX”media source soft-key tab.
NOTE:
Your Touchscreen Ra d i o will us u a l l y automati c a l l y switch to the ap p r o p r i a t e mode wh e n something is first connected or inserted into the system.
Insert A CD/DVD Disc
• To insert a disc, press the OPEN/CLOSE hard-key.
•Withtheprintedsideupwards,insertthediscintothediscslotoftheradio.Theradio pulls the disc in automatically and closes the flip screen. The radio selects the appropri­ate mode after the disc is recognized, and starts playing the first track. The display shows “Reading...” during this process.
Seek Up/Seek Down
• Press the SEEK UP or SEEK DOWN hard-keys to seek through tracks in Disc Mode. Hold either SEEK to bypass tracks without stopping.
51
ELECTRONICS

Audio Jack Operation

•TheAUX/AudioJackprovidesameanstoconnectaportableaudiodevice,suchasan MP3 player or an iPod®, to the vehicle’s sound system. This requires the use of a 3.5 mm stereo audio patch cable.
•PresstheRADIO/MEDIAhard-key,thenthe“AUX”soft-keytochangethemodeto auxiliary device if the Audio Jack is connected, allowing the music from your portable device to play through the vehicle's speakers.
• The functions of the portable device are controlled using the device itself, not the buttons on the radio. The volume may be controlled using the radio or portable device.

Hard Disk Drive (HDD) Operation

•TheHardDiskDrive(HDD)modegivesyouaccesstotheaudiofilesontheinternalhard disk drive. It functions similar to a CD player, with the exception that the internal HDD can hold more tracks.
•Itisalsopossibletoimportdisplaypicturestotheinternalharddiskdrive.Thepictures can be displayed on the right half of the radio screen.
•BeforeusingtheHDDmode,youwillneedtocopysongsandpicturestotheinternal hard drive. Songs and pictures can be added to the hard drive by using a CD or USB device (e.g. thumb drive or memory stick).
NOTE:
•HDDsupportsonly.jpg/JPEGformatsforphotos.
•WMA/MP3FilesandselectiveSongsfromaCDcanalsobeaddedtotheHDD.Seethe Uconnect® 730N Supplement Manual for more information.
Copying Music From CD
• Press the OPEN/CLOSE hard-key.
• Insert a disc, then press the MENU hard-key.
• Touch the “MY FILES” soft-key, then select “MY MUSIC.”
52
ELECTRONICS
•Touchthe“AddMusicFilestoHDD”soft-key,thentouchthe“FromDisc”soft-keyinthe next screen to start the process.
NOTE:
•Youmightneedtoselectthefolderortitle depending on the CD, then press “Done” to start the copy process.
• The copy progress is shown in the lower left corner of the screen.
Copying Music From USB
•TheUSBportontheradiofaceplateallowsyoutocopyfilestoyourharddrive.Toaccess, lift up on the cover.
• Insert a USB device (e.g. thumb drive or memory stick), then select “MY FILES.”
•Touchthe“MYMUSIC”soft-key,thentouchthe“AddMusicFiles”toHDDsoft-key.
•Touchthe“FromUSB”soft-key,thenselectthefoldersortitlesyouwouldliketocopy,and then touch the “SAVE” soft-key to start the copy process.
NOTE:
The copy progress is shown in the lower left corner of the screen.
53
ELECTRONICS
Copying Pictures To The HDD
• Insert either a CD or a USB device containing your pictures in .jpg/JPEG format.
•PresstheMENUhard-keytoaccesstheSettingsMenu,thentouchthe“MyFiles” soft-key.
•Touchthe“MyPictures”soft-keytogetanoverviewofthecurrentlystoredimages,then touch the “Add” soft-key.
• Touch the “From Disc” or “From USB” soft-key, then select the folders or pic­tures you wish to copy to the HDD. Use the “PAGE” soft-keys to page through the list of pictures.
Touch the desired pictures or press the “All”
• soft-key for all pictures. Confirm your se­lections by touching the “SAVE” soft-key.
NOTE:
The copy progress is shown in the lower left corner of the screen.
Display A Picture On The Radio Screen
•Oncetheimportiscomplete,thepictureswillthenbeavailableinthe“MYPICTURES” screen.
•PresstheMENUhard-keytoaccesstheSettingsMenu.
•FromtheSettingsmenu,touchthe“MyFiles”soft-keyandthentouchthe“MyPictures” soft-key.
•Touchthedesiredpicture,touchthe“SetasPictureView”soft-keyandthentouchthe “Exit” soft-key.
•Todisplaythechosenpictureontheradioscreen,presstheMENUhard-keyandtouch the “Picture View” soft-key.
NOTE:
• A check mark in the My Pictures screen indicates the currently used picture.
•Youcanalsodeletepicturesbytouchingthe“Delete”soft-key.
54
ELECTRONICS
Playing Music From The HDD
•PresstheRADIO/MEDIAhard-keyuntilthemediasourcetabsaredisplayedatthetopof the screen. Touch the “HDD” soft-key tab. Touch the desired track soft-key to play or touch the “SEARCH/BROWSE” soft-key to search by artist, by album, by song, by genre, from a folder, or from Favorites.

Cleaning Your Touchscreen Radio

• Do not spray any liquid or caustic chemicals directly on the screen. Use a clean and dry micro fiber lens cleaning cloth to clean the touchscreen.
• If necessary, use a lint-free cloth dampened with a cleaning solution such as isopropyl alcohol or an isopropyl alcohol and water solution ratio of 50:50. Always follow the solvent manufacturer's precautions and directions.

Navigation

•YournavigationsystemreceivesGPSsig­nals from up to 16 satellites to display the position of your vehicle. Map and data­base information is supplied through a hard disk drive.
• Touch the NAV hard-key on the radio face plate to access the Navigation system and the NAV – Main Menu.
55
ELECTRONICS
Changing The Navigation Guidance Prompt Volume
1. From the Navigation Map screen, touch the MENU hard-key then touch the “NAV Set­tings” soft-key. Next select "Guidance Prompts."
2.
Select and adjust the navigation guidance prompt volume using the left and right arrows.
3. Touch the “SAMPLE VOL” soft-key to lis-
ten to the current volume setting.
4. Once satisfied with the volume, touch the
“SAVE” soft-key to save the settings. Tou c h t h e “C A NCE L” s o f t-ke y to ex i t t h e menu without saving the settings.
NOTE:
For your own safety and the safety of others, it is not possible to use certain features while the vehicle is in motion.

Main Navigation Menu

Finding Points Of Interest
1. From the NAV - Main Menu, touch the “Points of Interest” soft-key.
2. Select a Category and then a subcategory, if necessary.
3. Select your destination and touch “GO.”
56
ELECTRONICS
Finding A Place By Entering The Street Address
NOTE:
Entering the city or zip code before entering the street name facilitates address entry. If the State and/or Country displayed are incorrect, touch the corresponding soft-keyto make the correction.
1. From the NAV - Main Menu, touch “New Destination,” then touch “Street Address.”
2. Once the Country and State are set and the Street Address screen is displayed, begin spelling the street name in the speller. In the upper right corner the number of possible roads decreases.
3. Touch the “LIST” soft-key to display a list of possible street names. Select the correct street name.
4. Next input the number.
5. In the Confirm Route screen the navigation radio displays the complete address, a map of the destination area, and the current routing method for you to verify.
6. Touch the “GO” soft-key to activate the route guidance.
Entering Your Home Location
1. Press the NAV hard-key on the right side of the radio.
2. From the NAV - Main Menu, touch “Guide Me Home” to enter your home address. If no home address has been set, touch “YES ” to access the Enter Home Address menu.
3. Touch “Street Address” to enter your address. Touchthe soft-key with your state’s name and enter your street name into the speller.
4. Once the street name has been input, touch “CONTINUE” to confirm. Enter the house number into the next screen. If more than one city has this address, you will then need to select your city from a list.
5.
Once the address is entered completely, the system shows a map of your home address area. Touch “SAVE” to confirm the address. The system will then ask if you want to go there. Touch the “Yes” or “No” soft-key.
Change Home Address
NOTE:
This procedure will allow you to change your Home Addressif one has already been entered. Entering the city or zip code before entering the street name facilitates address entry.
1. Press the MENU hard-key, touch “My Files” and then touch “My Address Book.”
2. Touch “Home”, then touch “Edit Contacts” and then “Change Address.”
3. Touch the soft-key with your state’s name and enter your street name into the speller.
4. Once the street name has been input, touch “CONTINUE” to confirm.
5. Enter the house number into the next screen. If more than one city has this address, you will then need to select your city from a list.
6. Touch the “SAVE” soft-key to confirm the address.
57
ELECTRONICS
Go Home
•FromtheNAV-MainMenu,touch“GuideMeHome”whenyouwanttoroutetoyourhome destination.
Where Am I Now?
1. From the NAV - Main Menu, touch “Where Am I Now?” The Where Am I Now? menu displays location information for the current vehicle position.
2. Touch the “NEARBY POI” soft-key to search for a local Point of Interest.
3. Touchthe “SAVELOCATION” soft-key to save the current location in the Saved Locations
memory.

Route Guidance

•Afterstartingrouteguidance,thesystemcalculatestherouteandannounces:“Follow the arrows on the display.” You will receive navigation recommendations by voice mes­sages and screen displays.
Route Options
•Afterpressingthe“OPTIONS”soft-keyintheRouteGuidanceMenu,thefollowinginfor­mation is displayed:
• In the left half of the screen, the current position and the current routing method are
displayed.
•“TakeDetour”willallowyoutocalculateadifferentroute.
58
ELECTRONICS
•“FindNearbyPOI”tosearchforalocalPOI.
• “Destination Info” displays destination information.
• “View Turn List” lists streets utilized for the current route.
•“SaveDestination”tosavethedestinationaddress.
• “Change Method” will allow you to change the routing method.

SiriusXM SATELLITE RADIO/TRAVEL LINK

•SiriusXMTravelLinkrequiresasubscription,soldseparatelyafterthe1yeartrialsub­scription included with your vehicle purchase.
•SiriusXMTravelLinkisonlyavailableintheUnitedStates.
• The following describes features that are available when in SiriusXM Satellite Radio mode.
• To access SiriusXM Satellite Radio, press the RADIO/MEDIA or RADIO hard-key, then touch the “SAT” soft-key tab.
Info
•Touchthe“i”soft-keytoviewdetailedinformationaboutthecurrentSiriusXMSatellite channel.
SiriusXM Parental Controls
•SiriusXMofferstheoptiontopermanentlyblockselectedchannels.Call1-888-539-7474 and request the Family Package.
Uconnect® 430/430N and 730N: Press the “MENU” hard-key while in SiriusXM Satellite Radio Mode, then touch the “Channel Lock” to enable and/or disable desired channels. The SEEK and SCAN function will then only display channels without Channel lock.
Search/Browse
•Touchthe“magnifyingglass”soft-keytosearch/browsetheSiriusXMchannellistingby Favorites and Categories such as Song, Artist and Channel Name. The Search/Browse also allows you to manage your Favorites.
59
ELECTRONICS
SiriusXM Satellite Radio Favorites (SAT Favorites)
•Youcansave50favoritesongsand50favoriteartists.
•Touchthe“AddFavorite”soft-keytoadd either the song or the artist of the cur­rently playing program to the SAT Favor­ites list. The favorite star will appear in the upper right corner, below the “SAT” soft­key.
•Youwillseeafavoritestarindicatorinthe upper right side of the screen below the “SAT” soft-key and a pop up will alert you that a favorite song or artist is currently playing on one of the SiriusXM satellite radio channels.
NOTE:
Refer to your Uconnect® 730N or 430/430N Supplement Manual for more information.
Display SAT Favorites List
•Touchthe“Search/Browse”soft-keyandselect“Favorites”fromtheSATBrowsescreen.
•Touchthedesiredfavoritessoft-keyto switch the SATtuner to the corresponding channel.
•Youmayusethe“LIST”soft-keytotoggle between:
•FavoriteSongs
•FavoriteArtists
• Currently playing favorites
60
ELECTRONICS

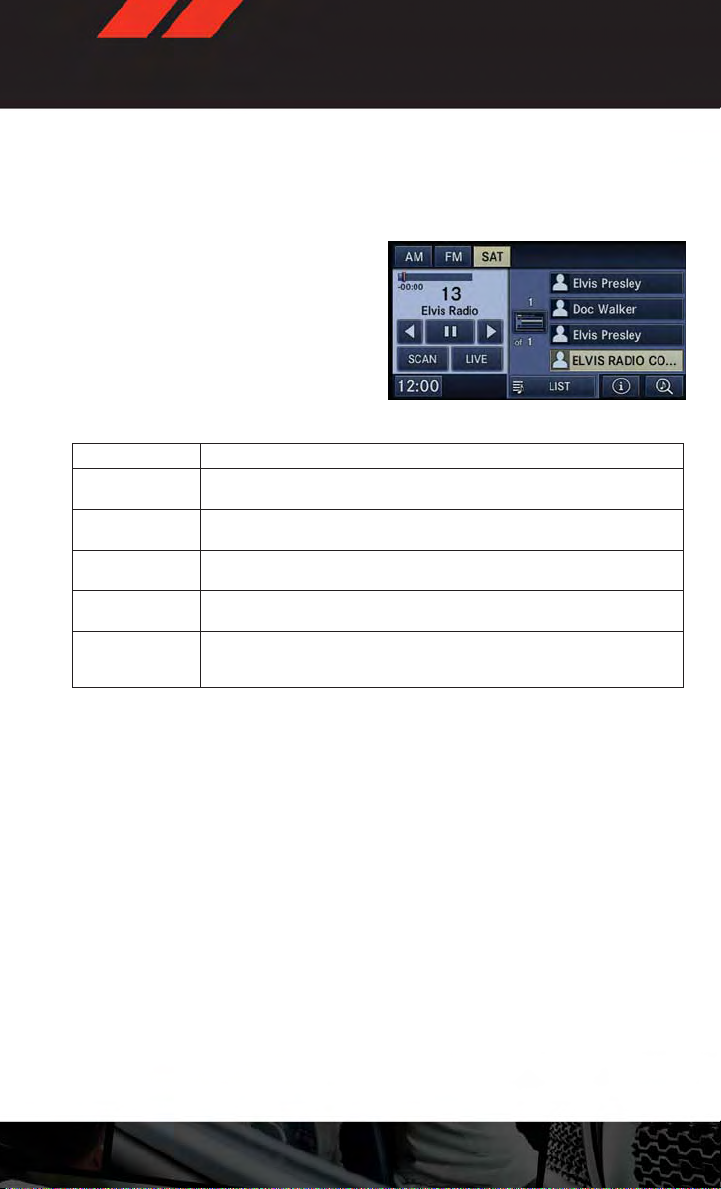

Replay
• While you are in SAT mode, you can replay 44 minutes of the current SiriusXM channel (when the channel is changed, this audio buffer is erased). Press the REPLAY button to listen to the stored audio.
•Youcantouchtheon-screencontrolsto pause and rewind audio playback, touch the SCAN button to preview each of the tracks stored in the buffer, or select a track from the list.
• The time displayed below the bar indi­cates how much time is present between the current buffer play position and the live broadcast.
Replay Option Option Description
Play/Pause Touch to pause content playback. Touch Pause/Play again to resume
Rewind/RW Rewinds the channel content in steps of five seconds. Touch and hold to
Fast Forward/FW Forwards the content, and works similarly to Rewind/RW. However, Fast
Replay Time Displays the amount of time in the upper center of the screen by which your
Live Resumes playback of live content at any time while replaying rewound
playback.
rewind continuously, then release to begin playing content at that point.
Forward/FW can only be used when content has been previously rewound.
content lags the live channel.
content.
61
ELECTRONICS

SiriusXM Travel Link (Uconnect® 730N & Uconnect® 430N Only)

•SiriusXMTravelLinkbringsawealthofusefulinformationintoyourvehicleandrightto your fingertips.
•ToaccessTravelLink,presstheMENUhard-key,thenthe“TravelLink”soft-key.
1–Favorites
2–Forecast
3 – Ski Info 4 – Fuel Prices 5 – Movies 6–Sports
NOTE:
•SiriusXMTravelLinkrequiresasubscription,soldseparatelyafterthe1yeartrialsub­scription included with your vehicle purchase.
•SiriusXMTravelLinkisonlyavailableintheUnitedStates.
View and store your favorite location, theater and sport teams for quick access.
View detailed weather conditions, forecasts and ski/snowboarding conditions at resorts.
View ski and snowboarding conditions at ski resorts. View detailed price information for fuel stations. View information on movies that are playing at theaters. View sports scores and upcoming events for all major sports.
62
ELECTRONICS

STEERING WHEEL AUDIO CONTROLS

• The steering wheel audio controls are located on the rear surface of the steering wheel.

Right Switch

•Presstheswitchupordowntoincreaseor decrease the volume.
•Pressthebuttoninthecentertochange modes AM/FM/CD/SXM.

Left Switch

•Presstheswitchupordowntosearchfor the next listenable station or select the next or previous CD track.
•Pressthebuttoninthecentertoselectthenextpresetstation(radio)ortochangeCDs if equipped with a CD Changer.

Uconnect® PHONE

Uconnect® Phone

• To determine if your vehicle is equipped with Uconnect® Phone, press the “Uconnect® Phone” button will hear a voice prompt. If not, you will see a message on the radio “Uconnect® Phone not available.”
• The Uconnect® Phone is a voice-activated, hands-free, in-vehicle communications system with Voice Command Capability (see Voice Command section).
NOTE:
To ac c e ss th e t uto r i al , p r ess t h e “ Uco n nec t ® P ho n e ” but t on “tutorial.” Press any hard-key/button or touchthe display(Touchscreenradio) to cancel the “tutorial.”
• The Uconnect® Phone allows you to dial a phone number with your mobile phone using simple voice commands.
•RefertoyourvehicleOwner'sManualontheDVDforfurtherdetails.
NOTE:
The Uconnect® Phone requires a mobile phone equipped with the Bluetooth® Hands­Free Profile, V ersion 1.0 or higher. For Uconnect® Customer Support: U.S. residents ­visit www.UconnectPhone.com or call 1–877–855–8400. Canadian residents - visit www.UconnectPhone.com or call, 1-800-465–2001 (English) or 1-800-387-9983 (French). This site will provide specific instructions based on the type of mobile phone being paired.
located on the radio faceplate. If your vehicle has this feature, you
. After the BEEP, say
63
ELECTRONICS
Phone Pairing
NOTE:
Pairing is a one - time initial setup before using the phone. Prior to starting the pairing procedure ensure all additional phones within the vehicle have their Bluetooth® disabled.
1. Press the “Phone”
2. Wait for the “ready” prompt and BEEP.
3. After the BEEP, say ”setup” or “Uconnect device setup.”
4. After the BEEP, say “device pairing.”
5. After the BEEP, say “pair a device.”
6. Follow the audible prompts.
•Youwillbeaskedtosayafour-digitPer­sonal Identification Number (PIN), which you will later need to enter into your mo­bile phone.Youcan say any four-digit PIN. You will n o t ne e d to re m e m b e r th i s PI N after the initial pairing process.
•Youwillthenbepromptedtogivethephonepairinganame(eachphonepairedshould have a unique name).
•Nextyouwillbeaskedtogivethisnewpairingapriorityof1through7(uptosevenphones may be paired); 1 is the highest and 7 is the lowest priority.The system will only connect to the highest priority phone that exists within the proximity of the vehicle.
You w i l l then need t o sta r t th e pairing p ro c e d u r e on your c e l l phon e . Follow t h e Bl u e t o o t h ®
• instructions in your cell phone Owner's Manual to complete the phone pairing setup.
button to begin.
Phonebook
Phonebook Download — Automatic Phonebook Transfer From Mobile Phone
•Ifequippedandspecificallysupportedbyyourphone,Uconnect®Phoneautomatically downloads names (text names) and number entries from your mobile phone’s phone­book. Specific Bluetooth® Phones with Phone Book Access Profile may support this feature. Automatic Transfer is indicated by a green arrow at the bottom of the screen. See www.UconnectPhone.com for supported phones.
•Automaticdownloadandupdate,ifsup­ported, begins as soon as the Bluetooth® wireless phone connection is made to the Uconnect® Phone. For example, after you start the vehicle.
64
ELECTRONICS
NOTE:
The mobile phone may require authorization prior to download.
• A maximum of 1000 entries per phone will be downloaded and updated every time a phone is connected to the Uconnect® Phone.
• Depending on the maximum number of entries downloaded, there may be a short delay before the latest downloaded names can be used. Until then, if available, the previously downloaded phonebook is available for use.
• Only the phonebook of the currently connected mobile phone is accessible.
• Only the mobile phone’s phonebook is downloaded. The SIM card phonebook is not part of the Mobile phonebook.
• This downloaded phonebook cannot be edited or deleted on the Uconnect® Phone. These can only be edited on the mobile phone. The changes are transferred and updated to Uconnect® Phone on the next phone connection.
Making A Phone Call
•Pressthe“Phone”button .
• After the BEEP, say “dial” (or “call” a name).
• After the BEEP, say number (or name).
Receiving A Call — Accept (And End)
• When an incoming call rings/is announced on Uconnect®, press the “Phone” button
•Toendacall,pressthe“Phone”button
.
.
Mute (Or Unmute) Microphone During Call
•Duringacall,pressthe“VoiceCommand”button .
•AftertheBEEP,say“mute”(or“muteoff”).
Trans f e r Ongo i n g C a ll B etwe e n H a n dse t An d Veh i cle
•Duringacall,pressthe“VoiceCommand”button .
• After the BEEP, say “transfer call.”
Changing The Volume
•Startadialoguebypressingthe“Phone”button , then adjust the volume during a normal call.
•UsetheradioON/OFFVOLUMErotaryknobtoadjustthevolumetoacomfortablelevel while the Uconnect® system is speaking. Please note the volume setting for Uconnect® is different than the audio system.
65
ELECTRONICS
WARNING!
•Anyvoicecommandedsystemshouldbeusedonlyinsafedrivingconditionsfollow­ing applicable laws regarding phone use. Your attention should be focused on safely operating the vehicle. Failureto do so may result in a collision causing you and others to be severely injured or killed.
• In an emergency, to use Uconnect® Phone, your mobile phone must be:
• turned on,
•pairedtoUconnect®Phone,
•andhavenetworkcoverage.

Uconnect® VOICE COMMAND

Voice Command Operation

•TheUconnect®VoiceCommandsystemallowsyoutocontrolyourAM,FMradio,satellite radio, disc player, HDD, Uconnect® Phone, a memo recorder, and supported portable media devices.
•Whenyoupressthe“VoiceCommand”button steering wheel, you will hear a beep. The beep is your signal to give a command. If you do not say a command within a few seconds, the system will present you with a list of options. If you ever want to interrupt the system while it lists options, press the “Voice Command” button
NOTE:
Visit http://www.driveuconnect.com/features/voiceCommand/ for more info on which voice command features apply to your vehicle.
•Startadialoguebypressingthe“VoiceCommand”button The beep is your signal to give a command. Below are a list of voice commands for each of the different modes.
, listen for the BEEP, and say your command.
located on the radio faceplate or
, you will hear a beep.
66
Common Voice Commands (Examples)
While In: Voice Command Examp le:
“Radio AM” (to switch to the AM radio mode)
“Radio FM” (to switch to the FM radio mode)
“Satellite Radio” (to switch to the Satellite radio mode)
Main Menu
Radio Mode
SiriusXM
Satellite
Radio Mode
Disc Mode
Memo Mode
“Bluetooth Streaming” (to switch to the Bluetooth® Streaming mode)
“Channel Number” (to change the channel by its spoken number)
"Channel Name" (to change the channel by its spoken name)
To s w i tch t o th e vo i c e re c o rd er m o d e, s a y “M e mo.” Th e f o llo w i n g a r e co m -
mon voice commands for this mode: “New Memo” (to record a new memo)
—Duringtherecording,youmaypresstheVoiceCommandbutton
to stop recording. You proceed by saying one of the following commands:
—“PlayMemos”(toplaypreviouslyrecordedmemos)—Duringtheplayback
you may press the Voice Command button
You proceed by saying one of the following commands:
“Disc” (to switch to the disc mode) “USB” (to switch to the USB mode)
“Memo” (to switch to the memo recorder)
“System Setup” (to switch to system setup)
“Frequency” (to change the frequency)
“Next Station” (to select the next station)
“Previous Station” (to select the previous station)
“Radio Menu” (to switch to the radio menu)
“Main Menu” (to switch to the main menu)
“Next Channel” (to select the next channel)
“Previous Channel” (to select the previous channel)
“List Channel” (to hear a list of available channels)
“Select Name” (to say the name of a channel)
“Radio Menu” (to switch to the radio menu)
“Main Menu” (to switch to the main menu)
“Track” (#) (to change the track)
“Next Track” (to play the next track)
“Previous Track” (to play the previous track)
“Main Menu” (to switch to the main menu)
—“Save”(tosavethememo)
—“Continue”(tocontinuerecording)
—“Delete”(todeletetherecording)
—“Repeat”(torepeatamemo)
—“Next”(toplaythenextmemo)
—“Previous”(toplaythepreviousmemo)
—“Delete”(todeleteamemo)
—“DeleteAll”(todeleteallmemos)
ELECTRONICS
to stop playing memos.
67
ELECTRONICS

Voice Text Reply

• If equipped with Uconnect® Voice Command, your Uconnect® 430N / 730N radio may be able to play incoming Short Message Service (SMS) messages (text messages) through the vehicle's sound system.
• It also allows you to respond by selecting from various predefined phrases.
• Not all phones are compatible with this feature. Refer to the phone compatibility list at www.UconnectPhone.com. Connected mobile phones must be bluetooth-compatible and paired with your radio.
•Pressthe“VoiceCommand”button
NOTE:
To acc e s s the tu t o ri a l , pres s t h e “Vo i ce Com m and ” b u tto n “tutorial.” Press any hard-key/button or touchthe display(Touchscreenradio) to cancel the tutorial.
Any voice commanded system should be used only in safe driving conditions following applicable laws regarding phone use. Your attention should be focused on safely oper­ating the vehicle. Failure to do so may result in a collision causing you and others to be severely injured or killed.

Bluetooth® STREAMING AUDIO

• If equipped with Uconnect® Voice Com­mand, your Bluetooth®-equipped iPod® devices, cell phones or other media players, may also be able to stream music to your vehicles speakers. Your connected device must be Bluetooth®­compatible, and paired with your radio (see www.UconnectPhone.com for pair­ing instructions).
Non-Touchscreen Radios: Press the “AUX” button on the radio faceplate until "BT" or “Audio Streaming” is displayed on the radio screen.
Touchscreen-Radios:Press the “RADIO/MEDIA” or “MEDIA” hard-key and then touch the “AUX” soft-key tab.
and after the BEEP, say “SMS” to get started.
. After the BEEP, say
WARNING!
68
ELECTRONICS

iPod®/USB/MP3 CONTROL

•TherearemanywaystoplaymusicfromiPod®/MP3playersorUSBdevicesthroughyour vehicle's sound system.
•TheremoteUSBport,locatedwithinthecenterconsole,allowsyoutopluganiPod®into the vehicle's sound system.
NOTE:
If equipped with the Uconnect® 730N, the USB port on the faceplate allows the same functions as the remote USB port.
Non-Touch-Screen Radios: Tohear audio from devices connected to the USB port, press the “AUX” button on the radio face­plate
Touch-ScreenRadios: Tohear audio from devices connected to the USB port, press the “MEDIA” hard-key, then touch the “AUX” or “iPod®” soft-key.
•Whenconnectedtothisfeature:
• The iPod® can be controlled using the
radio buttons to Play, Browse, and List the iPod® or external devices contents.
• The iPod® battery charges when
plugged into the USB port (if supported by the specific audio device).
Compatible iPod® devices may also be
controllable using voice commands. Refer to the Owner's Manual on the DVD for details.
NOTE:
The USB port supports certain Mini, Classic, Nano, Touch, and iPhone® devices. The USB port also supports playing music from compatible external USB Mass Storage Class memory devices. For supported audio file formats, refer to the USB Port section in the Owner's Manual on the DVD. Refer to www.UconnectPhone.com for a list of tested iPod®s. Some iPod® software versions may not fully support the USB port features. Please visit Apple’s website for iPod® software updates.
WARNING!
Do not plug in or remove the iPod® or external device while driving. Failure to follow this warning could result in a collision.
69
ELECTRONICS

ELECTRONIC VEHICLE INFORMATION CENTER (EVIC)

• The EVIC features a driver interactive dis­play that is located in the instrument cluster. Pressing the controls on the left side of the steering wheel allows the driver to select vehicle information and Personal Settings. For additional infor­mation, refer to Programmable Features in this guide.
• Press and release the MENU access the main menu, or to return to the main menu from the sub menus.
• Press and release the UP scroll upward through the main menus and sub menus.
• Press and release the DOWN to scroll downward through the main menus and sub menus.
• Press and release the SELECT select a personal setting in the setup menu. Press and hold the SELECT button for two seconds to reset features.

Compass Calibration

This compass is self-calibrating, which eliminates the need to set the compass manually. When the vehicle is new, the compass may appear erratic and the EVIC will display “CAL” until the compass is calibrated.
You may also calibrate the compass by completing one or more 360 degree turns (in an area free from large metal or metallic objects) until the “CAL” message displayed in the EVIC turns off. The compass will now function normally.
button to
button to
button
1 — EVIC Controls
button for access to main menus, sub menus or to
ECO
• The ECO message will appear in your EVIC display whenever you are driving in a fuel efficient manner.
•Thisfeatureallowsyoutomonitorwhenyouaredrivinginafuelefficientmanner,and it can be used to modify driving habits in order to increase fuel economy.
70
ELECTRONICS

PROGRAMMABLE FEATURES

Electronic Vehicle Information Center (EVIC) – If Equipped

•TheEVICcanbeusedtoprogramthefollowingPersonalSettings.Pressandreleasethe MENU buttons to scroll through the settings. Press the SELECT button to change the setting.
• Language • Hill Start Assist (HSA)
•UnlockDoorsAutomaticallyonExit
• Remote Key Unlock • Delay Power Off to Accessories Until Exit
•RemoteStartComfortSys. •Turn-by-TurnNavigation
• Sound Horn with Remote Key Lock • Display ECO Mode
•FlashLightswithRemoteKeyLock •KeylessEnter-N-Go™
• Delay Turning Headlights Off
•LockDoorsAutomatically

Key Fob Programmable Features

The following features may also be programmed by using the Key Fob transmitter or the ignition switch and driver's door lock switch.
NOTE:
Pushing the LOCK button while you are inside the vehicle will activate the Vehicle Security Alarm. Opening a door with the Vehicle Security Alarm activated will cause the alarm to sound. Push the UNLOCK button to deactivate the Vehicle Security Alarm.
Unlock On First Push
To u n lo c k ei th e r th e d r ive r 's s ide , or al l d o ors , on th e f i rst pu s h o f th e U N LOC K bu t ton :
•PushandholdtheLOCKbuttonforatleastfourseconds,butnolongerthan10seconds. Then, push and hold the UNLOCK button while still holding the LOCK button.
•Releasebothbuttonsatthesametime.
Auto Unlock Doors On Exit
To h a ve a ll o f t h e v e hic l e doo r s un lo c k wh en a ny d oo r is op ene d :
•Enteryourvehicleandcloseallthedoors,andfastenyourseatbelt.
• Cycle the ignition switch between the LOCK and ON position four times, ending in the LOCK position (do not start the engine).
•PushthepowerdoorUNLOCKswitchtounlockthedoors.Asinglechimewillindicatethat programming is complete.
button until Personal Settings displays, then press the UP or DOWN
Turn Headlights On with Remote Key Unlock
Headlamps On with Wipers (Available with
Auto Headlamps Only)
Enable/Disable The Rear Park Assist System
• Display Units of Measure In
• Park Assist Sound And Display
71
ELECTRONICS
Sound Horn With Lock
To t u rn t he ho r n chi r p on or o f f w h en t he d oo r s ar e l o cke d :
•PushtheLOCKbuttonandPANICbuttonatthesametimeforatleastfourseconds,but no longer than 10 seconds.
•Releasebothbuttonsatthesametime.
Flashing Lights With Lock
The turn signal lights flash when the doors are locked, which can be turned on or off.To turn this feature on or off:
•PushandholdtheUNLOCKbuttonandtheLOCKbuttonatthesametimeforatleastfour seconds, but no longer than 10 seconds.
•Releasebothbuttonsatthesametime.

UNIVERSAL GARAGE DOOR OPENER (HomeLink®)

HomeLink® replaces up to three hand-held transmitters that operate devices such as garage door openers, motorized gates, lighting or home security systems. The HomeLink® unit is powered by your vehicles 12 Volt battery.
•TheHomeLink®buttonsthatarelocatedintheoverheadconsoleorsunvisordesignate the three different HomeLink® channels.
•TheHomeLink®indicatorislocatedabovethecenterbutton.
72
ELECTRONICS

Before You Begin Programming HomeLink®

• Ensure that your vehicle is parked outside of the garage before you begin programming.
• For efficient programming and accurate transmission of the radio-frequency signal it is recommended that a new battery be placed in the hand-held transmitter of the device that is being programmed to the HomeLink® system.
• Erase all channels before you begin programming. To erase the channels, place the ignition switch into the ON/RUN position, then press and hold the two outside HomeLink® buttons (I and III) for up to 20 seconds. The Electronic Vehicle Information Center (EVIC) will display “CLEARING CHANNELS”. Release the buttons when the EVIC displays “CHANNELS CLEARED”.
NOTE:
• Erasing all channels should only be performed when programming HomeLink® for the first time. Do not erase channels when programming additional buttons.
•Ifyouhaveanyproblems,orrequireassistance,pleasecalltoll-free1–800–355–3515 or, on the Internet at www.HomeLink.com for information or assistance.

Programming A Rolling Code

•ForprogrammingGarageDoorOpenersthatweremanufacturedafter1995.These Garage Door Openers can be identified by the “LEARN” or “TRAIN” button located where the hanging antenna is attached to the Garage Door Opener. It is NOT the button that is normally used to open and close the door.The name and color of the button may vary by manufacturer.
1. Place the ignition switch into the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm) away fromthe HomeLink® button you
wish to program while keeping the HomeLink® indicator light in view.
3. Simultaneously press and hold both the Homelink® button you want to program and the
hand-held transmitter button.
4. Continue to hold buttons until the EVIC display changes from “CHANNEL # TRAINING” to
“CHANNEL # TRAINED”, then release both buttons.
NOTE:
If the EVIC displays “DID NOT TRAIN” repeat from Step 2.
5. At the garage door opener motor (in the garage), locate the “LEARN” or “TRAINING”
button. This can usually be found where the hanging antenna wire is attached to the garage door opener motor.Firmly press and release the “LEARN” or “TRAINING” button.
NOTE:
You have 30 se c o n d s in which to in i t i at e the nex t st e p after the LE A R N button has be e n pressed.
73
ELECTRONICS
6. Return to the vehicle and press the programmed HomeLink® button twice (holding the button for two seconds each time). The EVIC will display “CHANNEL # TRANSMIT”. If the garage door opener/device activates, programming is complete.
NOTE:
If the device does not activate, press the button a third time (for two seconds) to complete the training.
7. To program the remaining two HomeLink® buttons, repeat each step for each remaining
button. DO NOT erase the channels.

Programming A Non-Rolling Code

•ForprogrammingGarageDoorOpenersmanufacturedbefore1995.
1. Turn the ignition switch to the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm) away fromthe HomeLink® button you wish to program while keeping the HomeLink® indicator light in view.
3. Simultaneously press and hold both the HomeLink® button you want to program and the hand-held transmitter button.
4. Continue to hold buttons until the EVIC display changes from “CHANNEL # TRAINING” to “CHANNEL # TRAINED”, then release both buttons.
5. Press and hold the programmed HomeLink® button and observe the indicator light.
NOTE:
• If the EVIC displays “DID NOT TRAIN” repeat from Step 2.
•ToprogramthetworemainingHomeLink®buttons,repeateachstepforeachremaining
button. DO NOT erase the channels.

Using HomeLink®

•Tooperate,pressandreleasetheprogrammedHomeLink®button.Activationwillnow
occur for the programmed device (e.g., garage door opener, gate operator, security system, entry door lock, home/office lighting, etc.,). The hand-held transmitter of the device may also be used at any time.
WARNING!
•Yourmotorizeddoororgatewillopenandclosewhileyouareprogrammingthe universal transceiver. Do not program the transceiver if people or pets are in the path of the door or gate.
• Do not run your vehicle in a closed garage or confined area while programming the transceiver. Exhaust gas from your vehicle contains Carbon Monoxide (CO) which is odorless and colorless. Carbon Monoxide is poisonous when inhaled and can cause you and others to be severely injured or killed.
74
ELECTRONICS

POWER OUTLETS

• There are two 12 Volt electrical outlets on this vehicle.
• The outlet on the front console has power available only when the ignition is in the ON/RUN position. If desired, this outlet can be converted by your authorized dealer to provide power with the ignition switch in the LOCK position.
• The second outlet in the center console is powered directly from the battery (power available at all times). Items plugged into this outlet may discharge the battery and/or prevent engine starting.
NOTE:
• Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded, the fuse protecting the system will need to be replaced.
• Power outlets are designed for accessory plugs only.Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Improper use of the power outlet can cause damage not covered by your new vehicle warranty.
75

UTILITY

TRAILER TOWING WEIGHTS (MAXIMUM TRAILER WEIGHT RATINGS)

Engine/
Transmission
3.6L Automatic
5.7L Automatic
Refer to local laws for maximum trailer towing speeds

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)

Towing This Vehicle Behind Another Vehicle

Towing
Condition
Flat Tow None
Dolly Tow
On Trailer All OK OK
NOTE:
When recreationally towing your vehicle, always follow applicable state and provincial laws. Contact state and provincial Highway Safety offices for additional details.
Automatic Transmission — If Equipped
Recreational towing (with rear wheels on the ground) is NOT ALLOWED. The only acceptable method for towing this vehicle (behind another vehicle) is on a vehicle trailer with all four wheels OFF the ground.
Use of a towing dolly (with rear wheels on the ground) is NOT ALLOWED, as severe transmission damage will occur. Use of a towing dolly (with front wheels on the ground) is not recommended, as vehicle damage may occur.
Frontal Area Max. GTW
12 sq ft (1.11 sq m) 1,000 lbs (454 kg) 100 lbs (45 kg) 12 sq ft (1.11 sq m) 1,000 lbs (454 kg) 100 lbs (45 kg)
Wheels OFF The
Ground
Front
Rear
(Gross Trailer Wt.)
Manual
Transmission NOT ALLOWED NOT ALLOWED NOT ALLOWED NOT ALLOWED
NOT RECOMMENDED NOT RECOMMENDED
Max. Tongue Wt.
Automatic
Transmission
CAUTION!
Towing this vehicle in violation of the above requirements can cause severe trans­mission damage. Damage from improper towing is not covered under the New Vehicle Limited Warranty.
76
UTILITY
Manual Transmission — If Equipped
Recreational towing (with rear wheels on the ground) is NOT ALLOWED. The only acceptable method for towing this vehicle (behind another vehicle) is on a vehicle trailer with all four wheels OFF the ground.
Use of a towing dolly (with rear wheels on the ground) is NOT ALLOWED, as severe transmission damage will occur. Use of a towing dolly (with front wheels on the ground) is not recommended, as vehicle damage may occur.
CAUTION!
Towing this vehicle in violation of the above requirements can cause severe trans­mission damage. Damage from improper towing is not covered under the New Vehicle Limited Warranty.
77
SRT

AUTOSTICK®

Steering Wheel Mounted Paddle Shifters Or Console Mounted Shifter

•AutoStick®isadriver-interactivetrans­mission feature that offers manual gear shifting to provide you with more control of the vehicle. AutoStick® allows you to maximize engine braking, and improve overall vehicle performance.
This system can also provide you with
• more control during passing, city driving, cold slippery conditions, mountain driving, trailer towing, and many other situations.
Operation
• When the shift lever is in the DRIVE posi­tion, the transmission will operate auto­matically, shifting between the five avail­able gears. To engage AutoStick®, simply move the shift lever to the right or left (+/-) while in the DRIVE position, or press one of the steering wheel mounted shift paddles (+/-). When AutoStick® is active, the current transmission gear is displayed in the Electronic Vehicle Information Center (EVIC) por­tion of the instrument cluster. In AutoStick® mode, the transmission will shift when manually selected by the driver (using the shift lever, or the shift paddles), unless an engine lugging or overspeed condition would result. It will remain in the selected gear until another upshift or downshift is chosen, except as described below:
•Thetransmissionwillautomaticallydownshiftasthevehicleslows(topreventengine lugging) and will display the current gear.
•Thetransmissionwillautomaticallydownshifttofirstgearwhencomingtoastop.
•Youcanstartoutinfirstorsecondgear.Tapping(+)(atastop)willallowstartingin second gear. Starting out in second gear is helpful in snowy or icy conditions.
•Thesystemwillignoreattemptstoupshiftattoolowofavehiclespeed.
•TransmissionshiftingwillbemorenoticeablewhenAutoStick®isengaged.Todisen­gage AutoStick® mode, hold the shift lever to the right or press and hold the (+) shift paddle until “D” is once again displayed in the instrument cluster. You can shift in or out of the AutoStick® mode at any time without taking your foot off the accelerator pedal.
78
SRT

ELECTRONIC CONTROL DAMPING SYSTEM

•Thisvehiclemaybeequippedwithanelectroniccontrolleddampeningsystem.This system reduces body roll and pitch in many driving situations including cornering, acceleration and braking. There are three modes of operation:

Automatic (Auto) Mode

This is the default position when vehicle ignition is first turned on. Auto mode will give a sporty, but comfortable ride. Within this mode, the suspension will adapt to the vehicle inputs, including road surfaces, vehicle speed, steering inputs, braking, and acceleration.
•IfAutoStick®isengagedwhilein“Auto”mode,thetransmissionwillautomaticallyshift up if maximum engine speed is reached.
•Heavilypressingtheacceleratorpedalmaygenerateanautomaticdownshiftforim­proved acceleration.
• This mode should be used for most driving situations.

Sport Mode

• This mode is driver selectable when the vehicle is placed in SPORT mode (press the SPORT button on the center console). This mode will set suspension for maximum performance handling and is intended for spirited driving.
When SPORT mode is enabled, a “ SPORT”
• message will display in the instrument cluster.
NOTE:
The SPORT setting will provide a firmer ride.
SPORT

Trac k Mo de (Au tom ati c Tra ns m is sio n On ly )

•ThismodeisselectedwhentheSPORTbuttonispushedasecondtime.Thismode combines maximum performance suspension and aggressive transmission calibration.
•WhenTrackmodeisenabledandthetransmissionisinAutoStick®thetransmissionwill not automatically upshift at maximum engine speed. It will remain in gear until the driver selects an upshift. When slowing to a stop it will automatically down shift to prevent engine lugging.
• When Track mode is enabled a “Track” message will display in the instrument cluster.
79
SRT

SRT PERFORMANCE FEATURES

Electronic Vehicle Information Center (EVIC)

•TheEVICcanbeusedtoprogramthefol­lowing Performance Features. Press and release the MENU mance Features displays, then press the UP to scroll through the settings. Press the SELECT setting.
or DOWN button buttons
button to change or reset the
•0-60mph(0-100km/h) •InstantaneousG-Force
• Braking Distance • Peak G-Force
• 1/8 Mile • Digital Speedometer
• 1/4 Mile
button until Perfor-
1 — EVIC Controls
0-60 mph (0-100 km/h)
•Whenselected,thisscreendisplaysthetimeittakesforthevehicletogofrom0to 60 mph (0 to 100 km/h) within 10 seconds.
Braking Distance
• When selected, this screen displays the vehicle's braking distance and the speed at which the brake pedal was depressed.
1/8 Mile, 1/4 Mile
•Whenselected,thisscreendisplaysthetimeittakesthevehicletotravel1/8mile (1/4 mile) within 30 seconds and the vehicle's speed when it reaches 1/8 mile (1/4 mile).
Instantaneous G-Force
•Whenselected,thisscreendisplaysthecurrentG-Force(lateralandlongitudinal)along with a friction circle that displays the directions of the forces.
80
SRT
Peak G-Force
•Whenselected,thisscreendisplaysallfourG-Forcevalues(twolateralandtwolongi­tudinal).
Digital Speedometer
•Whenselected,thisscreendisplaysvehiclespeedandrecordstopspeed.
WARNING!
Measurement of vehicle statistics with the Performance Features is intended for off­highway or off-road use only and should not be done on any public roadways. It is recommended that these features be used in a controlled environment and within the limits of the law. The capabilities of the vehicle as measured by the performance pages must never be exploited in a reckless or dangerous manner, which can jeopardize the user’s safety or the safety of others. Only a safe, attentive, and skillful driver can prevent accidents.

SUMMER/THREE-SEASON TIRES

•Thisvehiclemaybeequippedwithwheelsandtirestoenhancetractioninbothwetand dry conditions.
•Summertiresarenotintendedtobedriveninsnoworonice.
•Summertireshavesignificantlyreducedgripintemperaturesbelow50°F(10°C)
• Use summer tires only in sets of four.
NOTE:
Summer tires will not contain the all season designation or mountain/snowflake symbol on the sidewall of the tire.
WARNING!
Do not use summer tires in snow/ice conditions. You could lose control, resulting in severe injury or death. Driving too fast for conditions also creates the possibility of loss of vehicle control.
81

WHAT TO DO IN EMERGENCIES

ROADSIDE ASSISTANCE

Dial toll-free 1-800-521-2779 for U.S. Residents or 1-800-363-4869 for Canadian Residents.
• Provide your name, vehicle identification number, license plate number, and your loca­tion, including the telephone number from which you are calling.
• Briefly describe the nature of the problem and answer a few simple questions.
• You will be given the name of the service provider and an estimated time of arrival. If you feel you are in an “unsafe situation”, please let us know. With your consent, we will contact local police or safety authorities.

INSTRUMENT CLUSTER WARNING LIGHTS

-ElectronicStabilityControl(ESC)Activation/Malfunction
Indicator Light
The “ESC Activation/Malfunction Indicator Light” in the instrument cluster will come on when the ignition switch is turned to the ON/RUN position. It should go out with the engine running. If the “ESC Activation/Malfunction Indicator Light” comes on continuously with the engine running, a malfunction has been detected in the ESC system.
If this light remains on after several ignition cycles, and the vehicle has been driven several miles (kilometers) at speeds greater than 30 mph (48 km/h), we recommend you drive to the nearest service center and have the vehicle serviced immediately.

-TirePressureMonitoringSystem(TPMS)Light

Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is significantly under-inflated. Accordingly,when the low tire pressuretelltale illuminates, you should stop and check your tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling and stopping ability.
IF THE LIGHT STARTS FLASHING INDICATING A LOW TIRE PRESSURE, ADJUST THE AIR PRESSURE IN THE LOW TIRE TO THE AIR PRESSURE SHOWN ON THE VEHICLE PLACARD OR TIRE INFLATION PRESSURE LABEL LOCATED ON THE DRIVER'S DOOR.
NOTE:
AFTER INFLATION, THE VEHICLE MAY NEED TO BE DRIVEN FOR 20 MINUTES BEFORE THE FLASHING LIGHT WILL TURN OFF.
82
WHAT TO DO IN EMERGENCIES
Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your v e h i c l e h a s al s o be e n equipped with a TPMS m a l fu n c t i on in d i c at o r to in di c a t e when the system is not operating properly.The TPMS malfunction indicator is combined with the low tire pressure telltale.
When the system detects a malfunction, the telltale will flash for approximately one minute and then remain continuously illuminated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists. When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replace­ment or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly.
NOTE:
Tire pressures change by approximately 1 psi (7 kPa) per 12° F (7° C) of air temperature change. Keep this in mind when checking tire pressure inside a garage, especially in the Winter. Example: If garage temperature is 68°F (20°C) and the outside temperature is 32°F (0°C), then the cold tire inflation pressure should be increasedby 3 psi (21 kPa), which equals 1 psi (7 kPa) for every 12°F (7°C) for this outside temperature condition.
CAUTION!
The TPMS has been optimized for the original equipment tires and wheels. TPMS pressures and warning have been established for the tire size equipped on your vehicle. Undesirable system operation or sensor damage may result when using replacement equipment that is not of the same size, type, and/or style. Aftermarket wheels can cause sensor damage. Do not use tire sealant from a can, or balance beads if your vehicle is equipped with a TPMS, as damage to the sensors may result.

- Engine Temperature Warning Light

This light warns of an overheated engine condition. If the light turns on or flashes continuously while driving, safely pull over and stop the
vehicle. If the A/C system is on, turn it off. Also, shift the transmission into NEUTRAL and idle the vehicle. If the temperature reading does not return to normal, turn the engine off immediately.
We recommend that you do not op erate the vehicle or engine damage will occur. Have the vehicle serviced immediately.
WARNING!
Ahotenginecoolingsystemisdangerous.Youorotherscouldbebadlyburnedbysteam or boiling coolant.
83
WHAT TO DO IN EMERGENCIES
BRAKE
The Brake Warning light illuminates when there is either a system malfunction or the parking brake is applied. If the light is on and the parking brake is not applied, it indicates a possible brake hydraulic malfunction, brake booster problem or an Anti-Lock Brake System problem.
Please have your vehicle serviced immediately.

- Brake Warning Light

WARNING!
Driving a vehicle with the red brake light on is dangerous. Part of the brake system may have failed. It will take longer to stop the vehicle. You could have a collision. Have the vehicle checked immediately.

-MalfunctionIndicatorLight(MIL)

Certain conditions, such as a loose or missing gas cap, poor fuel quality, etc., may illuminate the MIL after engine start. The vehicle should be serviced if the light stays on through several typical driving cycles. In most situations, the vehicle will drive normally and not require towing.
If the MIL flashes when the engine is running, serious conditions may exist that could lead to immediate loss of power or severe catalytic converter damage. We recommend you do not operate the vehicle. Have the vehicle serviced immediately.

-ElectronicStabilityControl(ESC)OFFIndicatorLight

This light indicates the Electronic Stability Control (ESC) is off.

– Sport Shifting

This light will illuminate when SPORT MODE is selected. This mode provides performance based transmission shifting depending on the driver requested throttle position.

-ChargingSystemLight

This light shows the status of the electrical charging system. If the charging system light remains on, it means that the vehicle is experiencing a problem with the charging system.
We recommend you do not continue driving if the charging system light is on. Have the vehicle serviced immediately.

- Oil Pressure Warning Light

This light indicates low engine oil pressure. If the light turns on while driving, stop the vehicle and shut off the engine as soon as possible. A chime will sound when this light turns on.
We recommend you do not operate the vehic le or engine damage will occur. Have the vehicle serviced immediately.

-Anti-LockBrake(ABS)Light

This light monitors the Anti-Lock Brake System (ABS). If the light is not on during starting, stays on, or turns on while driving, we recommend you
contact the nearest authorized dealer and have the vehicle serviced immediately.
84
WHAT TO DO IN EMERGENCIES

-ElectronicThrottleControl(ETC)IndicatorLight

This light informs you of a problem with the system.
If a problem is detected, the light will come on while the engine is running. Cycle the ignition when the vehicle has completely stopped and the shift lever is placed in the PARK position; the light should turn off.
If the light remains lit with the engine running, your vehicle will usually be drivable; however, see an authorized dealer immediately. If the light is flashing when the engine is running, immediate service is required and you may experience reduced performance, an elevated/ rough idle or engine stall and your vehicle may require towing.

- Air Bag Warning Light

If the light is not on during starting, stays on, or turns on while driving, have the vehicle serviced by an authorized dealer immediately.

Fuel Cap/Loose Gas Cap Message

•Ifa“gascap”message(shownasCheckFuelCap)appears,tightenthegascapuntila “clicking” sound is heard.
•Presstheodometerresetbuttontoturnthemessageoff.
•Ifthemessagecontinuestoappearformorethanthreedaysaftertighteningthegas cap, see your authorized service center.

Oil Life Reset

Your vehicle i s equipped w i t h a n engine oi l c h a n g e indicator s yst e m . T h e “Oil C h a n g e Due” message will flash in the EVIC display for approximately 10 seconds after a single chime has sounded, to indicate the next scheduled oil change interval. The engine oil change indicator system is duty cycle based, which means the engine oil change interval may fluctuate, dependent upon your personal driving style.
Vehicles Equipped With Passive Entry
•Withoutpushingthebrakepedal,pushtheENGINESTART/STOPbuttonandcyclethe ignition to the ON/RUN position (Do not start the engine.)
• Push and release the DOWN to “Vehicle Info”.
• Push and release the RIGHT
• Push and hold the RIGHT screen.
• Push and hold the DOWN
• Push and release the Up arrow button to exit the EVIC screen.
arrow button to scroll downward through the main menu
arrow button to access the ”Oil Life” screen.
arrow button for one second to access the ”Oil Life Reset”
arrow button until the screen shows 100% oil life.
85
WHAT TO DO IN EMERGENCIES
Vehicles Not Equipped With Passive Entry
•Withoutpushingthebrakepedal,cycletheignitiontotheON/RUNposition(Donotstart the engine.)
• Push and release the DOWN to “Vehicle Info”.
• Push and release the RIGHT
• Push and hold the RIGHT screen.
• Push and hold the DOWN
• Push and release the Up arrow button to exit the EVIC screen.
NOTE:
If the indicator message illuminates when you start the vehicle, the oil change indicator system did not reset. If necessary, repeat this procedure.
Resetting The Light After Servicing
Vehicles Equipped With Keyless Enter- N-G o™
•Withoutpressingthebrakepedal,pushtheENGINESTART/STOPbuttonandcyclethe ignition to the ON/RUN position (do not start the engine.)
•Fullydepresstheacceleratorpedal,slowly,threetimeswithin10seconds.
•Withoutpressingthebrakepedal,pushtheENGINESTART/STOPbuttononcetoreturn the ignition to the OFF/LOCK position.
Vehicles Not Equipped With Keyless Enter-N -Go ™
•TurntheignitionswitchtotheON/RUNposition(donotstarttheengine.)
•Fullydepresstheacceleratorpedal,slowly,threetimeswithin10seconds.
•TurntheignitionswitchtotheOFF/LOCKposition.
NOTE:
If the indicator message illuminates when you start the vehicle, the oil change indicator system did not reset. If necessary, repeat this procedure.
arrow button to scroll downward through the main menu
arrow button to access the ”Oil Life” screen.
arrow button for one second to access the ”Oil Life Reset”
arrow button until the screen shows 100% oil life.
86
WHAT TO DO IN EMERGENCIES

IF YOUR ENGINE OVERHEATS

In any of the following situations, you can reduce the potential for overheating by taking the appropriate action:
• On the highways — slow down.
•Incitytraffic—whilestopped,shiftthetransmissiontoNEUTRAL,butdonotincrease engine idle speed.
NOTE:
There are steps that you can take to slow down an impending overheat condition:
•Ifyourairconditioner(A/C)ison,turnitoff.TheA/Csystemaddsheattotheengine cooling system and turning the A/C off can help remove this heat.
•Youcanalsoturnthetemperaturecontroltomaximumheat,themodecontroltofloor and the blower control to high. This allows the heater core to act as a supplement to the radiator and aids in removing heat from the engine cooling system.
CAUTION!
Driving with a hot cooling system could damage your vehicle. If the temperature gauge reads HOT (H), pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range. If the pointer remains on HOT (H), and you hear continuous chimes, turn the engine off immediately, and call for service.
WARNING!
You or others can be b a d l y b u r n e d b y h o t e n gi n e c o ol a n t ( a n t i fr e e z e ) o r s t e a m f r o m y o u r radiator. If you see or hear steam coming from under the hood, do not open the hood until the radiator has had time to cool. Never try to open a cooling system pressure cap when the radiator or coolant bottle is hot.
87
WHAT TO DO IN EMERGENCIES

JACKING AND TIRE CHANGING

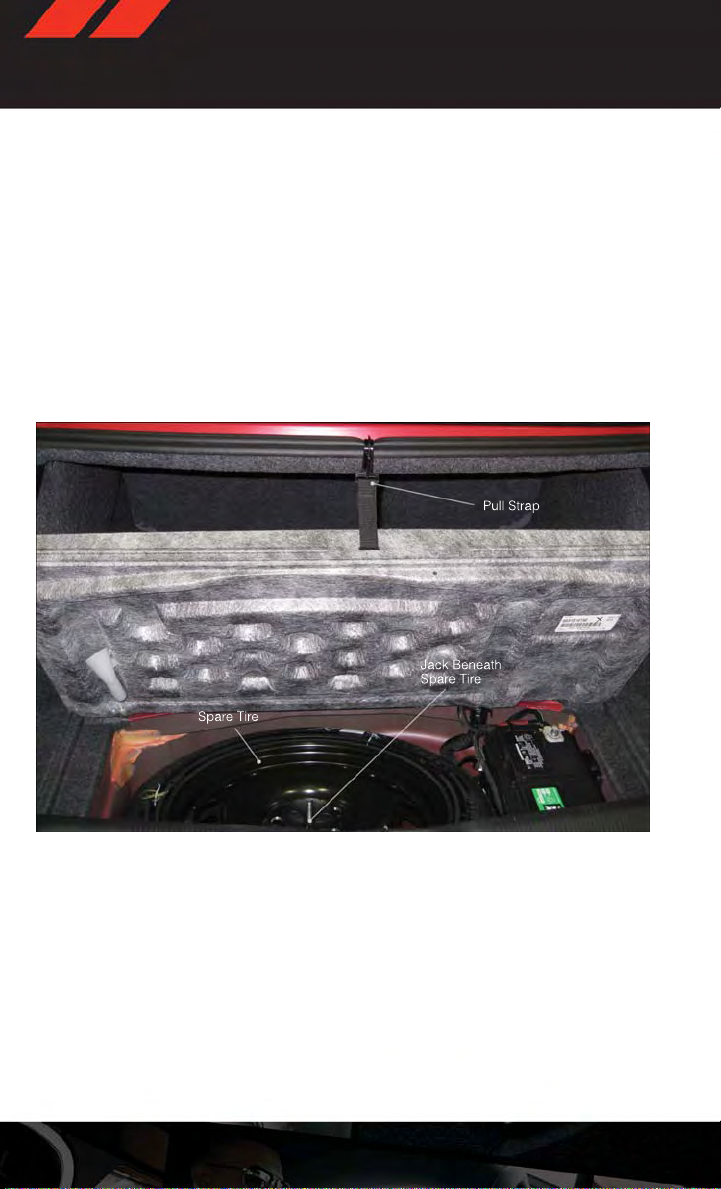

Jack Location/Spare Tire Stowage

The jack and spare tire are both stowed under an access cover in the trunk. Follow these steps to access the jack and spare tire.
NOTE:
The spare tire must be removed in order to access the jack.
1. Open the trunk.
2. Lift the access cover using the pull strap. To hold the cover up and into place, hang the hook that is located on the end of the strap over the trunk upper weather strip located in the channel below the rear window.
88
WHAT TO DO IN EMERGENCIES
3. Remove the fastener securing the spare tire.
4. Remove the spare tire.
5. Remove the fastener securing the jack.
6. Remove the scissors jack and lug wrench from the spare wheel as an assembly. Turn the jack scre w to the lef t to loos e n the lug wrench, and remove the wrench from the jack assembly.
89
WHAT TO DO IN EMERGENCIES

Preparations For Jacking

1. Park the vehicle on a firm, level surface as far from the edge of the roadway as possible. Avoid icy or slippery areas.
2. Turn on the Hazard Warning flasher.
3. Set the parking brake.
4. Place the shift lever into PARK.
5. Turn OFF the ignition.
6. Block the front and rear of the wheel diagonally opposite of the jacking position. For
example, if changing the right front tire, block the left rear wheel.
NOTE:
Passengers should not remain in the vehicle when the vehicle is being jacked.

Jacking And Changing A Tire

1.
Remove the spare tire, jack, and lug wrench.
2. If equipped with aluminum wheels where
the center cap covers the lug nuts, use the lug wrench to pry the center cap off carefully before raising the vehicle.
3. Before raising the vehicle, use the lug
wrench to loosen, but not remove, the lug nuts on the wheel with the flat tire. Turn the lug nuts counterclockwise one turn while the wheel is still on the ground.
90
Wheel Blocked
WHAT TO DO IN EMERGENCIES

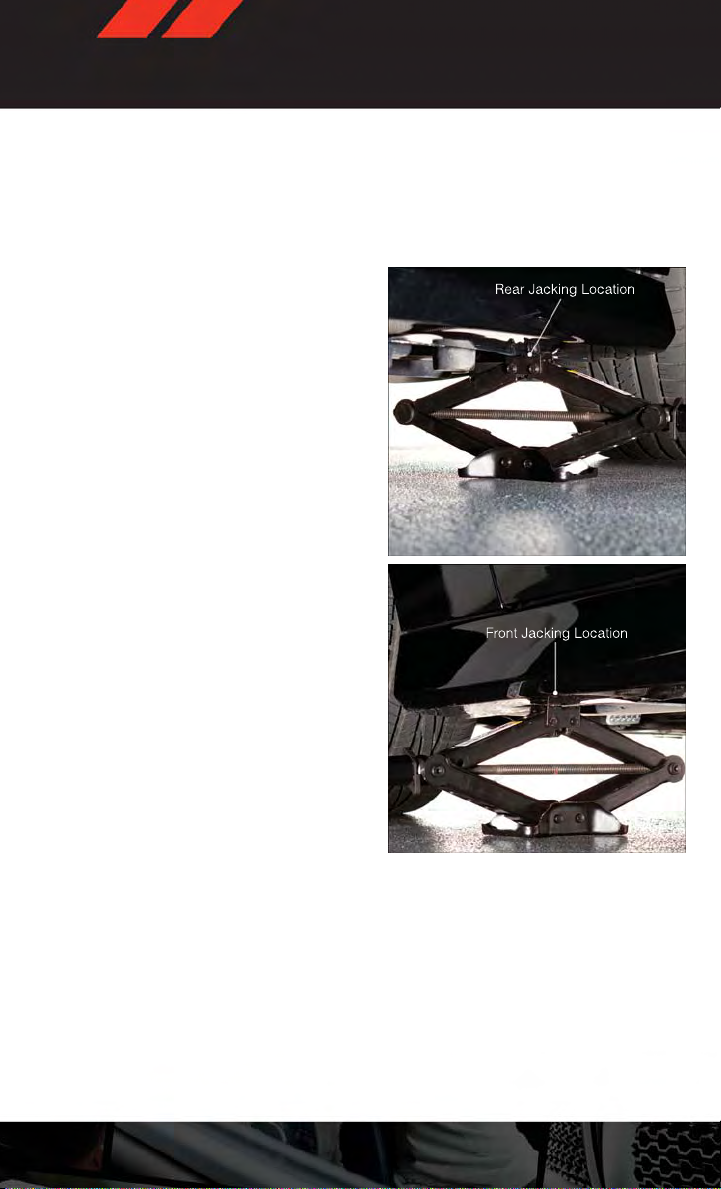

4. Place the jack underneath the lift area that is closest to the flat tire. Turn the jack screw clockwise to firmly engage the jack saddle with the lift area of the sill flange.
NOTE:
If the vehicle is too low for jack placement, slide the jack on its side and rotate it up into position.
5. Raise the vehicle just enough to remove the flat tire and install the spare tire.
6. Remove the lug nuts and tire.
91
WHAT TO DO IN EMERGENCIES
7. Mount the spare tire.
NOTE:
• For vehicles so equipped, do not at­tempt to install a center cap or wheel cover on the compact spare.
•Referto“CompactSpareTire”andto “Limited-Use Spare” under “Tires— General Information” in “Starting and Operating” in the Owner's Manual on the DVD for additional warnings, cau­tions, and information about the spare tire, its use, and operation.
8. Install the lug nuts with the cone shaped end of the lug nut toward the wheel. Lightly tighten the lug nuts.
9. Lower the vehicle to the ground by turning the jack handle counterclockwise.
10. Finish tightening the lug nuts. Push down on the wrench while at the end of the handle
for increased leverage. Tighten the lug nuts in a star pattern until each nut has been tightened twice. The correct tightness of each lug nut is 130 ft-lb. (176 N·m). If in doubt about the correct tightness, have them checked with a torque wrench by your autho­rized dealer or at a service station.
11. Stow the jack, tools and flat tire. Make sure the base of the jack faces the front of the
vehicle before tightening down the fastener.

Road Tire Installation

1. Mount the road tire on the axle.
2. Install the remaining lug nuts with the cone shaped end of the nut toward the wheel. Lightly tighten the lug nuts.
3. Lower the vehicle to the ground by turning the jack handle counterclockwise.
4. Finish tightening the lug nuts. Push down on the wrench while at the end of the handle for increased leverage. Tighten the lug nuts in a star pattern until each nut has been tightened twice. The correct tightness of each lug nut is 130 ft-lbs (176 N·m). If in doubt about the correct tightness, have them checked with a torque wrench by your authorized dealer or service station.
5. After 25 miles (40 km) check the lug nut torque with a torque wrench to ensure that all lug nuts are properly seated against the wheel.
CAUTION!
Do not attempt to raise the vehicle by jacking on locations other than those indicated in the Jacking Instructions for this vehicle.
92
WHAT TO DO IN EMERGENCIES
WARNING!
•Donotattempttochangeatireonthesideofthevehicleclosetomovingtraffic.Pull far enough off the road to avoid the danger of being hit when operating the jack or changing the wheel.
• Being under a jacked-up vehicle is dangerous. The vehicle could slip off the jack and fall on you. You could be crushed. Never put any part of your body under a vehicle that is on a jack.
•Neverstartorruntheenginewhilethevehicleisonajack.Ifyouneedtogetundera raised vehicle, take it to a service center where it can be raised on a lift.
•Thejackisdesignedtobeusedasatoolforchangingtiresonly.Thejackshouldnot be used to lift the vehicle for service purposes. The vehicle should be jacked on a firm level surface only. Avoid ice or slippery areas.
•Aloosetireorjackthrownforwardinacollisionorhardstopcouldendangerthe occupants of the vehicle. Always stow the jack parts and the spare tire in the places provided.
•Carefullyfollowthesetirechangingwarningstohelppreventpersonalinjuryor damage to your vehicle:
• Always park on a firm, level surface as far from the edge of the roadway as possible before raising the vehicle.
• Turn on the Hazard Warning flasher.
•Blockthewheeldiagonallyoppositethewheeltoberaised.
•SettheparkingbrakefirmlyandsetanautomatictransmissioninPARK;amanual transmission in REVERSE.
• Do not let anyone sit in the vehicle when it is on a jack.
• Do not get under the vehicle when it is on a jack.
• Only use the jack in the positions indicated and for lifting this vehicle during a tire change.
•Ifworkingonorneararoadway,beextremelycarefulofmotortraffic.
• Raising the vehicle higher than necessary can make the vehicle less stable. It could slip off the jack and hurt someone near it. Raise the vehicle only enough to remove the tire.
• Toavoid the risk of forcing the vehicle off the jack, do not fully tighten the wheel nuts until the vehicle has been lowered. Failure to follow this warning may result in personal injury.
•Aloosetireorjackthrownforwardinacollisionorhardstopcouldendangerthe occupants of the vehicle. Always stow the jack parts and the spare tire in the places provided.
• The limited-use spare tires are for emergency use only. Installation of this limited­use spare tire affects vehicle handling. With this tire, do not drive more than 60 mph (100 km/h). Keep inflated to the cold tire inflation pressure listed on either your tire placard or limited-use spare tire and wheel assembly. Replace (or repair) the original tire at the first opportunity and reinstall it on your vehicle. Failureto do so could result in loss of vehicle control.
93
WHAT TO DO IN EMERGENCIES

BATTERY LOCATION

The battery is stored under an access cover in the trunk. Remote battery posts are located on the right side of the engine compartment for jump-starting.

TIREFIT KIT

Your vehicle may be equipped with a TIREFIT Kit.
Small punctures up to 1/4” (6 mm) in the tire tread can be sealed with TIREFIT. Foreign objects (e.g., screws or nails) should not be removed from the tire. TIREFIT can be used in outside temperatures down to approximately -4°F (-20°C).
This kit will provide a temporary tire seal, allowing you to drive your vehicle up to 100 miles (160 km) with a maximum speed of 55 mph (90 km/h).

TIREFIT Storage

• The TIREFIT kit is located in the trunk.

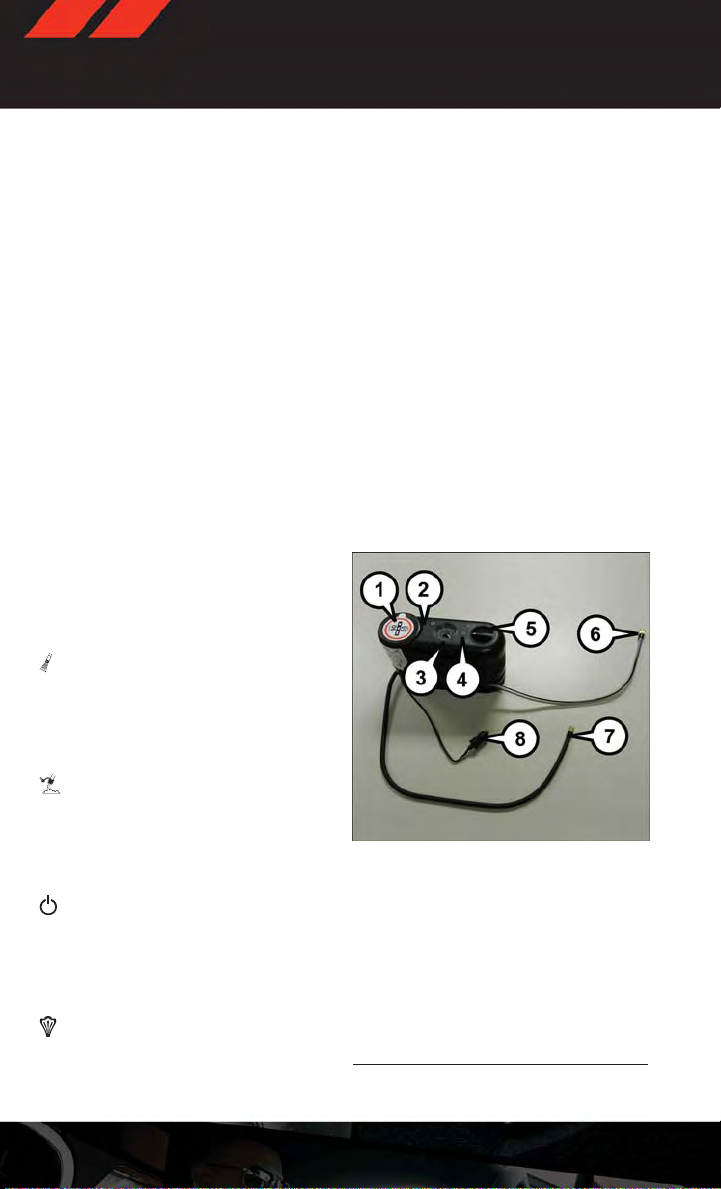

TIREFIT Kit Components And Operation

Using The Mode Select Knob And Hoses
Your TIREFIT kit is equipped with the follow­ing symbols to indicate the air or sealant mode.
Selecting Air Mode
Turn the Mod e Se l e ct Kn ob (5 ) to th i s p o s i­tion for air pump operation only. Use the Black Air Pump Hose (7) when selecting this mode.
Selecting Sealant Mode
Turn the Mod e Se l e ct Kn ob (5 ) to th i s p o s i­tion to inject the TIREFIT Sealant and to in­flate the tire. Use the Sealant Hose (clear hose) (6) when selecting this mode.
Using The Power Button
Push and release the Power Button (4) once to turn On the TIREFIT kit. Push and release the Power Button (4) again to turn Off the TIREFIT kit.
Using The Deflation Button
Press the Deflation Button (2) to reduce the air pressure in the tire if it becomes over­inflated.
1 — Sealant Bottle 2—DeflationButton 3 — Pressure Gauge 4—PowerButton 5 — Mode Select Knob 6—SealantHose(Clear) 7 — Air Pump Hose (Black) 8—PowerPlug(locatedonbottomsideof TIREFIT Kit)
TIREFIT Components
94
WHAT TO DO IN EMERGENCIES

TIREFIT Usage Precautions

•ReplacetheTIREFITSealantBottle(1)andSealantHose(6)priortotheexpirationdate (printed on the bottle label) to assure optimum operation of the system. Refer to “Sealing a Tire with TIREFIT” section (F) “Sealant Bottle and Hose Replacement.”
• The Sealant Bottle (1) and Sealant Hose (6) are a one tire application use. After each use, always replace these components immediately at an authorized dealer.
• When the TIREFIT sealant is in a liquid form, clean water, and a damp cloth will remove the material from the vehicle or tire and wheel components. Once the sealant dries, it can easily be peeled off and properly discarded.
• For optimum performance, make surethe valve stem on the wheel is free of debris before connecting the TIREFIT kit.
•YoucanusetheTIREFITairpumptoinflatebicycletires.Thekitalsocomeswithtwo needles, located in the Accessory Storage Compartment (on the bottom of the air pump) for inflating sport balls, rafts, or similar inflatable items. However, use only the Air Pump Hose (7) and make sure the Mode Select Knob (5) is in the Air Mode when inflating such items to avoid injecting sealant into them. The TIREFIT Sealant is only intended to seal punctures less than 1/4” (6 mm) diameter in the tread of your vehicle.
• Do not lift or carry the TIREFIT kit by the hoses.

Sealing A Tire With TIREFIT

(A) Whenever You Stop To Use TIREFIT:
1. Pull over to a safe location and turn on the vehicle’s Hazard Warning flashers.
2. Verify that the valve stem (on the wheel with the deflated tire) is in a position that is near
to the ground. This will allow the TIREFIT Hoses (6) and (7) to reach the valve stem and keep the TIREFIT kit flat on the ground. This will provide the best positioning of the kit when injecting the sealant into the deflated tire and running the air pump. Move the vehicle as necessary to place the valve stem in this position before proceeding.
3. Place the transmission in PARK (auto transmission) or in Gear (manual transmission)
and cycle the ignition to the OFF position.
4. Set the parking brake.
(B) Setting Up To Use TIREFIT:
1. Turn the Mode Select Knob (5) to the Sealant Mode position.
Uncoil the Sealant Hose (6) and then remove the cap from the fitting at the end of the hose.
2.
3. Place the TIREFIT kit flat on the ground next to the deflated tire.
4. Remove the cap from the valve stem and then screw the fitting at the end of the Sealant
Hose (6) onto the valve stem.
5. Uncoil the Power Plug (8) and insert the plug into the vehicle’s 12 Volt power outlet.
6. Do not remove foreign objects (e.g., screws or nails) from the tire.
95
WHAT TO DO IN EMERGENCIES
(C) Injecting TIREFIT Sealant Into The Deflated Tire:
Always start the engine before turning ON the TIREFIT kit.
NOTE:
Manual transmission vehicles must have the parking brake engaged and the shift lever in NEUTRAL.
After pressing the Power Button (4), the sealant (white fluid) will flow from the Sealant Bottle (1) through the Sealant Hose (6) and into the tire.
NOTE:
Sealant may leak out through the puncture in the tire.
If the sealant (white fluid) does not flow within0–10seconds through the Sealant Hose (6):
1. Press the Power Button (4) to turn Off the TIREFIT kit. Disconnect the Sealant Hose (6) from the valve stem. Make sure the valve stem is free of debris. Reconnect the Sealant Hose (6) to the valve stem. Check that the Mode Select Knob (5) is in the Sealant Mode position and not Air Mode. Press the Power Button (4) to turn On the TIREFIT kit.
2. Connect the Power Plug (8) to a different 12 Volt power outlet in your vehicle or another
vehicle, if available. Make sure the engine is running before turning ON the TIREFIT kit.
3. The Sealant Bottle (1) may be empty due to previous use. Call for assistance.
NOTE:
If the Mode Select Knob (5) is on Air Mode and the pump is operating, air will dispense from the Air Pump Hose (7) only, not the Sealant Hose (6).
If the sealant (white fluid) does flow through the Sealant Hose (6):
1. Continue to operate the pump until sealant is no longer flowing through the hose (typically takes 30 - 70 seconds). As the sealant flows through the Sealant Hose (6), the Pressure Gauge (3) can read as high as 70 psi (4.8 Bar). The Pressure Gauge (3) will decrease quickly from approximately 70 psi (4.8 Bar) to the actual tire pressure when the Sealant Bottle (1) is empty.
2. The pump will start to inject air into the tire immediately after the Sealant Bottle (1) is
empty.Continue to operate the pump and inflate the tire to the pressure indicated on the tire pressure label on the driver-side latch pillar (recommended pressure). Check the tire pressure by looking at the Pressure Gauge (3).
If the tire does not inflate to at least 26 psi (1.8 Bar) pressure within 15 minutes:
The tire is too badly damaged. Do not attempt to drive the vehicle further. Call for assistance.
NOTE:
If the tire becomes over-inflated, press the Deflation Button to reduce the tire pressure to the recommended inflation pressure before continuing.
96
WHAT TO DO IN EMERGENCIES
If the tire inflates to the recommended pressure or is at least 26 psi (1.8 Bar) pressure within 15 minutes:
1. Press the Power Button (4) to turn off the TIREFIT kit.
2. Remove the Speed Limit sticker from the top of the Sealant Bottle (1) and place the sticker on the instrument panel.
3. Immediately disconnect the Sealant Hose (6) from the valve stem, reinstall the cap on the fitting at the end of the hose, and place the TIREFIT kit in the vehicle storage location. Quickly proceed to (D) “Drive Vehicle.”
(D) Drive Vehicle:
Immediately after injecting sealant and inflating the tire, drive the vehicle 5 miles (8 km) or 10 minutes to ensure distribution of the TIREFIT Sealant within the tire. Do not exceed 55 mph (88 km/h).
(E) After Driving:
Pull over to a safe location. Refer to “Whenever YouStop to Use TIREFIT” beforecontinuing.
1. Turn the Mode Select Knob (5) to the Air Mode position.
2. Uncoil the Air Pump Hose (7) (black in color) and screw the fitting at the end of hose (7) onto the valve stem.
3. Uncoil the power plug and insert the plug into the vehicles 12 Volt power outlet.
4. Check the pressure in the tire by reading the Pressure Gauge (3).
If tire pressure is less than 19 psi (1.3 Bar), the tire is too badly damaged. Do not attempt to drive the vehicle further. Call for assistance.
If the tire pressure is 19 psi (1.3 Bar) or higher:
1. Press the Power Button (4) to turn on TIREFIT and inflate the tire to the pressure indicated
on the tire and loading information label on the driver-side door opening.
2. Disconnect the TIREFIT kit from the valve stem, reinstall the cap on the valve stem and unplug from 12 Volt outlet.
3. Place the TIREFIT kit in its proper storage area in the vehicle.
4. Have the tire inspected and repaired or replaced at the earliest opportunity at an authorized dealer or tire service center.
5. Replace the Sealant Bottle (1) and Sealant Hose (6) assembly at your authorized dealer as soon as possible. Refer to “(F) Sealant Bottle and Hose Replacement.”
NOTE:
•Ifthetirebecomesover-inflated,presstheDeflationButtontoreducethetirepressureto
the recommended inflation pressure before continuing.
•Whenhavingthetireserviced,advisetheauthorizeddealerorservicecenterthatthetire
has been sealed using the TIREFIT service kit.
97
WHAT TO DO IN EMERGENCIES
(F) Sealant Bottle And Hose Replacement:
1. Uncoil the Sealant Hose (6) (clear in color).
2. Locate the round Sealant Bottle release button in the recessed area under the sealant bottle.
3. Press the Sealant Bottle release button. The Sealant Bottle (1) will pop up. Remove the bottle and dispose of it accordingly.
4. Clean any remaining sealant from the TIREFIT housing.
5. Position the new Sealant Bottle (1) in the housing so that the Sealant Hose (6) aligns with the hose slot in the front of the housing. Press the bottle into the housing. An audible click will be heard indicating the bottle is locked into place.
6. Verify that the cap is installed on the fitting at the end of the Sealant Hose (6) and return the hose to its storage area (located on the bottom of the air pump).
7. Return the TIREFIT kit to its storage location in the vehicle.
CAUTION!
• The metal end fitting from Power Plug (8) may get hot after use, so it should be handled carefully.
• Failure to reinstall the cap on the fitting at the end of the Sealant Hose (6) can result in sealant contacting your skin, clothing, and the vehicle’s interior. It can also result in sealant contacting internal TIREFIT kit components which may cause permanent damage to the kit.
98
Loading...
