2013 VIPER USER GUIDE

Page 2

The driver’s primary responsibility is the safe operation of the vehicle. Driving while

distracted can result in loss of vehicle control, resulting in a collision and personal injury.

Chrysler Group LLC strongly recommends that the driver use extreme caution when using

any device or feature that may take their attention off the road. Use of any electrical

devices such as cell phones, computers, portable radios, vehicle navigation or other

devices by the driver while the vehicle is moving is dangerous and could lead to a serious

collision. Texting while driving is also dangerous and should never be done while the

vehicle is moving. If you nd yourself unable to devote your full attention to vehicle

operation, pull off the road to a safe location and stop your vehicle. Some States or

Provinces prohibit the use of cellular telephones or texting while driving. It is always the

driver’s responsibility to comply with all local laws.

This User Guide is intended to familiarize you with the important features of your vehicle.

The DVD enclosed contains your Owner’s Manual, Navigation/Uconnect

Manuals, Warranty

Booklets, Tire Warranty and Roadside Assistance (new vehicles purchased in the U.S.) or

Roadside Assistance (new vehicles purchased in Canada) in electronic format. We hope you

ﬁnd it useful. Replacement DVD kits may be purchased by visiting www.techauthority.com.

IMPORTANT

If you are the ﬁrst registered retail owner of your vehicle, you

may obtain a complimentary printed copy of the Owner’s

Manual, Navigation/Uconnect

Manuals or Warranty Booklet by

calling 1-855-778-8326. (U.S.) or 1-800-387-1143 (Canada)

or by contacting your dealer.

driveSRT.com

This guide has been prepared to help you get quickly acquainted with your new SRT and to

provide a convenient reference source for common questions. However, it is not a substitute for

your Owner’s Manual.

For complete operational instructions, maintenance procedures and important safety messages,

please consult your Owner’s Manual, Navigation/Uconnect

your vehicle.

Not all features shown in this guide may apply to your vehicle. For additional information on

accessories to help personalize your vehicle, visit www.mopar.com or your local SRT high

performance dealer.

Drunken driving is one of the most frequent causes of accidents. Your driving ability can be seriously impaired with blood alcohol levels far below the legal minimum. If you are drinking, don’t drive. Ride with a designated non-drinking driver, call a cab, a friend, or use public transportation.

Driving after drinking can lead to an accident. Your perceptions are less sharp, your reﬂexes are slower, and your judgment is impaired when you have been drinking. Never drink and then drive.

DRIVING AND ALCOHOL

WARNING!

Page 3

TABLE OF CONTENTS

INTRODUCTION/WELCOME

WELCOME FROM CHR YSLER GROUP

LLC .......................2

CONTROLS AT A GLANCE

DRIVER COCKPIT ...............4

INSTRUMENT CLUSTER ...........6

GETTING STARTED

KEYFOB ....................8

ENGINE STARTING/STOPPING .......9

THEFT ALARM .................9

SEATBELT...................10

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

— AIR BAGS .................11

CHILD RESTRAINTS .............12

FRONT SEATS ................15

ADJUSTABLE PEDALS ...........16

ADJUSTABLE FOOT REST ..........17

TILT / TELESCOPING STEERING

COLUMN ...................17

OPERATING YOUR VEHICLE

SRT ENGINE BREAK-IN

RECOMMENDATIONS ............18

TURN SIGNALS/WIPER/WASHER/HIGH

BEAMS LEVER ................19

HEADLIGHT SWITCH ............20

SPEED CONTROL ...............20

MANUAL TRANSMISSION 1 TO 4 SKIP

SHIFT .....................21

AUTOMATIC TEMPERATURE CONTROL

(ATC) ......................22

PARKVIEW

REAR BACK-UP CAMERA . . 23

ELECTRONICS

YOUR VEHICLE'S SOUND SYSTEM ....24

IDENTIFYING YOUR RADIO .........26

Uconnect

8.4A AND Uconnect®8.4AN)

(IF EQUIPPED) ................27

Uconnect Uconnect STEERING WHEEL AUDIO CONTROLS . . 69 ELECTRONIC VEHICLE INFORMA TION

CENTER (EVIC) ................69

PROGRAMMABLE FEATURES .......70

UNIVERSAL GARAGE DOOR OPENER (HomeLink

POWER OUTLETS ..............75

Access (AVAILABLE ON Uconnect

8.4A ...............36

8.4AN ...............52

) .................72

SRT

LAUNCH MODE ................77

ELECTRONIC CONTROL DAMPING

SYSTEM ....................78

PERFORMANCE FEATURES ........79

SUMMER/THREE-SEASON TIRES .....81

WHAT TO DO IN EMERGENCIES

INSTRUMENT CLUSTER WARNING

LIGHTS ....................82

IF YOUR ENGINE OVERHEATS .......85

TIREFIT KIT .................85

JUMP-STARTING ...............92

TOWING A DISABLED VEHICLE ......94

FREEING A STUCK VEHICLE ........94

EVENT DATA RECORDER (EDR) ......95

MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT ..........96

FLUIDS AND CAPACITIES ..........97

MAINTENANCE SCHEDULES .......98

SRT – MAINTENANCE RECORD .....100

FUSES ....................101

TIRE PRESSURES .............104

WHEEL AND WHEEL TRIM CARE ....105

EXTERIOR BULBS .............105

CONSUMER ASSISTANCE

CHRYSLER GROUP LLC CUSTOMER

CENTER ...................106

CHRYSLER CANADA INC. CUSTOMER

CENTER ...................106

ASSISTANCE FOR THE HEARING

IMPAIRED ..................106

PUBLICATIONS ORDERING ........106

REPORTING SAFETY DEFECTS IN THE 50 UNITED STATES AND

WASHINGTON, D.C. ............107

MOPAR ACCESSORIES

AUTHENTIC ACCESSORIES BY

MOPAR

...................108

FAQ (How To?)

FREQUENTLY ASKED QUESTIONS ....109

INDEX

...................110

UTILITY

TRAILER TOWING WEIGHTS (MAXIMUM

TRAILER WEIGHT RA TINGS) ........76

RECREATIONAL TOWING (BEHIND

MOTORHOME, ETC.) ............76

Page 4

INTRODUCTION/WELCOME

WELCOME FROM CHRYSLER GROUP LLC

Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles.

Your new Chrysler Group LLC vehicle has characteristics to enhance the driver's control under some driving conditions. These are to assist the driver and are never a substitute for attentive driving. They can never take the driver's place. Always drive carefully.

Your new vehicle has many features for the comfort and convenience of you and your passengers. Some of these should not be used when driving because they take your eyes from the road or your attention from driving. Never text while driving or take your eyes more than momentarily off the road.

This guide illustrates and describes the operation of features and equipment that are either standard or optional on this vehicle. This guide may also include a description of features and equipment that are no longer available or were not ordered on this vehicle. Please disregard any features and equipment described in this guide that are not available on this vehicle. Chrysler Group LLC reserves the right to make changes in design and specifications and/or make additions to or improvements to its products without imposing any obligation upon itself to install them on products previously manufactured.

This User Guide has been prepared to help you quickly become acquainted with the important features of your vehicle. It contains most things you will need to operate and maintain the vehicle, including emergency information.

The DVD includes a computer application containing detailed owner's information which can be viewed on a personal computer or MAC computer. The multimedia DVD also includes videos which can be played on any standard DVD player (including the Uconnect the back of the DVD sleeve.

For complete owner information, refer to your Owner's Manual on the DVD in the owner’s kit provided at the time of new vehicle purchase. For your convenience, the information

contained on the DVD may also be printed and saved for future reference.

Chrysler Group LLC is committed to protecting our environment and natural resources. By converting from paper to electronic delivery for the majority of the user information for your vehicle, together we greatly reduce the demand for tree-based products and lessen the stress on our environment.

Touch-Screen Radios). Additional DVD operational information is located on

Page 5

INTRODUCTION/WELCOME

VEHICLES SOLD IN CANADA

With respect to any vehicles sold in Canada, the name Chrysler Group LLC shall be deemed to be deleted and the name Chrysler Canada Inc. used in substitution.

WARNING!

• Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious personal injury.

• Always make sure that objects cannot fall into the driver foot well while the vehicle is moving. Objects can become trapped under the brake pedal and accelerator pedal causing a loss of vehicle control.

• Failure to properly follow floor mat installation or mounting can cause interference with the brake pedal and accelerator pedal operation causing loss of control of the vehicle.

• Never use the ‘PARK’ position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage.

• Refer to your Owner's Manual on the DVD for further details.

USE OF AFTERMARKET PRODUCTS (ELECTRONICS)

The use of aftermarket devices including cell phones, MP3 players, GPS systems, or chargers may affect the performance of on-board wireless features including Keyless Enter-N-Go™ and Remote Start range. If you are experiencing difficulties with any of your wireless features, try disconnecting your aftermarket devices to see if the situation improves. If your symptoms persist, please see an authorized dealer.

CHRYSLER, DODGE, JEEP, RAM TRUCK, SRT, ATF+4, MOPAR and Uconnect are registered trademarks of Chrysler Group LLC.

Page 6

CONTROLS AT A GLANCE

DRIVER COCKPIT

Page 7

I. Electronic Speed Control pg. 20

J. Adjustable Pedals pg. 16

(EVIC) Buttons pg. 69

K. Electronic Vehicle Information Center

CONTROLS AT A GLANCE

L. Headlight Switch pg. 20

M. Power Mirrors

N. Power Door Locks

• Automatic Climate Controls pg. 22

• Air Conditioning (A/C) pg. 23

F. Hazard Button

G. Power Outlets pg. 75

H. Automatic Climate Control

Lever (behind steering wheel) pg. 19

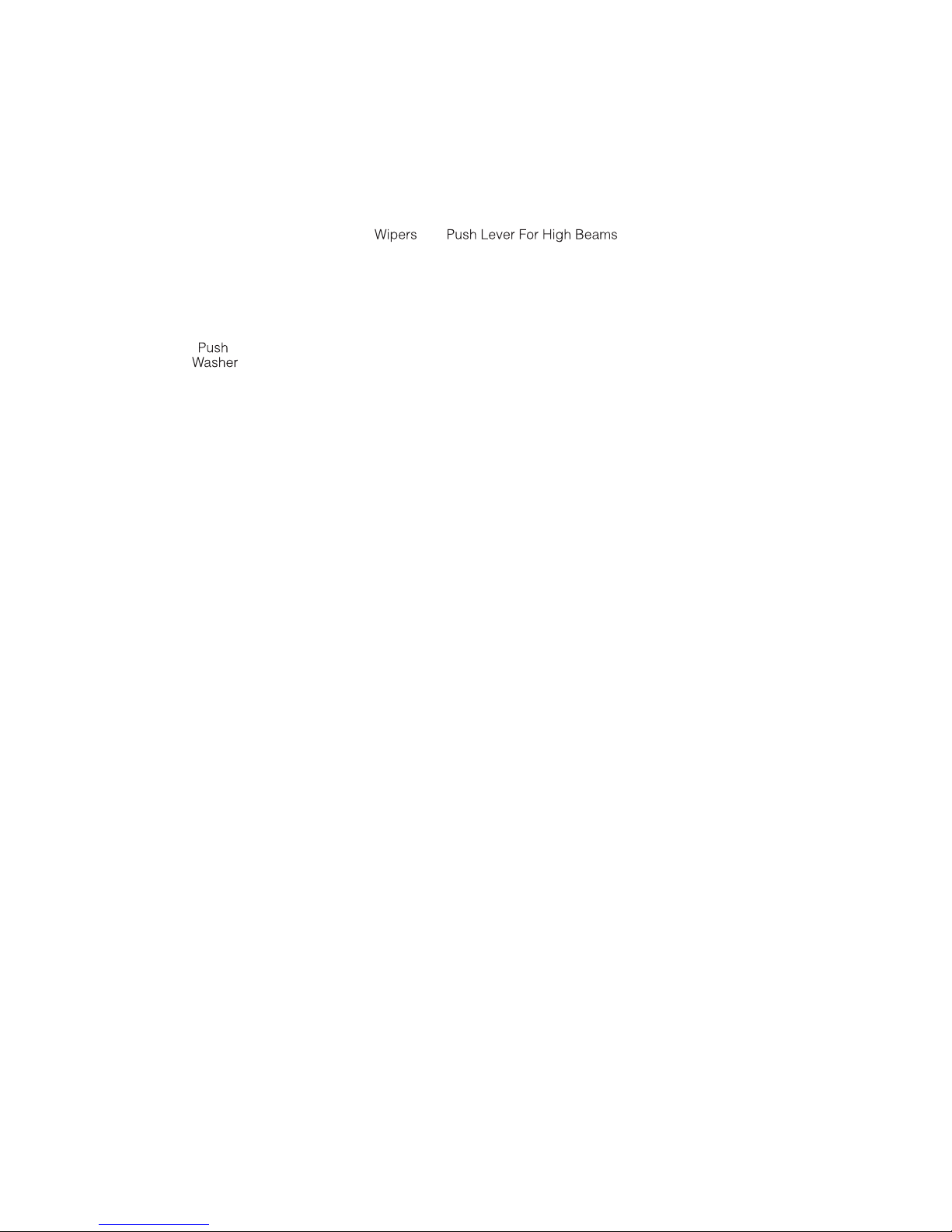

A. Turn Signal/Wiper/Washer/High Beams

B. Tachometer

steering wheel) pg. 9

C. Ignition Start/Stop Button (behind

• Recirculation pg. 23

• Heated Mirrors pg. 23

8.4AN pg. 52

E. Emergency Brake

D. Uconnect

Page 8

CONTROLS AT A GLANCE

INSTRUMENT CLUSTER

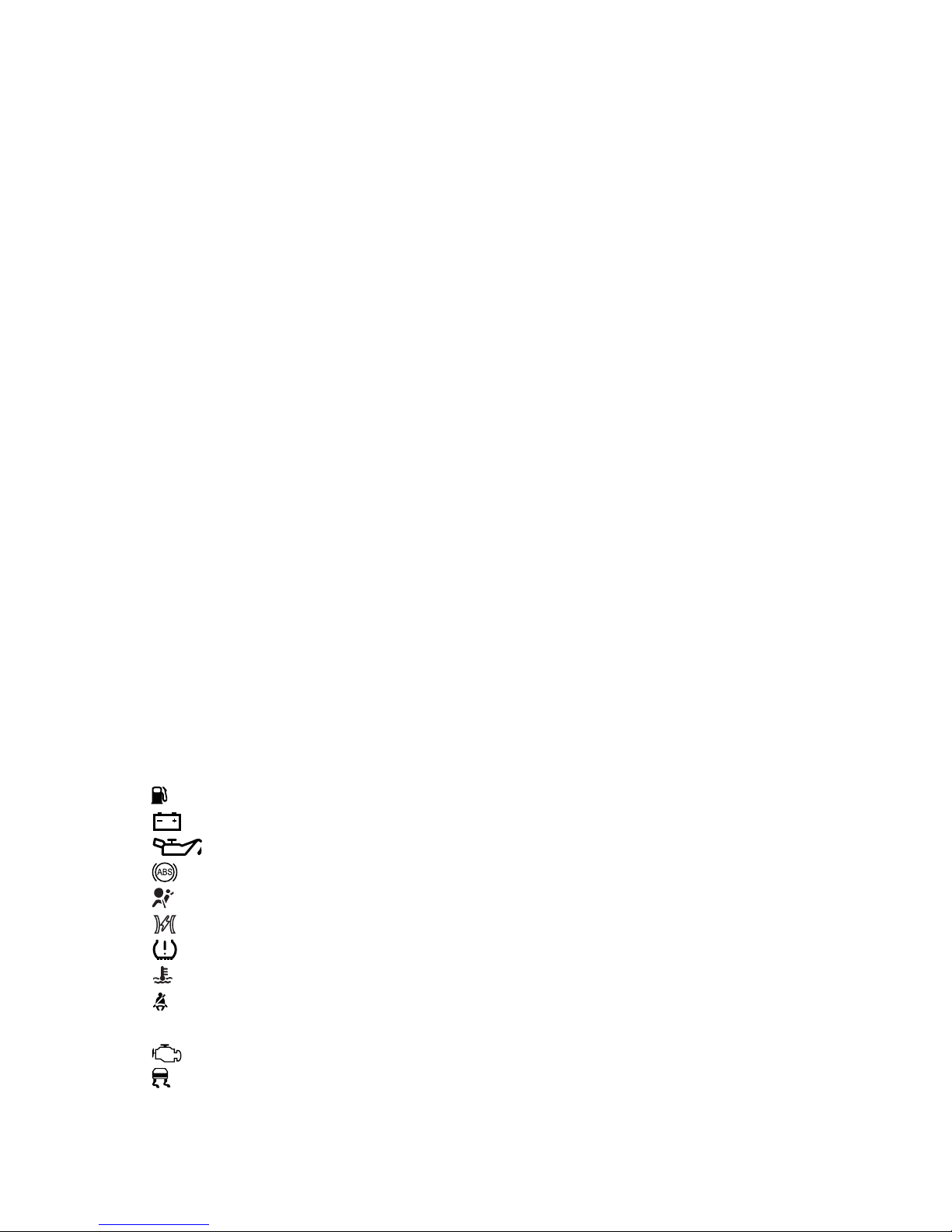

Warning Lights

- Low Fuel Warning Light

- Battery Charge Light**

- Oil Pressure Warning Light

- Anti-Lock Brake (ABS) Light**

- Air Bag Warning Light**

- Electronic Throttle Control (ETC) Light

- Tire Pressure Monitoring System (TPMS) Light

- Engine Temperature Warning Light

- Seat Belt Reminder Light

BRAKE

(See page 82 for more information.)

- Brake Warning Light**

- Malfunction Indicator Light (MIL)**

- Electronic Stability Control (ESC) Activation/Malfunction Indicator Light*

Page 9

CONTROLS AT A GLANCE

Indicators

- Turn Signal Indicators

- High Beam Indicator

- Vehicle Security Indicator*

- Electronic Speed Control Set Indicator

- Electronic Stability Control (ESC) Off Indicator*

- Door Ajar Indicator***

- Trunk Ajar Indicator***

- Windshield Washer Fluid Low Indicator***

* If equipped

** Bulb Check with Ignition On

*** On vehicles equipped with a Premium Instrument Cluster, this display shows the Electronic Vehicle Information Center (EVIC) messages when the appropriate conditions exist.

Page 10

GETTING STARTED

KEY FOB

Locking And Unlocking The Doors

• Press the LOCK button once to lock all the doors. Press the UNLOCK button once to unlock the driver’s door only and twice within five seconds to unlock all the doors.

•

All doors can be programmed to unlock on the first press of the UNLOCK button. Refer to Programmable Features in this guide.

Opening The Trunk

• Press the TRUNK button two times within five seconds to open the trunk.

Panic Alarm

• Press the PANIC button once to turn the panic alarm on.

• Wait approximately three seconds and press the button a second time to turn the panic alarm off.

Emergency Key

• Should the battery in the vehicle or the Key Fob transmitter go dead, there is an emergency key located in the Key Fob. To remove the emergency key, slide the button at the back of the Key Fob sideways with your thumb and then pull the key out with your other hand.

• The emergency key is also for locking the glove compartment.

WARNING!

• Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage.

• When leaving the vehicle, always remove the key fob from the ignition and lock your vehicle.

• Never leave children alone in a vehicle, or with access to an unlocked vehicle. Allowing children to be in a vehicle unattended is dangerous for a number of reasons. A child or others could be seriously or fatally injured. Children should be warned not to touch the parking brake, brake pedal or the shift lever.

• Do not leave the key fob in or near the vehicle, or in a location accessible to children, and do not leave a vehicle equipped with Keyless Enter-N-Go™ in the ACC or ON/RUN mode. A child could operate power windows, other controls, or move the vehicle

Page 11

GETTING STARTED

ENGINE STARTING/STOPPING

Starting

1. Fully apply the parking brake.

2. Press the clutch pedal to the floor.

3. Place the shift lever in NEUTRAL.

4. Press the red ENGINE START/STOP button located on the instrument panel. Release the button when the engine starts.

NOTE:

The engine will not start unless the clutch pedal is pressed to the floor.

Stopping

1. Bring the vehicle to a complete stop.

2. Fully apply the parking brake.

3. Press the clutch pedal to the floor.

4. Place the shift lever in NEUTRAL/1st Gear.

5. Press the ENGINE START/STOP button once. The ignition switch will return to the OFF position.

THEFT ALARM

To Arm:

Follow these steps to arm the Vehicle Security Alarm:

• Press LOCK on the interior power door lock switch with the driver and/or passenger door

open.

• Press the LOCK button on the Remote Keyless Entry (RKE) transmitter.

NOTE:

Using the key to open the liftgate while the Vehicle Security Alarm is armed will not trigger the theft alarm.

To Disarm:

The Vehicle Security Alarm can be disarmed using any of the following methods:

• Press the UNLOCK button on the Remote Keyless Entry (RKE) transmitter.

• Cycle the vehicle ignition system out of the OFF position.

Page 12

GETTING STARTED

SEAT BELT

• Be sure everyone in your vehicle is in a seat and using a seat belt properly.

• Position the lap belt across your thighs, below your abdomen. To remove slack in the lap portion, pull up a bit on the shoulder belt. To loosen the lap belt if it is too tight, tilt the latch plate and pull on the lap belt. A snug belt reduces the risk of sliding under the belt in a collision.

• Position the shoulder belt on your chest so that it is comfortable and not resting on your neck. The retractor will withdraw any slack in the belt.

• A shoulder belt placed behind you will not protect you from injury during a collision. You are more likely to hit your head in a collision if you do not wear your shoulder belt. The lap and shoulder belt are meant to be used together.

• A belt that is too loose will not protect you properly. In a sudden stop you could move too far forward, increasing the possibility of injury. Wear your seat belt snugly.

• A frayed or torn belt could rip apart in a collision and leave you with no protection. Inspect the belt system periodically, checking for cuts, frays, or loose parts. Damaged parts must be replaced immediately. Do not disassemble or modify the system. Seat belt assemblies must be replaced after a collision if they have been damaged (bent retractor, torn webbing, etc.).

• The seat belts for both front seating positions are equipped with pretensioning devices that are designed to remove slack from the seat belt in the event of a collision.

• A deployed pretensioner or a deployed air bag must be replaced immediately.

WARNING!

In a collision, you and your passengers can suffer much greater injuries if you are not buckled up properly. You can strike the interior of your vehicle or other passengers, or you can be thrown out of the vehicle. Always be sure you and others in your vehicle are buckled up properly.

Page 13

GETTING STARTED

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIR BAGS

• This vehicle has Advanced Front Air Bags for both the driver and right front passenger as a supplement to the seat belt restraint system. The Advanced Front Air Bags will not deploy in every type of collision.

• Advanced Front Air Bags are designed to provide additional protection by supplementing the seat belts in certain frontal collisions depending on several factors, including the severity and type of collision. Advanced Front Air Bags are not expected to reduce the risk of injury in rear, side, or rollover collisions.

• If the Air Bag W arning Light driving, have the vehicle serviced by an authorized service center immediately.

• Refer to the Owner's Manual on the DVD for further details regarding the Supplemental Restraint System (SRS).

is not on during starting, stays on, or turns on while

WARNING!

• Relying on the air bags alone could lead to more severe injuries in a collision. The air bags work with your seat belt to restrain you properly . In some collisions, the air bags won't deploy at all. Always wear your seat belts even though you have air bags.

• Being too close to the steering wheel or instrument panel during Advanced Front Air Bag deployment could cause serious injury, including death. Air bags need room to inflate. Sit back, comfortably extending your arms to reach the steering wheel or instrument panel.

• Do not drive your vehicle after the air bags have deployed. If you are involved in another collision, the air bags will not be in place to protect you.

• After any collision, the vehicle should be taken to an authorized dealer immediately.

Page 14

GETTING STARTED

CHILD RESTRAINTS

Everyone in your vehicle needs to be buckled up all the time, including babies and children. Every state in the United States and all Canadian provinces require small children ride in proper restraint systems. This is the law , and you can be prosecuted for ignoring it.

There are different sizes and types of restraints for children from newborn size to the child almost large enough for an adult safety belt. Always check the child seat Owner’s Manual to ensure you have the correct seat for your child. Use the restraint that is correct for your child.

Infant and Child Restraints

• Safety experts recommend that children ride rearward-facing in the vehicle until they are two years old or until they reach either the height or weight limit of their rear facing child safety seat. T wo types of child restraints can be used rearward-facing: infant carriers and convertible child seats.

• The infant carrier is only used rearward-facing in the vehicle. It is recommended for children from birth until they reach the weight or height limit of the infant carrier. Convertible child seats can be used either rearward-facing or forward-facing in the vehicle. Convertible child seats often have a higher weight limit in the rearward-facing direction than infant carriers do, so they can be used rearward-facing by children who have outgrown their infant carrier but are still less than at least two years old. Children should remain rearward-facing until they reach the highest weight or height allowed by their convertible child seat.

Older Children and Child Restraints

• Children who are two years old or who have outgrown their rear-facing convertible child seat can ride forward-facing in the vehicle. Forward-facing child seats and convertible child seats used in the forward-facing direction are for children who are over two years old or who have outgrown the rear-facing weight or height limit of their rear-facing convertible child seat. Children should remain in a forward-facing child seat with a harness for as long as possible, up to the highest weight or height allowed by the child seat.

• All children whose weight or height is above the forward-facing limit for the child seat should use a belt-positioning booster seat until the vehicle’s seat belts fit properly . If the child cannot sit with knees bent over the vehicle’s seat cushion while the child’s back is against the seatback, they should use a belt-positioning booster seat. The child and belt-positioning booster seat are held in the vehicle by the seat belt.

Page 15

GETTING STARTED

Children Too Large for Booster Seats

Children who are large enough to wear the shoulder belt comfortably, and whose legs are long enough to bend over the front of the seat when their back is against the seatback, should use the seat belt in the seat. Use this simple 5-step test to decide whether the child can use the vehicle’s seat belt alone:

• Can the child sit all the way back against the back of the vehicle seat?

• Do the child’s knees bend comfortably over the front of the vehicle seat – while they are still sitting all the way back?

• Does the shoulder belt cross the child’s shoulder between their neck and arm?

• Is the lap part of the belt as low as possible, touching the child’s thighs and not their stomach?

• Can the child stay seated like this for the whole trip?

If the answer to any of these questions was “no,” then the child still needs to use a booster seat in this vehicle. If the child is using the lap/shoulder belt, check belt fit periodically . A child’s squirming or slouching can move the belt out of position. If the shoulder belt contacts the face or neck, move the child closer to the center of the vehicle. Never allow a child to put the shoulder belt under an arm or behind their back.

NOTE:

For additional information, refer to www .seatcheck.org or call 1–866–SEATCHECK. Canadian residents, should refer to Transport Canada’s website for additional information. http://www.tc.gc.ca/eng/roadsafety/safedrivers-childsafety-index-53.htm

WARNING!

• In a collision, an unrestrained child, even a tiny baby, can become a projectile inside the vehicle. The force required to hold even an infant on your lap could become so great that you could not hold the child, no matter how strong you are. The child and others could be severely injured or killed. Any child riding in your vehicle should be in a proper restraint for the child's size.

• Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or child restraint. The child could be severely injured or killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint.

• An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchor positions directly behind the child seat to secure a child restraint top tether strap.

• Rearward-facing child seats must never be used in the front seat of a vehicle with a front passenger air bag. An air bag deployment could cause severe injury or death to infants in this position.

Page 16

GETTING STARTED

INSTALLING CHILD RESTRAINT TETHER ANCHOR

Child restraints having tether straps and hooks for connection to tether anchors have been available for some time. In fact, many child restraint manufacturers will provide add-on tether-strap kits for some of their older products. There is a tether strap anchor located behind the child tether access cover behind the passenger seat.

To attach a child restraint tether strap:

1. Move the seat-bottom forward.

2. Move the seatback to its full forward position.

3. Remove the child tether access cover by prying either side with a screwdriver or similar tool, as shown.

NOTE:

While the child tether is in use, keep the access cover in a safe place so that it can be replaced after use of the child tether.

4. Pass the child restraint tether hook through either opening in the seatback underneath the head restraint.

5. Attach the tether hook to the anchor loop.

6. Move the seat to its farthest rearward position. Apply body pressure to the seat to be sure the seat adjusters have latched.

7. Return the seatback to an upright position.

8. Install the child restraint according to the manufacturer's directions.

9. Remove slack from the tether strap according to the child restraint manufacturer's directions.

WARNING!

An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchor position directly behind the child seat to secure a child restraint top tether strap.

Page 17

GETTING STARTED

FRONT SEATS

Power Seats

• The power seat switches are located on the outboard side of the front seat cushions.

• The power seat switch controls forward, rearward, up and down adjustments. Push the switch forward, rearward, up or down and the seat will move in the direction of the switch. Release the switch when the desired position has been reached.

• The recline switch controls the angle of the seatback. Press the switch forward or rearward and the seatback will move in either direction.

Manual Seats

Forward/Rearward

• Lift up on the adjusting bar located at the front of the seat near the floor and release at the desired position. Then, using body pressure, move forward and backward on the seat to be sure that the seat adjusters have latched.

Recliner

• Lean forward in the seat and lift the recliner lever, then lean back to the desired position and release the lever.

• Lift the lever to return the seatback to an upright position.

Page 18

GETTING STARTED

Height Adjustment

• Ratchet the front lever, located on the outboard side of the seat, upward to raise the seat height.

• Ratchet the lever downward to lower the seat height.

CAUTION!

Do not place any article under a power seat or impede its ability to move as it may cause damage to the seat controls. Seat travel may become limited if movement is stopped by an obstruction in the seat's path.

WARNING!

• Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be properly adjusted, and you could be severely injured or killed. Only adjust a seat while the vehicle is parked.

• Do not ride with the seatback reclined so that the seat belt is no longer resting against your chest. In a collision, you could slide under the seat belt and be severely injured or killed. Use the recliner only when the vehicle is parked.

ADJUSTABLE PEDALS

• The adjustable pedal switch is located to the left side of the steering column.

• Press the switch forward to move the pedals forward (toward the front of the vehicle).

• Press the switch rearward to move the pedals rearward (toward the driver).

CAUTION!

Do not place any article under the adjustable pedals or impede its ability to move, as it may cause damage to the pedal controls. Pedal travel may become limited if movement is stopped by an obstruction in the adjustable pedal's path.

WARNING!

Do not adjust the pedals while the vehicle is moving. You could lose control and have a collision. Always adjust the pedals while the vehicle is parked.

Page 19

GETTING STARTED

ADJUSTABLE FOOT REST

• The adjustable foot rest can be adjusted forward or rearward and rotated upward or downward to allow for greater driving comfort.

• To adjust the pedal:

1. Adjust the seat and steering column to a

comfortable position.

2. Using a 13 mm socket wrench, loosen

the nut on the pedal.

3. Slide the pedal either forward or rear-

ward and rotate it upward or downward as desired.

4. Tighten the nut, being careful not to over tighten it.

TILT / TELESCOPING STEERING COLUMN

• The tilt release lever is located below the multifunction lever on the left side of the steering column.

• To tilt the column, simply pull the release lever rearward toward you and then move the steering wheel upward or downward as desired.

• Push the release lever forward to lock the column firmly in place.

WARNING!

Do not adjust the steering wheel while driving. The tilt adjustment must be locked while driving. Adjusting the steering wheel while driving or driving without the tilt adjustment locked could cause the driver to lose control of the vehicle. Failure to follow this warning may result in you and others being severely injured or killed.

Page 20

OPERATING YOUR VEHICLE

SRT ENGINE BREAK-IN RECOMMENDATIONS

• A long break-in period is not required for the drivetrain (engine, transmission, and rear axle) in your new vehicle.

• Drive moderately during the first 500 miles (800 km). After the initial 60 miles (100 km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable.

• While cruising, brief full-throttle acceleration within the limits of local traffic laws contributes to a good break-in. However, wide-open throttle acceleration in low gear can be detrimental and should be avoided.

• The engine oil is a high performance synthetic lubricant, the transmission fluid, and axle lubricant installed at the factory is high-quality and energy-conserving. Oil, fluid, and lubricant changes should be consistent with anticipated climate and conditions under which vehicle operations will occur. For the recommended viscosity and quality grades, refer to “Maintaining Your Vehicle”.

NOTE:

A new engine may consume some oil during its first few thousand miles (kilometers) of operation. This should be considered a normal part of the break-in and not interpreted as an indication of difficulty.

CAUTION!

Never use Non-Detergent Oil or Straight Mineral Oil in the engine or damage may result.

Page 21

OPERATING YOUR VEHICLE

TURN SIGNALS/WIPER/WASHER/HIGH BEAMS LEVER

Wipers

Intermittent, Low And High Operation

• Rotate the end of the lever to the first detent position for one of five intermittent settings, the second detent for low wiper operation and the third detent for high wiper operation.

Washer Operation

• Push the end of the lever inward to the second detent and hold for as long as spray is desired.

Mist Feature

• When a single wipe to clear off road mist or spray from a passing vehicle is needed, push the washer knob, located on the end of the multifunction lever, inward to the first detent and release. The wipers will cycle one time and automatically shut off.

High Beams

• Push the lever away from you to activate the high beams.

• A high beam symbol will illuminate in the cluster to indicate the high beams are on.

NOTE:

For safe driving, turn off the high beams when oncoming traffic is present to prevent headlight glare and as a courtesy to other motorists.

Page 22

OPERATING YOUR VEHICLE

HEADLIGHT SWITCH

Automatic Headlights/Parking Lights/Headlights

•

Rotate the headlight switch, located on the instrument panel to the left of the steering wheel, to the first detent from the off position for parking light second detent for headlight

• Rotate the headlight switch to “AUTO” for AUTO headlights.

• When set to AUTO, the system automatically turns the headlights on or off based on ambient light levels.

Instrument Panel Dimmer

• Rotate the dimmer control to the extreme bottom position to fully dim the instrument panel lights and prevent the interior lights from illuminating when a door is opened.

and to the

• Rotate the dimmer control up to increase the brightness of the instrument panel when the parking lights or headlights are on.

• Rotate the dimmer control up to the next detent position to fully brighten the odometer

and radio when the parking lights or headlights are on. Refer to your Uconnect User Manual on the DVD for display dimming.

• Rotate the dimmer control up to the last detent position to turn on the interior lighting.

/Radio

SPEED CONTROL

• The electronic speed control switches are located on the steering wheel.

Cruise ON/OFF

• Push the ON/OFF button to activate the Speed Control.

• CRUISE ment cluster to indicate the Speed Control is on.

• Push the ON/OFF button a second time to turn the system off.

will appear on the instru-

Page 23

OPERATING YOUR VEHICLE

SET

• With the Speed Control on, push and release the SET – button to set a desired speed.

Accel/Decel

• Once a speed is set, pushing the RES + button once or the SET – button once will increase or decrease the set speed approximately 1 mph (2 km/h).

• Push and hold the RES + button to accelerate in 5 mph (8 km/h) increments or push and hold the SET – button to decelerate in 5 mph (8 km/h) increments; release the button to save the new set speed.

Resume

• To resume a previously selected set speed in memory, push the RES + button and release.

Cancel

• Push the CANCEL button, or apply the brakes to cancel the set speed and maintain the set speed memory.

• Push the ON/OFF button to turn the system off and erase the set speed memory.

WARNING!

• Leaving the Electronic Speed Control system on when not in use is dangerous. You could accidentally set the system or cause it to go faster than you want. You could lose control and have a collision. Always leave the Electronic Speed Control system off when you are not using it.

• Electronic Speed Control can be dangerous where the system cannot maintain a constant speed. Your vehicle could go too fast for the conditions, and you could lose control. A collision could be the result. Do not use Electronic Speed Control in heavy traffic or on roads that are winding, icy, snow-covered or slippery.

MANUAL TRANSMISSION 1 TO 4 SKIP SHIFT

• Skip Shift is enabled when vehicle speed is greater than 16 MPH

Skip Shift

• For optimal fuel economy, under low acceleration conditions, your vehicle will only allow you to shift from first gear to fourth gear. Additionally, the skip shift message will appear in the tachometer.

332255RR

(26 km/h) but less than 18 MPH (29 km/h) and the accelerator is at 20% or less.

• Refer to your Owner's Manual on the DVD for further information.

Page 24

OPERATING YOUR VEHICLE

AUTOMATIC TEMPERATURE CONTROL (ATC)

Touch-Screen Automatic Climate Controls

Climate Control Knobs

• Press the AUTO button or AUTO soft-key.

• Select the desired temperature by pushing the up or down temperature buttons for the driver or passenger.

• The system will maintain the set temperature automatically.

Page 25

OPERATING YOUR VEHICLE

Air Conditioning (A/C)

• If the air conditioning button is pressed while in AUTO mode, the system will exit AUTO mode and stay in A/C. The mode and blower will be set at the closest mode and blower position that the system was operating in AUTO.

Air Recirculation / Max A/C

• Rotate the T emperature Control to the MAX A/C position to automatically turn on both Air Conditioning and Recirculation.

• For window defogging, turn the recirculation button off.

• Recirculation is allowed in floor mode.

• Recirculation is not allowed in defrost/floor (mix) modes for approximately five minutes.Recirculation is allowed in floor mode.

Heated Mirrors

• The mirrors are heated to melt frost or ice. This feature is activated whenever you turn on the defroster.

PARKVIEW® REAR BACK-UP CAMERA

• You can see an on-screen image of the rear surroundings of your vehicle whenever the

shift lever is put into REVERSE. The ParkView displayed in the rearview mirror or touchscreen display along with a caution note to “check entire surroundings” across the top of the screen. After five seconds this note will disappear.

• If the rearview mirror or touchscreen display appears foggy, clean the ParkView camera located above the licence plate.

WARNING!

Drivers must be careful when backing up; even when using the ParkView®Rear Back-Up Camera. Always check carefully behind your vehicle, and be sure to check for pedestrians, animals, other vehicles, obstructions, or blind spots before backing up. You must continue to pay attention while backing up. Failure to do so can result in serious injury or death.

Rear Back-Up Camera image will be

Page 26

ELECTRONICS

YOUR VEHICLE'S SOUND SYSTEM

Page 27

ELECTRONICS

Page 28

ELECTRONICS

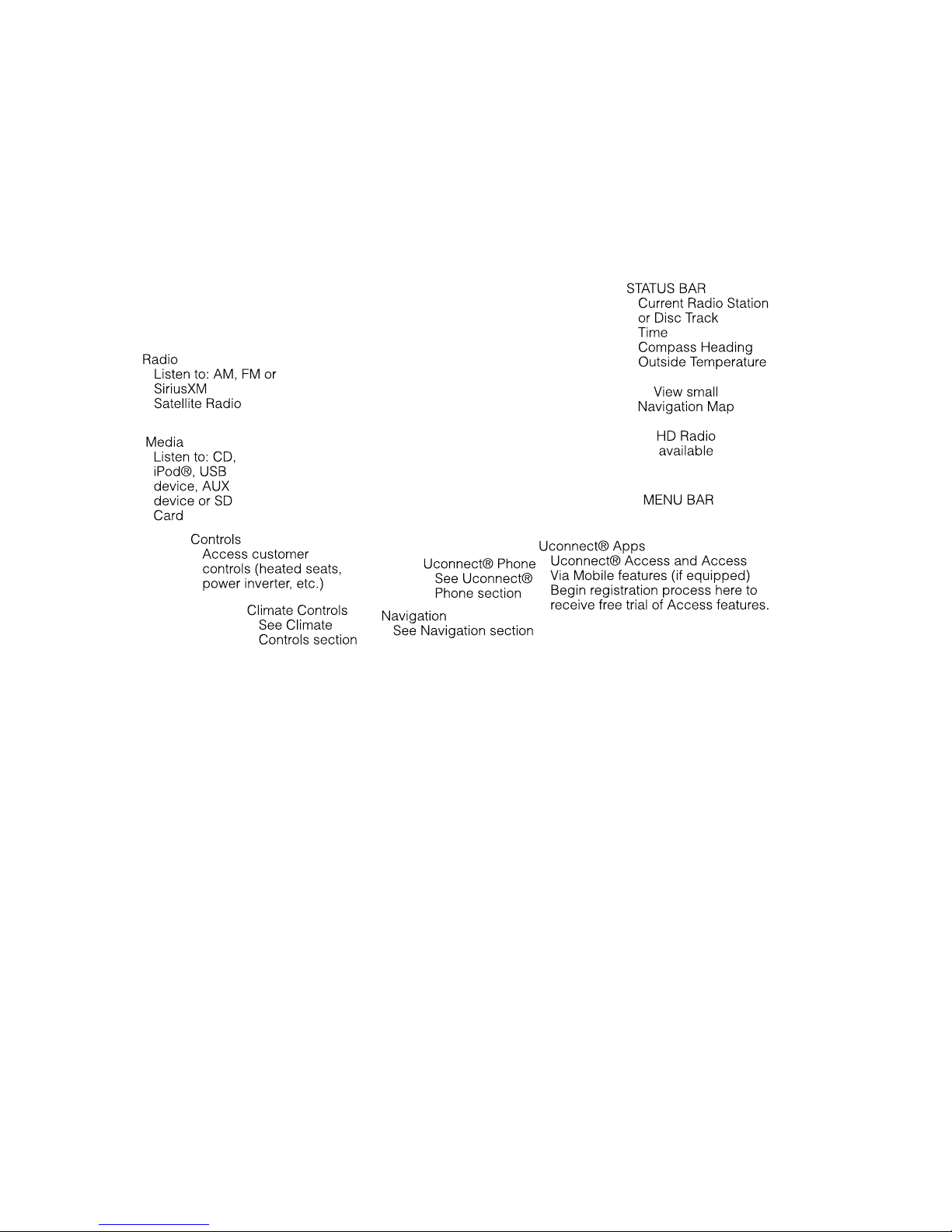

IDENTIFYING YOUR RADIO

Uconnect® 8.4A

NOTE:

The 8.4A and 8.4AN appearance is the same, but the listed features provide the differences.

• 8.4” Touch-Screen

• Navigation-ready, see dealer for details

• Hands-free/Bluetooth

• USB port, AUX port and SD Card slot standard

• Touchscreen Climate Controls

• SiriusXM Standard

• 3G Cellular Connectivity (US Market Only)

• Uconnect

Access via Mobile Phone

Uconnect® 8.4AN

NOTE:

The 8.4A and 8.4AN appearance is the same, but the listed features provide the differences.

• 8.4” Touch-Screen

• Navigation Standard

• Hands-free/Bluetooth

• USB port, AUX port and SD Card slot standard

• Touchscreen Climate Controls

• HD Radio

• SiriusXM Standard

• SiriusXM Traffic

• SiriusXM Travel Link

• 3G Cellular Connectivity (US Market Only)

• Uconnect

Access via Mobile Phone

Page 29

ELECTRONICS

Uconnect® Access (AVAILABLE ON Uconnect® 8.4A AND Uconnect® 8.4AN) (IF EQUIPPED)

• Uconnect®Access enhances your ownership and driving experience by connecting

your vehicle with a 3G cellular connection. Uconnect

• The ability to remotely lock/unlock your doors and start your vehicle from virtually

anywhere, with the Uconnect

Access App, Owner Connect website and Uconnect

Care (Vehicle must be within the United States and have network coverage).

• The functionality to turn your vehicle into a WiFi Hotspot on demand.

• Theft Alarm Notification via text or email.

• Bing™ to help find things, places, businesses and other locations when you need them.

• Voice T exting so you can compose, send and receive text messages with your voice while keeping your hands on the wheel.

Access provides:

• Before you drive, familiarize yourself with the easy-to-use Uconnect

System.

1. The ASSIST and 9-1-1 buttons are located on your rearview mirror. The ASSIST

Button is used for contacting Roadside Assistance, Vehicle Care and Uconnect Care. The 9-1-1 Button connects you directly to emergency assistance.

NOTE: Vehicles sold in Canada and Mexico DO NOT have 9-1-1 Call system capabilities. 9-1-1 or other emergency line operators in Canada and Mexico may not answer or respond to 9-1-1 system calls.

2. The Uconnect

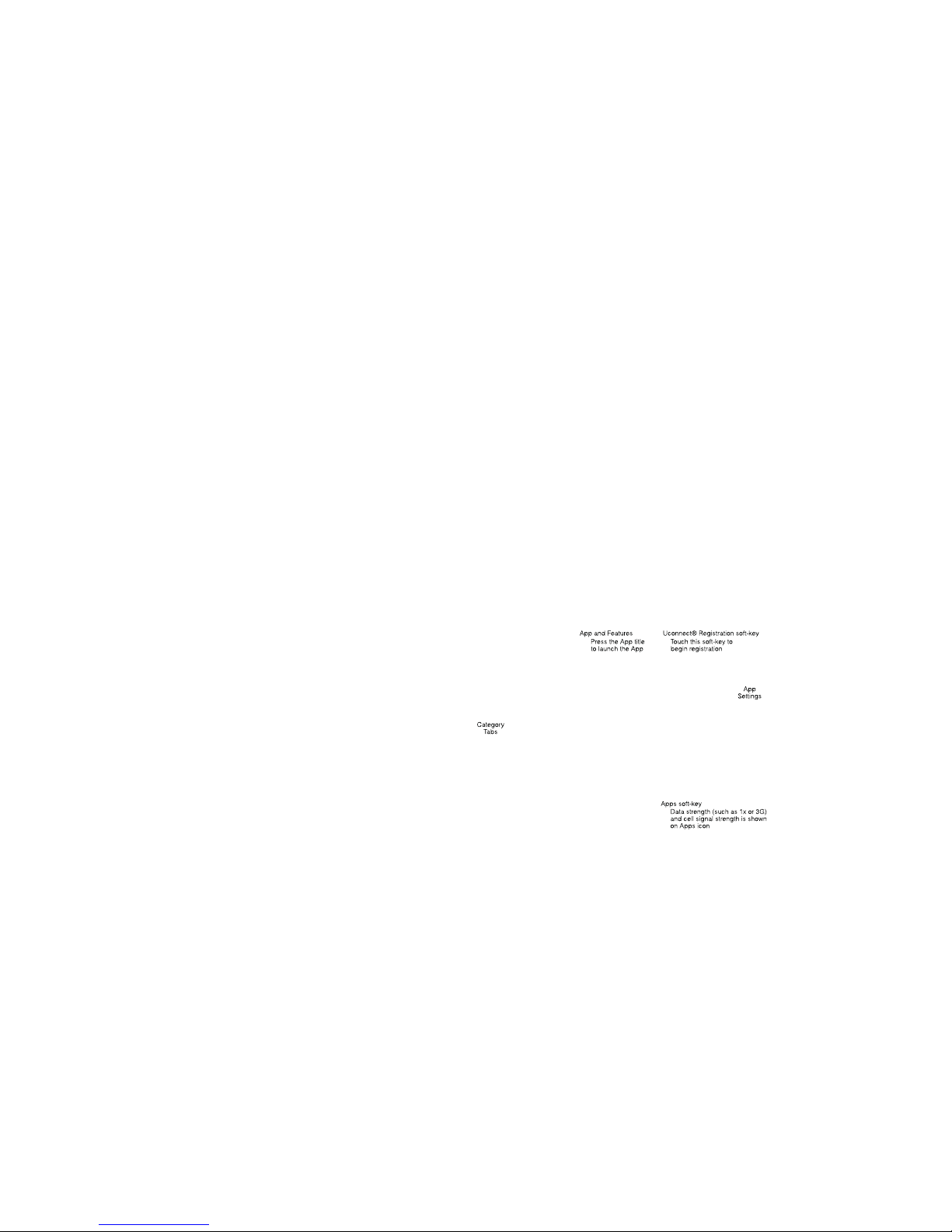

“Apps” soft-key on the menu bar at the bottom right corner of the radio touch screen. This is where you can begin your registration process, manage your Apps and purchase WiFi on demand.

3. The Uconnect

Voice Command and Uconnect®Phone buttons are located on the left side of your steering wheel. These buttons let you use your voice to give commands, make phone calls, send and receive text messages hands-free, enter navigation destinations, and control your radio and media devices.

Included Trial Period for New Vehicles

• Your new vehicle may come with an included trial period for use of the Uconnect Access Services starting at the date of vehicle purchase*. T o activate the trial, you must

first register with Uconnect

Access. Once registered, Uconnect®Access customers

can purchase additional Services and Apps over the lifetime of their vehicle ownership.

Features and Packages

• After the trial period, you can subscribe to continue your service by visiting the

Uconnect

Store located within the Mopar Owner Connect website (MoparOwnerConnect.com). If you need assistance, you can also call Uconnect at 855-792-4241 for U.S. residents and 855-209-8317 for Canadian residents.

• For the latest information on packages and pricing information for U.S. residents only, visit www.DriveUconnect.com.

Care

Page 30

ELECTRONICS

Uconnect® Access Registration

• To unlock the full potential of Uconnect®Access in your vehicle, you first need to

1. From the parked vehicle with the radio touch screen powered on, select the “Apps” soft-key located near the bottom right-hand corner of the radio touch screen.

NOTE:

Should you require assistance anytime during the registration process, simply press the ASSIST button located on the rear view mirror to be connected with a Uconnect agent.

2. Touch Register on the reminder screen or select the “Uconnect Registration” soft-key which appears in the “Favorites Tab” on the Apps list.

3. The Uconnect

Access Registration App will open and display step-by-step instruc-

tions to start your registration.

4. Enter your E-mail address into the radio touch screen.

Access.

Care

5. This message will display on the touch screen indicating your mail submission was accepted. In a few minutes, you will receive an mail which will allow you to register your vehicle for Uconnect Uconnect

Access registration within 24 hours.

Access. You should open this mail and begin your

6. A final message will display on the touch screen allowing you to check on the status of your mail submission. T o exit the registration, press the X in the upper right corner.

NOTE:

For security reasons, this link is valid for 24 hours from the time you submit your mail address into the radio touch screen. If the link has expired, simply re-enter your mail address into the Uconnect

Registration App on the radio touch screen to receive another

link.

• The secured registration link will take you through the Uconnect

Access registration

process step by step.

To unlock the full potential of Uconnect®Access in your vehicle, you will need to create or

•

validate an existing Mopar Owner Connect account (previously Owner Center). Uconnect along with Mopar Owner Connect have joined forces to create one destination to manage all

of your vehicle needs- from managing your Uconnect

Access account to tracking service history and finding recommended accessories for your vehicle. If you already have a Mopar Owner Connect account, log in to the website with your existing user name and password. For

assistance with this web based registration process, call Uconnect

Care at 855-792-4241

for U.S. residents and 855-209-8317 for Canadian residents.

• At this point your vehicle is registered with Uconnect®Access. Apps will be downloaded the next time you start your vehicle. It may take over 30 minutes for all of the apps to install. If the apps have not appeared after 24 hours, please contact Uconnect Care. The recommended next steps are to:

• Set up your Payment Account. (Provides the option to purchase packages and apps, such as WiFi Hotspot)

Page 31

ELECTRONICS

• Download the Uconnect®Access App. (Allows you to utilize the Remote Services such as Remote Door Unlock)

Download the Uconnect® Access App

• If you own a compatible iOS or Android®powered device, the Uconnect Access App allows you to remotely lock or unlock your doors, start your engine or activate your horn and lights from virtually anywhere (Vehicle must be within the United States and have network coverage). You can download the App from Mopar Owner Connect or from the Apple App or Google Play store. For Uconnect determine if your device is compatible:

• U.S. residents - visit www.UconnectPhone.com or call 1–877–855–8400

• Canadian residents - call 1–800–465–2001 (English) or 1–800–387–9983 (French)

Purchasing Apps and WiFi

Phone customer support and to

• Apps and WiFi can be purchased from the Uconnect®Store within your vehicle, and online at Mopar Owner Connect. You must first register and set up a Uconnect

Access

Payment account.

Purchasing Apps and WiFi for your vehicle

1. With the vehicle parked and the radio powered on, select the “Apps” soft-key located

near the bottom right-hand corner of the radio touch screen.

2. To launch the Uconnect

3. From the Uconnect

Store, select T ools and then select Uconnect®Store.

Store, select the Application (App) you wish to purchase.

4. This will launch the selected App into purchase mode along with providing additional

information. The purchase process begins when you touch the “Buy” soft-key.

The Uconnect®Store will display a “Purchase Overview” message confirming the financial details for the App you are about to purchase. Touch the “Purchase” key to continue.

6. The Uconnect®Store will ask you to “Confirm Payment” using your default payment

method on file in your Payment Account. Touch the Complete key to continue.

7. The Uconnect

Payment Account will then ask for your “Payment Account PIN”. After

entering this four digit PIN, touch the Complete key to make the purchase.

8. You will receive a confirmation message that your purchase has been submitted. Touch

the OK to end the process.

NOTE:

Purchased apps can take up to 30 minutes to download, depending on your vehicle’ s cellular coverage at time of purchase. If your download takes more than 30 minutes, please contact Uconnect

• You can also purchase apps or renew your subscription to a package from the Mopar Owner Connect website. Log In to the Mopar Owner Connect website (www.moparownerconnect.com) with your user name and password, and click on the “Store” tab.

Care by pressing the ASSIST button on the rear view mirror.

Page 32

ELECTRONICS

Using Uconnect® Access

Getting Started with Apps

• Applications (Apps) in your Uconnect that are customized for the driver and are certified by Chrysler Group, LLC. T wo different types are:

• Built-In Apps – use the built-in 3G Cellular Network on your Uconnect® radio.

• Brought-In Apps – Uconnect

Access will allow you to use your own smartphone or device’s data plan and connection to stream content from Chrysler Group, LLC certified apps into your vehicle and control them using the Uconnect steering wheel controls, and voice recognition.

• Get started with your Uconnect

soft-key on the menu bar at the bottom right corner of the radio touch screen. Available apps and features are organized by the tabs on the left of the screen.

• Favorite Apps – this is the default screen when you first press the Apps soft-key , and is a good place to put the apps you use most frequently. T o make an App a “favorite”, press the settings soft-key to the right of the app, and select “Make a favorite”.

• Media Apps, Information Apps, and Tools – Organizes your Uconnect (when available) into three categories, depending on the type of app.

Access system deliver features and services

radio touch-screen,

Access apps by pressing the Uconnect®“Apps”

Access apps

• Running Apps – press this tab to see which apps are currently running.

Maintaining Your Uconnect® Access Account

Reinstalling an App

• You can easily correct many Application related issues you may be experiencing by resetting the App back to the factory setting. From the vehicle’ s radio touch-screen, complete the following steps:

1. Touch the Uconnect

App and open the Uconnect®Store and go to My Apps.

2. In My Apps, select Settings and then Reinstall App and lastly, Continue.

3. Your Apps have been successfully re-installed.

Canceling Your Subscription

• Should you want to cancel your subscription, you can remove your account information using the same procedure contained in the Selling Your Vehicle section.

Page 33

ELECTRONICS

Selling Your Vehicle

• When you sell your vehicle, we recommend that you remove your Uconnect Account information from the vehicle. You can do this using the radio touch screen in the vehicle or on the Mopar Owner Connect website (www.MoparOwnerConnect.com). Removing your account information cancels your subscription and makes your vehicle factory-ready for a new owner/subscriber.

1. From your vehicle’s radio touch-screen, select the Uconnect

Store from the Apps

icon.

2. Select My apps, then Settings, and then Remove Uconnect

3. Enter your Uconnect

Security PIN, select “Proceed to Remove Vehicle from

Account.

Uconnect Account”.

• For further assistance call Uconnect

Care at 855-792-4241 for U.S. residents and 855-209-8317 for Canadian residents, or visit Mopar Owner Connect (www.MoparOwnerConnect.com) On the Owner Connect site, go to Uconnect and click on “Remove My Vehicle” button.

Access

Store,

In Vehicle Features

1. Assist Call – The rear view mirror contains an ASSIST push button which automatically

connects the vehicle occupants to one of these predefined destinations for immediate support:

• Roadside Assistance Call – If you get

a flat tire, or need a tow, you’ll be connected to someone who can help anytime. Additional fees may apply. Additional information in this section.

• Uconnect® Access Care – In vehicle

support for Uconnect

Access Sys-

tem, Apps and Features.

• Vehicle Care – Total support for your

Chrysler Group LLC vehicle.

2. Emergency 9-1-1 Call (If Equipped) – The rear view mirror contains a 9-1-1 button

that, when pressed, will place a call to a local 9-1-1 operator to request help from local police, fire or ambulance personnel in the event of an emergency. If this button is accidentally pressed, you will have 10 seconds to cancel the call. To cancel, press the 9-1-1 Call button again or press the cancellation button shown on the touch screen. After 10 seconds has passed, the 9-1-1 call will be placed and only the 9-1-1 operator can cancel it. The LED light on the Rearview Mirror will turn green once a connection to a 9-1-1 operator has been made. The green LED light will turn off once the 9-1-1 call is terminated. Have an authorized dealer service the vehicle if the Rearview Mirror

Page 34

ELECTRONICS

light is continuously red. If a connection is made between a 9-1-1 operator and your vehicle, you understand and agree that 9-1-1 operators may, like any other 9-1-1 call, record conversations and sounds in and near your vehicle upon connection.

3. Roadside Assistance (If Equipped) - If your vehicle is equipped with this feature and

within wireless range, you may be able to connect to Roadside Assistance by pressing the “Assist” button on the Rearview Mirror . You will be presented with Assist Care options. Make a selection by touching the prompts displayed on the radio If Roadside Assistance is provided to your vehicle, you agree to be responsible for any additional roadside assistance service costs that you may incur. In order to provide Uconnect Services to you, we may record and monitor your conversations with Roadside Assistance, Uconnect through the Uconnect and may share information obtained through such recording and monitoring in accordance with regulatory requirements. You acknowledge, agree and consent to any recording, monitoring or sharing of information obtained through any such call recordings.

4. Bing™ - Customers have the ability to search for nearby destinations or a point of

interest (POI) either by category or custom search by using keywords (for example, “Italian restaurant”). Searching can be done by voice or using the touch-screen keypad. Using the touch-screen, launch Bing™ by selecting the Apps icon, touch Information Apps tab, and then touch Bing™. Using voice recognition press the VR button on the steering wheel and say “Launch Bing” or just say “Bing” to launch the app.

Care or Vehicle Care, whether such conversations are initiated

Services in your vehicle, or via a landline or mobile telephone,

5. Theft Alarm Notification - The Theft Alarm Notification feature notifies you via E-mail

or text message (SMS) when the vehicle’s factory-installed theft alarm system has been set-off. There are a number of reasons why your alarm may have been triggered, one of which could be that your vehicle was stolen. If so, please see the details of the Stolen Vehicle Assistance service below. When you register, Theft Alarm Notification is automatically set to send you an E-mail at the mail address you provide should the alarm go off. You may also opt to have a text message sent to your mobile device.

6. Stolen Vehicle Assistance - If your vehicle is stolen, contact local law enforcement

immediately to file a stolen vehicle report. Once this report has been filed, Uconnect care can help locate your vehicle. The Uconnect®Care agent will ask for the stolen vehicle report number issued by local law enforcement. Then, using GPS technology and the built-in wireless connection within your vehicle, the Uconnect

Care agent will be able to locate the stolen vehicle and work with law enforcement to help recover it. (Vehicle must be within the United States, have network coverage and must be registered with Uconnect

Access with an active subscription that includes the

applicable feature).

Page 35

ELECTRONICS

7. WiFi Hotspot - WiFi Hotspot is on-demand WiFi 3G connectivity that's built-in and

ready to go whenever you are. Once your vehicle is registered for Uconnect you can purchase a Wifi Hotspot subscription at the Uconnect

Store. After you've made your purchase, turn on your signal and connect your devices. It's never been easier to bring your home or office with you.

• Your vehicle must have a working electrical system in order for any of the in vehicle Uconnect

features to operate.

Uconnect® Access via Mobile (If Equipped, Available on Uconnect® 8.4A and 8.4AN)

• Uconnect®Access via Mobile offers additional Apps such as Aha, iHeartRadio, Pandora, Slacker and more to come. It uses the data connection* through your compatible smartphone, not the onboard vehicle connectivity service.

• To get started using Via Mobile Apps, first register your Uconnect tem. During registration you can establish a link to your media accounts such as Aha, iHeartRadio, Pandora or Slacker. You can go back to update your account at any time by visiting MoparOwnerConnect.com and selecting “Edit Profile”.

• If using an Android smartphone, the Apps will function using a Bluetooth connec-

tion. Pair your smartphone to the radio, log in to the Uconnect

Access App on your

smartphone, and check to make sure Via Mobile is ready to provide data to the radio.

• If using an iPhone smartphone, log in to the Uconnect

Access App on your smartphone, plug the iPhone into the radio using a USB cable, and check to make sure Via Mobile is ready to provide data to the radio.

Access,

Access sys-

• If equipped, the Via Mobile Apps can be found by selecting the “Apps” soft-key in the lower right corner of the radio touch screen. Aha, iHeartRadio, Pandora and Slacker are listed under the “Media Apps” tab. The words “Via Mobile” will appear after the App name indicating it is a Via Mobile App.

• Each time you want to use a Via Mobile App in your vehicle, the Uconnect Access App must be running on your smartphone and the smartphone must be paired or connected to the radio. (Bluetooth

connection for Android, USB cable for iPhone).

NOTE:

Note that you must have a compatible smartphone to use this feature. Go to www.UconnectPhone.com for the latest phone compatibility information and pairing instructions. For additional details on Uconnect

Access via Mobile, please visit

www.DriveUconnect.com or log in to your owner account at MoparOwnerConnect.com.

• (*Additional smartphone data usage charges may apply.)

Page 36

ELECTRONICS

Uconnect® Access Remote Features

• If you own a compatible iOS or Android®powered device, the Uconnect®Access App allows you to remotely lock or unlock your doors, start your engine or activate your horn and lights from virtually anywhere (Vehicle must be within the United States and have network coverage). You can download the App from Mopar Owner Connect or from the Apple App or Google Play store. Visit www.UconnectPhone.com to determine if your device is compatible. For Uconnect device is compatible:

• U.S. residents - visit www.UconnectPhone.com or call 1–877–855–8400

• Canadian residents - call 1–800–465–2001 (English) or 1–800–387–9983 (French)

1. Remote Start – This feature provides the ability to start the engine on your vehicle,

without the keys and from virtually any distance. You can send a request to your vehicle in one of three ways:

Phone customer support and to determine if your

• Using the Uconnect

Access App from a compatible smartphone

• From the Mopar Owner Connect website

• Contacting Uconnect

Care

• You can also send a command to turn-off an engine that has been remote started.

• After 15 minutes if you have not entered your vehicle with the key, the engine will shut off automatically.

• This remote function requires your vehicle to be equipped with a factory-installed Remote Start system. To use this feature after the Uconnect

downloaded, login with your user name and Uconnect

Security PIN.

Access App is

• You can set-up notifications for your account to receive an E-mail or text (SMS) message every time a command is sent. See the “Managing Notifications” section under Using Mopar Owner Connect (www.MoparOwnerConnect.com) for further instructions.

2. Remote Door Lock/Unlock – This feature provides the ability to lock or unlock the door

on your vehicle, without the keys and from virtually any distance. You can send a request to your vehicle in one of three ways:

• Using the Uconnect

Access App from a compatible smartphone

• From the Mopar Owner Connect website

• By contacting the Uconnect

• To use this feature after the Uconnect user name and Uconnect Security PIN. Touch the App button on your smartphone with the closed lock icon to lock the door, and touch the open lock icon to unlock the driver’s door.

Care on the phone

Access App is downloaded, login using your

Page 37

ELECTRONICS

3. Remote Horn and Lights – It’s easy to locate a vehicle in a dark, crowded or noisy

parking area by activating the horn and lights. It may also help if you need to draw attention to your vehicle for any reason. You can send a request to your vehicle in one of three ways:

• Using the Uconnect

• From the Mopar Owner Connect website

Access App from a compatible smartphone

• By contacting the Uconnect

• To use this feature after the Uconnect user name and Uconnect

Care on the phone

Access App is downloaded, login using your

Security PIN. You can set-up notifications for your account to receive an E-mail or text (SMS) message every time a command is sent. See the “Managing Notifications” section under Using Mopar Owner Connect (www.MoparOwnerConnect.com) for further instructions.

4. Voice Texting – Use the sound of your voice to create, listen to and send text messages.

Just tell Uconnect

what you want the message to say - it will convert your voice to text and send the message at your command. Powerful, cloud-based voice recognition allows you to dictate free form text messages, and send them from your Bluetoothenabled phone without taking your hands of the wheel or focus from the road.

WARNING!

• ALW AYS drive safely with your hands on the wheel. You have full responsibility and

assume all risks related to the use of the Uconnect

this vehicle. Only use Uconnect

when it is safe to do so. Failure to do so may result

in an accident involving serious injury or death.

• Ignoring the Rearview Mirror light could mean you may not have 9-1-1 Call service when you need it. If the Rearview Mirror light is illuminated, have an authorized dealer service the 9-1-1 Call system immediately.

• The Occupant Restraint Controller (ORC) turns on the Air Bag Warning Light on the instrument panel if a malfunction is detected in any part of the air bag system. If the Air Bag Warning Light is illuminated, the air bag system may not be working properly and the 9-1-1 system may not be able to send a signal to a 9-1-1 operator. If the Air Bag Warning Light is illuminated, have an authorized dealer service your vehicle immediately .

• If anyone in the vehicle could be in danger (e.g., fire or smoke is visible, dangerous road conditions or location), do not wait for voice contact from a 9-1-1 operator . All occupants should exit the vehicle immediately and move to a safe location.

• The 9-1-1 Call system is embedded into the vehicle’s electrical system. Do not add any aftermarket electrical equipment to the vehicle’s electrical system. This may prevent your vehicle from sending a signal to initiate an emergency call. To avoid interference that can cause the 9-1-1 Call system to fail, never add aftermarket equipment (e.g., two-way mobile radio, CB radio, data recorder, etc.) to your vehicle’s electrical system or modify the antennas on your vehicle. IF YOUR VEHICLE LOSES BATTERY POWER FOR ANY REASON (INCLUDING DURING OR

AFTER AN ACCIDENT), THE UCONNECT

FEATURES, APPS AND SERVICES,

AMONG OTHERS, WILL NOT OPERATE.

features and applications in

Page 38

ELECTRONICS

Uconnect® 8.4A

Uconnect® 8.4A AT A GLANCE

Displaying the Time

• If the time is not currently displayed on the radio or player main page, touch the Controls soft-key or the Apps soft-key, then the Settings soft-key. In the Settings list, touch the Clock soft-key then touch the check box next to Show Time in Status Bar.

Setting the Time

• Model 8.4AN synchronizes time automatically via GPS, so should not require any time adjustment. If you do need to set the time manually, follow the instructions below for Model 8.4A.

• For Model 8.4A, turn the unit on, then touch the time display at the top of the screen. Touch Yes.

• If the time is not displayed at the top of the screen, touch the Controls soft-key or the Apps soft-key and then the Settings soft-key. In the Settings screen, touch the Clock soft-key , then check or uncheck this option.

• Touch + or – next to Set Time Hours and Set Time Minutes to adjust the time.

• If these features are not available, uncheck the Sync with GPS box.

• Touch X to save your settings and exit out of the Clock Setting screen.

Audio Settings

• Touch of the Audio soft-key to activate the Audio settings screen to adjust Balance\Fade, Equalizer, and Speed Adjusted Volume.

• You can return to the Radio screen by touching the X located at the top right.

Page 39

ELECTRONICS

Balance/Fade

• Touch the Balance/Fade soft-key to Balance audio between the front speakers or fade the audio between the rear and front speakers.

• Touching the Front, Rear, Left, or Right soft-keys or touch and drag the blue Speaker Icon to adjust the Balance/Fade.

Equalizer

• Touch the Equalizer soft-key to activate the Equalizer screen.

• Touch the + or - soft-keys, or by touching and dragging over the level bar for each of the equalizer bands. The level value, which spans between plus or minus 9, is displayed at the bottom of each of the Bands.

Speed Adjusted Volume

• Touch the Speed Adjusted Volume soft-key to activate the Speed Adjusted Volume screen. The Speed Adjusted Volume is adjusted by touching the + and - buttons or by touching and dragging over the level bar. This alters the automatic adjustment of the audio volume with variation to vehicle speed.

Surround Sound

•

Touch the Surround Sound soft-key, select On or Off followed by pressing the arrow back

soft-key . When this feature is activated, it provides simulated surround sound mode.

RADIO

• To access the Radio mode, touch the Radio soft-key at the lower left of the screen.

Selecting Radio Stations

• Touch the desired radio band (AM, FM or SXM) soft-key.

Page 40

ELECTRONICS

Seek Up/Seek Down

• Touch the Seek arrow soft-keys for less than two seconds to seek through radio stations.

• Touch and hold either arrow soft-key for more than two seconds to bypass stations without stopping. The radio will stop at the next listenable station once the arrow soft-key is released.

Direct Tune

• Tune directly to a radio station by pressing the “Tune” button on the screen, and entering the desired station number.

Store Radio Presets

• Your radio can store 36 total preset stations, 12 presets per band (AM, FM and SXM). They are shown at the top of your radio screen. To see the 12 preset stations per band, press the arrow soft-key at the top right of the screen to toggle between the two sets of six presets.

• To set a station into memory press and hold the desired numbered soft-key for more than two seconds or until you hear a confirmation beep.

SiriusXM PREMIER OVER 160 CHANNELS

every MLB 20+ Xtra channels, including SiriusXM Latino, a selection of channels dedicated to Spanish language programming.

• To access SiriusXM Satellite Radio, touch the SXM soft-key on the main Radio screen.

• The following describes features that are available when in SiriusXM Satellite Radio mode.

Seek Up/Seek Down

• Touch the Seek arrow soft-keys for less than two seconds to seek through channels in SXM mode.

• Touch and hold either arrow soft-key for more than two seconds to bypass channels without stopping. The radio will stop at the next listenable channel once the arrow soft-key is released.

Direct Tune

• Tune directly to a SXM channel by pressing the T une soft-key on the screen, and entering the desired station number.

and NHL®game, every NASCAR®race, Martha Stewart and more. And get

Jump

• Automatically tells you when T raffic & Weather for a favorite city is available, and gives you the option to switch to that channel. Touch Jump to activate the feature. After listening to T raffic and Weather, touch Jump again to return to the previous channel.

Page 41

ELECTRONICS

Fav

• Activates the favorites menu. You can add up to 50 favorite artists or songs. Just touch Add Fav Artist or Add Fav Song while the song is playing. You will then be alerted any time one of these songs, or works by these artists, is playing on other SiriusXM channels.

SiriusXM Parental Controls

• You can skip or hide certain channels from view if you do not want access to them. Touch the More soft-key, then the Settings soft-key , next touch the Sirius Setup soft-key , then select Channel Skip. Touch the box, check-mark, next to the channel you want skipped. They will not show up in normal usage.

• SiriusXM also offers the option to permanently block selected channels. Call (1-888-601-6297 for U.S. customers, 1-888-539-7474 for Canadian customers) and request the Family Package.

Browse

• Lets you browse the SiriusXM channel listing or Genre listing. Favorites, Game Zone, Weather and Jump settings also provide a way to browse the SiriusXM channel list.

Browse Sub-Menu

All Shows the channel listing. Genre Provides a list of all genres, and lets you jump to a channel within the selected

Presets Lets you scroll the list of Preset satellite channels. T ouch the channel, or press

Favorites Lets you manage artists and songs in the Favorites list and configure Alert

Game Zone Provides alerts when your favorite sports teams are starting a game which is

Jump Lets you select your favorite cities for T raffic & Weather information, which is

Sub-Menu Description

genre.

Enter on the T une knob, to go to that channel. Touch the trash can icon to delete a preset. Your presets are also shown at the top of the main Satellite Radio screen.

Settings to let you know when favorite songs or artists are playing on other channels. Also, view a list of channels airing any of your Favorites.

being aired on other SiriusXM channels, or when their game score is announced. Y ou can select and manage your Teams list here, and configure alerts.

used by the Jump feature on the main satellite radio screen.

Page 42

ELECTRONICS

Replay

• Lets you replay up to 44 minutes of the content of the current SiriusXM channel.

Replay Option

Play/Pause Touch to Pause content playback. Touch Pause/Play again to resume play-

Rewind/RW Rewinds the channel content in steps of 5 seconds. T ouch and hold to rewind

Fast Forward/FW

Replay Time Displays the amount of time in the upper center of the screen by which your

Live Resumes playback of Live content at any time while replaying rewound

Option Description

back.

continuously , then release to begin playing content at that point. Forwards the content, and works similarly to Rewind/RW . However, Fast

Forward/FW can only be used when content has been previously rewound.

content lags the Live channel.

content.

• SiriusXM services require subscriptions, sold separately after the 12-month trial

included with the new vehicle purchase. If you decide to continue your service at the

end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call SiriusXM at 1-866-635-2349 for U.S. residents and 1-888-539-7474 for Canadian residents to cancel. See SiriusXM Customer Agreement

for complete terms at www.siriusxm.com. All fees and programming subject to change. Our satellite service is available only to those at least 18 and older in the 48 contiguous USA and D.C. Our Sirius satellite service is also available in Puerto Rico (with coverage limitations). Our Internet radio service is available throughout our satellite service area and in AK and HI. Visit www .sirius.com/TravelLink for more information on SiriusXM Travel Link.© 2012 Sirius XM Radio Inc. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

MEDIA HUB – PLAYING iPod®/USB/MP3 DEVICES

• There are many ways to play music from

/MP3 players or USB devices

iPod through your vehicle's sound system.

Page 43

ELECTRONICS

Audio Jack

• The Audio Jack allows a portable device, such as an MP3 player or an iPod plugged into the radio and utilize the vehicle’s sound system, using a 3.5 mm audio cable, to amplify the source and play through the vehicle speakers.

• Touch the Media soft-key then choose AUX source will change the mode to auxiliary device if the Audio Jack is connected, allowing the music from your portable device to be heard through the vehicle's speakers. In order activate the AUX, plug in the audio jack.

• The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device.

• Or, press the VR button on your steering wheel and state the source you would like to switch to. For example, say: "Change Source to (AUX/SD/USB/Bluetooth/Radio)”.

USB Port

• Connect your iPod

or compatible device using a USB cable into the USB Port. USB Memory sticks with audio files can also be used. Then, audio from the device can be played on the vehicles sound system while providing metadata (artist, track title, album, etc.) information on the radio display.

• When connected, the iPod

/compatible USB device can be controlled using voice command, radio touch screen or Steering Wheel Audio controls to play, skip to the next or previous track, browse, and list the contents.

• The iPod

battery charges when plugged into the USB port (if supported by the specific

device).

,tobe

NOTE:

• When connecting your iPod

process is needed to ensure the full use of your iPod first time it is connected. After the first time, the reading process of your iPod

features and only happens the

will take

considerably less time unless changes are made or new songs are added to the playlist.

• The USB port supports certain Mini, Classic, Nano, T ouch, and iPhone

devices. The

USB port also supports playing music from compatible external USB Mass Storage

Class memory devices. Some iPod port features. Please visit Apple’s website for iPod

software versions may not fully support the USB

software updates.

SD Card

• Play songs stored on an SD card inserted into the SD card slot.

• Song playback can be controlled using the radio or Steering Wheel Audio Controls to play , skip to the next or previous track, browse, and list the contents.

Page 44

ELECTRONICS

Bluetooth® Streaming Audio

• If equipped with Uconnect cell phones or other media players, may also be able to stream music to your vehicle's sound system. Your connected device must be Bluetooth-compatible, and paired with

your Uconnect

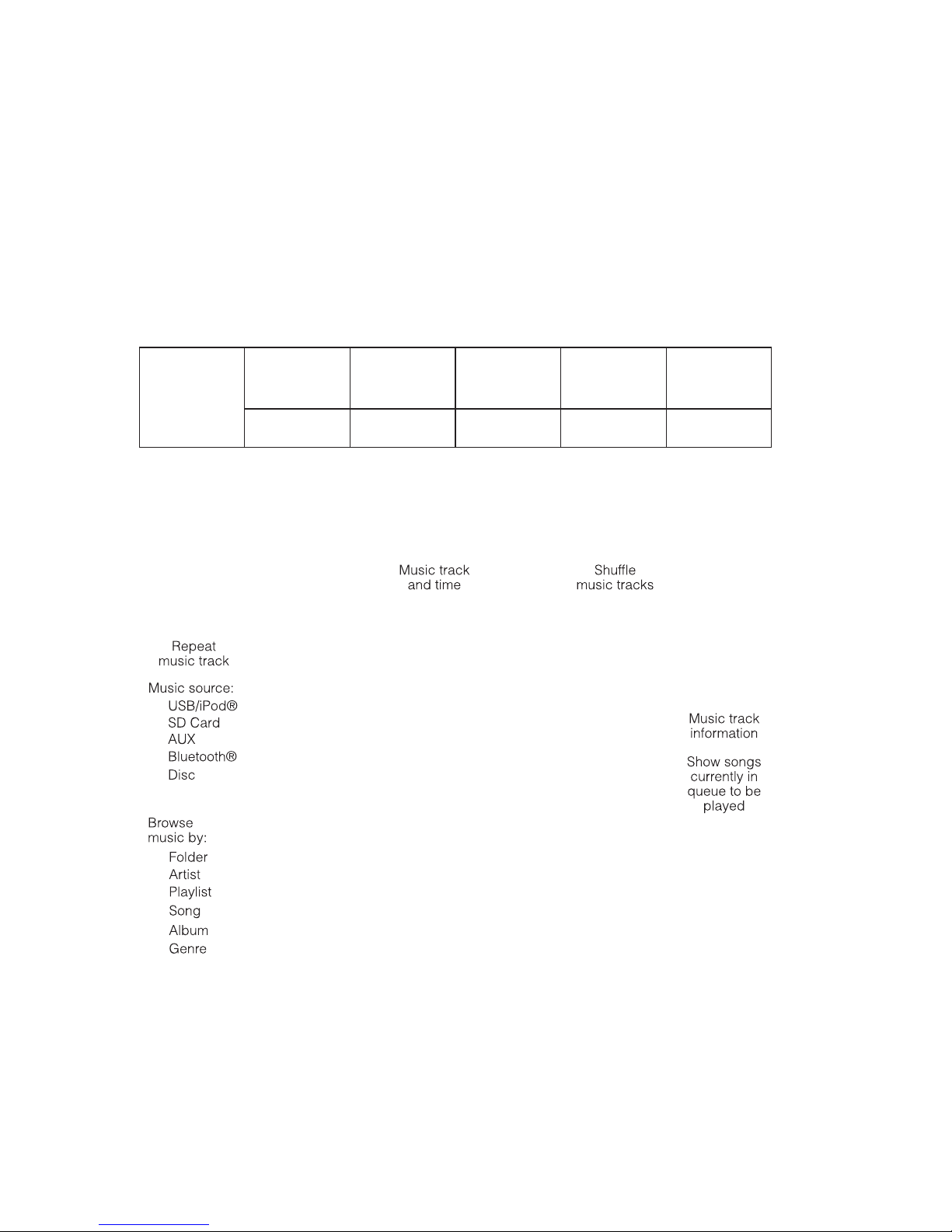

system (see Uconnect®Phone for pairing instructions). You can access the music from your connected Bluetooth soft-key while in Player mode.

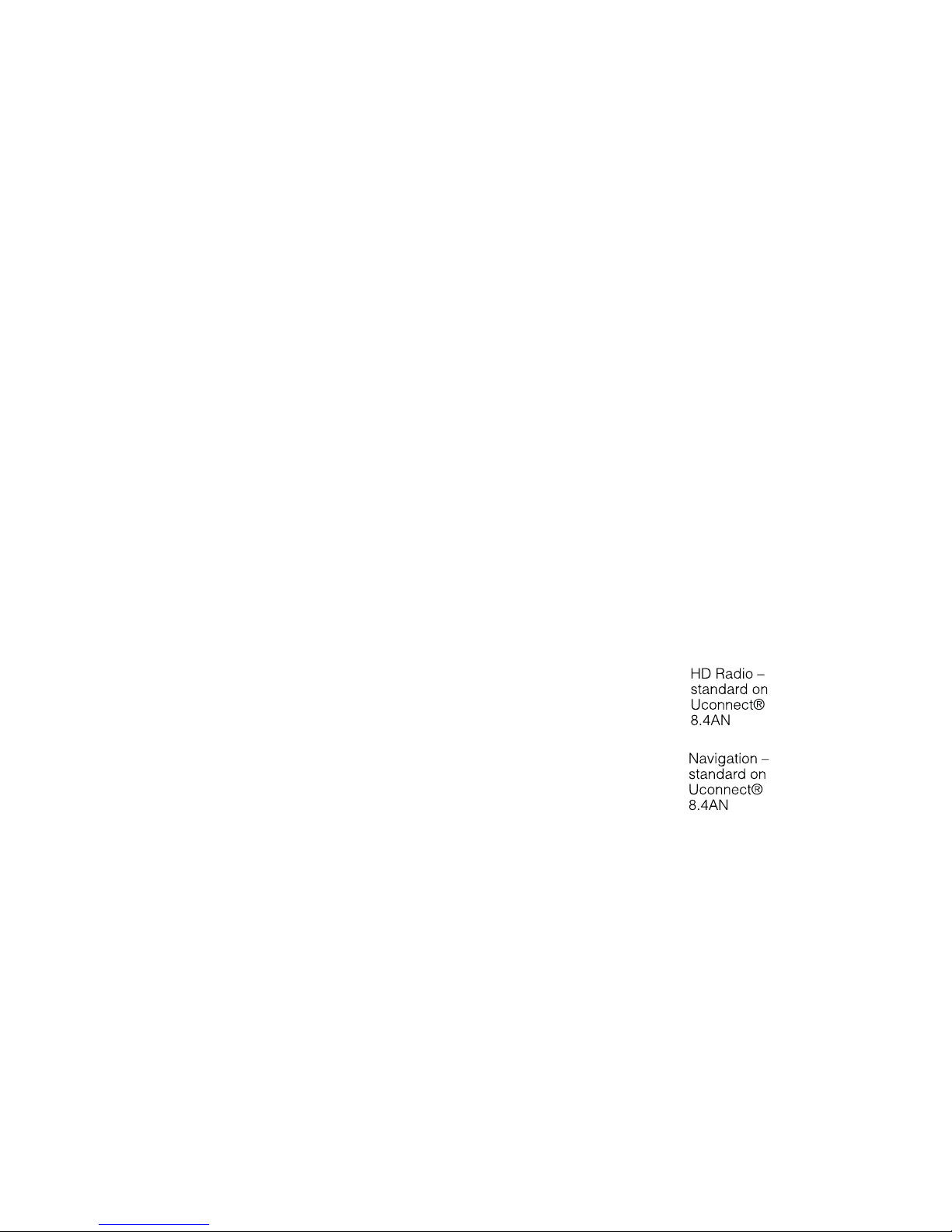

Uconnect® 8.4A & 8.4AN Available Media Hubs

Uconnect

8.4A &

8.4AN

Media Hub (USB, AUX Ports)

- SSOO

S = Standard Equipment

O = Optional Equipment

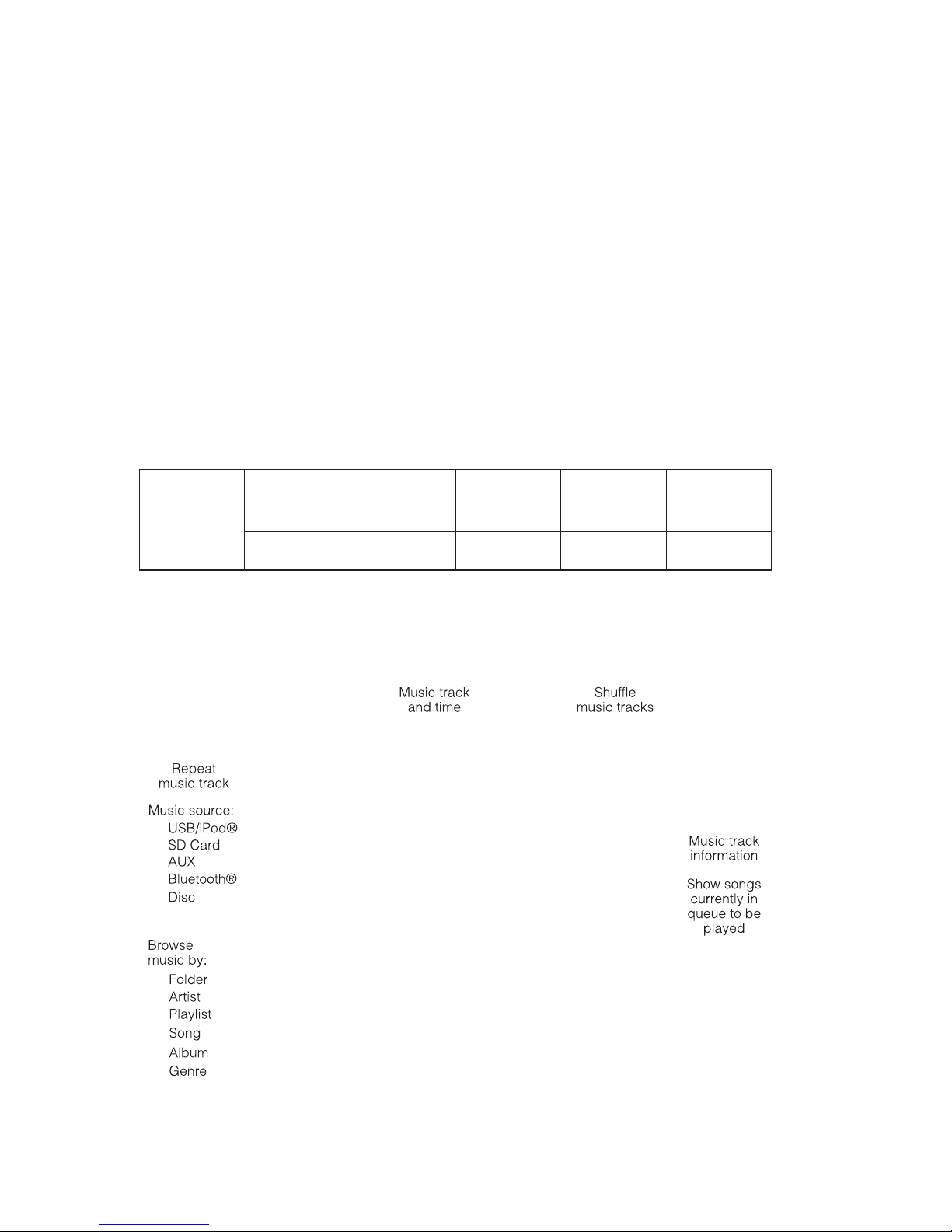

iPod®/CD/AUX CONTROLS

Voice Command, your Bluetooth-equipped iPod®devices,

device by touching the Source

Media Hub (SD, USB, AUX Ports)

Remote USB Port (Fully Functional)

Remote USB Port (Charging Only)

Dual Charging Ports

• The iPod

/CD/AUX controls are accessed by touching the source soft-key and choose

between Disc, AUX, iPod

NOTE:

Uconnect

will usually automatically switch to the appropriate mode when something is

first connected or inserted into the system.

, Bluetooth or SD Card.

Page 45

ELECTRONICS

NAVIGATION (DEALER-ACTIVATED OPTION)

• Your Uconnect®8.4A is “Navigation-Ready”, and can be equipped with Navigation at an extra cost. See your dealer for details.

• The information in this section is only applicable if the feature has been equipped. If so equipped, you will see a Nav soft-key at the bottom of the touch-screen.

Changing the Navigation Voice Prompt Volume

1. Touch the View Map soft-key from the Nav Main Menu.

With the map displayed, touch the Settings soft-key in the lower right area of the screen.

3. In the Settings menu, touch the Guidance soft-key.

4. In the Guidance menu, adjust the Nav Volume by touching the + or – soft-keys.

Finding Points of Interest

• From the main Navigation menu, touch the Where T o? soft-key, then touch the Points of Interest soft-key.

• Select a Category and then a subcategory, if necessary.

• Select your destination and touch the Yes soft-key .

Finding a Place by Spelling the Name

• From the Main Navigation Menu touch the Where to? soft-key, touch the Points of Interest soft-key and then touch the Spell Name soft-key.

• Enter the name of your destination.

• Touch the Done soft-key.

• Select your destination and touch the Yes soft-key .

Page 46

ELECTRONICS

Entering a Destination Address

• From the main Navigation menu touch the Where T o? soft-key, then touch the Address soft-key .

• Follow the on-screen prompts to enter the address and touch the Yes soft-key.

• Destination entry is not available while your vehicle is in motion. However , you can also use Voice Command to enter an address while moving. See Voice Command Tips for more information.

Setting Your Home Location

• Touch the NAV soft-key in the menu bar to access the Navigation system and the Main Navigation menu.

• Touch the Where To? soft-key, then touch the Go Home soft-key.

• You may enter your address directly, use your current location as your home address, or choose from recently found locations.

• To delete your Home location (or other saved locations) so you can save a new Home location, touch the Where T o? soft-key from the Main Navigation menu, then touch the Go Home soft-key, and in the Y es screen touch the Options soft-key. In the Options menu touch Clear Home. Set a new Home location by following the previous instructions.

Go Home

• A Home location must be saved in the system. From the Main Navigation menu, touch the Where T o? soft-key, then touch the Go Home soft-key.

Your route is marked with a blue line on the map. If you depart from the original route, your

• route is recalculated. A speed limit icon could appear as you travel on major roadways.

Page 47

ELECTRONICS

Adding a Stop

• To add a stop you must be navigating a route.

• Touch the Menu soft-key to return to the Main Navigation menu.

• Touch the Where To? soft-key , then search for the extra stop. When another location has been selected, you can choose to cancel your previous route, add as the first destination or add as the last destination.

• Touch the desired selection and touch the Yes soft-key .

Taking a Detour

• To take a detour you must be navigating a route.

• Touch the Detour soft-key.

NOTE:

If the route you are currently taking is the only reasonable option, the device might not calculate a detour.

• For more information, see your Uconnect

Access User's Manual.

Uconnect® Phone (Bluetooth® HANDS FREE CALLING)

• If the Uconnect®Phone Button exists on your steering wheel, then you have the

Uconnect

• The Uconnect

Phone features.

Phone is a voice-activated, hands-free, in-vehicle communications

system with Voice Command Capability (see Voice Command section).

• The Uconnect

Phone allows you to dial a phone number with your mobile phone using

simple voice commands or using screen soft-keys.

• Refer to the Understand The Features Of Your Vehicle section of your vehicle's Owner's Manual on the DVD for further details.

NOTE:

The Uconnect

Phone requires a mobile phone equipped with the Bluetooth Hands-Free Profile, Version 1.0 or higher . For Uconnect®customer support, call 1–877–855–8400 or visit www.UconnectPhone.com.

Pairing a Phone

• To use the Uconnect®Phone feature, you must first pair your Bluetooth®phone with

the Uconnect

system.

Start pairing procedure on the radio

• Touch the Phone soft-key and then the Settings soft-key. Next, touch Add Device.

• Uconnect

Phone will display an “In progress” screen while the system is connecting.

Start pairing procedure on mobile phone

Search for available devices on your Bluetooth®enabled mobile phone. This is usually within

•

Settings or Options under “Bluetooth”. See your mobile phone’s manual for details.

• When your phone finds the system, select “Uconnect” as the paired device. You may

be prompted by your phone to download the phonebook. This is so you can make calls by saying the name of your contact (PBAP-Phone Book Access Profile).

Page 48

ELECTRONICS

Complete the pairing procedure

• When prompted on the phone, enter the 4-digit PIN number shown on the Uconnect Screen.

• If your phone asks you to accept a connection request from Uconnect, select “Yes”. If available, check the box telling it not to ask again – that way your phone will automatically connect each time you start the vehicle.

Select the mobile phone's priority level

• When the pairing process has successfully completed, the system will prompt you to choose whether or not this is your favorite phone. Selecting Yes will make this phone the highest priority. This phone will take precedence over other paired phones within range. Only one phone can be paired at a time.

• You are now ready to make hands-free calls. Press the Uconnect steering wheel to begin.

Phone button on your

Making A Phone Call

• Press the Uconnect®Phone button .

• After the BEEP, say “dial” then the number (or “call” then the name as listed in your phone; see Phonebook).

NOTE:

You can also initiate a call by using the touch-screen on the Phone main screen.

Receiving A Call – Accept (And End)

• When an incoming call rings/is announced on Uconnect®, press the Phone button

• To end a call, press the Phone button

Mute (Or Unmute) Microphone During Call

• During a call, touch the mute soft-key on the Phone main screen to mute and unmute the call.

Transfer Ongoing Call Between Handset And Vehicle

• During a call, touch the T ransfer soft-key on the Phone main screen to transfer an on-going call between handset and vehicle.

Common Phone Commands (Examples)

• “Call John Smith”

• “Call John Smith mobile”

• “Dial 1 248 555 1212

• “Call Emergency”

• “Call Towing Assistance”

• “Redial”

Page 49

ELECTRONICS

Phonebook

• Uconnect®radios will automatically download your phonebook from your paired phone, if this feature is supported by your phone. Entries are updated each time that the phone is connected. If your phone book entries do not appear, check the settings on your phone. Some phones require you to enable this feature manually.

• Your phonebook can be browsed on your radio screen, but editing can only be done on your phone. T o browse, touch the Phone soft-key, then the Phonebook soft-key.

• Favorite phonebook entries can be saved as Favorites for quicker access. Favorites are shown at the top of your main phone screen.

Voice Command Tips

• Using complete names (i.e; Call John Doe vs. Call John) will result in greater system accuracy .

• You can “chain” commands together for faster results. Say “Call John Doe, mobile”, for example.

• If you are listening to available voice command options, you do not have to listen to the entire list. When you hear the command that you need, press the

button on the

steering wheel, wait for the beep and say your command.

Changing The Volume Of The Voice Command Prompts

• Start a dialogue by pressing the Phone button , then say a command, for example

- "Help".

• Use the radio ON/OFF VOLUME rotary knob to adjust the Uconnect volume to a comfortable level. Please note that the Uconnect setting for Uconnect

is different than the audio system.

audio prompt volume

audio prompt

NOTE:

To access help, press the Uconnect "help." Touch the display or push either

Phone button on the steering wheel and say

or button and say "cancel" to cancel

the help session.

Voice Texting

• Uconnect®Phone can read or send new text messages from your mobile phone.

• Your mobile phone must support SMS over Bluetooth the Uconnect over Bluetooth

Phone determines your phone is not compatible with SMS messaging

the “Messaging” button on the touchscreen will be greyed out and the

in order to use this feature. If

feature will not be available for use.

NOTE:

For mobile phone compatibility and pairing instructions, please visit www.UconnectPhone.com.

Page 50

ELECTRONICS

WARNING!

• Any voice commanded system should be used only in safe driving conditions following applicable laws regarding phone use. Your attention should be focused on safely operating the vehicle. Failure to do so may result in a collision causing you and others to be severely injured or killed.

• In an emergency, to use Uconnect

• turned on,

• paired to Uconnect

Phone,

• and have network coverage.

VOICE COMMAND QUICK REFERENCE

Uconnect® 8.4A Voice Command Quick Reference

Phone, your mobile phone must be:

• If the Uconnect

Voice Command button exists on your steering wheel, you have the Voice Command feature, which is optimized for the driver . The Voice Command feature lets you keep your hands on the wheel, your eyes on the road, and control navigation and media sources.

When you press the Voice Command button located on the steering wheel, you

• will hear a beep. After the beep, give your command. If you do not know what commands to say , you can say “help” and the system will provide options to you. If you ever wish to interrupt the system while it lists options, press the Voice Command

button, after

the beep, say your command.

NOTE:

All phone oriented voice commands are accessible by first pressing the Phone Pick Up Hang Up

button, not the Voice Command button. To end a call, simply press the Phone

button. In some vehicles, the Phone Pickup button serves the dual

purpose of ending calls as well.

Voice Command (VR) User TIPs

• To hear available commands, press the Uconnect

Voice Command button and say

“Help”. You will hear available commands for the menu displayed.

• At any time, you can say the words “Cancel” or “Help”. These commands are universal and can be used from virtually any menu. All other specific commands can be used depending upon the active application.

• You can interrupt the system prompts at any time by pressing the Uconnect

Voice Command button while the system is speaking. After the beep, you can say a command.

• You can ‘chain’ commands together for faster results. Say “Navigate to 1234 Main Street Hometown, California”, for example.

• For best performance, adjust the rearview mirror to provide at least 1⁄2 in (1 cm) gap between the overhead console (if equipped) and the mirror.

• Always wait for the beep before speaking.

Page 51

ELECTRONICS

• Speak normally, without pausing, just as you would speak to a person sitting a few feet/meters away from you.

• Make sure that no one other than you is speaking during a Voice Command period.

Steering Wheel Buttons

• You can control many of your radio features using your voice. Press either the VR

or Phone Pick Up button on your steering wheel.

Available Radio Soft–Key Voice Commands

Types of

Voice

Com-

mands

Available

Steering

Wheel

Buttons

to Press:

Uconnect

Voice

Command

(VR) But-

ton

Uconnect

Phone

Pick Up

Button

(1)Radio

AM/FM &

Satellite

(2)Media

Mode

Brand

Control

----

Mode

Media

Devices

Control

(3)Cli-

mate

Controls

Temperature Con-

trol

GENERAL

(4)Navi-

gation

Destina-

tion Se-

lection

and View

(5)Phone

Mode

- BING™

Call Ini-

tiation,

Call Man-

agement,

Pre-

formatted

Voice

Text Re-

ply

(6)APPS

Page 52

ELECTRONICS

Voice Command Examples – Uconnect® 8.4A

GENERAL

Anytime

RADIO

AM/FM

Satellite Band Control

MEDIA

Media Devices Control (Functionality is de-

pendent on compatibility between devises

and radio)

CLIMATE

Temperature Control

NAVIGATION

Destination Selection & View

PHONE

Call Initiation (Requires that phone has

been Bluetooth

paired with radio

“Go to Radio” (Media, Climate, Navigation,

Phone, Apps) – Settings, and Controls are

not Voice Command accessible

“Cancel”

“Help” (to listen to suggested commands

specific to current need

“Repeat”

“Launch BING” – Required 1st voice com-

mand to launch BING™ app

“BING Search” – Required 2nd voice com-

mand to activate app functionality using

Steering Wheel Voice Control Button

“Tune to AM950”, “Tune to 95.5FM

(preset 5)

“Tune to Satellite Channel 80's on 8”, Tune

to Satellite Channel 32 (preset 4)

“Browse” (show) “artist” (albums, music)

“Show paired phones” (devices) “Play song – Maple Leaf Rag” (artist - Scott Joplin, genre - rock, album - Ragtime Favor-

ites)

“Shuffle” – available with iPod

SD Card

“Set temperature to 70 degrees” – single

climate zone vehicles

“Set driver” (passenger) “temperature to 75

degrees” – dual climate zone vehicles

“Enter address” (provide location inputs

sequentially , via audible radio prompts)

“Go Home” – destination previously defined

by driver

“Repeat guidance” – hear the last naviga-

tion prompt

“Cancel Route”

“View Map”

“Dial 123-456-7890” (phone number)

“Call John Smith mobile” (home, office,

other)

“Redial”

“Show outgoing” (recent) “calls”

, USB and

Page 53

PHONE

Call Management

Voice Texting (Available during trial period

or if subscribed to Uconnect

vantage)

Voice Text Reply (Radio audibly recognizes

these 18 pre-formatted SMS messages as

you speak)

BING™ (BING™ adds it's own audible

prompts, and response time varies depend-

ing on carrier coverage speed)

Access Ad-

ELECTRONICS

“Search for John Smith” (any contact name

in address book)

“Show (display list) contacts”

Create a text message using Voice Com-

mand Capability

“Send a message to John Smith

(123-456-7890)”

“Show Messages”

“Listen to” (view) “number 4”

“Forward text” (message) “to John Smith”

(phone type, number)

Forward one of 18 pre-formatted SMS mes-

sages to incoming calls/text messages:

“Yes.”

“No.”

“Okay .”

“I can’t talk right now.”

“Call me.”

“I’ll call you later.”

“I’m on my way.”

“Thanks.”

“I’ll be late.”

“I will be <number> minutes late.”

“See you in <number> minutes”

“Stuck in traffic.”

“Start without me.”

“Where are you?”

“Are you there yet?”

“I need directions.”

“I’m lost.”

“See you later.”

APPS

“Launch BING” – Required 1st voice com-

mand to launch BING™ app

“BING Search” – Required 2nd voice com-

mand to activate app functionality using

Steering Wheel Voice Control Button

“Hotel” (restaurant, gas station, mail, hospi-

tal) – for nearest desired general POI

“Italian restaurants” – for nearest specified

POI category

“Hotels” (restaurants, hospitals, Starbucks)

“in Miami” (location) – specified distance

POI

Page 54

ELECTRONICS

Uconnect® 8.4AN

Uconnect® 8.4AN AT A GLANCE

Displaying the Time

Setting the Time

• Model 8.4AN synchronizes time automatically via GPS, so should not require any time adjustment. If you do need to set the time manually, follow the instructions below for Model 8.4A.

• For Model 8.4A, turn the unit on, then touch the time display at the top of the screen. Touch Yes.

• If the time is not displayed at the top of the screen, touch the Controls soft-key or the Apps soft-key , then the Settings soft-key. In the Settings screen, touch the Clock soft-key , then check or uncheck this option.

• Touch + or – next to Set Time Hours and Set Time Minutes to adjust the time.

• If these features are not available, uncheck the Sync with GPS box.

• Touch X to save your settings and exit out of the Clock Setting screen.

Page 55

ELECTRONICS

Audio Settings

• Touch of the Audio soft-key to activate the Audio settings screen to adjust Balance\Fade, Equalizer, and Speed Adjusted Volume.

• You can return to the Radio screen by touching the X located at the top right.

Balance/Fade

• Touch the Balance/Fade soft-key to Balance audio between the front speakers or fade the audio between the rear and front speakers.

• Touching the Front, Rear, Left, or Right soft-keys or touch and drag the blue Speaker Icon to adjust the Balance/Fade.

Equalizer

• Touch the Equalizer soft-key to activate the Equalizer screen.

Speed Adjusted Volume

Surround Sound

• Touch the Surround Sound soft-key , select On or Off followed by pressing the arrow back soft-key . When this feature is activated, it provides simulated surround sound mode.

Page 56

ELECTRONICS

RADIO

• To access the Radio mode, touch the Radio soft-key at the lower left of the screen.

Selecting Radio Stations

• Touch the desired radio band (AM, FM or SXM) soft-key.

Seek Up/Seek Down

• Touch the Seek arrow soft-keys for less than two seconds to seek through radio stations.

• Touch and hold either arrow soft-key for more than two seconds to bypass stations without stopping. The radio will stop at the next listenable station once the arrow soft-key is released.

Direct Tune

• Tune directly to a radio station by pressing the “Tune” button on the screen, and entering the desired station number.

Store Radio Presets

• To set a station into memory press and hold the desired numbered soft-key for more than two seconds or until you hear a confirmation beep.

Page 57

ELECTRONICS

HD Radio

• HD Radio technology (available on Uconnect 8.4AN) allows broadcasters to transmit a high-quality digital signal.

• With an HD radio receiver, the listener is provided with a clear sound that enhances the listening experience. HD radio can also transmit data such as song title or artist.

SiriusXM PREMIER OVER 160 CHANNELS

• Get every channel available on your satellite radio, and enjoy all you want, all in one place. Hear commercial-free music plus sports, news, talk and entertainment. Get all the premium programming, including Howard Stern, every NFL game, Oprah Radio every MLB 20+ Xtra channels, including SiriusXM Latino, a selection of channels dedicated to Spanish language programming.

• To access SiriusXM Satellite Radio, touch the SXM soft-key on the main Radio screen.

•

The following describes features that are available when in SiriusXM Satellite Radio mode.

Seek Up/Seek Down

and NHL®game, every NASCAR®race, Martha Stewart and more. And get

• Touch the Seek arrow soft-keys for less than two seconds to seek through channels in SXM mode.

• Touch and hold either arrow soft-key for more than two seconds to bypass channels without stopping. The radio will stop at the next listenable channel once the arrow soft-key is released.

Direct Tune

• Tune directly to a SXM channel by pressing the Tune soft-key on the screen, and entering the desired station number.

Jump

Fav

Activates the favorites menu. You can add up to 50 favorite artists or songs. Just touch Add

• Fav Artist or Add Fav Song while the song is playing. You will then be alerted any time one of these songs, or works by these artists, is playing on other SiriusXM channels.

SiriusXM Parental Controls

• SiriusXM also offers the option to permanently block selected channels. Call (1-888-601-6297 for U.S. customers, 1-888-539-7474 for Canadian customers) and request the Family Package.

Page 58

ELECTRONICS

Browse

• Lets you browse the SiriusXM channel listing or Genre listing. Favorites, Game Zone, Weather and Jump settings also provide a way to browse the SiriusXM channel list.

Browse Sub-Menu

All Shows the channel listing. Genre Provides a list of all genres, and lets you jump to a channel within the selected

Presets Lets you scroll the list of Preset satellite channels. T ouch the channel, or press

Favorites Lets you manage artists and songs in the Favorites list and configure Alert

Game Zone Provides alerts when your favorite sports teams are starting a game which is

Jump Lets you select your favorite cities for T raffic & Weather information, which is

Sub-Menu Description

genre.

Enter on the T une knob, to go to that channel. Touch the trash can icon to delete a preset. Your presets are also shown at the top of the main Satellite Radio screen.

Settings to let you know when favorite songs or artists are playing on other channels. Also, view a list of channels airing any of your Favorites.

being aired on other SiriusXM channels, or when their game score is announced. Y ou can select and manage your Teams list here, and configure alerts.

used by the Jump feature on the main satellite radio screen.

Replay

• Lets you replay up to 44 minutes of the content of the current SiriusXM channel.

Replay Option

Play/Pause Touch to Pause content playback. Touch Pause/Play again to resume play-

Rewind/RW Rewinds the channel content in steps of 5 seconds. T ouch and hold to rewind

Fast Forward/FW

Replay Time Displays the amount of time in the upper center of the screen by which your

Live Resumes playback of Live content at any time while replaying rewound

Option Description

back.

continuously , then release to begin playing content at that point. Forwards the content, and works similarly to Rewind/RW . However, Fast

Forward/FW can only be used when content has been previously rewound.

content lags the Live channel.

content.

• SiriusXM services require subscriptions, sold separately after the 12-month trial included with the new vehicle purchase. If you decide to continue your service at the

Page 59

ELECTRONICS

and in AK and HI. Visit www .sirius.com/TravelLink for more information on SiriusXM Travel Link.© 2012 Sirius XM Radio Inc. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

MEDIA HUB – PLAYING iPod®/USB/MP3 DEVICES

• There are many ways to play music from

/MP3 players or USB devices

iPod through your vehicle's sound system.

Audio Jack

• The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device.

• Or, press the VR button on your steering wheel and state the source you would like to switch to. For example, say: "Change Source to (AUX/SD/USB/Bluetooth/Radio)”.

,tobe

USB Port

• Connect your iPod

• When connected, the iPod

/compatible USB device can be controlled using voice command, radio touch screen or Steering Wheel Audio controls to play, skip to the next or previous track, browse, and list the contents.

• The iPod

battery charges when plugged into the USB port (if supported by the specific

device).

NOTE:

• When connecting your iPod

device for the first time, the system may take several minutes to read your music, depending on the number of files. For example, the system will take approximately 5 minutes for every 1000 songs loaded on the device. Also during the reading process, the Shuffle and Browse functions will be disabled. This process is needed to ensure the full use of your iPod first time it is connected. After the first time, the reading process of your iPod

features and only happens the

will take

considerably less time unless changes are made or new songs are added to the playlist.

• The USB port supports certain Mini, Classic, Nano, T ouch, and iPhone

devices. The USB port also supports playing music from compatible external USB Mass Storage Class memory devices. Some iPod port features. Please visit Apple’s website for iPod

software versions may not fully support the USB

software updates.

Page 60

ELECTRONICS

SD Card

• Play songs stored on an SD card inserted into the SD card slot.

• Song playback can be controlled using the radio or Steering Wheel Audio Controls to play , skip to the next or previous track, browse, and list the contents.

Bluetooth® Streaming Audio

• If equipped with Uconnect cell phones or other media players, may also be able to stream music to your vehicle's sound system. Your connected device must be Bluetooth-compatible, and paired with

your Uconnect

system (see Uconnect®Phone for pairing instructions). You can access the music from your connected Bluetooth soft-key while in Player mode.

Uconnect® 8.4A & 8.4AN Available Media Hubs

Uconnect

8.4A &

8.4AN

Media Hub (USB, AUX Ports)

- SSOO

Voice Command, your Bluetooth-equipped iPod®devices,

device by touching the Source

Media Hub (SD, USB, AUX Ports)

Remote USB Port (Fully Functional)

Remote USB Port (Charging Only)

Dual Charging Ports

S = Standard Equipment

O = Optional Equipment

iPod®/CD/AUX CONTROLS

• The iPod

/CD/AUX controls are accessed by touching the source soft-key and choose

between Disc, AUX, iPod

, Bluetooth or SD Card.

Page 61

ELECTRONICS

NOTE:

Uconnect first connected or inserted into the system.

NAVIGATION

• Touch the Nav soft-key in the menu bar to access the Navigation system.

Changing the Navigation Voice Prompt Volume

1. Touch the View Map soft-key from the Nav Main Menu.

3. In the Settings menu, touch the Guidance soft-key.

4. In the Guidance menu, adjust the Nav Volume by touching the + or – soft-keys.

will usually automatically switch to the appropriate mode when something is

With the map displayed, touch the Settings soft-key in the lower right area of the screen.

Finding Points of Interest

• From the main Navigation menu, touch the Where T o? soft-key, then touch the Points of Interest soft-key.

• Select a Category and then a subcategory, if necessary.

• Select your destination and touch the Yes soft-key .

Finding a Place by Spelling the Name

• From the Main Navigation Menu touch the Where to? soft-key, touch the Points of Interest soft-key , then touch the Spell Name soft-key.

• Enter the name of your destination.

• Touch the Done soft-key.

• Select your destination and touch the Yes soft-key .

Page 62

ELECTRONICS

Entering a Destination Address

• From the main Navigation menu touch the Where T o? soft-key, then touch the Address soft-key .

• Follow the on-screen prompts to enter the address and touch the Yes soft-key.

NOTE:

Destination entry is not available while your vehicle is in motion. However, you can also use Voice Commands to enter an address while moving. Refer to Common Navigation

Voice Commands in the Uconnect

Setting Your Home Location

• Touch the NAV soft-key in the menu bar to access the Navigation system and the Main Navigation menu.

• Touch the Where To? soft-key, then touch the Go Home soft-key.

• You may enter your address directly, use your current location as your home address, or choose from recently found locations.

• To delete your Home location (or other saved locations) so you can save a new Home location, touch the Where T o? soft-key from the Main Navigation menu, then touch the Go Home soft-key, and in the Y es screen touch the Options soft-key. In the Options menu touch the Clear Home soft-key. Set a new Home location by following the previous instructions.

Voice Command section.

Go Home

• A Home location must be saved in the system. From the Main Navigation menu, touch the Where T o? soft-key, then touch the Go Home soft-key.

•

Your route is marked with a blue line on the map. If you depart from the original route, your

route is recalculated. A speed limit icon could appear as you travel on major roadways.

Page 63

ELECTRONICS

Adding a Stop

• To add a stop you must be navigating a route.

• Touch the Menu soft-key to return to the Main Navigation menu.

• Touch the desired selection and touch the Yes soft-key .

Taking a Detour

• To take a detour you must be navigating a route.

• Touch the Detour soft-key.

NOTE:

If the route you are currently taking is the only reasonable option, the device might not calculate a detour.

• For more information, see your Uconnect

Access User's Manual.

SiriusXM TRAFFIC (US Market Only)

Don't drive through traffic. Drive around it.

• Avoid congestion before you reach it. By enhancing your vehicle's navigation system with the ability to see detailed traffic information, you can pinpoint traffic incidents, determine average traffic speed and estimate travel time along your route. Since the service is integrated with a vehicle's navigation system, SiriusXM Traffic can help drivers pick the fastest route based on traffic conditions.

1. Detailed information on traffic speed, accidents, construction, and road closings.

2. Traffic information from multiple sources, including police and emergency services,

cameras and road sensors.

3. Coast-to-coast delivery of traffic information.

4. View conditions for points along your route and beyond. Available in over 130 markets.

SiriusXM TRAVEL LINK (US Market Only)

• In addition to delivering over 130 channels of the best sports, entertainment, talk, and commercial-free music, SiriusXM offers premium data services that work in conjunction with compatible navigation systems. SiriusXM Travel Link brings a wealth of useful information into your vehicle and right to your fingertips.

• Weather -- Check variety of local and national weather information from radar maps to current and 5-day forecast.

• Fuel Prices -- Check local gas and diesel prices in your area and route to the station of your choice.

• Sports Scores -- In-game and final scores as well as weekly schedules.

• Movie Listings -- Check local movie theatres and listings in your area and route to the theater of your choice.

Page 64

ELECTRONICS

• SiriusXM T ravel Link feature is completely integrated into your vehicle. A few minutes after you start your vehicle, Travel Link information arrives and updates in the background. You can access the information whenever you like, with no waiting.

• To access SiriusXM T ravel Link, touch Apps soft-key, then the SiriusXM Travel Link soft-key .

NOTE:

SiriusXM T ravel Link requires a subscription, sold separately after the 1 year trial subscription included with your vehicle purchase.

• SiriusXM Travel Link is only available in the United States.

Fuel Prices

Movie Listings

Sports Scores

Weather

Check local gas and diesel prices in your area and route to the station of your choice.

Check local movie theatres and listings in your area and route to the theater of your choice.

In-game and final scores as well as weekly schedules.

Check variety of local and national weather information from radar maps to current and 5-day forecast.

Uconnect® Phone (Bluetooth® HANDS FREE CALLING)

• If the Uconnect®Phone Button exists on your steering wheel, then you have the

Uconnect

• The Uconnect

Phone features.

Phone is a voice-activated, hands-free, in-vehicle communications

system with Voice Command Capability (see Voice Command section).

• The Uconnect

Phone allows you to dial a phone number with your mobile phone using

simple voice commands or using screen soft-keys.

• Refer to the Understand The Features Of Your Vehicle section of your vehicle's Owner's Manual on the DVD for further details.

NOTE:

The Uconnect Free Profile, Version 1.0 or higher. For Uconnect

Phone requires a mobile phone equipped with the Bluetooth®Hands-

Customer Support: U.S. residents visit www.UconnectPhone.com or call 1–877–855–8400. Canadian Residents call, 1-800-465–2001 (English) or 1-800-387-9983 (French).

Pairing a Phone

• To use the Uconnect®Phone feature, you must first pair your Bluetooth®phone with

the Uconnect

system.

Start pairing procedure on the radio

• Touch the Phone soft-key and then the Settings soft-key. Next, touch Add Device.

• Uconnect

Phone will display an “In progress” screen while the system is connecting.

Page 65

ELECTRONICS

Start pairing procedure on mobile phone

• Search for available devices on your Bluetooth within Settings or Options under “Bluetooth”. See your mobile phone’s manual for details.

• When your phone finds the system, select “Uconnect” as the paired device. You may be prompted by your phone to download the phonebook. This is so you can make calls by saying the name of your contact (PBAP-Phone Book Access Profile).

Complete the pairing procedure

enabled mobile phone. This is usually

• When prompted on the phone, enter the 4-digit PIN number shown on the Uconnect Screen.

Select the mobile phone's priority level

• You are now ready to make hands-free calls. Press the Uconnect steering wheel to begin.

Phone button on your

Making A Phone Call

• Press the Uconnect®Phone button .

• After the BEEP, say “dial” then the number (or “call” then the name as listed in your phone; see Phonebook).

NOTE:

You can also initiate a call by using the touch-screen on the Phone main screen.

Receiving A Call – Accept (And End)

• When an incoming call rings/is announced on Uconnect®, press the Phone button

• To end a call, press the Phone button

Mute (Or Unmute) Microphone During Call

• During a call, touch the mute soft-key on the Phone main screen to mute and unmute the call.

Transfer Ongoing Call Between Handset And Vehicle

• During a call, touch the T ransfer soft-key on the Phone main screen to transfer an on-going call between handset and vehicle.

Page 66

ELECTRONICS

Common Phone Commands (Examples)

• “Call John Smith”

• “Call John Smith mobile”

• “Dial 1 248 555 1212

• “Call Emergency”

• “Call Towing Assistance”

• “Redial”

Phonebook

• Your phonebook can be browsed on your radio screen, but editing can only be done on your phone. T o browse, touch the Phone soft-key, then the Phonebook soft-key.

• Favorite phonebook entries can be saved as Favorites for quicker access. Favorites are shown at the top of your main phone screen.

Voice Command Tips

• Using complete names (i.e; Call John Doe vs. Call John) will result in greater system accuracy .

• You can “chain” commands together for faster results. Say “Call John Doe, mobile”, for example.

• If you are listening to available voice command options, you do not have to listen to the entire list. When you hear the command that you need, press the steering wheel, wait for the beep and say your command.

button on the

Changing The Volume Of The Voice Command Prompts

• Start a dialogue by pressing the Phone button , then say a command, for example

- "Help".

• Use the radio ON/OFF VOLUME rotary knob to adjust the Uconnect

volume to a comfortable level. Please note that the Uconnect

setting for Uconnect

NOTE:

To access help, press the Uconnect "help." Touch the display or push either the help session.

is different than the audio system.

Phone button on the steering wheel and say

or button and say "cancel" to cancel

audio prompt volume

audio prompt

Page 67

ELECTRONICS

Voice Texting

• Uconnect®Phone can read or send new text messages from your mobile phone.

• Your mobile phone must support SMS over Bluetooth

the Uconnect over Bluetooth

Phone determines your phone is not compatible with SMS messaging

the “Messaging” button on the touchscreen will be greyed out and the

feature will not be available for use.

NOTE:

For mobile phone compatibility and pairing instructions, please visit www.UconnectPhone.com.

WARNING!

• In an emergency, to use Uconnect

• turned on,

• paired to Uconnect

Phone,

• and have network coverage.

Phone, your mobile phone must be:

in order to use this feature. If

VOICE COMMAND QUICK REFERENCE

Uconnect® 8.4AN Voice Command Quick Reference

• If the Uconnect

When you press the Voice Command button located on the steering wheel, you

button, after

the beep, say your command.

NOTE:

All phone oriented voice commands are accessible by first pressing the Phone Pick Up Hang Up

button, not the Voice Command button. To end a call, simply press the Phone

button. In some vehicles, the Phone Pickup button serves the dual

purpose of ending calls as well.

Voice Command (VR) User TIPs

• To hear available commands, press the Uconnect

Voice Command button and say

“Help”. You will hear available commands for the menu displayed.

Page 68

ELECTRONICS

• You can interrupt the system prompts at any time by pressing the Uconnect®Voice Command button while the system is speaking. After the beep, you can say a command.

• You can ‘chain’ commands together for faster results. Say “Call Joe Doe mobile”, for example.

• For best performance, adjust the rearview mirror to provide at least 1⁄2 in (1 cm) gap between the overhead console (if equipped) and the mirror.

• Always wait for the beep before speaking.

• Speak normally, without pausing, just as you would speak to a person sitting a few feet/meters away from you.

• Make sure that no one other than you is speaking during a Voice Command period.

Steering Wheel Buttons

• You can control many of your radio features using your voice. Press either the VR

or Phone Pick Up button on your steering wheel.

Available Radio Soft–Key Voice Commands

Types of

Voice

Com-

mands

Available

Steering

Wheel

Buttons

to Press:

Uconnect

Voice

Command

(VR) But-

ton

Uconnect

Phone

Pick Up

Button

(1) Radio

AM/FM &

Satellite

(2) Me-

Mode

Brand

Control

----

dia Mode

Media

Devices

Control

(3) Cli-

mate

Controls

Temperature Con-

trol

GENERAL

(4) Navi-

gation

Destina-

tion Se-

lection

and View

(5)

Phone

Mode

- BING™

Call Ini-

tiation,

Call Man-

agement,

Pre-

formatted

Voice

Text Re-

ply

(6) APPS

Page 69

Voice Command Examples – Uconnect® 8.4AN

GENERAL

Anytime

AM/FM

Satellite Band Control

Media Devices Control (Functionality

is dependent on compatibility be-

tween devises and radio)

Temperature Control

Destination Selection & View

Call Initiation (Requires that phone

has been Bluetooth

Call Management

paired with ra-

dio

“Go to Radio” (Media, Climate, Navigation, Phone,

Apps) – Settings, and Controls are not Voice Com-

“Help” (to listen to suggested commands specific

“Launch BING™” – Required 1st voice command

“BING™ Search” – Required 2nd voice command

to activate app functionality using Steering Wheel

RADIO

“Tune to AM950”, “Tune to 95.5FM

“Tune to Satellite Channel 80's on 8”, Tune to

MEDIA

“Browse” (show) “artist” (albums, music)

“Play song – Maple Leaf Rag” (artist - Scott Jop-

lin, genre - rock, album - Ragtime Favorites)

“Shuffle” – available with iPod, USB and SD Card

CLIMATE

“Set temperature to 70 degrees” – single climate

“Set driver” (passenger) “temperature to 75 de-

NAVIGATION

“Enter address” (provide location inputs sequen-

“Go Home” – destination previously defined by

“Repeat guidance” – hear the last navigation

PHONE

“Dial 123-456-7890” (phone number)

“Call John Smith mobile” (home, office, other)

“Search for John Smith” (any contact name in

ELECTRONICS

mand accessible

“Cancel”

to current need

“Repeat”

to launch BING™ app

Voice Control Button

(preset 5)

Satellite Channel 32 (preset 4)

“Show paired phones” (devices)

zone vehicles

grees” – dual climate zone vehicles

tially , via audible radio prompts)

driver

prompt

“Cancel Route”

“View Map”

“Redial”

“Show outgoing” (recent) “calls”

address book)

“Show (display list) contacts”

Page 70

ELECTRONICS

Voice Texting (Available during trial

period or if subscribed to Uconnect

Access Advantage)

Voice Text Reply (Radio audibly rec-

ognizes these 18 pre-formatted SMS

messages as you speak)

SiriusXM Travel Link (Traffic function

is not voice command accessible

within SiriusXM Travel Link

BING™ (BING™ adds it's own audible prompts, and response time

varies depending on carrier coverage

speed)

PHONE

Create a text message using Voice Command Ca-

pability

“Send a message to John Smith

(123-456-7890)”

“Show Messages”

“Listen to” (view) “number 4”

“Forward text” (message) “to John Smith” (phone

type, number)

Forward one of 18 pre-formatted SMS messages to

incoming calls/text messages:

“Yes.”

“No.”

“Okay .”

“I can’t talk right now.”

“Call me.”

“I’ll call you later.”

“I’m on my way.”

“Thanks.”

“I’ll be late.”

“I will be <number> minutes late.”

“See you in <number> minutes”

“Stuck in traffic.”

“Start without me.”

“Where are you?”

“Are you there yet?”

“I need directions.”

“I’m lost.”

“See you later.”

APPS

“Show Fuel prices”

“Show Current Weather” – provides access to Fore-

cast as well

“Show Weather map” – multiple map formats

available

“Show Sports”

“Show Movie listings”

“Show My favorites”

“Launch BING™” – Required 1st voice command

to launch BING™ app

“BING™ Search” – Required 2nd voice command

to activate app functionality using Steering Wheel

Voice Control Button

“Hotel” (restaurant, gas station, mail, hospital) –

for nearest desired general POI

“Italian restaurants” – for nearest specified POI

category

“Hotels” (restaurants, hospitals, Starbucks) “in

Miami” (location) – specified distance POI

Page 71

ELECTRONICS

STEERING WHEEL AUDIO CONTROLS

• The steering wheel audio controls are located on the rear surface of the steering wheel.

Right Switch

• Press the switch up or down to increase or decrease the volume.

• Press the button in the center to change modes AM/FM/SAT.

Left Switch

• Press the switch up or down to search for the next listenable station or select the next or previous track.

• Press the button in the center to select the next preset radio station.

ELECTRONIC VEHICLE INFORMATION CENTER (EVIC)

• The EVIC features a driver interactive display that is located in the instrument cluster. Pressing the controls on the left side of the steering wheel allows the driver to select vehicle information and Personal Settings. For additional information, refer to Programmable Features in this guide.

• Press and release the UP arrow button to scroll upward through the main menus (Fuel Economy , Trip A, Trip B, Audio, Stored Messages, Screen Set Up) and sub menus.

• Press and release the DOWN arrow menus and sub menus.

button to scroll downward through the main

• Press and release the RIGHT arrow or to select a personal setting in the setup menu.

• Press the BACK/LEFT arrow

button for access to main menus, sub menus

button to scroll back to a previous menu or sub menu.

Page 72

ELECTRONICS

Compass Calibration

• This compass is self-calibrating, which eliminates the need to set the compass manually . When the vehicle is new, the compass may appear erratic and the EVIC will display “CAL” until the compass is calibrated.

• You may also calibrate the compass by completing one or more 360 degree turns (in an area free from large metal or metallic objects) until the “CAL” message displayed in the EVIC turns off. The compass will now function normally.

PROGRAMMABLE FEATURES

Electronic Vehicle Information Center (EVIC)

• The EVIC can be used to view or change the following settings. Press the UP or DOWN button until System Setup displays, then press the RIGHT arrow button. Scroll through the settings using the UP or DOWN buttons. Press the RIGHT arrow button to change the setting. Press the BACK/LEFT arrow button to scroll back to a previous menu or sub menu.

•

Select Language

•

Nav-Turn By Turn

•

Park Assist System

•

Auto Unlock Doors

•

Remote Unlock Sequence

•

RKE Linked To Memory

•

Remote Start Comfort Sys.

•

Horn With Remote Start

•

Sound Horn With Lock

•

Flash Lamps With Lock

•

Headlamp Off Delay

•

Headlamps With Wipers

•

Automatic High Beams

•

Intermittent Wiper Options

•

Easy Entry/Exit Seat

•

Key-Off Power Delay

•

Illuminated Approach

•

Hill Start Assist (HSA)

•

Display Fuel Saver

•

Compass Variance

•

Calibrate Compass

Uconnect® Customer Programmable Features

• The Uconnect®system allows you to access Customer Programmable feature settings such as Display, Clock, Safety/Assistance, Lights, Doors & Locks, Heated Seats, Engine Off Operation, Compass Settings, Audio, Phone/ Bluetooth and SiriusXM Setup through soft-keys.

Page 73

ELECTRONICS

• Touch the Apps soft-key on the bottom of the screen, then touch the Settings soft-key to access the Settings screen. When making a selection, scroll up or down until the preferred setting is highlighted, then press and release the preferred setting until a check-mark appears next to the setting, showing that setting has been selected. The following feature settings are available:

• Display • Clock

• Safety / Assistance • Doors & Locks

• Auto-On Comfort & Remote Start • Engine Off Options

• Compass • Audio

• Phone / Bluetooth • SiriusXM Setup

• Lights

Key Fob Programmable Features

• The following features may also be programmed by using the Key Fob transmitter or the ignition switch and driver's door lock switch.

NOTE:

Pressing the LOCK button while you are inside the vehicle will activate the Vehicle Security Alarm. Opening a door with the Vehicle Security Alarm activated will cause the alarm to sound. Press the UNLOCK button to deactivate the V ehicle Security Alarm.

Unlock On First Press

• To unlock either the driver's side, or all doors, on the first press of the UNLOCK button:

• Press and hold the LOCK button for at least 4 seconds, but no longer than 10

seconds. Then, press and hold the UNLOCK button while still holding the LOCK button.

• Release both buttons at the same time.

Auto Unlock Doors On Exit

• To have all of the vehicle doors unlock when any door is opened:

• Enter your vehicle and close all the doors, and fasten your seat belt.

• Cycle the ignition switch between the LOCK and ON position four times, ending in the LOCK position (do not start the engine).

• Press the power door UNLOCK switch to unlock the doors. A single chime will indicate that programming is complete.

Sound Horn With Lock

• To turn the horn chirp on or off when the doors are locked:

• Press the LOCK button for at least 4 seconds, but no longer than 10 seconds. Then, press the PANIC button while still holding the LOCK button.

• Release both buttons at the same time.

Page 74

ELECTRONICS

Flashing Lights With Lock

• The turn signal lights flashing, when the doors are locked or unlocked, feature can be turned on or off. To turn this feature on or off:

• Press and hold the UNLOCK button for at least 4 seconds, but no longer than 10 seconds. Then, press and hold the LOCK button while still holding the UNLOCK button.

• Release both buttons at the same time.

UNIVERSAL GARAGE DOOR OPENER (HomeLink®)

• HomeLink®replaces up to three hand-held transmitters that operate devices such as garage door openers, motorized gates, lighting or home security systems. The

HomeLink

• The HomeLink the three different HomeLink

• The HomeLink

Before You Begin Programming HomeLink®

unit is powered by your vehicles 12 V olt battery.

buttons that are located in the overhead console or sunvisor designate

channels.

indicator is located above the center button.

• Ensure that your vehicle is parked outside of the garage before you begin programming.

For efficient programming and accurate

• transmission of the radio-frequency signal, it is recommended that a new battery be placed in the hand-held transmitter of the device that is being programmed to the

HomeLink

system.

• Erase all channels before you begin programming. To erase the channels, place the ignition switch into the ON/RUN position, then press and hold the two outside

HomeLink

buttons (I and III) for up 20 seconds or until the red indicator flashes.

NOTE:

Erasing all channels should only be performed when programming HomeLink

for the first

time. Do not erase channels when programming additional buttons.

• If you have any problems, or require assistance, please call toll-free 1–800–355–3515 or, on the Internet at www.HomeLink.com for information or assistance.

Page 75

ELECTRONICS

Programming A Rolling Code

• For programming Garage Door Openers that were manufactured after 1995. These Garage Door Openers can be identified by the “LEARN” or “TRAIN” button located where the hanging antenna is attached to the Garage Door Opener. It is NOT the button that is normally used to open and close the door. The name and color of the button may vary by manufacturer.

• Place the ignition switch into the ON/RUN position.

• Place the hand-held transmitter 1 to 3 in (3 to 8 cm) away from the HomeLink

you wish to program while keeping the HomeLink

• Simultaneously press and hold both the HomeLink

indicator light in view.

button you want to program and

the hand-held transmitter button.

• Continue to hold both buttons and observe the indicator light. The HomeLink indicator will flash slowly and then rapidly after HomeLink®has received the frequency signal from the hand-held transmitter. Release both buttons after the indicator light changes from slow to rapid.

• At the garage door opener motor (in the garage), locate the “LEARN” or “TRAINING” button. This can usually be found where the hanging antenna wire is attached to the garage door opener motor. Firmly press and release the “LEARN” or “TRAINING” button.

button

NOTE:

You have 30 seconds in which to initiate the next step after the LEARN button has been pressed.

• Return to the vehicle and press the programmed HomeLink

button twice (holding the button for two seconds each time). If the device is plugged in and activates, programming is complete.

NOTE:

If the device does not activate, press the button a third time (for two seconds) to complete the training.

• To program the remaining two HomeLink

buttons, repeat each step for each remain-

ing button. DO NOT erase the channels.

Page 76

ELECTRONICS

Programming A Non-Rolling Code

• For programming Garage Door Openers manufactured before 1995.

• Turn the ignition switch to the ON/RUN position.

• Place the hand-held transmitter 1 to 3 in (3 to 8 cm) away from the HomeLink

you wish to program while keeping the HomeLink

• Simultaneously press and hold both the HomeLink

indicator light in view.

button you want to program and

the hand-held transmitter button.

• Press and hold the programmed HomeLink

button and observe the indicator light.

NOTE:

• If the indicator light stays on constantly, programming is complete and the garage

door (or device) should activate when the HomeLink

button is pressed.

button

• To program the two remaining HomeLink

buttons, repeat each step for each

remaining button. DO NOT erase the channels.

Using HomeLink®

• To operate, press and release the programmed HomeLink®button. Activation will now occur for the programmed device (i.e., garage door opener, gate operator, security system, entry door lock, home/office lighting, etc.,). The hand-held transmitter of the device may also be used at any time.

WARNING!

• Your motorized door or gate will open and close while you are programming the universal transceiver. Do not program the transceiver if people or pets are in the path of the door or gate.

• Do not run your vehicle in a closed garage or confined area while programming the transceiver. Exhaust gas from your vehicle contains Carbon Monoxide (CO) which is odorless and colorless. Carbon Monoxide is poisonous when inhaled and can cause you and others to be severely injured or killed.

Page 77

ELECTRONICS

POWER OUTLETS

• The auxiliary 12 Volt (13 Amp) power outlets can provide power for in-vehicle accessories designed for use with the standard “cigar lighter” plug. The 12 Volt power outlets have a cap attached to the outlet indicating “12V DC”, together with either a key symbol or a battery symbol.

• The auxiliary power outlets can be found in the following locations:

• To the right of the shifter on the console

• Inside the upper lid of the center storage compartment — if equipped.

• Rear area of the center console.

NOTE:

• Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded, the fuse protecting the system will need to be replaced.

• Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Improper use of the power outlet can cause damage not covered by your new vehicle warranty.

Page 78

UTILITY

NOT ALLOWED

NOT RECOMMENDED

Front

Towing Condition Wheels OFF The Ground Manual Transmission

Rear

CAUTION!

TRAILER TOWING WEIGHTS (MAXIMUM TRAILER WEIGHT RATINGS)

Trailer towing with this vehicle is not recommended.

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)

Towing This Vehicle Behind Another Vehicle (Flat Towing With All Four Wheels On The Ground)

Flat Tow None

Dolly Tow

On Trailer All OK

NOTE:

If the vehicle requires towing, make sure all four wheels are off the ground.

Towing this vehicle in violation of the above requirements can cause severe transmission damage. Damage from improper towing is not

covered under the New Vehicle Limited Warranty.

Page 79

SRT

LAUNCH MODE

• This system maximizes acceleration traction for straight line racing.

1. Bring vehicle to a complete stop.

2. Set the steering wheel for straight ahead

driving.

3. Fully depress the clutch and select the

first gear position.

4. Press and release the “LAUNCH” But-

ton (Located on the steering wheel controls).

5. Press the accelerator pedal to the floor.

6. Release the clutch.

• Pressing the launch control button when launch control is active will deactivate launch control also shifting the vehicle into second gear will disable the system.

NOTE:

• Launch Mode brings the engine to optimum launch RPM and waits for the driver to release the clutch. Launch Mode then uses engine throttle only to achieve controlled wheelslip for maximum acceleration through first gear.

• If the cluster launch EVIC message indicates all conditions are correct for launch and the throttle is pressed to the floor quickly (within approximately 1/2 second) the system will hold the engine speed to a preset speed (below the engine rev limiter speed).

• Launch Mode can be used in any of the Electronic Stability Control (ESC) Modes.

Page 80

SRT

ELECTRONIC CONTROL DAMPING SYSTEM

• This vehicle may be equipped with an electronic controlled dampening system. This system reduces body roll and pitch in many driving situations including cornering, acceleration and braking.

• This system allows for a street suspension damping setting or a firmer race suspension damping setting. There are two modes of operation:

STREET MODE

• This mode will give a sporty , but comfortable ride. Within this mode, the suspension will adapt to the vehicle inputs, including vehicle speed, braking and acceleration.

• This mode is driver selectable when the vehicle is placed in STREET mode (press the “STREET” button on the Instrument Panel).

• This mode will set suspension for maximum performance handling and is intended for a smoother ride on the various types of pavement and road conditions while still providing damping levels appropriate extreme capabilities.

RACE MODE

• Race mode is driver selectable when the vehicle is placed in RACE mode (press the “RACE” button on the Instrument Panel).

• This mode is for track use only and will supply maximum grip to the tires.

• When RACE mode is enabled, a Shock symbol with “RACE” next to it will light up in the instrument cluster.

NOTE:

The RACE setting will provide a firmer ride.

Page 81

PERFORMANCE FEATURES

Electronic Vehicle Information Center (EVIC)

• The EVIC can be used to program the following Performance Features. Press the UP or DOWN button until Performance Features displays, then press the RIGHT arrow button. Scroll through the settings using the UP or DOWN buttons. Press the RIGHT arrow button to change the setting. Press the Left arrow button to scroll back to a previous menu or sub menu.

SRT

•

0-60 mph (0-100 km/h)

•

Braking Distance

•

1/8 Mile

•

1/4 Mile

•

Current G-Force

•

Peak G-Force

•

Digital Speedometer

Uconnect® SRT Performance Features

• To access the SRT Performance Features, touch the “Apps” soft-key then touch the “SRT” soft-key. Press the UP or DOWN soft-key to cycle through the features. Press the feature soft-key to select that feature.

• The Performance Page include the following:

•

Timers

•

Engine Values

•

Digital Gauge Displays

•

0-60 mph (0-100 km/h)

•

Braking Distance

•

1/8 Mile

•

1/4 Mile

•

Instantaneous G-Force

•

Peak G-Force

•

Digital Speedometer

Timers

0-60 mph (0-100 km/h), 1/8 Mile, 1/4 Mile

• When selected, this screen displays the time it takes for the vehicle to go from 0 to 60 mph (0 to 100 km/h), 1/8 mile or 1/4 mile.

Braking Distance

• When selected, this screen displays the vehicle's braking distance and the speed at which the brake pedal was depressed.

Page 82

SRT

G-Force

• When selected, this screen displays all four G-Force values (two lateral and two longitudinal) as well as steering angle.

Gauges 1

• Oil Temperature

• Oil Pressure

• Battery Voltage

Gauges 2

• Coolant Temperature

• Oil Temperature

• Transmission T emperature

• Intake Air Temperature

• Oil Pressure

• Battery Voltage

Engine

• When selected, this screen displays miles per hour (mph), horsepower (hp), torque (ft/lb), oil pressure (psi) and gear selector values.

Handling

• When selected, this screen displays peak g-force, instantaneous g-force, steering and yaw angles.

Options

• When selected, this screen allows you to choose a standard or custom display for your SRT home page.

WARNING!

Measurement of vehicle statistics with the Performance Features is intended for off-highway or off-road use only and should not be done on any public roadways. It is recommended that these features be used in a controlled environment and within the limits of the law. The capabilities of the vehicle as measured by the performance pages must never be exploited in a reckless or dangerous manner, which can jeopardize the user’s safety or the safety of others. Only a safe, attentive, and skillful driver can prevent accidents.

Page 83

SRT

SUMMER/THREE-SEASON TIRES

• This vehicle may be equipped with wheels and tires to enhance traction in both wet and dry conditions.

• Summer tires are not intended to be driven in snow or on ice.

• Use summer tires only in sets of four.

NOTE:

Summer tires will not contain the all season designation or mountain/snowflake symbol on the sidewall of the tire.

WARNING!

Do not use summer tires in snow/ice conditions. You could lose control, resulting in severe injury or death.

Page 84

WHAT TO DO IN EMERGENCIES

INSTRUMENT CLUSTER WARNING LIGHTS

- Electronic Stability Control (ESC) Activation/Malfunction Indicator Light

• The “ESC Activation/Malfunction Indicator Light” in the instrument cluster will come on when the ignition switch is turned to the ON/RUN position. It should go out with the engine running. If the “ESC Activation/Malfunction Indicator Light” comes on continuously with the engine running, a malfunction has been detected in the ESC system.

• If this light remains on after several ignition cycles, and the vehicle has been driven several miles (kilometers) at speeds greater than 30 mph (48 km/h), we recommend you drive to the nearest service center and have the vehicle serviced immediately.

- Tire Pressure Monitoring System (TPMS) Light

• Each tire, including the spare (if provided), should be checked monthly , when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those tires.)

• As an added safety feature, your vehicle has been equipped with a T ire Pressure Monitoring System (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is significantly under-inflated. Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling and stopping ability .

• IF THE LIGHT STARTS FLASHING INDICATING A LOW TIRE PRESSURE, ADJUST THE AIR

PRESSURE IN THE LOW TIRE TO THE AIR PRESSURE SHOWN ON THE VEHICLE PLACARD OR TIRE INFLATION PRESSURE LABEL LOCATED ON THE DRIVER'S DOOR.

NOTE:

AFTER INFLA TION, THE VEHICLE MAY NEED TO BE DRIVEN FOR 20 MINUTES BEFORE THE FLASHING LIGHT WILL TURN OFF .

• Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under -inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.

• Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will flash for approximately one minute and then remain continuously illuminated. This sequence will continue each time the vehicle is restarted as long as the malfunction exists.

Page 85

WHAT TO DO IN EMERGENCIES

• When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly . Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle, to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly.

NOTE:

Tire pressures change by approximately 1 psi (7 kPa) per 12° F (7° C) of air temperature change. Keep this in mind when checking tire pressure inside a garage, especially in the Winter . Example: If garage temperature is 68°F (20°C) and the outside temperature is 32°F (0°C), then the cold tire inflation pressure should be increased by 3 psi (21 kPa), which equals 1 psi (7 kPa) for every 12°F (7°C) for this outside temperature condition.

CAUTION!

The TPMS has been optimized for the original equipment tires and wheels. TPMS pressures and warning have been established for the tire size equipped on your vehicle. Undesirable system operation or sensor damage may result when using replacement equipment that is not of the same size, type, and/or style. Aftermarket wheels can cause sensor damage. Do not use tire sealant from a can, or balance beads if your vehicle is equipped with a TPMS, as damage to the sensors may result.

- Engine Temperature Warning Light

• This light warns of an overheated engine condition.

• If the light turns on or flashes continuously while driving, safely pull over and stop the vehicle. If the A/C system is on, turn it off. Also, shift the transmission into NEUTRAL and idle the vehicle. If the temperature reading does not return to normal, turn the engine off immediately.

• We recommend that you do not operate the vehicle or engine damage will occur. Have the vehicle serviced immediately.

WARNING!

A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. You may want to call an authorized dealer for service if your vehicle overheats.

BRAKE

• The Brake Warning light illuminates when there is either a system malfunction or the parking brake is applied. If the light is on and the parking brake is not applied, it indicates a possible brake hydraulic malfunction, brake booster problem or an AntiLock Brake System problem.

- Brake Warning Light

• Please have your vehicle serviced immediately.

Page 86

WHAT TO DO IN EMERGENCIES

WARNING!

Driving a vehicle with the red brake light on is dangerous. Part of the brake system may have failed. It will take longer to stop the vehicle. You could have a collision. Have the vehicle checked immediately.

- Malfunction Indicator Light (MIL)

• Certain conditions, such as a poor fuel quality, etc., may illuminate the MIL after engine start. The vehicle should be serviced if the light stays on through several typical driving cycles. In most situations, the vehicle will drive normally and not require towing.

• If the MIL flashes when the engine is running, serious conditions may exist that could lead to immediate loss of power or severe catalytic converter damage. We recommend you do not operate the vehicle. Have the vehicle serviced immediately.

- Electronic Stability Control (ESC) OFF Indicator Light

• This light indicates the Electronic Stability Control (ESC) is off.

- Charging System Light

• This light shows the status of the electrical charging system. If the charging system light remains on, it means that the vehicle is experiencing a problem with the charging system.

• We recommend you do not continue driving if the charging system light is on. Have the vehicle serviced immediately.

- Oil Pressure Warning Light

• This light indicates low engine oil pressure. If the light turns on while driving, stop the vehicle and shut off the engine as soon as possible. A chime will sound when this light turns on.

• We recommend you do not operate the vehicle or engine damage will occur. Have the vehicle serviced immediately.

- Anti-Lock Brake (ABS) Light

• This light monitors the Anti-Lock Brake System (ABS).

• If the light is not on during starting, stays on, or turns on while driving, we recommend you drive to the nearest service center and have the vehicle serviced immediately.

- Electronic Throttle Control (ETC) Indicator Light

• This light informs you of a problem with the Electronic Throttle Control (ETC) system.

• If a problem is detected, the light will come on while the engine is running. Cycle the ignition when the vehicle has completely stopped and the shift lever is placed in the NEUTRAL position; the light should turn off.

Page 87

WHAT TO DO IN EMERGENCIES

• If the light remains lit with the engine running, your vehicle will usually be drivable; however, see an authorized service center immediately . If the light is flashing when the engine is running, immediate service is required and you may experience reduced performance, an elevated/rough idle or engine stall and your vehicle may require towing.

- Air Bag Warning Light

• If the light is not on during starting, stays on, or turns on while driving, have the vehicle serviced by an authorized service center immediately.

IF YOUR ENGINE OVERHEATS

• In any of the following situations, you can reduce the potential for overheating by taking the appropriate action.

• On the highways — slow down.

• In city traffic — while stopped, place the transmission in NEUTRAL, but do not increase engine idle speed.

NOTE:

There are steps that you can take to slow down an impending overheat condition:

• If your air conditioner (A/C) is on, turn it off. The A/C system adds heat to the engine cooling system and turning the A/C off can help remove this heat.

• You can also turn the temperature control to maximum heat, the mode control to floor and the blower control to high. This allows the heater core to act as a supplement to the radiator and aids in removing heat from the engine cooling system.

CAUTION!

Driving with a hot cooling system could damage your vehicle. If the temperature gauge reads HOT (H), pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range. If the pointer remains on HOT (H), and you hear continuous chimes, turn the engine off immediately , and call for service.

WARNING!

You or others can be badly burned by hot engine coolant (antifreeze) or steam from your radiator. If you see or hear steam coming from under the hood, do not open the hood until the radiator has had time to cool. Never try to open a cooling system pressure cap when the radiator or coolant bottle is hot.

TIREFIT KIT

• Small punctures up to 1/4 in (6 mm) in the tire tread can be sealed with TIREFIT. Foreign objects (e.g., screws or nails) should not be removed from the tire. TIREFIT can be used in outside temperatures down to approximately -4°F (-20°C).

Page 88

WHAT TO DO IN EMERGENCIES

• This kit will provide a temporary tire seal, allowing you to drive your vehicle up to 100 miles (160 km) with a maximum speed of 55 mph (88 km/h).

TIREFIT Storage

• The TIREFIT kit is located in the trunk.

TIREFIT Kit Components And Operation

1. Sealant Bottle 5. Mode Select Knob

2. Deflation Button 6. Sealant Hose (Clear)

3. Pressure Gauge 7. Air Pump Hose (Black)

4. Power Button 8. Power Plug

Using The Mode Select Knob And Hoses

• Your TIREFIT kit is equipped with the following symbols to indicate the air or sealant mode.

Selecting Air Mode

• Turn the Mode Select Knob (5) to this position for air pump operation only. Use the Black Air Pump Hose (7) when selecting this mode.

Selecting Sealant Mode

• Turn the Mode Select Knob (5) to this position to inject the TIREFIT Sealant and to inflate the tire. Use the Sealant Hose (clear hose) (6) when selecting this mode.

Using The Power Button

• Push and release the Power Button (4) once to turn On the TIREFIT kit. Push and release the Power Button (4) again to turn Off the TIREFIT kit.

Using The Deflation Button

• Press the Deflation Button (2) to reduce the air pressure in the tire if it becomes over-inflated.

Page 89

WHAT TO DO IN EMERGENCIES

TIREFIT Usage Precautions

• Replace the TIREFIT Sealant Bottle (1) and Sealant Hose (6) prior to the expiration date (printed on the bottle label) to assure optimum operation of the system. Refer to “Sealing a T ire with TIREFIT” section (F) “Sealant Bottle and Hose Replacement”.

• The Sealant Bottle (1) and Sealant Hose (6) are a one tire application use. After each use, always replace these components immediately at an authorized dealer.

• When the TIREFIT sealant is in a liquid form, clean water, and a damp cloth will remove the material from the vehicle or tire and wheel components. Once the sealant dries, it can easily be peeled off and properly discarded.

• For optimum performance, make sure the valve stem on the wheel is free of debris before connecting the TIREFIT kit.

You can use the TIREFIT air pump to inflate bicycle tires. The kit also comes with two

• needles, located in the Accessory Storage Compartment (on the bottom of the air pump) for inflating sport balls, rafts, or similar inflatable items. However, use only the Air Pump Hose (7) and make sure the Mode Select Knob (5) is in the Air Mode when inflating such items to avoid injecting sealant into them. The TIREFIT Sealant is only intended to seal punctures less than 1/4 in (6 mm) diameter in the tread of your vehicle.

• Do not lift or carry the TIREFIT kit by the hoses.

Sealing A Tire With TIREFIT

(A) Whenever You Stop To Use TIREFIT:

1. Pull over to a safe location and turn on the vehicle’s Hazard Warning flashers.

2. Verify that the valve stem (on the wheel with the deflated tire) is in a position that is

near to the ground. This will allow the TIREFIT Hoses (6) and (7) to reach the valve stem and keep the TIREFIT kit flat on the ground. This will provide the best positioning of the kit when injecting the sealant into the deflated tire and running the air pump. Move the vehicle as necessary to place the valve stem in this position before proceeding.

3. Place the transmission in PARK (auto transmission) or in Gear (manual transmission)

and cycle the ignition to the OFF position.

4. Set the parking brake.

(B) Setting Up To Use TIREFIT:

1. Turn the Mode Select Knob (5) to the Sealant Mode position.

2. Uncoil the Sealant Hose (6) and then remove the cap from the fitting at the end of the

hose.

3. Place the TIREFIT kit flat on the ground next to the deflated tire.

4. Remove the cap from the valve stem and then screw the fitting at the end of the

Sealant Hose (6) onto the valve stem.

5. Uncoil the Power Plug (8) and insert the plug into the vehicle’s 12 Volt power outlet.

6. Do not remove foreign objects (e.g., screws or nails) from the tire.

Page 90

WHAT TO DO IN EMERGENCIES

• Always start the engine before turning ON the TIREFIT kit.

NOTE:

Manual transmission vehicles must have the parking brake engaged and the shift lever in NEUTRAL.

• After pressing the Power Button (4), the sealant (white fluid) will flow from the Sealant Bottle (1) through the Sealant Hose (6) and into the tire.

NOTE:

Sealant may leak out through the puncture in the tire.

• If the sealant (white fluid) does not flow within0–10seconds through the Sealant

Hose (6):

1. Press the Power Button (4) to turn Off the TIREFIT kit. Disconnect the Sealant Hose (6) from the valve stem. Make sure the valve stem is free of debris. Reconnect the Sealant Hose (6) to the valve stem. Check that the Mode Select Knob (5) is in the Sealant Mode position and not Air Mode. Press the Power Button (4) to turn On the TIREFIT kit.

2. Connect the Power Plug (8) to a different 12 Volt power outlet in your vehicle or another vehicle, if available. Make sure the engine is running before turning ON the TIREFIT kit.

3. The Sealant Bottle (1) may be empty due to previous use. Call for assistance.

NOTE:

If the Mode Select Knob (5) is on Air Mode and the pump is operating, air will dispense from the Air Pump Hose (7) only, not the Sealant Hose (6).

• If the sealant (white fluid) does flow through the Sealant Hose (6):

1. Continue to operate the pump until sealant is no longer flowing through the hose (typically takes 30 - 70 seconds). As the sealant flows through the Sealant Hose (6), the Pressure Gauge (3) can read as high as 70 psi (5 kPa). The Pressure Gauge (3) will decrease quickly from approximately 70 psi (5 kPa) to the actual tire pressure when the Sealant Bottle (1) is empty.

2. The pump will start to inject air into the tire immediately after the Sealant Bottle (1) is empty. Continue to operate the pump and inflate the tire to the pressure indicated on the tire pressure label on the driver-side latch pillar (recommended pressure). Check the tire pressure by looking at the Pressure Gauge (3).

• If the tire does not inflate to at least 26 psi (1.8 kPa) pressure within 15 minutes:

• The tire is too badly damaged. Do not attempt to drive the vehicle further . Call for

assistance.

NOTE:

If the tire becomes over-inflated, press the Deflation Button to reduce the tire pressure to the recommended inflation pressure before continuing.

Page 91

WHAT TO DO IN EMERGENCIES

• If the tire inflates to the recommended pressure or is at least 26 psi (1.8 Bar) pressure within 15 minutes:

1. Press the Power Button (4) to turn off the TIREFIT kit.

2. Remove the Speed Limit sticker from the top of the Sealant Bottle (1) and place the sticker on the instrument panel.

3. Immediately disconnect the Sealant Hose (6) from the valve stem, reinstall the cap on the fitting at the end of the hose, and place the TIREFIT kit in the vehicle storage location. Quickly proceed to (D) “Drive V ehicle”.

(D) Drive Vehicle:

• Immediately after injecting sealant and inflating the tire, drive the vehicle 5 miles (8 km) or 10 minutes to ensure distribution of the TIREFIT Sealant within the tire. Do not exceed 55 mph (88 km/h).

(E) After Driving:

Pull over to a safe location. Refer to “Whenever You Stop to Use TIREFIT” before continuing.

1. Turn the Mode Select Knob (5) to the Air Mode position.

2. Uncoil the Air Pump Hose (7) (black in color) and screw the fitting at the end of hose

(7) onto the valve stem.

3. Uncoil the power plug and insert the plug into the vehicles 12 V olt power outlet.

4. Check the pressure in the tire by reading the Pressure Gauge (3).

• If tire pressure is less than 19 psi (1.3 kPa), the tire is too badly damaged. Do not

attempt to drive the vehicle further. Call for assistance.

If the tire pressure is 19 psi (1.3 kPa) or higher:

1. Press the Power Button (4) to turn on TIREFIT and inflate the tire to the pressure

indicated on the tire and loading information label on the driver -side door opening.

2. Disconnect the TIREFIT kit from the valve stem, reinstall the cap on the valve stem and

unplug from 12 Volt outlet.

3. Place the TIREFIT kit in its proper storage area in the vehicle.

4. Have the tire inspected and repaired or replaced at the earliest opportunity at an

authorized dealer or tire service center.

5. Replace the Sealant Bottle (1) and Sealant Hose (6) assembly at your authorized

dealer as soon as possible. Refer to “(F) Sealant Bottle and Hose Replacement.”

NOTE:

• If the tire becomes over-inflated, press the Deflation Button to reduce the tire pressure to the recommended inflation pressure before continuing.

• When having the tire serviced, advise the authorized dealer or service center that the tire has been sealed using the TIREFIT service kit.

Page 92

WHAT TO DO IN EMERGENCIES

(F) Sealant Bottle And Hose Replacement:

1. Uncoil the Sealant Hose (6) (clear in color).

2. Locate the round Sealant Bottle release button in the recessed area under the sealant bottle.

3. Press the Sealant Bottle release button. The Sealant Bottle (1) will pop up. Remove the bottle and dispose of it accordingly.

4. Clean any remaining sealant from the TIREFIT housing.

5. Position the new Sealant Bottle (1) in the housing so that the Sealant Hose (6) aligns with the hose slot in the front of the housing. Press the bottle into the housing. An audible click will be heard indicating the bottle is locked into place.

6. Verify that the cap is installed on the fitting at the end of the Sealant Hose (6) and return the hose to its storage area (located on the bottom of the air pump).

7. Return the TIREFIT kit to its storage location in the vehicle.

CAUTION!

• The metal end fitting from Power Plug (8) may get hot after use, so it should be handled carefully .

• Failure to reinstall the cap on the fitting at the end of the Sealant Hose (6) can result in sealant contacting your skin, clothing, and the vehicle’s interior. It can also result in sealant contacting internal TIREFIT kit components which may cause permanent damage to the kit.

Page 93

WHAT TO DO IN EMERGENCIES

WARNING!

• Do not attempt to seal a tire on the side of the vehicle closest to traffic. Pull far enough off the road to avoid the danger of being hit when using the TIREFIT kit.

• Do not use TIREFIT or drive the vehicle under the following circumstances:

• If the puncture in the tire tread is approximately 1/4 in. (6 mm) or larger.

• If the tire has any sidewall damage.

• If the tire has any damage from driving with extremely low tire pressure.

• If the tire has any damage from driving on a flat tire.

• If the wheel has any damage.

• If you are unsure of the condition of the tire or the wheel.

• Keep TIREFIT away from open flames or heat source.

• A loose TIREFIT kit thrown forward in a collision or hard stop could endanger the occupants of the vehicle. Always stow the TIREFIT kit in the place provided. Failure to follow these warnings can result in injuries that are serious or fatal to you, your passengers, and others around you.

• Take care not to allow the contents of TIREFIT to come in contact with hair, eyes, or clothing. TIREFIT is harmful if inhaled, swallowed, or absorbed through the skin. It causes skin, eye, and respiratory irritation. Flush immediately with plenty of water if there is any contact with eyes or skin. Change clothing as soon as possible, if there is any contact with clothing.

• TIREFIT Sealant solution contains latex. In case of an allergic reaction or rash, consult a physician immediately. Keep TIREFIT out of reach of children. If swallowed, rinse mouth immediately with plenty of water and drink plenty of water. Do not induce vomiting! Consult a physician immediately.

• TIREFIT is not a permanent flat tire repair . Have the tire inspected and repaired or replaced after using TIREFIT . Do not exceed 55 mph (88 km/h) until the tire is repaired or replaced. Failure to follow this warning can result in injuries that are serious or fatal to you, your passengers, and others around you.

Page 94

WHAT TO DO IN EMERGENCIES

JUMP-STARTING

• If your vehicle has a discharged battery it can be jump-started using a set of jumper cables and a battery in another vehicle or by using a portable battery booster pack.

• Jump-starting can be dangerous if done improperly so please follow the procedures in this section carefully.

NOTE:

When using a portable battery booster pack follow the manufacturer’s operating instructions and precautions.

Preparations for Jump-Start

• The battery is stored under an access cover in the trunk. Remote battery posts are located on the left side of the engine compartment for jump-starting.

NOTE:

The remote battery posts are viewed by standing on the left side of the vehicle looking over the fender.

• Set the parking brake, shift the transmission into gear and turn the ignition to OFF .

• Turn off the heater, radio, and all unnecessary electrical accessories.

• If using another vehicle to jump-start the battery , park the vehicle within the jumper

cables reach, set the parking brake and make sure the ignition is OFF .

Jump-Starting Procedure

• Connect the positive (+) end of the jumper cable to the remote positive (+) post of the discharged vehicle.

• Connect the opposite end of the positive (+) jumper cable to the positive (+) post of the booster battery .

• Connect the negative end (-) of the jumper cable to the negative (-) post of the booster battery .

• Connect the opposite end of the negative (-) jumper cable to the remote negative (-) post of the vehicle with the discharged battery.

• Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then start the engine in the vehicle with the discharged battery.

Once the engine is started, remove the jumper cables in the reverse sequence:

• Disconnect the negative (-) jumper cable from the remote negative (-) post of the vehicle with the discharged battery.

Page 95

WHAT TO DO IN EMERGENCIES

• Disconnect the negative end (-) of the jumper cable from the negative (-) post of the booster battery .

• Disconnect the opposite end of the positive (+) jumper cable from the positive (+) post of the booster battery.

• Disconnect the positive (+) end of the jumper cable from the remote positive (+) post of the discharged vehicle.

• If frequent jump-starting is required to start your vehicle you should have the battery and charging system inspected at your authorized dealer.

CAUTION!

• Do not use a portable battery booster pack or any other booster source with a system voltage greater than 12 V olts or damage to the battery, starter motor, alternator or electrical system may occur.

• Failure to follow these procedures could result in damage to the charging system of the booster vehicle or the discharged vehicle.

• Accessories that can be plugged into the vehicle power outlets draw power from the vehicle’s battery , even when not in use (i.e., cellular phones, etc.). Eventually, if plugged in long enough, the vehicle’s battery will discharge sufficiently to degrade battery life and/or prevent the engine from starting.

WARNING!

• When temperatures are below the freezing point, electrolyte in a discharged battery may freeze. Do not attempt jump-starting because the battery could rupture or explode and cause personal injury . Battery temperature must be brought above freezing point before attempting a jump-start.

• Take care to avoid the radiator cooling fan whenever the hood is raised. It can start anytime the ignition switch is on. You can be injured by moving fan blades.

• Remove any metal jewelry, such as watch bands or bracelets, that might make an inadvertent electrical contact. You could be severely injured.

• Batteries contain sulfuric acid that can burn your skin or eyes and generate hydrogen gas which is flammable and explosive. Keep open flames or sparks away from the battery.

• Do not allow vehicles to touch each other as this could establish a ground connection and personal injury could result.

• Failure to follow this procedure could result in personal injury or property damage due to battery explosion.

• Do not connect the cable to the negative post (-) of the discharged battery. The resulting electrical spark could cause the battery to explode and could result in personal injury .

Page 96

WHAT TO DO IN EMERGENCIES

TOWING A DISABLED VEHICLE

Do not tow with sling-type equipment. Only use flatbed equipment. Always comply with applicable state or local towing ordinances.

CAUTION!

• Failure to follow these towing methods can cause severe transmission damage. Such damage is not covered by the New Vehicle Limited Warranty.

• If the vehicle being towed requires steering, the ignition switch must be in the ON/RUN position.

• Do not attempt to use sling-type equipment when towing. When securing the vehicle to a flatbed truck, do not attach to front or rear suspension components. Damage to your vehicle may result from improper towing.

FREEING A STUCK VEHICLE

• If your vehicle becomes stuck in mud, sand or snow, it can often be moved by a rocking motion. Turn your steering wheel right and left to clear the area around the front wheels. Then shift back and forth between 2nd gear and REVERSE. Using minimal accelerator pedal pressure to maintain the rocking motion, without spinning the wheels, is most effective.

WARNING!

Fast spinning tires can be dangerous. Forces generated by excessive wheel speeds may cause tire damage or failure. A tire could explode and injure someone. Do not spin your vehicle's wheels faster than 30 mph (48 km/h) when you are stuck. Do not let anyone near a spinning wheel, no matter what the speed.

Page 97

WHAT TO DO IN EMERGENCIES

EVENT DATA RECORDER (EDR)

• This vehicle is equipped with an Event Data Recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating.

• Whether or not the driver and passenger safety belts were buckled/fastened.

• How far (if at all) the driver was depressing the accelerator and/or brake pedal.

• How fast the vehicle was traveling.

• These data can help provide a better understanding of the circumstances in which crashes and injuries occur.

NOTE:

EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g. name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

• To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

Page 98

MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT

8.4L Engine

Page 99

MAINTAINING YOUR VEHICLE

FLUIDS AND CAPACITIES

Component Fluid, Lubricant, or Genuine Part Capacities

Engine Coolant–

8.4L Engine

Engine Oil with Filter–

8.4L Engine

Engine Oil Filter We recommend you use MOPAR

Spark Plug– 8.4L Engine We recommend you use MOPAR

Manual Transmission MOPAR

Axle Rear– 8.4L Engine We recommend you use Castrol

Brake Master Cylinder

Power Steering Reservoir

Fuel Selection–

8.4L Engine

MOPAR

Year/150,000 Mile Formula OAT

(Organic Additive Technology) or

0W-40 engine oil, API Certified.

Spark Plugs, see your authorized

Transmission Fluid or equivalent

SAF-XJ/SAE 75W-140 Synthetic

We recommend you use MOPAR

We recommend you use Premium

Antifreeze/ Coolant Five

equivalent.

We recommend you use SAE

Engine Oil Filters.

dealer.

ATF+4®Automatic

licensed ATF+4

Gear and Axle Lubricant.

Brake and Clutch Fluid DOT 4

Motor Vehicle.

Power Steering Fluid + 4,

MOPAR®or ATF+4®Automatic

Transmission Fluid.

Unleaded 91 Octane Only or

Higher

product.

16 Quarts (15 Liters) In-

cludes heater and coolant

recovery bottle filled to MAX

level.

11 Quarts (10.4 Liters)

3.4 Quarts (3.2 Liters)

1.5 Quarts (1.4 Liters)

16 Gallons (61 Liters)

—

(Approximate)

• Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in engine damage and may decrease corrosion protection. Organic Additive Technology (OA T) engine coolant is different and should not be mixed with Hybrid Organic Additive Technology (HOA T) engine coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a non-OAT engine coolant (antifreeze) is introduced into the cooling system in an emergency , it should be flushed with OAT coolant and replaced with the specified OAT engine coolant (antifreeze) as soon as possible.

• Do not use water alone or alcohol-based engine coolant (antifreeze) products. Do not use additional rust inhibitors or antirust products, as they may not be compatible with the radiator engine coolant and may plug the radiator.

• This vehicle has not been designed for use with propylene glycol-based engine coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze) is not recommended.

CAUTION!

Page 100

MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULES

The Scheduled Maintenance services listed in this manual must be done at the times or mileages specified to protect your vehicle warranty and ensure the best vehicle performance and reliability. More frequent maintenance may be needed for vehicles in severe operating conditions, such as dusty areas and very short trip driving. Inspection and service should also be done anytime a malfunction is suspected.

NOTE: Under no circumstances should oil change intervals exceed 6,000 miles (10 000 km) or six months, whichever comes first.

CAUTION!

Failure to perform the required maintenance items may result in damage to the vehicle.

At Each Stop For Fuel

• Check the engine oil level about five minutes after a fully warmed engine is shut off. Checking the oil level while the vehicle is on level ground will improve the accuracy of the oil level reading. Add oil only when the level is at or below the ADD or MIN mark.

• Check the windshield washer solvent and add if required.

Once A Month

• Check tire pressure and look for unusual wear or damage.

• Inspect the battery, and clean and tighten the terminals as required.

• Check the fluid levels of the coolant reservoir, brake master cylinder , power steering, and transmission, and add as needed.

• Check all lights and all other electrical items for correct operation.

At Each Oil Change

• Change the engine oil filter.

• Inspect the exhaust system.

NOTE:

Also, inspect the exhaust system if you notice a change in the sound of the exhaust system, or if the exhaust fumes can be detected inside the vehicle.

• Inspect the brake hoses.

• Inspect the suspension components.

• Lubricate door hinges and check springs.

• Check the engine coolant level, hoses, and clamps.

• Check power steering fluid level.

Dodge 2013 VIPER SRT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
