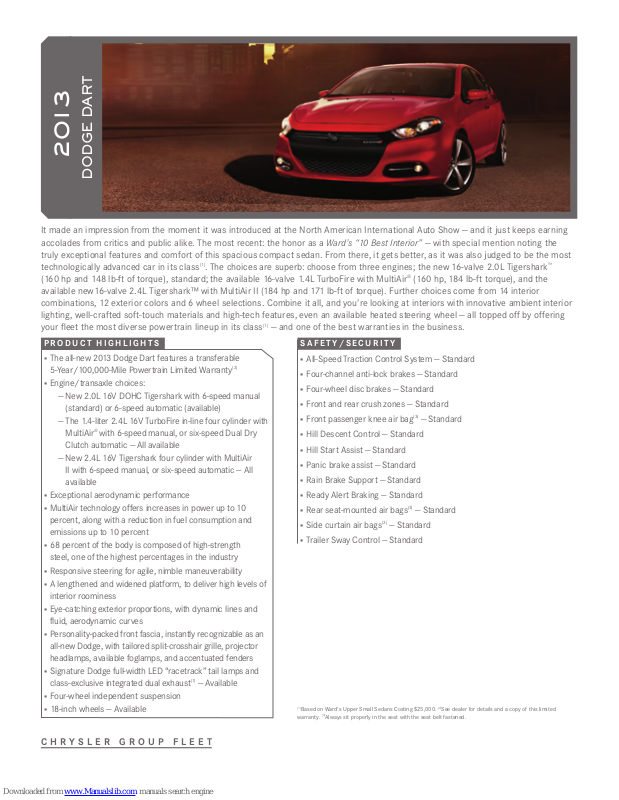

Dodge Dart, 2013 Dart R/T Information

Page 1
2013
DODGE DART
It made an impression from the moment it was introduced at the North American International Auto Show — and it just keeps earning accolades from critics and public alike. The most recent: the honor as a Ward’s “10 Best Interior” — with special mention noting the truly exceptional features and comfort of this spacious compact sedan. From there, it gets better, as it was also judged to be the most technologically advanced car in its class (160 hp and 148 lb-ft of torque), standard; the available 16-valve 1.4L TurboFire with MultiAir available new16-valve 2.4L Tigershark™ with MultiAir II (184 hp and 171 lb-ft of torque). Further choices come from 14 interior combinations, 12 exterior colors and 6 wheel selections. Combine it all, and you’re looking at interiors with innovative ambient interior lighting, well-crafted soft-touch materials and high-tech features, even an available heated steering wheel — all topped off by offering your fleet the most diverse powertrain lineup in its class
Product HigHligHts
The all-new 2013 Dodge Dart features a transferable
5-Year/100,000-Mile Powertrain Limited Warranty
Engine/transaxle choices:
— New 2.0L 16V DOHC Tigershark with 6-speed manual
(standard) or 6-speed automatic (available)
— The 1.4-liter 2.4L 16V TurboFire in-line four cylinder with
®
with 6-speed manual, or six-speed Dual Dry
Clutch automatic — All available
— New 2.4L 16V Tigershark four cylinder with MultiAir
II with 6-speed manual, or six-speed automatic — All available
Exceptional aerodynamic performance MultiAir technology offers increases in power up to 10
percent, along with a reduction in fuel consumption and emissions up to 10 percent
68 percent of the body is composed of high-strength
steel, one of the highest percentages in the industry
Responsive steering for agile, nimble maneuverability A lengthened and widened platform, to deliver high levels of
interior roominess
Eye-catching exterior proportions, with dynamic lines and
fluid, aerodynamic curves
Personality-packed front fascia, instantly recognizable as an
all-new Dodge, with tailored split-crosshair grille, projector headlamps, available foglamps, and accentuated fenders
Signature Dodge full-width LED “racetrack” tail lamps and
class-exclusive integrated dual exhaust
Four-wheel independent suspension 18-inch wheels — Available
(1)
. The choices are superb: choose from three engines; the new 16-valve 2.0L Tigershark™
(1)
— and one of the best warranties in the business.
®
(160 hp, 184 lb-ft torque), and the
sAFEtY/sEcuritY
All-Speed Traction Control System — Standard
Four-channel anti-lock brakes — Standard
Four-wheel disc brakes — Standard
Front and rear crush zones — Standard
Front passenger knee air bag
Hill Descent Control — Standard
Hill Start Assist — Standard
Panic brake assist — Standard
Rain Brake Support — Standard
Ready Alert Braking — Standard
Rear seat-mounted air bags
Side curtain air bags
Trailer Sway Control — Standard
(1)
Based on Ward's Upper Small Sedans Costing $25,000.
(3)
Always sit properly in the seat with the seat belt fastened.
warranty.
(3)
(3)
— Standard
(3)
— Standard
— Standard
(2)
See dealer for details and a copy of this limited
(1)
— Available
(2)
cHrYslEr grouP FlEEt
Page 2
2013
DODGE DART
POWERTRAINS
Engines Transmissions
2.0L I-4 Tigershark™ engine; 160 hp @ 6,300 rpm; 148 Ib-ft @ 4,600
1.4L I-4 TurboFire engine with MultiAir @ 5,500 rpm; 184 Ib-ft @ 2,500-4,000 rpm
2.4L I-4 Tigershark engine with MultiAir II; 184 hp @ 6,250 rpm; 171 Ib-ft @ 4,800
DIMENSIONS
Exterior
Wheelbase 106.4 Length 183.9 Height 57. 7 Width 72.0 Tires (base model) Standard 205/55R16 All-Season
Cargo Capacity (cubic feet) Maximum 13 .1 Seating Capacity 5 Fuel Capacity (gallons) Standard 15.8
Tra ck Front 62.0
Interior
Head Room
Leg Room Front 42.2
Shoulder Room Front 58.2
Hip Room Front 54.8
Passenger Interior Volume 97. 2 Total Interior Volume 110.3
(1)
All dimensions given in inches unless otherwise noted.
(1)
/SPECIFICATIONS
6-speed Manual S S S S 6-speed Powertech
Automatic 6-speed Manual S O O O
®
; 160 hp
6-speed Dual Dry Clutch Automatic
6-speed Manual S 6-speed Powertech
Automatic
Spare Compact (opt on Aero)
Available Aero Package 13.2
Rear 62.0
Front Rear 3 7.0
Rear 35.3
Rear 56.1
Rear 52.6
SE Aero SXT Rallye Limited R/T
O O O O
O O O O
EXTERIOR COLORS
Bright Silver
Blue Streak Pearl Header Orange
Laguna Blue
Metallic
Maximum Steel
Metallic
Bright White
Pitch Black
Citrus Peel Pearl
Redline 2 Coat Pearl
True Blue Pearl
STANDARD ON ALL 2013 DART MODELS
Active Front Head Restraints
(2)
Air Bags
Advanced multi-stage front
Supplemental front seat side Supplemental rear seat side Supplemental side curtain Driver’s inflatable knee bolster Front passenger inf latable knee bolster Air Filtering Antenna — Removable short mast
O
Assist Handles — Passenger Battery — Run-down protection Brake Assist Brake/Lock Differential Brake — 4-wheel anti -lock disc brakes Child Seat Anchor System (LATCH) Defroster — Rear window Electronic Roll Mitigation (ERM) Electronic Stability Control (ESC) Exterior Lamps — Bi- function halogen projector headlamp CHMSL LED taillamps Daytime running lamp Fuel Door Release — Remote Glove Box Grocery Bag Hooks Head Restraints Hill Start Assist
(1)
Three, rear
Instrument Cluster — Includes tachometer Interior Lamps — Front courtesy/map lamps Tru nk Molding — Black DLO Parking Brake Lever — Black Power Outlet — 12-volt auxiliary Sentry Key Solar-Control Glass
®
Engine Immobilizer — Anti-theft technology
Speedometer — 120- mph Steering Column — Tilt/telescoping Suspension — Tour ing Tachometer Temperature Display — Outside, in odometer Tire Pressure Sensors — Lock on Sync Traction Control — All-Speed Trailer Sway Damping Trunk Lid Release — Inside, emergency Remote Wipers — Variable-intermittent
(1)
Always sit properly with the head restraint properly adjusted. Never place anything in
front of the head restraint.
(3)
Always drive carefully, consistent with conditions. Always wear your seat belt and obey
traffic laws.
Chrysler, Dodge and Sentry Key are registered trademarks, and Dart and Tigershark are trademarks of Chrysler Group LLC. Chrysler Group LLC reserves the right to make changes at any time, without notice or obligation. All product specifications are based on authorized information as of 5/25/12. Note that information is based on preliminary data and is subject to change based on vehicle testing and validation.
(1)
(3)
(3)
(2)
Always sit properly in the seat with the seat belt fastened.
Tungsten Metallic
BFLT13-007
Winter Chill
Pearl
Page 3
DoDge Dart
SELECTED FEATURES AND OPTIONS
Mechanical Features
2.0L I-4 DOHC TigersharkTM engine with 6-speed Powertech automatic transmission 24A 24B 24T 24L
2.0L I-4 DOHC Tigershark engine with 6-speed manual transmission 25A 25B 25T 25L
1.4L I-4 16V TurboFire engine with 6-speed manual transmission 23V 23B 23T 23L
1.4L I-4 16V TurboFire engine with 6-speed Dual Dry Clutch AutoStick transmission 22V 22B 22T 22L
2.4L I-4 Tigershark engine with 6-speed manual transmission 27S
2.4L I-4 Tigershark engine with 6-speed Powertech automatic transmission 28S
Active Grille Shutters (MDX)
Alternator — 120-amp (BAN)
— 140-amp (included with 1.4L I4 16V TurboFire engine) (BAE) P
Battery — 500-amp maintenance-free (BCD)
— 600-amp maintenance-free (BC2)
— Run-down protection (BCS)
Brake Assist (BGE)
Brake/Lock Differential (BNL)
Brakes — 4-wheel antilock disc brakes (BRD)
Engine Block Heater (NHK) O O O O O O
Fuel Tank — 15.8 gallon (NFD)
— 13.2 gallon (NFN)
Power Accessory Delay (JKY)
Remote Start — Included with Popular Equipment Group or Premium Group (requires 6-speed Dual Dry Clutch AutoStick transmission or 6-speed Powertech automatic transmission) (XBM)
Speed Control (included with Popular Equipment Group) (NHM) P
Steering — Electric power (SBL)
Suspension — Touring (SDC)
— Sport-tuned with frequency-sensitive damping shocks (SDE)
Exterior Features
Antenna — Removable short-mast (RDB)
Badges — MultiAir® Turbo (included with 1.4L I4 16V TurboFire engine) (MZN) P P P P
— Dodge (MUR)
— Dart (MV3)
— SXT (MGD)
— Rallye (MSZ)
— Limited (MZG)
— R/T (MV4)
Deck Lid Liner (CKU)
Exhaust Tips — Dual, bright (included with 1.4L 16V TurboFire engine) (NER) P P
Exterior Lamps — Bi-function halogen projector headlamps (LMC)
— CHMSL (LPA)
— LED taillamps (LAY)
— LED rear “racetrack” style (LBQ)
— Daytime running lamps (LMN)
— Headlamps-off time delay (LHD)
— Projector fog lamps (LNJ)
— Automatic headlamps (included with Popular Equipment Group) (LMG) P P
CHrYSLer groUP FLeet
SE Aero SXT Rallye Limited R/T
2DA 2DV 2DB 2DT 2DL 2DS
P P P P
Page 4
DoDge Dart
Exterior Features, continued 2DA 2DV 2DB 2DT 2DL 2DX
— Exterior mirror courtesy lamps (LEC)
— High intensity discharge (HID) headlamps (includes Bi-Xenon headlamps) (LMP) O O
— Bi-Xenon headlamps (included with HID headlamps) (LM2) P P
— Auto High Beam Headlamp Control (included with Technology Group) (LMS) P P
Grilles — Body-color with Black surround (MFF)
— Bright with body-color surround (MFD)
— Body-color with body-color surround (MFK)
— Hyper-Black with Black surround (MW7)
Headlamp Bezels — Black (MFA)
— Chrome (MFP)
Molding — Black DLO (MMR)
Tires — 205/55R16 All-Season (TP3)
— 225/45R17 All-Season (TXZ)
— 225/40R18XL All-Season (TWK)
— Compact spare (TBC)
— Delete spare tire (TBF)
Turn Signals — Supplemental, on exterior mirrors (LEB)
Underbody Aerodynamic Treatment (included with Popular Equipment Group) (XXN) P P
Wheels — 16-inch wheel covers (W6H)
— 17-inch wheel covers (WFU)
— 17-inch aluminum, Hyper-Black (WFX) O
— 17-inch painted aluminum (WD3) O
— 17-inch polished aluminum (WFL) O
— 18-inch painted aluminum (WPC)
— 18-inch aluminum, Hyper-Black (WPR) O
Windshield Wipers — Variable-intermittent (JHA)
— Rain-sensitive (included with Technology Group) (JHC) P P
Interior Features
Air Conditioning — With micron filter (included with Value Group) (HAA) P
— Dual-Zone automatic temperature control (ATC) (included with Premium Group) (HAF) P P
Air Filtering (JMA)
Assist Handles — Passenger-side (CSR)
Console — Floor, with covered storage area (CM7)
— Floor, with fore/aft sliding armrest (CM6)
— Overhead with sunglasses holder (included with Popular Equipment Group or Power Sunroof)
(CUD)
Cupholders — Two, front (CX2)
— Two, front, illuminated (included in Popular Equipment Group) (CWP) P P
Defroster — Rear window (GFA)
Door Handles — Black (MNA)
— Body-color (MNE)
— Bright (MNC)
— Chrome, interior (MTN)
Door Locks — Manual (JE8)
— Power, speed-sensitive (included with Value Group or Power Group) (JPH) P
CHrYSLer groUP FLeet
SE Aero SXT Rallye Limited R/T
P P
Page 5
DoDge Dart
Interior Features, continued 2DA 2DV 2DB 2DT 2DL 2DX
Door Trim — Base (CTL)
— Highline (CBW)
— Luxury (CTC)
Electronic Vehicle Information Center (EVIC) (included with Popular Equipment Group) (LAZ) P
Floor Mats — Front and rear (CLE)
Fuel Door Release — Remote (JKD)
Glove Box (JKH)
Grocery Bag Hooks (XGG)
Instrument Cluster — Tachometer (JFH)
Instrument Panel (JAA)
— Soft-touch (JAD)
— Illuminated surround (included with Uconnect® 8.4 or Uconnect 8.4N radios) (LCC) P P
Interior Lamps — Front courtesy/map lamps (LCA)
— Trunk (LDC)
— Glove box (LBC)
— Ambient LED (LCJ)
Mirror — Day/night rearview (GNA)
— Auto-dimming rearview (included with Uconnect® Voice Command) (GN5) P P P P
Mirrors — Manual remote control (GTE)
— Body-color, power (included with Value Group) (GT8) P
— Body-color, power, heated, with integrated turn indicator and puddle lamp (GTK)
Parking Brake Lever — Black (CV6)
Power Outlet — 12-volt auxiliary (JKP)
— 12-volt auxiliary, in console (included with Popular Equipment Group) (JJJ) O P P
Remote USB Port (included with Uconnect Voice Command or Premium Audio Group) (RSX) P P P
Seats — Denim fabric low-back front buckets (*B7) O
— Premium cloth low-back front buckets (*E7)
— Premium cloth low-back front buckets with accents (*C7)
— Nappa leather-trimmed low-back front buckets (included with Premium Group) (*G7/*Y7) P
— Rear, folding bench (CFM)
— 60/40 split-folding rear with trunk pass-through (CFW)
— Rear-seat armrest with cupholders and storage (included with 60/40 split-folding rear seat)
(CSL)
— Six-way manual driver’s seat (JT6)
— Six-way power driver’s seat (JPS)
— Driver’s seat manual height adjuster (CDH)
— Power 4-way driver’s lumbar adjuster (JPU)
— Six-way manual front-passenger seat (CDC)
— Front-passenger in-seat cushion storage area (included with Popular Equipment Group) (CVG) P P
— Front seatback pockets (included with Popular Equipment Group) (CSM) P P
— Heated, front (included with Premium Group) (JPM) P P
Shift Knobs — Satin silver (not available with 6-speed Dual Dry Clutch AutoStick transmission or
6-speed Powertech automatic transmission) (CVZ)
— Urethane (included with 6-speed Dual Dry Clutch AutoStick transmission or 6-speed
Powertech automatic transmission; not available with leather-trimmed seating) (CV1)
— Leather-wrapped (included with 6-speed Dual Dry Clutch AutoStick transmission, 6-speed
Powertech automatic transmission, or leather-trimmed seats) (CVB)
CHrYSLer groUP FLeet
SE Aero SXT Rallye Limited R/T
P P P
P P P P
Page 6
DoDge Dart
CHrYSLer groUP FLeet
SE Aero SXT Rallye Limited R/T
Interior Features, continued 2DA 2DV 2DB 2DT 2DL 2DX
Solar Control Glass (GAM)
Speedometer — 120-mph (JCB)
Steering Column — Tilt/telescoping (SUD)
Steering Wheel — Urethane (SCA)
— Leather-wrapped (included with Popular Equipment Group) (SCC) P P P
— Includes mounted audio controls (included with Uconnect® Voice Command and Popular
P P P
Equipment Group) (RDZ)
— Heated (included with Premium Group) (NHS) P P
Sun Visors — With vanity mirrors (GNW)
— With illuminated vanity mirrors (included with Popular Equipment Group) (GNC) P P
Sunroof — Power, express-open/-close (includes overhead console with sunglasses holder) (GWG) O O O O
Temperature Display — Outside reading appears in odometer (LAH)
— Temperature and compass gauge (JFJ)
Trip Computer (included with Popular Equipment Group) (LEJ) P
Windows — Power, with driver’s side one-touch down (JPD)
— Power, with front one-touch up/down (JP3)
Safety and Security
(2)
Air Bags
— Advanced multistage front (CG3)
— Supplemental front-seat side (CJ1)
— Supplemental rear-seat side (CJ7)
— Supplemental side-curtain (CJ2)
— Occupant Classification System (XCA)
— Driver’s inflatable knee bolster (CGY)
— Front-passenger inflatable knee bolster (CHF)
Blind Spot Monitoring (included with Technology Group)
(3)
(XAN) P P
Child Seat Anchor System (LATCH) (CGU)
Electronic Roll Mitigation (ERM) (BNS)
Electronic Stability Control (ESC)
(4)
(BNB)
Head Restraints — Three, rear (CSH)
Hill Start Assist (BNG)
Intrusion Alarm (included with Technology Group; late availability) (XEZ) P P
Keyless Enter ’N GoTM (included with Technology Group) (GX4) P P
ParkSense® Rear Park Assist (included with Technology Group)
ParkView® Rear Back-Up Camera (included with Premium Audio Group)
Reactive Front Head Restraints
(1)
(CDP)
Rear Cross-Path Detection (included with Technology Group)
(5)
(XAA) P P
(5)
(XAC) P P
(5)
(XAN) P P
Remote Keyless Entry — With panic alarm (included with Value Group or Power Group) (GXM) P
Remote Proximity Keyless Entry (included with Technology Group) (GXD) P P
Security Alarm (LSA)
Sentry Key® Engine Immobilizer (GXX)
Tire Pressure Monitoring System (LAB)
Tire Pressure Monitoring Display (included with Popular Equipment Group) (XGM) P P
Tire Pressure Sensors - Lock on Sync (CXG)
Tire Service Kit (XFP)
Traction Control — All-Speed (BNP)
Page 7
DoDge Dart
CHrYSLer groUP FLeet
SE Aero SXT Rallye Limited R/T
Safety and Security, continued 2DA 2DV 2DB 2DT 2DL 2DX
Trailer Sway Damping
(4)
(BNT)
Trunk Lid Release — Inside, emergency (JKK)
— Remote (JKE)
Uconnect® and Media
HomeLink® Universal Transceiver (included with Premium Group) (XGD) P P
Sound System — Uconnect 200 with AM/FM, CD, MP3 (RAE)
— Uconnect® 8.4 radio with iPod® Control, remote USB port, remote SD card slot, 8.4-inch
touch screen, CD player (included with Premium Audio Group; requires SiriusXMTM Satellite
(6)
radio)
(RE2)
— Uconnect 8.4N radio with iPod Control, remote USB port, remote SD card slot, 8.4-inch touch
screen, CD player, SiriusXM Satellite radio, SiriusXMTM Travel Link and Garmin Navigation (SXT and Rallye require Premium Audio Group)
— SiriusXM™ Satellite radio (included with Uconnect Touch 8.4 or 8.4N radio)
(6)
(RB5)
(6)
(RSC) O/P O/P
P P
O O O O
— Audio jack input (RSU)
— iPod controls (included with Uconnect 8.4 or 8.4N radio) (RST) P P
Speakers — Four (RCD)
— Six (RCG)
— Alpine Surround Sound Nine speakers with 506-watt amplifier and subwoofer (SXT and
O O O O
Rallye require Premium Audio Group) (RC3)
Uconnect® Voice Command
(7)
— Includes auto-dimming rearview mirror, remote USB port (with
O O O
AM/FM radio) and steering wheel-mounted audio controls (RSP)
Groups and Packages
Aero Package (AYS)
Popular Equipment Group — Includes overhead console with sunglasses holder, remote start
O O system (if equipped with automatic transmission), trip computer, front-passenger in-seat storage, front seatback pockets, illuminated front cupholders, Electronic Vehicle Information Center (EVIC), automatic headlamps, tire pressure monitoring system, speed control, steering wheel-mounted audio controls, leather-wrapped steering wheel, underbody aerodynamic treatment, sun visors with illuminated vanity mirrors, 12-volt auxiliary power outlet, and headlamp-off time delay (AJY)
Power Group — Includes remote keyless entry, speed-sensitive power door locks and
O
body-color power mirrors (ATT)
Premium Audio Group — Includes Uconnect Touch 8.4 radio, remote USB port, ParkView® Rear Back-Up camera.
disc remote CD player
iPod® control, remote SD card slot, 8.4-inch touch screen display, and single
(AMT)
Premium Group — Includes remote start system (if equipped with automatic transmission),
O O
O O air conditioning with Dual-Zone automatic temperature control (ATC), HomeLink Universal Transceiver, heated steering wheel, heated front seats, and leather-trimmed seats (Limited model only) (ANF)
Rallye Group (AL6)
Technology Group — Includes remote proximity keyless entry, Fast Key passive/keyless go, intrusion alarm (late availability), rain-sensitive windshield wipers, Auto High Beam Headlamp Control, ParkSense® Rear Park Assist,
(5)
Blind Spot Monitoring
(3)
and Rear Cross Path Detection
(5)
(ADG)
Value Group — Includes remote keyless entry with panic alarm, body-color power mirrors, air
O
O O
conditioning with micron filter and speed-sensitive power door locks (AAN)
• = Included P = Available with package noted O = Optional
(1)
Always sit properly with the head restraint properly adjusted. Never place anything in front of the head restraint.
(2)
The advanced front air bags in this vehicle are certified to the new U.S. federal regulations for advanced air bags. Children 12 years and younger should always ride buckled up in a rear seat. Infants in rear-facing child restraints should never ride in the front seat of a vehicle with a front passenger air bag. All occupants should always wear their lap and shoulder belts properly.
(3)
Always check visually for vehicles prior to changing lanes.
(4)
No system, no matter how sophisticated, can repeal the laws of physics or overcome careless driving actions. Performance is limited by available traction, which snow, ice and other conditions can affect. When the ESC warning lamp flashes, the driver needs to use less throttle and adapt speed and driving behavior to prevailing road conditions. Always drive carefully, consistent with conditions. Always wear your seat belt.
(5)
Always check entire surroundings visually before backing up.
(6)
Requires SIRIUS Radio, Traffic, Travel Link and Backseat TV subscriptions, sold separately after trial period. Other fees and taxes will apply. SIRIUS Traffic and Travel Link available in select markets. Backseat TV subscriptions not available without SIRIUS Radio subscription, SIRIUS data displays and individual product availability vary by hardware equipment. SIRIUS services available only to those at least 18 years of age in the 48 contiguous U.S.A., DC, and Puerto Rico (with coverage limitations), while Internet radio is also available in AK, HI and PR. Fees and programming subject to change. Service automatically renews and you will be billed, at then-current rates, unless you call 1-888-539-7474 to cancel. Subscriptions governed by SIRIUS Terms and Conditions, available at sirius.com Service available in Canada; see siriuscanada.ca
(7)
Phone must support Bluetooth Phone Book Access Profile (PBAP). Chrysler, Dodge, Mopar, ParkSense, ParkView, Sentry Key and Uconnect are registered trademarks and Dart, Tigershark, and Uconnect Touch are trademarks of Chrysler Group LLC. HomeLink is a registered trademark owned by Johnson Controls. Gracenote MusicID is a registered trademark of Gracenote, Inc. Sirius, XM, and all related marks and logos are trademarks of SiriusXM Radio Inc. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Garmin is a registered trademark of Garmin Ltd. Boston Acoustics is a registered trademark of Boston Acoustics, Inc. Chrysler Group LLC reserves the right to make changes at any time. All product specifications are based on authorized information as of 5/10/12.
Loading...
