If you are the first

registered retail owner of

your vehicle, you may obtain

a complimentary printed copy

of the Owner’s Manual,

Navigation/Media Center

Manuals or Warranty Booklet

by calling 1-800-423-6343 (U.S.)

or 1-800-387-1143 (Canada) or

by contacting your dealer.

The driver’s primary responsibility is the safe operation of the vehicle. Driving while distracted can result in loss of vehicle control, resulting in a collision and personal injury. Chrysler Group LLC strongly recommends that the driver use extreme caution when using any device or feature that may take their attention off the road. Use of any electrical devices such as cell phones, computers, portable radios, vehicle navigation or other devices by the driver while the vehicle is moving is dangerous and could lead to a serious collision. Texting while driving is also dangerous and should never be done while the vehicle is moving. If you nd yourself unable to devote your full attention to vehicle operation, pull off the road to a safe location and stop your vehicle. Some States or Provinces prohibit the use of cellular telephones or texting while driving. It is always the driver’s responsibility to comply with all local laws.

This User Guide is intended to familiarize you with the important features of your vehicle. The DVD enclosed contains your Owner’s Manual, Navigation/Media Center Manuals, Warranty Booklets, Tire Warranty and 24-Hour Towing Assistance (new vehicles purchased in the U.S.) or Roadside Assistance (new vehicles purchased in Canada) in electronic format. We hope you nd it useful. Replacement DVD kits may be purchased by visiting www.techauthority.com. Copyright 2011 Chrysler Group LLC.

IMPORTANT

Driving after drinking can lead to an accident. Your perceptions are less sharp, your reexes are slower, and your judgment is impaired when you have been drinking. Never drink and then drive.

Drunken driving is one of the most frequent causes of accidents. Your driving ability can be seriously impaired with blood alcohol levels far below the legal minimum. If you are drinking, don’t drive. Ride with a designated non-drinking driver, call a cab, a friend, or use public transportation.

DRIVING AND ALCOHOL

DODGE.COM

This guide has been prepared to help you get quickly acquainted with your new Dodge and to provide a convenient reference source for common questions. However, it is not a substitute for your Owner’s Manual.

For complete operational instructions, maintenance procedures and important safety messages, please consult your Owner’s Manual, Navigation/Media Center Manuals, Multimedia User Manual and other Warning Labels in your vehicle.

Not all features shown in this guide may apply to your vehicle. For additional information on accessories to help personalize your vehicle, visit www.mopar.com or your local Dodge dealer.

Page 3

T ABLE OF CONTENTS

INTRODUCTION/WELCOME

Welcome From Chrysler Group LLC ....2

CONTROLS AT A GLANCE

Driver Cockpit ...............4

Instrument Cluster .............6

GETTING STARTED

KeyFob...................8

Remote Start ................9

Keyless Enter-N-Go .............9

Theft Alarm ................12

Seat Belt .................13

Supplemental Restraint System (SRS) —

Air Bags ..................14

Child Restraints .............15

Front Seats ................17

Rear Seat .................19

Heated Seats ...............20

Tilt / Telescoping Steering Column ....21

OPERATING YOUR VEHICLE

Engine Break-In Recommendations . . . 22 Turn Signal/Wiper/Washer/High Beam

Lever ...................22

Headlight Switch .............23

Speed Control ..............24

Manual Transmission 1 To 4 Skip Shift

Manual Climate Controls .........25

Automatic Temperature Controls (ATC)

Power Sunroof ..............26

Wind Buffeting ..............27

..25

..26

ELECTRONICS

Your Vehicle's Sound System ......28

Media Center 130 (Sales Code RES) . . 30 Media Center 130 With Satellite Radio

(Sales Code RES + RSC) .........32

Media Center 430/430N (Sales Code

RBZ/RHB) ................34

Media Center 730N (Sales Code RHR) Sirius XM™ Satellite Radio/Travel Link

Steering Wheel Audio Controls ......55

Uconnect™ Phone ............56

Uconnect™ Voice Command .......58

Bluetooth iPod Electronic Vehicle Information Center

(EVIC) ...................61

Programmable Features .........62

Streaming Audio .......60

/USB/MP3 Control .........60

..43 ..52

Universal Garage Door Opener (HomeLink

Power Outlets ...............66

) ...............63

UTILITY

Trailer Towing Weights (Maximum Trailer

Weight Ratings) ..............67

Recreational Towing (Behind Motorhome,

Etc.) ....................68

SRT8

AutoStick®................69

Performance Features ..........71

WHAT TO DO IN EMERGENCIES

24-Hour Towing Assistance .......73

Instrument Cluster Warning Lights . . . 73

If Your Engine Overheats .........77

Jacking And Tire Changing ........78

Battery Location .............83

TIREFIT Kit ................83

Jump-Starting ..............89

Shift Lever Override ...........91

Towing A Disabled Vehicle ........92

Freeing A Stuck Vehicle .........93

Event Data Recorder (EDR) .......94

MAINTAINING YOUR VEHICLE

Opening The Hood ............95

Engine Compartment ...........96

Fluids And Capacities ..........99

Maintenance Chart ........... 102

Fuses .................. 108

Tire Pressures .............. 111

Wheel And Wheel Trim Care ...... 111

Exterior Bulbs ............. 112

CONSUMER ASSISTANCE

Chrysler Group LLC Customer Center Chrysler Canada Inc. Customer

Center .................. 113

Assistance For The Hearing Impaired .

Publications Ordering ......... 113

Reporting Safety Defects In The 50 United States And Washington, D.C.

. . 113

. 113

. . 114

MOPAR ACCESSORIES

Authentic Accessories By MOPAR®. . 115

INDEX

................. 116

FAQ (How To?)

Frequently Asked Questions ...... 119

Page 4

INTRODUCTION/WELCOME

WELCOME FROM CHRYSLER GROUP LLC

Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles.

Your new Chrysler Group LLC vehicle has characteristics to enhance the driver's control under some driving conditions. These are to assist the driver and are never a substitute for attentive driving. They can never take the driver's place. Always drive carefully.

Your new vehicle has many features for the comfort and convenience of you and your passengers. Some of these should not be used when driving because they take your eyes from the road or your attention from driving. Never text while driving or take your eyes more than momentarily off the road.

This guide illustrates and describes the operation of features and equipment that are either standard or optional on this vehicle. This guide may also include a description of features and equipment that are no longer available or were not ordered on this vehicle. Please disregard any features and equipment described in this guide that are not available on this vehicle. Chrysler Group LLC reserves the right to make changes in design and specifications and/or make additions to or improvements to its products without imposing any obligation upon itself to install them on products previously manufactured.

This User Guide has been prepared to help you quickly become acquainted with the important features of your vehicle. It contains most things you will need to operate and maintain the vehicle, including emergency information.

The DVD includes a computer application containing detailed owner's information which can be viewed on a personal computer or MAC computer. The multimedia DVD also includes videos which can be played on any standard DVD player (including the Media Center Touch-Screen Radios). Additional DVD operational information is located on the back of the DVD sleeve.

For complete owner information, refer to your Owner's Manual on the DVD in the owner’s kit provided at the time of new vehicle purchase. For your convenience, the information contained on the DVD may also be printed and saved for future reference.

Chrysler Group LLC is committed to protecting our environment and natural resources. By converting from paper to electronic delivery for the majority of the user information for your vehicle, together we greatly reduce the demand for tree-based products and lessen the stress on our environment.

Page 5

INTRODUCTION/WELCOME

Vehicles Sold In Canada

With respect to any vehicles sold in Canada, the name Chrysler Group LLC shall be deemed to be deleted and the name Chrysler Canada Inc. used in substitution therefore.

WARNING!

• Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious personal injury.

• Always make sure that objects cannot fall into the driver foot well while the vehicle is moving. Objects can become trapped under the brake pedal and accelerator pedal causing a loss of vehicle control.

• Failure to properly follow floor mat installation or mounting can cause interference with the brake pedal and accelerator pedal operation causing loss of control of the vehicle.

• Never use the ‘PARK’ position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage.

• Refer to your Owner's Manual on the DVD for further details.

USE OF AFTERMARKET PRODUCTS (ELECTRONICS)

The use of aftermarket devices including cell phones, MP3 players, GPS systems, or chargers may affect the performance of on-board wireless features including Keyless Enter-N-Go and Remote Start range. If you are experiencing difficulties with any of your wireless features, try disconnecting your aftermarket devices to see if the situation improves. If your symptoms persist, please see an authorized dealer.

CHRYSLER, DODGE, JEEP, RAM TRUCK, ATF+4, MOPAR and Uconnect are registered trademarks of Chrysler Group LLC.

Page 6

CONTROLS A T A GLANCE

DRIVER COCKPIT

Page 7

K. Speed Control pg. 24

L. Hood Release (below steering wheel at

base of instrument panel) pg. 95

M. EVIC Controls pg. 61

CONTROLS A T A GLANCE

N. Parking Brake Pedal

O. Trunk Release Button

P. Power Mirrors

Q. Power Door Locks

R. Power Windows

G. Climate Controls pg. 25

A. Headlight Switch pg. 23

H. Power Outlet pg. 66

I. Transmission Shift Lever

Lever (behind steering wheel) pg. 22

B. Turn Signal/Wiper/Washer/High Beams

− Heated Seat Switches pg. 20

J. SWITCH PANEL

(EVIC) Display (behind steering wheel)

C. Electronic Vehicle Information Center

pg. 61

− Hazard Switch

− Electronic Stability Control (ESC) Off

D. Instrument Cluster pg. 6

E. Ignition Switch/Keyless Enter-N-Go

pg. 73

Button (behind steering wheel) pg. 11

shown) pg. 28

F. Audio System (touch-screen radio

Page 8

CONTROLS A T A GLANCE

INSTRUMENT CLUSTER

Warning Lights

- Low Fuel Warning Light

- Charging System Light**

- Oil Pressure Warning Light**

- Anti-Lock Brake (ABS) Light**

- Air Bag Warning Light**

- Electronic Throttle Control (ETC) Light

- Tire Pressure Monitoring System (TPMS) Light

- Engine Temperature Warning Light

- Seat Belt Reminder Light

BRAKE

(See page 73 for more information.)

- Brake Warning Light**

- Malfunction Indicator Light (MIL)**

- Electronic Stability Control (ESC) Activation/Malfunction Indicator Light*

Page 9

CONTROLS A T A GLANCE

Indicators

- Turn Signal Indicators

- High Beam Indicator

- Front Fog Light Indicator

- Vehicle Security Indicator*

- Electronic Speed Control / Adaptive Cruise Control (ACC) Indicator

- Electronic Stability Control (ESC) Off Indicator*

- Windshield Washer Fluid Low Indicator***

- Door Ajar Indicator***

- Decklid Ajar Indicator***

SPORT

* If equipped

** Bulb Check with Key On

***On vehicles equipped with a Premium Instrument Cluster, this display shows the Electronic Vehicle Information Center (EVIC) messages when the appropriate conditions exist.

- Sport Mode Indicator

Page 10

GETTING ST AR TED

KEY FOB

Locking And Unlocking The Doors

• Press the LOCK button once to lock all the doors. Press the UNLOCK button once to unlock the driver’s door only and twice within five seconds to unlock all the doors.

• All doors can be programmed to unlock on the first press of the UNLOCK button. Refer to Programmable Features in this guide.

Opening The Trunk

• Press the TRUNK button two times within five seconds to open the trunk.

Panic Alarm

• Press the PANIC button once to turn the panic alarm on.

• Wait approximately three seconds and press the button a second time to turn the panic alarm off.

Emergency Key

• Should the battery in the vehicle or the Key Fob transmitter go dead, there is an emergency key located in the Key Fob that can be used for locking and unlocking the doors. To remove the emergency key, slide the button at the top of the Key Fob sideways with your thumb and then pull the key out with your other hand.

CAUTION!

• If your vehicle battery becomes low or dead, your Key Fob will become locked in the ignition.

• Do not attempt to remove the Key Fob while in this condition, damage could occur to the Key Fob or ignition module. Only remove the emergency key for locking and unlocking the doors.

• Leave the Key Fob in the ignition and either:

• Jump Start the vehicle.

• Charge the battery.

• Contact your dealer for assistance on how to remove the Key Fob using the manual over ride method.

Page 11

GETTING ST AR TED

WARNING!

• Leaving unattended children in a vehicle is dangerous for a number of reasons. A child or others could be severely injured or killed. Children should be warned not to touch the parking brake, brake pedal, or the shift lever. Do not leave the Key Fob inside the vehicle or in the ignition. A child could start the vehicle, operate power windows, other controls, or move the vehicle.

• Do not leave children or animals inside parked vehicles in hot weather. Interior heat build-up may cause them to be severely injured or killed.

• Keep Key Fob transmitters away from children. Operation of the Remote Start System, windows, door locks or other controls could cause serious injury or death.

REMOTE ST ART

• Press the REMOTE START button Pressing the REMOTE START button a third time shuts the engine off.

• To drive the vehicle, press the UNLOCK button, insert the Key Fob in the ignition and turn to the ON/RUN position.

• With remote start, the engine will only run for 15 minutes (timeout) unless the ignition Key Fob is placed in the ON/RUN position.

• The vehicle must be started with the Key Fob after two consecutive timeouts.

on the Key Fob twice within five seconds.

WARNING!

• Do not start or run an engine in a closed garage or confined area. Exhaust gas contains Carbon Monoxide (CO) which is odorless and colorless. Carbon Monoxide is poisonous and can cause you or others to be severely injured or killed when inhaled.

• Keep Key Fob transmitters away from children. Operation of the Remote Start System, windows, door locks or other controls could cause you and others to be severely injured or killed.

KEYLESS ENTER-N-GO

• The Keyless Enter-N-Go system is an enhancement to the vehicle's Key Fob. This feature allows you to lock and unlock the vehicle's door(s) and trunk without having to press the Key Fob lock or unlock buttons, as well as starting and stopping the vehicle with the press of a button.

Page 12

GETTING ST AR TED

To Unlock From The Driver or Passenger Side:

• With a valid Keyless Enter-N-Go Key Fob located outside the vehicle and within 5 ft (1.5m) of the driver or passenger side door handle, grab either front door handle to unlock the door automatically.

To Lock the Vehicle:

• Both front door handles have LOCK buttons located on the outside of the handle. With one of the vehicle's Keyless Enter-N-Go Key Fobs located outside the vehicle and within 5 ft (1.5m) of the driver's or passenger front door handle, press the door handle LOCK button to lock all four doors and trunk.

NOTE:

• If “Unlock All Doors 1st Press” is programmed all doors will unlock when you grab hold of the front driver's door handle. To select between “Unlock Driver Door 1st Press” and “Unlock All Doors 1st Press”, refer to the Electronic Vehicle Information Center (EVIC) in your vehicle's Owner's Manual on the DVD or Programmable Features in this guide for further information.

• If “Unlock All Doors 1st Press” is programmed all doors and trunk will unlock when you press the trunk button. If “Unlock Driver Door 1st Press” is programmed only the trunk will unlock when you press the trunk button. To select between “Unlock Driver Door 1st Press” and “Unlock All Doors 1st Press”, refer to the Electronic Vehicle Information Center (EVIC) in your vehicle's Owner's Manual on the DVD or Programmable Features in this guide for further information.

• If a Key Fob is detected in the vehicle when locking the vehicle using the power door lock switch, the doors and trunk will unlock and the horn will chirp three times. On the third attempt, your Key Fob can be locked inside the vehicle.

• After pressing the Keyless Enter-N-Go LOCK button, you must wait 2 seconds before you can lock or unlock the vehicle using the door handle. This is done to allow you to check if the vehicle is locked by pulling the door handle, without the vehicle reacting and unlocking.

Page 13

GETTING ST AR TED

• If a Keyless Enter-N-Go door handle has not been used for 72 hours, the Keyless Enter-N-Go feature for that handle may time out. Pulling the deactivated front door handle will reactivate the door handle's Keyless Enter-N-Go feature.

To Enter the Trunk:

• With a valid Keyless Enter-N-Go Key Fob located outside the vehicle and within 3 ft (1.0 m) of the deck lid, press the button on the located on the center of the light bar which is located on the deck lid above the license plate.

NOTE:

• Refer to your Owner's Manual on the DVD for further information.

Engine Starting/Stopping - Automatic Transmission

Starting

• Place the shift lever in PARK or

NEUTRAL.

• While pressing the brake pedal, press

the ENGINE START/STOP button once. If the engine fails to start, the starter will disengage automatically after 10 seconds.

• To stop the cranking of the engine prior

to the engine starting, press the button again.

Stopping

• Place the shift lever in PARK.

• Press the ENGINE START/STOP button once. The ignition switch will return to the OFF position.

• If the shift lever is not in PARK, the ENGINE START/STOP button must be held for two

seconds and vehicle speed must be above 5 mph (8 km/h) before the engine will shut off.

NOTE:

• If the ignition switch is left in the ACC or RUN (engine not running) position and the transmission is in PARK, the system will automatically time out after 30 minutes of inactivity and the ignition will switch to the OFF position.

Page 14

GETTING ST AR TED

Engine Starting/Stopping - Manual Transmission

Starting

• Press and hold the clutch pedal while pressing and holding the ENGINE START/STOP button. Release the button when the engine starts. If the engine fails to start within 15 seconds, release the button, wait 10 to 15 seconds, then repeat.

• To stop the cranking of the engine prior to the engine starting, release the button.

Stopping

• With the vehicle stopped, place the shift lever in NEUTRAL.

• Press the ENGINE START/STOP button once. The ignition switch will return to the OFF position.

• If the vehicle speed is above 5 mph (8 km/h), the ENGINE START/STOP button must be

held for two seconds before the engine will shut off. The ignition switch position will remain in the ACC position until the vehicle is stopped and the button is pressed twice to the OFF position.

NOTE:

• If the ignition switch is left in the ACC position, the system will automatically time out after 60 minutes of inactivity and the ignition will switch to the OFF position.

Additional Functions

NOTE:

• The following functions are with the driver’s foot OFF the Brake Pedal/Clutch Pedal (Transmission in PARK or NEUTRAL Position).

Starting With The Ignition Switch In The OFF Position:

• Press the ENGINE START/STOP button once to change the ignition switch to the

ACC position.

• Press the ENGINE START/STOP button a second time to change the ignition

switch to the RUN position.

• Press the ENGINE START/STOP button a third time to return the ignition switch to

the OFF position.

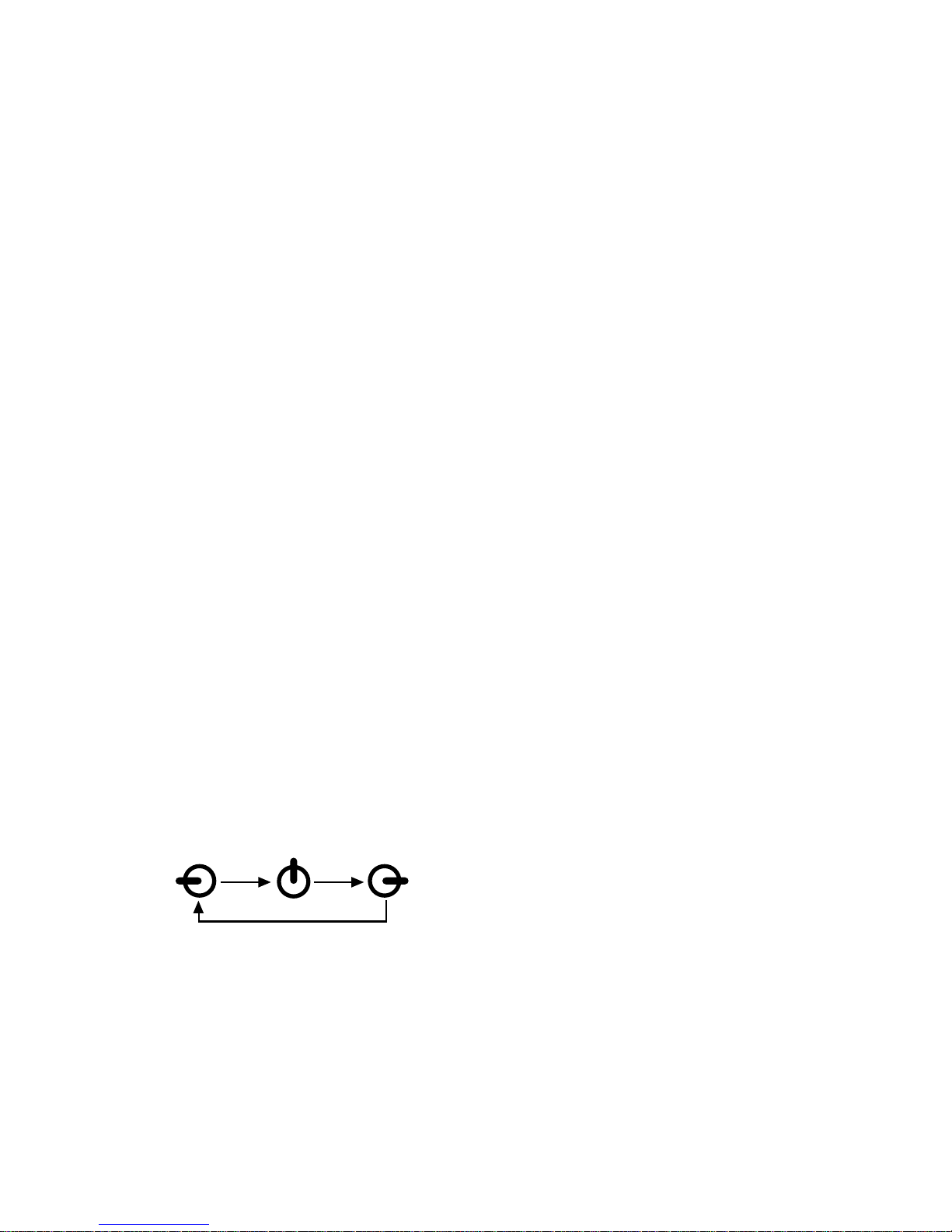

ACC

OFF RUN

Press Press

Press

THEFT ALARM

To Arm

• Keyless Enter-N-Go button installed: Press the Keyless Enter-N-Go Start/Stop button

until the Electronic Vehicle Information Center (EVIC) indicates that the vehicle ignition is “OFF”. Press the power door lock switch while the door is open, press the Key Fob LOCK button, or with one of the Key Fobs located outside the vehicle and within 5 ft (1.5m) of the driver's and passenger front door handles, press the Keyless Enter-N-Go LOCK button located on the door handle.

Page 15

GETTING ST AR TED

• Keyless Enter-N-Go button not installed: Turn the ignition switch to the “OFF”

position. Press the power door lock switch while the door is open, press the Key Fob LOCK button, or with one of the Key Fobs located outside the vehicle and within 5 ft (1.5m) of the driver's and passenger front door handles, press the Keyless Enter-N-Go LOCK button located on the door handle.

NOTE: After pressing the Keyless Enter-N-Go LOCK button, you must wait two seconds before you can lock or unlock the vehicle via the door handle.

To Disarm

• Keyless Enter-N-Go button installed: Press the Key Fob UNLOCK button or with one

of the Key Fobs located outside the vehicle and within 5 ft (1.5m) of the driver's and passenger front door handles, grab the Keyless Enter-N-Go door handle and enter the vehicle, then press the Keyless Enter-N-Go Start/Stop button (requires at least one valid Key Fob in the vehicle).

• Keyless Enter-N-Go button not installed: Press the Key Fob UNLOCK button or with

one of the Key Fobs located outside the vehicle and within 5 ft (1.5m) of the driver's and passenger front door handles, grab the Keyless Enter-N-Go door handle and enter the vehicle, then turn the ignition to the ON/RUN position.

SEA T BEL T

• Be sure everyone in your vehicle is in a seat and using a seat belt properly.

• Position the lap belt across your thighs, below your abdomen. To remove slack in the lap portion, pull up a bit on the shoulder belt. To loosen the lap belt if it is too tight, tilt the latch plate and pull on the lap belt. A snug belt reduces the risk of sliding under the belt in a collision.

• Position the shoulder belt on your chest so that it is comfortable and not resting on your neck. The retractor will withdraw any slack in the belt.

• A shoulder belt placed behind you will not protect you from injury during a collision. You are more likely to hit your head in a collision if you do not wear your shoulder belt. The lap and shoulder belt are meant to be used together.

• A belt that is too loose will not protect you properly. In a sudden stop you could move too far forward, increasing the possibility of injury. Wear your seat belt snugly.

• A frayed or torn belt could rip apart in a collision and leave you with no protection. Inspect the belt system periodically, checking for cuts, frays, or loose parts. Damaged parts must be replaced immediately. Do not disassemble or modify the system. Seat belt assemblies must be replaced after a collision if they have been damaged (bent retractor, torn webbing, etc.).

• The seat belts for both front seating positions are equipped with pretensioning devices that are designed to remove slack from the seat belt in the event of a collision.

• A deployed pretensioner or a deployed air bag must be replaced immediately.

Page 16

GETTING ST AR TED

WARNING!

In a collision, you and your passengers can suffer much greater injuries if you are not buckled up properly. You can strike the interior of your vehicle or other passengers, or you can be thrown out of the vehicle. Always be sure you and others in your vehicle are buckled up properly.

SUPPLEMENT AL RESTRAINT SYSTEM (SRS) — AIR BAGS

• This vehicle has Advanced Front Air Bags for both the driver and right front passenger as a supplement to the seat belt restraint system. The Advanced Front Air Bags will not deploy in every type of collision.

• Advanced Front Air Bags are designed to provide additional protection by supplementing the seat belts in certain frontal collisions depending on the severity and type of collision. Advanced Front Air Bags are not expected to reduce the risk of injury in rear, side, or rollover collisions.

• This vehicle is equipped with Supplemental Side Air Bag Inflatable Curtains to protect the driver, front and rear passengers sitting next to a window.

• This vehicle is equipped with Supplemental Seat-Mounted Side Air Bags to provide enhanced protection to help protect an occupant during a side impact.

• If the Air Bag Warning Light while driving, have the vehicle serviced by an authorized service center immediately.

• Refer to the Owner's Manual on the DVD for further details regarding the Supplemental Restraint System (SRS).

is not on during starting, stays on, or turns on

• Relying on the air bags alone could lead to more severe injuries in a collision. The air bags work with your seat belt to restrain you properly. In some collisions, the air bags won't deploy at all. Always wear your seat belts even though you have air bags.

• Being too close to the steering wheel or instrument panel during Advanced Front Air Bag deployment could cause serious injury, including death. Air bags need room to inflate. Sit back, comfortably extending your arms to reach the steering wheel or instrument panel.

• Supplemental Side Air Bag Inflatable Curtains and Supplemental Seat-Mounted Side Air Bags need room to inflate. Do not lean against the door or window. Sit upright in the center of the seat.

• Being too close to the Supplemental Side Air Bag Inflatable Curtain and/or Seat-Mounted Side Air Bag during deployment could cause you to be severely injured or killed.

WARNING!

(Continued)

Page 17

GETTING ST AR TED

WARNING! (Continued)

• Do not drive your vehicle after the air bags have deployed. If you are involved in another collision, the air bags will not be in place to protect you.

• After any collision, the vehicle should be taken to an authorized dealer immediately.

CHILD RESTRAINTS

• Children 12 years and under should ride properly buckled up in a rear seat, if available. According to crash statistics, children are safer when properly restrained in the rear seats rather than in the front.

• Every state in the United States and all Canadian provinces require that small children ride in proper restraint systems. This is the law, and you can be prosecuted for ignoring it.

Installing The LATCH-Compatible Child Restraint System

• Your vehicle's second row passenger seats are equipped with the child restraint anchorage system called LATCH, which stands for Lower Anchors and Tether for CHildren. LATCH child restraint anchorage systems are installed at all three rear seating positions.

• Both rear outboard seating positions and the rear center seating position have lower anchors and top tether anchors.

• Child seats with flexible or fixed rigid attachments can be installed in all rear seating positions. Child seats can be installed using the LATCH system in either or both outboard seating positions or the center position, but not all three at the same time. If a child seat is installed in an outboard seating position using the lower anchors, then the vehicle seatbelt must be used for the center position.

• Never install LATCH-compatible child seats such that two seats share a common lower anchorage.

• The rear seat lower anchorages are round bars, located at the rear of the seat cushion where it meets the seatback. They are just visible when you lean into the rear seat to install the child restraint. You will easily feel them if you run your finger along the intersection of the seatback and seat cushion surfaces.

• In addition, there are tether strap anchorages behind each rear seating position located in the panel between the rear seatback and the rear window. These tether strap anchorages are under a plastic cover.

Page 18

GETTING ST AR TED

• Loosen the child seat adjusters on the lower straps and tether straps so that you can attach the hook or connector to the lower and tether anchorages more easily.

• Attach the lower hooks or connectors over the top of the anchorage bars, pushing aside the seat cover material. The rear seat lower anchorages are round bars, located at the rear of the seat cushion where it meets the seatback. The rear seat lower anchors can be readily identified by the symbol directly above the anchorages and are just visible when you lean into the rear seat to install the child restraint.

• Then rotate the tether anchorage cover directly behind the seat where you are placing the child restrain and attach the tether strap to the anchorage, being careful to route the tether strap to provide the most direct path between the anchor and the child restrain.

• Tighten all three straps as you push the child restraint rearward and downward into the seat.

located on the seatback

Installing The Child Restraint Using The Vehicle Seat Belts

• To install a child restraint, first, pull enough of the seat belt webbing from the retractor to route it through the belt path of the child restraint and slide the latch plate into the buckle.

• Next, extract all the seat belt webbing out of the retractor and then allow the belt to retract into the retractor. Finally, pull on any excess webbing to tighten the lap portion around the child restraint. Any seat belt system will loosen with time, so check the belt occasionally, and pull it tight if necessary.

• Rotate the cover over the anchor directly behind the seat where you are placing the child restraint. These tether strap anchorages are under a plastic cover.

• Route the tether strap to provide the most direct path for the strap between the anchor and the child seat.

• Attach the tether strap hook of the child restraint to the anchor and remove slack in the tether strap according to the child restraint manufacturer’s instructions.

Page 19

GETTING ST AR TED

WARNING!

• In a collision, an unrestrained child, even a tiny baby, can become a projectile inside the vehicle. The force required to hold even an infant on your lap could become so great that you could not hold the child, no matter how strong you are. The child and others could be severely injured or killed. Any child riding in your vehicle should be in a proper restraint for the child's size.

• Rearward-facing child seats must never be used in the front seat of a vehicle with a front passenger air bag. An air bag deployment could cause infants in this position to be severely injured or killed.

• Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or child restraint. The child could be severely injured or killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint.

• An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchor positions directly behind the child seat to secure a child restraint top tether strap.

FRONT SEA TS

Power Seats

• The power seat switches are located on the outboard side of the front seat cushions.

• The seat switch, controls forward/backward and up/down.

Page 20

GETTING ST AR TED

Power Lumbar

• Push the switch forward to increase the lumbar support. Push the switch rearward to decrease the lumbar support.

• Pushing upward or downward on the switch will raise and lower the position of the support.

Manual Seat Adjustment

Forward/Rearward

• Lift up on the adjusting bar located at the front of the seat near the floor and release at the desired position.

Recliner

• Lean forward in the seat and lift the recliner lever, then lean back to the desired position and release the lever.

• Lift the lever to return the seatback to an upright position.

Page 21

GETTING ST AR TED

Easy Entry Seats

• Pull forward on the lever, located on the side of the seatback, to dump the seatback forward and slide the seat forward. You can also temporarily remove the seat belt from the guide loop on the seat and allow the seat belt to retract out of the way. This allows for easier access to the rear seat.

CAUTION!

DO NOT place any article under a power seat or impede its ability to move as it may cause damage to the seat controls. Seat travel may become limited if movement is stopped by an obstruction in the seat's path.

WARNING!

• Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be properly adjusted, and you could be severely injured or killed. Only adjust a seat while the vehicle is parked.

• Do not ride with the seatback reclined so that the seat belt is no longer resting against your chest. In a collision, you could slide under the seat belt and be severely injured or killed. Use the recliner only when the vehicle is parked.

REAR SEA T

Folding Rear Seatback

• Pull on the loops, located near the outer top of the seatbacks, to fold down either or both seatbacks. These loops can be tucked away when not in use.

• When the seatback is raised to the upright position, make sure it is latched by strongly pulling on the top of the seatback above the seat loop.

Page 22

GETTING ST AR TED

WARNING!

• Be certain that the seatback is securely locked into position. If the seatback is not securely locked into position, the seat will not provide the proper stability for child seats and/or passengers. An improperly latched seat could cause serious injury.

• The cargo area in the rear of the vehicle (with the rear seatbacks in the locked-up or folded-down position) should not be used as a play area by children when the vehicle is in motion. They could be seriously injured in a collision. Children should be seated and using the proper restraint system.

HEA TED SEATS

Front Heated Seats

• The controls for front heated seats are located on the center instrument panel below the climate controls.

• Press the switch once to select High-level heating. Press the switch a second time to select Low-level heating. Press the switch a third time to shut the heating elements Off.

• If the High-level setting is selected, the system will automatically switch to Low-level after approximately 60 minutes. The Low-level setting will turn Off automatically after approximately 45 minutes.

WARNING!

• Persons who are unable to feel pain to the skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other physical conditions must exercise care when using the seat heater. It may cause burns even at low temperatures, especially if used for long periods of time.

• Do not place anything on the seat that insulates against heat, such as a blanket or cushion. This may cause the seat heater to overheat. Sitting in a seat that has been overheated could cause serious burns due to the increased surface temperature of the seat.

Page 23

GETTING ST AR TED

TILT / TELESCOPING STEERING COLUMN

• The tilt/telescoping control handle is located below the steering wheel at the end of the steering column.

• To unlock the steering column, push the lever downward (toward the floor).

• To tilt the steering column, move the steering wheel upward or downward as desired. To lengthen or shorten the steering column, pull the steering wheel outward or push it inward as desired.

• To lock the steering column in position, push the lever upward until fully engaged.

WARNING!

Do not adjust the steering wheel while driving. The tilt/telescoping adjustment must be locked while driving. Adjusting the steering wheel while driving or driving without the tilt/telescoping adjustment locked could cause the driver to lose control of the vehicle. Failure to follow this warning may result in you and others being severely injured or killed.

Page 24

OPER A TING YOUR VEHICLE

ENGINE BREAK -IN RECOMMENDA TIONS

• A long break-in period is not required for the drivetrain (engine, transmission, clutch, and rear axle) in your new vehicle.

• Drive moderately during the first 500 mi (800 km). After the initial 60 mi (100 km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable.

• While cruising, brief full-throttle acceleration within the limits of local traffic laws contributes to a good break-in. However, wide-open throttle acceleration in low gear can be detrimental and should be avoided.

• The engine oil, transmission fluid, and axle lubricant installed at the factory is high-quality and energy-conserving. Oil, fluid, and lubricant changes should be consistent with anticipated climate and conditions under which vehicle operations will occur. For the recommended viscosity and quality grades, refer to “Maintaining Your Vehicle”.

NOTE: A new engine may consume some oil during its first few thousand miles (kilometers) of operation. This should be considered a normal part of the break-in and not interpreted as an indication of difficulty.

CAUTION!

Never use Non-Detergent Oil or Straight Mineral Oil in the engine or damage may result.

TURN SIGNAL/WIPER/WA SHER/HIGH BEAM LEVER

Turn Signal/Lane Change Assist

• Tap the lever up or down once and the turn signal (right or left) will flash three times and automatically turn off.

Page 25

OPER A TING YOUR VEHICLE

Front Wipers

Intermittent, Low And High Operation

• Rotate the end of the lever to the first detent position for one of five intermittent settings, the second detent for low wiper operation and the third detent for high wiper operation.

Mist

• Rotate the end of the lever downward when a single wipe is desired.

NOTE: The mist feature does not activate the washer pump; therefore, no washer fluid will be sprayed on the windshield. The wash function must be activated in order to spray the windshield with washer fluid.

Washer Operation

• Push the end of the lever inward and hold for as long as spray is desired.

High Beam Operation

• Push the lever forward to activate the high beams. Pull the lever toward you for flash to pass.

NOTE: For safe driving, turn off the high beams when oncoming traffic is present to prevent headlight glare and as a courtesy to other motorists.

HEADLIGHT SWITCH

Automatic Headlights/Parking Lights/Headlights

• Rotate the headlight switch, located on the instrument panel to the left of the steering wheel, to the first detent for parking lights second detent for headlights

• With the parking lights or low beam headlights on, push the headlight switch once for fog lights.

• Rotate the headlight switch to “A” for AUTO headlights.

• When set to “A” (AUTO), the system automatically turns the headlights on or off based on ambient light levels.

Fog Lights

• Turn the headlights or parking lights on and push the headlight switch once to turn the fog lights on. Push the switch a second time to turn the fog lights off. Fog lights will not operate when high beams are on.

• A fog light symbol will illuminate in the cluster to indicate the fog lights are on.

andtothe

Page 26

OPER A TING YOUR VEHICLE

Instrument Panel Dimmer

• Rotate the dimmer control to the extreme bottom position to fully dim the instrument panel lights and prevent the interior lights from illuminating when a door is opened.

• Rotate the dimmer control up to increase the brightness of the instrument panel when the parking lights or headlights are on.

• Rotate the dimmer control up to the next detent position to fully brighten the odometer and radio when the parking lights or headlights are on. Refer to your Media Center/Radio User Manual on the DVD for display dimming.

• Rotate the dimmer control up to the last detent position to turn on the interior lighting.

SPEED CONTROL

• The speed control switches are located on the steering wheel.

Cruise ON/OFF

• Push the ON/OFF button to activate the Speed Control.

• CRUISE instrument cluster to indicate the Speed Control is on.

• Push the ON/OFF button a second time to turn the system off.

Set

will appear on the

• With the Speed Control on, push and release the SET – button to set a desired speed.

Accel/Decel

• Once a speed is set, pushing the RES + button once or the SET – button once will increase or decrease the set speed approximately 1 mph (2 km/h).

• Push and hold the RES + button to accelerate in 5mph (8 km/h) increments or push and hold the SET – button to decelerate in 5mph (8 km/h) increments; release the button to save the new set speed.

Resume

• To resume a previously selected set speed in memory, push the RES + button and release.

Cancel

• Push the CANCEL button, or apply the brakes to cancel the set speed and maintain the set speed memory.

• Push the ON/OFF button to turn the system off and erase the set speed memory.

Page 27

OPER A TING YOUR VEHICLE

WARNING!

• Leaving the Electronic Speed Control system on when not in use is dangerous. You could accidentally set the system or cause it to go faster than you want. You could lose control and have a collision. Always leave the Electronic Speed Control system off when you are not using it.

• Electronic Speed Control can be dangerous where the system cannot maintain a constant speed. Your vehicle could go too fast for the conditions, and you could lose control. A collision could be the result. Do not use Electronic Speed Control in heavy traffic or on roads that are winding, icy, snow-covered or slippery.

MANUAL TRANSMISSION 1 TO 4 SKIP SHIFT

• Skip Shift is enabled when vehicle speed is between 19 MPH (30 km/h) and 21 MPH (34 km/h) and the accelerator pedal is at 1/4 throttle or less.

• For optimal fuel economy, under low acceleration conditions, your vehicle will only allow you to shift from first gear to fourth gear. Additionally, the skip shift message will appear on the Electronic Vehicle Information Center.

• Refer to your Owner's Manual on the DVD for further information.

MANUAL CLIMATE CONTROLS

Air Recirculation

• Use recirculation for maximum A/C operation.

• For window defogging, turn the recirculation button off.

• Recirculation is not allowed in defrost, floor, defrost/floor (mix) modes.

Heated Mirrors

• The mirrors are heated to melt frost or ice. This feature is activated whenever you turn on the rear window defroster.

Page 28

OPER A TING YOUR VEHICLE

AUTOMA TIC TEMPERA TURE CONTROLS (A TC)

Automatic Operation

• Turn the Mode and Blower Controls to the AUTO position.

• Select the desired temperature by rotating the Temperature Control.

• The system will maintain the set temperature automatically.

Air Conditioning (A/C)

• If the air conditioning button is pressed while in the AUTO mode, the indicator light may flash three times to indicate the cabin air is being controlled automatically.

Air Recirculation

• Use recirculation for maximum A/C operation.

• For window defogging, turn the air recirculation button off.

• If the recirculation button is pressed while in the AUTO mode, the indicator light may flash three times to indicate the cabin air is being controlled automatically.

Heated Mirrors

• The mirrors are heated to melt frost or ice. This feature is activated whenever you turn on the rear window defroster.

POWER SUNROOF

• The power sunroof switch is located on the overhead console.

Opening Sunroof

Express

• Press the switch rearward and release. The sunroof will fully open and stop automatically.

Page 29

OPER A TING YOUR VEHICLE

Closing Sunroof

Express

• Press the switch forward and release. The sunroof will close automatically from any position.

Manual Open/Close

• Press and hold the switch rearward to open or forward to close the sunroof. Any release of the switch will stop the movement, and the sunroof will remain in a partially open or closed position until the switch is pressed again.

Venting Sunroof

• Press and release the "VENT" button, and the sunroof will open to the vent position. This is called “Express Vent” and will occur regardless of sunroof position. During Express Vent operation, any movement of the switch will stop the sunroof.

Pinch Protection Feature

• This feature will detect an obstruction in the opening of the sunroof during Express Close operation. If an obstruction in the path of the sunroof is detected, the sunroof will automatically return to the open position.

NOTE: Pinch protection is disabled while the switch is pressed and held during manual opening and closing of the sunroof.

WARNING!

• Never leave children in a vehicle with the key in the ignition switch. Occupants, particularly unattended children, can become entrapped by the power sunroof while operating the power sunroof switch. Such entrapment may result in serious injury or death.

• In a collision, there is a greater risk of being thrown from a vehicle with an open sunroof. You could also be severely injured or killed. Always fasten your seat belt properly and make sure all passengers are properly secured.

• Do not allow small children to operate the sunroof. Never allow your fingers, other body parts, or any object to project through the sunroof opening. Injury may result.

WIND BUFFETING

• Wind buffeting can be described as a helicopter-type percussion sound. If buffeting occurs with the rear windows open, adjust the front and rear windows together.

• If buffeting occurs with the sunroof open, adjust the sunroof opening, or adjust any window. This will minimize buffeting.

Page 30

ELECTRONICS

YOUR VEHICLE'S SOUND SYSTEM

Page 31

ELECTRONICS

Page 32

ELECTRONICS

Media Center 130 (Sales Code RES)

NOTE:

• Your radio has many features that add to the comfort and convenience of you and your passengers. Some of these radio features should not be used when driving because they take your eyes from the road or your attention from driving.

Clock Setting

• Press and hold the “TIME” button until the hours blink; turn the “TUNE/SCROLL”

control knob to set the hours.

• Press the “TUNE/SCROLL” control knob until the minutes begin to blink; turn the

“TUNE/SCROLL” control knob to set the minutes.

• Press the “TUNE/SCROLL” control knob to save the time change.

• To exit, press any button/knob or wait five seconds.

Equalizer, Balance And Fade

• Press the “TUNE/SCROLL” control knob and BASS, MID, TREBLE, BALANCE and

FADE will display. Rotate the “TUNE/SCROLL” control knob to select the desired setting.

Page 33

ELECTRONICS

Radio Operation

Seek Up/Down Buttons

• Press to seek through radio stations in AM, FM, or SAT bands.

• Hold either button to bypass stations without stopping.

Store Radio Presets

• Press the “SET/RND” button once and SET 1 will show in the display. Then select button (1–6).

• A second station may be added to each push button. Press the “SET/RND” button twice and SET 2 will show in the display. Then select button (1–6).

CD/DISC Operation

Seek Up/Down Buttons

• Press to seek through CD tracks.

• Hold either button to bypass tracks without stopping.

SET/RND Button (Random Play)

• Press this button while the CD is playing to activate Random Play.

• This feature plays the selections on the CD in random order to provide an interesting change of pace.

Audio Jack Operation

• The Audio Jack allows a portable device, such as an MP3 player or a cassette player, to be plugged into the radio and utilize the vehicle’s audio system, using a

3.5 mm audio cable, to amplify the source and play through the vehicle speakers.

• Pressing the “AUX” button will change the mode to auxiliary device if the Audio Jack is connected, allowing the music from your portable device to play through the vehicle's speakers.

• The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device.

Page 34

ELECTRONICS

Media Center 130 with Sa tellite Radio (Sales Code RES + RSC)

NOTE:

• Your radio may not be equipped with the Uconnect™ Voice Command and Uconnect™ Phone features. To determine if your radio has these features, press the Voice Command button on the radio. You will hear a voice prompt if you have the feature, or see a message on the radio stating “Uconnect Phone not available” if you do not.

Clock Setting

• Press and hold the “TIME” button until the hours blink; turn the “TUNE/SCROLL”

control knob to set the hours.

• Press the “TUNE/SCROLL” control knob until the minutes begin to blink; turn the

“TUNE/SCROLL” control knob to set the minutes.

• Press the “TUNE/SCROLL” control knob to save the time change.

• To exit, press any button/knob or wait five seconds.

Equalizer, Balance And Fade

• Press the “TUNE/SCROLL” control knob and BASS, MID, TREBLE, BALANCE and

FADE will display. Rotate the “TUNE/SCROLL” control knob to select the desired setting.

Page 35

ELECTRONICS

Radio Operation

Seek Up/Down Buttons

• Press to seek through radio stations in AM, FM, or SAT bands.

• Hold either button to bypass stations without stopping.

Store Radio Presets

• Press the “SET/RND” button once and SET 1 will show in the display. Then select button (1–6).

• A second station may be added to each push button. Press the “SET/RND” button twice and SET 2 will show in the display. Then select button (1–6).

Music Type

• Press the “MUSIC TYPE” button to activate this mode. Press the “MUSIC TYPE” button again or turn the “TUNE/SCROLL” control knob to select the desired music type (Adult Hits, Country, Jazz, Oldies, Rock, etc.).

• Once a music type is chosen and the icon is displayed, press either “SEEK” button and the radio will only search for stations with the selected music type.

NOTE: The Music Type function only operates when in FM mode.

SETUP Button

• Pressing the “SETUP” button allows you to select between items that are available in that particular mode.

• Turn the “TUNE/SCROLL” control knob to scroll through the entries. Push the “AUDIO/SELECT” button to select an entry and make changes.

Sirius XM™ Satellite Radio

• Sirius XM™ Satellite Radio gives you over 130 channels, including 100% commercial-free music from nearly every genre, plus all your favorite sports, news, talk and entertainment channels–all with crystal clear, coast-to-coast coverage, all in one place and all at your fingertips.

• To access Sirius XM™ Satellite Radio, press the “SAT” hard-key.

CD/DISC Operation

Seek Up/Down Buttons

• Press to seek through CD tracks.

• Hold either button to bypass tracks without stopping.

SET/RND Button (Random Play)

• Press this button while the CD is playing to activate Random Play.

• This feature plays the selections on the CD in random order to provide an interesting change of pace.

Page 36

ELECTRONICS

LIST Button

• Press the “LIST” button to bring up a list of all folders on the CD. Scroll up or down the list by turning the “TUNE/SCROLL” control knob.

• To select a folder from the list, press the “TUNE/SCROLL” control knob and the radio will begin playing the files contained in that folder.

Audio Jack Operation

• The Audio Jack allows a portable device, such as an MP3 player or a cassette player, to be plugged into the radio and utilize the vehicle’s audio system, using a

3.5 mm audio cable, to amplify the source and play through the vehicle speakers.

• Pressing the “AUX” button will change the mode to auxiliary device if the Audio Jack is connected, allowing the music from your portable device to play through the vehicle's speakers.

• The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device.

Media Center 430/430N (Sales Code RBZ/RHB)

NOTE:

Page 37

ELECTRONICS

Clock Setting

• Turn the radio on, then touch the screen where the time is displayed.

• Touch the “USER CLOCK” soft-key (Navigation radio only).

• To adjust the hours, touch either the “HOUR FORWARD” or “HOUR BACKWARD”

soft-key.

• To adjust the minutes, touch either the “MINUTE FORWARD” or “MINUTE

BACKWARD” soft-key.

• To save the new time setting, touch the screen where the word “Save” is displayed.

• Press the “MENU” hard-key to access the System Setup menu and the My Files

menu.

• Press the “MENU” hard-key in an active mode (SAT, CD, AUX, etc.) in order to

change mode specific settings.

Equalizer, Balance And Fade

Audio Control Menu

• Press the “AUDIO” hard-key on the right side of the radio.

• Use either the arrow soft-keys or the cross-hair on the screen to change Balance and Fade. The “CENTER” soft-key resets the settings.

• Touch the “Equalizer” soft-key and use either the arrow soft-keys or the sliders on the screen to adjust BASS, MID, and/or TREBLE.

Display Settings

• Press the “MENU” hard-key and touch the “Display Settings” soft-key to access the Display Settings menu.

• Select the “Daytime Colors” soft-key to switch to manual daytime mode and to adjust the brightness of the display using daytime colors.

• Select the “Nighttime Colors” soft-key to switch to manual nighttime mode and to adjust the brightness of the display using nighttime colors.

Page 38

ELECTRONICS

• Select the “Auto Color Mode” soft-key to switch to automatic daytime/nighttime mode and to control the brightness of the display using the dimmer switch of the vehicle.

• Touch the “EXIT” soft-key to save your settings.

Radio Operation

• To access Radio Mode, touch the “RADIO” hard-key on the left side of the faceplate, then touch the “AM,” “FM” or “SAT” soft-key at the top of the screen to select the band.

Seek Up/Seek Down

• Press the “Seek Up” or “Seek Down” soft-keys to seek through radio stations in AM, FM, or SAT bands. Hold either Seek to bypass stations without stopping.

Store Radio Presets

• Select the radio band by touching either the “AM,” “FM,” or “SAT” soft-key.

• Find the station to store by either pressing the “Seek Up” or “Seek Down” soft-keys, touching the “SCAN” soft-key, or by using the “DIRECT TUNE” soft-key.

• Once the station is found, touch and hold one of the “PRESET” soft-keys in the list to the right, until you hear a confirmation beep.

NOTE: If the Presets are not visible on the right side of the screen, press the “Presets” soft-key.

Page 39

CD/DVD Disc Operation

ELECTRONICS

• Press the “MEDIA” hard key to display the media source tabs at the top of the screen. Select the source by touching the “HDD,” “DISC,” or “AUX” media source soft-key tab.

NOTE: Your Touch-Screen Radio will usually automatically switch to the appropriate mode when something is first connected or inserted into the system.

Insert a CD/DVD Disc

• To insert a disc, press the “LOAD” hard-key.

• With the printed side upwards, insert the disc into the disc slot of the radio. The radio pulls the disc in automatically and closes the flip screen. The radio selects the appropriate mode after the disc is recognized, and starts playing the first track. The display shows “Reading...” during this process.

Seek Up/Seek Down

• Press the “Seek Up” or “Seek Down” soft-keys to seek through tracks in Disc Mode. Hold either Seek to bypass tracks without stopping.

Audio Jack Operation

• The Audio Jack allows a portable device, such as an MP3 player or a cassette player, to be plugged into the radio and utilize the vehicle’s audio system, using a

3.5 mm audio cable, to amplify the source and play through the vehicle speakers.

• Pressing the “MEDIA” hard-key and then the “AUX” soft-key to change the mode to auxiliary device if the Audio Jack is connected, allowing the music from your portable device to play through the vehicle's speakers.

Page 40

ELECTRONICS

• The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device.

Hard Disk Drive (HDD) Operation

• The Hard Disk Drive (HDD) mode gives you access to the audio files on the internal hard disk drive. It functions similar to a CD player, with the exception that the internal HDD can hold more tracks.

• It is also possible to import display pictures to the internal hard disk drive. The pictures can be displayed on the right half of the radio screen.

• Before using the HDD mode, you will need to copy songs and pictures to the internal hard drive. Songs and pictures can be added to the hard drive by using a CD or USB device (e.g. thumb drive or memory stick).

NOTE: WMA/MP3 Files and Selective Songs from a CD can also be added to the HDD. See the Media Center 430/430N User's Manual for more information.

Copying Music From CD

• Press the “LOAD” hard-key.

• Insert a disc, then press the “MENU” hard-key.

• Touch the “MY FILES” soft-key, then select “MY MUSIC.”

• Touch the “Add Music Files to HDD” soft-key, then touch the “From Disc” soft-key in the next screen to start the process.

NOTE:

• You might need to select the folder or title depending on the CD, then press “DONE” to start the copy process.

• The copy progress is shown in the lower left corner of the screen.

Copying Music From USB

• The USB port on the radio face plate allows you to copy files to your hard drive. To access, lift up on the cover.

• Insert a USB device (e.g. thumb drive or memory stick), then select “MY MUSIC.”

• Touch the “Add Music Files to HDD” soft-key, then touch the “From USB” soft-key in the next screen.

Page 41

ELECTRONICS

• Select the folders or titles you would like to copy, then touch the “DONE” soft-key to start the copy process.

NOTE: The copy progress is shown in the lower left corner of the screen.

Copying Pictures To The HDD

• Insert either a CD or a USB device containing your pictures in JPEG format.

• Press the “MY FILES” hard-key.

• Touch the “My Pictures” soft-key to get an overview of the currently stored images, then touch the “Add” soft-key.

• Touch the “From Disc” or “From USB” soft-key, then select the folders or pictures you wish to copy to the HDD. Use the “PAGE” soft-keys to page through the list of pictures.

• Touch the desired pictures or press the “All” soft-key for all pictures. Confirm your selections by touching the “SAVE” soft key.

NOTE: The copy progress is shown in the lower left corner of the screen.

Display a Picture on the Radio Screen

• Once the import is complete, the pictures will then be available in the “MY PICTURES” screen.

• Press the “MY FILES” hard-key, then touch the “My Pictures” soft-key. Touch the desired picture, then touch the “Set as Picture View” soft-key and then touch the “Exit” soft-key. Lastly press the “MENU” hard-key and then touch the “Picture View” soft-key to display the chosen picture on the radio screen.

NOTE:

• A check mark in the My Pictures screen indicates the currently used picture.

• You can also delete pictures by touching the “Delete” soft-key.

Playing Music From The HDD

• Press the “MEDIA” hard key to display the media source tabs at the top of the screen. Touch the “HDD” soft-key tab. Touch the desired track soft-key to play or touch the “SEARCH/BROWSE” soft-key to search by artist, by album, by song, by genre, from a folder, or from Favorites.

Page 42

ELECTRONICS

Cleaning Your Touch-Screen Radio

• Do not spray any liquid or caustic chemicals directly on the screen. Use a clean and dry micro fiber lens cleaning cloth in order to clean the touch-screen.

• If necessary, use a lint-free cloth dampened with a cleaning solution such as isopropyl alcohol or an isopropyl alcohol and water solution ratio of 50:50. Be sure to follow the solvent manufacturer's precautions and directions.

Garmin® Navigation

• Media Center 430N integrates Garmin’s consumer-friendly navigation into your vehicle. Garmin Navigation includes a database with over 6 million points of interest.

• Touch the “NAV” soft-key in the upper right corner of the screen to access the Navigation system.

NOTE: For your own safety and the safety of others, it is not possible to use certain features while the vehicle is in motion.

Main Navigation Menu

Finding Points Of Interest

• From the main Navigation menu, touch “Where To?,” then touch “Points of Interest.”

• Select a Category and then a subcategory, if necessary.

• Select your destination and touch “Go.”

Finding A Place By Spelling The Name

• From the Main Navigation Menu, touch “Where to?,” then touch “Points of Interest” and then touch “Spell Name.”

• Enter the name of your destination.

• Touch “Done.”

Page 43

ELECTRONICS

• Select your destination and touch “Go.”

Entering A Destination Address

• From the main Navigation menu, touch “Where To?,” then touch “Address.”

• Follow the on-screen prompts to enter the address and touch “Go.”

Searching Near Another Location

• From the main Navigation menu, touch “Where To?,” then touch a destination and then touch “Near.”

• Select an option from the available choices.

Following Your Route

• Your route is marked with a magenta line on the map. If you depart from the original route, your route is recalculated. A speed limit icon could appear as you travel on major roadways.

Adding A Via Point

• To add a stop (Via Point) you must be navigating a route.

• Touch the “back arrow icon” to return to the Main Navigation menu.

• Touch “Where To?,” then search for the extra stop. Then select the stop to add from the search results.

• Touch “Go,” then touch “Add to Current Route.”

Page 44

ELECTRONICS

Taking A Detour

• To take a detour you must be navigating a route.

• Touch the “back arrow” icon to return to the Main Navigation menu.

• Touch “Detour.”

NOTE: If the route you are currently taking is the only reasonable option, the device might not calculate a detour.

Setting Your Home Location

• From the main Navigation menu, touch “Where To?,” then touch “Go Home.”

• You may enter your address directly, use your current location as your home address, or choose from recently found locations.

Edit Home Location

• From the main Navigation menu, touch “Where To?,” then touch “Favorites.”

• Next, touch the location you would like to edit, then touch “Press for More,” and then “Edit.”

Go Home

• A Home location must be saved in the system. From the Main Navigation menu, touch “Where To?,” then touch “Go Home.”

Acquiring Satellites

• The GPS Satellite strength bars indicate the strength of your satellite reception.

• Acquiring satellite signals can take a few minutes. When at least one of the bars is green, your device has acquired satellite signals.

• You may experience delays in acquisition of satellite signals when in areas with an obstructed view to the sky, such as garages, tunnels, or large cities with tall buildings.

Page 45

ELECTRONICS

Media Center 730N (Sales Code RHR)

NOTE: Your radio may not be equipped with the Uconnect™ Voice Command and Uconnect™ Phone features. To determine if your radio has these features, press the Voice Command button on the radio. You will hear a voice prompt if you have the feature, or see a message on the radio stating “Uconnect Phone not available” if you do not.

Clock Setting

• Turn the radio on, then touch the screen where the time is displayed.

• Touch the “USER CLOCK” soft-key.

• To adjust the hours, touch either the “HOUR FORWARD” or “HOUR BACKWARD” soft-key.

• To adjust the minutes, touch either the “MINUTE FORWARD” or “MINUTE BACKWARD” soft-key.

• To save the new time setting, touch the screen where the word “Save” is displayed.

• Press the “MENU” hard-key to access the System Setup menu and the My Files menu.

• Press the “MENU” hard-key in an active mode (SAT, CD, AUX, etc.) in order to change mode specific settings.

Page 46

ELECTRONICS

Equalizer, Balance And Fade

Audio Control Menu

• Press the “MENU” hard-key on the right side of the radio. Then press the “Audio Control” soft-key to get to the audio control menu.

• Use either the arrow soft-keys or the cross-hair on the screen to change Balance and Fade. The “CENTER” soft-key resets the settings.

• Touch the “Equalizer” soft-key and use either the arrow soft-keys or the sliders on the screen to adjust BASS, MID, and/or TREBLE.

Display Settings

• Press the “MENU” hard-key and touch the Display Settings soft-key to access the Display Settings menu.

• Select the “Daytime Colors” soft-key to switch to manual daytime mode and to adjust the brightness of the display using daytime colors.

• Select the “Nighttime Colors” soft-key to switch to manual nighttime mode and to adjust the brightness of the display using nighttime colors.

• Select the “Auto Color Mode” soft-key to switch to automatic daytime/nighttime mode and to control the brightness of the display using the dimmer switch of the vehicle.

• Touch the “EXIT” soft-key to save your settings.

Page 47

Radio Operation

ELECTRONICS

• To access Radio Mode, touch the “RADIO/MEDIA” hard-key on the left side of the faceplate repeatedly until AM/FM/SAT appears at the top of the screen, then touch the “AM,” “FM” or “SAT” soft-key to select the band.

Seek Up/Seek Down

• Press the “Seek Up” or “Seek Down” hard-keys to seek through radio stations in AM, FM, or SAT bands. Hold either Seek to bypass stations without stopping.

Store Radio Presets

• Select the radio band by touching either the “AM,” “FM,” or “SAT” soft-key.

• Find the station to store by either pressing the “Seek Up” or “Seek Down” hard-keys, touching the “SCAN” soft-key, or by using the “DIRECT TUNE” soft-key.

• Once the station is found, touch and hold one of the PRESET soft-keys in the list to the right, until you hear a confirmation beep.

NOTE: If the Presets are not visible on the right side of the screen, press the “Presets” soft-key.

Page 48

ELECTRONICS

CD/DVD Disc Operation

• Press the “RADIO/MEDIA” hard key until the media source tabs are displayed at the top of the screen. Select the source by touching the “HDD,” “DISC,” or “AUX” media source soft-key tab.

NOTE: Your Touch-Screen Radio will usually automatically switch to the appropriate mode when something is first connected or inserted into the system.

Insert a CD/DVD Disc

• To insert a disc, press the “OPEN/CLOSE” hard-key.

Seek Up/Seek Down

• Press the “Seek Up” or “Seek Down” hard-keys to seek through tracks in Disc Mode. Hold either Seek to bypass tracks without stopping.

Audio Jack Operation

• The Audio Jack allows a portable device, such as an MP3 player or a cassette player, to be plugged into the radio and utilize the vehicle’s audio system, using a

3.5 mm audio cable, to amplify the source and play through the vehicle speakers.

• Pressing the “RADIO/MEDIA” hard-key and then the “AUX” soft-key to change the mode to auxiliary device if the Audio Jack is connected, allowing the music from your portable device to play through the vehicle's speakers.

Page 49

ELECTRONICS

• The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device.

Hard Disk Drive (HDD) Operation

• It is also possible to import display pictures to the internal hard disk drive. The pictures can be displayed on the right half of the radio screen.

NOTE: WMA/MP3 Files and Selective Songs from a CD can also be added to the HDD. See the Media Center 730N User's Manual for more information.

Copying Music From CD

• Press the “OPEN/CLOSE” hard-key.

• Insert a disc, then press the “MENU” hard-key.

• Touch the “MY FILES” soft-key, then select “MY MUSIC.”

• Touch the “Add Music Files to HDD” soft-key, then touch the “From Disc” soft-key in the next screen to start the process.

NOTE:

• You might need to select the folder or title depending on the CD, then press “Done” to start the copy process.

• The copy progress is shown in the lower left corner of the screen.

Copying Music From USB

• The USB port on the radio face plate allows you to copy files to your hard drive. To access, lift up on the cover.

• Insert a USB device (e.g. thumb drive or memory stick), then select “MY FILES”.

Page 50

ELECTRONICS

• Touch the “MY MUSIC” soft-key, then touch the “Add Music Files” to HDD soft-key.

• Touch “From USB” soft-key, then select the folders or titles you would like to copy, and then touch the “SAVE” soft-key to start the copy process.

NOTE: The copy progress is shown in the lower left corner of the screen.

Copying Pictures To The HDD

• Insert either a CD or a USB device containing your pictures in JPEG format.

• Press the “MENU” hard-key to access the Settings Menu, then touch the “My Files” soft-key.

• Touch the “My Pictures” soft-key to get an overview of the currently stored images, then touch the “Add” soft-key.

• Touch the “From Disc” or “From USB” soft-key, then select the folders or pictures you wish to copy to the HDD. Use the “PAGE” soft-keys to page through the list of pictures.

• Touch the desired pictures or press the “All” soft-key for all pictures. Confirm your selections by touching the “SAVE” soft key.

NOTE: The copy progress is shown in the lower left corner of the screen.

Display a Picture on the Radio Screen

• Once the import is complete, the pictures will then be available in the “MY PICTURES” screen.

• Press the “MENU” hard-key to access the Settings Menu, then touch the “My Files” soft-key and then touch the “My Pictures” soft-key. Touch the desired picture, then touch the “Set as Picture View” soft-key and then touch the “Exit” soft-key. Lastly press the “MENU” hard-key and then touch the “Picture View” soft-key to display the chosen picture on the radio screen.

NOTE:

• A check mark in the My Pictures screen indicates the currently used picture.

• You can also delete pictures by touching the “Delete” soft-key.

Page 51

Playing Music From The HDD

ELECTRONICS

• Press the “RADIO/MEDIA” hard key until the media source tabs are displayed at the top of the screen. Touch the “HDD” soft-key tab. Touch the desired track soft-key to play or touch the “SEARCH/BROWSE” soft-key to search by artist, by album, by song, by genre, from a folder, or from Favorites.

Cleaning Your Touch-Screen Radio

• Do not spray any liquid or caustic chemicals directly on the screen. Use a clean and dry micro fiber lens cleaning cloth in order to clean the touch-screen.

NAVIGATION

• Your navigation system receives GPS signals from up to 16 satellites to display the position of your vehicle. Map and database information is supplied through a hard disk drive.

• Touch the “NAV” hard-key on the radio face plate to access the Navigation system and the NAV – Main Menu.

NOTE: For your own safety and the safety of others, it is not possible to use certain features while the vehicle is in motion.

Page 52

ELECTRONICS

Main Navigation Menu

Finding Points Of Interest

• From the NAV main menu, touch the “Points of Interest” soft-key.

• Select a Category and then a subcategory, if necessary.

• Select your destination and touch “GO.”

Finding A Place By Entering The Street Address

• From the NAV main menu, touch “New Destination,” then touch “Street Address.”

NOTE: If the wrong State and/or Country displayed are incorrect, touch the corresponding soft-key to make the correction.

• Once the Country and State are set and the Street Address screen is displayed, begin spelling the street name in the speller. In the upper right corner the number of possible roads decreases.

• Touch the “LIST” soft-key to display a list of possible street names. Select the correct street name.

• Next input the number.

• In the Confirm Route screen the navigation radio displays the complete address, a map of the destination area, and the current routing method for you to verify.

• Touch the “GO” soft-key to activate the route guidance.

Where Am I Now?

• From the NAV main menu, touch “Where Am I Now?.” The Where Am I Now? menu displays location information for the current vehicle position.

• Touch the “NEARBY POI”soft-key to search for a local Point of Interest.

Page 53

ELECTRONICS

• Touch the “SAVE LOCATION” soft-key to save the current location in the Saved Locations memory.

Route Guidance

• After starting route guidance, the system calculates the route and announces: “Follow the arrows on the display.” You will receive navigation recommendations by voice messages and screen displays.

Route Options

• After pressing the “OPTIONS” soft-key in the Route Guidance Menu, the following information is displayed:

• In the left half of the screen, the current position and the current routing method are displayed.

• “Take Detour” will allow you to calculate a different route.

• “Find Nearby POI” to search for a local POI.

• “Destination Info” displays destination information.

• “View Turn List” lists streets utilized for the current route.

• “Save Destination” to save the destination address.

• “Change Method” will allow you to change the routing method.

Entering Your Home Location

• Press the “NAV” hard-key on the right side of the radio.

• From the Nav – Main Menu, touch “Guide Me Home” to enter your home address. If no home address has been set, touch “YES” to access the Enter Home Address menu.

Page 54

ELECTRONICS

• Touch “Street Address” to enter your address. Touch the soft-key with your state’s name and enter your street name into the speller.

• Once the street name has been input, touch “CONTINUE” to confirm. Enter the house number into the next screen. If more than one city has this address, you will then need to select your city from a list.

• Once the address is entered completely, the system shows a map of your home address area. Touch “SAVE” to confirm the address. The system will then ask if you want to go there, yes or no.

Change Home Address

• This procedure will allow you to change your Home Address if one has already been entered.

• Press the “MENU” hard-key, touch “My Files” and then touch “My Address Book.”

• Touch “Home,” then touch “Edit Contacts” and then “Change Address.”

• Touch the soft-key with your state’s name and enter your street name into the speller.

• Once the street name has been input, touch “CONTINUE” to confirm.

• Enter the house number into the next screen. If more than one city has this address, you will then need to select your city from a list.

• Touch the “SAVE” soft-key to confirm the address.

Go Home

• From the NAV main menu, touch “Guide Me Home” when you want to route to your home destination.

Sirius XM™ SA TELLITE RADIO/TR AVEL LINK

• The following describes features that are available when in Sirius XM™ Satellite Radio mode.

Info

• Touch the “i” soft-key to view detailed information about the current Sirius XM™ Satellite channel.

Sirius XM™ Parental Controls

• Sirius XM™ offers the option to permanently block selected channels. Call 1-888-539-7474 and request the Family Package.

• Media Center 430/430N and 730N: Press the “MENU” hard-key while in Sirius XM™ Satellite Radio Mode, then touch the “Channel Lock” to enable and/or disable desired channels. The SEEK and SCAN function will then only display channels without Channel lock.

Page 55

Search/Browse

ELECTRONICS

• Touch the “magnifying glass” soft-key to search/browse the Sirius XM™ channel listing by Favorites and Categories such as Song, Artist and Channel Name. The Search/Browse also allows you manage your Favorites.

Sirius XM™ Satellite Radio Favorites (SAT Favorites)

• You can save 50 favorite songs and 50 favorite artists.

• Touch the “add favorite” soft-key to add either the song or the artist of the currently playing program to the SAT Favorites list.

• You will see a favorite star indicator in the lower left side of the screen and a pop up will alert you that a favorite song or artist is currently playing on one of the Sirius XM™ satellite radio channels.

NOTE: Refer to your Media Center 730N or Media Center 430/430N User's Manual for more information.

Display SAT Favorites List

• Touch the “Search/Browse” soft-key and select “Favorites” from the SAT Browse screen.

• Touch the desired favorites soft-key to switch the SAT tuner to the corresponding channel.

• You may use the “LIST” soft-key to toggle between:

• Favorite Songs.

• Favorite Artists.

• Currently playing favorites.

Page 56

ELECTRONICS

Replay

• While you are in SAT mode, you can replay 44 minutes of the current Sirius XM™ channel (when the channel is changed, this audio buffer is erased). Press the REPLAY button to listen to the stored audio.

• You can touch the on-screen controls to pause and rewind audio playback, touch the SCAN button to preview each of the tracks stored in the buffer, or select a track from the list.

• The time displayed below the bar indicates how much time is present between the current buffer play position and the live broadcast.

Replay Option Option Description

Play/Pause Touch to Pause content playback. Touch Pause/Play again to

resume playback.

Rewind/RW Rewinds the channel content in steps of 5 seconds. Touch and

hold to rewind continuously, then release to begin playing content at that point.

Fast Forward/FW Forwards the content, and works similarly to Rewind/RW. However,

Fast Forward/FW can only be used when content has been previously rewound.

Replay Time Displays the amount of time in the upper center of the screen by

which your content lags the Live channel.

Live Resumes playback of Live content at any time while replaying

rewound content.

Sirius Travel Link (Media Center 730N (RHR) & Media Center 430N (RHB) Only)

• Sirius Travel Link brings a wealth of useful information into your vehicle and right to your fingertips.

• To access Travel Link, press the MENU hard-key, then the Travel Link soft-key.

NOTE:

• Sirius Travel Link requires a subscription, sold separately after the 1 year trial subscription included with your vehicle purchase.

• Sirius Travel is only available in the United States.

Page 57

ELECTRONICS

1 – Favorites

2 – Forecast

3 – Ski Info 4 – Fuel Prices

5 – Movies

6 – Sports

View and store your favorite location, theater and sport teams for quick access.

View detailed weather conditions, forecasts and ski/snowboarding conditions at local resorts.

View ski and snowboarding conditions at local ski resorts.

View detailed price information for fuel stations near your current location.

View information on movies that are playing at theaters near your current location.

View sports scores and upcoming events for all major sports.

STEERING WHEEL AUDIO CONTROLS

• The steering wheel audio controls are located on the rear surface of the steering wheel.

Right Switch

• Press the switch up or down to increase or decrease the volume.

• Press the button in the center to change modes AM/FM/CD/SAT.

Left Switch

• Press the switch up or down to search for the next listenable station or select the next or previous CD track.

• Press the button in the center to select the next preset station (radio) or to change CDs if equipped with a CD Changer.

Page 58

ELECTRONICS

Uconnect™ Phone

• To determine if your vehicle is equipped with Uconnect™ Phone, press the “Uconnect™ Phone” button seconds you will hear a voice prompt. If not, you will see a message on the radio “Uconnect phone not available”.

• The Uconnect™ Phone is a voice-activated, hands-free, in-vehicle communications system with Voice Command Capability (see Voice Command section).

. If your vehicle has this feature, after a couple

NOTE: To access the tutorial, press the “Uconnect™ Phone” button BEEP, say “tutorial”. Press any hard-key/button or touch the display (Touch-Screen radio) to cancel the tutorial.

• The Uconnect™ Phone allows you to dial a phone number with your mobile phone using simple voice commands.

• Refer to your vehicle Owner's Manual on the DVD for further details.

NOTE: The Uconnect™ Phone requires a mobile phone equipped with the Bluetooth Hands-Free Profile, Version 1.0 or higher. For Uconnect™ customer support, call 1–877–855–8400 or visit www.dodge.com/uconnect.

. After the

Phone Pairing

NOTE: Pairing is a one-time initial setup before using the phone.

• Press the “Phone” button

• Wait for the “ready” prompt and BEEP.

• (After the BEEP), say ”setup” or “Uconnect device setup”.

• (After the BEEP), say “device pairing”.

• You will then be prompted to give the phone pairing a name (each phone paired should have a unique name).

• Next you will be asked to give this new pairing a priority of 1 thru 7 (up to seven phones may be paired); 1 is the highest and 7 is the lowest priority. The system will only connect to the highest priority phone that exists within the proximity of the vehicle.

• You will then need to start the pairing procedure on your cell phone. Follow the

Bluetooth pairing setup.

instructions in your cell phone Owner's Manual to complete the phone

to begin.

• (After the BEEP), say “pair a device”.

• Follow the audible prompts.

• You will be asked to say a four-digit Personal Identification Number (PIN), which you will later need to enter into your mobile phone. You can say any four-digit PIN. You will not need to remember this PIN after the initial pairing process.

Page 59

ELECTRONICS

Phonebook

Phonebook Download – Automatic Phonebook Transfer From Mobile Phone

If equipped and specifically supported by your phone, Uconnect™ Phone automatically downloads names (text names) and number entries from your mobile phone’s phonebook. Specific

Bluetooth Access Profile may support this feature. Automatic Transfer is indicated by a green arrow at the bottom of the screen. See Uconnect™ website for supported phones.

• Automatic download and update, if supported, begins as soon as the Bluetooth wireless phone connection is made to the Uconnect™ Phone, for example, after you start the vehicle.

• A maximum of 1000 entries per phone will be downloaded and updated every time a phone is connected to the Uconnect™ Phone.

• Depending on the maximum number of entries downloaded, there may be a short delay before the latest downloaded names can be used. Until then, if available, the previously downloaded phonebook is available for use.

• Only the phonebook of the currently connected mobile phone is accessible.

• Only the mobile phone’s phonebook is downloaded. SIM card phonebook is not part of the Mobile phonebook.

• This downloaded phonebook cannot be edited or deleted on the Uconnect™ Phone. These can only be edited on the mobile phone. The changes are transferred and updated to Uconnect™ Phone on the next phone connection.

Phones with Phone Book

Phonebook Edit

• Press the “Phone” button

• (After the BEEP), say “phonebook”.

• (After the BEEP), say “new entry” or “list names” or “delete”.

• Follow the prompts.

Making A Phone Call

• Press the “Phone” button .

• (After the BEEP), say “dial” (or “call” a name).

• (After the BEEP), say number (or name).

Receiving A Call – Accept (And End)

• When an incoming call rings/is announced on Uconnect™, press the Phone button

• To end a call, press the Phone button

Page 60

ELECTRONICS

Mute (Or Unmute) Microphone During Call

• During a call, press the “Voice Command” button .

• (After the BEEP), say “mute” (or “mute off”).

Transfer Ongoing Call Between Handset And Vehicle

• During a call, press the “Voice Command” button .

• (After the BEEP), say “transfer call”.

Changing The Volume

• Start a dialogue by pressing the “Phone” button , then adjust the volume during a normal call.

• Use the radio ON/OFF VOLUME rotary knob to adjust the volume to a comfortable level while the Uconnect™ system is speaking. Please note the volume setting for Uconnect™ is different than the audio system.

WARNING!

• Any voice commanded system should be used only in safe driving conditions following local laws and phone use. All attention should be kept on the roadway ahead. Failure to do so may result in a collision causing you and others to be severely injured or killed.

• In an emergency, to use Uconnect™ Phone, your mobile phone must be:

• turned on,

• paired to Uconnect™ Phone,

• and have network coverage.

Uconnect™ VOICE COMMAND

• The Uconnect™ Voice Command system allows you to control your AM, FM radio, satellite radio, disc player, HDD, Uconnect™ Phone, a memo recorder, and supported portable media devices.

• When you press the “Voice Command” button faceplate or steering wheel, you will hear a beep. The beep is your signal to give a command. If you do not say a command within a few seconds, the system will present you with a list of options. If you ever wish to interrupt the system while it lists options, press the “Voice Command” button say your command.

Voice Command Operation

• Start a dialogue by pressing the “Voice Command” button hear a beep. The beep is your signal to give a command. Below are a list of voice commands for each of the different modes.

located on the radio

, listen for the BEEP, and

, you will

Page 61

ELECTRONICS

Common Voice Commands (Examples)

Main Menu “Radio” (to switch to the radio mode)

“Disc” (to switch to the disc mode) “Memo” (to switch to the memo recorder) “System Setup” (to switch to system setup)

Radio Mode “Frequency” (to change the frequency)

“Next Station” (to select the next station) “Previous Station” (to select the previous station) “Radio Menu” (to switch to the radio menu) “Main Menu” (to switch to the main menu)

Sirius XM™ Satellite Radio Mode

Disc Mode “Track” (#) (to change the track)

Memo Mode To switch to the voice recorder mode, say “Memo”. The

“Channel Number” (to change the channel by its spoken number) “Next Channel” (to select the next channel) “Previous Channel” (to select the previous channel) “List Channel” (to hear a list of available channels) “Select Name” (to say the name of a channel) “Radio Menu” (to switch to the radio menu) “Main Menu” (to switch to the main menu)

“Next Track” (to play the next track) “Previous Track” (to play the previous track) “Main Menu” (to switch to the main menu)

following are common voice commands for this mode: “New Memo” (to record a new memo) — During the recording, you may press the Voice Command button

to stop recording. You proceed by saying one of the following commands: — “Save” (to save the memo) — “Continue” (to continue recording) — “Delete” (to delete the recording) — “Play Memos” (to play previously recorded memos) — During the playback you may press the Voice Command button

to stop playing memos. You proceed by saying one of the following commands: — “Repeat” (to repeat a memo) — “Next” (to play the next memo) — “Previous” (to play the previous memo) — “Delete” (to delete a memo) — “Delete All” (to delete all memos)

Voice Command for Text Messaging

• If equipped with Uconnect™ Voice Command, your Media Center 430N & 730N radios may be able to play incoming Short Message Service (SMS) messages (text messages) through the vehicle's sound system.

• It also allows you to respond by selecting from various pre-defined phrases.

• Not all phones are compatible with this feature. Refer to the phone compatibility list at www.dodge.com/uconnect. Connected mobile phones must be bluetooth-compatible, and paired with your radio.

Page 62

ELECTRONICS

• Press the “Voice Command” button and after the BEEP, say “SMS” to get started.

NOTE: To access the tutorial, press the “Voice Command” button BEEP, say “tutorial”. Press any hard-key/button or touch the display (Touch-Screen radio) to cancel the tutorial.

. After the

WARNING!

Any voice commanded system should be used only in safe driving conditions following local laws and phone use. All attention should be kept on the roadway ahead. Failure to do so may result in a collision causing you and others to be severely injured or killed.

Bluetooth®STREAMING AUDIO

• If equipped with Uconnect™ Voice Command, your Bluetooth-equipped

devices, cell phones or other

iPod media players, may also be able to stream music to your vehicle's speakers. Your connected device must be Bluetooth-compatible, and paired with your Media Center radio (see Uconnect™ Phone for pairing instructions). Non-Touch-Screen

Radios: Press the “AUX” button on the radio faceplate until "BT" or “Audio Streaming” is displayed on the radio screen. Touch-Screen-Radios: Press the “RADIO/MEDIA” or “MEDIA” hard-key and then touch the “AUX” soft-key tab.

iPod®/USB/MP3 CONTROL

• There are many ways to play music from iPod®/MP3 players or USB devices through your vehicle's sound system.

• The remote USB port, located within the center console, allows you to plug an

into the vehicle's sound system.

iPod

NOTE: If equipped with the Media Center 730N (RHR), the USB port on the faceplate allows the same functions as the remote USB port.

• Non-Touch-Screen Radios: To hear audio from devices connected to the USB port, press the “AUX” button on the radio faceplate

• Touch-Screen Radios: To hear audio from devices connected to the USB port, press the “MEDIA” hard-key, then

touch the “AUX” or “iPod

” soft-key.

Page 63

ELECTRONICS

• When connected to this feature:

• The iPod radio buttons to Play, Browse, and List the iPod contents.

• The iPod plugged into the USB port (if supported by the specific audio device).

• Compatible iPod to the Owner's Manual on the DVD for details.

NOTE:

• The USB port supports certain Mini, Classic, Nano, Touch, and iPhone USB port also supports playing music from compatible external USB Mass Storage Class memory devices. For supported audio file formats, refer to the USB Port section in the Owner's Manual on the DVD. Refer to www.dodge.com/uconnect website for a list of tested iPod support the USB port features. Please visit Apple’s website for iPod updates.

devices may also be controllable using voice commands. Refer

s. Some iPod®software versions may not fully

can be controlled using the

or external devices

battery charges when

devices. The

software

WARNING!

Do not plug in or remove the iPod®or external device while driving. Failure to follow this warning could result in a collision.

ELECTRONIC VEHICLE INFORMA TION CENTER (EVIC)

• The EVIC features a driver interactive display that is located in the instrument cluster. Pressing the controls on the left side of the steering wheel allows the driver to select vehicle information and Personal Settings. For additional information, refer to Programmable Features in this guide.

• Press and release the MENU the main menu from the sub menus.

• Press and release the UP and sub menus.

button to access the main menu, or to return to

button to scroll upward through the main menus

Page 64

ELECTRONICS

• Press and release the DOWN button to scroll downward through the main menus and sub menus.

• Press and release the SELECT to select a personal setting in the setup menu. Press and hold the SELECT button for two seconds to reset features.

Compass Calibration

• This compass is self-calibrating, which eliminates the need to set the compass manually. When the vehicle is new, the compass may appear erratic and the EVIC will display “CAL” until the compass is calibrated.

• You may also calibrate the compass by completing one or more 360 degree turns (in an area free from large metal or metallic objects) until the “CAL” message displayed in the EVIC turns off. The compass will now function normally.

ECO

• The ECO message will appear in your EVIC display whenever you are driving in a fuel efficient manner.

• This feature allows you to monitor when you are driving in a fuel efficient manner, and it can be used to modify driving habits in order to increase fuel economy.

button for access to main menus, sub menus or

PROGRAMMABLE FEA TURES

Electronic Vehicle Information Center (EVIC)

• The EVIC can be used to program the following Personal Settings. Press and release the MENU

or DOWN buttons to scroll through the settings. Press the SELECT

button to change the setting.

• Language • Hill Start Assist (HSA)

• Unlock Doors Automatically on Exit • Turn Headlights On with Remote Key

• Remote Key Unlock • Delay Power Off to Accessories Until

• Remote Start Comfort Sys. • Turn-by-Turn Navigation

• Sound Horn with Remote Key Lock • Display ECO Mode

• Flash Lights with Remote Key Lock • Keyless Enter-N-Go

• Headlamps On with Wipers (Available with Auto Headlamps Only)

• Delay Turning Headlights Off • Display Units of Measure In

Key Fob Programmable Features

• The following features may also be programmed by using the Key Fob transmitter or the ignition switch and driver's door lock switch.

button until Personal Settings displays, then press the UP

Unlock

Exit

• Enable/Disable The Rear Park Assist System

NOTE: Pressing the LOCK button while you are inside the vehicle will activate the Vehicle Security Alarm. Opening a door with the Vehicle Security Alarm activated will cause the alarm to sound. Press the UNLOCK button to deactivate the Vehicle Security Alarm.

Page 65

ELECTRONICS

Unlock On First Press

• To unlock either the driver's side, or all doors, on the first press of the UNLOCK button:

• Press and hold the LOCK button for at least 4 seconds, but no longer than 10 seconds. Then, press and hold the UNLOCK button while still holding the LOCK button.

• Release both buttons at the same time.

Auto Unlock Doors On Exit

• To have all of the vehicle doors unlock when any door is opened:

• Enter your vehicle and close all the doors.

• Cycle the ignition switch between LOCK and ON and then back to LOCK four times, ending up in the LOCK position (do not start the engine).

• Press the power door UNLOCK switch to unlock the doors. A single chime will indicate that programming is complete.

Sound Horn With Lock

• To turn the horn chirp on or off when the doors are locked:

• Press the LOCK button for at least 4 seconds, but no longer than 10 seconds. Then, press the PANIC button while still holding the LOCK button.

• Release both buttons at the same time.

Flashing Lights With Lock

• The turn signal lights flashing, when the doors are locked or unlocked, feature can be turned on or off. To turn this feature on or off:

• Press and hold the UNLOCK button for at least 4 seconds, but no longer than 10 seconds. Then, press and hold the LOCK button while still holding the UNLOCK button.

• Release both buttons at the same time.

UNIVERSAL GARAGE DOOR OPENER (HomeLink

• HomeLink®replaces up to three hand-held transmitters that operate devices such as garage door openers, motorized gates, lighting or home security systems. The HomeLink

• The HomeLink designate the three different HomeLink

• The HomeLink

)

unit is powered by your vehicles 12 Volt battery.

buttons that are located in the overhead console or sunvisor

channels.

indicator is located above the center button.

Page 66

ELECTRONICS

Before You Begin Programming HomeLink®

• Be sure that your vehicle is parked outside of the garage before you begin programming.

• For more efficient programming and accurate transmission of the radio-frequency signal it is recommended that a new battery be placed in the hand-held transmitter of the device that is being programmed to

the HomeLink

• Erase all channels before you begin programming. To erase the channels, place the ignition switch into the ON/RUN position, then press and hold the two outside

HomeLink Information Center (EVIC) will display “CLEARING CHANNELS”. Release the buttons when the EVIC displays “CHANNELS CLEARED”.

NOTE:

• Erasing all channels should only be performed when programming HomeLink first time. Do not erase channels when programming additional buttons.

• If you have any problems, or require assistance, please call toll-free 1–800–355– 3515 or, on the Internet at www.HomeLink.com for information or assistance.

buttons (I and III) for up 20 seconds. The Electronic Vehicle

system.

for the

Programming A Rolling Code

• For programming Garage Door Openers that were manufactured after 1995. These

Garage Door Openers can be identified by the “LEARN” or “TRAIN” button located where the hanging antenna is attached to the Garage Door Opener. It is NOT the button that is normally used to open and close the door. The name and color of the button may vary by manufacturer.

• Place the ignition switch into the ON/RUN position.

• Place the hand-held transmitter 1 to 3 in (3 to 8 cm) away from the HomeLink

button you wish to program while keeping the HomeLink®indicator light in view.

• Simultaneously press and hold both the HomeLink

and the hand-held transmitter button.

• Continue to hold buttons until the EVIC display changes from “CHANNEL #

TRAINING” to “CHANNEL # TRAINED”, then release both buttons.

NOTE: If the EVIC displays “DID NOT TRAIN” repeat Programming A Rolling Code.

• At the garage door opener motor (in the garage), locate the “LEARN” or

“TRAINING” button. This can usually be found where the hanging antenna wire is attached to the garage door opener motor. Firmly press and release the “LEARN” or “TRAINING” button.

NOTE: You have 30 seconds in which to initiate the next step after the LEARN button has been pressed.

button you want to program

Page 67

ELECTRONICS

• Return to the vehicle and press the programmed HomeLinkt button twice (holding the button for two seconds each time). The EVIC will display “CHANNEL # TRANSMIT”. If the garage door opener/device activates, programming is complete.

NOTE: If the device does not activate, press the button a third time (for two seconds) to complete the training.

• To program the remaining two HomeLink remaining button. DO NOT erase the channels.

Programming A Non-Rolling Code

• For programming Garage Door Openers manufactured before 1995.

• Turn the ignition switch to the ON/RUN position.

• Place the hand-held transmitter 1 to 3 in (3 to 8 cm) away from the HomeLink button you wish to program while keeping the HomeLink®indicator light in view.

• Simultaneously press and hold both the HomeLink and the hand-held transmitter button.

• Continue to hold buttons until the EVIC display changes from “CHANNEL # TRAINING” to “CHANNEL # TRAINED”, then release both buttons.

• Press and hold the programmed HomeLink

buttons, repeat each step for each

button you want to program

button and observe the indicator light.

NOTE:

• If the EVIC displays “DID NOT TRAIN” repeat Programming A Non-Rolling Code.

• To program the two remaining HomeLink remaining button. DO NOT erase the channels.

buttons, repeat each step for each

Using HomeLink®

• To operate, press and release the programmed HomeLink®button. Activation will

now occur for the programmed device (i.e., garage door opener, gate operator, security system, entry door lock, home/office lighting, etc.,). The hand-held transmitter of the device may also be used at any time.

WARNING!

• Your motorized door or gate will open and close while you are programming the universal transceiver. Do not program the transceiver if people or pets are in the path of the door or gate.

• Do not run your vehicle in a closed garage or confined area while programming the transceiver. Exhaust gas from your vehicle contains Carbon Monoxide (CO) which is odorless and colorless. Carbon Monoxide is poisonous when inhaled and can cause you and others to be severely injured or killed.

Page 68

ELECTRONICS

POWER OUTLETS

• There are two 12 Volt electrical outlets on this vehicle.

• The outlet on the front console has power available only when the ignition is in the ON/RUN position. If desired, this outlet can be converted by your authorized dealer to provide power with the ignition switch in the LOCK position.

• The second outlet in the center console is powered directly from the battery (power available at all times). Items plugged into this outlet may discharge the battery and/or prevent engine starting.

NOTE:

• Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded, the fuse protecting the system will need to be replaced.

• Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Improper use of the power outlet can cause damage not covered by your new vehicle warranty.

Page 69

UTILITY

12 sq ft (1.11 sq m) 1,000 lbs (454 kg) 100 lbs (45 kg)

Engine/Transmission Frontal Area Max. GTW (Gross Trailer Wt.) Max. Tongue Wt.

3.6L Automatic

5.7L Automatic

TRAILER TOWING WEIGHTS (MAXIMUM TRAILER WEIGHT R A TINGS)

Refer to local laws for maximum trailer towing speeds

Page 70

UTILITY

RECREA TIONAL TOWING (BEHIND MOTORHOME, ETC.)

Towing This Vehicle Behind Another Vehicle — Automatic Transmission

• Recreational towing (with all four wheels on the ground, or using a tow dolly) is

NOT ALLOWED. The only acceptable method for towing this vehicle (behind another vehicle) is on a vehicle trailer with all four wheels OFF the ground

Towing This Vehicle Behind Another Vehicle — Manual Transmission

• Flat towing of vehicles equipped with a manual transmission is permitted within

the following limitations:

• The shift lever must be in NEUTRAL

• There is no limitation on the distance to be traveled

• The towing speed must not exceed 65 mph (104 km/h)

CAUTION!

• Exceeding these towing limits may cause severe transmission damage. Such damage is not covered by the New Vehicle Limited Warranty.

• Towing this vehicle in violation of the above requirements can cause severe transmission damage. Damage from improper towing is not covered under the New Vehicle Limited Warranty.

Page 71

SRT8

AUTOSTICK

Steering Wheel Mounted Paddle Shifters Or Console Mounted Shifter

• AutoStick®is a driver-interactive transmission feature that offers manual gear shifting to provide you with more control of the vehicle. AutoStick allows you to maximize engine braking, and improve overall vehicle performance.

• This system can also provide you with more control during passing, city driving, cold slippery conditions, mountain driving, trailer towing, and many other situations.

Operation

• When the shift lever is in the DRIVE position, the transmission will operate automatically, shifting between the five available gears. To engage AutoStick simply move the shift lever to the right or left (+/-) while in the DRIVE position, or press one of the steering wheel mounted shift paddles (+/-). When AutoStick active, the current transmission gear is displayed in the Electronic Vehicle Information Center (EVIC) portion of the instrument cluster. In AutoStick the transmission will shift when manually selected by the driver (using the shift lever, or the shift paddles), unless an engine lugging or overspeed condition would result. It will remain in the selected gear until another upshift or downshift is chosen, except as described below:

• The transmission will automatically downshift as the vehicle slows (to prevent engine lugging) and will display the current gear.

mode,

• The transmission will automatically downshift to first gear when coming to a stop.

• You can start out in first or second gear. Tapping (+) (at a stop) will allow starting in second gear. Starting out in second gear is helpful in snowy or icy conditions.

• The system will ignore attempts to upshift at too low of a vehicle speed.

• Transmission shifting will be more noticeable when AutoStick disengage AutoStick®mode, hold the shift lever to the right or press and hold the (+) shift paddle until “D” is once again displayed in the instrument cluster. You can shift in or out of the AutoStick the accelerator pedal.

is engaged. To

mode at any time without taking your foot off

Page 72

SRT8

• An “UPSHIFT” message will appear in the Electronic Vehicle Information Center

(EVIC) portion of the instrument cluster when using AutoStick to upshift to the next gear. The “UPSHIFT” message will appear when approaching the maximum engine speed.

Auto

• This is the default position when vehicle ignition is first turned on. This mode will give a sporty, but comfortable ride. Within this mode, the suspension will adapt to the vehicle inputs, including vehicle speed, steering inputs, braking and acceleration.

• If AutoStick shift up if maximum engine speed is reached.

• Heavily pressing the accelerator pedal may generate an automatic downshift for improved acceleration.

• This mode should be used for most driving situations.

Sport

• This mode is driver selectable by the SPORT mode switch on the switch bank. This mode will set suspension for maximum performance handling and is intended for spirited driving.

• If AutoStick is engaged while in “Sport” mode, the transmission will remain in the selected gear even when maximum engine speed is reached.

• Engine overspeed protection is achieved through fuel cut off at or near redline.

• This mode will provide aggressive shifting and is intended for spirited driving.

is engaged while in “Auto” mode, the transmission will automatically

, to alert the driver

NOTE: The SPORT setting will provide a firmer ride.

WARNING!

Do not downshift for additional engine braking on a slippery surface. The drive wheels could lose their grip and the vehicle could skid, causing a collision or personal injury.

Page 73

PERFORMANCE FEA TURES

Electronic Vehicle Information Center (EVIC) – If Equipped

• The EVIC can be used to program the following Performance Features. Press and release the MENU Performance Features displays, then press the UP buttons to scroll through the settings. Press the SELECT change or reset the setting.

• 0-60 mph (0-100 km/h) • Instantaneous G-Force

• Braking Distance • Peak G-Force

• 1/8 Mile • Digital Speedometer

• 1/4 Mile

SRT8

button until

or DOWN

button to

0-60 mph (0-100 km/h)

• When selected, this screen displays the time it takes for the vehicle to go from 0 to 60 mph (0 to 100 km/h) within 10 seconds.

Braking Distance

• When selected, this screen displays the vehicle's braking distance and the speed at which the brake pedal was depressed.

1/8 Mile, 1/4 Mile

• When selected, this screen displays the time it takes the vehicle to travel 1/8 mile (1/4 mile) within 30 seconds and the vehicle's speed when it reaches 1/8 mile (1/4 mile).

Instantaneous G-Force

• When selected, this screen displays the current G-Force (lateral and longitudinal) along with a friction circle that displays the directions of the forces.

Page 74

SRT8

Peak G-Force

• When selected, this screen displays all four G-Force values (two lateral and two longitudinal).

Digital Speedometer

• When selected, this screen displays vehicle speed and records top speed.

SPORT

• To access the Sport Mode, press the Sport Mode button on the SWITCH PANEL

• This mode provides performance based tuning with improved handling through an

Sport Mode

below the Climate Controls. When SPORT mode is enabled, a flag will light up in the instrument cluster.

electronic controlled damping system. This system reduces body roll and pitch in many driving situations including cornering, acceleration and braking.

WARNING!

Measurement of vehicle statistics with the Performance Features is intended for off-highway or off-road use only and should not be done on any public roadways. It is recommended that these features be used in a controlled environment and within the limits of the law. The capabilities of the vehicle as measured by the performance pages must never be exploited in a reckless or dangerous manner, which can jeopardize the user’s safety or the safety of others. Only a safe, attentive, and skillful driver can prevent accidents.

Page 75

WHA T TO DO IN EMERGENCIES

24-HOUR TOWING ASSISTANCE

• Dial toll-free 1-800-521-2779 or 1-800-363-4869 for Canadian residents.

• Provide your name, vehicle identification number and license plate number.

• Provide your location, including telephone number, from which you are calling.

• Briefly describe the nature of the problem and answer a few simple questions.

• You will be given the name of the service provider and an estimated time of arrival. If you feel you are in an “unsafe situation”, please let us know. With your consent, we will contact local police or safety authorities.

INSTRUMENT CLUSTER WARNING LIGHTS

- Electronic Stability Control (ESC) Activation/Malfunction Indicator Light

• The “ESC Activation/Malfunction Indicator Light” in the instrument cluster will come on when the ignition switch is turned to the ON/RUN position. It should go out with the engine running. If the “ESC Activation/Malfunction Indicator Light” comes on continuously with the engine running, a malfunction has been detected in the ESC system.

• If this light remains on after several ignition cycles, and the vehicle has been driven several miles (kilometers) at speeds greater than 30 mph (48 km/h), we recommend you drive to the nearest service center and have the vehicle serviced immediately.

- Tire Pressure Monitoring System (TPMS) Light

• Each tire, including the spare (if provided), should be checked monthly, when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those tires.)

• As an added safety feature, your vehicle has been equipped with a Tire Pressure Monitoring System (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is significantly under-inflated. Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling and stopping ability.

• IF THE LIGHT STARTS FLASHING INDICATING A LOW TIRE PRESSURE, ADJUST THE AIR

PRESSURE IN THE LOW TIRE TO THE AIR PRESSURE SHOWN ON THE VEHICLE PLACARD OR TIRE INFLATION PRESSURE LABEL LOCATED ON THE DRIVER'S DOOR. NOTE: AFTER INFLATION, THE VEHICLE MAY NEED TO BE DRIVEN FOR 20 MINUTES BEFORE THE FLASHING LIGHT WILL TURN OFF.

• Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.

Page 76

WHA T TO DO IN EMERGENCIES

• Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will flash for approximately one minute and then remain continuously illuminated. This sequence will continue each time the vehicle is restarted as long as the malfunction exists.

• When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle, to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly.

NOTE: Tire pressures change by approximately 1 psi (7 kPa) per 12° F (7° C) of air temperature change. Keep this in mind when checking tire pressure inside a garage, especially in the Winter. Example: If garage temperature is 68°F (20°C) and the outside temperature is 32°F (0°C), then the cold tire inflation pressure should be increased by 3 psi (21 kPa), which equals 1 psi (7 kPa) for every 12°F (7°C) for this outside temperature condition.

CAUTION!

The TPMS has been optimized for the original equipment tires and wheels. TPMS pressures and warning have been established for the tire size equipped on your vehicle. Undesirable system operation or sensor damage may result when using replacement equipment that is not of the same size, type, and/or style. Aftermarket wheels can cause sensor damage. Do not use tire sealant from a can, or balance beads if your vehicle is equipped with a TPMS, as damage to the sensors may result.

- Engine Temperature Warning Light

• This light warns of an overheated engine condition.

• If the light turns on or flashes continuously while driving, safely pull over and stop the vehicle. If the A/C system is on, turn it off. Also, shift the transmission into NEUTRAL and idle the vehicle. If the temperature reading does not return to normal, turn the engine off immediately.

• We recommend that you do not operate the vehicle or engine damage will occur. Have the vehicle serviced immediately.

WARNING!

A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. You may want to call an authorized service center for service if your vehicle overheats.

Page 77

WHA T TO DO IN EMERGENCIES

BRAKE

• The Brake Warning light illuminates when there is either a system malfunction or

• Please have your vehicle serviced immediately.

- Brake Warning Light

the parking brake is applied. If the light is on and the parking brake is not applied, it indicates a possible brake hydraulic malfunction, brake booster problem or an Anti-Lock Brake System problem.

WARNING!

Driving a vehicle with the red brake light on is dangerous. Part of the brake system may have failed. It will take longer to stop the vehicle. You could have a collision. Have the vehicle checked immediately.

- Malfunction Indicator Light (MIL)

• Certain conditions, such as a loose or missing gas cap, poor fuel quality, etc., may illuminate the MIL after engine start. The vehicle should be serviced if the light stays on through several typical driving cycles. In most situations, the vehicle will drive normally and not require towing.

• If the MIL flashes when the engine is running, serious conditions may exist that could lead to immediate loss of power or severe catalytic converter damage. We recommend you do not operate the vehicle. Have the vehicle serviced immediately.

- Electronic Stability Control (ESC) OFF Indicator Light

• This light indicates the Electronic Stability Control (ESC) is off.

SPORT

• This light will illuminate when the sport mode is selected. This mode provides

Sport Mode

performance based tuning.

- Charging System Light

• This light shows the status of the electrical charging system. If the charging system light remains on, it means that the vehicle is experiencing a problem with the charging system.

• We recommend you do not continue driving if the charging system light is on. Have the vehicle serviced immediately.

- Oil Pressure Warning Light

• This light indicates low engine oil pressure. If the light turns on while driving, stop the vehicle and shut off the engine as soon as possible. A chime will sound for four minutes when this light turns on.

• We recommend you do not operate the vehicle or engine damage will occur. Have the vehicle serviced immediately.

Page 78

WHA T TO DO IN EMERGENCIES

- Anti-Lock Brake (ABS) Light

• This light monitors the Anti-Lock Brake System (ABS).

• If the light is not on during starting, stays on, or turns on while driving, we recommend you drive to the nearest service center and have the vehicle serviced immediately.

- Electronic Throttle Control (ETC) Light

• This light informs you of a problem with the Electronic Throttle Control (ETC) system.

• If a problem is detected, the light will come on while the engine is running. Cycle the ignition when the vehicle has completely stopped and the shift lever is placed in the PARK position; the light should turn off.

• If the light remains lit with the engine running, your vehicle will usually be drivable; however, see an authorized service center immediately. If the light is flashing when the engine is running, immediate service is required and you may experience reduced performance, an elevated/rough idle or engine stall and your vehicle may require towing.

- Air Bag Warning Light

• If the light is not on during starting, stays on, or turns on while driving, have the vehicle serviced by an authorized service center immediately.

Fuel Cap/Loose Gas Cap Message

• If a “gas cap” message (shown as gASCAP) appears, tighten the gas cap until a “clicking” sound is heard.

• Press the odometer reset button to turn the message off.

• If the message continues to appear for more than three days after tightening the gas cap, see your authorized service center.

Oil Change Indicator

Message

• If an “oil change” message (shown as Oil Change Required) appears and a single chime sounds, it is time for your next required oil change.

Resetting The Light After Servicing Vehicles Equipped With Keyless Enter-N-Go

• Without pressing the brake pedal, push the ENGINE START/STOP button and cycle the ignition to the ON/RUN position (Do not start the engine.)

• Fully depress the accelerator pedal, slowly, three times within 10 seconds.

• Without pressing the brake pedal, push the ENGINE START/STOP button once to return the ignition to the OFF/LOCK position.

Vehicles Not Equipped With Keyless Enter-N-Go

• Turn the ignition switch to the ON/RUN position (Do not start the engine.)

• Fully depress the accelerator pedal, slowly, three times within 10 seconds.

• Turn the ignition switch to the OFF/LOCK position.

Page 79

WHA T TO DO IN EMERGENCIES

IF YOUR ENGINE OVERHEATS

• In any of the following situations, you can reduce the potential for overheating by taking the appropriate action.

• On the highways — slow down.

• In city traffic — while stopped, place the transmission in NEUTRAL, but do not increase engine idle speed.

NOTE: There are steps that you can take to slow down an impending overheat condition:

• If your air conditioner (A/C) is on, turn it off. The A/C system adds heat to the engine cooling system and turning the A/C off can help remove this heat.

• You can also turn the temperature control to maximum heat, the mode control to floor and the blower control to high. This allows the heater core to act as a supplement to the radiator and aids in removing heat from the engine cooling system.

CAUTION!

Driving with a hot cooling system could damage your vehicle. If the temperature gauge reads 240°F (116 °C) or greater pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range 200–230°F (93–110°C). If the pointer remains at 240°F (116°C) or greater and you hear a chime, turn the engine off immediately and call for service.

WARNING!

You or others can be badly burned by hot engine coolant (antifreeze) or steam from your radiator. If you see or hear steam coming from under the hood, do not open the hood until the radiator has had time to cool. Never try to open a cooling system pressure cap when the radiator or coolant bottle is hot.

Page 80

WHA T TO DO IN EMERGENCIES

JACKING AND TIRE CHANGING

Jack Location/Spare Tire Stowage

• The jack and spare tire are both stowed under an access cover in the trunk. Follow these steps to access the jack and spare tire.

NOTE: The spare tire must be removed in order to access the jack.

1. Open the trunk.

2. Lift the access cover using the pull strap. To hold the cover up and into place,

hang the hook that is located on the end of the strap over the trunk upper weather strip located in the channel below the rear window.

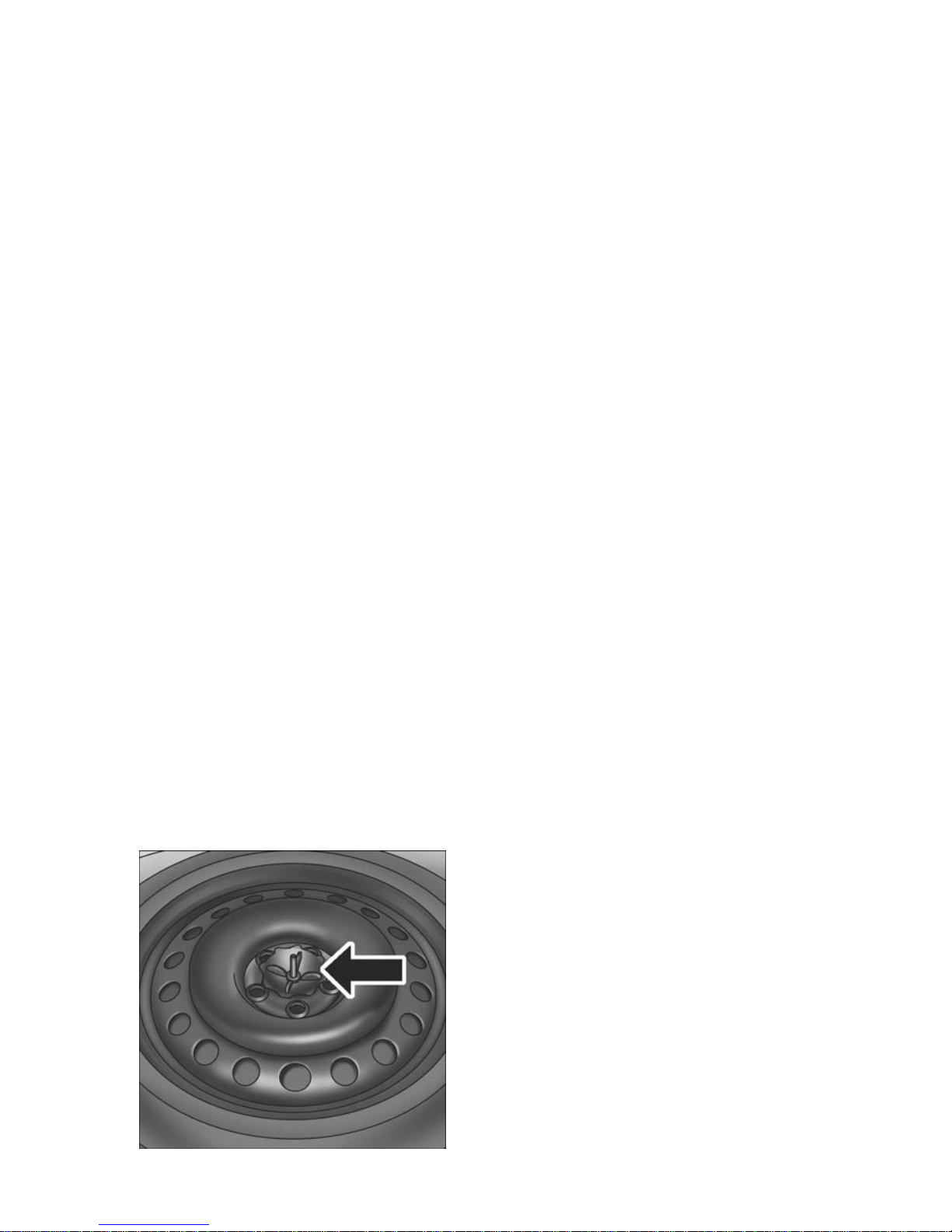

3. Remove the fastener securing the spare tire.

4. Remove the spare tire.

5. Remove the fastener securing the jack.

Page 81

WHA T TO DO IN EMERGENCIES

6. Remove the scissors jack and lug wrench from the spare wheel as an assembly. Turn the jack screw to the left to loosen the lug wrench, and remove the wrench from the jack assembly.

Preparations For Jacking

1. Park the vehicle on a firm, level surface as far from the edge of the roadway as possible. Avoid icy or slippery areas.

2. Turn on the Hazard Warning flasher.

3. Set the parking brake.

4. Place the shift lever into PARK.

5. Turn OFF the ignition.

Block the front and rear of the wheel diagonally opposite of the jacking position. For example, if changing the right front tire, block the left rear wheel.

NOTE: Passengers should not remain in the vehicle when the vehicle is being jacked.

Page 82

WHA T TO DO IN EMERGENCIES

Jacking And Changing A Tire

1. Remove the spare tire, jack, and lug wrench.

2. If equipped with aluminum wheels where the center cap covers the lug nuts, use the lug wrench to pry the center cap off carefully before raising the vehicle.

3. Before raising the vehicle, use the lug wrench to loosen, but not remove, the lug nuts on the wheel with the flat tire. Turn the lug nuts counterclockwise one turn while the wheel is still on the ground.

4. Place the jack underneath the lift area that is closest to the flat tire. Turn the jack screw clockwise to firmly engage the jack saddle with the lift area of the sill flange.

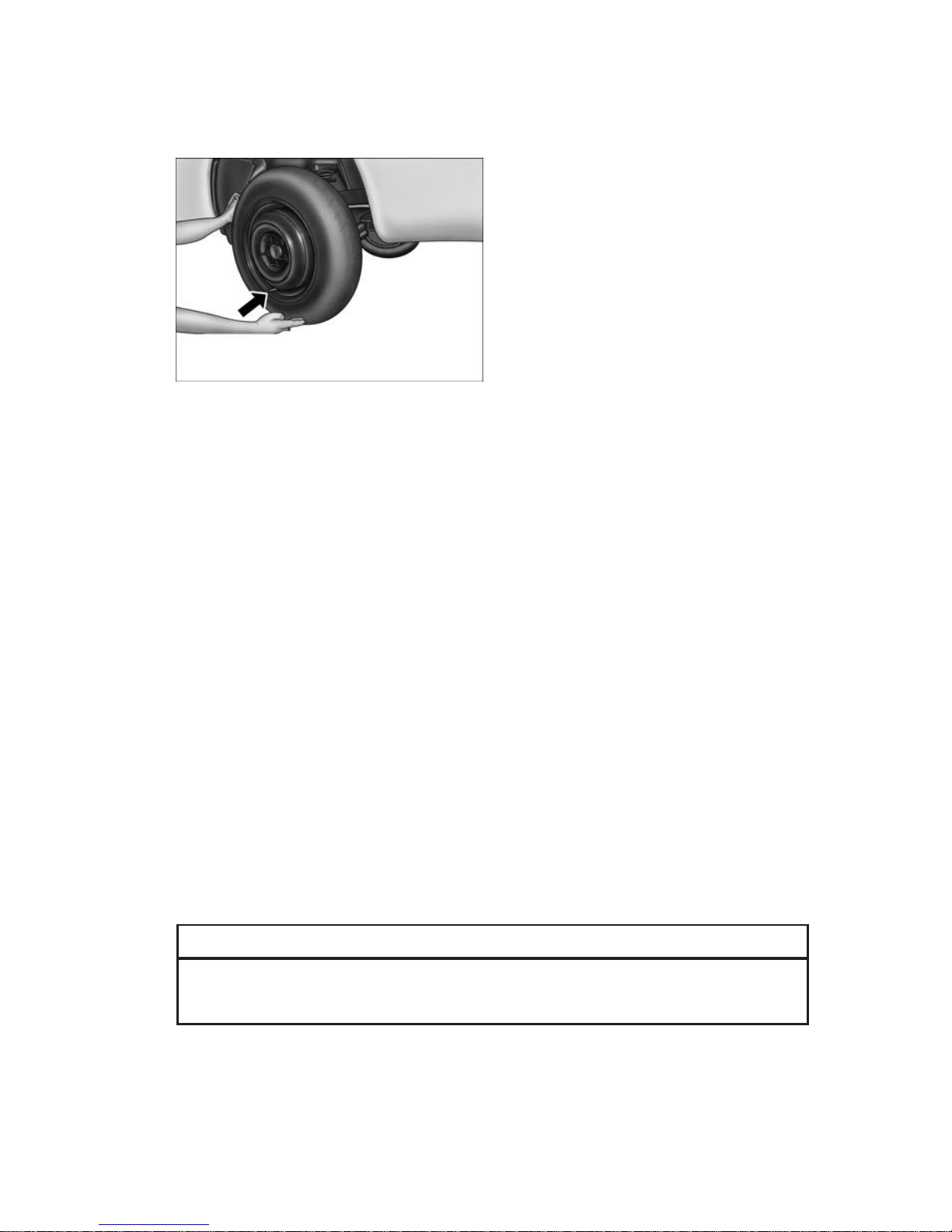

5. Raise the vehicle just enough to remove the flat tire and install the spare tire.

6. Remove the lug nuts and tire.

7. Mount the spare tire.

Page 83

WHA T TO DO IN EMERGENCIES

NOTE:

• For vehicles so equipped, do not attempt to install a center cap or wheel cover on the compact spare.

• Refer to “Compact Spare Tire” and to “Limited-Use Spare” under “Tires—General Information” in “Starting and Operating” in the Owner's Manual on the DVD for additional warnings, cautions, and information about the spare tire, its use, and operation.

8. Install the lug nuts with the cone shaped end of the lug nut toward the wheel. Lightly tighten the lug nuts.

9. Lower the vehicle to the ground by turning the jack handle counterclockwise.

10. Finish tightening the lug nuts. Push down on the wrench while at the end of the

handle for increased leverage. Tighten the lug nuts in a star pattern until each nut has been tightened twice. The correct tightness of each lug nut is 110 ft/lb. (150 N·m). If in doubt about the correct tightness, have them checked with a torque wrench by your authorized dealer or at a service station.

11. Stow the jack, tools and flat tire. Make sure the base of the jack faces the front

of the vehicle before tightening down the fastener.

Road Tire Installation

1. Mount the road tire on the axle.

2. Install the remaining lug nuts with the cone shaped end of the nut toward the wheel. Lightly tighten the lug nuts.

3. Lower the vehicle to the ground by turning the jack handle counterclockwise.

4. Finish tightening the lug nuts. Push down on the wrench while at the end of the handle for increased leverage. Tighten the lug nuts in a star pattern until each nut has been tightened twice. The correct tightness of each lug nut is 110 ft/lbs (150 N·m). If in doubt about the correct tightness, have them checked with a torque wrench by your authorized dealer or service station.

5. After 25 miles (40 km) check the lug nut torque with a torque wrench to ensure that all lug nuts are properly seated against the wheel.

CAUTION!

Do not attempt to raise the vehicle by jacking on locations other than those indicated in the Jacking Instructions for this vehicle.

Page 84

WHA T TO DO IN EMERGENCIES

WARNING!

• Do not attempt to change a tire on the side of the vehicle close to moving traffic. Pull far enough off the road to avoid the danger of being hit when operating the jack or changing the wheel.

• Being under a jacked-up vehicle is dangerous. The vehicle could slip off the jack and fall on you. You could be crushed. Never put any part of your body under a vehicle that is on a jack.

• Never start or run the engine while the vehicle is on a jack. If you need to get under a raised vehicle, take it to a service center where it can be raised on a lift.

• The jack is designed to be used as a tool for changing tires only. The jack should not be used to lift the vehicle for service purposes. The vehicle should be jacked on a firm level surface only. Avoid ice or slippery areas.

• A loose tire or jack thrown forward in a collision or hard stop could endanger the occupants of the vehicle. Always stow the jack parts and the spare tire in the places provided.

• Carefully follow these tire changing warnings to help prevent personal injury or damage to your vehicle:

• Always park on a firm, level surface as far from the edge of the roadway as possible before raising the vehicle.

• Turn on the Hazard Warning flasher.

• Block the wheel diagonally opposite the wheel to be raised.

• Set the parking brake firmly and set an automatic transmission in PARK; a manual transmission in REVERSE.

• Do not let anyone sit in the vehicle when it is on a jack.

• Do not get under the vehicle when it is on a jack.

• Only use the jack in the positions indicated and for lifting this vehicle during a tire change.

• If working on or near a roadway, be extremely careful of motor traffic.

• Raising the vehicle higher than necessary can make the vehicle less stable. It could slip off the jack and hurt someone near it. Raise the vehicle only enough to remove the tire.

• To avoid the risk of forcing the vehicle off the jack, do not fully tighten the wheel nuts until the vehicle has been lowered. Failure to follow this warning may result in personal injury.

• The limited-use spare tires are for emergency use only. Installation of this limited-use spare tire affects vehicle handling. With this tire, do not drive more than 60 mph (100 km/h). Keep inflated to the cold tire inflation pressure listed on either your tire placard or limited-use spare tire and wheel assembly. Replace (or repair) the original tire at the first opportunity and reinstall it on your vehicle. Failure to do so could result in loss of vehicle control.

Page 85

WHA T TO DO IN EMERGENCIES

BA TTERY LOCA TION

• The battery is stored under an access cover in the trunk. Remote battery posts are located on the right side of the engine compartment for jump-starting.

TIREFIT KIT

• Small punctures up to1∕4in (6 mm) in the tire tread can be sealed with TIREFIT. Foreign objects (e.g., screws or nails) should not be removed from the tire. TIREFIT can be used in outside temperatures down to approximately -4°F (-20°C).

• This kit will provide a temporary tire seal, allowing you to drive your vehicle up to 100 miles (160 km) with a maximum speed of 55 mph (88 km/h).

TIREFIT Storage

• The TIREFIT kit is located in the trunk.

TIREFIT Kit Components And Operation

1. Sealant Bottle 5. Mode Select Knob

2. Deflation Button 6. Sealant Hose (Clear)

3. Pressure Gauge 7. Air Pump Hose (Black)

4. Power Button 8. Power Plug

Using The Mode Select Knob And Hoses

• Your TIREFIT kit is equipped with the following symbols to indicate the air or sealant mode.

Selecting Air Mode

• Turn the Mode Select Knob (5) to this position for air pump operation only. Use the Black Air Pump Hose (7) when selecting this mode.

Selecting Sealant Mode

• Turn the Mode Select Knob (5) to this position to inject the TIREFIT Sealant and to inflate the tire. Use the Sealant Hose (clear hose) (6) when selecting this mode.

Page 86

WHA T TO DO IN EMERGENCIES

Using The Power Button

• Push and release the Power Button (4) once to turn On the TIREFIT kit. Push and release the Power Button (4) again to turn Off the TIREFIT kit.

Using The Deflation Button

• Press the Deflation Button (2) to reduce the air pressure in the tire if it becomes over-inflated.

TIREFIT Usage Precautions

• Replace the TIREFIT Sealant Bottle (1) and Sealant Hose (6) prior to the expiration date (printed on the bottle label) to assure optimum operation of the system. Refer to “Sealing a Tire with TIREFIT” section (F) “Sealant Bottle and Hose Replacement”.

• The Sealant Bottle (1) and Sealant Hose (6) are a one tire application use. After each use, always replace these components immediately at an authorized dealer.

• When the TIREFIT sealant is in a liquid form, clean water, and a damp cloth will remove the material from the vehicle or tire and wheel components. Once the sealant dries, it can easily be peeled off and properly discarded.

• For optimum performance, make sure the valve stem on the wheel is free of debris before connecting the TIREFIT kit.

• You can use the TIREFIT air pump to inflate bicycle tires. The kit also comes with two needles, located in the Accessory Storage Compartment (on the bottom of the air pump) for inflating sport balls, rafts, or similar inflatable items. However, use only the Air Pump Hose (7) and make sure the Mode Select Knob (5) is in the Air Mode when inflating such items to avoid injecting sealant into them. The TIREFIT Sealant is only intended to seal punctures less than tread of your vehicle.

• Do not lift or carry the TIREFIT kit by the hoses.

∕4in (6 mm) diameter in the

Sealing A Tire With TIREFIT

(A) Whenever You Stop To Use TIREFIT:

• Pull over to a safe location and turn on the vehicle’s Hazard Warning flashers.

• Verify that the valve stem (on the wheel with the deflated tire) is in a position that is near to the ground. This will allow the TIREFIT Hoses (6) and (7) to reach the valve stem and keep the TIREFIT kit flat on the ground. This will provide the best positioning of the kit when injecting the sealant into the deflated tire and running the air pump. Move the vehicle as necessary to place the valve stem in this position before proceeding.

• Place the transmission in PARK (auto transmission) or in Gear (manual transmission) and turn Off the ignition.

• Set the parking brake.

(B) Setting Up To Use TIREFIT:

• Turn the Mode Select Knob (5) to the Sealant Mode position.

• Uncoil the Sealant Hose (6) and then remove the cap from the fitting at the end of the hose.

Page 87

WHA T TO DO IN EMERGENCIES

• Place the TIREFIT kit flat on the ground next to the deflated tire.

• Remove the cap from the valve stem and then screw the fitting at the end of the Sealant Hose (6) onto the valve stem.

• Uncoil the Power Plug (8) and insert the plug into the vehicle’s 12 Volt power outlet.

NOTE: Do not remove foreign objects (e.g., screws or nails) from the tire.

• Always start the engine before turning ON the TIREFIT kit.

NOTE: Manual transmission vehicles must have the parking brake engaged and the shift lever in NEUTRAL.

• After pressing the Power Button (4), the sealant (white fluid) will flow from the Sealant Bottle (1) through the Sealant Hose (6) and into the tire.

NOTE: Sealant may leak out through the puncture in the tire.

If the sealant (white fluid) does not flow within0–10seconds through the Sealant Hose

(6):

• Press the Power Button (4) to turn Off the TIREFIT kit. Disconnect the Sealant Hose (6) from the valve stem. Make sure the valve stem is free of debris. Reconnect the Sealant Hose (6) to the valve stem. Check that the Mode Select Knob (5) is in the Sealant Mode position and not Air Mode. Press the Power Button (4) to turn On the TIREFIT kit.

• Connect the Power Plug (8) to a different 12 Volt power outlet in your vehicle or another vehicle, if available. Make sure the engine is running before turning ON the TIREFIT kit.

• The Sealant Bottle (1) may be empty due to previous use. Call for assistance.

NOTE: If the Mode Select Knob (5) is on Air Mode and the pump is operating, air will dispense from the Air Pump Hose (7) only, not the Sealant Hose (6).

• If the sealant (white fluid) does flow through the Sealant Hose (6):

• Continue to operate the pump until sealant is no longer flowing through hose (typically takes 30 - 70 seconds). As the sealant flows through the Sealant Hose (6), the Pressure Gauge (3) can read as high as 70 psi (5 Bar). The Pressure Gauge (3) will decrease quickly from approximately 70 psi (5 Bar) to the actual tire pressure when the Sealant Bottle (1) is empty.

• The pump will start to inject air into the tire immediately after the Sealant Bottle (1) is empty. Continue to operate the pump and inflate the tire to the pressure indicated on the tire pressure label on the driver-side latch pillar (recommended pressure). Check the tire pressure by looking at the Pressure Gauge (3).

• If the tire does not inflate to at least 26 psi (1.8 Bar) pressure within 15 minutes:

• The tire is too badly damaged. Do not attempt to drive the vehicle further. Call for assistance.

NOTE: If the tire becomes over-inflated, press the Deflation Button to reduce the tire pressure to the recommended inflation pressure before continuing.

Page 88

WHA T TO DO IN EMERGENCIES

• If the tire inflates to the recommended pressure or is at least 26 psi (1.8 Bar) pressure within 15 minutes:

• Press the Power Button (4) to turn off the TIREFIT kit.

• Remove the Speed Limit sticker from the top of the Sealant Bottle (1) and place the sticker on the instrument panel.

• Immediately disconnect the Sealant Hose (6) from the valve stem, reinstall the cap on the fitting at the end of the hose, and place the TIREFIT kit in the vehicle storage location. Quickly proceed to (D) “Drive Vehicle”.

(D) Drive Vehicle:

• Immediately after injecting sealant and inflating the tire, drive the vehicle 5 miles (8 km) or 10 minutes to ensure distribution of the TIREFIT Sealant within the tire. Do not exceed 55 mph (88 km/h).

(E) After Driving:

• Pull over to a safe location. Refer to “Whenever You Stop to Use TIREFIT” before continuing.

• Turn the Mode Select Knob (5) to the Air Mode position.

• Uncoil the power plug and insert the plug into the vehicle's 12 Volt power outlet.

• Uncoil the Air Pump Hose (7) (black in color) and screw the fitting at the end of hose (7) onto the valve stem.

• Check the pressure in the tire by reading the Pressure Gauge (3).

• If tire pressure is less than 19 psi (1.3 Bar) , the tire is too badly damaged. Do not attempt to drive the vehicle further. Call for assistance.

• If the tire pressure is 19 psi (1.3 bar) or higher:

• Press the Power Button (4) to turn on TIREFIT and inflate the tire to the pressure indicated on the tire and loading information label on the driver-side door opening.

NOTE: If the tire becomes over-inflated, press the Deflation Button to reduce the tire pressure to the recommended inflation pressure before continuing.

• Disconnect the TIREFIT kit from the valve stem, reinstall the cap on the valve stem and unplug from 12 Volt outlet.

• Place the TIREFIT kit in its proper storage area in the vehicle.

• Have the tire inspected and repaired or replaced at the earliest opportunity at an authorized dealer or tire service center.

• Replace the Sealant Bottle (1) and Sealant Hose (6) assembly at your authorized dealer as soon as possible. Refer to “(F) Sealant Bottle and Hose Replacement.”

NOTE: When having the tire serviced, advise the authorized dealer or service center that the tire has been sealed using the TIREFIT service kit.

Page 89

WHA T TO DO IN EMERGENCIES

(F) Sealant Bottle And Hose Replacement:

• Uncoil the Sealant Hose (6) (clear in color).

• Locate the round Sealant Bottle release button in the recessed area under the sealant bottle.

• Press the Sealant Bottle release button. The Sealant Bottle (1) will pop up. Remove the bottle and dispose of it accordingly.

• Clean any remaining sealant from the TIREFIT housing.

• Position the new Sealant Bottle (1) in the housing so that the Sealant Hose (6) aligns with the hose slot in the front of the housing. Press the bottle into the housing. An audible click will be heard indicating the bottle is locked into place.

• Verify that the cap is installed on the fitting at the end of the Sealant Hose (6) and return the hose to its storage area (located on the bottom of the air pump).

• Return the TIREFIT kit to its storage location in the vehicle.

CAUTION!

• The metal end fitting from Power Plug (8) may get hot after use, so it should be handled carefully.

• Failure to reinstall the cap on the fitting at the end of the Sealant Hose (6) can result in sealant contacting your skin, clothing, and the vehicle’s interior. It can also result in sealant contacting internal TIREFIT kit components which may cause permanent damage to the kit.

Page 90

WHA T TO DO IN EMERGENCIES

WARNING!

• Do not attempt to seal a tire on the side of the vehicle closest to traffic. Pull far enough off the road to avoid the danger of being hit when using the TIREFIT kit.

• Do not use TIREFIT or drive the vehicle under the following circumstances:

• If the puncture in the tire tread is approximately 1/4 in. (6 mm) or larger.

• If the tire has any sidewall damage.

• If the tire has any damage from driving with extremely low tire pressure.

• If the tire has any damage from driving on a flat tire.

• If the wheel has any damage.

• If you are unsure of the condition of the tire or the wheel.

• Keep TIREFIT away from open flames or heat source.

• A loose TIREFIT kit thrown forward in a collision or hard stop could endanger the occupants of the vehicle. Always stow the TIREFIT kit in the place provided. Failure to follow these warnings can result in injuries that are serious or fatal to you, your passengers, and others around you.

• Take care not to allow the contents of TIREFIT to come in contact with hair, eyes, or clothing. TIREFIT is harmful if inhaled, swallowed, or absorbed through the skin. It causes skin, eye, and respiratory irritation. Flush immediately with plenty of water if there is any contact with eyes or skin. Change clothing as soon as possible, if there is any contact with clothing.

• TIREFIT Sealant solution contains latex. In case of an allergic reaction or rash, consult a physician immediately. Keep TIREFIT out of reach of children. If swallowed, rinse mouth immediately with plenty of water and drink plenty of water. Do not induce vomiting! Consult a physician immediately.

• TIREFIT is not a permanent flat tire repair. Have the tire inspected and repaired or replaced after using TIREFIT. Do not exceed 55 mph (88 km/h) until the tire is repaired or replaced. Failure to follow this warning can result in injuries that are serious or fatal to you, your passengers, and others around you.

Page 91

WHA T TO DO IN EMERGENCIES

JUMP-STAR TING

• If your vehicle has a discharged battery it can be jumpstarted using a set of jumper cables and a battery in another vehicle or by using a portable battery booster pack.

• Jump-starting can be dangerous if done improperly so please follow the procedures in this section carefully.

NOTE: When using a portable battery booster pack follow the manufacturer’s operating instructions and precautions.

Preparations for Jump-Start

• The battery is stored under an access cover in the trunk. Remote battery posts are located on the right side of the engine compartment for jump-starting.

NOTE: The remote battery posts are viewed by standing on the right side of the vehicle looking over the fender.

• Set the parking brake, shift the automatic transmission into PARK and turn the ignition to LOCK.

• Turn off the heater, radio, and all unnecessary electrical accessories.

• If using another vehicle to jump-start the battery, park the vehicle within the jumper cables reach, set the parking brake and make sure the ignition is OFF.

Jump-Starting Procedure

• Connect the positive (+) end of the jumper cable to the remote positive (+) post of the discharged vehicle.

• Connect the opposite end of the positive (+) jumper cable to the positive (+) post of the booster battery.

• Connect the negative end (-) of the jumper cable to the negative (-) post of the booster battery.

• Connect the opposite end of the negative (-) jumper cable to the remote negative (-) post of the vehicle with the discharged battery.

• Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then start the engine in the vehicle with the discharged battery.

Once the engine is started, remove the jumper cables in the reverse sequence:

• Disconnect the negative (-) jumper cable from the remote negative (-) post of the vehicle with the discharged battery.

• Disconnect the negative end (-) of the jumper cable from the negative (-) post of the booster battery.

Page 92

WHA T TO DO IN EMERGENCIES

• Disconnect the opposite end of the positive (+) jumper cable from the positive (+) post of the booster battery.

• Disconnect the positive (+) end of the jumper cable from the remote positive (+) post of the discharged vehicle.

• If frequent jump-starting is required to start your vehicle you should have the battery and charging system inspected at your authorized dealer.

CAUTION!

• Do not use a portable battery booster pack or any other booster source with a system voltage greater than 12 Volts or damage to the battery, starter motor, alternator or electrical system may occur.

• Failure to follow these procedures could result in damage to the charging system of the booster vehicle or the discharged vehicle.

• Accessories that can be plugged into the vehicle power outlets draw power from the vehicle’s battery, even when not in use (i.e., cellular phones, etc.). Eventually, if plugged in long enough, the vehicle’s battery will discharge sufficiently to degrade battery life and/or prevent the engine from starting.

WARNING!

• When temperatures are below the freezing point, electrolyte in a discharged battery may freeze. Do not attempt jump-starting because the battery could rupture or explode and cause personal injury. Battery temperature must be brought above freezing point before attempting a jump-start.

• Take care to avoid the radiator cooling fan whenever the hood is raised. It can start anytime the ignition switch is on. You can be injured by moving fan blades.

• Remove any metal jewelry, such as watch bands or bracelets, that might make an inadvertent electrical contact. You could be severely injured.

• Batteries contain sulfuric acid that can burn your skin or eyes and generate hydrogen gas which is flammable and explosive. Keep open flames or sparks away from the battery.

• Do not allow vehicles to touch each other as this could establish a ground connection and personal injury could result.

• Failure to follow this procedure could result in personal injury or property damage due to battery explosion.

• Do not connect the cable to the negative post (-) of the discharged battery. The resulting electrical spark could cause the battery to explode and could result in personal injury.

Page 93

WHA T TO DO IN EMERGENCIES

SHIFT LEVER OVERRIDE

• If a malfunction occurs and the shift lever cannot be moved out of the PARK position, you can use the following procedure to temporarily move the shift lever:

• To access the shift lever override, remove the shift lever manual override cover which is located on the PRNDL bezel next to the shift lever. The override access port is at the front of the cubby bin.

• Firmly set the parking brake.

• Turn the ignition switch to the ACC or ON position without starting the engine.

• Press and maintain firm pressure on the brake pedal.

• Using a screwdriver or similar tool, press and hold the override tab through the access port on the center console.

• Move the shift lever into the NEUTRAL position.

• The vehicle may then be started in NEUTRAL.

• Reinstall the override cover.

Page 94

WHA T TO DO IN EMERGENCIES

Rear Wheels Raised, Front

Wheels on the Ground

Front Wheels Raised, Rear

Flatbed Towing (all four

Flat Towing (all four

Wheels on the Ground

wheels suspended OFF the

ground)

wheels on the ground)

NOT Permitted Recommended Method NOT Permitted NOT Permitted

Shift lever must be in

NEUTRAL. The distance

Recommended Method NOT Permitted NOT Permitted

to be traveled must not

exceed 15 mi (24 km),

and the towing speed

must not exceed 30 mph

(48 km/h).

Shift lever must be in

NEUTRAL. There is no

limitation on the distance

Recommended Method NOT Permitted NOT Permitted

to be traveled. The

towing speed must not

exceed 65 mph

(104 km/h)

Model

TOWING A DISABLED VEHICLE

RWD Without a Key

RWD With a Key –

Automatic Transmission

RWD With a Key – Manual

Transmission

Page 95

WHA T TO DO IN EMERGENCIES

FREEING A STUCK VEHICLE

• If your vehicle becomes stuck in mud, sand or snow, it can often be moved by a rocking motion. Turn your steering wheel right and left to clear the area around the front wheels. Then, move the shift lever back and forth between REVERSE and DRIVE. Using minimal accelerator pedal pressure to maintain the rocking motion, without spinning the wheels, is most effective.

NOTE: If your vehicle is equipped with Electronic Stability Control (ESC) or Traction Control

• When “rocking” a stuck vehicle by moving between REVERSE and DRIVE, do not spin the wheels faster than 15 mph (24 km/h), or drivetrain damage may result.

• Revving the engine or spinning the wheels too fast may lead to transmission overheating and failure. It can also damage the tires. Do not spin the wheels above 30 mph (48 km/h) while in gear (no transmission shifting occurring).

, turn the system off before attempting to “rock” the vehicle.

CAUTION!

WARNING!

Fast spinning tires can be dangerous. Forces generated by excessive wheel speeds may cause tire damage or failure. A tire could explode and injure someone. Do not spin your vehicle's wheels faster than 30 mph (48 km/h) when you are stuck. Do not let anyone near a spinning wheel, no matter what the speed.

Page 96

WHA T TO DO IN EMERGENCIES

EVENT DA TA RECORDER (EDR)

• This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

• How fast the vehicle was traveling.

• These data can help provide a better understanding of the circumstances in which crashes and injuries occur.

NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g. name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

• To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

Page 97

MAINT AINING YOUR VEHICLE

OPENING THE HOOD

• Pull the hood release lever located on the instrument panel, below the steering column.

• Raise the hood and locate the safety catch lever, in the middle of the hood opening.

• Move the safety latch while lifting the hood at the same time.

WARNING!

Be sure the hood is fully latched before driving your vehicle. If the hood is not fully latched, it could open when the vehicle is in motion and block your vision. Failure to follow this warning could result in serious injury or death.

Page 98

MAINT AINING YOUR VEHICLE

ENGINE COMP ARTMENT

3.6L Engine

Page 99

MAINT AINING YOUR VEHICLE

5.7L Engine

Page 100

MAINT AINING YOUR VEHICLE

6.4L Engine

Dodge Challenger SRT8 2012, 2012 Challenger, 2012 Challenger SRT8 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
