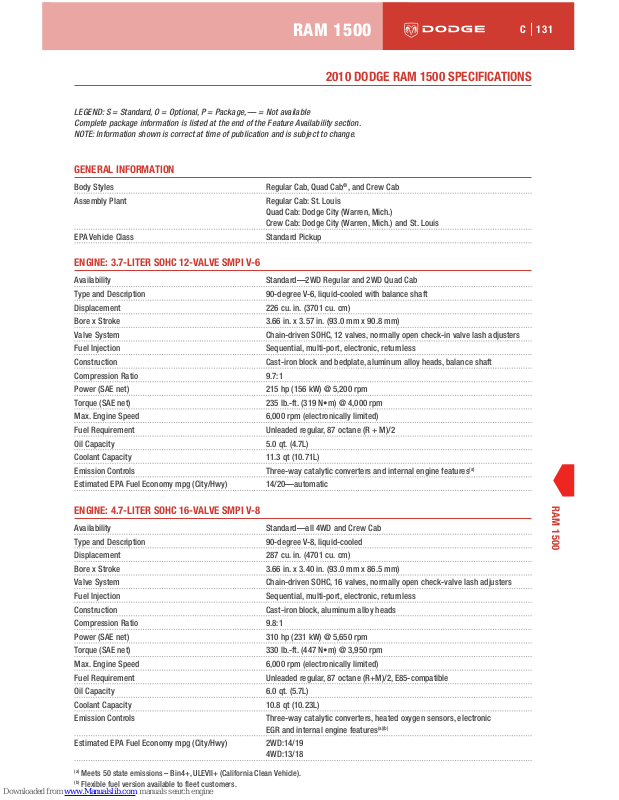

Page 1
RAM 1500
C | 131
RAM 1500
2010 DODGE RAM 1500 SPECIFICATIONS
LEGEND: S = Standard, O = Optional, P = Package, — = Not available
C
omplete package information is listed at the end of the Feature Availability section.
NOTE: Information shown is correct at time of publication and is subject to change.
GENERAL INFORMATION
B
ody Styles Regular Cab, Quad Cab
®
,
and Crew Cab
A
ssembly Plant Regular Cab: St. Louis
Quad Cab: Dodge City (Warren, Mich.)
C
rew Cab: Dodge City (Warren, Mich.) and St. Louis
EPA Vehicle Class Standard Pickup
ENGINE: 3.7-LITER SOHC 12-VALVE SMPI V-6
Availability Standard—2WD Regular and 2WD Quad Cab
Type and Description 90-degree V-6, liquid-cooled with balance shaft
Displacement 226 cu. in. (3701 cu. cm)
Bore x Stroke 3.66 in. x 3.57 in. (93.0 mm x 90.8 mm)
Valve System Chain-driven SOHC, 12 valves, normally open check-in valve lash adjusters
Fuel Injection Sequential, multi-port, electronic, returnless
Construction Cast-iron block and bedplate, aluminum alloy heads, balance shaft
Compression Ratio 9.7:1
Power (SAE net) 215 hp (156 kW) @ 5,200 rpm
Torque (SAE net) 235 lb.-ft. (319 N•m) @ 4,000 rpm
Max. Engine Speed 6,000 rpm (electronically limited)
Fuel Requirement Unleaded regular, 87 octane (R + M)/2
Oil Capacity 5.0 qt. (4.7L)
Coolant Capacity 11.3 qt (10.71L)
Emission Controls Three-way catalytic converters and internal engine features
(a)
Estimated EPA Fuel Economy mpg (City/Hwy) 14/20—automatic
ENGINE: 4.7-LITER SOHC 16-VALVE SMPI V-8
Availability Standard—all 4WD and Crew Cab
Type and Description 90-degree V-8, liquid-cooled
Displacement 287 cu. in. (4701 cu. cm)
Bore x Stroke 3.66 in. x 3.40 in. (93.0 mm x 86.5 mm)
Valve System Chain-driven SOHC, 16 valves, normally open check-valve lash adjusters
Fuel Injection Sequential, multi-port, electronic, returnless
Construction Cast-iron block, aluminum alloy heads
Compression Ratio 9.8:1
Power (SAE net) 310 hp (231 kW) @ 5,650 rpm
Torque (SAE net) 330 lb.-ft. (447 N•m) @ 3,950 rpm
Max. Engine Speed 6,000 rpm (electronically limited)
Fuel Requirement Unleaded regular, 87 octane (R+M)/2, E85-compatible
Oil Capacity 6.0 qt. (5.7L)
Coolant Capacity 10.8 qt (10.23L)
Emission Controls Three-way catalytic converters, heated oxygen sensors, electronic
EGR and internal engine features
(a)(b)
Estimated EPA Fuel Economy mpg (City/Hwy) 2WD:14/19
4WD:13/18
(a)
Meets 50 state emissions – Bin4+, ULEVII+ (California Clean Vehicle).
(b)
Flexible fuel version available to fleet customers.
Page 2
RAM 1500
132 | C
RAM 1500
2010 DODGE RAM 1500 SPECIFICATIONS
ENGINE: 5.7-LITER HEMI®16-VALVE V-8
Availability Standard—all Sport and Laramie models
O
ptional—all other models
Type and Description 90-degree V-8, liquid-cooled
Displacement 345 cu. in. (5654 cu. cm)
Bore x Stroke 3.92 in. x 3.58 in. (99.5 mm x 90.9 mm)
Valve System Variable-valve Timing (VVT), pushrod-operated overhead valves, 16 valves,
h
ydraulic lifters with roller followers
F
uel Injection Sequential, multi-port, electronic, returnless
Construction Deep-skirt cast-iron block with cross-bolted main bearing caps, aluminum
alloy heads with hemispherical combustion chambers
Compression Ratio 10.5:1
Power (SAE net) 390 hp (291 kW) @ 5,600 rpm
Torque (SAE net) 407 lb.-ft. (548 N•m) @ 4,000 rpm
Max. Engine Speed 5,800 rpm
Fuel Requirement Unleaded mid-grade, 89 octane (R+M)/2—recommended
Unleaded regular, 87 octane (R+M)/2—acceptable
Oil Capacity 7.0 qt. (6.6L)
Coolant Capacity 14.0 qt. (13.33L)
Emission Controls Three-way catalytic converters, heated oxygen sensors and
electronic EGR and internal engine features
(a)
Estimated EPA Fuel Economy mpg (City/Hwy)
(b)
2WD: 14/20
4WD: 13/18
(
a)
Meets emission requirements as follows: Bin5 Federal–39 state, ULEVII+ – (California Clean Vehicle), Bin4+ – Federal Fleet.
NOTE: All dimensions measured at curb weight with standard tires and wheels.
ELECTRICAL SYSTEM
Alternator 160-amp
Battery Group 65, low-maintenance 700 CCA
TRANSMISSION: 42RLE—AUTOMATIC, MULTI-SPEED OVERDRIVE
Availability Standard—with all 3.7-liter engines
Description Hydraulic control, electronically controlled governor, overdrive
lockout and converter clutch
Gear Ratios
1st 2.84
2nd 1.57
3rd 1.00
4th 0.69
Reverse 2.21
Overall Top-gear 2.45 with 3.55 axle and 2.70 with 3.92 axle
Page 3
RAM 1500
C | 133
RAM 1500
2010 DODGE RAM 1500 SPECIFICATIONS
TRANSMISSION: 545RFE—AUTOMATIC FIVE-SPEED
Availability Standard with 4.7-liter, Standard with 5.7-liter engines
D
escription Three planetary gearsets, one overrunning clutch, full electronic control,
electronically controlled converter clutch
Gear Ratios
1st 3.00
2nd 1.67—upshift; 1.50 kickdown
3rd 1.00
4th 0.75
5th 0.67
Reverse 3.00
Overall Top-gear 2.15 with 3.21 axle; 2.38 with 3.55 axle; 2.63 with 3.92 axle;
and 2.75 with 4.10 axle
TRANSFER CASE: NVG 243 PART-TIME
Availability Standard
Shift Mechanism Electric
Available Speeds 2-speed
Operating Modes 2WD High; 4WD High, Locked; Neutral; 4WD Low, Locked
Low-range Ratio 2.72
Center Differential Type None
TRANSFER CASE: NVG 246 ON-DEMAND
Availability Optional
Shift Mechanism Electric
Available Speeds 2-speed
Operating Modes 2WD High; 4WD Auto; 4WD High, Locked; Neutral; 4WD Low, Locked
Low-range Ratio 2.72
Center Differential Type None
Page 4
RAM 1500
134 | C
RAM 1500
2010 DODGE RAM 1500 SPECIFICATIONS
DIMENSIONS AND CAPACITIES
All dimensions are in inches (millimeters) unless otherwise noted.
REGULAR CAB PICKUP
Model – Tire Size 2WD –265/70R17 4WD –265/70R17
B
ox Length Short Long Short Long
W
heelbase (nominal) – in (mm) 120.5 (3061.2) 140.5 (3569.2) 120.5 (3061.2) 140.5 (3569.2)
T
rack, Front – in (mm) 68 (1728.2) 68 (1728.2) 68.2 (1732.3) 68.2 (1732.3)
T
rack, Rear – in (mm) 67.5 (1714.5) 67.5 (1714.5) 67.5 (1714.5) 67.5 (1714.5)
Overall Length – in (mm) 209 (5308.6) 231.0 (5866.5) 209 (5308.6) 231.0 (5866.5)
Overall Width – in (mm) 79.4 (2016.6) 79.4 (2016.6) 79.4 (2016.6) 79.4 (2016.6)
Overall Height – in (mm) 74.6 (1894.2) 74.4 (1889.2) 75.2 (1910.4) 75.0 (1906.2)
Ground Clearance
- Front Axle – in (mm) 9.7 (245.5) 9.6 (245.1) 9.0 (228.0) 9.0 (228.0)
- Rear Axle – in (mm) 9.0 (228.0) 9.0 (228.0) 8.6 (217.3) 8.6 (217.3)
Open Tailgate to Ground – in (mm) 34.8 (883.4) 34.6 (878.3) 35.0 (889.6) 34.9 (885.3)
Pickup Body Height – in (mm) 20.1 (511.1) 20.2 (513.0) 20.1 (511.1) 20.2 (513.0)
Approach Angle, degrees 18.6° 18.8° 20.5° 20.5°
Departure Angle, degrees 25.2° 24.1° 25.6° 24.4°
Ramp Breakover Angle, degrees 23.2° 21.4° 18.7° 16.6°
Fuel-Tank Capacity 26-gal (98 L) 32-gal (121 L) 26-gal (98 L) 32-gal (121 L)
(Standard) (Standard) (Standard) (Standard)
QUAD CAB®PICKUP
Model – Tire Size 2WD –265/70R17 4WD –265/70R17
Wheelbase (nominal) – in (mm) 140.5 (3569.2) 140.5 (3569.2)
Track, Front – in (mm) 68 (1728.2) 68.2 (1732.3)
Track, Rear – in (mm) 67.5 (1714.5) 67.5 (1714.5)
Overall Length – in (mm) 229.0 (5816.5) 229.0 (5816.5)
Overall Width – in (mm) 79.4 (2016.6) 79.4 (2016.6)
Overall Height – in (mm) 75.1 (1906.3) 75.7 (1922.3)
Ground Clearance
- Front Axle – in (mm) 9.6 (245.1) 9.0 (228.0)
- Rear Axle – in (mm) 9.0 (227.5) 8.6 (217.5)
Open Tailgate to Ground – in (mm) 34.6 (878.3) 34.9 (885.3)
Pickup Body Height – in (mm) 20.0 (508.6) 20.0 (508.6)
Approach Angle, degrees 18.8° 20.5°
Departure Angle, degrees 25.1° 25.4°
Ramp Breakover Angle, degrees 21.4° 16.6°
Fuel-Tank Capacity 26-gal (98 L) (Standard) 26-gal (98 L) (Standard)
32-gal (121 L) (Optional) 32-gal (121 L) (Optional)
Page 5
RAM 1500
C | 135
RAM 1500
2010 DODGE RAM 1500 SPECIFICATIONS
CREW CAB PICKUP
M
odel – Tire Size 2WD –265/70R17 4WD –265/70R17
W
heelbase (nominal) – in (mm) 140.5 (3569.2) 140.5 (3569.2)
T
rack, Front – in (mm) 68 (1728.2) 68.2 (1732.3)
T
rack, Rear – in (mm) 67.5 (1714.5) 67.5 (1714.5)
O
verall Length – in (mm) 229.0 (5816.5) 229.0 (5816.5)
O
verall Width – in (mm) 79.4 (2016.6) 79.4 (2016.6)
Overall Height – in (mm) 75.1 (1906.3) 75.7 (1922.3)
Ground Clearance
- Front Axle – in (mm) 9.6 (245.1) 9.0 (228.0)
- Rear Axle – in (mm) 9.0 (227.5) 8.6 (217.5)
Open Tailgate to Ground – in (mm) 34.6 (878.3) 34.9 (885.3)
Pickup Body Height – in (mm) 20.0 (508.6) 20.0 (508.6)
Approach Angle, degrees 18.8° 20.5°
Departure Angle, degrees 25.1° 25.4°
Ramp Breakover Angle, degrees 21.4° 16.6°
Fuel-Tank Capacity 26-gal (98 L) (Standard) 26-gal (98 L) (Standard)
32-gal (121 L) (Optional) 32-gal (121 L) (Optional)
CARGO BOX
Nominal Box Size 5 ft 7 in 6 ft 4 in 8 ft
(Crew) (Regular or Quad®) (Regular)
SAE Volume, cu ft (cu m) 50.3 (1.4) 57.5 (1.6) 74.7 (2.1)
Length at Floor,Tailgate Closed – in (mm) 67.4 (1712.4) 76.3 (1938.5) 98.3 (2496.5)
Cargo Width – in (mm) 66.4 (1686.9) 66.4 (1686.9) 66.4 (1686.9)
Distance Between Wheelhouses – in (mm) 51 (1295.4) 51 (1295.4) 51 (1295.4)
Depth – in (mm) 20.0 (508) 20.1 (510.5) 20.2 (513.2)
Tailgate Opening Width in – (mm) 60.4 (1535.3) 60.4 (1535.3) 60.4 (1535.3)
ACCOMMODATIONS
Model Regular Cab Quad Cab
®
Crew Cab
Seating Capacity, F/R 3/0 or 2/0 3/3 or 2/3 3/3 or 2/3
Front
- Head Room – in (mm) 40.3 (1022.6) 41.0 (1040.5) 41.0 (1040.5)
- Leg Room – in (mm) 41 (1041.3) 41 (1041.3) 41 (1041.3)
- Shoulder Room – in (mm) 66 (1676.4) 66 (1676.5) 66 (1676.5)
- Hip Room – in (mm) 62.9 (1676.4) 63.2 (1604.6) 63.2 (1604.6)
- Seat Travel – in (mm) 7.1 (179.2) 7.1 (179.2) 7.1 (179.2)
- Recliner Range (deg) 14° 42° 42°
Rear
- Head Room – in (mm) N/A 39.7 (1007.3) 39.9 (1013.5)
- Leg Room – in (mm) N/A 34.7 (881.4) 40.3 (1023.6)
- Shoulder Room – in (mm) N/A 65.7 (1670) 65.7 (1670)
- Hip Room – in (mm) N/A 62.9 (1598.3) 63.2 (1605.2)
Interior Volume
- Front – cu ft (cu m) 63.0 (1.8) 64.2 (1.8) 64.2 (1.8)
- Rear – cu ft (cu m) N/A 52.4 (1.5) 61.1 (1.7)
Page 6
RAM 1500
136 | C
RAM 1500
2010 DODGE RAM 1500 SPECIFICATIONS
BODY AND CHASSIS
M
odel 2WD 4WD
L
ayout Longitudinal, front engine Longitudinal, front engine, transfer case
C
onstruction Ladder-type frame, steel cab, Ladder-type frame, steel cab,
d
ouble-wall steel pickup box double-wall steel pickup box
SUSPENSION
Model 2WD 4WD
Front Upper and lower “A” arms, coil Upper and aluminum lower “A” arms,
springs, twin-tube shock absorbers, coil over twin-tube shock absorbers,
stabilizer bar stabilizer bar
Rear 5-link with track bar, coil springs, 5-link with track bar, coil springs,
stabilizer bar, twin-tube shock stabilizer bar, twin-tube shock
absorbers, solid axle absorbers, solid axle
STEERING
REGULAR CAB PICKUP
Model 2WD 4WD
Box Length Short Box Long Box Short Box Long Box
Wheelbase (nominal) - in (mm) 120.5” (3061) 140.5 (3569.2) 140.5 (3569.2) 140.5 (3569.2)
Overall Steering Ratio 19.1:1 17.9:1 19.1:1 17.9:1
Steering Wheel Turns (lock-to-lock) 3.5 3.3 3.5 3.3
Turning Diameter – 17-inch Tire - ft (m)
(a)
39.5’ 45.1’ 39.8’ 45.4’
(12.0 m) (13.7 m) (12.1 m) (13.8m)
Turning Diameter – 20-inch Tire - ft (m)
(a)
39.3’ 44.9’ 39.8’ 45.5’
(12.0 m) (13.7 m) (12.1 m) (13.9 m)
Turning Diameter – 17-inch TRX Tire - ft (m)
(a)
N/A N/A 39.4’ 45.0’
(12.0 m) (13.7 m)
QUAD CAB®PICKUP
Model 2WD 4WD
Wheelbase (nominal) - in (mm) 140.5” (3569) 140.5” (3569)
Overall Ratio 17.9:1 17.9:1
Steering Wheel Turns (lock-to-lock) 3.3 3.3
Turning Diameter – 17-inch Tire - ft (m)
(a)
45.1’ (13.7) 45.4’ (13.8)
Turning Diameter – 20-inch Tire - ft (m)
(a)
44.9’ (13.7) 45.5’ (13.9)
Turning Diameter – TRX - ft (m)
(a)
44.8’ (13.7) 45.0’ (13.7)
CREW CAB PICKUP
Model 2WD 4WD
Wheelbase (nominal) - in (mm) 140.5” (3569) 140.5” (3569)
Overall Ratio 17.9:1 17.9:1
Steering Wheel Turns (lock-to-lock) 3.3 3.3
Turning Diameter – 17-inch Tire - ft (m)
(a)
45.1’ (13.7) 45.4’ (13.8)
Turning Diameter – 20-inch Tire - ft (m)
(a)
44.9’ (13.7) 45.5’ (13.9)
Turning Diameter – TRX - ft (m)
(a)
44.8’ (13.7) 45.0’ (13.7)
(a)
Turning diameter is measured at the outside of the tires at curb height. Turning diameters and steering wheel turns,
lock-to-lock may differ with optional tires and wheels.
Page 7
RAM 1500
C | 137
RAM 1500
2010 DODGE RAM 1500 SPECIFICATIONS
BRAKES
F
ront
S
ize and Type – in (mm) 13.2” x 1.1” (336 mm x 28 mm) vented disc with 2.13” (54 mm)
t
wo-piston pin-slider caliper and ABS
S
wept Area 292 sq. in. (1884 sq. cm)
R
ear
S
ize and Type – in (mm) 13.8” x 0.87” (352 mm x 22 mm) disc with 2.13” (54 mm)
single-piston pin-slider caliper and ABS
Swept Area 274 sq. in. (1768 sq. cm)
Power-assist Type Dual-rate, tandem diaphragm vacuum
MAXIMUM PAYLOAD CAPACITIES*
REGULAR CAB SHORT BOX
Engine Transmission 4WD / 2WD GVW (lbs) Payload (lbs)
3.7L Automatic 4x2 6025 1480
4.7L Automatic 4x2 6025 1340
4.7L Automatic 4x4 6350 1520
5.7L Automatic 4x2 6200 1460
5.7L Automatic 4x4 6350 1440
REGULAR CAB LONG BOX
Engine Transmission 4WD / 2WD GVW (lbs) Payload (lbs)
3.7L Automatic 4x2 6600 1900
4.7L Automatic 4x2 6600 1760
4.7L Automatic 4x4 6600 1550
5.7L Automatic 4x2 6600 1710
5.7L Automatic 4x4 6600 1510
QUAD CAB®SHORT BOX
Engine Transmission 4WD / 2WD GVW (lbs) Payload (lbs)
3.7L Automatic 4x2 6700 1780
4.7L Automatic 4x2 6700 1690
4.7L Automatic 4x4 6700 1490
5.7L Automatic 4x2 6700 1660
5.7L Automatic 4x4 6700 1420
CREW CAB SHORT BOX
Engine Transmission 4WD / 2WD GVW (lbs) Payload (lbs)
4.7L Automatic 4x2 6800 1690
4.7L Automatic 4x4 6800 1470
5.7L Automatic 4x2 6800 1650
5.7L Automatic 4x4 6800 1430
* Maximum values shown, payload will vary depending on vehicle trim level and option content.
Page 8
RAM 1500
138 | C
RAM 1500
2010 DODGE RAM 1500 SPECIFICATIONS
ESTIMATED TRAILER TOW CAPACITIES*
3.7L REGULAR CAB – SHORT BOX (1L61) – ST
3.7L REGULAR CAB – LONG BOX (1L62) - ST
3.7L QUAD CAB®– SHORT BOX (1L41) – ST
Engine 4WD Quad Cab®Short Box Reg Cab Short Box Reg Cab Long Box
2WD Trans Axle Tire Trim GCW (lbs) Max Trailer (lbs) Max Trailer (lbs) Max Trailer (lbs)
3.7L 4x2 Auto 3.92 17-inch P265 ST 8,500 3,400 3,800 3,650
(4-Spd) 3.55 17-inch P265 ST 8,500 N/A 3,800 N/A
* Maximum towing capacities shown with properly equipped vehicle and a 150-lb driver.
O
ptions, equipment, cargo and passengers must be deducted (see Dodge Trailer-tow Guide for specific details).
4.7L REGULAR CAB – SHORT BOX (1L61, 1H61, 6L61, 6H61) – ST, SLT, TRX
4.7L REGULAR CAB – LONG BOX (1L62, 1H62, 6L62, 6H62) – ST, SLT, TRX
4WD Reg Cab Short Box Reg Cab Long Box
Engine 2WD Trans Axle Tire Trim GCW (lbs) Max Trailer (lbs) Max Trailer (lbs)
4.7L 4x2 Auto 3.92 17-inch P265 ST,SLT, TRX 12,500 7,650 7,500
(5-Spd) 3.92 20-inch P275 SLT 12,500 7,600 7,450
3.55 17-inchP265 ST,SLT 11,500 6,650 6,500
3.55 20-inch P275 SLT 11,500 6,600 6,450
4x4 Auto 3.92 17-inch P265 ST, SLT 12,500 7,500 7,300
(5-Spd) 3.92 20-inch P275 SLT, TRX 12,500 7,450 7,250
or 17-inch LT275 Off-Road
3.55 17-inch P265 ST, SLT 11,500 6,500 6,300
3.55 20-inch P275 SLT 11,500 6,450 6,250
* Maximum towing capacities shown with properly equipped vehicle and a 150-lb driver.
Options, equipment, cargo and passengers must be deducted (see Dodge Trailer-tow Guide for specific details).
4.7L QUAD CAB®– SHORT BOX (1L41, 1H41, 6L41, 6H41) – ST, SLT, TRX
4.7L CREW CAB – SHORT BOX (1L98, 1H98, 6L98, 6H98) – ST, SLT, TRX
4WD Crew Cab Short Box Quad Cab®Short Box
Engine 2WD Trans Axle Tire Trim GCW (lbs) Max Trailer (lbs) Max Trailer (lbs)
4.7L 4x2 Auto 3.92 17-inch P265 ST,SLT, TRX 12,500 7,200 7,250
(5-Spd) 3.92 20-inch P275 SLT 12,500 7,150 7,200
3.55 17-inch P265 ST, SLT 11,500 6,200 6,250
3.55 20-inch P275 SLT 11,500 6,150 6,200
4x4 Auto 3.92 17-inch P265 ST, SLT 12,500 7,000 7,050
(5-Spd) 3.92 20-inch P275 SLT, TRX 12,500 6,950 7,000
or 17-inch LT275 Off-Road
3.55 17-inch P265 ST, SLT 11,500 6,000 6,050
3.55 20-inch P275 SLT 11,500 5,950 6,000
* Maximum towing capacities shown with properly equipped vehicle and a 150-lb driver.
Options, equipment, cargo and passengers must be deducted (see Dodge Trailer-tow Guide for specific details).
Page 9
RAM 1500
C | 139
RAM 1500
2010 DODGE RAM 1500 SPECIFICATIONS
5.7L REGULAR CAB – SHORT BOX (1L61, 1H61, 6L61, 6H61) – ST, SLT, TRX, SPORT, R/T
5.7L REGULAR CAB – LONG BOX (1L62, 1H62, 6L62, 6H62) – ST, SLT, TRX, SPORT
4
WD Reg Cab Short Box Reg Cab Long Box
Engine 2WD Trans Axle Tire Trim GCW (lbs) Max Trailer (lbs) Max Trailer (lbs)
5.7L 4x2 Auto 4.10 20-inch P275 R/T 10,000 5,050 N/A
(5-Spd) 3.92 17-inch P265 ST, SLT, TRX 14,000 9,100 N/A
3.92 17-inch LT265 SLT,TRX 14,000 9,050 N/A
or 20-inch P275
3.92 17-inch P265 ST, SLT, TRX 15,500 N/A 10,450
3.92 20-inch P275 SLT, Sport 15,500 N/A 10,400
3.55 17-inch P265 ST, SLT 13,000 8,100 7,950
3.55 20-inch P275 SLT, Sport 13,000 8,050 7,900
3.21 17-inch P265 ST, SLT 11,000 6,100 5,950
3.21 20-inch P275 SLT 11,000 N/A 5,900
4x4 Auto 4.10 20-inch P275 R/T 10,000 5,050 N/A
(5-Spd) 3.92 20-inch P275 SLT 14,000 8,850 N/A
3.92 17-inch P265 ST, SLT, Laramie 15,500 N/A 10,250
3.92 20-inch P275 SLT, TRX 15,500 N/A 10,200
or 17-inch LT275 Off-road, Sport
3.55 17-inch P265 ST, SLT 13,000 7,900 7,750
3.55 20-inch P275 SLT, Sport 13,000 7,850 7,700
*Maximum towing capacities shown with properly equipped vehicle and a 150-lb driver.
Options, equipment, cargo and passengers must be deducted (see Dodge Trailer-tow Guide for specific details).
5.7L QUAD CAB®– SHORT BOX (1L41, 1H41, 1P41, 6L41, 6H41, 6P41)
– ST, SLT, TRX, SPORT, BIG HORN, LONE STAR, LARAMIE
5.7L CREW CAB – SHORT BOX (1L98, 1H98, 1P98, 6L98, 6H98, 6P98)
– ST, SLT, TRX, SPORT, BIG HORN, LONE STAR, LARAMIE
4WD Crew Cab Short Box Quad Cab®Short Box
Engine 2WD Trans Axle Tire Trim GCW (lbs) Max Trailer (lbs) Max Trailer (lbs)
5.7L 4x2 Auto 3.92 17-inch P265 ST,SLT, TRX,Laramie 15,500 10,200 10,200
(5-Spd) 3.92 20-inch P275 SLT, Sport,Big Horn, 15,500 10,150 10,150
Lone Star, Laramie
3.55 17-inch P265 ST, SLT, Laramie 13,000 7,700 7,700
3.55 20-inch P275 SLT, Sport, Big Horn, 13,000 7,650 7,650
Lone Star, Laramie
3.21 17-inch P265 ST, SLT 11,000 5,700 5,800
4x4 Auto 3.92 17-inch P265 ST, SLT, Laramie 15,500 9,950 10,000
(5-Spd) 3.92 20-inch P275 SLT, TRX Off-Road,
or 17-inch LT275 Sport, Big Horn,
Lone Star, Laramie 15,500 9,900 9,950
3.55 17-inch P265 ST, SLT, Laramie 13,000 7,450 7,500
3.55 20-inch P275 SLT, Sport, Laramie 13,000 7,400 7,450
* Maximum towing capacities shown with properly equipped vehicle and a 150-lb driver.
Options, equipment, cargo and passengers must be deducted (see Dodge Trailer-tow Guide for specific details).
Page 10
RAM 1500
140 | C
RAM 1500
2010 DODGE RAM 1500 FEATURE AVAILABILITY
LEGEND: S = Standard, O = Optional, P = Package, — = Not available
C
omplete package information is listed at the end of the Feature Availability section.
NOTE: Information shown is correct at time of publication and is subject to change.
S
T Reg/ SLT Reg/ TRX Reg/ Sport Reg/ Laramie
Q
uad/Crew Quad/Crew Quad/Crew Quad/Crew Quad/Crew
EXTERIOR
Bed Rail Caps—Top covers for bed sides SSSSS
Box Bedliner—Under rail OOOOO
Badges and Decals
Ram’s Head with Dodge SSSSS
Ram SSSSS
4x4 (4WD models only – except TRX4) SSSSS
Flex Fuel (4.7L automatic – Standard on 4x4, optional on 4x2) OSS——
SLT — S ———
TRX decal —— S ——
Laramie ———— S
HEMI (on front fender) OOOSS
Big Horn / Lone Star —P———
R/T (on grille, Regular Cab / Short Box only) ——— P —
Bumpers
Dark Grey, front and rear S ————
Chromed Steel, front and rear —S——S
Painted accent color, front and rear —— S ——
Body-color, front and rear ——— S —
Rear, with ParkSense
®
rear-park assist system
(included with Technology Group) —OOOS
Rear, with 7-pin trailer connector SSSSS
Colors
Inferno Red Crystal Pearl Coat
Flame Red Clear Coat
Light Graystone Pearl Coat
Austin Tan Pearl Coat
Deep Water Blue Pearl Coat
Bright Silver Metallic Clear Coat
Mineral Gray Metallic Clear Coat
Brilliant Black Crystal Pearl Coat
Bright White Clear Coat
Rugged Brown Pearl Coat
Mango Tango Pearl Coat OOOOO
Two-tone appearance with painted wheel flares ——S—S
Monotone exterior appearance ——— S —
Door Handles
Black S—S——
Body-color ——— S —
Chromed —S——S
Exhaust—Chromed-tipped dual exhaust integrated into rear bumper —P—S S
Fascia—Front upper
Black S ————
Painted body-color —S S—S
Page 11
RAM 1500
C | 141
RAM 1500
2010 DODGE RAM 1500 FEATURE AVAILABILITY
ST Reg/ SLT Reg/ TRX Reg/ Sport Reg/ Laramie
Quad/Crew Quad/Crew Quad/Crew Quad/Crew Quad/Crew
F
og Lamps—Rectangular — O/P SSS
Glass—Tinted SSSSS
Grille
C
hromed surround with black hexagonal texture S S ———
Painted surround with black hexagonal texture —— S ——
Body-color surround, chromed billet grille ——— S —
C
hromed surround, chromed billet grille —O———
Chromed surround, chromed hexagonal grille ———— S
Headlamps
Dual, automatic halogen S S ———
Quad, automatic halogen —PSSS
Mirrors
Manual adjusting, fold-away (6-inch x 9-inch) S ————
Power, heated, fold-away (6-inch x 9-inch) PSS——
Power, heated, with integrated turn signal and puddle lamps — O/P O/P SS
Manual adjusting, fold away Trailer-tow (7-inch x 11-inch) O ————
Power, heated, with integrated turn signal and puddle
lamps Trailer-tow (7-inch x 11-inch) —OOOO
Chromed, Power, heated, with integrated turn signal and
puddle lamps Trailer-tow (7-inch x 11-inch) ———— O
Black SSS——
Body-color ——— S —
Chromed ———— S
With memory function ———— S
RamBox Storage System—With illuminated, lockable, drainable bins
on both bed sides; stowable bed divider/2-foot bed extender;
and cargo rail system with adjustable cleats (Crew Cab models only) —OOOO
Rear Window/Backlight
Fixed, tinted S ————
Fixed, heated (not available with Regular cab) OOOOO/P
Sliding, manual with deep tint (n/a with defroster; Regular cab only) OSSS—
Sliding, power (not available on Regular cab) —SSSS
Skid Plate (front suspension and rear transfer case – 4x4 models only) PPS—P
Sun Roof—Power (Quad Cab and Crew Cab models only) —OOOO
Tailgate—With lift-assist SSSSS
Tow Hooks O/P O/P S—O/P
Trailer-Hitch Receiver—Class IV O/P O/P O/P O/P O/P
INTERIOR
Air Conditioning
Manual temperature control SSSS—
With dual-zone automatic temperature control —O OO/P S
Assist Handles—Four: Quad Cab/Crew Cab; two: Regular cab SSSSS
Auxiliary Power Converter—115-volt —O O S S
Page 12
RAM 1500
142 | C
RAM 1500
2010 DODGE RAM 1500 FEATURE AVAILABILITY
ST Reg/ SLT Reg/ TRX Reg/ Sport Reg/ Laramie
Quad/Crew Quad/Crew Quad/Crew Quad/Crew Quad/Crew
Colors
D
ark Slate Gray S—S S—
Dark Slate Gray/Medium Graystone O S O—O
D
ark Slate Gray/Frontier Tan (SLT only) —O O——
Light Pebble Beige/Bark Brown (SLT and Laramie only) —OOOO
C
ontrasting stitching ——— S S
C
hromed interior trim ———— S
Console
Center Console—With floor-mounted automatic transmission
shifter and Automatic Range Select; available Satin Silver
and grained finish; dual map pockets; upper and lower storage;
center armrest; and power outlets —O O S O
Overhead (includes dual courtesy/reading lamps) —S S——
Overhead (includes dual courtesy/reading lamps,
and HomeLink universal transceiver) — O/P O/P SS
Door Locks—power PSSSS
Electronic Vehicle Information Center (EVIC)—With steering-wheel
controls, compass, outside temperature, average fuel economy,
trip info, Tire-pressure Monitoring display and system setting options —SSSS
Electrical Power Outlet—Auxiliary 12-volt SSSSS
Floor Covering
Vinyl S ————
Carpet—10-ounce OSSSS
Floor mats—18-ounce PSSSS
Garment Hangers SSSSS
Instrument Cluster
Base, with 120-mph speedometer S ————
Premium, with 120-mph speedometer, tachometer and
Electronic Vehicle Information Center (EVIC) —SSSS
Instrument Panel Trim
Soft upper cover with accent stitching ——— S S
Center-stack black bezel with molded-in color struts S ————
Center-stack black bezel with Silver struts —SSS—
Center-stack woodgrain bezel with Satin Silver struts ———— S
Upper glove-box door – hard —S S——
Upper glove-box door – soft, vinyl covered ——— S S
Center outlet frame – Silver metallic —SSS—
Center outlet frame – Chromed ———— S
Outboard outlet frames – Satin Silver —SSS—
Outboard outlet frames – Satin Silver with chromed insert ———— S
Lighter—Cigar OOOOO
Memory System—up to two drivers for outside mirrors, driver seat,
adjustable pedals, and radio ———— S
Mirror—Rearview
Manual day/night SSS——
Auto-dimming — O/P PSS
Page 13
RAM 1500
C | 143
RAM 1500
2010 DODGE RAM 1500 FEATURE AVAILABILITY
ST Reg/ SLT Reg/ TRX Reg/ Sport Reg/ Laramie
Quad/Crew Quad/Crew Quad/Crew Quad/Crew Quad/Crew
P
edals
Power adjustable —O O O—
Power adjustable, with memory ———— S
P
ower Accessory Delay SSSSS
Remote keyless entry —SSSS
Seats
T
en-way power driver — O/P O/P S—
Ten-way power driver/six-way passenger ———— S
Heated, driver and front passenger ——— O S
Heated and ventilated driver and front passenger ——— O O
Rear heated seats (available on Quad Cab and Crew Cab) ———— O
Vinyl 40/20/40 split-bench front seat with adjustable head
restraints for outboard seating positions, driver and front-passenger
recliners and folding center armrest (Quad Cab and Crew Cab models
include folding rear bench seat trimmed in vinyl) S ————
Cloth-trimmed 40/20/40 split-bench front seat featuring stain-repel
seat fabric with adjustable head restraints for outboard seating
positions, driver and front-passenger recliners and folding center
armrest/business console. (Quad Cab and Crew Cab models
include folding rear bench seat and under-seat storage) O/P SS——
Premium cloth-trimmed 40/20/40 split-bench front seat featuring
stain-repel seat fabric with adjustable head restraints for outboard
seating positions, driver and front-passenger recliners, fold-flat floor
and folding center armrest/business console. Quad Cab and Crew Cab
models include 60/40 split-folding rear bench seat; not available
on Regular cab models —O O——
Premium cloth-trimmed low-back bucket seats featuring
stain-repel seat fabric with adjustable head restraints,
driver and front-passenger recliners, and fixed center console —O O S—
Premium leather-trimmed 40/20/40 split-bench seat with
adjustable head restraints, driver and front-passenger recliners,
fixed center console, and split/folding rear seat ———— S
Premium leather-trimmed low-back bucket seats with adjustable
head restraints, driver and front-passenger recliners, fixed
center console, and split/folding rear seat ——— O O
Under-seat Storage—Center Position, with latchable lid
(Crew Cab only) —O O S S
Under-seat Storage—Center Position, with load floor
(Quad Cab only) —O O S S
Smart Start Control—Prevents starter operation if engine is running SSSSS
Sound System
Six speakers SSS——
Seven premium speakers with amplifier (regular cab only) —O O S—
Ten-speaker surround sound, including subwoofer with amplifier
(not available on Regular cab models) —PPPS
AM/FM stereo radio with single-disc CD player and
MP3/WMA playback SSSS—
Uconnect Multimedia —OOOS
Uconnect Navigation including Uconnect Phone and iPod Control —OOOO
Page 14
RAM 1500
144 | C
RAM 1500
2010 DODGE RAM 1500 FEATURE AVAILABILITY
ST Reg/ SLT Reg/ TRX Reg/ Sport Reg/ Laramie
Quad/Crew Quad/Crew Quad/Crew Quad/Crew Quad/Crew
SIRIUS Satellite Radio—Not available in Hawaii or Puerto Rico
(
first year of service provided by SIRIUS) PSSSO
Uconnect Phone —OOOS
S
IRIUS Backseat TV
TM
s
atellite streaming video (first year of
service provided by SIRIUS) with second-row overhead
DVD screen (Quad Cab and Crew Cab only) —OOOO
Speed Control PSSSS
S
teering Wheel
Tilt-wheel with bright badge SSSSS
With Satin Silver bezels —SSSS
Heated ——— O S
Leather-wrapped with radio controls — O/P O/P SS
Storage
Front, behind seat (Regular cab only) SSSSS
Glove boxes—dual —SSSS
In-floor storage—Two, with removable liners (Crew Cab only) SSSSS
Rear under-seat compartment (Quad and Crew Cab only) SSSSS
Sun Roof (Quad Cab and Crew Cab only) —OOOO
Sun Visors
Driver and front-passenger, with illuminated vanity mirrors —P P S S
Front-passenger, with mirror —S S——
Windows—Power with express-up/-down driver and passenger windows OSSSS
Windshield Wiper and Washer System
Two-speed with variable-delay intermittent SSSSS
POWERTRAIN AND CHASSIS
3.55 axle ratio SS—SS
3.92 axle ratio with limited-slip differential OOSOO
Transfer Case (4x4 models only)
Part-time 2-speed SSSS—
Electric, on-demand 2-speed ———— S
Brakes
Four-wheel disc with ABS SSSSS
Engine Block Heater OOOOO
Fuel Tank
26-gallon SSSSS
32-gallon (Standard on long box SL and SLT) OOOOO
Suspension
Front—Upper and lower “A” arms, coil springs,
twin-tube shock absorbers SSSSS
Rear—Multi-link coil-spring, twin-tube shock absorbers SSSSS
Tires
P265/70R17 BSW all-season S S ———
P265/70R17 OWL on-/off-road (available on SLT 4x4) —O———
LT275/70R17 OWL all-terrain —— S ——
P275/60R20 OWL on-/off-road all-season —P—S O
P275/60R20 BSW all-season —P——S
Spare, 17-inch full-size SSSSS
Page 15
RAM 1500
C | 145
RAM 1500
2010 DODGE RAM 1500 FEATURE AVAILABILITY
ST Reg/ SLT Reg/ TRX Reg/ Sport Reg/ Laramie
Quad/Crew Quad/Crew Quad/Crew Quad/Crew Quad/Crew
W
heels
17-inch x 7.0-inch styled steel, painted argent S ————
17-inch x 8.0-inch steel chrome-clad O ————
1
7-inch x 7.0-inch cast aluminum, painted — S ———
17-inch x 8.0-inch chrome-clad aluminum ———— O
20-inch x 8.0-inch cast aluminum, painted — O/P ———
2
0-inch x 9.0-inch chrome-clad aluminum —O—S—
20-inch x 9.0-inch chrome-clad aluminum, Euro-flange, six spoke ———— S
Full-size spare, steel SSSSS
SAFETY AND SECURITY
Center High-mounted Stop Lamp (CHMSL)/Cargo Lamp with on/off
switch on headlamp switch SSSSS
Door Locks—Power PSSSS
Energy-absorbing Steering Column SSSSS
Electronic Stability Program (ESP) with Hill-start Assist (HSA),
Brake Assist, and Trailer-sway Control (TSC) SSSSS
HomeLink universal transceiver —P P S S
ParkSense®rear-park assist system —PPPS
ParkViewTMrear back-up camera —OOOO
Rear Head Restraints, Adjustable (Quad Cab and Crew Cab) SSSSS
Remote keyless entry (included in Security Group) PSSSS
Remote start — O/P O/P PS
Restraints
Front—Next-generation driver and passenger air bags
(a)
and knee bolsters SSSSS
Height-adjustable three-point seat belts, outboard front SSSSS
Lap belt, front center
(b)
SSSSS
Three-point seat belt, front center
(c)
SSSSS
Front-Passenger Occupant-classification System
(OCS—Quad Cab and Crew Cab) SSSSS
Rear—Three-point seat belts (three)
(b)
SSSSS
Supplemental side air bag inflatable curtains (SABIC) SSSSS
LATCH (Lower Anchors and Tethers for Children) SSSSS
Security Alarm PPPPS
Sentry Key®engine immobilizer SSSSS
Tire-pressure Monitoring SSSSS
Tire-pressure Monitoring Display —SSSS
(a)
Certified to federal regulations that allow less forceful air bags. Always use seat belts.
Remember, a back seat is the safest place for children.
(b)
Quad Cab only.
(c)
Regular cab only.
Page 16
RAM 1500
146 | C
RAM 1500
2010 DODGE RAM 1500 FEATURE AVAILABILITY
S
T Reg/ SLT Reg/ TRX Reg/ Sport Reg/ Laramie
Q
uad/Crew Quad/Crew Quad/Crew Quad/Crew Quad/Crew
PACKAGES / EQUIPMENT GROUPS
ST Popular Equipment Group—Includes cloth 40/20/40 seats with
s
tain-repel seat fabric, floor mats, carpet, speed control,
SIRIUS Satellite Radio and one-year subscription provided by SIRIUS O ————
Trailer-tow—Includes Class IV trailer hitch OOOOO
P
rotection Group—Includes tow hooks, front suspension skid
plate and rear transfer case skid plate (4x4 models) OOS—O
Big Horn/Lone Star Regional Package—Includes light group, HEMI engine,
dual exhaust, quad headlamps, 20-inch painted aluminum wheels,
fog lamps and special badging (Crew Cab and Quad Cab models only) —O———
Luxury Group—Includes overhead console with HomeLink universal
transceiver and reading lamps; power-heated mirrors with integrated
turn signal and puddle lamps; illuminated vanity mirrors; glove-box lamp,
ashtray lamp and underhood lamp; and leather-wrapped steering wheel
with audio controls —O O S S
Technology Group—Includes surround-sound audio system and
ParkSense
®
rear-park assist system (Not available on Regular
Cab models) —O O——
Remote start and Security Group—Includes remote start and
security alarm —O O O—
R/T Package—Includes unique torque converter with 4.10 axle ratio
and limited-slip differential (Regular Cab 4x2 models only) ——— O —
Sport Premium Group—Includes surround-sound speaker system,
ParkSense
®
rear-park assist system, and dual-zone automatic
temperature control (Quad Cab and Crew Cab models only) ——— O —
POWERTRAIN AVAILABILITY
Engines:
3.7-LITER SOHC 12-VALVE SMPI V-6 Std.—2WD Regular and 2WD Quad Cab
4.7-LITER SOHC 16-VALVE SMPI V-8 Std.—all 4WD and Crew Cab
5.7-LITER HEMI
®
16-VALVE V-8 Std.—all Sport and Laramie models
Opt.—all other models
Transmissions:
42RLE—AUTOMATIC FOUR-SPEED OVERDRIVE Std.—with all 3.7-liter engines
545RFE—AUTOMATIC FIVE-SPEED OVERDRIVE Std.—with 4.7-liter and 5.7-liter engines
Loading...
