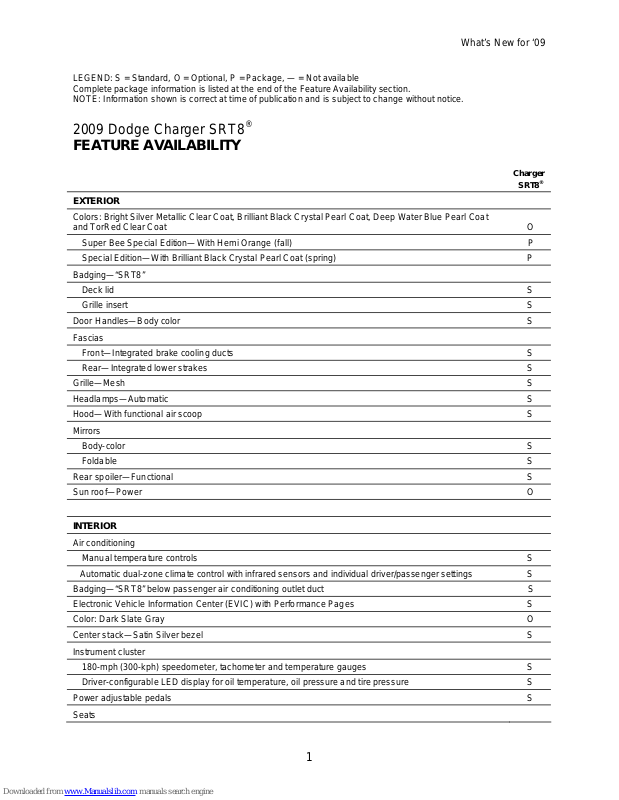

Page 1
What’s New for ‘09
LEGEND: S = Standard, O = Optional, P = Package, — = Not available
Complete package information is listed at the end of the Feature Availability section.
NOTE: Information shown is correct at time of publication and is subject to change without notice.
2009 Dodge Charger SRT8
®
FEATURE AVAILABILITY
Charger
EXTERIOR
Colors: Bright Silver Metallic Clear Coat, Brilliant Black Crystal Pearl Coat, Deep Water Blue Pearl Coat
and TorRed Clear Coat
Super Bee Special Edition—With Hemi Orange (fall) P
Special Edition—With Brilliant Black Crystal Pearl Coat (spring) P
Badging—“SRT8”
Deck lid S
Grille insert S
Door Handles—Body color S
Fascias
Front—Integrated brake cooling ducts S
Rear—Integrated lower strakes S
Grille—Mesh S
Headlamps—Automatic S
Hood—With functional air scoop S
Mirrors
Body-color S
Foldable S
Rear spoiler—Functional S
Sun roof—Power O
INTERIOR
Air conditioning
Manual temperature controls S
Automatic dual-zone climate control with infrared sensors and individual driver/passenger settings S
Badging—“SRT8” below passenger air conditioning outlet duct S
Electronic Vehicle Information Center (EVIC) with Performance Pages S
Color: Dark Slate Gray O
Center stack—Satin Silver bezel S
Instrument cluster
180-mph (300-kph) speedometer, tachometer and temperature gauges S
Driver-configurable LED display for oil temperature, oil pressure and tire pressure S
Power adjustable pedals S
Seats
SRT8
O
®
1
Page 2
What’s New for ‘09
Charger
Power adjustable, performance S
Performance suede inserts S
Contrasting stitching S
Heated S
Satin Silver shift bezel and lock knobs S
SIRIUS Satellite Radio S
Sound Systems
AM/FM/CD MP3 radio S
uconnect gps navigation radio with integrated display P
KICKER® audio system with 6-disc CD/DVD player P
uconnect studios Rear-seat Video system, including KICKER® Mobile Surround Sound and SIRIUS
Backseat TV
Steering wheel-mounted audio controls S
Steering wheel—Carbon-fiber leather trim, Satin Silver spokes S
uconnect phone P
Windows
Power, driver one-touch S
Power front, one-touch express up and down S
POWERTRAIN AND CHASSIS
6.1L HEMI® V-8 engine S
Five-speed automatic transmission with Auto Stick S
Brakes—Power four-wheel disc with Anti-lock Brake System (ABS) and Brembo four-piston calipers S
Brake Assist S
Electronic Stability Program (ESP)—Three-mode system uniquely calibrated for SRT application S
Unique Engine Controller and Transmission Calibration S
Exhaust System with 3.5-inch tips and revised tuning S
Suspension
SRT-tuned dampers, specially tailored spring rates and suspension bushings S
Large diameter anti-sway bars S
Modified front and rear knuckles S
Tire Pressure Monitoring (TPM) S
Tires
Front—P245/45R20 Goodyear RSA four-season S
Rear—P245/45R20 Goodyear RSA four-season S
Front—P245/45R20 Goodyear F1 three-season O
Rear—P255/45R20 Goodyear F1 three-season O
Wheels
20-inch forged aluminum S
TM
SRT8
O
®
2
Page 3
What’s New for ‘09
SAFETY AND SECURITY
Air Bags—Advanced multi-stage system
Anti-lock Brake System (ABS) S
Supplemental side-curtain air bags O
Electronic Stability Program (ESP)—Three-mode system uniquely calibrated for SRT application S
Energy-absorbing steering column S
Occupant Classification System (OCS) S
Seat belts
Front: Height-adjustable three-point belts with constant force retractors, pretensioners and traveling
buckles
Rear: Three-point for all seating positions S
LATCH (Lower Anchors and Tethers for CHildren) child seat anchor system S
(a) Certified to the federal regulation for automatic passenger occupant classification. Always use seat belts. Children 12 and under
should always be in a back seat correctly using an infant or child restraint system, or the seat belt positioned correctly for the
child’s age and size. The OCS determines the conditions for activation or deactivation of the passenger-side front air bag based
upon the weight of the occupant. It may not activate the air bag if the occupant has incorrect seating posture or is moving in the
seat. You should observe the air bag lamp to determine if the OCS is deciding properly. Passengers should sit properly in the
seat with the seat belt fastened at all times.
(a)
PACKAGES
SRT Package 1—Includes air filtering, dual-zone automatic temperature control with air conditioning,
heated front seats, automatic headlamps, express-up windows, remote start S
SRT Package 2—Includes KICKER® audio system, 200-watt subwoofer, 322-watt amplifier, AM/FM 6-disc
CD/DVD/MP3 radio, security alarm O
SRT Package 3—Includes uconnect gps, AM/FM with integrated display, SIRIUS Satellite Radio and
uconnect phone
Super Bee Edition—Available in Hemi Orange (fall) and includes accent color stitching on seats; SRT
logo on seatback and center console; specific Super Bee wheels with black anodized pockets; serialized
dash plaque; specific “Super Bee” exterior graphics/decals on hood, side and rear quarters; “Super Bee”
exterior badges; silver brake calipers and optional uconnect tunes
SRT Track Experience—Includes a one-day driving experience designed for SRT owners and
performance enthusiasts to maximize their driving knowledge and skills on the street or track. All SRT
owners and enthusiasts are eligible to participate in this day-long event held at selected tracks throughout
the season with first-rate driving instruction from the professionals at the Richard Petty Racing School S
S
S
O
O
3
Page 4
What’s New for ‘09
2009 Dodge Charger SRT8
SPECIFICATIONS
Dimensions are in inches (millimeters) unless otherwise noted.
GENERAL INFORMATION
Body Style Sedan
Assembly Plant Brampton, Ontario, Canada
EPA Vehicle Class Large car
Introduction Date Fall 2005 as 2006 model
ENGINE: 6.1-LITER, HEMI® V-8
Availability Standard
Type and Description 90-degree V-type, liquid-cooled
Displacement 370 cu. in. (6,059 cu. cm)
Bore x Stroke 4.06 x 3.58 (103.0 x 90.9)
Valve System
Fuel Injection Sequential, multi-port, electronic, returnless
Construction
Compression Ratio 10.3:1
Power (estimated SAE net) 425 bhp (318 kW) @ 6,200 rpm (69.8 bhp/L)
Torque (estimated SAE net) 420 lb.-ft. (569 N•m) @ 4,800 rpm
Max. Engine Speed 6,400 rpm (electronically limited)
Fuel Requirement Premium 91 octane (R+M)/2—recommended
Oil Capacity 7 qt. (6.6L)
Factory Oil Fill Mobil 1 10W-40 Synthetic
Coolant Capacity 14 qt. (13.25L)
Emission Controls
Max. Gross Trailer Weight Not rated for trailer tow
EPA Fuel Economy mpg (City/Hwy) 13/18
TRANSMISSION: W5A580 FIVE-SPEED AUTOMATIC
Availability Standard
Description
Gear Ratios
1st 3.59
2nd 2.19
3rd 1.41
4th 1
5th 0.83
Pushrod-operated overhead valves, 16 valves, eight conventional
hydraulic lifters, all with roller followers
Deep-skirt cast-iron block with cross-bolted main bearing caps,
aluminum alloy heads with hemispherical combustion chambers
Dual close-coupled three-way catalytic converters, quad-heated
oxygen sensors and internal engine features
Adaptive electronic control, performance-tuned Auto Stick driverinteractive manual control and electronically modulated torque
converter clutch
4
Page 5
What’s New for ‘09
Reverse 3.17
Final Drive Ratio 3.06
Overall Top Gear 2.54
ELECTRICAL SYSTEM
Alternator 160-amp
Battery H7 Case, 730 CCA, maintenance-free
DIMENSIONS AND CAPACITIES
Wheelbase 120.0 (3048)
Track, Front 63.0 (1600)
Track, Rear 63.1 (1604)
Overall Length 200.1 (5082)
Overall Width 74.5 (1891)
Overall Height 57.7 (1466)
With SDAR Antenna 58.3 (1481)
Ground Clearance 5.1 (129)
Frontal Area, sq. ft. (sq. m) 25.7 (2.39)
Drag Coefficient 0.345
Curb Weight, lb. (kg)—Est. 4,160 (1887)
Weight Distribution, percent F/R 54/46
Fuel Tank Capacity, gal. (L) 19 (72)
(a) All dimensions measured at curb weight with standard tires.
ACCOMMODATIONS
Seating Capacity, F/R 2/3
Front Seat
Head Room 38.7 (983)
Leg Room 41.8 (1061)
Shoulder Room 59.3 (1505)
Hip Room 56.2 (1427)
Seat Travel Driver—10.6 (270), passenger—8.66 (220)
Recliner Angle Range, deg. Driver—up to 112, passenger—69
SAE Front Volume Index, cu. ft. (cu. m) 55.5 (1.57)
Rear Seat
Head Room 36.2 (919.5)
Leg Room 40.2 (1020)
Knee Clearance 4.5 (114.2)
Shoulder Room 57.6 (1464)
Hip Room 55.5 (1409)
SAE Rear Seat Volume Index,
cu. ft. (cu. m)
(a)
50.5 (1.43)
5
Page 6
What’s New for ‘09
Total Interior Volume, cu. ft. (cu. m) 104.0 (2.94)
SAE Cargo Volume, cu. ft. (cu. m) 16.2 (0.46)
EPA Interior Volume Index, cu. ft. (cu. m) 120.2 (3.4)
Trunk Liftover Height 30.1 (765.1)
BODY
Layout Longitudinal front engine, rear-wheel drive
Construction Unitized steel body
SUSPENSION
SRT-tuned Front and Rear Suspension
Front
Rear
STEERING
Type Rack and pinion with hydraulic power assist
Overall Ratio 16.1:1
Turning Diameter (curb-to-curb) 38.9 ft. (11.9 m)
Steering Turns (lock-to-lock) 2.75
TIRES
Standard
Size and Type 245/4 5R20 all-season—front
Mfr. and Model Goodyear Eagle RS-A
Revs per Mile (km) 729 (452) front, 729 (452) rear
Optional
Size and Type P245/45R 20 three-season—front
Mfr. and Model Goodyear F1 Supercar
Revs per Mile (km) 729 (452) front, 720 (447) rear
Independent SLA with high upper “A” arm, coil spring over gascharged monotube Bilstein shock absorbers and stabilizer bar,
lateral and diagonal lower links
Five-link independent with coil springs, link-type stabilizer bar, gascharged monotube Bilstein shock absorbers and isolated
suspension cradle
245/45R20 all-season—rear
P255/45R20 three-season—rear
WHEELS
Standard
Type and Material F orged polished aluminum
Size 20 x 9 in.
6
Page 7
What’s New for ‘09
BRAKES
Front
Rotor Size and Type 14.2 x 1.26 (360 x 32.0) vented
Caliper Size and Type 1.73 (44) Brembo four-piston fixed with aluminum housing
Swept Area 351 sq. in. (2261 sq. cm)
Rear
Rotor Size and Type 13.8 x 1.10 (350 x 28) vented
Caliper Size and Type 1.26 (32) Brembo four-piston fixed with aluminum housing
Swept Area 316 sq. in. (2036 sq. cm)
Four-wheel Anti-lock Brake System (ABS)
and Traction Control
Power Assist Type 8x9 (203 x 229) tandem-diaphragm vacuum booster
Standard
7
