D O D G E B R A N D P R O D U C T I N F O R M A T I O N
2 0 0 5 D O D G E R A M S R T - 1 0 / Q U A D C A B S R T - 1 0
1 2
continued

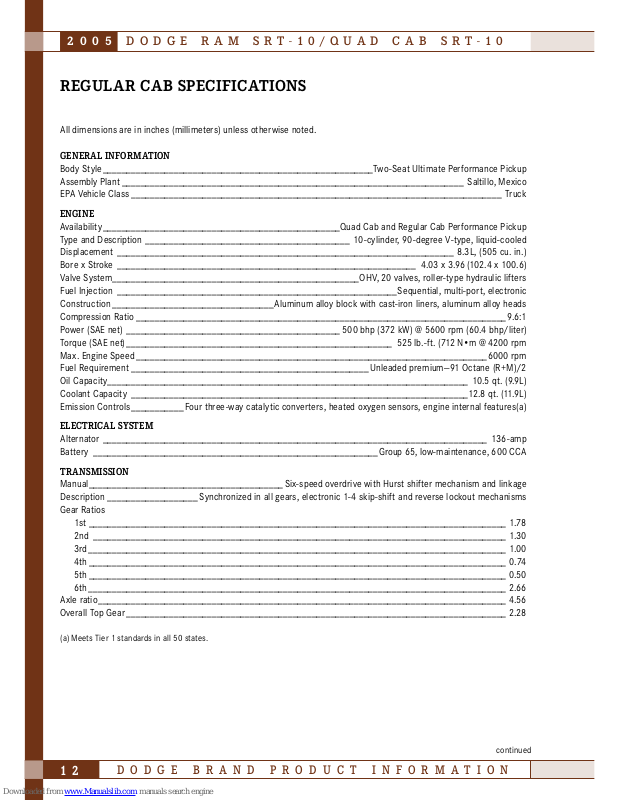

REGULAR CAB SPECIFICATIONS
All dimensions are in inches (millimeters) unless otherwise noted.
GENERAL INFORMATION
Body Style _________________________________________________________Two-Seat Ultimate Performance Pickup
Assembly Plant ________________________________________________________________________ Saltillo, Mexico
EPA Vehicle Class ______________________________________________________________________________ Truck
ENGINE
Availability __________________________________________________Quad Cab and Regular Cab Performance Pickup
Type and Description ___________________________________________ 10-cylinder, 90-degree V-type, liquid-cooled
Displacement _______________________________________________________________________ 8.3L, (505 cu. in.)
Bore x Stroke _______________________________________________________________ 4.03 x 3.96 (102.4 x 100.6)
Valve System ____________________________________________________OHV, 20 valves, roller-type hydraulic lifters
Fuel Injection ___________________________________________________________Sequential, multi-port, electronic
Construction __________________________________Aluminum alloy block with cast-iron liners, aluminum alloy heads
Compression Ratio ______________________________________________________________________________ 9.6:1
Power (SAE net) _____________________________________________ 500 bhp (372 kW) @ 5600 rpm (60.4 bhp/liter)
Torque (SAE net) ________________________________________________________ 525 lb.-ft. (712 N•m @ 4200 rpm
Max. Engine Speed __________________________________________________________________________6000 rpm
Fuel Requirement __________________________________________________ Unleaded premium—91 Octane (R+M)/2
Oil Capacity ____________________________________________________________________________ 10.5 qt. (9.9L)
Coolant Capacity _______________________________________________________________________12.8 qt. (11.9L)
Emission Controls ___________ Four three-way catalytic converters, heated oxygen sensors, engine internal features(a)
ELECTRICAL SYSTEM
Alternator _________________________________________________________________________________ 136-amp
Battery ____________________________________________________________Group 65, low-maintenance, 600 CCA
TRANSMISSION
Manual _________________________________________ Six-speed overdrive with Hurst shifter mechanism and linkage
Description ___________________ Synchronized in all gears, electronic 1-4 skip-shift and reverse lockout mechanisms
Gear Ratios
1st ________________________________________________________________________________________ 1.78
2nd _______________________________________________________________________________________ 1.30
3rd ________________________________________________________________________________________ 1.00
4th ________________________________________________________________________________________ 0.74
5th ________________________________________________________________________________________ 0.50
6th ________________________________________________________________________________________ 2.66
Axle ratio ______________________________________________________________________________________ 4.56
Overall Top Gear ________________________________________________________________________________ 2.28
(a) Meets Tier 1 standards in all 50 states.
D O D G E B R A N D P R O D U C T I N F O R M A T I O N
2 0 0 5 D O D G E R A M S R T - 1 0 / Q U A D C A B S R T - 1 0
1 3
continued
FINAL DRIVE
Description ___________________________________________________________________________ Dana Super-60
DIMENSIONS AND CAPACITIES(a)
Wheelbase ____________________________________________________________________________________ 120.5
Box Length ________________________________________________________________________________ 6 ft. 3 in.
Track, Front ____________________________________________________________________________________ 68.5
Track, Rear ____________________________________________________________________________________ 67.9
Overall Length _________________________________________________________________________________ 203.1
Overall Width __________________________________________________________________________________ 79.9
Overall Height __________________________________________________________________________________ 74.4
Tailgate Load Height _______________________________________________________________________________34
Ground Clearance
Approach angle _______________________________________________________________________ 16.3 degrees
Ramp breakover angle _________________________________________________________________ 23.1 degrees
Departure angle ______________________________________________________________________ 25.2 degrees
Curb Weight (estimated) ______________________________________________________________________ 5,100 lbs.
Frontal Area ______________________________________________________________________________34.6 sq. ft.
Drag Coefficient ________________________________________________________________________________ 0.43
Fuel Tank Capacity ____________________________________________________________________________ 26 gal.
CARGO BOX
Nominal Box Size ________________________________________________________________________________ 6.3
SAE Volume _____________________________________________________________________57.7 cu. ft. (1.62 cu. m)
Length at Floor, Tailgate Closed ______________________________________________________________ 75.9 (1928)
Cargo Width _____________________________________________________________________________ 66.4 (1687)
Distance Between Wheelhouses ______________________________________________________________51.0 (1295)
Depth ____________________________________________________________________________________ 20.2 (512)
Tailgate Opening Width ______________________________________________________________________ 63.5 1612)
ACCOMMODATIONS
Seating Capacity ___________________________________________________________________________________ 2
Head Room ______________________________________________________________________________ 40.9 (1040)
Leg Room ________________________________________________________________________________41.0 (1041)
Shoulder Room __________________________________________________________________________ 67.1 (1705.6)
Hip Room ______________________________________________________________________________64.9 (1648.2)
Seat Travel ________________________________________________________________________________ 9.0 (229)
Interior Volume ___________________________________________________________________________65.06 cu. ft.
(a) All dimensions measured at curb weight with standard tires.
REGULAR CAB SPECIFICATIONS
