4
1
Dimension3
IMPORTANT!
FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:
WATER AND MOISTURE: Appliance should not be used near water (e.g. near a bath-
tub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool,
etc). Care should be taken so that objects do not fall and liquids are not spilled into the
enclosure through openings.
POWER SOURCES: The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance.
GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding
or polarization means of an appliance is not defeated.
POWER CORD PROTECTION: Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they
exit from the appliance.
SERVICING: The user should not attempt to service the appliance beyond that
described in the operating instructions. All other servicing should be referred to qualified
service personnel.
OPERATION IS SUBJECT TO THE FOLLOWING:
•This device may not cause harmful interference, and
•This device must accept any interference received, including interference that may cause undesired operation. Operation of this unit
within significant electromagnetic fields should be avoided.
DOD WARRANTY
1. The warranty registration card must be mailed within ten days after
purchase date to validate this warranty.
2. DOD warrants this product, when used solely within the U.S., to be free from defects in material
and workmanship under normal use and service.
3. DOD Electronics liability under this warranty is limited to repairing or replacing defective materials that show evidence of defect, provided the product is returned through the original dealer, where
all parts and labor will be covered up to a period of one year. The company shall not be responsible
for any consequential damage as a result of the product’s use in any circuit or assembly.
4. Proof of date of purchase is considered to be the burden of the consumer.
5. DOD reserves the right to make changes in design or make improvements upon this product without incurring any obligation to install the same on product previously manufactured.
6. The foregoing is in lieu of all other warranties, either expressed or implied, and DOD neither
assumes nor authorizes any person to assume for it any obligation or liability in connection with the
sale of this product. In no event shall DOD or its dealers be liable for special or consequential damages from any delay in the performance of this warranty due to causes beyond their control.
Dimension3
SPECIFICATIONS
Frequency Response: 20 - 12 kHz
Input Impedance: 10 kΩ
Output Impedance: 51Ω
Dynamic Range: 96 dB
Sample Rate: 44.1kHz
DSP: 24 bit
A/D/A Resolution: 18 bit
Maximum Output Level: 12 dBu
Power Requirements: 3 VA
Dimensions: 1.75” X 4.75” X 19”

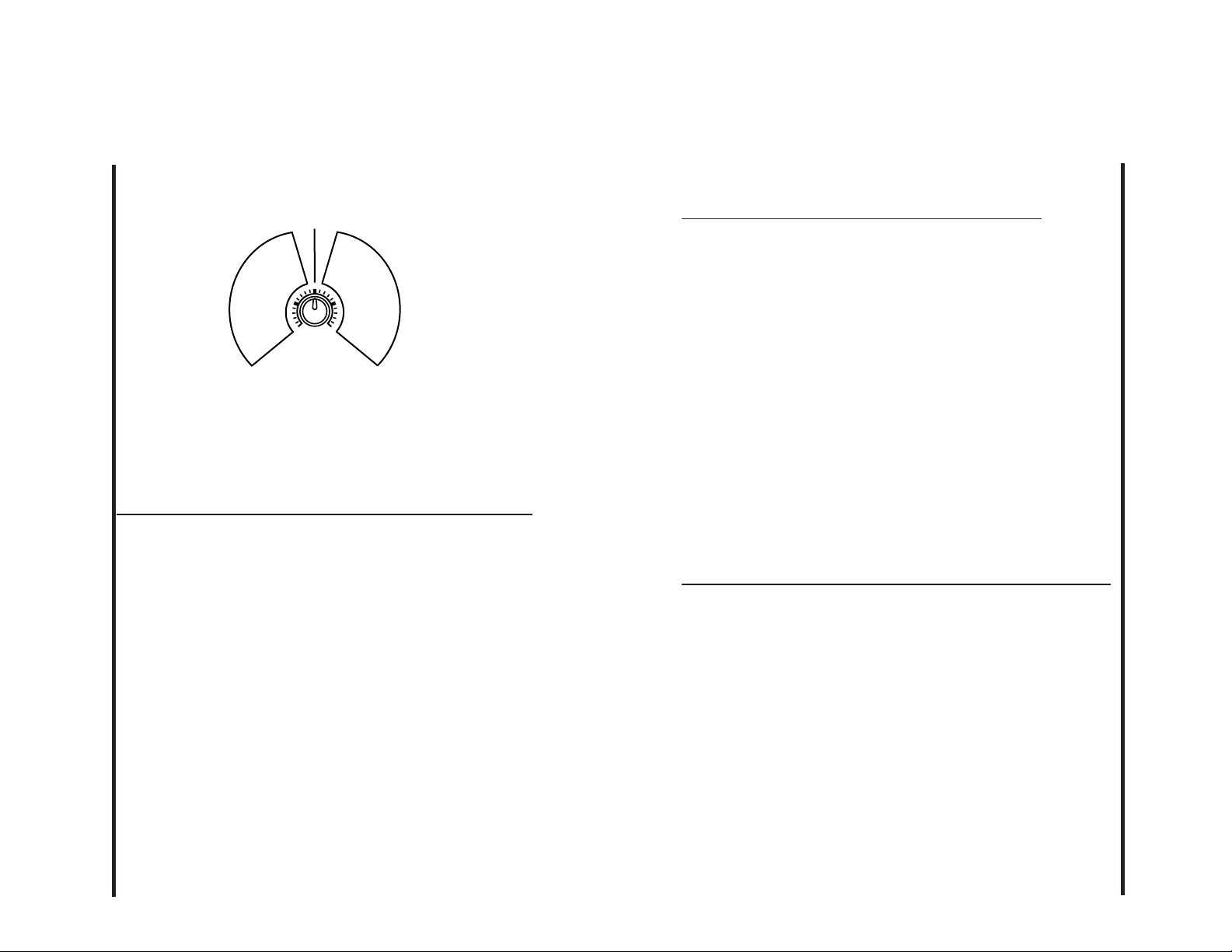

This diagram shows the functions of parameter 1 knob when in
pitch/detune modes.
Parameter 1
Detune
-b3
-3
-4
Pitch
-5
Down
-6
-Oct.
+b3
+3
Pitch
Up
+Oct.
+4
+5
+6
3
Dimension3
2
Dimension3
INTRODUCTION
Congratulations, and thank you for your purchase of the DOD Dimension3. You
have just purchased the greatest sounding multi-effects box with the least complicated operating system made. There’s an effect for all applications and they’re
all at your finger tips with the simple turn of a knob. You can have the perfect
sound in a matter of seconds. There’s nothing complicated about the Dimension3.
Select an effect and dial it up.
INSTALLATION

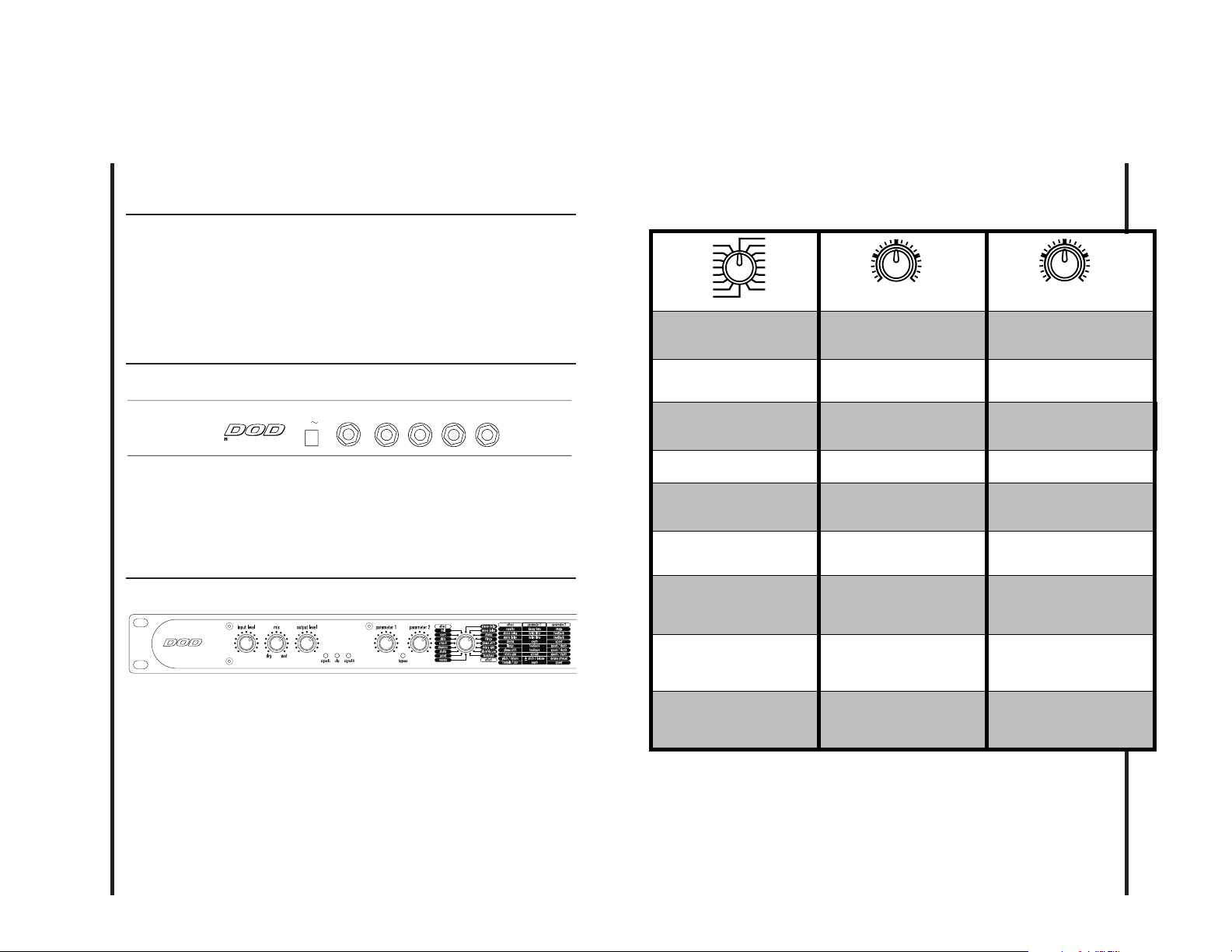

Rear Panel
Install the Dimension3 in a rack using conventional rack screws. Route the AC
power cord away from audio lines and plug into a convenient outlet. The left and
right inputs are used for a stereo line level source (such as mixer or preamp outputs). If the source is mono, use the Left Input jack only.
OPERATION
Front Panel
The Input knob controls the amount of signal that enters the Dimension3. The
Output knob controls the amount of signal that exits the Dimension3. The Mix
knob adjusts the effect-to-original signal ratio. Adjust the Input Knob until the Clip
LED briefly lights when signal peaks are reached. The signal LEDs indicate signal
is present at the input. Adjust the Output and Mix Knobs to desired settings.
After adjusting the Input, Output, and Mix knobs, determine which effect you want
to use. Use the Effect dial to select the effect, and dial up the effect that is most
fitting to your needs. Selecting BYPASS (optional DOD FS300 footswitch) will
mute the effect signal. After selecting an Effect , you can adjust the available parameters using the Parameter knobs.
FX Bank
*In addition to Bypass the optional FS300 footswitch also provides control of all
the effects that have a speed parameter. It will allow you to switch between the
default lowest setting, and the highest knob setting. This function increases real
time playability dramatically. Switching between settings in the Rotary speaker
effect causes the speeds and doppler shift to ramp between the two settings.
This effect must be heard to be appreciated.
Manufactured in the USA by
A Harman International Company
POWER INPUT
9V
750 mA
RIGHT IN LEFT/MONO INLEFT OUTRIGHT OUT
FOOTSWITCH
Controls the reverbs
Controls Decay time
Reverbs
Stereo Delay
Controls feedback range.
Controls Delay time.
Ranges from
10ms - 370ms.
Mono Delay
Controls feedback range.
Chorus
Controls the Speed.
Ranges from .10Hz to 3.85Hz.
Controls the Depth.
Ranges from 0.4ms to 4.5ms.
Controls Delay time.
Ranges from
10ms - 370ms.
Flange
Controls the Speed
Speed ranges 0.1Hz - 1.6Hz
Controls Depth
ranges 4.5 - 0.5
Phaser
Controls Depth
ranges 0.2 - 0.8
Tremolo/Panner
Controls the Speed.
Ranges from 2.0Hz to 9.5Hz
for the Tremolo, and 0.10Hz
to 3.85Hz for the Panner
Controls the Depth:
Ranges from 0.3 to 1.0
1-8 Tremolo, 9-16 Panner.
Pitch/Detune
see page 4 for
more detail
Adjusts the detune ±24.
Inactive when in
pitch mode.
Center (12:00) activates Detune.
Pitch shift values are:
C/C/W -b3, -3, -4, -5, -6, -Oct.
C/W +b3, +3, +4, +5, +6, +Oct.
PARAMETER 2
PARAMETER 1
EFFECT
*Rotary speaker
Controls spread
Controls speed and Depth
0.7 to 10 Hz
STEREO DELAY
MONO DELAY
CHORUS
FLANGE
PHASOR
ROTARY
PITCH
TREM/PAN
HALL
ROOM
PLATE
CHURCH
CHAMBER
STUDIO
GATED
REVERSE
Controls the Speed
Speed ranges 0.10Hz - 5Hz
O
O
WWNNEERR''S
S
M
M
AANNUUAAL
L
Dimension3
DOD Electronics Corporation
8760 South Sandy Parkway
Sandy, Utah 84070
International Distribution
3 Overlook Drive Unit 4
Amherst, New Hampshire 03031
U.S.A.
FAX (603) 672-4246
DOD is a Registered Trademark of DOD
Electronics
© 1997 DOD Electronics Corporation
Printed In U.S.A. 11/97
Manufactured In The U.S.A.
DOD 18-2231-B
DDOODD EELLEECCTTRROONNIICCSS CCOORRPPOORRAATTIIOON
N
CAUTION
DECLARATION OF CONFORMITY
Manufacturer’s Name: DOD Electronics Corporation
Manufacturer’s Address: 8760 S. Sandy Parkway
Sandy, Utah 84070, USA
declares that the products:
Product Name: Dimension3
Product Options: All
conform to the following product specifications:
Safety: EN 60065 (1993)
IEC63 (1985) with Amendments 1,2,3
EMC: EN 55013 (1990)
EN 55020 (1991)
Supplementary Information:
The products herewith comply with the requirements
of the Low Voltage Directive 73/23/EEC and the EMC
Directive 89/336/EEC as ammended by directive
93/68/EEC.
DOD Electronics Corporation
President of DOD
8760 S. Sandy Parkway
Sandy, Utah 84070, USA
Effective: 11/24/97
European Contact: Your Local DOD Sales and Service Office or
International Sales Office
3 Overlook Drive #4
Amherst, New Hampshire 03031, USA
Tel (603) 672-4244
Fax (603) 672-4246
RISK OF ELECTRIC SHOCK
Line
Neutral
DO NOT OPEN
WIRE COLOR
Brown
Blue
Green/Yel.
Black
White
Green
ATTENTION: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
These symbols are internationally accepted symbols that warn of potential hazards with electrical products. The lightning flash means that there are dangerous voltages present within the unit. The exclamation point indicates that it is
necessary for the user to refer to the owner’s manual.
These symbols warn that there are no user serviceable parts inside the unit.
Do not open the unit. Do not attempt to service the unit yourself. Refer all servicing to qualified personnel. Opening the chassis for any reason will void the
manufacturer’s warranty. Do not get the unit wet. If liquid is spilled on the unit,
shut it off immediately and take it to a dealer for service. Disconnect the unit
during storms to prevent damage.
U.K. MAINS PLUG WARNING
A moulded mains plug that has been cut off from the cord is unsafe. Discard the
mains plug at a suitable disposal facility. NEVER UNDER ANY CIRCUM-
STANCES SHOULD YOU INSERT ADAMAGED OR CUT MAINS PLUG INTO
A 13 AMP POWER SOCKET. Do not use the mains plug without the fuse cover
in place. Replacement fuse covers can be obtained from your local retailer.
Replacement fuses are 13 amps and MUST be ASTA approved to BS1362.
SAFETY INSTRUCTIONS
NOTICE FOR CUSTOMERS IF YOUR UNIT IS EQUIPPED WITH A POWER
CORD.
WARNING: THIS APPLIANCE MUST BE EARTHED.
The cores in the mains lead are coloured in accordance with the following code:
GREEN and YELLOW - Earth BLUE - Neutral BROWN - Live
As colours of the cores in the mains lead of this appliance may not correspond
with the coloured markings identifying the terminals in your plug, proceed as follows:
• The core which is coloured green and yellow must be connected to the
terminal in the plug marked with the letter E, or with the earth symbol, or
coloured green, or green and yellow.
• The core which is coloured blue must be connected to the terminal
marked N or coloured black.
• The core which is coloured brown must be connected to the terminal
marked L or coloured red.
This equipment may require the use of a different line cord, attachment plug, or
both, depending on the available power source at installation. If the attachment
plug needs to be changed, refer servicing to qualified service personnel who
should refer to the table below. The green/yellow wire shall be connected
directly to the unit's chassis.
CONDUCTOR
L
N
Earth Grnd.
WARNING: If the ground is defeated, certain fault conditions in the unit or in the
system to which it is connected can result in full line voltage between chassis
and earth ground. Severe injury or death can then result if the chassis and
earth ground are touched simultaneously.
WARNING
FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:
WATER AND MOISTURE:Appliance should not be used near water (e.g. near a
bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming
pool, etc). Care should be taken so that objects do not fall and liquids are not spilled
into the enclosure through openings.
POWER SOURCES: The appliance should be connected to a power supply only of
the type described in the operating instructions or as marked on the appliance.
GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.
POWER CORD PROTECTION: Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the point where
they exit from the appliance.
SERVICING: To reduce the risk of fire or electric shock, the user should not attempt
to service the appliance beyond that described in the operating instructions. All other
servicing should be referred to qualified service personnel.
FOR UNITS EQUIPPED WITH EXTERNALLYACCESSIBLE FUSE RECEPTACLE:
Replace fuse with same type and rating only.
ELECTROMAGNETIC COMPATIBILITY
Operation is subject to the following conditions:
• this device may not cause harmful interference, and
• this device must accept any interference received, including interference
that may cause undesired operation.
• use only shielded interconnecting cables.
• operation of this unit within significant electromagnetic fields should be
avoided.
