F-02D

INSTRUCTION MANUAL

’11.10

Thank you for purchasing "F-02D" mobile terminal. Before using F-02D, read this manual to ensure safe use and handling.

About manuals for F-02D

The operations of F-02D are described in this manual, " terminal) and "Instruction manual (detailed version)" (in pdf format).

Instruction manual (this manual)

使いかたガイド

(Guide) "(installed in FOMA terminal)

"Instruction manual (detailed version)" (in pdf format)

･

In this "F-02D INSTRUCTION MANUAL", "F-02D" mobile terminal is usually referred to as "FOMA terminal".

･

The images or illustration used in this manual are examples. They may differ from the actual displays.

･

The images used in this manual assume that Kisekae Tool is set to "White" and Color theme setting is set to "White".

･

In this manual, "authenticate" indicates the operating procedure for entering the terminal security code in 4-

⇒

8 digits (

P39) or performing fingerprint authentication.

This manual provides information about screens and operations of basic functions.

This guide provides overviews and operations of frequently-used functions. (In Japanese only) In F-02D Stand-by display, method

This manual provides detailed information and operations of all the functions. (In Japanese only) <From a PC> This manual can be downloaded from NTT DOCOMO website. http://www.nttdocomo.co.jp/support/trouble/manual/download/index.html

The URL and contents are subject to change without prior notice.

使いかたガイド

mef

(Guide)” (installed in FOMA

Toole# GuideeSelect a search

Basic package

F-02D

(including Back Cover F64 and warranty)

･

Unauthorized copying of parts of or this entire manual is prohibited.

･

The contents in this manual, URL and contents are subject to change without prior notice.

Battery Pack F22 Desktop Holder F33

Instruction manual 電子辞書データ DVD

Compatible options⇒P85

(Electronic dictionary data DVD) (Sample)

FOMA terminal .................................

What you can do with F-02D...........

Part names and functions ...............

Usage styles .....................................

Before Using .....................................

Screen Explanation ..........................

Character Entry ................................

Call Telephone..................................

Mail....................................................

Phonebook........................................

i-mode/Full Browser/Smart Browser

....................................................... 55

i-Channel ...........................................

Camera ..............................................

1Seg...................................................

Music .................................................

Osaifu-Keitai .....................................

i-concier.............................................

Convenient tools ..............................

Support .............................................

Appendix...........................................

Index..................................................

Precautions (Always follow these

directions) .....................................

Handling precautions.......................

Waterproofness/Dustproofness .....

Sound/Screen Setting .....................

Lock/Security ...................................

43 51 54

Map/GPS...........................................

i-αppli ................................................

i-motion/Movie ................................

Data Management ...........................

69 70

79 86

103

7 16 21

35 39

66 67

Introduction

Basic Operation

Connect

Enjoy

More Convenient

Others

FOMA terminal

･

F-02D supports W-CDMA, GSM/GPRS, Wireless LAN System.

･

Because your FOMA terminal uses wireless transmission, it may not function in locations where it is difficult for radio waves to penetrate, such as tunnels, underground passages and some buildings, in areas

Introduction

where radio waves are weak, or out of service area. Even when you are high up in a tall building or condominium and nothing blocks your view outside, your FOMA terminal may not be able to receive or transmit signals. Also, communication may be interrupted even when the signal meter on your FOMA terminal indicates there are strong radio waves and you are not moving (traveling).

･

Because your FOMA terminal uses radio waves to communicate, it is possible that a third party may attempt to tap your calls. However, the W-CDMA, GSM/GPRS automatically applies a confidential communication function to all calls, so even if a third party could somehow tap a call, they only hear noise.

･

Your FOMA terminal encodes voice communication as digital data. When you are operating your FOMA terminal while moving to a location subject to weaker radio wave conditions, the transmitted digital data may not be correctly decoded and as a result the decoded voice may differ somewhat from the actual voice.

･

Maintain a separate record of the data (Phonebook, Schedule, Memo, Recorded messages, Voice memos, Moving picture memos, etc.) you registered in your FOMA terminal. Note that DOCOMO assumes no responsibility for any loss of saved contents of data resulting from malfunction, repair, changing of the model or other handling of FOMA terminal.

･

You are recommended to save important data to microSD card. Using DOCOMO keitai datalink, you can transfer and save phonebook, mail, schedule and other data to a PC.

･

The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifier as listed herein makes any representation and warranty as for the security in the use of SSL/TLS. If the data should be erased, DOCOMO assumes no responsibility for the loss of any data. Certifier : VeriSign Japan K.K., Cybertrust Japan Co., Ltd., GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems Co., Ltd., Comodo CA Ltd., Entrust, Inc., Go Daddy, Inc.

･

This FOMA terminal supports FOMA Plus-Area and FOMA HIGH-SPEED Area.

■

SIM unlock

This FOMA terminal supports SIM unlock. If you release SIM lock, you can use SIM by a carrier other than NTT DOCOMO.

･

The SIM unlock service is provided at a docomo Shop.

･

A SIM unlock charge is separately required.

･

If you use a SIM other than by DOCOMO, available services and functions will be limited. DOCOMO is not liable to any failures or malfunctions.

･

For details of SIM unlock, refer to NTT DOCOMO website.

What you can do with F-02D

Waterproofness/Dustproofness

Waterproofness of IPX5 and IPX8 and dustproofness of IP5X are provided by firmly closing the external connection jack cap and installing the back cover in a locked state.

docomo Palette UI

You can operate flicking left and right to switch MyFACEs pasted to the stand-by display. Paste function, data, etc. to the stand-by display as shortcuts. You can activate them readily just by selecting the icon.

使いかたガイド

Without the instruction manual at your hand, you can check readily the operations of function. (In Japanese only)

eco mode

The eco mode allows you to save the battery power by adjusting the display backlight, etc. And you can set to automatically switch eco mode to ON according to the battery level.

Koe-no-Takuhaibin

Koe-no-Takuhaibin takes voice messages using voice call and notifies existence of message to the party by SMS. And notify you by SMS when the party plays a message. You can record and play messages as easily as you make a call.

Smart Browser

WebKit, adopted by Smartphone etc., enables to view contents on the Internet comfortably by touch operation.

AUTO-GPS

The AUTO-GPS function provides you useful services that deliver information about the weather or shops around where you are, or sightseeing information.

(Guide)

(In Japanese only) You can also enjoy a game using

your location or the distance you moved.

High functionality camera

Camera offers approximately 16,3 million pixels (effective pixels) and high functionality such as

HDR (High Dynamic Range) synthesis, Art camera function, etc., which enable to shoot 3D still images and Full HD moving pictures. You can also view images on wide-screen by connecting the FOMA terminal to a TV with HDMI cable.

i-concier

It is a service that Machi-chara (a character on the stand-by display) supports your life like a butler or concierge. It stores your various information (area of residence, memo, schedule, ToruCa, phonebook, etc.) and offers you information that matches contents of Memo or Schedule, your living area or current location, or preferences and interest at the right time. (In Japanese only)

Voice quick start

Just speaking a keyword of function you want to use activates the function. It is useful when you do not know where is a desired function in the menu or when you want to activate the function immediately. (In Japanese only)

Wi-Fi

You can perform Internet connection with connecting the access point for home network or Public wireless LAN service (Client mode), and use the FOMA terminal as access point (Base unit) of Wi-Fi to enjoy a versus game etc. on Wi-Fi device (Sub unit).

Introduction

Part names and functions

Part names of F-02D and major functions assigned to each part are as follows.

Introduction

To use the function with *, press the key for 1 second or more.

Earpiece

Light sensor for sensing the ambient lightness to adjust the brightness of the display

Display (Touch panel)

Temperature/Humidity sensor

Microphone

Bluetooth/FM transmitter/Wi-Fi antenna are built-in

Covering around the antenna by the hand may affect the quality.

Light that turns on when receiving a call or message or while charging

Sub-display

GPS antenna is built-in

Covering around the antenna by the hand may affect the quality.

FOMA antenna is built-in

Covering around the antenna by the hand may affect the quality.

Back side microphone for Movie shooting or Voice recorder

Camera

Speaker

Infrared data port for infrared communication or infrared remote control function

mark for placing over IC card reader for

Osaifu-Keitai and iC transmission

Fingerprint sensor for registering fingerprint and authentication

Light/Shooting light

Back cover

To access docomo mini UIM card slot and the microSD card slot, remove the back cover and the battery pack.

Charging jack

Back cover lever

Open assist button

Strap opening

External connection jack for charger, earphone, etc.

HDMI jack (Type D)

1Seg antenna used for 1Seg watching

Display the menu

b a

Display the mail menu, switch text input

modes or check new mail/message

c c

Display i-Channel or return to the previous

screen

d n

Start voice call, switch to hands-free call or

perform quick voice activation

e 0

- 9 Enter phone number or characters, or select menu item, perform function assigned to shortcut (eco mode ON/OFF is assigned to

default)

f *

Enter "*" or voiced/semi-voiced sound, or

start/cancel Public mode (Drive mode)

g T

Start/Exit i-Widget, or start 1Seg

h U

(Search key) Activate Quick search/Shabette-

Kensaku

i k

(Multi-cursor key) Move the cursor

Perform an operation

Display phonebook, adjust sound volume

Display shortcuts list or adjust sound volume.

Display MyFACE, switch screen or display Received calls when MyFACE usage setting is "OFF"

Display MyFACE, switch screen or display redial number when MyFACE usage setting is "OFF"

j C

Start the still camera shooting

k I

Display iMenu or i-αppli folder

l f

Exit a running function, or turn ON/OFF the

FOMA terminal by pressing for 2 seconds or more

Introduction

m #

Enter "#" or punctuation, or start/cancel

Silent mode

n s

a call or operation, or switch between 3D and 2D

(Side key) Light sub-display, switch display

record video during 1Seg watching

Introduction

message

Connection of Stereo Earphone Set 01 (Optional) for external connection jack

 AC adapter uses a common jack.

(Multitask key) Start another function during

(Side camera key) Activate movie shooting,

Adjusting volume

stops ring alert, alarm, vibrator or activate quick

, D conducts mail/message inquiry*, etc.

Stereo Earphone Set 01

AC adapter

External connection jack

Usage styles

There are 3 styles for use : "Closed style" allows you

to get information from the sub-display such as time, received calls, "Opened style" is compatible with key operation and touch operation, and "Flip style" is dedicated to the touch operation.

Easily open using Open assist button

Open styleClosed style

Rotate 180° clockwise and close

Flip style

Point

･

Make sure to hold the FOMA terminal when operating the open assist button. And when opening, be careful not to hit the FOMA terminal to your face, someone or something, or not to drop the terminal with its rebound.

･

Do not rotate the display by 180 degrees or more clockwise or by 90 degrees or more counter clockwise. When rotating, be careful not to hit the corner of the display against the face of the keypad.

･

When you carry the FOMA terminal in the close style, press and hold Side key hold for preventing from erroneous side key operation. When you carry the FOMA terminal in flip style, make Display off lock setting to avoid erroneous touch panel operation and save battery consumption.

for 1 second or more to activate

Precautions (Always follow these directions)

・

Before using your FOMA terminal, or when necessary, read the precautions below to ensure safe use and handling. After reading this manual, keep it carefully.

・

These precautions are intended to protect you and others around you. Read and follow them carefully to avoid injury, damage to the product or damage to property.

・

The signs below differentiate between the levels of danger that can occur if the product is not used within the specified guidelines.

This sign denotes that death or serious injury

DANGER

may directly result from improper use.

This sign denotes that death or serious injury

WARNING

may result from improper use.

This sign denotes that minor injury or damage

CAUTION

・

The symbols below show specific directions.

Don’t

No disassembly

to property may result from improper use.

This symbol denotes that the action is prohibited.

This symbol denotes that disassembling the phone or its components is not allowed.

No wet hands

No liquids

Unplug

■

Precautions contain the description below.

Handling FOMA terminal, battery pack, adapter,

desktop holder and docomo mini UIM card

(common) ...................................................................8

Handling FOMA terminal ..............................................9

Handling battery pack .................................................11

Handling adapter and desktop holder .......................12

Handling docomo mini UIM card...............................13

Handling mobile phones near electronic medical

equipment.................................................................14

Viewing 3D images......................................................14

Material list ..................................................................15

This symbol denotes that using the phone or its components with wet hands is not allowed.

This symbol denotes that using the phone or its components in a bathroom or other highly humid area is not allowed.

This symbol denotes that an instruction must be obeyed at all times.

This symbol denotes that the equipment should be unplugged.

Introduction

Handling FOMA terminal, battery pack, adapter, desktop holder and docomo mini UIM card (common)

DANGER

Introduction

Do not use, store, or leave the equipment in hot areas such as near flames or in areas under strong direct

Don’t

sunlight such as inside a vehicle.

May cause fire, burns or injuries.

Do not put the terminal into heating cooking device such as microwave oven or high-pressure container.

Don’t

May cause fire, burns, injuries, electric shock.

Do not disassemble or remodel the equipment.

May cause fire, burns, injuries, electric shock.

No disassembly

Do not let the terminal get wet with water, drinking water, urine of pet animals, etc.

No liquids

May cause fire, burns, injuries, electric shock. For waterproofness, refer to the page.⇒P21

Use the battery pack and adapter specified by NTT DOCOMO for your FOMA terminal.

May cause fire, burns, injuries, electric shock.

WARNING

Do not throw the equipment, put strong force or give hard shock to it.

May cause fire, burns, injuries, electric shock.

Don’t

Keep conductive materials (metal pieces, pencil lead, etc.) from coming in contact with the charging jack or

Don’t

external connection jack. Do not put those materials inside the terminal.

May cause fire, burns, injuries, electric shock.

Do not cover or wrap the terminal with a blanket, etc while using or charging.

May cause fire or burns.

Don’t

Turn FOMA terminal OFF and stop charging before entering a place such as a gas station where flammable gases

are generated.

The gas may catch fire. When using Osaifu-Keitai in a place as a gas station, turn OFF the terminal before using it. (When IC card lock is activated, deactivate it before turning OFF the terminal.)

If the equipment starts giving off a strange smell, overheats, becomes discolored or deformed during use,

charging or in storage, immediately perform the following operations.

･

Remove the power plug from the wall outlet or cigarette lighter socket.

･

Turn FOMA terminal OFF.

･

Remove the battery pack from FOMA terminal.

May cause fire, burns, injuries, electric shock.

CAUTION

Do not leave the equipment on unstable or sloping surfaces.

May cause injuries.

Don’t

Do not store the equipment in extremely humid, dusty or hot areas.

May cause fire, burns, electric shock.

Don’t

Children using the equipment should be instructed in proper operation by an adult. Do not allow them to use the

equipment without adult supervision.

May cause injuries.

Store the equipment out of reach of small children.

May be accidentally swallowed or cause

injuries.

Be careful especially when using FOMA terminal connected to the adapter continuously for a long time.

If you use i-αppli, a videophone call or 1Seg watching while charging the battery for a long time, FOMA terminal, battery pack and adapter may be heated. Directly touching a hot part for a long time, you may have redness, itching or rash on your skin, or it may result in low-temperature burns depending on your constitution and/or health condition.

Handling FOMA terminal

WARNING

Do not direct the infrared data port toward your eye and transmit signals.

May cause harmful effect on eyes.

Don’t

Do not direct the infrared data port toward home electric appliances etc. equipped with infrared device when

Don’t

using infrared communication.

May cause an accident because of malfunction of infrared device.

Do not turn on the light by getting the lighting part closer to other person's eyes. When shooting infants, keep at

Don’t

least 1 m away from the object.

May impair eyesight. And may cause accidents like injury etc., by dazzling or astounding other people.

Do not put foreign objects such as liquid like water, metal pieces or burnable things into docomo mini UIM card or

Don’t

microSD card slot.

May cause fire, burns, injuries, electric shock.

Do not turn on the light aiming directly at the driver of the car etc.

May disturb driving and cause an accident.

Don’t

Turn FOMA terminal OFF in areas where use is prohibited, such as in airplanes and hospitals.

May cause electronic equipment or electronic medical equipment to fail or malfunction. If the function which automatically turns the power ON is set, cancel the setting before turning the power OFF. When using the phone in a medical facility, be sure to observe the regulations of the facility. If you do prohibited act such as using the phone in an airplane, you will be punished according to law. If usage of mobile phones in an aircraft is admitted by setting airplane mode, etc., use the terminal under the direction of the airline.

Introduction

When you talk by setting handsfree or ring alert is sounding, keep FOMA terminal away from your ear.

And, when connecting the earphone/ microphone etc. to the FOMA terminal and play a game or music etc., adjust

Introduction

the volume moderately.

Too loud volume may cause a hearing loss. And, if you cannot hear the sound around you clearly, it may cause an accident.

If you have weak heart, be careful when setting the Vibrate alert (vibration) or alert volume setting.

May cause harmful effect on heart.

When you use electronic medical equipment, check with the equipment manufacturer to determine how the

device is affected by radio waves before using.

May cause harmful effect on electronic medical equipment etc.

Turn FOMA terminal OFF near highprecision electronic control equipment or electronic equipment using low-

power signals.

May cause the equipment to fail or malfunction.

* Examples of electronic equipment to avoid.

Hearing aids, implanted pacemakers or defibrillators, other electronic medical equipment, fire alarms, automatic doors and other automatic control equipment. Users wearing implanted pacemakers or defibrillators or other electronic medical equipment should check with the manufacturer or sales outlet about the effect of radio frequencies on the equipment.

When the display or camera lens is accidentally broken, be careful of broken glass or exposed internal parts

of FOMA terminal.

Surfaces of display and camera lens are made of plastic panels and they are structured for the glass not to scatter, however, if you mistakenly touch broken or exposed parts, you may be injured.

To sound the high-pitched alarm, always keep FOMA terminal away from your ears.

May cause hearing defect.

CAUTION

Do not swing FOMA terminal by antenna or its strap.

May cause accident such as injury to yourself or

Don’t

others by hitting.

Do not use damaged FOMA terminal.

May cause fire, burns, injuries, electric shock.

Don’t

When using the motion sensor, check the safety around you, hold FOMA terminal firmly, and do not shake it

Don’t

unnecessarily.

May cause accident such as injuries.

If the display part is accidentally broken and the liquid crystal leaks out, do not make the substance contact with your

Don’t

skin of face or hands.

May cause loss of sight or skin problems. If the liquid crystal gets into your eyes or mouth, rinse it with clean water and see a doctor immediately. And, if the liquid adheres to skin or clothing, use alcohol etc. to wipe it off, then wash with soap.

To use the terminal in car, check with automobile manufacturer or dealer to determine how the device is affected by

radio waves before using.

In rare cases, using the phone in some vehicle models can cause the vehicle's electronic equipment to malfunction. In that case, stop using the terminal immediately.

Mobile phones can give some users skin problems such as itching, allergic reactions or rashes. If you develop skin

problems, stop using the phone immediately, and see a doctor.

"Material list (P15)"

When opening or closing FOMA terminal, take care not to have your fingers or strap caught by the terminal.

May cause accident such as injuries.

When watching the display, take a certain distance from the display in a fully bright place.

May reduce visual acuity.

Handling battery pack

■

Check that the battery type matches the type

displayed on the battery pack label.

Display Battery type

Li-ion 00 Li-ion battery

DANGER

Do not connect a wire or other metal objects to the jack. And, do not carry or store FOMA terminal with objects like a

Don’t

metal necklace.

May cause the battery pack to ignite, burst, heat or leak.

Check the orientation of battery pack to install it to FOMA terminal, and do not try to force the battery pack onto FOMA

Don’t

terminal if you are having trouble installing it.

May cause battery pack to ignite, burst, heat or

⇒

leak.

Do not throw the battery pack into the fire.

May cause battery pack to ignite, burst, heat or

Don’t

leak.

Do not nail the battery pack, hit with a hammer or step on it.

May cause battery pack to ignite, burst, heat or

Don’t

leak.

If the battery pack's fluid etc. contacts eyes, immediately flush the eyes with clean water and see a doctor right

away. Do not rub the eyes.

May cause loss of sight.

Introduction

WARNING

If the battery pack seems to have abnormalities such as deformation or scratches due to falling, never use it.

Don’t

May cause battery pack to ignite, burst, heat or leak.

Introduction

If the battery pack leaks or gives off a strange smell, immediately remove it from the vicinity of open flames.

The vapors from leaking battery pack fluid may ignite or explode.

Be careful not to let your pet bite the battery pack.

May cause battery pack to ignite, burst, heat or

leak.

CAUTION

Do not discard old battery packs together with other garbage.

May cause igniting or environmental

Don’t

destruction. Tape the terminals of old battery packs to insulate them, and then bring them into a sales outlet such as docomo Shop. If your local municipality has a battery recycling program, dispose of them as provided for.

Do not use or charge a wet battery pack.

May cause battery pack to ignite, burst, heat or leak.

Don’t

If fluid etc. leaks out from the battery pack, do not make the fluid contact with your skin of face or hands.

May cause loss of sight or skin problems. If the fluid etc. put into your eyes or mouth, or contacts skin or clothes, immediately flush the contacted area with clean water. If the fluid put into the eyes or mouth,

immediately see a doctor after flushing.

Handling adapter and desktop holder

WARNING

Do not use the adapter cord if it gets damaged.

May cause fire, burns, electric shock.

Don’t

Do not use the AC adapter or desktop holder in a bathroom or other highly humid area.

Don’t

May cause fire, burns, electric shock.

Always use the DC adapter with a negative-ground vehicle. Do not plug it into a positive-ground vehicle.

Don’t

May cause fire, burns, electric shock.

When it starts to thunder, do not touch adapter.

May cause electric shock.

Don’t

Do not short the charging jack while it is connected to the outlet or cigarette lighter socket. Do not touch the

Don’t

charging jack with a part of your body such as your hand or finger.

May cause fire, burns, electric shock.

Do not place heavy objects on the adapter cord.

May cause fire, burns, electric shock.

Don’t

When you insert and remove AC adapter from power outlet, do not contact a metal strap or other metal

Don’t

objects with the jack.

May cause fire, burns, electric shock.

Do not touch the adapter cord, desktop holder or outlet with wet hands.

May cause fire, burns, electric shock.

No wet hands

Only use with the specified power source and voltage. When charging FOMA terminal

overseas, use AC Adapter for global use.

If incorrect voltage is used, this may cause fire, burns or electric shock. AC adapter : AC100V DC adapter : 12 or 24V DC (specific for negative

ground vehicle)

AC adapter for global use : Between 100V and

240V AC (Connect to the AC outlet for internal household use)

If the DC adapter's fuse blows, replace it only with the specified fuse.

May cause fire, burns, electric shock. For the

specified fuse, see the instructions that come with the DC adapter.

Wipe off any dust that accumulates on the power plug.

May cause fire, burns, electric shock.

When you connect the AC adapter to an outlet, firmly connect to the outlet.

May cause fire, burns, electric shock.

When you disconnect the power plug from the outlet or cigarette lighter socket, do not pull the adapter cord

with excessive force. Instead, hold the adapter to disconnect.

May cause fire, burns, electric shock.

Always remove the power plug from the outlet or cigarette lighter when not using the adapter for an extended

Unplug

period.

May cause fire, burns, electric shock.

Immediately remove the power plug from the outlet or cigarette lighter socket if water or other fluids get into

Unplug

the adapter.

May cause fire, burns, electric shock.

Always remove the power plug from the cigarette lighter socket when cleaning the equipment.

Unplug

May cause fire, burns, electric shock.

Handling docomo mini UIM card

CAUTION

Be careful of the cut surface when removing docoomo mini UIM card.

May cause injuries.

Introduction

Handling mobile phones near electronic medical equipment

■

These precautions are based on the guidelines produced at the Electromagnetic Compatibility Conference Japan, regarding the protection of electronic medical equipment from radio waves emitted by mobile phone units.

Introduction

WARNING

Obey the following rules inside medical facilities.

･

Do not bring FOMA terminal into operating

rooms (ORs), intensive care units (ICUs) or coronary care units (CCUs).

･

Turn FOMA terminal OFF in hospital wards.

･

Turn FOMA terminal OFF in hospital lobbies and corridors if electronic medical equipment could be nearby.

･

If the medical facility has specified zones where use or possession of mobile devices is prohibited, obey those instructions.

･

If the function to automatically turn ON the power is set, cancel the setting before turning the power OFF.

Turn FOMA terminal OFF in crowded trains or other public places where pacemaker or defibrillator wearers

could be nearby.

FOMA terminal's signals may affect the operation of implanted pacemakers or defibrillators, and other devices.

Wearers of electronic medical equipment such as implanted pacemakers or defibrillators must carry

and use the FOMA terminal at least 22 cm away from the implanted device.

FOMA terminal's signals may affect the performance of electronic medical equipment.

When electronic medical equipment other than implanted pacemakers or defibrillators are in use outside of

medical facilities (such as in home care settings), check with the device manufacturer to determine how the device is affected by electrical signals.

FOMA terminal's signals may affect the performance of electronic medical equipment.

Viewing 3D images

CAUTION

Do not view 3D images if you have a past illness of photosensitivity, heart illness, feeling of unwellness, sleep

Don’t

shortage, fatigue or drunk.

May cause symptomatic worsening.

Stop using the terminal if you see double or do not feel stereoscopic effect while viewing 3D images.

May cause eyestrain.

Stop using the terminal if you feel any abnormality such as fatigue or discomfort (symptom similar to

carsickness, etc.) while viewing 3D images.

May cause symptomatic worsening. Take a proper break. Be careful especially under circumstance in which the screen shakes easily such as in a train, car, etc.

The qualifying age of viewing 3D images is 7 and over.

Children's reaction to fatigue or discomfort is

hard to notice, so that they may suddenly become sick. Children viewing 3D images should be attended by a guardian and alerted to eyestrain.

When viewing 3D images, take a proper break every half hour of watching.

Long-time viewing may cause eyestrain.

When viewing 3D images, watch the screen straight ahead at a distance of approximately 30 cm.

May cause eyestrain.

Material list

Part Material

Exterior case

Case pad Urethane

Display panel Acrylate

Sub-display panel Acrylate resin

Camera lens, camera panel

Movable part Sub-Display

Movable part Display

Fixed part Keypad

Fixed part Battery

Hinge section Movable side

Hinge section Fixed side

Back cover PC+ABS resin,

Back cover lock lever

Back cover lock plate

PC+ABS resin

PA-GF resin

PC+ABS resin

stainless steel, silicon rubber (VMQ)

POM resin None

Stainless steel None

acrylate resin

resin+PET sheet

Acrylate resin

Surface

treatment

UV hard coating

None

UV hard coating

Part Material

Side keys PC resin

Keypad Urethane

Open assist button PC resin

External connection jack cap

External connection jack/ HDMI jack

Battery contacts

Screw (battery install recess)

Battery install recess face PC board Gold plating

Battery pack

Charging jack

1Seg antenna

Fingerprint sensor Flexible PC

Body PC+ABS resin

Flexure Elastomer

Water stop PC resin None

O ring

Battery contacts connector

Battery contacts

Battery pack PC resin None

Contacts Beryllium

Contacts Stainless steel Gold plating

Attaching holder section

Top section Stainless steel None

Middle section

Bottom section

acrylate resin

resin (TPE)

Synthetic rubber (EPDM)

Stainless steel Tin plating

PPS resin None

Beryllium copper

Stainless steel None

copper

LCP resin None

Stainless steel None

Stainless steel Ni plating

board

Surface

treatment

UV hard coating

None

Gold plating (base : Ni-Pd plating)

Gold plating

None

Introduction

Handling precautions

General

・

F-02D is waterproof/dustproof, however, do not allow water to seep into FOMA terminal and do not allow

Introduction

accessories or optional devices to get wet or let dust attach.

- Battery pack, adapter, desktop holder, docomo mini

UIM card are not waterproof/dustproof. Do not use in a bathroom or other highly humid area or do not let rain attached. Or putting the terminal on your body, humidity of sweat may cause internal corrosion and malfunction. Note that malfunctions, which are determined to be caused by water as result of inspections, are not covered by the warranty. Since these conditions are outside the scope of the warranty, a repair, if at all possible, is charged.

・

Clean FOMA terminal with a dry soft cloth (such as a cloth for eyeglasses).

- Rubbing it roughly with a dry cloth may scratch the

display.

- Drops of water or dirt left on the display may cause

stains.

- If FOMA terminal is wiped with alcohol, paint thinner,

benzine or detergent, the printing may disappear or color may fade.

・

Clean the jack occasionally with a dry cotton swab etc.

- If the jack is soiled, connection gets worse and it may

cause power to be turned off or insufficient battery charge, so clean the jack with a dry cotton swab etc. Also, be careful never to damage the jack when cleaning it.

・

Do not place FOMA terminal near an air-conditioner outlet.

- The rapid change in temperature may cause

condensation, causing internal corrosion and malfunction.

・

When using, be careful not to subject excessive force to FOMA terminal or the battery.

- If FOMA terminal is crammed into a brimming bag or placed in a pocket and sat on, display, internal PCBs or battery pack may be damaged or malfunction. And, if external devices are plugged into the external connection jack (earphone/microphone jack), the breakage of the connector or malfunction may result.

・

Do not rub or scrape the display with a metal piece etc.

- May scratch the display, causing malfunction or damage.

・

Carefully read the separate instructions that come with the battery pack and adapter.

FOMA terminal

・

Do not press the surface of the touch panel strongly or operate it with sharp objects such as a nail, a ballpoint pen and a pin.

- It may damage the touch panel.

・

Avoid extreme temperature.

- Use FOMA terminal where the temperature ranges between 5 and 40℃ (limited to the temporary use in a bathroom etc. when temperature is above 36℃) and

humidity ranges between 45 and 85%.

・

FOMA terminal may affect land-line phones, TVs or radios in use nearby, so use it as far as possible from these appliances.

・

Maintain a separate record of the data you saved in your FOMA terminal.

- If the data is deleted, DOCOMO assumes no responsibility for the loss of any data.

・

Do not drop FOMA terminal or subject it to shocks.

- May cause malfunction or damage.

・

Do not plug external devices into the external connection jack (earphone/microphone jack) at a slant, or do not pull it forcibly while it is plugged.

- May cause malfunction or damage.

・

Do not close FOMA terminal with the strap etc. held inside.

- May cause malfunction or damage.

・

It is normal for FOMA terminal to become warm during use or charging. Continue to use it.

・

Do not leave FOMA terminal with the camera in areas under strong direct sunlight.

- May cause discoloring or burn-in of elements.

・

Use FOMA terminal with the external connection jack cap closed.

- Dust and/or water brought into FOMA terminal cause troubles.

・

Do not use FOMA terminal with the back cover removed.

- May cause removal of battery pack, malfunction or damage.

・

Do not put extreme thick sticker on the display or keypad face.

- May cause malfunction, damage or erroneous operation.

・

Do not put strong impact on the fingerprint sensor or scratch its surface.

- May cause malfunction of fingerprint sensor and disable authentication operation.

・

Clean the fingerprint se nsor with a dry soft cloth (such as a cloth for eyeglasses).

- If the fingerprint sensor is dirty or water is sit on its surface, the sens or cannot read fingerprints, a nd it may cause decrease authentication performance or malfunction.

・

While microSD card is being used, do not take the card out and do not turn off FOMA terminal.

- May cause data loss or malfunction.

・

Do not bring magnetic cards etc. close to FOMA terminal nor clip it by FOMA terminal.

- Magnetic data in cash cards, credit cards, telephone cards, floppy disks, etc. may be erased.

・

Do not bring magnetized objects close to FOMA terminal.

- Bringing strong magnetism close may cause a malfunction.

Battery pack

・

The battery pack is a consumable part.

- Replace the battery pack if FOMA terminal has extremely short operation time on a full charge, though it may vary by operating conditions. Purchase a new battery pack of the specified type.

・

Charge the battery in an area within the proper ambient temperature range (5-35

・

The operation time provided by the battery pack varies by the operating environment and battery pack's deterioration.

・

The battery pack may swell out as it comes to near the end of its lifetime depending on the usage conditions, but it is not a problem.

・

Be careful especially about the following points when preserving the battery pack.

- Keeping under the state of the full charge (right after charging ends)

- Keeping under the state of the empty charge (too exhausted to turn on FOMA terminal)

They may cause the battery pack performance to be degraded or its lifetime to be shortened. A recommended battery level to keep the battery pack is the battery icon in 2 cells or in 40 % of remaining battery level as a guide.

℃

Adapter

・

Charge the battery in an area within the proper ambient temperature range (5-35

・

Do not charge the battery in the areas below.

- In areas of excessive humidity, dust or vibrations

- Near land-line phones or TVs/radios

・

It is normal for the adapter to become hot while charging. Continue to use it.

・

When using the DC adapter for charging, keep the vehicle engine running.

- The vehicle's battery could become flat.

・

When using an outlet with a mechanism preventing unplugging, follow the handling instructions for that outlet.

・

Do not give strong shock. Do not deform the charging jack.

- May cause malfunction.

℃

Introduction

docomo mini UIM card

・

Do not use excessive force to install/remove docomo mini UIM card.

・

Note that DOCOMO assumes no responsibility for malfunctions occurring as the result of inserting and using docomo mini UIM card with another IC card reader/writer.

Introduction

・

Always keep docomo mini UIM card ICs clean.

・

Clean docomo mini UIM card with a soft, dry cloth (such as a cloth for eyeglasses).

・

Maintain a separate record of the data you saved in docomo mini UIM card.

- If the data is deleted, DOCOMO assumes no responsibility for the loss of any data.

・

To preserve the environment, bring the old docomo mini UIM card to a sales outlet such as docomo Shop.

・

Take care not to scratch, touch accidentally or short IC.

- May cause data loss or malfunction.

・

Do not drop docomo mini UIM card or subject it to shocks.

- May cause malfunction.

・

Do not bend docomo mini UIM card or place heavy objects on it.

- May cause malfunction.

・

Do not install docomo mini UIM card into FOMA terminal with a label or sticker put on.

- May cause malfunction.

Bluetooth devices

・

This FOMA terminal is equipped with the security features, that are compliant with Bluetooth standards for communicati on via Bluetooth. However, depending on the settings, there may not be enough security. Be aware of security risks when using Bluetooth.

・

DOCOMO assumes no responsibility for any information which may be leaked during communication via Bluetooth.

・

You can use headset, handsfree, audio, keyboard, dial-up connection, data transfer, serial port, image transfer or health devices with FOMA terminal. An audio/video remote control may be available with an audio device (only Bluetooth compatible devices).

・

Frequency bands

Frequency bands used by FOMA terminal Bluetooth function are as below.

abdc

2.4FH1

2.4 : Radio equipment that uses the 2400 MHz band.

FH : The modulation is the FH-SS method.

1 : The expected interference distance is 10 m or shorter.

and 2483.5 MHz are used, and the bandwidth used by mobile object identification devices cannot be avoided.

Cautions on using Bluetooth devices

In the bandwidth used by this terminal, in addition to home electric appliances such as a microwave oven and industrial/scientific/medical devices, in-plant radio stations used to identify mobile objects used in production lines of a factory that require a license, specified low power radio stations, or amateur radio stations that do not require a license (hereafter "other radio stations") can be in operation.

1. Before using this terminal, check whether other radio stations are in operation in your neighborhood.

2. If radio wave interference occurs between the terminal and "other radio stations", use the terminal in a different location or "Turn the power OFF" to avoid the radio wave interference.

3. For details, contact "General Inquiries" on the last page of this manual.

: All bandwidths between 2400 MHz

Wireless LAN (WLAN)

・

Wireless LAN (WLAN) exchanges information using radio waves, and allows you to freely establish LAN connection if you are within an area where radio wave reaches. On the other side, if you communicate without appropriate security settings, communications may be intercepted or hacked by malicious parties. It is recommended to make necessary security settings on your judgement and responsibility.

・

Wireless LAN

Do not use Wireless LAN in a place where magnetized by electric products, AV, OA equipment, etc. or where electromagnetic wave is generated.

- If magnetism or electrostatic noise affects FOMA terminal, noise may be increased or communication may not be available (especially when using microwave oven, it may affect the terminal).

- Using near TV or radio may cause poor reception or TV screen may be blurred.

- When multiple wireless LAN access points exist near FOMA terminal and they use the same channel, search may not be performed correctly.

・

Frequency bands

Frequency bands for WLAN devices are written on battery pack insert section of phone. Label description are as follows.

a bced

2.4DS/OF4

2.4 : Radio equipment that uses the 2400 MHz band.

DS : The modulation is the DS-SS method.

OF : The modulation is the OFDM method.

4 : The expected interference distance is 40 m or shorter.

and 2483.5 MHz are used, and the bandwidth used by mobile object identification devices can be avoided.

Available channel varies by countries. To use WLAN overseas, check the conditions such as available frequency, regulation, etc. for the country.

: All bandwidths between 2400 MHz

To use in airplane, confirm with airline company in advance.

Cautions on using 2.4GHz devices

In the bandwidth used by WLAN devices, in addition to home electric appliances such as a microwave oven and industrial/scientific/medical devices, in-plant radio stations for identification of mobile objects used in production lines of a factory (a license is required), specified low power radio stations (a license is not required), or amateur radio stations (a license is required) can be in operation.

1. Before using this device, confirm that in-plant radio stations for identification of mobile objects, specified low power radio stations or amateur radio stations are not in operation in your neighborhood.

2. If this device generates harmful radio wave interference against in-plant radio stations for identification of mobile objects, change the using frequency promptly or stop using wireless LAN function, and contact "General Inquiries" on the last page of this manual, then cons ult about treatment for prevention of the interference (for example, installation of partitions etc.).

3. If this device generates harmful radio wave interference against in-plant radio stations for identification of mobile objects or amateur radio stations, or if any trouble, contact "General Inquiries" on the last page of this manual.

Introduction

FeliCa reader/writer

・

FeliCa reader/writer function of FOMA terminal uses weak waves requiring no licenses for radio stations.

・

It uses 13.56 MHz frequency band. When using other reader/writers in your surroundings, keep FOMA terminal away sufficiently from them. Before using the FeliCa reader/writer, confirm that there are no

Introduction

radio stations using the same frequency band nearby.

FM transmitter

・

FM transmitter of FOMA terminal uses weak waves requiring no licenses for radio stations.

・

It uses 77.4 - 85.0MHz frequency band. To use it, set frequency not to common to FM radio station of the area you use to avoid affecting FM radio users in neighborhood.

CAUTION

・

Do not use a remodeled FOMA terminal. Using a remodeled terminal violates the Radio Law.

FOMA terminal is certified according to technical standard conformance of specified wireless equipment based on the Radio Law, and as a proof of it, the "Technical Compliance Mark " is depicted on the engraved sticker of FOMA terminal. If you remodel FOMA terminal by removing its screws, your certification of technical standard conformance becomes invalid. Do not use FOMA terminal with its certification of technical standard conformance invalid as it violates the Radio Law.

・

Be careful when you use FOMA terminal while driving a car etc.

Using a mobile phone while driving is subject to penal regulations. However, absolutely necessary cases such as rescue of a sick person or maintaining public's safety are exempted.

・

Use the Bluetooth function only in Japan.

The Bluetooth function of the FOMA terminal is compliant with wireless standards and is authorized for use only in Japan. If you use this function overseas, you may be punished.

・

Use FeliCa reader/writer function only in Japan.

FeliCa reader/writer function of FOMA terminal conforms to Japanese radio standards. If you use this function overseas, you may be punished.

・

Use FM transmitter only in Japan.

FM transmitter of FOMA terminal is compliant with wireless standards and is authorized for use only in Japan. If you use this function overseas, you may be punished.

・

Do not alter basic software.

Repair may be refused due to modification of the software.

Viewing 3D images

・

There are differences in feeling of stereoscopic effect of 3D images among individuals.

・

When viewing 3D images, keep the display parallel to both eyes.

Waterproofness/Dustproofness

F-02D provides waterproofness of IPX5*1, IPX8*2 and dustproofness of IP5X the external connection jack cap and installing the back cover in a locked state.

IPX5 means that a phone keeps functioning after applying a jet flow of 12.5 L/min. from every direction from a distance of approximately 3 m for at least 3 minutes using water nozzle in 6.3 mm inner diameter.

For F-02D, IPX8 means that a phone keeps functioning after F-02D is slowly submerged to depth of 1.5m in static tap water at room temperature, left there for 30 minutes and then taken out, and the mobile phone keeps shooting still images or moving pictures in approximately 30 minutes in static tap water at room temperature.

IP5X means a protection degree that a phone keeps functioning and safety after it is placed in a device with dust in diameter 75 agitated and then taken out.

✜

What you can do with waterproofness

with firmly closing

or less for 8 hours,

of F-02D

・

You can talk or watch 1Seg programs without using an umbrella in the rain (for rainfall of 20 mm or less per hour).

- When your hands or FOMA terminal are wet, avoid installing/removing the back cover or opening/closing the external connection jack cap.

・

You can also shoot still images and moving pictures in the pool depth of 1.5 m.

- Do not perform other operations underwater than shooting still images and moving pictures.

- If you put the terminal in water of swimming pool, be sure to have it within 30 minutes.

- If FOMA terminal gets wet with water from the swimming pool or soak in water of swimming pool, wash it in specified procedure (

・

You can use FOMA terminal in a bathroom.

- Do not put the terminal in the bathtub. Do not use the terminal in hot water. May cause malfunction.

- Never put FOMA terminal in hot spring water or water containing soap, detergent or bath powder.

To ensure waterproofness/ dustproofness

To avoid water/dust ingress, be sure to observe the following points.

・

Do not throw any liquid other than roomtemperature tap water on FOMA terminal, or soak it in such liquid.

・

When using the external/HDMI connection jack, put your finger into the groove as shown then pull the cap up in the direction of the arrow.

Groove

⇒

P23).

Introduction

After using the external/HDMI connection jack, close the cap as the direction shown in the illustration, and make sure that the cap is completely closed without slack by pushing the tabs in.

Introduction

・

For installing the back cover, see "Installing back cover" of "Attaching docomo mini UIM card/ battery pack".

・

Securely lock the back cover and firmly close the external connection jack cap. Even a fine obstacle (one hair, one grain of sand, tiny fiber, etc.) put between contact surfaces may allow water to enter.

・

Do not poke the microphone, earpiece or speaker with a swab or sharp object.

・

Do not let FOMA terminal fall. It may become scratched causing the waterproof/dustproof performance to degrade.

・

The external connection jack cap and the rubber packing of the rear side of the back cover play an important role for keeping waterproof/dustproof performance. Do not deform the back cover by twisting etc. or peel off or damage the rubber packing. Also, prevent dust from adhering to it.

To keep FOMA terminal waterproofness/ dustproofness, replacement of parts is required every 2 years regardless of whether FOMA terminal appears normal or abnormal. DOCOMO replaces the parts as a chargeable service. Bring FOMA terminal to a sales outlet

⇒

P25

such as a DOCOMO-specified repair office.

Important precautions

Do not perform actions shown in the illustrations below.

Using Soap/Detergent/

Bath powder

Applying strong

water flow

Washing with

brush/sponge

Soaking in

ocean water

Observe the following precautions to use FOMA terminal properly.

・

Accessories and optional devices are not waterproof/dustproof. When watching 1Seg etc. with FOMA terminal installed in the included desktop holder, do not use it in a bathroom, shower room, kitchen or lavatory even if it is not connected to the AC adapter.

・

Do not apply water flow stronger than allowed (

⇒

P21) (e.g., such water flow that gives you pain when applied to your skin directly from a faucet or shower). F-02D provides IPX5 waterproof performances. However, it causes malfunction.

・

If FOMA terminal gets wet with salt water, sea water, refreshing beverage or mud or soil adhered, wash it immediately. If they dry out, it is hard to remove the dirt and it may cause damage or malfunction.

・

Do not put FOMA terminal in hot water, use it in a sauna or apply hot airflow (from a hair dryer etc.) to it.

Machine-washing

Using in

hot spring

・

Do not move in water or slam the terminal against the surface of water with FOMA terminal opened.

・

If you put the terminal in tap water or in water of swimming pool, be sure to have it within 30 minutes.

・

When you use the terminal in swimming pool, obey rules of the facility.

・

FOMA terminal does not float on water.

・

Do not leave water on FOMA terminal. May short-circuit the power jacks, or in a cold region, water may freeze causing malfunction.

・

Do not leave water on the microphone, earpiece or speaker. Such water may interfere with talking.

・

Do not leave water on the temperature/humidity sensor. Measuring temperature and humidity may not be correct.

・

If the back cover is damaged, replace it. Water may enter inside from a damaged section causing troubles such as electric shocks or corrosion of the battery.

・

If FOMA terminal gets wet with water or other liquids with the external connection jack cap or the back cover open, the liquid may get inside the terminal causing electric shocks or malfunction. Stop using FOMA terminal, turn the power OFF, remove the battery pack and contact a DOCOMO-specified repair office.

・

If the external connection jack cap, or the rubber gasket on the rear side of the back cover is damaged or deformed, replace it at DOCOMOspecified repair office.

DOCOMO does not guarantee actual operations under all states. Malfunctions deemed to be caused by inappropriate operation by the customer are not covered by the warranty.

Washing FOMA terminal

With pressing and holding the external connection jack cap not to open, wash the terminal in tap water without rubbing hard

Press here

・

Do not apply water flow stronger than allowed (

⇒

P21) (e.g., such water flow that gives you pain when applied to your skin directly from a faucet or shower).

・

In locked state with the back cover attached, with pressing and holding the external connection jack cap not to open, wash the terminal in tap water in room temperature without rubbing hard.

・

Do not use brush, sponge, soap, detergent, etc.

・

If mud or soil is adhered to the terminal, do not open, close or rotate the terminal. Eliminate the dirt first by shaking several times in tap water of wash-basin and then wash the terminal with running water.

・

After washing, wipe the surface with dry cloth well, drain water by the following procedure and let the terminal dry naturally.

Introduction

Draining water from FOMA terminal

When FOMA terminal is wet, water may flow out after wiping it off; drain the water in the following steps.

Wipe off moisture on the FOMA terminal surface and back side with dry, clean cloth etc.

Introduction

Shake FOMA terminal approximately 20 times, firmly holding its hinge section, until there is no more water splattering.

Swing the FOMA terminal with the speaker above to drain water off

Press lightly FOMA terminal against dry, clean cloth etc. to wipe off water remaining in the microphone, earpiece, speaker, keypad, hinges or charging jack, etc.

Wipe off water drained from FOMA terminal with dry, clean cloth etc., and dry naturally.

･

Water, if any, remaining in FOMA terminal

may ooze up after wiping off.

･

Do not wipe off water remaining in gaps

directly with a cotton swab etc.

Charging

Check the following before and after charging.

・

Check if FOMA terminal is not wet. Never try to charge the battery pack when FOMA terminal is wet.

・

Accessories and optional devices are not waterproof/dustproof.

・

When charging the battery when or after FOMA terminal is wet, adequately drain it and wipe off water with a dry, clean cloth etc., before connecting the accessory desktop holder or opening the external connection jack cap.

・

When the external connection jack cap is opened for charging, close the cap firmly after charging. It is recommended to use the desktop holder for charging to prevent water from seeping inside from the external connection jack.

・

Do not use the AC adapter or desktop holder in a bathroom, shower room, kitchen, lavatory or other highly humid area. May cause fire or electric shock.

・

Do not touch the AC adapter or desktop holder with wet hands. May cause electric shock.

Before Using

Attaching docomo mini UIM card/battery pack

After turning power OFF, close FOMA terminal and hold it in your hand so that you can properly attach docomo mini UIM card/battery pack.

✜

Removing back cover

Slide the lever in the direction

to unlock

Back cover

Press and slide the back cover in the arrow direction approx. 2 mm to remove

✜

Attaching docomo mini UIM card

Corner cut

✜

Installing battery pack

With the label side up, fit the convex parts to the concave parts of the FOMA terminal and insert in the

then push in the to set in.

✜

direction,

direction

Concave parts

Installing back cover

Fit the 8 tabs to the notches of the FOMA terminal and push in the direction clearance, then slide in the direction

Convex parts

not forming any

Basic Operation

docomo mini UIM card

With facing IC side of the docomo mini UIM card down, insert to the slot slowly and push it until it clicks

Point

･

Only docomo mini UIM card is available for the FOMA terminal. If you have a UIM or FOMA card, bring it to docomo Shop to replace.

Slide the lever in the direction c to lock

Point

･

Make sure the locations of the slots for docomo mini UIM card and microSD card. If the cards cannot be removed, bring the FOMA terminal to a docomo Shop.

Before Using

Charging

The battery pack does not have a full charge at time of purchase. Use AC adapter for FOMA terminal to charge the battery before using FOMA terminal.

Charging using desktop holder

Insert the connector of AC adapter horizontally to the accessory desktop holder, with the arrows mark side

Basic Operation

upward

Unfold the power plug and insert it into a 100V AC outlet

Close FOMA terminal and insert it into the desktop holder

Check that the charging light turns on

After charging is completed, remove FOMA terminal from the desktop holder.

Charging using AC adapter

Open the external connection jack cap (

), hold the connector horizontally

with the arrows side upward and insert

it to the jack (

Unfold the power plug and insert it into a 100V AC outlet

Check that the charging light turns on

When charging is over, pull out the power plug from the outlet, and pull out from FOMA terminal horizontally while pressing the release buttons on both sides of the connector.

)

Connector

Release buttons

AC adapter

Connector

Desktop Holder

External connection jack

Release buttons

AC adapter

External connection jack cap

AC 100V outlet

Before Using

Power ON - Default setting

Initial setting is an operation when FOMA terminal is turned ON for the first time.

a f

(2 sec. or more)

The Initial setting screen appears.

Set required items

If you exit without setting Change security code and Request permit/deny., Initial setting screen reappears when the power is turned ON the next time.

On a confirmation screen of software update function, confirmation screen of Error info send

set.,

The stand-by display appears. When a Machi-chara asks your name (user name), press

Point

･

If no operation is performed, the display light is automatically turned off according to the settings in Light time-out or eco mode setting. The display light turns on again if there is any operation or incoming call.

･

The battery usage state is automatically recorded while using the FOMA terminal. The record is used only for repair diagnosis.

Turning power off : f (2 sec. or more) Changing the initial setting : Changing screen display to English :

mehdde

[Complete]

On the

twice to enter a user name.

mehib

Select "English"

Before Using

Caller ID notification

Set whether to notify your phone number (caller ID) to the other party's terminal when making a voice call.

a meg

Receive call setting notification

TEL functioned Dial/

Caller ID

Settingea ON or b

OFF

Point

･

If you hear an announcement of requesting caller ID when making a call, set Caller ID notification or add prefix "186" to the phone number to call again.

Before Using

Checking Profile

Check a model name or own phone number.

a me0

User information screen appears.

Point

Editing the profile :

AuthenticateeSet required items

･

On the profile edit screen, select first mail address then select "Acquire Auto" to obtain your mail address from the i-mode center. For details of changing a mail address, refer to "Mobile Phone Users Guide [i-mode] FOMA version".

Checking a phone number during a call :

Profile

On User information screen,

se0

Basic Operation

Screen Explanation

Viewing display

New arrival information and current state can be checked by the icon appearing on the screen. Major icons are as follows.

Basic Operation

Status area

Status icons are displayed. Select an area to display the status menu.

⇒

P30

Battery level (Battery icon)

Ample

charge

Signal strength (Antenna icon)

Almost exhausted

(Charge the battery)

a h

くーまん

(Kuman)"

Dora communications

Strong

Self mode ON

d e

In data transfer mode

Connecting to i-mode

Display off lock setting in Auto-key lock is set

Infrared communication in operation

Bluetooth ON

The total calls cost exceeds the limit

Communication using handsfree-compatible

Out of service area or where

Wea k

radio waves do not reach

device in progress

Handsfree ON

Femtocell available

Touch operation OFF

Positioning with GPS

Location request setting

Connecting to Wi-Fi

Unread Area Mail exists

In-area auto-send mail exists

Unread i-mode mail exists

Arrival i-concier information exists

Unreceived i-mode mail exists in the Center

Using Smart Browser

3D setting is ON

A phonebook entry, memo or schedule has

secret attribute

Music&Video Channel program obtaining

reservation exists

High-pitched alarm is "ON"

Kid-safe mode ON

During i-αppli operation

: i-α

ppli call exists

Communication mode ON (USB cable

connected)

Alarm is set

1Seg watching/recording reserved or alarm

of Memo is set

Inside OFFICEED area

Manner mode ON

Call alert volume OFF

Vibration mode for voice call ON

In Public mode (Drive mode)

Manner support ON

Record message setting ON

Keypad dial lock ON

Personal data lock ON

IC card lock ON

Recording 1Seg in the FOMA terminal

eco mode ON

microSD card inserted

Connected to external device using USB

cable

Pedometer/ACT monitor is set

Software update rewrite notice

Auto-update of latest pattern definition

failure

Update notification for MyFACE⇒P31

Machi-chara

Characters moving about the screen and giving messages. In addition to the preinstalled characters, you can obtain characters by downloading.

Temperature/Humidity

Temperature and humidity are displayed with the design according to TempHmd sensor set.

Pedometer/ACT monitor

Steps and consumed calories of the day are displayed.

New arrival

Starting from the left, i-αppli call, unread ToruCa, missed call, recorded message, message in voice mail service, unread mail Select an arrival information etc. on the stand-by display using corresponding information (Focus mode).

Shortcut ⇒P31

Task area

Icons indicating running features (tasks) appear.

and k to quickly display the

Basic Operation

Screen Explanation

Basic operations for screen and keys

Menu operation Guide area

On the stand-by display, select m and then perform the functions from the menu. You can select a menu item with shortcut operations, which use the keypad, etc. or with multi-cursor key operation, which uses the multi-cursor key to move the cursor.

<Example> Selecting "Calculator"

Basic Operation

Shortcut operations

a me6e2

Multi-cursor key operations

a me

Point

･

To return to the previous screen, press c. To return to the stand-by display, press

Move the cursor to "f Tool"

[OK]eMove the cursor to

Calculator"eg [OK]

Operations that can be performed by pressing

a, g, C

and

are displayed in the guide area.

Ter ms indicated with [ ] in the

instructions of this manual are items displayed in the guide area.

Status menu

Select status area to display the status menu. You can check the status and change the settings from the status menu.

Guide area

Screen Explanation

docomo Palette UI

MyFACE

In the right and left area of the stand-by display (vertical), up to 12 MyFACEs downloaded from sites, etc. can be pinned.

Flick left or right or

Switch screens one after another in the same way to display MyFACE you want to use.

Point

･

Packet communication charges apply to refresh content for other than MyFACEs set by default. Note that using MyFACEs set by default is also charged if the i-mode access point is changed or while international roaming.

Shortcuts

Paste frequently-used function, data, etc. to the stand-by display as icon. By selecting a pasted icon, the function or data can be activated quickly.

Screen Explanation

Using touch panel

Notes for using the touch panel

･

The touch panel is designed for being touched lightly with fingers. Do not push it forcibly with a finger or press it with sharp objects such as nail, ballpoint pen, pin, etc.

･

Touching the touch panel may not work in the following cases. Note that it may cause malfunction.

- Operation with gloved hands

- Operation with tip of fingernail

- Operation with a foreign object on the display

- Operation with protective sheet or seal on the display

- Operation on the wet touch panel

- Operation with finger wet with perspiration or water

- Operation under water

･

Do not press forcibly the frame part around the display. The touch panel may malfunction.

Point

･

Depending on the operation or function, effective range for the touch operation may be different or invalid.

Basic Operation

Basic operation on the touch panel

Tap

Touch the display lightly once and release the finger. The operation becomes effective when you release your finger from the display. This operation is mainly for selecting menus, items, etc. On the smart browser screen, quickly tap twice (double-tap) to zoom in/out.

Touch

Touch the display for 1 sec. or more and

(1 sec.

Basic Operation

release the finger. Some operations

require to perform the subsequent action

more)

with your finger kept touching the screen.

Drag

Keep touching an item or icon on the display, move your finger to the desired direction. This operation is used for moving items or entering handwriting characters.

Slide

Keep touching the display, move your finger up/down/right/left. This operation is used for scrolling screen.

Flick

Touch the screen and flick away. This operation is for switching pages or images, or moving to a different chapter or tune, etc.

Pinch

While touching the display with the two fingers, widen and narrow the spacing between the fingers. This operation is mainly for zooming in/out the display.

Example : DragExam ple : Touch

Exam ple : Pin ch

Screen Explanation

使いかたガイド

You can check outline of function, operations or troubleshooting. (In Japanese only)

a mef

Toole# GuideeSelect a

(Guide)

search method

(Contents) :

functions.

索引

(Index) :

sorted according to Japanese syllabary.

フリーワード検索

keyword to search for.

ブックマーク

of registered bookmarks.

困ったときには

from lists of troubles or error messages.

その他のご案内

guide page introducing useful site.

Point

･

On a description screen, select " this function)" to perform a function. Selecting a link

item in " (See more)" displays a corresponding description screen.

Search from a list of

Search from a list of words

(Free word search) :

(Bookmark) :

(Troubleshooting) :

(More information) :

Character Entry

Entering characters

You can enter characters by key operation and touch operation. Active input method depends on the style of FOMA terminal when you open the character entry screen. Key operation input activates in the open style and touch operation input activates in the flip style.

5-touch input and conversion with key operation

5-touch input is an input method to switch a character by pressing a key repeatedly.

Enter character on the character entry screen

When a character is entered, the cursor automatically moves in a regular interval. To quickly enter characters assigned to an identical key consecutively, press

<Example> Entering "

"ろ" : 9 (5 times) "っ" : 4 (3 times) "ぽ" : 6 (5 times) "ん" : 0 (3 times) "ぎ" : 2 (Twice)

Conversion options appear at the bottom of the screen. You can select a character from the options by pressing

b C

[Convert]

Characters on the character entry screen are converted. Press conversion options list.

ろっぽんぎ

again to display a

(twice)

Operations during character entry

Returning to the previous character : Deleting characters : Adding voiced/semi-voiced sound or switching

upper/lower case :

Entering characters with touch operation

There are 3 methods.

Hand writing input :

finger directly in the hand writing entry area.

Touch key input :

operation.

Touch QWERTY key input :

using a PC keyboard, by pressing alphabet in Roman letter spelling corresponding to Japanese reading.

<Hand-writing entry screen> <Touch key entry screen>

Write characters with your

Select a character with touch

Enter characters like

Basic Operation

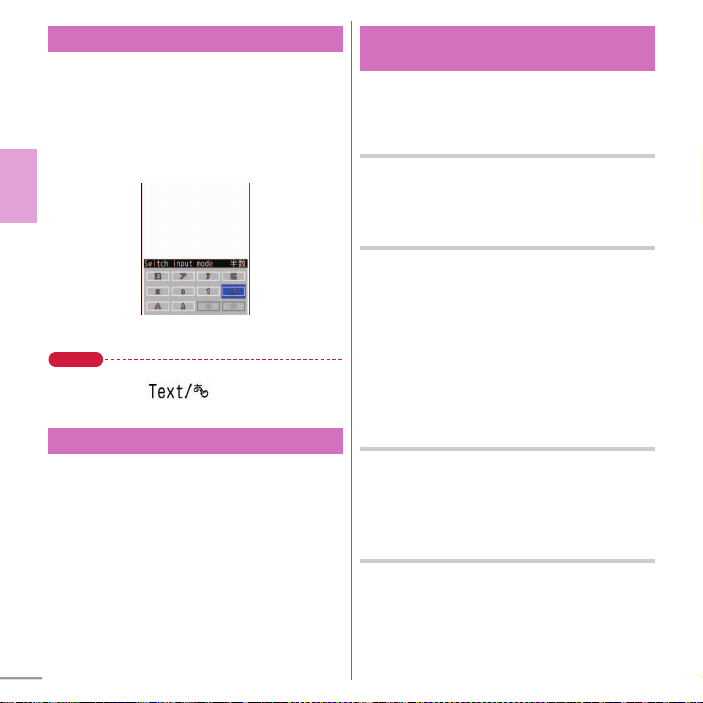

Switching input modes

<Example> Mail message editing screen

On the character entry screen, a or [TextMode]

Select "Hiragana/Kanji", "Katakana", "Alphanumeric", "Number", etc. from the Switch input mode palette.

Basic Operation

Point

･

On a character entry screen other than mail message editing screen, [ ] switches the input mode.

Text input

Set a text input method or operation during text entry.

a meh

input method [Set]

Settinged Text display/

Text inputea Text input

Set required items

Useful functions on the entry screen

Useful functions on the entry screen are explained taking mail message editing screen as an example.

Entering common phrases

a m

[Submenu]ee Quote phrase/

data Select a phrase

Entering pictograms/symbols

On the character entry screen, when [Pict/Sym] is displayed, Sym]

On the pictogram selection screen, press m to display one-byte symbols/two-byte symbols, press pictograms)/pictograms/D pictures (Deco-mail pictures). Press selection screen to select a category.

Entering smileys

a m

data Smiley smiley

Copying/Cutting, pasting characters

a m

using the multi-cursor key

b m

PhraseeSelect phrase type

Select a pictogram

to display pictogram D (Deco-mail

on the pictogram D

[Submenu]ee Quote phrase/

Pict/Symbol/Smileyec

Select a smiley typeeSelect a

[Submenu]ed Copy/Cut/etc.

Copy or b CuteSpecify the area

[Submenu]ed Copy/Cut/etc.

Pasteeg [Paste]

[Pict/

Sound/Screen Setting

Sound settings

You can set tones, such as changing a ring alert, adjusting the volume, or muting the sound emitted from FOMA terminal.

Ring tone

You can set your favorite melody, etc. for a ring alert.

<Example> Setting voice call ring tone

a meh

Manner

Point

･

Wh en Vo ice cal l ri ng to ne i s se t, t he se tti ng a ppl ies t o Incoming call.

･

Some music or moving picture s/i-motion may no t be set to the ring alert.

Adjust volume

You can set the volume of a ring alert, alarm sound, etc.

a meh

Manner cursor to the item

Vibration mode

You are notified of an incoming call or alarm with vibration, instead of sound.

a meh

Vibration/Manner

Settingeb Sound/Vibration/

Ring toneea Call ring tone

Set required items

Settingeb Sound/Vibration/

Adjust volumeeMove the

eheC

Settingeb Sound/

Set required items

[Set]

Vibration mode

[Set]

Silent mode

This function mutes the sound emitted from the FOMA terminal such as ring alert, Keypad sound, Touch sound, open/close operation sound, Alarm sound, confirmation sound for reading a code with Bar code reader, and notifies incoming calls with vibrator (vibration). The microphone is sensitized in Silent mode, and you can call in a small voice.

a #

(1 sec. or more)

appears on the stand-by display in Silent

mode.

Canceling Silent mode : # (1 sec. or more)

Point

･

Shutter sound, Auto focus lock sound for shooting still pictures, and count down sound of Auto timer are emitted even in Silent mode.

System sound

Set sounds emitted for key operation, touch operation, opening/closing the FOMA terminal, and shutter sound for shooting still images or moving pictures (including recording for Voice recorder).

a meh

Manner sound

Point

･

Even if the key touch sound, touch sound is set to sound, no sound is made while i-

Settingeb Sound/Vibration/

Other soundsed System

Set required items

ppli is activated.

[Set]

Basic Operation

Sound/Screen Setting

Setting display

Stand-by display setting

You can change the default stand-by display.

<Example> Setting an image

a meh

Image/i-

Basic Operation

When Kisekae Tool is set, select "Yes" on the confirmation screen for canceling.

Select a foldereMove the cursor to an image

Settingea Screen/Display

Stand-by display settingea

ppliea Vertical position or

Horizontal positionea Set image

[OK]e"Yes"

Display light

You can set the brightness of screen and Light time-out.

a meh

Illumination required items

Settingec Backlight/

Display lighteSet

[Set]

Privacy view

This function allows the display to be less-visible to the people around you. You can start/cancel on the screen other than the stand-by display.

a seh

SettingebPrivacyView ON/

PrivacyView OFF

Select startup menu

Select a menu to be displayed when m is pressed on the stand-by display from "Normal menu (according to Kisekae Tool)", "Basic menu (menu structure and menu numbers are fixed)" or "Shortcut menu (changeable menu items)".

a meh

startup menu

Settingea Screen/Display

Menu preferenceea Select

Select a menu type

Font size

a meh

input items

For some font sizes selected for overall, a confirmation screen for changing the MENU font size appears. When pressing "Yes", Kisekae Tool can be selected.

Point

･

Items do not support the font size selected for overall are set to the closest font size.

Settinged Text display/

Font sizeeSet required

Select font size

Setting Machi-chara

You can set a character to be displayed on the stand-by display. A message can be changed to the speech in Machi-chara talk expression. You can also use Friendly message support Machichara that displays a message according to the FOMA terminal condition or content of entered text. "

リーフロボット

パパ

" stored by default are the friendly message

support Machi-chara.



Dora communications



赤塚不二夫／ぴえろ

a meh

Machi-chara settingeSet required

items

Point

･

Machi-chara does not appear when i-αppli stand-by display is set or while playing moving picture/imotion set for the stand-by display.

･

If you set friendly message to ON, Machi-chara asks your call name (user name) when you return to the stand-by display. Press name. User name is stored for each Machi-chara. If you perform Reset all in formation from the submenu on the Machi-chara list in the Data Box, stored user name is deleted.

", "

くーまん

" and "

バカボンの

Settingea Screen/Display

[Set]

twice to enter your user

Sound/Screen Setting

Kisekae Tool

You can set the stand-by display, menu, incoming/ outgoing call screens, etc. at once with a predefined combination. By default, Kisekae Tool matched to the FOMA terminal color is set.

<Example> Setting preinstalled Kisekae Tool

a mee

To display details of the Kisekae Tool, select a Kisekae Tool. To display the image of coordinate, select "Preview".

Move the cursor to a Kisekae Tool

Data Boxeh Kisekae Tool

Preinstall

[Setting]e"Yes"

Basic Operation

Sound/Screen Setting

Light setting

Indicator light

You are notified of missed call or unread mail (including SMS) by the indicator light.

a meh

display & light

Basic Operation

Point

･

The indicator light blinks at approximately 10 seconds interval. However, when you receive information with the FOMA terminal closed or you open the FOMA terminal and close without checking the arrival information, the indicator light blinks at approximately 30 minutes interval.

Light alert

You can set the light operation that is turned on for incoming call or during a call.

a meh

Illumination required items

Settingea Screen/Display

Each display settinged Info

Indicator light

ON or b OFF

Settingec Backlight/

Light alerteSet

[Set]

Sound/Screen Setting

eco mode

Save the battery power by adjusting the display backlight or sound temporarily.

a meh

mode setting

When ON is set, appears on the stand-by

display.

Point

･

If you do not change the default Shortcut menu setting, press eco mode to ON/OFF.

eco mode auto-start set.

eco mode is automatically switched to ON/OFF according to the battery level.

a meh

mode auto-start set. items

Point

･

You can set operations when eco mode is ON in eco mode options.

Std. saving :

alert, Indicator light, Backlight, 1Seg eco mode, etc. to save the battery power.

Full saving :

settings of touch operation, motion sensor, Manner support, Auto light on, Machi-chara, TempHmd sensor, Immobile sensor of Display off lock setting, AUTO-GPS, Pedometer/ACT monitor, etc. to save the battery power.

Settingeg Batteryea eco

eco mode ON/OFF

ON or b OFF

for 1 second or more to switch

Settingeg Batteryeb eco

[Set]

Change settings of System sound, Light

With Std. saving applied, change the

Set required

Lock/Security

Security codes

Security codes vary by functions. Security code protects personal information. Be careful about handling the security code.

Terminal security code

(Default : 0000)

The code is the security code to be used when changing settings or deleting all the items at once. To change the code, perform the following operation.

a meh

security code

Enter a new terminal security code Enter the new terminal security code in New terminal security code-check field

Point

･

If a wrong terminal security code is entered 5 times consecutively, the power is turned OFF.

Network security code

(At subscription : Set any code)

Network security code is required when DOCOMO identifies the subscriber at docomo Shop, docomo Information Center or " support)" or when you subscribe Network Services. To change the code, perform the following operation.

a Ie "お客様サポート

e "各種設定 (確認・変更・利用

(Settings (Check/Change/Use))"

Settingef Lock/Security

Code & Fingerprintea Change

Authenticate

[Save]

お客様サポート

(user

(User support)"

)

ネットワーク暗証番号変更

(Change

Network security code)" (in Japanese only)

i-mode password

(At subscription : 0000)

i-mode password is required to save to/delete My Menu, use Message Service, subscribe/cancel imode charged services, etc. To change the code, perform the following operation.

a Ie "お客様サポート

e "各種設定 (確認・変更・利用

(Settings (Check/Change/Use))"

ｉモードパスワード変更

(User support)"

)

(Change i-

mode Password)" (in Japanese only)

PIN1/PIN2 code

(At subscription : 0000)

You can set 2 security codes to the docomo mini UIM card: PIN1 code and PIN2 code. The PIN1 code is a security code to be used when installing the docomo mini UIM card or turning ON the FOMA terminal. The PIN2 code is the security code to be used when requesting the issuance of a user certificate, resetting Total calls cost or resetting the total call costs. To change either code, perform the following operation. When changing PIN1 code, set PIN1 entry ON/OFF to "ON" in advance.

Basic Operation

a meh

Enter the current PIN codeeEnter a

Settingef Lock/Security

UIM settingea Change PIN1 code

Change PIN2 codeeAuthenticate

new PIN code in New PIN code field and New PIN code - check field

[Save]

Point

･

To display the PIN1 code entry screen when turning

mehfica

power on,

Basic Operation

entry ON/OFF to "ON".

･

Ev en if PIN 2 co de is loc ked by ent erin g in cor rect PIN 2 code 3 times consecutively, making/receiving calls or sending/receiving mail is available; if PIN code is locked by entering incorrect PIN code 3 times consecutively, these operations are unavailable.

, and then set PIN1

The PUK code

PUK code is used if the PIN1/PIN2 code is locked. PUK cannot be changed by users. If the docomo mini UIM card is locked by entering the PUK code incorrectly 10 times consecutively, contact docomo Shop.

Point

･

The PUK code is written on a subscription form (copy for user) handed at subscription in a docomo Shop. For users subscribed in other than docomo Shop, bring a document (a drivers license etc.) to identify your subscription and the docomo mini UIM card to a docomo Shop, or contact "General Inquiries" on the last page of this manual.

･

To set a security code, avoid imaginable numbers such as "birth date", "a part of phone number", "street address or room number", "1111" or "1234". Maintain a separate record not to forget the numbers.

･

Be careful never to reveal your security code to others. If a security code is known to and misused by others, DOCOMO assumes no responsibility for damages resulted from it.

･

If you forget your security codes, you need to bring a document (a drivers license etc.) to identify your subscription, the FOMA terminal and the docomo mini UIM card to a docomo Shop. For details, contact "General Inquiries" on the last page of this manual.

Lock/Security

Various lock functions

All lock

Menu operation is unavailable. You can use only a part of operations such as answering calls, receiving mails, turning power ON/OFF.

Activate :

mehfabe

Deactivate :

(When the fingerprint authentication is set,

Enter the terminal security code

Authenticate)

Self mode

All functions requiring communication are unavailable.

Activate/Deactivate :

"Yes"

Keypad dial lock

Calls can be made only by using phonebook.

Activate/Deactivate :

Authenticateea or

Auto-key lock

✜

Lock on close

Lock touch operations and key operations with the screen off each time the FOMA terminal is closed.

Activate :

mehfaaae

required items

Deactivate temporarily :

and authenticate

✜

Display off lock setting

Lock touch operation or key operation when no operation is performed for a certain period of time from the screen off.

Authenticate

mehiaea

mehfade

AuthenticateeSet

Open the FOMA terminal

Activate :

mehfaabe

Set required items

Deactivate temporarily :

display

eme

Authenticate

Press any key to light the

Touch panel lock

Lock touch operations with the screen off in the flip style.

Activate/Deactivate :

In the flip style,

Touch lock

Touch lock is automatically activated when making a call or talking on the phone to prevent inadvertent touch operations.

Activate/Deactivate :

screen,

While dialing or on the call

(1 sec. or more)

IC card lock

Osaifu-Keitai, obtainment of ToruCa from IC card reader, iC transmission, etc are unavailable.

Activate/Deactivate :

me#dae

Authenticateea or

Omakase Lock

The personal data of phonebook etc. or IC card function of Osaifu-Keitai is locked only by contacting DOCOMO in case FOMA terminal is misplaced etc. For details, refer to "Mobile Phone Users Guide [Basic Usage]".

■

Setting/Canceling Omakase Lock

0120-524-360 Business hours : 24 hours

(open all year round) (In Japanese only)

Unavailable from part of IP phones.

Omakase Lock can be set/canceled from My docomo site using a PC etc. (in Japanese only)

Basic Operation

Lock/Security

Incoming call restriction

Lock/Security

Resetting to default

Call rejection setting

Call reject setting allows you to reject calls from phone numbers not saved in phonebook and reject or accept calls from the specified numbers. In addition, you can set a receiving operation for each reason for hiding caller ID.

a meg

Basic Operation

Receive call setting setting items

Point

･

Unregistered caller setting is available for calls showing caller ID. For calls hiding caller ID, receiving operation is performed according to the call reject setting for Anonymous, Payphone, Unavailable. It is recommended that you use both Caller ID request and call reject setting for Anonymous, Payphone, Unavailable.

･

The reasons for hiding caller ID are as follows:

Anonymous : Payphone : Unavailable :

such as an overseas call or call from land-line phone using call forwarding service, etc.

TEL functioned Dial/

Call rejection

AuthenticateeSet required

[Set]

a call with hiding caller ID set

a call from public payphone, etc.

a call unavailable to notify caller ID

Reset

You can restore functions in red characters on the menu list to the default settings.

a meh

item to reset

Settingei Other setting

ReseteAuthenticateeSelect an

⇒

P86

[Reset]e"Yes"

Delete all data

You can delete data saved in FOMA terminal, and restore the each function's settings to the default.

a meh

"Yes"

All data is deleted while restarting. Do not turn power off until the stand-by display is displayed.

Point

･

Even after all data is deleted, the data registered by default is not deleted.

･

If the dictionary data of the microSD card copied from the attached

dictionary data DVD) (Sample) to the FOMA terminal, the dictionary data other than preinstalled can be deleted by Delete all data.

Settingei Other setting

Delete all dataeAuthenticate

電子辞書データ

DVD (Electronic

Call Telephone

Making a call/videophone call

Entering a phone number

Enter a phone number including area code (Up to 80 digits)

(videophone call)eWhen

ending the call,

To operate in flick style, set Auto rotation in Motion sensor to "ON". You can also make a call by tapping in landscape view.

Point

･

Do not cover the microphone during a call.

(voice call)

Using phonebook

a ue

Search phonebook

The phonebook list search result of the Show all names is displayed by default. You can switch lines by

/ I.

Move the cursor to the party

To make a videophone call, move the cursor to the party and operate as follows.

From Show all names :

Call type field

From other search :

or switch the pages by

meaae

bea

Point

･

You can make calls using logs of mails, etc. if phone numbers are saved in phonebook.

･

When mail address is registered to the phonebook, you can create i-mode mail from the phonebook list.

Creating mail from Show all names : ueSearch

phonebook

eab

Creating mail from other search : ueSearch

phonebook

Move the cursor to the party

Using redial/received calls

Up to 30 items can be displayed in Redial and Received calls respectively. When the maximum number is exceeded, older logs are overwritten.

In the

a meg

Received calls Redial

Move the cursor to a party (Voice call) or

Point

･

DOCOMO videophone specifications conform to "3G-324M, an international standard prepared by 3GPP". The connection with the videophones of different specifications cannot be established.

･

At the beginning of the videophone call, a substitute image is sent. To send your own face, in the open style, press the bottom of the terminal body around 180 degrees to turn the camera toward you.

TEL functionec Dialed/

Received calls or b

(Videophone call)

to switch camera image and rotate

Connect

Koe-no-Takuhaibin International calls

Koe-no-Takuhaibin is a service sending messages using voice call. You can record or play messages between FOMA terminals without calling a party. You are notified by record notification SMS when a message is recorded, and by play notification SMS when the party plays a message (when the party sets play notification to on. It is set to on by default). For details, refer to NTT DOCOMO website.

Recording a message

Select a party and record a message in the Koeno-Takuhaibin service center.

Enter a phone number

Connect

Follow the guidance of Koe-no-

[Koetaku]

Takuhaibin service center to operate

Point

･

To make a call from Redial, Received calls or Phonebook via Koe-no-Takuhaibin, press

Checking message/Setting services

You can check messages or set service such as Koe-no-Takuhaibin by using SMS, Koe-noTakuhaibin website, the voice prompts.

Check messages via SMS :

folder

Select an SMS to vieweSelect "Play"

Check messages/Set service from website :

meghae

Check messages/Set service using voice

prompts:

megheb

aeae

"Yes"

or ce"Yes"

Select a

You can make international calls from Japan using WORLD CALL.

✜

WORLD CALL

"WORLD CALL" is the international call (voice call/ videophone call) service available from DOCOMO mobile phones. You are subscribed to "WORLD CALL" at the time of subscription to the FOMA service (Unless you request not to subscribe to it).

･

No subscription or monthly charges apply.

･

DOCOMO charges customers for "WORLD CALL" fee and monthly FOMA service call fee all together.

･

For details of "WORLD CALL", contact "General Inquiries" on the last page of this manual.

･

To use international call services, contact the carrier for details.

･

For countries and overseas telecommunications carriers available, refer to "Mobile Phone User's Guide [International Services]" or DOCOMO International Services website.

･

The image of the other party displayed on FOMA

terminal may be distorted or connection may not be established depending on the other party's terminal connected through the international videophone line.

Enter "010-phone number without the leading 0 of Country code (City code)"

(voice call) or C (videophone

call)

In some countries and areas such as Italy, "0" is required.

Call Telephone

Receiving a call/videophone call

Receive

You are notified of an incoming call with ring alert, light alert, etc. On the display, the phone number appears when caller ID is sent, and caller's name appears when phone number is saved in the phonebook. When caller ID is not sent ,the reason (Anonymous, Payphone or Unavailable) appears.

Adjust the alert volume

Stop the ring alert and vibrator

On-hold

b n

(voice/videophone call) or I

(videophone call)

You can also answer a call by tapping the screen and then tapping .

When ending the call,

Point

･

When you cannot answer an incoming call, (The digit indicates the number of missed calls) appears on the stand-by display. The incoming calls are recorded as missed calls in Received calls.

Call Telephone

Operation during a call

You can use useful functions during a call.

On hold

A melody is played while on hold. For a videophone call, the videophone on-hold image is displayed on the phone of the other party and yourself.

During a call, g [OnHold]

Point

Canceling the voice call on hold : g or Canceling the videophone call on hold (send the image

before on hold) :

Canceling the videophone call on hold (send the

camera image) :

Canceling the videophone call on hold (send a

substitute image) :

Listening volume

You can adjust listening volume during a call.

During a call, j or

Point

･

This setting applies to Listen volume in Adjust volume.

Connect

Call Telephone

When you cannot answer a call

Record message Public mode

When Record message is set to "ON", a greeting message is played and the caller can record message when you cannot answer the call.

a meg

message/Voice memo message

Point

･

You can record up to 4 voice/videophone calls in total, approximately 30 seconds for each call. When

Connect

reaching the savable number, appears on the stand-by display and Record message does not work. Delete unnecessary recorded messages.

･

Even when Record message is not set to "ON", you can activate it only once by pressing or more while receiving a call (Quick recorded message).

･

Even when the greeting message is being played or a message is being recorded, you can answer a call by pressing In this case, the message before the call was answered cannot be recorded.

Setting a response time :

time

Playing a recorded message :

a message

TEL functioneb Record

Record

appears on the stand-by display.

(for videophone call, I / a).

megbdce

Select whether to delete

megbae

for 1 second

Enter

Public mode is an automatic answering service putting emphasis on manners in a highly public place or when driving a car.

Public mode (Drive mode)

When there is an incoming call, a guidance message is played to inform the other party of the reason that you cannot answer the call and request to call back, and then the call ends automatically.

a *

Point

･

In Public mode (Drive mode), no receiving action is performed, and calls are recorded as Missed call.

Canceling : * (1 sec. or more)

Public mode (Power OFF)

When there is an incoming call while turning off the power, a guidance message is played to inform the other party of the reason that you cannot answer the call and request to call back, and then the call ends automatically.

Select

Enter "*25251"

Even when Public mode (Power OFF) is set, no indicators such as icons appear on the display.

Point

Canceling : Checking the settings :

(1 sec. or more)

appears on the stand-by display.

Enter "*25250"

Enter "*25259"

Call Telephone

Network Services

Not

Monthly

charge

Free

Service Application

Voice Mail Service

Missed Call Notification Service

Call Waiting Service

Call Forwarding Service

Nuisance Call Blocking Service

Caller ID Notification Service

Caller ID Display Request Service

Dual Network Service

English guidance

Multi Number

2in1

OFFICEED

Koe-no-Takuhaibin

Public mode (Drive mode)

Public mode (Power OFF)

Melody Call

･

Network services are not available out of service area or where radio waves are hard to reach.

･

For subscription and details of the services, contact "General Inquiries" on the last page of this manual.

･

For details, refer to "Mobile Phone User's Guide [Network Services]".

･

For details of "OFFICEED", refer to DOCOMO's business website (http://www.docomo.biz/html/ service/officeed/ (In Japanese only)).

Required Charged

Not required

Required Charged

Required Free

required

Not required

required

Required Charged

Not required

Required Charged

Not required

Required Charged

Setting network service

The operations for major network services are as follows.

Service Operating procedure

Voice Mail Service

Call Waiting Service

Call Forwarding Service

Point

･

When ring time is set to "0 sec." for Voice Mail service or Call Forwarding service, incoming calls are not recorded in Received calls.

･

To answer a call from another party during a call when call waiting is activated, press on hold, press

meg

mail service following operation Activate :

Deactivate : ce"Yes" Play messages :

meg

network service

Activate : Deactivate : be"Yes"

meg

network service forwarding following operation Activate :

Deactivate : be"Yes"

TEL functione* Voice

Perform the

Enter ring time

"Yes"eFollow the guidance to operate

Perform the following operation

Enter a phone number "Yes"eEnter ring time

"Yes"e"Yes"

eea

TEL functione# Other

"Yes"

TEL functione* Other

Perform the

"Yes"e"Yes"

to switch the parties to talk to.

Call waiting

Call

eCe

. When a party is put

Connect

Call Telephone

Emergency call

You can make the following emergency calls from the FOMA terminal.

Police

Fire and ambulance

Marine emergencies

･

This FOMA terminal supports "Emergency Location Report". When making an emergency call to 110, 119, 118, etc., information of your location (location information) is automatically informed to an emergency call receiving organization such as police. The Emergency call acceptance organization may not be able to

Connect

figure out your exact location depending on the location where you place a call or radio wave condition. When the caller ID is hidden for the call, i.e., by appending "184" to the dialed number, none of location information or your phone number is notified; however, the organization may acquire the location information and phone number regardless of your settings, if they have determined that such information is necessary for the protection of life etc. The area and timing of implementing "Emergency Location Report" vary by the preparatory state of respective emergency call receiving organizations.

110

119

118

･

When calling to 110, 119 or 118 from the FOMA terminal, inform them that you are calling from a mobile phone and give your phone number and your current location precisely since the police or fire department has to call you back for confirmation. To make sure that you are not cut off during the call, do not move during the call and do not turn OFF the phone just after the call, but keep it on for about 10 minutes.

･

For some areas you are calling from, you are not connected to the local police or fire department.

･

When Auto redial as voice of Operation is set to "ON", videophone call to 110, 119 or 118 from the FOMA terminal changes automatically to voice call.

Call Telephone

Using overseas

You can talk with FOMA terminal and use i-mode overseas.

✜

International Roaming (WORLD WING)

International roaming (WORLD WING) is a service that allows you to make voice calls and access imode using network of telecommunications carriers affiliated with DOCOMO overseas. Before using this service, check its subscription status. For details, contact "General Inquiries" on the last page of this manual.

･

The service is available in areas that 3G Network or GSM/GPRS Network covers. Also, it is available in countries or districts where 3G 850 MHz is applied. Check the service area.

･

Refer to the following documents before using FOMA terminal overseas.

- "Mobile Phone User's Guide [International Services]"

- DOCOMO International Services website

海外ご利用ガイド

in Data Box (In Japanese only)

Available service overseas

Communication service 3G

Voice call

Videophone call

i-mode

i-mode mail

SMS

*1, 3

i-Channel

i-concier

" preinstalled in My Document

GSM/

GSM

GPRS

○○○

××

○ ○○ ○○ ○○○ ○○ ○○

× ×

Communication service 3G

i-Widget

GPS

Packet communication (PC connection)

International settings of i-mode are required.

When you send SMS to FOMA terminal, enter the party's phone number as well as in Japan.

International settings of i-Channel are required. Packet communication fee is also charged for auto update for Basic channel (included in iChannel usage fee in Japan).

International Settings of i-concier is required. Packet communication fee is charged each time you receive information.

International Settings of i-Widget is required. When multiple Widget Appli communicate, a packet communication fee is charged per one communication.

No fee is charged for GPS positioning (Position location). However, when displaying a map using location information etc. a packet communication fee is charged.

GSM/ GPRS

○○ ○○

○○

GSM

× ×

Connect

Making a call from the country you stay

When you enter a number within 2 digits to call overseas, a screen asking for selecting "Quick dial" or "Call" appears. If you select "Quick dial", the call is made to the other party in memory No. If you select "Call", the call is made as it is (used for emergency overseas).

Making an international call

a 0

(1 sec. or more)

"+" is entered.

Enter "Country code (for Japan, 81)phone number without the leading 0 of Area code (City code)"

Connect

call) or

In some countries and areas such as Italy, "0" is required.

(videophone call)

Making a call inside the country you stay

Enter a phone number call) or

(videophone call)e"No,

use original"

The call may be made with no message displayed.

(voice

Making a call to WORLD WING user overseas

a 0

(1 sec. or more)eEnter "81 -

mobile phone number without the

leading 0"

(voice call) or C

(videophone call)

Point

･

The call is forwarded internationally from Japan even when staying in the same country as the party to be called, so enter "+" and the country code of Japan, "81".

Receiving a call inside the country you stay

A call is received

(videophone call)

Point

･

Regardless of the country, from which the call is made, the call is internationally forwarded from Japan. The caller is charged for call fees to Japan, and the receiver is charged for receiving the call.

(voice call) or

Setting after returning to Japan

When you turn the FOMA terminal ON, the connection to the FOMA network is established automatically. If it is not automatically connected, set Network search setting to "Auto" and 3G/GSM setting to "Auto".

Mail

Sending i-mode mail/Sending SMS

Sending i-mode mail

Only by subscribing to i-mode, i-mode mails can be exchanged not only with i-mode compatible terminals but also via Internet.

･

For details of i-mode mail, refer to "Mobile Phone User's Guide [i-mode] FOMA version".

a aea b

Enter an address, title and text

[Write]

[Send]

When sending is completed correctly, the mail is automatically saved in a folder of Outbox.

Point

Adding addresses :

"<No address>"

On the mail creation screen, select

Attachments

You can attach up to 10 files and up to 2 Mbytes of image or moving picture/i-motion, etc. in total.

On the mail creation screen, select the attachment field Attach a file

Edit a mail

Select a file type

[Send]

Point

･

Sending an attachment file of a big size may take time. After sending such file, a lot of mail in folders of Outbox may be deleted.

Removing attachment :

select the attachment field attachment required)

Sending SMS

When you do not know receiver's mail address, you can send a text message to mobile phone number instead of the mail address. SMS can be also sent to or received from the parties using overseas service providers. For countries and overseas network operators available, refer to "Mobile Phone User's Guide [International Services]" or DOCOMO International Services website.

a aeg

an address and message

Point

･

When there is an incoming SMS, FOMA terminal operates in the same way as an incoming i-mode

⇒

P53

mail.

On the mail creation screen,

eCea

"Yes"

Move the cursor to the

- c (for eb, selection is

Compose new SMSeEnter

Connect

[Send]

Mail

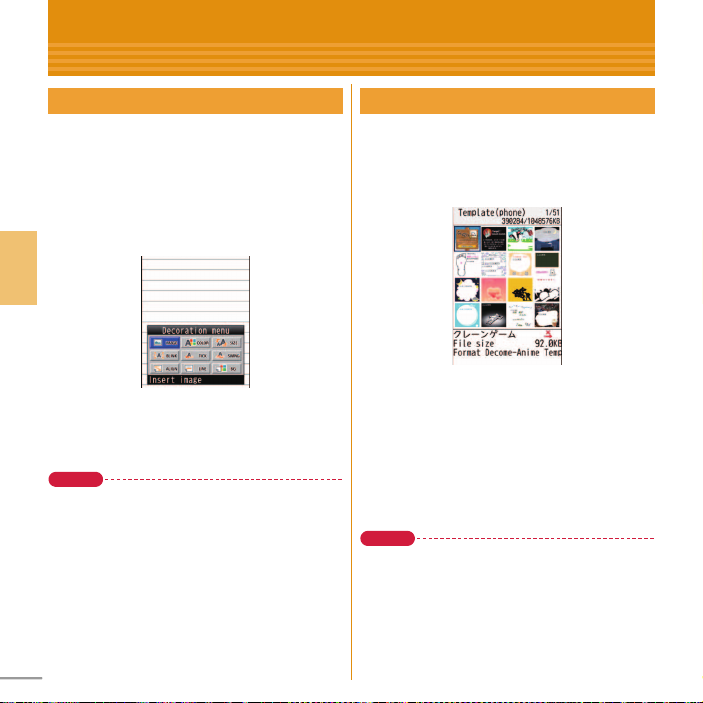

Deco-mail/Decome-Anime

Deco-mail

You can change a font size or background color, or insert still images, Deco-mail picture or Deco-mail pict.

<Example> Specifying decoration before entering

Connect

b c

Point

･

When "Auto Deco-mail" is selected after the message text entry, the message is automatically decorated according to the message content. Each time you press another.

characters

On the creation screen, "Msg" [Decorate]

Select a decoration iconeDecorate

Edit a mail

[Send]

, Deco-mail options appear one after

Decome-Anime

You can create more expressive Deco-mail using templates made with Flash graphics.

a aee

"Edit"

Move to the cursor to a template [OK]

Edit items

Changing template :

d C

Point

･

To preview, after loading the template, press a while editing text or images. To return to the previous screen, press

Create new Decome-Anime

<Decome-Anime Template list screen>

back to step 2

[Quit]eEdit a mail

meae

"Yes"eGo

[Send]

Mail

Receiving i-mode mail

No specific operations or settings are required for receiving mails (mail automatic reception).

Receive i-mode mails

Blinking

On the completion of receiving mail

screen, "Mail" a mail

Point

Checking mails in the mailbox :

display,

aea

mail

Replying to mails

a aea

Select a mail Reply/Forward Decome-Anime

Edit a mail

Select a foldereSelect

- ceSelect a foldereSelect a

On the stand-by

InboxeSelect a folder

[Submenu]ea

Reply - f Vreply

[Send]

Point

･

By selecting a mail and then pressing C, you can reply easily using stored common phrases (Quick reply).

Checking new mail/message

You can make inquiry for any i-mode mail or MessageR/F delivered while you were out of service area or the power was turned OFF.

a a

(1 sec. or more)

Point

Checking new SMS :

aei

Setting mail sort rule

Sent/received mails are sorted in folders with rules set.

a aea

the cursor to a folder

b m

Select a number

Select a sort ruleeSet a rule

d C

Point

Re-sorting saved i-mode mail/SMS :

emeee

Inbox or b OutboxeMove

[Submenu]ed Sort rules

[Complete]

Authenticatee"Yes"

aea

Connect

Mail

Early warning "Area Mail"

This is a service that you can receive emergency earthquake flash report etc. delivered by the Meteorological Agency. i-mode subscription is not required.

Receiving Area Mail

When an Area Mail is received, turns on, and you are notified of reception with blinking light, the dedicated buzzer or vibrate alert.

Point

･

You cannot receive Area mail during a videophone call or Omakase lock, while using infrared

Connect

communication/iC transmission.

Receive setting

You can set if you receive Area Mail.

a ae*

"Area Mail" setting

Mail SettingeEarly warning

Receive setting

Yes or b No

Phonebook

Phonebook new entry

There are two phonebooks: the FOMA terminal phonebook and the UIM phonebook.

a meg

Point

Saving to UIM phonebook :

Adding Phonebook entries from redial/received call

a meg

Point

Searching a phonebook entry : Editing a phonebook entry : ueSearch the phonebookeMove the

Deleting a phonebook entry : ueSearch the

Adding a FOMA terminal phonebook entry

TEL functionea Phonebook

Add to phonebookeEnter a name

Set required items

name

[Save]

megace

Enter a

TEL functionec Dialed/Received

Received calls or b Redial

calls

Move the cursor to the party

[Submenu] phonebook or

In phone memory or b In UIM

To update a phonebook entry, select the entry to add a phone number to.

Set required items

cursor to a phonebook entry

eCe

and edit

phonebook

emefea

, authenticate)e"Yes"

for

Addea Add to

Update phonebook

megaaea

emecae

"Overwrite"

Move the cursor to a phonebook entry

- c (eFor b, select some items,

[Save]

"New entry"

Select an item

i-mode/Full Browser/Smart Browser

Displaying i-mode site/website

With i-mode, you can use services such as site connection, Internet connection or i-mode mail by the display of i-mode compatible terminal. You can use Full Browser or Smart Browser to display websites created for a PC.

･

i-mode is a charged service requiring subscription. For details, refer to "Mobile Phone User's Guide [i-mode] FOMA version".

･

The contents of sites and Internet websites are generally protected by copyright laws. All or any portion of text, image or other data imported to your i-mode compatible terminal from a site or website cannot be altered except for personal use, and cannot be sold or redistributed in any form without the express permission of the copyright holder.

･

If you attach a docomo mini UIM card except yours or turn ON the FOMA terminal without docomo mini UIM card, still images/i-motion/ melodies downloaded from sites, attached files sent/received by mail, screen memos and MessageR/F cannot be displayed or played.

･

When the stand-by display, ring alert, etc. is set by data with the docomo mini UIM card operation restriction, if you replace the docomo mini UIM card with another one or turn the power ON without docomo mini UIM card, it operates in the default data or standard data.

･

i-mode and Full Browser/Smart Browser have different charging systems. It is recommended that you subscribe to i-mode packet flat-rate service because a high packet communication fee is required to use Full Browser/Smart Browser according to data communication volume.

Browsing i-mode website

a Ie

During i-mode communication, blinks on the display. To display English menu, scroll down to the bottom of the iMenu screen and select “English”.

Displaying web pages designed for PC

Full Browser

a meb

Browser Home

Smart Browser

a meb

Browser

Switching i-mode/Full Browser

While site or website is displayed,

meeb

Point

･

You can use Full Browser via Wi-Fi. If you switch from Wi-Fi to the FOMA network, packet communication fees are charged. Note that the network connection will not return to Wi-Fi automatically, once switched to the FOMA network.

Select an item to view

i-mode/webe* Full

i-mode/webe# Smart

Smart Browser

Search

Viewing and operating screen

Status, title/URL

Scrolling up and down*1 : SD or Scrolling up and down continuously*1 : k (1 sec.

or more)

Switching normal/scroll mode*2 : Changing pages : a [← Back]/ I [Next →] Visual history*2/history list*3 : a [← Back] (1

sec. or more)/

●

In scroll mode

Scrolling up or down : a [↑ Page]/ I [↓

Page]

Scrolling up or down successively : a [↑

Page] (1 sec. or more)/ more)

･

In Full Browser screen, Browser screen, to display functions assigned to the numeric keys.

When Display Mode in Full Browser is set to PC layout mode or while viewing in Smart Browser,

/ h (1 sec. or more) to scroll right and left/

scroll right and left continuously.

For i-mode/Full Browser

For Smart Browser

Pointer

[Next →] (1 sec. or more)

I [↓

Page] (1 sec. or

me*i

meie

[Operation guide]

, or in Smart

Bookmark

You can bookmark frequently visited sites or websites to quickly display them the next time you want to visit.

i-mode/Full Browser

Saving :

When a site or website is displayed, m [Submenu] folder

Displaying :

a bookmark

eabe

"OK"eSelect a saving

mebbe

Select a foldereSelect

Smart Browser

Saving :

When a website is displayed, m [Menu]

eae

[Save]

Displaying :

meb#be

Select a bookmark

"Save page displayed"

Select a folder

Screen Memo/Web capture

Currently displayed contents of a site or website can be saved as a screen memo or captured image.

i-mode/Full Browser

Saving :

When a site or website is displayed, m [Submenu]

Displaying :

screen memo

Smart Browser

Saving (images in JPEG format) :

is displayed,

ebbea

mebcea

or be"Yes"

[Menu]

or beSelect a

When a website

ehe

"Yes"

i-Channel

Using i-Channel

i-Channel is a service that news, weather information, etc. is distributed to the i-Channel compatible terminal. (In Japanese only) The autoreceived information appears in the ticker on the stand-by display. Press channel list.

●

Basic Channel

The channel is provided by DOCOMO, and the packet communication fee for automatically updating the distributed information is not charged.

●

Okonomi (Optional) channel

The channel is provided by an IP (Information Provider), and the packet communication fee for automatically updating the distributed information is separately charged. When viewing detail information in Basic Channel or Okonomi Channel, a packet communication fee is separately charged. For overseas use, packet communication fee is charged for both automatic update and viewing detail information.

･

i-Channel is a charged service requiring subscription. i-mode subscription is required for the service.

･

For details, refer to "Mobile Phone User's Guide [i-mode] FOMA version".

to display the

To view the detail information of the ticker displayed, perform the following operation.

On the stand-by display,

Select a

channel

The site is connected and the detail information appears.

Point

･

When the detail information of i-Channel is displayed, the same operations as the ones when imode sites or websites are available.

⇒

P56

Map/GPS

Using Map/GPS function

･

This function is unavailable as a navigation device for aircraft, vehicles or persons or as high-precision location surveying GPS. DOCOMO is not liable to any purely economic damages including troubles, if any, caused by missing opportunities of viewing positioning results or making communications due to failures or malfunctions of the FOMA terminal or external events such as defect, power interruption (including battery exhaustion) in using the FOMA terminal for purposes including but not limited to the above.

･

Because GPS is managed by U.S. Department of Defense, GPS wave conditions may be controlled (accuracy degraded or wave stopped) for security reasons of the U.S. And, wave conditions differ by satellite locations; therefore, positioning operations in the same

location under the same environmental conditions may not yield the same result.

･

Because GPS uses waves transmitted from satellites, under the circumstances that waves cannot be received or become hard to be received, there may be a margin of error of 300 m or more in location information.

･

When using Location request and Notify location functions, check instructions and precautions given in website of GPS service providers and NTT DOCOMO. And, you may be charged for using these functions.

･

The GPS function except Position location is unavailable out of service area.

Map/Navigation

You can start GPS compatible i-αppli to display maps after positioning location or navigate.

a mei

Point

･

i-αppli set in Select map in Map setting starts. "

アプリ

Map/Overseasea Map or

Navigation

(Map Application)" is set by default.

地図

Position location

You can check where you are. No packet communication fee applies for positioning of Position location, but a packet communication fee is required separately with map displayed using location information.

a mei

Overseas Position location/ Location notification

location

When positioning is in progress, blinks. When positioning is completed, the position location menu appears. From the menu, you can select options to read map, use GPS compatible imail creation screen on which location information is pasted, add to phonebook, etc.

Map/

Position

ppi, display the

Map/GPS

AUTO-GPS

Your current location or information measured by Pedometer/Activity monitor is automatically sent to service providers on a regular basis (approximately once in every 5 minutes), which allows you to services that deliver information about the weather or shops around where you are, or sightseeing information. (In Japanese only)

･

To use an AUTO-GPS compatible service, set AUTO-GPS service information from its AUTOGPS compatible i-

･

When using the AUTO-GPS function, check instructions and precautions given in website of GPS service providers and NTT DOCOMO. And, you may be charged for using these services.

･

Note that more power is consumed in FOMA terminal due to a regular communication depending on your usage condition.

･

You can set "Low battery setting" to deactivate the AUTO-GPS function to save the battery consumption when the battery level gets low.

ppli.

Setting AUTO-GPS

Set whether to use the AUTO-GPS function.

a mei

Map&GPS setting/history GPS

Map/Overseaseg

AUTO-GPS settingea ON or

OFF

AUTO-

Setting services provided by DOCOMO

To use AUTO-GPS services that work with iconcier or services provided by DOCOMO, set whether to send your location information to DOCOMO on a regular basis. These services require separate subscriptions to use.

a mei

Map&GPS setting/history GPS

Map/Overseaseg

DOCOMO service set

AUTO-

"ON" or "OFF"

Setup service list

Display a list of the names of i-αppli (the service name), to which AUTO-GPS service information is set, and its status.

a mei

Map&GPS setting/history GPS

Canceling the service (including AUTO-GPS) :

Map/Overseaseg

AUTO-

Setup service list

While a setting services list is displayed,

meaea

item, for

- c(eFor b, select an

, authenticate)e"Yes"

Camera

Shooting still images/moving pictures

Viewing shooting screen

Sense orientation icon

Focus frame, face detection frame

Name of detected person (Find-me focus)

Zoom rate

Available remaining time estimate

Setting icons

Attach location Touch AF

Enjoy

Auto-focus Camera light Brightness Auto timer Shoot by scene Fix camera shake 3D photo Unlimit-shot

Continuous (Auto)/Panorama shooting number Art camera HDR Image quality Size Snap movie White balance Quick shooting Best shot select Panorama Smooth Slo-Mo

d e

Fast-Mo Smile-finder Tracking focus Skew correction

Shooting type (Switch img/voice)

Shooting still images

a Ce

Point the camera at an object,

[] or

When Auto save mode is "OFF", a confirmation screen for saving appears.

Shooting moving pictures

a Ze

Point the camera at an object, g

[Rec/Record] or

To stop shooting, g [Stop] or

Save

Point

･

If FOMA terminal is left in a warm place or exposed to direct sunlight for a long time, images to be shot may be deteriorated.

･

If the FOMA terminal is closed or no operations are performed for approximately 2 minutes during shooting stand-by, the camera ends.

･

Note that your hand may cover the light depending on how you hold the terminal.

･

When temperature inside of the FOMA terminal is raised by heat generation during camera operation, recording or camera function may be terminated even if it does not reach to the maximum shooting time due to protection of the FOMA terminal. Wait until the temperature of the FOMA terminal is dropped and then use the camera function. Note that this phenomenon is not abnormal condition.

Zea

Viewing still images/moving pictures

Still images/moving pictures are saved to Data Box.

a mee

Data BoxeFor still image, a

My picture or for moving picture,

i-motion/MovieeSelect a folder

Select data

Shooting in various methods

To do Operation

3D photo

Switch cameramode

Quick shooting

Smilefinder

Unlimitshot

Best shot select

medabe

an object, FOMA terminal several centimeters slowly in the direction of the arrow until the second shutter sound is heard

On the shooting screen, m [Setting]

On the still image shooting screen,

[Setting]

On the still image shooting screen,

[Setting]

On the still image shooting screen,

[Setting]

[Close]

object,

[]

On the still image shooting screen,

[Setting]

[Close]

object,

Save all, Save one image, etc.

Point the camera at

[]

or ZeMove the

eee

Select an item

efcem

eie

[Close]

Point the camera at an

[]

Point the camera at an

[]

Select an item

efdem

keep pressing

release

efeem

or Ze Operate

[Close]

To do Operation

Continuous (Auto)

Panorama

Art camera

HDR

Snap movie

Smooth Slo-Mo/ Fast-Mo

The following operations are available on the shooting screen.

Displaying Data Box : a [List] Turning on/off camera light : I [Light] Brightness : j or Zooming in/out : h or Focus lock : Keypad guide display: Switching 3D photo (for still image shooting) :

On the still image shooting screen,

[Setting] [Close] object,

On the still image shooting screen,

[Close] object, transparent parts, repeat

until maximum shooting number

is reached

On the shooting screen, C [Effect]

On the still image shooting screen,

("Yes"

On the moving picture shooting screen, [Close]

On the still image shooting screen,

(1 sec. or more)

effem

Point the camera at an

[]

[Setting]

efgem

Point the camera at an

[]

or ZeOverlapping

ece

Select an item

[Close]eAdjust with

[Effect]

eee

"No"other than "OFF")

[Close]

[Effect]

[Close]

Slide up and down

Select an item

[Setting]

efbem

ede

Select an item

Slide left and right

[]

Enjoy

1Seg

Watching 1Seg

●

Using 1Seg

1Seg is a service provided by TV broadcasting enterprises (stations), etc. A communication fee for receiving video picture and sound is not required. Contact NHK for details on your NHK viewing fees. *

For viewing "Data broadcasting site", "i-mode site", etc., packet communication fees are charged. Some sites require information fees (i-mode pay sites).

For details of "1Seg" service, refer to the following websites.

The Association for Promotion of Digital Broadcasting

From a PC : From i-mode :

Japanese only)

●

1Seg is one of the broadcast services and a different type of radio waves (airwaves) from that of FOMA service is received. In the following cases, reception condition may become bad or reception may be unavailable.

･

Enjoy

･

http://www.dpa.or.jp/

http://www.dpa.or.jp/1seg/k/ (In

Airwaves

A place far from the tower that the airwaves are sent from Mountain-ringed regions or a place between buildings Tunnel, underground or far back from a building

To make the reception condition better, stretch out the 1Seg antenna. To receive stronger radio waves, try changing the direction of the antenna, or moving to another location.

In some regions channels are rearranged with the termination of analog broadcasting. Therefore, you may be required to reset "Auto setting" by auto scanning. And, after you reset channels by "Auto setting", make sure to register them to the channel list. For details on rearrangement of Digital Terrestrial Television Broadcasting, refer to the following websites.

総務省テレビ受信者支援センター（デジサポ）

(DTV Support Center, Ministry of Internal Affairs and Communications)"

チャンネル変更コールセンター

" call center)" Phone number : From a PC :

repack/ (In Japanese only)

From i-mode :

Japanese only)

●

Screen appearing when using 1Seg for the first time

A disclaimer confirmation screen and a confirmation screen for usage of 1Seg antenna appear. If you agree and then press "OK", the confirmation screen does not appear again.

0120-922-303

http://www.digisuppo.jp/index.php/

http://digisuppo.jp/m/index.php (In

(Channel change

Creating a channel list

(for the first-time creation)

To watch 1Seg, you need to create a channel list.

<Example> Searching for broadcasting stations and

a med

channels that can be received in your current location (Auto setting).

CAMERA/TV/MUSICeb

1Seg

Channel settinge"Yes"

"Auto setting"e"Yes"

For "Auto setting", perform the operation with extending 1Seg antenna in the digital terrestrial broadcasting service area. Select "Use preset" to load broadcasting stations and channels that are pre-registered to the FOMA terminal.

Select an areae"Yes"

Watching 1Seg

a T

(1 sec. or more)

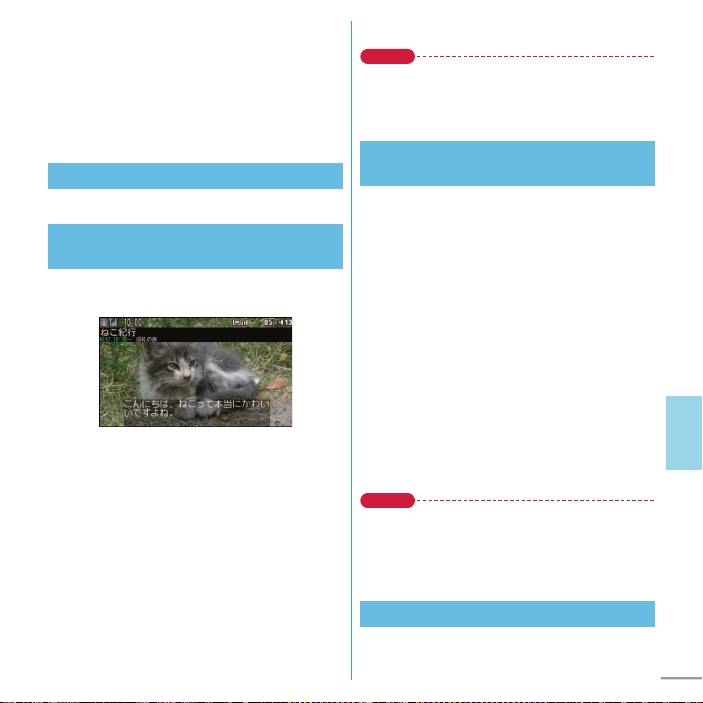

Viewing and operating the watching screen

You can watch 1Seg in full screen, or divide the screen to watch the data broadcasting.

When Switch active operations in Image & Effect is "OFF", the following operations are available.

Adjusting volume : a [Low]/ I [High]

Starting Program guide i-αppli : C [EPG] Selecting a channel : 1 - 9, *, 0,

Selecting the previous and next channel : Recording still images : Starting/Stopping a video recording : Z (1 sec. or

Switching the watching screen :

more)

Showing/Hiding Subtitle : n (1 sec. or more)

Point

･

You can reserve watching/recording, set Time out, Smooth image, 1Seg eco mode, etc., or output via FM transmitter, Bluetooth, etc.

Displaying key function help :

While watching,

me0

Watching/Recording reservation

a med

1Seg

b m

Select timer option

When selecting "Manual reception" or "Manual recording", you proceed to set the reservation details such as time and date or channel. Selecting "By program guide" activates program guide iwatching or recording a program by selecting it in the program guide iinformation is saved and displayed on the setting screen.

c C

Point

･

If "Record to:" in "Record setting" is set to "Auto (phone first)" or "Auto (microSD first)" on the recording reservation screen, the saving location switches automatically according to free space or savable number.

CAMERA/TV/MUSICeb

TV timer list

[Submenu]ea Set new timer

[Save]

ppli. When you reserve

ppli, the reservation

[Save]

Playing a recorded program

a mee

a folder

Data Boxe* 1SegeSelect

Select data

Enjoy

Music

Music&Video Channel

Music&Video Channel is a service which automatically distributes a program of up to approximately 2 hours at night. You can also enjoy high-quality video program of up to approximately 1 hour. (In Japanese only)

･

Music&Video Channel is a charged service requiring subscription. Subscriptions to i-mode and i-mode packet flat-rate services are required for the service.

･

Information fee may be required additionally for some programs besides Music&Video Channel service fee.

･

If docomo mini UIM card is used on a Music&Video Channel incompatible FOMA terminal after subscribing to Music&Video Channel, Music&Video Channel cannot be used. Note that the service fee is charged unless Music&Video Channel is unsubscribed.

･

Program setting and downloading are unavailable during international roaming Stop distribution of programs before leaving Japan. When you return to Japan, resume distribution of programs.

Enjoy

Note that attempting program setting or downloading during international roaming requires packet communication fee for i-mode connection.

･

For details, refer to "Mobile Phone User's Guide [i-mode] FOMA version".

Program setting

To set programs, registering Music&Video Channel program site in My Menu may be required.

a med

CAMERA/TV/MUSICed

Music&Video Channel

"Program setting"eSet a program according to instructions on the screen

Playing a program

a med

Music&Video Channel program

The following operations are available on the player screen.

Pausing/Playing : g [PAUSE/PLAY] Adjusting volume : j or Rewinding/Fast forwarding : h (1 sec. or

Jumping to the beginning of chapter :

Jumping to the previous chapter :

Jumping to the next chapter : r or D (1 sec.

CAMERA/TV/MUSICed

more)

seconds or more in play time, sec. or more)

seconds in play time, more)

or more)

Select a

Less than 2

or S (1 sec. or

or S (1

Music

MUSIC Player

You can play Chaku-uta full downloaded from a site and Windows Media imported from music CDs, the Internet, etc. to a PC. And Uta-moji lyrics downloaded from a site can be displayed on the player screen by setting Link lyrics & song.

For details of MUSIC Player, refer to NTT DOCOMO website. For Windows Media Player, contact the manufacturer of your PC.

Downloading Chaku-uta full

Display a siteeSelect Chaku-uta full "Save"e"Phone" or "microSD"

Saving WMA file on a PC to microSD card

For connection to a PC, FOMA USB Cable (optional) is required.

a meh

connection mode

"Yes"

With Windows Media Player activated, connect FOMA terminal to a PC using USB cable



Audio (WMA) files

Settingeh External

USB modeec MTP

Send WMA file from the PC

Playing music data

a med

MUSIC Player playlist

The following operations are available on the player screen.

Pausing/Playing : g [PAUSE/PLAY] Adjusting volume : j or Rewinding/Fast forwarding : h (1 sec. or

Jumping to the beginning of track :

Jumping to the previous track :

Jumping to the next track : r or D (1 sec. or

Adding to Quick playlist :

End : Z (1 sec. or more)

Point

･

When downloading music data from Internet websites etc., check the use conditions.

･

Music data saved in FOMA terminal or microSD card is allowed for personal use only. When using the music data, take extreme care not to infringe intellectual property rights of a third party such as copyrights etc.

CAMERA/TV/MUSICec

Select a folder or

Select music data

more)

or more in play time, more)

seconds in play time, more)

more)

quickly

or S (1 sec. or

Less than 2

or S (1 sec. or

Press Z twice

2 seconds

Enjoy

i-αppli

i-αppli/i-Widget

i-αppli is a software for i-mode compatible terminals, which updates the information of stock price or weather automatically, or provides games that can be played without connecting to the network. i-Widget is a convenient function that allows you to easily access frequently-used contents and tools (Widget Appli) such as calculator, clock, memo, stock price information, etc.

ppli or i-Widget can be downloaded

Either ifrom i-mode site or sites provided by IPs (Information Providers). For details, refer to "Mobile Phone User's Guide [i-mode] FOMA version".

･

A packet communication fee may be separately required.

･

When downloading or displaying i-Widget screen, etc. a packet communication fee may be separately charged.

･

When i-Widget screen is displayed, multiple Widget Appli may communicate.

･

A packet communication fee for overseas use differs from the one in Japan.

･

DOCOMO assumes no responsibility for the

Enjoy

information set in Osaifu-Keitai compatible i-

ppli (IC card).

･

If you delete stored i-αppli, you can download the software from "

応援団

supporters)" site.

"＠F

ケータイ応援団

mobile phone supporters)"

(as of October, 2011) iMenu

電話メーカー

＠Fケータイ

(@F mobile phone

(@F

⇒ メニューリスト

(Mobile phone manufacturer) ⇒

(Menu list) ⇒

QR code for site access

ケータイ

＠Fケータイ応援団

supporters) (In Japanese only)

The access method may be changed without previous notice.

(@F mobile phone

Downloading

Display a siteeSelect i-αpplieAfter completion of downloading, "Yes" or "No"

Downloaded i-αppli is saved to "My folder" of Software list. When Message idownloaded, the folders for Message iare automatically created in the folder list.

ppli is

Starting i-αppli

a I

(1 sec. or more)eSelect a folder

Select i-αppli

Point

Starting Osaifu-Keitai compatible i-αppli :

Select i-αppli

#ae

Starting GPS compatible i-αppli :

Select i-αppli

meiee

Starting i-Widget

a Te

Select Widget Appli

ppli

i-motion/Movie

Playing i-motion/movie

You can obtain i-motion/movie (images, sound, etc.) from sites or websites.

✜

Playable i-motion

Type Playing action

Standard type (can be saved

Streaming type (cannot be saved)

Some i-motion cannot be saved.

✜

Streaming type (cannot be saved)

While the i-motion data is downloaded, it is played.

)

･

The downloaded i-motion can be operated in the same way as the imotion which is played after entire data is downloaded.

After the entire i-motion data is downloaded, it is played.

While the i-motion data is downloaded, it is played.

･

After the i-motion data is played, it is deleted.

Playable movies

Distribution

Type

method

Real-time distribution

On-demand distribution

Playing action

The movie is distributed in real time.

･

Pausing/Resuming play/Moving play position are unavailable.

Distribute movies that are prepared in advance.

Downloading i-motion/Movie

Select i-motion/Movie while site or website is displayed

Playback starts while data is downloaded or when the download is completed.

"Save"eMove the cursor to a folder to save

For streaming type i-motion, select "Back" to return to the site screen.

Point

･

Note that communication of a large amount of data, such as downloading a movie, requires high packet communication charges.

[OK]

Playing moving picture/imotion

a mee

Movie moving picture/i-motion

The following operations are available during playback.

Adjusting volume : j or Rewinding/Fast forwarding : h (1 sec. or

Pausing/Playing/Playing from the beginning

Stopping :

Data Boxed i-motion/

Select a foldereSelect a

more)

(while stopping) :

Enjoy

Osaifu-Keitai

Using Osaifu-Keitai

■

Osaifu-Keitai

Osaifu-Keitai is equipped with IC card and allows you to pay money or to use coupon or stamp rally only by holding FOMA terminal over the IC card reader in stores etc. And you can access site or web site by holding the FOMA terminal over IC card reader, obtain the latest coupon by using communication, credit electronic money, or check the usage. Various security systems are also equipped. For details, refer to "Mobile Phone User's Guide [i-mode] FOMA version".

･

The data (including electronic money, points, etc.) in the IC card may be lost or modified because of the malfunction of FOMA terminal (When we take your Osaifu-Keitai for repair etc.,

More Convenient

as we cannot take it with data remained, you are required to erase the data by yourself). For support such as reissuance, restoration, temporary preservation or transfer of data except transfer by iC transfer service, confirm with Osaifu-Keitai compatible service provider. For important data, be sure to use an OsaifuKeitai compatible service with backup service.

･

If the data in the IC card is lost, modified or damaged by any means related to Osaifu-Keitai compatible service such as malfunction or model change, DOCOMO assumes no responsibility for the loss of data.

･

If FOMA terminal is stolen or misplaced, immediately contact Osaifu-Keitai compatible service provider for an advice.

■

ToruCa

ToruCa is an electronic card that can be obtained from the FOMA terminal. It can conveniently be used as leaflet, restaurant card, coupon ticket, etc. You can obtain ToruCa from an IC card reader, a site, or data broadcasting. It can be exchanged via mail, infrared communication, or iC communication. For details, refer to "Mobile Phone User's Guide [i-mode] FOMA version".

Steps for using Osaifu-Keitai

You can start Osaifu-Keitai compatible i-αppli to credit money or check the balance or usage. You can use the Osaifu-Keitai services compatible with Osaifu-Keitai Web plug-in from a site.

Download Osaifu-Keitai compatible

ppli as necessary

Make the initial settings of Osaifu-Keitai compatible service

Hold mark of the FOMA terminal over IC card reader

At this time, starting Osaifu-Keitai compatible i-

ppli is not required.

Point

･

If IC card is not detected successfully when you hold

mark of the FOMA terminal over IC card reader, try moving the FOMA terminal back, forth and around.

･

You can disable IC card functions using "IC card

⇒

P41

lock".

i-concier

Using i-concier

i-concier is a service that Machi-chara (a character on the stand-by display) supports your life like a butler or concierge. It stores your information about area of residence, memos, schedule, ToruCa, phonebook, etc. and offers you information that suits content of memos or schedules, your living area, preferences, and interest at the right time. It can offer information related to memos, schedules and ToDo saved in the FOMA terminal, automatically update schedules and ToruCa, etc., and automatically add useful information such as shop hours to the phonebook. (In Japanese only) The stored schedules or images can be shared with group of your friends, family, etc. You can print the stored images easily.

･

i-concier is a charged service requiring subscription (Subscription is required subscription of i-mode).

･

If you do not subscribe Data Security Service, when you subscribe i-concier, you subscribe Data Security Service, too.

･

A packet communication fee is separately required to receive information except for some information.

･

A packet communication fee is separately required to use detail information.

･

To use i-concier overseas, International service settings require to be set. For using international roaming services, a packet communication fee is charged for both receiving and viewing detail information (it differs from the charge in Japan).

･

Information fee may be additionally required for some contents besides i-concier monthly service fee.

･

Automatic updating i-schedule/memo/ToruCa/ phonebook, etc. requires a packet communication fee separately.

･

For details, refer to "Mobile Phone User's Guide [i-mode] FOMA version".

Receiving information

Information is sent automatically.

Information is received

lights on in the status area with light or

ring alert for notification.

くーまん

(Kuman)"

Dora communications

On the stand-by display, select a popup message

Some pieces of information may have a memo of schedule or ToruCa attached or contain a link to a site. To display details, select the icon.

Point

Displaying detail of received information on the stand-

by display :

(Information list)"

Select a piece of information

me*e"インフォメーション一覧

Select a piece of information

More Convenient

Convenient tools

Shabette-Kensaku

You can use i-mode search by speaking a keyword.

a U

(1 sec. or more)

The FOMA terminal vibrates. For the first activation, check the guidance screen and select "Use (default)" or "Use".

Speak search keyword within 10

seconds

The i-mode site is connected and search results appear.

More Convenient

[Fix]

Convenient tools

Voice quick start

When you do not know a desired menu of function or you want to activate the function quickly, the function can be activated by voice sound input from the stand-by display. (In Japanese only)

a n

(1 sec. or more)

For the first activation, on the guidance screen, select "

When "

★★

voice name toward the microphone within 10

seconds.

When a message " (Please speak again)" appears, press speak again. When the voice input is recognized, the function activates. If the function is not

identified, the keyword list of (Guide) appears.

Point

･

Speak clearly with natural conversation speed.

･

Depending on the environment or way of speaking, recognition result may vary.

･

You can speak function name (電卓 (Calculator),

セグ

(1Seg), etc.), keyword (計算 (calculation),

アドレス交換

(TV), combination of keywords (

メール問い合わせ

(mail to Mr.

* Name registered to the phonebook

利用する

(Use)" or press C.

それではどうぞ ★★音声受付中

(Please speak★★waiting for your

★★

)" appears, speak a function

もう一度お話ください

(address exchange), etc.) or

写真見る

(mail check),

○○

), etc.) to activate the function.

○○さん*にメール

and

使いかたガイド

ワン

テレビ

(view photo),

Convenient tools

Schedule

Manage memos by Schedule or check a downloaded i-schedule. (In Japanese only) The view and function of schedule varies by the schedule type. "Normal" in which you can manage the schedules linking with i-concier or the memo list is described here.

Registering note from the schedule

a mef

[Submenu]

Set required items

Showing/Hiding hint : C [Hint ON/OFF]

You can select entry options from the hint displayed in " "

どこで？

whom?)", " (Attachment)" field.

Point

Saving quickly from the stand-by display (Quick

schedule) :

and time to save a schedule (for 10:00 on November 25, enter "11251000")

Checking a schedule

a mef

date

Toolee Schedule

New entry

シール

(Where?)", "

On the stand-by display, enter the date

(Seal)", "

共有設定

だれと？

(Share setting)", "添付

[Save]

いつ？

(With

Toolee ScheduleeSelect

Select a memo

(When?)",

Convenient tools

Alarm

You can also set to activate 1Seg after sounding alarm.

a mef

number set required items

Point

･

In "Snooze (Snz)", set the sound intervals for 30 minutes.

･

Alarm stops or starts snooze if no operations are made for approximately 1 minute, by pressing a key other than screen, or double-tapping the FOMA terminal.

Toolec AlarmeSelect a

to switch the screen to

[Set]

f, T

and D, tapping [Stop] or the

Convenient tools

Bar code reader

You can read and use information of JAN code, QR code, NW7 code, and CODE39 code.

a mef

Move the camera over a bar code

When scanning is completed, a confirmation sound is heard and the scanned data appears.

Point

･

When a bar code is hard to read, press C to switch to the shutter mode, or adjust the distance between the code and camera, angle, or direction.

Toolea Bar code reader

More Convenient

Convenient tools

Bluetooth

You can establish a wireless connection between FOMA terminal and a Bluetooth device. For operations of the Bluetooth device, refer to the operation manual of your Bluetooth device.

Wireless communication is not guaranteed for all Bluetooth devices.

✜

Compatible version

Bluetooth standard Version 2.1+EDR

✜

Functions available with Bluetooth

･

Wireless communication using Bluetooth Headset F01 (optional) or handsfree communication using a Bluetooth compatible car navigation (commercially available)

･

Wireless playback or remote control operation of voice sounds or music using Wireless Earphone

More Convenient

Set 02 (optional) or a Bluetooth audio device (commercially available)

･

Character entry using Bluetooth compatible keyboard (commercially available)

･

Packet communication or 64K data transmission using a Bluetooth compatible PC

･

Sending or receiving data such as profile, phonebook entries, notes, mails, bookmarks, ToruCa, LCS clients, image in JPEG format to or from other Bluetooth devices

･

Receiving a versus game with other terminal or measured data from a Bluetooth compatible health check device (commercially available)

Registering Bluetooth devices

Set a Bluetooth device to registration stand-by mode in advance.

a mef

Toolei Bluetoothee

After Bluetooth device is searched, the registering new device screen appears.

Select a Bluetooth device to register Enter the Bluetooth passkey

Point

･

For Bluetooth passkey, see the instruction manual of the Bluetooth device. When registering Wireless Earphone Set 02 or Bluetooth device compatibl e with Bluetooth standards Ver.2.1, Bluetooth passkey is not required (it is required for some Bluetooth devices).

Connecting with registered Bluetooth devices

a mef

List/cnnct/discnct device to connect

Toolei Bluetoothed

Select a Bluetooth

Convenient tools

Wi-Fi

You can make Wi-Fi connection in Access point mode (Base unit) or Client mode (Sub unit).

･

The FOMA terminal is compatible with wireless LAN standards of IEEE802.11b, IEEE802.11g and IEEE802.11n (client mode only). Base unit and client device should be compatible with the same standard to connect.

･

Note that using Wi-Fi makes battery consumption faster.

Internet

FOMA network

In Client mode (Sub unit)

Access point F-02D

In access point mode (Base unit)

F-02D (AP mode)

F-02D

(AP local mode)

Wi-Fi compatible

device

Wi-Fi compatible

device

Access point mode (Base unit)

You can use the FOMA terminal as access point (Base unit) of Wi-Fi to enjoy a versus game etc. on Wi-Fi device (Sub unit). There are 2 modes : AP mode in which you can make on-line communication connecting to FOMA network and AP local mode which does not connect to FOMA network.

･

For using AP mode with the terminal, you need to subscribe to Internet service provider (mopera U etc.).

Access point settings

Before making connection in access point mode, set security for preventing improper use. The same security method should be set between the FOMA terminal and Wi-Fi device.

a mef

point(main)

Set required items

Select other than "None (open)" in Authentication type field and press "Set advanced", and then you can set encryption key according to the authentication type or MAC address filter.

Toole0 Wi-Fieb Access

Access point settings

[Save]

More Convenient

Setting Access point (APN)

Set an access point to use for external connection in AP mode.

a mef

point(main)

b I

Toole0 Wi-Fieb Access

Access points (APN)

[New]eSet required items

[Save]

Select an access point (APN)

[Save]

Point

･

mopera U and mopera are registered by default. "mopera U 128k" is set as the access point (APN).

Setting access point

a mef

point(main)

More Convenient

local mode ON

By default, a confirmation screen for using AP mode appears when AP mode ON is set.

Set connection on the Wi-Fi device

Register the SSID set in the FOMA terminal to Wi-Fi device. For operation, see the instruction manual of the Wi-Fi device. Enter the same encryption key as one of Authentication type in Access point settings. If you set MAC address filter, MAC address on the Wi-Fi device should be registered in advance.

Connect the FOMA terminal and Wi-Fi

Toole0 Wi-Fieb Access

AP mode ON or b AP

"Yes"

device

Client mode (Sub unit)

With connecting the access point for small scale network such as home network or Public wireless LAN service as a client (Sub unit), you can view websites or download/upload data in high-speed.

Setting a new network

･

For settings on access point or necessary information for registration, see the instruction manual of the access point etc.

a mef

mode(sub)

Select a method for registering access point in the FOMA terminal

Point

･

When entry of encryption key (WEP or PSK) is required, enter the security key set to the access point.

Connecting access point

Set Wi-Fi mode to ON to search registered access point and connect it. Start browser software to use Internet via Wi-Fi.

a mef

mode(sub)

Toole0 Wi-Fiea Client

Network setting

Toole0 Wi-Fiea Client

Wi-Fi mode ON

Data Management

Using microSD card

You can save still images, moving pictures, melodies, etc. or backup data of phonebook, schedule, etc. in microSD card.

･

The F-02D supports commercial available microSD card of up to 2 GB, and microSDHC card of up to 32 GB (As of September, 2011) For the latest information on the operation check, see the followings. Note that the information shown is the result of the operation check and actual operations are not guaranteed for all microSD/SDHC card.

From i-mode :

⇒ ケータイ電話メーカー

manufacturer) mobile phone supporters)

応情報

Japanese only)

iMenu

⇒メニューリスト

(Mobile phone

⇒ ＠Fケータイ応援団

(Memory card support information) (In

(Menu list)

(@F

⇒ メモリーカード対

✜

Precautions on using microSD card

･

The data saved from another device such as a PC may not be displayed or played in FOMA terminal. And the data saved from FOMA terminal may not be displayed or played in other device.

Installing

Turn FOMA terminal OFF and remove the battery pack

Insert the microSD card slowly into the slot with metal contacts side down (as shown below), and insert it further until it clicks

More Convenient

QR code for site access

From PC :

FMWORLD (http://www.fmworld.net/)

⇒ 携帯電話の製品情報

mobile phone) microSDHC support information) (In Japanese only)

(Product information for

⇒

microSD

対応状況

(microSD/microSDHC

対応状況、

The access method may be changed without previous notice.

To remove the microSD card, push it lightly to pop it out, and then pull it out.

Formatting

Format microSD card with FOMA terminal before using.

a mef

[Format]

Point

･

Formatting microSD card deletes the data in the card.

Toole"microSD"

Authenticatee"Yes"

Data Management

Exchanging data between the FOMA terminal and microSD card

Copying images to microSD card

a mee

Select a foldereMove the cursor to data

When the folder list of microSD card, select "

→

b m

method

Select image to copy selected item authenticate to copy all data in a folder.

"Yes"

More Convenient

Move the cursor to a folder to copy an item Press C.

Point

･

If you select "b Move → microSD" in Step 2, you can move data to the microSD card.

･

You cannot move or copy the data that is inhibited to output from FOMA terminal.

Data Boxea My picture

phone".

[Submenu]ee Move/Copy

Copy to microSDeSelect copying

Copying images to the FOMA terminal

a mef

box Move the cursor to data

b m

method

Toole"microSD"ea Data

My PictureeSelect a folder

[Submenu]ee Move/Copy

Copy to the phoneeSelect copying

Select image to copy selected item authenticate to copy all data in a folder.

Move to the cursor to a folder

[Confirm]

When copying one item, omit pressing "Yes".

Point

･

If you select "b Move to phone" in Step 2, you can move data to the FOMA terminal.

"Yes"

Backing up at once

You can back up phonebook entries, notes, mails, bookmarks, set item data all at once in the microSD card. Data is overwritten for the secondtime backup or later.

a mef

Backup/Restore microSD

Authenticatee"Yes"

When phonebook is not saved, omit Step 3.

"Yes" or "No"

Point

･

Some restrictions apply, such as moving pictures saved in phonebook or the part of the attachment files in excess of 100 Kbytes are not backed up.

･

Select "b Restore to phone" at the end of Step 1 to overwrite data in the FOMA terminal with data collectively backed up in the microSD card.

Toole"microSD"eg

Backup to

Data Management

Infrared communication/iC transmission

You can send/receive data to/from devices such as FOMA terminal supporting infrared communication function or iC transmission function.

Infrared data port

Approx. 20 cm

or less

Infrared communication iC transmission

Face marks to each other iC transmission

Approx. 1 cm

or less in distance

Point

･

When sending/receiving all data items, the sender and receiver need to determine a 4-digit authentication password in advance. For infrared communication, the receiver's terminal must be ready for communication first.

･

When sending/receiving all data items, the data saved in the receiver (included phonebook entries, notes, protected mail with secret attribute) is deleted, and the newly received data is saved. However, for some receiving terminals, when sending all infrared data, image, moving picture, melody, document (PDF data) and Decome-Template are added. Folder names or order of data may differ from the ones of sender.

･

While charging, sending data by iC transmission is unavailable.

To do Operation

Sending an item via infrared communication/ iC transmission

Move the cursor to a phonebook entry [Submenu]

"Yes" <Example> Phonebook entry

Sending all items via infrared communication/ iC transmission

mefdeb

Select an item to send AuthenticateeEnter an authentication password "Yes"

Receiving an item via infrared communication

Receiving an item via iC transmission

Receiving all items via infrared communication

mefdaae

Send data from a sender After receiving, "Yes"

With the stand-by display on a receiver, place to each other sender

mefdabe

Authenticate authentication password "Yes"eSend data from a sender

Receiving all items via iC transmission

With the stand-by display on a receiver, place to each other sender

an authentication password Place the marks close to each other

ehea

"Yes"

marks close

Send data from a

After receiving, "Yes"

Enter an

"Yes"

marks close

Send data from a

AuthenticateeEnter

"Yes"

More Convenient

Data Management

Connecting to a PC

You can connect FOMA terminal to a PC to transfer WMA files or images in the microSD card. Also, connecting to the Internet for data communication is available.

･

FOMA USB Cable with Charge Function 02 (optional) or FOMA USB Cable (optional) is required.

･

To perform data transfer using data communication or DOCOMO keitai datalink, install FOMA communication configuration (driver) on a PC. For details, refer to "Manual for PC Connection". "FOMA communication configuration file" and "Manual for PC Connection" can be downloaded from NTT DOCOMO website.

More Convenient

http://www.nttdocomo.co.jp/support/

USB mode

From a PC, you can operate data in a microSD card in FOMA terminal.

･

When USB mode is set to "microSD mode" or "MTP mode", installation of FOMA communication configuration file (driver) is not necessary.

a meh

connection mode

Communication mode :

microSD mode :

Settingeh External

USB modeeSelect a

communication, 64K data communication or data transfer by connecting to a PC.

microSD card in FOMA terminal as a drive and operating the data by PC operation.

Set for packet

Set for recognizing the

MTP mode :

microSD card using Windows Media Player.

"Yes"

Set for music data transfer to

DOCOMO Connection Manager

DOCOMO Connection Manager is convenient software to use DOCOMO's data communication. You can easily make a PC setting according to your subscription status and check an estimate of data communication volume or usage fees by the charge counter function. For details, refer to NTT DOCOMO website. http://www.nttdocomo.co.jp/support/utilization/ application/service/connection_manager/

DOCOMO keitai datalink

DOCOMO keitai datalink is a software for backing up phonebook, mail and other data in your mobile phone to a PC and editing them. It can be downloaded from NTT DOCOMO website. For details and downloading, refer to the following website. http://datalink.nttdocomo.co.jp/ (In Japanese only) For details including downloading procedures, data that can be transferred, operating environments, installing procedures and operations, refer to the website above. For operations after installation, see Help in the software.

Support

Troubleshooting

Check for the necessity of software update first, and update the software if necessary. ⇒P83 When checking the following items not to improve the state, contact "Repairs" on the last page of this manual (in Japanese only) or DOCOMO-specified repair office.

✜

Power supply and charging

●

FOMA terminal cannot be turned ON.

･

Is the battery pack installed correctly?

･

Is the battery exhausted?

●

The FOMA terminal cannot be charged (the light does not turn on while charging).

･

Is the battery pack installed correctly?

･

Are the adapter and FOMA terminal set correctly?

･

Is the AC adapter connector securely inserted to FOMA terminal or the desktop holder that came with the terminal when you use AC adapter (optional)?

･

Is AC adapter's power plug or cigarette lighter plug inserted to the outlet or cigarette lighter socket correctly?

･

Is the charging jack of FOMA terminal dirty when you use desktop holder? If it is dirty, clean with a dry cotton swab.

･

If you call, perform communication or operate other function for a long time while charging, the temperature of the FOMA terminal is raised and the light may turn off. When temperature is high, charging stops for safety. After using, wait until the temperature of the FOMA terminal drops and retry charging.

●

Charging cannot be completed (Battery level gets low even while the battery is charged)

Charging may not be completed during a call or communication. Or, if you start charging while watching/recording 1Seg, playing moving picture/imotion, downloading Music&Video Channel program, activating Music&Video Channel player or Music player, or operating imay get low depending on charging adapter and charging may not be completed. It is not abnormal condition of the FOMA terminal. To complete charging, terminate terminal operations and then charge the battery.

ppli, the battery level

✜

Terminal operation

●

Turning the power off or restarting automatically happens.

If the jack of battery pack is dirty, the contact may become poor and the power may shut OFF. If it is dirty, clean with a dry cotton swab.

●

No operations are performed even by keypad and touch operations.

･

Have you activated All lock, Omakase Lock, Side key hold, Auto-key lock or touch lock?

･

When eco mode is ON and set to Full saving, touch operation is disabled.

●

The operation time provided by the battery pack is short.

･

Is your terminal left for a long time under the state of out of service area? Out of service area, much power is consumed to search available radio waves.

･

The operation time provided by the battery pack varies by the operating environment and battery pack's deterioration.

･

The battery pack is a consumable part. Each time it is charged, time available with each charging reduces. Even the full charge state, when the operation time is too short, purchase a new battery pack of the specified type.

●

The docomo mini UIM card is not recognized.

･

Is the docomo mini UIM card installed in the right direction?

Others

●

FOMA terminal etc. become hot while operating/ charging.

While operating or charging, or if you use i-αppli, videophone call, 1Seg watching, etc. for a long time while charging the battery, FOMA terminal, battery pack and adapter may become hot. There is no problem about safety and continue to use it.

●

The clock is not on time.

The clock time may become wrong while turning on the power for a long time. Set Auto time adjust of Date and time setting to "ON" and turn the power off and on in a place with strong radio wave conditions.

✜

Calls

●

Calls are not connected (Even when moving, "圏外 (out of service area)" does not disappear or although radio waves are enough, making/ receiving calls is unavailable).

･

Turn the power off and on, or remove and attach the battery pack or the docomo mini UIM card.

･

Even when the signal meter on your FOMA terminal indicates there are strong radio waves, due to the type of radio waves, making/receiving calls may be unavailable. Move to call again.

･

Is Call rejection setting or 3G/GSM setting set?

･

Due to the crossing of radio waves, at the crowded public places, calls/mails are crossed and the connection status may not be good. In this case, "Please wait for a while" appears and the caller hears a busy tone. Move to other place or call again at other time.

●

Calls cannot be made using the keypads.

Have you activated All lock, Omakase Lock, Self

Others

mode, Keypad dial lock, Auto-key lock or Call/Mail of Function lock under Kid-safe mode?

✜

Camera

●

Still images or moving pictures taken with the camera are blurry

･

Make sure that the camera lens is not obscured or stained.

･

Use "Auto" in Shoot by scene.

･

Auto focus (Manual), Tracking focus, or Touch AF can also be used to focus.

･

When shooting an object at a close range, set AF mode to "Closeup", and when shooting people, switch to "Face priority AF".

･

Set Fix camera shake and shoot.

✜

Osaifu-Keitai

●

Osaifu-Keitai function is unavailable.

･

When removing the battery pack, IC card functions are unavailable regardless of the IC card lock settings.

･

Have you activated Omakase Lock or IC card lock?

･

Do you place mark of FOMA terminal over IC card reader?

Support

Warranty and After-Sales Service

Warranty

･

FOMA terminal is provided with a written warranty. Make sure that you receive it. Check the written contents and items such as "

名・お買い上げ日

purchase)" and keep it in a safe place. If it does not contain the necessary information, immediately contact the shop where you bought it. The warranty is valid for a period of one year from the date of purchase.

･

This product and all accessories are subject to change, in part or whole, for the sake of improvement without prior notice.

(Shop name/date of

販売店

After-Sales Service

✜

When problems occur

Before requesting repair, read the section on "Troubleshooting" in this manual or in "

イド

(Guide)" installed in FOMA terminal (in Japanese only). If the problem still persists, contact "Repairs" on the last page of this manual (in Japanese only).

✜

If the result of inquiries indicates that a repair is required

Take your FOMA terminal to DOCOMO-specified repair office. Be sure to check the opening hours of the office before you go. Note that, repair may take longer time depending on the state of damage.

使いかたガ

In the warranty period

･

FOMA terminal is repaired at no charge subject to the conditions of the warranty.

･

The warranty must be presented to receive warranty service. The subscriber is charged for the repair of items not covered in the warranty or repairs of defects resulting from misuse (damage of the display/connector, etc.), accident, neglect, etc. even during the warranty period.

･

The subscriber is charged even during the warranty period for the repair of failures caused by the use of devices or consumable items that are not DOCOMO-specified.

Repairs may not be possible in the following cases.

･

When judged as malfunction due to moisture at the repair office (e.g. when detected in a moisture seal reaction)

･

When corrosion due to moisture, condensation, perspiration, etc. is detected, or if any of the internal boards are damaged or deformed (repairs may not be possible if external connection jack (earphone/microphone jack) or display is damaged, or the terminal outer case is lifted)

Even in case that a repair is possible, since those conditions are outside the range of the warranty, a repair is charged.

After expiration of the warranty

All repairs that are requested are charged.

Replacement parts

Replacement parts (parts required to maintain the product functions) are basically kept in stock for at least 6 years after termination of production. However, repair may not be possible due to lack of repair parts etc.

Others

✜

Notes

･

Do not modify FOMA terminal or its accessories.

- Repair may be refused depending on the nature of modification. The following cases may be regarded as modifications.

- A sticker etc. is put on the display or keypad

part

- FOMA terminal is embellished with adhesive

material etc.

- Exteriors are replaced with other than

DOCOMO's genuine parts

- Repair of failures or damage caused by modification is charged even during the warranty period.

･

Do not remove any inscription stickers attached to FOMA terminal. If confirmation of the inscription sticker's content is impossible, determination of whether specific technical standards are satisfied cannot be made. Therefore, repair may be refused.

･

Function settings and information may be cleared (reset) by malfunctions, repair or other handling of FOMA terminal. Should that happen, set up the functions again.

･

If repair is executed, MAC address for Wi-Fi and Bluetooth address may be changed regardless of malfunction part.

･

Magnetic components are used in the earpiece, speaker, etc. of the FOMA terminal. Do not allow cash cards or other devices that are vulnerable to

Others

magnetism to come into contact with the phone.

･

This FOMA terminal is waterproof. However, if inside of the terminal gets wet or moist, turn the power off, remove the battery pack immediately, and bring the terminal to a repair office as soon as possible. However, repair may not be possible depending on the condition of FOMA terminal.

Support

Error info send set.

Make settings to send error information to DOCOMO if an error occurs on your terminal.

･

Information is sent at night. Packet communication fee is not charged.

･

Personally identifiable information is not included.

･

Some types of errors may not be recorded.

a meh

f a

Settingei Other setting Error info send set.eAuthenticate ON or b OFF

Support

i-mode fault diagnosis site

Using your FOMA terminal, you can check whether sending/receiving of messages and downloading of images and melodies are normally performed. When FOMA terminal is assumed to have malfunctions as the result of the diagnosis, contact "Repairs" on the last page of this manual (in Japanese only).

i-mode site :

(Notice) (Support information)

い合わせ波状況お問い合わせ先

(Checking malfunction/radio wave condition)

fault diagnosis site) (In Japanese only)

･

The access method may be changed without previous notice.

･

Accessing from overseas is charged.

iMenu

⇒お知らせ

⇒サポート情報

(Inquiries)

⇒故障・電

⇒ｉモード故障診断

⇒お問

QR code for site access

(i-mode

Support

Updating software

This function allows you to connect the network and check if software in the FOMA terminal needs to be updated, if software update is necessary, download a part of software using packet communication and update the software. When software update is required, information is posted in " DOCOMO website or iMenu (in Japanese only). Software may be updated in 3 methods: "Autoupdate", "Immediate update" and "Reserved update".

✜

･

お客様サポート

(user support)" on NTT

Software update can be done even when various data, such as a phonebook registered in FOMA terminal, camera images, downloaded data, are remaining; note that data protection sometimes cannot be secured according to the conditions of your FOMA terminal (such as malfunction, damage, or water leak). DOCOMO recommends backing up necessary data. However some data such as downloaded data may not be backed up.

When updating software

Do not remove the battery pack while updating software. The update may fail. Software update should be done with battery fully charged. Software update (downloading or rewriting) may take time. Making/Receiving calls, communications functions and other functions are disabled during software update (Only incoming voice calls can be answered while downloading). It is recommended that software update be executed in good radio wave conditions with

three bars of the antenna icon displayed and the terminal not moved. If radio wave conditions become weaker during software download or the download is stopped, retry software update in a place with strong radio wave conditions.

･

When updating software, your private information concerning FOMA terminal (model, serial number, etc.) is automatically sent to the server (the server for software update managed by DOCOMO). DOCOMO does not use the sent information for purposes except software update.

･

When software update has failed, "Rewrite failed" appears and all operation becomes unavailable. In that case, please bring the FOMA terminal to DOCOMO-specified repair office.

Updating

From the status menu, select "Check" in (update notification icon), or start from the menu.

<Example> Starting from the update notification

a ge

<Example> Starting from the menu

a meh

icon

Select the status areaeFrom the

status menu, select "Check" in

"Yes"

(update notification icon)

Authenticate

The check result appears

When update is necessary, "Update is needed" appears. Select "Now update" or "Reserve".

Settingei Other setting Software updateeAuthenticate

"Update"

Others

Support

Scanning function (Security Scan)

For the data or programs that are imported to FOMA terminal, this function detects data and deletes data or inhibits activation of applications that may cause troubles.

･

The Scanning function provides a certain countermeasure against invasion of data which causes some trouble in the mobile phone, when viewing website, receiving messages, etc. Note that, if pattern definition corresponding to specific troubles has not been downloaded to the mobile phone or such pattern definition does not exist, this function cannot prevent those troubles from occurring.

●

Updating pattern definitions

Update pattern definition first, then keep the pattern definition up-to-date.

Set auto-update

You can set FOMA terminal so that pattern definitions can be automatically updated.

a meh

Others

update "OK"

When the Auto-updating pattern definitions is executed, or appears on the stand-by display.

Settingef Lock/Security

Scanning functioneb Set auto-

"Enable"e"Yes"e"Yes"

Scan result

Warning level Actions

[0] Operation may not run properly.

[1] Operation may not run properly. Cancel operation?

[2] Operation may not run properly. Canceling operation.

[3] Operation may not run properly. Delete data?

[4] Operation

may not run properly. Deleting data.

Selecting "Detail" on each screen displays a list of names of the detected problem elements. When 6 or more problem elements have been detected, the names of the 6th and subsequent problem names are omitted.

"OK" :

Continue processing of the

started application

"Yes" :

Stop processing of the application that may cause troubles

"No" :

Continue processing of the

started application

"OK" :

Stop processing of the application that may cause troubles

"Yes" :

Delete data that may cause

troubles

"No" :

Stop processing of the application that may cause troubles

"OK" :

Delete data that may cause troubles

Support

Options and related devices

Combining FOMA terminal with optional accessories supports a wide variety of uses from personal use to business use. Some products are unavailable depending on the area. For details, contact a sales outlet such as docomo Shop. For details about the optional devices, refer to the instruction manual for each device.

･

Battery Pack F22

･

Back Cover F64

･

FOMA AC Adapter 01/02

･

Desktop Holder F33

･

Carry Case L 01

･

Carry Case S 01

･

Carry Case 02

･

Flat-plug Stereo Earphone Set P01

･

Flat-plug Earphone/Microphone with Switch

P01

/P02

･

Earphone Plug Adapter for External connector terminal 01

･

Earphone Plug Adapter 01

･

Stereo Earphone Set 01

･

Earphone/Microphone 01

･

FOMA USB Cable with Charge Function 02

･

In-Car Holder 01

･

FOMA DC Adapter 01/02

･

In-Car Hands-Free Kit 01

･

FOMA In-Car Hands-Free Cable 01

･

FOMA USB Cable

･

FOMA Dry Battery Adapter 01

･

FOMA Portable Charging Adapter 01/02/03

･

Earphone Plug Adapter P001

･

Earphone/Microphone with Switch P001*5/

P002

････････････

Stereo Earphone Set P001 Remote controller with microphone F01 Earphone Terminal P001 Wireless Earphone Set P01 Wireless Earphone Set 02 Bluetooth Headset F01 AC adapter for Bluetooth Headset F01 FOMA AC Adapter 01 for Global use FOMA Indoor Booster Antenna FOMA Indoor Booster Antenna (Stand Type) Bone conduction microphone/receiver 01*2/02 FOMA eco Solar Panel 01

When using FOMA terminal overseas, use the adapter plug that is suitable for use in your travel destination. Also, do not charge the battery with a transformer for overseas travel. Earphone Plug Adapter for External connector terminal 01 is required to connect to F-02D. If you use USB HUB, operations may not be performed correctly. FOMA In-Car Hands-Free Cable 01 is required to charge F-02D. Earphone Plug Adapter for External connector terminal 01 and Earphone Plug Adapter P001 are required to connect to F-02D. Use this only in Japan.

Others

Appendix

Menu list

･

Menu list for the case Select startup menu is set to "Basic menu" is described.

･

Menus indicated in red can be restored to the default by executing Reset (including the menu whose partial sub content menu will be reset to the default).

■

Mail

Inbox

Outbox

Unsent messages

Compose new message

Create new Decome-Anime

Decome-Template Deco-mail

Compose new SMS

Check new mail/message

Check new SMS

Receive option

Mail Setting Receive setting

Others

Decome-Anime

Display

Edit signature

Common phrases/Store word

Check new mail/message setting

Reply setting

Auto-reply

Mail group

Blog/Movie/SNS post setting

Address/Spam setting

Auto save setting when editing

SMS settings

Early warning "Area Mail" setting

Mail logs Sent msg. log

■

i-mode/web

iMenu Search

Bookmark

Screen Memo

Browsing history

Enter URL Enter URL

i-Channel i-Channel list

RSS reader

Access shortcuts

i-mode/web setting i-mode Browser Set.

Search engine

Full Browser Home

Smart Browser Smart Browser

Received msg. log

URL enter history

Ticker display set.

Reset i-Channel

FB settings

Common Settings

Check i-mode setting

Reset i-mode setting

Bookmark

Browsing history

URL enter/history

Smart Browser setting

■i-α

ppli

Software list

ppli call logs

ppli run information

ppli setting Sound effect volume

■

CAMERA/TV/MUSIC

Camera Still image shooting

1Seg Activate 1Seg

MUSIC Player

3D intensity setting

Software info disp.

Auto-start

i-Widget settings

AUTO-GPS preferred setting

Sort software

Display light time

Brightness

Vibration mode

ppli shortcuts

ppli power saver

ppli call DL set

3D photo

Graffiti picture

Movie shooting

Still image album

Movie play

Program guide

1Seg image/video

TV timer list

Recording result

TVlink

Channel setting

User setting

Music&Video Channel

■

Data Box

My picture

MUSIC

Music&Video Channel

i-motion/Movie

Melody

Content package

My document

Kisekae Tool

Machi-chara

Chara-den

1Seg

Home media

Illumination

Other

My collection

■

Tool

Bar code reader

Calculator

Alarm

Infrared/iC communications Receive infrared data

Schedule

Memo

Voice recorder

HDMI

Send all infrared data

All iC transmission

Data exchange settings

Others

Bluetooth Accept registered

Wi-Fi Client mode(sub)

F-LINK/Home media F-LINK

Guide

Data Security Service Data check/Download

microSD

Pedometer/ACT monitor Steps/Activity/Calories info

e-dictionary

Countdown timer

Others

High-pitched alarm

Business card reader

Address Print

Compass

Common phrases/Store word Common phrases

Download dictionary

Voice quick start

Shabette-Kensaku

Receive data

Send all via BT

List/cnnct/discnct

Bluetooth Power ON/OFF

Bluetooth setting

Access point(main)

Home media

Update phonebooks

Update schedule etc

Update images

Update setting information

Detailed setting/Exchanging history

Set Pedometer/Activity monitor

Store word

Contact DOCOMO

■

TEL function

Phonebook Search phonebook

Record message/Voice memo Record message list

Dialed/Received calls Received calls

Dial/Receive call setting Nuisance call blocking service

Videophone setting V.phone dialing img.

ドコモ総合案内・受付ドコモ故障問合せ海外紛失・盗難等海外故障

Add to phonebook

UIM operation

Add group

Voice memo list

Record voice memo

Record message

Redial

Caller ID request

Caller ID notification

Arrival call act

Dial call detailed setting

Receive call detailed setting

In-call detailed setting

Headset function setting

Call rejection setting

Missed call notification

Sound & Image

Videophone receiving

Data session arv. Act

Operation

Image setting

Notify switchable mode

External device

Call duration/charge Call charge

Disaster Voice Messaging

Koe-no-Takuhaibin Message confirm/set(site)

2in1 2in1 mode switching

Melody call

Voice mail service Activate

Call duration

Reset call cost

Call cost limit

Hide call cost icon

Message confirm(voice)

Settings(voice)

Ph.book 2in1 setting

Stand-by display setting

Call/receive settings

2in1 function OFF

Receive avoidance

Ring time

Deactivate

Check setting

Play messages

Setting

Check messages

Tone/Vibration message notification

Delete icon

Setting for videophone

Other network service Call forwarding

Fake call Activate

■

Setting

Screen/Display Kisekae Tool setting

Sound/Vibration/Manner Ring tone

Backlight/Illumination Display light

Call waiting

English guidance

Remote access

Multi Number

Dual network

Additional service

OFFICEED

Alert&Time settings

Stand-by display setting

MyFACE setting

Color theme setting

Each display setting

Machi-chara setting

Menu preference

Auto light on

Privacy view level

Other sounds

Adjust volume

Vibration mode

Silent mode

BGM play

Machi-chara chat setting

Light alert

KeypadILLUM settings

Others

Text display/input Font size

Time Date and time setting

Lock/Security Locks

Battery eco mode setting

Others

Font style

Text input

バイリンガル

Multilingual usage setting

Discreet display mode

Clock format

Auto power ON/OFF

Time tone setting

Phone refresh

Privacy mode

Code & Fingerprint

Security indicator

Kid-safe mode

Scanning function

Password manager

microSD password setting

UIM setting

Call rejection setting

IC card lock

Caller/Sender info

eco mode auto-start set.

Battery level

Battery icon setting

External connection USB mode

Other setting Self mode

Kisekae/Themes Kisekae Tool

■

Map/Overseas

Map

Navigation

imadoco search imadoco kantan search

i-area

GPS

ppli list

HDMI

Bluetooth

Wi-Fi

F-LINK/Home media

Femtocell

Print setting

Data exchange settings

Backup/Restore

Initial setting

Delete all data

Reset

Software update

Error info send set.

Check remote setting

Memory status

Side key shortcut

Motion sensor

Touch ON/OFF setting

TempHmd sensor set.

Style theme

Timed theme

Manner support

imadoco search

Position location/Location notification

Maps&GPS setting/history Loc. history

Overseas network search 3G/GSM setting

Overseas setting Inquiries(overseas)

Overseas user's g uide

Position location

Notify location

Map setting

GPS button setting

Request permit/deny

AUTO-GPS

Positioning mode setting

LCS clients list

Service setting

Service host URL setting

Light color/Alert

Network search setting

PLMN setting

Display operator name setting

Display area status

Re-search icon display setting

Barring incoming call when roaming

Missed call notification for roaming

Roaming guidance

International dialing assist

i-mode service setting

Mail/Message usage setting

Network service

■

i-concier

■

Profile

■

Osaifu-Keitai

IC card content

DCMX

ToruCa

IC card lock setting IC card lock

Setting ToruCa from IC card

IC card usage

Check IC owner

Change IC owner

Search by i-mode

Timed lock

Programed activation

IC lock(power-off)

ToruCa from 1Seg

ToruCa duple check

ToruCa auto-read

ToruCa auto display

ToruCa sound effect

Others

Appendix

Main specifications

■

Phone

Product name

Size

Weight

Continuous stand-by

*1, 2, 3

time

Continuous call time

3, 4

1Seg watching time

Charging time

Display Type

Others

Image pickup device

FOMA/3G

GSM

FOMA/3G

*2,

GSM

Size

Number of pixels

Type

Size

Number of effective pixels

F-02D

Approx. 111 mm (H)×50 mm (W)×13.9 mm (T) (Thickest part : Approx. 18.3 mm)

Approx. 130 g (with battery)

Stationary (Auto) : Approx.

680 H

Stationary (Auto) : Approx.

320 H

Voice call : Approx. 260 min. Videophone call : Approx. 100

min.

(Substitute image displayed :

Approx. 140 min.)

Approx. 300 min.

*2, 5

Approx. 300 min.

AC adapter : Approx. 130 min. DC adapter : Approx. 130 min.

Display : TFT 16,777,216 colors Sub-display : Organic EL 1 color

Display : Approx. 3.4 inches Sub-display : Approx. 1.4 inches

Display : 409,920 pixels

(480×854 dots) Sub-display : 11,264 pixels (64×176 dots)

CMOS

1/2.8 inch

Approx. 16,300,000 pixels

Camera section

Recording section

Playing music

Recording size

Number of recording pixels (Max.)

Zoom (digital)

Savable still

images

Continuous shooting of still images

File format for still image

Moving picture shooting

time

Moving picture file format

1Seg recording time

Continuous play time

Chaku-uta/ Chaku-uta full

Chaku-uta full

Approx. 16,000,000 pixels

Up to approx. 39.4x (still

image), up to approx. 16.0x (moving picture)

Up to approx. 1,400 images (default)

JPEG, MPO

Up to approx. 376 min. (save to phone) Up to approx. 20 min. (save to 2GB microSD card)

MP4

Up to approx. 210 min. (save to phone/default) Up to approx. 640 min. (save to 2GB microSD card)

i-motion : Approx. 810 min. Chaku-uta full :

Approx. 4,080 min.

WMA file : Approx. 3,900

*10

min.

Music&Video Channel (sound)

: Approx. 4,080 min.

Music&Video Channel

(moving picture) : Approx. 280 min.

Approx. 643 MB

Approx. 500 MB

*9, 10

*10

Wireless LAN

*9 *10 *11

■

Quality

Battery used

Nominal voltage

Nominal capacity

Type

Continuous stand-by time indicates the estimated time when FOMA terminal is closed and able to receive radio waves normally. Stationary continuous stand-by time indicates the average utilization time FOMA terminal is closed and able to receive radio waves normally remains stationary. Moving continuous stand-by time indicates the average utilization time when FOMA terminal is closed and able to receive radio waves normally with a combination of "stationary", "moving", and "out of service area" status. Call, communication or stand-by time may be reduced to about half, or 1Seg watching time may be reduced due to battery pack charging condition, function settings, operating environment such as ambient temperature, radio wave conditions in the area of use (the radio waves are weak or absent), etc. Even without making calls or i-mode communications, the call, communication or stand-by times are reduced by frequently using camera, 1Seg, i-αppli, AUTO-GPS, Wi-Fi, Bluetooth, etc. Continuous call time indicates the approximate time that the phone can send or receive radio waves normally. 1Seg watching time indicates the approximate watching time with receiving radio waves normally and using Stereo Earphone Set 01 (optional). Charging time indicates the estimated time for charging an empty battery with FOMA terminal turned OFF. Charging with FOMA terminal turned ON or charging in lower temperature requires longer time. The number of savable still images is based on "QVGA (320×240)" in Image Size, "NORMAL" in Image quality and 25 Kbytes in file size. The moving picture shooting time means allowable time for one movie. The number is based on "VGA (640×480)" in Select size and "NORMAL" in Image quality. Varies depending on the moving picture to be recorded. AAC format files.

Background playing is availab le. For IEEE802.11n, only 2.4GHz is supported.

Conform to IEEE802.11b/g/

*11

(Access point mode:

IEEE802.11b/g)

Battery Pack

Battery Pack F22

Li-ion battery

3.7V

1000mAh

Savable/Recordable/ Protectable number

Savable/

Type

Phonebook

UIM phonebook

Kisekae Tool

Mail

Area Mail

Bookmark

Screen memo

Music*1Chaku-uta full

i-αppli

Images

Moving picture/i-motion*1Up to 200

Melodies

Video recorded in 1Seg *1Up to 10

Note/Schedule

*2 *3

*4 *5

*6 *7

*1, 2

Received messages

Sent messages

Unsent messages

*1, 4

Uta-moji Lyrics

*1, 5

*1, 6

*1, 7

Depending on the size of data or usage status of common memory space, the actual number of items that can be saved and recorded may be fewer. The total number of i-mode mail and SMS. The total number of i-mode, Full Browser and Smart Browser. The total number of i-mode and Full Browser. Total number of i-αppli and Message i-αppli. Up to 5 items of Message i-αppli can be saved. Total number of images and still images recorded in 1Seg. Total number of notes/schedules, schedules in i-schedule and watching/recording res ervation. Up to 100 items of watc hing/ recording reservation in total can be saved.

Recordable

Up to 2,000

Up to 50

Up to 2,500 Up to 2,500

Up to 500 Up to 500

Up to 30

Up to 200

Up to 400 Up to 400

Up to 100

Up to 5000

Up to 500

Up to 2,600

Protectable

number

ーーー

ーー

ーーーーーーーー

Others

Appendix

Specific Absorption Rate (SAR) of Mobile Phones

This model F-02D mobile phone complies with Japanese technical regulations and international guidelines regarding exposure to radio waves. This mobile phone was designed in observance of Japanese technical regulations regarding exposure to radio waves ( recommended by a set of equivalent international guidelines. This set of international guidelines was set out by the International Commission on Non-Ionizing Radiation Protection ( ICNIRP), which is in collaboration with the World Health Organization (WHO), and the permissible limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health condition. The technical regulations and international guidelines set out limits for radio waves as the Specific Absorption Rate, or SAR, which is the value of absorbed energy in any 10 grams of tissue over a 6minute period. The SAR limit for mobile phones is 2.0 W/kg. The highest SAR value for this mobile phone when tested for use at the ear is 0. 683 W/kg. There may be slight differences between the SAR levels for each product, but they all satisfy the limit. The actual SAR of this mobile phone while operating can be well below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum required to reach the network. Therefore in general, the closer you are to a

Others

base station, the lower the power output of the device. This mobile phone can be used in positions other than against your ear. This mobile phone satisfies the international guidelines when used with a carrying case or a wearable accessory approved by NTT DOCOMO, INC.( approved accessory , please use a product that does not contain any metals, and one that positions the mobile phone at least 1.5 cm away from your body. The World Health Organization has stated that "a large number of studies have been performed over the last

) and limits to exposure to radio waves

) In case you are not using the

two decades to assess whether mobile phones pose a potential health risk. To date, no adverse health effects have been established as being caused by mobile phone use." Please refer to the WHO website if you wo uld like more detailed information.

ww.who.int/docstore/peh-emf/publications/

http://w facts_press/fact_english.htm Please refer to the websites listed below if you would like

more detailed information regarding SAR. Ministry of Internal Affairs and Communications Website: http://www.tele.soumu.go.jp/e/sys/ele/index.htm Association of Radio Industries and Businesses Website: http://www.arib-emf.org/index02.html (in Japanese only) NTT DOCOMO, INC. Website: http:// www.nttdocomo.co.jp/english/product/sar/ FUJITSU LIMITED Website: http://www.fmworld.net/ product/phone/sar/

Technical regulations are defined by the Ministerial Ordinance Related to Radio Law (Article 14-2 of Radio Equipment Regulations).

Regarding the method of measuring S AR when using mobile phones in positions other than against the ear, international standards (IEC62209-2) were set in March of 2010. On the other hand, technical regulation is currently being deliberated on by national council. (As of October, 2011)

Declaration of Conformity

The product "F-02D" is declared to conform with the essential requirements of European Union Directive 1999/5/EC Radio and Telecommunications Terminal Equipment Directive 3.1(a), 3.1(b) and 3.2. The Declaration of Conformity can be found on http:// www.fmworld.net/product/phone/doc/.

This mobile phone complies with the EU requirements for exposure to radio waves. Your mobile phone is a radio transceiver, designed and manufactured not to exceed the SAR exposure to radio-frequency(RF) energy, which SAR value, when tested for compliance against the standard was 0.403W/kg. While there may be differences between the SAR and at various positions, they all meet requirements for RF exposure.

* The exposure standard for mobile phones

employs a unit of measurement known as the Specific Absorption Rate, or SAR.

** The SAR limit for mobile phones used by the

public is 2.0 watts/kilogram (W/Kg) averaged over ten grams of tissue, recommended by The Council of the European Union. The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

*** Tests for SAR have been conducted using

standard operation positions with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station antenna, the lower the power output.

limits** for

levels of various phones

***

the EU

Federal Communications Commission (FCC) Notice

･

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions :

this device may not cause harmful interference, and

this device must accept any interference received, including interference that may cause undesired operation.

･

Changes or modifications made in or to the radio phone, not expressly approved by the manufacturer, will void the user's authority to operate the equipment.

FCC RF Exposure Information

This model phone meets the U.S. Government's requirements for exposure to radio waves. This model phone contains a radio transmitter and receiver. This model phone is designed and manufacture d not to exceed the emission limits for exposure to radio frequency (RF) energy as set by the FCC of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluat ion of scientific studies. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR limit set by the FCC is

1.6 W/kg. Tests for SAR are conducted using standard operating positions as accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output level of the phone.

Others

Before a phone model is available for sale to the public, it must be tested and certified to prove to the FCC that it does not exceed the limit established by the U.S. government-adopted requirement for safe exposure. The tests are performed on position and locations (for example, at the ear and worn on the body) as required by FCC for each model. The highest SAR value for this model phone as reported to the FCC, when tested for use at the ear, is 0.542W/kg, and when worn on the body, is 0.519W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the U.S. government requirements. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Equipment Authorization Search section at http:// www.fcc.gov/oet/ea/fccid/ (please search on FCC ID VQK-F02D). For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal and which positions the handset at a minimum distance of

1.0 cm from the body.

Others

In the United States, the SAR limit for wireless mobile phones used by the general public is 1.6 Watts/kg (W/kg), averaged over one gram of tissue. SAR values may vary depending upon national reporting requirements and the network band.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency en ergy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, whi ch can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Important Safety Information

AIRCRAFT

Switch off your wireless device when boarding an aircraft or whenever you are instructed to do so by airline staff. If your device offers flight mode or similar feature consult airline staff as to whet her it can be used on board.

DRIVING

Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed.

HOSPITALS

Mobile phones should be switched off wherever you are requested to do so in hospitals, clinics or health care facilities. These requests are designed to prevent possible interference with sensitive medical equipment.

PETROL STATIONS

Obey all posted signs with respect to the use of wireless devices or other radio equipment in locations with flammable material and chemicals. Switch off your wireless device whenever you are instructed to do so by authorized staff.

INTERFERENCE

Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids.

Pacemakers

Pacemaker manufacturers recommend that a minimum separation of 15 cm be maintained between a mobile phone and a pace maker to avoid potential interference with the pacemaker. To achieve this use the phone on the opposite ear to your pacemaker and does not carry it in a breast pocket.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives.

For other Medical Devices :

Please consult your physician and the device manufacturer to determine if operation of your phone may interfere with the operation of your medical device.

Appendix

Export Administration Regulations

This product and its accessories may be under coverage of the Export Administration Regulations of Japan ("Foreign Exchange and Foreign Trade Control Laws" and the related laws and regulations). And, they are also under coverage of Export Administration Regulations of the U.S. When exporting and reexporting this product and its accessories, take necessary procedures on your responsibility and expense. For details, contact Ministry of Economy, Trade and Industry of Japan or US Department of Commerce.

Others

Appendix

Intellectual Property Right

Copyrights and portrait rights

Except for the case protected by copyrigh t laws such as personal use, use of FOMA terminal to reproduce, alter, or publicly transmit recorded pictures or sounds, or copyrighted text, images, music or software downloaded from websites without the copyright holder's authorization is prohibited. Note that taking photos or recordings at some demonstrations, performances or exhibitions may be prohibited even when only for personal use. Avoid taking pictures of others with FOMA terminal without their consent or disclosing recorded pictures of others without their consent to general public through Internet websites etc., because they may infringe on portrait rights.

Trademarks

Company and product names mentioned in this manual are trademarks or registered trademarks of their respective holders.

･

"FOMA", "i-mode", "i-αppli", "i-motion", "Deco-mail", "Chara-den", "ToruCa", "mopera", "mopera U", "WORLD CALL", "DCMX", "i-area", "WORLD WING", "OFFICEED", "2in1", "docomo STYLE series" and

Others

logos of "i-mode", "i "iC" are trademarks or registered trademarks of NTT DOCOMO.

･

"Catch Phone (Call waiting service)" is a registered trademark of Nippon Telegraph and Telephone Corporation.

･

McAfee is registered trademarks or trademarks of McAfee, Inc. and/or its affiliates in the US and/or other countries.

ppli", "Music&Video Channel",

･

Rovi, G-GUIDE, G-GUIDE MOBILE and GGuide related logos are trademarks or registered trademarks of Rovi Corporation and/or its subsidiaries in Japan.

･

Contains Adobe Flash Lite and Adobe Reader Mobile technology by Adobe Systems Incorporated. Adobe Flash Lite Copyright Systems Incorporated. All rights reserved. Adobe Reader Mobile Copyright Systems Incorporated. All rights reserved. Adobe, Adobe Reader and Flash Lite are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

･

This product contains NetFront Browser, NetFront Document Viewer and NetFront Sync Client of ACCESS CO., LTD. ACCESS, the ACCESS logo and NetFront are registered trademarks or trademarks of ACCESS CO., LTD. in the United States, Japan and/or other countries.



･

Powered by JBlend Copyright 2002-2011 Aplix Corporation. All rights reserved. JBlend and JBlend-related trademarks are trademarks or registered trademarks of Aplix Corporation in Japan and other countries.

･･

FeliCa is a registered trademark of Sony Corporation.

2011 ACCESS CO., LTD. All rights

is a registered trademark of FeliCa Networks, Inc.



2003-2011 Adobe



1993-2011 Adobe

Docomo Style F-02D Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About manuals for F-02D

Basic package

Contents

FOMA terminal

Introduction

What you can do with F-02D

Part names and functions

Usage styles

Precautions (Always follow these directions)

Handling precautions

Waterproofness/Dustproofness

Before Using

Attaching docomo mini UIM card/battery pack

Basic Operation

Charging

Power ON - Default setting

Caller ID notification

Checking Profile

Screen Explanation

Viewing display

Basic operations for screen and keys

docomo Palette UI

Using touch panel

Character Entry

Entering characters

Sound/Screen Setting

Sound settings

Setting display

Kisekae Tool

Light setting

eco mode

Lock/Security

Security codes

Various lock functions

Incoming call restriction

Resetting to default

Call Telephone

Making a call/videophone call

Connect

Receiving a call/videophone call

Operation during a call

When you cannot answer a call

Network Services

Emergency call

Using overseas

Mail

Sending i-mode mail/Sending SMS

Deco-mail/Decome-Anime

Receiving i-mode mail

Early warning "Area Mail"

Phonebook

Phonebook new entry

i-mode/Full Browser/Smart Browser

Displaying i-mode site/website

Search

i-Channel

Using i-Channel

Map/GPS

Using Map/GPS function

AUTO-GPS

Camera

Shooting still images/moving pictures

Enjoy

1Seg

Watching 1Seg

Music

Music&Video Channel

MUSIC Player

i-motion/Movie

Playing i-motion/movie

Osaifu-Keitai

Using Osaifu-Keitai

More Convenient

i-concier

Using i-concier

Convenient tools
