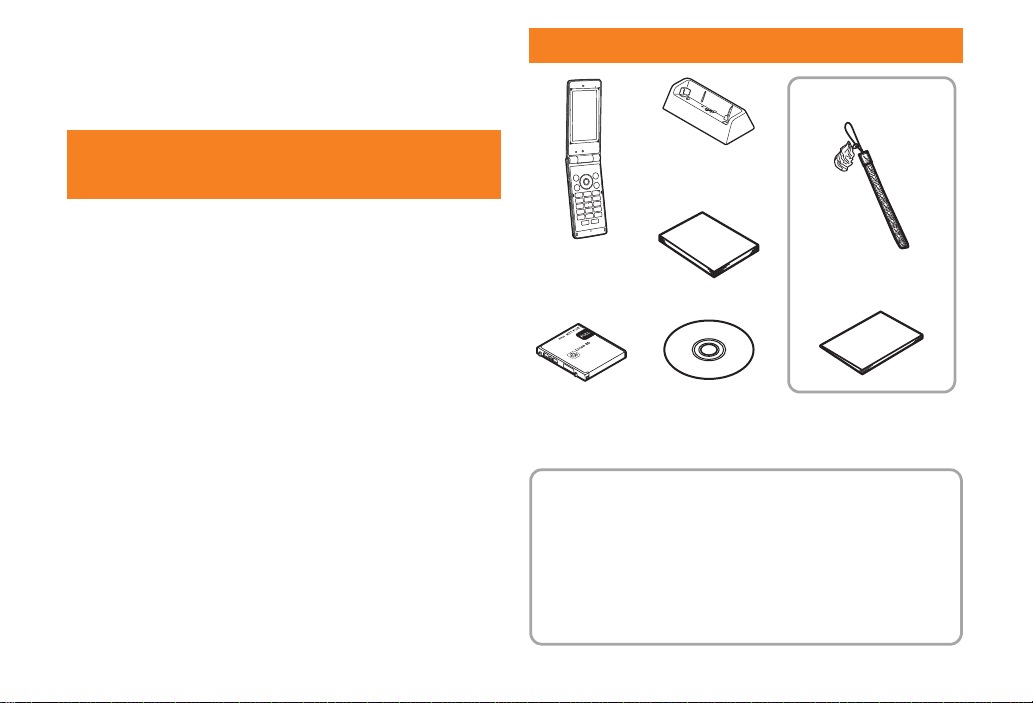

SH-04B terminal (includes warranty and Back Cover SH37)

Battery Pack SH20

Manual

SH-04B CD-ROM

Desktop Holder SH25 (includes user’s guide)

Strap (sample)

Pamphlet (sample)

The explanations in this manual are based on the case when

Kisekae tool is set for the handset color “Melty Bitter”.

The screens and illustrations in this manual are shown as

examples. The actual screens and illustrations may differ.

Note that “SH-04B” is referred to as the “FOMA terminal” in this

manual.

Reproduction of this manual in part or in whole is prohibited. The contents of this manual are subject to change without prior

notice.

Thank you for purchasing “docomo STYLE series SH-04B”. Before use of SH-04B, make sure that you read this manual to ensure proper operation.

Explanation for operation of

SH-04B

Other than this manual, “Support Book” (contained in the FOMA terminal) or “Manual (detailed edition)” (PDF file) explains how to operate SH-04B.

 “Manual” (this manual)

Explanation for contents displayed on the screen or operation of basic function

 “Support Book” (in Japanese only)

(contained in the FOMA terminal)

Explanation for the outline and operation of frequently-used function

From SH-04B ^$/[Support Book]/select a menu or an item/t&

 “Manual (detailed edition)” (in Japanese

only) (PDF file)

Explanation for the detailed information and operation of all functions

From a PC Download from the DOCOMO website http://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html ※ The URL and contents are subject to change without

prior notice.

Basic package

Manual

For details on optional parts compatible with the FOMA terminal

nP.88

Page 3

Introduction

P.1

FOMA Terminal nP.2 What You Can Do with SH-04B nP.3 Part Names and Functions

P.4 Precautions nP.6 Handling Precautions nP.14 Waterproofness nP.18

More Convenient

P.74

Others

P.81

Enjoy

P.62

P.57

Basic Operation

P.24

Connect

P.45

Support nP.81 Appendix nP.89 Index nP.104

Before Use nP.24 Screen Explanation nP.28 Character Entry nP.33 Sound/Screen Setting nP.35 Lock/Security nP.41

Call nP.45 Mail nP.52 Phonebook nP.56

i-mode/Full Browser nP.57 i-Channel nP.60 Map/GPS nP.61

Camera nP.62 1Seg nP.65 Music nP.68 i-appli/i-Widget nP.72 i-motion/Movie nP.73

Osaifu-Keitai nP.74 i-concier nP.75 Convenient Tools nP.76 Data Management nP.78

Page 4

FOMA Terminal

Because the FOMA terminal relies on radio signals, it

Introduction

cannot be used in places with no signal (such as tunnels, underground, or in buildings), in places with a weak signal or outside the FOMA service area. You may not use the FOMA terminal in the upper floors of a building even with no obstructions in sight. There may also be times when the signal is strong and you are not moving but the call is interrupted.

Make sure not to disturb others when using the FOMA

terminal in public places, places with many people or quiet places.

Because the FOMA terminal uses electrical signals, it is

possible for a third party to listen in on a conversation. However, since the W-CDMA system automatically applies privacy to every call, a third party that tries to listen in only hears static.

The FOMA terminal converts conversations into a digital

signal and sends it to the other party over the radio. If the signal cannot be reconverted properly by such as moving to an area with a weak signal, the voice may not be heard correctly.

Keep a separate memo and note information (e.g.

phonebook, schedule, text memo, record message, voice memo) stored in the FOMA terminal. DOCOMO shall not be liable for any loss of content due to a failure, repair, upgrade or other handling of the FOMA terminal.

It is recommended to save the important data to the

microSD Card. If you own a PC, you can also transfer and store the information such as a phonebook, mail and schedule to your PC using DOCOMO keitai datalink.

The user hereby agrees that the user shall be solely

responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifier as listed herein makes any representation and warranty as for the security in the use of SSL/TLS. In the event that the user shall sustain damage or loss due to the use of SSL/TLS, neither DOCOMO nor the certifier shall be liable for any such damage or loss.

Certifier: VeriSign Japan K.K.,

Cybertrust Japan Co.,Ltd., GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems Co., Ltd., Comodo CA Ltd, Entrust, Inc.

The FOMA terminal supports the FOMA Plus-Area and

the FOMA HIGH-SPEED area.

The FOMA terminal can be used only via the FOMA

network provided by DOCOMO and DOCOMO’s roaming area.

Page 5

What You Can Do with SH-04B

Support book (in Japanese only)

Support book is a convenient function which allows you to check an operation method of function on the FOMA terminal. You can search immediately without a manual.

^$/[Support Book]/select a menu or an

item/t&

i-concier nP.75

i-concier is a service that a character in the stand-by display (Machi-chara) notifies you of useful information and that can be used conveniently by downloading a schedule (i-schedule) from sites.

International roaming nP.50

The same FOMA terminal, phone number and mail address as those used in Japan are available overseas (supporting only 3G area).

Waterproofness nP.18

The FOMA terminal is waterproofed. You can call or watch 1Seg programs in the rain, in a bathroom, at a poolside, etc. Also, rinse off dirt from the FOMA terminal with tap water.

Multifunctional camera nP.62

The FOMA terminal has built-in multifunctional camera offering approximately 8.0 million effective pixels.

Introduction

Page 6

Part Names and Functions

Introduction

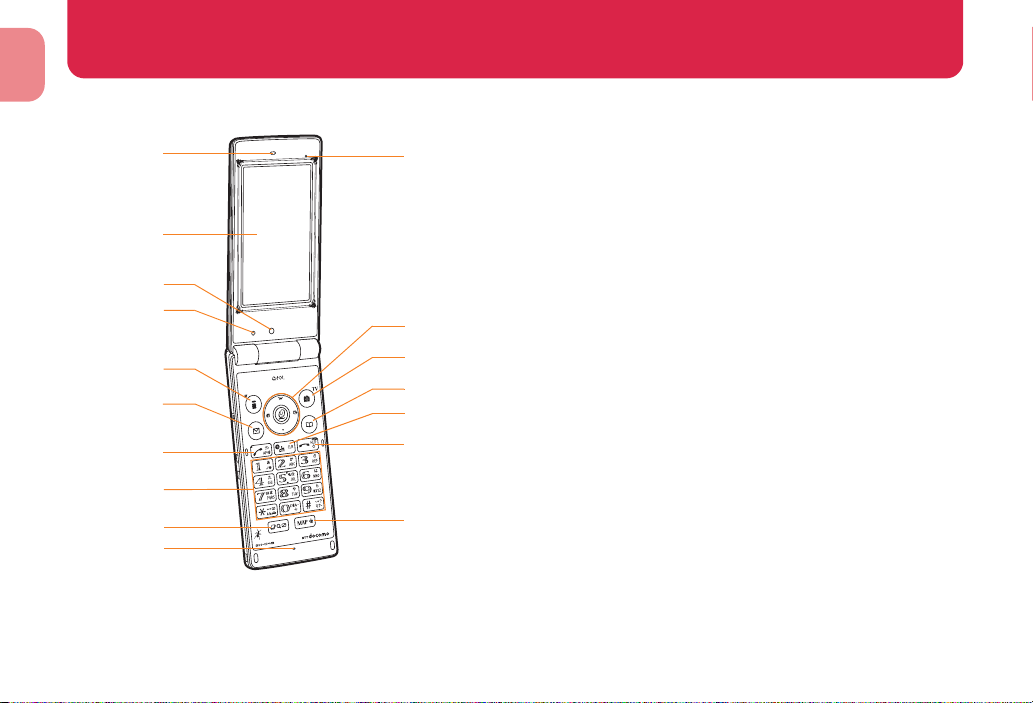

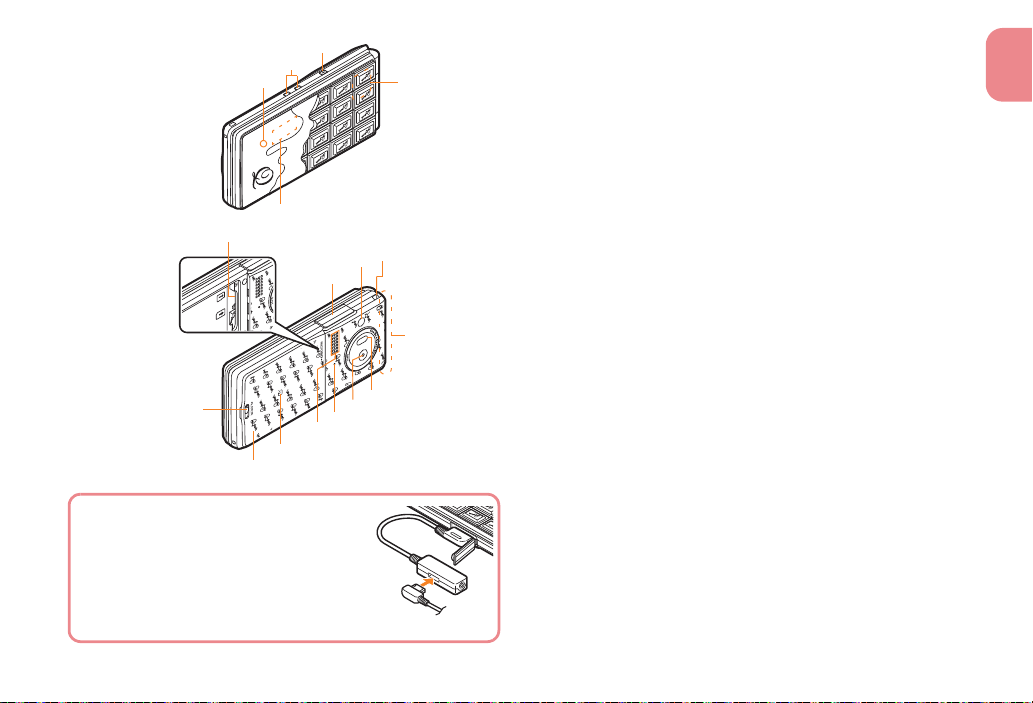

1 Earpiece 2 Main display (nP.28) 3 Sub camera

Use to shoot a still picture of yourself.

4 Brightness sensor

Sensor detects brightness of the surrounding area. Do

not cover the sensor area with your hand or a sticker.

5 i (,): i-mode/Operation guidance key (nP.31,

P.57)

6 m: Mail/Operation guidance key (nP.31, P.52) 7 s: Start/Hands-free/Eco key (nP.39, P.45) 8 1 to 9, 0, * and #: Dial/Character entry keys 9 $: Multi/Quick search/VeilView key (nP.38) a Mouthpiece/Microphone b Air vent

This is a vent for taking any remaining air out of the

FOMA terminal.

c w&t&: Multi-guide key (nP.31) d C: Camera/TV/Operation guidance key (nP.31,

P.63, P.66)

e a: Phonebook/Operation guidance key (nP.31,

P.45)

f c (J): i-Channel/Clear key (nP.31, P.60) g H: Power/End key (nP.26, P.31) h y: MAP/GPS key

Activates GPS compatible i-appli or checks your

present location.

Page 7

Using earphone

When you use an earphone which does not support external connector terminal, connect with a plug adapter (sold separately).

i Called/Charging LED

Flashes/Illuminates while receiving a call/charging.

j Charger terminal

Use for charging with the accompanying desktop

holder.

k &: Light key

Display the sub display or turn Picture Light on/off with

the FOMA terminal closed.

l 1Seg antenna

1Seg antenna is built in.

m Sub display (nP.29) n microSD Card slot (nP.79) o External connector terminal

Use for charging and connecting the earphone, etc.

p Picture Light

Illuminates/Flashes while activating the camera/

shooting.

q Strap hole r FOMA antenna

FOMA antenna is built in.

s Infrared port (nP.80) t Main camera

Use to shoot still pictures or moving pictures.

u Speaker v b mark (nP.74, P.80) w Back cover (nP.19)

A radio frequency-preventing sticker is attached on the

back of the back cover. Do not peel off this sticker.

x Back cover lever (nP.19)

Introduction

Page 8

Precautions

Before use, read these “Precautions” carefully and use your FOMA

Introduction

properly. Keep this manual in a safe place for future reference.

These precautions contain information intended to prevent bodily

injury to the user and to surrounding people, as well as damage to property, and must be observed at all times.

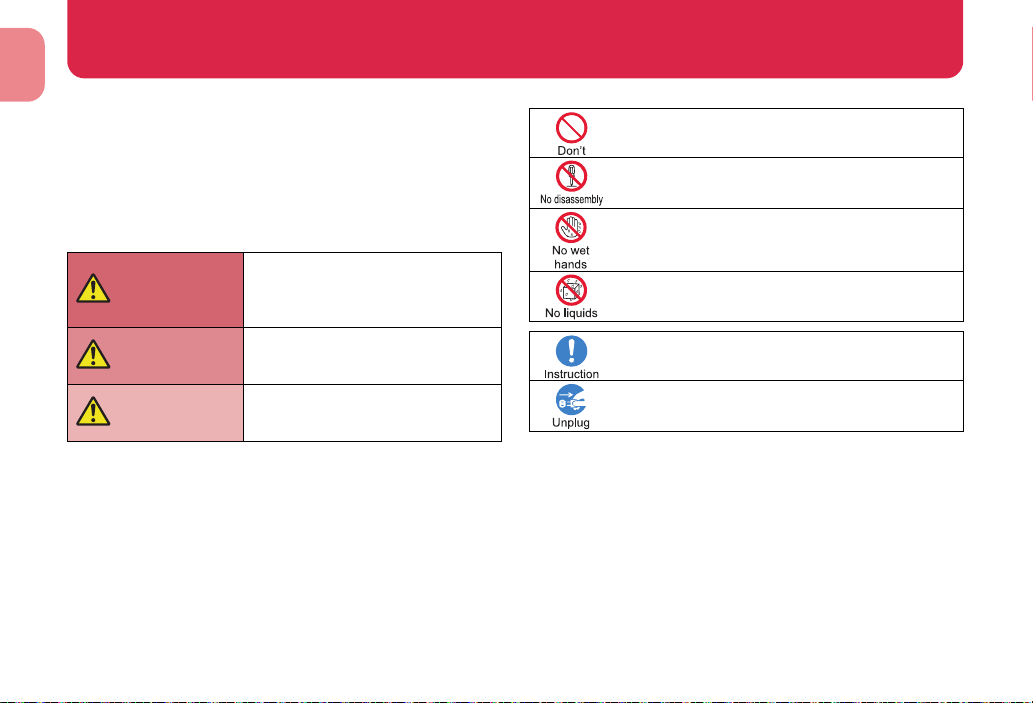

The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the FOMA terminal is used improperly.

This symbol indicates that “death or

Danger

Warning

Caution

serious bodily injury may directly and immediately result from improper use”.

This symbol indicates that “death or serious bodily injury may result from improper use”.

This symbol indicates that “bodily injury and/or property damage may result from improper use”.

The following symbols indicate specific directions.

Indicates a prohibited action.

Indicates not to disassemble the device.

Indicates not to handle the device with wet hands.

Indicates not to use the device near water or get it wet.

Indicates that instructions specified are compulsory (must be followed).

Indicates that the power cord must be unplugged from the outlet.

“Precautions” is explained in the following six sections.

Handling the FOMA terminal, battery pack, adapters, and FOMA

card (general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.7

Handling the FOMA terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . P.8

Handling battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.11

Handling adapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.12

Handling FOMA card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.13

Handling mobile phones near electronic medical equipment

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.13

Page 9

Handling the FOMA terminal,

Danger

Warning

battery pack, adapters, and FOMA card (general)

Do not use, store, or leave the FOMA terminal, battery pack, adapters or FOMA card in locations subject to high temperatures, such as near a fire, in direct sunlight, or

The FOMA terminal may become deformed or malfunction. In addition, the battery pack may leak, overheat, explode, catch fire or suffer performance loss and a reduced service life. Part of the casing may also become hot and cause burns.

May cause accidents such as fire, bodily injury, electric shock or malfunction. In addition, the battery pack may leak, overheat, explode or catch fire.

Contact with water, pet urine, and other liquids may cause overheating, electric shock, fire, malfunction or bodily injury. Be attentive to where and how you use the handset.

inside a car on a hot day.

Do not attempt to disassemble or modify. In addition, do not attempt to solder.

Do not get the FOMA terminal, battery pack, adapters or FOMA card wet.

Use only the battery packs and adapters specified by NTT DOCOMO for use with the FOMA terminal.

The use of devices other than those specified may cause the FOMA terminal, battery pack or other devices to leak, overheat, explode, catch fire or malfunction.

Do not place the battery pack, FOMA terminal, adapters, or FOMA card inside cooking appliances such as microwave ovens or pressure cookers.

The battery pack may leak, overheat, explode or catch fire, and the FOMA terminal and adapters may overheat, emit smoke or catch fire. The internal circuitry may also be damaged.

Do not subject the FOMA terminal to strong impacts or throw it.

The battery pack may leak, overheat, explode or catch fire. Other devices may also be damaged or cause a fire.

Do not allow conductive materials (such as metal objects and pencil lead) to come into contact with the charger terminal or external device terminal. In addition, do not insert such objects.

The battery pack may short-circuit and cause a fire or malfunction.

Make sure to turn off the mobile phone in locations such as gas stations where flammable gas is generated. In addition, do not charge the battery. It may cause a gas explosion or fire.

To use Osaifu-Keitai in locations such as gas stations, make sure to turn off the power in advance (If the IC card lock is set, disable the lock before turning off the power).

If you notice anything unusual, such as an unusual odor, overheating, discoloration or deformation during use, charging or storage, immediately follow the instructions below.

1. Unplug the power cord from the outlet or cigarette lighter socket.

2. Turn off the FOMA terminal.

3. Remove the battery pack from the FOMA terminal.

Continued use (charging) may cause overheating, explosion, or fire. In addition, the battery pack may leak.

Introduction

Page 10

Do not leave the FOMA terminal

Caution

Warning

Picture Light

Introduction

The FOMA terminal may fall and cause injury or be damaged.

May cause a malfunction.

May result in bodily injury.

A young child may swallow components or suffer other bodily injury.

on unstable surfaces, such as on a wobbling table or sloped surface.

Do not store the FOMA terminal in locations that are subject to humidity, dust or high temperatures.

If being used by a child, have a guardian teach him/her the proper handling procedures. In addition, check that the child is using the FOMA terminal as directed.

Keep the FOMA terminal out of the reach of young children.

Be very careful when using the FOMA terminal connected to adapters repeatedly or for long periods of time.

The FOMA terminal, battery pack or adapters may become warm if i-appli, videophone, or 1Seg is used for a long time while charging. Touch high temperature areas for a prolonged period of time may cause skin irritations, itchiness, or low-temperature burn in some people.

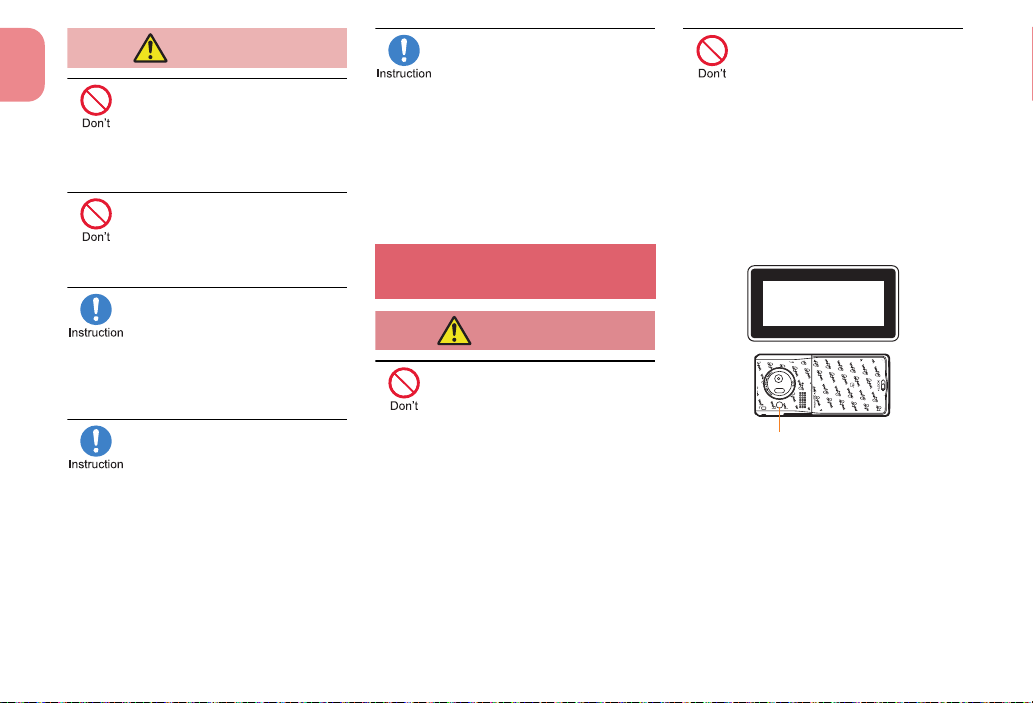

Handling the FOMA terminal

Do not aim the infrared port towards the eyes.

May cause eye injury. In addition, do not aim or direct the infrared port towards another Ir device as this may cause the device to malfunction.

Do not point the illuminated light directly at someone’s

Do not use Picture Light near people’s faces. Eyesight may be temporarily affected leading to accidents. Precautions: The picture light source used for this product may emit the light over the safety level for eyes when operations such as undirected adjustments are intentionally made. Therefore, do not disassemble the terminal.

CAUTION:

Use of controls, adjustments or performance of procedure other than those specified herein may result in hazardous radiation exposure. As the emission level from Picture Light LED used in this product is harmful to the eyes, do not attempt to disassemble the cabinet. Servicing is limited to qualified servicing station only.

eyes.

EN60825-1:1994 A1:2002 & A2:2001

CLASS1 LED Product

Page 11

Do not put the FOMA terminal in the place where it could be affected by an expanded airbag, e.g., on the dashboard.

If the air bag inflates, the FOMA terminal may hit you or others around you, resulting in bodily injury or damage to the FOMA terminal or other property.

If you are using electronic medical equipment, do not put the FOMA terminal in your breast pocket or in the inside pocket of your jacket.

Using the FOMA terminal in close proximity to electronic medical equipment may cause the equipment to malfunction.

Do not allow water or other liquids, metal, flammable material, or other foreign objects to enter the FOMA card or microSD Card port on the FOMA terminal.

May cause a fire, electric shock or other malfunctions.

Do not shine the light at anyone driving a car or other vehicles.

This may prevent a driver from driving safely and cause a traffic accident.

Turn off the FOMA terminal in areas where the use of mobile phones is prohibited, such as in aircraft or hospitals.

The FOMA terminal may interfere with the operation of electronic devices and electronic medical equipment. In addition, if auto power on function is set to on, disable this function before turning off your mobile phone. Follow the instructions given by the respective medical facilities regarding the use of mobile phones on their premises. In addition, actions such as using on a mobile phone aboard aircraft are prohibited and may be punishable by law.

During a call in which hands-free is set, keep the FOMA terminal away from the ears. When you attach the earphone/ microphone to the FOMA terminal to play games or music, do not make the volume too loud.

Excessive high volume may damage your hearing. Also it may prevent you from hearing the ambient sounds and cause an accident.

If you have a weak heart, take extra precautions when setting functions such as the vibrator and ring tone volume for incoming calls.

Various settings may have effects on your heart.

If you hear thunder while using the FOMA terminal outdoors, immediately turn it off and move to a safe location.

There is a risk of being struck by lightning and suffering electric shock.

Turn the FOMA terminal off near high-precision electronic devices or devices that use weak electronic signals.

The FOMA terminal may interfere with the operation of electronic devices.

Take particular care with the following devices

Hearing aids, implanted cardiac pacemakers, implanted cardioverter-defibrillators, or other electronic medical equipment. Fire alarms, automatic doors, and other equipment controlled by electronic signals. If you use an implanted cardiac pacemaker, implanted cardioverter-defibrillator or other electronic medical equipment, contact the respective manufacturer or vendor to check whether the operation of the equipment is affected by signals.

In case that the display part or camera lens is damaged, make sure to pay attention to a broken glass and the exposed inside of the FOMA terminal.

The display part or the surface of camera lens are covered by a plastic panel so as to minimize the possibility of glass scattering. However, touching the broken or exposed parts may cause injury.

Introduction

Page 12

Do not swing the FOMA

Caution

Introduction

The FOMA terminal may hit you or others around you, resulting in bodily injury or damage to the FOMA terminal or other property.

Use motion tracking to operate by tilting and shaking (or swinging) the FOMA terminal. The FOMA terminal may hit people or objects, if shaken (or swung) too much, and cause a serious accident or damage, etc.

May result in bodily injury or damage to the FOMA terminal or other property.

terminal by its strap, etc.

When using motion tracking, confirm the safety of surroundings, hold the FOMA terminal securely and do not swing it around more than necessary.

If using Motion tracking with the FOMA terminal to which metallic straps or others are attached, be careful not to hit people or objects with the straps.

If the display is broken and the liquid crystal then leaks, do not lick or inhale the liquid or get the liquid on your skin. If the liquid comes into contact with your eyes or mouth, immediately rinse your eyes or mouth with clean water and see a doctor. If the liquid comes into contact with your skin or clothes, immediately wipe it off with alcohol, and wash with water and soap.

May result in loss of eyesight and harm to your skin.

While the ring tone is ringing or a melody is played on the FOMA terminal, do not put the ears closer to the speaker.

This may cause hearing loss.

Using the FOMA terminal in an automobile may sometimes affect the electronic equipment in some vehicle models.

In such cases, stop using the FOMA terminal, as this could impede safe driving.

Use of the FOMA terminal may cause skin irritations such as itchiness, rashes or eczema in some people. If this occurs, immediately stop using the FOMA terminal and seek

The following parts contain metals.

External connector terminal

Card slot

Charger terminal

May result in bodily injury or cause a malfunction.

Otherwise, eyesight may be decreased.

medical treatment.

Part Material

SUS Gold platingInside microSD

Do not close the FOMA terminal on your fingers or objects such as the strap.

Watch 1Seg in a well-lit place, keeping a certain distance from the screen.

Surface

treatment

Page 13

Handling battery pack

Danger

Warning

Caution

Check the type of battery using the information printed on the battery pack label.

Label Battery type

Li-ion 00 Lithium-ion

Do not touch terminals with metallic objects such as wires. In addition, do not carry or store the battery pack with

The battery pack may leak, overheat, explode or catch fire.

metallic necklaces, etc.

If you are having difficulty fitting the battery pack to the FOMA terminal, do not use excessive pressure to force the battery into place. Check that the battery pack is facing the correct direction before you attach it.

Do not throw the battery pack into a fire.

Do not puncture, hit with a hammer or step on the battery pack.

The battery pack may leak, overheat, explode or catch fire.

If the battery fluid comes into contact with your eyes, do not rub your eyes but immediately rinse your eyes with clean water. Then seek prompt medical treatment.

May result in loss of eyesight.

If any trouble is found on the battery pack due to an external impact such as a deformation or scratches caused by a drop, immediately stop using it.

The battery pack may leak, overheat, explode or catch fire. Other equipment may also be damaged or catch fire.

If the battery pack is not fully charged after the specified time has elapsed, stop charging.

The battery pack may leak, overheat, explode or catch fire.

If the battery pack leaks or emits an unusual odor, immediately stop use and move it away from any flame or fire.

The battery fluid is flammable and could ignite, causing a fire or explosion.

Prevent your pet from biting the battery pack.

The battery pack may leak, overheat, explode or catch fire. Other equipment may also be damaged or catch fire.

Do not dispose of used battery packs in ordinary garbage.

May cause fires or damage to the environment. Place tape over the terminals to insulate unnecessary battery packs, and take them to a docomo Shop, retailer or institution that handles used batteries in your area.

Do not charge a wet battery pack.

The battery pack may overheat, catch fire or explode.

If the battery fluid comes into contact with your skin or clothing, stop using the FOMA terminal immediately and rinse it off thoroughly with clean water.

May cause injuries to your skin.

Introduction

Page 14

Handling adapters

Warning

Introduction

Do not use if the adapter’s cord or power cord is damaged.

May cause electric shock, overheating or fire.

Never use the AC adapter or desktop holder in humid locations such as a bathroom.

May result in electric shock.

The DC adapter should only be used in negative grounded vehicles. Never use this adapter in positive grounded vehicles.

May cause a fire.

Do not touch the FOMA terminal or adapters if you hear thunder.

There is a risk of being struck by lightning and suffering electric shock.

Take care not to short-circuit the charging terminal when connected to an outlet or cigarette lighter socket. Also, take care not to allow any part of your body (hands, fingers, etc.) to come into contact with the charging terminal.

May result in a fire, equipment malfunction, electric shock or bodily injury.

Place the adapter and desktop holder on stable surfaces when charging. In addition, do not cover or wrap the adapter or desktop holder with clothing or bedding.

The FOMA terminal may detach, overheat, or cause a fire or malfunction.

Do not place heavy objects on the adapter’s cord or power cord.

May cause an electric shock or fire.

Do not handle the cord and plug of the adapters with wet hands.

May result in electric shock.

Always use the specified power supply and voltage.

Using the incorrect voltage may cause a fire or malfunction. When using overseas, use the AC adapter that is available overseas. AC adapter: 100V AC DC adapter: 12/24V DC (for negative grounded vehicles only) AC adapter available overseas: 100 to 240V AC (Connect only with household AC outlet)

If the fuse in the DC adapter blows, always replace it with a fuse of the specified type.

Using the fuse other than the specified one may cause a fire or malfunction. Refer to the respective manuals for information on the correct fuse specifications.

Wipe off any dust on the power plug.

May cause a fire.

When plugging the AC adapter into the outlet, make sure that no metallic straps or other metallic objects are caught between the plug and the socket.

May cause electric shock, short-circuiting or fire.

Always grasp the power plug when unplugging the adapters from the outlet or cigarette lighter socket. Do not forcibly pull by the adapter’s cord or power cord.

Pulling on the cord may damage the cord and cause an electric shock or fire.

Unplug the power cord from the outlet when not using for a long time.

May cause an electric shock, fire, or malfunction.

Page 15

Should water or other liquids

Caution

Warning

enter the adapters, remove the power plug from the outlet or cigarette lighter socket

May cause an electric shock, smoke emission or fire.

May result in electric shock.

immediately.

Always unplug the power plug from the outlet or cigarette lighter socket before cleaning the adapters.

Handling FOMA card

Be careful with the cutting surface when detaching the

May cause injuries to your hands or fingers.

FOMA card (IC).

Handling mobile phones near electronic medical equipment

The precautions detailed here conform to the guidelines drawn up by the Electromagnetic Compatibility Conference Japan, regarding the protection of electronic medical equipment from signals emitted by mobile phones.

Observe the following in hospitals or other medical facilities.

Do not take your FOMA terminal into

operating rooms, ICUs (Intensive Care Units) or CCUs (Coronary Care Units).

Turn off your FOMA terminal inside

hospital wards.

Turn off your FOMA terminal even when

you are in an area outside hospital wards, such as a hospital lobby, since electronic medical equipment may be in use nearby.

Where a medical facility has specific

instructions prohibiting the carrying and use of mobile phones, observe those instructions strictly.

If auto power on function is set to on,

disable this function before turning off your mobile phone.

Turn off your FOMA terminal in crowded places such as rush-hour trains in case somebody nearby is using an implanted cardiac pacemaker or implanted cardioverter-defibrillator.

Electromagnetic signals may affect the operation of implanted cardiac pacemakers and implanted cardioverter-defibrillators.

If you have an implanted cardiac pacemaker or an implanted cardioverter-defibrillator, always carry or use your FOMA terminal at least 22 cm away from your implant.

Electromagnetic signals may affect the operation of implanted cardiac pacemakers and implanted cardioverter-defibrillators.

Patients receiving medical treatment away from a hospital or medical facility (e.g. home treatment) who are using electronic medical equipment other than implanted cardiac pacemakers or implanted cardioverter-defibrillators should consult the respective manufacturers for information regarding the effects of signals on the equipment.

Electromagnetic signals may affect the operation of electronic medical equipment.

Introduction

Page 16

Handling Precautions

General notes

Introduction

SH-04B is waterproof, however, do not

allow water to seep into the FOMA terminal and do not allow accessories or optional parts to get wet.

The FOMA terminal is waterproof to IPX5 and IPX7 standards if the external connector terminal cover is securely closed as well as the back cover is attached and locked, however, it is not completely waterproof. In the rain or with the handset wet, do not attach/remove the battery pack or open/close the external connector terminal cover or back cover. Seeped water may cause corrosion inside the terminal. Accessories and optional parts are not waterproof. Note that if problem is found to be due to moisture, handset and parts are not covered by warranty and in some cases may be irreparable. Even where repairs are possible, repair charges will be incurred since damage is not covered by warranty.

Clean only with a soft and dry cloth

(such as the type used for eyeglasses).

The surface of the handset’s LCD has a special coating to improve the visibility of the color display. Forceful rubbing of LCD with a dry cloth may scratch LCD surface. Handle the handset carefully and clean with a soft and dry cloth (such as the type used for eyeglasses). Note also that LCD coating may peel off or stain if moisture or soiling is left on the surface for a long period. Never use chemicals such as alcohol, thinners, benzene or detergents, as these agents may erase the printing on the handset or cause discoloration.

Occasionally clean terminals with a dry

cotton swab, etc.

Unclean terminals may result in poor connections and loss of power. Keep terminal clean with a dry cotton swab, etc. Take care of the terminal while cleaning it.

Do not place the handset near an air

conditioning vent.

Condensation formed due to rapid changes in temperature may cause internal corrosion and lead to malfunction.

Do not apply excessive force to the

FOMA terminal and battery pack when using them.

Carrying the handset in a tightly packed bag, or sitting on the handset in your pocket may cause a damage to display, other internal components or battery pack, or result in malfunction. Keeping an external connector device plugged into the external connector terminal (earphone/ microphone terminal) may cause a damage to the connector or result in malfunction.

Read the respective manuals supplied

with the FOMA terminal, adapters, and desktop holder carefully.

Do not rub or scratch the display with

metal, etc.

May scratch the handset and cause malfunction or damage.

Page 17

Notes about the FOMA terminal

Avoid using the handset in extremely

high or low temperatures.

Use the FOMA terminal within the range of a temperature between 5°C and 40°C (for temperatures of 36°C or higher, such as in a room with a bath, limit usage to a short period of time) and a humidity between 45% and 85%.

Using the handset close to landline

phones, TVs or radios may affect the operation of such equipment. Move as far away as possible from such items before use.

Keep a separate memo and note

information stored in the FOMA terminal.

DOCOMO shall not be liable for any loss of content.

Do not drop or otherwise subject the

FOMA terminal to severe impact.

May damage the handset and cause malfunction.

When connecting an external

connector device to the external connector terminal (earphone/ microphone terminal), do not put it in obliquely or do not pull it while it is plugged in.

May damage the handset and cause malfunction.

Do not close the FOMA terminal on

strap, etc.

May damage the handset and cause malfunction.

The FOMA terminal becomes warm

during using or charging but this is not a malfunction.

Do not leave the camera in direct

sunlight.

May cause discoloration or burn-in.

Use the FOMA terminal with the

external connector terminal cover on.

Dust, water and others enter inside and cause a malfunction.

Do not use the FOMA terminal without

the back cover.

May detach the battery pack or cause malfunction or damage.

Do not cover the surface of the display,

keys, or buttons with an extremely thick sticker.

May cause malfunction.

While using a microSD Card, do not

remove the card or turn off the FOMA terminal.

May cause data loss or malfunction.

Never place a magnetic card near or in

the FOMA terminal.

The stored magnetic data in cash cards, credit cards, telephone cards, floppy disks, etc. may be erased.

Never place magnetized items near the

FOMA terminal.

Putting highly magnetized items closer may cause a malfunction.

Introduction

Notes about battery pack

Battery pack is a consumable product.

Though usage time varies with use, change battery if battery level is extremely low even after fully charged. Purchase a specified new battery pack.

Charge battery in areas where ambient

temperature is between 5°C and 35°C.

Always charge the battery before the

first use or after not using battery for a long time.

The usage time for a battery pack

depends on the usage and deterioration of battery pack.

Depending on usage, the battery pack

may swell as it approaches the end of its service life but this will not cause problems.

Page 18

Note the followings when the battery

pack is stored for a long term.

 The storage with the battery pack fully

charged (immediately after charging is

Introduction

completed)

 The storage with no battery level

(cannot turn the FOMA terminal on) May lower the performance or shorten the life of the battery pack. The second or third level of the battery pack icon is recommended as the battery level for long-term storage.

Notes about adapters

Charge battery in areas where ambient

temperature is between 5°C and 35°C.

Do not charge battery pack in the

following locations.

 Areas with high humidity or dust, or in

areas exposed to strong vibrations  Close to landline phones, TVs, radios,

etc.

Adapters may become warm during

charging but this is not a malfunction.

Do not use DC adapter to charge

battery when the car engine is not running.

May cause car battery to run down.

When using an outlet with a feature to

prevent the plug from being removed accidentally, follow instructions in the outlet user’s guide.

Do not subject to strong force or

impacts. Also, do not disfigure the charger terminals.

May cause a malfunction.

Notes about FOMA card

Do not apply unnecessary force when

inserting/removing the FOMA card.

FOMA card may become warm during

using but this is not a malfunction.

Customer is responsible for

malfunctions arising from inserting FOMA card into a different IC card reader/writer.

Always keep IC area clean. Clean only with a soft and dry cloth

(such as the type used for eyeglasses).

Keep a separate memo and note

information stored in the FOMA card.

DOCOMO shall not be liable for any loss of content.

To protect the environment, please take

any unnecessary FOMA cards to a docomo Shop or retailer.

Avoid using in extremely high or low

temperatures.

Do not damage, touch haphazardly or

short-circuit the IC.

May cause data loss or malfunction.

Do not drop or otherwise subject the

FOMA card to severe impact.

May cause a malfunction.

Never bend the FOMA card or place

heavy objects on it.

May cause a malfunction.

Do not insert the FOMA card to the

FOMA terminal with a label or sticker attached on the card.

May cause a malfunction.

FeliCa reader/writer

The FeliCa reader/writer function in the

FOMA terminal uses weak electric waves in the handling of which does not require a license of radio station.

The frequency in use is the 13.56 MHz

band. When another reader/writer is being used nearby, keep enough distance from it. Make sure that there is no radio station using the same frequency band in the nearby area.

Page 19

Caution

Never use the FOMA terminal that is

modified. Using a modified device violates the Radio Law.

The FOMA terminal has acquired the certification of conformity with technical regulations for the specified radio station based on the Radio Law, and the “Technical Conformity Mark ” is printed on the model nameplate of the FOMA terminal as a proof. If the screws of FOMA terminal are removed and a modification is given to the inside, the certification of conformity with technical regulations will become invalid. Never use the FOMA terminal without the valid certification. Doing so violates the Radio Law.

Be careful when using the FOMA

terminal while driving a motor vehicle.

While driving, using a mobile phone in hand is regarded as a punishable act. If there is no choice but to receive a call, use hands-free and tell the caller that you will “call back” and then pull over to a safe place to make a call.

Use the FeliCa reader/writer function

only in Japan.

The FeliCa reader/writer function in the FOMA terminal conforms to the domestic radio wave standards. Using the function overseas may result in punishment.

Introduction

Page 20

Waterproofness

SH-04B is waterproof to IPX5 (former JIS protection code

Introduction

and IPX7 (former JIS protection code 7)*2 standards if

5) the external connector terminal cover is securely closed as well as the back cover is attached and locked.

*1 IPX5 means that SH-04B phone keeps functioning after

being subjected to a jet flow (approximately 12.5 liters/

min) discharged from a nozzle (inner diameter: 6.3 mm),

from all directions (approximately 3 m from the handset)

for 3 minutes or more.

*2 IPX7 means that SH-04B phone keeps functioning after

it is slowly submerged to depth of 1 m in static tap water

at room temperature, left there for approximately 30

minutes and then taken out.

You can call or watch 1Seg programs without using an

umbrella in the rain (for rainfall of approximately 20 mm per hour).

You can rinse off dirt from the FOMA terminal. Wash the

FOMA terminal with low-pressure water flow (6 liters/min or lower and tap water at room temperature (between 5°C and 35°C)), holding it approximately 10 cm below faucet or shower head. Wash by using only your hands, not a brush or sponge, with the back cover attached and locked, and the external connector terminal cover held in position. Drain the handset before use (nP.22).

You can use the FOMA terminal at a poolside. Do not

throw water in a swimming pool on the FOMA terminal or soak the FOMA terminal in the water of a swimming pool.

You can use the FOMA terminal in a bathroom. Do not

soak the FOMA terminal in the bathtub.

Things to keep in mind

To maintain waterproof performance, check the followings.

Securely close the external connector terminal cover and

the back cover. Be careful not to place too much force on the rubber gasket when opening and closing them.

Make sure that the external connector terminal cover and

the back cover are completely closed without floating.

Before using, make sure that the back cover lever is at the

LOCK position.

To maintain waterproof performance, the FOMA terminal

has the external connector terminal cover and the back cover that allow you to close securely. May cause injuries to your hands or fingers if you try to open them forcibly.

Page 21

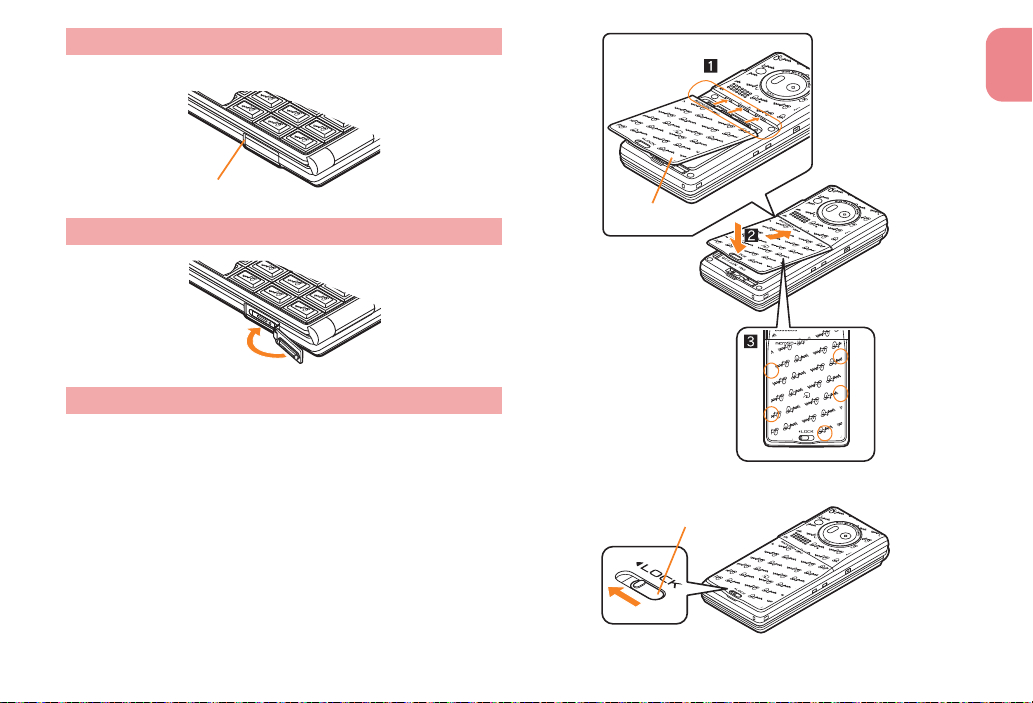

Opening external connector terminal cover

Slot

Back cover

Lever

Hook a finger on the slot to open.

Closing external connector terminal cover

Inserting back cover

Insert the tab of the top of the back cover

into the FOMA terminal slot (1), insert it in the direction of the arrow (2) and securely push five tab areas down with both hands (3)

Slide the back cover lever to lock

Introduction

Page 22

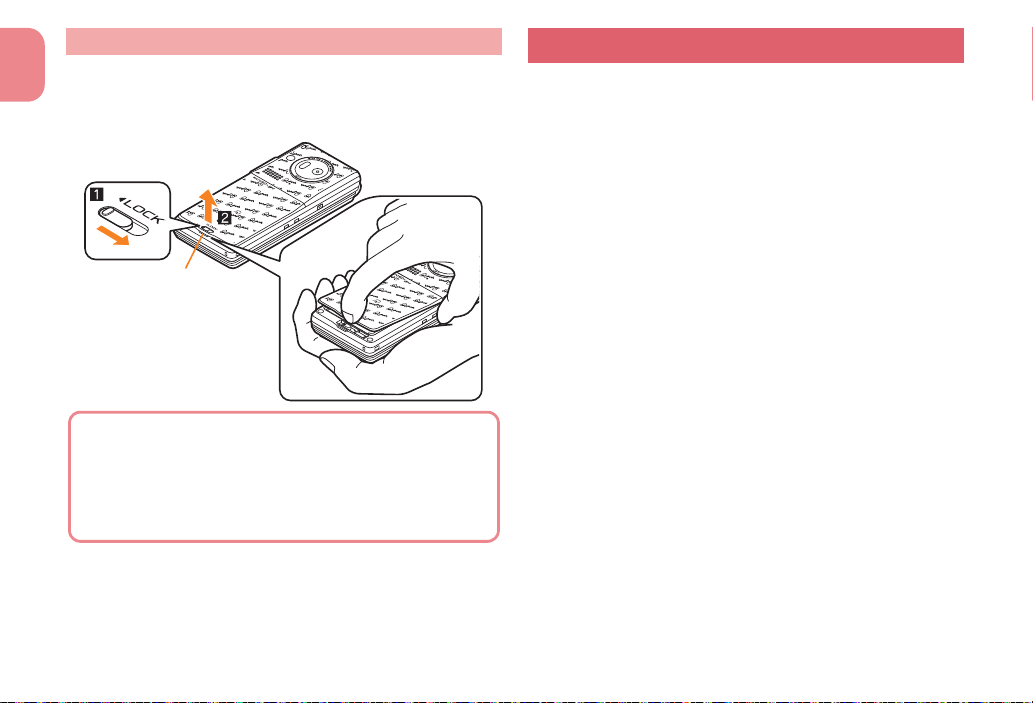

Removing back cover

Slot

To maintain waterproof performance, replacement of

parts is required every 2 years regardless of whether the FOMA terminal appears normal or abnormal. DOCOMO replaces the parts as a chargeable service. Bring the FOMA terminal to a repair center that DOCOMO specifies.

Slide the back cover lever to unlock (1),

Introduction

hook a nail on the slot and remove the back cover (2)

Precautions

When your hands or the FOMA terminal are wet, do not

attach/remove the back cover or open/close the external connector terminal cover.

Securely lock the back cover and close the external

connector terminal cover. Even a fine obstacle (one hair, one grain of sand, tiny fiber, etc.) put between contact surfaces may allow water to seep.

If the FOMA terminal gets wet with water or other liquids

with the external connector terminal cover or the back cover open, the liquid may get inside the terminal causing electric shocks or malfunction. Stop using the FOMA terminal, turn off the power, remove the battery pack and contact a repair center that DOCOMO specifies.

The rubber gasket of the external connector terminal

cover and the back cover play an important role in maintaining waterproof performance. Do not remove or scratch them. Also, prevent dust from adhering to them. If the rubber gasket of the external connector terminal cover or the back cover is damaged or deformed, replace it at a repair center that DOCOMO specifies.

Do not insert sharp objects through external connector

terminal cover and back cover gaps. May damage the rubber gasket and allow water to seep.

If the back cover is damaged, replace it. Water may seep

inside from a damaged section causing troubles such as electric shocks or corrosion of the battery.

Do not use the FOMA terminal underwater (including

opening/closing and key operations). May cause malfunction.

Page 23

Do not apply water flow stronger than allowed (over 6

Soap/Detergent/

Bath powder

Seawater Swimming pool

Sand/DirtHot spring

DOCOMO does not guarantee actual operations under

all states. Malfunctions deemed to be caused by inappropriate operation by the customer are not covered by the warranty.

liters/min). May cause malfunction though SH-04B provides waterproof performance of IPX5.

Do not let the FOMA terminal get wet with liquids other

than water at room temperature (between 5°C and 35°C).

Do not wash the FOMA terminal in a washing machine,

etc.

To prevent condensation, do not bring the FOMA terminal

from a cold place to a bathroom, etc. without letting the FOMA terminal cool to room temperature.

Do not expose the FOMA terminal to extreme humidity for

long periods. Avoid prolonged use in bathrooms.

Never soak the FOMA terminal in hot spring water or

water containing soap, detergent or bath powder.

Do not soak the FOMA terminal in hot water, use it in a

sauna or apply hot air (from a hair dryer, etc.) to it.

Do not soak the FOMA terminal in seawater. Do not put the FOMA terminal directly on sand/dirt. Do not leave the FOMA terminal wet. In cold places, water

may freeze and cause malfunction.

The FOMA terminal does not float on water. Do not let the FOMA terminal fall. It may become

scratched and cause the waterproof performance to degrade.

Do not leave water on the mouthpiece, earpiece or

speaker. Such water may interfere with talking.

Do not poke the mouthpiece, earpiece or speaker with a

cotton swab or sharp object. May damage the waterproof performance.

Accessories and optional parts are not waterproof. When

the FOMA terminal is placed on the accompanying desktop holder, do not use it in rooms which water is regularly in use such as bathroom, shower room, kitchen, lavatory, etc. even if it is not connected to the AC adapter.

Introduction

Page 24

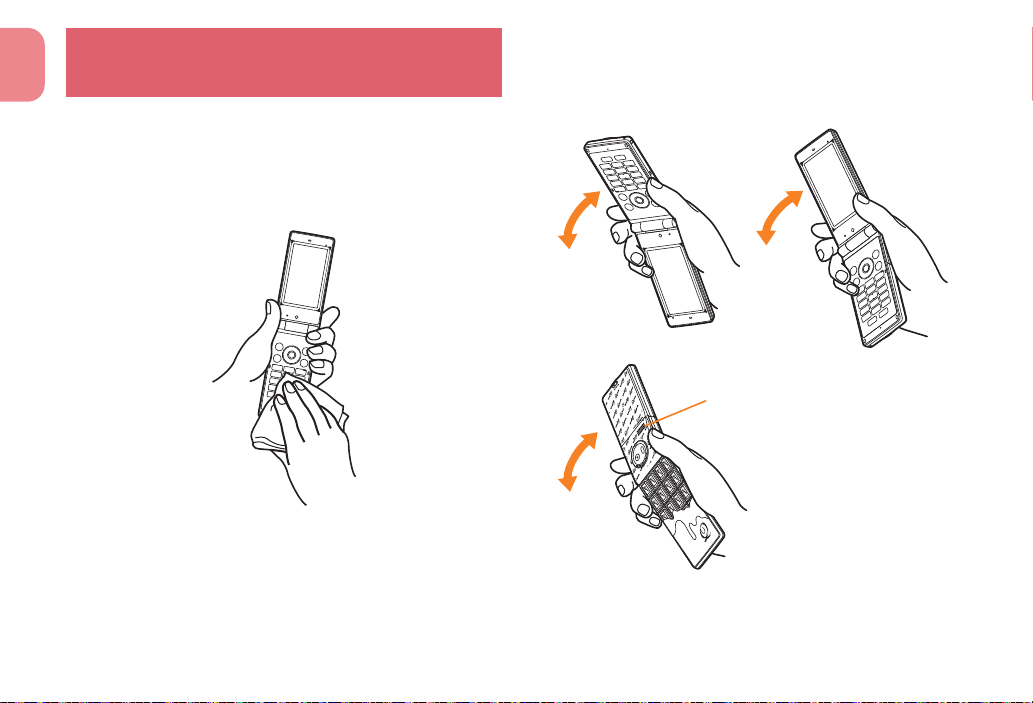

Draining water when the FOMA

To drain water off the speaker, shake the FOMA terminal with the speaker upward

terminal gets wet

Introduction

When the FOMA terminal is wet, water may flow out after wiping it off. Drain the water following the steps below.

Wipe the FOMA terminal surface with dry

and clean cloth, etc.

If a strap is attached, dry the strap well.

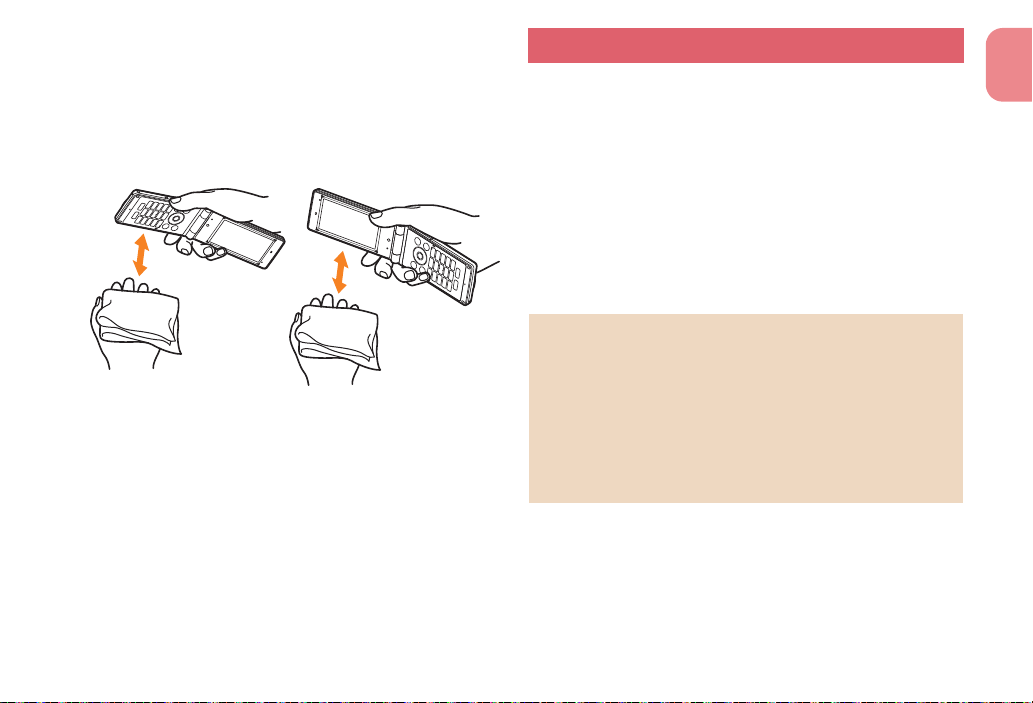

Shake the FOMA terminal approximately

20 times, securely holding its hinge section, until there is no more water splattering

Page 25

Softly press dry and clean cloth, etc.

against the FOMA terminal to wipe off water remaining in the mouthpiece, earpiece, speaker, keys, air vent or hinges

Pat the opening with cloth to remove water because

there may be any water remaining in the grooves of each part.

Wipe off water drained from the FOMA

terminal with dry and clean cloth, etc.

Water, if any, remaining in the FOMA terminal may

ooze up after wiping off.

Charging

Accessories and optional parts are not waterproof. Check the followings before and after charging.

Make sure that the FOMA terminal is not wet. If the FOMA

terminal is wet or after the FOMA terminal is wet, adequately drain it and wipe off water with dry and clean cloth, etc. before placing on a desktop holder or opening the external connector terminal cover.

When the external connector terminal cover is opened for

charging, close the cover securely after charging. It is recommended that the desktop holder be used for charging to prevent water from seeping inside from the external connector terminal cover.

Never try to charge the battery pack when the FOMA

terminal is wet.

Do not touch the AC adapter or desktop holder with your

wet hands. May cause electric shock.

Do not use the AC adapter or desktop holder in a place

subject to water. Do not use the AC adapter or desktop holder in rooms which water is regularly in use such as bathroom, shower room, kitchen, lavatory, etc. May cause fire or electric shock.

Introduction

Page 26

Basic Operation

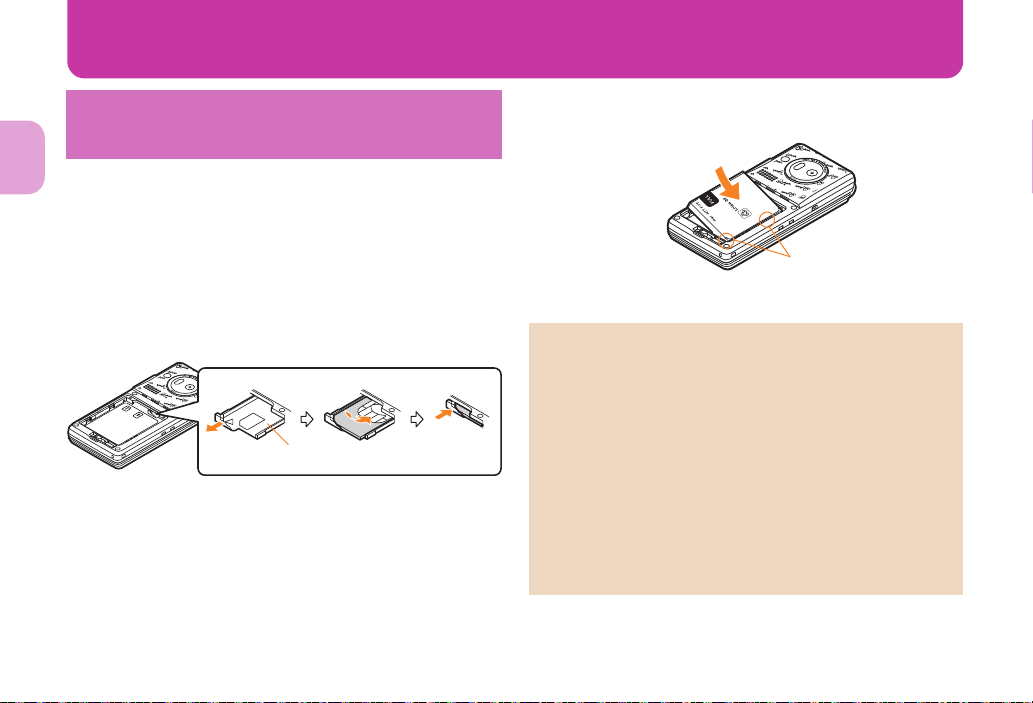

Inserting FOMA card and

123

Tray

Tabs

battery pack

A FOMA card is an IC card that records personal

Basic Operation

information, such as phone numbers, etc.

Remove the back cover (nP.20)

Pull out the tray straight (1). Set the

FOMA card on the tray with the IC side turned up (2) and push the tray all the way in (3)

Before Use

Turn a recycle mark side up, match tabs

and attach the battery pack

Attach the back cover (nP.19)

Turn off the power and insert the FOMA card/battery

pack while holding the FOMA terminal with your both hands. Note that excessive force may damage the FOMA terminal, FOMA card and battery pack.

The battery pack is not waterproof. Securely close the back cover. If not closed securely, the

back cover may come off and the battery pack may fall out due to vibration. May damage the waterproof performance and allow water to seep.

The battery pack has a “PULL” tag that makes it easy to

remove. Hold the “PULL” tag between your fingers and lift up it 45-degree from the FOMA terminal to remove the battery pack.

Page 27

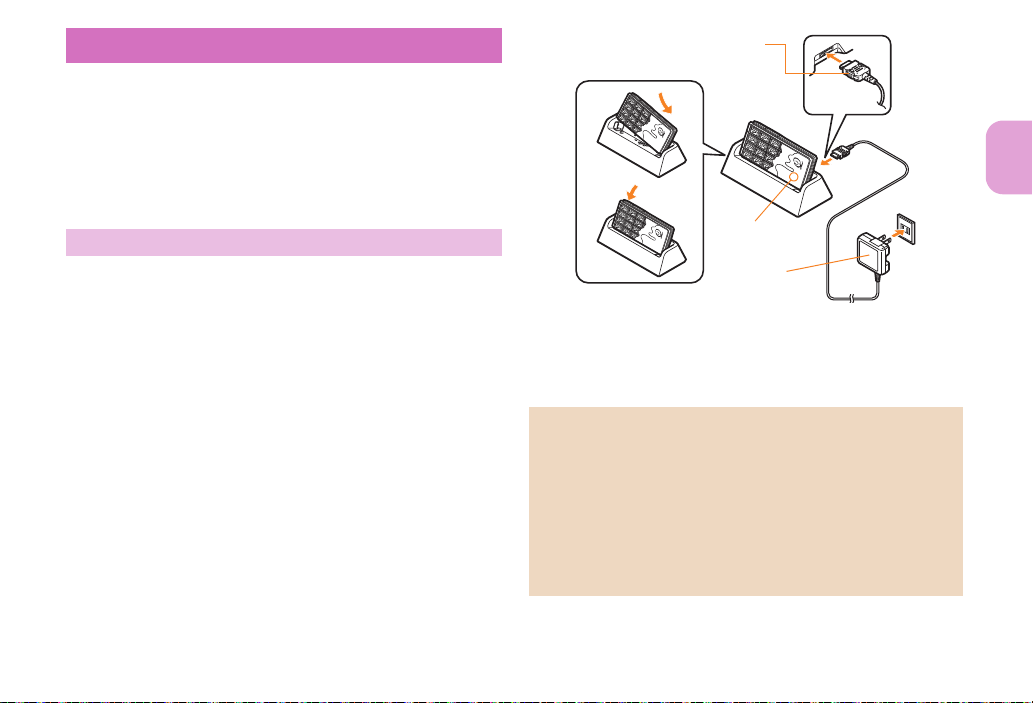

Charging

Connector (Turn the side with the arrows up)

Charging LED

FOMA AC Adapter 01/02

It is recommended that the accompanying desktop holder

be used for charging to prevent water from seeping caused by forgetting to close the external connector terminal cover.

The AC adapter and desktop holder are not waterproof.

Never try to charge the battery pack when the FOMA terminal is wet. For precautions on the waterproof performance when charging nP.23

Charging by using desktop holder

Read the user’s guide of accompanying Desktop Holder

SH25.

Charging is not available with the FOMA terminal opened.

Insert the AC adapter connector into the

connector terminal of the desktop holder

Insert the AC adapter power plug into an

outlet, place the FOMA terminal in the desktop holder (1) and push it in the direction of the arrow until it clicks (2)

Charge start sound is heard, charging LED

illuminates, and charging starts.

Hold the desktop holder and lift the FOMA

terminal out when charging is complete

Charge end sound is heard and charging LED turns

off when charging is complete.

Pull the AC adapter out of the outlet when left unused for

a long period of time.

When charge start sound is not heard or when charging

LED does not illuminate, check that the FOMA terminal is placed securely in the desktop holder (except when terminal is turned off, manner mode is set or charge start sound is silent).

When placing the FOMA terminal in the desktop holder,

be careful not to catch a strap.

Basic Operation

Page 28

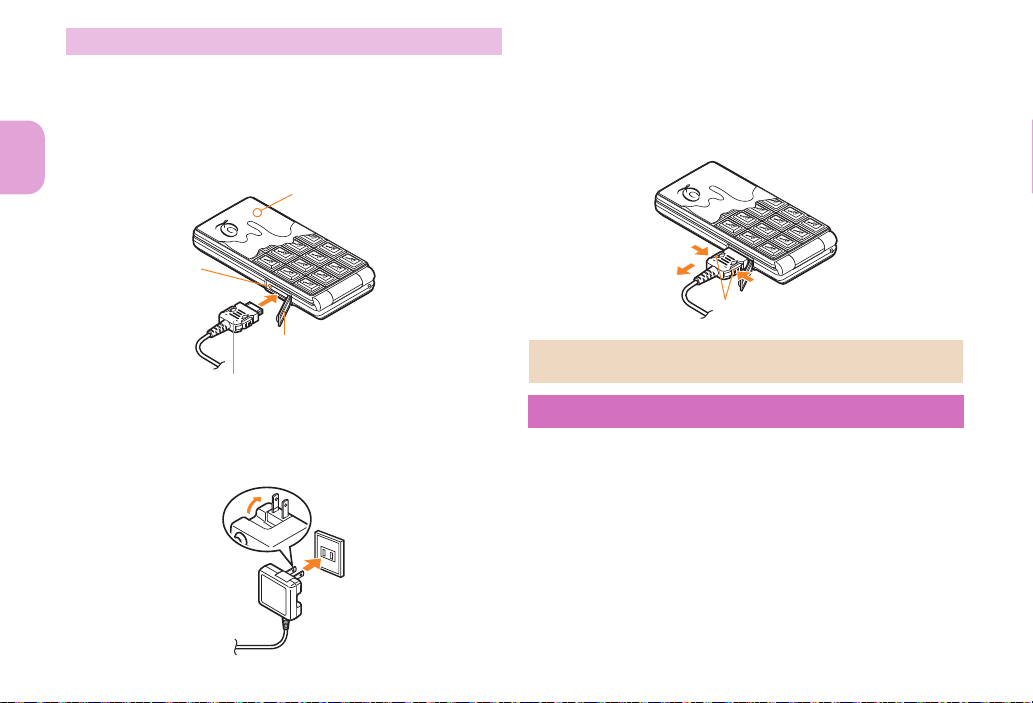

Charging by using AC adapter

External connector terminal

Connector (Turn the side with the arrows up)

Charging LED

External connector terminal cover

Release buttons

Read the user’s guide of FOMA AC Adapter 01/02 (sold

separately).

Open the external connector terminal

cover and insert the AC adapter connector horizontally into the external connector terminal

Basic Operation

Hold the release buttons (1) and

horizontally remove the connector (2) when charging is complete

Charge end sound is heard and charging LED turns

off when charging is complete.

Note that excessive force may damage the FOMA

terminal and AC adapter.

Insert the AC adapter power plug into an

outlet

Charge start sound is heard, charging LED

illuminates, and charging starts.

Turning power on

H (for 2+ seconds)

Stand-by display appears when initial settings are

complete.

Press H for 2+ seconds to turn the power off.

Page 29

Changing screen display to

Alternatively, ] [Settings]/[Initial setting] to display the setting screen.

English

Checking your own phone number

][Settings]/[一般設定]/

[Bilingual]/[English]

Making initial setting

If initial settings are not complete, the setting screen

appears every time the power is turned on.

Set the date and time

Set the key sound

Set GPS location provision on/off

Set the font size collectively

Saving your own name and image

]0/t&

Enter the terminal security code/t&/

C/[Edit] Save owner information/i

Basic Operation

Page 30

Screen Explanation

Icon display area

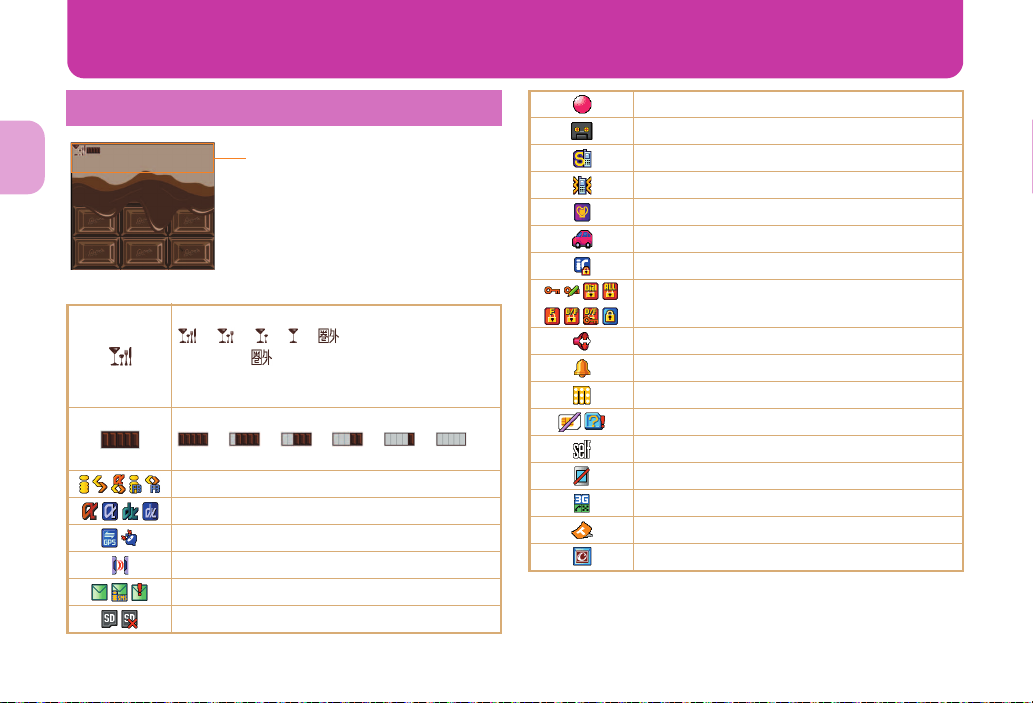

Viewing display/icon

Basic Operation

Main icons

Signal status

bbbb (Strong b Weak)

When [ ] appears, the handset is

outside the service area or in a place with no signal.

Battery level

bbbbb

(High b Low)

i-mode/Full Browser i-appli

GPS

Ir communication

i-mode mail/SMS/Area Mail received

microSD Card

1Seg being recorded

Record message

Silent

Vibrator

Manner mode

Public mode (Drive mode)

IC card lock

Restriction

Hands-free

Alarm

Music&Video Channel program reservation

FOMA card error

Self mode

VeilView

ToruCa

Information received

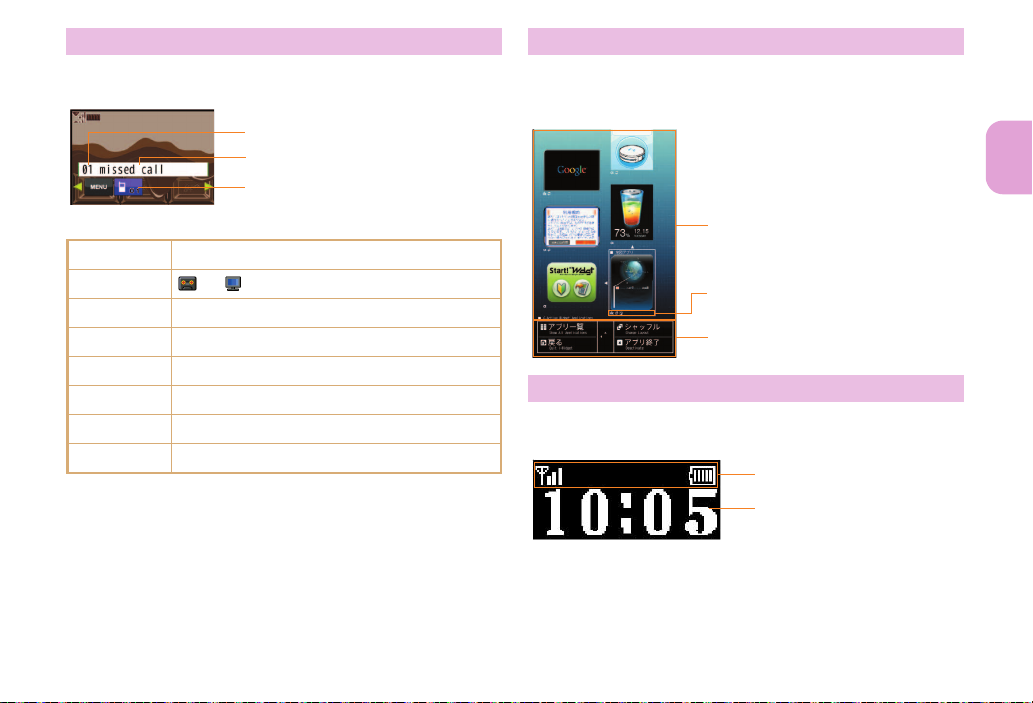

Page 31

Checking stock icon details

Number of entries

Message

Stock icon

Area where Widget Appli is attached

Setting status icons for Widget Appli

Operation guidance

Icon display area

Clock display

Stock icons appear in the stand-by display when a call is missed or a new mail is received.

Main stock icon type

B F E C

t g

* The displayed message differs depending on the menu

screen.

A stock icon appears in the stand-by

display/t& Select the stock icon/t&

The stock icon and message disappear after you

xx missed call

xx/ xx message

xx voice mail

xx mail message

Update required

Download successful (Music&Video Channel)

Download failed (Music&Video Channel)

Custom menu/Basic menu

check the details.

Displaying and operating i-Widget

In the i-Widget screen, you can simultaneously activate multiple Widget Appli and display them as a list. For details on operation of i-Widget nP.72

Basic Operation

Viewing sub display

The following shows a screen when sub clock display

(nP.37) is set to [Stdby clock(H・L)].

Page 32

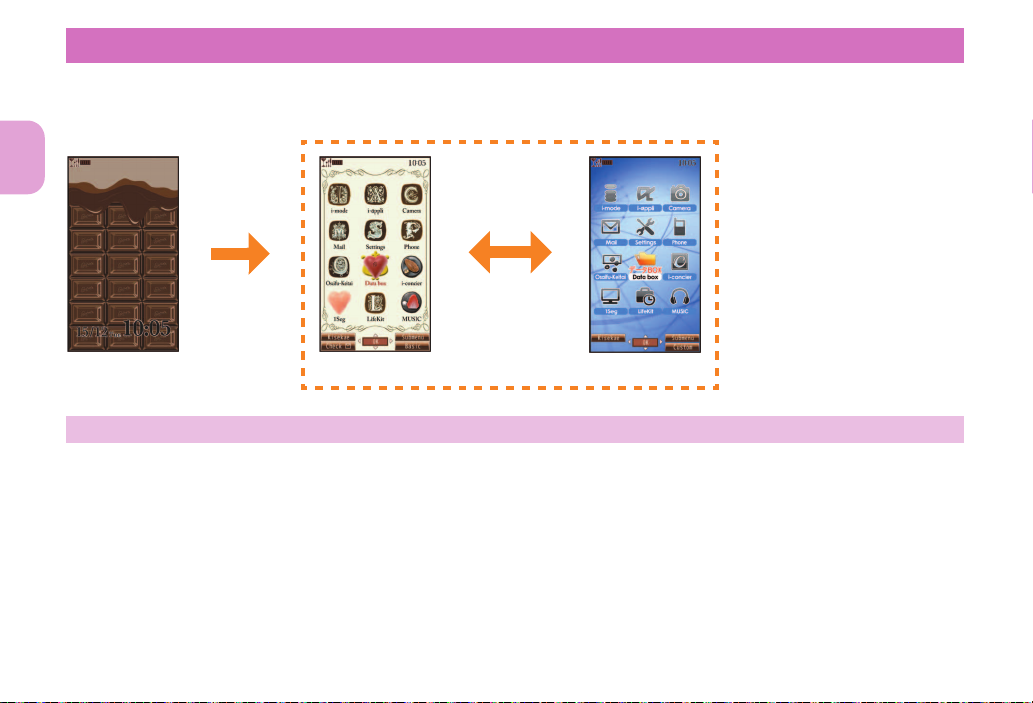

Viewing main menu

Stand-by

display

Custom menu

Basic menu

Menus are classified by function (nP.89). You can select the icon displayed on the menu to retrieve the function. The explanations in this manual are based on the method for retrieving a function from the custom menu.

Functions and designs of the custom menu differ depending on the Kisekae tool set.

Basic Operation

Setting start menu

You can set the start menu which is displayed when you press t& in the stand-by display.

^t&/[Settings]/[Disp/LED/Power saver]/[Menu priority]

Select the start menu/t&/[Yes]

Page 33

Key operation

Multi-guide key and operation guidance key

Use to select or execute the menus displayed in the operation guidance.

Clear key

Use to return to the previous screen.

End key

Use to end the function being activated and return to stand-by display.

t& u&

Main menu displayed in the operation guidance

OK Set selected item Submenu Display the submenu Agree Check selected item Back Return to the previous screen Show all Display sorted files as a list Cancel Cancel an operation SelAll/ClrAll Select/Disable all selectable items Close Close the submenu, etc.

Basic Operation

Page 34

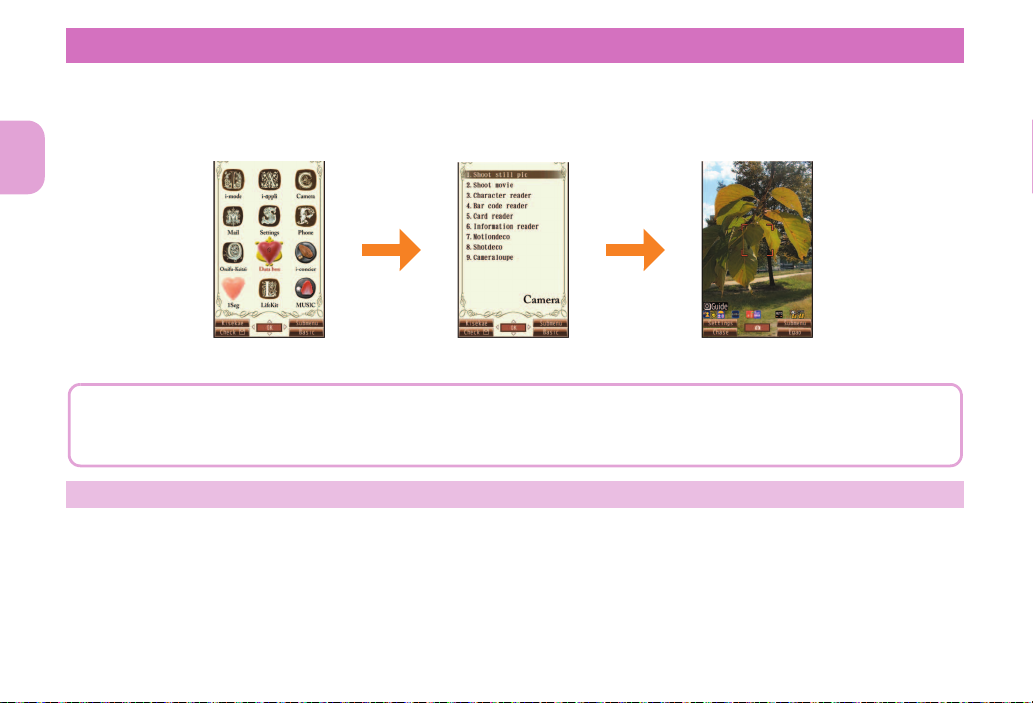

Menu operation

ww&t&

u&t&

Custom menu When [Camera] appears Camera (shooting still pictures)

is activated

Operation procedure

Above operation is described as “][Camera]/[Shoot still pic]” in this manual.

Operations from the stand-by display are described as “^”.

For details on the available functions nP.89 The method for selecting functions may differ depending on the Kisekae tool set for the custom menu. When the custom menu screen is changed by the Kisekae tool, the operation may differ from the description in this manual.

Example: Retrieve camera (shooting still pictures) using Multi-guide key

Basic Operation

Selecting a function from submenu

When [Submenu] appears in the operation guidance, functions (submenu) that can be used in the screen appear by pressing C. Select the displayed submenu with w&. If there are multiple pages in submenu, change pages with w&.

Page 35

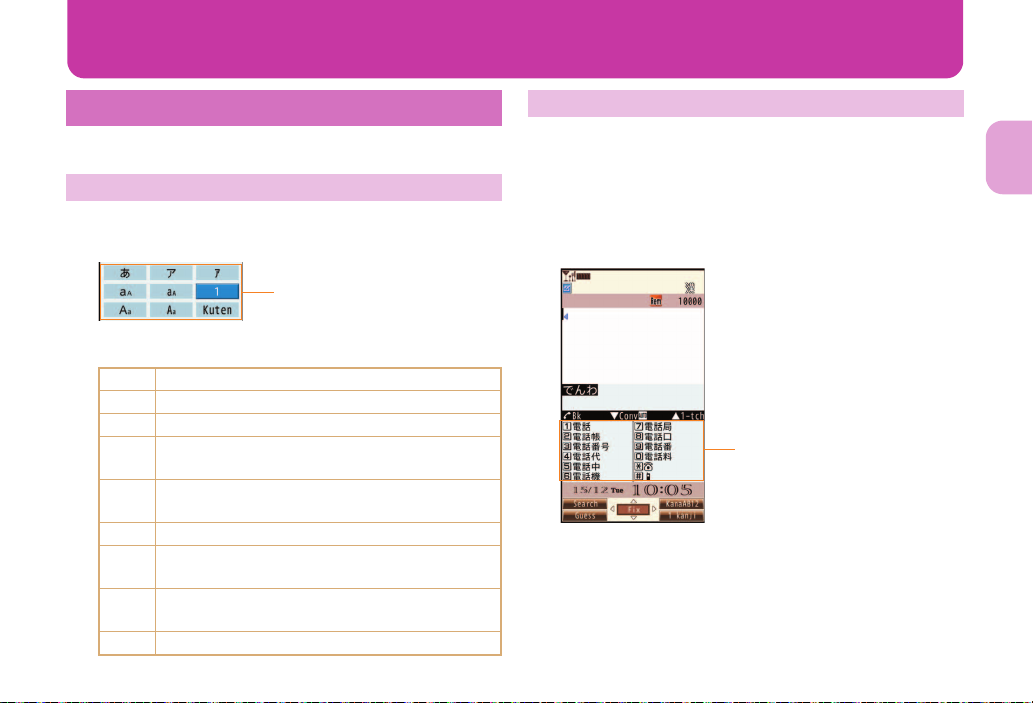

Character Entry

Entry mode switch palette

Conversion candidates field

Entering characters

The explanations in this manual are based on method for

entering characters in 5-touch entry method.

Switching entry modes

Switch entry modes to enter various types of characters.

In the character entry screen, a

Select the entry mode/t&

Kanji/Hiragana

あ

Double-byte katakana

ア

Single-byte katakana

ｱ

Double-byte alphanumeric characters

ａ

Ａ

(lower case b upper case) Single-byte alphanumeric characters

(lower case b upper case)

1 Single-byte numbers

Double-byte alphanumeric characters

Ａａ

(upper case b lower case) Single-byte alphanumeric characters

(upper case b lower case)

Kuten Kuten code

Entering characters

Example: When entering “電話”

In the character entry screen, enter “

でんわ: 4 (four times)/* (once)/0 (three

times)/r&/0 (once)

To enter multiple characters assigned to the same

key: r&/enter a character

Move the cursor to the conversion

candidates field with p& Select “電話”/t&

でんわ

”

Basic Operation

Page 36

Entering pictograms/symbols

In the character entry screen, i

To switch between pictograms and Deco-mail

pictograms: i

To switch between single- and double-byte symbols:

Select a pictogram/symbol/t&

Basic Operation

Using phrases

In the character entry screen, C/

[Phrase(Hold-)]

Alternatively, a (for 1+ seconds) to operate.

Select a phrase/t&/confirm the

phrase/t&

Entering emoticons

In the character entry screen, C/

[Emoticon(Hold:)]

Alternatively, m (for 1+ seconds) to operate.

Select an emoticon/t&

Copying characters

In the character entry screen, move the

cursor to the start position/C/ [Copy]/t&

Move the cursor to the end position/t&

The highlighted text string is copied.

Cutting characters

In the character entry screen, move the

cursor to the start position/C/ [Cut(HoldS)]/t&

Alternatively, # (for 1+ seconds) to operate.

Move the cursor to the end position/t&

The highlighted text string is cut.

Pasting characters

In the character entry screen, move the

cursor to the paste position/C/ [Paste(HoldR)]/t&

Alternatively, * (for 1+ seconds) to operate.

Page 37

Sound/Screen Setting

Select from [Pattern1] to [Pattern3] with u& to sample the vibration pattern.

Changing ring tone

][Settings]/[Snd/Vibrator/

Manner]/[Select sound] Select an item/t&

Select a ring tone/i

Adjusting volume

You can change the mobile phone sound volume such as ring tone, etc.

][Settings]/[Snd/Vibrator/

Manner]/[Select volume] Select an item/t&

Adjust the volume with u&/t&

Setting keypad sound off

][Settings]/[Snd/Vibrator/

Manner]/[Select volume]/[Key sound] Select [Silent] with p&/t&

Setting vibrator

You can set the vibrator to notify you of incoming calls, mails, alarms and GPS function.

][Settings]/[Snd/Vibrator/

Manner]/[Vibrator] Select an item/t&

Select the vibrator/t&

Note that if you set the vibrator and put the FOMA

terminal on a table, it may fall due to vibration.

Basic Operation

Page 38

Using manner mode

Alternatively, press # (for 1+ seconds) to set/disable manner mode while receiving a call.

You can set the FOMA terminal on mute.

Camera shutter sound and record start/end sound are

heard even while the manner mode is set.

Normal The sound is not heard and vibrator is activated for

receiving a call, etc.

Silent The sound is not heard and vibrator is not

Basic Operation

Original You can change settings for each ring tone, alarm

1 2

activated.

tone, vibrator, etc.

][Settings]/[Snd/Vibrator/

Manner]/[Manner mode]/[ON] Select the type/t&

Setting/Disabling manner mode by one-touch operation

^# (for 1+ seconds)

The screen for selecting manner mode appears. The

selected manner mode is set if you do not operate for approximately 2 seconds.

Changing original manner mode setting

][Settings]/[Snd/Vibrator/

Manner]/[Manner mode]/[ON]/ [Original]

Select an item/t&

Select the setting/t&

To adjust the volume: Adjust the volume with u&/t&

Page 39

Changing screen display

Changing main display

][Settings]/[Disp/LED/Power

saver]/[Set screen]/[Stand-by display] Select an image/i/[Yes]

Changing clock design of sub display

][Settings]/[Disp/LED/Power

saver]/[Set screen]/[Sub Clock display] Select the type/t&

Setting Machi-chara

You can display a character in the stand-by display.

][Settings]/[Disp/LED/Power

saver]/[Themes]/[Machi-chara]/[ON] Select a Machi-chara/i

Machi-chara being set does not appear.

Changing menu item

For some of Kisekae tool, you can change the custom menu items to other functions.

]select an item/C/[Assign

function] Select a function to assign/t&/[Yes]

Changing font setting

][Settings]/[Disp/LED/Power

saver]/[Font style]/[Font style setting] Select the font style/t&

Basic Operation

Page 40

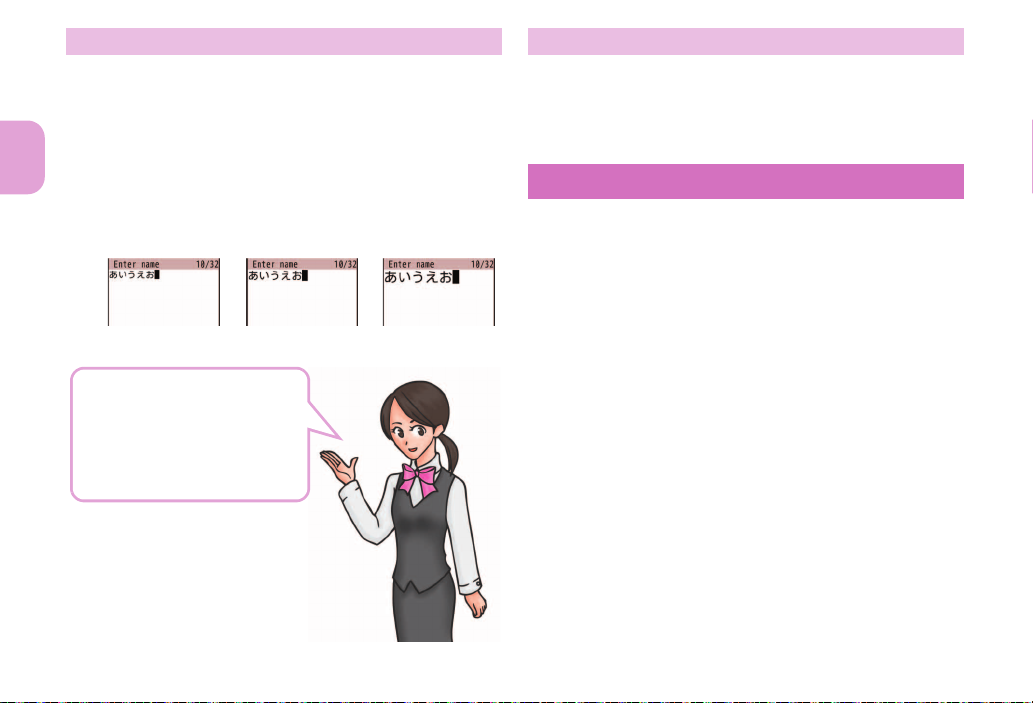

Changing font size

Normal Large Maximum

Alternatively, ^5 (for 1+ seconds) to set the font size. Font size is switched from [Large] b [Maximum] b [Normal].

][Settings]/[Disp/LED/Power

saver]/[Font style]/[Font size setting] [Collective setting]/select the font size/

When a confirmation screen asking whether to

Basic Operation

change the menu appears, select [Yes] to change the font size and menu. Select [No] to change the font size only.

Setting VeilView

You can prevent others from seeing your display.

$ (for 1+ seconds)

; To disable: $ (for 1+ seconds)

Changing Kisekae tool

You can change the custom menu screen, stand-by display, menu icon, ring tone, etc. collectively.

][Data box]/[Kisekae Tool]

][Settings]/[Disp/LED/Power saver]/

[Themes]/[Kisekae Tool] to operate.

Select Kisekae tool/i/[Yes]

To check data: Select Kisekae tool/t& (to display

data list screen in Kisekae tool)/select data/t&

Page 41

Changing illumination for

^s (for 1+

seconds)/[Yes] to set the eco mode (Power saver).

incoming calls

][Settings]/[Disp/LED/Power

saver]/[LED settings]/[Called LED] Select an item/t&

[LED color settings]/select the LED

color/t& [LED pattern settings]/select the LED

pattern/t&

Checking missed calls or new mails with LED

LED flashes and notify you of missed calls and new mails.

][Settings]/[Disp/LED/Power

saver]/[LED settings]/[Notice LED] Select an item/t&/[ON]

Saving power consumption

Norm (auto bright)

Norm (fixed bright)

Eco mode (Pwr saver)

Original Eco mode

][Settings]/[Disp/LED/Power

saver]/[Light/Power saver] Select the type/t&

This is normal light setting. Brightness is automatically adjusted.

This is normal light setting. Brightness is fixed.

This is power saver mode.

You can change settings for light duration, brightness, etc. of display.

Basic Operation

Page 42

Changing original eco mode setting

Setting light time of display and keypad

You can set the length of backlight time by functions when the FOMA terminal is not in use for a set length of time.

Basic Operation

][Settings]/[Disp/LED/Power

saver]/[Light/Power saver]/[Original Eco mode]/[Display light time]

Select an item/t&

Select the setting/t&

To change the setting of [Normal]: Enter the light

duration/t&

Setting screen display time

Display is turned off when the FOMA terminal is not in use for a set length of time.

][Settings]/[Disp/LED/Power

saver]/[Light/Power saver]/[Original Eco mode]/[Screen dsp time]

Select the time/t&

Adjusting display brightness

Automatic The display brightness is automatically adjusted

Manual You can select from 16 display brightness levels.

Setting keypad backlight

Set whether to turn on or off the keypad backlight.

according to the surrounding light.

][Settings]/[Disp/LED/Power

saver]/[Light/Power saver]/[Original Eco mode]/[Brightness]

Select the adjusting method/t&

][Settings]/[Disp/LED/Power

saver]/[Light/Power saver]/[Original Eco mode]/[Keypad light setting]

Select the setting/t&

Page 43

Lock/Security

Precautions for various security codes

Do not use easily estimated numbers for security

codes to be set such as “birthday”, “part of a phone number”, “address or room number”, “1111” or “1234”. Keep a separate memo of security codes.

Keep security codes private. If the security codes are

found and improperly used by others, DOCOMO shall not be liable for any loss of the users.

If you forget your security codes, you are required to

bring your identification (a driver’s license, etc.), your FOMA terminal and your FOMA card to a docomo Shop.

For further details, contact the number listed in

“General Inquiries” on the back of this manual.

[0000] is set by default but you can change the code.

You set arbitrary code at the time of subscription but you can change the code.

Various security codes

Some functions for convenient use of the FOMA terminal require security codes.

Terminal security code (for various functions)

If you enter the wrong terminal security code five times

continuously, the power is turned off.

Changing terminal security code

][Settings]/[Security]/[Change

security code]/enter the current terminal security code/t&

Enter the new terminal security code/

t&/enter the new terminal security code

again/t&

Network security code

Network security code is a four-digit code required for confirming the subscriber’s identity when an order is received

at a docomo Shop, docomo Information Center or “お客様サポート (user support)”, or used for accessing various network

services.

Changing network security code

[iMenu]/[

認・変更・利用

お客様サポート]/[各種設定 (確

)]/[

ネットワーク暗証番号変更

Basic Operation

]

Page 44

i-mode password

[0000] is set at the time of subscription but you can change the password.

[0000] is set at the time of subscription but you can change the code.

The code is described in the agreement form (customer copy) you received at the time of subscription. You cannot change the code.

A four-digit “i-mode password” is required to register/delete sites in マイメニュー (My menu), or subscribe/cancel

message services and charged i-mode services (Additionally,

Basic Operation

information providers may set their own passwords).

Changing i-mode password

[iMenu]/[English]/[Options]/[Change

i-mode Password]

PIN1 code/PIN2 code

Changing PIN1 code/PIN2 code

][Settings]/[Security]/[UIM

Settings]/enter the terminal security code/t&

Select the PIN1 or PIN2 code/t&

Enter the current PIN code/t&

Enter the new PIN code/t&/enter the

new PIN code again/t&

PUK

You can set two security codes, PIN1 code and PIN2 code, on the FOMA card. The PIN1 code is a four- to eight-digit security code that is entered when a FOMA card is inserted or when the FOMA terminal is turned on to prevent unauthorized use by a third party. Enter the PIN1 code to enable making/receiving calls and operating the handset. The PIN2 code is four- to eight-digit security code that is entered for performing operations such as resetting total cost or using client certificates, or applying for.

PUK is an eight-digit number used to disable the PIN1/PIN2 code lock. If you enter the wrong code ten times continuously, the

FOMA card is completely locked. In this case, contact a docomo Shop.

Page 45

Various lock functions

Lock function Operation/Restriction Lock function Operation/Restriction

All lock Prevents all operations other than power

on/off and answering calls. Enable: ][Settings]/

[Security]/[Lock settings]/enter the terminal security code/t&/[All lock]/[Yes]

Disable: ^enter the terminal

security code/t&

Keypad dial lock Prevents keypad dialing.

Enable/Disable: ][Settings]/

[Security]/[Lock settings]/enter the terminal security code/t&/[Keypad dial lock]/select the setting/t&

Function lock

Self mode Prevents all functions that require a

* This is a paid service. Refer to “Mobile Phone User’s Guide [i-mode] FOMA version” for details on Omakase Lock.

Prevents access of each function individually. Enable/Disable: ][Settings]/

[Security]/[Lock settings]/enter the terminal security code/t&/[Function lock]/select an item to lock/disable/

t&/C

communication. Enable/Disable: ][Settings]/

[Phone settings]/[Self mode]/select the setting/t&/[Yes]

Multi lock Keypad dial lock, IC card lock and

Function lock can be set collectively. Enable: ^t& (for 1+ seconds)/

[Multi lock]/[Yes]

Disable: ^tt& (for 1+

seconds)/[Multi lock]/enter the terminal security code/t&

IC card lock Prevents the use of IC card functions.

Enable: ^tt& (for 1+ seconds)/

[IC card lock]/[Yes]

Disable: ^tt& (for 1+

seconds)/[IC card lock]/enter the terminal security code/t&

Side key lock Prevents the side key operation.

Enable/Disable: ^tt& (for 1+

seconds)/[Side key lock]

Omakase Lock*Omakase Lock is a service to lock the

personal data and IC card functions in case of loss, etc. by only your request to DOCOMO via phone.

Enable/Disable Omakase Lock

s 0120-524-360 Office hours: 24 hours

Basic Operation

Page 46

Incoming call restriction

Rejecting a call with no caller ID

You can set the handset to reject calls with no caller ID depending on reason (User unset, Payphone, Unavailable).

][Settings]/[Security]/[Accept/

Basic Operation

Reject calls]/enter the terminal security code/t&

Select the reason/t&

Select the setting/t&

Rejecting a call from a caller unset in phonebook

][Settings]/[Security]/[Accept/

Reject calls]/enter the terminal security code/t&/[Reject unknown]

Select the setting/t&

Resetting to default

Resetting various functions

For items return to default by reset settings nP.89

][Settings]/[General settings]/

[Reset settings]

Enter the terminal security code/t&

[Yes]/[Agree]

Deleting saved data all at once

You can delete all saved data and reset the settings of each function to default. Protected data is also deleted.

][Settings]/[Security]/[Delete all

data]/[Delete user data] [Agree]/enter the terminal security

code/t&/[Yes]

Resetting data by remote control

You can initialize various data (memory in the FOMA terminal handset/microSD Card/FOMA card (UIM)) in the specified FOMA terminal by manager’s request with the subscription of this function (Business mopera anshin manager). Refer to the DOCOMO website for corporations for details. docomo Business Online PC: http://www.docomo.biz

※ You may not be able to access some site services due to

system maintenance, etc.

Remote reset is a service that requires subscription.

Page 47

Call

Connect

If you make a call, you can switch a voice call and a videophone call pressing a during a call.

Making a voice/videophone call

DOCOMO videophones comply with “3G-324M as defined

by the international 3GPP standard”. Connection is not available with videophones using other standards.

^enter a phone number

Start with the area code.

s (Phone)/i (V.phone) to make a call

To enable/disable hands-free (voice call): s (for 1+

seconds)

To enable/disable hands-free (videophone call): s

H to end the call

Making a call from phonebook

Select a name

s (Phone)/i (V.phone) to make a call

Making a call with redials/received calls

^r& (Redial)/q& (Received call)

Select a phone number/t&

s (Phone)/i (V.phone) to make a call

Notifying the other party of your phone number

You can display your number on the other party’s phone when you make a call.

][Settings]/[NW Services]/[Notify

caller ID]/[Activate/Deactivate]/[Yes]

Connect

Page 48

Making an international call

WORLD CALL is an international calling service available from DOCOMO mobile phones. “WORLD CALL” is registered when FOMA services are registered (excluding users who did not apply for “WORLD CALL”). “WORLD CALL” charges are billed with the monthly

mobile phone charges.

Commission and monthly usage fees are free. For details on WORLD CALL, contact the number listed in

“General Inquiries” on the back of this manual.

To make an international call through a company other

Connect

than DOCOMO, contact the representative companies directly for instructions.

Some payment plans may not be available.

^0 (for 1+ seconds)/enter the

country code, area code (city code) and other party’s phone number

For area codes (city codes) that begin with “0”, omit

the “0” when entering (Include the “0” when making a call to some countries or regions such as Italy).

s (Phone)/i (V.phone)/[Call]

Receiving a voice/videophone call

A call is received

The ring tone sounds and the called LED flashes. When the caller does not send a caller ID, a

non-disclosure reason message appears.

• [User unset]: When the caller purposely withholds caller ID

• [Payphone]: When the call is received from a payphone

• [Unavailable]: When the caller cannot send a caller ID, such as when the call is received from overseas or ordinary (landline) telephones via various transfer services

s to answer a call

H to end a call

Adjusting earpiece volume

During a call, o&/p&

Adjust the volume with u&

Page 49

When you cannot answer call

Alternatively, 7 (for 1+ seconds) during an incoming call to record.

Public mode (Drive mode)

The FOMA terminal plays the message stating you cannot answer the phone without the ring tone.

^* (for 1+ seconds)

; To disable: ^* (for 1+ seconds)

Public mode (Power off)

The FOMA terminal plays the message stating you cannot answer the phone when the power is off.

^*25251/s

; To disable: ^*25250/

Placing a call on hold when you cannot answer call immediately

During an incoming call, H

The call is disconnected when you press H while on

hold, or when the other party disconnects the call (The call is saved in received calls).

s when ready to answer

Setting record message (voice/videophone calls)

If you set record message, the FOMA terminal answers a call and records the caller’s message when you cannot answer.

][Settings]/[Phone settings]/

[Record message]/[Record message] Select the setting/t&

; To play record message: ][LifeKit]

/[Voice memo/Rec msg]/[Play]/select

a message/t&

Recorded contents may be lost due to malfunctions,

repairs or other handling of the FOMA terminal. DOCOMO shall not be liable for any loss of content. It is recommended that a memo be kept of contents for record message (voice/videophone calls).

Connect

Page 50

Using various network services

Service name Subscription Monthly fee

Voice Mail Service Necessary Fees apply Call Waiting Necessary Fees apply Call Forwarding Service Necessary Free Nuisance Call Blocking

Service Notify Caller ID Service Not necessary Free Caller ID Request Service Not necessary Free 2in1 Necessary Fees apply Public mode (Drive mode) Not necessary Free

Connect

Public mode (Power off) Not necessary Free Dual Network Service Necessary Fees apply English Guidance Not necessary Free Multi Number Necessary Fees apply OFFICEED Necessary Fees apply Melody Call Necessary Fees apply

Network services are not available outside the service

area or in a place with no signal.

“OFFICEED” is a service that requires a subscription.

Refer to the DOCOMO website for corporations (in Japanese only) (http://www.docomo.biz/html/product/ officeed/) for further information.

Refer to “Mobile Phone User’s Guide [Network Services]”

for details on each network service.

For subscription and inquiries, contact the number listed in

“General Inquiries” on the back of this manual.

Not necessary Free

Using Voice Mail Service

][Settings]/[NW Services]/[Voice

Mail] [Activate VoiceMail]/[Activate

VoiceMail]/[Yes]

Using Call Waiting

][Settings]/[NW Services]/[Call

waiting] [Activate]/[Yes]

Using Call Forwarding Service

][Settings]/[NW Services]/[Call

Forwarding] [Activate]/[Activate]/[Yes]

Page 51

Services available for the FOMA terminal

For weather forecast, enter the number, starting with the

area code of the area you want to know the weather. For other services, dial without area code.

Available services

Directory assistance service (fees apply: assistance fee + call fee)

Telegrams (fees apply: telegram fee) 115 Time tone service (fees apply) 117 Weather forecast (fees apply) 177 Police emergencies 110 Fire department/Medical assistance 119 Emergencies and accidents at sea 118 Disaster message (fees apply) 171 Collect call (fees apply: assistance fee + call fee) 106

* We do not provide directory assistance service to

customers who do not want to have it.

If landline phones subscribed to “Call Forwarding” are set

to forward calls to mobile phones, callers may hear the phone ringing even if the mobile phone is busy, outside the service area, in self mode or turned off depending on the settings for the landline/mobile phones.

Phone

number

104

The FOMA terminal supports “Location notification of

emergency call”. When dialing an emergency number such as 110, 119, and 118, the information of your location (location information) is automatically notified to the agency that receives the emergency call (e.g. the police station). Depending on your location and the reception status of the signal, the agency that received the emergency call may not be able to confirm the exact location. If the location information is notified, the name of the agency that received the emergency call is displayed in the stand-by display. If you are not sending your caller ID by calling with “184” added or other means, your location information and phone number are not notified. However, if the agency that received the emergency call considers your location information and phone number necessary for important purposes, such as life saving, the agency can retrieve them regardless of your settings. In addition, the area/timing to introduce “Location notification of emergency call” depends on the state of preparation in each agency that receives emergency calls.

When calling 110, 119, and 118 from your FOMA terminal,

the police or fire stations may return your call for verification purposes. State that you are calling from a mobile phone, and give your phone number and exact location. Remain stationary to ensure that you are not disconnected while making an emergency call, and keep handset turned on to receive calls for approximately 10 minutes afterwards.

Depending on the region, calls to the police or fire station

may not be connected. In such cases, use the nearest payphone or landline phone.

Connect

Page 52

Using overseas

International roaming (WORLD WING) is a service that enables you, using overseas telecommunications carrier’s networks, to make calls and use i-mode. You can use your mobile phone number and mail address overseas for voice/videophone calls, i-mode and SMS as you do in Japan. Also, you can use network services such as Voice Mail and Call Forwarding Services.

Check the status of a subscription for WORLD WING

when using the service.

This service is available in the 3G network service area. In

Connect

addition, this service is available in countries and regions supporting 3G850MHz. The FOMA terminal is not available in the GSM/GPRS network service area.

By default, the FOMA terminal is set to automatically

switch networks.

When you received a call during international roaming, the

call is forwarded from Japan. Call charges to Japan are incurred by the caller and receiving charges by the receiver.

Refer to the following before using the FOMA terminal

overseas.

 “Mobile Phone User’s Guide [International Services]”  “Mobile Phone User’s Guide [Network Services]”

 PDF file “海外ご利用ガイド” pre-installed in [My

Documents] of data box

 DOCOMO International Services website

WORLD WING

If you have subscribed to the FOMA service after

September 1, 2005, subscription for “WORLD WING” is not required. However, if subscription for “WORLD WING” is canceled at or after subscription for the FOMA service, subscription for “WORLD WING” is required again.

If you have subscribed to the FOMA service before August

31, 2005 but not subscribed to “WORLD WING”, subscription for “WORLD WING” is required.

For lost, stolen, and cost settlement, or malfunction of the

FOMA terminal overseas, refer to “Loss or theft FOMA terminal or payment of cumulative cost overseas” or “Failures encountered overseas” on the back of this manual. Note that any call or transmission charges incurred after the FOMA terminal is lost or stolen are charged to the subscriber.

Page 53

Available services overseas

Communication service 3G

Voice call A Videophone A i-mode mail A

i-mode i-Channel i-concier i-Widget SMS A GPS position location Packet transmission by connecting a PC, etc. A

*1 Overseas use settings for i-mode is required. *2 Packet transmission charges are incurred for each

*3 Overseas use settings for i-concier is required. Packet

*4 Setting for i-Widget roaming is required. Multiple Widget

*5 Transmission charges are not incurred when you

Overseas charges (call charges, packet transmission

*1, 2

i-Channel reception (including Basic channel).

transmission charges are incurred for each information reception.

Appli may attempt transmission when i-Widget screen appears. In such case, packet transmission charges are incurred for each transmission.

position the present location. However, packet transmission charges are incurred such as when you display a map based on the location information.

charges) differ from those in Japan.

A A A A

Making a call outside your country of stay (including Japan)

Make a call from your country of stay to Japan or other countries.

^0 (for 1+ seconds)/enter

country code, area code (city code) and other party’s phone number

When the area code (city code) begins with “0”, omit

the “0” when dialing (Include “0” when making a call to some countries or regions such as Italy).

s (Phone)/i (V.phone) to make a call

Making a call in your country of stay

You can make a domestic call at your country of stay in the same way as you do in Japan.

^enter a phone number

s (Phone)/i (V.phone) to make a call

Making a call to a WORLD WING subscriber overseas

When you make a call to a “WORLD WING” subscriber overseas, you make a call as an international call to Japan regardless of your country of stay.

country code “81” (Japan) and the other

(for 1+ seconds)/enter

party’s mobile phone number excluding “0” s (Phone)/i (V.phone) to make a call

Connect

Page 54

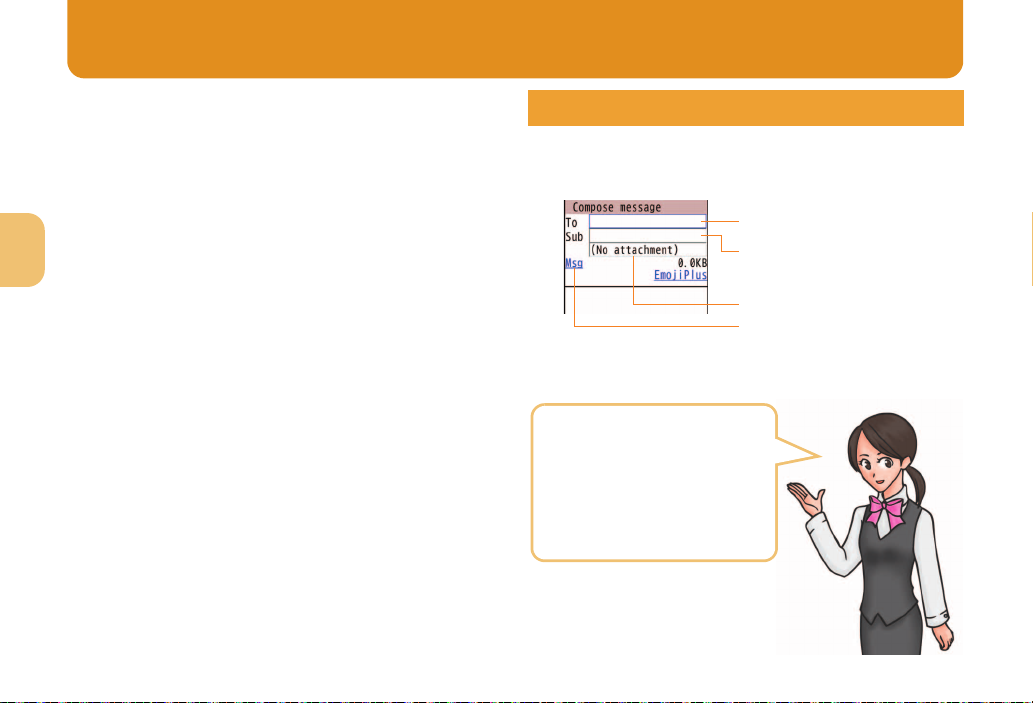

Mail

Select an attachment file

Enter an address

Enter a subject

Enter a message

Alternatively, ^m (for 1+ seconds) to display the compose message screen. If you select [EmojiPlus] after entering a message, you can enter pictograms or Deco-mail pictograms easily.

You can exchange mails with other i-mode terminals and e-mail via Internet by subscribing to i-mode service. You can attach up to ten files (pictures, moving picture files, etc.) in total of 2 MB to a message. Also, Deco-mail is available. You can send an expressive mail by changing character color and size, or background color and inserting Deco-mail pictograms. Moreover, Flash movie Decome-Anime with a message or image inserted is available.

Refer to “Mobile Phone User’s Guide [i-mode] FOMA

Connect

version” for details on i-mode mail.

Sending i-mode mail

^m/[Compose message]

Compose a mail

i to send

Page 55

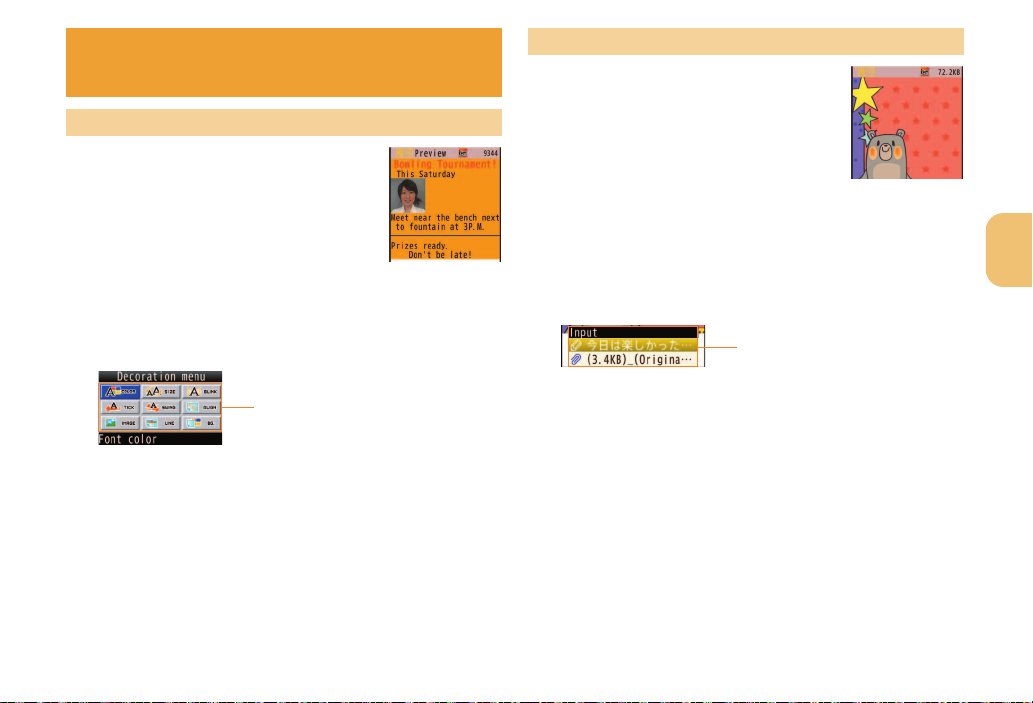

Composing and sending

Palette

Editing items list

Deco-mail/Decome-Anime

Composing and sending Deco-mail

You can decorate a message or its background when composing i-mode mail.

In the message entry screen, C/

[Decorate mail]

Decorate

Select the decoration method from the palette, set

contents of decorating and enter messages.

t&/i to send

Composing and sending Decome-Anime

You can compose an expressive mail with Flash movies using templates.

^m/[Compose Decome-Anime]/

[Edit] Select a template/i

Select an edit item/t&/edit

i/enter an address and a subject/i

to send

Connect

Page 56

Checking received i-mode mail

Receive i-mode mail

The receive complete screen appears and the mail

ring tone sounds.

If you do not operate for approximately 30 seconds,

the screen before reception reappears.

[Mail]/select a mail/t&

[- END -] appears at the end of the message. When

receiving limit is exceeded, [/] or [//] appears and the

Connect

exceeding portion is automatically deleted.

Checking a mail in Inbox

^m/[Inbox]

Select a mail/t&

Checking new i-mode mail

Received i-mode mail or Message R/F are stored at the i-mode center while the handset is outside the service area, in the self mode or when the power is turned off. You can check and receive mails from the i-mode center.

^m/[Check new messages]

Replying to i-mode mail

In the received mail details screen, C/

[Reply/Forward] [Reply]/[i-mode mail]/[Decome-Anime]

Compose and send a mail

Creating folder and sorting mails

If you create a folder in mailbox and set sort rules, you can sort i-mode mail and SMS automatically. Multiple sort rules can be set for one folder.

^m/[Inbox]/[Outbox]/C/

[Manage folders]/[New folder] Enter a folder name/t&/[Yes]

Select a number to save/t&

Set the sort rules/i

Page 57

Receiving Early Warning “Area

Basic operation for SMS is same as that for i-mode mail.

Mail”

Area Mail is a service to receive the earthquake early warning, etc. provided from the Japan Meteorological Agency.

Receive Area Mail

Dedicated alarm tone (beep sound) or Area Mail

dedicated ring tone sounds and called LED flashes red.

After receptions, some Area Mail automatically

display a message, while others display [Area mail received]. When [Area mail received] appears, the screen before reception automatically reappears in approximately 30 seconds.

Using SMS

You can use SMS entering phone number in the To field.

Sending SMS

^m/[Compose SMS]

Compose and send SMS

Checking SMS

Receive SMS

[Mail]/select SMS/t&

Connect

Setting whether to receive Area Mail

1 2

^m/[Mail setting]/[Area Mail

setting]/[Receive setting] Select the setting/t&

Page 58

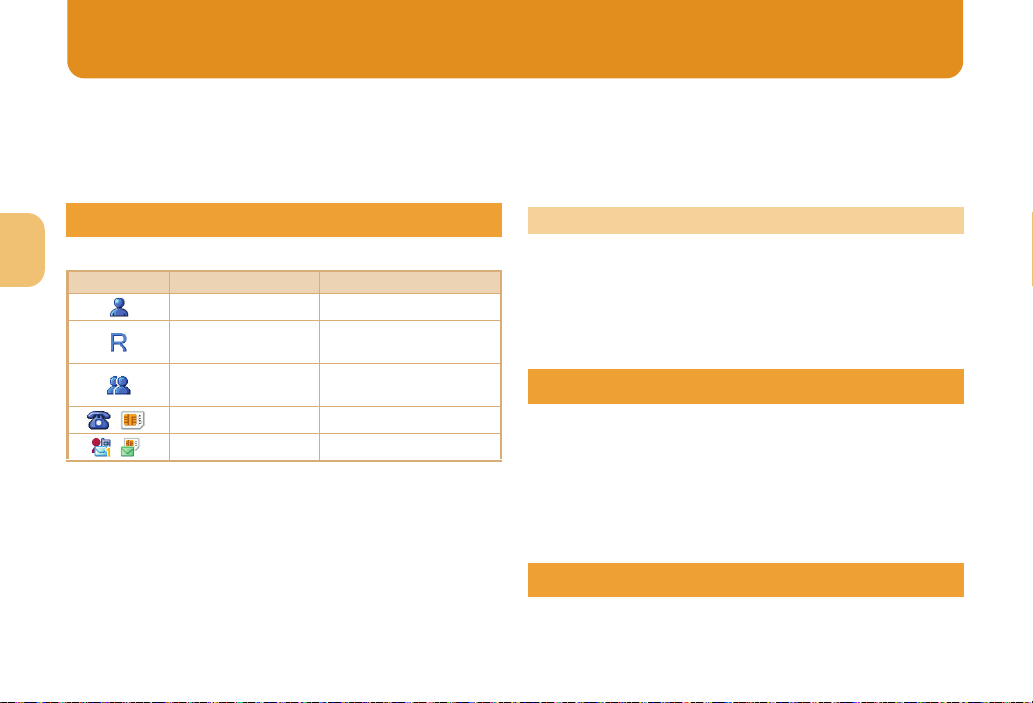

Phonebook

You can use the FOMA terminal handset phonebook and FOMA card phonebook.

You can add up to 1,000 entries for the FOMA terminal

handset phonebook, and up to 50 entries for the FOMA card phonebook.

Adding entries to phonebook

Main entry items

Connect

Icon Item Details

Name

Reading

Group

/ /

* Icons displayed in the FOMA card phonebook You can add address, birthday and other items to the

FOMA terminal handset phonebook.

^a/C/[New]/[Phone]/[UIM]

Phone number

Mail address

Enter a name.

Reading is entered automatically.

Entries can be sorted in groups.

Add phone numbers.

Add mail addresses.

Enter/Select an item/i

You can set a memory number for the FOMA terminal

handset phonebook. If you press t& without entering a memory number, the entry is added to an available memory number.

Adding entries from redials/received calls

^r& (Redial)/q& (Received call)

Select a phone number/C/[Add to

phonebook] Add to phonebook

Editing phonebook

^a/select a name/C/[Edit

data]/[Edit] Edit the phonebook/i

You can set a memory number for the FOMA terminal

handset phonebook. If you press t& without changing a memory number, original phonebook is overwritten.

Deleting phonebook

^a/select a name/C/

[Delete]/[Delete one]/[Yes]

Page 59

i-mode/Full Browser

Search

i-mode enables you to use online services, such as connection to sites and Internet. You can view sites that are not supported by i-mode as they appear on PCs using Full Browser.

i-mode is a paid service that requires a subscription. Refer to “Mobile Phone User’s Guide [i-mode] FOMA

version” for details on i-mode.

Note that making a transmission with large-volume data,

such as viewing a web page with many images and downloading data during Full Browser will lead to higher transmission charges.

Using i-mode

Sites and Internet web pages are generally protected by

copyright law. Selling and redistributing whole or a part of downloaded text, images or other data from sites and web pages for non-personal use as they are or a part changed without author’s permission is prohibited.

Some models cannot display/play data downloaded from

sites, etc. if a different FOMA card is inserted or the handset is turned on without a FOMA card.

If files with access restrictions by a FOMA card are set as

the stand-by display or ring tone, etc. and a different FOMA card is inserted or the handset is turned on without a FOMA card, settings are reset to default.

Connecting to i-mode site

^i/select an item/t&

Viewing web pages designed for PC

][i-mode]/[Full Browser Home]

Some sites with large amounts of information do not

appear properly.

Switching browsers

Note that different transmission charges are incurred

when switching between i-mode and Full Browser.

Switching from i-mode to Full Browser

While viewing sites with i-mode, C/[Full

Browser]/[Switch to FB]

Switching from Full Browser to i-mode

While viewing sites with Full Browser,

C/[i-mode Browser]/[Switch to i-mode]

Page 60

Viewing and operating sites

i-mode and Full Browser may be switched depending on the link. Select [Yes] in the confirmation screen asking whether to switch.

Selecting a link and moving to a new screen

While viewing sites, select a link with w&/

A selected link is highlighted. Some links may be images. If you select, the image is

outlined.

Moving to previous/next page

The FOMA terminal saves sites you viewed. You can view the previous/next page without transmission. This memory is called the “cache”.

Information such as previously entered character,

setting, etc. is not viewed when you view pages saved in the cache.

The cache is reset by ending i-mode/Full Browser. When switching from i-mode to Full Browser, you can

return to the page displayed with i-mode by pressing m. Likewise, when switching from Full Browser to i-mode, you can return to the page displayed with Full Browser by pressing m.

Page 61

Bookmark/Screen memo

Saving frequently viewed sites

You can save frequently viewed sites and Internet web pages as bookmarks for convenient access.

While viewing sites, C/[Bookmark]/

[Add bookmark]/[OK] Select a folder/t&

; To view sites from bookmarks:

][i-mode]/[Bookmark]/select a

bookmark/t&

Bookmarks are listed in the order of use. Connection is made with i-mode from i-mode bookmarks,

while it is made with Full Browser from Full Browser bookmarks.

Saving site contents

You can add (save) screens from your favorite sites, etc. as screen memos.

While viewing sites, C/[Screen

Memo]/[Add screen memo]

[Yes]

The screen memo is added. To add the screen capture only: [Only displayed]

; To display screen memos:

][i-mode]/[Screen Memo]/select

a screen memo/t&

If you select a link in the screen memo, connection is

made with i-mode for the screen memo of i-mode, while it is made with Full Browser for the screen memo of Full Browser.

Page 62

i-Channel

※ The i-Channel service is provided in Japanese.

i-Channel is a service that sends news and other information. The latest information received automatically is displayed in the stand-by display using a ticker. Additionally, press the i-Channel supported key to display the latest information in a list of channels. i-Channel is a paid service that requires a subscription (i-mode subscription is required). There are two types of i-Channel as follows.

 “ベーシックチャネル” (Basic channel): This is

i-Channel provided by DOCOMO. Packet transmission charges are not incurred for automatically updating information.

 “おこのみチャネル” (Favorite channel): This is

i-Channel provided by IP (Information Providers). Packet transmission charges are incurred for

automatically updating information. Note that packet transmission charges are incurred for when detailed information are viewed in both channels. Packet transmission charges are incurred for automatically updating information and viewing detailed information during international roaming. Refer to “Mobile Phone User’s Guide [i-mode] FOMA version” for details on i-Channel.

Displaying i-Channel

^c (J)

Select a channel/t&

Displaying i-Channel on main display

Set whether to display i-Channel ticker on the main display.

][i-mode]/[i-Channel]/[i-Channel

ticker]/[Main display]/[ON]

The operation is completed if you set to [OFF].

Select the [Ticker font size] field/t&/

select the size/t& Select the [Ticker color] field/t&/select

the color/t& Select the [Ticker speed] field/t&/select

the speed/t&/i

Page 63

Map/GPS

Note that DOCOMO shall not be liable for the pure

economic loss if you cannot confirm the positioning

(communication) result with the FOMA terminal failure,

malfunction, error or external factors such as power failure

(including battery exhaustion). You cannot use the FOMA terminal as navigation system

for professional use of aircrafts, vehicles, person, etc.

Therefore, note that DOCOMO shall not be liable for the

loss caused by the navigation system to use location

information. You cannot use the FOMA terminal as surveying GPS of

high accuracy. Therefore, note that DOCOMO shall not be

liable for the loss caused by the error of location

information. GPS is the service in charge of Department of Defense of

USA, therefore, GPS radio wave condition may be

controlled (accuracy degradation, radio wave abort, etc.)

for the US national security reason. For the use of location provision or location notification,

check the information of an information provider and

DOCOMO website. Charges may be incurred for these

functions. GPS function of the FOMA terminal is not available

outside the service area.

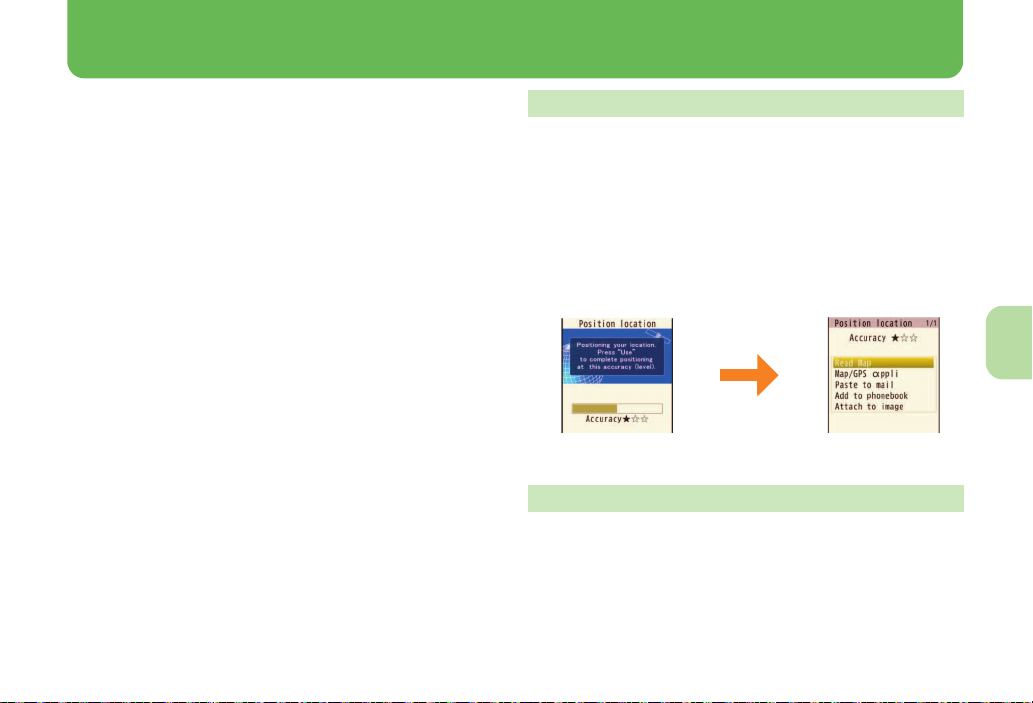

Checking your location

You can check your location by positioning the present location. You can use this function for more convenient use such as displaying a map from positioning location information. Transmission charges are not incurred when you check

the present location. However, packet transmission charges are incurred when you display a map based on the location information.

][LifeKit]/[Map/GPS]/[Position

location]

Select a usage

Viewing map

You can activate GPS compatible i-appli and view the present location or specified location.

][LifeKit]/[Map/GPS]/[Map]

GPS compatible i-appli is activated after positioning

the present location.

Page 64

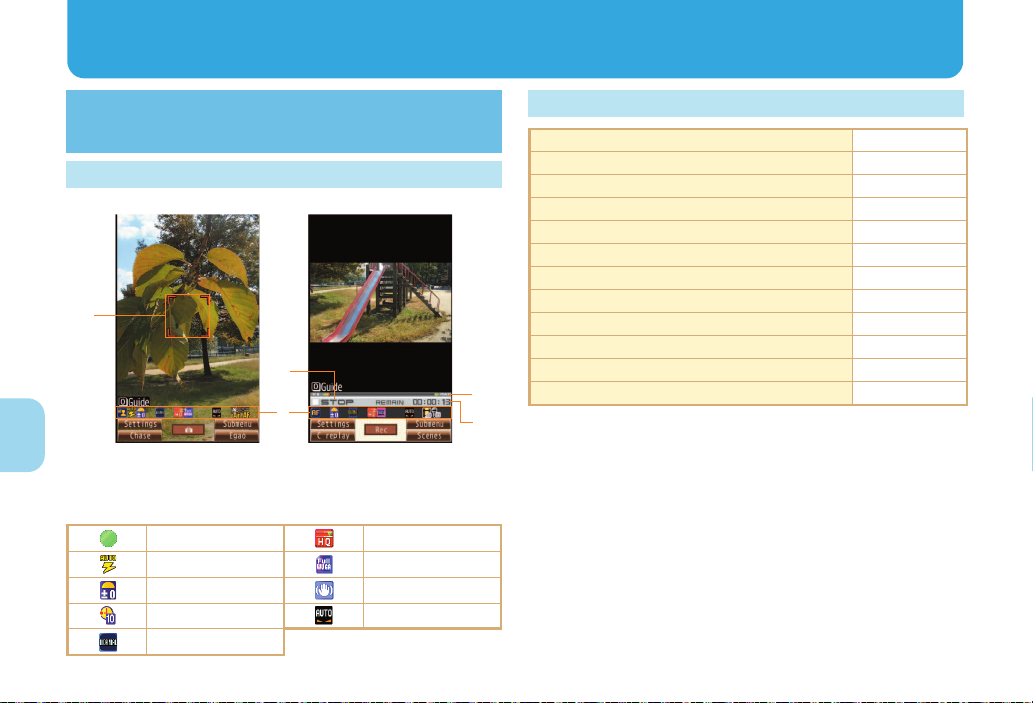

Camera

Enjoy

4 5

Still picture Moving picture

Enjoy

Screen layout and operations for shooting screen

Shooting screen layout

1 Focus frame 4 Zoom bar 2 Shooting status 5 Shooting time 3 Icon display position

Meaning of main icons

Focus lock Image quality

Picture Light Size

Brightness Fix camera shake

Auto timer White balance

Shoot by scene

Key operations for shooting screen

Adjust zoom Change settings collectively Adjust brightness Switch phone#SD Picture Light Switch camera-mode AF mode Select size Select image quality Shoot by scene White balance Activate operation guide

* # 1 3 5 6 7 9 0

Page 65

Shooting still/moving pictures

Alternatively, ^C to activate still pictures shooting.

If the camera lens is exposed to direct sunlight for a long

time, the internal color filter may discolor, creating a

discoloration of shot images. In addition, shooting the sun

directly may damage the performance of the CCD. Although the cameras are made with high-precision

technology, some pixels or lines look constantly dark or

bright. Further, white lines and other noise may appear in

images especially when shooting images in dimly lit

surroundings. Images shot in shooting conditions which include the sun,

a light or other strong light source may appear dark and

distorted. Shot still pictures or moving pictures may not be saved

when the battery level is low.

Shooting still pictures

][Camera]/[Shoot still pic]

When still pictures shooting activates, Picture Light

illuminates.

t& to shoot

t& to save

Shooting moving pictures

][Camera]/[Shoot movie]

When moving pictures shooting activates, Picture

Light flashes.

t& to start shooting

t& to end shooting

[Save]

Confirming shot still/moving pictures

Displaying shot still pictures

][Data box]/[My picture]

[Camera] folder/select an image/t&

To set as stand-by display, etc.: C/[Set screen]/

select an item/t&

Playing shot moving pictures

][Data box]/[i-motion/Movie]

[Camera] folder/select i-motion/t&

To set as stand-by display, etc.: C/[AV settings]/

select an item/t&

Enjoy

Page 66

Convenient functions for shooting

Available for still picture shooting.

Function Details Setting/Starting method

Chase focus Once you select the subject, you can chase and shoot it

Continuous AF The inside of the focus frame is continuously focused.

Long exposure Keep the shutter open for a long time to shoot images.

High sensitivity

Enjoy

shooting (ISO sensitivity)

even if the subject moves.

Even if the subject is moving, you can shoot in-focus picture.

Use long exposure to shoot the active subject such as fireworks, or to shoot in dimly lit place such as night scene.

In the low-light situation, you can shoot clear pictures with less camera shake.

In the still picture shooting screen, C/ [Chase focus]/[ON]

In the still picture shooting screen, C/ [Continuous AF]/[ON]

In the still picture shooting screen, C/

[Long exposure]/select a time/t&

In the still picture shooting screen, C/

[Shooting menu]/[ISO sensitivity]/ select the setting/t&

Page 67

1Seg

1Seg is a service provided by TV broadcasters (broadcast stations), etc. Transmission charges are not incurred for receiving video, voice and sound. Contact NHK for details on viewing fees of NHK.

※ Packet transmission charges are incurred when accessing

a site such as a “data broadcasting site”, “i-mode site” or

others.

Also, some sites require information charges to use

(i-mode paid sites). ※ For details on the “1Seg” service, see the website below.

The Association for Promotion of Digital Broadcasting

PC: http://www.dpa.or.jp/

i-mode: http://www.dpa.or.jp/1seg/k/ ※ 1Seg is not available overseas.

About signal

1Seg is one of the broadcasting services, and the receiving signal (broadcast wave) differs from that of FOMA service. In the following places, the reception status may be bad.  Place that is far from the tower which sends the

broadcasting wave

 Mountain areas or behind a building  A tunnel, basement or a place in the rear of a building

※ Hold the FOMA terminal apart from or close to the body or

move to another place, so that the reception status may

become better.

About battery level

When recording is started with low battery level or battery level becomes low while recording, the message stating that recording is impossible appears and then the recording ends.

Screen display for first use of 1Seg

A confirmation screen of disclaimer appears for first use of 1Seg after purchase. Press t& according to the displayed contents. The same confirmation screen does not appear after that.

Other notes for 1Seg

If you use 1Seg for a long time while charging, the service

life of the battery pack may be shorter than estimated.

DOCOMO shall not be liable for any loss or change of the

saved data due to malfunctions, repairs or other handling of the FOMA terminal. When changing the model or asking for repair of your FOMA terminal, you cannot transfer the stored contents (video and still pictures taken from 1Seg, TVlink, data in the broadcasting storage area, etc.) in the terminal.

You cannot use 1Seg overseas since the broadcasting

format and the broadcasting frequency are different (You can watch 1Seg programs video-recorded on the FOMA terminal).

Enjoy

Page 68

Setting channels

Alternatively, ^C (for 1+ seconds) to activate 1Seg.

To watch 1Seg, set the channels first.

Auto channel setting

Select a prefecture/district to use. Broadcast station is automatically searched and saved into the channel list.

][1Seg]/[Channel setting]

Select a number to save/C/[Auto

channel set]/[Yes] Select an area/t&

Enjoy

Select a prefecture/district/t&

t&/[Yes]/select whether to use the

channel list/t&

Preset channel setting

Select a prefecture/district to use and save into the channel list.

][1Seg]/[Channel setting]

Select a number to save/C/[Preset CH

setting] Select an area/t&

Select a prefecture/district/t&

t&/[Yes]/select whether to use the

channel list/t&

Watching 1Seg

][1Seg]/[Activate 1Seg]

Setting timer for starting or recording 1Seg

][1Seg]/[Timer list]/C/[New]

[Manual input]/[Reception]/[Recording]

Enter/Select an item/i

Playing videos recorded 1Seg

][Data box]/[1Seg]

[Video] folder/select a video/t&

Page 69

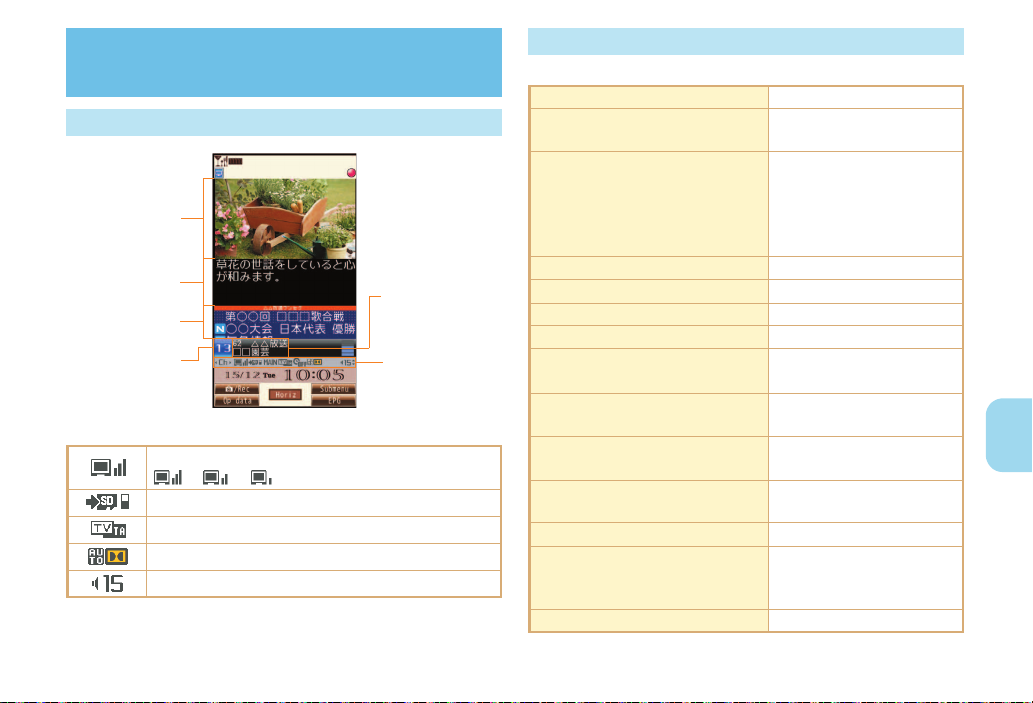

Screen layout and operations

Channel number

Data broadcasting

Broadcast station/Program name

Video

Caption

Icon display position

for watching screen

1Seg watching screen layout

Meaning of main icons

Reception status of broadcast waves

bb(Strong b Weak)

Icon indicating the recording status

Operation mode

Dolby Mobile setting

Volume

Key operations for 1Seg watching screen

These key operations are for the video mode.

Select a station with UP/DOWN Select a station with one-touch

operation Select a station by searching a

frequency

Adjust volume Mute/Disable Turn caption settings on/off Activate program guide i-appli Record a video of 1Seg program

Record 1Seg programs as a still picture

Switch between video mode and data broadcasting mode

Switch between the display modes

Switch vertical/horizontal display Display broadcast station/

program name or icons temporarily

End 1Seg

1 to 9, *, 0, #

r& (for 1+ seconds)/q&

(for 1+ seconds) To cancel selecting a

station by searching a frequency: i

s s (for 1+ seconds) a i (for 1+ seconds)

To stop recording: i i

a (for 1+ seconds)

* (for 1+ seconds)

c/H/[Yes]

Enjoy

Page 70

Music

Handling the music data

This manual refers to Chaku-uta full® and WMA (Windows

Media Audio) files played using MUSIC Player as “music

data”.

• “Chaku-uta full” is a registered trademark of the Sony Music Entertainment (Japan) Inc.

The FOMA terminal can play WMA files or Chaku-uta full

which are protected with copyright protection technology.

When downloading the music data from Internet web

pages, check use conditions (license, prohibited acts, etc.)

Enjoy

carefully before use.

WMA files, which are protected with copyright protection

technology, are played using the information unique to the FOMA terminal. When the information unique to the FOMA terminal is changed due to a failure, repair, upgrade and others, WMA files, which are saved before change, may not be able to be played.

DOCOMO shall not be liable for handling of CCCD (Copy

Controlled CD) or even if you cannot save music data as a WMA file.

You can use music data saved on the FOMA terminal

handset or the microSD Card for personal use only. Refrain from infringing upon intellectual property rights of a third party’s copyrighted material. Do not copy or transfer music data saved on the FOMA terminal handset or the microSD Card to PC or any other medium.

Page 71

Music&Video Channel Acquiring/Playing programs

Music&Video Channel is a service that set music programs, etc. are automatically distributed at night.

Music&Video Channel is a paid service that requires a

subscription (i-mode and the flat-rate i-mode packet transmission service are also required to be subscribed).

A separate fee may be required in addition to

Music&Video Channel service charge.

If you insert the FOMA card to the FOMA terminal, which

does not support Music&Video Channel, after subscribing Music&Video Channel, you cannot use Music&Video Channel. However, a service usage fee is incurred unless you cancel Music&Video Channel subscription.

During international roaming, setting or acquiring

programs is not available, however, packet transmission charges are incurred for connecting to i-mode if you do so. When going abroad, deactivate the distribution of programs in advance.

If you cancel i-mode or Music&Video Channel or delete

My Menu registration, the program data in the Delivery program folder may be deleted.

Acquiring programs

][MUSIC]/[Music&Video ch]/[Set

program]/[Yes]

Follow instructions on screen and set a

program

[ ] appears in the stand-by display 12 hours before

the program distribution. The acquisition of the program is automatically performed at night. Stock icon displayed differs depending on whether acquisition is successful/failed (nP.29). If it failed, acquire the program manually.

Playing programs

][MUSIC]/[Music&Video ch]

Select a program/t&

Enjoy

Page 72

Downloading music data from sites

You can save Chaku-uta full® downloading from sites.

You can download up to 5 MB Chaku-uta full

While viewing sites, select Chaku-uta

1 2

/t&

full [Save]/select a save destination/t&

Playing music data

][Data box]/[MUSIC]

Enjoy

Alternatively, ][MUSIC]/[MUSIC Player] to

play music data.

Select music data/t&

Creating playlists

Select music data/C/[Add to playlist]

[Add one]

Save

To create a new playlist and save: i/enter a

playlist name/t&

To add music data: Select a playlist/t& To overwrite music data: Select a playlist/m/

[Yes]

Playing a playlist

][Data box]/[MUSIC]/[Playlist]

Select a playlist/m

Page 73

Screen layout and operations

Title

Artist’s name

Play time/Total time

Icon display position

Jacket image

for MUSIC Player screen

MUSIC Player screen layout

Meaning of main icons

Playback status

Playback mode setting

Volume

Dolby Mobile setting

Key operations for MUSIC Player screen

Pause/Play Stop Adjust volume Play previous song/Return to

beginning of song Fast reverse Play next song Fast forward Jump to a start position

assigned to a key

Display a jacket image Display a lyrics image Display the folder list screen Display the list screen of

music data for playback End MUSIC Player

* A confirmation screen does not appear while music is

stopped.

u& q&

q& (for 1+ seconds) r&

r& (for 1+ seconds)

1: Beginning 2 to 9: Positions divided

by one-ninth increments of the total playback time

# * i a

H/[Yes]

Enjoy

Page 74

i-appli/i-Widget

QR code to

connect to

the site

Alternatively, ^i (for 1+ seconds) to display the i-appli software list screen.

“i-appli” is software for the i-mode compatible mobile phone. Download various software from i-mode sites for more convenient use of the FOMA terminal, such as updating stock prices or weather information automatically, or enjoying games without connecting to the network, etc. i-Widget is a convenient function used to access to contents (Widget Appli) such as stock prices only with i-Widget button (o&). You can add Widget Appli by downloading it from sites provided by IP (Information Provider), etc.

Packet transmission charges are incurred when

Enjoy

downloading i-appli and Widget Appli, and connecting to a site.

If the i-Widget screen is displayed, multiple Widget Appli

may communicate. In such cases, packet transmission charges are incurred.

For use overseas, packet transmission charges differ from

those in Japan.

Refer to “Mobile Phone User’s Guide [i-mode] FOMA

version” for details on i-appli/i-Widget.

To use preset software again after deleting,

you can download it from the iMenu site, [SH-MODE].

[iMenu]/[メニューリスト]/[ケータイ電話メーカー]/[SH-MODE]

• Packet transmission charges are incurred when downloading.

Activating i-appli

][i-appli]/[Software list]

Select software/t&

Activating Widget Appli

Activate Widget Appli. If you paste the Widget Appli on the i-Widget screen after operations, you can use it quickly next time.

^o&

i-Widget screen appears.

Select Widget Appli/t&

m/c

Widget Appli is pasted on the i-Widget screen. To end Widget Appli: a/[YES]

Page 75

i-motion/Movie

i-motion refers to image, voice and music data. You can download i-motion to the FOMA terminal from i-motion compatible sites, etc. and play the downloaded i-motion.

Also, you can search for i-motion compatible sites in [メニューリスト] of iMenu.

In addition, you can play movies provided in portal sites, etc. on Internet with Internet movie player.

Internet movie player supports the playback of Windows

Media Video and Windows Media Audio.

A large amount of data may be received when

downloading movie. Making a transmission with large-volume data will lead to higher transmission charges.

You can play movies saved to the Import folder of the

microSD Card by using PC, etc.

Playing i-motion/Movie

Playing i-motion downloaded from sites

While viewing sites, select i-motion/t&

To save i-motion: C/[Save]/select a save

destination/t&

• You can play saved i-motion using the i-motion player.

Playing movies downloaded from sites

While viewing sites, select a movie/t&/

[Yes]/[Agree]

To play movies saved to the Import folder of the

microSD Card: ][LifeKit]/[microSD]/ [Import]/[i-motion/movie]/select a movie/t&/ [Agree]

Enjoy

Page 76

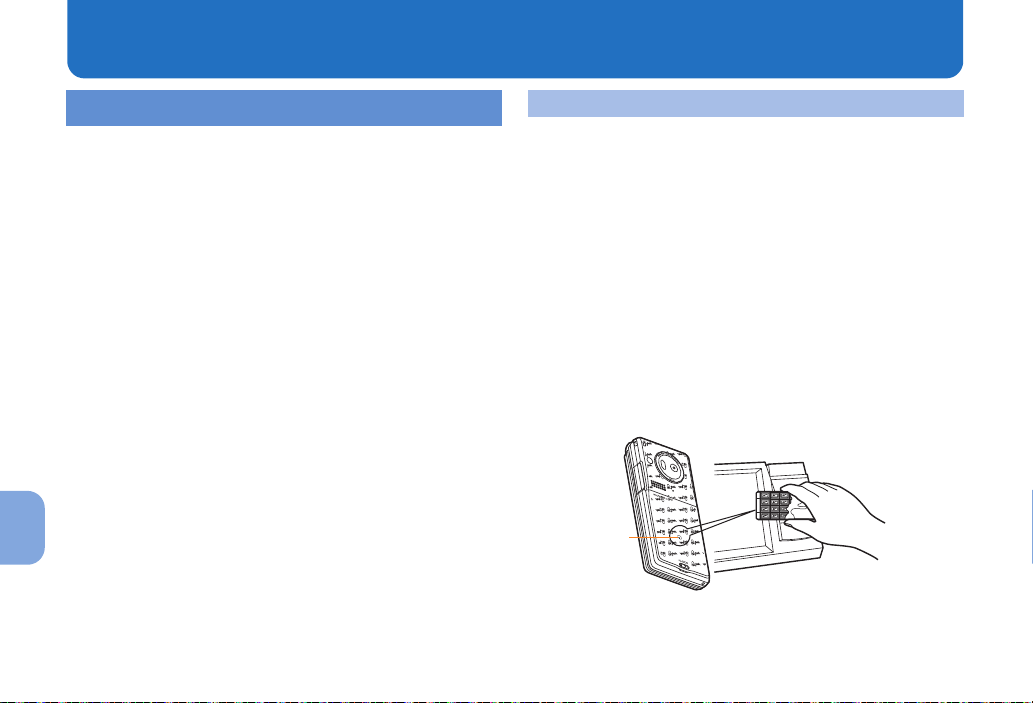

Osaifu-Keitai

More Convenient

b mark

Osaifu-Keitai/ToruCa

Osaifu-Keitai is a function which has built-in IC card and allows you to pay by simply holding the FOMA terminal over the scanning device at stores. Moreover, you can deposit electronic money and check your balance or usage history using transmission. In addition, Osaifu-Keitai has enough securities to use. ToruCa is an electronic card that can be retrieved with

More Convenient

Osaifu-Keitai. You can use ToruCa conveniently as fliers, restaurant cards, coupons, etc.

FOMA terminal malfunctions may cause data (including

electronic money, points, etc.) saved in the IC card to be lost or changed (Note that as a rule, you will be asked to delete data when leaving your FOMA terminal for repairs, etc.). For the service such as a reissue, restoration, temporary keeping or transfer of the data except the transfer by iC transfer service, contact your provider of Osaifu-Keitai compatible service. Be sure to use a service including a backup service for important data.

DOCOMO shall not be liable for any loss or change of

data in the IC card or the damage of Osaifu-Keitai service caused by any reason such as malfunctions and upgrading.

When the FOMA terminal is stolen or lost, immediately

contact your provider of Osaifu-Keitai compatible service for handling methods.

Holding b mark over scanning devices

Hold the b mark of the FOMA terminal over the scanning device to use as electronic money or railway tickets, or retrieve ToruCa. Pay attention to the following points when holding the b

mark over the scanning device.  Avoid contact between the FOMA terminal and the

scanning device

 Hold the b mark parallel over the scanning device  Hold the b mark over the center of the scanning

device

 If the scanning device does not recognize, hold the b

mark over the scanning device and move the handset around

 Do not attach a metallic substance on the b mark

side

Page 77

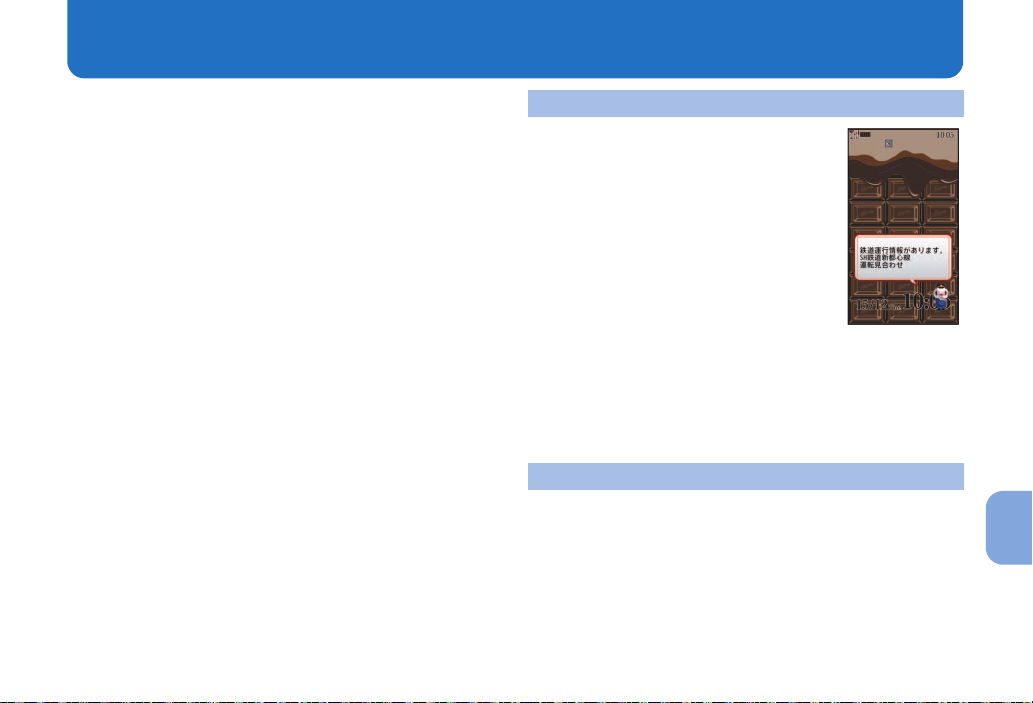

i-concier

“ひつじのしつじくん®”

©NTT DOCOMO

“i-concier” is a service to support your life like butler or concierge. It can keep your various data and timely provide information tailored to your living area or current location, or hobby and interests. i-concier information is provided by Machi-chara (a character in the stand-by display) in the stand-by display.

i-concier is a paid service that requires a subscription

(i-mode subscription is required).

If non-subscribers of the Data Security Service newly

subscribe to i-concier, they are supposed to be subscribers of the Data Security Service.

In addition to monthly usage fees of i-concier, a separate

fee may be incurred depending on contents (information, i-schedule, etc.).

Packet transmission charges are incurred for receiving

information excluding some cases.

Packet transmission charges are incurred for using

detailed information.

Packet transmission charges are incurred for receiving

information and viewing detailed information during international roaming. In addition, for use overseas, packet transmission charges differ from those in Japan.

Packet transmission charges are incurred for

automatically updating i-schedule, ToruCa, or phonebook.

Refer to “Mobile Phone User’s Guide [i-mode] FOMA

version” for details on i-concier.

When information is received

Receive information

A popup message appears in the

stand-by display.

t&/select the message/t&

Select the information

Displaying i-concier screen

][i-concier]

Select the information

t& to retrieve the detailed information

More Convenient

Page 78

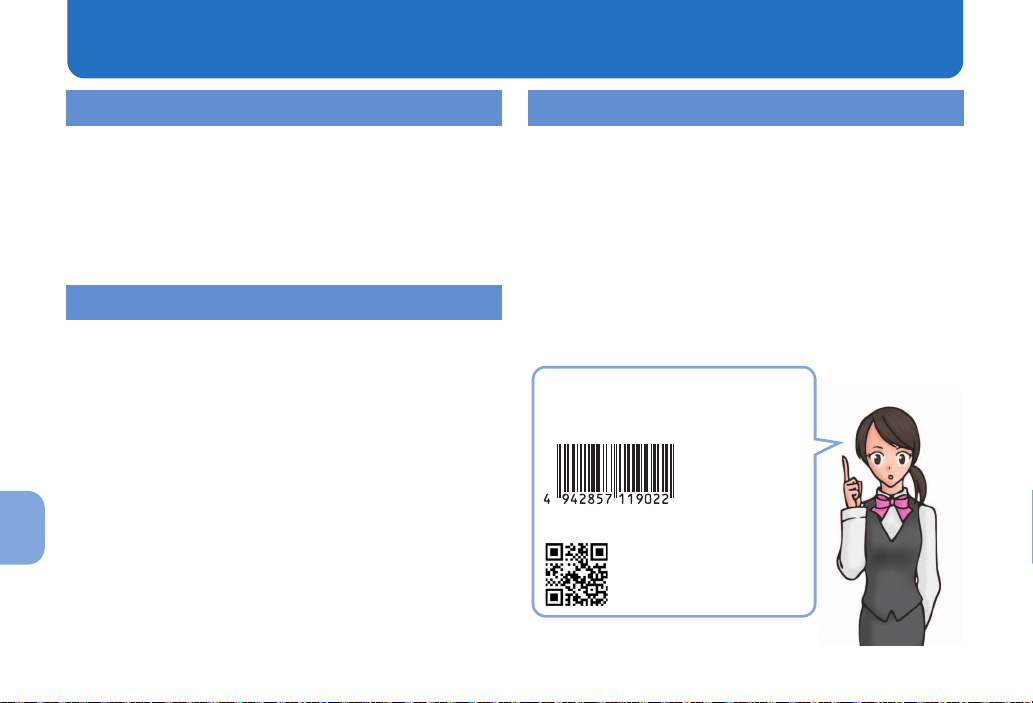

Convenient Tools

Mainly, the following codes can be scanned.

JAN code

QR code

Scanned result: [4942857119022]

Scanned result: [株式会社NTTドコモ]

Using schedules

][LifeKit]/[Classic schedule]

To check a schedule: Select a date with w&/t&/

select a schedule/t&

C/[New]

Enter/Select an item/i

More Convenient

Using alarm

][LifeKit]/[Alarm]

Select a number to save/t&

Enter/Select an item/i

Using bar code reader

You can connect to i-mode or Full Browser, compose a mail, make voice/videophone calls, compose SMS and run i-appli with scanned text from bar codes (JAN/QR codes).

][Camera]/[LifeKit]/[Bar code

reader]

Press t& to scan

Position the camera 10 cm or more from the bar code.

Use the scanned results

Page 79

Other convenient tools

Function name Details Starting method

Card reader You can scan a business card (Japanese/English)

and newly save to the phonebook.

Information reader You can scan information such as store name,

phone number, etc. from a magazine, etc. and newly save it to the phonebook.

PDF Viewer You can display PDF data. ][LifeKit]/[PDF Viewer]/select a file/t& Manga&BookReader You can display e-book/e-dictionary/e-comic. ][LifeKit]/[Manga&BookReader]/select

][Camera]/[LifeKit]/[Card reader]

][Camera]/[LifeKit]/[Information reader]

data/t&

More Convenient

Page 80

Data Management

Using microSD Card

You can save data, such as the phonebook, mail or bookmark in the FOMA terminal handset to microSD Card or import data in microSD Card to the FOMA terminal handset. microSD Card is sold separately. You can purchase microSD Card and its adapter at home electronics shops.

More Convenient

SH-04B is compatible with commercially available

microSD Card of up to 2 GB and microSDHC Card of up to 16 GB (as of October 2009). Refer to the following sites (in Japanese only) for the latest information of the microSD Card. In addition, for microSD Cards that are not provided in the sites, some of them may not work. Accessing [SH-MODE] from i-mode (as of October 2009):

[iMenu]/[メニューリスト]/[ケータイ電話メーカー]/ [SH-MODE]

From a PC: http://k-tai.sharp.co.jp/support/d/sh-04b/ Note that the provided information is the information checked for operation. DOCOMO shall not be liable for all operations.

Do not insert or remove a microSD Card while the FOMA

terminal is on. Data may be damaged and the operation may not work properly.

Do not remove the microSD Card or turn off the FOMA

terminal immediately after inserting the microSD Card to the FOMA terminal, or while editing data on a microSD Card. Data may be damaged and operation may not work properly.

Format unformatted microSD Cards on the FOMA terminal

before use. microSD Cards formatted by PCs or other devices may not be used properly by the FOMA terminal.

When a microSD Card used with another FOMA terminal

or PC is inserted, it may not be used.

Back up the data saved in a microSD Card and store in

another place. DOCOMO shall not be liable for any loss or change of the saved data.

There is no guarantee for the save and copy of data since

the microSD Card which is not compatible with copyright protection functions is unsupported by FOMA terminal.

Page 81

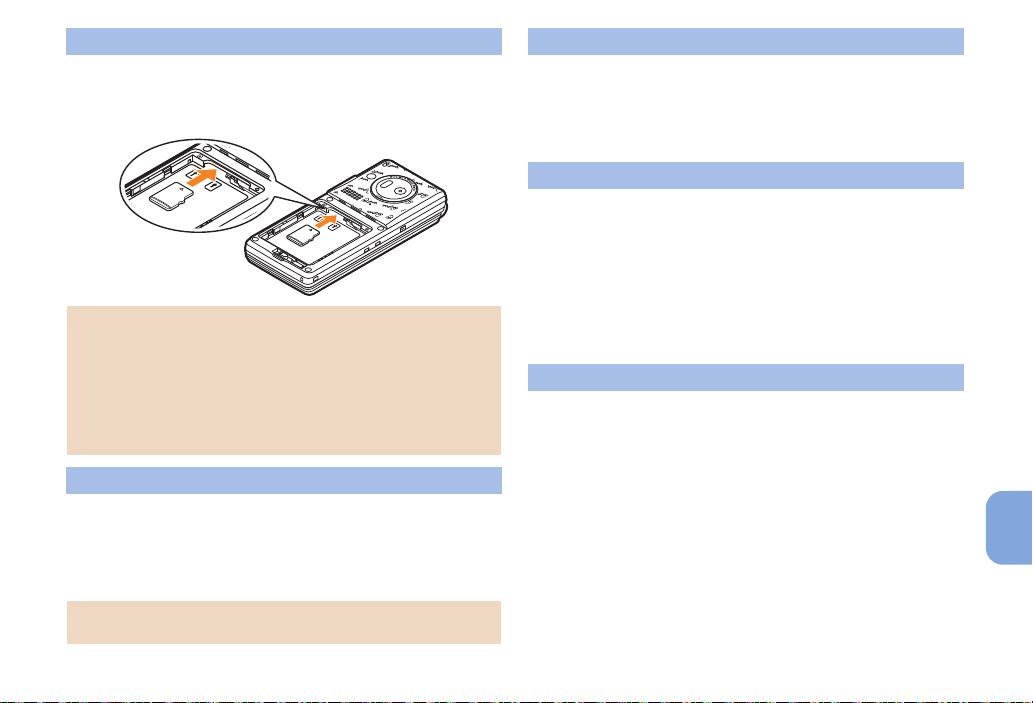

Inserting microSD Card

Insert the microSD Card with the metal

terminal side down

Gently push the microSD Card in before removing.

Push the microSD Card until it clicks when inserting/

removing it.

Note that excessive force may damage the FOMA

terminal or microSD Card.

Keep your face away from microSD Card when inserting

or removing card. When taking your fingers off abruptly, card may pop out.

Formatting

][LifeKit]/[microSD]/[Format]

Enter the terminal security code/t&/

[Yes]

Note that all the data on the microSD Card is deleted

when formatted.

Displaying data

][LifeKit]/[microSD]/[View

microSD data] Select data/t&

Copying data to microSD Card

Example: i-motion

][Data box]/[i-motion/Movie]

Select i-motion/C/[Move/Copy]/

[Copy to microSD]

Select the copy method

Backing up data to microSD Card

You can collectively backup phonebook, mail, schedule, bookmark, text memo, settings and information of the FOMA terminal to microSD Card.

][LifeKit]/[microSD]/[Backup/

recovery all]/[Backup to microSD] Enter the terminal security code/t&/

[Yes]

More Convenient

Page 82

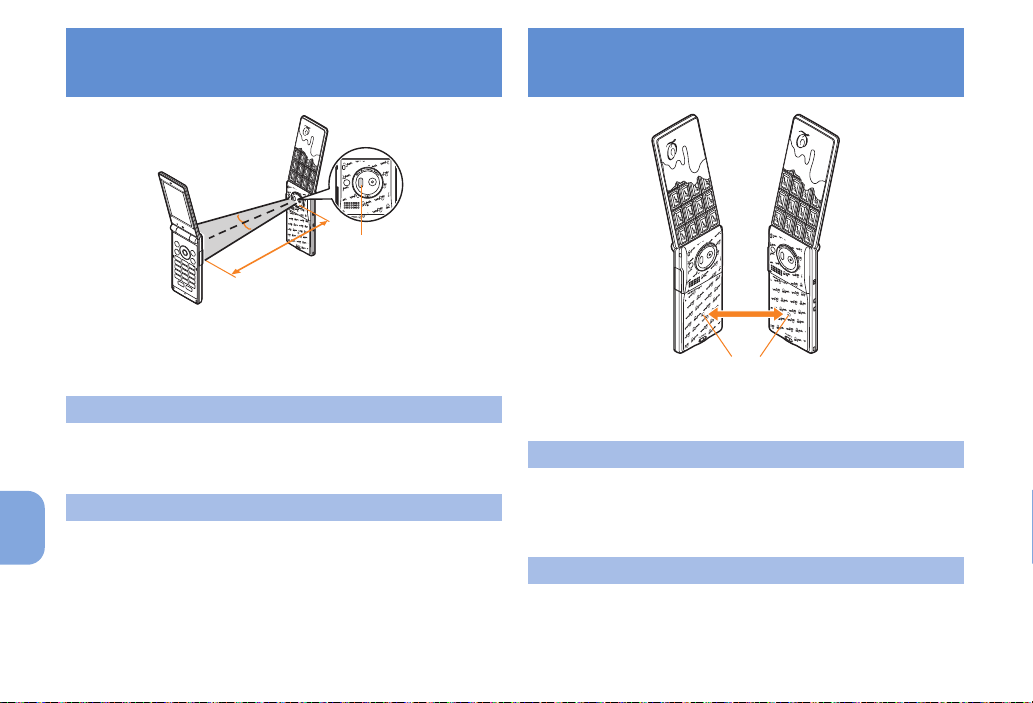

Sending and receiving data via

Infrared port

Approx. 20 cm

or less

b mark

Ir communication

15°

More Convenient

Face the infrared ports of the receiver’s and sender’s

FOMA terminal each other and set the distance between them to approximately 20 cm or less.

Sending data

Select data/C/[Send data]/[Send Ir

data]/[Send]/[Yes]

Receiving data

][LifeKit]/[Receive Ir data]/

[Receive]/[Yes]/[Yes]

Sending and receiving data via iC communication

Use while placing the b mark of receiver’s FOMA

terminal on that of sender’s FOMA terminal.

Sending data

Select data/C/[Send data]/[iC

transmission]/[Send]/[Yes]/place the b marks together

Receiving data

^place the b marks together

[Yes]

Page 83

Support

Others

Troubleshooting

First, check whether the software update is required. If it is

required, update the software (nP.85).

If there is no improvement in problems even after

checking the following items, feel free to contact the number listed in “Repairs” on the back of this manual, or a repair center that DOCOMO specifies.

Power

The FOMA terminal is not turned on

Is the battery pack attached properly? P.24 Make sure the battery has not run out. –

Charging

Cannot charge the battery (Charging LED does not illuminate, or it flashes)

Is the battery pack attached properly? P.24 Is the adapter power plug inserted into the outlet

or cigarette lighter socket properly?

Are the adapter and the FOMA terminal set

properly?

When using the AC adapter (sold separately), is

the connector of the AC adapter properly connected to the FOMA terminal or the accompanying desktop holder?

P.25

When using the desktop holder, make sure the

charger terminal of the FOMA terminal is not dirty. If the terminal becomes dirty, clean it with a dry cloth or cotton swab.

If calling, transmitting, or another function is

performed for a long time with charging, the FOMA terminal may become warm and charging LED may flash. Charge again after the terminal temperature lowers.

Terminal operation

Becomes hot while operating/charging

Temperature of the FOMA terminal, battery pack,

or adapter may rise while operating or charging, or when performing i-appli, making a videophone call, or watching 1Seg for a long time with charging. There is no safety hazard.

Battery usage time is short

Make sure the battery pack is not left for a long

time outside the service area. Outside the service area, since electric waves are searched to make transmission available, more electric power than usual is used.

The usage time for the battery pack depends on

the usage environment and deterioration level.

–

Others

Page 84

Battery pack is a consumable product. Service

time per charge is gradually reduced every time the battery is charged. Purchase a specified new battery pack if the usage time becomes extremely shorter than when the battery was purchased even after fully charged.

Power turns off/The FOMA terminal restarts

Unclean terminals for the battery pack may result

in poor connections and loss of power. Wipe with a dry cloth or a cotton swab.

Make sure the IC portion of the FOMA card is not

dirty.

Not activated by pressing keys

Make sure All lock is not set. P.43 Make sure Side key lock is not set. P.43 Make sure the FOMA terminal is not turned off. P.26

FOMA card does not recognize

Is a FOMA card inserted facing right direction? P.24

Calling

Calls cannot be made with the dial

Others

Make sure All lock is not set. P.43 Make sure Keypad dial lock is not set. P.43 Make sure self mode is not set. P.43

Connection cannot be made ([ ] does not disappear even after moving to another place, or calls cannot be made/received even though signal status is not bad)

–

Turn the power on again, or attach the battery

pack or FOMA card again.

Depending on the signal type, even though

status is “inside the service area” or “[ ] (indicating signal status) appears”, making/ receiving a call may not be available. Move to another place and call again.

Make sure Accept calls/Reject calls is not set. – In crowded place, heavy telephone/mail traffic

may be caused and make it difficult to get a connection. In such case, [Please wait] appears and a busy signal is played. Move to another place or call again later.

P.24 P.26

–

Osaifu-Keitai

Cannot use Osaifu-Keitai

If the battery pack is removed or Omakase Lock

is activated, IC card functions are not available regardless of the IC card lock setting.

Make sure IC card lock is not set. P.43 Is the b mark of the FOMA terminal held over

the scanning device?

P.43

P.74

Page 85

Warranty and After-Sales Service

Warranty

Make sure that the warranty card is included with your

FOMA terminal at the time of purchase. Check that the name of the retailer, the date of purchase, and the necessary details have been filled in on the warranty card. Be sure to keep it in a safe place. Contact the retailer if any necessary details on the warranty card are not completed. The warranty period without charge is 1 year from the date of purchase.

For the purpose of improvement, the specifications for this

product and its accessories are subject to complete or partial change without prior notice.

After-Sales Services

If you have problems with your FOMA terminal

Refer to “Troubleshooting” in this manual or “Support Book” (in Japanese only) contained in the FOMA terminal before requesting repairs. Contact the number listed in Repairs on the back of this manual if problems persist.

If your FOMA terminal needs repairs after contacting DOCOMO

Bring your FOMA terminal to a repair counter that DOCOMO specifies. However, the repair shop is only open during business hours. Note that it may take several days to repair depending on the damaged condition.

During the warranty period

The FOMA terminal will be repaired without charge in

accordance with the terms of the warranty. When bringing the FOMA terminal in for repairs, be sure to bring the warranty card. Even during the warranty period, a fee will be charged for repairs of malfunctions or damage caused by your improper handling (damage of LCD and connector), or when no warranty certificate is presented.

Repairs for damages caused by the use of devices and

accessories other than those specified by DOCOMO will also incur a fee, even during the warranty period.

Repairs may not be possible in the following circumstances.

When a repair counter considered water exposure

(Example: When the moisture detection seal has reacted)

As a result of inspection, when damage from water

exposure, condensation, sweat, or other liquids are found, or when the internal circuit board is damaged or deformed (Repairs may not be possible when external connector terminal (earphone/microphone terminal), LCD, etc. is damaged, or when a housing is cracked) Even when repairs are possible, repair charges will be

※

incurred because the warranty does not cover such damage.

After the warranty period has expired

Charged repairs will be carried out upon request.

Replacement parts

Replacement parts (required to maintain the functionality of the FOMA terminal) will be kept in stock basically for 6 years following production. However, note that there may be a case when repair is not possible for the shortage of replacement parts depending on the faulty part.

Others

Page 86

IMPORTANT!

技術基準適合認証品

QR code to

connect to

the site

Never attempt to modify the FOMA terminal or its

accessories.  Repairs may be refused depending on the extent of the

modification. The following cases may be considered as a modification.

• Stickers are applied to the LCD or keys

• Decorations are made to the FOMA terminal with adhesive agent

• Exterior parts are replaced with those which are not standard DOCOMO product

 Repairs for any malfunction or damage caused by such

modifications will incur fees, even during the warranty period.

Do not peel off the model nameplate attached to the

FOMA terminal.  If the nameplate seal does not function as a

certification, repairs may be refused because conformity to the standards cannot be determined.

Information stored in your FOMA terminal, such as the

Others

settings of various functions and the total call duration, may be cleared or reset if your FOMA terminal is damaged, repaired, or mishandled.  If this occurs, please re-enter the information or

re-specify the settings.

The following sections of the FOMA terminal contain parts

that generate magnetic waves. Keep ATM cards and other objects likely to be affected by magnetic waves away from the FOMA terminal. Cards may become unusable.

 Sections: speaker, mouthpiece

This terminal is waterproof, however, if the FOMA terminal

gets wet or becomes moist, immediately turn off the power and remove the battery pack. Then, visit a repair counter. The FOMA terminal may not be repaired depending on its condition.

i-mode fault diagnosis site

You can check whether the FOMA terminal can normally send and receive mails, download images or melodies or perform other operations. When a malfunction is found after checking, contact the number listed in “Repairs” on the back of this manual.

Accessing the “i-mode fault diagnosis site”

i-mode site: [iMenu]/[お知らせ]/[サービス・機能]/[ｉモード]/[ｉモード故障診断]

Packet transmission charges are not

incurred for the i-mode fault diagnosis.

• Access from abroad is charged.

Page 87

Updating software

You can update software if the FOMA terminal software need to be updated using packet transmission.

※ Packet transmission charges are not incurred.

Check the DOCOMO website or “お客様サポート” (user support) on iMenu for updates. When updating, select

“Auto-update”, “Now update” or “Reserve”.

You can update software even if the FOMA terminal

contains phonebook, camera image, downloaded data, etc. However, DOCOMO cannot protect some data that could be lost due to malfunction, damage, water exposure and so on. It is recommended that important data be backed up before updating. Note that some data, such as downloaded data, cannot be backed up.

Using software update

Do not remove the battery pack while the software is

updating. Failure to update software may occur.

Recharge battery before updating software. Updating (downloading and rewriting) software may take

time.

Making/Receiving calls, transmission functions and other

functions cannot be used while software is being updated (Receiving voice calls is possible during download).

It is recommended to update software at a location with a

strong signal (three bars for the antenna icon) and you are not moving. If signal status becomes weak or download is interrupted when downloading software, update software again in a location with good signal conditions.

When updating software, the information unique to the

FOMA terminal (model, serial number, etc.) is automatically sent to the server (DOCOMO software update server). Sent information is only used for software update.

If software update fails, [Rewrite failed] appears and all

operations are not available. In this case, bring the FOMA terminal to a repair center that DOCOMO specifies.

Updating software is not available overseas.

Others

Page 88

Starting software update from stock icon

When the software is automatically downloaded, the stock icon appears in the stand-by display (nP.29).

^t&/select the stock icon [6]

(Update required)/t&

[OK]

To set the day of week and time: [Change] To rewrite immediately: [Now rewrite]

Starting software update from menu screen

][Settings]/[General settings]/

[Software update] Enter the terminal security code/t&/

[Set auto-update] Select the update method/t&

Others

Checking harmful data

Delete or stop activating any data or applications that could cause operational malfunctions. These types of data include data or programs that are downloaded to the FOMA terminal.

The scan function helps to protect the handset from

damage caused by data such as data received from web pages or mails. If the pattern definition corresponding to a particular harmful file is not downloaded or saved, the scan function will not be able to protect the FOMA terminal.

Pattern definitions vary depending on the phone model.

Therefore, DOCOMO may discontinue offering pattern definitions for a particular model 3 years after the release date.

Updating pattern definitions

First, update pattern definitions to bring them up-to-date.

][Settings]/[General settings]/

[Scanning function]/[Update]/[Yes]/ [Yes]

t& when updating is completed

Page 89

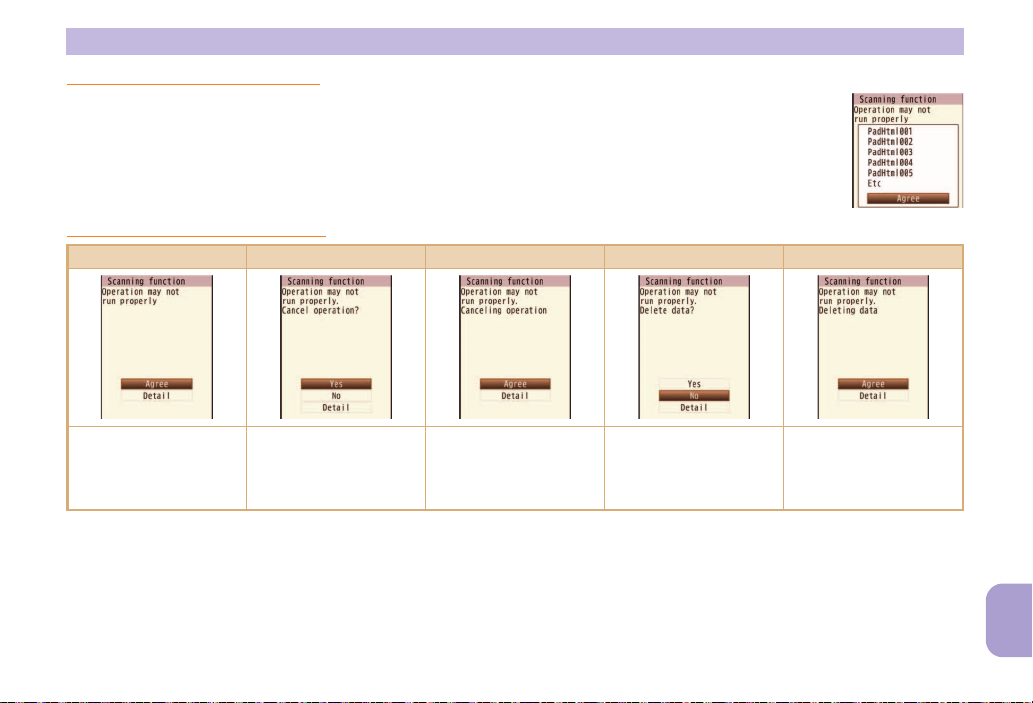

Displaying scanned results

Displaying detected errors

If you select [Detail] in the warning screen, error names appear. When no error name exists for the

contents of the pattern data, [Detail] does not appear.

Up to five error names appear. [Etc] appears below the fifth error name when six or more are detected. If

same error is detected more than once, it is only listed once.

Displaying scanned results

Level 0 Level 1 Level 2 Level 3 Level 4

[Agree]: To display/ activate/call

[Yes]: To cancel [No]: To display/ activate/call

[Agree]: To end [Yes]: To the delete

confirmation screen [No]: To end without deleting

[Agree]: To delete the data

Others

Page 90

Introduction of options and related devices

Combine the FOMA terminal with various optional accessories (sold separately) for expanded personal and business use. Some products may not be available in certain areas. Contact a docomo Shop or retailer for details. Refer to the user’s guide of each product for more details.

FOMA AC Adapter 01 Battery Pack SH20 Back Cover SH37 Desktop Holder SH25 Earphone Terminal P001 Flat-plug Stereo Earphone Set P01 Flat-plug Earphone/Microphone with Switch P01*3/P02 Stereo Earphone Set P001 Earphone/Microphone with Switch P001*2/P002 Earphone/Microphone 01 Stereo Earphone/Microphone 01 Earphone Plug Adapter P001

Others

Earphone Plug Adapter for External connector terminal 01 Earphone Plug Adapter 01 FOMA USB Cable FOMA AC Adapter 01 for Global use 01 FOMA DC Adapter 01/02 FOMA Indoor Booster Antenna In-Car Hands-Free Kit 01 FOMA In-Car Hands-Free Cable 01

/02

In-Car Holder 01

FOMA Dry Battery Adapter 01 Carry Case S 01 Bone conduction microphone/receiver 01 FOMA USB Cable with Charge Function 02 FOMA Portable Charging Adapter 01 FOMA Indoor Booster Antenna (Stand Type)

*1 Refer to P.25 for details on charging with an AC adapter. *2 Connect Earphone Plug Adapter for External connector

terminal 01 and Earphone Plug Adapter to use these options and related devices.

*3 Connect Earphone Plug Adapter for External connector

terminal 01 to use these options and related devices. *4 The use of USB HUB may prevent working correctly. *5 For use only in Japan. *6 FOMA In-Car Hands-Free Cable 01 is required to use/

charge SH-04B. *7 Activate Side key lock to use the In-Car Holder 01.

Page 91

Appendix

Menu list

When settings are reset (nP.44), functions return to default

settings (marked with ).

• Some items may include functions which do not return to default settings.

Custom menu/Basic menu list

Depending on the Kisekae tool set in the custom menu, the function

names may differ from those described.

i-mode menu

i-mode

iMenu/Search Bookmark Screen Memo Last URL Enter URL Enter URL

URL enter history

i-Channel Run i-Channel list

i-Channel ticker Reset i-Channel

i-mode setting Set i-mode Browser

Set Full Browser Common Settings Check i-mode setting Reset i-mode setting

RSS reader

i-mode

Full Browser Home

i-appli menu

i-appli

Software list i-appli call logs i-appli setting i-appli volume

Software info Auto start Power saver set i-appli call DL i-Widget roaming i-Widget sound fx

Used by i-appli Info Auto start error

Force quit history Security error Trace info

Camera menu

Camera

Shoot still pic Shoot movie Character reader Bar code reader Card reader Information reader

Others

Page 92

Motiondeco Shotdeco Cameraloupe

Mail menu

Inbox Outbox Unsent messages Compose message Compose Decome-Anime Compose SMS Template Decome-Template

Check new messages Check new SMS Receive option Receive option

Mail setting Quick reply mail

Others

Camera

Mail

Decome-Anime Template

Receive opt. set

Rcv attached file Melody Auto replay Font size setting Rcv/Auto send disp Check new message Direct detail disp Auto message display Receive opt. set Blog/SNS settings Mail member

Mail

Mail setting Save signature

Mail ticker set SMS setting Area Mail setting Check mail set Reset mail settings Secret mail settings

Settings menu

Settings

Snd/Vibrator/Manner Select volume

Select sound Vibrator Manner mode Headset setting Ring time setting Set mute ring time Hold/On hold tone Sound playback

Disp/LED/Power saver Set screen

Font style Themes LED settings Display img quality Light/Power saver VeilView Menu priority

General settings Check status

Text input setting Auto power ON/OFF

Page 93

Settings

General settings Date settings

Select language USB mode setting Scanning function Software update Reset settings

NW Services Voice Mail

Call waiting Call Forwarding Nuis. call blocking Notify caller ID Caller ID request Talk time/cost 2in1 setting In-call arrival act

Other NW Services Remote Control

Dual network English guidance Service Numbers Additional service Multi number Chaku-moji Roaming guidance

Phone settings In-call settings

Headset sw to call Incoming settings Videophone set Record message Set when closed Self mode

Settings

Phone settings Other settings Security Secret mode

UIM Settings Accept/Reject calls Show call/received Show sent/received Lock settings Change security code Delete all data

i-concier settings Incoming settings

Information display

Battery Battery level

Battery icon Icon% temp display

Initial setting

Phone menu

Phone

Phonebook Redial Received calls Own number

Osaifu-Keitai menu

Osaifu-Keitai

IC card content DCMX ToruCa IC card lock IC lock(power-on)

IC lock(power-off)

Others

Page 94

Osaifu-Keitai

Setting ToruCa from IC card

ToruCa from 1Seg ToruCa duple check ToruCa auto read ToruCa auto disp

ToruCa sound fx Check IC owner Change IC owner Search by i-mode

Data box menu

Data box

My picture MUSIC Music&Video ch i-motion/Movie 1Seg Melody My Documents Kisekae Tool Machi-chara Chara-den

Others

Data box search

i-concier menu

i-concier

1Seg menu

1Seg

Activate 1Seg Program guide Timer list Reserve rec hist TVlink Channel setting 1Seg settings Recording to

Erase storage area Set image display Sound FX 1Seg status Reset status disp Reset 1Seg

LifeKit menu

LifeKit (1/2)

Bar code reader Receive Ir data Receive

Receive all

microSD Bulk sort microSD

View microSD data Backup/recovery all Indiv backup/restore Import New manager info Format

USB mode setting Text memo Schedule

Page 95

LifeKit (1/2)

Alarm Calculator Card reader Information reader Data Sec. Service Timer Wakeup TV

LifeKit (2/2)

Map/GPS Map

Position location Map/GPS appli Location history Set position loc. Loc.notification/set Loc. request menu

Map setting Manga&BookReader PDF Viewer Voice recorder Voice memo/Rec msg Classic schedule Quick search

MUSIC menu

MUSIC

MUSIC Player Music&Video ch

Other functions

Earpiece volume Videophone Manner mode Omakase Lock Side key lock EmojiPlus Shortcut menu Character Entry Chara entry/dict

Others

Page 96

Main specifications

Package

Product name SH-04B

Size

Weight

Continuous talk time

Continuous stand-by time

1Seg watching time Approx. 230 min

Charge time

LCD

Others

Image pickup device

Camera

*1, 2

*2, 3

FOMA/3G

Type

Size

Pixels

Type

Size

Effective pixels

Approx. 109 (H) × Approx. 50 (W) × Approx. 16.3 (D) mm (Approx. 20 mm at thickest point) (when folded) Approx. 131 g (with battery pack attached)

Voice call: Approx. 220 min

Videophone: Approx. 110 min

When mobile: Approx. 370 hr

At rest: Approx. 570 hr

AC adapter: Approx. 120 min DC adapter: Approx. 120 min Main display: New Mobile ASV LCD 16,777,216 colors Sub display: Organic EL One color Main display: Approx. 3.0 inch Sub display: Approx. 0.8 inch Main display: 409,920 pixels (480 × 854 dots) Sub display: 3,744 pixels (39 × 96 dots) Main camera: CCD Sub camera: CMOS

Main camera: 1/2.5 inch Sub camera: 1/8.2 inch Main camera: Approx. 8.0 million pixels Sub camera: Approx. 0.43 million pixels

Recorded

Camera

pixels (Max.)

Zoom (Digital)

Picture light source LED characteristics

Number of still pictures recorded

Continuous shooting of still pictures

Recording

File format for still picture Recording time for moving picture File format for moving picture

Music playback

Continuous playback time

Main camera: Approx. 8.0 million pixels Sub camera: Approx. 0.41 million pixels Main camera: Up to approx. 20.4× Sub camera: Up to approx. 5.4× a) Continuous illumination b) Wavelength

White: 400-700 nm

c) Maximum output

White: 660 μW (inside FOMA terminal 620 μW)

Approx. 2,000 shots Approx. 1,100 shots Approx. 1,800 shots (when saved in 64 MB microSD Card)

*7, 8

*7, 9

Std-by: 4 shots/VGA: 6 shots/QVGA: 9 shots/QCIF: 25 shots

JPEG

Approx. 18 min each

Approx. 60 min each (when saved in 64 MB microSD Card)

*10

MP4

i-motion: Approx. 460 min

*11

Chaku-uta full® (Compatible with background playback): Approx. 1,480

*11

min WMA file (Compatible with background playback): Approx. 1,210 min

*12

Page 97

Music&Video Channel (voice)

Music playback

Memory capacity

“Chaku-uta” is a registered trademark of the Sony Music

Entertainment (Japan) Inc.

*1 Continuous talk time is an estimate of the time when talking in a

*2 The above mentioned talk time and stand-by time are shortened

*3 Continuous stand-by time is an estimate of the time when FOMA

*4 Continuous stand-by time is the average usage time when the

*5 Continuous stand-by time is the average usage time when the

*6 A CCD (Charge Coupled Device) and a CMOS (Complementary

Continuous playback time

Chaku-uta Chaku-uta

full

location where the signal is normal.

with the use of data communications, Multiaccess, and the camera.

terminal is closed and in a status where signals are received. Talk/stand-by time may be reduced by about half depending on conditions including battery level status, functions used, temperature and other environmental conditions, and signal strength (no signal or weak signal). Using i-mode reduces talk (transmission)/stand-by time. In addition, watching 1Seg, composing i-mode mail, and activating downloaded i-appli or the i-appli stand-by will also shorten talk (transmission)/stand-by time even if calls or i-mode transmission are not made.

FOMA terminal is closed and in At rest, When mobile or Outside the service area status.

FOMA terminal is closed when you are not moving and in a status where signals are received.

Metal-Oxide Semiconductor) are image devices equivalent to the film of silver salt cameras.

(Compatible with background playback): Approx. 1,390 min Music&Video Channel (moving picture): Approx. 460 min

Approx. 128 MB

*13

*7 Image size: QCIF (176 × 144 dots)/Image quality: NORMAL/File

size: 10 KB

*8 The number is the number of still pictures that can be shot when

deleting the data which is registered in advance.

*9 The number is the number of still pictures that can be shot when

not deleting the data which is registered in advance.

*10 Image size: sQCIF (128 × 96 dots)/Image quality: NORMAL/File

size limit: Unrestricted/Type: Image + voice *11 File format: AAC format *12 File format: WMA format *13 When still picture, moving picture, music, melody, My

Documents, Kisekae tool, Machi-chara, Chara-den, i-appli,

e-book/e-dictionary/e-comic, Music&Video Channel, video or

ToruCa are saved, the memory capacity of Chaku-uta

Chaku-uta full

will be small.

Battery pack

Product name Battery Pack SH20

Battery Lithium-ion

Nominal voltage 3.7V DC

Nominal capacity 800 mAh

Estimated number of saved videos and recording time

Number of entries Recording time

FOMA terminal handset Up to 99 Up to approx. 40 min

microSD Card (16 GB)

* Record up to 2 GB (Approx. 640 minutes) of 1Seg for each time.

The recording ends even if you use a microSD Card of more than 2 GB and the available memory space is sufficient.

Up to 99

Up to approx. 5,120 min

Others

Page 98

Estimated recording time of voice recorder

Number of entries Recording time

microSD Card (64 MB)

Up to 1,000 Up to approx. 462 min

* Each recording time is up to approximately 360 minutes.

Number of saved/registered entries in the FOMA terminal

Data type

Phonebook 1,000

1Seg TVlink 100

Reception/Recording 50

Schedule Schedule 2,500

Vacation 100

Holiday 20

Text memo 10

Mail (The total number of SMS and i-mode mail)

Deco-mail templates 100

Decome-Anime Templates 100

Others

Message Message R 50

Bookmark 200

Screen memo 400

Download dictionary 9 i-appli 100

Image 2,000

Received mail 2,500

Sent mail 500

Unsent mail 500

Message F 50

Number of

applicable entries to

be saved/registered

*4, 5, 6

*4, 5

*5, 6

*5, 6, 8

Number of

Data type

applicable entries to

be saved/registered

Moving picture/i-motion 100

Kisekae tool 50

Machi-chara 50

Chara-den 50

Melody 500

PDF data 50

ToruCa 200

e-book/e-dictionary/e-comic 1,000

1Seg video 99

*5, 6

Font (TTF) 1

*1 You can save up to 50 entries in the FOMA card. *2 Total number of the timers for starting and recording programs. *3 You can save holidays besides national holidays already saved. *4 In addition, you can save up to 20 received and sent SMS in the

FOMA card. *5 Saved amount may be reduced depending on status of using

memory. *6 Pre-installed data which can be deleted is included. *7 You can set up to five dictionaries. *8 Still picture for which 1Seg programs is recorded is included.

Page 99

Specific Absorption Rate (SAR) of mobile phone

This model phone SH-04B meets the MIC’s* technical regulation for exposure to radio waves.

The technical regulation established permitted levels of radio frequency energy, based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The regulation employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit is 2 watts/kilogram (W/kg) includes a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The value of the limit is equal to the international guidelines recommended by ICNIRP All phone models should be confirmed to comply with the regulation, before they are available for sale to the public. The highest SAR value for this model phone is 0.680 W/kg. It was taken by the Telecom Engineering Center (TELEC), a Registered Certification Agency on the Radio Law. The test for SAR was conducted in accordance with the MIC testing procedure using standard operating positions with the phone transmitting at its highest permitted power level in all tested frequency bands. While there may be differences between the SAR levels of various phones and at various positions, they all meet the MIC’s technical regulation. Although the SAR is determined at the highest certified power level, the actual SAR of the phone during operation can be well below the maximum value. For further information about SAR, please see the following websites:

World Health Organization (WHO) http://www.who.int/peh-emf/

ICNIRP http://www.icnirp.de/

MIC http://www.tele.soumu.go.jp/e/index.htm

averaged over ten grams of tissue. The limit

***

TELEC http://www.telec.or.jp/ENG/Index_e.htm

NTT DOCOMO http://www.nttdocomo.co.jp/english/product/sar/

SHARP Corporation http://www.sharp.co.jp/products/menu/phone/cellular/sar/index.html

* Ministry of Internal Affairs and Communications

** The technical regulation is provided in Article 14-2 of the Ministry

Ordinance Regulating Radio Equipment.

*** International Commission on Non-Ionizing Radiation Protection

European RF Exposure Information

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the ear was

0.795 W/kg As SAR is measured utilizing the devices highest transmitting power the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum level required to reach the network.

The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile devices. They note that if you want to reduce your exposure then you can do so by limiting the length of calls or using a hands-free device to keep the mobile phone away from the head.

* The tests are carried out in accordance with international

guidelines for testing.

Others

Page 100

FCC Notice

Hereby, Sharp Telecommunications of Europe Ltd, declares that this SH-04B is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the original declaration of conformity can be found at the following Internet address: http://www.sharp.co.jp/k-tai/

Declaration of Conformity

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the

manufacturer responsible for compliance could void the user’s authority to operate the equipment.

Information to User

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,

Others

uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient/relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

FCC RF Exposure Information

Your handset is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The guidelines are based on standards that were developed by independent scientific organisations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless handsets employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model handset when tested for use at the ear is

0.663 W/kg and when worn on the body, as described in this user guide, is 0.735 W/kg. Body-worn Operation; This device was tested for typical body-worn operations with the back of the handset kept 1.5 cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 1.5 cm separation distance between the user’s body and the back of the handset. The use of beltclips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

DoCoMo SH-04B User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Basic package

Introduction

Contents

FOMA Terminal

What You Can Do with SH-04B

Part Names and Functions

Precautions

Handling Precautions

Waterproofness

Basic Operation

Before Use

Screen Explanation

Character Entry

Sound/Screen Setting

Lock/Security

Call

Connect

Mail

Phonebook

i-mode/Full Browser

Search

i-Channel

Map/GPS

Camera

Enjoy

1Seg

Music

i-appli/i-Widget

i-motion/Movie

Osaifu-Keitai

More Convenient

i-concier

Convenient Tools

Data Management

Support

Others

Appendix
