Docomo STYLE N-01B, N-02B Instruction Manual

N-01B

INSTRUCTION MANUAL

’09.12

DOCOMO W-CDMA and GSM/GPRS Systems

Thank you for choosing "docomo STYLE series N-01B".

Before use, be sure to thoroughly read this manual to ensure that you use N-01B correctly.

How to use N-01B

The operations of N-01B are also described in "Instruction Manual (Detailed version)" (PDF file) other than this manual.

■ "Instruction Manual" (this manual) : Provides information about screens

and basic operations.

■ "Instruction Manual (Detailed version)" (Japanese) : Provides detailed

information about all function and operations.

From PC : Download from NTT DOCOMO's website http://www.nttdocomo.co.jp/support/trouble/manual/download/index.html

* The URL and content may change without prior notice.

Basic package

■ Basic package

N-01B

(including written

warranty and Back Cover N41)

■ Options and accessories compatible with this FOMA terminal →P.86

N-01B Instruction

manual

Battery Pack (N16)

CD-ROM for N-01B

Before using this manual

・ In this N-01B INSTRUCTION MANUAL, read "N-01B" as the "FOMA terminal". ・ This manual uses the default settings and screen shots for "Tiara White" to

describe operations. The images shown in this manual are in English mode. Please switch the display from Japanese to English in language). The images or illustration used in this manual are examples. They may differ from the actual displays.

・ Unauthorized copying of parts or this entire manual is prohibited.

バイリンガル (Select

FOMA terminal ..................................................................2

What you can do with N-01B ...........................................3

Part names and functions ................................................4

Precautions (Always follow these directions) ...............6

Before Using .................................................................... 16

Screen Explanation ........................................................ 20

Character Entry ............................................................... 26

Sound/Screen Setting ................................................... 28

Lock/Security .................................................................. 35

Introduction

P. 1

Basic

Operation

P.16

Call Telephone ................................................................ 40

Mail ................................................................................... 48

Phonebook ...................................................................... 52

i-mode/Full Browser ...................................................... 54

i-Channel ......................................................................... 57

Map/GPS .......................................................................... 58

Camera ............................................................................. 60

1Seg .................................................................................. 62

Music ................................................................................ 64

Dppli ............................................................................... 69

i-motion/Movie............................................................... 71

Osaifu-Keitai ................................................................... 72

i-concier ........................................................................... 73

Convenient tools ............................................................ 74

Data Management ......................................................... 75

Support ............................................................................ 79

Index .............................................................................. 102

Connect

P.40

P.54

Enjoy

P.60

convenient

P.72

Others

P.79

FOMA terminal

Introduction

・ FOMA terminals use wireless communications and cannot be used

in tunnels, underground areas, buildings, and other areas without reception; in outdoor locations with weak reception; or outside the service area. Reception may also be weak in even some unobstructed upper floors of high-rise buildings and apartments. Please be aware that calls or communications may be disconnected even under optimal conditions when reception is strong and all three antenna icons are displayed, and when in a stationary position.

・ Please be careful not to disturb people around you when using your

FOMA terminal in public places, crowded areas, or quiet locations.

・ A third party may be able to use special equipment to listen in on

your calls, as FOMA terminals use radio waves. However, W-CDMA and GSM/GPRS systems automatically support privacy protection with a scrambling function for all calls to make conversations incomprehensive to third parties.

・ FOMA terminals convert voice into digital signals for wireless

communications, and therefore if you are in an area where radio reception is weak, these digital signals may not be properly restored and this may result in distortion of the actual caller's voice.

・ The user hereby agrees that the user shall be solely responsible for the

result of the use of SSL/TLS. Neither DOCOMO nor the certifier as listed herein makes any representation or warranty as for security in the use of SSL/TLS. In the event that the user shall sustain damage or loss due to the use of SSL/TLS, neither DOCOMO nor the certifier shall be responsible for any damage or loss. Certifier: VeriSign Japan K.K., Cybertrust Japan Co., Ltd., GlobalSign K.K., RSA Secrity Japan Ltd., SECOM Trust Systems Co., Ltd., Comodo CA Ltd., and Entrust, Inc.

・ This FOMA terminal is available for use in the FOMA Plus-Area and FOMA

HIGH-SPEED area.

・ The FOMA communication for the FOMA terminal can be used only via

the FOMA network provided by DOCOMO and DOCOMO's roaming area.

・

Please keep a separate record of the information (Phonebook, Schedule, Text memo, Record message, Voice memo or Videophone message) you have registered in your FOMA terminal. Please be aware that DOCOMO bears no obligation or responsibility in the event that data is altered or lost.

・ It is recommended that you back up important data to a microSD card. If

you own a PC, you can also transfer and save data, such as Phonebook, Mail or Schedule, to your PC using DOCOMO keitai datalink.

What you can do with N-01B

Lock function

Various lock functions are available for using FOMA terminal safely.

International roaming

You can use the same FOMA terminal, phone number and mail address as those used in Japan overseas (3G/GSM areas are supported).

AUTO-GPS

With AUTO-GPS function, you can use useful services such as weather information of your location, neighboring information such as shops etc., or sightseeing information.

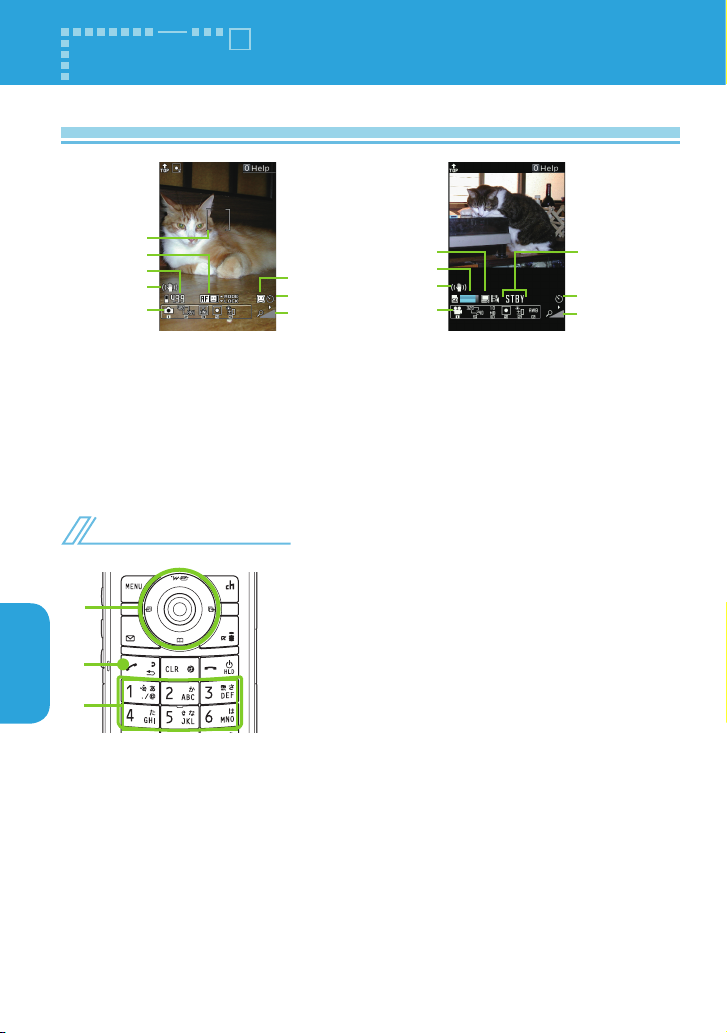

Camera

You can shoot image in 8 M size (2,448 x 3,264 dots) by Rear Camera whose effective pixels are approximately 8.1 million CMOS one after another in Quick Shot. Functions such as auto-scene detection and beautiful skin mode, and a light, etc. for taking photo simply and finely are installed.

P.35

P.46

P.59

P.60

Introduction

i-concier

It is convenient service that a character on standby screen (Machi-chara) provides useful information and you can download schedules (i-schedule) from sites. This service is only available in Japanese.

P.73

"ひつじのしつじくん®

(Butler sheep)"

©NTT DOCOMO

Part names and functions

Introduction

Multi-function keys

f/g : Up/Down key

・ Move the cursor or

contents etc. upward or downward

・ Display the i-Widget/

search phonebook menu screen

h/j : Left/Right key

・ Move the cursor to the

left or right

・ Display the Received

call history/Redial

d : OK key

・ Perform the function

displayed on this key

i key

Display the main menu

o key

Display the mail menu

r Start key

Make calls

Dial keys

Enter phone numbers or characters

w/Public mode (Drive

mode) key

Set Public mode (Drive mode)

Earpiece

Hear other party's voice from here

Display

Illuminance sensor

Detect brightness. Do not cover with hand or put sticker on it

Front camera

u key

Display i-Channel

p key

Display iMenu/Search screen

t Back (Clear) key

Return to the previous step or delete the entered characters

Power/End/Hold key

q/Manner key m Multi key

Display the TASK MENU screen

Mouthpiece/Microphone

<Using Earphone> Connect an external-connectorcompatible earphone (optional). To use an incompatible earphone, connect an adapter converter (optional).

Flat-plug earphone/microphone with switch (optional) connection example

Phone plug

②

①

Earphone connector (at)

Flat-plug of earphone/ microphone with switch

Illumination

Illumination/Charge lamp/Shooting recognition lamp

Introduction

Illumination window

Display clock or FOMA terminal status

e mark

Read the IC card and make iC communications

Rear camera

* The 1Seg antenna is

built in, and the FOMA terminal itself works as an antenna.

Strap hole

@ Camera key

Display photo shooting screen

Volume up key/(マナー )

Raise the earpiece volume or set Manner mode

FOMA antenna

The FOMA antenna is built-in. Do not cover the antenna part with your hands.

Speaker (monaural) Infrared data port microSD card slot

Back cover

Charging terminal

External connector

Use when charging, connecting an earphone, etc.

s Volume down key/(L)

Lower the earpiece volume or turn on the Light

Precautions (Always follow these directions)

Introduction

To ensure that you use your

FOMA terminal correctly, read "Precautions" carefully before use. Keep this manual after reading for future reference.

The precautions must be

observed at all times since they contain information intended to prevent the bodily injury or damage to property.

The following symbols indicate

the different degrees of injury and damage that may occur if the information provided is not observed and the FOMA terminal is used incorrectly:

Indicates that death or serious bodily injury may result directly

DANGER

and immediately from improper use.

Indicates that death or serious bodily injury may

WARNING

result from improper use.

Indicates that bodily injury and/or result from

CAUTION

The following symbols

improper use.

indicate specific directions:

Indicates that it is prohibited.

Don't

Indicates that it must not be

No disassembly

disassembled.

Indicates that you must not

No wet hands

touch it with wet hands.

Indicates that it must not be used near water, which

No liquids

means that you must not let it become wet.

1. Precautions for the

Don't

No disassembly

Indicates that it is an instruction-based compulsory conduct (must

be acted). Indicates that you must

unplug the power code from the outlet.

Unplug

Safety precautions are explained

in the following categories:

Precautions for the FOMA terminal, Battery Pack, Adapter and UIM (FOMA card) (Common) Precautions for the FOMA terminal Precautions for the Battery Pack Precautions for the Adapter Precautions for the UIM (FOMA card) Precautions for Use Near Electronic Medical Devices

･･･････････････････････

････････････････････12

FOMA terminal, Battery Pack, Adapter and UIM (FOMA card) (Common)

DANGER

Do not use, keep or leave the devices in locations subject to high temperatures, such as near fire, indirect sunlight or inside a car on a hot day.

Doing so may cause the battery pack to leak, overheat, explode or ignite, the devices to malfunction or be deformed or suffer performance loss and reduces operating life. Also, doing so may cause part of the case to become hot and burn your skin.

Do not disassemble, modify or solder the equipment.

Doing so may damage the equipment, or cause fire, electrical shock or injury (burns, etc.). Doing so may cause the battery to leak, overheat, crack or catch fire.

････ 8

･････10

･････････11

･･･12

Do not allow the devices to become wet.

Device contact with liquids, such as water

No liquids

or pet urine, may cause overheating, electric shock, fire, malfunction, injury, etc. Be careful not to use the devices in areas where they could get wet.

Use the battery pack and adapter specified by NTT DOCOMO for the FOMA terminal.

Third-party products might subject the FOMA terminal, battery pack and other devices to high voltage/current leading to leaking, overheating, crack, fire, or product damage.

WARNING

Do not put the battery, FOMA terminal, adapter or UIM (FOMA card) in a microwave

Don't

oven or pressurized container.

Doing so may cause the battery pack to leak, overheat, explode or ignite, cause the FOMA terminal or adapter to overheat, smoke or ignite, or damage the IC.

Do not throw the FOMA terminal or expose it to strong shocks.

Failure to observe this precaution

Don't

may cause the battery pack to leak, overheat, explode or ignite, or cause the devices to malfunction or ignite.

Do not place electrically conductive objects (wires, pencil leads, etc.) in contact with the

Don't

charging terminals or external jacks. Do not insert those materials inside the terminal.

Any of these improper uses might result in a short circuit and damage the equipment or cause fire.

Make sure to turn off the FOMA terminal before you get close to the places like a gas station

where a flammable gas is generated. Do not attempt to charge a battery as well. Doing so may cause the gas to ignite.

Turn off the power, when you use Osaifu-keitai at a gas station (if the IC card lock is set, turn the power off after the lock is released).

If something unusual happens, such as unusual odor, overheating, discoloration or

deformation during use, charge or storage, be sure to:

1. Unplug the power code from the power outlet or the cigar lighter socket.

2. Turn off the power.

3. Remove the battery pack from the FOMA terminal.

Continuing to use or charge the battery may cause it to overheat, explode, or ignite; or the battery to leak.

CAUTION

Do not leave the FOMA terminal on a slope or unstable surface.

The FOMA terminal may fall and cause

Don't

injury or malfunction.

Do not leave the devices in humid, dusty or hot places.

Doing so may cause malfunction.

Don't

If your child uses the FOMA terminal, instruct him/her on how to use it. Make sure that

he/she always uses the FOMA terminal correctly as you instruct.

Improper usage could result in bodily injury.

Keep the FOMA terminal out of young children's reach.

A young child may try to swallow it

or suffer injury.

Pay special attention when you use the FOMA terminal connected to the adapter for a

long period.

If you use i-Dppli or videophone or watch 1Seg programs for a long time while charging, the temperature of the FOMA terminal, battery pack or adapter may rise. If you touch the warm part of these devices for a long period of time, it may cause redness, itch, skin irritation or low temperature burns depending on your constitution or physical condition.

Introduction

2. Precautions for the FOMA terminal

Introduction

Do not direct the infrared data port towards your or another person's eyes.

Don't

Doing so may cause eye injury. Do not aim or direct the infrared data port towards another infrared device as this may interfere with the operation of the device.

Do not turn on the light near a person's eyes.

The light may affect eyesight. Also,

Don't

this may dazzle or surprise him/her and cause an injury.

Do not put the FOMA terminal on the dashboard, etc. as a problem may occur due to air

Don't

bag inflation.

An air bag inflation may cause the FOMA terminal to hit you or another person, which may lead to injury, malfunction, breakage, etc.

If you are wearing electronic medical equipment, do not put the FOMA terminal in your

Don't

breast pocket or in an inside pocket.

Using the FOMA terminal in close proximity to electronic medical equipment may cause the equipment to malfunction.

Do not put fluids such as water or substances such as pieces of metal or flammable materials

Don't

into the UIM (FOMA card) slot or microSD card slot inside of the FOMA terminal.

Doing so may cause fire, electronic shock or malfunction.

Do not turn on the light against the car drivers etc.

Doing so may interfere with driving

Don't

and cause a traffic accident.

WARNING

Please turn off your FOMA terminal when inside an airplane, hospital, or other area

where use is prohibited.

The device may affect electronic or medical equipment. If the Auto power function is set, make sure to disable the function before turning off the power. Follow the instructions provided by the medical facility for the use of mobile phones. Use of the phone in an airplane is prohibited, and may be punished by law.

Make sure to hold the FOMA terminal at a safe distance from your ear when you use the

handsfree mode. Also, when you play games or music with an earphone/microphone connected to the FOMA terminal, adjust the volume properly.

Too large a volume may lead to defective hearing. Also, hearing difficulties may cause an accident.

If you have a weak heart, take precautions when setting the Vibrator or Ring volume.

Sudden loud sounds or vibrations may affect your heart.

If you see lightning or hear thunder while using outdoors, immediately turn off the power

and take shelter in a safe place.

There is a risk of being struck by lightning and causing electric shock.

Please turn off the power near electronic equipment that contains high-precision mechanisms or

handles delicate signals.

The terminal may interfere with the operation of sensitive electronic equipment.

Electronic equipment to watch out for:

* Hearing aids, implanted cardiac pacemakers, and other electronic medical devices; fire alarms, automatic doors, and other automatically controlled apparatus. Users of implanted cardiac pacemakers, ICDs, and other electronic medical devices are advised to ask the manufacturer or sales agent whether or not these devices can be affected by radio waves.

If the display or camera lens is broken, be careful with the broken glass and any exposed

FOMA terminal parts.

The display and camera lens surfaces are covered by plastic to minimize the possibility of glass scattering. However, touching broken or exposed parts may cause injury.

CAUTION

Do not swing the FOMA terminal by its strap or other parts.

Don't

The FOMA terminal may strike you or others around you, resulting in bodily injury, malfunction or damage to the FOMA terminal or other property.

When using motion tracking, make sure you are in a safe place, hold the FOMA terminal

Don't

securely, and do not shake it more than necessary.

Motion tracking is a function that works by tilting or shaking the FOMA terminal. It may hit people or objects if shaken too much, causing serious accidents, damage, etc.

Do not hit other people with metallic straps, etc. of the FOMA terminal while using

Don't

motion tracking.

Failure to observe this precaution may result in injury, malfunction or breakage.

If the display is broken and the liquid crystal leaks, do not lick, swallow, or touch it.

Don't

If the liquid crystal comes into your eyes or mouth, immediately rinse with clean water and see a doctor. If the liquid crystal adheres to your skin or clothing, immediately wipe soap and water.

Failure to observe these precautions may cause loss of eyesight or damage to your skin.

When a ring tone or melody is played, do not put the speaker close to your ear.

Don't

Doing so may lead to defective hearing.

In some types of vehicle, using the FOMA terminal may interfere with the operation of

the vehicle's electronic equipment.

Do not use the FOMA terminal if doing so may impair safe driving.

There may be cases where the customer's physical condition or predisposition leads to

itchiness, rashes, or sores. If this occurs, immediately stop using the FOMA terminal and see a doctor. Metal components are used in the following parts:

Parts Material Coating

Charging terminal (Connector for desktop holder) Neuropointer key Aluminum

Multi function key

Phosphor bronze

alloy SUS

Take care not to pinch your fingers or the strap when opening/closing the display of

the FOMA terminal.

Such pinching may cause injury or breakage.

When viewing 1Seg, keep a proper distance between your eyes and the display in a bright

place.

Failure to observe this precaution may impair your vision.

Introduction

Gold plating

Alumite

―

3. Precautions for the Battery Pack

Introduction

Refer to the information shown

on the battery pack label to check the type of battery pack.

Display Battery type

Li-ion00 Lithium-ion

DANGER

Do not place metal items such as wires in contact with the charging terminals. Also, do

Don't

not carry or store the battery with metal items such as necklaces.

Doing so may cause the battery pack to leak, overheat, explode or ignite.

If you have difficulty attaching the battery pack to the FOMA terminal, do not put excessive

Don't

pressure on the battery. Check the orientation of the battery pack before attaching it.

Doing so may cause the battery pack to leak, overheat, explode or ignite.

Do not throw the battery pack into fire.

Doing so may cause the battery pack

Don't

to leak, overheat, explode or ignite.

Do not puncture the battery pack, hit it with a hammer or step on it.

Don't

Doing so may cause the battery pack to leak, overheat, explode or ignite.

If battery fluid comes into contact with your eyes, do not rub your eyes but immediately

rinse your eyes with clean water and see a doctor.

Failure to observe this precaution may result in loss of eyesight.

WARNING

If a battery has been subjected to strong impact and something abnormal such as

Don't

deformation, damage, stop using it immediately.

Failure to observe this precaution may cause the battery pack to leak, overheat, explode or ignite, or cause the devices to malfunction or ignite.

If the battery is not fully charged after the specified charging time has elapsed, stop charging.

Continued charging may cause the battery pack to leak, overheat, explode or ignite.

If the battery pack leaks or emits an unusual odor, stop using it immediately and move

it away from any flame or fire.

The battery fluid is flammable and could ignite, causing a fire or explosion.

Keep your pets away from the battery pack as they may accidentally bite it.

Failure to observe this precaution may cause the battery pack to leak, overheat, explode or ignite, or cause the devices to malfunction or ignite.

CAUTION

Do not dispose of used battery packs with ordinary garbage.

Doing so may cause fire and create an

Don't

environmental hazard. Put insulation tape on the terminals of used battery pack and return it to a docomo Shop or Service Counter, or dispose of the battery pack in accordance with your local regulations.

Do not charge a wet battery pack.

Doing so may cause the battery pack to overheat, ignite, or explode.

Don't

If battery fluid comes into contact with your skin or clothing, stop using it

immediately and rinse with clean water.

Battery fluid is harmful to your skin.

Precautions for the Adapter

WARNING

Do not use the adapter if the power cord is damaged.

Doing so may cause electric shock,

Don't

overheating or fire.

Do not use the AC adapter or desktop holder in humid locations such as a bathroom.

Don't

Doing so may cause electric shock.

The DC adapter must be used only in vehicles with a negative ground. Do not use the adapter

Don't

in vehicles with a positive ground.

Doing so may cause fire.

Do not touch the FOMA terminal or adapter when you see lightning or hear thunder.

Don't

There is a risk of being struck by lightning and causing electric shock.

Do not short-circuit the charging terminals when the adapter is plugged into a power

Don't

outlet or cigarette lighter socket. Also, do not let the charging terminals contact with your body (hand, finger, etc.).

Doing so may cause fire, malfunction, electric shock or injury.

Place the adapter or desktop holder on a stable surface during charging. Also, do not

Don't

cover or wrap the adapter or desktop holder with clothing or bedding.

This may cause the FOMA terminal to fall out of the adapter or heat to build up, resulting in a fire or malfunction.

Do not put heavy objects on the power cord of the adapter.

Doing so may cause electric shock or

Don't

fire.

Do not touch the power cords of the adapter or the power outlet with wet hands.

No wet hands

Doing so may cause electric shock.

Use the specified voltage and current.

Using the adapters with incorrect

voltage may cause fire or malfunction. Use the AC Adapter for Global use to charge the battery overseas. AC Adapter : AC 100V DC Adapter : DC 12V/24V (specific to

vehicle with negative ground)

AC Adapter for Global use : AC 100V to

240V (household AC outlet only)

If the fuse in the DC adapter blows, always replace it with the specified type of fuse.

Using the unspecified fuse may cause fire or malfunction. Refer to the respective manuals for the information on the specified fuse.

Wipe off any dust on the plug.

Doing so may cause fire.

When plugging the AC adapter into a power outlet, make sure that no metallic straps or other

metallic objects are caught between the plug and the socket.

Metallic objects may cause electric shock, short-circuit or fire.

Always grasp the plug when unplugging the adapter from the power outlet or cigarette

lighter socket. Do not pull the cord itself.

Pulling the cord may damage the cord and cause electric shock or fire.

Unplug the power code from the power outlet when the adapter will be left unused for

Unplug

a long period.

Doing so may cause electronic shock, fire or malfunction.

Introduction

If water or other liquid gets into the adapter, immediately

Introduction

outlet or socket.

Doing so may cause electric shock, smoke emission or fire.

unplug it from the power

Unplug

Unplug the adapter from the power outlet or cigarette lighter socket before cleaning it.

Unplug

Doing so may cause electric shock.

5. Precautions for the UIM

(FOMA card)

CAUTION

Be careful with sharp edges when removing the UIM (FOMA card) (IC part).

Sharp edges may injure your hands or fingers.

Precautions for Use Near Electronic Medical Devices

According to the Guidelines on

the Use of Radiocommunication Equipment such as Cellular Telephones - Safeguards for Electronic Medical Equipment established by the Electromagnetic Compatibility Conference Japan.

WARNING

Take care of the following inside hospitals:

󱾁 Do not take your FOMA terminal

into an operating room, intensive care unit (ICU), or coronary care unit (CCU).

󱾁

Turn off power inside hospital wards.

󱾁 Turn off power even in hospital

lobbies, waiting rooms, and corridors if electronic medical devices may be in use near you.

󱾁 For use inside medical institutions,

please follow the instructions given at individual locations.

󱾁 If the Auto power function is set,

make sure to disable the function before turning off the power.

Turn off the power in crowded places such as peak-hour trains if implanted electronic medical

devices may be in use near you.

Radio waves emitted by the FOMA terminal may adversely affect implanted pacemakers and ICDs when used in close proximity.

A person with an implantable cardiac pacemaker or defibrillator should use or carry

the FOMA terminal at a distance more than 22 cm from the site of implantation.

Radio waves emitted by the FOMA terminal may adversely affect implanted pacemakers and ICDs when used in close proximity.

Electronic medical devices other than implanted pacemakers and ICDs may also

be used outside hospitals. Users of electronic medical devices are advised to ask the manufacturer whether these instruments can be affected by radio waves.

Radio waves from the FOMA terminal can adversely affect electronic medical devices.

Handling precautions

General Notes

Do not allow the devices to become wet.

󱾀

The FOMA terminal, battery pack, adapter and the UIM (FOMA card) are not waterproof. Do not use them in humid locations such as bathrooms, and avoid exposing them to rain. If you carry the FOMA terminal close to your skin, sweat may cause internal components to corrode and result in malfunction. The FOMA terminal cannot be repaired in the following cases: the water exposure detection sticker shows water exposure; tests determine that corrosion has occurred due to water exposure, condensation, or perspiration. These cases are not covered by the warranty, and any repairs that may be possible will be carried out at the subscriber's expense.

󱾀

Wipe with a soft, dry cloth (such as a cloth designed for glasses).

The surface of the FOMA terminal LCD may

󱾁

be coated to improve the visibility of the color display. Rubbing the LCD of the FOMA terminal with a dry cloth to clean it may scratch the LCD surface. Handle the FOMA terminal carefully and clean it using a soft dry cloth (such as a cloth used for glasses). The LCD coating may peel off or stain if moisture or dirt is left on the surface for a long period. Never use chemicals such as alcohol,

󱾁

thinners, benzene or detergents as these agents may erase the printing on the FOMA terminal or cause discoloration.

󱾀

Occasionally clean the connection terminals with a dry cotton bud, etc.

Soiled connectors may result in poor connections, loss of power, or incomplete charging. Wipe with dry cloth or cotton swab. When cleaning, take care not to damage connectors.

󱾀

Do not place the FOMA terminal near an air conditioning vent.

Condensation may form due to rapid changes in temperature, and this may cause internal corrosion and malfunction.

󱾀

Do not put excessive pressure on the FOMA terminal or battery.

Do not put the FOMA terminal in a bag filled with many objects or sit down with it in a hip pocket. Excessive pressure may result in malfunction or damage to the LCD, internal circuit or the battery pack. Also, if an external device is connected to the external connector, excessive pressure may cause connector breakage or malfunction.

Read the separate manuals supplied with

󱾀

the FOMA terminal, adapter and desktop holder carefully.

󱾀

Do not scratch the display with metallic objects.

Doing so may cause scratches, malfunction or damage.

Handling the FOMA Terminal

󱾀

Avoid using the FOMA terminal in extremely high or low temperatures.

The ambient temperature of the room should

℃ to 35℃ with humidity of 45% to 85%.

be 5

󱾀

Reception may be affected if you use your FOMA terminal near a landline phone, television, or radio in use. Use the FOMA terminal away from such devices.

󱾀

Please keep a separate record of the information you have registered in your FOMA terminal.

Please be aware that DOCOMO bears no obligation or responsibility in the event that data is altered or lost.

󱾀

Do not drop the FOMA terminal or expose it to strong shocks.

Doing so may cause malfunction or damage.

󱾀

When connecting an external device to the external connector (earphone/ microphone terminal), do not insert at an angle or pull the code.

Doing so may cause malfunction or damage.

Do not fold the FOMA terminal with the

󱾀

strap pinched between the folding parts.

Doing so may cause malfunction or damage.

It is normal for the FOMA terminal to

󱾀

become warm while being used or charged. This is not a malfunction. Keep using it.

󱾀

Do not leave the camera exposed to direct sunlight.

Doing so may discolor or burn the components of the camera.

Keep the external connector cap and

󱾀

microSD card slot cap closed when not in use.

Doing so may cause malfunction due to dust or water getting in.

Do not use FOMA terminal with the back

󱾀

cover removed.

Doing so may cause the battery pack to fall out, or cause malfunction or damage.

󱾀

Do not put an extremely-thick sticker, etc. on the display, keys or keypads.

Doing so may cause malfunction.

Introduction

Do not remove the microSD card or turn

󱾀

off the power while in use.

Doing so may cause data loss or malfunction.

Introduction

󱾀

Do not let magnetic cards, etc. come close to or be sandwiched between FOMA terminal parts.

The magnetic data in cash cards, credit cards, telephone cards, floppy disks, etc. may be erased.

󱾀

Do not let strong magnetic objects come close to the FOMA terminal parts.

Strong magnetic objects may cause misoperation.

Handling the Battery Pack

The battery pack is consumable.

󱾀

Battery life varies depending on usage conditions, etc., but it is time to change battery packs when the usage time has become extremely short even though the battery pack has been fully recharged. In this case, please purchase a new battery pack.

󱾀

The ambient temperature of the room should be 5

󱾀

Make sure to charge the battery when

℃ to 35℃.

you use the FOMA terminal for the first time or if you have not used it for a long period of time.

󱾀

The available operating time of the battery pack depends on the conditions of usage and battery pack.

󱾀

Depending on the usage condition, the battery pack may inflate slightly when the battery life is almost over. This is not a malfunction.

󱾀

Do not store the battery pack for a long period of time in the following cases:

󱾁

The battery is fully charged (immediately after the charging is complete)

󱾁

The battery has run out (the phone

cannot power on) The performance and life of the battery pack may deteriorate. It is recommended that you store the battery pack for a long period of time with two or three battery marks displayed.

Handling the Adapter

The ambient temperature of the room

󱾀

should be 5 Do not charge the battery pack:

󱾀

In a humid, dusty or unstable place

󱾁

Near a landline phone, TV or radio

󱾁

℃ to 35℃.

It is normal that the adapter become

󱾀

warm while charging. Keep using it.

󱾀

Do not use the DC adapter to charge the battery when the car engine is not running.

Doing so may drain the car battery.

󱾀

If you use an electrical outlet with an unplugging-protection mechanism, follow the instructions of the manual for the outlet.

󱾀

Do not expose the adapter to strong shocks. Do not deform the charging terminal.

Doing so may cause malfunction.

Handling the UIM (FOMA card)

󱾀

Do not apply excessive force to the UIM (FOMA card) when attaching/removing it.

󱾀

It is normal that the UIM (FOMA card) become warm while being used. Keep using it.

󱾀

Note that the warranty does not cover damage caused by inserting the UIM (FOMA card) into another type of IC card reader or writer.

󱾀

Always keep the IC part clean.

󱾀

Wipe with a soft, dry cloth (such as eyeglass cloth).

󱾀

Please keep a separate record of the information you have registered in your UIM (FOMA card).

Please be aware that DOCOMO bears no obligation or responsibility in the event that data is altered or lost.

󱾀

To preserve the environment, bring discarded UIM (FOMA card) to a docomo Shop or Service Counter.

󱾀

Avoid using the FOMA terminal in extremely high or low temperatures.

󱾀

Do not damage, scratch, unnecessarily touch, or short circuit the IC.

Doing so may cause data loss or malfunction.

󱾀

Do not drop the UIM (FOMA card) or expose it to strong shocks.

Doing so may cause malfunction.

󱾀

Do not bend the UIM (FOMA card) or place a heavy object on it.

Doing so may cause malfunction.

󱾀

Do not put a label or sticker on the UIM (FOMA card) when attaching it to the FOMA terminal.

Doing so may cause malfunction.

Using the Bluetooth Function

To secure the Bluetooth communication

󱾀

security, the FOMA terminal supports the security function compliant with Bluetooth standards, but the security may not be sufficient depending on the setting. Concern about the communication using the Bluetooth function.

󱾀

Please be aware that DOCOMO is not responsible for data leak when making data communications using Bluetooth.

󱾀

You can use a headset, handsfree, audio, dial-up communications, object push and serial port on the FOMA terminal. The audio/video remote control may be available for audio. (Only on compatible Bluetooth devices)

󱾀

Frequency band

The following are frequency bands that the FOMA terminal's Bluetooth function uses:

2.4 ： The radio equipment uses the

Bluetooth cautions

The operating frequency band of this equipment is used by industrial, scientific, consumer and medical equipment including microwave ovens, premises radio stations for identifying mobile units used in the manufacturing lines of plants (radio stations requiring a license), specified low power radio stations (radio stations requiring no license) and amateur radio stations (hereinafter referred to as "another station").

Before using this terminal, confirm that

1. "another station" is not being operated nearby. In the event of this terminal causing

2. harmful radio wave interference with "another stations", promptly change the operating frequency or stop radio wave emission by turning off the power, etc.

2400 MHz band.

： Modulation scheme is the FH-

SS system.

： The estimated interference

distance is 10 m or less.

： The full band between

2400 MHz and 2483.5 MHz is used and the band of the mobile identification device cannot be avoided.

3. If you have further questions, please contact General Inquiries on the last page of this manual.

Handling the FeliCa Reader/Writer

The FeliCa reader/writer function of the

󱾀

FOMA terminal handles delicate signals that require no radio station license.

󱾀

The 13.56 MHz frequency band is used. If there is another reader/writer around, keep enough distance between the FOMA terminal and the reader/writer. Also, make sure that there is no radio station using the same frequency band nearby.

Cautions

Do not deform the FOMA terminal. Using

󱾀

an altered device is a violation of the Radio Law.

A "Technical Conformity Mark on the manufacturer's specification sticker certifies that the FOMA terminal meets technical regulations for specified radio equipment that based on the Radio Law. If you remove the screws and alter the inside of the FOMA terminal, the technical regulations conformity certification becomes invalid. Do not use the FOMA terminal with the certification invalid, as it is a violation of the Radio Law.

󱾀

Be careful when using the FOMA terminal while driving.

A penalty may be imposed for holding a mobile phone while driving. When you need to receive a call, tell the caller that you will call back later using handsfree functions, then pull off the road before using the phone.

󱾀

Use the Bluetooth function only in Japan.

The Bluetooth function of the FOMA terminal complies with radio standards of Japan and is certified. You may be punished if you use it overseas.

Use the FeliCa reader/writer function

󱾀

only in Japan.

The FeliCa reader/writer function of the FOMA terminal complies with radio standards of Japan. You may be punished if you use it overseas.

󱾀

Use the IC card authentication function in Japan.

The IC card authentication function of the FOMA terminal complies with radio standards of Japan and is certified. You may be punished if you use it overseas.

" affixed

Introduction

Before Using

Attaching UIM (FOMA card)/battery pack

Make sure to turn the power off before removing the battery pack. Also, keep the FOMA terminal folded and held in your hand.

・ The UIM (FOMA card) is an IC card that contains private information such as

your phone number.

Basic Operation

・ This FOMA terminal does not operate with a blue UIM in it. If your UIM is blue,

check with a docomo Shop Service Counter for replacement.

❶ Remove the back cover

Press the back cover in

① . And slide it in

tion

direc direction

② .

①

②

❷ Insert the UIM (FOMA card)

Insert the card into the slot until it locks in place in dir

③ with the gold IC

ection

card side down.

❸ Attach the battery pack

A product name is on one of the sides of the batter

y pack. With the side facing up, attach the battery pack in direction

④ making sure

to fit the metallic terminal on the FOMA terminal, then press the battery pack down in direction

❹ Attach the back cover

Lift the back cover about 3 mm and align it to the groove of the FOMA terminal. Press the back cover in direction it in direction

⑦ and press the

back cover until it clicks.

⑥, slide

Insertion slot

Gold colored IC side down

⑤.

Make sure that there is no space between the Back cover and the FOMA terminal.

Cut corner

③

UIM (FOMA card)

④

⑤

⑥

⑦

Approx. 3mm

Charging

For the charging time and continuous talk time, refer to "Main specifications" (

Charging with the desktop holder

→ P.94).

❶ Plug the connector of the AC

adapter (optional) horizontally to the terminal on the back of the desktop holder (optional)

Plug the AC adapter into the

❷

outlet

❸ As shown in the illustration, hold

the desktop holder, attach the FOMA terminal in direction and mount in direction

・ The charge lamp lights up

① ,

② .

when charging starts.

❹ After charging is complete, hold

down the desktop holder, then remove the FOMA terminal in reverse procedure of attaching

Charging with the AC adapter

❶ Open the external connector

cap of the FOMA terminal, then plug the AC adapter connector horizontally into the FOMA terminal's external connector

❷

Plug the AC adapter into the

outlet

❸ When charging is complete,

press the release button, simultaneously remove the AC adapter connector horizontally from the FOMA terminal, then unplug the AC adapter from the FOMA terminal

With the arrow side facing up

❶

Connector

100V AC power outlet

❷

Plug

FOMA AC Adapter 01/02

100V AC power outlet

Connector cap

❷

Plug

❸

②

①

Charge lamp

Desktop Holder N15

❶

Connector

With the arrow side facing up

FOMA AC Adapter 01/02

Release button

Basic Operation

Turning power ON

(1 second or longer)

❶

Basic Operation

Standby screen

■ If Initial setting screen appears

When you turn the power on for the first time after purchase, Initial setting screen appears

■ To turn the power off

Press

Wy for 2 seconds or longer.

Configuring default setting <Initial setting>

After turning the power on for the first time after purchase, screens for configuring settings such as "Set main time", "Change security code" or "Keypad sound" appear.

OFF

Check and set the time

sSetting is completed

Set main time screen Keypad sound screen

・ For the initial settings, you can also set Auto time difference, Character

size, Permit to send loc., and Neuropointer setting (simple setting only).

・ After you set all functions, Initial setting screen will no longer appear at

power on.

Checking your own phone number <My Profile>

In My Profile screen, check your phone number (own number) stored in your UIM (FOMA card).

is0

❶

To check your mail address

■

is0sj

❶

・ Only phone number stored by default in My Profile screen.

To save mail address, enter directly or obtain from i-mode automatically as follows. On My Profile screen,

s Acquire Automatically sConnect to i-mode to enter your mail

address to

(Edit)sEnter security codes <Mail address>

field automatically

(Finish).

Switching Between Japanese and English <Select language>

s 設定／ NWサービス s ディスプレイ

❶

Select language s

English

Basic Operation

Screen Explanation

Viewing display/icon

Marks ( , , , etc.) displayed on the screen and the Indicator display are referred to as icons. Icons indicate the status of such as the FOMA terminal and signal reception.

Basic Operation

■ Icons indicating the status of the FOMA terminal

At the top of the screen, icons indicate the status of the FOMA terminal.

Battery level (use this icon as a guide)

：

Fully charged.

：Recharge the

battery.

Signal strength

Good Poor

：Out of the service

area

：During i-mode ：Unread mail ：During a voice call ：Dial lock is set ：i-concier

information

：

Multitask activating

：Bluetooth ON

(Lights up)

：microSD card

inserted

Only major icons are covered

Only major icons are covered here.

here. To check the names of the

To check the names of the other icons,

other icons,

Settings/NW Service

Iis

Display s Icons

：Vibrator set

：Ring volume set

to "Silent"

：Manner mode ON ：Public mode

(Drive mode) set

：Alarm notification

function ON

：Voice mail

message exists

：

The number of record VP messages

：ECO mode set ：Keypad lock set ：

USB cable connected and communication mode on

■ Reminders and Desktop Icons

In the middle of the screen, icons indicate the status of new arrivals. You can past

Reminders (examples)

： Missed call ： Record message ：

Record VP message

： Voice Mail ： New mail

Desktop icons (examples)

： Schedule ： Voice recorder ： Activate 1Seg

・ To select a reminder or desktop icon to call a function, on the standby

screen

e desktop icons, with which you can call functions.

Function display area

→P.25

Basic Operation

Viewing Indicator display (Sub-display)

On the indicator display, incoming call, mail or alarm notifications appear with various messages, images or animations.

Display example

Basic Operation

Clock (Digital 1) Alarm

notification

Receiving call Missed call/

New mail

Checking missed calls/new mail

■ Checking missed calls

Press

a(マナー ) to view received date/time/caller's name (phone

number), etc.

■ Checking new mail

Press

a (マナー ) to view sender/received date and time/subject.

You need to set "Mail" under "Indicator display" to "ON".

Settings/NW Service s Display

Indicator display s ON s Mail s ON

su (Finish).

On hold

Viewing main menu

You can select various functions of the FOMA terminal from the main menu.

・ The main menu here is in "スタンダード (Standard)".

Mail : Display the mail functions i-mode : Display i-mode

Dppli : Display the i-Dppli menu

iSettings/NW Service

: Display the setting menu of the

A t

erminal

FOM

Data box : Display folders in Data box LifeKit : Display useful functions i-concier : Connect to i-concier Phonebook : Display the phonebook Own data : Display data such as History data

or Choku-

MUSIC : Display the menus of Music Player

and Music&V

1Seg : Display the 1Seg menu Osaifu-Keitai : Display the setting menus of IC

p (Original) : Display

the original menu.

car

Changing the design of the main menu

You can change the design of the main menu (background, icon, etc.). Choose from "White" - " theme", or "Kisekae Tool".

スタンダード (Standard)", "Simple Menu", "Original

den

, ToruCa, etc.

ideo Channel

Basic Operation

❶

isu

(Theme)sSelect a design

Selecting menu

You can select various functions of the FOMA terminal from the main menu, which appears when you press screen.

isb

❶

Basic Operation

displayed menu sequentially

・ If no key is pressed for 15 seconds while the main menu is displayed, the

main menu ends and the previous screen reappears.

to move the highlight and d (Select)sSelect the

When is displayed

Pressing idisplays functions, which can be performed on the screen, such as saving, editing or deleting.

on the standby

Key operation

The soft keys (Function display) corresponding to i, d, u, o,

p, and the direction icons corresponding to b are displayed on

the screen. These icons appear only when the corresponding keys can be used.

Performing the functions assigned to the function key

■

Display samples and functions assignments

❶ shows (FUNC), (Close), (MENU), etc.

❷❹❶❺❸

❻

❷ shows (Select), (Set), (Play), (Send), etc. ❸

shows (Set), (Edit), (Finish), (Play), (Send), (New),

etc.

❹ shows (Back), (microSD), etc. ❺ shows (Disp. SW), (Delete), etc.

■ To move or scroll the screen (❻)

Icon ( ) appears to indicate direction available for moving or scrolling. Press the direction.

b to move or scroll

Switching vertical/horizontal view

While watching 1Seg or displaying Full Browser, tilt the FOMA terminal 90 degrees to horizontal orientation to switch the screen view to horizontal one automatically. Even when taking photos or playing Music&Video Channel program, tilting the terminal switches vertical/horizontal view.

Using Neuropointer

You can select icons or items quickly by sliding Neuropointer to move the pointer. When a list or function menu consists of multiple pages, you can switch the pages with Neuropointer.

・ If you slide the Neuropointer when is displayed on the standby screen or

the bottom of the display, a pointer (

) appears.

Basic Operation

Setting Neuropointer to OFF

Settings/NW Service s Other settings

Neuropointer s Pointer s OFF

Character Entry

Entering characters

When entering information to save to the phonebook, or creating mails or schedules, enter text.

① Switching entry

Basic Operation

modes

Press

o (Chrct) on

the text entry screen to display entry code change screen.

Entry code change screen

■ Other key operations

: Delete character

Insert a line feed, switch upper case/lower case, or enter dakuten/handakuten

: Return to the previous character assigned to that key

(1 second or longer) : Undo the operation such as converting, pasting

: Enter Pictograph or symbols consecutively or enter face marks or URL

During displaying List, pressing

② Entering characters

Press a dial key several times to ent

er your desired text. <Example : when pressing 2> When entering Kanji/

Hiragana

か→き→く→け→こ "

" When entering Kana "

カ→キ→ク→ケ→コ→ 2"

When entering Alphabetic

"a→b →c →A →B →C→ 2"

When entering Numeric "2"

or cutting

or Pp switches the tabs.

③ Converting

entered text

Convert entered text

anji or Kana.

to K

g: Display

conversion candidates

b: Select from

the conversion candidates

v: Change the

conversion range

u : Covert to

Alphabetic and Kana

d: Set

To enter a character that

To enter a character that is assigned to the same

is assigned to the same key immediately after

key immediately after entering the character

entering the character such as "

such as "

あ " and "い ",

to move the cursor.

Let's enter text.

Enter Hiragana

1 once 2 twice

あき

5 5 times 2 twice

のき

8 once w once

や To lower case

0 3 times 6 3 times

んふ

w twice

ﾟ(Han-dakuten)

to select conversion

candidate, then

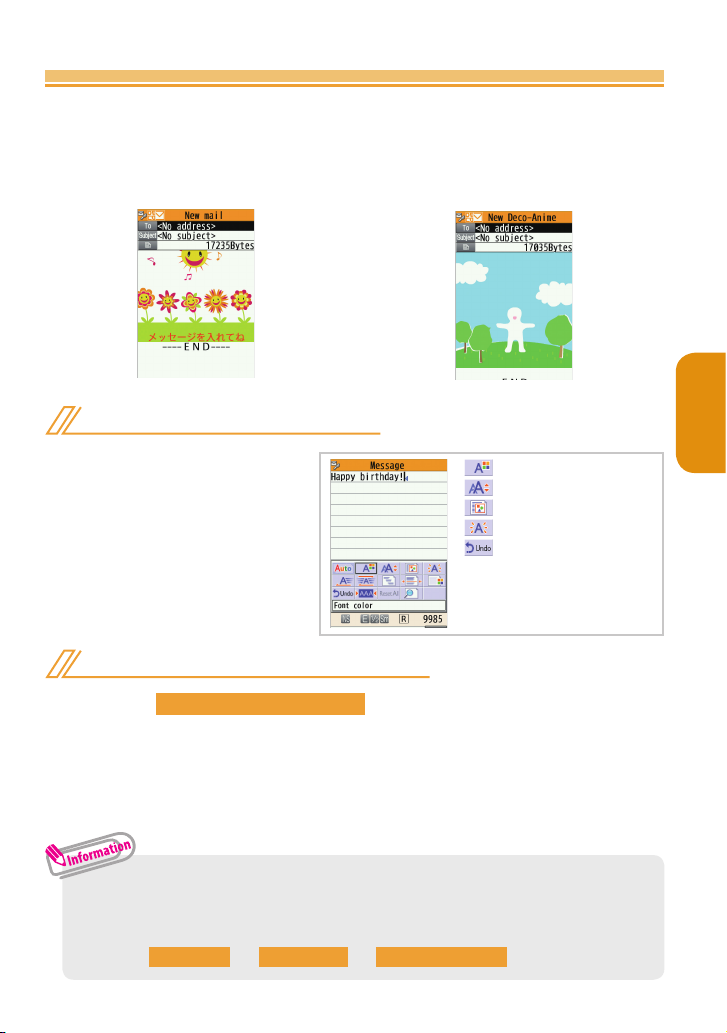

Entering Deco-mail pictogram

Deco-mail pictograms are images that meet certain conditions, including moving pictogram.

p (PI･SB) and then u (Pict D) on the Message screen to display the

Press categorized Deco-mail pictogram entry screen. Use

d (Select) to enter a Deco-mail pictogram.

press

b to move the frame and

(Set)

Basic Operation

[Category]

顔文字・ｉ絵文字

(Face mark/i-pictogram)

表情・気持ち

(Facial expression/Emotion)

装飾 (Decoration) ハート・キラキラ

(Heart/Twinkle)

天気・季節

(Weather/Season)

移動・生活

(Transportation/Life)

食べ物 (Food) キャラクター (Character) 文字 (Text)

[Other key operations]

o (←Switch) : Display the

previous category

p (Switch→) : Display the next

Sound/Screen Setting

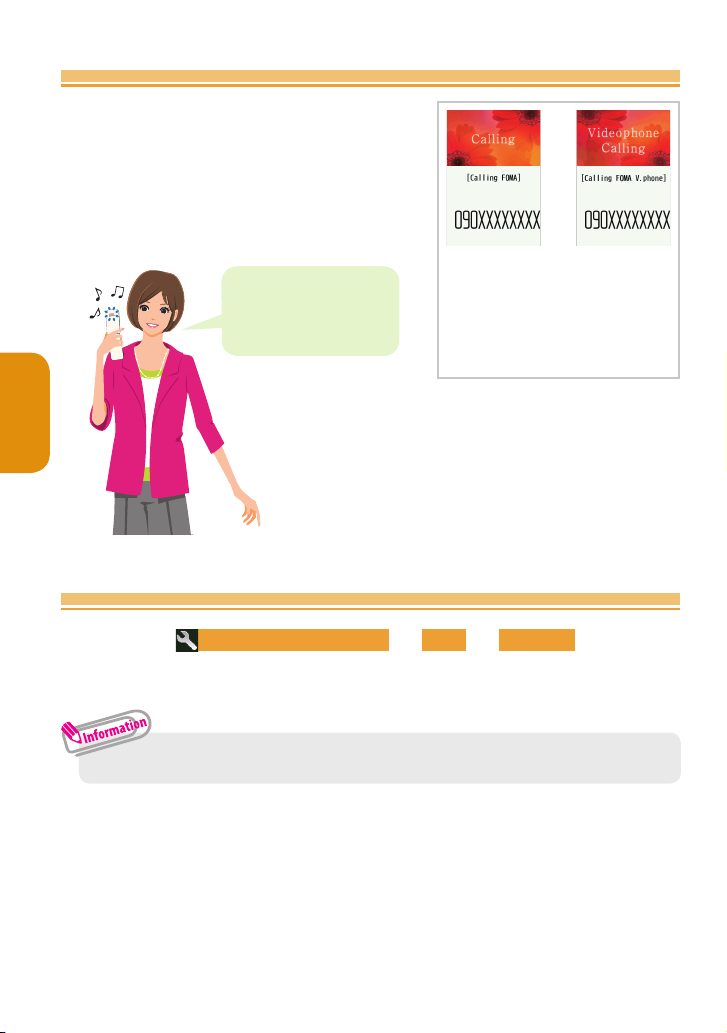

Changing ring tone

Changing the ring tone for calls

Settings/NW Service s Incoming call

❶

Select ring tone s Phone s Select ring tone

Basic Operation

❷

Melody

sSelect ring tone

Adjusting volume of ring tone

Adjusting the volume of calls

Settings/NW Service s Incoming call

❶

Ring volume s Phone

Other options such as a

❷

volume, then

to adjust the

(Set)

Other options such as a melody, i-motion, or

melody, i-motion, or Chaku-Uta-Full® can be

Chaku-Uta-Full® can be set to ring tones.

set to ring tones. When i-motion is set, a

When i-motion is set, a video also plays.

video also plays.

* "Chaku-Uta-Full" is a

registered trademark of

registered trademark of Sony Music Entertainment

Sony Music Entertainment (Japan) Inc.

(Japan) Inc.

+ 138 hidden pages

Docomo STYLE N-01B, N-02B Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

How to use N-01B

Basic package

Before using this manual

Contents

Introduction

FOMA terminal

What you can do with N-01B

Part names and functions

Precautions (Always follow these directions)

Handling precautions

Before Using

Attaching UIM (FOMA card)/battery pack

Basic Operation

Charging

Turning power ON

Configuring default setting <Initial setting>

Checking your own phone number <My Profile>

Switching Between Japanese and English <Select language>

Screen Explanation

Viewing display/icon

Viewing Indicator display (Sub-display)

Viewing main menu

Selecting menu

Key operation

Switching vertical/horizontal view

Using Neuropointer

Character Entry

Entering characters

Sound/Screen Setting

Changing ring tone

Adjusting volume of ring tone
