Thank you for selecting the "docomo STYLE series L-01B".

Read this manual before use to correctly operate your L-01B.

Operation Description of L-01B

Operations of L-01B are described in this manual as well as "Guide" (installed in this FOMA terminal, Japanese only) and "Instruction Manual (Detailed version, Japanese only)" (in PDF format).

"Instruction Manual" (This Manual): Describes screen displays and operating procedures of basic functions.

b "Guide" (installed in this FOMA terminal, Japanese only): Describes the overview or operating procedures of

frequently used functions.

From L-01B, press 7(for over 1 second).

"Instruction Manual (Detailed version, Japanese only)" (in PDF format): Describes detailed information and operating procedures of all functions.

From a PC, download it from the following DOCOMO website. http://www.nttdocomo.co.jp/support/trouble/manual/download/index.html * The URL and contents of the manuals are subject to change without prior notice.

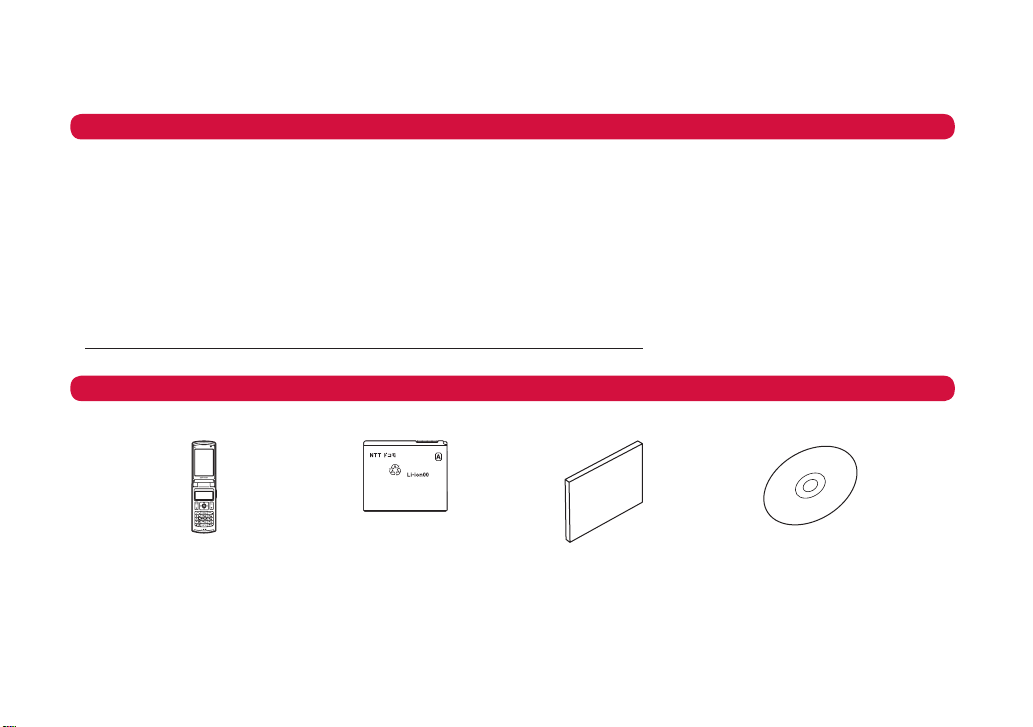

Accessories

L-01B FOMA terminal (With Warranty and Back Cover L15)

Options compatible with this FOMA terminal→P79

• Note that "L-01B" is referred to as "FOMA terminal" in this manual.

• It is prohibited to copy all or part of this manual without permission.

• The screens or illustrations used in this manual are examples. The actual screens and illustrations may differ.

• This manual describes operations mainly using the default settings ("L01B_white" in Kisekae Tool). If settings

are changed, screen displays or operations may differ from those described in this manual.

Battery Pack L06 Instruction Manual (Japanese version) CD-ROM for L-01B

Page 3

Introduction

Basic Operation

P18

Connect

P38

P52

Enjoy

P56

More Convenient

P64

Others

P70

FOMA Terminal What You Can Do with L-01B Part Names and Functions Precautions Handling Precautions

Before Using Screen Explanation Character Entry Sound/Screen Setting Lock/Security

Call Telephone Mail Phonebook

i-mode/Full Browser i-Channel GPS

Camera 1Seg Music i-αppli i-motion/Movie

Osaifu-Keitai Convenient Tools Data Management

Support Appendix Index

Page 4

Introduction

FOMA Terminal

•

Because the FOMA terminal uses radio waves, it may

not function in locations where radio waves cannot reach, such as in tunnels, underground, or in buildings; outside the building where radio waves are weak or out of FOMA service area. Even when you are in an upper ﬂoor of a tall building and nothing blocks your view outside, your FOMA terminal may not be able to receive or transmit signals. Also, even when radio waves are strong with three antenna bars displayed, and you are not moving, communication may still be interrupted.

•

Be considerate of other people around you in public or

where it is especially crowded or quiet.

•

Because your FOMA terminal uses radio waves to

communicate, there is a possibility that calls may be intercepted by third parties. The W-CDMA and GSM/ GPRS systems automatically encode signals for all calls so even if third parties should intercept calls with the receiver, they will hear only noise.

•

The FOMA terminal sends and receives voice

communication as encoded digital data. When you are operating the FOMA terminal while moving, sometimes you may encounter weaker radio waves and the transmitted digital data may not be correctly decoded resulting in sound distortions.

•

It is recommended that you save important data on a

microSD card. If you use a PC, use DOCOMO keitai datalink to send and save data such as Phonebook entries, mail messages, Schedule events, etc. to the PC.

•

When you use SSL/TLS for a secure connection, you

agree that you are responsible for any actions you take. DOCOMO and the certiﬁers listed below do not guarantee the safety of SSL/TLS for any activities of customers while using SSL/TLS, and are not liable for any damages incurred through using SSL/TLS. Certiﬁers: VeriSign Japan K.K.,

Cybertrust Japan Co., Ltd.,

GlobalSign K.K.,

RSA Security Japan Ltd., SECOM Trust Systems Co., Ltd. Comodo CA Ltd.

•

The FOMA terminal supports FOMA Plus-Area and

FOMA HIGH-SPEED Area.

•

The FOMA terminal can be used only via the FOMA

network provided by DOCOMO and DOCOMO's roaming area.

•

It is recommended that you make a backup of user-

deﬁned data (Phonebook entries, Schedule events, text memos, Record messages, voice memos, or moving picture memos) saved in the FOMA terminal by keeping the separate record or note of those data, etc. and storing them at a separate location. DOCOMO is not responsible for lost data due to failure, repair, or replacement of the model of your FOMA terminal.

Page 5

Introduction

What You Can Do with L-01B

Guide (Japanese only)→P21

Guide pre-installed in the FOMA terminal allows you to look for operating instructions of a desired function. When you cannot refer to this manual, you can search functions with Guide quickly.

Stand-by display

International roaming→P43

Your FOMA terminal, phone number, and mail address that are used in Japan are available overseas (supporting 3G and GSM areas).

i-mode→P52

The operation performance is improved and you can use information from websites more conveniently than before.

(for over 1 second)

Camera functions→P56

You can capture still images (with auto focus) and moving pictures using the Outer camera with approx.

5.1 Mega effective pixels (approx. 5.0 Mega recorded

pixels) and Inner camera with approx. 300 Kilo effective pixels (approx. 300 Kilo recorded pixels).

1Seg→P58

You can enjoy 1Seg (digital terrestrial broadcasting for mobile devices). Subtitles and data broadcasting are available.

Osaifu-Keitai→P64

You can download i-αppli that supports Osaifu-Keitai to deposit electronic money to the IC card on the FOMA terminal, check your balance or view usage history using communication. DOCOMO credit service "DCMX" application is preinstalled. "iC transfer service" is also available, which allows transfer of data on the IC card when you replace your FOMA terminal.

Color therapy→P65

Light up the illumination of the FOMA terminal and you can gain healing effect by color and melody.

Page 6

Introduction

Part Names and Functions

b c

i j

●

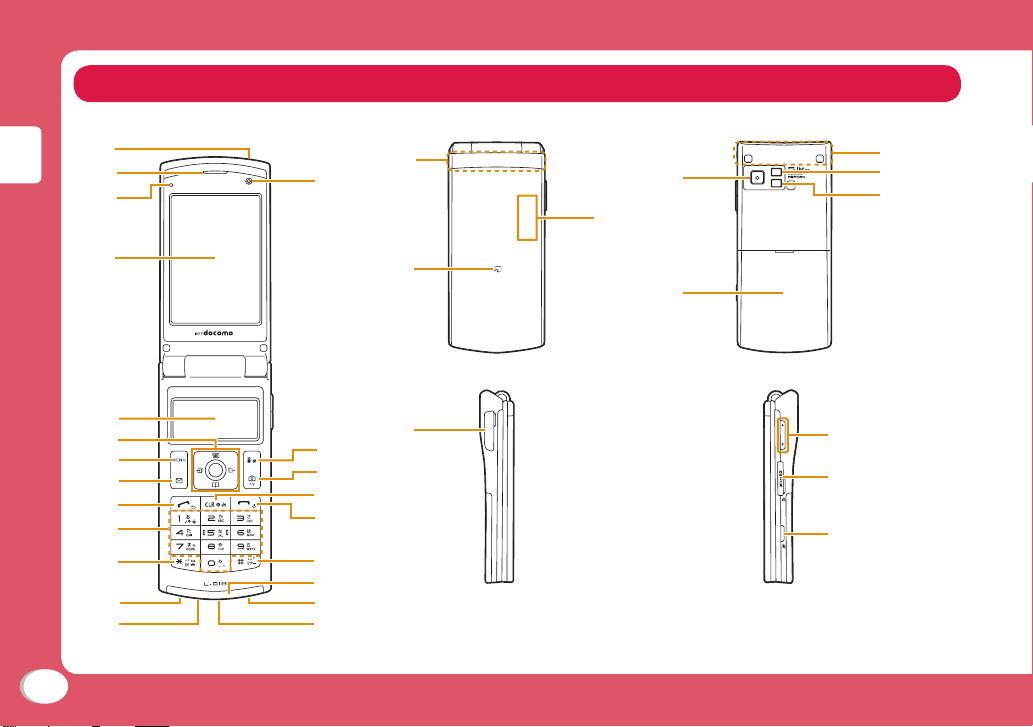

Front

●

Front with FOMA terminal closed●Rear

* 1Seg antenna is inside the FOMA terminal, and whole part of the FOMA terminal works as antenna.

●

Left side

●

Right side

Page 7

Introduction

Infrared port

Earpiece/Speaker

Illumination sensor

Display

Touch Board

Navigation key

g M

Menu key

Display the main menu.

h g

Mail key

Display the mail menu.

i A

k *

Start key

Make/receive a call.

Dial keys

Enter a phone number or character.

Public mode (Drive

mode) key

Charging terminals

Mouthpiece

Inner camera

o I

i-mode/i-αppli key

Display the iMenu screen.

p G

Camera/TV key

Display the still image shooting screen.

q Q

r P

s # t u v w x y z A

B C D FE

Clear/i-Channel key

Return to the previous state or to the Stand-by display.

Power/Exit key

End a call or exit a function.

Manner mode key Illumination Strap hole mark External LED External connector terminal Outer camera Back cover FOMA antenna

•

The FOMA antenna is inside the

FOMA terminal. To communicate in better condition, avoid covering the antenna part with your hands.

Photo light/Light Color reader

Volume key

Adjust the volume.

microSD card slot

F N

Multitask key

Display the New task screen.

Using earphones

Connect optional earphones compatible with the external connector terminal. If you use the incompatible earphones, connect the optional conversion plug adapter to the earphones.

Earphone terminal (Flat type)

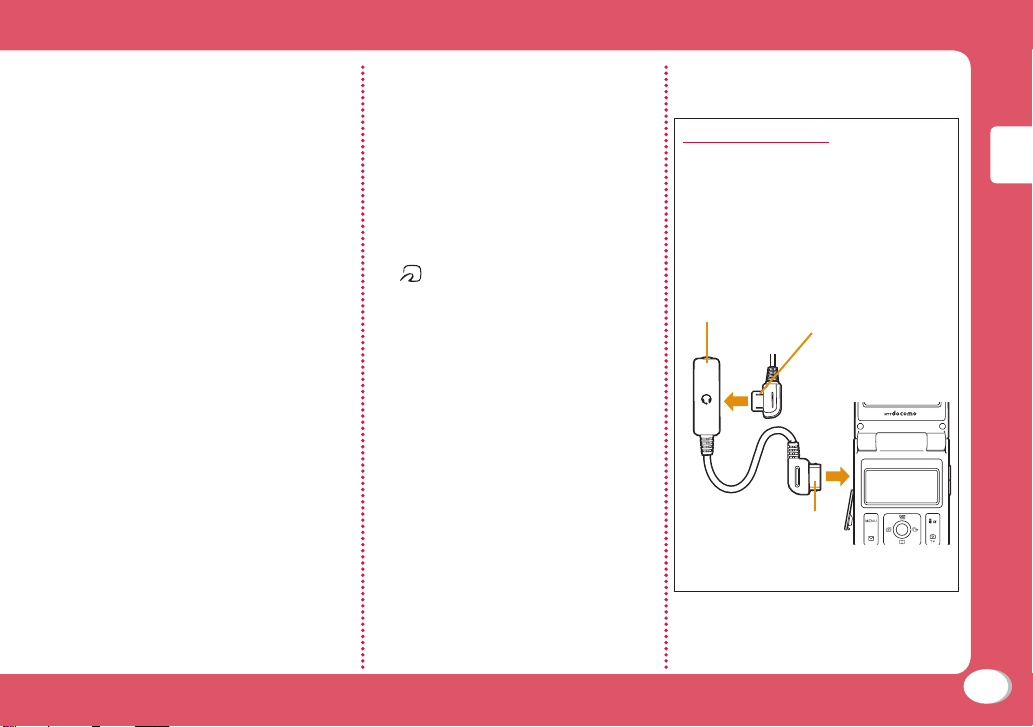

Ex.: Connecting the Flat-plug Earphone/

Microphone with Switch (optional)

Flat plug for the Flat-plug Earphone/ Microphone with Switch

Plug

Page 8

Precautions

Don’t

disassembly

wet hands

liquids

Unplug

■

Before using your FOMA terminal, read these "Precautions"

carefully so that you can use it correctly. After reading these precautions, keep this manual for later reference.

■

Be sure to observe these precautions because they are intended

to protect you or others around you from causing injury and to avoid damage to the property.

■

The symbols below indicate the levels of danger or damage that

may occur if the particular precaution is not observed and the FOMA terminal is used improperly.

Introduction

■

DANGER

WARNING

CAUTION

The following symbols indicate specic directions:

Denotes things not to do (Prohibitions).

(ALWAYS FOLLOW THESE PRECAUTIONS)

This symbol indicates that incorrect handling may directly or immediately cause death or serious injury.

This symbol indicates that incorrect handling poses a risk of causing death or serious injury.

This symbol indicates that incorrect handling poses a risk of causing injury or damage to the product or property.

Denotes not to disassemble.

Denotes not to touch with wet hands.

Denotes not to use where it could get wet or not to wet it.

Denotes mandatory instructions (matters that must be complied with).

Denotes to unplug from the outlet.

■

"Precautions" are explained in the following 6 sections:

General Precautions for FOMA Terminal, Battery Pack, Adapter, and UIM

Precautions for FOMA Terminal Precautions for Battery Pack Precautions for Adapter

Precautions for UIM.................................................................. P14

Precautions on Using near Electronic Medical Equipment

....................................................................... P7

................................................. P8

.................................................... P11

........................................................... P12

...... P14

Page 9

General Precautions for

Don’t

disassembly

liquids

Don’t

FOMA Terminal, Battery Pack, Adapter, and UIM

DANGER

Do not use, store, or leave the FOMA terminal and its accessories in locations subject to high temperatures,

such as near re, in direct

sunlight, or inside a car under the hot sun.

The devices could be deformed or malfunction, or the battery pack may leak, overheat, explode, or ignite, resulting in the deterioration of performance and shortening of the life of devices. Also, part of the case could get heated, causing bare skin burns.

Do not disassemble or remodel the FOMA terminal and its accessories. Do not solder them.

Fire, injury, electric shock, or malfunction may result. The battery pack may leak, overheat, explode, or catch ﬁre.

Do not get the FOMA terminal and its accessories wet.

If liquids such as water or pet urine get onto them, overheating, electric shock, ﬁre, malfunction, or injury, etc. may result. Pay attention to the place of use and the way of handling.

Use only the battery packs

and adapters specied by

NTT DOCOMO.

Using the accessories other than speciﬁed one may cause the FOMA terminal, battery pack and other devices to leak, overheat, explode, ignite, or malfunction.

WARNING

Do not put the battery pack, FOMA terminal, adapter, or UIM in heating appliances such as microwaves or high pressure containers.

The battery pack may leak, overheat, explode, or ignite. Also, the FOMA terminal or adapter may overheat, smoke or ignite, or the circuit boards may be damaged.

Do not throw the FOMA terminal and its accessories, or subject them to severe shocks.

The battery pack may leak, overheat, explode, or ignite. Also, the devices may malfunction or catch ﬁre.

Keep conductive foreign objects (metal, pencil lead, etc.) away from the charging terminals or external connectors. Do not insert such objects inside the FOMA terminal.

Fire or malfunction may result from a short-circuit.

Make sure to turn the power of a mobile phone off before

you go near ammable gas

such as a gas station. Do not charge the FOMA terminal.

Catching re may result.

Be sure to turn the power off

before you use Osaifu-Keitai in

a place such as a gas station. (If the IC card lock is set, unlock the IC card lock before turning the power off.)

Introduction

Page 10

Introduction

Don’t

If you notice any strange smells, overheating, discoloration, or deformation while using, charging, or storing the FOMA terminal, immediately take the following actions:

1. Remove the power plug from the outlet or cigarette lighter socket.

2. Turn the FOMA terminal power off.

3. Remove the battery pack from the FOMA terminal.

If you continue to use the FOMA terminal and its accessories, overheating, explosion, ignition, or leakage of the battery pack may result.

CAUTION

Do not place the FOMA terminal and its accessories in unstable places such as wobbly tables or sloping shelves.

The FOMA terminal or its accessories may fall, resulting in injury or malfunction.

Do not store the FOMA terminal and its accessories in humid or dusty places, or in high temperatures.

Malfunction may result.

If children use the FOMA terminal, a guardian should explain the safety instructions and correct operations. The guardian should also make sure that the instructions are followed during use.

Injury may result.

Keep out of the reach of babies and infants.

Accidental swallowing or injury may result.

Pay extra attention when you use the FOMA terminal for an extended period of time while it is connected to the adapter.

If you use i-αppli, make a long videophone call, or watch 1Seg for a long time while charging, the FOMA terminal, battery pack, or adapter may become hot. Some users who continuously or repeatedly touch a hot FOMA terminal may develop rashes, itching, or eczema depending on their physical health or existing medical conditions, or a low-temperature bare skin burn may result.

Precautions for FOMA Terminal

WARNING

Do not directly point the Infrared port at someone's eyes during transmission.

Their eyes may be adversely affected. Also, pointing it to other infrared devices to transmit data may interfere with the operation of those devices.

Do not ash a light at a short

distance from someone's eyes.

Visual disorder may result. Also, blinding or surprising someone may cause an accident.

Do not put the FOMA terminal in a place where it could be impacted by an expanding airbag, e.g. on the dashboard of a car.

If the airbag expands, the FOMA terminal may hit you or others, resulting in an accident or injury and the FOMA terminal may malfunction or be damaged.

Page 11

Introduction

Don’t

If you wear any imbedded

Don’t

electronic medical devices, do not place the FOMA terminal in a chest pocket or inner pocket.

If you use the FOMA terminal near electronic medical devices, failure of the electronic medical devices may result.

Do not get liquids such as water or foreign objects such

as metal pieces or ammable

materials into the UIM or microSD card slot of the FOMA terminal.

Fire, electric shock, or malfunction may result.

Do not ash a light directed to

a driver of the vehicle.

It disturbs driving and may cause an accident.

Turn the FOMA terminal power off in places where use is prohibited such as in airplanes or hospitals.

Electronic devices or electronic medical devices may be adversely affected. If the FOMA terminal is set to be turned on automatically, cancel the setting before turning it off. For use in medical facilities, follow instructions of each medical facility. You may be punished if you take activity prohibited by law such as use of the FOMA terminal in airplanes.

When using Hands-free, make sure to keep the FOMA terminal away from your ear. When you use the headphone/ microphone connected to the FOMA terminal to play a game or music, adjust the volume.

The excessive sound volume may result in hearing loss. Also, if you cannot hear ambient sounds, an accident may result.

For those who suffer from heart ailments, the vibrator or ring tone volume should be adjusted carefully.

Those functions may affect the heart.

In case of thunder while using the FOMA terminal outdoors, immediately turn the power off and move to a safe place.

Lightning or electric shock may result.

Turn the FOMA terminal off in places near high-precision electronic devices or devices using weak electronic signals.

The FOMA terminal may possibly cause the electronic devices to malfunction.

* Electronic devices that may

be affected: Hearing aids, implanted cardiac pacemakers and implanted deﬁbrillators, other medical electronic devices, ﬁre alarms, automatic doors, and other automatically controlled devices. If you are using an implanted cardiac pacemaker and implanted deﬁbrillator, or any other electronic medical devices, consult the manufacturer or retailer of the device for advice regarding possible effects from radio waves.

Page 12

Introduction

Don’t

If the display glass or camera lens is broken, avoid touching the broken glass or exposed parts inside the FOMA terminal.

The surface of the display is covered with a protective ﬁlm and the camera lens is covered with a plastic panel so that shattered glass pieces do not scatter easily, however, if you touch the broken glass or exposed parts, injury may result.

CAUTION

Do not swing the FOMA terminal by strap, etc.

It may hit you or others, resulting in an accident such as injury, malfunction, or damage.

If you use "M-toy", make sure the safety of your surroundings, hold the FOMA

terminal rmly, and do not

shake it more than necessary.

"M-toy" is a game to play by tilting or shaking the FOMA terminal. Shaking the FOMA terminal too much may hit others or object, resulting in a serious accident or malfunction.

If you attach a strap made of metal or similar material, be careful not to hit others or object by the strap when you play "M-toy".

Injury, malfunction, or damage may result.

If the display is broken and the LCD liquid leaks, do not put the liquid into your mouth, swallow the liquid, or apply the liquid to your skin.

If the LCD liquid gets into your eyes or mouth,

immediately ush with clean

water and consult a doctor. Also, if the liquid gets on your

skin or clothes, immediately wipe it off with alcohol and wash with soap and water.

Blindness or injury to your skin may result.

Keep your ear away from the speaker when the ring tone is sounding or melody is being played on the FOMA terminal.

Hearing loss may result.

Page 13

Introduction

Don’t

The surface of the display

Don’t

is covered with a protective

lm that prevents shattered

plastic pieces from scattering in case the display breaks by being dropped or an external impact. Do not forcibly

remove or damage the lm.

If the ﬁlm has been removed, injury may result when the display breaks.

If you use the FOMA terminal in a car, in-car electronic devices may be affected, depending on the type of a car.

In this case, do not use the FOMA terminal for safety's sake.

Itching, rash or eczema may be caused depending on your physical conditions or predisposition. If an abnormality occurs, stop using the FOMA terminal immediately and consult a doctor.

Metals are used for the following parts:

Part Material

Illumination part PC resin Evaporated tin

Surface

treatment

Part Material

Charging terminal

Be careful not to get your

ngers or strap caught when

you close the FOMA terminal.

Injury or failure may result.

Watch 1Seg in a well-lit place, keeping a certain distance from the screen.

Eyesight may be failing.

Beryllium copper

Surface

treatment

Au plating

Precautions for Battery Pack

■

Check the battery type by the label

attached to the battery pack.

Description Type

Li-ion00 Lithium-ion battery

DANGER

Do not get any metal objects such as wire come into contact with the battery terminal. Do not carry or store the FOMA terminal together with any metal objects such as a necklace.

The leakage, overheating, explosion, or ignition of the battery pack may result.

Do not put excessive force when inserting the battery pack into the FOMA terminal,

even if you have difculty in

inserting it. Also, check the direction

of the battery pack before inserting.

The leakage, overheating, explosion, or ignition of the battery pack may result.

Do not throw the battery pack

into re.

The leakage, overheating, explosion, or ignition of the battery pack may result.

Page 14

Introduction

Don’t

Do not pierce the battery pack with a nail, hit it with a hammer, or step on it.

The leakage, overheating, explosion, or ignition of the battery pack may result.

If the battery uid gets into

your eyes, do not rub them.

Immediately ush with clean

water and consult a doctor.

Blindness may result.

WARNING

If an abnormality occurs to the battery pack when it is damaged or deformed by the FOMA terminal being dropped, stop using the FOMA terminal immediately.

The leakage, overheating, explosion, or ignition of the battery pack, or malfunction of the devices or ﬁre may result.

If charging is not completed

when the specied charging

time elapsed, stop charging.

The leakage, overheating, explosion, or ignition of the battery pack may result.

If the battery leaks or emits strange smell, immediately stop using the FOMA terminal

and keep it away from re.

The leaked battery ﬂuid may ignite, resulting in ﬁre or burst.

Make sure that your pets do not bite the battery pack.

The leakage, overheating, explosion, or ignition of the battery pack, or malfunction of the devices or ﬁre may result.

CAUTION

Do not dispose of exhausted batteries with ordinary household waste.

Ignition or environmental damage may result. Cover the battery terminals with a nonconductive tape and take them to the docomo Shop, etc. or dispose of them in accordance with local waste disposal regulations.

Do not charge a wet battery pack.

The battery pack may overheat, explode or ignite.

If battery uid gets on your

skin or clothes, immediately

stop using and ush with

clean water.

Injury to your skin may result.

Precautions for Adapter

WARNING

Do not use a damaged adapter cord or power cord.

Electric shock, overheating, or ﬁre may result.

Do not use the AC adapter and desktop holder in a place with high humidity such as a bath room.

Electric shock may result.

The DC adapter is for use only in a negative (-) grounded vehicle. Do not use it in a positive (+) grounded vehicle.

Fire may result.

Page 15

Introduction

Don’t

If it starts to thunder, do not

Don’t

wet hands

Unplug

touch the FOMA terminal or adapter.

Lightning or electric shock may result.

Do not short-circuit the charging terminals when the adapter is plugged into an outlet or cigarette lighter socket. Also, never touch the charging terminals with

ngers or other bare skin.

Fire, malfunction, electric shock, or injury may result.

Place the charger or desktop holder in a stable location while charging. Also, do not cover or wrap the charger or desktop holder with cloth or bedding.

The FOMA terminal may drop off, or charger and desktop holder may overheat, resulting in ﬁre or malfunction.

Do not place heavy objects on the adapter cord or power cord.

Electric shock or ﬁre may result.

Do not touch the adapter cord or outlet with wet hands.

Electric shock may result.

Use the adapter at the

specied power source and

voltage.

Failing to do so may result in ﬁre or malfunction. When you use the FOMA terminal overseas, use an AC adapter appropriate for the location.

AC adapter: 100V AC DC adapter: 12/24V DC (for

negative grounded vehicles only)

AC adapter available overseas: 100 to 240V AC (Connect only with household AC outlet)

If the fuse of the DC adapter blows, replace it with the

specied fuse.

The use of an incorrect fuse may cause ﬁre or malfunction. See each instruction manual for the speciﬁed fuse.

Keep the power plug dustfree.

Fire may result.

When plugging the AC adapter into an outlet, plug it

in rmly, being careful not to

let it contact with any metal objects such as metal strap.

Electric shock, a short-circuit, or ﬁre may result.

When removing the adapter from the outlet or cigarette lighter socket, do not forcibly pull the adapter cord or power cord, instead hold the power plug and pull it out.

If you pull the plug by the cord, the cord may be damaged, resulting in electric shock or ﬁre.

If you do not use the adapter for a long period of time, unplug the power plug from the outlet.

Electric shock, ﬁre, or malfunction may result.

If liquids such as water get into the adapter, unplug the power cord from the outlet or cigarette lighter socket immediately.

Electric shock, smoke, or ﬁre may result.

Page 16

Introduction

Unplug

Before cleaning, pull the plug

out of the outlet or cigarette lighter socket.

Electric shock may result.

Precautions for UIM

CAUTION

Be careful not to touch the edge of UIM (IC portion) when removing it.

Your hands or ﬁngers may be injured.

Precautions on Using near Electronic Medical Equipment

■

The following description meets

"Guideline on the Use of Radiocommunication Equipment such as Cellular Telephones - Safeguards for Electronic Medical Equipment" by the Electromagnetic Compatibility Conference Japan.

WARNING

Comply with the following instructions inside medical facilities:

●

Do not bring the FOMA

terminal in operating rooms, intensive care units (ICU), or coronary care units (CCU).

●

Turn the FOMA terminal off

in hospital wards.

●

Turn the FOMA terminal

off in hospital lobbies and corridors if electronic medical devices could be nearby.

●

If the medical facility has

specic zones where use or

possession of mobile phones is prohibited, follow those regulations.

●

If the FOMA terminal is set

to be turned on automatically, cancel the setting before turning it off.

Turn the FOMA terminal off in crowded places such as on a train where implanted cardiac

pacemaker or debrillator

wearers could be nearby.

Operation of an implanted cardiac pacemaker or implanted deﬁbrillator may be affected by radio waves.

If you use an implanted cardiac pacemaker or

implanted debrillator, use

or carry the FOMA terminal 22cm or more away from the implanted cardiac pacemaker

or implanted debrillator.

Operations of an implanted cardiac pacemaker or implanted deﬁbrillator may be affected by radio waves.

Patients using electronic medical equipment other than implanted cardiac pacemakers

or implanted debrillators

(outside medical facilities for treatment at home, etc.) should

check the inuence of radio

waves upon the equipment by consulting the manufacturer.

Operations of electronic medical equipment may be affected by radio waves.

Page 17

Introduction

Handling Precautions

General notes

■

Do not wet the equipment.

The FOMA terminal, battery

pack, adapter, and UIM are not waterproof. Do not use them in places with high humidity such as a bathroom or where rain may get them wet. If you are carrying them against your body, moisture from sweat may corrode the internal

parts, causing malfunction. Note

that malfunction deemed to be caused due to exposure to liquids is not covered by the warranty, and repair may be impossible. This may be repaired at your expense even if repairs are possible.

■

Use a dry soft cloth (lens cleaning

cloth) to clean the equipment.

• In some models, the display of

the FOMA terminal has a special coating in order to make the color display clear. If you rub the display strongly with a dry cloth, it may be scratched. Take care of handling the FOMA terminal and use a dry soft cloth (lens cleaning cloth) to clean the equipment. If the display is left with water drop or stain adhered, smear may be generated or the coating may peel off.

•

■

Occasionally clean the terminals

If the terminals become dirty, the

■

Do not place the equipment near

Condensation may form due to

■

Do not place excessive force on

If the FOMA terminal is put under

Do not use alcohol, thinner, benzene, detergent or other solvents for cleaning, otherwise the printed images or text may disappear or discoloration may result.

with a dry cotton swab.

contact may become loose and the FOMA terminal power may be turned off, or the terminal may not be fully charged. Be careful not to damage the terminals when you clean them.

air conditioner outlets.

rapid changes in temperature, and this may corrode internal parts and cause malfunction.

the FOMA terminal or the battery pack.

heavy objects in a bag, or if it is sat upon while in your pocket, the display, internal circuit board, or battery pack may be damaged or malfunction. While external devices are inserted to the external connector terminals, the connector may be damaged or malfunction.

■

Carefully read each manual

attached to the FOMA terminal, adapter, and desktop holder.

■

Do not rub or scratch the display

with a metal object.

Doing so may cause damage or

malfunction.

Notes on the FOMA terminal

■

Do not push the surface of the

Touch Board strongly with a

sharp object such as a nger nail, ballpoint pen, pin, or a nger.

■

Avoid using in extremely high or

low temperatures.

Use the FOMA terminal within a

temperature range of 5 ℃ to 35 ℃ and a humidity range of 45% to 85%.

■

The FOMA terminal may affect

general phones, televisions, or radios, etc. in use nearby. Use the FOMA terminal as far away from such equipment as possible.

■

Keep a separate record of any

information stored on the FOMA terminal and store the copies in a safe location.

DOCOMO assumes no responsibility for the loss of any of your data.

Page 18

Introduction

■

Do not drop the FOMA terminal or

subject it to shocks.

Damage or malfunction may result.

■

Do not insert an external device

to the external connector terminal (earphone/microphone terminal) crookedly or do not pull it when it is inserted.

Damage or malfunction may result.

■

Do not close the FOMA terminal

with a strap caught inside.

Damage or malfunction may result.

■

It is normal for the FOMA terminal

to become warm during use or being charged. You can continue to use it.

■

Do not leave the camera in a

place exposed to direct sunlight.

Pixels may be discolored or burns

may result.

■

Usually close the covers of the

external connector terminals and microSD card slot.

Dust or moisture may seep in and

cause malfunction.

■

Do not use the FOMA terminal

with the back cover removed.

The battery pack may fall out or

malfunction or damage may result.

■

Do not attach extremely thick

stickers on the display or keypad.

Malfunction may result.

■

While using a microSD card, do

not remove it or turn the FOMA terminal power off.

Data loss or malfunction may result.

■

Do not place magnetic media near

the FOMA terminal.

Data on magnetic media such as

cash cards, credit cards, telephone cards or ﬂoppy disks may be lost.

■

Do not place a magnetized item

near the FOMA terminal.

A strong magnetic ﬁeld may cause

malfunction of the FOMA terminal.

Notes on the battery pack

■

The battery pack is a consumable.

Depending on the usage, a battery

pack may run out of its charge extremely quickly even if it is fully charged. Purchase a new battery pack speciﬁed in this manual.

■

Charge the battery pack in a place

with an ambient temperature of 5 ℃ to 35 ℃.

■

When you use the FOMA terminal

for the rst time or when you

have not used for a long time, be sure to charge the battery pack before use.

■ The actual usage time of the

battery pack depends on the usage environment or the deterioration level of the battery pack.

■

The battery pack may swell

as the battery life is near its end depending on the battery pack condition, but it is not a malfunction.

■

When you store the battery

pack for a long time, avoid the following conditions.

• Fully charged (immediately after charge is completed)

• No battery (the state where the power cannot be turned on due to battery drain)

The performance or life of the

battery pack may be reduced. It is recommended that you store the battery pack when the battery level icon shows two bars.

Notes on the adapter

■

Charge the battery pack in a place

with an ambient temperature of 5 ℃ to 35 ℃.

■

Charge the battery pack where:

• There is very little humidity, vibration, and dust.

• There are no land-line phones, television sets or radios nearby.

Page 19

Introduction

■

It is normal for the adapters to

become warm while using or charging the FOMA terminal. You can continue to use it.

■

Use the DC adapter only when the

car engine is running.

The car battery may be exhausted.

■

When using an outlet with a latch

mechanism, follow the instruction manual of the outlet.

■

Do not place strong impacts.

Also, do not deform the charging terminals.

Malfunction may result.

Notes on the UIM

■

Do not use excessive force to

insert/remove the UIM.

■

It is normal for the UIM to become

warm while using the FOMA terminal. You can continue to use it.

■

Note that you are responsible for

malfunction caused by inserting the UIM into a different IC card reader/writer.

■

Always keep the IC portion of the

UIM clean.

■

Clean the UIM with a soft, dry

cloth (lens cleaning cloth).

■

Keep a separate record of any

information stored on the UIM and store the copies in a safe location.

DOCOMO assumes no responsibility for the loss of any of your data.

■

To protect the environment,

please bring unnecessary UIM to a service counter such as the docomo Shop.

■

Avoid using in extremely high or

low temperatures.

■

Do not scratch, carelessly touch,

or short-circuit the IC portion.

Data loss or malfunction may result.

■

Do not drop the UIM or subject it

to shocks.

Malfunction may result.

■

Do not bend the UIM or put heavy

objects on it.

Malfunction may result.

■

Do not insert the UIM with labels

or stickers attached into the FOMA terminal.

Malfunction may result.

Cautions

■

Never use a modied FOMA

terminal. Using a modied device

violates the Radio Law.

The FOMA terminal acquires the

certiﬁcation of conformity with technical standards of speciﬁed radio equipment based on the Radio Law. As a proof, "Technical conformity mark on the nameplate of the FOMA terminal. If you remove screws to modify the internal components of the FOMA terminal, the certiﬁcation of conformity with technical standards becomes invalid. Do not use the FOMA terminal with the invalid certiﬁcation of conformity with technical standards. Doing so violates the Radio Law.

■

Be careful when using the FOMA

terminal while driving.

Using a mobile phone in hand while

driving is subject to punishment by law. If you receive a call unavoidably, use Hands-free to tell the caller to call back and park the car at a safe place and then make a call.

" is printed

Page 20

Basic Operation

Before Using

Attaching UIM (FOMA Card)/ Battery Pack

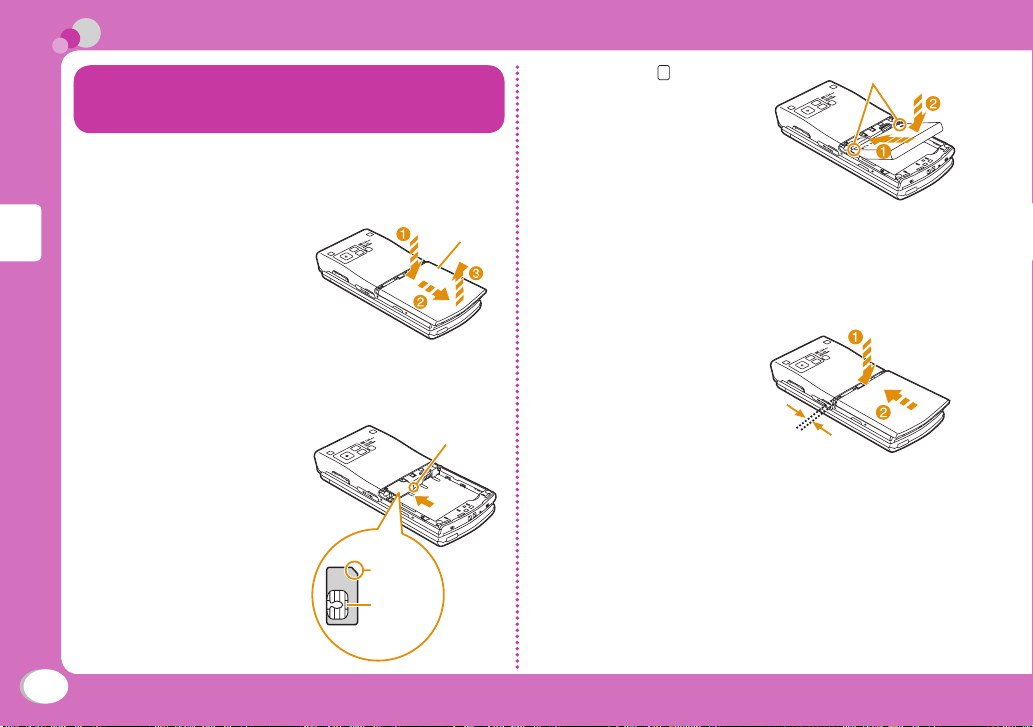

The UIM is an IC card that contains subscription information such as your phone number.

•

When inserting, close the FOMA terminal and hold it with

both hands.

While pressing the

back cover in the direction in the direction b and hold it up in the direction remove it

• If difﬁcult to slide the back cover, hold the FOMA

terminal with both hands and slide it with both thumbs.

With the gold IC side

down, push the UIM surface to insert it slowly to the end

, slide it

and

Back cover

Notch

IC (Gold)

With the " A "

side up, align the metal contacts of the battery pack and the FOMA terminal, attach the battery pack in the

direction then push it down in the direction

•

When attaching, align the tabs of the FOMA terminal

and the depressions of the battery pack.

Align the back

cover to the ditch of the FOMA terminal with approx. 3mm gap kept between the back cover and FOMA terminal. While pressing the back cover in the direction and insert it until it clicks

, and

(Approx. 3mm)

, slide it in the direction b

Tabs

Page 21

Basic Operation

Charging

Charging with AC adapter and desktop holder

While holding the desktop holder (optional), insert the AC adapter connector, with the inscribed arrow side up, straight into the external connector terminal of the desktop holder. Connect the AC adapter plug to an electric outlet. Insert the FOMA terminal in the direction the desktop holder.

•

The illumination lights up and charging starts. When

charging completes, the illumination turns off.

After charging completes, pull the FOMA terminal out while holding the desktop holder.

Release buttons

Inscription

Power plug

Connector

100V AC

outlet

along

Illumination

Desktop holder

Information

•

Be careful not to pinch the strap, etc.

•

When charging, close the FOMA terminal.

•

Make sure to pull out the AC adapter connector straight

while pressing the release buttons on the both sides of the connector. Forcibly trying to remove the adapter may cause damage.

Charging only with AC adapter

Open the external connector terminal cover of

the FOMA terminal ( the inscribed arrow side up, insert the AC adapter connector straight into the external connector terminal of the FOMA terminal. Connect the AC adapter plug to an electric outlet.

•

The illumination lights up and charging starts. When

charging completes, the illumination turns off.

After charging completes, pull the AC adapter connector straight out while pressing the release buttons.

Illumination

) and ip it over (b). With

External connector terminal cover

Inscription Release buttons

Connector

Page 22

Basic Operation

Information

•

Make sure to insert or pull out the AC adapter straight

with the correct side up. Forcibly trying to remove the adapter may cause damage.

Turning Power ON

Turning power ON

With the power turned OFF,

2 seconds)

After the Wake-up screen is displayed, the Stand-by display appears.

(for over

Conguring Default Setting

After turning the power ON for the rst time,

set "Set Date&Time", "Change security code", "KeyPad Sound(ON/OFF)", "Location request setting", and "Calibration" as default settings.

Turn the power ON u "Yes"

Set the date and time

Set the Terminal security code

Set the keypad tone (select "ON" or

"OFF")

Turning power OFF

With the power turned ON,

seconds) in Stand-by

The Exit screen appears and the power is turned OFF.

(for over 2

Make the location request setting

Perform the calibration of the Touch

Board

Page 23

Basic Operation

Checking Your Own Phone Number

Searching for Key Operations

View your phone number (own number) saved on the UIM.

•

For procedures on checking/changing your mail address,

see "Mobile Phone User's Guide [i-mode] FOMA version".

Stand-by display u M u "Own Number"

Editing your own number

Stand-by display u M u "Own Number"

[Detail] u Enter the Terminal

security code

2 3

[Menu] u "Edit"

Edit each item u I[Done]

Search and refer to the function you want to know or use. Depending on the function, you can execute the searched function after searching.

•

This function is provided in Japanese only.

Stand-by display u

second)

"Menu search"/"Useful guide"

When selecting "Menu search", enter menu item names or keywords to search for your desired function. Press

[Chara] to switch input modes.

When selecting "Useful guide", select and check the target function from the list.

Information

•

If C[Start] appears on the search result screen, press

[Start] to execute the function.

(for over 1

Page 24

Basic Operation

Screen Explanation

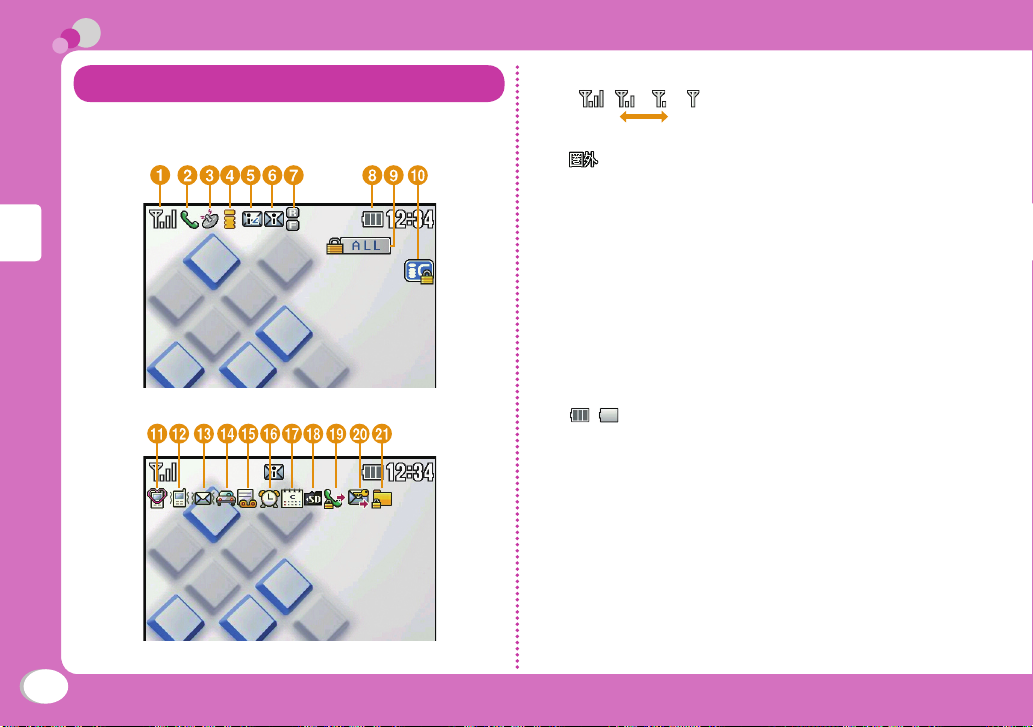

Viewing Display/Icon

The meanings of icons displayed at the top of the screen are as follows.

Signal strength (estimate)

Strong Weak

Out of service area or no signal reception

Voice call in progress

GPS positioning in progress

i-mode connection in progress while blinking

i-mode mail stored at the i-mode center

Unread i-mode mail

Unread MessageR

Unread MessageF

Battery level (estimate)

Lock all set

IC card lock set

Manner mode set

A ring tone for voice/videophone call inactive and

vibration active

A ring tone for mail/MessageR/F inactive and vibration

active

Public mode (Drive mode) set

Page 25

Basic Operation

Record message set

Alarm set

Today's schedule or To do set

microSD card inserted

Outgoing voice/videophone calls restricted

Outgoing mails restricted

Data access lock set

Notication icon

A number displayed on each icon indicates the number of entries.

External LED

When the FOMA terminal is closed, or F or E is pressed with the FOMA terminal closed, the clock is displayed for approximately ve seconds. Incoming calls or mails, the status of the FOMA

terminal, etc. are notied by LED lighting patterns.

(The following images are examples of lighting patterns.)

Clock display Incoming voice call/

videophone call

Missed call

Unread mail

Voice mail message

Record message

Incoming mail/

MessageR/F

Alarm sounding

Information

•

Clock is not displayed when other illuminations light up

or blink.

Music playback/adjusting

volume

Page 26

Basic Operation

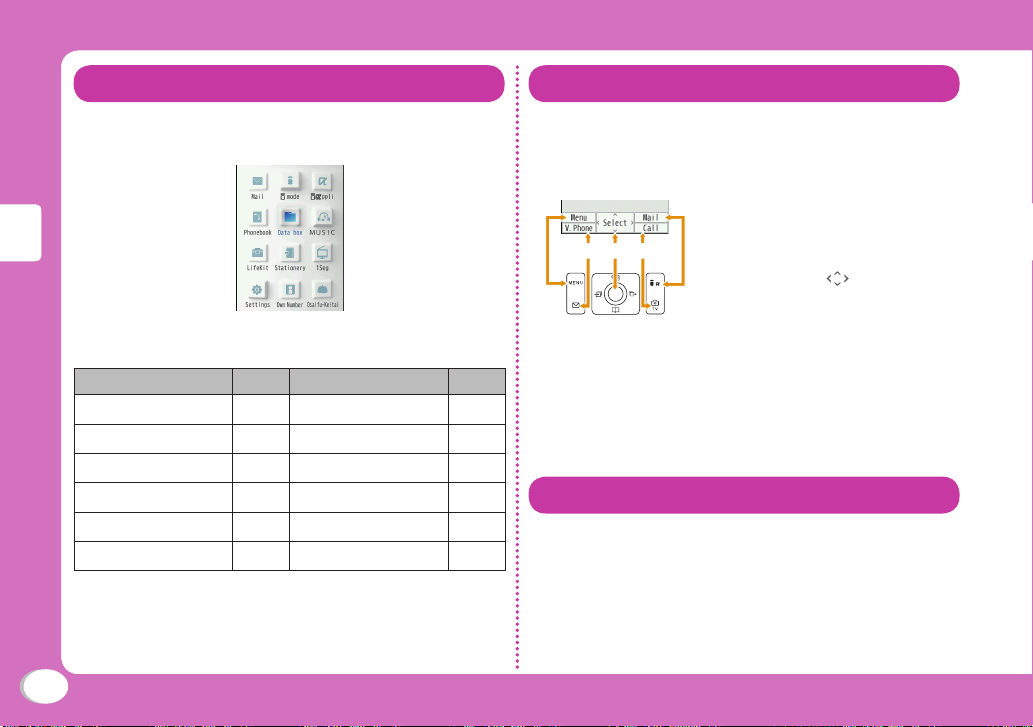

Viewing Main Menu

d b e

Key Operation

Execute functions from the main menu on the FOMA terminal.

●

Function displayed on the main menu and

corresponding key

Function Key Function Key

Mail

i-αppli

Data box

LifeKit

1Seg

Own Number

1 3 5 7 9 0

i-mode

Phonebook

MUSIC

Stationery

Settings

Osaifu-Keitai

2 4 6 8 * #

Available operations on the currently opened screen are displayed as Soft keys at the bottom of a screen.

Operation to be performed

with M appears.

Operation to be performed

with C appears.

• The mark ( ) also appears to indicate the possible direction for scrolling or selecting an item.

Operation to be performed

with I appears.

Operation to be performed

with g appears.

Operation to be performed

with G appears.

Using Touch Board

Touch the screen directly to perform various operations on the Touch Board.

•

When the Touch Board turns off, touch operations become

unavailable. Turn it on by the following operation.

- Press any key

- Open/close the FOMA terminal

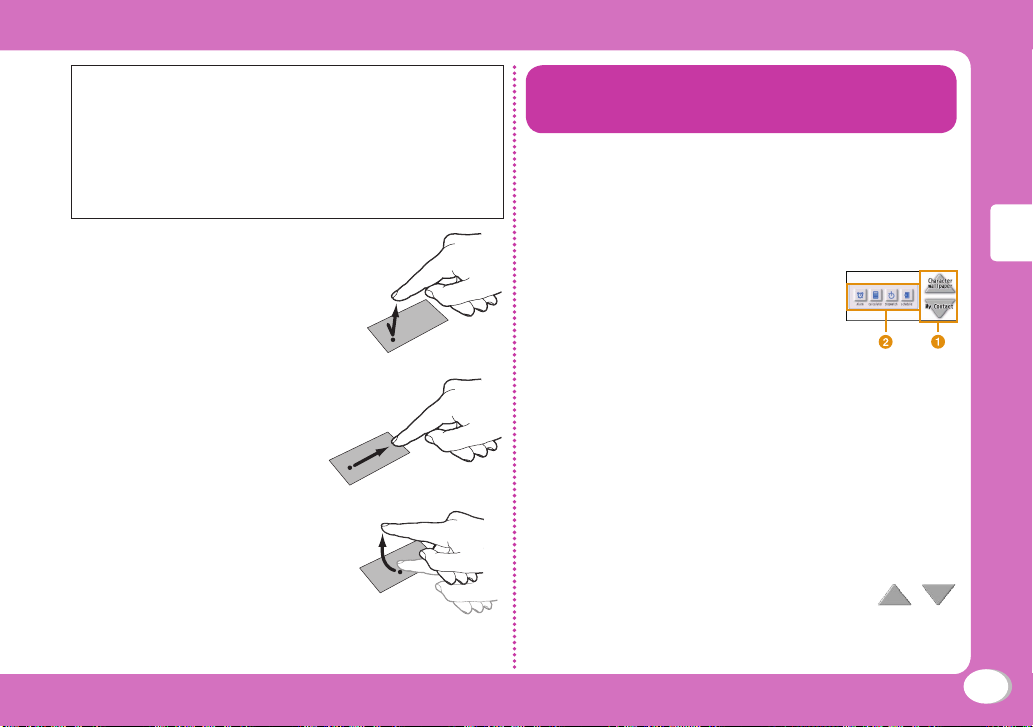

Page 27

Basic Operation

Precautions on using Touch Board

• The Touch Board may not function in the following cases.

Also, misoperation may be caused.

- Operations with a foreign object put on the board

- Operations with the protective sheet or stickers attached

•

Do not press the Touch Board with a sharp-pointed

object such as nail, pen, pin, etc. or ﬁnger strongly.

Touch the board softly and

release your nger

Ex.: Select an item or execute the selected operation

•

This operation is described as

"touch" in this manual.

Touch Board Stand-by Display and Operation

Use functions such as the Character wallpaper screen or Shortcut screen, etc. on the Touch Board stand-by display.

●

Switching Stand-by display

Stand-by display u F/

Keep touching the board and

move your nger

Ex.: Create an illustration with Oekaki photo

Touch the board softly and

ick your nger up, down,

right or left

Ex: Scroll at high speed when there are too many items, etc. to be displayed on a screen (This operation may be disabled depending on the screen.)

Touch a to switch the screen u Touch b

to set the screen

• Even if you do not touch b, the screen is automatically

set after a few seconds.

Character wallpaper screen

Animal characters move around the display and Touch Board. Tilt or shake the FOMA terminal to operate a character.

Stand-by display

to display "Character wallpaper" screen

F/E

u Touch

Page 28

Basic Operation

Shortcut screen

Touch shortcut icons to open each function quickly.

●

Adding shortcuts

Stand-by display

to display "Shortcut" screen

Touch "Add Shortcut"

Move the cursor to the shortcut

registration eld u function u

•

Press M[Menu] to delete the added function.

●

Using shortcuts

Stand-by display

to display "Shortcut" screen

Touch a shortcut icon

F/E

[Done]

F/E

u Touch

[Add] u Select a

u Touch

My Contact screen

Save frequently used entries from Phonebook to make a call or send a message quickly.

●

Saving entries to My Contact

Stand-by display

to display "My Contact" screen

Touch "Add Contact"

Phonebook appears. If no entries are saved on the FOMA terminal, Add to phonebook screen appears. Save new entry.

Select an entry

●

Using My Contact

Stand-by display

to display "My Contact" screen

Touch the other party's image/icon

Select/set each item

F/E

u Touch

Oekaki photo screen

Display the captured images, etc. as the Touch Board stand-by display.

●

Setting Oekaki photo

Stand-by display

to display "Oekaki photo" screen

F/E

u Touch

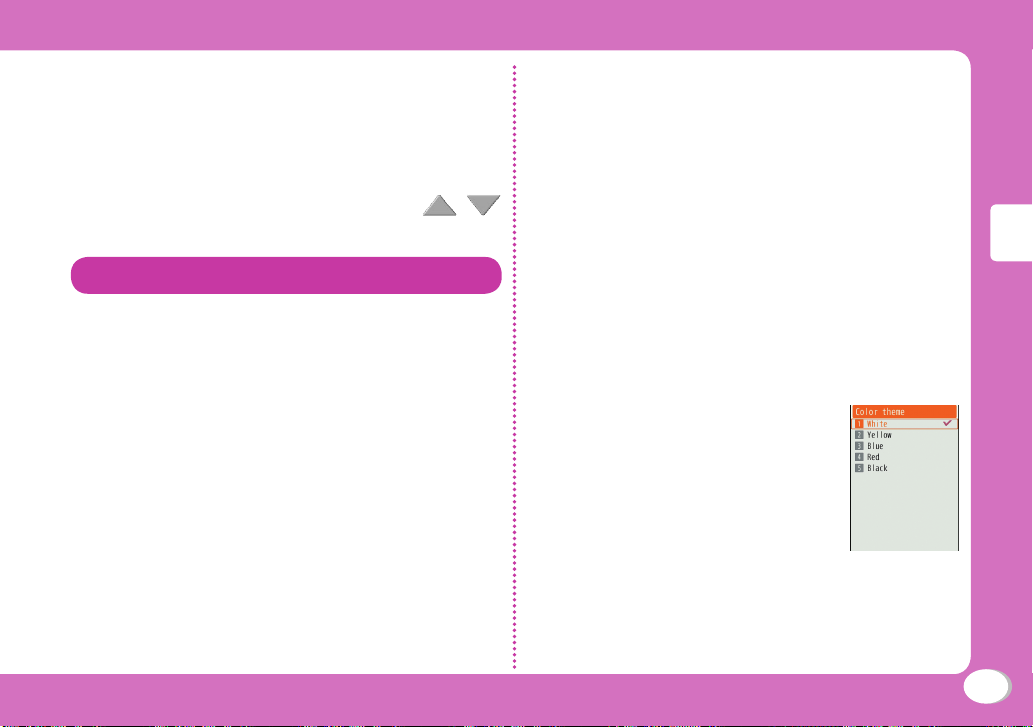

Page 29

Basic Operation

Touch the still image displayed on the

Touch Board for over 1 second

Touch "Create New"/"Set From Data Box"

●

Displaying Oekaki photo

Stand-by display

to display "Oekaki photo" screen

F/E

u Touch

Menu Operation

This section explains operations for accessing the main menu from the Stand-by display and displaying the setting screen for "Color theme" in the following two ways.

When using Navigation key

In Stand-by, press

On the Main menu screen, use K to

move the cursor to "Settings" and press

[Select]

On the Settings screen, use H to

move the cursor to "Display" and press

[Select]

On the Display screen, use H to move

the cursor to "Color theme" and press

[Select]

When using Dial keys

In Stand-by, press

On the Main menu screen, press

corresponding to "Settings"

On the Settings screen, press

corresponding to "Display"

On the Display screen, press

corresponding to "Color theme"

Page 30

Basic Operation

Character Entry

Entering Characters

Character entry is required in various situations such as when saving entries to Phonebook or creating mail. Learn how to enter characters beforehand to make use of the FOMA terminal.

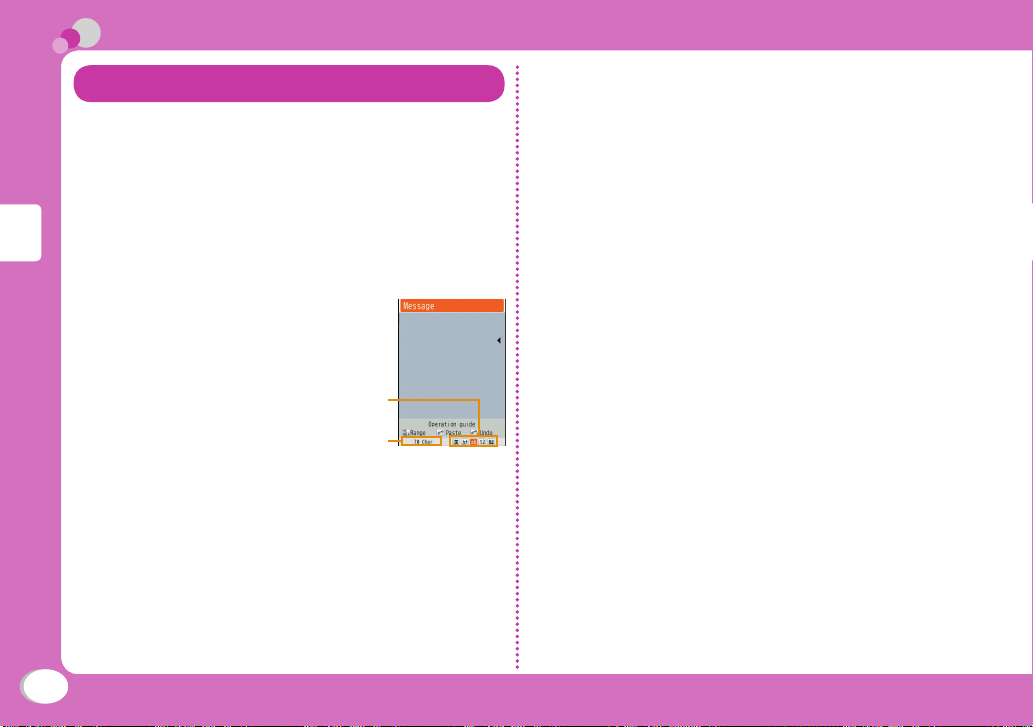

Character entry screen

On the Character entry screen, the current input mode and operation guide are displayed.

Available number of characters or bytes to be input

Input mode

Character

entry screen

Switching input mode

Switch the input mode according to the character type to be input. In some input modes, switching between full-pitch and half-pitch characters is available.

Character entry screen u I[Mode]

[Change]

•

Each time you press I[Change], input modes are

switched.

•

When you press g[To full/To half], full-pitch and

half-pitch modes are switched (except for Hiragana

and Kanji input mode and Korean input mode).

漢カ (カナ)

a/A*

1 (

韓

*1 Press M[Upper/Lower] to switch between upper

and lower cases.

*2 Appears when SMS input character is set to

"JP/KR(70Chara)".

The input mode is set.

: Hiragana and Kanji input mode : Katakana input mode

(ab/AB*1)

: Alphabetical input mode

)

: Numeric input mode

: Korean input mode

[Select]

Page 31

Basic Operation

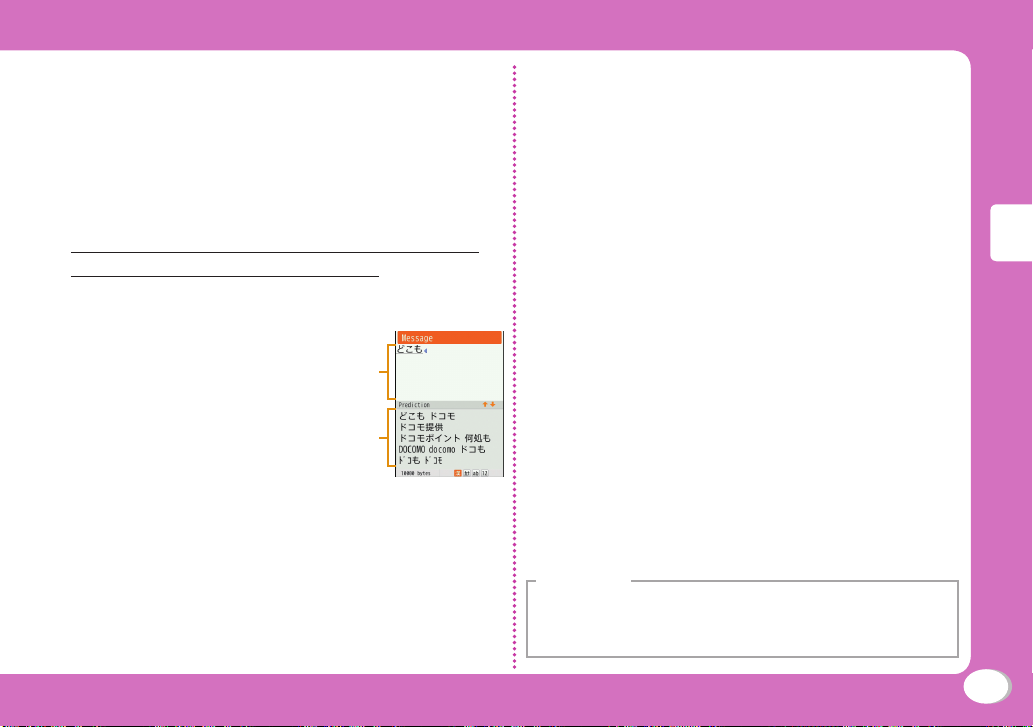

Character entry method

In Hiragana and Kanji input mode, enter characters using the following two prediction functions. Prediction input function: predicts conversion options. Next phrase prediction function: predicts the next phrase from the characters being entered.

Example: Entering characters " Taro)" in Hiragana and Kanji input mode

On the Character entry screen, enter "

(DOCOMO)"

こも

"ど": 4 ﬁve times u

once

こ

": 2 ﬁve times

も

": 7 ﬁve times

Conversion (Prediction) options predicted by the Prediction input function appear.

Use H to move the cursor to the

Prediction option eld

Move the cursor to "

[Set]

ドコモ太郎

Character input ﬁeld

Prediction option ﬁeld

ドコモ

(DOCOMO)" u

(DOCOMO

ど

Enter "

"た": 4 once "

ろ

う

Use H to move the cursor to the

Prediction option eld

Move the cursor to "

たろう

(Taro)"

": 9 ﬁve times

": 1 three times

[Set]

太郎

(Taro)" u

Entering pictograms/symbols/emoticons

Pictograms, symbols, and emoticons pre-installed in the FOMA terminal can be used when entering characters.

Character entry screen u G[Pict/Sym]

Use I[Change] to select an input mode

Use M to switch types

Select a pictogram/symbol/emoticon to

enter

Information

•

Depending on the entry screen, pictograms, symbols,

or emoticons may not be entered, or input mode/type may not be switched.

Page 32

Basic Operation

Sound/Screen Setting

Changing Ring Tone

Stand-by display u M u "Settings" u

"Sounds&Vibration" u "Select ring tone"

Select an item and select a le

[Done]

Adjusting Volume

Stand-by display u M u "Settings" u

"Sounds&Vibration" u "Volume"

Select an item and adjust volume

2 3

[Done]

Setting Vibrator

Stand-by display u M u "Settings" u

"Sounds&Vibration" u "Vibrator"

Select/set each item

[Done]

Using Manner Mode

Stand-by display

When the Manner mode is set, appears at the top of the screen.

•

Even while the manner mode is set, the camera

shutter tone sounds.

■

To cancel the Manner mode

In Stand-by, press #(for over 1 second).

#(for over 1 second

Setting Keypad Sound OFF

Stand-by display u M u "Settings" u

"Sounds&Vibration" u "Volume" u Move the cursor to "Keypad tone"

Use L to set (Mute)

[Done]

)

Page 33

Basic Operation

Changing Screen Display

Stand-by display u M u "Settings" u

"Display" u "Stand-by display"

Set each item

[Done]

Backlight

Set the backlight of the display.

Stand-by display u M u "Settings" u

"Display" u "Backlight"

Move the cursor to "Auto brightness" u

[ON/OFF]

•

Set to "OFF" to select/set each item.

[Done]

Changing main menu design

Set the menu design displayed when M is pressed in Stand-by.

Stand-by display u M u M[Menu] u

"Menu priority" u "Custom menu"/"Basic menu" u "Yes"

Information

•

To switch the menu temporarily, press G [Basic/

Custom] while the menu is displayed.

Kisekae Tool

Set ring tones, stand-by display or menu icons, etc. at a time.

Stand-by display u M u "Data box" u

"Kisekae Tool"

Move the cursor to "i-mode"/"Preinstalled"

[Open]

Move the cursor to a Kisekae Tool u

[Set all] u "Yes"

Page 34

Basic Operation

Information

•

Kisekae Tool can also be set using the following steps.

Stand-by display u M u I[Kisekae] u Move the cursor to "i-mode"/"Preinstalled" u

•

To reset the setting, press M[Menu] on the Kisekae

Tool list screen u "Reset screen display / sound setting" u enter the Terminal security code.

[Open]

Information

•

When a missed call or unread mail/message exists,

the illumination lights up or brinks at approximately ﬁve seconds interval as follows. This illumination setting cannot be changed.

Missed call: Top, Collect, Blue Unread mail/message: Top, Blink, Pink

Changing Lighting Patterns for External LED when Receiving

Stand-by display u M u "Settings" u

"Display" u "LED matrix"

"Incoming voice call"/"Incoming video

call"/"New mail" u Select an LED pattern

[Done]

Changing Illumination when Receiving

Stand-by display u M u "Settings" u

"Display" u "Illumination"

"Incoming voice call"/"Incoming video

call"/"New mail" u Set each item

[Done] u I[Done]

Saving Power Consumption

Set the backlight brightness of the display to the lowest power saving level, and set the backlight to be turned off when 10 seconds elapsed after the last operation.

Stand-by display u M u "Settings" u

"Other" u "Power saver mode" u "ON"/ "OFF"

Page 35

Basic Operation

Lock/Security

Various Security Codes

Cautions on security codes

•

Avoid setting security codes using your birthday, part of

your phone number, your address or room number, "1111" or "1234" that can be easily guessed by others. Be sure to write down the set security codes and store them in a separate location.

•

Do not reveal your security codes to others. DOCOMO

is not responsible for damage caused by misuse of your security codes by others.

•

If you forget your security codes, you need to bring your

identiﬁcation document (driver's license, etc.), the FOMA terminal, and UIM to the docomo Shop. For details, contact "General Inquiries" at the back of this manual.

•

PUK code is written in the application form (copy for

subscriber) given at the time of contract. If you have subscribed at a place other than the docomo Shop, bring your identiﬁcation document (driver's license, etc.) and UIM to the docomo Shop or contact "General Inquiries" at the back of this manual.

Terminal security code (Default: 0000)

You can change the Terminal security code by yourself. Stand-by display u "Change security code"

u "Settings" u "Lock/Security" u

Network security code (At the time of contract: any number)

The Network security code is a four-digit number to be

used for your identiﬁcation at an acceptance of order at the docomo Shop, docomo Information Center, or "

(user support)", or for accessing network services. You

ート

can change the code by yourself. If you have "docomo ID and Password" for "My docomo",

a total support site for a PC, you can change the Network

security code from a PC. From i-mode, you can change it by accessing "iMenu" u "

各種設定(確認・変更・利用

•

For "My docomo" and "

the back side of the back cover of this manual (Japanese only).

お客様サポート

) (settings (check/change/use))".

お客様サポート

お客様サポ

(user support)" u

(user support)", see

Page 36

Basic Operation

i-mode password (At the time of contract: 0000)

The "i-mode password" is a four-digit number required to register/remove contents in My Menu, and subscribe to/cancel the message service or fee-based i-mode services. (Some other information service providers may set individual passwords.)

You can change the password by yourself. From i-mode, you can change it by accessing "iMenu" u "English" u "Options".

PIN1 code/PIN2 code (At the time of contract: 0000)

You can set PIN1 and PIN2 codes to the UIM. PIN1 code is a 4- to 8-digit number to be entered to identify the user every time UIM is inserted into the FOMA terminal or the terminal power is turned on in order to prevent unauthorized use by third party. PIN2 code is a 4- to 8-digit number used to reset accumulated call charges, etc. You can change them by yourself. To change PIN1 code, set "PIN1 code request" to "ON" beforehand.

Stand-by display u "PIN code" u Enter the Terminal security code u "Change PIN1 code"/"Change PIN2 code"

•

Emergency numbers (110, 119, 118) are not available in

Japan even if you press I[ER. call] while the PIN1 code entry screen is displayed.

u "Settings" u "Lock/Security" u

PUK code (PIN unblock code)

PUK code is an 8-digit number used to unblock PIN1 code or PIN2 code. You cannot change it by yourself.

Enter

PIN1 code

Failed 3 times

in a row

Enter

PIN2 code

Enter PUK

code (PIN

unblock code)

Failed 10 times

in a row

Set new PIN1/

PIN2 code

Contact the

docomo Shop.

Page 37

Basic Operation

Various Lock Functions

Lock function Description

Lock all Locks the FOMA terminal to prevent

operations by others.

Stand-by display u M u

"Settings" u "Lock/Security" u "Lock" u "Lock all" u Enter the Terminal security code u "Yes"/ "No"

■

To cancel Lock all

In Stand-by, press M[Unlock] or

press any dial key u enter the Terminal security code. If failed to enter the correct Terminal security code ﬁve times in a row, the power automatically turns off.

•

Emergency numbers (110, 119, 118)

can be called during Lock all. (Only when UIM is inserted) In Stand-by, press u select an emergency number u

[OK].

[Emergency]

Lock function Description

Omakase Lock Locks your personal data such as

Call/Mail lock Disables outgoing calls, address entries

Phonebook and IC card functions of Osaifu-Keitai by calling DOCOMO when you lost the FOMA terminal.

Setting/Canceling Omakase Lock

0120-524-360 Available 24 hours

a day (Japanese only)

* You can set/cancel the lock from the My

docomo site (Japanese only) using a PC.

•

For details on Omakase Lock, see

"Mobile Phone User's Guide [i-mode] FOMA version".

with dial keys, incoming calls or display of mail messages to prevent operations of the FOMA terminal by others.

Stand-by display u M u

"Settings" u "Lock/Security" u "Lock" u "Call/Mail lock" u Enter the Terminal security code

Move the cursor to "Call/Mail lock"

[ON] u Mark items to restrict

[Done]

Page 38

Basic Operation

Lock function Description

Self mode Disables all functions that require

Data access lock

GPS lock Locks GPS function.

communication, such as making/ receiving calls, using i-mode, or sending/ receiving mails.

Stand-by display u M u

"Settings" u "Call/VT/Dialing" u "Self mode" u "Yes"/"No"

Species and lock functions to prevent unauthorized use by others.

Stand-by display u M u

"Settings" u "Lock/Security" u "Lock" u "Data access lock" u Enter the Terminal security code

Move the cursor to "Data access

lock" u to lock

Stand-by display u M u

"Settings" u "Lock/Security" u "Lock" u "GPS lock" u Enter the Terminal security code u "Yes"/ "No"

•

Even while GPS lock is set, the location

request is available.

[Done]

[ON] u Mark functions

Lock function Description

My contact lock Locks My Contact.

Standy-by display u M u

"Settings" u "Lock/Security" u "Lock" u "My contact lock" u Enter the Terminal security code u "Yes"/"No"

Display Call/ Mail logs

IC card lock Prevents unauthorized use of IC card

Hides redial call, received call, sent mail, and received mail logs.

Stand-by display u M u

"Settings" u "Lock/Security" u "Display Call/Mail logs" u Enter the Terminal security code

Move the cursor to the item to set u

[ON/OFF]

function by others.

Stand-by display u C (for over 1

second)

■

To cancel IC card lock

In Stand-by, press C(for over 1

second) u enter the Terminal security code.

Page 39

Basic Operation

Incoming Call Restriction

Resetting to Default

Setting actions when anonymous calls arrive

Reject incoming calls without caller ID per reason for anonymous call.

Stand-by display u M u "Settings" u

"Call/VT/Dialing" u "Incoming call" u "Anonymous caller" u Enter the Terminal security code u Select/set each item

Rejecting calls from callers unset in Phonebook

Set to reject calls from callers not saved to Phonebook or without caller ID.

Stand-by display u M u "Settings" u

"Call/VT/Dialing" u "Incoming call" u "Accept/Reject call" u Enter the Terminal security code u Move the cursor to

"Reject unknown" u

[ON/OFF]

Resetting various function settings to defaults

Reset the settings you have changed in functions to defaults.

Stand-by display u M u "Settings"

u "Other" u "Reset/Clear" u "Reset settings" u "Yes" u Enter the Terminal security code

Deleting all saved data at once

Delete saved data.

Stand-by display u M u "Settings"

u "Other" u "Reset/Clear" u "Clear memory"

Mark items to delete u I[Done] u "Yes"

u Enter the Terminal security code

Page 40

Connect

Call Telephone

Making a Call/Videophone Call

Enter a phone number

•

Start with a city code even for a local call.

A ringing tone sounds from the earpiece, and the Dialing screen is displayed until the other party answers the call.

■

To make a videophone call

Press I[V. phone].

To end the call,

Making a call from the Phonebook

Stand-by display u

Move the cursor to the entry to call u

■

To make a videophone call

Press g[V. Phone].

Making a call using redial logs or received call logs

Stand-by display u R(Redial) or

(Recv. Calls)

Move the cursor to the entry to call u

[Detail]

or C[Call]

■

To make a videophone call

Press g[V. phone].

Information

•

If exceeded 30 entries, the entry is deleted from the

oldest.

Notifying other party of your phone number

Set whether to notify/not to notify other party of your caller ID on the network beforehand.

Stand-by display u M u "Settings" u

"NW Services" u "Caller ID notication" u "Activate/Deactivate"

"Notify"/"Not notify"

Information

•

If you hear a guidance asking to notify of your caller ID,

set the caller ID notiﬁcation or preﬁx 186 to the other party's phone number and call again.

Page 41

Connect

Using international calls

WORLD CALL is an international call service available from DOCOMO mobile phones.

When having subscribed to the FOMA service, you have also subscribed to "WORLD CALL" (except those who have applied not to use the service).

•

You can make calls to approximately 240 countries and

regions.

•

Charges for "WORLD CALL" are added to the monthly bill

for the FOMA service.

•

The application/monthly fee is free of charge.

•

Some billing plans are not available for this service.

•

Even if the caller ID notiﬁcation is set, it may not be

notiﬁed or phone number may not be displayed correctly, depending on the telecommunication carrier. In this case, you cannot make a call from the Received calls screen.

•

For details on WORLD CALL, contact "General Inquiries"

at the back of this manual.

•

If you use international carriers other than DOCOMO,

contact them directly.

Entering a phone number to make an international call

Enter "010 - Country code - Area code

(City code) - Other party's phone number"

•

If an area code (city code) starts with "0", remove "0".

(When calling some countries such as Italy, "0" may be required.)

■

To make an international videophone call

Press I[V. phone].

Receiving a Call/Videophone Call

A call arrives

■

When a videophone call arrives

C[Image]:

■

During a videophone call

I[Image/Camera]:

between the substitute image and the camera image.

To end the call,

Answer a call with the substitute image.

Switch the image to send

Adjusting Earpiece Volume

During a call, H or F/

When You cannot Answer a Call

Public mode is an automatic response service to assist in observing manners in public locations.

•

Public mode includes following two types.

- Drive mode

- Power OFF

Page 42

Connect

Using Public mode (Drive mode)

The guidance is played announcing that you cannot answer the call because you are currently driving or in a place where you should refrain from talking on the phone (train, bus, or movie theater), and then the call is disconnected.

Stand-by display

When the Public mode (Drive mode) is set,

appears at the top of the screen.

■

To cancel the Public mode (Drive mode)

Press * (for over 1 second) while the Stand-by

display appears.

*(for over 1 second

Using Public mode (Power OFF)

When a call arrives while the power is turned OFF, the guidance is played announcing that you cannot answer the call because you are in a place where you should turn the power OFF (hospital, airplane, near priority seats on a train), and then the call is disconnected.

Enter ":25251" u

■

To cancel the Public mode (Power OFF)

Enter ":25250" and press A.

Setting Record message

If the Record message is activated, the voice guidance is played when you cannot answer a voice call and the other party's message is recorded.

•

The Record message does not activate when a

videophone call arrives. A call arrives in a normal way.

)

Stand-by display u M u "Stationery"

u "Record message" u "Record msg. setting"

Move the cursor to "Activate record msg."

[ON/OFF]

•

Set to "ON" to select/set each item.

[Done]

When the Record message is set, appears at the top of the screen.

Playing Record message

Stand-by display u M u "Stationery" u

"Record message" u "Record msg. list"

Move the cursor to a recorded message

C[Play]

Page 43

Connect

Using Various Network Services

Available network services

The following DOCOMO network services are available for the FOMA terminal.

Service name Subscription Monthly fee

Voice Mail Service Required Charged

Call Waiting Required Charged

Call Forwarding Service Required Free

Nuisance Call Blocking

Service

Caller ID Notication

Service

Caller ID Request Service Not required Free

Dual Network Service Required Charged

English Guidance Not required Free

Multi Number Required Charged

OFFICEED Required Charged

Public mode (Drive mode) Not required Free

Public mode (Power OFF) Not required Free

Melody Call Required Charged

Not required Free

Information

•

You cannot use network services while you are out of

service area or where there is no signal reception.

•

For subscription or inquiries, contact "General Inquiries"

at the back of this manual.

•

"OFFICEED" is a fee-based service requiring a

subscription. For details, visit the following DOCOMO's web site for corporations. (http://www.docomo.biz/html/product/ofﬁceed/) (Japanese only)

•

For details on network services, see "Mobile Phone

User's Guide [Network Services]".

Voice mail service

Stand-by display u M u "Settings" u

"NW Services" u "Voice mail" u Select an item

Call waiting

Stand-by display u M u "Settings" u

"NW Services" u "Call waiting" u Select an item

Call forwarding service

Stand-by display u M u "Settings"

u "NW Services" u " Select an item

Call forwarding

" u

Page 44

Connect

Services Available for the FOMA Terminal

Available service Phone number

Directory assistance service (Charges apply: guidance fee + call fee)

(Only listed phone numbers can be provided.)

Telegrams (Charge applies: telegram fee)

Time check (Charges apply) (No prex) 117

Weather forecast (Charges apply) City code of the

Emergency calls to police (No prex) 110

Emergency calls to ﬁre station and ambulance

Emergency calls for accidents at sea (No prex) 118

Disaster emergency message dial (Charges apply)

Collect calls (Charges apply: guidance fee + call fee)

(No prex) 104

(No prex) 115

desired area + 177

(No prex) 119

(No prex) 171

(No prex) 106

Information

•

When you use "Call forwarding" of a land-line phone

and have speciﬁed a mobile phone as the forwarding destination, the caller may hear a ring tone even if the mobile phone is busy, out of service area, or turned off depending on the settings of the land-line phone and mobile phone.

•

Even when the UIM is not inserted, emergency phone

numbers (911, 999, 112, 000, and 08) can be dialed to make an emergency call overseas. However, when Self mode is set, emergency calls cannot be made.

•

This FOMA terminal supports "

(Emergency Location Report)". When making emergency calls to 110, 119, or 118, your current location (location information) will automatically be notiﬁed to emergency report reception agencies such as the Police. The agency may not receive accurate location information depending on your current location or signal conditions. When you do not notify of your caller ID by dialing such as with "184" added, your location information and caller ID are not notiﬁed. However, when the agency judges that the location information and caller ID are necessary to protect a human life, it may acquire your location information and caller ID regardless of your setting. The region and timing "Emergency Location Report" is introduced vary depending on the preparation of respective emergency report reception agencies.

緊急通報位置通知

Page 45

Connect

•

When making a call at 110, 119, or 118 from the FOMA

terminal, inform an operator that you are calling from a mobile phone and your caller ID and actual location. Do not move around while you are talking during an emergency call to prevent the call from being disconnected unexpectedly. Do not turn the power off immediately after the call is over; and keep the FOMA terminal ready to receive calls for approximately 10 minutes.

•

Depending on the area where you are calling, you may

not be connected to the local police or ﬁre station. In such a case, use a public phone or land-line phone nearby.

Using Overseas

International roaming (WORLD WING) is a service that allows you to talk or make communications via international carrier's network using the same phone number as used domestically.

•

Before using, check the subscription status for WORLD

WING.

•

This FOMA terminal can be used in 3G network and GSM/

GPRS network service areas. Check available areas.

•

See the following items before using the FOMA terminal

overseas.

- "Mobile Phone User's Guide [International Services]"

- "Mobile Phone User's Guide [Network Services]"

- DOCOMO International Services website

- "Int'l Service Guide (Japanese only)" pre-installed on the FOMA terminal

● Convenient functions and services available overseas

Function/service Description

Roaming guidance setting

Roaming guide(Int.)

Call barring

Dual clock

Unit converter

Notify the other party with a voice

guidance that the terminal is in international roaming.

Reject incoming communications during international roaming.

Display two clocks of two different cities simultaneously on the Stand-by display.

Convert currency by setting an exchange rate.

Page 46

Connect

●

Overseas networks

Network Description

W-CDMA(3G)

GSM

Third generation mobile communication network compliant with the international standard 3GPP

Digital-based second generation mobile communication network most used worldwide.

GPRS

2.5 generation mobile communication network that supports high-speed packet communication using GSM communication.

The abbreviation of 3rd Generation Partnership Project. A regional standardization organization to establish common technical speciﬁcations for third generation mobile communication systems (IMT-2000).

The abbreviation of Global System for Mobile Communications. Second generation mobile communication system in digital method most used worldwide.

The abbreviation of General Packet Radio Service. Data communication such as packet communication is facilitated by speeding up GSM.

Subscribing to WORLD WING

•

If you subscribed to the FOMA service after September

1, 2005, a subscription for WORLD WING is not required.

However, if you canceled the subscription for WORLD

WING at or after a subscription for the FOMA service, a subscription for WORLD WING is required again.

•

If you subscribed to the FOMA service before August

31, 2005 and have not subscribed to WORLD WING, a

subscription is required.

Services available overseas

Communication service 3G GSM GPRS

Voice call

Videophone

SMS

i-mode

i-mode mail

i-Channel

Packet communication by connecting to a PC

○

*1 When you use Multi number, you cannot make a call

*2 You need to make overseas usage settings for i-mode. *3 You need to make i-Channel settings. Packet

Information

•

Usage fees overseas (call charges, packet

communication charges) differ from domestic fees.

○ ○ ○ ○ × × ○ ○ ○

○ × ○ ○ × ○

*2*3

○ × ○

: Available

: Not available

using Additional number.

communication charges apply to receive each i-Channel (including Basic channel).

Page 47

Connect

Making a call to outside the country you stay (including Japan)

Make a call with "+" and a country code prexed

to the other party's phone number.

•

To make a call to an overseas WORLD WING user, enter

"81" as a country code to make an international call to Japan.

Stand-by display u

second) u Enter "Country code - Area code (City code) - Other party's phone number"

• If an area code (city code) starts with "0", remove "0".

(When calling some countries such as Italy, "0" may be required.)

■

To make a videophone call

Press I[V. phone].

(for over 1

Making a call to a person in the country you stay

Make a call by dialing the other party's phone number with the area code (city code).

Stand-by display u Enter "Area code (City

code) - Other party's phone number"

■

To make a videophone call

Press I[V. phone].

Making a call to WORLD WING user overseas

To make a call to a WORLD WING user overseas, make a call as an international call to Japan regardless of in or out of the country you stay.

Stand-by display

phone number except the rst "0"

0(for over 1 second

Enter the other party's

)

Page 48

Connect

Mail

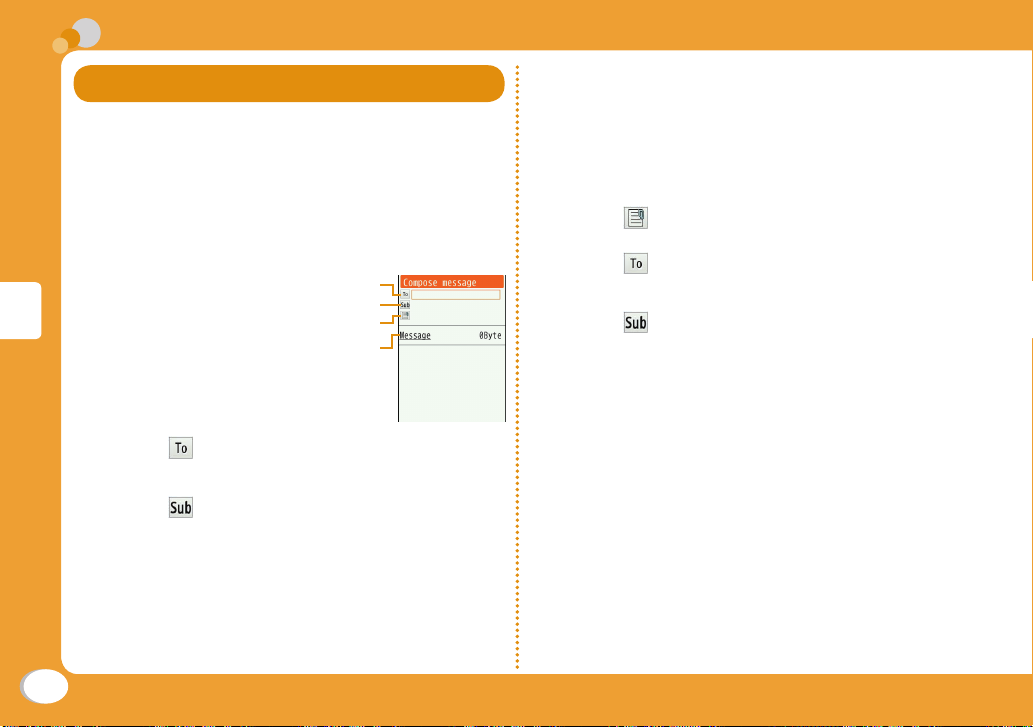

Sending i-mode Mail

Upon subscription to i-mode, you can exchange e-mail via the Internet, as well as between i-mode terminals.

•

For details on i-mode mail, see "Mobile Phone User's

Guide [i-mode] FOMA version".

Stand-by display u g u "Compose

message"

Address

Subject

Attachment

Message

Select eld u "Direct input" u Enter

an address

Select eld u Enter a subject

Select [Message] eld u Enter a message

[Send]

Attaching and sending a le

Attach an image or melody to i-mode mail to send.

•

Up to 10 ﬁles, a total of 2MB, can be attached.

Stand-by display u g u "Compose

message"

Select eld u Select a le

Select eld u "Direct input" u Enter

an address

Select eld u Enter a subject

Select [Message] eld u Enter a message

[Send]

Page 49

Connect

Creating and Sending Deco-mail/ Decome-Anime

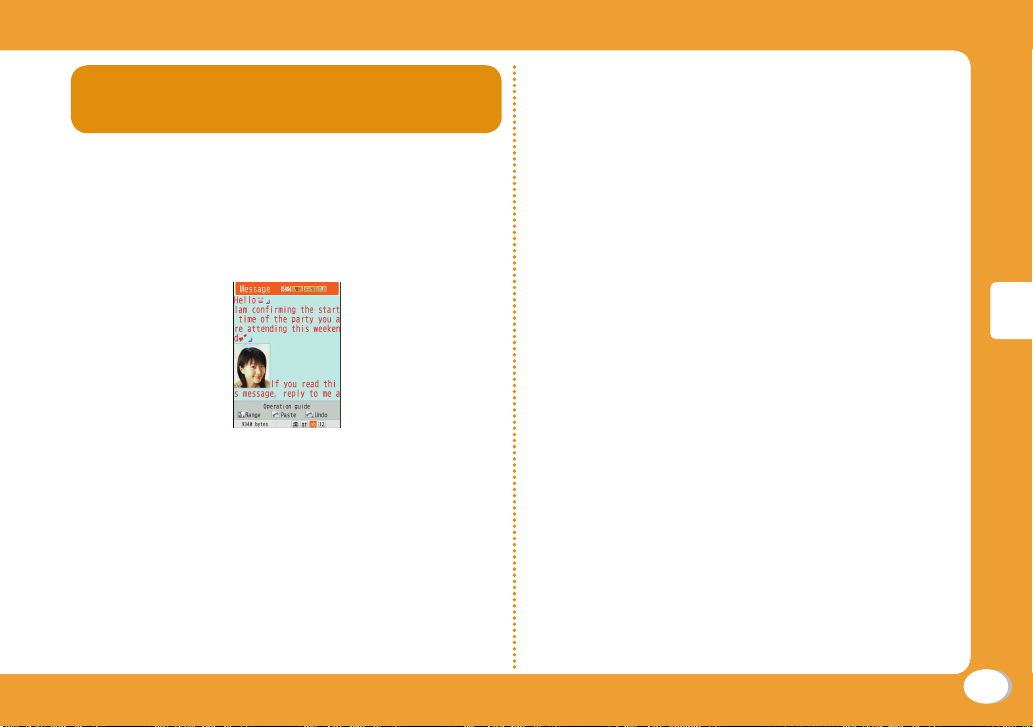

Creating and sending Deco-mail

Create your designed mail by adding decorations such as changing font size, font color or background color, or inserting images when editing i-mode mail.

Stand-by display u g u "Compose

message"

Enter an address and subject

Select [Message] eld u g[Deco]

•

Set the character input mode to other than the

Alphabetical input mode to select g[Deco].

Use the palette to decorate a message

If the palette is open, M[Close]

■

To preview the Deco-mail message

Press M[Menu] u "Preview".

[Set] u I[Send]

Creating and sending Decome-Anime

Decome-Anime is a service that allows you to create decorative mail using Decome-Anime templates with Flash containing messages or images. Create it using pre-installed templates or templates purchased from the IP (Information Provider) sites.

Stand-by display u g u "Create new

Decome-Anime"

Enter an address and subject

Select [Edit] eld u Move the cursor to a

Decome-Anime template u

[Edit]

Page 50

Connect

Edit Decome-Anime message or change


■

To edit message

Select the character entry ﬁeld u Edit message

■

To change image

Select the image insertion ﬁeld u "Select image" u

Move the cursor to a folder u Select a ﬁle

[Done]

■

To preview edited Decome-Anime

Press G[Preview].

[Send]

[Open] u

Viewing Received i-mode Mail

When the FOMA terminal is in the service area, i-mode mail is automatically sent from the i-mode center.

When i-mode mail arrives, appears at

the top of the screen

When the reception completes, the Receive results screen appears.

"Mail" u Select a folder

Select a mail to display

Checking for new i-mode mail

When the FOMA terminal is out of service area, etc. and therefore i-mode mails are failed to be received, they are stored in the i-mode center. Check with the i-mode center for new messages to receive stored i-mode mails.

Stand-by display u g u "Check new

messages"

Replying to i-mode mail

Reply to the sender of i-mode mail. Replying can be made by entering new text or quoting the text of the received i-mode mail.

Received mail detail screen u M[Menu]

u "Reply/Forward" u "Reply"/"Reply with quote"

•

When "Reply" is selected, further select a type from

"i-mode mail"/"Decome-Anime".

Enter a subject and message

[Send]

Page 51

Connect

Sorting mails automatically to folders

Set sorting criteria to automatically save mails to

specied folders.

•

Create sorting folders in "Inbox" and "Outbox" beforehand.

Stand-by display u g u "Mail setting" u

"Auto sort"

"Sort inbox"/"Sort outbox"

Select the sorting rule setting eld

Select the Sorting criteria eld u Set the

sorting criteria

Select the Folder to sort into eld u

Select the folder for sorting mails u

[Done]

Using SMS

Creating and sending SMS

Send a message addressed to a mobile phone number.

Stand-by display

Select eld u "Direct input" u Enter a

phone number Select eld u Enter a message

[Send]

u g u "

Compose SMS

Viewing received SMS

SMS messages are sent automatically when the FOMA terminal is in the service area.

When SMS arrives, appears at the top

of the screen

When the reception completes, the Receive results screen appears.

"SMS" u Select a folder

Select SMS to display

Page 52

Connect

Phonebook

Two types of Phonebooks are available with the FOMA terminal: FOMA terminal Phonebook to be saved on the FOMA terminal and UIM Phonebook to be saved on the UIM. Entry items that can be saved/set for each Phonebook are as follows.

FOMA terminal

Phonebook

1 entry 1 entry

5 entries 1 entry

3 entries 1 entry

Secret code, Ringtone, Mail ringtone, etc.

UIM Phonebook

Not available

Entry details

Item

Name (Reading)

Phone number

Mail address

Group 31 groups 11 groups

Image 1 entry Not available

Other settings

Adding Phonebook Entries

Stand-by display

Select the "Registered memory" eld

u "Phone"/"UIM"

Set each item

[Done]

u D(

for over 1 second

)

Adding Phonebook entries from redial or received calls

Stand-by display u R(Redial) or

(Recv. Calls)

Move the cursor to the phone number to

add u phonebook

"New registration"

Add the entry to Phonebook u I[Done]

[Detail] u M[Menu] u "Add to

Page 53

Connect

Editing Phonebook Entries

Checking Phonebook Storage Status

Stand-by display u D u Select the entry

to edit u item

After editing, I[Done] u "Yes"

[Menu] u "Edit" u Edit each

Deleting Phonebook Entries

Stand-by display u D u Select the entry

to delete u

"Yes"

[Menu] u "Delete"

Check the Phonebook storage status of the FOMA terminal and UIM.

Stand-by display u M u "Phonebook" u

"No. of phonebook"

Viewing Call/Mail History

Stand-by display u M u "Phonebook"

u "Call/Mail history" u Select the log to view

Page 54

Search

i-mode/Full Browser

i-mode is a service that makes use of the display of the FOMA terminal supporting i-mode (i-mode terminal) to enable you to use online services such as site access, Internet access, and i-mode mail.

•

i-mode is a fee-based service requiring a subscription.

•

For details on i-mode, see "Mobile Phone User's Guide

[i-mode] FOMA version".

Before using i-mode

•

Contents of sites or Internet websites (web pages) are

generally protected by copyright law. Data, such as text or images you download to the i-mode terminal from sites or web pages, can be used only for personal entertainment, but cannot be used, in whole or in part, as it is or after modiﬁcation, for sale or redistribution, without the consent of the copyright holders.

•

If you replace the UIM with another one or turn the power

ON with the UIM not inserted, you cannot display/play

ﬁles, depending on the model, such as still images, moving pictures, melodies obtained from sites, attached ﬁles (still images/moving pictures/melodies, etc.) sent/ received by mail, screen memos, or Message R/F.

•

When a ﬁle with the UIM restriction is set as the Stand-by display or ring tone, the setting will revert to default if a

different UIM is inserted or the power is turned ON with

the UIM not inserted.

Connecting i-mode Site

Stand-by display u I u "English"

Displaying Web Pages Designed for PC

Using Full browser, you can browse web pages designed for PCs on the FOMA terminal.

•

Some pages may not be displayed correctly.

•

Note that you are charged a high communication fee

for massive data communication such as browsing web pages containing many images or downloading data ﬁles. For details on packet communication fee and billing plan, see "Mobile Phone User's Guide [i-mode] FOMA version".

Stand-by display u M u "i-mode" u

"Full Browser Home"

Switching i-mode to Full Browser

While viewing Internet web pages by i-mode, you can switch to Full browser.

•

Note that the billing system for i-mode and Full browser is

different and you are charged a high communication fee for massive data communication such as browsing web pages containing many images or downloading data ﬁles. For details on packet communication and billing plan, see "Mobile Phone User’s Guide [i-mode] FOMA version".

While viewing a web page in i-mode u

[MENU] u "Full Browser" u "Switch to

Full Browser"

Page 55

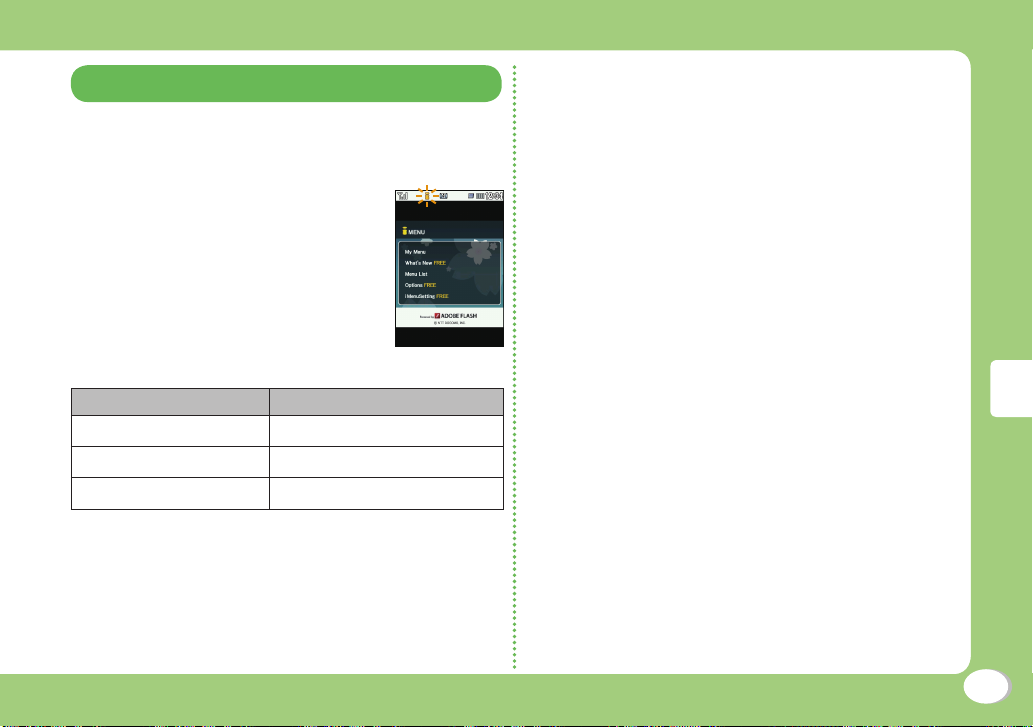

Viewing and Operating Sites

While viewing a site/web page u

[MENU] u "Bookmark" u "Add"

Selecting a site to display

While viewing a site u

●

Key operations while viewing a site

Operation Description

[Back]

[Next]

u "Yes"

Select an item (link)

Return to previous page

Go to next page

Exit i-mode

Saving as bookmarks

Save frequently accessed sites or Internet web pages as bookmarks to display your favorite pages quickly.

Edit a title or URL u "OK" u Select a

destination folder

Displaying homepages or sites from bookmarks

Stand-by display u M u "i-mode" u

"Bookmark"

Select a folder u Select a bookmark

Saving Screen memos

Save the currently displayed site or web page as a Screen memo. Saved Screen memo pages can be displayed without connecting to i-mode.

While viewing a site/web page u

[MENU] u "Screen Memo" u "Add" u

"Yes"

Displaying Screen memos

Stand-by display u M u "i-mode" u

"Screen Memo" u Select a Screen memo

Page 56

i-Channel

This service distributes information such as news and weather forecast to i-Channel compatible terminals. The automatically received latest information appears as a ticker on the Standby display. Pressing information in the channel list.

•

i-Channel is a fee-based service requiring a subscription

(an i-mode contract is necessary for this subscription).

i-Channel has two types of channels: "Basic channel" provided by DOCOMO and "Favorite channel" provided by IP (Information Provider). For "Basic channel", no packet communication charges apply for automatically updating information. For "Favorite channel" in which you can save and use your favorite channels, packet communication charges apply for automatically updating information. Note that packet communication charges apply for browsing detailed information for both "Basic channel" and "Favorite channel". When you use the international roaming service, packet communication charges apply for both automatically updating information and browsing detailed information.

•

For details on i-Channel, see "Mobile Phone User's Guide

[i-mode] FOMA version".

•

The i-Channel service is provided in Japanese only.

displays the latest

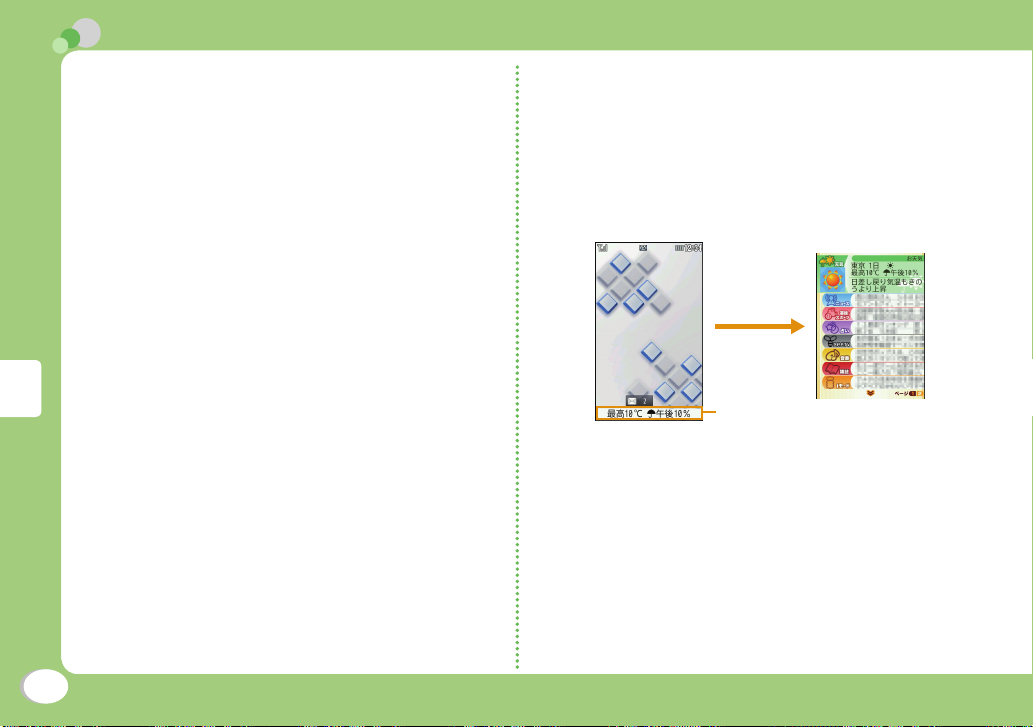

Displaying i-Channel

If you subscribe to i-Channel, information automatically appears as a ticker on the Stand-by display when the information is received.

•

While the Public mode (Drive mode) is set, the ticker does

not appear.

Stand-by display u

Select a channel item

The FOMA terminal connects to the site and detailed information is displayed.

Ticker

Page 57

GPS

•

Note that DOCOMO assumes no responsibility for the

pure economic loss caused by loss of opportunity such as positioning (communicating) result check due to failure, malfunction, error of the FOMA terminal, or external factors such as power failure (including battery exhaustion).

•

FOMA terminal cannot be used as a navigation device

for aircraft, vehicles, persons, etc. Therefore, DOCOMO assumes no responsibility for any loss or damage resulting from use of location information for navigation.

•

FOMA terminal cannot be used as high-precision location

surveying GPS. DOCOMO assumes no responsibility for any loss or damage resulting from positioning error.

•

GPS is managed by the U.S. Department of Defense.

Therefore, GPS wave conditions may be controlled (accuracy degradation or wave abort) for the U.S. security reasons.

•

When using location request or location notiﬁcation,

check the information by GPS service provider or on the DOCOMO website, etc. These functions may be charged.

•

GPS function is not available when the FOMA terminal is

out of service area (or overseas).

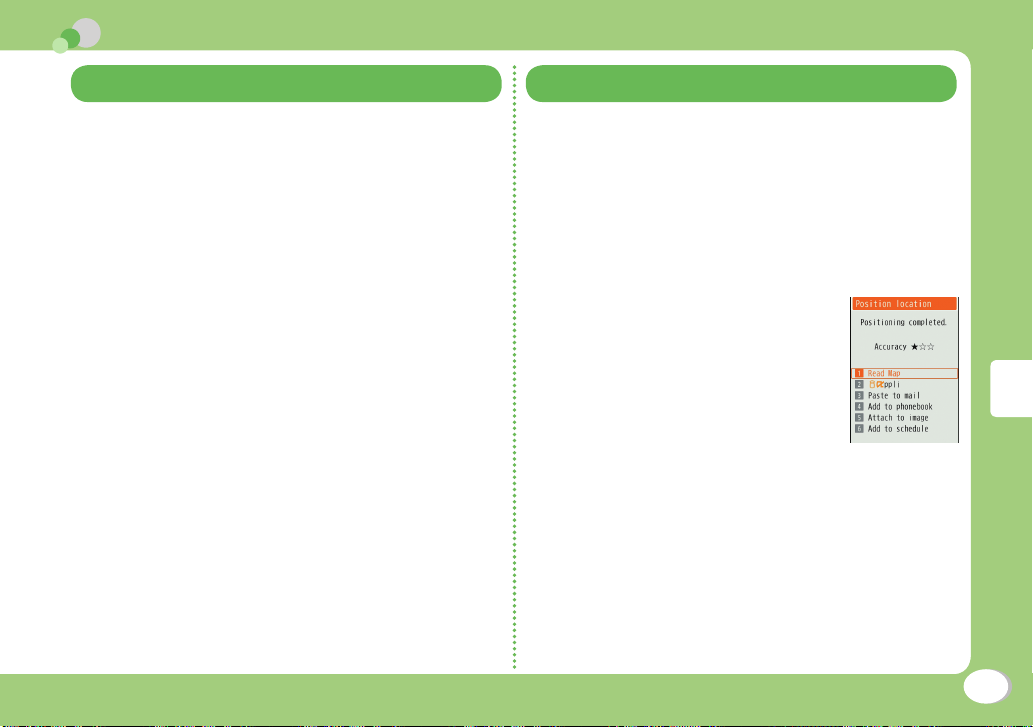

Checking Your Location

Check your location by positioning the current location, and display your location on a map or send the location information by e-mail.

•

Packet communication charge is free when checking the

current location. However, when you display a map using the location information, packet communication charge applies.

Stand-by display u M u "LifeKit" u

"GPS" u "Position location"

• Alternatively, press 1 for over 1

second in Stand-by. (By default, after positioning the current location, a map is displayed.)

★★★

: Almost accurate location

information (Error: less than approx. 50m)

★★☆

: Relatively accurate location

information (Error: less than approx. 300m)

★☆☆

: Rough location information

(Error: 300m or more)

•

Accuracy level is rough indication.

It may vary depending on the surrounding radio wave condition.

Select a usage

Page 58

Enjoy

Camera

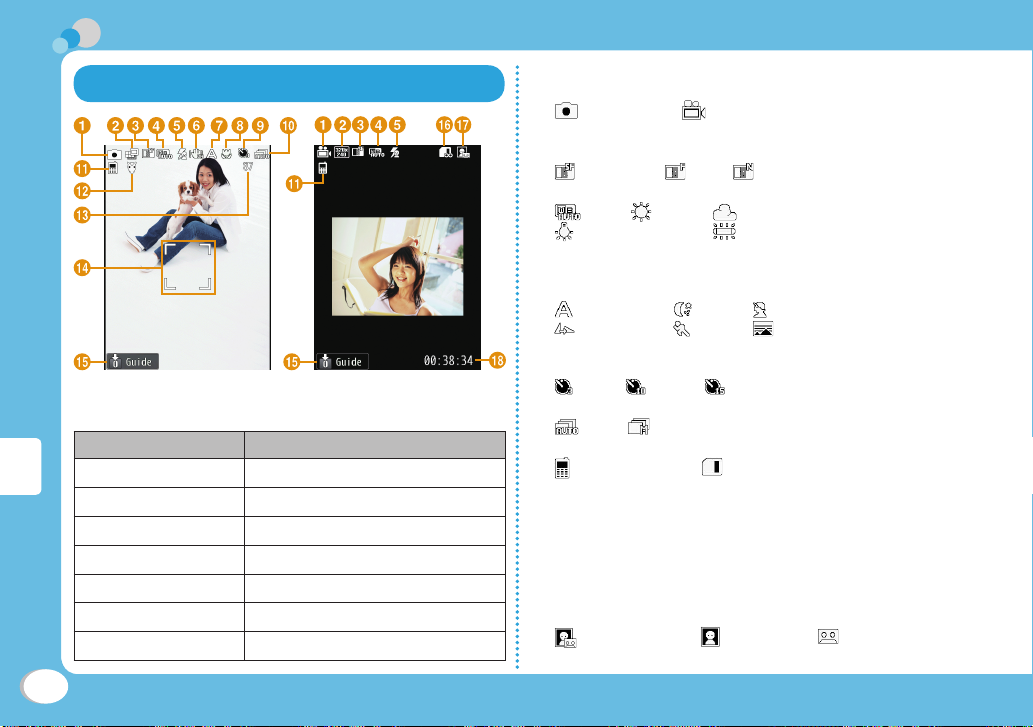

Viewing and Operating Shooting Screen

Moving picture shooting screenStill image shooting screen

●

Key operations on shooting screens

Operation Description

Shutter/Start recording

Zoom

Adjust brightness

Set lighting condition

Change Camera mode

Display setting menu

Exit Photo-mode/Movie-mode

[Take]/[Rec.]

J, F/E H G

[Light]

1, I M

[Menu]

Q, P

[Mode]

●

Marks (icons) displayed on shooting screens

Mode

Photo-mode

Image size

Image quality

Super ﬁne Fine Normal

White balance

Auto

Incandescent

Light

Shake reduction

Scene mode

Auto

Landscape

Macro

Auto timer

3sec 10sec 15sec

Continuous mode

Auto

Memory in use

Handset memory

Funny face shot

Number of available shot

Focus frame

The frame color changes to indicate status when auto focus is in operation.

Guide for key operations

Size restriction

Type

Video+Sound

Total recordable time

Sunny

Manual

Movie-mode

Cloudy Fluorescent

Night

Sports

Portrait

Sunset

External memory (microSD card)

Movie only

Sound only

Page 59

Enjoy

Shooting Still Images/Moving Pictures

Shooting still images

Stand-by display u

Point the camera to a subject u C[Take]

[Save]

Shooting moving pictures

Stand-by display u G u I[Mode] u

"Movie-mode"

Point the camera to a subject u C[Rec.]

The tone sounds and recording a moving picture starts.

[Stop]

The tone sounds and the photo light turns off.

[Save]

Viewing Still Images/Moving Pictures after Shooting

Viewing still images

Stand-by display u M u "Data box"

u "My picture" u Move the cursor to

"Camera" u

Move the cursor to a le u C[View]

Information

•

To set the still image you shot to the Stand-by display,

display the still image to set and press M[Menu] u "Set as" u "Stand-by display".

[Open]

View moving pictures

Stand-by display u M u "Data box" u

"i-motion/Movie" u Move the cursor to

"Camera" u

Move the cursor to a le u C[Play]

Information

•

To set the moving picture you recorded to the Stand-

by display, play the moving picture to set and press

[Menu] u "Set as display" u "Stand-by display".

[Open]

Page 60

Enjoy

1Seg

Using 1Seg

1Seg is a service provided by TV broadcasters (broadcasting stations). No communication charges apply for receiving video and audio. For viewing fee for NHK, contact NHK.

•

Packet communication charges apply for browsing "Data

broadcasting site" and "i-mode site". Some sites (feebased i-mode sites) require an information fee for use.

•

For details on "1Seg" service, visit websites below.

The Association for Promotion of Digital Broadcasting PC: http://www.dpa.or.jp/english/ i-mode: http://www.dpa.or.jp/1seg/k/ (Japanese only)

* 1Seg is not available overseas.

Signal

1Seg is one of the broadcasting services, and receives a signal (broadcast wave) different from the FOMA service. 1Seg may not work properly in the following places.

•

Place that is far from the tower which sends the broadcast

wave

•

Mountain areas or behind a building

•

In a tunnel, underground, or recess of a building

* The signal condition may be improved by moving the

FOMA terminal away from or close to you, or by moving yourself to another place.

Battery level

If you try to use 1Seg when the battery level is low,

the Low battery alert tone sounds and a conrmation

screen appears asking whether to activate 1Seg. Also, when the battery level becomes low while watching a 1Seg program, the Low battery alert tone sounds.

Messages on the screen when you use

1Seg for the rst time

When you use 1Seg for the rst time after purchase, a conrmation screen of escape clause appears.

Read each clause and press

conrmation screen does not appear.

[OK]. After this, a

Watching 1Seg

Setting channels

To watch 1Seg, make Channel settings and save a channel list beforehand.

Example: If no channel list is saved

●

Selecting an area to set channels

Stand-by display u M u "1Seg" u

"Channel setting" "Select area" u Select an area u Select a

prefecture

[Select] u "Yes"

Page 61

Enjoy

●

Setting channels automatically

Stand-by display u M u "1Seg" u

"Channel setting" "Auto channel set" u "Yes" u C[Save]

u "Yes"

Information

•

Perform "Auto channel set" within the service area for

digital terrestrial broadcasting.

●

Key operations on 1Seg watching screen

Operation Description

H, F/E E J g P

(for over 1 second)

, Dial keys, *, #

[EPG]

u "Yes"

Adjust volume

Mute

Select a channel

Display program list

Exit 1Seg

Activating 1Seg

Stand-by display u G(for over 1 second)

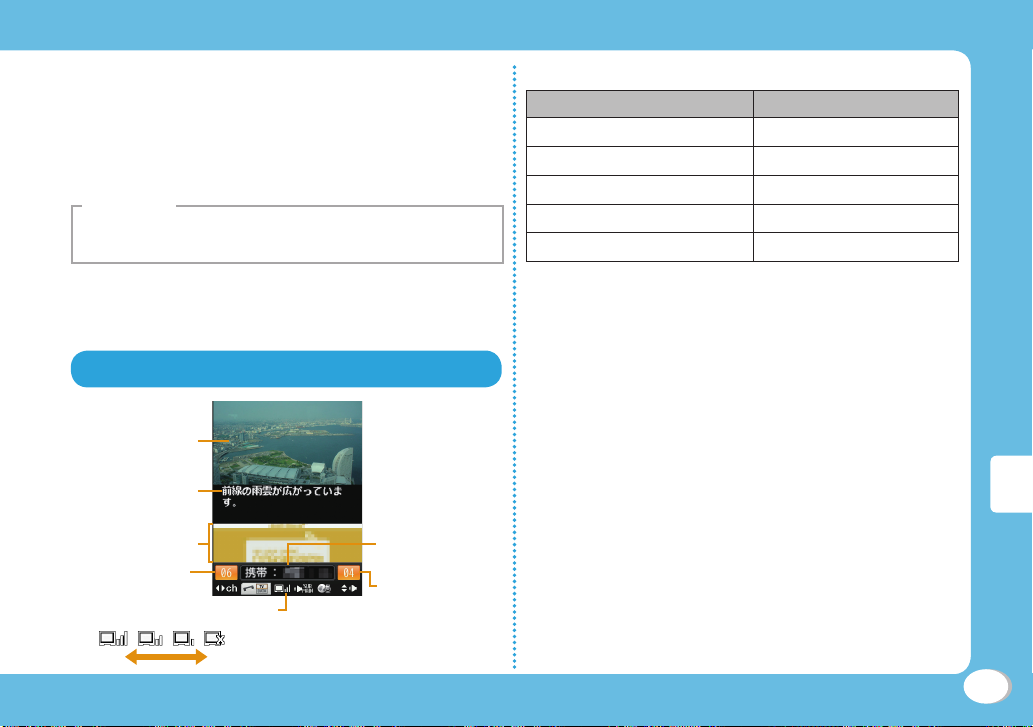

Viewing and Operating 1Seg Watching Screen

Video

Subtitle

Data broadcasting

Remote controller number

Reception level of broadcast wave

Strong Weak

Channel name/ program name

Volume

Setting timer for watching 1Seg program

Stand-by display u M u "1Seg" u "TV

timer list"

2 3

[New] u Set/select each item

[Done]

Page 62

Enjoy

Music

Music&Video Channel

•

Music&Video Channel is a fee-based service requiring a

subscription. You also need to subscribe to i-mode and i-mode packet ﬂat-rate service.

•

In addition to the usage fee for the Music&Video Channel,

some programs may require additional information fees.

•

After subscribing to Music&Video Channel, if you insert

the UIM into a Music&Video Channel-incompatible FOMA terminal, the service becomes unavailable. However, service fees will still apply unless you cancel the Music&Video Channel subscription.

•

You cannot set or obtain programs during international

roaming.* When you go overseas, halt the distribution of programs beforehand. When you come back to Japan, resume starting distribution.

* Packet communication charges apply if trying to set or

obtain programs during international roaming.

•

For details on Music&Video Channel, see "Mobile Phone

User's Guide [i-mode] FOMA version".

•

The Music&Video Channel service is provided in

Japanese only.

Setting/Playing Programs

Setting programs

Stand-by display u M u "MUSIC" u

"Music&Video Ch"

"Set program"

Follow on-screen instructions to set

programs

Playing programs

Stand-by display u M u "MUSIC" u

"Music&Video Ch" u Select a program

Page 63

Enjoy

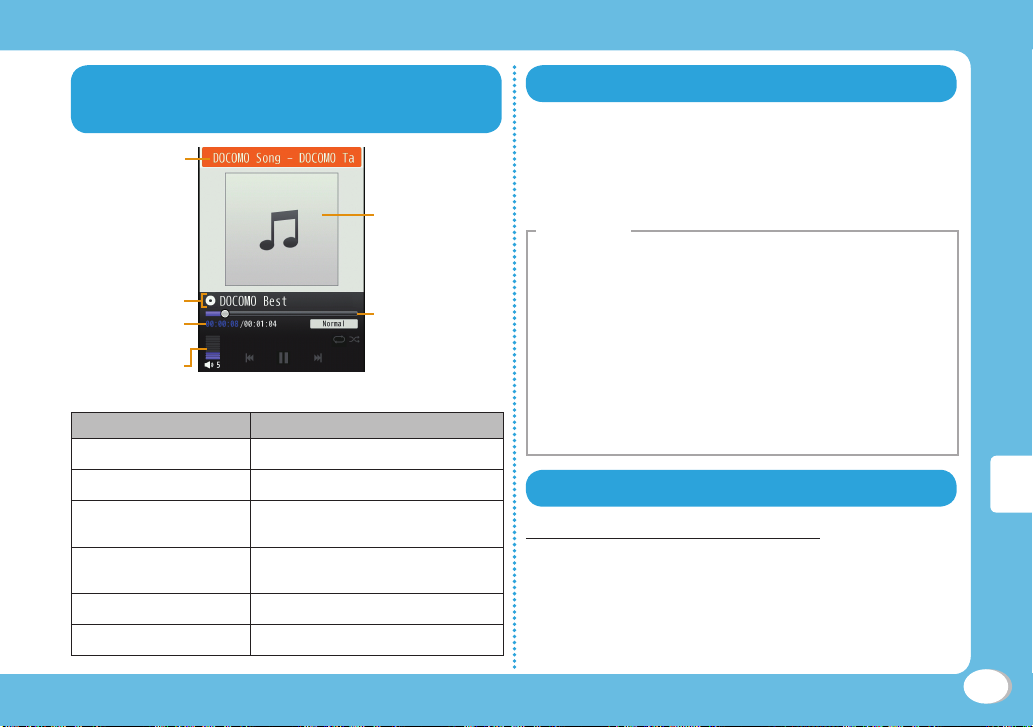

Viewing and Operating Music Player Screen

Title (song name),

artist name

Jacket image/ lyrics

Album name

Elapsed time/

total time

Volume

●

Key operations on Music player screen

Operation Description

[Pause/Play]

H, F/E J

(Hold down)

8 P

Pause/play

Adjust volume

Find beginning of the song or play previous song/next song

Rewind/fast forward while holding down

Show/hide jacket image/lyrics

Exit MUSIC player

Playback progress bar

Downloading Music Data from Sites

Display a site that contains Chaku-Uta

songs u Select a Chaku-Uta Full®

Full song to download

"Save" u Select save location

Information

•

Before downloading music data from websites, read the

license agreement (license and prohibited activities, etc.) carefully.

•

Music data saved on the FOMA terminal or on a

microSD card can be used for personal use only. When using, do not violate a third party's intellectual property right such as copyright, and other rights. Do not copy or move music data saved on the FOMA terminal or on a microSD card to other media such as a PC.

* "Chaku-Uta Full" is a registered trademark of Sony

Music Entertainment Inc.

Playing Music Data

Example: To play music in "All songs"

Stand-by display u M u "MUSIC" u

"Music player" "All songs"

Move the cursor to music data u C

[Play]

Page 64

Enjoy

i-αppli

"i-αppli" is software for i-mode compatible mobile phones. Download various software from i-mode sites to use the FOMA terminal more conveniently by updating stock price or weather information automatically, or enjoying games without connecting to network, etc.

•

Packet communication charges apply.

•

For overseas use, packet communication charges differ

from domestic charges.

•

For details on i-αppli, see "Mobile Phone User's Guide

[i-mode] FOMA version".

Downloading i-αppli from sites

Download software from a site and save it to the FOMA terminal.

While viewing a site u Select software u

"Yes"

Download completes u "Yes"

The downloaded software starts.

Starting i-αppli

Stand-by display u I(for over 1 second)

Select software

■

To exit i-αppli

Press P u "Yes".

Deleting i-αppli

Stand-by display u I(for over 1

second) u Move the cursor to software

[Menu] u "Delete" u "This item" u

"Yes"

Information

•

If deleted pre-installed i-αppli, you can download from

"WOW LG" site (Japanese only). From this site, you can download pre-installed Deco-mail picture, Deco-mail pictogram, wallpaper, melody, i-motion, etc. as well as

αppli.

Stand-by display u List)" u " Manufacturers)" u "WOW LG"

ケータイ電話メーカー

Packet communication charge applies for downloading.

u "

メニューリスト

(Mobile Phone

(Menu

Page 65

Enjoy

i-motion/Movie

i-motion is a moving picture data with video and sound. Download i-motion from i-motion sites, play it, and save it to set as the Stand-by display or ring tone, etc.

i-motion types

●

Standard type

There are following two formats. a

Format to be played back after downloading (Up to 10MB)

Format to be played back while downloading (Up to 10MB)

• Some standard-type i-motion may not be saved, depending on i-motion.

●

Streaming type

This type allows you to play back i-motion while

downloading. Up to 10MB of i-motion can be played back. Data is deleted after playback and cannot be saved on the FOMA terminal.

Downloading i-motion/Movie from sites

While viewing a site u Select i-motion

After playback or downloading, "Save" u

Select save location

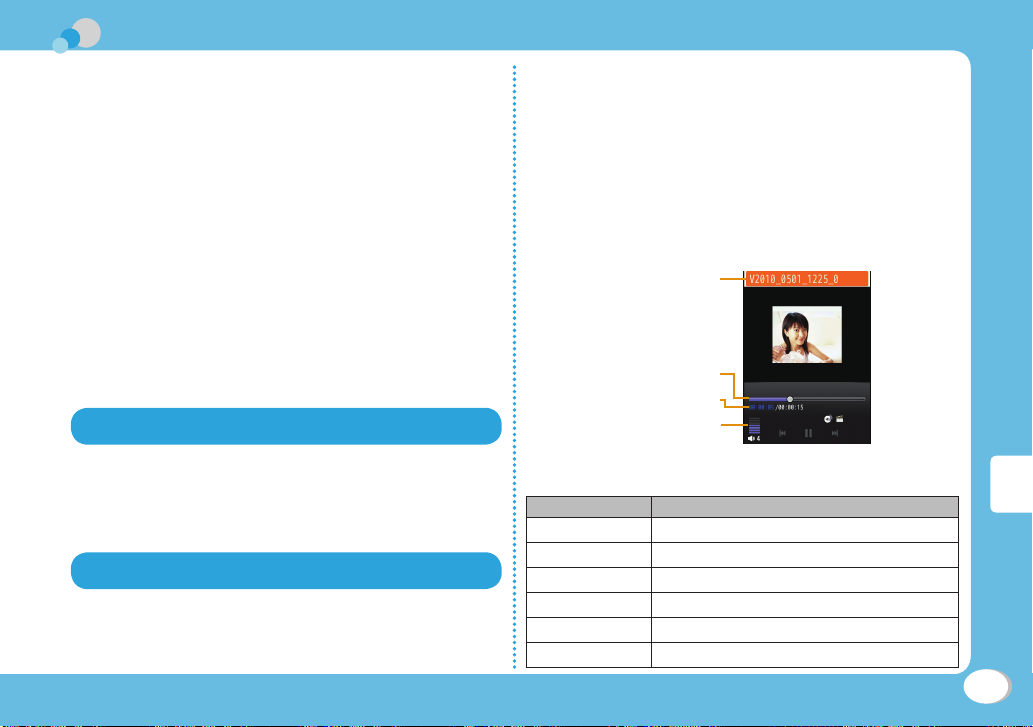

Playing Moving Pictures/i-motion

Play moving pictures you recorded or i-motion downloaded from sites or i-mode mails.

Stand-by display u M u "Data box" u

"i-motion/Movie" Move the cursor to a folder u C[Open]

Move the cursor to a le u C[Play]

•

When playing back moving picture/i-motion (with

video) for the ﬁrst time, a conﬁrmation appears asking whether to play i-motion in full screen at any time. Select "Yes" to play in full screen (horizontal). Press

to play in vertical screen.

File display name

Playback progress bar

Elapsed time/total time

Volume

i-motion playback screen

●

Key operations on i-motion playback screen

Operation Description

[Pause/Play]

[Stop]

J L

(Hold down)

F/E, H

Pause/play Stop Play previous ﬁle/next ﬁle Rewind video/sound while holding down Fast forward video/sound while holding down Adjust volume

Page 66

More Convenient

Osaifu-Keitai

Osaifu-Keitai is equipped with the IC card and enables you to pay by holding the FOMA terminal on the scanning device at shops, etc. In addition, you can deposit electronic money and check your balance or view usage history using communication. In order to use safely, security is fully secure. For details on Osaifu-Keitai, see "Mobile Phone User's Guide [i-mode] FOMA version".

•

To use Osaifu-Keitai compatible services, you need to

download Osaifu-Keitai compatible i-αppli from Osaifu- Keitai compatible sites and make settings.

•

Data (including electronic money, points, etc.) saved

in the IC card may be lost or altered due to the FOMA

terminal malfunction. (Note that you are asked to delete

data if you leave the FOMA terminal for repairs, etc.) For services such as reissue, restoration, temporary storage, or transfer of data except for the transfer by iC transfer

service, contact the provider of Osaifu-Keitai compatible

service. Make sure to use a service that provides a backup service for important data.

•

DOCOMO shall not be liable for any loss or alteration of

data saved in the IC card, or damage related to Osaifu-

Keitai service caused by any reason such as malfunction

or model change.

•

If the FOMA terminal is stolen or lost, immediately contact

your provider of Osaifu-Keitai compatible service about

handling the trouble.

•

Even when you are calling, connecting the FOMA

terminal to i-mode, the power is turned off, or battery level

becomes lower, you can use the Osaifu-Keitai function by

holding compatible i-αppli cannot be activated).

mark on the scanning device (Osaifu-Keitai

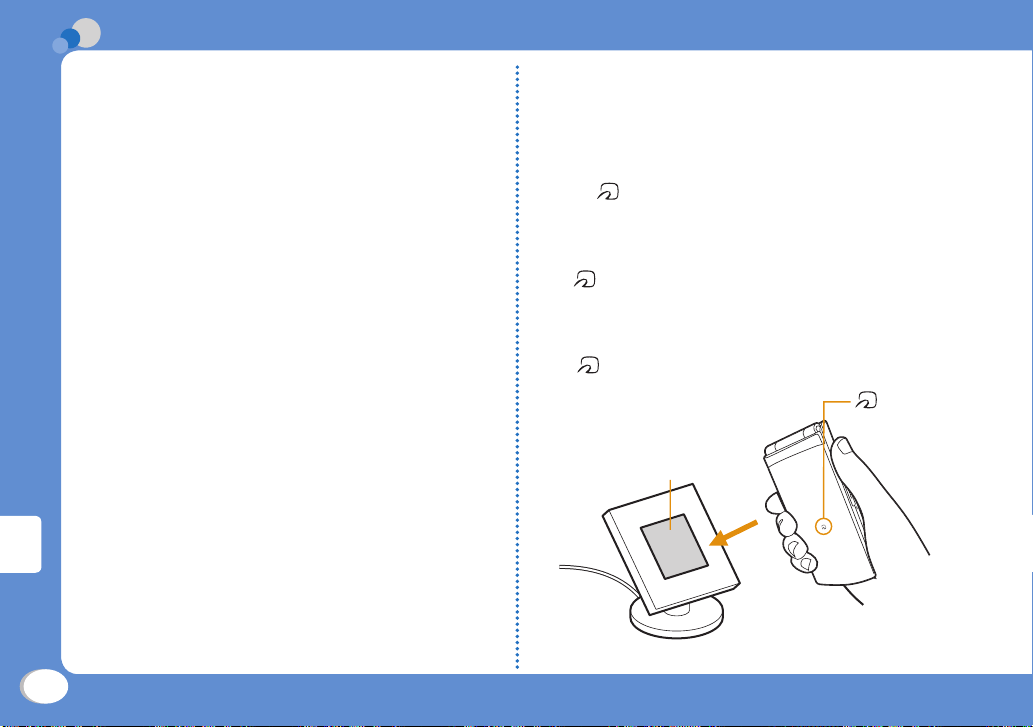

Using Osaifu-Keitai

Hold mark of the FOMA terminal on the scanning device to use as electronic money for

payment or trafc ticket. This function can be

used without starting software.

•

Hold mark on the center of the scanning part.

mark

Scanning part of the scanning device

Page 67

More Convenient

Convenient Tools

Using Schedule

Stand-by display u U u Move the

cursor to date to save to Schedule u

[New] u "General"

* If 1Seg channel setting is not made, the operation to

select "General" is not required.

Set each item u I[Done]

Using Alarm

Stand-by display u M u "Stationery" u

"Alarm"

Move the cursor to an alarm to edit u

[Edit]

Set each item u I[Done]

Using Bar Code Reader

Scan information embedded in JAN code or QR code using the Outer camera.

•

When scanning a bar code, keep the Outer camera 10cm

away from a bar code.

Stand-by display u M u "LifeKit" u

"Bar code reader"

Display the code to scan on the screen u

[Scan]

After focus is adjusted automatically, the code is scanned. After scanning completes, the tone sounds and the scanned data is displayed.

•

While the Manner mode is set, the tone does not

sound.

Use scanned data

•

The display or operation differs depending on the

types of scanned data.

Color Therapy

Light up the illumination of the FOMA terminal and gain healing effect by color and melody.

•

It is recommended to use this function while charging.

Stand-by display u M u "LifeKit" u

"Color therapy" u Move the cursor to an item

2 3

[Settings] u Set each item

[Done] u C[Select]

Page 68

More Convenient

Data Management

Using microSD Card

Copy les saved in Data box on the FOMA terminal,

such as images, moving pictures/i-motion, to a

microSD card. Also, display les saved from a PC

to a microSD card on the FOMA terminal.

•

L-01B supports a microSD card of up to 2GB and a

microSDHC card of up to 8GB (commercially available) (as of February, 2010). For the latest information on operation check including manufacturer and capacity of microSD card, visit the following sites (Japanese only). microSD cards not listed on the site may not function.

- From i-mode: "iMenu" u

メーカー"

- From a PC: http://jp.lgmobile.com/

Note that information on the sites shows the results of

operation checks and all the operations are not always guaranteed.

u "WOW LG"

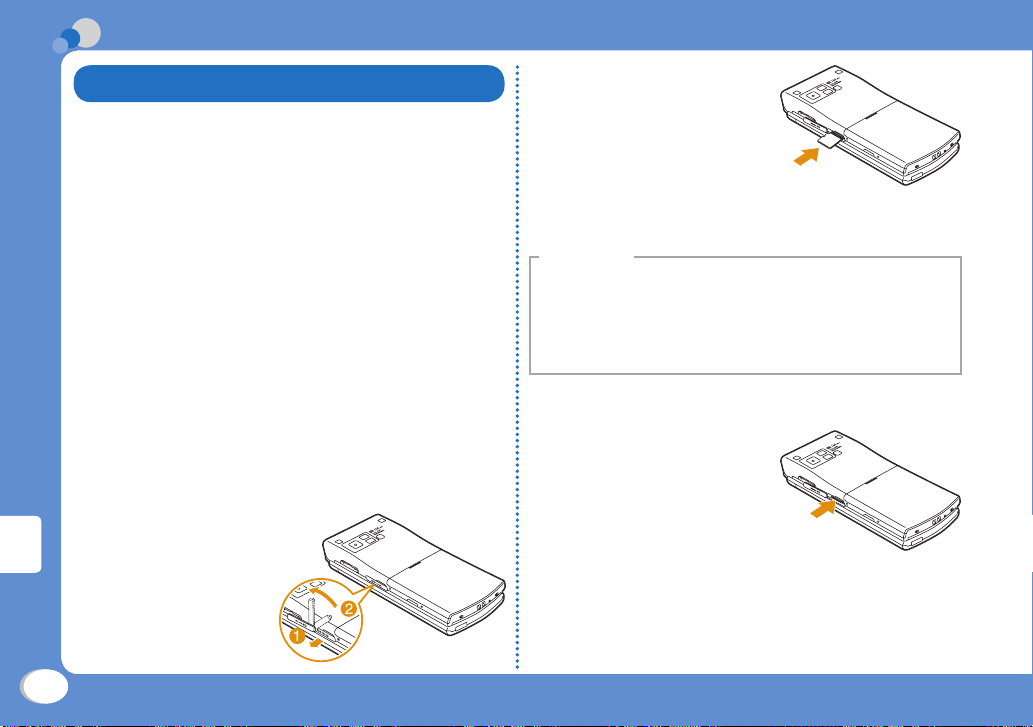

Inserting a microSD card

Before inserting a microSD card, make sure to turn the power off.

Open the

microSD card slot cover ( and rotate it in the direction

)

"メニューリスト"

"ケータイ電話

Slowly insert a

microSD card with the metal contacts side up until it clicks

Close the microSD card slot cover

Information

•

When inserting a microSD card, pay attention to the

direction and insert it correctly. If inserted in the wrong direction, damage to the microSD card or the card slot may result or the card may not be pulled out.

•

A microSD card cannot be used if inserted incorrectly.

Removing a microSD card

Follow Step 1 in

"Inserting a microSD card" to open the cover and push the microSD card softly in the direction of the arrow

Push the microSD card in until it clicks. The microSD card pops out slightly.

Page 69

More Convenient

Pull the microSD card straight out

After removing, close the microSD card slot cover.

Resetting a microSD card

Reset (initialize) a microSD card so that it can be used on the FOMA terminal.

Stand-by display u M u "LifeKit" u

"microSD" u "Reset microSD card"

"Yes" u Enter the Terminal security code

Information

•

Make sure to use this FOMA terminal when resetting a

microSD card.

•

Note that all data on the microSD card is deleted when

resetting.

Viewing/playing les on a microSD card

View/play les on a microSD card in the same way

as on the FOMA terminal using "Data box".

Stand-by display u M u "Data box" u

"My picture"/"Music"/"i-motion/Movie"/ "Melody"

Move the cursor to "microSD" u

[Open]

•

If you select "Music" in Step 1, "Movablecontents" is

displayed instead of "microSD".

Copying/moving les between the FOMA

terminal and a microSD card

Copy/move les between the FOMA terminal and a microSD card by copying/moving les between

the "microSD" folder and other folders in Data box.

Example: To move a camera image saved on the FOMA terminal to a microSD card

Stand-by display u M u "Data box" u

"My picture"

Move the cursor to a folder u C[Open]

•

Select a folder other than "microSD".

Move the cursor to a le u M[Menu] u

"Move" u "One"

"External memory"

Move the cursor to a destination folder u

[Open] u C[Select]

Page 70

More Convenient

Backing up data

Back up data on the FOMA terminal to a microSD card. Personal information includes the following items.

•

Phonebook

•

Schedule

•

Text memo

•

To do list

•

Inbox

•

Outbox

•

Unsent message

•

Bookmark

Stand-by display u M u "LifeKit" u

"microSD" u "PIM"

[Backup] u Select a type of data to

copy

Enter the Terminal security code u "Yes"

Performing Infrared Communication

•

Use infrared devices within a distance of approximately

20cm.

•

Do not move the FOMA terminal until data exchange

completes.

•

If you hold the FOMA terminal in your hand when

performing infrared communication, be sure to hold it securely so that it is not shaken.

Infrared port

15 degrees

Within approx. 20cm

Sending/Receiving Data by Infrared Communication

•

Set the receiving device to the infrared receiving mode

before sending data.

Sending a piece of data

Example: To send a Phonebook entry

Stand-by display u D u Move the

cursor to the entry to send u u "Send via Ir" u "Send" u "Yes"

[Menu]

Page 71

More Convenient

Receiving a piece of data

Stand-by display u M u "LifeKit" u

"Receive Ir data" u "Receive" u "Yes"

Perform infrared transmission operations

on the sending device

Infrared communication starts.

"Yes"

Sending all data

Example: To send all Phonebook entries

Stand-by display u D u M[Menu] u

"Send via Ir" u "all in phone"

Enter the Terminal security code u Enter

an authentication password u "Yes"

Infrared communication starts.

Receiving all data

Receiving all data overwrites data on the FOMA terminal and deletes all saved data including protected mails. Make sure that important data is not saved before exchanging all data.

Stand-by display u M u "LifeKit" u

"Receive Ir data" u "Receive all" u "Yes"

Enter the Terminal security code u Enter

an authentication password

Perform infrared transmission operations

on the sending device

Infrared communication starts.

"Yes"

Information

•

Infrared communication with infrared devices other

than L-01B may result in data not being received or displayed correctly on the receiving device.

Page 72

Others

Support

Troubleshooting

•

First, check whether the software update is required. If

required, update the software. (Updating Software→P75)

•

When the conditions are not improved even after you

checked the following symptoms, contact "Repairs (Japanese only)" at the back of this manual or a repair counter speciﬁed by DOCOMO.

Symptom Check

Power does not

turn ON

Cannot charge (Illumination does not light or blinks)

•

Is the battery pack inserted correctly?

•

Is the battery pack charged?

•

Is the battery pack inserted correctly?

•

Is the adapter power plug correctly

connected to an electric outlet or cigarette lighter socket?

•

Is the adapter connected to the FOMA

terminal correctly?

•

If the AC adapter (optional) is used, is

the AC adapter connector connected to the FOMA terminal or desktop holder (optional) correctly?

•

If the desktop holder is used, are

the charging terminals of the FOMA terminal clean? If dirty, clean with a dry cloth or cotton swab.

•

The FOMA terminal may become hot

and the illumination may blink. In this case, charge again after the FOMA terminal cools down.

Page 73

Others

Symptom Check

Becomes hot during operations or charging

Battery usage time is short

Power turns off or automatic restart occurs

• The FOMA terminal, battery pack,

or adapters may become hot during operations or charging, or when using

αppli, videophone, or 1Seg function,

ietc. for a long time while charging. This is not a safety hazard, so, you can continue to use them.

•

Is the FOMA terminal left with the out of

service area condition for a long time? As the FOMA terminal searches for radio wave to make communication possible under the out of service area condition, more electricity is consumed than usual.

•

The battery pack usage time differs

depending on the ambient environment or the degradation level.

•

The battery pack is a consumable. The

available usage time shortens every time the battery pack is recharged. If the usage time becomes extremely shorter than at the time of purchase even if the battery pack is fully charged, purchase the speciﬁed battery pack.

• If the battery pack terminal is dirty, the

contact may become poor and the power may be turned off. If it is dirty, clean with a dry cloth or cotton swab.

Symptom Check

Keys do not

respond

UIM is not recognized

Calls cannot be made with dial keys

Cannot talk ("

圏外

" does not disappear even when you move, or making/ receiving calls is unavailable although radio wave is strong enough)

•

Is Lock all set?

•

Is the UIM installed in the right

direction?

•

Is Dialing call lock set?

•

Is Lock all set?

•

Is Self mode set?

•

Turn the power off and on, or remove

and install battery pack or the UIM.

•

Even when "FOMA terminal is not out

of service area" or "signal strength is shown as or received due to the type of radio waves. Move to other place and call again.

•

Is incoming restriction such as Reject

on list or Accept/Reject call set?

•

Depending on crossing of radio waves,

calls or mails are crossed at the crowded places and connection status may not be good. In this case, "Please wait for a while" appears and the caller hears a busy tone. Move to other place or call again later.

", calls may not be made

Page 74

Others

Symptom Check

Cannot use

Osaifu-Keitai

•

While removing the battery pack

or setting Omakase Lock, IC card functions become unavailable regardless of IC card lock settings.

•

Is the IC card lock set?

•

Is mark on the FOMA terminal held

over a scanning device?

Warranty and After-Sales Service

Warranty

•

Be sure to receive a warranty at the time of purchase

of the FOMA terminal. Read contents of the warranty and conﬁrm information such as "shop name and date of purchase" and keep it in a safe place. If necessary items are not described, immediately contact the shop of purchase. The warranty for free repair is valid for one year from the date of purchase.

•

This product and its accessories are subject to change, in

part or whole, for improvement without prior notice.

After-sales service

●

For problems with your FOMA terminal

Before asking repairs, check "Troubleshooting" in this manual or "Guide (Japanese only)" installed in this FOMA terminal. If the problem still persists, contact "Repairs (Japanese only)" at the back of this manual and consult them.

Page 75

Others

●

For repairs after inquiry

Bring your FOMA terminal to a repair counter

specied by DOCOMO. Repairs are accepted

during business hours of a repair counter. Note that it may take some days to repair the terminal depending on the malfunction state.

■

During the warranty period

• The FOMA terminal is repaired at no charge under the conditions of the warranty.

• Make sure to bring the warranty for repair. You will be charged even during the warranty period if the warranty is not presented or the trouble or damage is caused by your inappropriate handling (such as damage to LCD or connector, etc.).

• You will be charged even during the warranty period if malfunction is caused by the use of devices and consumables other than those speciﬁed by DOCOMO.

■

Repair may not be possible in the following cases

• When a repair counter judges the cause of malfunction is exposure to water (Example: when the waterproof sticker reacts)

• When, as the result of inspection, corrosion is found due to exposure to water, condensation or sweat, or any of the internal boards are damaged or deformed (damage to the external connector terminal (headphone/microphone terminal), LCD, or cracked body could be the case as well)

* Since these conditions are outside the scope of the

warranty, any repairs, if at all possible, will be charged.

■

After expiration of the warranty

• All repairs that are requested are charged.

■

Replacement parts

• Replacement parts (parts required to maintain production function) will be kept in stock for four years in principle after termination of production. However, repair may not be possible due to a lack of replacement parts depending on the failure part.

●

Notes

•

Do not modify the FOMA terminal or its accessories.

- Depending on the details of modiﬁcation, repair may be refused. Modiﬁcations may include the following cases:

•

Put a sticker on LCD or keys

•

Add a decoration to the FOMA terminal with adhesive

•

Replace exterior with one other than DOCOMO

genuine products

- Repair of malfunction or damage caused by modiﬁcation is charged even during the warranty period.

•

Do not remove the nameplate placed on the FOMA

terminal. If the details described on the nameplate cannot be checked, repair may be refused as we cannot verify the conformity of the product to the technical standard.

•

The settings of various functions and information such

as total call time may be cleared (reset) by malfunction, repair or other handling of FOMA terminal. In such a case, make settings again.

Page 76

Others

•

The parts generating magnetism are used in the following

portions of the FOMA terminal. Note that the card may

become unusable if placing a magnetism-sensitive object such as cash card near the FOMA terminal. Portions: Speaker and earpiece

•

If the FOMA terminal gets wet or moist, immediately turn

the power off and remove the battery pack, and then visit a repair counter. Depending on the conditions of the FOMA terminal, repair may not be possible.

i-mode Fault Diagnosis site

Check whether your FOMA terminal is properly sending/receiving mails, downloading images/ melodies. As a result of your check, if you think that the FOMA terminal is malfunctioning, contact "Repairs (Japanese only)" at the back of this manual.

•

To access "

イト

(Japanese only) i-mode site: iMenu u (Information) u

能

(i-mode) u

ド

(i-mode fault diagnosis)

•

No packet communication charges apply for i-mode fault

diagnosis.

* Charges apply when accessing from overseas.

ｉモード故障診断サ

(i-mode fault diagnosis site)"

お知らせ

(Service/Function) u

サービス・機

ｉモー

ｉモード故障診断

QR code for

accessing

the site

Page 77

Others

Updating Software

Update the FOMA terminal software by packet communication when it is necessary.

* Packet communication charges do not apply.

For information on updating software, check the DOCOMO website and " support) in iMenu (Japanese only). "auto-update", "Now update", and "Reserve" are available for updating software.

•

Software can be updated with data such as Phonebook

entries, camera images, downloaded data retained in the

FOMA terminal. Note that, however, such data may not

be protected depending on the conditions of the FOMA terminal (malfunction, damage, exposure to water, etc.). It is recommended that you make a backup of important

data. Note that some data such as downloaded data

cannot be backed up.

お客様サポート

(user

Before updating software

•

Do not remove the battery pack while updating software.

Failure of updating software may result.

•

Fully charge the battery pack before updating software.

•

Software update (downloading or rewriting) may take time.

•

You cannot make or receive calls, use communication

functions or other functions while updating software. (You can receive voice calls while downloading.)

•

It is recommended to update software in a location with

strong signal reception with three antenna bars displayed while you are not moving. During software download, if signals become weak, or download is suspended, retry software update in a location with strong signal reception.

•

When updating software, the information of your FOMA

terminal (such as model name or serial number) is automatically sent to the server (software update server managed by DOCOMO). DOCOMO does not use the sent information for other purposes than for software update.

•

If software update fails, the message, "Rewrite failed",

appears and all operations become unavailable. In this case, you need to bring the FOMA terminal to a repair counter speciﬁed by DOCOMO.

•

Software update is unavailable overseas.

Page 78

Others

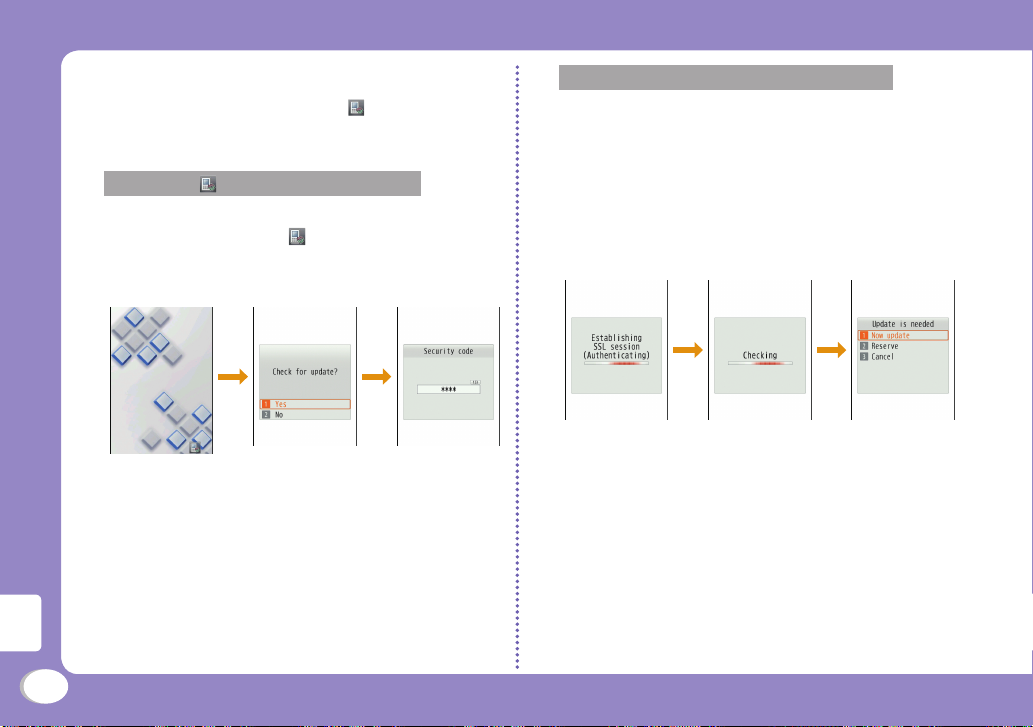

How to update software

To start software update, select (update notice icon) displayed on the Stand-by display, or perform from the menu screen.

To select (update notice icon)

Stand-by display u C u Use K to move the cursor to u C u "Yes" u Enter the Terminal security code

(update notice icon)

To perform from the menu screen

Stand-by display u M u "Settings" u "Other" u "Software Update" u Enter the Terminal security code u "Update"

Communication starts and check for software update.

•

If update is necessary, the software update

conﬁrmation screen appears.

•

If update is not required, "No update is needed.

Continue to use as before" appears.

Page 79

Others

Checking Harmful Data

In data or programs downloaded to the FOMA terminal, detect and delete data that could cause operational malfunction or stop activating applications.

•

The scanning function helps to protect the FOMA terminal

from invasion of data that cause failure when browsing web pages or receiving mail, etc. If the pattern deﬁnition corresponding to each failure is not downloaded or found, the scanning function cannot protect the FOMA terminal.

•

Pattern deﬁnitions vary depending on the FOMA terminal

model. Therefore, DOCOMO may discontinue distribution of pattern deﬁnitions for models three years after the release date.

Updating pattern denitions

•

First, update the pattern deﬁnition to the latest one.

Stand-by display u M u "Settings" u

"Lock/Security" u "Scanning function" u "Update" u "Yes" u "Yes"

Updating starts. After update completes, the notiﬁcation screen appears.

• If the pattern denition is the latest one, the screen

notifying that it is the latest appears.

[OK]

Page 80

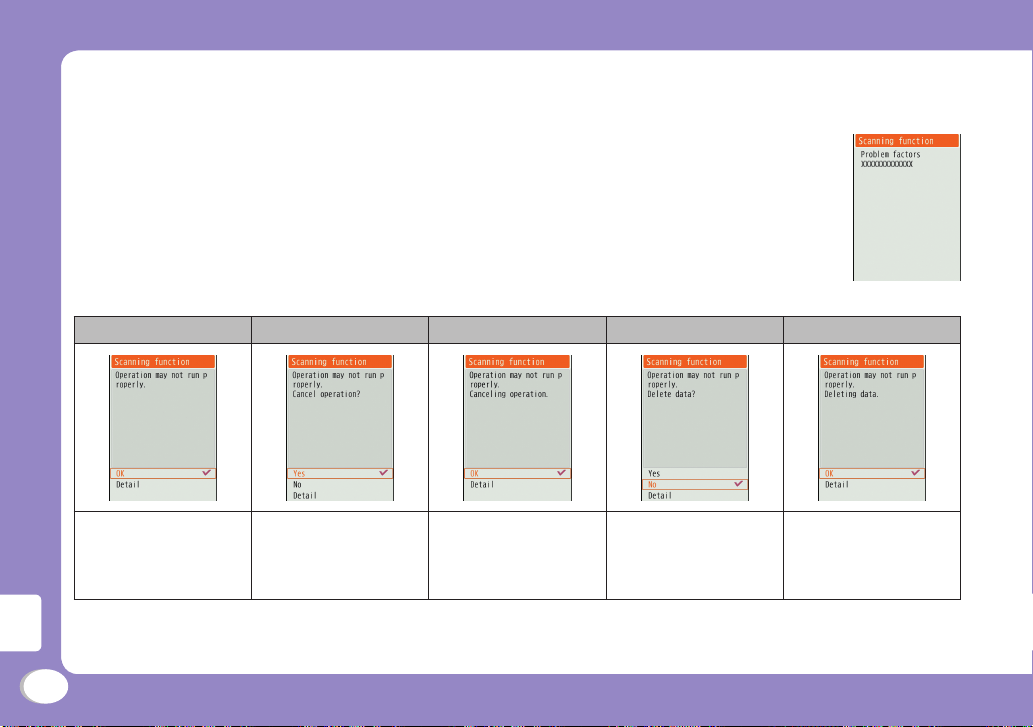

Displaying scanned result

●

Displaying scanned problem factors

Select "Detail" on the alert level screen to display the problem factor list screen shown on the right.

•

The screen image is an example. On the actual screen, the detected data name is displayed in the

place of "XXXXXXXX".

•

Depending on the type of the detected data, "Detail" may not be displayed.

•

When six or more problem factors are detected, subsequent factors after sixth one are omitted and only

the total number of factors is displayed.

●

Displaying scanned result

Alert level 0 Alert level 1 Alert level 2 Alert level 3 Alert level 4

"OK": Continue the

operation.

Others

•

The screen may be different from the above depending on the scanned result.

"Yes": Stop the operation and exit.

"No": Continue the

operation.

"OK": Stop the

operation and exit.

"Yes": Delete data and exit.

"No": Stop the

operation and exit.

"OK": Delete data and

exit.

Page 81

Introduction of Options and Related Devices

Combine the FOMA terminal with various optional devices to make it more convenient for expanded purposes, from personal and business. Some products may not be available depending on the area. For details, contact a service counter such as the docomo Shop. For details on optional devices, see the related instruction manuals.

•

Battery Pack L06

•

Back Cover L15

•

Desktop Holder L05

•

Flat-plug Earphone/Microphone with Switch P01/P02

•

Earphone Plug Adapter P001

•

Earphone/Microphone with Switch P001*1/P002

•

FOMA Dry Battery Adapter 01

•

Bone conduction microphone/receiver

•

FOMA Indoor Booster Antenna

•

FOMA Portable Charging Adapter 01

•

Carry Case L 01

•

FOMA USB Cable with Charge Function 01*3/02

•

FOMA Indoor Booster Antenna (Stand Type)

•

FOMA USB Cable

•

FOMA AC Adapter 01*4/02

•

FOMA AC Adapter 01 for Global use

•

Flat-plug Stereo Earphone Set P01

•

Stereo Earphone Set P001

•

FOMA DC Adapter 01/02

•

Earphone Plug Adapter 01 for External connector terminal

•

Earphone/Microphone 01

•

Earphone Plug Adapter 01

•

Stereo Earphone Set 01

•

In-Car Holder 01

*1 Earphone Plug Adapter P001 is necessary to connect to

L-01B. *2 For domestic use only. *3 May not work properly if USB HUB is used. *4 Charging using the AC adapter→P19

Others

Page 82

Others

Appendix

Menu List

Items indicated by return to the default when executing "Reset settings".→P37

●

Mail

Inbox Inbox

MessageR

MessageF

Outbox Outbox

Unsent message

Compose message

Create new Decome -Anime

Compose SMS

Template Deco-mail

Decome-Anime

Check new messages

Check new SMS

Receive option

Mail setting Communication

Display

Mail group

Auto sort

SMS setting

Phone information use setting

Edit

Other

●

i-mode

iMenu/Search

Bookmark

Screen Memo

Last URL

Enter URL Input Address

URL enter history

i-Channel i-Channel list

i-Channel setting

Reset i-Channel

Page 83

Others

i-mode setting i-mode Browser Settings

Full Browser Settings

Common Settings

Conﬁrm i-mode setting

Reset i-mode setting

Internet search

Full Browser Home

●

i - αppli

Software list

i-αppli info

αppli settings

Security error history

Auto start info

Trace info

Standby error info

Display SW info

Auto start set

End stand-by display

●

Phonebook

Add to phonebook

Search phonebook

No. of phonebook

Phonebook settings Default mode

Create domain list

Accept/Reject list

Group settings

Call/Mail history Received calls

Redial

Received mails

Sent mails

Call duration

Call costs Check call costs

Set call cost limit

Delete call cost icon

Page 84

Others

●

Data box

My picture i-mode

Camera

Decomail picture

Decomail picto.

Preinstalled

Frame

Data transfer

Slide show

microSD

Search by i-mode

Music Playlists

i-mode

Movablecontents

Resume play

Transferred from PC

SD-Audio

Search by i-mode

Music&Video Ch Distributed program

i-motion/Movie i-mode

Camera

Preinstalled

Playlists

Data transfer

microSD

Search by i-mode

Melody i-mode

Preinstalled

Data transfer

microSD

Search by i-mode

Kisekae Tool i-mode

Preinstalled

Search by i-mode

Other

Page 85

Others

●

MUSIC

MUSIC player All songs

Playlists

Artist

Genre

Album

Resume play*

Music&Video Ch Program 1

Program 2

Set program

Program list

About this service

* "Now playing" is displayed during music playback. Select

this to display the Player screen for currently played music.

●

LifeKit

Bar code reader

Receive Ir data Receive

Receive all

microSD PIM

Data update

Memory info.

Reset microSD card

Camera Photo-mode

Movie-mode

Bar code reader

Document viewer

Muvee Studio

Oekaki photo

Check FOMA HIGH-SPEED area

Data security service Connect to Data Storage Center

Exchanging history

sndg img in Phonebook

GPS Position location

Notify of location

Location history

αppli

GPS settings

Color reader Color reader

Color list

LED lighting

Color therapy

Page 86

Others

●

Stationery

Schedule

Alarm

Text memo

Record message Record msg. setting

Record msg. list

To do list

Remembering dates

Dictionary

Game

World time

Stopwatch

Calculator

Unit converter

●

1Seg

Activate 1Seg

Program guide

TV timer list

TVlink

Channel setting

1Seg settings

●

Settings

Sounds&Vibration Select ring tone

Select effect tone

Touch settings

Volume

Vibrator

Manner mode set

Mail ring duration

Set mute ring(sec.)

Headset usage setting

Display Stand-by display

Kisekae Tool

Color theme

Call & Mail image

Touch Board setting

Wake-up display

Quick dial

Illumination

LED matrix

Backlight

Page 87

Others

Call/VT/Dialing Incoming call

Videophone

Call function

Self mode

Preﬁx dial

Sub-address setting

Headset sw.

Lock/Security Lock

Secret mode

Display Call/Mail logs

Change security code

PIN code

Scanning function

NW Services Voice mail

Call waiting

Call forwarding

Chaku-moji

Nuisance call blocking

Caller ID notiﬁcation

Caller ID request

Set in-call arrival act

Arrival call act

Other

International dialling assist setting

Auto international call setting

IDD preﬁx setting

Country code setting

Country code list

Page 88

Others

International roaming Network

Voice mail(Int.)

Call forwarding(Int.)

Remote access setting(Int.)

Caller ID request(Int.)

Roaming guide(Int.)

Call barring

Missed call notiﬁcation for roaming setting(Int.)

Int'l Service Guide

Date&Time Set Date&Time

Date&Time format

Hour indication

マルチリンガル

(Select language)

Other Character input

Memory status

Power saver mode

Reset/Clear

Software Update

USB mode setting

Battery level

Calibration

●

Own Number

●

Osaifu-Keitai

IC card content

DCMX

IC card lock set

Search by i-mode

Page 89

Others

Main Specications

●

Phone

Model name

Dimensions (H X W X D)

Weight

3G/ GSM setting: 3G

FOMA/ 3G

GSM

FOMA/3G

GSM

3G/ GSM setting: AUTO

Continuous stand-by time

Continuous call time

1Seg watching time

L-01B

Approx. 110mm X Approx. 50mm X Approx. 15.1mm (Max. thickness: Approx. 18.7mm)

Approx. 130g (with battery pack installed)

Moving: Approx. 330 hours

Stationary: Approx. 400 hours Moving: Approx. 250 hours

Stationary: Approx. 220 hours

Voice call: Approx. 210 minutes Videophone: Approx. 90 minutes

Voice call: Approx. 180 minutes

When Power saver mode is ON:

Approx. 170 minutes When Power saver mode is OFF:

Approx. 150 minutes

Charging time

LCD

Image pickup device

Type

Size

Pixels

Type

Size

Effective pixels

AC adapter: Approx. 220 minutes DC adapter: Approx. 220 minutes

Display: TFT 262,144 colors Touch Board: TFT 65,536 colors External LED: 1 color

Display: Approx. 3.0 inches Touch Board: Approx. 1.6 inches External LED: Approx. 1.0 inch

Display: 384,000 pixels (480 dots X 800 dots) Touch Board: 44,800 pixels

(320 dots X 140 dots) External LED: 17 dots X 5 dots

Inner camera: CMOS Outer camera: CMOS

Inner camera: 1/11.0 inches Outer camera: 1/3.2 inches

Inner camera:

Approx. 300 Kilo pixels

Outer camera: Approx. 5.1 Mega pixels

Page 90

Others

Camera

Storage

Recorded pixels (maximum)

Zoom (Digital)

Number of

recordable still images

Continuous shooting

Still image ﬁle format

Moving picture recording time

Moving picture ﬁle format

Inner camera: Approx. 300 Kilo

pixels Outer camera: Approx. 5.0 Mega

pixels

Inner camera:

None (For still image)

Up to approx. 1.7 times (For moving picture)

Outer camera: Up to approx. 2.0 times (For still image) Up to approx. 1.3 times (For moving picture)

Default: Approx. 80 When pre-installed deletable

data is deleted: Approx. 1,900

JPEG

Approx. 60 minutes

MP4

SD-Audio (Supports background playback): Approx. 500 minutes

Chaku-Uta Full® (Supports background playback): Approx. 600 minutes

i-motion*4: Approx. 180 minutes

Music playback

Continuous playback time

WMA ﬁle (Supports background playback): Approx. 550 minutes

MP3 ﬁle (Supports background playback): Approx. 500 minutes

Music&Video Channel: Music:

Approx. 600 minutes (Supports background playback)

Video: Approx. 180 minutes

Default: Approx. 94MB*5

Capacity

Chaku-Uta Chaku-Uta Full

When pre-installed deletable

data is deleted: Approx. 102MB

*1 Select size: QCIF (176 X 144) Image quality: Normal

File size: 10K

*2 Maximum recording time per moving picture saved

under following conditions:

Select size: Sub-QCIF Size restriction: No restriction Video quality: Normal Type: Video+Sound

*3 File format: AAC *4 Sound only i-motion *5 Shared with Music&Video Channel

Page 91

Others

●

Battery pack

Model name Battery Pack L06

Battery type Lithium ion battery

Nominal voltage 3.7V

Nominal capacity 900mAh

●

Maximum number of savable items on the

FOMA terminal

Type

Phonebook 1,000

Schedule Schedule

Holiday

Mail

Inbox

Outbox/Unsent message

Bookmark

Screen memo

Data box Image

αppli

Moving picture/i-motion

Melody

Kisekae Tool

*1 Up to 50 entries can be saved on the UIM. *2 Includes holidays set by default. *3 Total number of i-mode mail and SMS. *4 Includes " Welcome Mail " and "

in "Inbox" folder.

*5 Total number of i-mode and Full browser.

Max. number of savable items

200

100

1,000

500

200

100

2,000

デコメをプレゼント

" saved

*6 Includes pre-installed "

季節のデコメをプレゼント

". *7 Includes pre-installed data. *8 Up to 30 slide shows can be saved. (This number is included

within 2,000, which is the maximum number of savable images.)

Specic Absorption Rate (SAR) of

Mobile Phone

Mobile phone L-01B meets the MIC's* technical regulation for exposure of radio waves. This technical regulation has been established based on scientiﬁc studies so that radio waves emitted from radio devices such as mobile phones used near a human head give no bad inﬂuence to the human health. It deﬁnes that Speciﬁc Absorption Rate (SAR), representing the average amount of energy of radio waves absorbed to a temporal part of human body, should not exceed a permissible value of 2W/kg**. This permissible value includes a substantial safety margin designed to assure the safety of users, regardless of the age, body size and other conditions of individuals and is equal to the international

guideline recommended by ICNIRP*** which has cooperative

relationships with World Health Organization (WHO). All mobile phones should be conﬁrmed to comply with the

governmental regulation according to Radio Law before they are released. The SAR value of L-01B is 0.675W/kg. This value has been acquired by Telecom Engineering Center (TELEC) and is the maximum value of those measured under the maximum transmission power of the mobile phone in the procedure deﬁned by the government. Though there may be some differences in SAR value among individual products, they all meet the technical regulation. In addition, mobile phones are designed to have the lowest transmission power required for communication with base stations; therefore, the SAR value during actual phone operation becomes smaller. SAR value of this mobile phone meets the regulations of individual countries where it is available.

Page 92

Others

For further information about SAR, visit the following websites:

World Health Organization (WHO) : http://www.who.int/peh-emf/en/

ICNIRP

: http://www.icnirp.de/ MIC : http://www.tele.soumu.go.jp/e/sys/ele/index.htm TELEC

: http://www.telec.or.jp/ENG/Index_e.htm NTT DOCOMO

: http://www.nttdocomo.co.jp/english/product/sar/ LG Mobile : http://jp.lgmobile.com/

* Ministry of Internal Affairs and Communications ** The technical regulation is deﬁned in Article 14-2 of the Ministry

Ordinance Regulating Radio Equipment.

*** International Commission on Non-Ionizing Radiation Protection

Radio Frequency (RF) Signals

THIS MODEL PHONE MEETS THE U.S. GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your wireless phone contains a radio transmitter and receiver. Your phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientiﬁc organizations through periodic and thorough evaluation of scientiﬁc studies. The exposure standard for wireless mobile phones employs a unit of measurement known as the Speciﬁc Absorption Rate (SAR). The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certiﬁed power level in all tested frequency bands. Although the SAR is determined at the highest certiﬁed power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the output. Before a phone model is available for sale to the public, it must be tested and certiﬁed to the FCC that it does not exceed the limit established by the U.S. government-adopted requirement for safe exposure. The tests are performed on position and locations (for example, at the ear and worn on the body) as required by FCC for each model. The highest SAR value for this model phone as reported to the FCC when tested for use at the ear is 0.504W/kg, and when worn on the body, is 1.24W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the U.S. government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on ﬁle with the FCC and can be found under the Display

Page 93

Others

Grant section at http://www.fcc.gov/oet/ea/fccid/ after search on FCC ID BEJL01B. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 2.5 cm from the body.

* In the United States, the SAR limit for wireless mobile phones used

by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. SAR values may vary depending upon national reporting requirements and the network band.

Declaration of Conformity

The product “L-01B” is declared to conform with the essential requirements of European Union Directive 1999/5/EC Radio and Telecommunications Terminal Equipment Directive 3.1(a), 3.1(b) and 3.2. This mobile phone complies with the EU requirements for exposure to radio waves. Your mobile phone is a radio transceiver, designed and manufactured not to exceed the SAR* limits** for exposure to radio-frequency (RF) energy, which SAR* value, when tested for compliance against the standard was 0.573W/kg. While there may be differences between the SAR* levels of various phones and at various positions, they all meet*** the EU requirements for RF exposure.

* The exposure standard for mobile phones employs a unit of

measurement known as the Speciﬁc Absorption Rate, or SAR.

** The SAR limit for mobile phones used by the public is 2.0 watts/

kilogram (W/kg) averaged over ten grams of tissue, recommended by The Council of the European Union. The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

*** Tests for SAR have been conducted using standard operating

positions with the phone transmitting at its highest certiﬁed power level in all tested frequency bands. Although the SAR is determined at the highest certiﬁed power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station antenna, the lower the power output.

Page 94

Others

Export Administration Regulations

This product and its accessories may fall under the category of application of Japan Export Control Regulations ("Foreign Exchange and Foreign Trade Law" and relevant laws and regulations). U.S. Re-export Regulations (Export Administration Regulations: EAR) is applied to this product and its accessories. If you export or re-export this product or its accessories, please follow the necessary procedures at your own risk and expense. For details on the procedures, contact the Ministry of Economy, Trade and Industry or the U.S. Department of Commerce.

Intellectual Property Right

Copyrights and portrait rights

You have no right to copy, modify, or distribute contents such as text, images, music, map data, or software downloaded from websites on the Internet, or images captured by the camera of this product without permission from the copyright holder except when the copy or quote is for personal use that is allowed under

live performances or exhibitions even for personal use. Refrain from taking portraits of other people and uploading such portraits to websites using this product without their consent, as this violates portrait rights.

Trademarks

•

"FOMA", "i-mode", "i-αppli", "WORLD CALL", "WORLD WING",

"i-motion", "Deco-mail", "DCMX", "OFFICEED", "docomo STYLE series", and "i-mode" logo and "i-

trademarks of NTT DOCOMO, INC.

•

Free Dial logo mark is a registered trademark of NTT Communications

Corporation.

•

"Multitask" is a registered trademark of NEC Corporation.

•

"Catch Phone (Call waiting service)" is a registered trademark of

Nippon Telegraph and Telephone Corporation.

•

McAfee® is registered trademarks or trademarks of McAfee, Inc. and/or

its afﬁliates in the US and/or other countries.

•

QuickTime is a registered trademark of Apple Inc., in the US and other

countries.

•

QR code is a registered trademark of Denso Wave Inc.

•

G-GUIDE, G-GUIDE MOBILE and their logos are

registered trademarks in Japan of U.S. Gemstar-TV Guide International, Inc. and/or its afﬁliates.

•

This product contains NetFront Browser and NetFront

Sync Client of ACCESS CO., LTD.

ACCESS and NetFront are trademarks or registered

trademarks of ACCESS CO., LTD. in the United States, Japan, and/or other countries.

αppli" logo are trademarks or registered

Page 95

Others

•

Adobe and Adobe Reader are either registered trademarks or

trademarks of Adobe Systems Incorporated in the United States and/ or other countries.

•

microSDHC logo is a trademark of SD-3C, LLC.

•

Microsoft®, Windows®, Windows Vista®, and Windows

are trademarks or registered trademarks of Microsoft

Media Corporation in the United States and/or other countries.

•

is a registered trademark of FeliCa Networks, Inc.

•

FeliCa is a registered trademark of Sony Corporation.

•

Napster is a registered trademark of Napster, LLC. and/or its afliates

in the US and/or other countries.

•

Google and Google Map for Mobile are trademarks of Google Inc.

•

Manufactured under license from Dolby Laboratories. Dolby and the

double-D symbol are trademarks of Dolby Laboratories.

•

"AXIS Font" is a trademark of AXIS Inc., and the "AXIS" font is a font

developed by Type Project Inc.

•

Other company names or product names described in this manual are

trademarks or registered trademarks of those companies.

Others

•

Contains Adobe® Flash® LiteTM technology by Adobe

Systems Incorporated. Adobe Flash Lite Copyright© 2003-2009 Adobe Systems Incorporated. All rights reserved. Adobe, Flash and Flash Lite are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

•

This software is based in part on the work of the Independent JPEG

Group.

•

FeliCa is a contactless IC card technology developed by Sony

Corporation.

•

This manual abbreviates operating systems (Japanese version) as

follows:

- Windows Vista is the abbreviation of Windows Vista® (Home Basic, Home Premium, Business, Enterprise, and Ultimate).

- Windows XP is the abbreviation of Microsoft® Windows® XP Professional operating system or Microsoft Edition operating system.

- Windows 2000 is the abbreviation of Microsoft® Windows® 2000 Professional operating system.

•

This product is licensed complying with the MPEG-4 Patent Portfolio

License. If you use it for private purpose without any proﬁts, you are allowed to use them only when:

- Recording MPEG-4 moving pictures that are compliant with the standard of MPEG-4 Visual.

- Playing back MPEG-4 moving pictures that consumers recorded for non-commercial activities.

- Playing back MPEG-4 moving pictures obtained from MPEG-LA licensees.

For details, contact MPEG LA, LLC.

•

Licensed by QUALCOMM Incorporated under one or more of the

following United States Patents and/or their counterparts in other nations;

4,901,307 5,267,262 5,101,501 5,414,796 5,228,054 5,710,784

5,504,773 5,600,754 5,511,073 5,659,569 5,544,196 5,778,338

5,109,390 5,416,797 5,267,261 5,056,109 5,337,338

Windows® XP Home

5,535,239 5,490,165 5,568,483 5,506,865 5,657,420

Page 96

Others

Index

Access i-mode site .................. 52

Accessories Add to phonebook After-sales service Alarm Anonymous caller

Appendix.................................. 80

Attach a le

Attach battery pack Attach UIM

Auto sort for i-mode mails........ 49

Available services overseas

............... Cover back

................... 50

................... 72

....................................... 65

.................... 37

.............................. 46

.................. 18

............................... 18

Back up data............................ 68

Backlight Bar code reader Before using

.................................. 31

....................... 65

............................ 18

Call forwarding service ............ 41

Call waiting Call/Mail history Call/Mail lock

.............................. 41

....................... 51

........................... 35

.... 44

Caller ID notication

Camera

Channel setting........................ 58

Character entry Character entry method Character entry screen Charging Check new messages Clear memory Color therapy

Congure default setting.......... 20

Contents

.................................... 56

.................................. 19

.................................... 1

................ 38

........................ 28

........... 29

............ 28

............. 48

.......................... 37

........................... 65

Data access lock ..................... 36

Data management Deco-mail Decome-Anime Delete phonebook Desktop holder Display call/mail logs Display from bookmark Display scanned result Display screen memo Download i-motion Download i-

................................ 47

................... 66

........................ 47

................... 51

........................ 19

............... 36

............ 53

............ 78

.............. 53

................... 63

αppli ..................... 62

Download music data

.............. 61

Earpiece volume ...................... 39

Edit phonebook........................ 51

Enter emoticon Enter pictogram

Enter symbol............................ 29

Export administration

regulations

External LED

........................ 29

....................... 29

............................ 92

..................... 23, 32

FOMA terminal........................... 2

Full browser

............................. 52

GPS ......................................... 55

GPS lock.................................. 36

Handling precautions ............... 15

IC card lock.............................. 36

i-Channel

................................. 54

Page 97

Others

Illumination .............................. 32

i-mode fault diagnosis site i-mode password i-motion playback screen i-motion/movie Infrared communication Infrared port Insert microSD card Intellectual property right International call International roaming i-

αppli ...................................... 62

..................... 34

......................... 63

............................... 5

...................... 39

....... 74

......... 63

........... 68

................. 66

......... 92

............... 43

Key operation .......................... 24

Keypad tone Kisekae tool

............................ 30

............................. 31

Lock all .................................... 35

Main menu ............................... 24

Main specications

Make a call Make a call from Phonebook

.............................. 38

.................. 87

... 38

Make a videophone call Manner mode Menu list

Menu operation........................ 27

Menu priority Menu search microSD card Moving picture shooting

screen................................... 56

Music player

Music player screen................. 61

Music&Video Channel My contact lock

.......................... 30

.................................. 80

............................ 31

............................ 21

........................... 66

............................ 61

........................ 36

........... 38

............. 60

Network security code ............. 33

Network service No. of phonebook

Notication icon

....................... 41

.................... 51

....................... 23

Omakase Lock......................... 35

Options and related devices Osaifu-Keitai Overseas use Own number

............................ 64

.......................... 43

............................ 21

.... 79

Part names and functions .......... 4

PIN1 code PIN2 code Play i-motion/movie Play music data Play program

Power saver mode................... 32

Precautions................................ 6

Public mode (Drive mode) Public mode (Power OFF) PUK code

................................ 34

................. 63

....................... 61

........................... 60

....... 40

................................ 34

Receive a call .......................... 39

Receive a piece of data via

infrared

Receive a videophone call....... 39

Receive all data via infrared Receive i-mode mail Receive SMS Received call log Record message Redial Reject unknown

................................. 69

.... 69

................ 48

........................... 49

..................... 38

..................... 40

...................................... 38

....................... 37

Page 98

Remove microSD card ............ 66

Reply to i-mode mail Reset microSD card Reset settings

................ 48

................ 67

.......................... 37

SAR ......................................... 89

Save as bookmark Save as screen memo Scanning function

Schedule.................................. 65

Screen setting.......................... 30

Security code Security scan

(scanning function)

Select ring tone........................ 30

Self mode Send a piece of data via

infrared Send all data via infrared

Send i-mode mail..................... 46

Send SMS

Others

Send/receive data via

infrared Services available for FOMA

terminal................................. 42

................................ 36

................................. 68

............................... 49

................................. 68

................... 53

.................... 77

........................... 33

............... 77

............. 53

......... 69

Set program Shoot moving picture Shoot still image SMS

......................................... 49

Software update

Sound setting........................... 30

Specic absorption rate

Stand-by display Start i-

Still image shooting screen...... 56

Support Switch character input mode

Switch to full browser............... 52

............................. 60

............... 57

...................... 57

...................... 75

........... 89

...................... 31

αppli .............................. 62

.................................... 70

... 28

Terminal security code ............. 33

Touch Board Trademark Troubleshooting

Turn power off.......................... 20

Turn power on

............................ 24

............................... 92

....................... 70

......................... 20

Update pattern denition ......... 77

Use earphones

Useful guide............................. 21

.......................... 5

Vibrator .................................... 30

View display View icon View moving picture View still image Voice mail service

Volume..................................... 30

............................. 22

................................. 22

................ 57

........................ 57

.................... 41

Warranty .................................. 72

WORLD CALL WORLD WING

......................... 39

........................ 43

Numerals

1Seg ........................................ 58

1Seg watching screen

............. 59

Page 99

You can view/change your contract contents, subscribe to services, and request information materials on the Internet.

From i-mode

(Respective subscriptions & procedures)

From PC

* "Network security code" is required for the access from i-mode. * No packet communication charges apply for the access from i-mode.

Charges apply for the access from overseas.

* "docomo ID and password" are required for the access from a PC.

iMenuuお客様サポート (user support)uお申込・お手続き (subscriptions & procedures)u各種お申込・お手続き

My docomo (http://www.mydocomo.com/)u各種お申込・お手続き (Respective subscriptions & procedures) (Japanese only)

Packet communication charges free

If you do not have or you have forgotten your "Network security code"

or "docomo ID/password", contact General Inquiries at the back of this manual.

* You may not be able to access the site depending on the content of

your subscription.

You may not be able to access the site due to system maintenance, etc.

(Japanese only)

Using mobile phones with your manners!

Please be considerate of others around you when using a mobile phone in a public place.

Always turn OFF your FOMA terminal in the following situations:

■

In a place where the use of mobile phones is prohibited

• Be sure to turn off your FOMA terminal on an airplane, in a

hospital, or near priority seats on a train, etc.

In the following situations, be sure to set Public mode

■ While driving

• Using the mobile phone in your hand while driving is

subject to punishment.

■ When you are in a public place such as theater, movie

theater, or museum

Be considerate of privacy

Please be considerate of the privacy of individuals around you when capturing and sending images using cameraequipped mobile phones.

Environmental activities by DOCOMO

Slimming down of instruction manual

In the Japanese instruction manual, by explaining operations of basic functions, the instruction manual was slimmed down and the amount of paper usage was reduced. Check Guide (installed in this FOMA terminal, Japanese only) or DOCOMO website for frequently used functions or detailed operations.

Collecting and recycling of mobile phones

Mobile phone and PHS operators collect and recycle used telephones, battery packs, and battery chargers at shops bearing the mark on the left regardless of brand and manufacture to protect the environment and reuse valuable resources. Bring them nearby docomo Shop.

Page 100

General Inquiries <docomo Information Center>

Repairs

(Business hours: 9:00 a.m. to 9:00 p.m.) (Business hours: 24 hours (open all year round))

0120-005-250

Service available in: English, Portuguese, Chinese, Spanish, Korean. Available from mobile phones and PHSs. (including non-DOCOMO phones.) Un

available from part of IP phones.

(Business hours: 9:00 a.m. to 8:00 p.m.)

From DOCOMO mobile phones

(In Japanese only)

(No preﬁx)

Unavailable from land-line phones, etc.

Please conﬁrm the phone number before you dial.

For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop NTT DOCOMO website http://www.nttdocomo.co.jp/english/

151

(toll free)

From land-line phones

(In Japanese only)

0120-800-000

Available from mobile phones and PHSs.

(including non-DOCOMO phones.)

available from part of IP phones.

(toll free)

i-mode site iMenu

From DOCOMO mobile phones

(In Japanese only)

(No preﬁx)

Unavailable from land-line phones, etc.

⇒ お客様サポート (user support) ⇒ ドコモショップ (docomo Shop)

113

(toll free)

etc. near you on the NTT DOCOMO website or the i-mode site.

From land-line phones

(In Japanese only)

0120-800-000

Available from mobile phones and PHSs.

(including non-DOCOMO phones.)

* Un

available from part of IP phones.

(toll free)

* In Japanese only

Loss or theft of FOMA terminal or payment of cumulative cost overseas

(available 24 hours a day) (available 24 hours a day)

From DOCOMO mobile phones

International call access code for the country you stay

You are charged a call fee to Japan when calling from a land-line phone, etc.

※

If you use L-01B, you should dial the number +81-3-5366-3114 (to enter '+', press and hold the '0' key for at least one second).

From land-line phones <Universal number> From land-line phones <Universal number>

Universal number international prefix

You might be charged a domestic call fee according to the call rate for the country you stay.

※

For international call access codes for major countries and international prefix numbers for the universal number, visit the DOCOMO International Services website.

If you lose your FOMA terminal or have it stolen, immediately take the steps necessary for suspending the use of the FOMA terminal.

If the FOMA terminal you purchased is damaged, bring your FOMA terminal to a repair counter speciﬁed by DOCOMO after returning to Japan.



-81-3-5366-3114

-800-0120-0151*



(toll free)

From DOCOMO mobile phones

International call access code for the country you stay

You are charged a call fee to Japan when calling from a land-line phone, etc.

※

If you use L-01B, you should dial the number +81-3-6718-1414 (to enter '+', press and hold the '0' key for at least one second).

Universal number international prefix

You might be charged a domestic call fee according to the call rate for the country you stay.

※

For international call access codes for major countries and international prefix numbers for the universal number, visit the DOCOMO International Services website.

Failures encountered overseas

-81-3-6718-1414*

-800-5931-8600

Sales:NTT DOCOMO, INC.

To prevent damage to the environment, bring used battery packs to a docomo service counter, a docomo agent or a recycle center.

Don't forget your mobile phone … or your manners!

When using your mobile phone in a public place, don't forget to show common courtesy and consideration to others around you.

Manufacturer: LG Electronics Inc.

(toll free)



2010.2 (1.1 Edition) MMBB0360008
