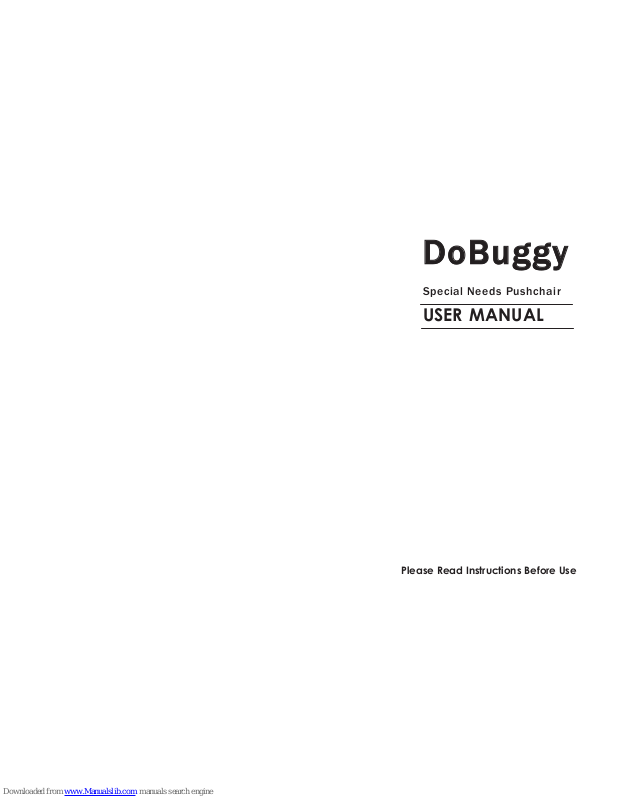

Page 1
DoBuggy
Special Needs Pushchair
USER MANUAL
Please Read Instructions Before Use
Page 2
2 DoBuggy Special Needs Pushchair - User Manual
1. Features ............................................................................ 03
2. Measurements .............................................................. 04
3. Operation ........................................................................ 05
4. Optional Accessories ............................................... 07
5. Warranty and Maintenance .................................. 11
WARNING
Please read the following instructions. Failure to do so could result in
serious injury.
Always ensure that the folding lock is fully engaged before use
in order to avoid potential injury to child.
Always keep child in view whilst in the pushchair. Never leave
child unattended.
Always use the harness in order to avoid serious injury from
falling or sliding out.
Always ensure that all parts of the child’s body are clear of any
moving parts when making adjustments tothe pushchair.
Always set brakes when pushchair is stationary in order to avoid
accidental rolling.
Do not use the pushchair if any parts are missing or broken.
Do not allow child to climb on or around the pushchair.
Do not allow child to stand on the footrest: pushchair may tip
over and cause injury.
Never leave stroller on a hill or incline, even with brakes set:
pushchair may tip over and cause injury.
Table of Contents
DoBuggy Special Needs Pushchair - User Manual 11
There is a comprehensive twelve-month warranty from the date on
which your new pushchair is delivered. The warranty covers the stroller for
repairs or replacement during this period, as outlined in the conditions
below:
1. Any work or replacement-part installation must be carried out by an
authorized dealer / service agent.
2. To apply the warranty please contact the outlet from which you
purchased the pushchair.
3. Should any part of the pushchair require repair or full or part
replacement, as a result of a manufacturing or material defect within
the warranty period, parts and labour will be supplied free of charge.
Note: The guarantee is not transferable.
4. Any repaired or replaced parts will be covered by the balance of the
warranty period on the pushchair.
5. Parts replaced after the original warranty has expired will be covered
by a three-month warranty.
6. Consumable items supplied will not generally be covered during the
normal warranty period unless such items require repair or
replacement clearly as a direct result of a manufacturing or material
defect. Such items include (amongst others): upholstery and tyres.
7. Under normal circumstances, no responsibility will be accepted where
the pushchair has required intervention as a direct result of:
a. the pushchair part not having been maintained in accordance with
the manufacturer’s recommendations
b. failure to use the manufacturer’s specified parts
c. the pushchair or part having been damaged due to neglect,
accident or improper use
d. the pushchair or part having been altered from the manufacturer’s
specification or repairs having been attempted before the dealer is
notifieds
The manufacturer reserves the right to alter without notice any weights,
measurements or other technical data. All figures, measurements and
capacities are approximate and do not constitute specifications.
5. WARRANTY AND MAINTENANCE
Page 3
10 DoBuggy Special Needs Pushchair - User Manual
Fitting the Boot
Fitting the Lateral Supports
Fitting the Seat Pad
Press boom stud
into place
Feed strap through side
Press into place
Re-thread harness
straps
Remove harness
straps
Velcro seat pad
into place
Press side studs
into place
Place boot over
child’s legs
DoBuggy Special Needs Pushchair - User Manual 3
1. Features
STANDARD
A 5-point harness (with
optional pad)
B Footrest
C Folding Lock
D Brake
OPTIONAL
1 Sunshade
2 Shopping Basket
3 Harness pad
For other accessories
please see page 7
B
C
D
1
A
2
3
Page 4
4 DoBuggy Special Needs Pushchair - User Manual
2. Measurements
Specification Size
Width (W) 400 mm
Height (H) 1120 mm
Length (L) 710 mm
Seat to Footrest(FL) adjustable to 180 / 210 / 330 mm
Seat width (SW) 394 mm
Seat depth (SD) 267 mm
Back height (BH) 559 mm
Back width (BW) 400 mm
Product weight 8 kgs
Weight capacity 50 kgs
BH
H
W
L
SD
BW
FL
SW
Folded Dimensions
Length 1140mm
Width 280mm
Height 230mm
DoBuggy Special Needs Pushchair - User Manual 9
Fitting the Harness Pad
Fitting the Chest Pad
Remove right strap and
feed through harness pad
Velcro le strap into place
Feed chest pad straps
through backrest
Feed harness straps through boom
loops & click into 5-point clip
Undo 5-point harness clip,
unclip le & right harness straps
Page 5
8 DoBuggy Special Needs Pushchair - User Manual
Attaching the Sunshade
Fitting the shopping basket
Fitting the Rain Shield
Click into place
Velcro straps front & rear
Adjust ankle straps
Hook eyelets over pins on frame
Fitting the Ankle Huggers
Velcro
fastening to
footplate
DoBuggy Special Needs Pushchair - User Manual 5
3. Operation
Unfolding the Pushchair
Folding the Pushchair
Page 6
6 DoBuggy Special Needs Pushchair - User Manual
Operating the brakes
Adjusting the Footrest Height
Fastening the 5-Point Harness
Harness straps click
into place
Brakes can be foot
operated when
puschchair unfolded
Click footrest into
desired place in
one of 3 adjustable
positions
DoBuggy Special Needs Pushchair - User Manual 7
4. Optional Accessories
Shopping
basket
Sunshade Harness pad
Lateral
supports
Ankle huggers
Chest pad
Extra seat pad
Rain/wind
shield
Padded boot
