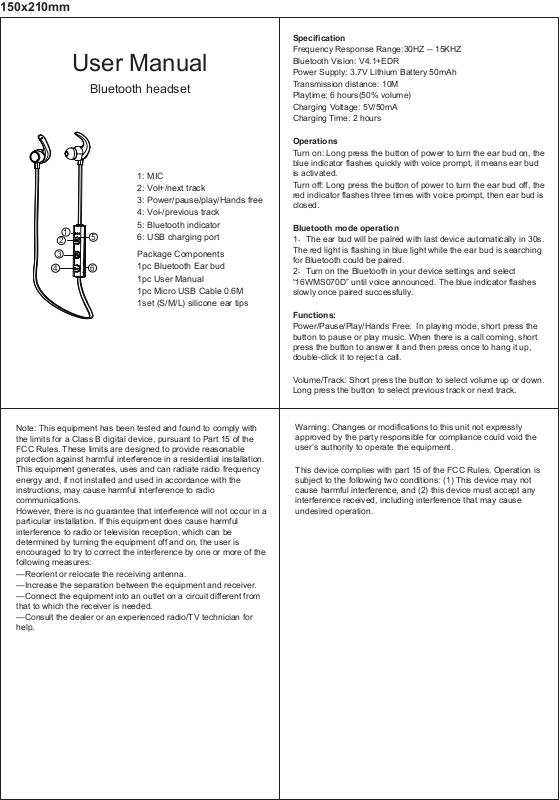

DNS W070D User Manual

150x210mm

2

3

4

User Manual

Bluetooth headset

1: MIC
2: Vol+/next track
3: Power/pause/play/Hands free
4: Vol-/previous track

1

5

6

5: Bluetooth indicator
6: USB charging port

Package Components
1pc Bluetooth Ear bud
1pc User Manual
1pc Micro USB Cable 0.6M
1set (S/M/L) silicone ear tips

Specification

Frequency Response Range:30HZ -- 15KHZ
Bluetooth Vision: V4.1+EDR
Power Supply: 3.7V Lithium Battery 50mAh
Transmission distance: 10M
Playtime: 6 hours(50% volume)
Charging Voltage: 5V/50mA
Charging Time: 2 hours

Operations

Turn on: Long press the button of power to turn the ear bud on, the
blue indicator flashes quickly with voice prompt, it means ear bud
is activated.
Turn off: Long press the button of power to turn the ear bud off, the
red indicator flashes three times with voice prompt, then ear bud is
closed.

Bluetooth mode operation

1、The ear bud will be paired with last device automatically in 30s.
The red light is flashing in blue light while the ear bud is searching
for Bluetooth could be paired.
2、Turn on the Bluetooth in your device settings and select
“16WMS070D” until voice announced. The blue indicator flashes
slowly once paired successfully.

Functions:

Power/Pause/Play/Hands Free: In playing mode, short press the
button to pause or play music. When there is a call coming, short
press the button to answer it and then press once to hang it up,
double-click it to reject a call.

Volume/Track: Short press the button to select volume up or down.
Long press the button to select previous track or next track.

Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is needed.
—Consult the dealer or an experienced radio/TV technician for
help.

Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
