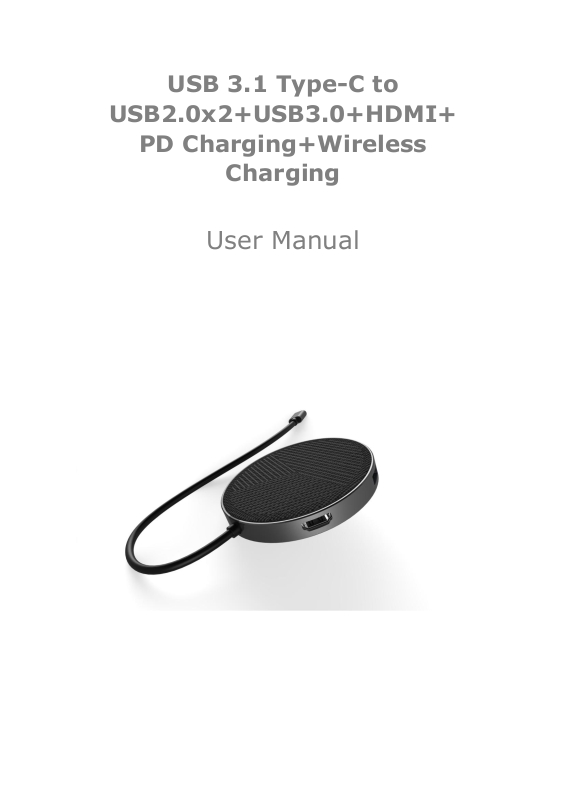

USB 3.1 Type-C to
USB2.0x2+USB3.0+HDMI+
PD Charging+Wireless
Charging
User Manual
USB 3.1 Type-C to USB3.0+HDMI +Wireless Charging +Type-C Charging
Contents
1.0 INTRODUCTION .............................................. 1
2.0 FEATURES ...................................................... 1
3.0 SPECIFICATIONS ............................................ 2
4.0 PACKAGE CONTENTS ....................................... 2
5.0 OPERATION .................................................... 2
6.0 CONNECTION DIAGRAM ................................... 3
7.0 REMARKS.......................................................4
USB 3.1 Type-C to USB3.0+HDMI +Wireless Charging +Type-C Charging
USB 3.1 Type-C to
USB2.0x2+USB3.0+HDMI+
PD Charging+Wireless
Charging
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or using this product. Please keep this manual for future
reference.
1.0 INTRODUCTION
This is a USB-C to USB 3.0+USB 2.0x2+HDMI+Wireless Charging+ PD
charging hub. The USB female ports allow you to connect the USB
devices. The USB-C female port can charge for the host computer, it
can work on Macbook or Google new Chromebook Pixel and other
USB-C supported devices. The HDMI port (DP Alt-mode) allows you to
connect an extra monitor so that you can watch videos or slide shows
on a big screen. High performance 10W Wireless Charging.
2.0 FEATURES
Support USB-C input and HDMI, USB ports output
Support USB 3.0 super speed (5Gbps) transmission, downward
compatible USB2.0
Support HDMI resolution up to 4Kx2K@30Hz
USB-C female charging port to charge the Macbook or Google new
Chromebook Pixel and other USB-C supported devices
QI wireless charging Standard compatible.
Support 5W/7.5W/10W Wireless Charging
Multiple USB-C interfaces support plug and play, hot swap
Easy to use and carry
1
USB 3.1 Type-C to USB3.0+HDMI +Wireless Charging +Type-C Charging
Input/Output Connector
Input
USB-C Male x1
Output
HDMI Female x1
USB-C Female x1
USB 3.0 Female x1
USB 2.0 Female x2
Resolutions
Resolutions
HDMI /F: Max up to 4Kx2K@30Hz
PD port (Output power)
Max up to 60W(20V/3A)
Warranty
Limited Warranty
1 year
Environmental
Operating Temperature
0 ℃ to +45℃
Operating Humidity
10% to 85 % RH (no condensation)
Storage Temperature
-10℃ to +70℃
Storage Humidity
5% to 90 % RH (no condensation)
Regulatory Approvals
Certifications
FCC,CE
Accessory Adapter
User Manual
English Version
3.0 SPECIFICATIONS
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
Main unit x1
User Manual x1
5.0 OPERATION
1) 1xPD port:Connect the USB-C female port of this product to laptop(The
max output power can up to 60W[20V/3A]);
2） 1xHDMI port:Connect HDMI output of this product to HDTV with one
HDMI cable
3) 2xUSB2.0:For connecting to USB interface devices (connecting USB
disk, mouse, keyboard, etc.
4) 1xUSB3.0:For connecting to USB interface devices (connecting USB
disk, mouse, keyboard, etc.(The max transfer speed can up to 5Gbps.)
5) 1xwireless charging:Support for charging QI standard mobile
phones. Support output power 5W/7.5W/10W.
6) 1xIndicator light:When using wireless charging, the white of indicator
light will always turn on; when the mobile phone is full of electricity, the
indicator light is orange;
2
USB 3.1 Type-C to USB3.0+HDMI +Wireless Charging +Type-C Charging
6.0 CONNECTION DIAGRAM
7.0 REMARK
1) In order to make wireless charging more stable, it is recommended not to use
the HDMI interface at the same time.
2)Do not allow anything (such as combustible, needle) or any liquid (such as
water, drink) to fall into or seep into the product.
3)Do not allow any foreign matter (such as combustible, needle) or any liquid
(such as water, drink) to fall on the surface of the product or seep into the
product, resulting in the normal use of this product.
4)Do not use or place this product in wet environments (such as bathrooms,
washrooms), or in dusty environment.
5)Under the condition that this equipment is not used for a long time, we should
keep it in the packing box to prevent dust accumulation and interface oxidation,
which will lead to bad contact of socket.
3
USB 3.1 Type-C to USB3.0+HDMI +Wireless Charging +Type-C Charging
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the product.
4
