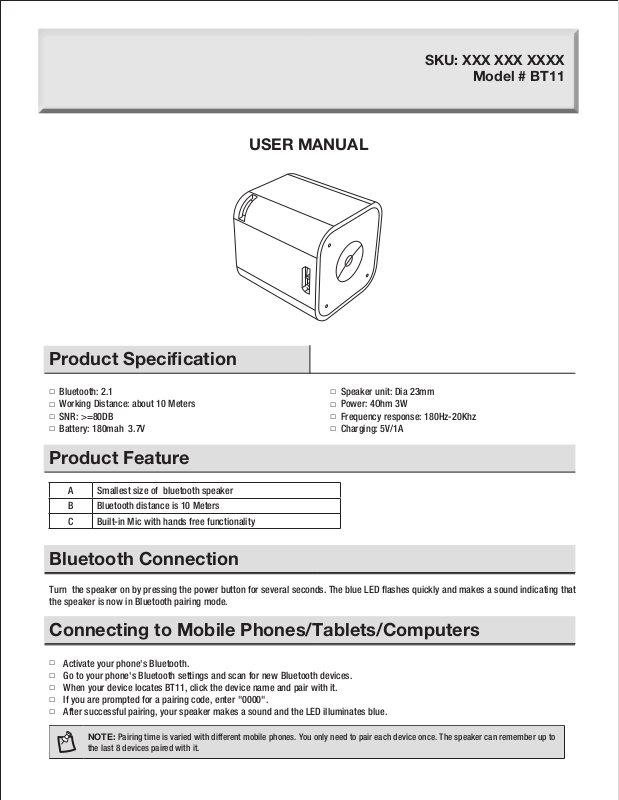

DNS BT11 User Manual

USER MANUAL

SKU: XXX XXX XXXX

Model # BT11

Product Specification

□

Bluetooth: 2.1

□

Working Distance: about 10 Meters

□

SNR: >=80DB

□

Battery: 180mah 3.7V

□

Speaker unit: Dia 23mm

□

Power: 4Ohm 3W

□

Frequency response: 180Hz-20Khz

□

Charging: 5V/1A

Product Feature

A Smallest size of bluetooth speaker

B Bluetooth distance is 10 Meters

C Built-in Mic with hands free functionality

Bluetooth Connection

Operation

Turn the speaker on by pressing the power button for several seconds. The blue LED flashes quickly and makes a sound indicating that
the speaker is now in Bluetooth pairing mode.

Connecting to Mobile Phones/Tablets/Computers

Operation

□

Activate your phone's Bluetooth.

□

Go to your phone's Bluetooth settings and scan for new Bluetooth devices.

□

When your device locates BT11, click the device name and pair with it.

□

If you are prompted for a pairing code, enter "0000".

□

After successful pairing, your speaker makes a sound and the LED illuminates blue.

NOTE: Pairing time is varied with different mobile phones. You only need to pair each device once. The speaker can remember up to
the last 8 devices paired with it.

Bluetooth Connection

Operation

□

When receiving incoming calls, the speaker provides instruction for receiving the call. Speak directly into the speaker during the
phone call.

Charging

Operation

□

Connect the micro USB charging cable to a computer or USB charger. The red LED indicates that the speaker is charging. The red
LED turns off when fully charged.

Troubleshooting

Make sure the pairing password entered is “0000’.

My mobile phone can't find any

1

new Bluetooth devices

□

Make sure the Bluetooth speaker has entered pairing
mode.

□

Ensure the speaker is within the effective working
range.

□

If your are using a Bluetooth transmitter device,
please ensure the responding password of your
Bluetooth transmitter supports “0000” code.

My mini speaker does not play music

3

/ answer call when connected to a
Bluetooth mobile phone

Bluetooth devices can't pair up

2

□

Make sure your mobile phone allows new connections
and did not reach the maximum allowed connections.
Refer to your phone's user manual for more information.

Safety Notices

Read the following safety information before using the Bluetooth speaker.

WARNING: Keep the speaker dry and do not take it to damp
places to avoid the product’s internal circuit being affected.

CAUTION: Do not expose the product to extremely cold
temperatures. It may damage the internal circuit board.

CAUTION: Do not attempt to disassemble this product.

WARNING: Keep the product away from direct sunlight or hot places. High temperatures will shorten the life of electronic devices,

destroy the battery or distort certain plastic parts.

Make sure your Bluetooth mobile phone supports A2DP

□

and HSF (hands-free) profile.

□

Ensure your Bluetooth cell phone is within effective
working range.

CAUTION: Do not drop the speaker on the floor or other
hard surfaces. The internal circuit might get damaged.

CAUTION: Do not use harsh chemical products or
detergent to clean the product.

CAUTION: Do not scratch the surface with sharp tips.
