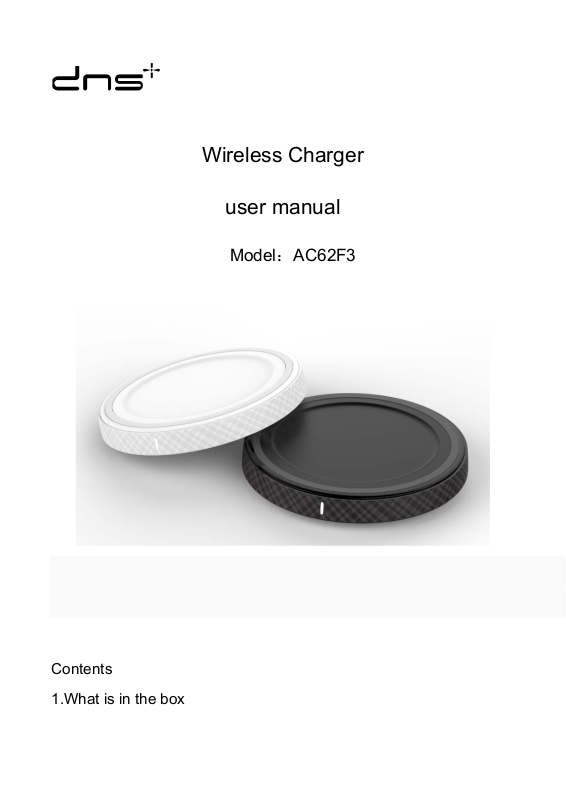

DNS AC62F3 Users Manual

Wireless Charger

user manual

Model：AC62F3

Contents

1.What is in the box

2.Product Introduction

3.Specification

4.How to use

5.Important Notification

Thanks for purchasing this fantastic Qi Wireless charger. Please read

the manual in detail for proper operation before you get to start to use.

What is in the box:

1) Qi Wireless Charger x1pc

2) User Manual x1pc

Manufacturer: SHENZHEN DNS INDUSTRIES CO., LTD.

Address:23/F Building A, Shenzhen International Innovation Center,

No.1006 Shennan Road, Futian, Shenzhen, China

Product Introduction

Micro USB Charging Port

LED indicator

Antiskid strip

Specification

Features:

Main functions: single coil wireless charger transmitter;

Products applicable: all wireless charging equipment accorded with

Qi standard;

Charging type: one-on-one charge corresponding area;

Standard version: WPC - 1.2.4;

Products applicable: all wireless charging equipment accorded with QI

standard;

Charging type: one-on-one charge corresponding area;

Input Rating: DC5V 2A/ DC9V 2A, DC12V 1.5A

Output Rating: DC5V 1A/ DC9V 1.1A (10W Max.)

Operation frequency: 104.7-175.0kHz;

H-field strength: -9.18 dBμA/m at 10m distance

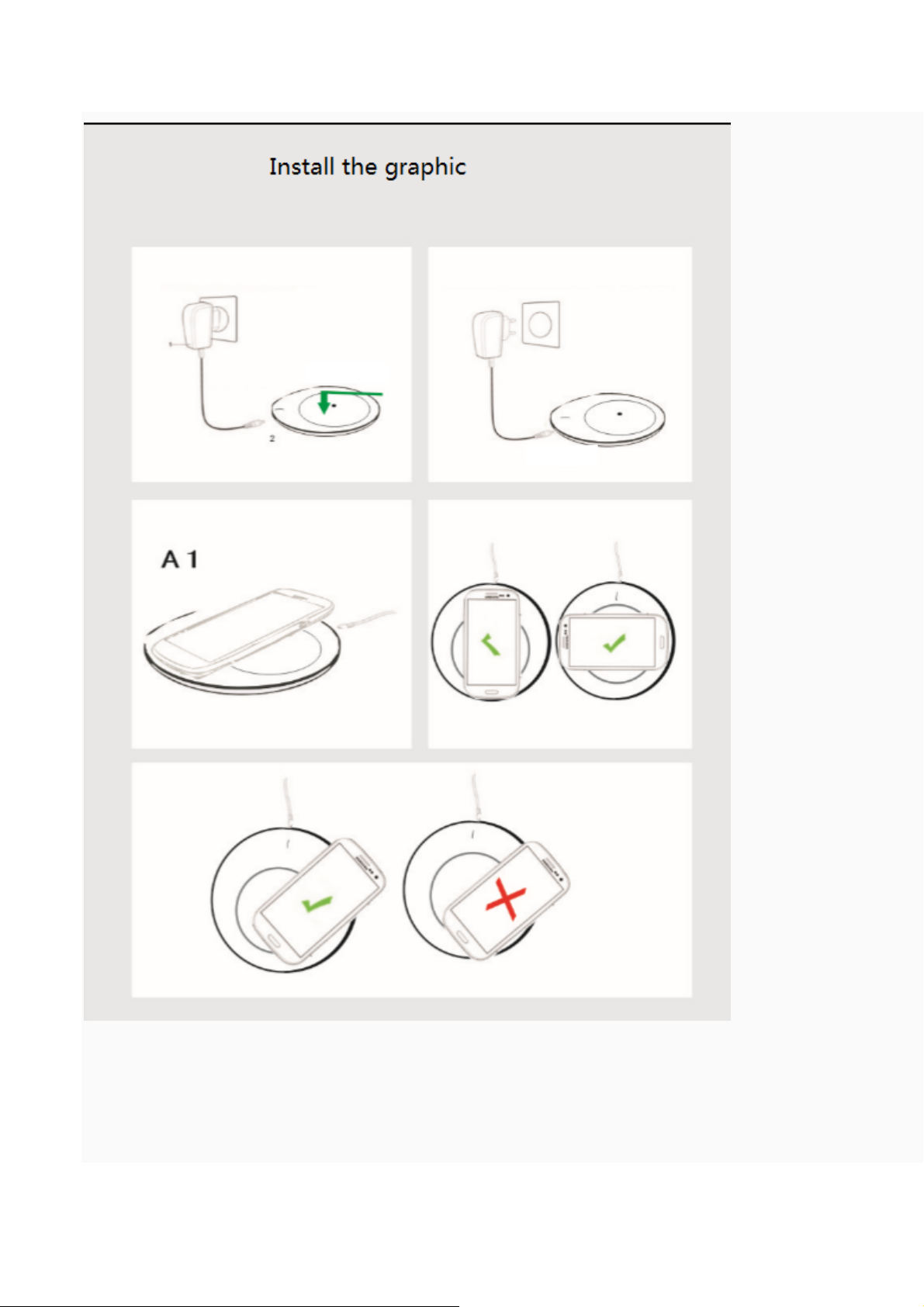

How to USE

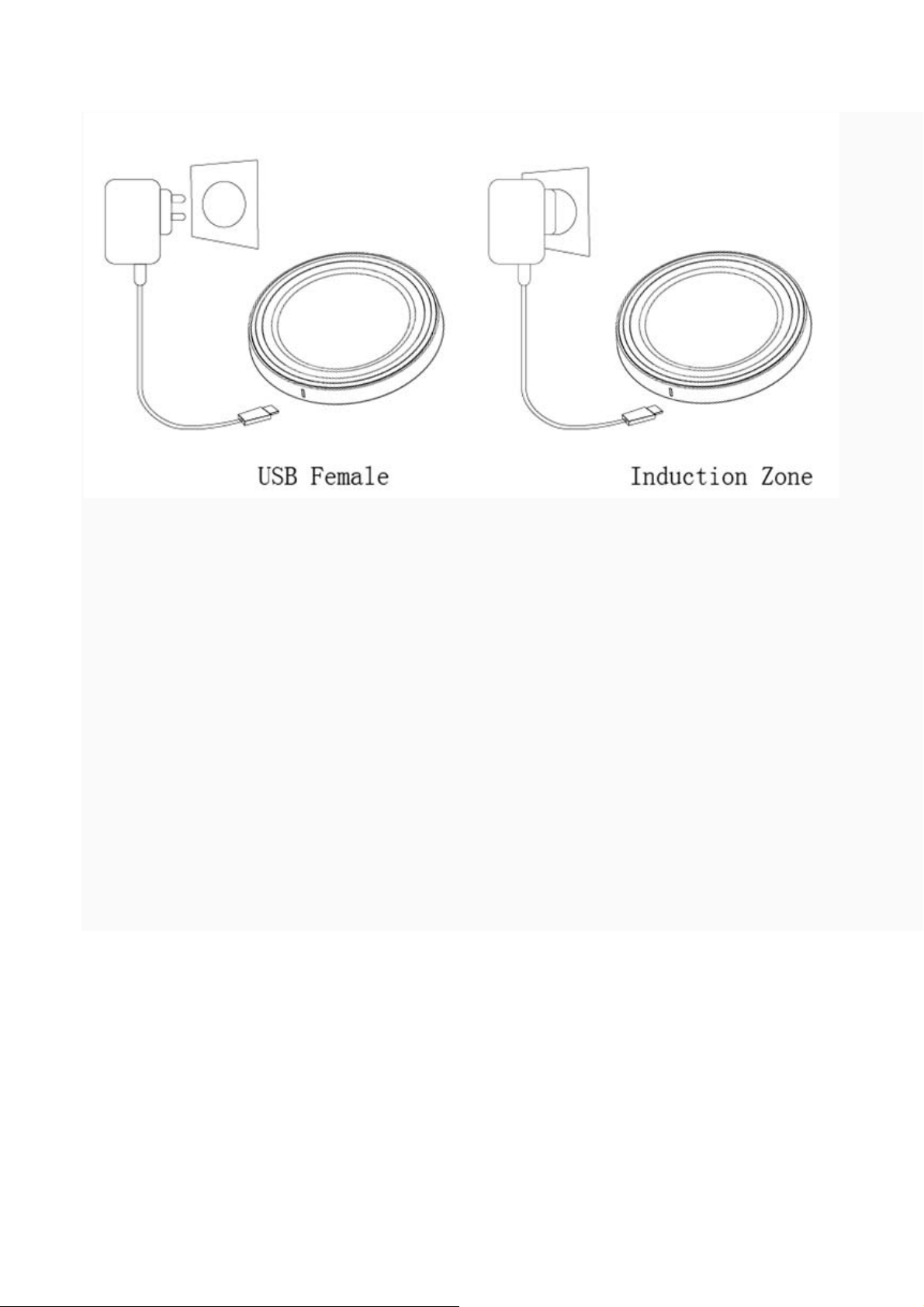

1, Plug Your Qi Wireless Charger to the Power Source

Plug the small end (micro USB B port) of the USB cord into the

side of the Qi charger. You can then plug the larger end (USB A

port) of the USB cord into the wall charger, and then plug the

charger into the wall, or you can plug the larger end into a PC
