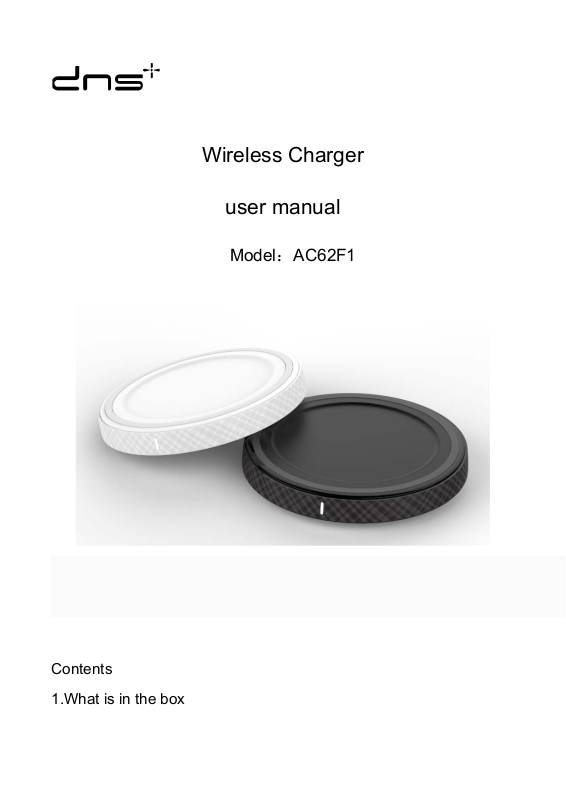

Wireless Charger

user manual

Model：AC62F1

Contents

1.What is in the box

2.Product Introduction

3.Specification

4.How to use

5.Important Notification

Thanks for purchasing this fantastic Qi Wireless charger. Please read

the manual in detail for proper operation before you get to start to use.

What is in the box:

1) Qi Wireless Charger x1pc

2) Micro USB cable x1pc

3) User Manual x1pc

Manufacturer: SHENZHEN DNS INDUSTRIES CO., LTD.

Address:23/F Building A, Shenzhen International Innovation Center,

No.1006 Shennan Road, Futian, Shenzhen, China

Product Introduction

Micro USB Charging Port

LED indicator

Antiskid strip

Specification

Features:

Main functions: single coil wireless charger transmitter;

Products applicable: all wireless charging equipment accorded with

Qi standard;

Charging type: one-on-one charge corresponding area;

Standard version: WPC - 1.2.4;

Products applicable: all wireless charging equipment accorded with QI

standard;

Charging type: one-on-one charge corresponding area;

Input Rating: DC5V/2A

Output Rating: DC5V/1A (5W Max.)

Launch distance: 3 to 8 MM;

Conversion efficiency: ≥70%;

Charging methods: induction model;

Working frequency: 110.9-179.49kHz;

H-field strength: -0.23 dBμA/m at 10m distance

Dimension: Φ91.97*14.4mm;
