DNS 20WMS005 User Manual

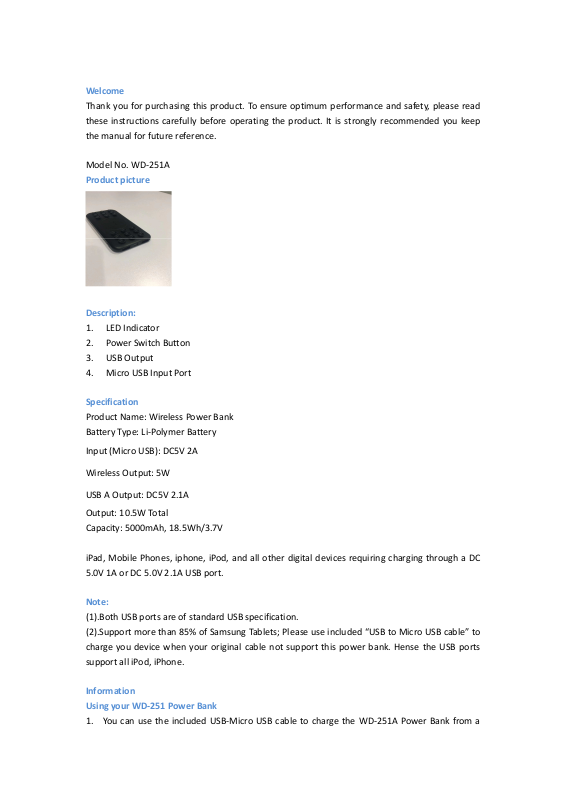

Welcome

Thank you for purchasing this product. To ensure optimum performance and safety, please read

these instructions carefully before operating the product. It is strongly recommended you keep

the manual for future reference.

Model No. WD-251A

Product picture

Description:

1. LED Indicator

2. Power Switch Button

3. USB Output

4. Micro USB Input Port

Specification

Product Name: Wireless Power Bank

Battery Type: Li-Polymer Battery

Input (Micro USB): DC5V 2A

Wireless Output: 5W

USB A Output: DC5V 2.1A

Output: 10.5W Total

Capacity: 5000mAh, 18.5Wh/3.7V

iPad, Mobile Phones, iphone, iPod, and all other digital devices requiring charging through a DC

5.0V 1A or DC 5.0V 2.1A USB port.

Note:

(1).Both USB ports are of standard USB specification.

(2).Support more than 85% of Samsung Tablets; Please use included “USB to Micro USB cable” to

charge you device when your original cable not support this power bank. Hense the USB ports

support all iPod, iPhone.

Information

Using your WD-251 Power Bank

1. You can use the included USB-Micro USB cable to charge the WD-251A Power Bank from a

USB power source.

Note: While the WD-251A Power Bank is being charged, the blue LEDs will flash and light up one

after another. Once the Power Bank is fully charged, all LEDs will light up and the Power Bank will

stop charging. You should be able to charge your mobile devices once the Power Bank completes

its charging or disconnected from its power source.

2. Short press the on/off Power Switch Button on the Power Bank, the LEDs will be illuminated

for 60 seconds and the power bank will start charging your ipad, mobile phone or any

electronic devices. To stop charging your devices, simply disconnect them from the Power

Bank. The Power output will remain for 60 seconds and stop automatically if the Power Bank

does not start charging any device again within this period.

Preparing to Wireless Charge:

 The Wireless charging Pad can charge Qi enabled smartphones.

 You can charge your smartphone with a protective case on it.

(Works with most cases up to 4mm thick)

 If your protective cases has metallic studs, magnetic clasps, or a magnetic plate, you should

remove the case before placing your phone on the mount,

 Also ensure the protective case does not create distance between the charging pad and the

back of the phone that is greater that 4mm.

Charging:

 Connect the Wireless Charging Pad using the includes USB to micro USB cable.

 Once plugged in, the blue LED light informs you that the mount is powered and ready to

charge.

 Your smartphone will automatically begin to charge when placed on the Wireless Charging

Pad.

 The green LED light indicates your smartphone is successfully charging.

 For optimum charging, place your mobile phone in the center of the charging pad.

 Adjust the viewing angle of the Wireless Charging Pad between flat or tilted by twisting the

bottom of the pad.

Battery Capacity Indicator & LED Light Switch Button

The LED power indicators provide information about the battery charging status and battery

power level:

Press the Power Switch Button to check power level, the LED will be illuminated for 60 seconds.

LED’s indicate from the right to left:

·1 LED Flashes:<5% Power

·1 LED on:<25%

·2 LEDs on:25%-50%

·3 LEDs on:50%-75%

·4 LEDs on:75%-100%

It takes around 4 hours to fully charge this Power Bank via a 5V 2A USB power source.

Maintenance

In order to maximize the battery life, please maintain your WD-251A Power Bank as

recommended below:
