November 20, 2014 Ver. 1.0.0.0
Printer Driver User's Manual
Page 2
Dai Nippon Printing Co., Ltd.
● Safety precautions
Before you use the printer, carefully read the User’s manual to ensure that you use the printer correctly. Be
aware that the content complies with the standards at the time the User’s manual section related to safety,
including usage and safety precautions, was created.
● Modifications
For product safety, it is prohibited to modify the DP-DS620/DP-DS620 (A) printer, DP-DS620/DP-DS620 (A)
printer driver, and CD contents.
● Copyright
The copyrights, trademark rights, and other intellectual property rights related to documents and programs
included with this product are the property of Dai Nippon Printing Co., Ltd. and other rights holders. You cannot
copy and use these items without the permission of Dai Nippon printing Co., Ltd. except where permitted by
applicable laws.
Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States
and in other countries.
LEADTOOLS Copyright (C) 2008 LEAD Technologies, Inc.
● About the country of delivery
Not for resale/use in the U.S. Inside the U.S., use : DP-DS620 (A)
Page 3
Dai Nippon Printing Co., Ltd.
Table of contents _________
Chapter 1 Installation __________________________________ 1
1.1 Prepare the printer and computer ______________________________________________________________ 1
1.2 Found New Hardware Wizard _________________________________________________________________ 1
1.3 Install using “Add a Printer” ___________________________________________________________________ 5
Chapter 2 Properties _________________________________ 10
2.1 Open the printer properties __________________________________________________________________ 10
2.2 Print settings functions ______________________________________________________________________ 11
2.2.1 Layout _______________________________________________________________________________ 11
2.2.2 Advanced options ______________________________________________________________________ 12
2.2.3 Paper/Quality _________________________________________________________________________ 17
2.2.4 Option _______________________________________________________________________________ 17
2.2.5 Color Adjustment _______________________________________________________________________ 19
2.2.6 Printer Information ______________________________________________________________________ 20
2.3 Default values for settings ___________________________________________________________________ 22
2.4 Color management ________________________________________________________________ ________ 23
2.5 Print Area ________________________________________________________________________________ 24
2.6 Orientation _______________________________________________________________________________ 25
Chapter 3 Update the driver ____________________________ 26
Chapter 4 Delete the driver ____________________________ 29
・Added "(6x4) x N" and "(5x3.5) x N" to the paper sizes (limited to applicable countries)
Added "(6x4) x n" and "(5x3.5) x n" to reduce ribbon consumption by printing at (6x4) and (5x3.5) sizes using the
winding print function.

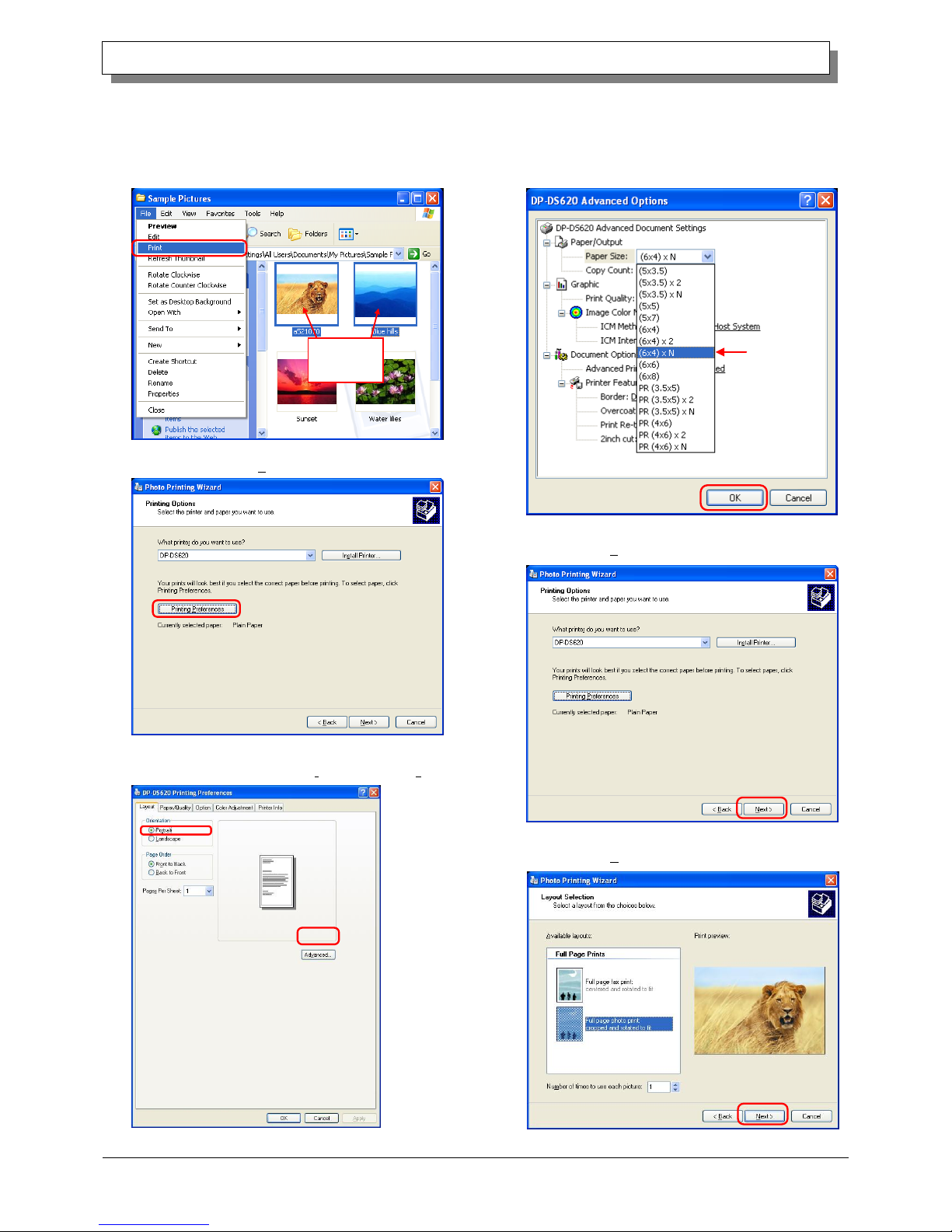

For details, see "Paper size (6x4) x n setting" in 2.2.2 Advanced options.
・Added printer information

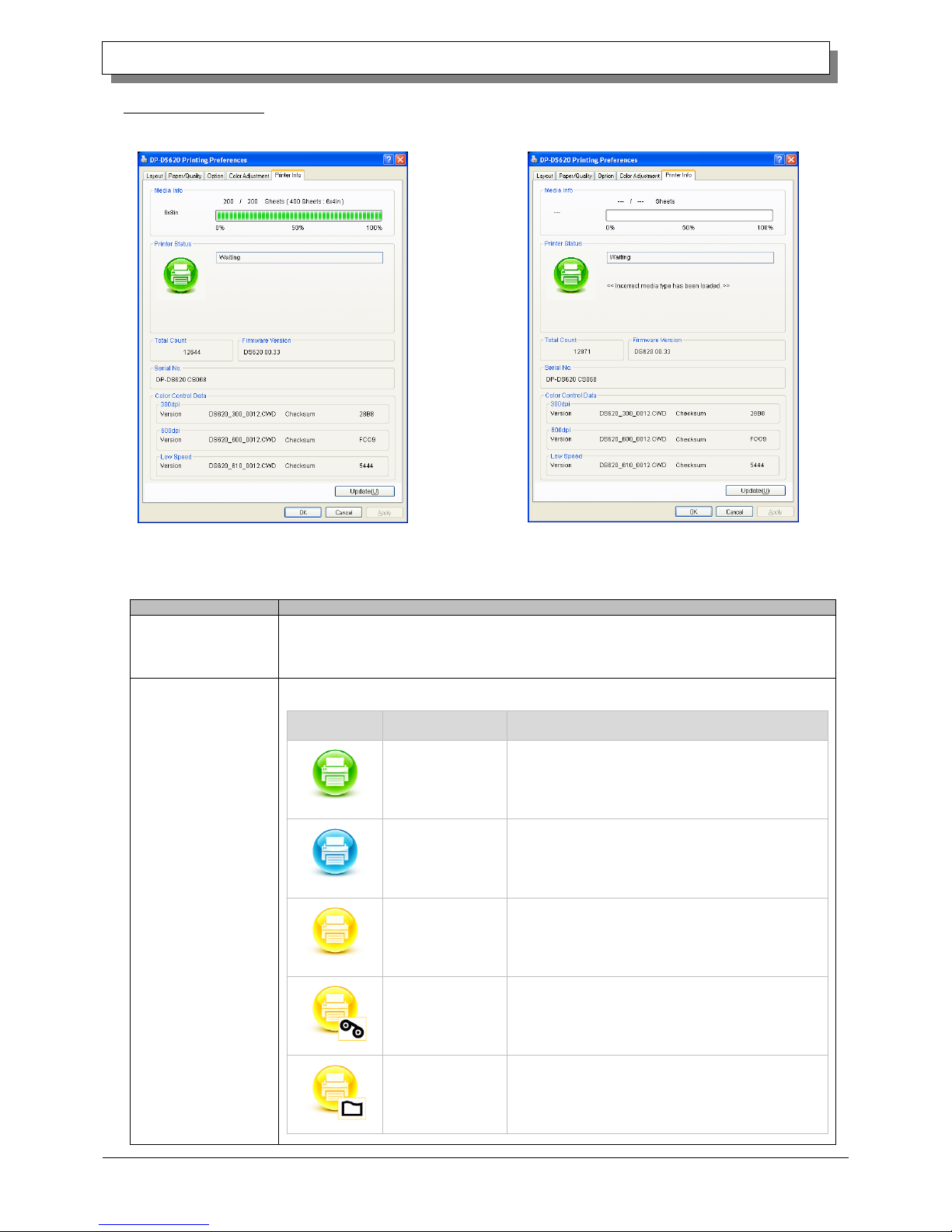

Added a printer information function to display, for example, printer information and the status/number of
printable copies on the driver screen.
For details, see 2.2.6 Printer Information.
・Added language settings
Added a function to change the display language for the following print settings: Advanced options-Printer
functions, Option, Color Adjustment, and Printer Info.
For details, see 2.2.4 Option.
Main additional functions from previous models
Page 4
1
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
CChhaapptteerr 11 IInnssttaallllaattiioonn
11..11 PPrreeppaarree tthhee pprriinntteerr aanndd ccoommppuutteerr
Switch on the power of the DP-DS620 printer, and then use a USB cable to connect the printer and computer.
*For the connection, see the user’s manual of the DP-DS620.
If the Found New Hardware Wizard appears after connection, carry out the installation by following the procedure of “1.2
Found New Hardware Wizard”. If the Found New Hardware Wizard does not appear, carry out the installation by
following “1.3 Install using “Add a Printer””.
11..22 FFoouunndd NNeeww HHaarrddwwaarree WWiizzaarrdd
Confirm that "Install from a list or specific location (Advanced)" is selected, and then click "Next".
Figure 1.1 Found New Hardware Wizard
Note) If you are using Windows XP Service Pack 2 or later, and the following screen appears when the new search
wizard starts, select “No, not this time”, and then click "Next".
Page 5
2
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
Select "Search for the best driver in these locations", and then make sure that "Include this location in the search:" check
box is selected. Click "Browse", select the installation location, and then click "Next".
Figure 1.2 Search and installation options
If the following screen appears during an upgrade installation, check the Version section, select the most recent version,
and then click "Next".
Figure 1.3 Software selections
I:¥DP-DS620_Driver¥XP
Page 6
3
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
The following screen appears when you install software. Click "Continue Anyway" to continue with the installation.
Figure 1.4 Installing hardware
If the Search removable media (floppy, CD-ROM...) check box shown in Figure 1.2 is selected, the following message
may appear. If the message appears, insert the CD-ROM, and then click OK.
Figure 1.5 Insert Disk
If the following message appears after clicking OK in Figure 1.5, click "Browse", select the installation disk, and then click
OK.
Figure 1.6 Files Needed
I:¥DP-DS620_Driver¥XP
Page 7
4
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
Click Finish to close the printer wizard.
Figure 1.7 Completing the Found New Hardware Wizard
Click "Start", and then click "Printers and Faxes", and then make sure that “DP-DS620” is present.
Figure 1.8 Printers and Faxes
After the installation of the printer driver is complete, always restart the computer.
Page 8
5
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
11..33 IInnssttaallll uussiinngg
“
“
AAdddd aa PPrriinntteer
r
”
”
Click "Start", and then click "Printers and Faxes".
(Depending on the computer you are using, "Printers and Faxes" may not appear. If it does not appear, click the following items in
order: Start, "Control Panel", "Printers and Other Hardware", and "Printers and Faxes".
Click "Add a Printer".
Figure 1.10 Printers and Faxes
The Add a Printer Wizard screen appears. Click "Next".
Figure 1.11 Add a Printer Wizard
Page 9
6
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
The Local or Network Printer screen appears. Select "Local printer attached to this computer", clear "Automatically
detect and install my Plug and Play printer" check box, and then click "Next".
Figure 1.12 Local or Network Printer
The Select a printer port screen appears. Select "Use the following port". From the list, select the USB port connecting
the printer (for example, USB001), and then click "Next".
Figure 1.13 Select a Printer Port
Page 10
7
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
The Install Printer Software screen appears. Click "Have Disk...".
Figure 1.14 Install Printer Software
The Install From Disk screen appears. Click "Browse", and then select the installation location.
Figure 1.15 Install From Disk
Make sure that “DP-DS620” appears, and then click "Next".
Figure 1.16 Install Printer Software
I:¥DP-DS620_Driver¥XP
Page 11
8
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
The Name Your Printer screen appears. Configure the printer name. Furthermore, if the Do you want to use this printer
as the default printer? screen appears, and if you want to set this printer as the default printer, select Yes, and then
click "Next".
Figure 1.17 Configuring the printer name and the default printer

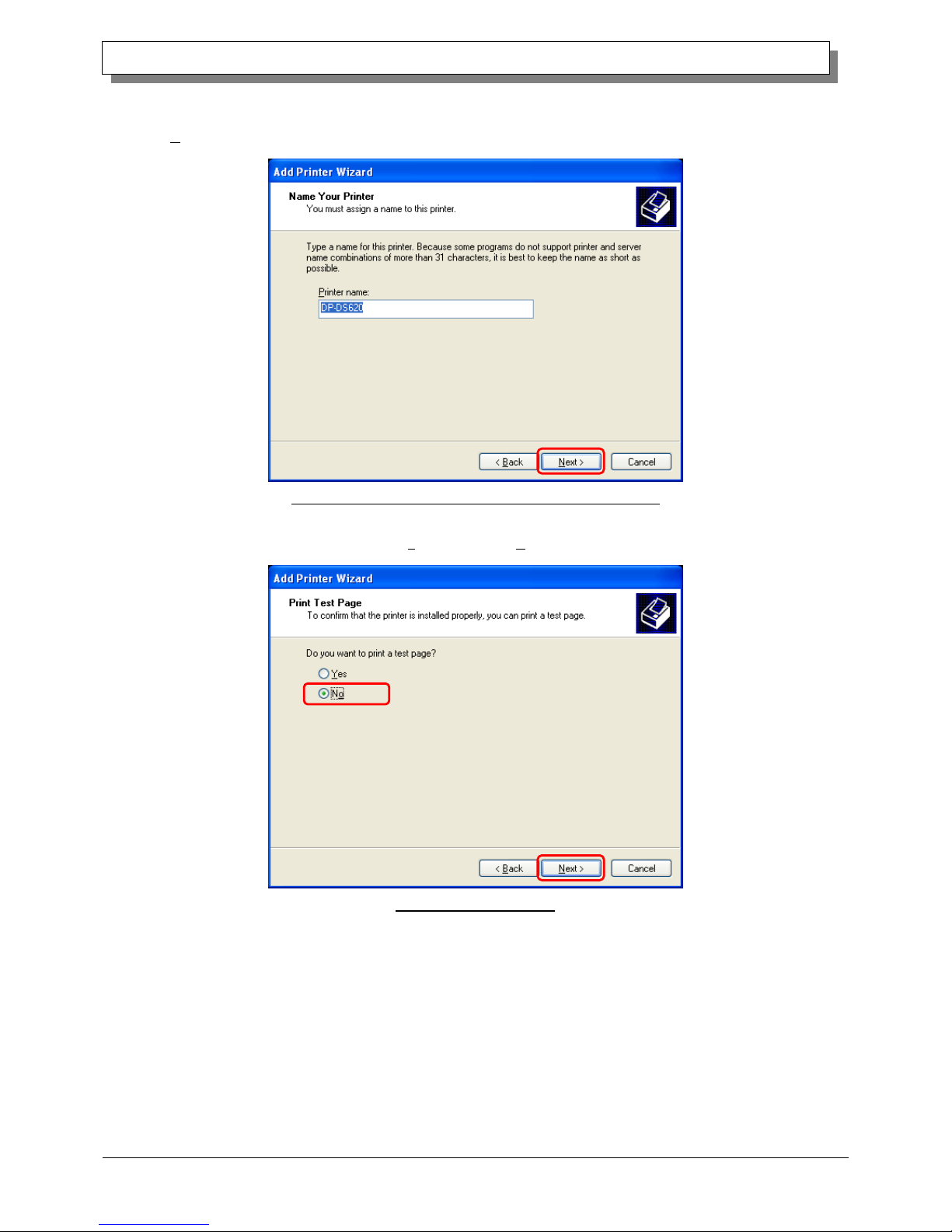

The Print Test Page screen appears. Select "No", and then click "Next".
Figure 1.18 Print Test Page
Page 12
9
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)

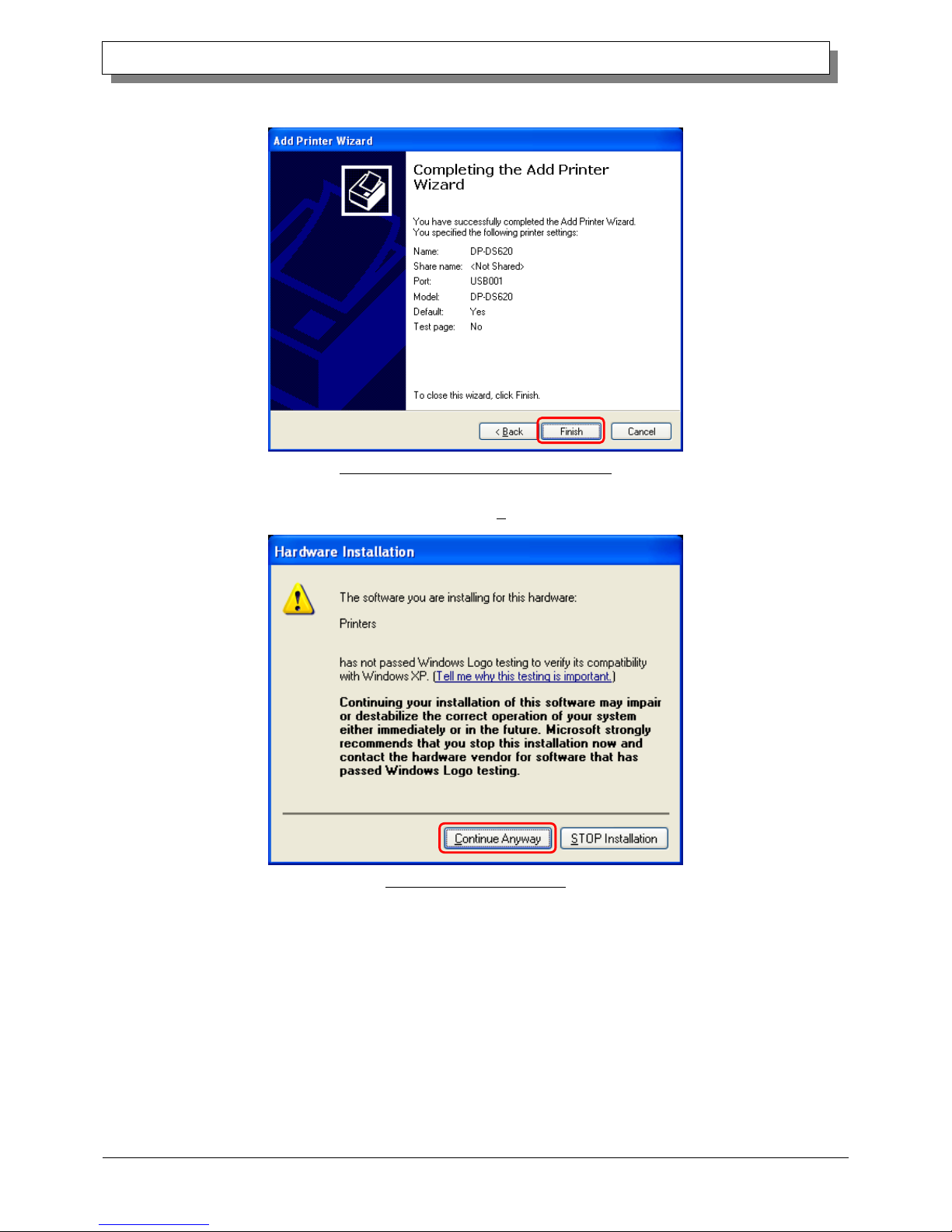

The Completing the Add Printer Wizard screen appears. Click Finish.
Figure 1.19 Completing the Add Printer Wizard
The following message appears when installing software. Click "Continue Anyway" to continue with the installation.
Figure 1.20 Installing hardware
After the installation of the printer driver is complete, always restart the computer.
Page 13
10
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
CChhaapptteerr 22 PPrrooppeerrttiieess
You can configure various printer settings from the Properties of the DP-DS620 driver. Make sure you understand the
contents well before changing settings. Depending on the application you are using, you must perform this operation
from the print settings of the application.
22..11 OOppeenn tthhee pprriinntteerr pprrooppeerrttiieess

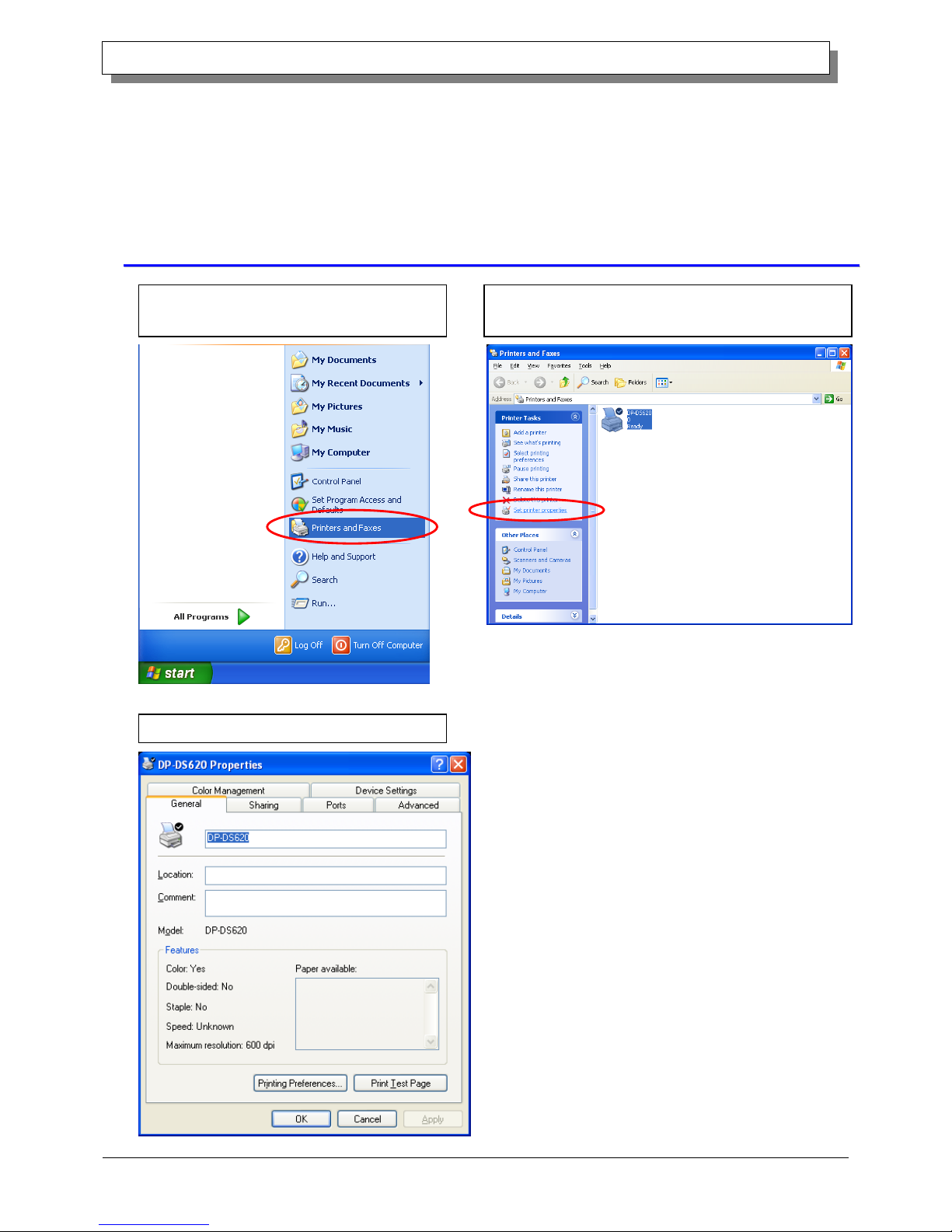

1. Click "Start", and then click All Programs to
open "Printers and Faxes".
2. Select the DP-DS620 printer, and then open the printer
properties.
3. The DP-DS620 Properties screen appears.
Page 14
11
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
22..22 PPrriinntt sseettttiinnggss ffuunnccttiioonnss
If you select the basic settings from the Properties screen, you can change various print settings.
2.2.1 Layout
Orientation
Set the print orientation to "Portrait" or "Landscape".
For details, refer to “2.6 Orientation ”.
Page Order

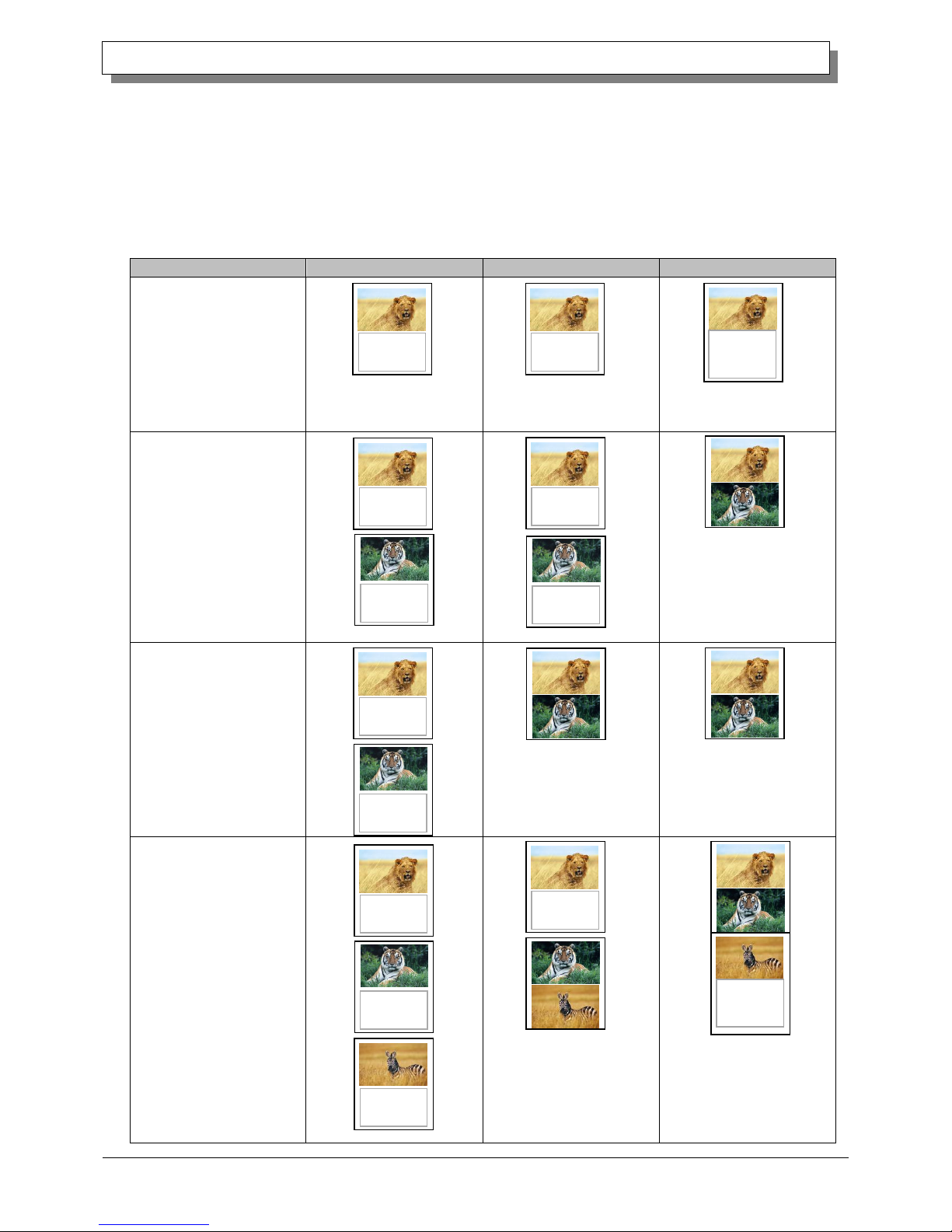

In the application, specify the order when multiple copies of an image are printed.
Example) Print order
Pages per Sheet
Set printing of the specified division size. In most situations, set “1”.
Example) Division size

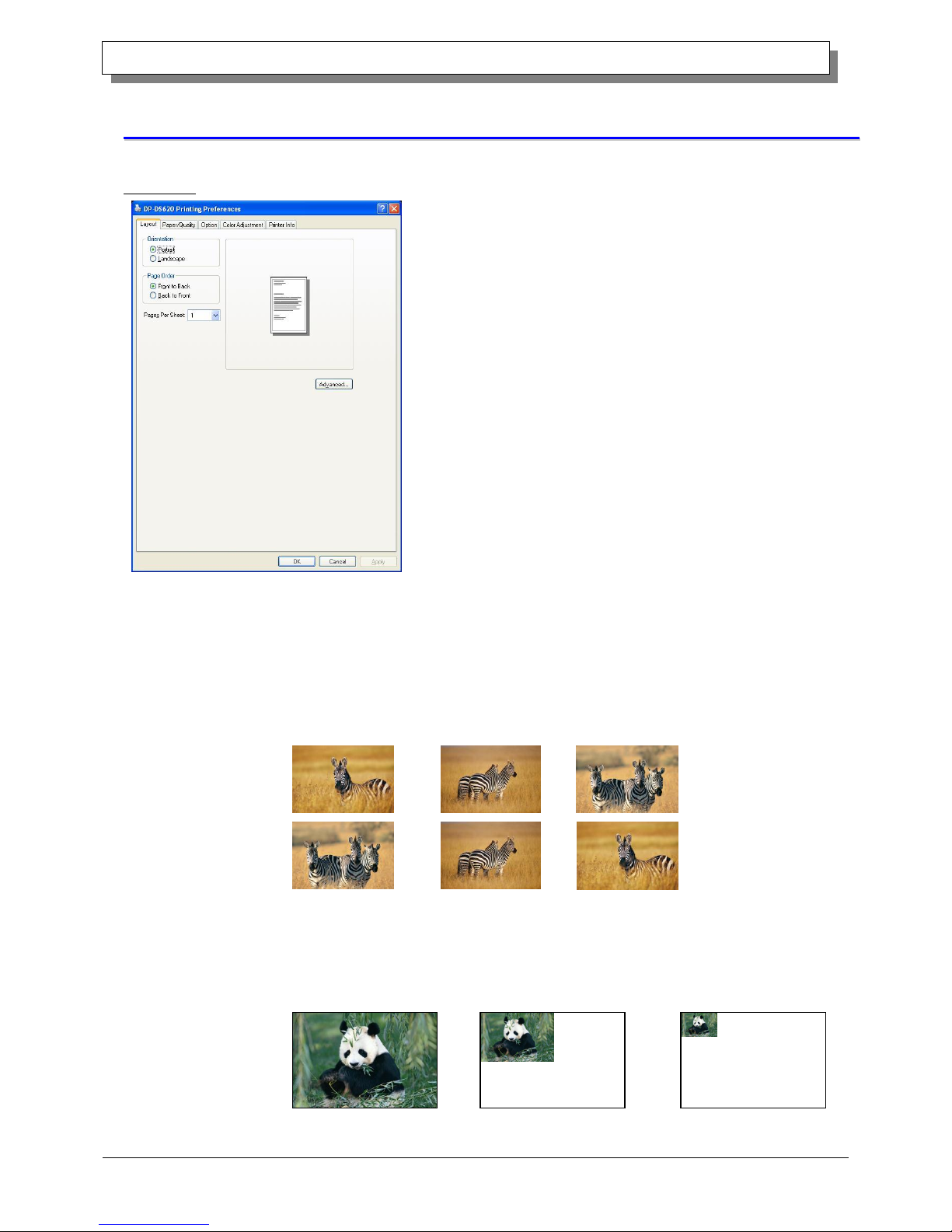

Figure 2.2.1 Layout tab
No.1
No.2
No.3
Front to Back
Back to Front
1 division
4 divisions
9 division
Page 15
12
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
2.2.2 Advanced options

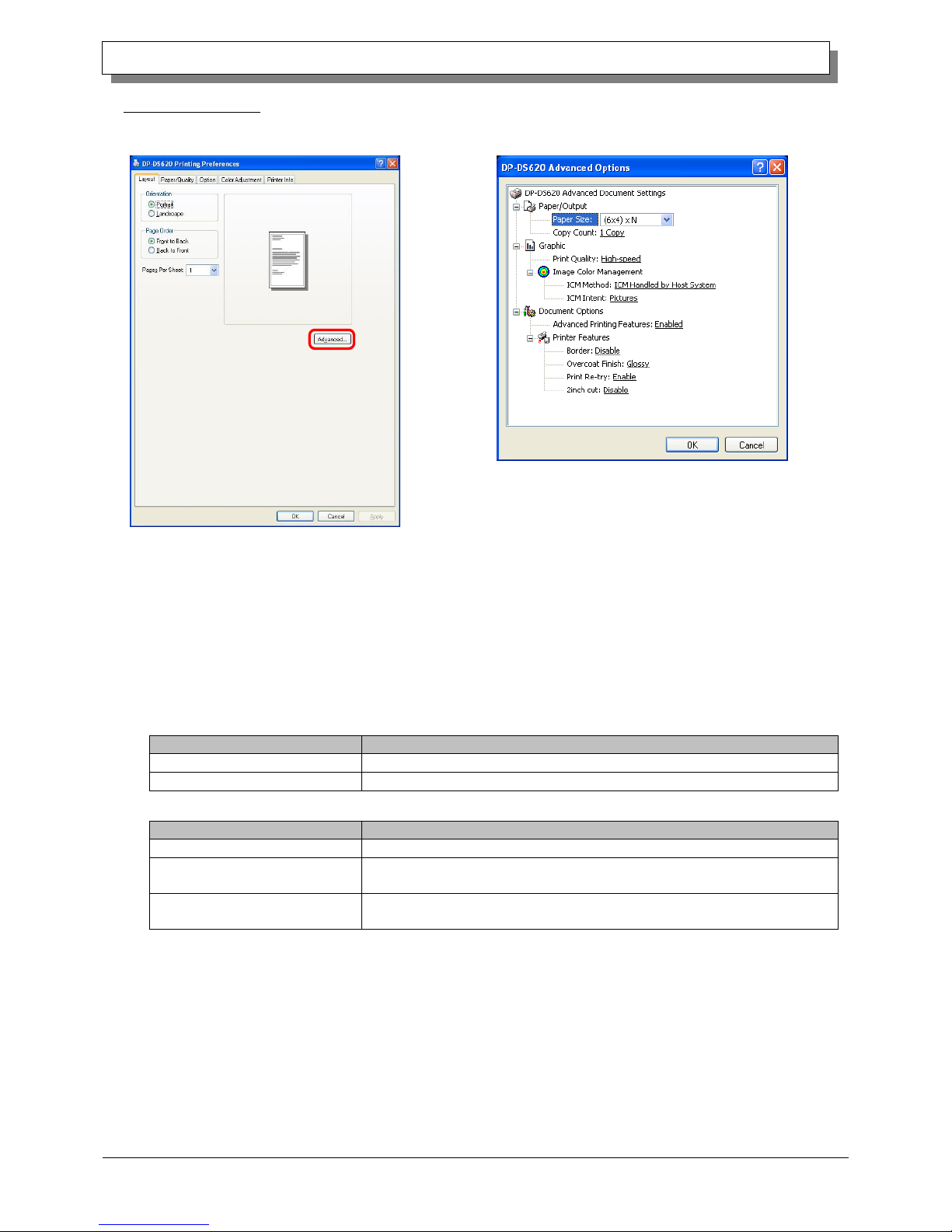

If you select "Advanced..." on the Layout tab, you can configure various advanced options.
Paper Size
Specify the paper size. Match the paper size with the size of the media set in the printer.
You can enable multiple layout settings by setting the paper size. See later sections for details.
Copy Count
You can specify the number of copies to be published for images.
Print Quality
Specify the resolution.
Print quality
Function
High-speed
Print using high speed mode
High-quality
Print using high quality mode
ICM Method
ICM Method
Function
ICM Disabled
Synchronized with "Color Adjustment Disabled" in the2.2.4 Option.
ICM Handled by Host System
Synchronized with "Color Adjustment ICM" in the 2.2.4 Option.
Manage colors using the driver.
ICM Handled by Printer
When this item has been selected, operation is the same as "ICM Handled by
Host System".
ICM Intent
Set the rendering method when using ICM. For the ICC profile, always set to “Picture”.
Do not use other settings.
Figure 2.2.2.2 Advanced options tab
Figure 2.2.2.1 Advanced settings
Page 16
13
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
Advanced Printing Features
Always set Enable. Do not use other settings.
Border
Synchronized with Border in the Option.
Overcoat Finish
Set the overcoat finish method for the surface of printed items from the following two types.
Overcoat Finish
Function
Glossy
Create an item with a glossy finish.
Matte
Create an item with a matte finish.
Print Re-try
Specify whether to print data in the printer buffer after a printer error has been cleared.
Print Re-try
Function
Disable
Clear the print data in the printer buffer when a printer error occurs.
You must send the cleared print data again after the error is cleared.
When you use an application with an error recovery function, select this option.
Enable
Save print data in the printer buffer when an error occurs.
The printing process is restarted from the saved data after the error is cleared.
Note that if the power is switched off, the data is not saved.
Depending on the content of the printer error, it may be necessary to restart the printer to clear the error. In such
cases, the print data in the printer buffer is cleared regardless of the Print Re-try setting.
The following section shows the operation for each Print Re-try setting by error.
Error content
When Print Re-try is disabled
When Print Re-try is enabled
Paper end
You must send the unprinted image
data again after the error is cleared.
The printing process is restarted from
the data saved in the printer buffer after
the error is cleared.
When the paper initialization operation
is to be carried out, printing occurs
afterwards.
Ribbon end
Cover open
Paper jam (*1)
Ribbon error (*1)
Paper setting error
Data error
Because the printer must be switched
on and off to clear the error, the print
data in the printer buffer is cleared
regardless of the Print Re-try setting.
After the printer has restarted, you must
send the unprinted image data again.
Because the printer must be switched
on and off to clear the error, the print
data in the printer buffer is cleared by
switching the printer off, even when the
Print Re-try setting is Enabled.
After the printer has restarted, you must
send the unprinted image data again.
Head voltage error
Head position error
Power supply fan stopped
Cutter error
Head temperature error
Media temperature error
RFID module error
System error
*1: After the printer stops due to an error, follow the user’s manual of the printer to eliminate the cause of the paper
or ribbon error.
2inch cut
Specify whether to cut paper into multiple sheets with a 2-inch length when you use a specified paper size.
2inch cut
Function
Disable
Cut at the normal size.
Enable
Cut at 2-inch lengths so that the 6 x 4 size becomes two sheets and the 6 x 8 size
becomes four sheets.
Page 17
14
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)

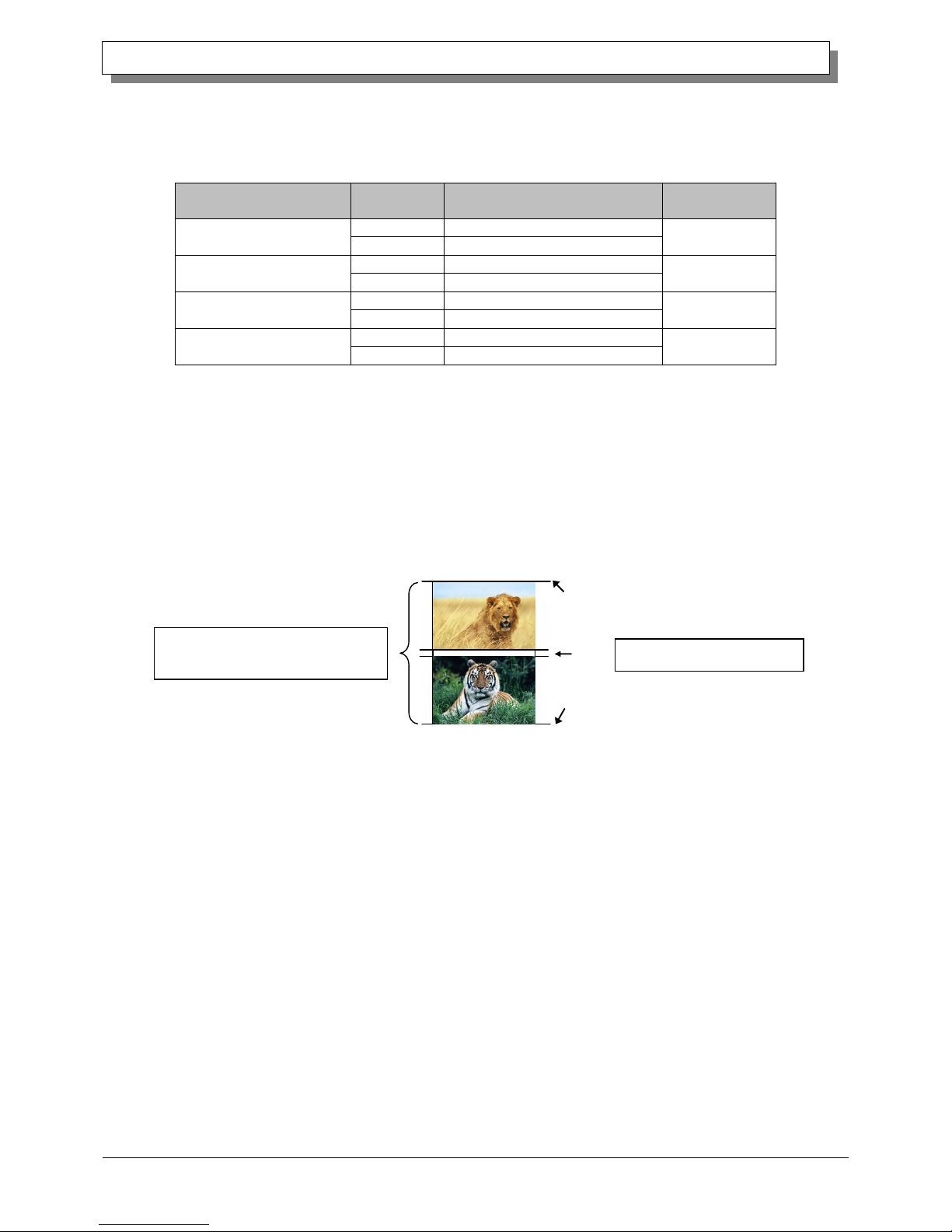

＜Multiple layout＞
When 5 x 7 or 6 x 8 media is used, you can use a two-picture layout. You can enable multiple layout settings by setting
the paper size of the printer driver. The following section shows the image sizes.
Layout settings
Driver paper size setting
Paper
direction
Paper size length x height (mm)
Media used
(5x3.5) x 2
(5x3.5) x N
Vertical
(131.1x 92.1) x 2
5x7
Horizontal
(92.1x131.1) x 2
PR (3.5x5) x 2
PR (3.5x5) x N
Vertical
(92.1x131.1) x 2
5x7
Horizontal
(131.1x 92.1) x 2
(6x4) x 2
(6x4) x N
Vertical
(156.1x105.0) x 2
6x8
Horizontal
(105.0x156.1) x 2
PR (4x6) x 2
PR (4x6) x N
Vertical
(105.0x156.1) x 2
6x8
Horizontal
(156.1x105.0) x 2
Multiple layout is carried out under the following conditions.
1. Set 5 x 7 or 6 x 8 size media in the printer.
2. Set the paper size of the printer driver to one of the abovementioned paper sizes.
3. From the application, send multiple images.
Note) Because they are carried out by the print job, multiple layout are carried out when there are multiple images in
a single job.
If you want to layout the same image, send the same number of images as the number-of-sheets setting.
The printer handles two pictures at one time and cuts the paper after it is ejected.
Same-size images on one sheet
Layout of 2 pictures: set x 2
Cut when paper is ejected
Page 18
15
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
＜Paper size (6x4) x N setting＞
If you set the paper size setting to (6 x 4) x N when printing 6 x 4 size to 6 x 8 size media, printing is optimized to
reduce consumption of the ribbon. Furthermore, if you set the paper size setting to (5x3.5) x N when printing 5 x 3.5
size to 5 x 7 size media, printing is similarly optimized to reduce consumption of the ribbon.
The above operation applies only to the DP-DS620. When (6x4)xN is selected with the DP-DS620 (A), printing is
performed the same as for (6x4)x2 without rewinding the ribbon. The same applies for (5x3.5)x2 even if (5x3.5)xN is
selected.
The following section shows the differences in ribbon consumption when (6x4), (6x4) x 2, or (6x4) x N is specified for
the paper size setting.
(6x4)
(6x4) x 2
(6x4) x N
When printing one sheet at
6 x 4 size once
*After printing, the ribbon is
rewound and adjusted to the next
print position.
When printing one sheet at
6 x 4 size twice
*After the first sheet is printed, the
ribbon is rewound, and the second
sheet is printed.
When printing two sheets
at 6 x 4 size once
*Two sheets are printed at the
same time in a multiple layout.
*Two sheets are printed at the
same time in a multiple layout.
When printing one 6 x 4
size sheet once, and then
printing two 6 x 4 size
sheets once
*For the second and third sheets,
two sheets are printed at the same
time in a multiple layout.
*After the first sheet is printed, the
ribbon is rewound, and the second
and following sheets are printed.
Furthermore, after the third sheet is
printed, the ribbon is rewound and
adjusted to the next print position.
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Used for
the next
printing
Used for
the next
printing
Page 19
16
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
＜Application usage example＞
This usage example uses Windows Explorer.
Step 1. In Windows Explorer, select two or more pictures.
Next, select "File", and then click "Print".
Step 2. Click "Printing Preferences".
Step 4. Set the paper size to the setting of the
multi-page layout.
Click OK twice to close the dialog boxes in
Step 4 and 3.
Step 6. Click "Next".
Step 3. Set the Orientation to "Portrait", and click "Advanced".
selection
Step 5. Click "Next".
Page 20
17
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
2.2.3 Paper/Quality
Color Set Color. Do not use Black & White.
2.2.4 Option
Border
Specify a border for printing. (Select the check box for a border.) Synchronized with Border Enable/Disable
in the Advanced settings.

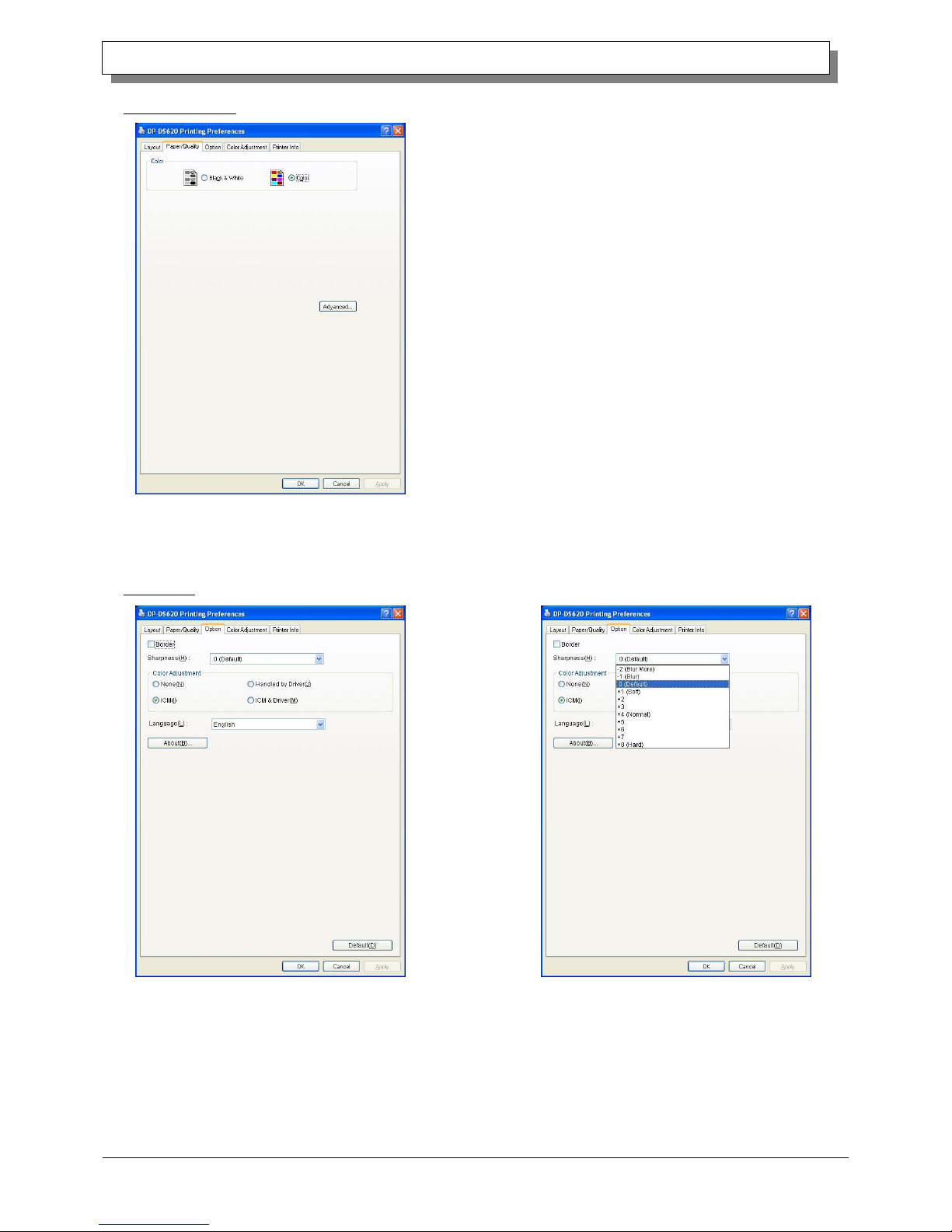

Figure 2.2.4.1 Option tab
Figure 2.2.4.2 Sharpness setting
Figure 2.2.3 Paper/Quality tab
Page 21
18
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
Sharpness
Process sharpness using one of the 11 stages (Figure 2.2.4.2). If the setting is “0 (Default)”, sharpness is not
processed.
Moving to the minus (-) side blurs the image and moving to the plus (+) side sharpens the image.
Color Adjustment
None
Synchronized with the ICM method in the Advanced settings. If this check box is selected, ICM is disabled,
the Color adjustment tab is also disabled, and the printer driver does not carry out color adjustment.
Handled by Driver
If this check box is selected, ICM is disabled, and the 2.2.5 Color Adjustment is enabled. The result is applied
to the adjustment values of the following items: Gamma, Brightness, Contrast, and Chroma.
ICM
Synchronized with the ICM method of the Advanced settings (ICM processing by host system). If this check box
is selected, the driver manages colors.
ICM & Driver
If this check box is selected, ICM (color management) and the 2.2.5 Color Adjustment are enabled.
Language
Change the display language for the following items: Advanced options-Printer functions, Option, Color Adjustment,
and Printer Info.
The selected language is enabled the next time the print settings are displayed.
[Available languages]
・Japanese
・English (US)
・French (France)
・German (Germany)
・Russian (Russia)
・Spanish (Spain)
・Korean
・Chinese (People's Republic of China)
・Chinese (Taiwan)
When your operating system environment corresponds with one of the above settings, the default display language
is the language of the corresponding country.
Furthermore, when your operating system environment does not correspond with one of the above settings,
the default display language is English.
To use a language different from that of your operating system, you must install the following font for the
corresponding language.
Language
Font
Japanese
MS UI Gothic
English (US)
Arial
French (France)
Arial
German (Germany)
Arial
Russian (Russia)
Arial
Spanish (Spain)
Arial
Korean
Gulim（굴림）
Chinese (People's Republic of China)
SimSun（宋体）
Chinese (Taiwan)
MingLiU（新細明體）
About
Show the driver version.
Page 22
19
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
2.2.5 Color Adjustment
If the Handheld by Driver Check box is selected in the 2.2.4 Option, the adjustment values of the Color Adjustment tab
are applied to the image.
The following section shows the setting ranges on the Color Adjustment tab.
Adjustment item
Adjustment value
Gamma
-100 (dark) to 100 (bright) (“0” results in no adjustment, γ2.0 to 0.5)
Adjust the density of the half-tone section of the image. Increasing the gamma value brightens
the half-tone section.
Sync check box
ON: Set RGB to same value.
OFF: Set RGB to different value.
Brightness
-100 (dark) to 100 (bright) (“0” results in no adjustment)
Adjust the brightness of the image. Increasing the brightness value brightens the entire image.
Sync check box
ON: Set RGB to same value.
OFF: Set RGB to different value.
Contrast
-100 (weak) to 100 (strong) (“0” results in no adjustment)
Adjust the contrast of the image. Increasing the contrast value increases the difference of
brightness and darkness.
Sync check box
ON: Set RGB to same value.
OFF: Set RGB to different value.
Chroma
-100 (weak) to 100 (strong) (“0” results in no adjustment)
Adjust the chroma of the image.

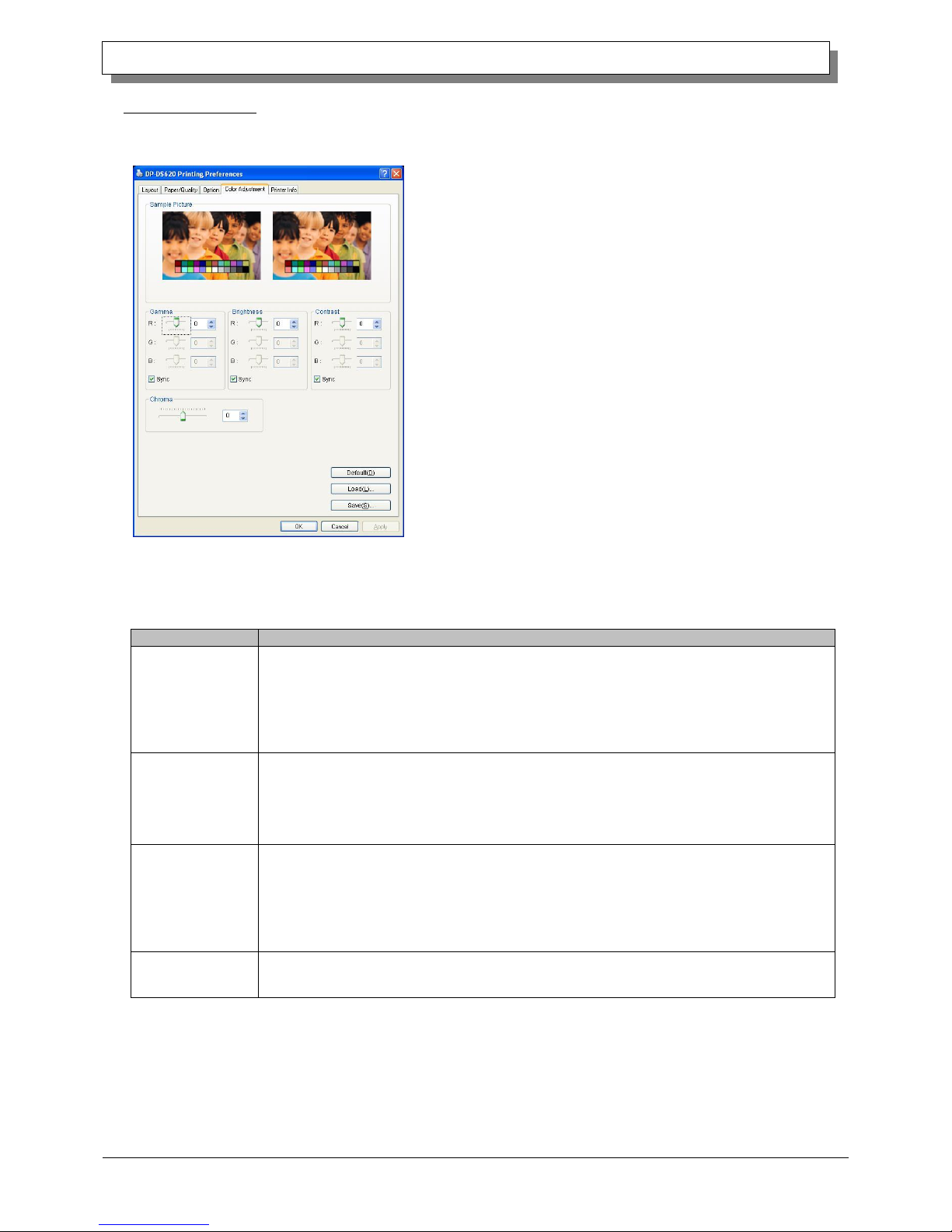

Figure 2.2.5 Color Adjustment tab
Page 23
20
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
2.2.6 Printer Information
View the printer information.
The following section shows the information displayed in the Printer Info tab.
Display item
Display details
Media Info
This area shows, for example, the size and remaining number of printable sheets for the
ribbon media in the printer.
* Media information is not displayed when a media type not supported by the printer has
been loaded. (Figure 2.2.6.2)
Printer Status
Displays the status of the printer using icons and characters.
Display icon
(Color)
Display characters
Status/Response
(Green)
Waiting
Printing is possible.
(Blue)
Printing
The printer is printing.
(Yellow)
Door open
Front door is open.
Close the front door.
(Yellow)
Ribbon end
No ribbon remains.
Load new media.
(Replace the paper and ribbon as a set.)
(Yellow)
Paper end
No paper remains.
Load new media.
(Replace the paper and ribbon as a set.)

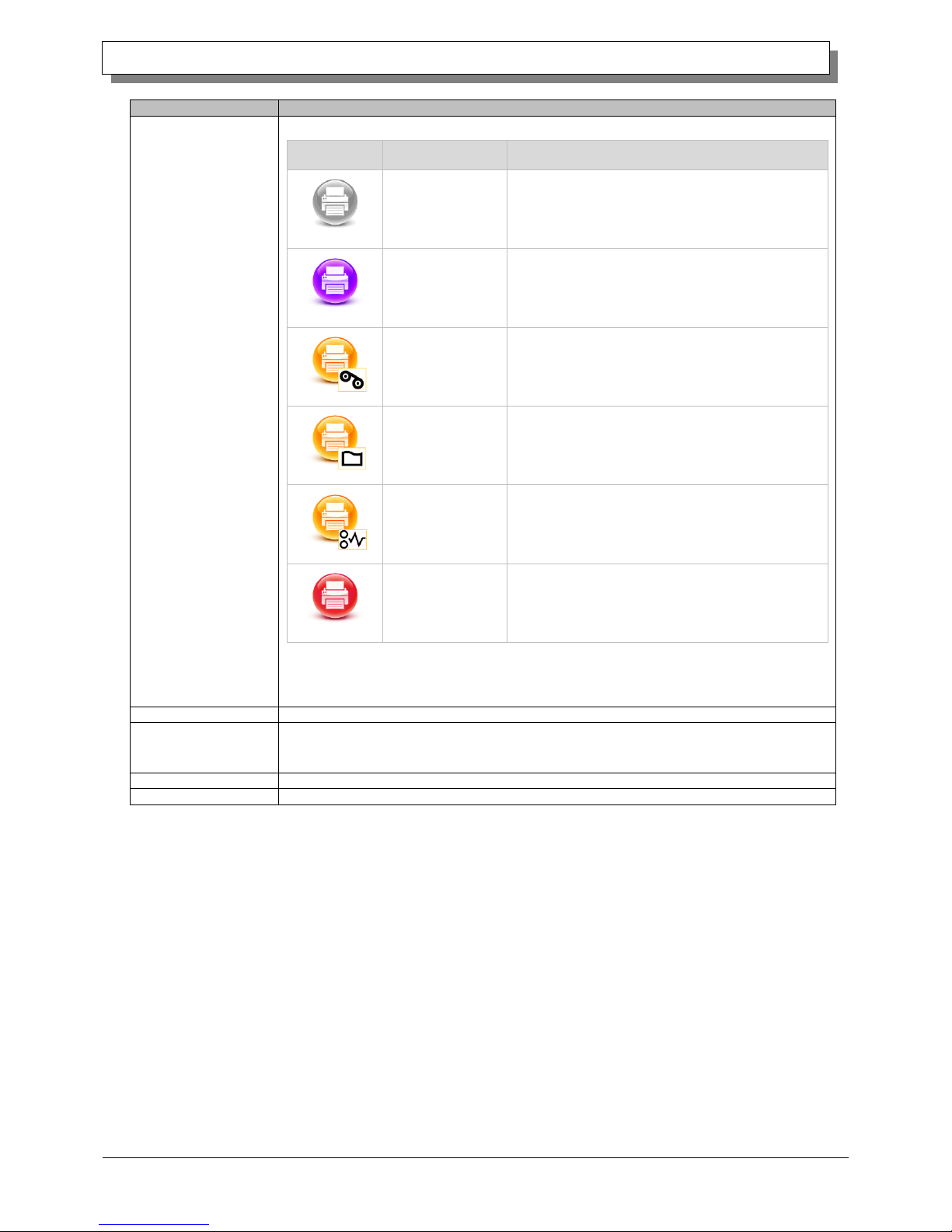

Figure 2.2.6.1 Printer Info tab
Figure 2.2.6.2 Display when incorrect media is loaded
Page 24
21
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
Display item
Display details
* A warning message is displayed when a media type not supported by the printer has been
loaded.(Figure 2.2.6.2)
Display icon
(Color)
Display characters
Status/Response
(Gray)
Offline
The printer cannot be recognized.
Connect the printer and computer, and then turn on
the power.
(Purple)
Cooling head
The head is being cooled.
Please wait a while. Printing will resume
automatically.
(Orange)
Ribbon error
The ribbon is not set correctly.
Reload the ribbon properly.
(Orange)
Paper size
setting error
The printer settings and size of the installed ribbon
do not match.
Check the paper size setting and ribbon size.
(Orange)
Paper jam
A paper jam was detected.
Remove the paper and reload it properly.
(Red)
System error
System error.
Restart the printer and computer. If the printer does
not recover after the restart, contact the service
center.
Total Count
Total count of printed sheets (printing other than 6x4 or 5x3.5 size will count as two sheets).
Firmware Version
Version of the control program of the printer. xx.xx indicates the version.
・DS620A xx.xx (For the United States)
・DS620 xx.xx (For other countries)
Serial No.
Serial number of the printer.
Color Control Data
Printer color control data.
Page 25
22
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
22..33 DDeeffaauulltt vvaalluueess ffoorr sseettttiinnggss
The following section shows the default values of the settings (at installation). If the settings have been changed, and
the printer driver no longer operates normally, return to the default values shown below.
Note) Depending on the service pack of your operating system or your usage environment, the default values at
installation may differ from those in the chart below.
Tab
Setting
Value
Layout
Orientation
Portrait
Page Order
Front to Back
Pages Per Sheet
1
Paper/Quality
Color
Color
Option
Border
Disable
Sharpness
0 (Default)
Color Adjustment
ICM
Language setting
English
Color Adjustment
Gamma
0
Brightness
0
Contrast
0
Chroma
0
Advanced
settings
(In the Layout tab,
click Advanced...)
Paper/Output
Paper Size
(6x4)x N
Copy Count
1
Graphic
Print Quality
High-speed
color
management
ICM Method
ICM Handled by Host
System
ICM Intent
Pictures
Document
options
Advanced Printing Features
Enable
Printer function
Border
Disable
Overcoat Finish
Glossy
Print Re-try
Enable
2inch cut
Disable
Chart 2.3 Default print settings
Page 26
23
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
22..44 CCoolloorr mmaannaaggeemmeenntt

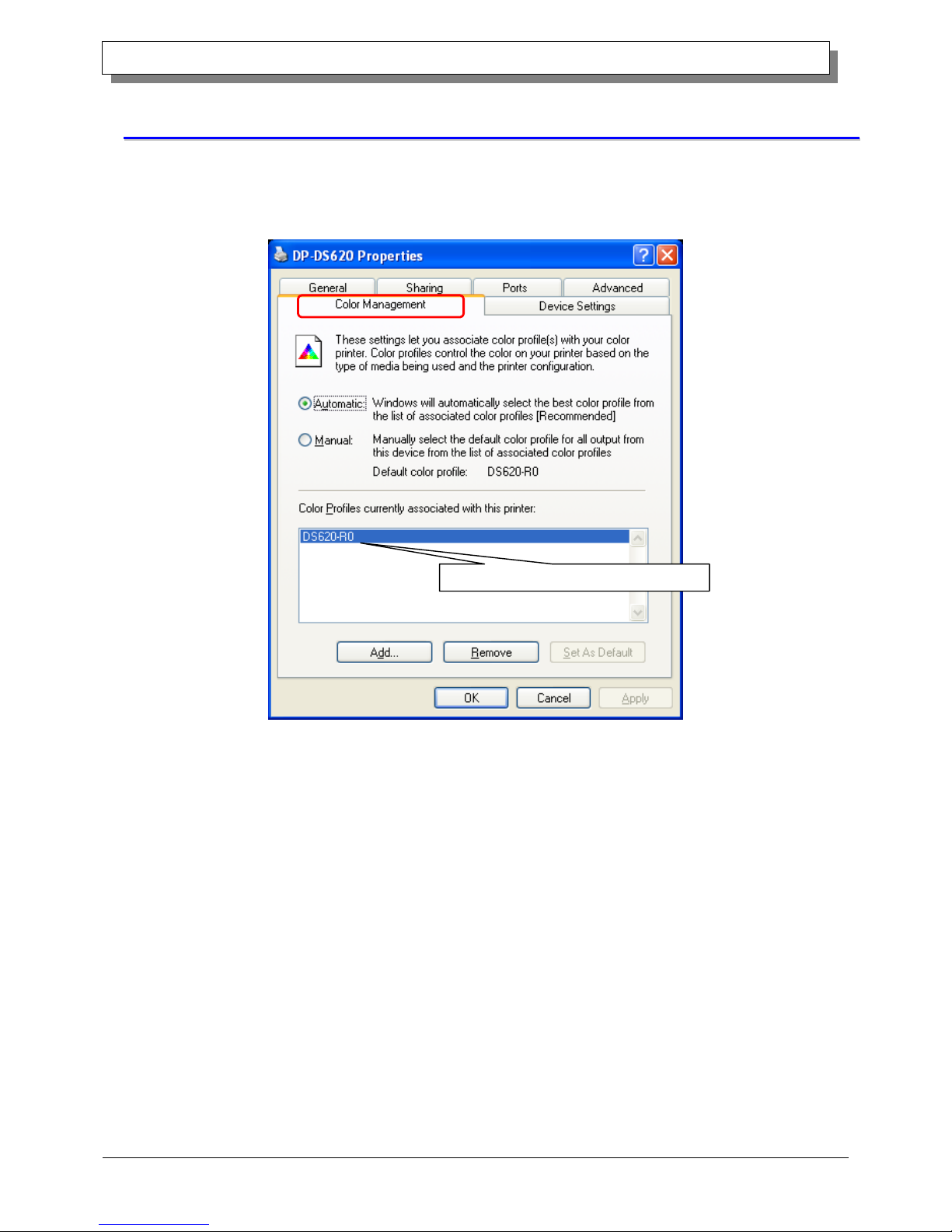

Use Color management to specify the color profile. The installer associates "DS620-R0" by default.
Figure 2.4 Color management tab
Step 1. From the Printer Properties, select the Color management tab.
File that the installer associates
Page 27
24
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
22..55 PPrriinntt AArreeaa
The following section shows the image sizes and numbers of dots generated by the paper size setting of the driver.
Paper size
Orientation
Image size
(width x height)
Number of image dots
(width x height)
(inch)
(mm)
High-speed
(300x300 dpi)
High-quality
(600x600 dpi)*1
(5x3.5)
(5x3.5) x 2
(5x3.5) x N
Portrait
5” x 3.5”
131.1 x 92.1
1548 x 1088
3096 x 2176
Landscape
3.5” x 5”
92.1 x 131.1
1088 x 1548
2176 x 3096
(5x5)
Portrait
5” x 5”
131,1 x 130,4
1548 x 1540
3096 x 3080
Landscape
5” x 5”
130,4 x 131,1
1540 x 1548
3080 x 3096
(6x4)
(6x4) x 2
(6x4) x N
Portrait
6” x 4”
156.1 x 105.0
1844 x 1240
3688 x 2480
Landscape
4” x 6”
105.0 x 156.1
1240 x 1844
2480 x 3688
(6x6)
Portrait
6” x 6”
156.1 x 155.4
1844 x 1836
3688 x 3672
Landscape
6” x 6”
155.4 x 156.1
1836 x 1844
3672 x 3688
(5x7)
Portrait
5” x 7”
131.1 x 181.0
1548 x 2138
3096 x 4276
Landscape
7” x 5”
181.0 x 131.1
2138 x 1548
4276 x 3096
(6x8)
Portrait
6” x 8”
156.1 x 206.2
1844 x 2436
3688 x 4872
Landscape
8” x 6”
206.2 x 156.1
2436 x 1844
4872 x 3688
PR (3.5 x 5)
PR (3.5x5) x 2
PR (3.5x5) x N
Portrait
3.5” x 5”
92.1 x 131.1
1088 x 1548
2176 x 3096
Landscape
5” x 3.5”
131.1 x 92.1
1548 x 1088
3096 x 2176
PR (4x6)
PR (4x6) x 2
PR (4x6) x N
Portrait
4” x 6”
105.0 x 156.1
1240 x 1844
2480 x 3688
Landscape
6” x 4”
156.1 x 105.0
1844 x 1240
3688 x 2480
*1: Convert to 300 x 600 dpi size within the driver, and then send to the printer.
Page 28
25
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
22..66 OOrriieennttaattiioonn

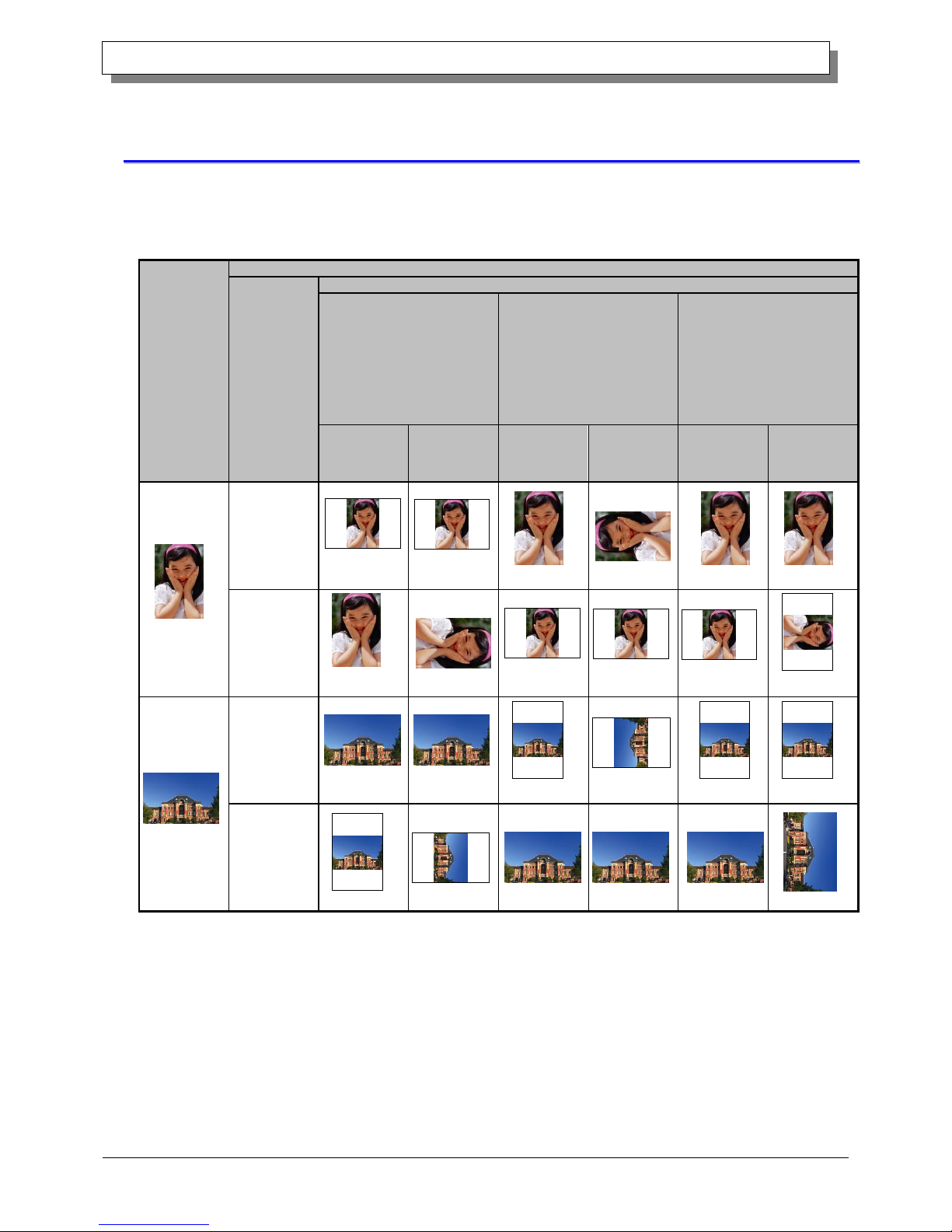

The following chart shows the relationship of images generated by an application and printed items (output direction)
according to the orientation setting. Generated images are not the original image rotated by the application but are
zoomed to fit within the sizes is shown in “2.5 Print Area".
Original
Driver setting
Orientation
Paper setting
(5x3.5)
(5x3.5)x 2
(5x3.5) x N
(5x5)
(6x4)
(6x4) x 2
(6x4) x N
(6x6)
PR (3.5x5)
PR (3.5x5) x 2
PR (3.5x5) x N
PR (4x6)
PR (4x6) x 2
PR (4x6) x N
(5x7)
(6x8)
Generated
Printed item
(Output
orientation ↓)
Generated
Printed item
(Output
orientation ↓)
Generated
Printed item
(Output
orientation ↓)
Portrait
Landscape
Portrait
Landscape
Page 29
26
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
CChhaapptteerr 33 UUppddaattee tthhee ddrriivveerr
As when performing the installation, log in as an administrator before carrying out this operation.

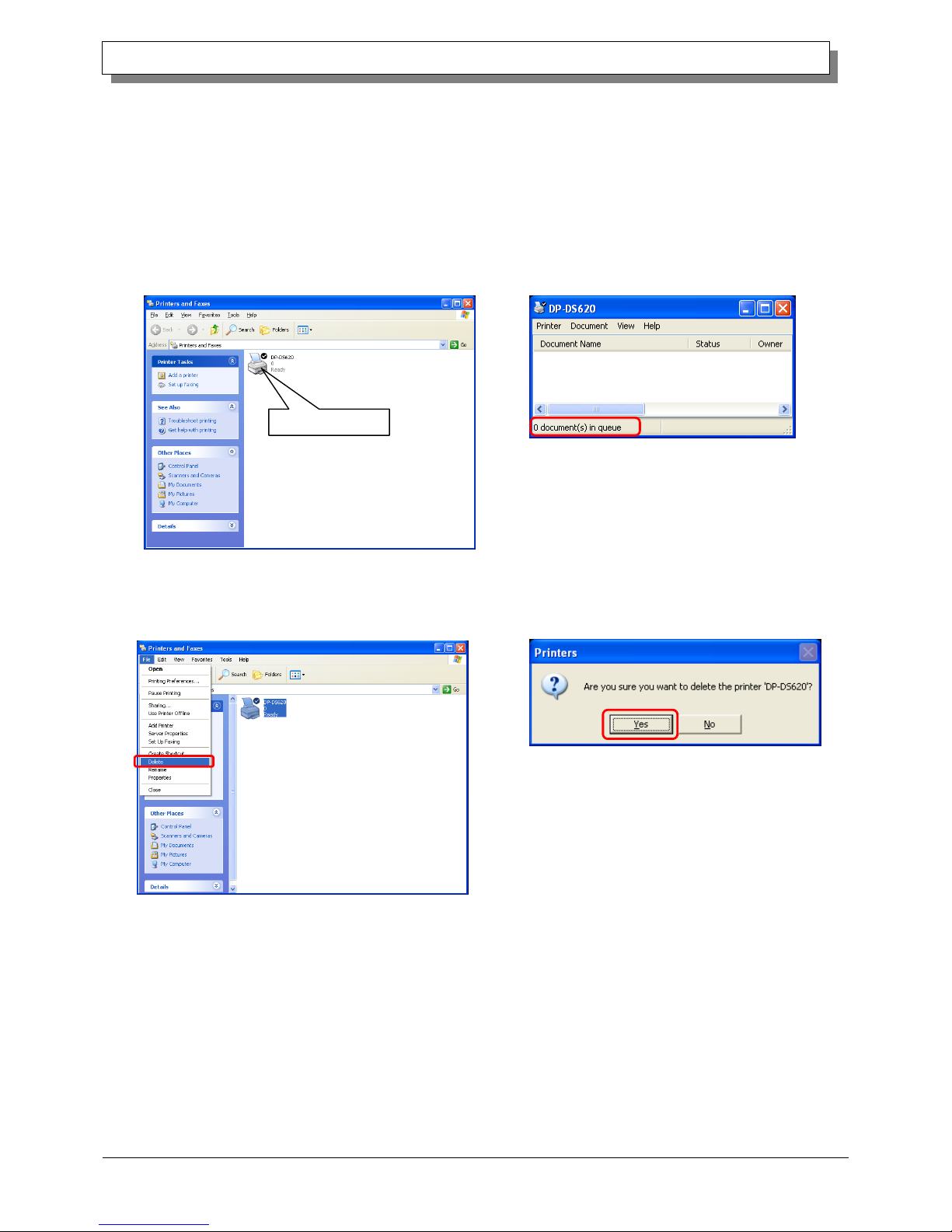

1. Delete the driver
1) Before deleting the printer driver, close all applications. In addition, double click the icon of the printer you want to
delete, make sure that there are no documents in the queue, and then start the deletion of the driver.
2) From the Printers and Faxes screen, select the DP-DS620 printer. Click File, and then click Delete.
When asked if you want to delete the printer “DP-DS 620”, select Yes to delete the printer.
Double click
Page 30
27
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)

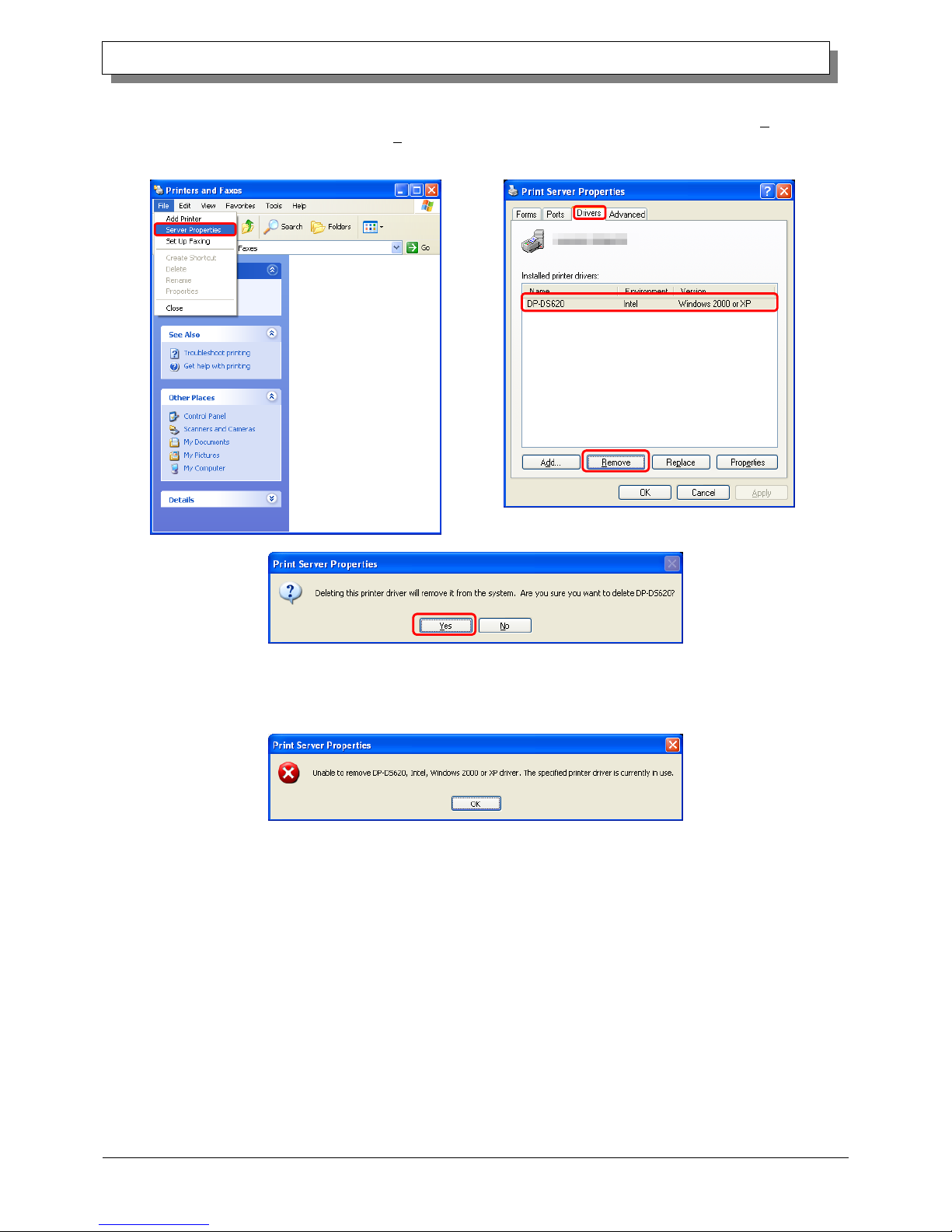

3) After the DP-DS620 printer has been deleted, similarly select File, and then Server Properties. The Print Server
Properties dialog box appears. Select the Driver tab. If you select the DP-DS620 driver and then select "Remove", a
confirmation screen appears. If you click "Yes", the driver is deleted.
After deletion, restart the computer.
Note) If the following error message appears when you try to delete the printer driver, restart the computer.
After the computer restarts, try to delete the printer driver again.
Page 31
28
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)

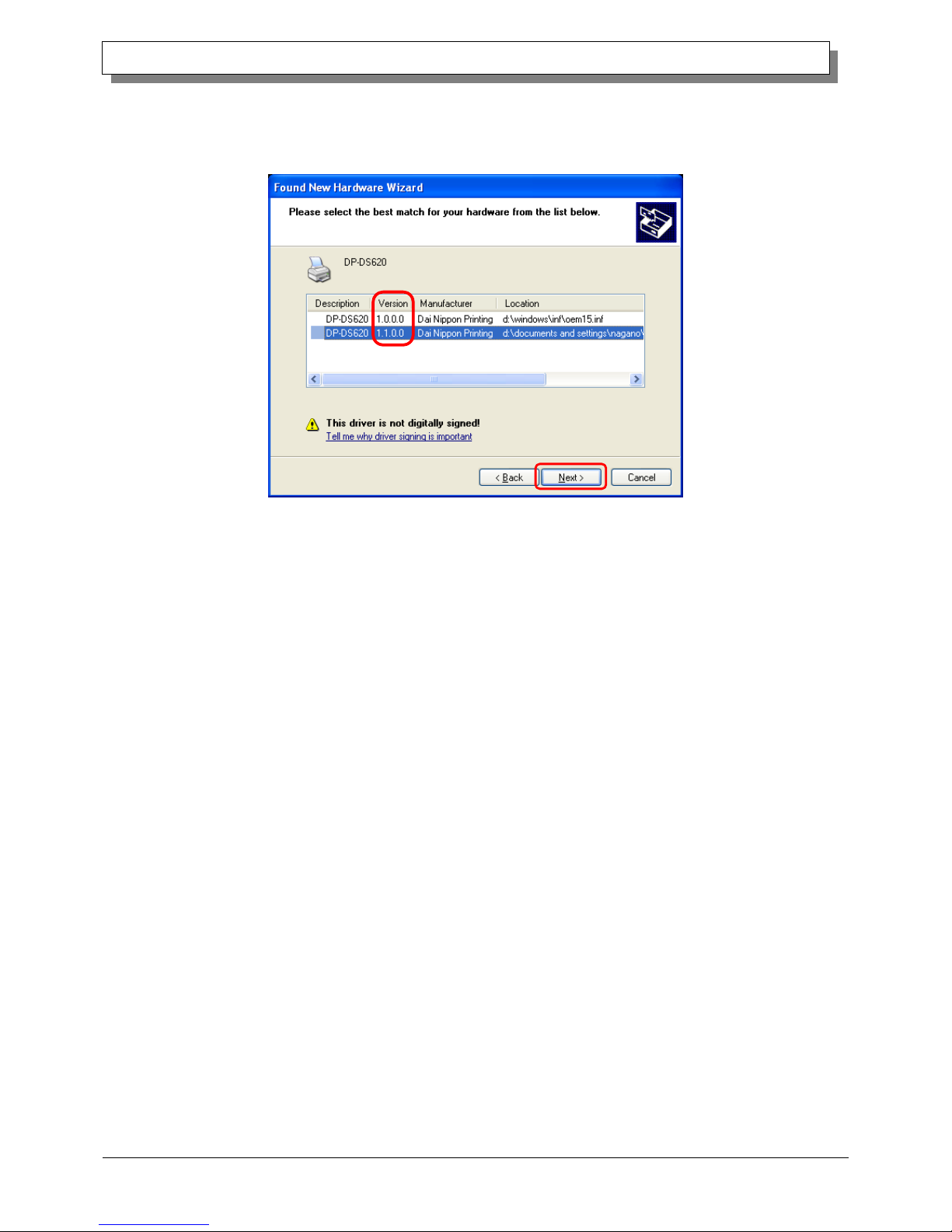

2. Install an upgrade for the printer driver
After deleting the printer and the printer driver, install the new printer driver. For the installation procedure,
see “Chapter 1 Installation“. If the following figure appears during installation, check the Version section,
select the most recent version, and then click Next.
3. Restart the computer
After the installation of the printer driver is complete, always restart the computer.
(Do not print just after installation. Always restart the computer once.)
Page 32
29
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
CChhaapptteerr 44 DDeelleettee tthhee ddrriivveerr
For the procedure to delete the printer driver, see Chapter 3, “1. Delete the driver”.
Page 33
30
Dai Nippon Printing Co., Ltd.
[DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows XP)
Loading...
