DNF Controls USP3-16-KS, USP3-8-KS User Manual

19770 Bahama St.
Northridge, CA. 91324
V: 818.898. 3 380
F: 818.898.3360
[e-mail]
www.dnfcontrols.com

UNIVERSAL SWITCH PANEL

USP3-16-KS
USP3-8-KS

User Manual

USP3-KEYSERVER User Manual 1 OF 12

TABLE OF CONTENTS

EVISION HISTORY ................................................................................................. 2

R

1. USP-KEYSERVER DESCRIPTION ......................................................................... 3

2. G

ETTING STARTED…… ...................................................................................... 4

. SET THE IP ADDRESS, SUBNET MASK, AND GATEWAY ............................ 4

A

B. RESET CONFIGURATION TO FACTORY DEFAULTS ................................... 6

C. F

IRMWARE UPGRADES ........................................................................... 6

3. SPECIFICATIONS ............................................................................................... 7

RONT & REAR VIEWS ..................................................................................... 9

4. F

5. GPI WIRING DIAGRAM ................................................................................... 10

6. GPO WIRING DIAGRAM ................................................................................. 10

7. CONNECTOR PINOUT DIAGRAM .................................................................... 11

DNF CONTROLS LIMITED WARRANTY ............................................................ 12

8.

REVISION HISTORY

112108 Original

081517 Updated for USP3.

USP3-KEYSERVER User Manual 2 OF 12

1. USP3-KEYSERVER DESCRIPTION

The USP3-Keyserver is designed to be controlled by a 3rd party. Its Keyserver Control Protocol provides
complete control over the Universal Switch Panel configuration and operation. The USP3 is configured
as the server and the 3rd party is configured as the client.

The configuration and operation associated with the standard USP have removed. Also, most of the
configuration web pages associated with the standard USP have been removed.

The USP3 will accept a maximum of two TCP/IP connections and 2 HTTP connections. The USP3 will
supports only 100base-T speeds. The client is be responsible for initiating a connection to the USP3 and
reconnecting, in the event of a loss of connection.

Each LCD keyswitch may be remotely configured with text and tally color. In the case of two clients
connected to one USP3, all key presses will be directed to the client that configured the switch. In the
event that two clients configure the same switch, the last received configuration command will
determine the switch’s configuration.

When multiple clients are connected to the USP3, both may attempt to control the same keys causing
intermittent operation from the client’s point of view. To prevent this from happening the following
rules have been implemented:

The Client connected to Port 23 may control Keys 1 - 8 at all time. If no Client is connected to Port 24,
the Port 23 Client may control Keys 1 – 16.

The Client connected to Port 24 may only control Keys 8 – 16 regardless of the Port 23 connection
status.

Please refer to the Keyserver Control Protocol documentation for detailed control information.

USP3-KEYSERVER User Manual 3 OF 12

2. GETTING STARTED……

The Universal Switch Panel is configured using an off-the-shelf web browser such as Internet
Explorer, Netscape, Fire Fox, or other commonly available browser. Using a web browser running
on a computer, enter the USP’s IP address to connect to the USP’s web server to view and modify
configuration web pages.

The default IP address is: 192.168.10.217

The default Gateway is: 0.0.0.0

The default Mask is: 255.255.255.0

Home Page

A. SET THE IP ADDRESS, SUBNET MASK, AND GATEWAY

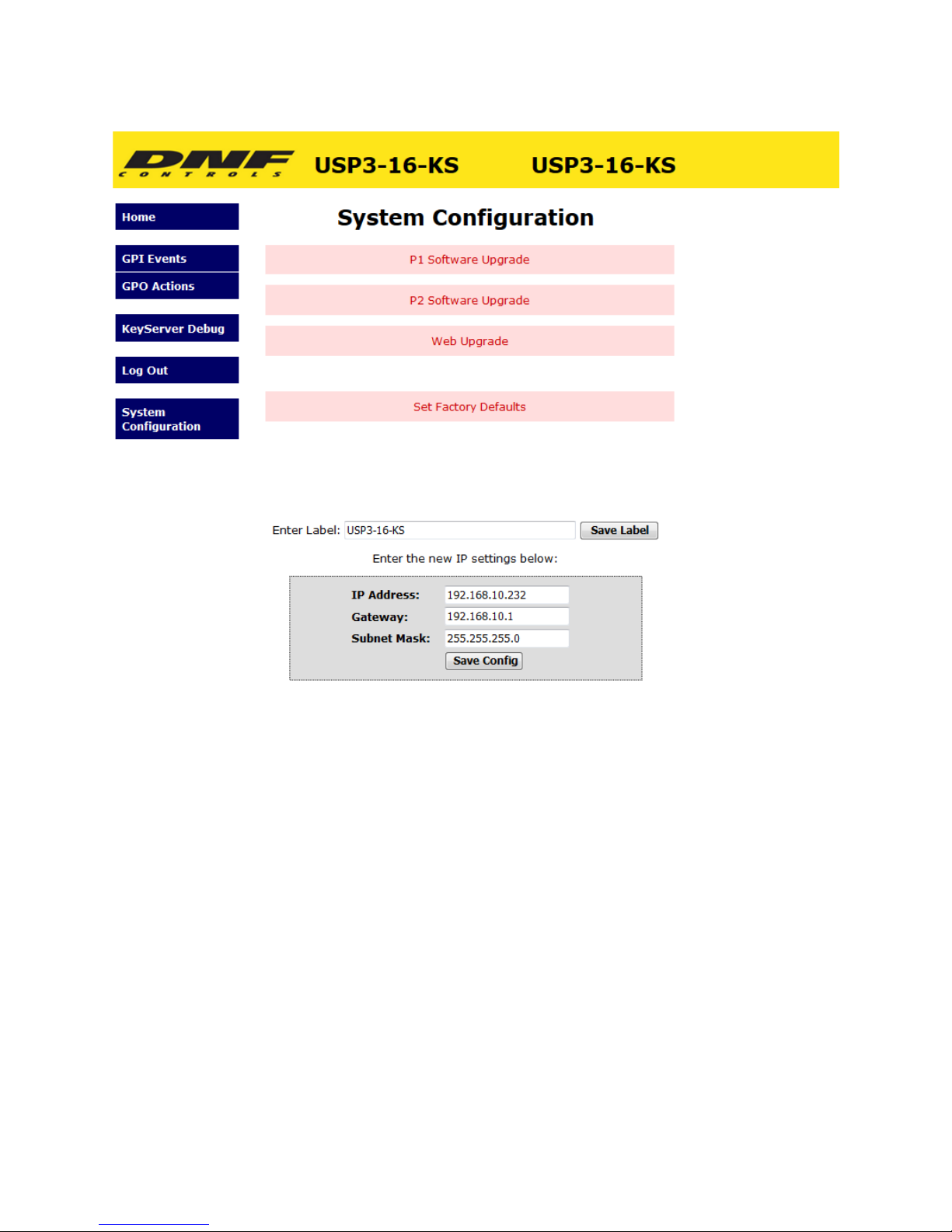

Use the SYSTEM CONFIGURATION WEB PAGE to change the IP Address, Subnet Mask, and Gateway
Address.

1) LOG ON

a) From the Home page, click on the Log In link.
b) Click in the User Name field and enter the user name, “dnfuser”, using all lowercase letters.

Do not enter the double quotes (“ “).

c) Click in the Password field and enter the password, “controls”, using all lowercase letters. Do

not enter the double quotes (“ “).

d) Click on the Log In button to complete the authentication (log on) process.

OR

Click on any other page button to exit without saving changes.

USP3-KEYSERVER User Manual 4 OF 12
