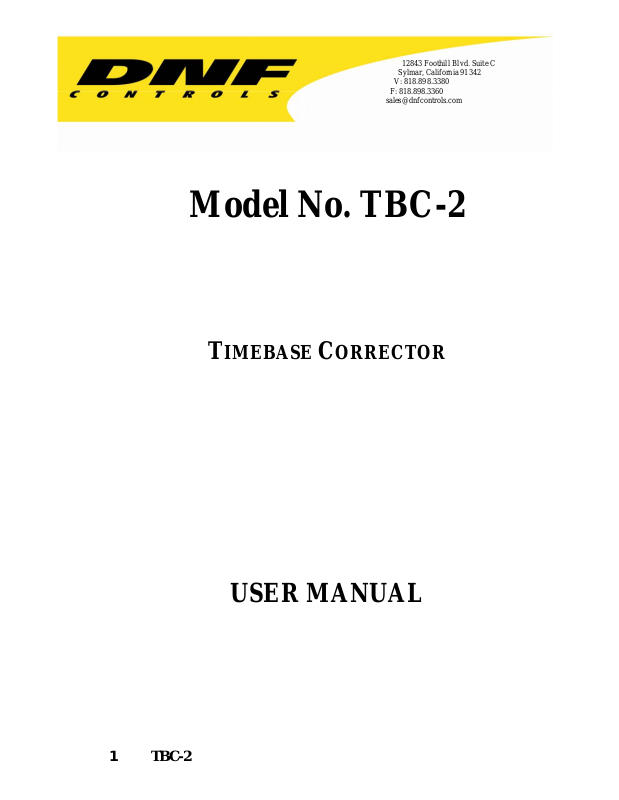

DNF Controls TBC-2 User Manual

12843 Foothill Blvd. Suite C
Sylmar, California 91342
V: 818.898.3380
F: 818.898.3360
[e-mail]

Model No. TBC-2

TIMEBASE CORRECTOR

USER MANUAL

1 TBC-2

Table of Contents

1. REVISION HISTORY 3

2. DESCRIPTION 3

3. INSTALLATION 4

4. ADJUSTMENTS 5

5. H

7. SPECIFICATIONS 5

8. PANASONIC

PIN ASSIGNMENTS & FRONT/REAR PANEL 6

9. JVC 7

PIN ASSIGNMENTS & FRONT/REAR PANEL 7

10. SONY 8

PIN ASSIGNMENTS & FRONT/REAR PANEL 8

11. DNF

SYNC AND SUBCARRIER ADJUSTMENTS 5

DVCPRO 6

CONTROLS LIMITED WARRANTY 9

Manual Version ……………………………. 1.1 010804

Document No. …….………… TBC-2_User_Manual.doc

2 TBC-2

1. REVISION HISTORY

010804 Rev. 1.1 Company header information revised.
Added DNF Controls Limited Warranty.
Reformatted.

2. DESCRIPTION

The TBC 2 is designed to control the built-in time base correctors in the JVC, Panasonic and Sony
VTRs. The TBC 2 controls the basic TBC adjustments:

Hue (Phase)
Chroma (Color)
Video Levels
Set-Up (Black)
(Front Panel with knob adjust and bypass switch)

Sync Phase
Sub Carrier Phase Coarse
Sub Carrier Phase Fine
(Front Panel with inset screwdriver adjust)

Note: Controls varying slightly from brand to brand.

3 TBC-2

3. INSTALLATION

Connect one end of a DB15 cable to the TBC 2. Connect the other end of the cable to the DB 15
on the VTR to be controlled. Identified as “TBC Remote” or “External Control.” Because the
TBC Remote connector has power on its pins, cabling should be done only with the VTR power
switch turned off. Once the TBC 2 panel is securely connected to the VTR, power may be safely
turned on.

Installation is complete.

CONNECTION DIAGRAM

4 TBC-2

4. ADJUSTMENTS

Each control is clearly labeled as to its function. Each control may be adjusted over a wide range.
Each control may be switched in or out by using the toggle switch located below the control. The
out position set that function to unity gain, that is, as set within the VTR. The in position enables
the associated control.

Video (SetUp) Level Adjust to eliminate any deviation

Video Level Adjust to 100 IRE.

Chroma Level Adjust so that the specified level is obtain ed.

Hue Adjust so that the vector waveform meets the VTR specifications.

5. H SYNC AND SUBCARRIER ADJUSTMENTS

These controls are inset screwdriver adjustments. These adjustments are best made using a
waveform/vectorscope and good video alignment practice by trained personnel only. Consult
the VTR operator/s or service manual for the correct procedure.

6. Y/C

The Y/C is best adjusted by using color bars. Adjust the control for minimal misalignment of the
luminance (Y) and chrominance details of your test image. Note: only Sony uses the Y/C control.

7. SPECIFICATIONS

2 TBC Controllers in 1 RU housing.

Video Level Range: +/- 35 IRE (78 IRE Normal)
Setup Level Range: +/- 7.5 IRE (7.5 IRE Normal)
Chroma Level Range:+/- 3dB (+/- 20 IRE)
Hue Phase Range: +/- 22.5 Degrees

Subcarrier Phase: +/- 360 Degrees p-p
Y/C Delay Range: +/- 100 nS
Sync Phase: -1 to +3 uS

5 TBC-2

8. PANASONIC DVCPRO

PIN ASSIGNMENTS & FRONT/REAR PANEL

6 TBC-2

9. JVC

PIN ASSIGNMENTS & FRONT/REAR PANEL

7 TBC-2

10. SONY

PIN ASSIGNMENTS & FRONT/REAR PANEL

8 TBC-2

11. DNF CONTROLS LIMITED WARRANTY

DNF Controls warrants its product to be free from defects in material and workmanship for a period of one
(1) year from the date of sale to the original purchaser from DNF Controls.

In order to enforce the rights under this warranty, the customer must first contact DNF’s Customer Support
Department to afford the opportunity of identifying and fixing the pr oblem without sending the unit in for
repair. If DNF’s Customer Support Department cannot fix the problem, the customer will be issued a
Returned Merchandise Authorization number (RMA). The customer will then ship the defective product
prepaid to DNF Controls with the RMA number clearly indicated on the customer’s shipping document.
The merchandise is to be shipped to:

DNF Controls
12843 Foothill Blvd., Suite C
Sylmar, CA 91342
USA

Failure to obtain a proper RMA number prior to returning the product may result in the return not being
accepted, or in a charge for the required repair.

DNF Controls, at its option, will repair or replace the defective unit. DNF Controls will return the unit
prepaid to the customer. The method of shipment is at the discretion of DNF Controls, principally UPS
Ground for shipments within the United States of America. Shipments to international customers will be
sent via air. Should a customer require the product to be returned in a more expeditious manner, the return
shipment will be billed to their freight account.

This warranty will be considered null and void if accident, misuse, abuse, improper line voltage, fire, water,
lightning or other acts of God damaged the product. All repair parts are to be supplied by DNF Controls,
either directly or through its authorized dealer network. Similarly, any repair work not performed by either
DNF Controls or its authorized dealer may void the warranty.

After the warranty period has expired, DNF Controls offers repair services at prices listed in the DNF
Controls Price List. DNF Controls reserves the right to refuse repair of any unit outside the warranty
period that is deemed non-repairable.

DNF Controls shall not be liable for direct, indirect, incidental, consequential or other types of damage
resulting from the use of the product.

# # #
