12843 Foothill Blvd. Suite C
Sylmar, California 91342
V: 818.898.3380
F: 818.898.3360
sales@dnfcontrols.com
Model No. SW32PS-RCP
RS422 PORT SWITCHER
REMOTE CONTROL PANEL
User Manual
Rev 1.01
TABLE OF CONTENTS
REVISION HISTORY 2
GETTING STARTED . . . 3
1. DESCRIPTION 3
2. INSTALLATION 3
3. CONNECTION DIAGRAM 4
4. OPERATION 5
a. MAKE A ROUTE 5
b. VIEW THE ROUTES 5
c. DISCONNECT ROUTE 5
d. SAVE PRESET 5
e. RESTORE PRESET 5
f. SETUP GANG 6
g. DISCONNECT GANG 6
5. SELF-TEST PROCEDURE 7
a. KEYBOARD TEST 7
b. SYSTEM PORT TEST 7
REFERENCE . . . 9
6. SPECIFICATIONS 9
POWER CONNECTOR 9
RS422 SERIAL CONNECTOR 9
GPI CONNECTOR 10
7. FRONT PANEL LAYOUT 11
8. DNF CONTROLS LIMITED WARRANTY 13
Manual Version ......................................................1.01 090407
Document No: ........................... SW32PS-RCP_User_Manual.doc
SW32PS-RCP Port Switcher Controller Page
11 ooff 113
3
1. REVISION HISTORY
080505 1.0 Original document.
090407 1.01 Corrected ID Switch numbering.
Page 22 OOff 1133
SW32PS-RCP Port Switcher Controller
Getting Started . . .
2. DESCRIPTION
The control panel consists of the ST100 controller hardware and the special
software that allows controlling the SW32PS for the following functionality:
Make route, view routes, gang outputs to input, disconnect route, disconnect
gang, save preset, restore preset.
Easy to read LCD Display has 2 lines by 20 characters.
Shows source (From) and destination (To) routing and gang information.
6-function keypad provides:
From (Select Source)
To (Select Device)
View (View active router)
Take (Enable the selected route)
Gang (User control of multiple destinations)
Preset (Select Preset)
Ideal for: Television Stations, Video Productions, Cable TV, Video Post
Production, Duplication Houses
NOTE: Words enclosed in brackets, such as [TAKE] indicate buttons on the
SW32PS-RCP. Buttons shown with a “+” between them, for example
[SHIFT] + [TAKE], indicate two keys pressed simultaneously.
3. INSTALLATION
a. Plug one end of a 9-pin cable into the connector labeled “VTR” on the
back of the controller. Plug the other end into one of the connectors
on the port expander. Plug the port expander into the connector
labeled “RS422” on the back of the SW32PS port switcher.
b. Dip Switches Configuration for SW32PS-RCP.
Every SW32PS-RCP has to have a unique ID from 1 to 10. The ID
should match the External Device number set in the SW32PS.
For example, if you use only one SW32PS-RCP with the SW32PS, the
External Device should be set to 1 and the ID of the RCP should be 01.
(The ID can be seen on the second line of the display during the power
up of the RCP.)
If you use two SW32PS-RCPs with the SW32PS, the External Device
should be set to 2 and the ID of the RCPs should be 01 and 02. (The
IDs can be seen on the second line of the display during the power up
of the RCP.)
SW32PS-RCP Port Switcher Controller Page
33 ooff 113
3
Use the table below to set the switches for the desired ID:
SW6 SW5 SW4 SW3 SW2 SW1
ID: 01 Left Left Left Left Left Right
ID: 02 Left Left Left Left Right Left
ID: 03 Left Left Left Left Right Right
ID: 04 Left Left Left Right Left Left
ID: 05 Left Left Left Right Left Right
ID: 06 Left Left Left Right Right Left
ID: 07 Left Left Left Right Right Right
ID: 08 Left Left Right Left Left Left
ID: 09 Left Left Right Left Left Right
ID: 010 Left Left Right Left Right Left
c. Connect DB9F side of supplied power supply into the connector labeled
“Power”. Then connect the IEC to Edison cable to the power supply.
Connect the power cable to 90 VAC to 240 VAC source.
Caution:
Installation is complete.
Do Not Hot Plug the Power Supply DB9F connector!
4. CONNECTION DIAGRAM
Page 44 OOff 1133
TYPICAL CONNECTION DIAGRAM
SW32PS-RCP Port Switcher Controller
5. OPERATION
a. MAKE A ROUTE
1) Press [FROM]. The FROM indicator will turn on. The left side
2) Turn the Wheel until the desired FROM point is displayed.
3) Press [TO]. The TO indicator will turn on. The right side of the
4) Press [TAKE] to route the FROM input to the TO output.
NOTE:
NOTE: The Route that involves the selected FROM and/or TO will be
disconnected prior to making the new route.
b. VIEW THE ROUTES
1) Press [VIEW]. The VIEW indicator will turn on.
2) Turn the Wheel to scroll through all ports that are displayed on
of the display shows the currently selected FROM connector
(PORT1-32).
display shows the currently selected TO connector (PORT1-32).
Turn the Wheel until the desired TO point is displayed.
No Route is made until [TAKE] is pressed.
the first line of the display.
c. DISCONNECT ROUTE
1) Press [FROM].
2) Turn the Wheel until OFF is displayed.
3) Press [TO].
4) Turn the Wheel to find the destination that you wish to turn off.
5) Press [TAKE] to turn off the route.
d. SAVE PRESET
1) Press [SHIFT] + [PRESET]. The PRESET indicator will turn
on. The first line of the display will show “Save Preset 1”.
2) Turn the Wheel to select preset number 1-8.
3) Press [TAKE] to save current configuration into the selected
preset.
OR
Press [ESC] to exit without saving.
e. RESTORE PRESET
1) Press [PRESET]. The PRESET indicator will turn on.
The first line of the display will show “Restore P reset 1”.
2) Turn the Wheel to select preset number 1-8.
3) Press [TAKE] to restore selected preset.
OR
Press [ESC] to exit without restoring.
SW32PS-RCP Port Switcher Controller Page
55 ooff 113
3
f. SETUP GANG
1) Press [FROM]. The FROM indicator turns on. The left side of
the display shows the currently selected FROM connector
(PORT1-32).
2) Turn the Wheel to select the source port.
3) Press [TO]. The TO indicator turns on. The right side of the
display shows the currently selected TO connector (PORT1-32).
4) Press [GANG]. The GANG indicator turns on.
5) Turn the Wheel to select the destination port.
6) Press [TAKE] to route the selected input to the selected
destination. The second line of the display will show “PORT(X)
Added”.
7) Repeat steps 5-6 to add additional routes to GANG.
8) Press [ESC] when done. FROM, TO and GANG indicators turn
OFF.
NOTE: The GANG function will only work properly if the GANG is
Enabled on the SW32PS. It is the responsibility of the user to
set GANG to Enabled in the SW32PS Setup Menu. (See the
SW32PS Port Switcher User Manual for the instructions on how
to enable / disable gang.)
g. DISCONNECT GANG
1) Press [VIEW].
2) Turn the Wheel to find the GANG to be disconnected.
3) Press [GANG]. The display will prompt “Disconnect switches?”
4) Press [TAKE] to break all the routes that are part of gang.
OR
Press [ESC] to exit.
Page 66 OOff 1133
SW32PS-RCP Port Switcher Controller
6. SELF-TEST PROCEDURE
Press [TAKE] + [PRESET] + [SHIFT], in that order, to enter the test
mode.
Press [TAKE] + [PRESET] + [SHIFT] at anytime to exit self-test mode.
a. KEYBOARD TEST
Press keys to see the appropriate scan code on the display.
Turn the Wheel to see Wheel count on the display change: (F0-00-10).
b. SYSTEM PORT TEST
Plug an RS422 looping plug into RS422 connector on the back of the
SW32PS-RCP.
The display should say: “port- OK”.
Unplug the RS422 looping plug.
SW32PS-RCP Port Switcher Controller Page
77 ooff 113
3
Page 88 OOff 1133
SW32PS-RCP Port Switcher Controller
REFERENCE . . .
7. SPECIFICATIONS
SW32PS-RCP
Power Requirements 90 VAC to 265 VAC adapter supplied with IEC connector
Power Supply +5VDC, 3A
Size (L” x W” x H”) 19”X8.5”X1.75” (1RU)
Weight 4 lbs.
Rear Panel Connectors GPI (D26HDF)
RS422 (D9F)
Power (D9M)
Display 2 Line x 20 Character LCD display, back-lit.
Data Entry Wheel
POWER CONNECTOR
9-Pin D-Type, Male
Pin # 1 +5v DC 6 NC
2 NC 7 NC
3 Ground 8 NC
4 NC 9 NC
5 NC
RS422 SERIAL CONNECTOR
9-Pin D-Type, Female
Pin # 1 Frame Ground 6 Receive Common
2 Receive A Í 7 Receive B Í
3 Transmit B Î 8 Transmit A Î
4 Transmit Common 9 Frame Ground
5 Spare
SW32PS-RCP Port Switcher Controller Page
99 ooff 113
3
GPI CONNECTOR
26HD-Pin D-Type, Female (DB26HDF)
Pin # 1 Output #1, No Function
2 Output #2, No Function
3 Output #3, No Function
4 Output #4, No Function
5 Output #5, No Function
6 Output #6, No Function
7 Output #6, No Function
8 Output #8, No Function
9 Ground
10 Input #1, No Function
11 Input #2, No Function
12 Input #3, No Function
13 Input #3, No Function
14 Input #4, No Function
15 Input #5, No Function
16 Input #6, No Function
17 Input #7, No Function
18 Ground
19 + 5v
20 + 5v
21 No Connection
22 No Connection
23 No Connection
24 No Connection
25 No Connection
26 Ground
Page 1100 OOff 1133
SW32PS-RCP Port Switcher Controller

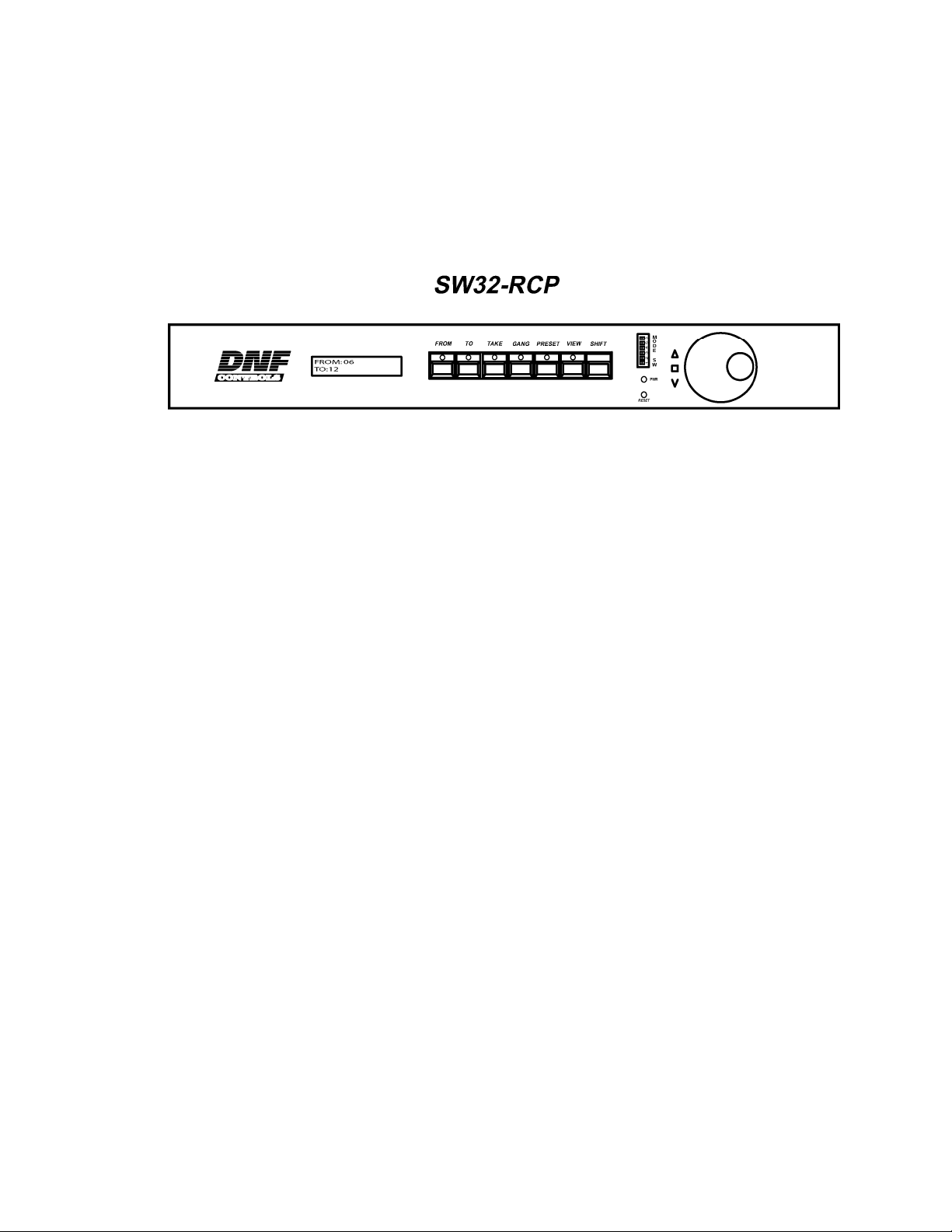

8. FRONT PANEL LAYOUT
Front Panel
SW32PS-RCP Port Switcher Controller Page
1111 ooff 113
3
Page 1122 OOff 1133
SW32PS-RCP Port Switcher Controller
9. DNF CONTROLS LIMITED WARRANTY
DNF Controls warrants its product to be free from defects in material and
workmanship for a period of one (1) year from the date of sale to the original
purchaser from DNF Controls.
In order to enforce the rights under this warranty, the customer must first contact
DNF’s Customer Support Department to afford the opportunity of identifying and
fixing the problem without sending the unit in for repair. If DNF’s Customer Support
Department cannot fix the problem, the customer will be issued a Returned
Merchandise Authorization number (RMA). The customer will then sh ip the defective
product prepaid to DNF Controls with the RMA number clearly indicated on the
customer’s shipping document. The merchandise is to be shipped to:
DNF Controls
12843 Foothill Blvd., Suite C
Sylmar, CA 91342
USA
Failure to obtain a proper RMA number prior to return ing the product may result in
the return not being accepted, or in a charge for the required repair.
DNF Controls, at its option, will repair or replace the defectiv e unit. DNF Controls will
return the unit prepaid to the customer. The method of shipment is at the discretion
of DNF Controls, principally UPS Ground for shipments within the United States of
America. Shipments to international customers will be sent via air. Should a
customer require the product to be returned in a more expeditious manner, the
return shipment will be billed to their freight account.
This warranty will be considered null and void if accident, misuse, abuse, improper
line voltage, fire, water, lightning or other acts of God damaged the product. All
repair parts are to be supplied by DNF Controls, either directly or through its
authorized dealer network. Similarly, any repair work not performed by either DNF
Controls or its authorized dealer may void the warranty.
After the warranty period has expired, DNF Controls offers repair services at prices
listed in the DNF Controls Price List. DNF Controls reserves t he right to refuse repair
of any unit outside the warranty period that is deemed non-repairable.
DNF Controls shall not be liable for direct, indirect, inciden tal, consequential or oth er
types of damage resulting from the use of the product.
# # #
SW32PS-RCP Port Switcher Controller Page
1133 ooff 113
3
