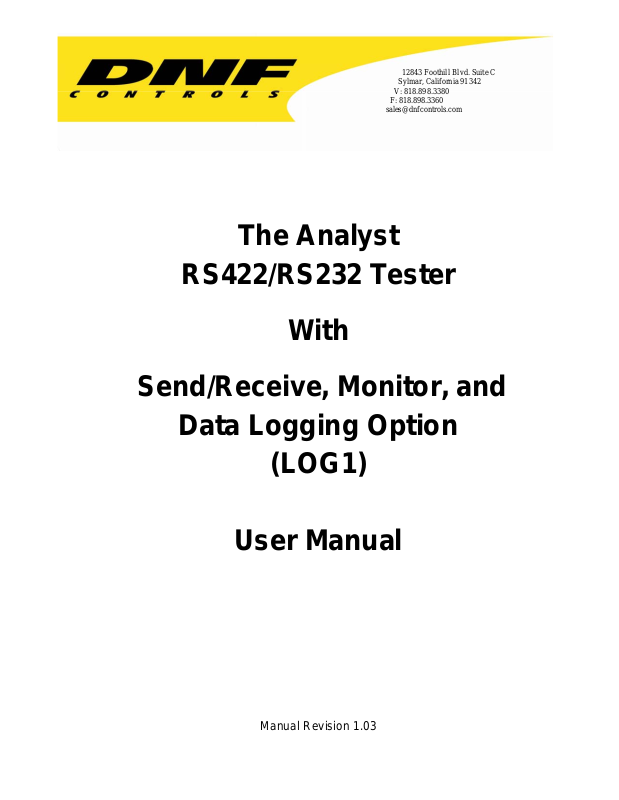

DNF Controls RS422, RS232 User Manual

12843 Foothill Blvd. Suite C
Sylmar, California 91342
V: 818.898.3380
F: 818.898.3360
[e-mail]

The Analyst

RS422/RS232 Tester

With

Send/Receive, Monitor, and

Data Logging Option

(LOG1)

User Manual

Manual Revision 1.03

Table of Contents

A. REVISION HISTORY ................................................................................ 2

B. INTRODUCTION....................................................................................... 3

C. GETTING STARTED . . ............................................................................ 4

D. ANALYST TEST MODES.........................................................................5

E. CABLE & SIGNAL PATH TESTING......................................................... 6

F. MONITOR SERIAL COMMUNICATION BETWEEN EQUIPMENT........ 10

G. DATA LOGGING .................................................................................... 18

H. REFERENCE.......................................................................................... 23

I. SPECIFICATIONS .................................................................................. 25

J. RS422/RS232 CONNECTOR PIN OUTS................................................ 26

K. DNF CONTROLS LIMITED WARRANTY............................................... 27

The Analyst RS422/RS232 Tester Page 1 of 27

A. Revision History

1.00 092806 Original Send Receive Option Manual

1.01 100206 Added reference section

1.02 100906 Update block diagrams

1.03 102506 Core4cted Reference Monitor diagrams

Page 2 of 27 The Analyst RS422/RS232 Tester

B. Introduction

Congratulations on purchasing The Analyst RS422/RS232 Tester.

Because Troubleshooting RS422 & RS232 Interfaces can be so Time Consuming
and Frustrating

Identifying and correcting RS422 and RS232 interface problems just got easier with the
data logging option for The Analyst RS422/RS232 Tester. Capture serial communication
into a non-volatile log file for review and analysis. Data can be captured in both
directions with a timestamp. With the Data Logging Option, Analyst users can upload log
files from the tester to a PC for later review and analysis.

The Data Logging Option makes it even easier to isolate and identify communication
problems by recording test results so that users can complete an entire round of tests,
then study the data whenever it is most convenient, as well as share it with others. The
SEARCH function makes it easy to search through a log file for a user entered data
pattern. Search both forwards and reverse through the log file.

Anyone working with RS232 and RS422 cabling and equipment understands how
difficult and time consuming it can be to track down the problem that is keeping a system
from working. The Analyst is an easy-to-use, intuitive troubleshooting tool that enables
experts and non-experts alike to rule out potential problems quickly and fix the real
problem rather than expending resources on time-consuming trial-and-error methods.

Quickly and easily isolate and identify RS422 and RS232 interface problems — whether
testing cable runs between floors or between buildings, verifying RS422/RS232 signal
paths, chasing down an RS422 to RS232 adapter problem, or troubleshooting
communication problems between equipment.

When to Consult the Analyst:

-Remote production setup: mobile production units, special events

-New studio builds, facility upgrades: new equipment, new cabling

-Maintaining existing facilities and systems

We would like to hear from you. Please let us know how you are using The Analyst and
how we can improve it. Our email address is [e-mail].

The Analyst RS422/RS232 Tester Page 3 of 27

C. Getting Started . . .

C1. Turn On The Analyst

1) Plug one end of the power supply into the “Power Input” connect on the
right side of the Analyst, next to the power switch.

2) Plug the other end of the power supply into a wall outlet.

3) Turn the power switch ON.

4) The MAIN screen will be displayed.

MAIN Screen

The Analyst RS422/RS232 Tester
Data Logging Option
Press key to select test mode

SEND RECV MON. Menu
Sw #1 Sw #2 Sw #3 Sw #4 Sw #5 Sw #6 Sw #7 Sw #8

Prior to using the Analyst, enter a unique 5-character ID using the “ID Set” function
from the Menu Mode. The Analyst’s ID is helpful when testing cables and signal
paths to confirm that both ends of the cable or signal path you are testing are indeed
connected together.

C2. Enter Analyst ID

a) From the MAIN screen, press the [Menu] key. The MENU screen will be

displayed.

MENU Screen

Software Rrev: V2.0 A050405 S050405
Press key to select mode:

In

RS42

2

Sw #1 Sw #2 Sw #3 Sw #4 Sw #5 Sw #6 Sw #7 Sw #8

b) Press the [ID Set] key. The ID entry screen will be displayed.

ID ENTRY Screen

Enter 5-character Analyst ID
Analyst ID: 12345

<<< >>> Next Exit

Sw #1 Sw #2 Sw #3 Sw #4 Sw #5 Sw #6 Sw #7 Sw #8

ID

Set Firmw Exit

Lcd

Adj

OUT

422

nd

c) The current Analyst ID will be displayed on the 2

line.

Page 4 of 27 The Analyst RS422/RS232 Tester

Select a character position using the [<<<] and [>>>] keys.
Use the knob to change the character at the selected position.

d) Press the [Next] key to save the new ID and exit to the MENU screen

OR,
Press the [Exit] key to exit without saving the new ID.

The Analyst is ready for use.

D. Analyst Test Modes

MAIN Screen

The Analyst RS422/RS232 Tester
Data Logging Option
Press key to select test mode:

SEND RECV MON. Menu
Sw #1 Sw #2 Sw #3 Sw #4 Sw #5 Sw #6 Sw #7 Sw #8

MAIN Screen

TEST MODES-

SEND Sender Mode is used for testing cables and signal paths.
RECV Receiver Mode is used in conjunction with SENDER mode for

testing cables and signal paths.

MON Monitor Mode is used for testing serial communication problems

between two pieces of equipment. Data Logging is accessed
through Monitor Mode.

MENU Menu Mode is used for setting up and configuring the Analyst.

Description

NOTE- ADAPTER mode and VTR mode are not available with Data Logging Option

The Analyst RS422/RS232 Tester Page 5 of 27

E. Cable & Signal Path Testing

(

A

Use SENDER and RECEIVER Modes for cable and signal path testing.

1) From the MAIN Screen, press the [Menu] key.

2) Press the [In] and [Out] keys to toggle between RS422 and RS232. Select either
RS422 or RS232 to match the cable or signal path being tested.

3) Press the [Exit] key to exit the MENU Screen.

4) Press the [SEND] key to select SENDER mode.

5) Connect The Analyst RS422/RS232 Tester as follows.

Using TWO Analysts:

RS422 Shown)

Analyst Tester in operator’s hands

Using ONE Analyst:

(RS232 Shown)

Cable or signal path being tested

Analyst Tester at far end of cable

or signal path

Cable or signal path being tested

nalyst Tester in operator’s hands

Page 6 of 27 The Analyst RS422/RS232 Tester
