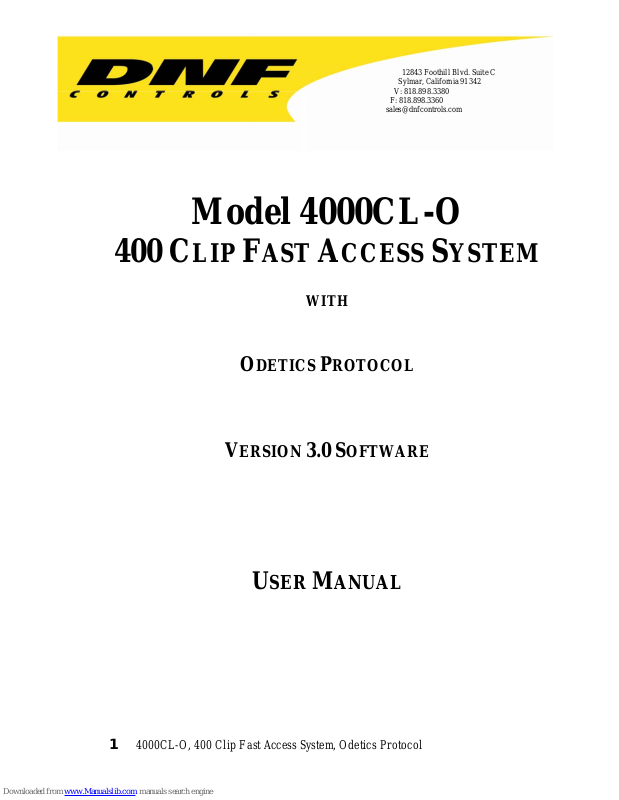

Model 4000CL-O
400 CLIP FAST ACCESS SYSTEM
WITH
ODETICS PROTOCOL
VERSION 3.0 SOFTWARE
USER MANUAL
1 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 2
Table of Contents
1. REVISION HISTORY 3
GETTING STARTED . . . 4
2. SYSTEM
3. SYSTEM
DESCRIPTION 4
INSTALLATION 5
ST300-S/SM, VTR/DDR CONTROLLER 5
4. VIDEO
5. LOAD
6. VIEW
7. LEARN
8. RECALL
9. RECUE
10. LOOP
ADVANCED FEATURES . . . 9
11. CREATE
12. CAPTURE
SERVER SETUP 6
A CLIP 6
THE CLIP ID OF THE CURRENTLY LOADED CLIP 6
A CLIP OR CLIP COMBINATION 7
A CLIP OR CLIP COMBINATION 7
THE CURRENTLY LOADED CLIP 7
CLIP 8
A CLIP 9
FUNCTION 9
a. SETTING THE IN (OUT) POINT 9
b. VIEW THE IN (OUT) POINT 10
c. CLEARING AN IN (OUT) POINT 10
d. ENTER PREROLL VALUE 10
e. EXECUTE CAPTURE FUNCTION 10
13. TRANSFER
CUE LIST 11
a. TRANSMIT CUE LIST FUNCTION 11
b. RECEIVE CUE LIST FUNCTION 12
REFERENCE . . . 13
14. SETUP
15. FUNCTION
MENU 13
TABLE 15
16. SPECIFICATIONS 16
17. KEY
18. DNF
LAYOUT 18
CONTROLS LIMITED WARRANTY 19
Manual Version...……………….............................. 2.8 080604
Document No.....………….…........ 4000CL-O User Manual.doc
2 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 3
1. REVISION HISTORY
100903 Rev. 2.6 Company header information revised.
112403 Rev. 2.7 Updated Transmit Cue List Function and Receive Cue List Function
description.
Added DNF Controls Limited Warranty.
080604 Rev. 2.8 Changed T-bar dimension.
3 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 4
Getting Started . . .
2. SYSTEM DESCRIPTION
The 4000CL-O system includes DNF’s most popular controller, the ST300, with Cliplist software.
The ST300 controls up to 4 video channels individually or ganged. It features full transport
functionality.
The 4000CL-O provides fast access to fill clip and key clip combinations with the press of one
key.
The 4000CL-O supports Odetics Broadcast protocol and requires that the Video Server be
controllable under Odetics Broadcast Protocol.
The 4000CL-O provides fast access to existing video clips stored in the Grass Valley Group
PROFILE, the Leitch VR, and other Video Servers supporting Odetics Broadcast Protocol.
DEFINITIONS:
Throughout this document, VTR, DDR, VDR & Video Server will be referred to collectively
as “Video Server.”
The ST300-S/SM is referred to as “ST300.”
Words surrounded by brackets, for example [ENTER], are keys on the ST300.
[XXX] + [XXX] means hold the two keys down simultaneously. XXX = Key name.
4 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 5
3. SYSTEM INSTALLATION
ST300-S/SM, VTR/DDR CONTROLLER
a. Plug one end of a 9-conductor, RS422 serial cable into the VTR 1 (2, 3 or 4) connector on the
rear of the ST300. Plug the other end of the cable into the REMOTE connector on the Video
Server.
b. Connect the supplied POWER SUPPLY, APX#4108, into the POWER connector on the rear
of the ST300. Plug the Power Supply into an outlet, 90 VAC – 240 VAC.
c. Check SETUP MENU prior to using the ST300 to confirm proper Record mode and other
User settable modes.
Installation is complete.
CONNECTION DIAGRAM
5 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 6
4. VIDEO SERVER SETUP
a. Select ODETICS Broadcast communications protocol on the VIDEO SERVER to be
controlled.
b. Assign a serial port on the VIDEO SERVER through which the ST300 will control the
server.
NOTES: The VIDEO SERVER may not support LTC or VITC time modes in ODETICS
Broadcast mode. The ST300 will default to Tape Time if a non-supported time mode is selected
on the ST300.
The Grass Valley Group PROFILE does not
(LTC or VITC) in ODETICS Protocol. Tape Time mode (TM) must be selected on the ST300.
In ODETICS Broadcast mode, the VIDEO SERVER may O
ASSEMBLE record modes may be disabled.
Setup is complete.
support search to a time location using Timecode
5. LOAD A CLIP
a. Select a VTR by pressing VTR [1], VTR [2], VTR [3], or VTR [4].
b. Press [CLIP LIST] to view the list of CLIP IDs that are resident on the Video Server.
The CLIP LIST indicator will turn on.
c. Tu rn the Wheel to view the existing CLIP IDs on the video server.
Turn the Wheel clockwise to scroll forward, or counter-clockwise to scroll backward,
through the list of available CLIPs. Backward scrolling is limited to the last 10 CLIP IDs
viewed.
OR
Manually enter a CLIP ID using the ST300 numeric keypad, or PC keyboard (if KBIO
option).
d. Press [LOAD] to load the selected CLIP ID for playout.
e. Repeat steps a. thru d. to load clips on desired VTRs.
f. Set the GANG mode, if required.
NLY allow Full Record. INSERT and
6. VIEW THE CLIP ID OF THE CURRENTLY LOADED
CLIP
Press [SHIFT] + [LOAD]. The bottom line will show the name of the loaded clip.
6 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 7
7. LEARN A CLIP OR CLIP COMBINATION
a. Load a clip on the desired VTRs (See Section 4, “LOAD A CLIP”).
b. Select the desired Cue Point by pressing [NEXT CUE], [LAST CUE] or by manually
entering the Cue Point using the numeric keypad. The selected Cue Point number is shown
on the bottom line of the display.
c. Press [SHIFT] + [MARK] to start the LEARN. The first line of the display will show
“Select VTRs:” The second line of the display will show “Mark-Lrn, ESC-cancel.”
d. Press VTR [1], [2], [3] or [4] to select the VTR to be learned into the current Cue Point. If the
VTRs are ganged, select one VTR that is part of the Gang. The rest of the Gang will be
learned automatically.
e. Press [MARK] to complete the LEARN.
OR
Press [ESC] to exit without LEARNING.
The ST300 will: LEARN (save) the VTR Number (1,2,3,4), loaded CLIP ID and current IN
time to the selected Cue Point.
8. RECALL A CLIP OR CLIP COMBINATION
a. Select the desired Cue Point by pressing [NEXT CUE], [LAST CUE] or by manually
entering the Cue Point using the numeric keypad.
The selected Cue Point number is shown on the bottom line of the display.
b. Press [LOAD] on the ST300.
The ST300 will automatically load the Learned clips on the Learned VTRs, cue the clips to
the Learned time, then set the Learned GANG mode.
9. RECUE THE CURRENTLY LOADED CLIP
Press [RECUE]. If an IN Point is marked (the IN indicator is on), the clip will RECUE to the IN
Point.
If the IN point is not marked, the clip will RECUE to the start of the clip.
OR
Press [SHIFT] + [RECUE].
a. Enter the desired time to search to using the ST300’s numeric keypad.
b. Press [ENTER] to search to the entered time.
OR
Press [ESC] to exit without searching.
7 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 8
10. LOOP CLIP
a. LOAD a clip from CLIPLIST or RECALL a learned clip.
b. Press [LOOP ENABLE]. The LOOP ENABLE indicator will turn on.
Press [PLAY] to loop a loaded clip. The second line of the display will show “Looping clip .
. .”
OR
Press [SHIFT] + [PLAY]. The clip will be reloaded and start playing in a Loop.
c. Press [STOP] to stop the loop play. NOTE: The ST300 will NOT
while a clip is looping. Only [STOP] is recognized in this mode.
NOTES: The LOOP function can be performed on a SINGLE CHANNEL ONLY. Loop will
automatically be disabled if the Channel becomes part of a gang.
If the clip ID ends with an asterisk (“*”), it will automatically loop when either [LOOP
ENABLE] or [PLAY] is pressed.
respond to any other keys
8 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 9
Advanced Features . . .
11. CREATE A CLIP
a. Press [CLIP LIST]. The CLIP LIST indicator turns on. The display will show “CREATE
NEW CLIP.”
b. Press [LOAD]. The display will show the default CLIP ID.
c. Press [LOAD] to accept the default CLIP ID.
OR
Use [NEXT CUE], [LAST CUE] and Wheel to create a CLIP ID. Use the [NEXT CUE] and
[LAST CUE] keys to position the cursor. Turn the Wheel to select the desired letter.
OR
Create an ID using the numeric keypad, with a maximum of eight characters. Press
[ENTER].
d. Press [LOAD] to create the selected CLIP ID. If the selected CLIP ID already exists, a
warning message will be displayed. To load the existing clip, press [ENTER]. Press [ESC]
to exit without loading the existing clip.
12. CAPTURE FUNCTION
The CAPTURE function allows source material from a VTR to be easily and quickly recorded
into the VIDEO SERVER. A CLIP ID is also created.
VTR1 is always the Recorder (the VIDEO SERVER).
Select VTR [2], VTR [3] or VTR [4] as the source VTR. Any RS422 , SONY protocol compatible
VTR can be used.
Use the transport function keys to control the source VTR. Each source VTR has its own set of IN
and OUT points.
a. SETTING THE IN (OUT) POINT
1) Locate the clip to the desired IN (OUT) time.
2) Press [IN] ([OUT]) to set the IN (OUT) Point. The IN (OUT) indicator will
turn on. The display will show “IN (OUT) xx:xx:xx:xx.”
OR
Press [SHIFT] + [IN] ([OUT]) to manually enter a new IN (OUT) time.
3) Press [ENTER] to save the entered time or press [ESC] to exit without saving.
9 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 10
b. VIEW THE IN (OUT) POINT
1) When the IN (OUT) indicator is on, Press [IN] ([OUT]) to view the existing IN
(OUT) Point.
2) While viewing the IN (OUT) Point:
Press [MARK] to overwrite the saved time with the current time.
Press [RECUE] to search to the IN (OUT) point.
c. CLEARING AN IN (OUT) POINT
Press and hold [DEL] then press and release [IN] ([OUT]). The IN (OUT) indicator
turns off.
d. ENTER PREROLL VALUE
1) Press [MENU] and turn the Wheel to “Enter PREROLL:”
2) Enter the desired preroll value using the ST300’s num eri c keypa d.
3) Press [ENTER] to save the entered value OR [ESC] to exit without saving.
e. EXECUTE CAPTURE FUNCTION
1) Press VTR[2], VTR[3], or VTR [4] to select the source VTR.
2) Press [SHIFT] + [RECORD]. The display will prompt you for a CLIP ID. A
default CLIP ID will be shown.
3) Press [LOAD] to accept the default CLIP ID
OR
Use [NEXT CUE], [LAST CUE] and Wheel to edit the CLIP ID. Use the
[NEXT CUE] and [LAST CUE] keys to position the cursor. Turn the Wheel to
select the desired letter.
OR
Manually enter a numeric ID using the numeric key pad.
Press [LOAD] to accept the CLIP ID. The ST300 will create the new CLIP ID
on the Video Server.
The Source VTR will preroll to the IN Point, then play. At the source VTR’s IN
point, the RECORDER will go into record.
At the Source VTR’s OUT point, the RECORDER will terminate record, postroll for 2 seconds, then stop.
The Source VTR will search to the OUT point and stop. The OUT point will be
cleared. The IN indicator will stay on. The OUT indicator will turn off.
10 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 11
13. TRANSFER CUE LIST
a. TRANSMIT CUE LIST FUNCTION
The TRANSMIT CUE LIST function allows you to transmit your list of Cue Points to a
PC, using the provided utility software on the PC, or to another ST300. Transfer to a PC
requires OpSuite 3.0 software, which runs on a Windows-based computer. Contact DNF
Controls for more information.
1) To Transmit Cue Points to Another ST300:
a) Connect the VTR4 connector on the rear of the ST300 to the VTR4
connector of the receiving ST300 using an RS422 9-pin cable with TX
and RX lines crossed. (A “turnaround” cable.)
b) Press [MENU].
c) Scroll the Wheel until “Transmit CUE list? YES=Enter, Exit=ESC” is
displayed.
d) Press [ENTER] to start transmitting. The Display shows “Waiting to
transmit” on the first line.
e) When the Receiver is ready, transfer starts automatically. The Display
now shows “Transmitting cuelist.”
f) After the transfer is over, the display shows “Transfer is over” for one
second and then shows “Waiting to transmit” again.
g) Connect another ST300 to transmit the list again.
OR
Press [ESC] twice to exit the MENU mode.
2) To Transmit Cue Points to a PC:
a) Connect the VTR4 connector on the back of the ST300 to one of the
COM ports on the PC using a RS422 to RS232 adapter.
b) Repeat steps a) thru g) of “To Transmit Cue Points to Another
ST300,” Section 11.a.1).
11 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 12
b. RECEIVE CUE LIST FUNCTION
The RECEIVE CUELIST function allows you to receive a list of Cue Points from a PC
or from another ST300. Transfer to a PC requires OpSuite 3.0 software, which runs on a
Windows-based computer. Contact DNF Controls for more information.
1) To Receive Cue Points From Another ST300
2) To Receive Cue Points From the PC
a) Connect the VTR4 connector on the back of the ST300 from the VTR4
connector of the transmitting ST300 using RS422 9-pin cable with TX
and RX lines crossed.
(A’Turnaround” Cable)
b) Press [MENU].
c) Scroll the Wheel until “Receive CUE List? YES=Enter, Exit=ESC” is
displayed.
d) Press [ENTER] to start receiving.
The Display shows “Waiting to receive” on the first line.
e) Wh en the Transmitter is ready, transfer starts automatically.
The Display now shows “Receiving cuelist.”
f) After the transfer is over the display shows “Done-Success! Press any
key…”
g) Press any key. The display shows “Receive cuelist?” message.
h) Press [ESC] to exit the MENU mode.
a) Connect the VTR4 connector on the back of the ST300 to one of the
COM ports on the PC using RS422 to RS232 adapter.
b) Repeat steps a) – h) of “To Receive Cue Points From Another
ST300,” Section 6.b.1).
12 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 13
Reference . . .
14. SETUP MENU
MENU MODES
RECORD
WIND
MODE
SLOMO
Press [MENU]. The MENU indicator will turn on.
Turn the Wheel to select item to change.
Press [MENU] OR use the Softkeys to change the desired mode for that option.
Turn the Wheel at anytime to select another item.
Press [ESC] at anytime to exit SETUP MENU. The MENU indicator will turn off.
(Turning Wheel Clockwise)
Press Softkey to select the desired record mode:
Assemble, Insert, Lockout or Crash (Full).
Press Softkey to select:
HOLD (fast wind is maintained only while key is depressed).
OR
LATCH (fast wind is initiated and maintained with momentary key press).
Select fast wind speed (03.9X, etc.) by pressing Softkey.
ST300 display shows
(Non T-Bar version):
ST300 display shows
((TT--BBaarr vveerrssiioonn))::
Press Softkey [TBAR] (or [WHEEL]) to toggle between T-BAR and WHEEL.
NOTE - The T-BAR has a fixed speed range of 0Æ+200 with a detent at +100% play speed.
For Wheel only
Press Softkey [SPDRANGE] to select SLOMO speed ranges:
Press Softkey to select 0 Æ +200 OR –100 Æ +200.
Press Softkey [BACK] to return to SLOMO MENU.
Press [ESC] to exit SETUP MENU
OR turn the Wheel to select another item.
(Continued on next page.)
:
SLOMO with: WHEEL
SpdRange Preset
SLOMO with: TBAR
Wheel SpdRange Preset
13 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 14
ST300
SETUP
DISPLAY
SOFTWARE
VERSION
SYNC
RECORD
RECALL MODE
ENTER PREROLL
RECORD
DELAY
TRANSMIT
CUELIST
RECEIVE
CUELIST
For Wheel only
:
Press Softkey [PRSET] to select the SLOMO Preset Speed Mode.
Press Softkey [UPDATE].
When exiting SLOMO mode, the last used speed is saved in the Preset Speed register.
OR
Press Softkey [STATIC].
The Preset Speed register is NOT updated when exiting SLOMO mode.
It is only changed by [SHIFT] + [SLOMO] (PRESET SLOMO).
ST300 SETUP
Clear Cues SetDefault
Press Softkey beneath ClearCues to clear all Cue Points to 00:00:00:00.
Press Softkey [YES] when asked “Are You Sure?”
Press Softkey beneath SetDefault to set ST300 to default settings.
Press Softkey [YES] when asked “Are You Sure?”
IMPORTANT NOTE: Please set these items during initial installation.
The version number and date for the currently installed software is displayed. For example:
4000CL-O V3.0
072400
Set to ON if black burst is supplied to the Ref Video connector on the rear panel. Set to OFF if no
blackburst is supplied.
Press Softkey to select single button or 2-button recor d.
RECORD = [REC] Only.
OR
[REC] + [PLAY].
Press [NORMAL] or [REDIR] (redirect).
NORMAL –
The cue point will load on the learned VTR.
REDIRWhen one and only one clip is learned into a Cue Point, the Clip will be REDIRECTED to load on
the currently selected VTR.
Enter the desired preroll value using the ST300’s num eri c keypa d.
Turn wheel to save the entered value OR press [ESC] to exit without saving.
Enter up to 99 frames record delay (used in Capture Function).
Typical value is 3 frames.
Transmit Cuelist to another ST300 or to a PC.
See Section 12, “Transfer Cue List.”
Receive Cuelist from another ST300 or a PC.
See Section 12, “Transfer Cue List.”
14 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 15
15. FUNCTION TABLE
FUNCTION
KEY PRESS DESCRIPTION
GOTO
ENTERED
TIME
GANG [SHIFT]+[VTR #1]
FFWD
JOG [JOG] Select JOG mode and enable Wheel.
LAST CUE [LAST CUE] Step to the previous Cue Point Location.
LOOP [SHIFT] + [PLAY] Play the currently loaded clip in a continuous loop.
NEXT CUE [NEXT CUE] Step to the next Cue Point Location.
[SHIFT] + [RECUE] Search the VTR to the manually entered time.
Use the ST300 numeric keypad.
To manually enter the desired time press [ENTER] or [RECUE].
NOTE: G
time search.
Individually press the VTR keys to be included in the gang; the LED
OR
[SHIFT]+[VTR #2]
OR
[SHIFT]+[VTR #3]
OR
[SHIFT]+[VTR #4]
[FFWD] Press and HOLD to FFWD. Release key to stop. Set WIND Speed in
above the key will turn on. Press the VTR key again to remove from
gang; the LED above the key will turn off. Press [ESC] to exit.
The VTR LEDs that are on show the gang.
The flashing LED shows which VTR is currently selected.
MENU.
RASS VALLEY GROUP Profile does not support TC or VITC
RECORD [REC] Places VTR into the Record mode selected by RECORD MODE in the
SETUP MENU. Press [RECORD] or [RECORD] + [PLAY].
REWIND [RWD] Press and HOLD to REWIND. Release key to stop. Set WIND Speed
in MENU.
SHUTTLE [SHUTTLE] Select SHUTTLE mode and enable Wheel.
SLOMO [SLOMO] Press [SLOMO] to slo-mo the VTR. Turn the Wheel (or move the T-
Bar, if availale) to change the play speed.
Press [SLOMO] to STILL frame
OR press any transport key to exit SLOMO.
SLO-MO
SPEED
PRESET
STOP [STOP] Press once to STILL frame VTR.
TIME MODE
SELECT
[SHIFT] + [SLOMO] For WHEEL ONLY: Press [SHIFT] + [SLOMO] to preset the slo-mo
speed. Turn the Wheel to select desired speed.
Press [ESC] or any transport key to exit.
Press again to put VTR into STOP mode.
[TIME MODE] Press to toggle between Timecode (TC), VITC (VT) or Tape Timer
(TM) display modes.
15 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 16
16. SPECIFICATIONS
ST300
Power: 90 VAC t o 265 VAC a da pt e r s up pl i ed wi t h I EC connector
Size: (L” x W” x H”) 12” x 6” x 1.5” (front) 3.0” (rear)
(T-Bar unit is 12.6” long)
Weight: 4 lbs.
Rear Panel Connectors: VTR1, VTR2, VTR3, VTR4 (All DB9F)
GPI (DBF15F)
Power (DB9M)
Aux (DB9F)
Reference Video (BNC)
Display: Easy to read 2-line, back-lit LCD display
(User adjustable contrast)
Jog/Shuttle Wheel: With mechanical detents.
Optional “T”-bar: Slo-mo 0-200% of Play Speed
VTR RS422 SERIAL CONNECTOR
9-Pin D-Type, Female
Pin # 1 Frame Ground 6 Receive Common
2 Receive A Í 7 Receive B Í
3 Transmit B Î 8 Transmit A Î
4 Transmit Common 9 Frame Ground
5 Spare
POWER CONNECTOR
9-Pin D-Type, Male
Pin # 1 +5v DC 6 +5 VDC
2 +5v DC 7 Ground
3 Ground 8 Ground
4 +12 VDC 9 Ground
5 –12 VDC
AUX PORT RS422 SERIAL CONNECTOR
9-Pin D-Type, Female
Pin # 1 Frame Ground 6 Receive Common
2 Receive A Í 7 Receive B Í
3 Transmit B Î 8 Transmit A Î
4 Receive Common 9 Frame Ground
5 Spare
16 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 17
GPI IN/OUT CONNECTOR
15-Pin D-Type, Female (DB15F)
Pin # Description Function Pin # Description Function
1 GPI 1 Out 9 GPI 1 In Play
2 GPI 2 Out 10 GPI 2 In Stop
3 GPI 3 Out 11 GPI 3 In Recue
4 GPI 4 Out 12 GPI 4 In Next Cue
5 GPI 5 Out 13 GPI 5 In Last Cue
6 GPI 6 Out 14 GPI 6 In Recall
7 GPI 7 Out 15 GPI 7 In
8 Ground
17 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 18
17. KEY LAYOUT
18 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Page 19
18. DNF CONTROLS LIMITED WARRANTY
DNF Controls warrants its product to be free from defects in material and workmanship for a period of one
(1) year from the date of sale to the original purchaser from DNF Controls.
In order to enforce the rights under this warranty, the customer must first contact DNF’s Customer Support
Department to afford the opportunity of identifying and fixing the pr oblem without sending the unit in for
repair. If DNF’s Customer Support Department cannot fix the problem, the customer will be issued a
Returned Merchandise Authorization number (RMA). The customer will then ship the defective product
prepaid to DNF Controls with the RMA number clearly indicated on the customer’s shipping document.
The merchandise is to be shipped to:
DNF Controls
12843 Foothill Blvd., Suite C
Sylmar, CA 91342
USA
Failure to obtain a proper RMA number prior to returning the product may result in the return not being
accepted, or in a charge for the required repair.
DNF Controls, at its option, will repair or replace the defective unit. DNF Controls will return the unit
prepaid to the customer. The method of shipment is at the discretion of DNF Controls, principally UPS
Ground for shipments within the United States of America. Shipments to international customers will be
sent via air. Should a customer require the product to be returned in a more expeditious manner, the return
shipment will be billed to their freight account.
This warranty will be considered null and void if accident, misuse, abuse, improper line voltage, fire, water,
lightning or other acts of God damaged the product. All repair parts are to be supplied by DNF Controls,
either directly or through its authorized dealer network. Similarly, any repair work not performed by either
DNF Controls or its authorized dealer may void the warranty.
After the warranty period has expired, DNF Controls offers repair services at prices listed in the DNF
Controls Price List. DNF Controls reserves the right to refuse repair of any unit outside the warranty
period that is deemed non-repairable.
DNF Controls shall not be liable for direct, indirect, incidental, consequential or other types of damage
resulting from the use of the product.
# # #
19 4000CL-O, 400 Clip Fast Access System, Odetics Protocol
Loading...
