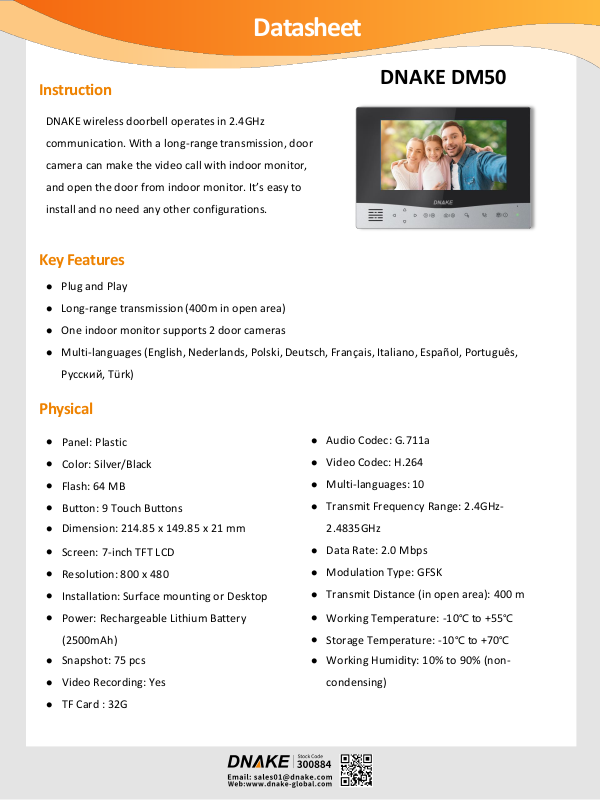

Datasheet
Key Features
Instruction
Physical
DNAKE DM50
DNAKE wireless doorbell operates in 2.4GHz
communication. With a long-range transmission, door
camera can make the video call with indoor monitor,
and open the door from indoor monitor. It’s easy to
install and no need any other configurations.
⚫ Plug and Play
⚫ Long-range transmission (400m in open area)
⚫ One indoor monitor supports 2 door cameras
⚫ Multi-languages (English, Nederlands, Polski, Deutsch, Français, Italiano, Español, Português,
Русский, Türk)
⚫
Panel: Plastic
⚫
Color: Silver/Black
⚫
Flash: 64 MB
⚫
Button: 9 Touch Buttons
⚫ Dimension: 214.85 x 149.85 x 21 mm
⚫
Screen: 7-inch TFT LCD
⚫
Resolution: 800 x 480
⚫
Installation: Surface mounting or Desktop
⚫
Power: Rechargeable Lithium Battery
(2500mAh)
⚫ Snapshot: 75 pcs
⚫ Video Recording: Yes
⚫ TF Card : 32G
⚫ Audio Codec: G.711a
⚫ Video Codec: H.264
⚫ Multi-languages: 10
⚫ Transmit Frequency Range: 2.4GHz-
2.4835GHz
⚫ Data Rate: 2.0 Mbps
⚫ Modulation Type: GFSK
⚫ Transmit Distance (in open area): 400 m
⚫
Working Temperature: -10℃ to +55℃
⚫
Storage Temperature: -10℃ to +70℃
⚫ Working Humidity: 10% to 90% (non-
condensing)
