Datasheet
Key Features
Instruction
Physical

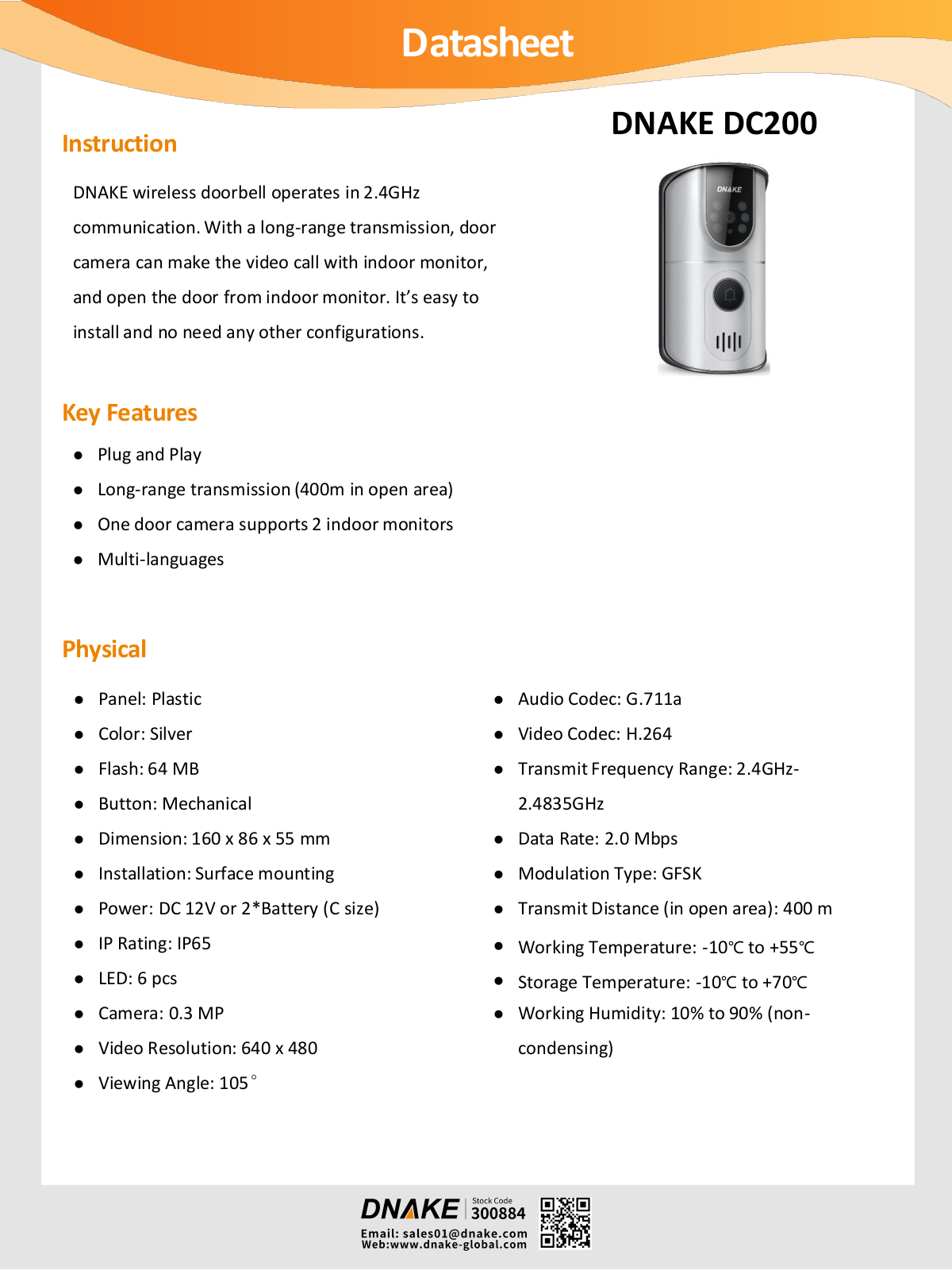

DNAKE DC200
DNAKE wireless doorbell operates in 2.4GHz
communication. With a long-range transmission, door
camera can make the video call with indoor monitor,
and open the door from indoor monitor. It’s easy to
install and no need any other configurations.
⚫ Plug and Play
⚫ Long-range transmission (400m in open area)
⚫ One door camera supports 2 indoor monitors
⚫ Multi-languages
⚫ Panel: Plastic
⚫ Color: Silver
⚫ Flash: 64 MB
⚫ Button: Mechanical
⚫ Dimension: 160 x 86 x 55 mm
⚫ Installation: Surface mounting
⚫ Power: DC 12V or 2*Battery (C size)
⚫ IP Rating: IP65
⚫ LED: 6 pcs
⚫ Camera: 0.3 MP
⚫ Video Resolution: 640 x 480
⚫ Viewing Angle: 105°
⚫ Audio Codec: G.711a
⚫ Video Codec: H.264
⚫ Transmit Frequency Range: 2.4GHz-
2.4835GHz
⚫ Data Rate: 2.0 Mbps
⚫ Modulation Type: GFSK
⚫ Transmit Distance (in open area): 400 m
⚫
Working Temperature: -10℃ to +55℃
⚫
Storage Temperature: -10℃ to +70℃
⚫ Working Humidity: 10% to 90% (non-
condensing)
